How We Turn Foam Into Stone

How We Turn Foam Into Stone

One of the most common questions visitors ask inside a scenic workshop is:

“Is that real stone?”

The answer is almost always no.

Many of the stone walls, rock formations, architectural features and carved details used within themed environments, cultural installations, exhibitions and public-facing structures begin life as lightweight blocks of foam.

The reason is practical.

Real stone is heavy. It is difficult to shape, expensive to transport and often unsuitable for temporary structures that need to be installed quickly, supported by limited foundations or dismantled after use.

Foam offers a very different set of possibilities.

It can be digitally machined, carved by hand, reinforced where necessary and finished using specialist coating and scenic painting systems. The result can resemble natural stone closely while remaining significantly lighter, easier to transport and more adaptable during fabrication and installation.

The objective is not simply to make foam look like stone.

It is to create a scenic material that performs like stone visually while behaving like a lightweight, transportable fabrication system.

Why Scenic Fabricators Use Foam

Natural stone has visual weight, texture and permanence, but its physical properties can make it impractical for temporary environments.

Large stone elements require substantial supporting structures, specialist lifting equipment and carefully engineered foundations. They are also difficult to modify once fabrication has begun.

Scenic foam allows fabrication teams to produce similar volumes without introducing the same level of mass.

A large rock formation can be divided into transportable modules. A stone-effect wall can be built around an engineered timber or steel framework. Carved architectural details can be manufactured separately and fitted to a larger scenic structure.

This flexibility is particularly valuable within temporary architecture, where every element must be considered in relation to workshop production, vehicle capacity, venue access and installation time.

Foam is not selected because it is a shortcut. It is selected because it allows complex forms to be created using a controlled and efficient manufacturing process.

Developing the Form

The process usually begins with concept artwork, architectural references, technical drawings or a three-dimensional digital model.

For natural rock formations, the design may be intentionally irregular. For heritage environments, the structure may need to reproduce specific masonry proportions, carved details or historic architectural features.

The design team must determine how the visible form will be constructed and where the foam will be supported.

Large features are rarely produced as one solid piece. They are usually divided into sections according to the available foam block sizes, CNC machining capacity, transport restrictions and final assembly sequence.

Digital models can be used to define the overall geometry and establish accurate relationships between adjoining sections. They also allow fabricators to review the depth of the surface, identify vulnerable projections and plan how individual modules will connect.

The digital form must account for the full fabrication build-up. Structural framing, adhesives, coatings and surface textures all contribute to the final dimensions.

Once the model has been resolved, the foam can be prepared for CNC cutting or manual sculpting.

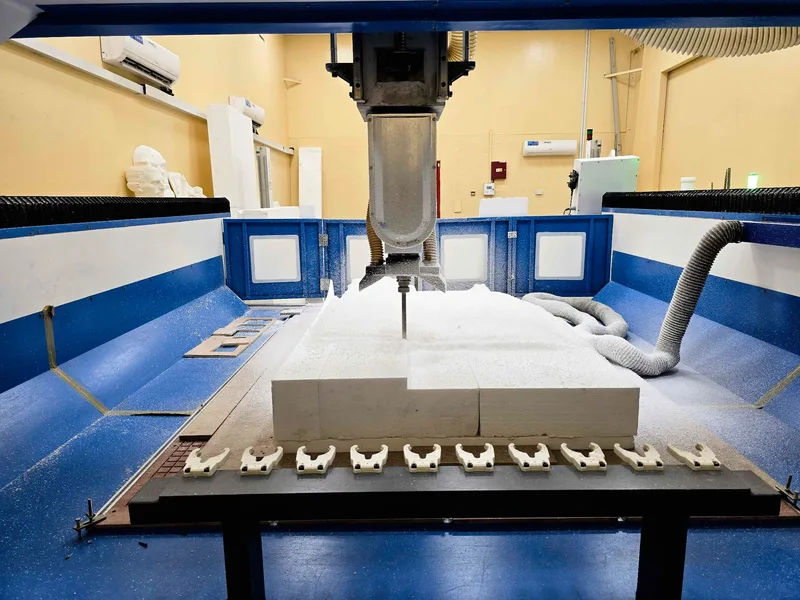

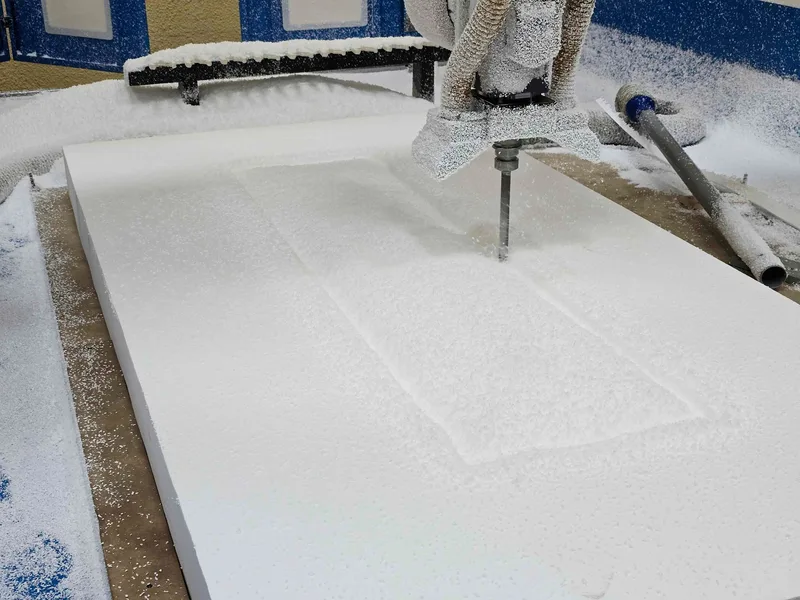

CNC Foam Cutting

CNC machining is particularly effective for producing large scenic forms with controlled geometry.

Digital models are converted into toolpaths that guide the cutting equipment across the foam. Depending on the shape required, the material may be machined using a CNC router, hot-wire system or a combination of different processes.

CNC routing can produce complex three-dimensional surfaces, carved reliefs and detailed architectural features. Hot-wire cutting is often used for large profiles, repeated shapes and geometric sections.

For stone-effect environments, CNC equipment can establish the main form efficiently. It may define the shape of large rocks, masonry courses, arches, columns or carved panels before the surfaces are refined by hand.

Machining also improves repeatability. Where several similar stone elements are required, digital information allows the main geometry to be reproduced consistently.

However, natural stone rarely appears perfectly regular. A surface that remains exactly as it leaves the machine can feel too clean or mechanical.

CNC cutting therefore provides the foundation rather than the final result.

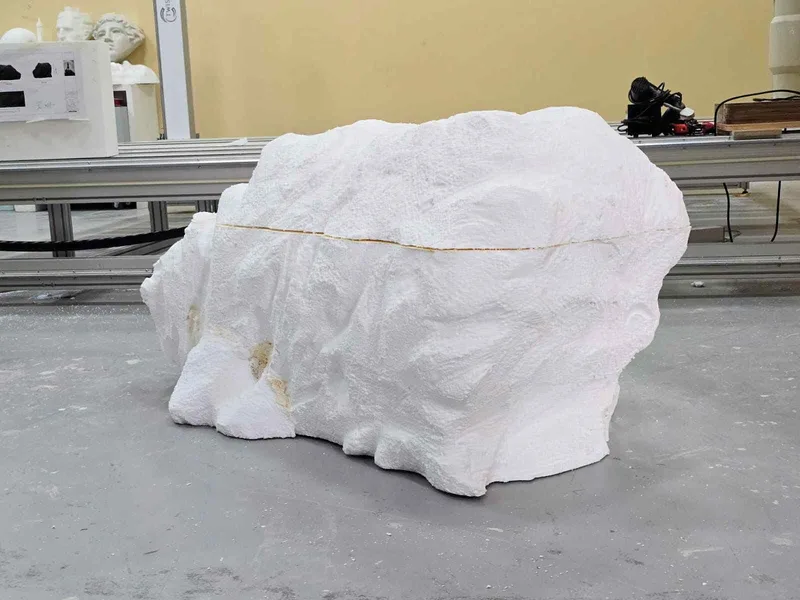

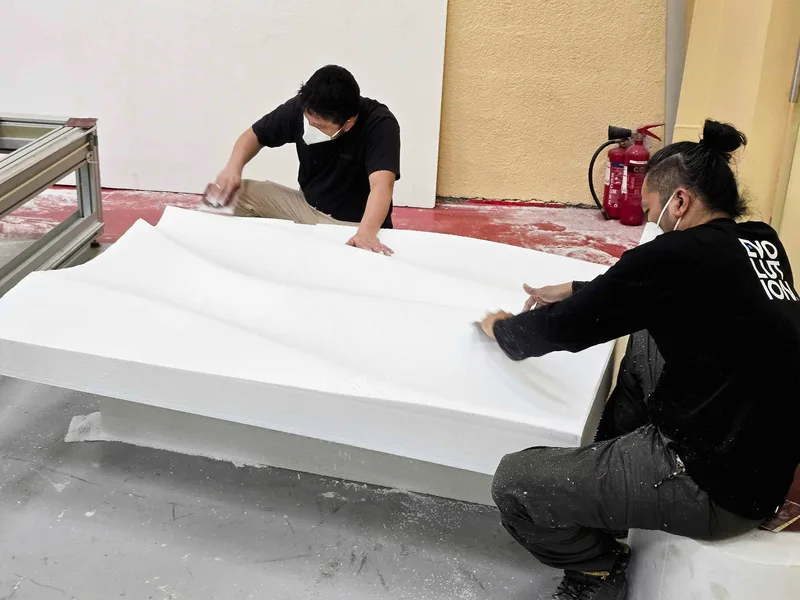

Shaping the Surface by Hand

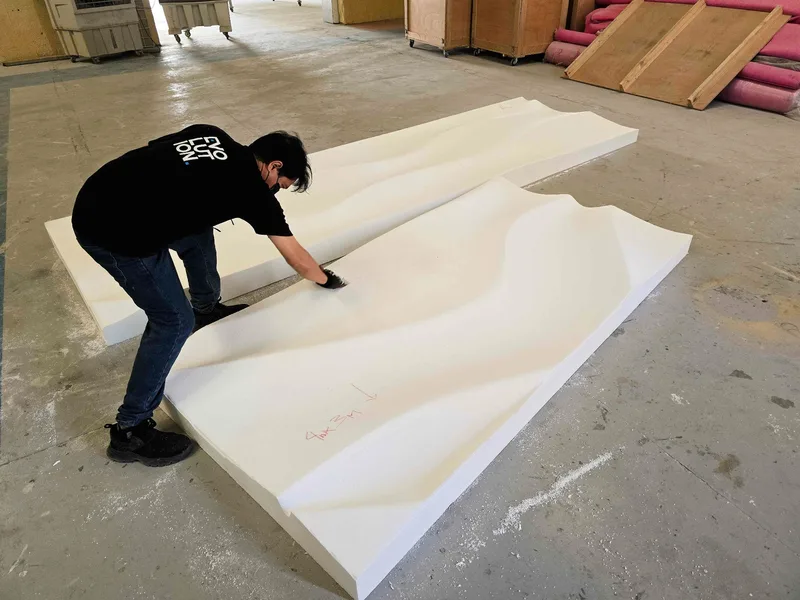

After machining, scenic sculptors begin refining the material manually.

This stage gives the foam much of its character.

Carving tools, rasps, hot knives, saws and abrasive techniques can be used to remove machine marks, soften transitions and introduce more irregular surface movement.

The sculptor must understand how different forms of stone break, erode and weather.

Sandstone may have layered striations and softened edges. Granite often requires heavier fractured surfaces. Limestone can include small pits, worn corners and sedimentary variation. Manufactured masonry may need more regular joints while still showing age and surface damage.

These details must be controlled carefully.

Too little texture can make the surface appear artificial. Too much texture can become visually distracting or appear theatrical rather than convincing.

The scale of the texture must also match the scale of the installation. Small tool marks that look effective at arm’s length may disappear completely when viewed from across a large public space.

Experienced scenic sculptors therefore work with both close-up detail and overall visual impact in mind.

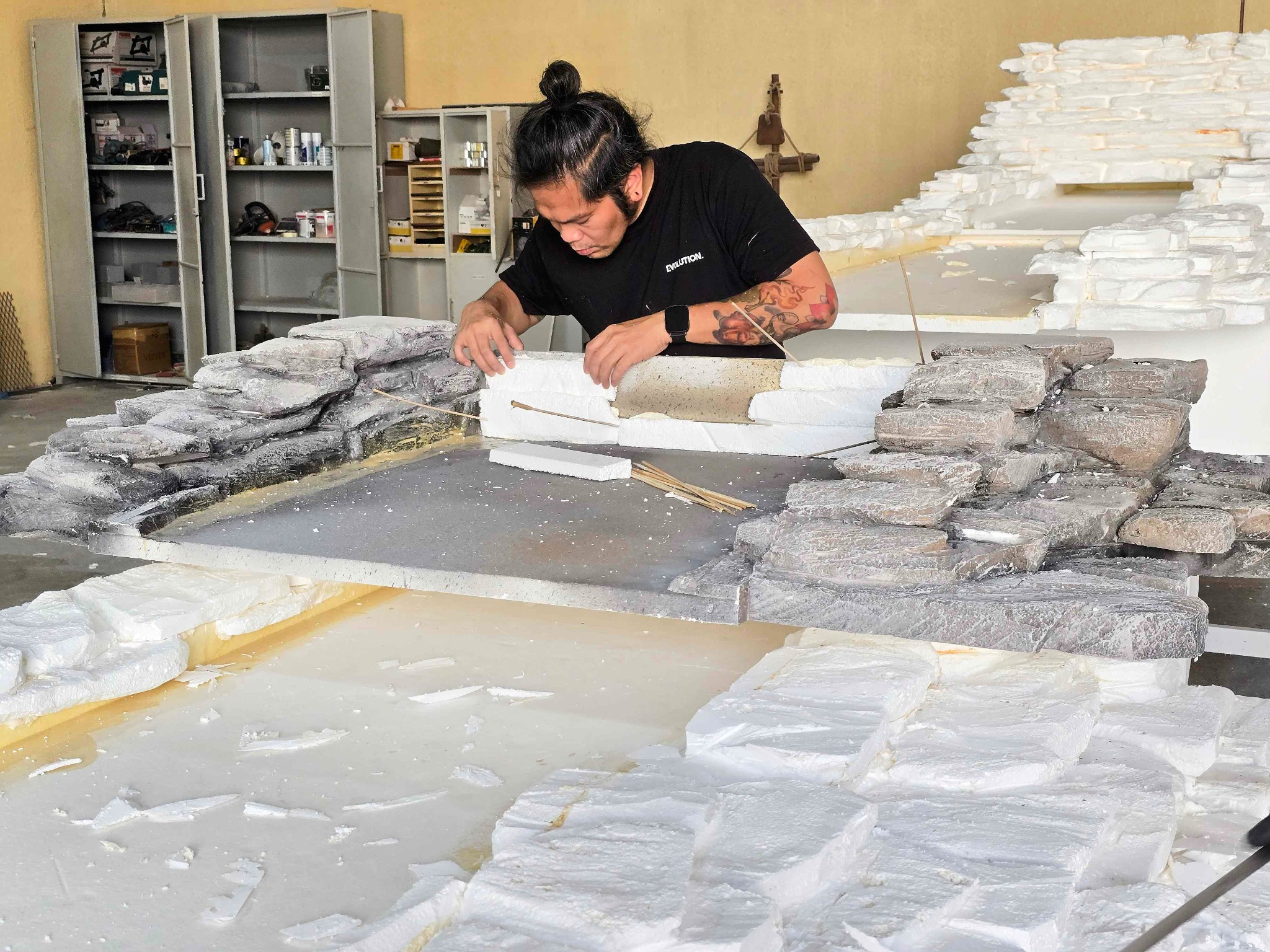

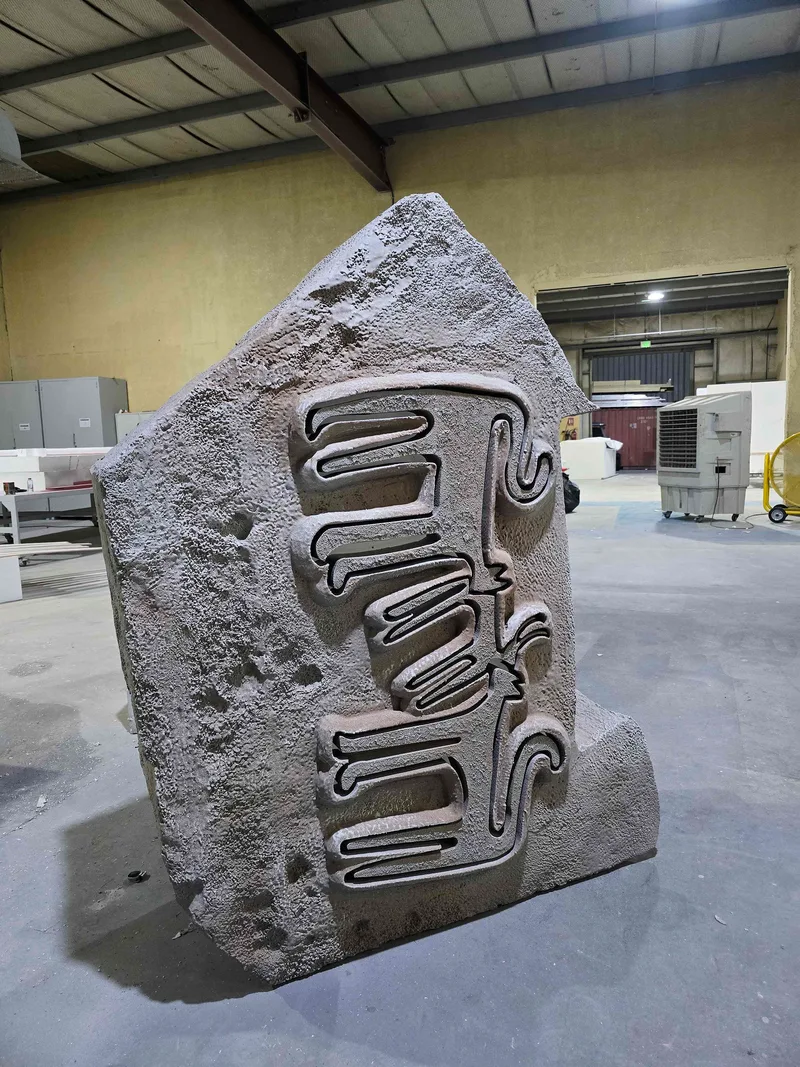

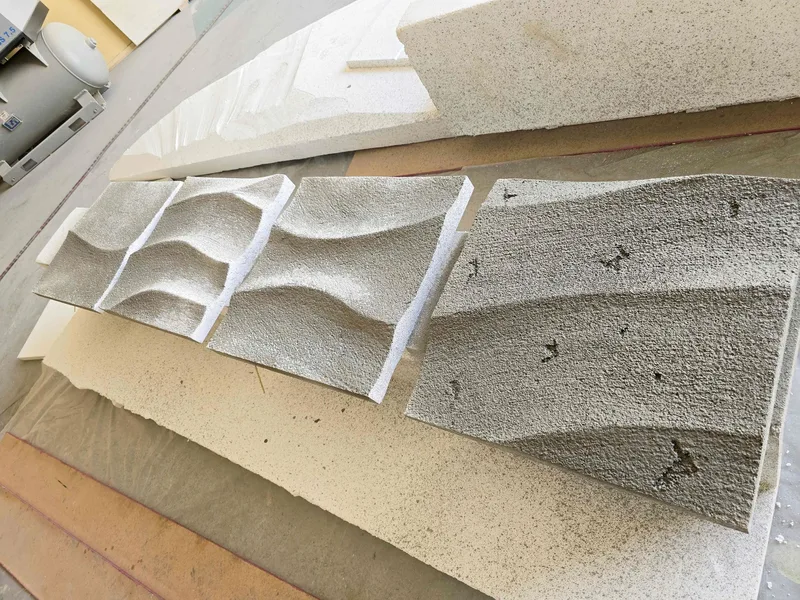

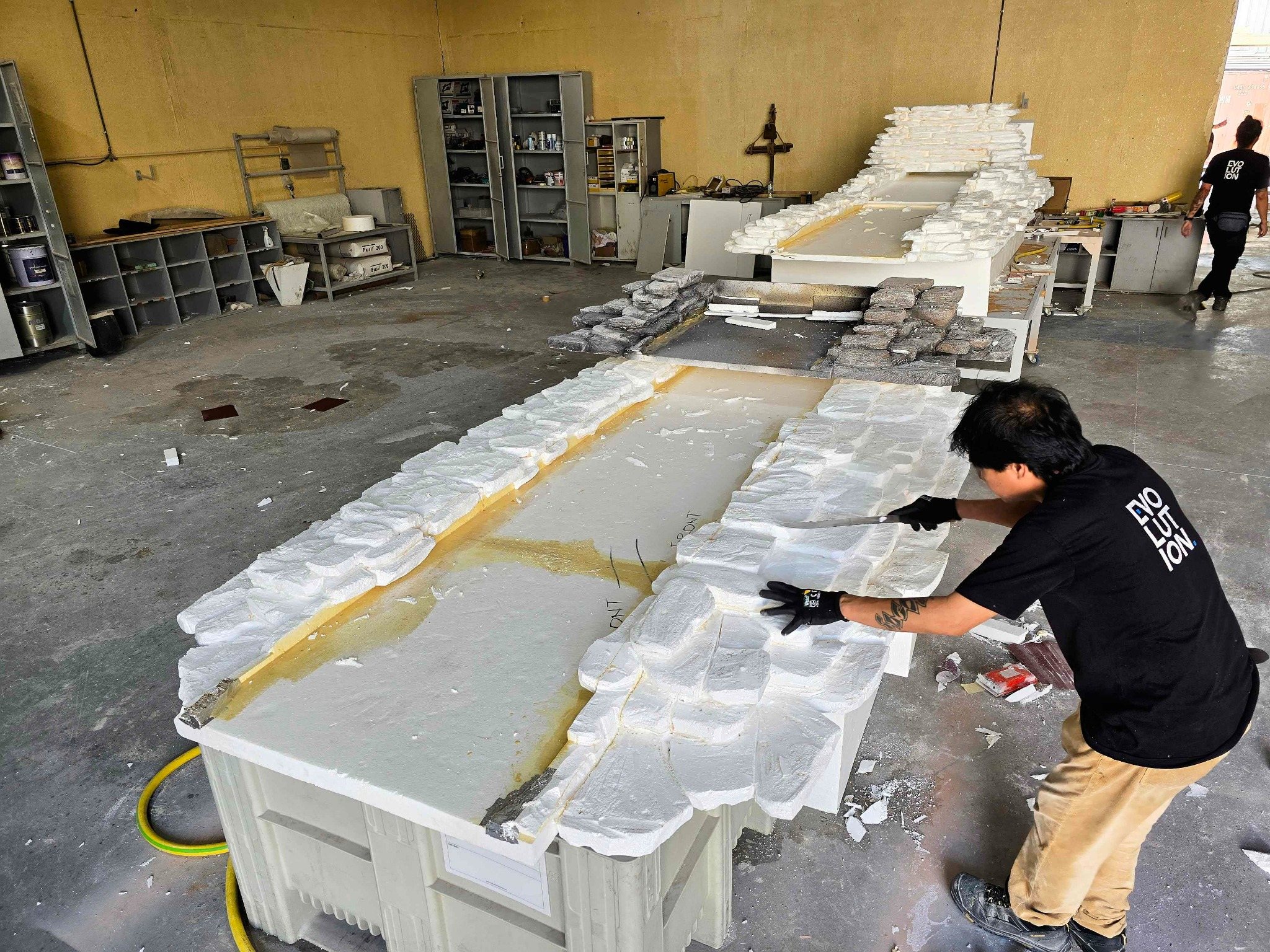

Creating Stonework and Masonry Details

Foam can be used to reproduce more than natural rock.

Stone walls, brickwork, carved façades, decorative reliefs and historic architectural details can all be developed using similar methods.

Mortar lines may be carved directly into the surface, while individual stones are shaped to create subtle variation in depth and profile. Corners can be softened or damaged to suggest age, and selected areas can be recessed to create realistic shadows.

For heritage-inspired environments, reference material becomes especially important. The proportions of the masonry, the depth of the joints and the pattern of weathering all influence whether the finished work feels credible.

A heritage finish should not simply look old. It should reflect how the material might have been manufactured, assembled and exposed over time.

The same principle applies to themed environments. Even imaginative or fictional stone surfaces need a consistent visual language. The shapes, textures and colour palette must appear to belong to the same constructed world.

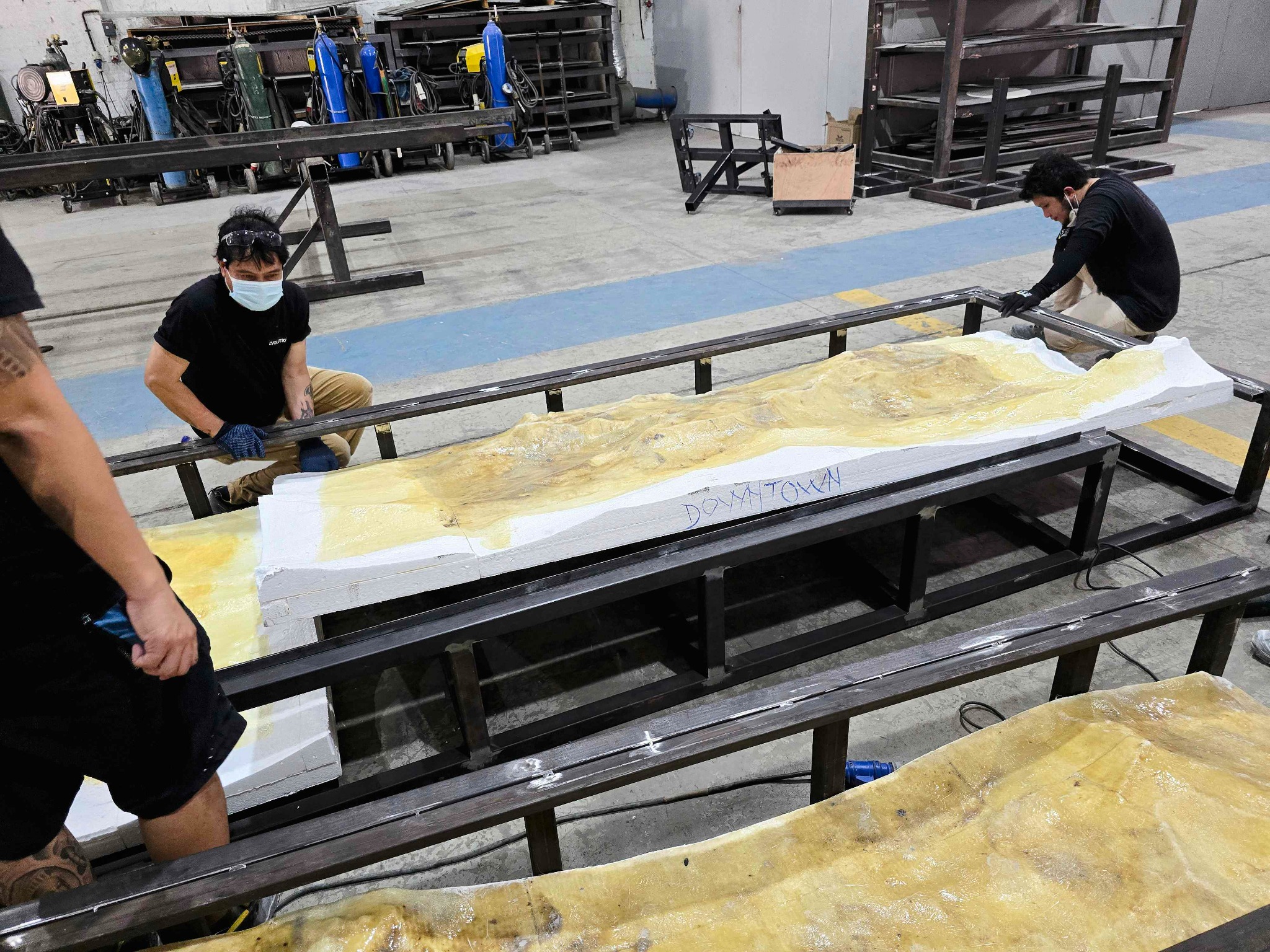

Reinforcement and Lightweight Construction

Foam creates the visible form, but larger scenic features frequently require additional support.

Timber, plywood, aluminium or steel frameworks may be incorporated behind or within the carved foam. These structures provide stability, create fixing points and allow the finished elements to be lifted, transported and connected safely.

The degree of reinforcement depends on the size and location of the feature.

A small wall panel may require only a rigid backing board. A large public-facing rock structure may need an engineered internal frame, mechanical connections and carefully positioned lifting points.

Areas exposed to repeated contact may also need local reinforcement. Corners, steps, bases and projecting details are more vulnerable to impact and wear than surfaces located above public reach.

The construction methodology must therefore reflect how the scenic stone will be used rather than simply how it will look.

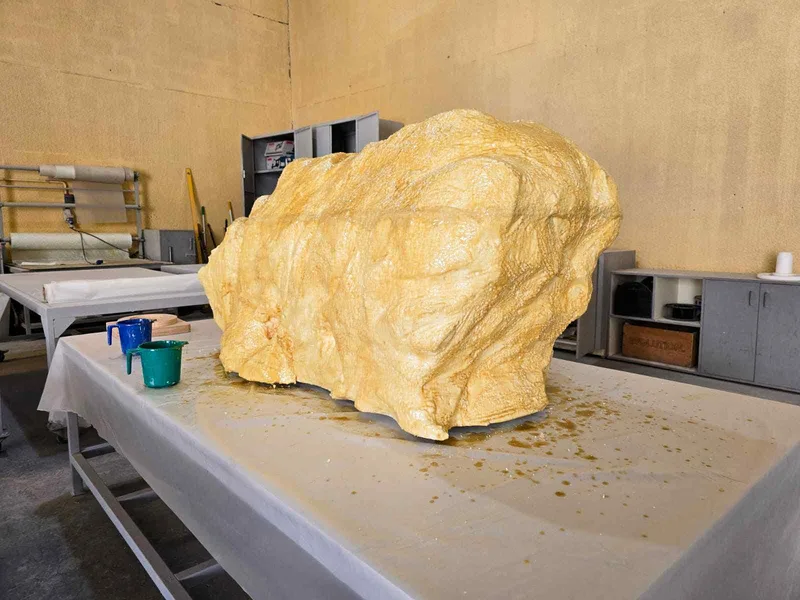

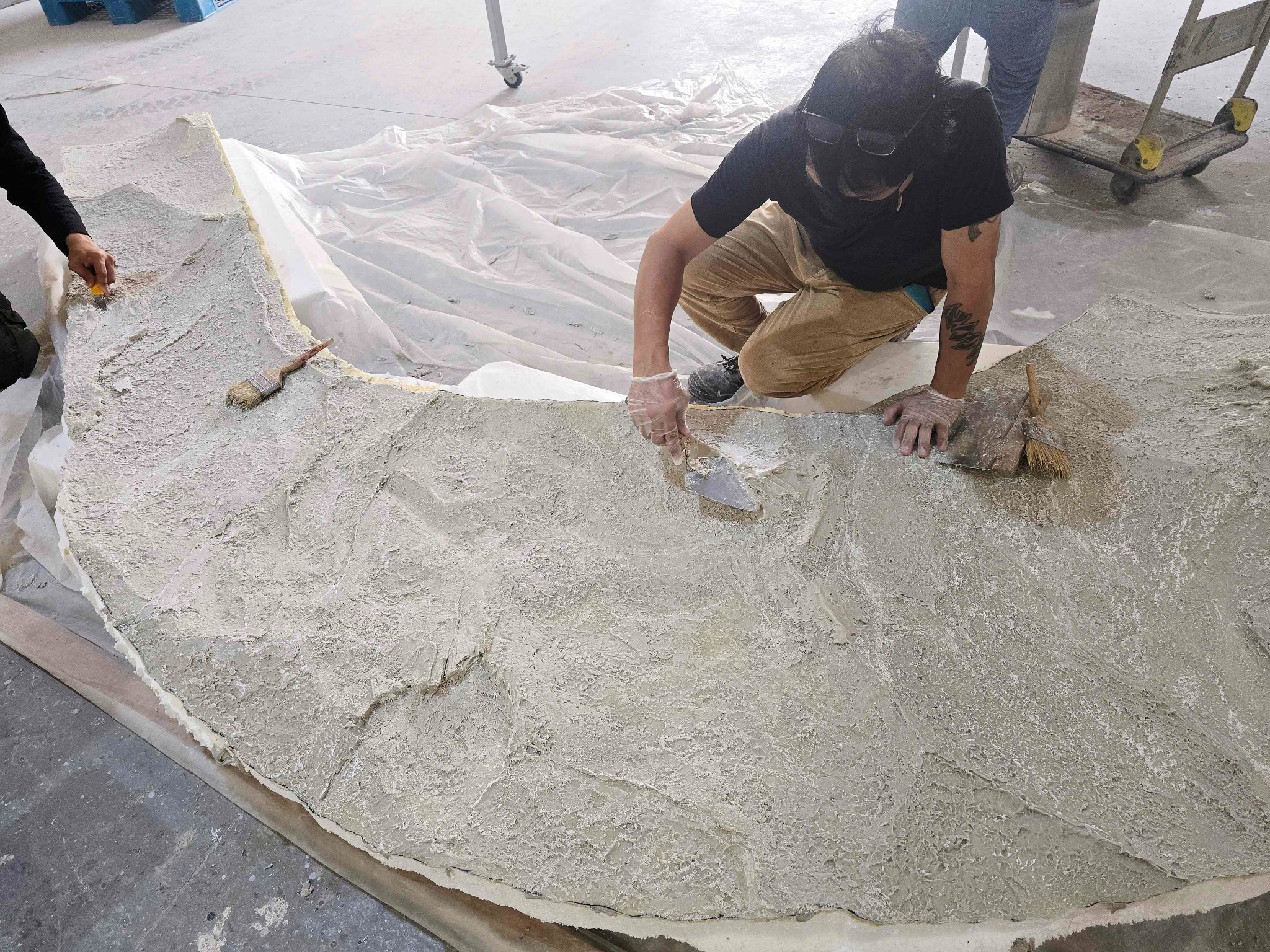

Applying Protective Coatings

Raw foam is not suitable as a finished public-facing surface.

It can be damaged by impact, abrasion, moisture and certain chemicals. Specialist coating systems are applied to create a protective shell and provide a stable base for scenic finishing.

The coating specification depends on the operational environment.

An indoor feature used for a short exhibition may require a relatively light protective system. An outdoor public installation or reusable themed element may need a harder, reinforced coating capable of withstanding transport, weather exposure and repeated handling.

Coatings can be sprayed, brushed or applied by hand. In some cases, reinforcing fabrics or fibres are incorporated to increase durability.

The application process must preserve the carved detail beneath it. A coating that is too heavy may fill fine textures and soften the stonework, while a coating that is too thin may not provide sufficient protection.

Once cured, the surface is sanded, repaired and prepared for paint.

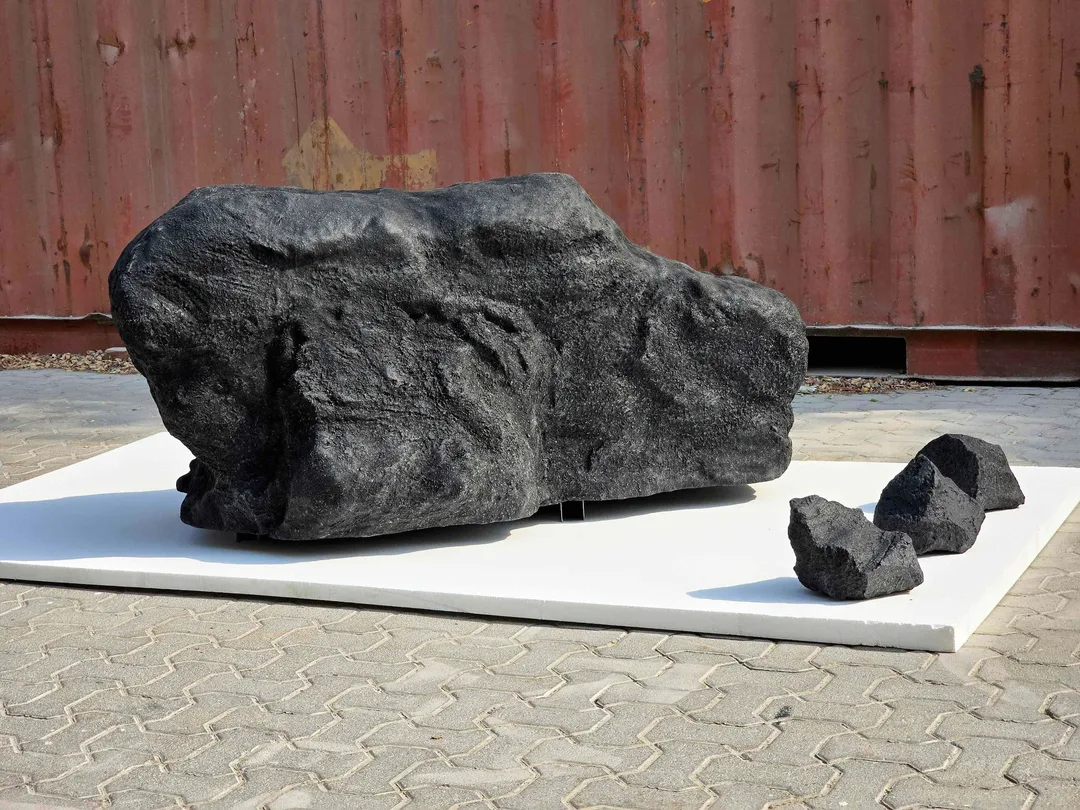

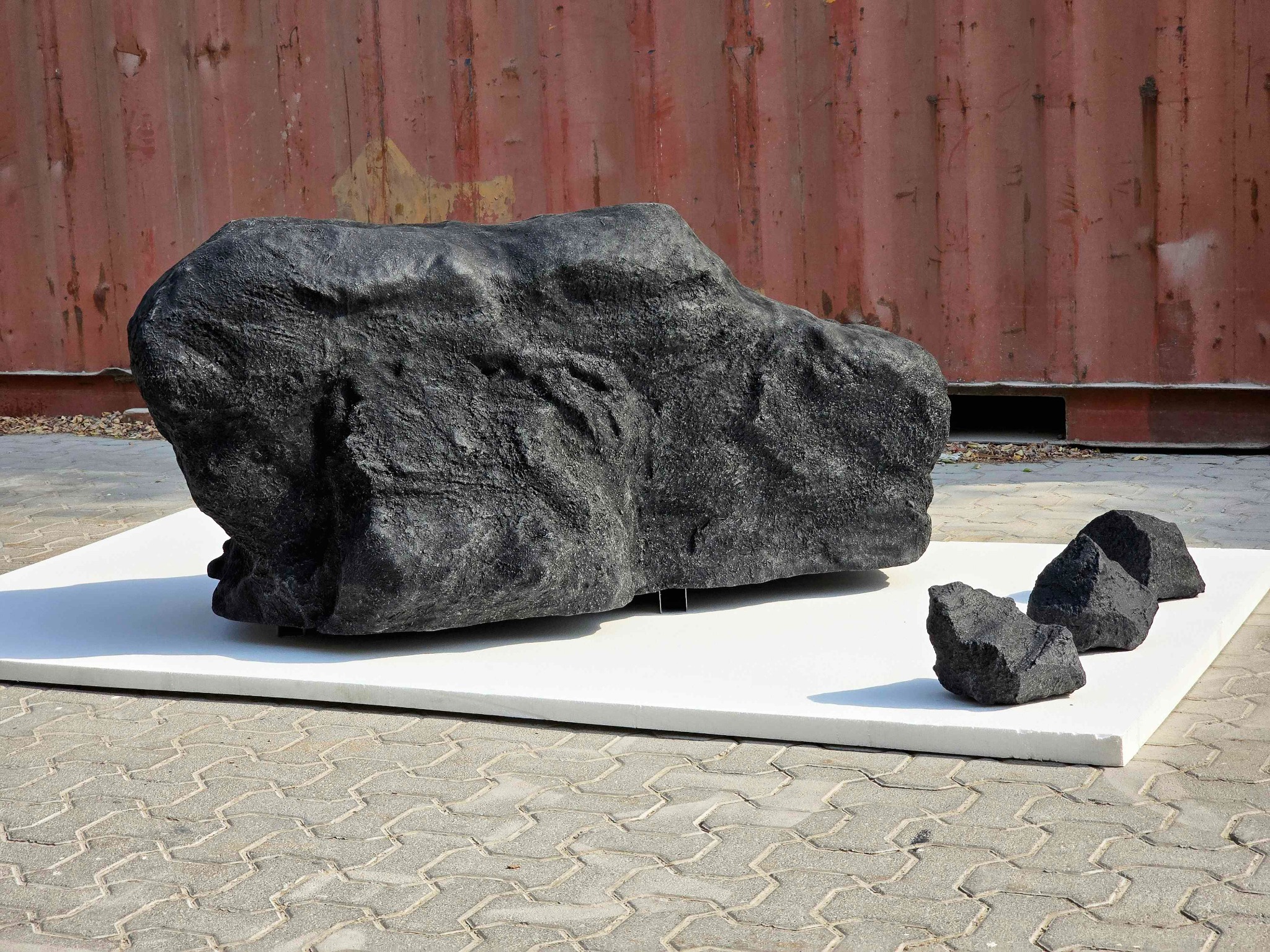

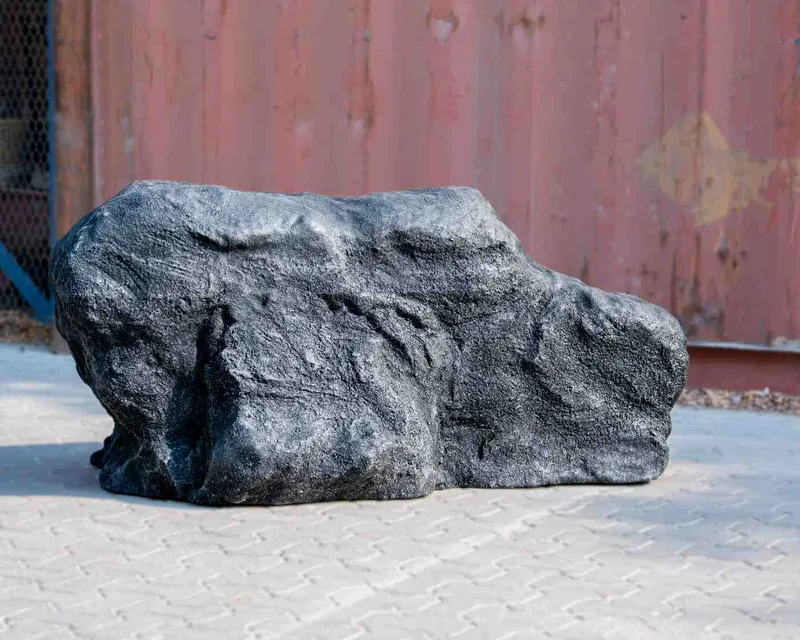

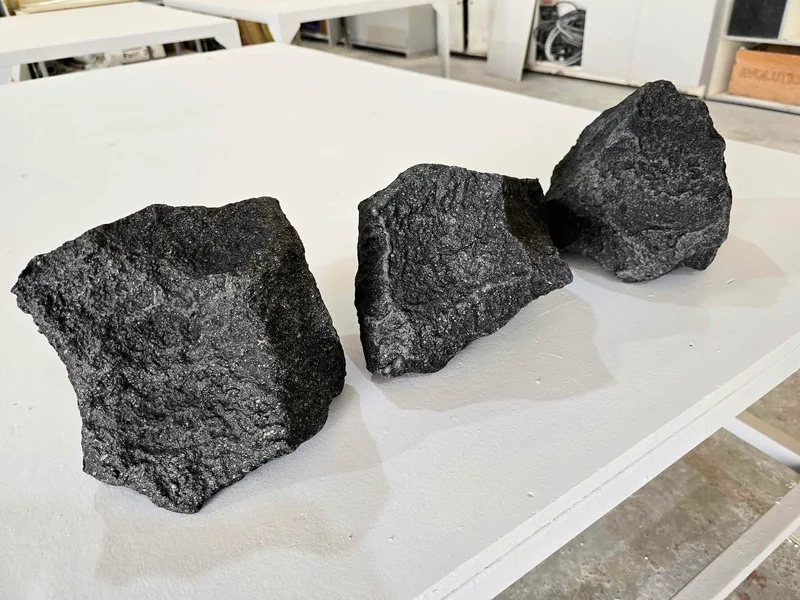

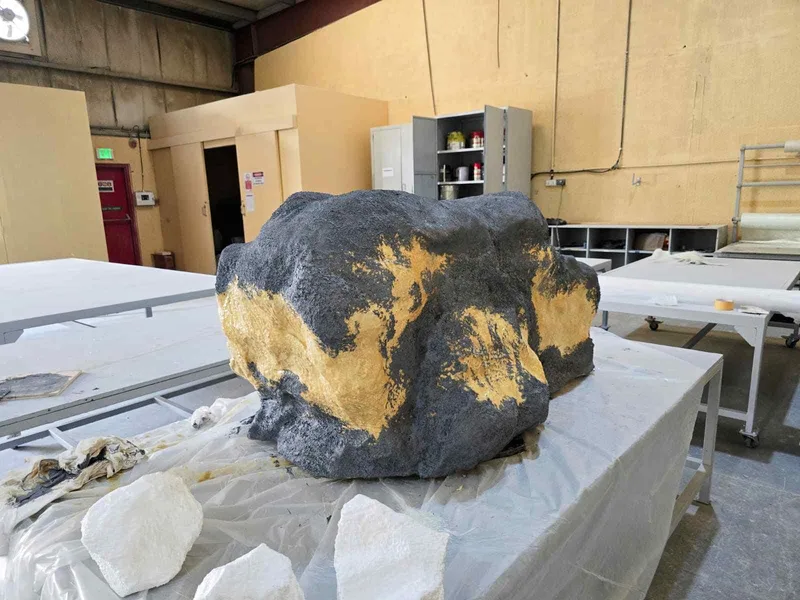

Scenic Painting and Faux-Stone Finishes

Scenic painting is where the foam begins to read convincingly as stone.

A single flat colour is rarely enough.

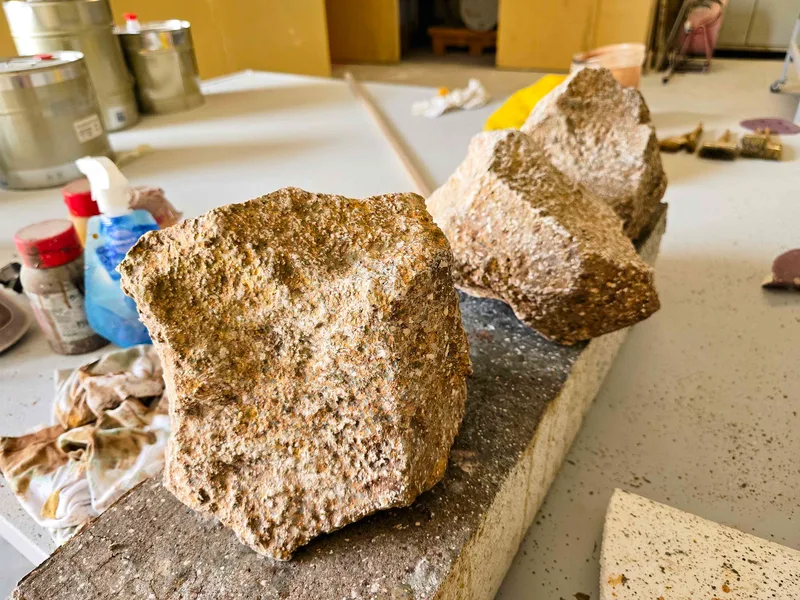

Real stone contains subtle shifts in tone, mineral variation, stains, shadows and areas of wear. These qualities are developed gradually using layered scenic painting techniques.

The process normally begins with a suitable base colour. Darker washes may then be worked into cracks and recessed areas to increase depth. Lighter tones can be dry-brushed across raised textures, bringing out edges and surface details.

Additional layers introduce variation.

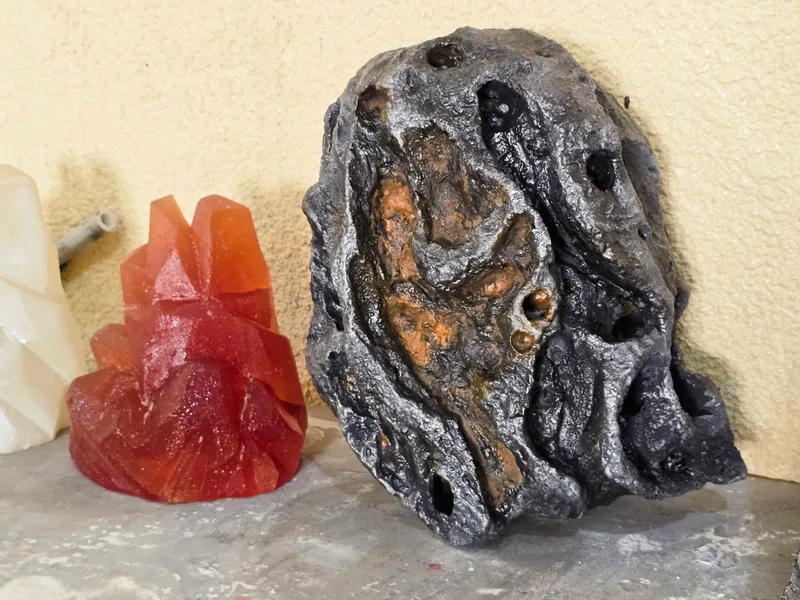

Warm and cool tones may be added to break up large areas. Fine speckling can simulate mineral deposits. Vertical stains may suggest water exposure, while darker areas around the base can create the impression of accumulated dirt or moisture.

For aged stonework, scenic artists may add moss effects, surface fading, soot marks or worn edges. These treatments must remain appropriate to the location and intended story of the environment.

Good scenic finishing does not draw attention to the paint technique. It allows the texture, shadows and colour variation to work together as one convincing surface.

Designing for Theme and Heritage Environments

Faux-stone fabrication is widely used within immersive environments because it allows large architectural surfaces to be produced without the weight of traditional masonry.

Themed settings may require caves, ruins, rock faces, carved gateways or fictional architectural features. Cultural and heritage environments may call for more controlled references to historic stonework, monuments or traditional building methods.

In both cases, scenic accuracy depends on research and material understanding.

Stone is not a single visual category. Its appearance changes according to geology, construction method, age, climate and maintenance.

A sandstone wall should not be painted in the same way as polished marble. A newly carved stone feature should not carry the same degree of weathering as an ancient ruin.

The fabrication and finishing methodology must respond to the specific material being represented.

This is what allows scenic stone to feel integrated into its environment rather than appearing as a separate decorative layer.

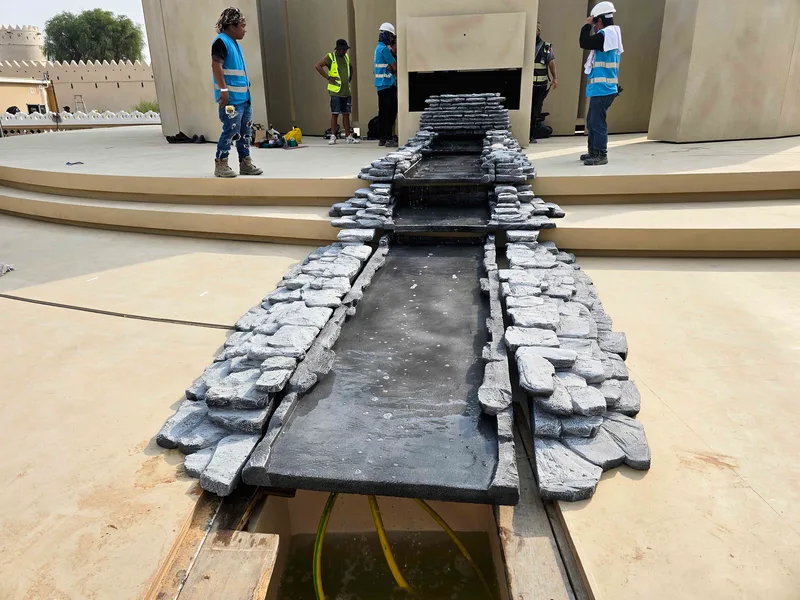

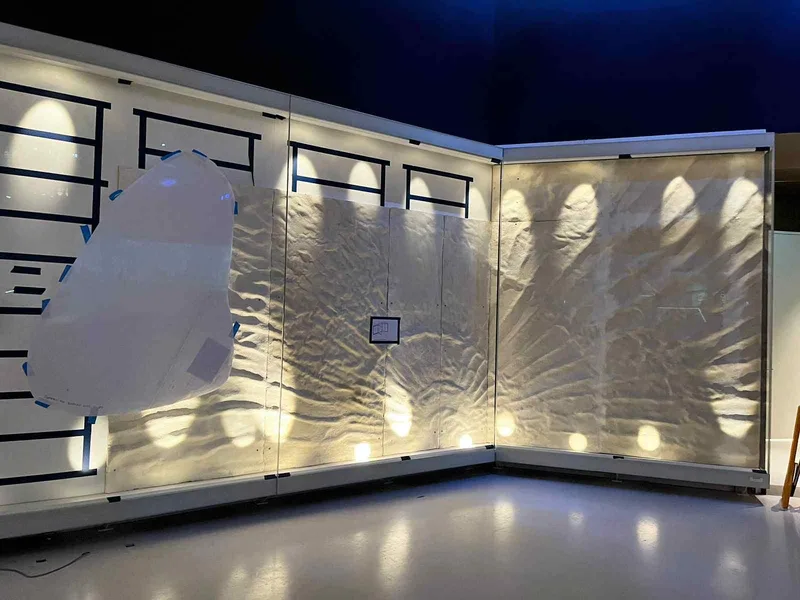

Transporting and Installing Scenic Stone

One of the greatest advantages of foam construction becomes clear during transport and installation.

Large rock and masonry features can often be divided into lightweight modules that require less lifting equipment than equivalent solid construction.

This can reduce pressure on temporary floors, supporting structures and site access routes. It also allows individual components to be handled and installed more efficiently.

The modules still require careful protection. Projecting textures, carved edges and finished corners can be vulnerable during transport, so custom stillages, wrapping and internal support frames may be used.

Joints between sections are planned during fabrication. Wherever possible, they are positioned along natural cracks, mortar lines or changes in geometry.

Once installed, the seams are filled, textured and painted to match the surrounding surface. When completed successfully, the individual modules read as one continuous formation.

Creating a Convincing Scenic Material

Turning foam into stone requires more than carving texture into a lightweight block.

The process combines digital modelling, CNC machining, hand sculpting, structural support, protective coatings and specialist scenic painting.

Every stage contributes to the finished illusion.

The digital model establishes the form. CNC cutting creates controlled geometry. Hand carving introduces character. Structural reinforcement makes the element practical. Coatings provide durability. Scenic paint creates depth, variation and age.

When these disciplines are coordinated properly, foam becomes an exceptionally capable fabrication material.

It allows Evolution Scenic to create rock formations, faux-stone walls, architectural features and heritage-inspired surfaces that are lightweight, transportable and suitable for temporary environments.

The aim is not simply to imitate real stone.

It is to manufacture scenic stone that looks convincing, withstands its intended use and can be fabricated, transported and installed efficiently.
