The world premiere of CEER’s first flagship vehicles marked a significant milestone for Saudi Arabia’s automotive sector.

Held on 21 September 2026 at the CEER Manufacturing Complex in King Abdullah Economic City (KAEC), the event officially revealed the EXOBOT electric sedan and SUV. CEER presented further details on the design and features of the flagship vehicles following the reveal.

For the launch, Evolution Scenic worked with Balich World Shows to fabricate and assemble the large-scale scenic structures that formed the physical stage environment for the vehicle presentation.

The brief required a stage designed around movement, incorporating substantial screen structures, a garage-style back wall, movable side walls and vehicle revolves within one coordinated scenic environment.

What Evolution Scenic Delivered

Evolution Scenic was responsible for the fabrication and onsite assembly of the main scenic structures for the CEER Global Reveal.

The Scenic scope included:

• Complete stage wall structures
• Two large side screen structures, Alpha and Charlie, each approximately 17 metres wide and 6.5 metres high
• The central Bravo screen structure, approximately 14.4 metres wide and 6 metres high
• A garage-style back wall
• Movable side wall structures
• Scenic requirements associated with two 6-metre-diameter vehicle revolves
• Aluminium tube fabrication
• Polycarbonate scenic surfaces
• Modular construction for transportation and onsite assembly
• Onsite assembly, alignment and installation

These were not conventional static stage walls. Several structures formed part of the wider automated reveal environment, requiring Scenic to fabricate the physical elements around the movement, rigging and technical requirements of the production.

Large-Scale Aluminium Scenic Fabrication

The main scenic structures were fabricated using aluminium tubes, creating the framework required for structures extending to almost 17 metres in width.

The aluminium frameworks were finished with polycarbonate sheets, providing a lightweight scenic surface while also accommodating the requirements of the final projection treatment.

The movable side wall configuration also incorporated custom-made MS tracks as part of the scenic package.

At this scale, material selection needed to consider more than appearance. Weight, stability, movement, projection requirements, transportation and onsite installation all influenced how the structures were fabricated.

The completed scenic elements needed to maintain their visual form while integrating with the wider technical systems required for the reveal.

Scenic Structures Designed for Movement

Movement formed an important part of the CEER stage environment.

Alpha and Charlie were developed as large movable side structures, while the central Bravo structure formed part of a separate movement sequence. Two 6-metre vehicle revolves were also incorporated into the wider reveal package.

Evolution Scenic fabricated the large aluminium structures, while Evolution Technical was responsible for the associated automation, movement systems, rigging and commissioning.

This required close coordination between the two disciplines.

For Scenic, dimensions, structural stability, weight and finishing could not be considered independently. Each element needed to interface accurately with the technical systems that would ultimately control its movement during the show.

Modular Fabrication + Onsite Assembly

Transportation presented another significant consideration because of the physical scale of Alpha, Bravo and Charlie.

The structures were therefore designed and fabricated in modular sections rather than transported as complete scenic elements.

The aluminium structures were delivered to the CEER Manufacturing Complex and assembled onsite using nuts and bolts, supporting efficient installation and dismantling while reducing transportation risk, particularly for the large polycarbonate surfaces.

Once onsite, the individual modules needed to form complete structures with the correct alignment and stability.

This made onsite assembly a critical stage of the Scenic delivery rather than simply a logistical process.

Precision at Scale

The size of the scenic structures made accurate assembly particularly important.

With Alpha and Charlie approaching 17 metres in width and approximately 6.5 metres in height, relatively small differences at individual connection points could become more significant across the completed structure.

Maintaining alignment and overall stability was therefore one of the key onsite challenges for the Scenic team.

The installation also took place inside an operational automotive manufacturing facility, requiring the wider production team to coordinate around venue infrastructure, access, existing services and HSE requirements.

For Scenic, this meant completing the assembly and alignment of the stage structures within an environment that had its own operational requirements alongside those of the live production.

Integrating Scenic + Technical Production

The CEER project required scenic fabrication and technical engineering to operate as connected parts of the same stage environment.

Evolution Scenic delivered the physical aluminium structures and scenic surfaces, while Evolution Technical developed the systems responsible for their movement, automation and rigging.

The wider production also required coordination with projection, lighting and other technical disciplines, ensuring the scenic structures could support both the visual treatment and the functional requirements of the reveal.

This cross-disciplinary approach was particularly important because the stage architecture itself formed part of the presentation sequence rather than simply providing a static background.

Supporting the EXOBOT World Premiere

The completed scenic environment formed part of the official World Premiere of the CEER EXOBOT sedan and SUV, CEER’s first flagship electric vehicles.

The project demonstrates how scenic production for automotive launches can extend beyond conventional stage construction.

For Evolution Scenic, the CEER Global Reveal combined large-scale aluminium fabrication, lightweight scenic surfaces, modular construction, movable scenic elements and precision onsite assembly within one project.

Each component needed to meet the creative requirements of the launch while integrating with the technical systems behind the vehicle reveal.

The result demonstrates Evolution Scenic’s capability to deliver large-scale scenic fabrication in Saudi Arabia, combining workshop production, onsite assembly and technical coordination for a major automotive product launch.

Scenic Fabrication FAQs

What did Evolution Scenic deliver for the CEER World Premiere?

Evolution Scenic fabricated and assembled the main scenic structures, including the large Alpha, Bravo and Charlie screen structures, garage-style back wall, movable side walls and scenic elements associated with the vehicle reveal.

Why were the CEER scenic structures fabricated in modular sections?

The structures were transported in sections and assembled onsite to manage their large scale and reduce transportation risk, particularly around the polycarbonate surfaces.

How did Evolution Scenic and Evolution Technical work together?

Evolution Scenic fabricated the physical scenic structures, while Evolution Technical delivered the associated automation, movement systems, rigging and commissioning. Both disciplines were coordinated so the scenic structures could operate within the wider vehicle reveal environment.

Maintenance Planning For Public Installations

The success of a public installation is not determined on opening day, but by how well it continues to perform over time.

Finishes require cleaning, lighting and technology may need replacement, moving components need inspection and high-contact surfaces will eventually show wear.

Maintenance should therefore be considered during design and fabrication, not after installation. Poorly positioned equipment, undersized access panels and difficult-to-repair finishes can make routine servicing unnecessarily disruptive.

Well-planned access panels, removable components, documented finish systems and clear service routes make future maintenance far more practical.

Environmental conditions also matter. Outdoor installations may face heat, UV exposure, wind, dust and moisture, while museums and visitor centres experience continuous public use, frequent cleaning and long operating hours.

Integrated screens, lighting, sensors and control systems must also remain accessible for testing, servicing and replacement.

The strongest public installations are designed around lifecycle performance, with maintenance influencing engineering, fabrication and installation from the beginning.

Designing Public Installations For Maintenance

Maintenance planning begins with understanding how long the installation will operate and which components will require regular access.

Lighting, screens, control systems, sensors, mechanical parts, structural connections, finishes, ventilation and weatherproofing may all need inspection, servicing or replacement during the installation’s life.

Access panels should therefore be sized for practical maintenance, not just visual inspection. Equipment may need to be removed completely, so clearance for tools, replacement components and safe working access must be considered.

Removable scenic panels can simplify both technical servicing and finish repair. Where replacement is expected, retaining CNC files, paint references, material specifications and manufacturing drawings allows damaged components to be reproduced accurately.

Access must also be safe. Elevated equipment may require powered access or service platforms, while internal routes should remain clear of sharp edges, exposed fixings and unnecessary obstructions.

Ventilation is equally important where lighting, displays or control equipment are enclosed within scenic structures. Cooling systems and filters should remain accessible for routine cleaning and maintenance.

The best maintenance provisions are integrated into the scenic design so they remain visually discreet while still providing practical, repeatable access.

Maintaining Structure, Finishes & Integrated Technology

Different parts of a public installation require different maintenance strategies.

Structural elements may need periodic inspection, while scenic finishes require cleaning and local repair. Technical systems such as screens, lighting, controls and sensors may need servicing or replacement according to their operating life.

Outdoor installations face additional demands from heat, UV exposure, dust, moisture and wind. Metalwork should be checked for corrosion, timber-based materials for swelling or delamination, and seals, drainage points and protective coatings for deterioration.

Indoor environments usually experience wear through repeated public contact. Counters, plinths, interactive surfaces and low-level walls may require more frequent cleaning and repair than decorative elements positioned out of reach.

Cleaning methods should therefore be defined alongside the finish specification. Documented paint references, graphic files, material samples and approved products make future repairs more consistent.

Technology also needs to remain accessible. Screens, media players, lighting equipment and control systems often have shorter service lives than the scenic structures surrounding them, so replacement should be possible without major dismantling.

Clear cable routes, ventilation, equipment identification and accurate drawings make fault-finding and servicing more efficient.

The maintenance plan should distinguish between routine servicing, planned replacement and unexpected failure so that access, spare parts and budgets can be prepared in advance.

Inspection Schedules, Records & Replacement Planning

Maintenance is more effective when it follows a structured inspection programme rather than waiting for visible damage or failure.

Inspection frequency should reflect the environment, complexity and level of public use. Outdoor installations may need additional checks after severe weather, while museums, visitor centres and interactive environments may require regular reviews of finishes, lighting and technical systems.

A typical programme may include frequent visual checks, scheduled technical inspections and event-based reviews following impact, water ingress, system failure or reported movement.

The schedule should define what is inspected, how often, who is responsible, how findings are recorded and which defects require immediate action.

Maintenance records are equally important. Logs, photographs and repair histories help identify recurring issues and provide continuity when teams or contractors change.

Replacement planning should also consider lead times and future availability. Critical screens, lighting components, control equipment and specialist hardware may require planned spares or approved alternatives.

A complete handover package should retain key information such as as-built drawings, equipment schedules, paint references, material specifications, CNC and graphic files, access-panel locations and maintenance instructions.

Long-term installations should also allow for future upgrades. Replaceable graphics, modular display elements and adaptable technology zones can extend the useful life of the environment without major reconstruction.

When inspection, documentation and replacement planning are considered from the beginning, public installations remain easier to maintain, update and operate throughout their intended life.

Why Nobody Notices Good Scenic Fabrication

Good scenic fabrication is often invisible.

Visitors notice when a wall is leaning. They notice when a sign falls over, a door sticks, a graphic begins to peel or a scenic element arrives damaged.

What they rarely notice is everything working exactly as intended.

They do not see the engineering review that strengthened a large feature without changing its appearance. They do not see the workshop team adjusting a connection before it creates a problem on site. They do not see the transport frame protecting a delicate surface or the installation plan developed around a narrow access route.

When scenic fabrication is done well, the finished environment feels effortless.

That apparent simplicity is the result of hundreds of decisions made throughout technical design, material selection, engineering, manufacturing, transport and installation.

Good fabrication is often the absence of problems. That is usually one of the strongest compliments a workshop can receive.

Supporting The Wider Environment

The purpose of scenic fabrication is rarely to draw attention to the construction itself.

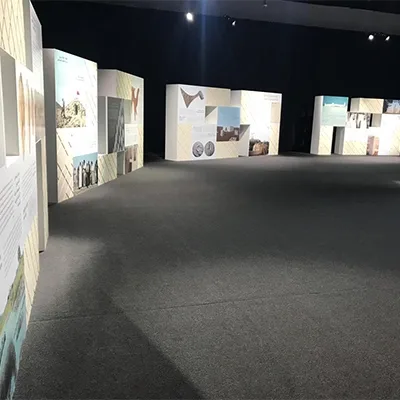

A successful exhibition stand should feel complete rather than assembled. A stage set should appear stable and intentional. An activation should operate smoothly without visitors becoming aware of structural frames, hidden fixings or technical access panels.

The fabrication exists to support the wider environment.

This means resolving practical requirements without allowing them to interrupt the design. Structural supports must fit behind the visible surfaces. Module joints need to remain discreet. Access panels must be usable without appearing obvious.

The same principle applies to scenic finishes. A surface should not look impressive only when viewed from one carefully chosen angle. It must remain consistent under venue lighting, at realistic viewing distances and after transportation and installation.

When all of these elements work together, visitors focus on the environment rather than the structure behind it.

Quality Begins Before Manufacturing

Many fabrication problems begin before the first material is cut.

Incomplete drawings, unresolved dimensions and unclear interfaces can create issues that only become visible once production is under way. By then, changes may affect several connected components.

Experienced scenic teams review information before manufacturing begins.

They assess whether the proposed structure can be fabricated efficiently, whether the connections remain accessible and whether the completed modules can be transported through the available routes.

A large wall may be stable once fully assembled but difficult to control during lifting. A sculptural element may fit inside the workshop but exceed the dimensions of the loading door. A maintenance panel may exist on the drawing but prove too small for a technician to remove the equipment behind it.

These are not dramatic problems. They are practical problems, and practical problems can quickly become expensive when discovered late.

Good technical review prevents them from reaching the workshop or site.

Engineering That Disappears

Engineering is one of the least visible parts of scenic fabrication.

Visitors may see a lightweight architectural feature or a clean branded wall, but behind it may sit a carefully designed framework, bracing system or weighted base.

Engineering reviews consider how the structure will perform during every stage of its life. This includes fabrication, transport, lifting, installation, operation and dismantling.

The structure may need to support suspended equipment, graphics, lighting or audiovisual systems. It may also need to resist visitor contact or environmental forces such as wind.

For temporary structures, the challenge is often to provide sufficient strength without introducing unnecessary weight. The frame must remain practical to transport and assemble while still delivering reliable stability.

The best engineering solutions are integrated early. They support the intended form without forcing visible changes after the design has already been developed.

Once the structure is complete, most people will never see the engineering.

That is often the point.

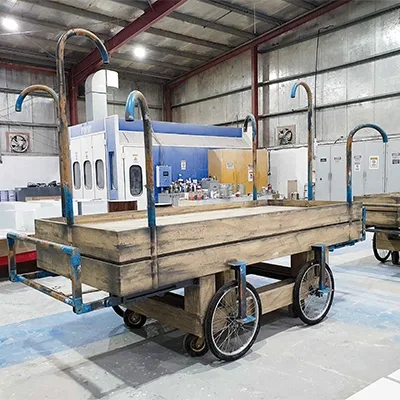

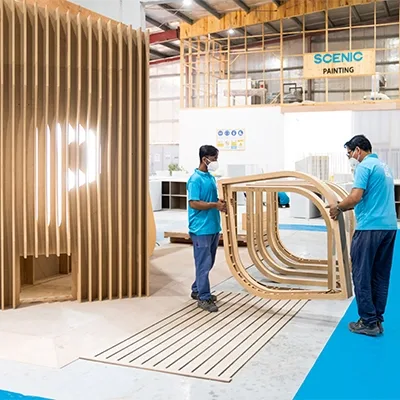

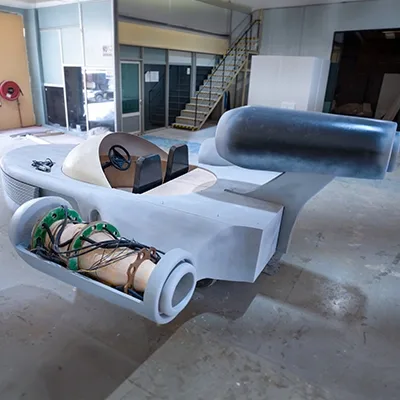

Workshop Standards

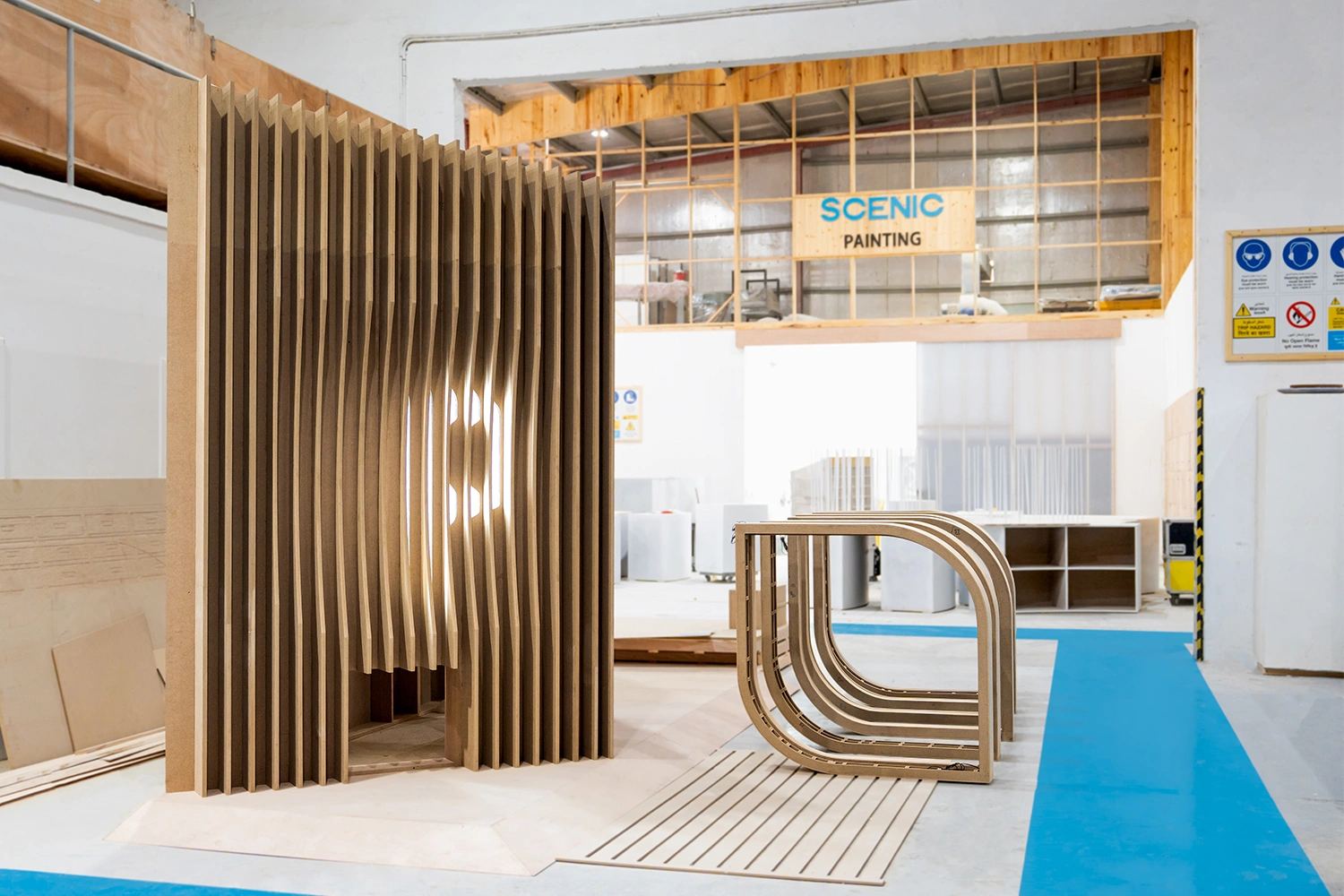

A scenic workshop is where visual ideas become physical environments.

The standard of the finished work depends heavily on the consistency of the manufacturing process.

Accurate setting out, controlled cutting and careful assembly all contribute to the result. So do material storage, component labelling, surface protection and workshop organisation.

Fabrication tolerances are particularly important within modular environments.

A small dimensional variation may appear insignificant on one panel. Repeated across a large structure, it can create visible gaps, misaligned graphics and uneven architectural lines.

Templates, jigs and CNC production can improve repeatability, but machinery alone does not guarantee accuracy. Components still need to be measured, checked and assembled by experienced teams.

Workshop standards also affect efficiency. Clearly labelled modules are easier to pack and install. Protected surfaces are less likely to require repair. Organised work areas reduce the risk of components being damaged or confused.

Quality is not created during a single final inspection. It is built into the process from the beginning.

Test Assembly and Quality Control

Whenever practical, important scenic structures should be tested before they leave the workshop.

Test assembly confirms that modules align, connections fit and the intended installation sequence is achievable. It also allows teams to check areas that will become difficult to access once the structure is complete.

Doors can be opened and closed. Removable panels can be tested. Graphics can be reviewed across adjoining sections. Lighting and audiovisual equipment can be checked within their fabricated housings.

The purpose is not simply to prove that the structure can be assembled. It is to identify where the process can be improved.

A fixing that is awkward to reach in the workshop will be even more difficult during a restricted installation window. A joint that requires excessive force may damage the finish after repeated use.

These issues can usually be resolved calmly during workshop testing. On site, the same adjustments may delay several teams working around the installation.

Good quality control reduces that uncertainty.

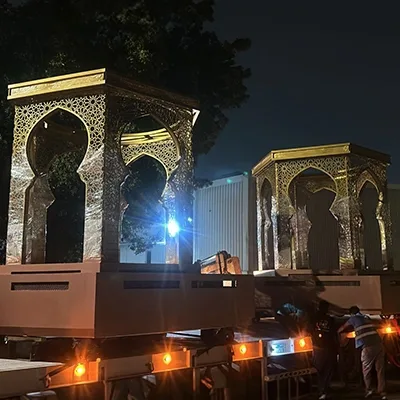

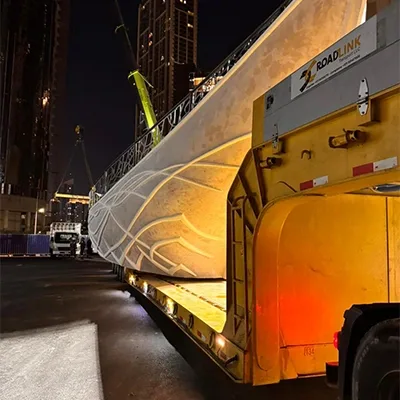

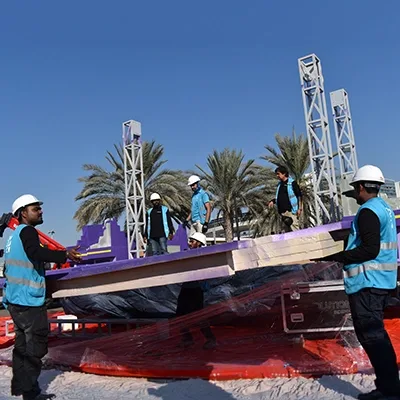

Planning For Transportation

Fabrication is not complete when the structure looks finished inside the workshop.

It still needs to reach the site without damage.

Transportation planning influences module dimensions, joint locations and material choices. Large scenic features may be lightweight but physically awkward, making them difficult to support inside a vehicle.

Custom stillages and protective frames may be required for sculptural forms, curved walls and delicate finishes. Corners and projecting details often need additional protection because they are particularly vulnerable during handling.

Packing order also matters.

Components required first during installation should remain accessible. Fragile modules should not need to be moved repeatedly to reach heavier structural items.

Labels and reference markings must remain visible after packing so the site team can identify each component quickly.

When transport has been considered properly, modules arrive in the correct order and in the expected condition.

Nobody notices this preparation when it works. They notice it immediately when it does not.

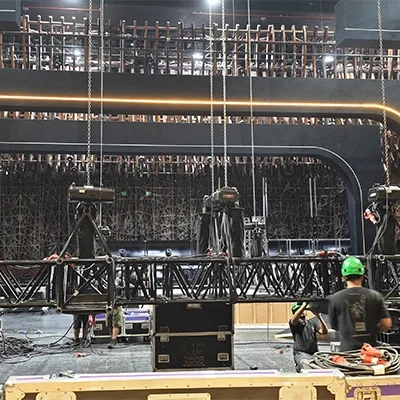

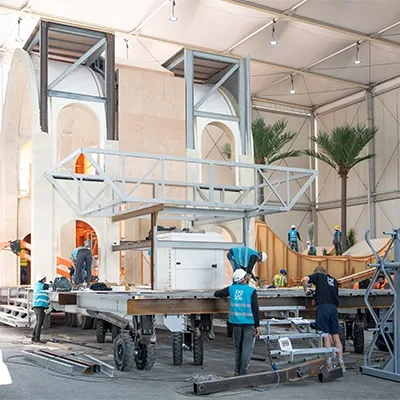

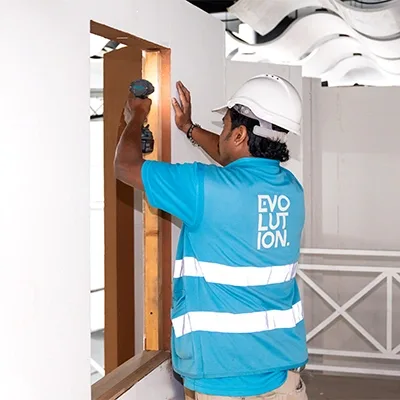

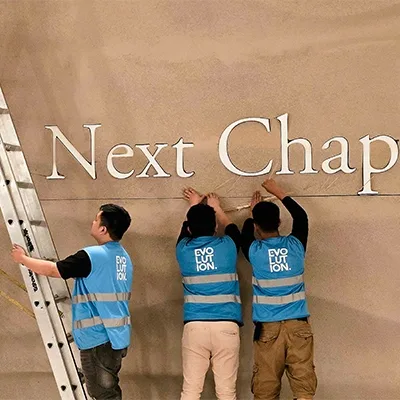

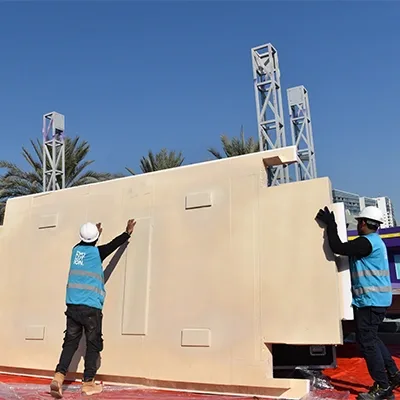

Installation Planning

Site installation is often where the quality of the earlier planning becomes clear.

A workshop provides controlled conditions. A venue may have limited access, uneven floors and several contractors working in the same area.

The scenic structure must be designed around those realities.

Installation drawings, module references and coordinated loading plans help the team understand what arrives first and how each component connects.

Temporary bracing may be required while larger structures are assembled. Lifting points must remain accessible, and final scenic finishing areas must not be blocked too early.

The easiest environments to install are not necessarily the smallest or simplest. They are the ones designed with the installation sequence in mind.

Connections remain accessible. Adjustments can be made where required. Technology can be fitted without dismantling completed work.

Careful preparation reduces the amount of improvisation needed on site and gives the installation team greater control over both safety and finish quality.

Preventing Problems

Much of scenic fabrication expertise is preventative.

It involves recognising what could go wrong and resolving it before it becomes visible.

A vulnerable corner can be reinforced before finishing. A module joint can be moved into a natural architectural line. A technical access panel can be enlarged while the structure is still being designed.

These decisions rarely receive attention because the problems they prevent never occur.

Problem prevention also protects the programme. Rebuilding an incorrect module or repairing a damaged scenic finish on site can affect the work of other contractors.

The same issue resolved during technical design or workshop production is usually quicker, safer and easier to control.

Experienced workshops still encounter challenges. Scenic fabrication combines many disciplines, materials and deadlines, so unexpected conditions are inevitable.

The difference lies in how early those challenges are identified and how effectively they are resolved.

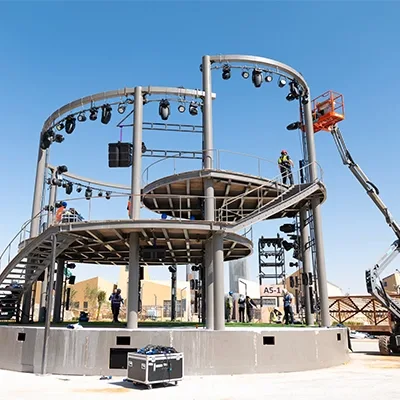

Safety Behind The Finished Result

Health and safety is another area where success is measured by what does not happen.

Workshop teams need suitable extraction, machinery controls, protective equipment and safe handling methods. Large scenic components must be lifted and moved using planned procedures.

On site, temporary stability, access equipment and lifting strategies require the same level of consideration as the finished structure.

These systems may never appear in the final photography, but they influence the quality of the work.

When teams have the correct access, equipment and working method, they can complete tasks more accurately and with less risk of damage.

Safety and quality are not separate priorities. Both depend on careful planning and controlled processes.

Hidden Expertise

Scenic fabrication brings together engineering, carpentry, metalwork, CNC machining, sculpture, scenic painting, graphics, logistics and installation.

Once the project is complete, much of this expertise disappears behind the finished surface.

The steel frame is enclosed. Mechanical fixings are concealed. Transport joints are filled and painted. Cable routes remain hidden but accessible.

This hidden work is not secondary to the visible result. It is what makes that result possible.

Visitors should not need to understand how the environment was fabricated. They should simply encounter a structure that feels stable, accurate and complete.

The Absence Of Problems

Good scenic fabrication rarely announces itself.

Doors open smoothly. Graphics remain aligned. Structures stay stable. Scenic finishes survive transportation. Technology works and remains accessible.

For Evolution Scenic, this reliability comes from engineering reviews, workshop standards, quality control and detailed installation planning.

The completed environment may appear effortless, but that is because the difficult decisions have already been made behind the scenes.

Good fabrication is often the absence of problems.

And when nobody notices the fabrication at all, it has usually performed exactly as intended.

Why Temporary Structures Need Permanent Thinking

One of the biggest misconceptions surrounding temporary environments is that a short lifespan somehow means they require less engineering, less planning or less attention to detail. In scenic fabrication, the opposite is often true.

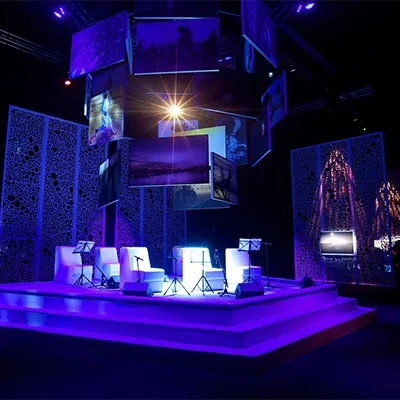

A structure that will exist for only a few days may still need to perform to an extremely high standard while dealing with a far more compressed and demanding project lifecycle.

Temporary is therefore a description of how long something will remain in place, not the standard to which it should be designed. Whether Evolution Scenic is fabricating an exhibition environment, brand activation, temporary architectural structure or touring installation, the structure still needs to be safe, stable, accurately manufactured and practical to install.

Temporary Does Not Mean Simple

A temporary structure passes through an unusually concentrated lifecycle.

It is fabricated in the workshop, inspected, packed, transported, unloaded, installed, operated, dismantled and removed, sometimes within the space of only a few weeks. On particularly fast projects, several of these stages can happen within days of one another.

At the same time, temporary environments are frequently expected to achieve the same visual quality as permanent interiors. Exhibition walls still need clean junctions. Branded structures still need accurate geometry.

Feature elements still require high-quality scenic finishes. The difference is that these elements may also need to be lightweight, modular, transportable and capable of being assembled during a tightly controlled installation window.

Engineering for Speed, Stability and Low Weight

One of the central challenges in temporary scenic engineering is balancing weight against structural performance. Structures need to be light enough to transport and handle efficiently, but sufficiently rigid to remain stable once installed.

Depending on the application, this may involve considering crowd interaction, suspended elements, integrated equipment, wind exposure, vibration or loads created by cladding and finishes.

The connection system becomes particularly important. Bolted connections, pinned joints, locating plates, captive fixings and pre-drilled interfaces can allow large structures to be assembled rapidly without sacrificing accuracy.

Good temporary engineering avoids relying on crews to make components fit on site. The aim is to create predictable connections that naturally locate components in the correct position.

Designing the Installation Before Fabrication

Experienced scenic teams think about installation long before the structure reaches the workshop floor. Module sizes may be determined by loading dock dimensions, passenger or goods lifts, door openings, vehicle capacities or the amount of space available for manoeuvring components inside the venue.

The sequence of assembly must also be considered. Structural frames may need to be installed before finished skins can be applied. Certain fixings need to remain accessible until adjacent modules are secured. Decorative panels may conceal structural connections, meaning they must be removable or installed at carefully planned stages of the build.

Dismantling should be considered at exactly the same time. If a structure needs to leave a venue overnight, the team needs to know how finishing panels are removed, where lifting or handling points are located and which connections can be released first without making the remaining structure unstable. A good temporary build methodology works just as effectively in reverse.

Venue restrictions introduce another layer of complexity. Floors may need protection. Drilling into existing surfaces may be prohibited. Structural loads may need to be distributed carefully. Fire requirements, escape routes, working-at-height controls, noise restrictions and limited installation hours can all influence how the scenic structure is developed.

Modular Construction and Reusability

Modular construction is one of the most effective approaches to temporary architecture. Instead of treating every structure as a single assembly, fabrication teams can divide it into manageable sections that are easier to manufacture, transport, install and replace.

For reusable structures, the modular strategy becomes even more important. A core steel or aluminium frame can potentially support multiple configurations while interchangeable scenic skins, graphic panels or architectural finishes create a different appearance for each deployment. This approach is particularly valuable for touring activations, exhibition systems and repeat brand environments.

However, reuse requires more than making something strong. Edges need to withstand repeated handling. Fixings need to survive multiple assembly cycles. Decorative surfaces may need replaceable sacrificial layers. Components need to be clearly labelled, packed and stored so that they can be identified months later. Hardware needs inspection and worn components need to be replaceable without rebuilding the entire structure.

Touring Environments

Touring environments introduce an additional design consideration: transport geometry. The dimensions of modules may be influenced by truck bodies, containers, pallets, flight cases or available loading equipment.

A structure that performs perfectly once assembled but occupies unnecessary transport volume can become expensive and inefficient to tour.

Different venues can also introduce different tolerances. Floors may not be perfectly level. Access conditions may change.

Installation spaces can vary slightly from drawings. Adjustable feet, controlled tolerances, replaceable interface plates and carefully considered junction details allow touring structures to accommodate these differences without compromising the finished appearance.

Digital manufacturing is particularly valuable here. CNC routing and other digitally controlled processes allow repeated components to be produced consistently from the same manufacturing information.

If a damaged component needs replacement during a touring programme, an accurately developed digital production file can make reproduction significantly easier.

Materials, Finishes and Integrated Technology

Temporary construction does not automatically mean inexpensive materials. Material selection needs to respond to what each component actually needs to achieve. Plywood, MDF, aluminium, steel, composite sheet materials, foams and specialist scenic products all have different advantages depending on span, weight, finish quality, fire performance and expected handling.

Scenic finishes also need to survive more than the finished installation.

A painted surface may be handled in the workshop, wrapped for transport, loaded into a vehicle, carried through a venue and assembled alongside other components. Corners, edges and high-contact areas therefore require particular attention if the finish is expected to remain clean once the installation is complete.

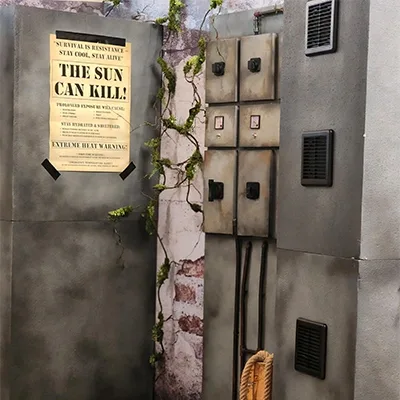

Technology integration requires the same level of planning. Screens, lighting, speakers, sensors and other equipment may need secure mounting points, ventilation, power distribution and cable routes. Access panels need to remain reachable for maintenance. Technology should be integrated into the scenic structure rather than treated as something that can simply be added once everything else has been built.

Logistics Are Part of Fabrication

For temporary environments, logistics are closely connected to fabrication methodology. A structure can be beautifully manufactured and still become difficult to install if components arrive in the wrong order, fixings cannot be located quickly or large modules are packed behind items that need to be installed first.

Workshop dry-fitting is one of the most effective ways to reduce this risk. Assembling key sections before dispatch allows the fabrication team to check alignment, tolerances, finishes and connection details while workshop tools and machinery are still available. Numbering and coding the modules also gives the installation team a clear system to follow once the structure reaches site.

Packing can then follow the installation sequence. Structural elements required first can remain accessible, while finished components are protected until needed. Hardware kits can be organised by module or assembly stage. The result is fewer unnecessary movements on site and less time spent searching for components during a limited installation window.

Removal requires the same consideration. Temporary structures may need to return to the workshop, travel to another venue, enter storage or be separated into reusable and non-reusable materials. Protective packaging, transport routes and storage requirements should therefore be planned before the structure is ever delivered.

Permanent Thinking for a Temporary Lifespan

Permanent thinking does not mean constructing temporary environments using permanent-building methods. It means applying the same discipline to structural behaviour, detailing, material selection and buildability while also designing specifically for transportation, fast installation and eventual removal.

In many ways, temporary architecture requires greater precision because there is less time available to solve problems on site. Connection systems need to work immediately. Modules need to align correctly. Finishes need to arrive protected. Technology needs to connect as intended. Installation teams need a clear sequence rather than relying on improvisation.

The most successful temporary scenic environments are therefore designed around their complete lifecycle. From technical development and workshop fabrication through transport, installation, operation and dismantling, every stage affects the next.

The structure may only exist for a few days, but the thinking behind it needs to account for everything that happens before, during and after those days.

Why We Ask So Many Questions Before We Build Anything

One of the most common questions clients ask during the early stages of a scenic project is surprisingly simple: “Why do you need to know all of this?”

It usually comes somewhere between a question about the loading dock and another about the dimensions of a service lift.

The answer is that scenic fabrication projects are rarely defined only by what is being built. More often, they are defined by where it needs to go, how it needs to get there, how long we have to install it and what needs to happen once it arrives.

The Thing Being Built Is Only Half the Brief

A reception desk may appear straightforward on a drawing.

Timber carcass, finished panels, perhaps some metalwork, graphics and lighting. Then somebody mentions that it needs to reach the twenty-third floor of a hotel through a passenger lift. Suddenly the most important dimension is not the width of the desk. It is the clear opening of the lift door.

In scenic fabrication, the route between the workshop and the final position is effectively part of the design. Large walls, branded structures, exhibition environments and temporary architectural features often need to be divided into modules, rotated through corridors, moved across finished floors or assembled in spaces where traditional construction methods simply would not be practical.

Access Routes Are Part of the Engineering

Access planning starts before the structure reaches the venue.

We want to understand vehicle access, unloading positions, doorways, corridors, ramps, ceiling heights, floor levels and any turns the components need to negotiate. A measurement that appears insignificant during design can determine whether something arrives on site as one large assembly or twelve smaller ones.

A large scenic structure may therefore be engineered with bolted connections, removable finishes or concealed joining details simply because the final object cannot physically travel through the route available to it.

When those decisions are made early, they are straightforward fabrication choices. When they are discovered at 2am during installation, they become considerably more entertaining for everyone except the installation team.

Passenger Lifts Do Not Negotiate

Lifts deserve particular attention because they are remarkably unforgiving pieces of infrastructure. A scenic unit that is 20mm too tall does not become more cooperative because the installation window is nearly finished.

We normally need more than the advertised lift capacity or nominal internal dimensions. The clear door opening matters. So does the depth of the lift car, the height beneath lighting or ceiling fittings and the space available immediately outside the lift. A long component may technically fit inside diagonally but still be impossible to turn through the doorway.

That information can completely change the fabrication strategy. Joinery might be designed as flat-pack sections. Decorative panels may use concealed mechanical fixings rather than permanent adhesive joints. Large frames may be broken into engineered modules and assembled on the destination floor.

The finished appearance remains the same, but the build methodology has been designed around the reality of the building.

The Loading Dock Is Part of the Project Too

Loading docks create a different set of questions. What size vehicles are permitted? Is there a height restriction? Can a forty-foot trailer reach the dock?

Is there a tail lift, forklift or loading platform? How far is the unloading point from the installation area?

Vehicle selection, crate dimensions and handling equipment all influence fabrication and packing. A large welded frame might be perfectly efficient to manufacture as one piece, but not if the available vehicle cannot carry it or the venue cannot unload it.

In that case, engineered joints and planned lifting points become part of the scenic design rather than an afterthought.

Every Venue Has Its Own Rules

Then there are venue restrictions. These can influence everything from the materials used to the type of wheels underneath an installation trolley. Finished floors may require protection. Certain areas may prohibit drilling or mechanical fixing. Noise, dust, paint spraying, hot works and cutting may all be restricted.

Shopping centres are a good example. Scenic installations frequently take place after trading hours, with tight controls around noise, access and cleanliness.

Hotels introduce another challenge because the route to the installation may pass through completed guest areas. Exhibition halls usually provide excellent loading infrastructure, but the available build period can be extremely compressed. The physical environment changes, so the fabrication strategy changes with it.

Installation Windows Change How We Build

Time is another design constraint. A structure that can be assembled comfortably over two days may need a completely different methodology if the venue allows only a six-hour overnight installation window.

For a shopping centre installation, for example, the aim may be to maximise workshop preassembly so site work consists mainly of positioning modules, completing mechanical connections, aligning finishes and applying final graphics.

The more testing and dry-fitting that can happen in the workshop, the fewer unanswered questions remain once the installation clock starts.

The Structure Also Has to Survive the Journey

Transportation deserves the same attention as installation. Scenic work often includes delicate painted finishes, laminates, graphics, acrylic components, lighting and accurately aligned joinery. A structure can leave the workshop looking perfect and still arrive damaged if transport has not been considered properly.

Protective frames, crates, wrapped edges, transport restraints and numbered modules are therefore part of the production process. Packing sequence matters too. There is little benefit in carefully packing the first component required for installation at the very back of a fully loaded vehicle beneath everything else.

Public Spaces Bring Another Set of Questions

Outdoor installations and public spaces introduce further considerations. Wind exposure, weather resistance, ballast, anchoring, drainage and public interaction may all influence the engineering. A branded feature intended to operate outdoors for three days requires a different material and structural strategy from scenery installed indoors for an evening.

We also ask what happens after installation. Does the structure contain equipment that requires maintenance access? Will staff need to move it? Does a panel need to be removable? Will graphics be replaced? Can the installation be safely cleaned? Temporary does not mean disposable, and operational requirements often influence the detailing of scenic structures just as much as their appearance.

Questions Become Build Methodology

All of these questions eventually become technical information. Access surveys inform module sizes. Transport requirements influence frame splits. Installation windows determine connection details.

Venue restrictions affect material choices. Structural requirements establish where reinforcement, ballast or fixing points are required.

Experienced fabrication teams gradually build up a mental catalogue of things that can go wrong. Not because every project becomes more complicated, but because delivering more projects teaches you where apparently innocent assumptions tend to hide.

Finding those issues during technical development is usually inexpensive. Finding them when a truck is waiting at the loading dock is rarely quite as economical.

The Best Installation Day Is Usually Quite Boring

The objective behind all these questions is not to create obstacles. It is actually the opposite. We want the installation itself to be uneventful: the vehicle arrives, the components unload in the correct order, everything fits through the available access, the modules connect as planned and the finished scenic environment lands where the drawings said it would.

Good questions are therefore not a sign that a project is becoming unnecessarily complicated. They are usually a sign that somebody is thinking beyond the drawing.

At Evolution Scenic, that early interrogation is part of turning creative ideas into scenery that can actually be fabricated, transported, installed and operated successfully in the real world.

Why We Sometimes Say No To Creative Ideas

Contrary to popular belief, fabrication teams enjoy ambitious ideas.

Complex structures, unusual geometry and concepts that have never been built before are often some of the most rewarding projects a workshop can undertake. They force designers, engineers, carpenters, metal fabricators and scenic artists to solve problems that do not have an obvious answer.

So why do fabricators sometimes say no?

Usually, it is not because the idea cannot be built.

More often, it is because the way the idea has initially been proposed introduces engineering, transportation, installation or operational risks that outweigh the benefits of building it in that form.

A No Is Usually A Risk Assessment

Scenic fabrication exists in the space between creative ambition and physical reality.

A structure may need to support significant loads while remaining visually lightweight. It may need to stand several metres high while being installed without fixing into the venue floor.

It may need to move, rotate or travel on a vehicle while maintaining stability. It may need to appear monolithic while actually being manufactured as dozens of separate components.

Each of those requirements introduces engineering questions that are not always visible in the original concept.

Load paths, deflection, bracing, connection details, centre of gravity, lifting points and wind exposure can all affect whether a scenic structure will behave as intended.

Temporary structures introduce another layer of complexity because they also need to be assembled, dismantled, transported and sometimes reused.

A connection that works perfectly for a permanent installation may be completely impractical when a structure needs to be installed during a short overnight access window.

This is why an experienced fabrication team may challenge the proposed solution even when they strongly support the creative idea behind it.

The distinction is important.

The concept may be perfectly achievable.

The first construction method may not be.

Buildability Is Part Of Creative Development

A render can show almost anything.

Fabrication development begins when that image has to become a physical object.

At this stage, dimensions become components, surfaces become material build-ups and apparently simple forms become networks of frames, connections, brackets, panels and finishes.

Technical drawings are critical to this process. Sections reveal available structural depth.

Connection details establish how modules will join. Material specifications determine weight and behaviour. Tolerances establish whether hundreds of individually manufactured parts will actually align when assembled.

This is also where CNC machining, scenic carpentry, metal fabrication and finishing methods begin to influence the design.

A complicated curved form, for example, may be perfectly achievable but inefficient if every component needs to be manually set out. Developing the geometry for CNC routing can make the same feature faster to manufacture, more accurate and considerably easier to reproduce.

The earlier these conversations happen, the more creative freedom usually remains.

Discovering a buildability issue while reviewing technical drawings may require a minor change.

Discovering the same problem while a structure is being installed on site can require a major compromise.

Venue Constraints Can Change The Answer

Sometimes the structure itself is not the problem.

The building around it is.

Loading doors, goods lifts, corridors, ceiling heights and turning spaces can determine the maximum size of every scenic module before fabrication even begins.

A six-metre-high feature wall may fit comfortably into the final installation space but still be impossible to move through the venue as a single assembly.

The solution is not necessarily to reduce the height.

The better solution may be to divide the wall into transportable modules with engineered connections, alignment systems and concealed joints so that it still appears continuous after installation.

Venue restrictions can also affect structural methodology.

Floor loading limits may restrict ballast. Rigging rules may prevent suspension from certain locations. Existing finishes may prohibit drilling.

Hot-work restrictions may limit on-site welding. Noise restrictions may reduce the amount of fabrication that can realistically take place during installation.

These conditions all influence what should happen in the workshop.

Where site fabrication is restricted, more work may need to be completed during pre-assembly. Components can be dry-fitted, labelled and tested before delivery so that installation becomes primarily an assembly process rather than a construction exercise.

Good scenic engineering therefore considers the venue before manufacturing begins.

Transport Shapes What Gets Fabricated

Large scenic structures also need to leave the workshop.

This sounds obvious, but transportation is one of the most common reasons a technically achievable design needs further development.

Vehicle dimensions, container sizes, road restrictions, loading methods and handling equipment all affect component size.

A scenic structure that measures eight metres in one direction may eventually need to be fabricated as four separate modules simply because that is the most practical way to transport it safely.

Designing those break points intelligently is part of the fabrication process.

Connections need to remain accessible. Finished surfaces require protection. Modules need suitable lifting or handling points. Packing sequences need to consider which elements will be required first during installation.

A strong modular strategy can dramatically improve both logistics and site efficiency.

Large structures can be assembled completely within the workshop, checked for alignment, dismantled into transportable sections and then reassembled on site using the same predetermined connections.

What appears to be one enormous object in the finished environment may therefore have been designed from the beginning as a carefully coordinated kit of parts.

The Best Response Is Often An Alternative

Experienced scenic teams rarely want the conversation to end with the word “no”.

The more useful response is:

“What if we did it this way instead?”

Sometimes the alternative involves changing the structure while leaving the visible design untouched.

Sometimes it involves changing the material.

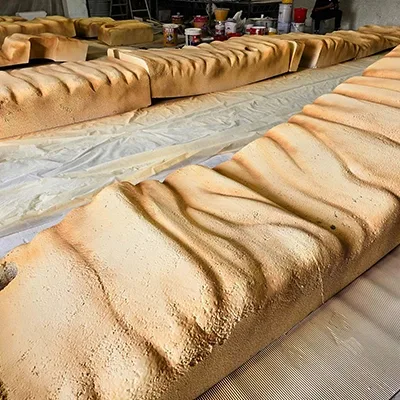

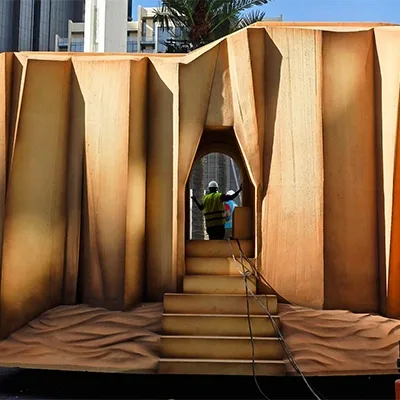

A feature designed to look like carved stone, for example, does not necessarily need to be manufactured from a heavy solid material. A lightweight internal structure combined with carved or CNC-produced scenic surfaces and an appropriate finish may achieve the same visual character while reducing weight, handling requirements and structural demand.

The same principle applies to steelwork.

Steel may provide excellent strength, but using it everywhere can introduce unnecessary weight. Depending on the structure, a combination of steel, aluminium, timber, plywood, composite materials and lightweight scenic components may produce a more efficient solution.

Material selection is therefore rarely based on appearance alone.

Weight, strength, fabrication method, fire performance, finish quality, durability, transportation and installation all need to be considered together.

Moving structures make these decisions even more important.

Consider a tall scenic feature mounted onto a moving platform or vehicle. The creative objective may be to create maximum height and visual impact, but placing too much weight high above the base can raise the centre of gravity and reduce stability.

The answer does not have to be a shorter structure.

The lower portion might use a stronger structural chassis while the upper scenic elements are redesigned using lightweight materials. Elements may fold, detach or telescope for transportation before being secured in their operating position.

The creative silhouette remains.

The engineering underneath it becomes considerably more intelligent.

Why Collaboration Matters

The relationship between creative and technical teams works best when neither side treats the other as an obstacle.

Creative teams should be able to propose ambitious ideas without designing every connection or fabrication detail themselves.

Equally, fabrication teams should not simply reject an idea because the first version is difficult to manufacture.

Their role is to understand the intention behind the concept and determine how that intention can be translated into something buildable.

That requires asking the right questions.

How will it stand?

How will it be transported?

How does it enter the venue?

Where can it be lifted?

What happens if the floor cannot be fixed into?

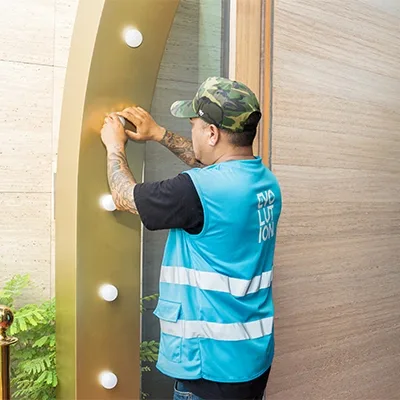

Can someone reach the connection during installation?

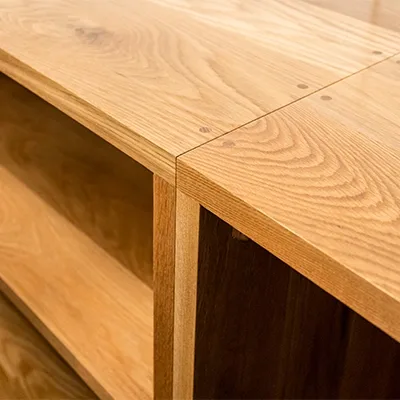

What happens to the finished surface when two modules are joined?

Can the structure be dismantled without destroying it?

These questions are not designed to restrict creativity.

They reveal the practical conditions that allow creativity to survive fabrication.

When technical teams become involved early, potential problems can often be converted into design opportunities.

A required structural joint can become part of a panel rhythm. A transport break can be concealed behind a graphic feature. A necessary support can be incorporated into the visual geometry.

The technical solution begins to support the design rather than compete with it.

A Better Idea Is Often The Engineered Version

The first creative idea is not always the strongest version of the project.

Sometimes it needs to be challenged.

Not because the ambition is unrealistic, but because there may be a safer, lighter, faster or more elegant way of achieving the same result.

At Evolution Scenic, this is where technical drawings, scenic engineering, material selection, workshop testing and fabrication experience become part of the creative process.

The objective is not to reduce ambitious ideas until they become easy to build.

It is to understand which parts of the idea are essential, identify the practical constraints around them and develop a fabrication methodology capable of delivering the intended result.

Sometimes that means saying no to the first solution.

More importantly, it means finding a better way to say yes.
