Why CNC Production Matters In Scenic Fabrication

Modern scenic fabrication increasingly relies on digital manufacturing to achieve levels of accuracy, consistency and production efficiency that would be difficult to maintain through traditional methods alone.

Whether the project involves an exhibition environment, a large branded installation, a retail pop-up or a highly detailed cultural structure, CNC production gives fabrication teams a controlled way to translate complex design information into physical components.

What makes CNC particularly valuable is the connection it creates between design development and manufacturing. Geometry produced during the CAD and technical drawing stages can be prepared directly for production, allowing components to be cut, shaped and repeated with a high degree of accuracy. This reduces unnecessary interpretation on the workshop floor and helps ensure that what has been technically developed is reflected in the parts being manufactured.

From CAD to machine-ready production

The CNC process begins long before a cutting tool touches material. Reliable production depends on clean CAD geometry, clearly defined dimensions and an understanding of how each component will eventually be assembled.

Fabricators need to consider material thicknesses, joint locations, edge conditions, fixing methods and realistic machining tolerances while preparing the digital files. A visually correct model is not automatically a production-ready model.

Once the geometry is resolved, components can be nested onto sheets and translated into machine toolpaths. Nesting becomes particularly important when significant quantities of plywood, MDF, acrylic or composite sheet material are involved, because efficient layouts can reduce material waste considerably.

Tool diameter, cutting direction, hold-down strategy and the sequence in which parts are machined all influence the quality of the finished components.

CNC production is therefore not simply a matter of sending a drawing to a machine; the manufacturing logic has to be considered throughout the file preparation process.

CNC routing for complex scenic construction

CNC routing is one of the most useful digital manufacturing processes within scenic carpentry.

Sheet materials can be cut into structural ribs, wall profiles, templates, decorative panels, flooring components, signage elements and intricate joinery with consistent results. For scenic structures that rely on layered construction or complex profiles, routing allows shapes to be reproduced accurately without requiring every component to be manually marked and cut.

Curved structures are a good example. A flowing scenic wall may require dozens of ribs, formers or profiles, each slightly different from the next. Producing those pieces manually would introduce considerable setting-out time and increase the possibility of cumulative dimensional errors.

CNC-machined components allow the geometry to be controlled digitally before the structure reaches the assembly stage, giving scenic carpenters a much more reliable starting point for the build.

Beyond sheet materials: foam and sculptural production

Digital manufacturing also extends into sculptural scenic work.

CNC foam cutting, hot-wire cutting and more advanced machining processes can generate large three-dimensional forms that would otherwise require extensive manual carving. These processes are particularly useful for oversized props, architectural features, mould-making forms and complex decorative elements.

The digitally produced shape may only be the beginning of the fabrication process; scenic artists can then carve, texture, hard-coat, paint and finish the surface to achieve the required appearance.

Accuracy and repeatability

One of CNC production’s greatest advantages is repeatability. Producing one component accurately is useful, but producing fifty components that match one another closely can transform the efficiency of a scenic build.

Repeated display units, decorative details, structural ribs, plinth components or branded elements can be manufactured from the same controlled digital information rather than being individually set out by hand.

Accuracy also improves the way separate workshop disciplines interact. Correctly machined joints help timber assemblies fit together more predictably.

Locating holes can control alignment between components. Templates can position metal brackets consistently, while accurately produced formers can guide cladding and finishing work. The objective is not to chase unrealistic machining tolerances for their own sake, but to use appropriate precision to make the wider fabrication process more controlled.

Scaling scenic manufacturing

These advantages become increasingly important as projects increase in size. A scenic installation containing hundreds of individual components can quickly become difficult to manage if every piece depends on manual measurement. Digital manufacturing allows components to be organised, labelled and reproduced systematically.

Part identification can be incorporated into production files, allowing workshop teams to understand where individual pieces belong during dry fitting and final assembly.

Scalability also matters when a scenic environment needs to be reproduced across multiple locations. Retail installations, pop-ups and branded environments often require similar structures to be manufactured more than once, sometimes with minor adaptations for different sites.

Once the manufacturing information has been properly developed, CNC-ready components can be reproduced or adjusted without rebuilding the fabrication process from the beginning. The digital production file effectively becomes part of the project’s manufacturing knowledge.

Heritage-inspired fabrication

CNC production is particularly useful for cultural and heritage-inspired work where repeated geometric details can become extremely complex. Decorative screens, layered patterns, relief panels and architectural motifs may involve hundreds of carefully controlled curves or intersections. Digital drawing allows these elements to be developed accurately, while CNC machining makes it practical to reproduce the geometry at scenic scale.

The machine itself does not create authenticity, however. Heritage-inspired scenic fabrication still requires careful interpretation of proportion, material, depth and finish. A precisely cut pattern can feel completely wrong if its scale or surface treatment has been poorly considered.

The value of CNC lies in giving the fabrication team control over the geometry, leaving experienced craftspeople and scenic artists to determine how that geometry should ultimately look and feel.

Digital production meets traditional workshop skills

CNC production does not replace scenic carpentry, metal fabrication or skilled workshop labour. A router cannot decide whether a timber edge requires reinforcement, whether an assembly can realistically be lifted into position or whether a connection will remain accessible during installation. Those decisions still depend on experienced fabricators understanding how the components will behave once they leave the machine bed.

In practice, digital manufacturing works best when it supports traditional workshop disciplines. CNC-cut parts may be assembled by carpenters, reinforced by fabricated steelwork, clad with sheet materials and passed to scenic artists for finishing.

The machine can also manufacture jigs, setting-out templates and drilling guides that make manual processes more consistent. This relationship between digital accuracy and practical fabrication judgement is where much of CNC’s real value sits.

Installation efficiencies start in the workshop

Accurate components can also reduce installation time. Scenic structures are frequently assembled under tight site programmes, with limited opportunities for significant adjustment once materials arrive. Components that have been dry-fitted and manufactured within a controlled digital workflow are more likely to align correctly when reassembled.

Predetermined fixing points, repeatable interfaces and accurate panel dimensions can remove a considerable amount of measuring and modification from the site team.

The same approach supports transportation and modular construction. Large structures can be divided digitally into sections that suit vehicle capacities, access routes and installation sequencing.

Modules can be numbered before leaving the workshop and their connection points coordinated during manufacture.

CNC accuracy therefore contributes not only to the appearance of a finished scenic structure, but also to how efficiently it can be packed, transported and reconstructed.

Precision is only useful when it builds well

The most successful use of CNC in scenic fabrication is not about replacing traditional manufacturing with machines.

It is about using digital production where it genuinely improves the build. CNC routing, foam cutting and other manufacturing processes allow complex information to move efficiently from technical design into the workshop, improving repeatability, scalability and control.

But scenic projects still depend on skilled people making practical decisions. Materials move, tolerances accumulate and installation conditions rarely behave exactly as they do inside a CAD model. By combining CNC precision with experienced carpentry, metal fabrication, scenic finishing, logistics and installation knowledge, fabrication teams can produce complex environments that are both digitally accurate and genuinely buildable

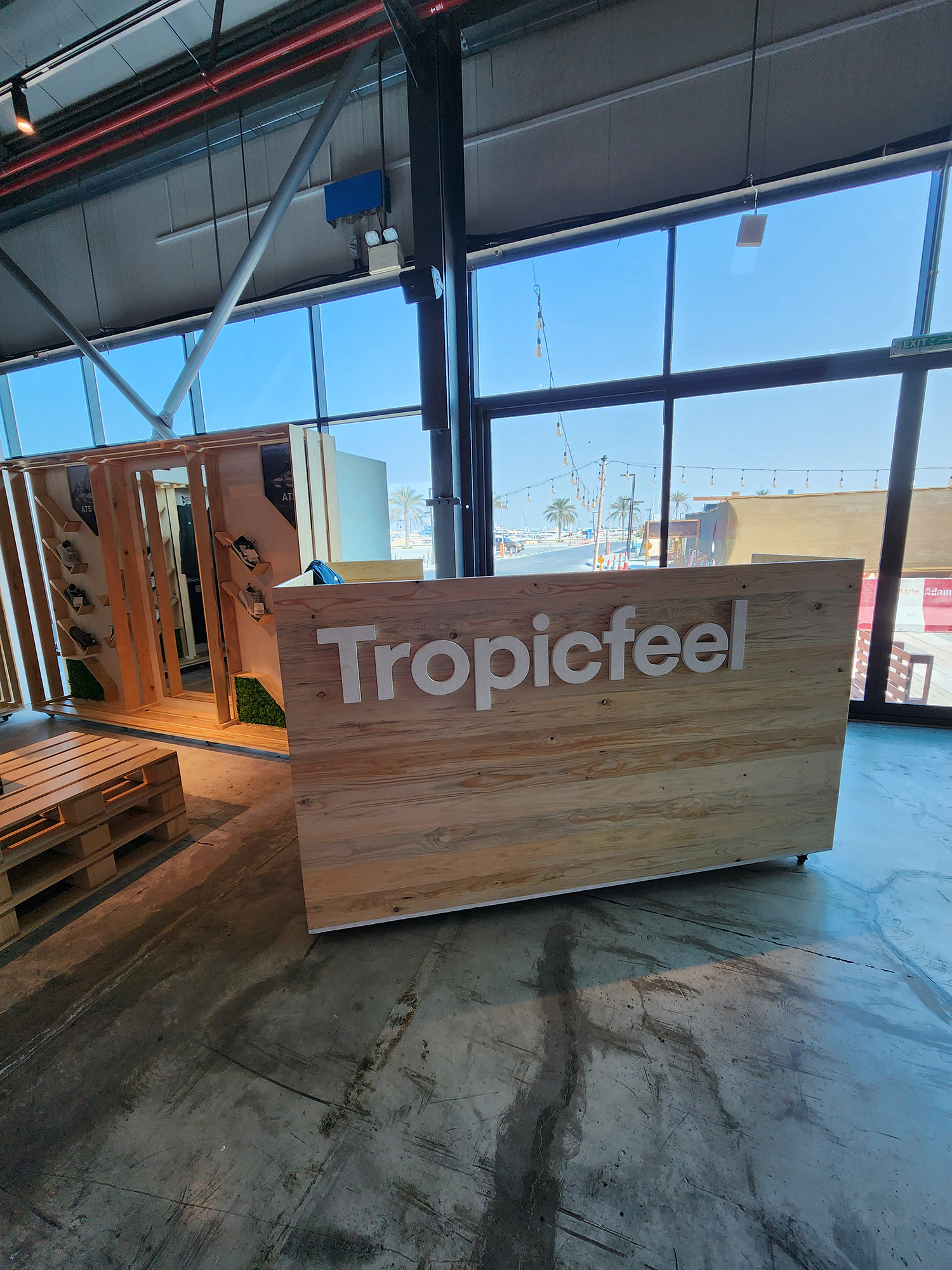

Why Your Beautiful Reception Desk Has Nowhere To Put Anything

Reception desks are among the easiest scenic elements to make look impressive.

They are also among the easiest to get completely wrong.

Most concept visuals show the front of the desk. Clients see the branding, the curved profile, the feature lighting and the clean architectural lines. They see a beautifully rendered counter sitting within a perfectly organised registration environment, usually without a cable, cardboard box or half-finished cup of coffee anywhere in sight.

What they rarely see is the person who has to work behind it for twelve hours.

Where does the printer go?

Where do the registration packs go?

Where do the water bottles go?

Where do the cables go?

Where does the laptop charger go?

Where do staff put their bags, spare stationery, coats, snacks and personal belongings?

These questions sound simple. They are also frequently absent from the original concept.

The result is a beautiful reception desk that remains beautiful for approximately seven minutes.

Then the event team arrives.

Within moments, boxes appear beneath the counter. Printers occupy the worktop. Extension leads trail across the floor. Registration packs are stacked against the side panels. Water bottles gather around the monitors, and someone discovers that the only available socket is three metres away on the wrong side of the desk.

By the time the doors open, the pristine reception counter shown in the render has become an extremely expensive shelf.

A Reception Desk Is a Workplace

Reception desks and registration counters are often treated as decorative scenic objects. Visually, that is understandable. They are prominent branded elements and frequently form one of the first physical touchpoints within a conference, exhibition or corporate environment.

Operationally, however, they are compact workplaces.

The people positioned behind them may need to welcome visitors, search databases, print badges, distribute documents, answer questions, store equipment and resolve unexpected problems. They may be working across multiple laptops, printers and scanning devices while communicating with colleagues and managing a steady flow of materials.

That activity requires more than an attractive front panel.

It requires a considered internal layout.

Experienced scenic fabrication teams therefore look beyond the visible surfaces. The front elevation may define how the desk appears to visitors, but the rear elevation determines whether it can function throughout the event.

This is where technical development becomes particularly important. A concept may establish the desired shape, finish and branding treatment, while the fabrication process resolves the practical details hidden behind it.

The objective is not to reduce the visual ambition. It is to make sure the desk still looks intentional once people begin using it.

Storage Is Not an Optional Extra

Internal storage is one of the first features to disappear when a reception counter is designed purely from the front.

A desk may look generous in a render while offering almost no usable space behind it. Curved façades, illuminated panels, recessed logos and decorative cladding can consume a surprising amount of internal volume. Structural framing takes up additional space, particularly where larger spans or projecting surfaces need support.

Without early planning, staff are left to improvise.

Boxes are pushed beneath stools. Bags are placed in visible corners. Spare badges are balanced on equipment cases. Documents are stacked wherever they fit, normally until someone needs the item at the bottom.

Effective storage does not necessarily require elaborate cabinetry. In many temporary environments, simple and robust solutions are more useful.

Open compartments can provide rapid access to registration packs and consumables. Lockable cupboards may be required for laptops, personal belongings or sensitive documents. Adjustable shelves can accommodate equipment of different sizes, while dedicated printer bays prevent devices from occupying the main work surface.

The important point is that storage should reflect what the staff will actually use.

A shelf designed without knowing the dimensions of the printer is not really a printer shelf. It is simply an optimistic rectangle.

Power Distribution Needs to Be Designed In

Modern registration environments depend heavily on technology.

Laptops, badge printers, label printers, scanners, tablets, monitors, routers and charging devices may all need power. Some equipment may also require data connections or direct access to venue infrastructure.

Yet power distribution is often considered after the desk has already been designed.

This creates familiar problems. Extension leads are added at the last moment. Adaptors are connected to other adaptors. Cables emerge through gaps that were never intended to carry them. Equipment is placed according to the nearest available socket rather than the most efficient staff workflow.

A better approach is to coordinate power requirements during technical development.

Fabrication drawings can identify cable entry points, internal distribution routes, equipment locations and access panels. Power strips can be securely mounted within the structure rather than left loose on the floor. Ventilation can be introduced around equipment that generates heat, while removable panels can allow technical teams to reach connections without dismantling the counter.

The desk must also connect sensibly to the venue supply.

That may involve routing cables through the rear of the counter, through a raised floor or towards a nearby service point. Cable paths should be protected, accessible and positioned away from staff feet wherever possible.

No one should have to choose between operating the badge printer and charging the registration laptop.

Design Around the Staff Workflow

Good registration desks support a sequence of actions.

A visitor approaches. A member of staff searches for their details. A badge is printed. Supporting information may be collected. A lanyard or registration pack is handed over, and the visitor moves away.

The physical arrangement of the desk can either support that sequence or make every step unnecessarily awkward.

For example, placing the badge printer beneath the counter may preserve the appearance of the worktop, but it becomes inconvenient if staff must bend down hundreds of times each day.

Positioning registration packs at the opposite end of the desk may create constant crossing between team members. A worktop that is too shallow may leave insufficient room for equipment and paperwork, while one that is too deep can make visitor interaction uncomfortable.

Staff numbers also matter.

A counter designed for two operators cannot simply become a six-person registration desk because six chairs have been placed behind it. Each person requires enough width to work, suitable equipment access and sufficient space to move without repeatedly colliding with the colleague beside them.

The right arrangement depends on the operation.

Some environments require multiple identical registration positions. Others need separate zones for general enquiries, badge collection, VIP registration or problem resolution. These differences affect the internal construction, worktop layout and division of storage.

Understanding the process early allows Evolution Scenic’s technical and fabrication teams to develop the counter around the people using it, rather than asking the people to adapt themselves around the counter.

Temporary Does Not Mean Thoughtless

Registration desks are commonly used within temporary environments, but their temporary nature does not make operational planning less important.

In many cases, it makes it more important.

The counter may need to arrive through a restricted loading bay, travel in a goods lift, pass through standard doorways and be installed during a short overnight window. It may then need to be dismantled, transported and reused at another venue.

These requirements influence the build methodology.

Large desks may need to divide into modular sections. Worktops might require concealed mechanical fixings. Electrical connections may need to disconnect quickly between modules. Graphic panels may need to be replaceable so the structure can support different events or sponsors.

The modules must align accurately when assembled, particularly where curved profiles, continuous lighting or large-format graphics cross multiple sections. Internal storage and cable routes must also remain usable after the desk has been divided for transport.

A modular counter should feel like one coherent structure when installed, not several boxes standing politely beside one another.

The Before-and-After Test

A useful way to evaluate a reception desk is to compare two moments.

The first is immediately after installation. The lighting is switched on, the graphics are pristine and the worktop is completely empty. This is the version photographed for approval.

The second is three hours after the event opens.

Printers are operating. Staff are charging devices. Spare badges are in use. Registration packs are being replenished. Personal belongings have arrived. Someone has introduced a roll of tape, two marker pens and a mysterious cable that apparently belongs to nobody.

If the desk still looks organised during the second moment, the design has worked.

That does not happen accidentally.

It happens because storage, power distribution, cable management and staff workflow were considered as part of the scenic fabrication process. It happens because the internal structure was developed with the same attention as the visible finish.

The strongest reception environments combine both sides of the challenge.

They provide the architectural form, branded appearance and quality of finish expected from a prominent scenic feature. At the same time, they support the less glamorous realities of printers, paperwork, chargers, water bottles and twelve-hour shifts.

A great reception desk should look impressive when it is empty.

A successful reception desk should continue looking impressive when it is not.

Premium Scenic Finishes For Public Environments

Public-facing environments place particular demands on scenic finishes. Unlike short-duration installations that may only operate for several days, many retail environments, visitor centres, museums and branded interiors remain in continuous use for months or years.

The finish must therefore achieve more than an attractive appearance at the point of installation. It must withstand cleaning, physical contact, changing environmental conditions and routine maintenance while continuing to present a consistent visual standard.

This becomes especially important within premium environments where scenic elements are viewed closely and from multiple angles. In large-scale temporary settings, minor surface inconsistencies may be concealed by distance, lighting or the overall scale of the installation.

Within a luxury retail interior or museum environment, the same inconsistencies can become immediately noticeable.

Panel joints, edge conditions, reflections, coating thicknesses and transitions between materials all contribute to the perceived quality of the completed work. A finish may use a premium coating system, but it will not appear refined if the substrate beneath it has not been fabricated, prepared and assembled accurately.

Museum-quality and high-end scenic finishes are therefore rarely defined by one specialist paint, material or decorative technique. They are the result of coordinated decisions made throughout fabrication, preparation, application, installation and maintenance.

Specifying and Preparing Premium Scenic Finishes

The finishing process begins well before paint or decorative coatings are applied. It starts with understanding the environment, the expected operating period and the level of physical interaction the scenic element will experience.

A decorative wall positioned above visitor level may require a different finish from a display plinth that is touched continuously. A luxury retail counter may need to resist cleaning products, jewellery, bags and repeated staff use. A museum display may require stable colours, low-reflection surfaces and materials that can be maintained without affecting nearby exhibits.

The intended viewing distance also influences the specification. Large scenic forms positioned several metres from the visitor may accommodate textured finishes and broad decorative techniques. Joinery, display cases and branded features viewed at close range demand tighter tolerances, smoother surfaces and more controlled application.

The substrate must be selected with the final finish in mind.

MDF is frequently used for painted scenic joinery because it provides a smooth and consistent surface. However, cut edges are more absorbent than the face and require careful sealing, filling and sanding if they are to achieve the same finish quality.

Plywood offers greater resilience and fixing strength but may require additional preparation to conceal grain, laminations and surface irregularities. Metals require suitable cleaning, keying and priming to support adhesion, while plastics and composite panels may need specialist primers or controlled preparation methods.

The construction method also affects the finish. Movement between materials, unsupported panel edges and poorly detailed joints can result in cracking or visible lines after installation. A polished surface may expose minor deviations that would remain hidden beneath a textured coating.

For this reason, scenic carpentry, metal fabrication and finishing teams must work to an agreed standard from the beginning. The finishing department cannot always correct inaccuracies introduced during structural fabrication or panel assembly.

Surface preparation may include:

• Sealing absorbent materials and machined edges
• Filling screw holes, joints and surface imperfections
• Progressive sanding to achieve the required smoothness
• Preparing metal surfaces for corrosion-resistant primers
• Applying compatible adhesion promoters to plastics
• Testing fillers, primers and coatings as a complete system
• Controlling dust before and during application
• Inspecting surfaces under lighting similar to the final environment

Preparation requirements should be established through samples and mock-ups wherever practical.

A small finish sample allows the colour, sheen and texture to be approved. A larger mock-up provides a more useful understanding of how the finish behaves across joints, corners, curves and changes in substrate. It can also demonstrate how the surface responds to lighting, touch and cleaning.

This is particularly important for metallic finishes, high-gloss coatings, polished plaster effects and hand-applied decorative treatments. These finishes may change significantly depending on application direction, panel size and viewing angle.

Colour consistency must also be managed carefully. A colour reference alone may not define the final appearance because gloss level, texture, substrate and lighting all influence how the surface is perceived. Large scenic environments may require controlled batch preparation and recorded application methods to minimise variation between components.

Where modules are fabricated separately, the finish must continue consistently across the assembled structure. Panel orientation, spray direction and grain or decorative movement should be coordinated so that individual sections do not appear visually disconnected after installation.

Applying and Controlling High-End Finish Systems

Premium scenic finishes are produced through controlled processes rather than last-minute decorative treatment.

The correct application method depends on the required appearance, substrate geometry and intended performance. Spray application can produce smooth and consistent finishes over large panels, while roller systems may be suitable for textured architectural surfaces or areas where site application is required. Hand-applied techniques can create specialist textures, aged effects and decorative depth, but require clear reference samples and experienced scenic artists.

High-gloss finishes are among the most demanding because they reflect light clearly and reveal surface imperfections. Substrates must be flat, stable and prepared through several stages of filling, priming and sanding. Dust control is essential, and coatings must be allowed to cure properly before handling or installation.

Satin and matt finishes can provide a more controlled appearance in museums and experience centres, particularly where reflections could affect displays, lighting or interpretation graphics. However, very matt finishes may mark easily or become polished through repeated contact. The selected sheen should therefore balance visual requirements with practical cleaning and durability.

Metallic and specialist decorative coatings introduce additional considerations. Metallic particles can appear different depending on spray direction, overlap and lighting. If several panels form one continuous wall, they should be finished using a coordinated method to avoid visible changes between modules.

Protective coatings can improve the performance of decorative surfaces, but they must be compatible with the underlying finish. Clear coats may provide resistance to abrasion, moisture and cleaning chemicals, although they can also alter the sheen, depth or colour of the approved sample.

The complete coating system should therefore be tested together, including the primer, base coat, decorative layer and protective topcoat.

Public interaction should influence where higher-performance systems are used. Door edges, handrails, counter fronts, plinth corners and low-level wall areas typically receive more contact than elevated or recessed surfaces. These zones may require impact-resistant materials, replaceable components or more durable coating systems.

The choice of finish can also support future repair. A highly specialised decorative technique may be difficult to reproduce locally if damage occurs. Where long-term maintenance is expected, it may be preferable to develop a documented finish system that can be matched and repaired without refinishing an entire scenic element.

Quality control should continue throughout fabrication and installation.

Workshop inspections can assess surface preparation, colour consistency, sheen, texture, curing and edge quality before components are packed. Viewing surfaces under directional light can reveal scratches, pinholes, uneven sanding and coating variation that may not be visible under general workshop lighting.

Protective packing is part of the finishing methodology. Completed panels may require soft interlayers, corner protection and dedicated transport frames to prevent movement and surface contact. Wrapping materials must be selected carefully because some plastics, tapes or foams can mark coatings if applied before the finish has fully cured.

Installation teams also require appropriate handling instructions. Finished components should not be lifted by vulnerable decorative edges or placed directly onto unfinished floors. Tools, access equipment and fixing operations must be controlled to prevent damage to adjacent surfaces.

The assembly sequence can make a significant difference. Where possible, high-risk structural work, overhead lifting and cable installation should be completed before sensitive decorative panels are installed. Protective films may remain in place during assembly, but they should not conceal surfaces that require inspection before handover.

Final touch-ups should be treated as a controlled finishing operation rather than an improvised correction process. Repairs must use compatible materials and should be assessed under the final lighting conditions. On reflective surfaces, a small local repair may remain more visible than a carefully refinished panel.

Protecting Long-Term Performance and Maintainability

A premium finish should continue to perform after the installation team has left site.

Long-term durability depends on environmental exposure, visitor interaction, maintenance procedures and the ability to access and repair individual components. These factors should be considered during design rather than addressed only after signs of wear appear.

Outdoor and partially exposed environments introduce challenges including ultraviolet radiation, heat, humidity, dust and occasional water exposure. Coatings must be suitable for the expected conditions, while substrates and connections must accommodate thermal movement.

Dark surfaces can absorb significant heat, potentially affecting adhesives, graphics and panel joints. UV exposure may cause colour fading or degradation in unsuitable coatings. Moisture can enter through poorly sealed edges, fixings and joints, particularly where horizontal surfaces allow water to collect.

Protective systems must therefore work alongside appropriate construction detailing. Weather-resistant paint cannot compensate for trapped water, unsealed edges or incompatible materials.

Indoor public environments experience different forms of wear. Repeated touching, bags, equipment, cleaning machines and movable furniture can gradually damage low-level surfaces.

Retail environments may also undergo frequent visual updates, requiring graphics or product displays to be changed without affecting the primary scenic structure.

Replaceable panels, removable trims and accessible fixings can extend the life of an installation. A damaged high-contact component can be removed and refinished without dismantling the complete environment.

Cleaning requirements should be established as part of the finish specification.

A coating may withstand general use but react poorly to aggressive cleaning products. High-gloss surfaces may show fingerprints and streaks, while textured finishes may trap dust and be difficult to clean evenly. Some specialist scenic effects can be damaged by repeated wet cleaning or abrasive cloths.

Cleaning tests should therefore be carried out where finishes will be used in demanding public areas. This can include checking resistance to approved detergents, disinfectants and repeated wiping.

Maintenance information should identify:

• Approved cleaning products and methods
• Surfaces that should not be treated with solvents or abrasives
• Recommended inspection intervals
• Procedures for repairing scratches, chips or worn edges
• Reference colours, sheen levels and coating products
• Access methods for concealed or elevated components
• Replaceable panels and spare materials retained for future use

For museum and interpretation environments, maintenance may also need to consider nearby artefacts, display cases and sensitive materials. Finishes should not introduce unwanted dust, odours or contaminants during routine repair work. Maintenance access should allow work to be completed without disturbing adjacent displays wherever possible.

Premium retail environments often require a particularly consistent standard because the scenic interior forms part of the brand presentation. Colour changes, surface wear and visible repairs can weaken that consistency even where the structure remains technically serviceable.

Regular inspection allows minor defects to be addressed before they develop into larger areas of damage. A small chip exposing an absorbent substrate, for example, may become more difficult to repair if cleaning moisture enters the material over time.

At Evolution Scenic, premium finishing is considered as part of the complete fabrication process. Substrate selection, scenic carpentry, metalwork, surface preparation, specialist painting, transport protection and installation sequencing must all support the same finish objective.

The strongest public environments combine visual quality with practical performance. Their finishes withstand close inspection at handover, but they are also designed to remain durable, maintainable and consistent throughout their operational life.

Premium scenic finishes are therefore not defined by decorative complexity alone. They are defined by controlled fabrication, disciplined preparation and attention to every surface, edge and connection that contributes to the completed environment.

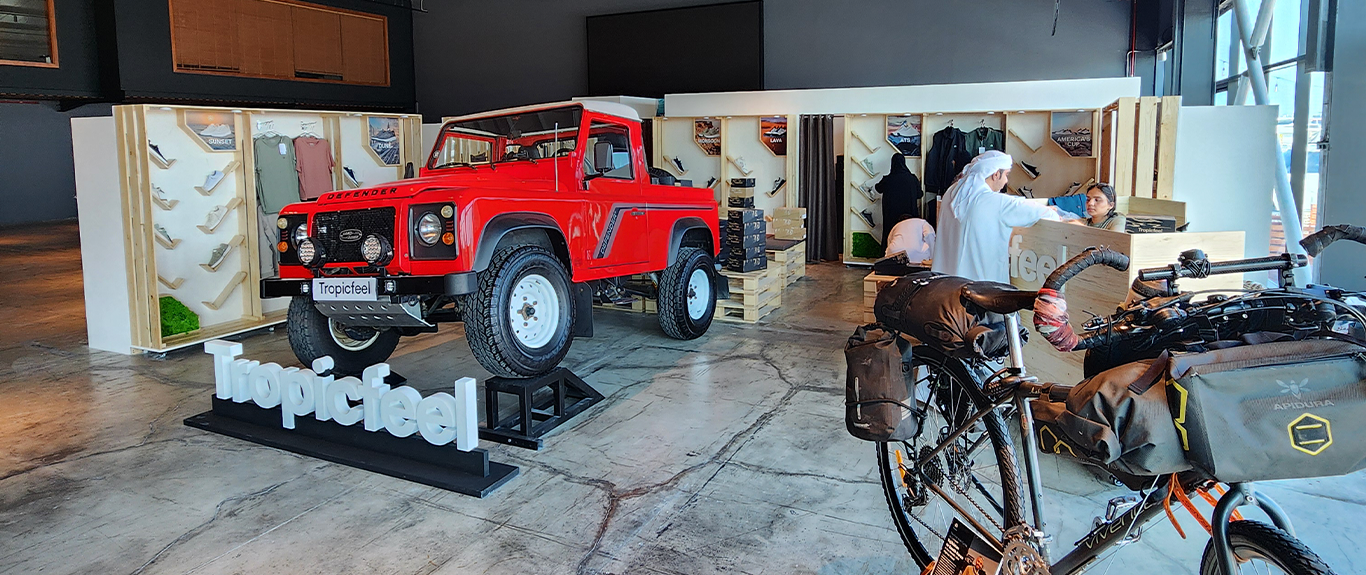

Temporary retail environments can be designed to deliver a premium customer experience without relying entirely on new fabrication. For the Tropicfeel and Practical collaborative pop-up at Alserkal Avenue in Dubai, Evolution delivered a full turnkey retail fit-out with a strong emphasis on reuse, refurbishment and practical functionality.

The project combined existing display assets from both brands with new custom-built elements, including fitting room and storage partitions, branded billing counters with integrated planters and a feature separator wall with a frameless LED screen. From material sourcing and fabrication through to logistics and installation, the space was developed as a coordinated retail environment that balanced sustainability with a clean, contemporary finish.

The Challenge

The pop-up needed to bring together two brands within one cohesive retail environment while making effective use of existing assets.

Rather than starting with a completely new build, Evolution needed to assess display stands supplied by both clients, determine which elements could be reused and refurbish them to a standard suitable for the finished space.

The project also required new partitions, counters, storage areas and a digital feature wall, all of which needed to sit comfortably alongside the refurbished elements.

A compressed delivery programme added further pressure, requiring refurbishment, new fabrication, logistics and on-site installation to progress in close coordination.

The Solution

Evolution delivered the project as a complete turnkey package, managing the process from concept development through to final installation.

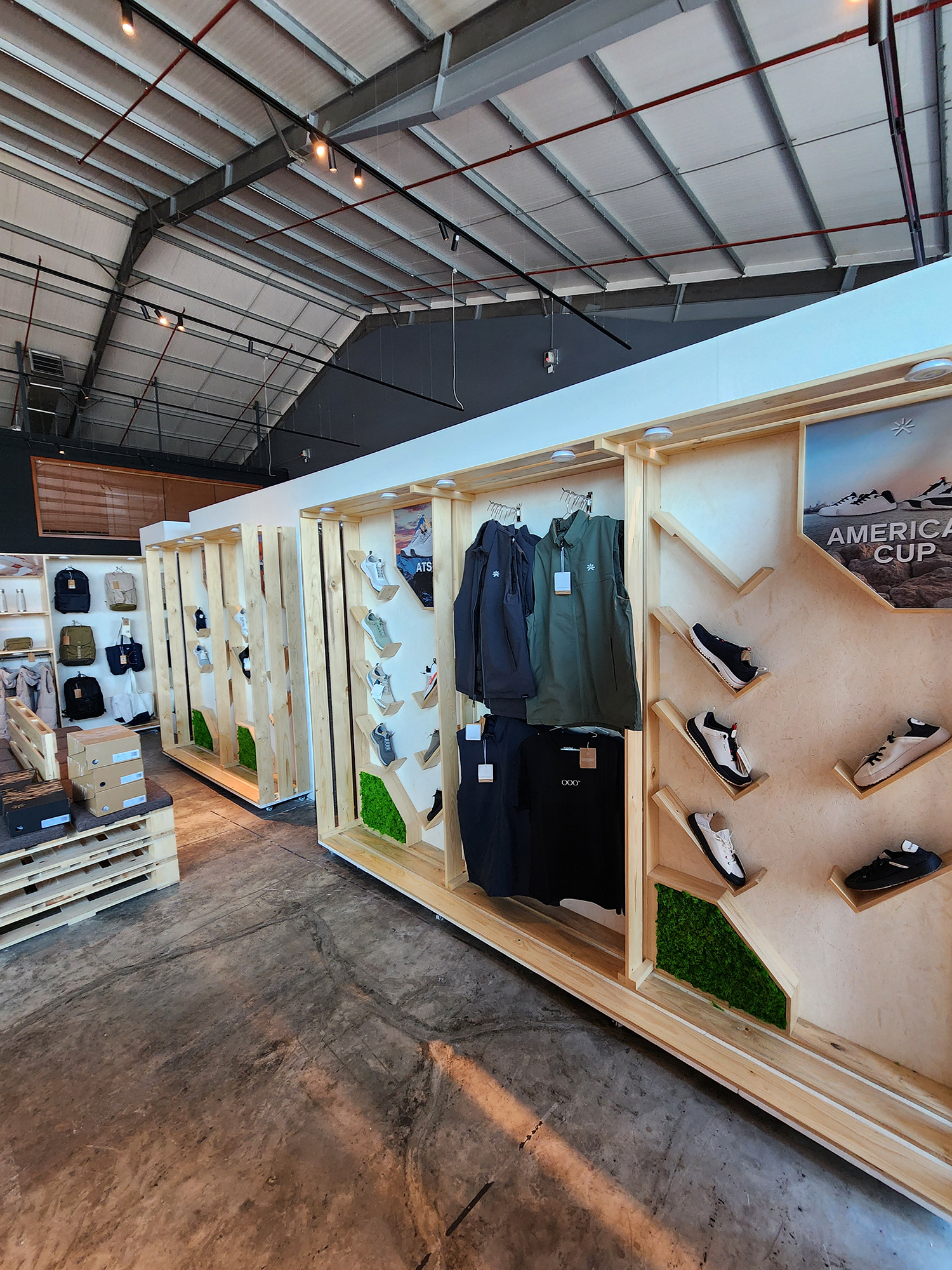

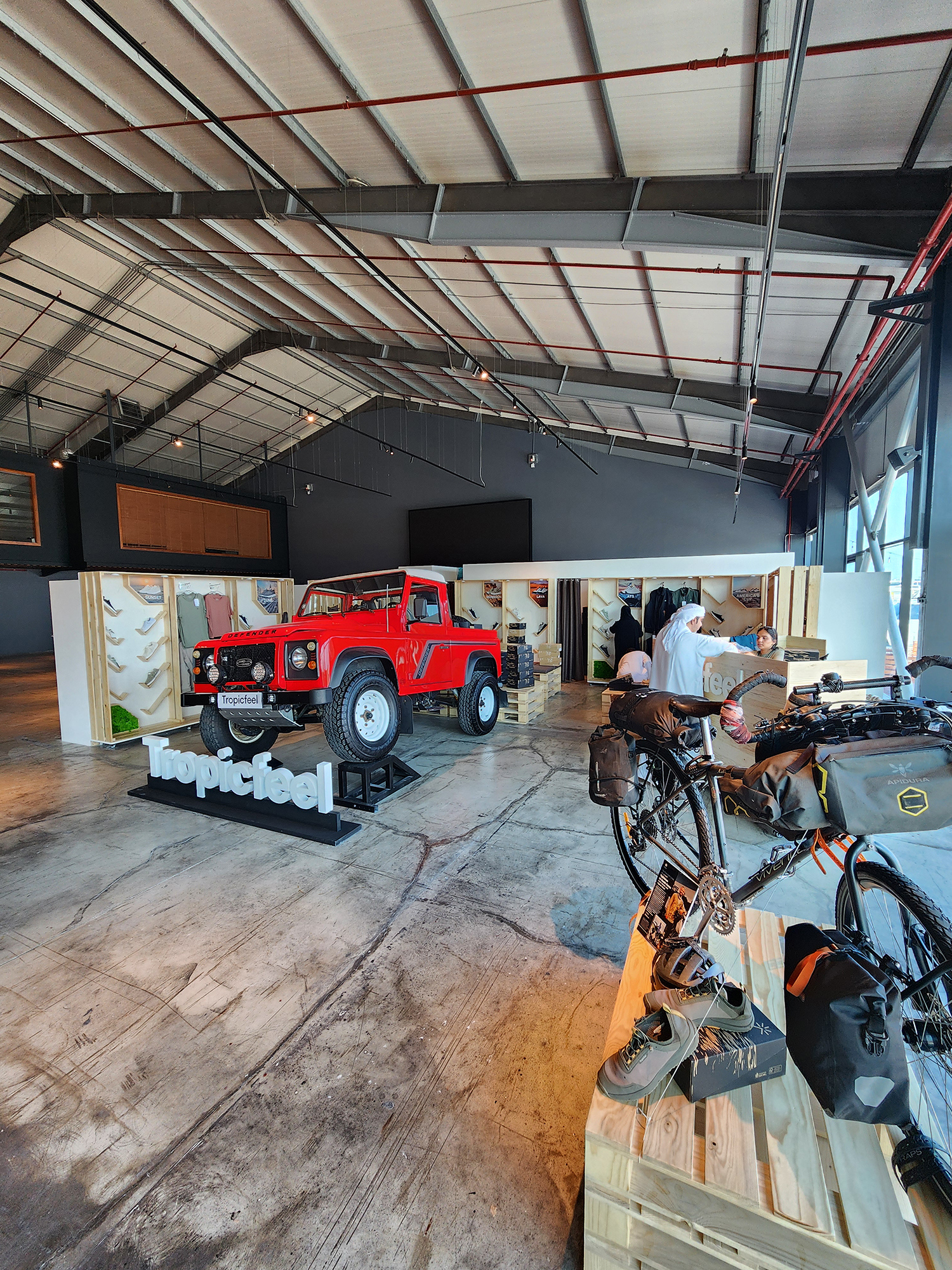

Existing display stands from Tropicfeel and Practical were assessed, refurbished and reintegrated into the new layout, reducing the need for unnecessary replacement and supporting the sustainability objectives of the project.

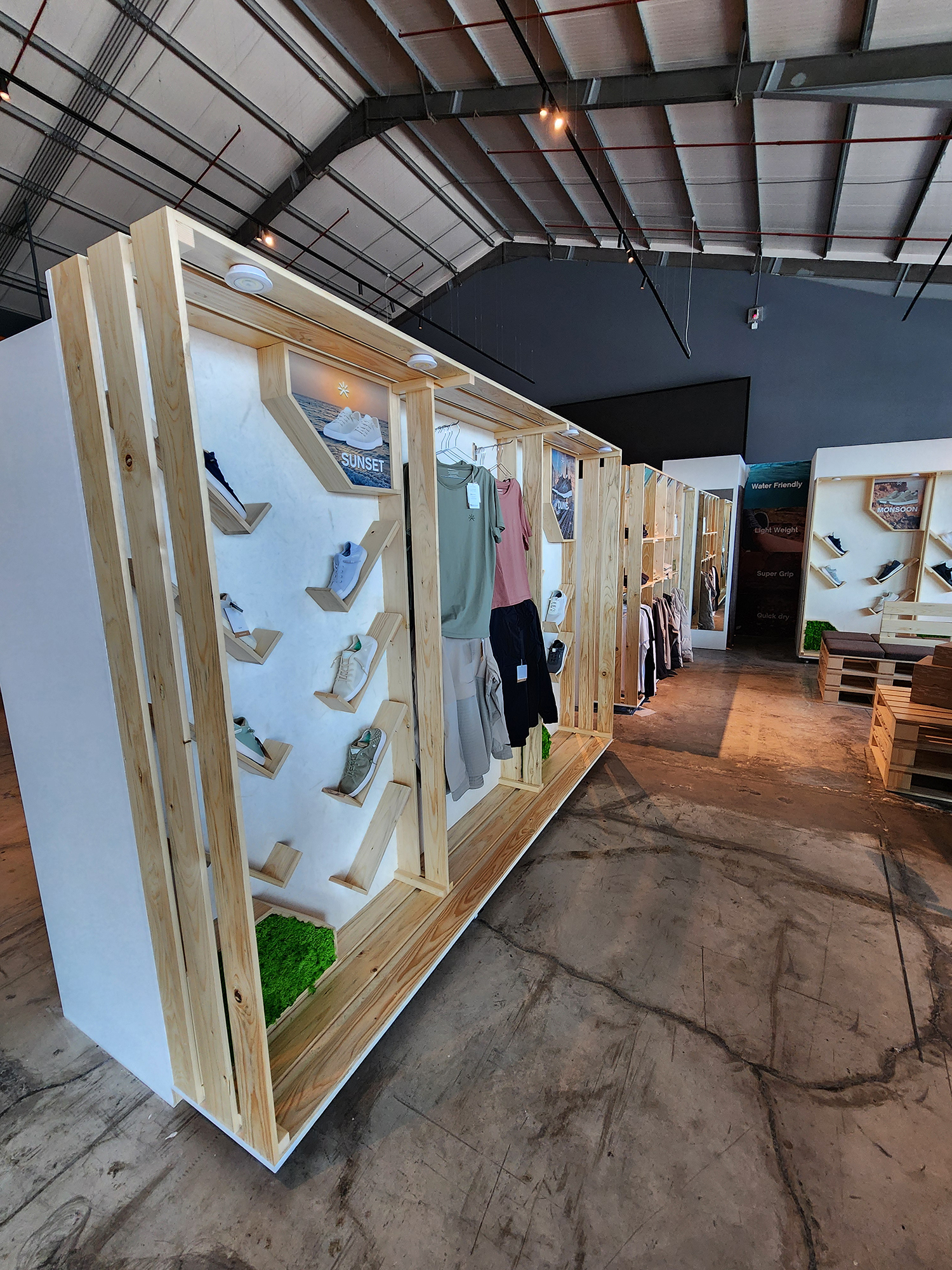

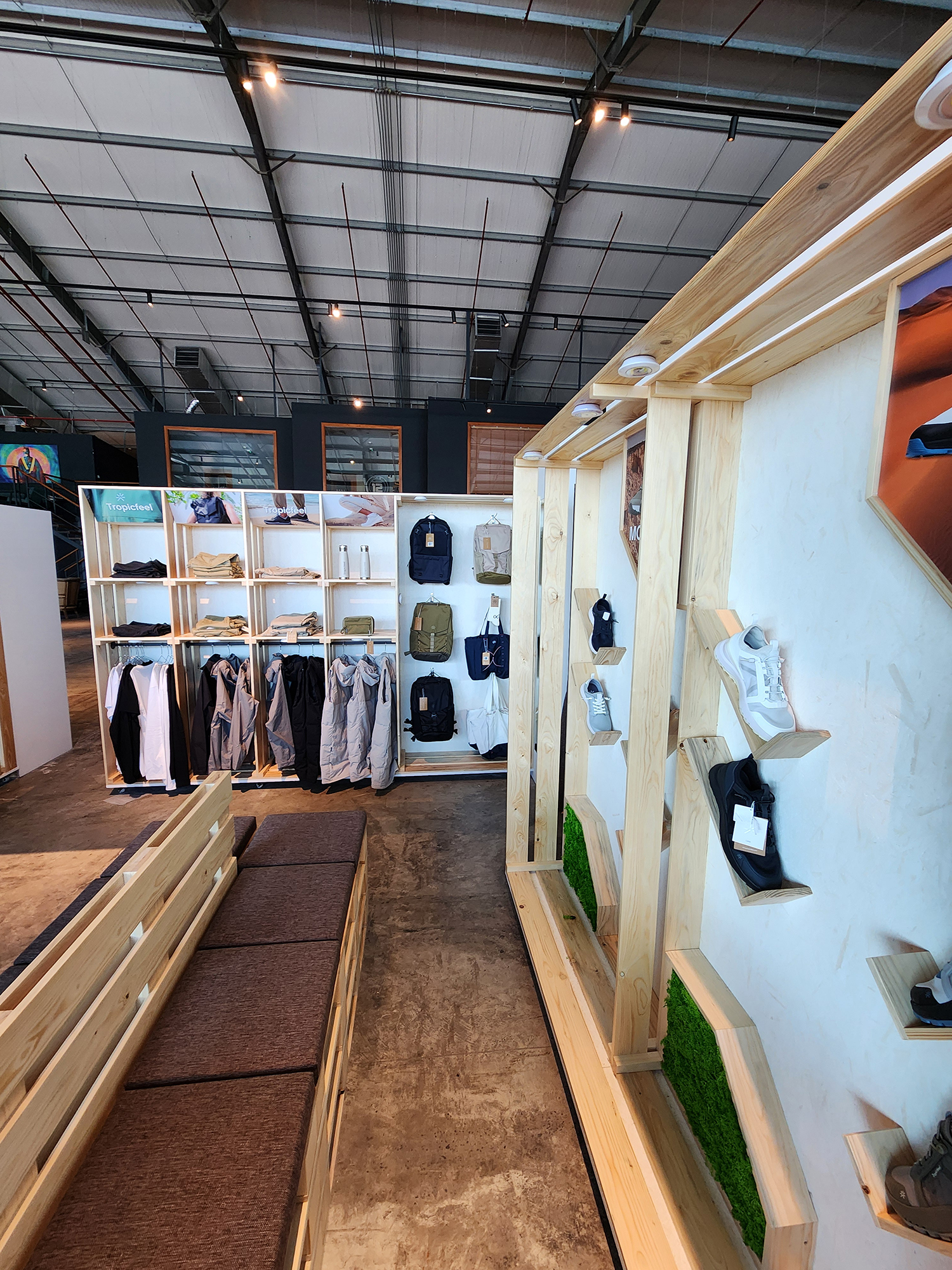

New fitting room and storage partitions were fabricated to improve the functionality of the retail environment while maintaining a consistent visual language across the space.

Custom billing counters were also produced with integrated planters, combining operational use with a softer decorative treatment.

A feature separator wall was developed as one of the main visual anchors within the pop-up. A frameless LED screen was integrated directly into the structure, allowing digital content to become part of the architectural treatment rather than appearing as a separate display.

Material selection was managed carefully to balance environmental considerations with the finish quality expected from a premium retail environment.

Delivery Highlights

• Full turnkey retail fit-out.

• Pop-up installation at Alserkal Avenue.

• Collaboration with Tropicfeel and Practical.

• Complete project management from concept to installation.

• Material sourcing and fabrication.

• Reuse of existing display stands.

• Refurbishment of client-supplied retail fixtures.

• Custom fitting room partitions.

• Bespoke storage partitions.

• Branded billing counters.

• Integrated planter features.

• Feature separator wall.

• Frameless LED screen integration.

• Sustainable material considerations.

• Retail logistics and on-site execution.

• Fast-track refurbishment and installation.

Outcome

The completed pop-up combined reused retail assets with new bespoke fabrication to create a cohesive and functional customer environment.

Refurbished display stands reduced the need for unnecessary new production, while the custom partitions, counters and feature wall provided the additional infrastructure required for the collaborative retail space.

The integrated frameless LED screen introduced a digital engagement element without compromising the clean visual treatment of the interior.

The project demonstrates Evolution Scenic’s ability to deliver sustainable temporary retail environments where reuse, refurbishment, fabrication, technology and customer experience must all be considered together within a short project programme.

Project Ecosystem

Evolution Scenic – Turnkey project management, reuse assessment, refurbishment, custom retail fabrication, partitions, billing counters, planter integration, feature wall construction, LED screen integration, material sourcing, logistics, delivery and installation.

Festival brand environments need to work as more than visual statements. They must support retail, hospitality, audience engagement and safe public use while remaining closely aligned with the identity of the brand. For Adidas at Sole DXB 2019, Evolution Scenic was commissioned by Jack Morton Worldwide to design and construct a striking triple-deck stand inspired by the gritty visual language of London’s Underground system.

The structure operated as both a retail and experiential environment, combining branded architecture, product display, visitor circulation and a second-level VIP viewing deck overlooking the festival’s main stage. Alongside the scenic design and fabrication, Evolution Scenic also carried out structural analysis to secure Municipality approval and verify the integrity of the build.

The Challenge

The Adidas installation needed to create a strong, immersive presence within the highly competitive visual environment of Sole DXB while also supporting multiple practical functions.

The structure had to accommodate retail displays, visitor movement and elevated VIP viewing within one integrated footprint. At the same time, the overall form needed to reflect the raw, urban aesthetic of London’s Underground and remain consistent with Adidas’s brand direction.

Because the build incorporated multiple levels and an elevated viewing deck, structural safety and regulatory compliance were also critical. The design therefore needed to balance scenic expression with engineering performance and public-event requirements.

The Solution

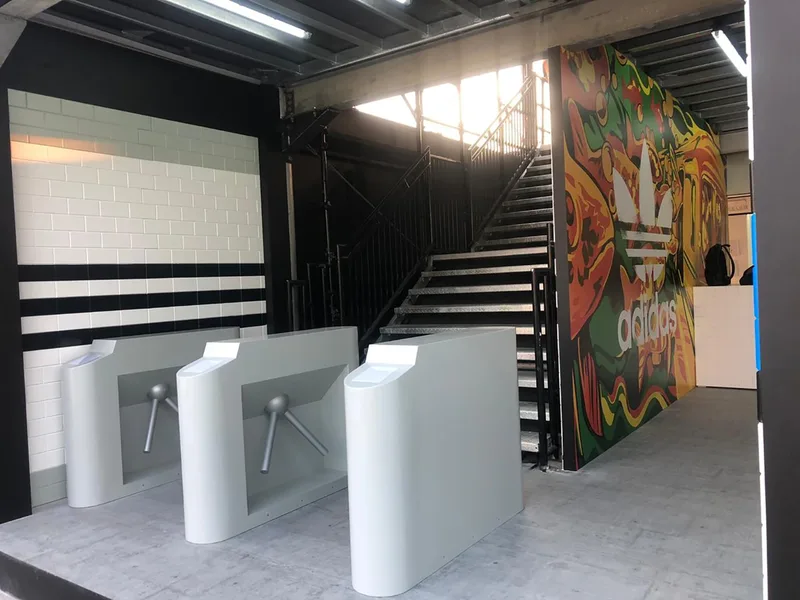

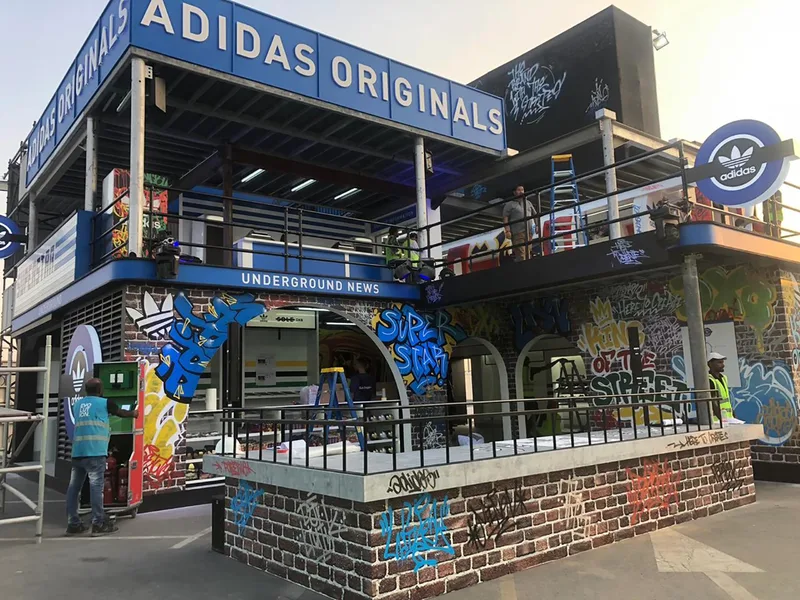

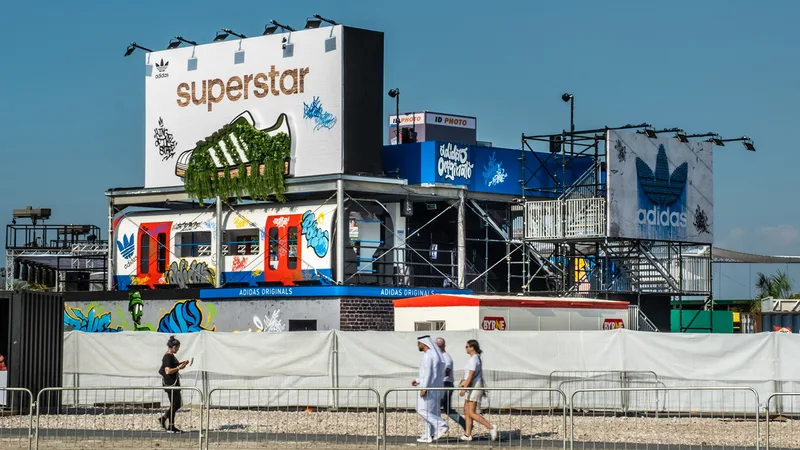

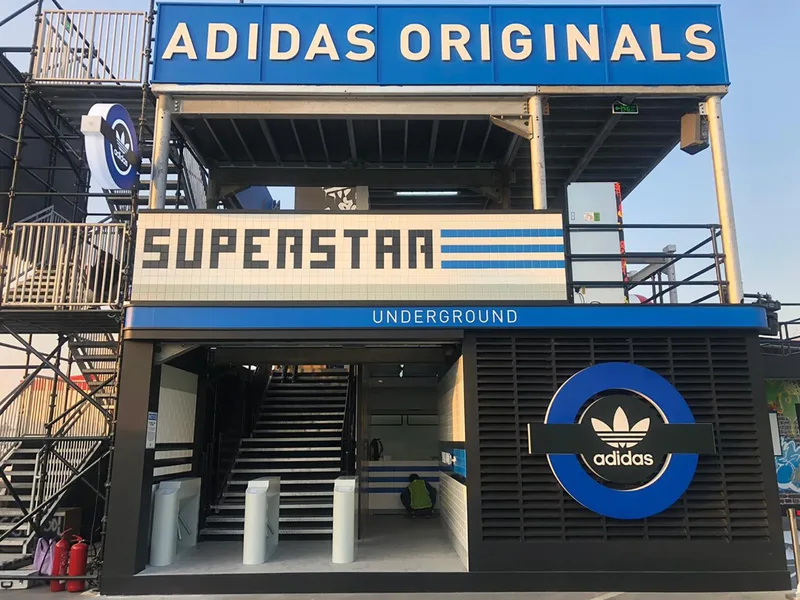

Evolution Scenic designed and constructed the triple-deck installation using a TSG hybrid system, creating a substantial multi-level structure capable of supporting both experiential and operational functions.

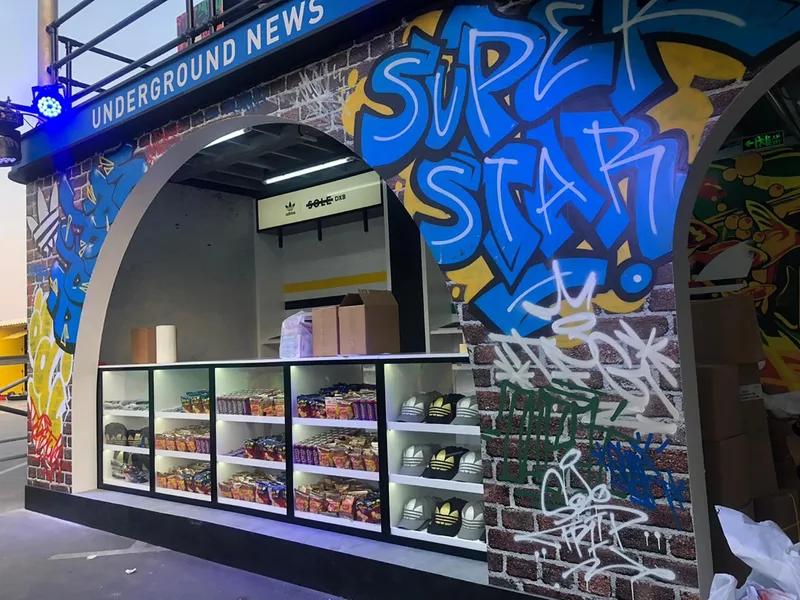

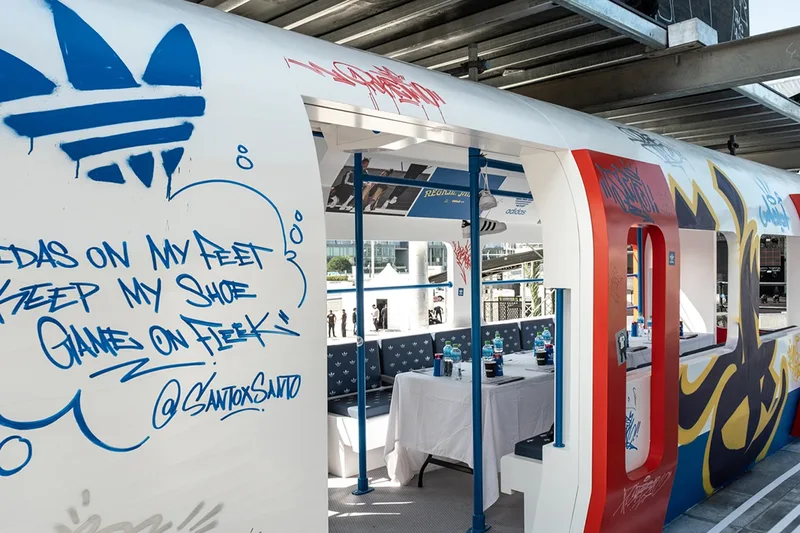

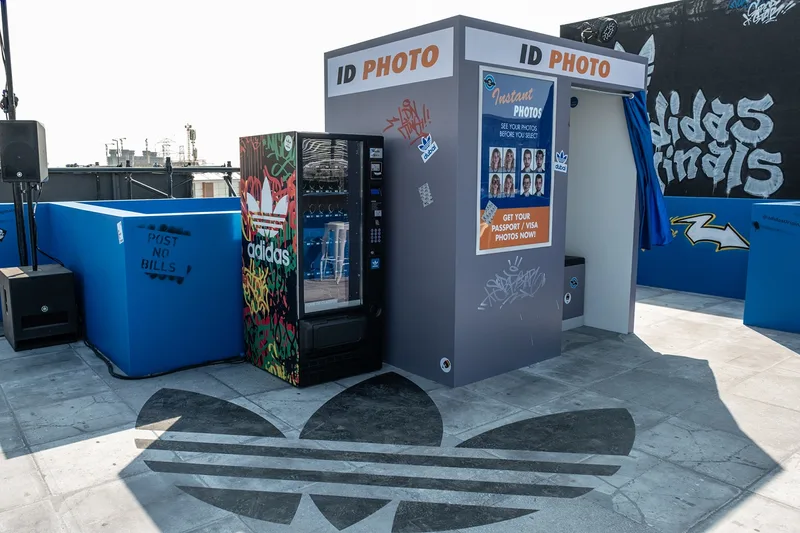

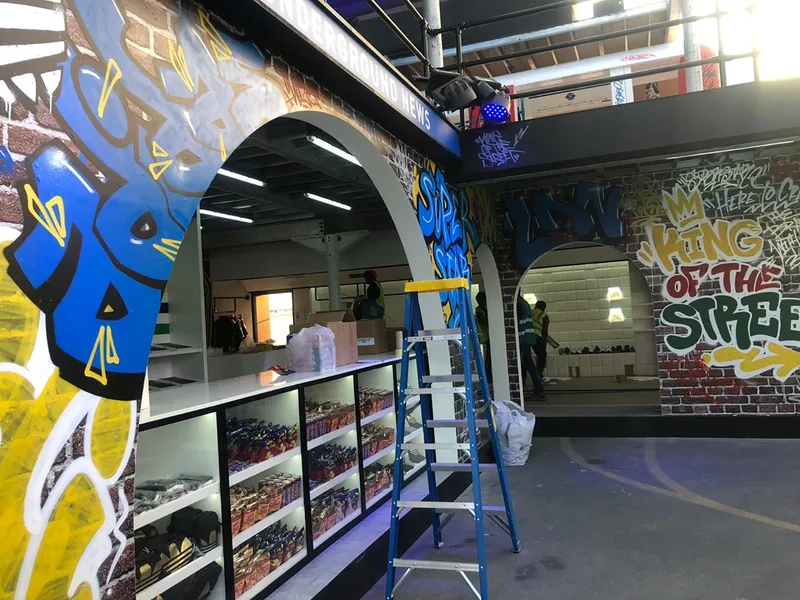

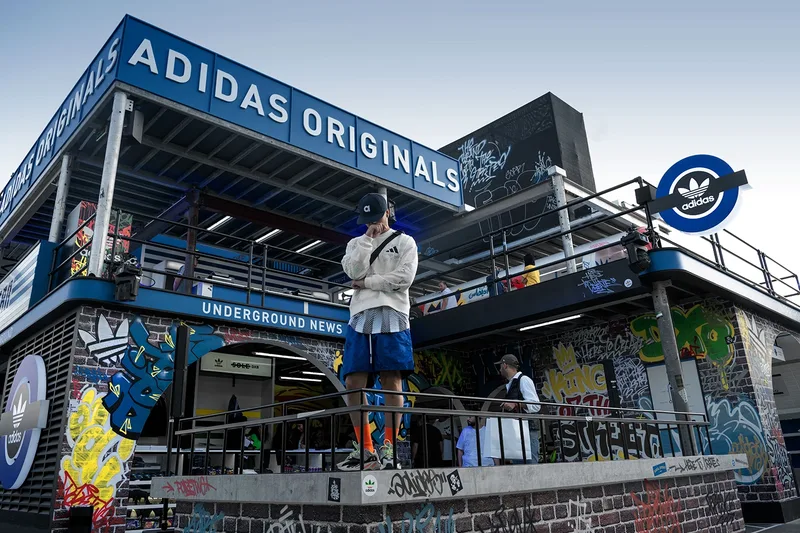

The scenic treatment drew directly from the visual character of London’s Underground, using the architecture of the stand itself to establish the urban identity of the activation.

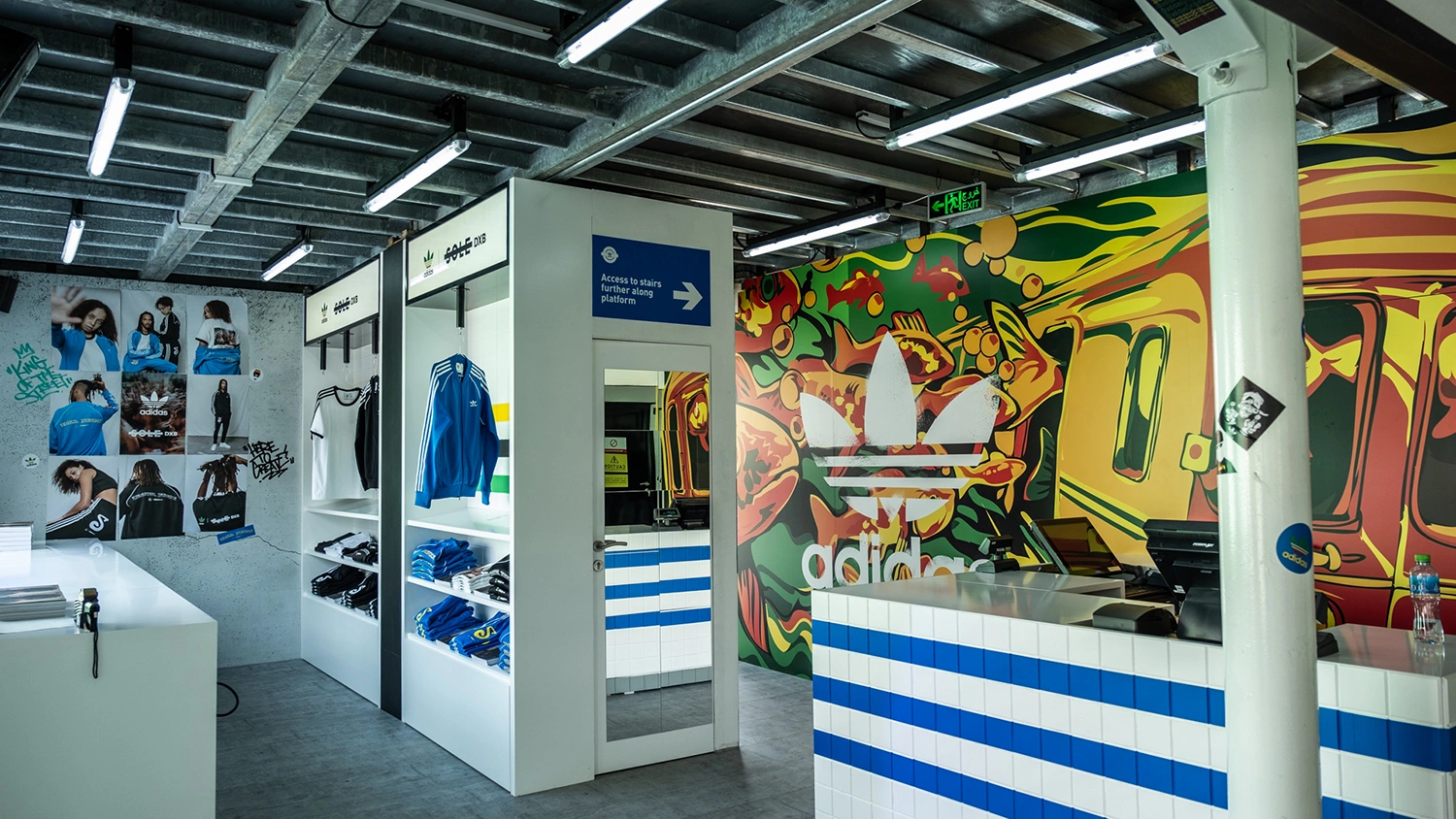

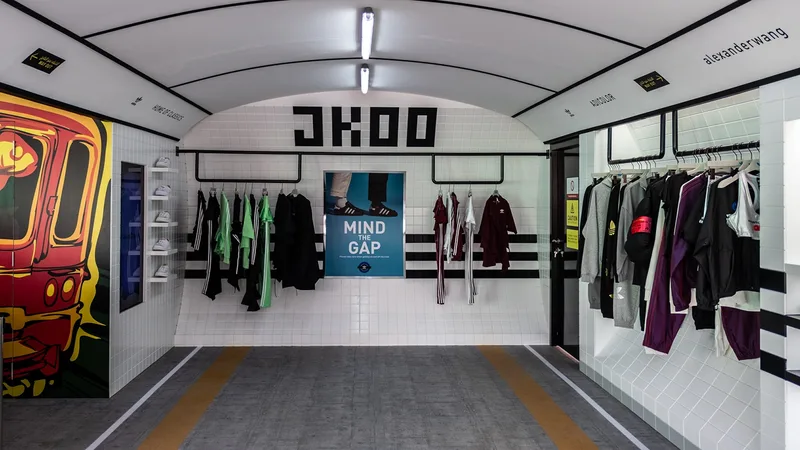

Retail display areas were integrated throughout the structure to showcase Adidas products without separating the commercial elements from the wider visitor experience.

A second-level VIP viewing deck was incorporated into the build, giving invited guests an elevated perspective of the festival’s main stage while adding a premium hospitality component to the overall activation.

To confirm structural performance and support Municipality approval, Evolution Scenic completed a detailed STAAD analysis. This ensured that the multi-level structure was assessed against the required standards before final execution.

By coordinating scenic design, structural planning, retail functionality and VIP hospitality within one build, the installation operated as a complete branded environment rather than a conventional exhibition stand.

Delivery Highlights

• Adidas activation for Sole DXB 2019.

• Commissioned by Jack Morton Worldwide.

• Triple-deck scenic structure.

• TSG hybrid structural system.

• London Underground-inspired visual treatment.

• Integrated retail displays.

• Multi-level visitor environment.

• Second-level VIP viewing deck.

• Views towards the festival main stage.

• Branded experiential environment.

• Structural engineering coordination.

• Detailed STAAD analysis.

• Municipality approval support.

• Public-event safety and compliance.

• Large-scale scenic fabrication.

• Delivery and installation.

Outcome

The completed Adidas installation created a bold and highly visible presence at Sole DXB 2019 while supporting retail, hospitality and visitor engagement within one multi-level structure.

The triple-deck format allowed the activation to operate on several levels at once, with product displays integrated into the lower areas and the VIP viewing deck providing an elevated festival experience.

The project demonstrates Evolution Scenic’s ability to deliver structurally complex brand activations where immersive scenic design, retail integration, guest experience and engineering compliance all need to work together within a single environment.

Project Ecosystem

Evolution Scenic – Scenic design, triple-deck structural fabrication, TSG hybrid system integration, retail display fabrication, VIP viewing deck construction, STAAD analysis, compliance coordination, delivery and installation.

Hospitality interiors need to balance atmosphere, customer comfort and operational practicality while maintaining a strong connection to the brand. For Pedjas Kraft Coffee Shop in Dubai, Evolution Scenic delivered a comprehensive interior fit-out designed to create a warm, distinctive and functional environment.

The project combined custom joinery, bespoke furniture, decorative finishes, accent lighting and carefully selected materials to transform the coffee shop into a cohesive customer-facing space. Each element was developed to support both the visual identity of the brand and the practical requirements of day-to-day operation.

The Challenge

The coffee shop required a complete fit-out capable of creating a clear brand identity while making efficient use of the available interior space.

The environment needed to accommodate functional requirements such as counters, storage, shelving and display areas without compromising the overall customer experience. At the same time, the finished space needed to feel comfortable, inviting and visually distinctive.

Material selection, furniture, lighting and decorative treatments therefore had to work together as part of one coordinated interior rather than as separate elements.

The Solution

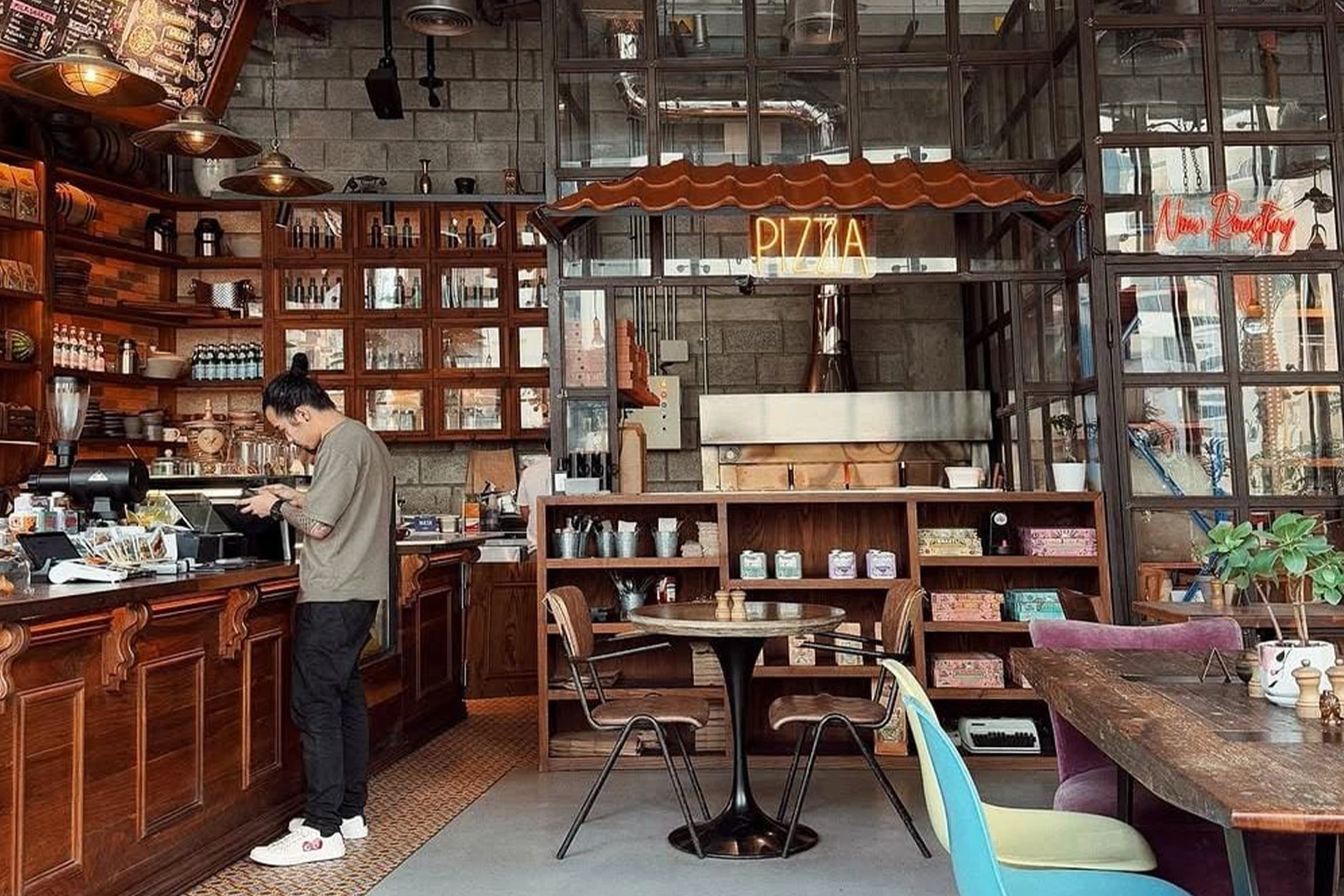

Evolution Scenic delivered a tailored fit-out package incorporating custom joinery, bespoke furniture and decorative interior treatments.

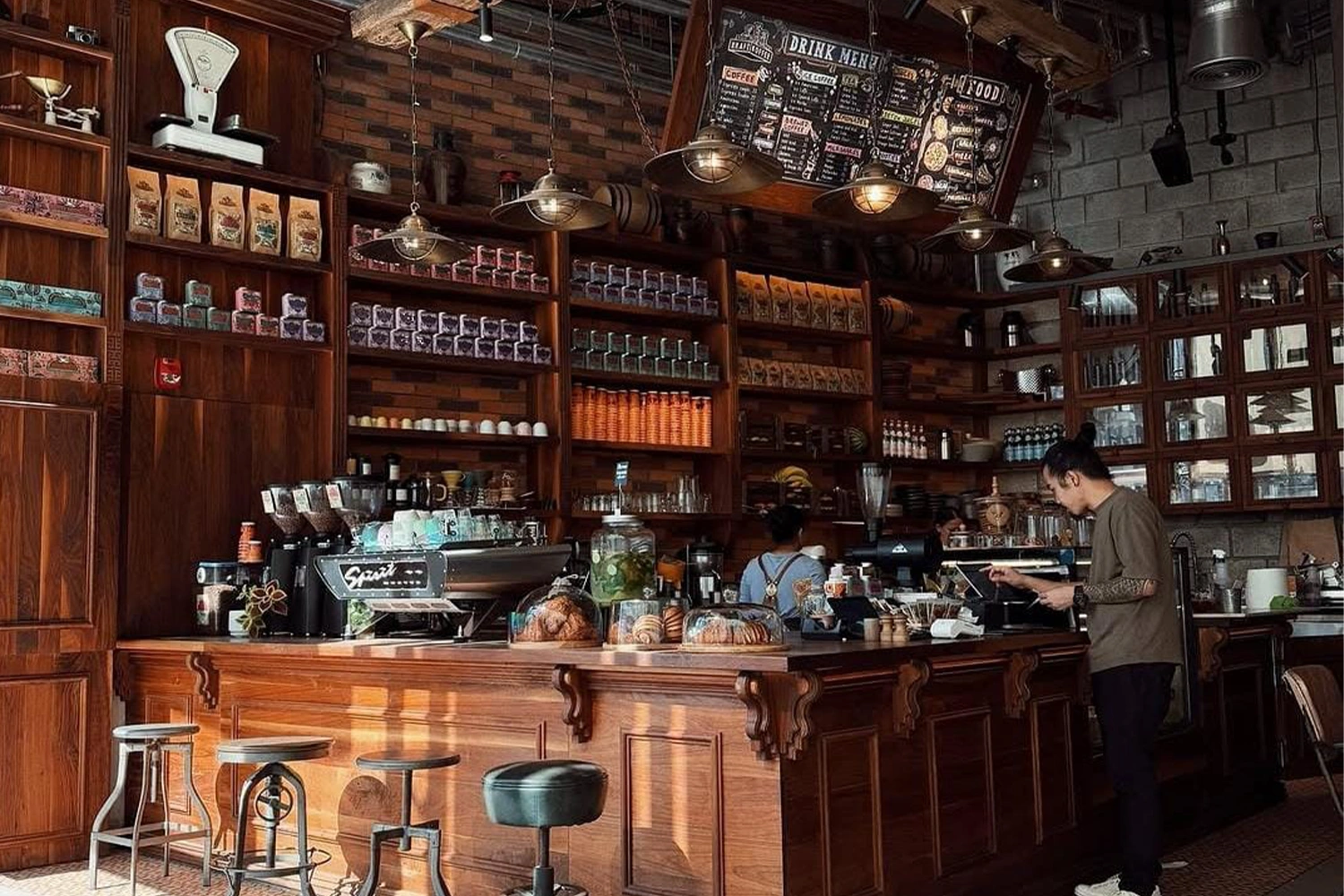

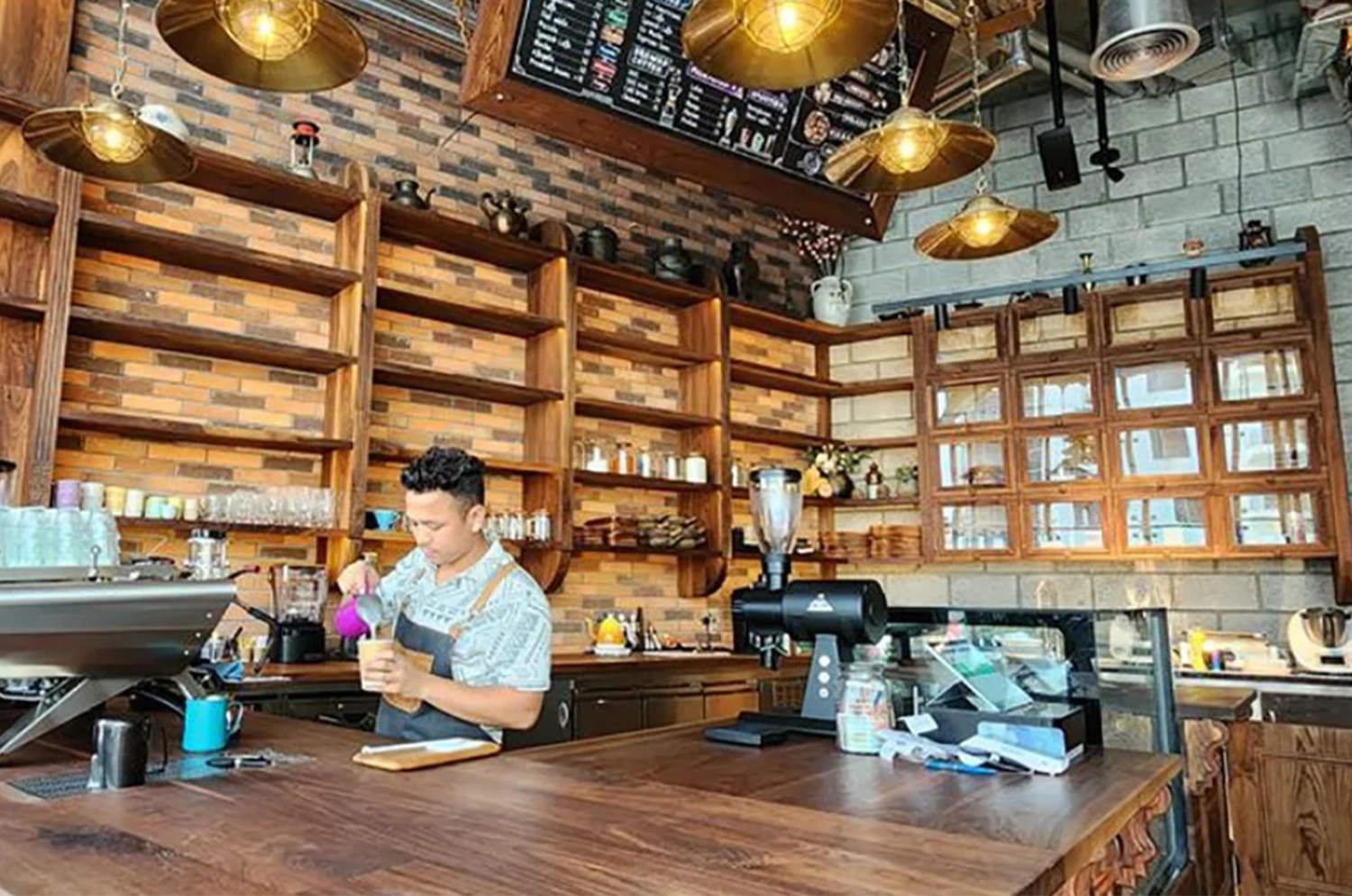

Display cabinets, counters and shelving were designed and installed to improve space utilisation while maintaining a consistent visual language throughout the coffee shop. These elements provided the practical infrastructure required for operation while also contributing to the overall character of the interior.

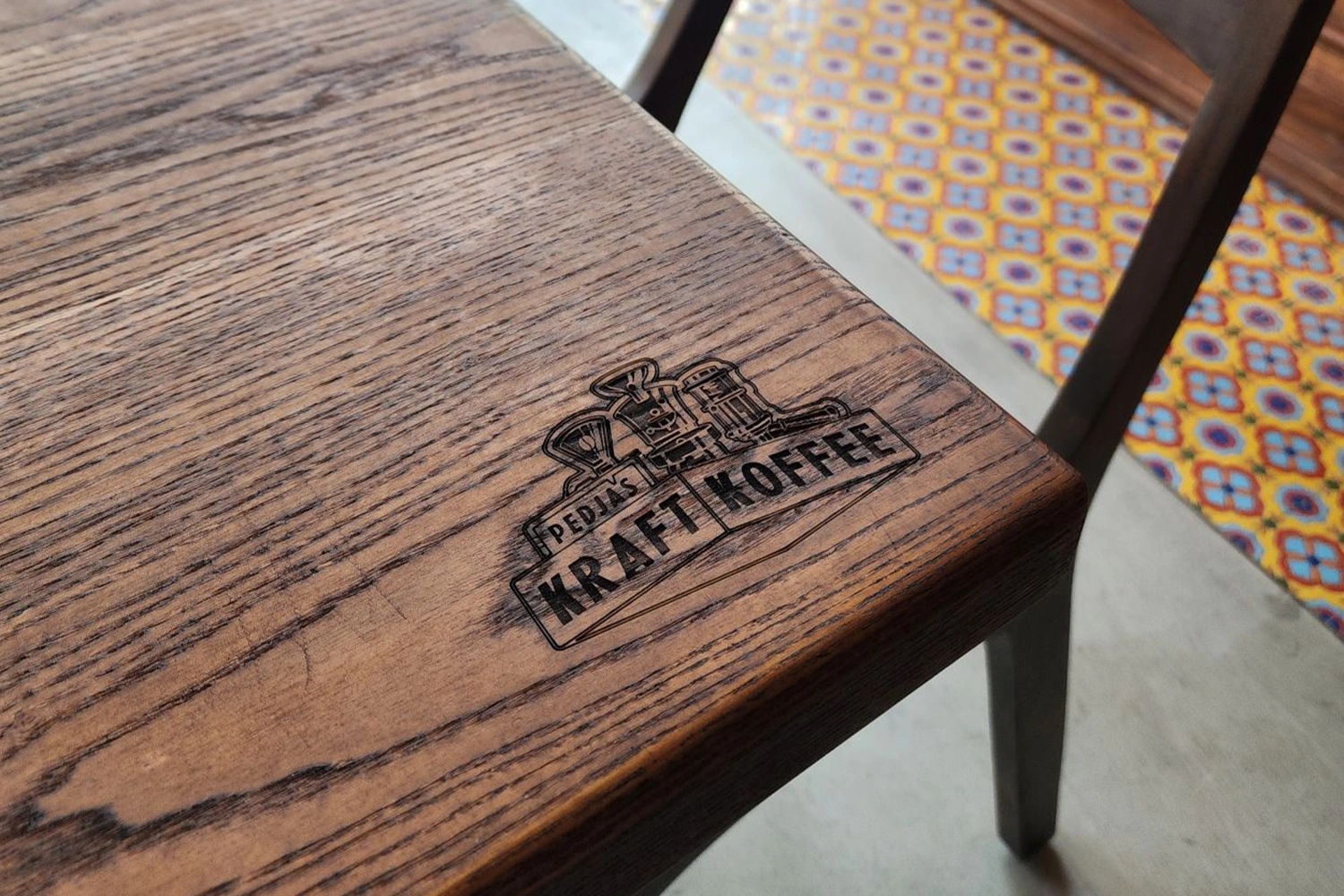

Bespoke furniture pieces were developed specifically for the space, combining durability with a design approach aligned to the coffee shop's theme.

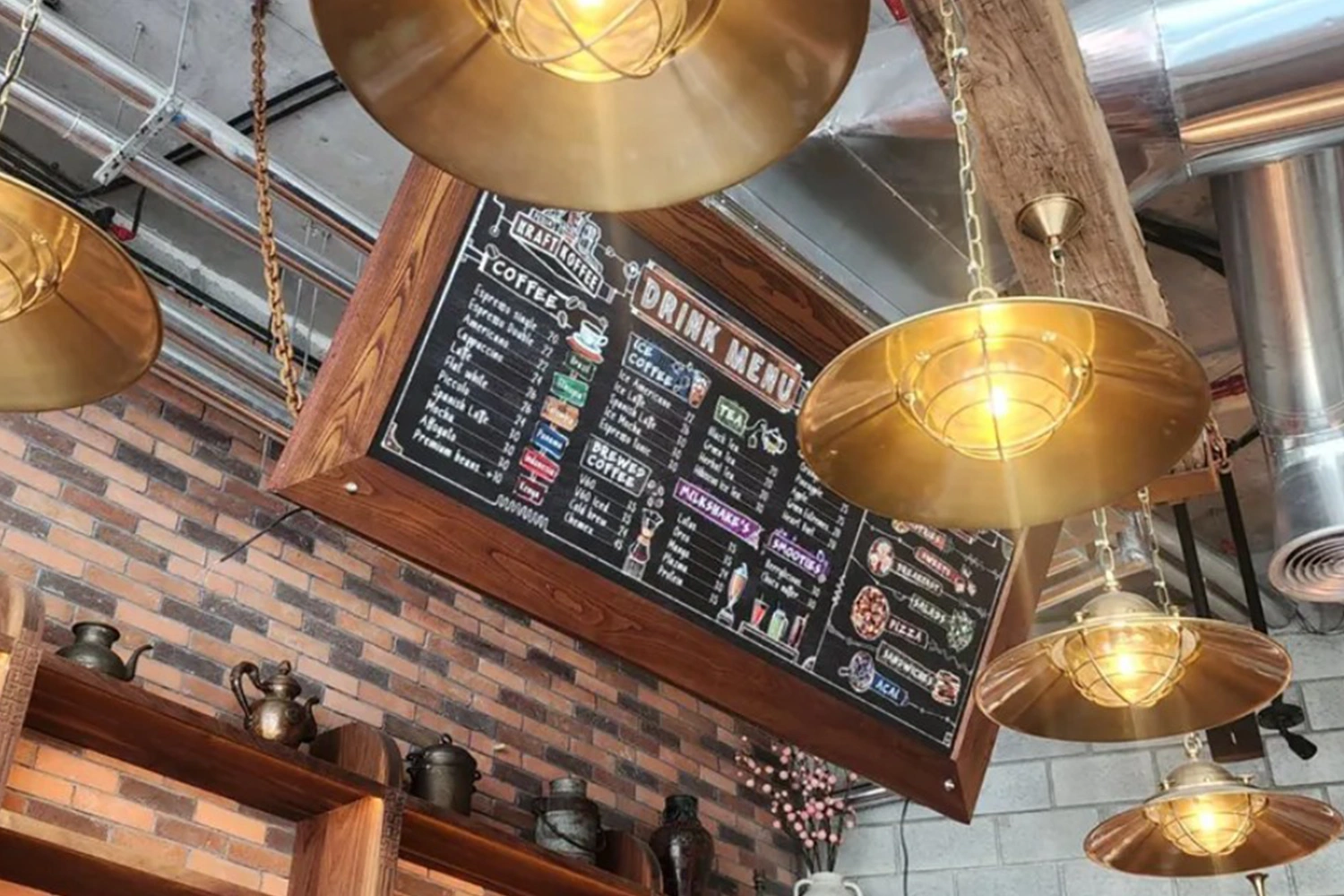

Decorative elements, including accent lighting and textured wall finishes, were introduced to strengthen the atmosphere and add visual depth. Premium materials and finishes were selected carefully to create a consistent appearance across the different fabricated and decorative elements.

By coordinating joinery, furniture, finishes and lighting as a single fit-out package, Evolution Scenic created an environment that balanced operational functionality with the brand-led character of the space.

Delivery Highlights

• Comprehensive coffee shop interior fit-out.
• Custom joinery fabrication.
• Bespoke display cabinets.
• Custom counters.
• Integrated shelving.
• Bespoke furniture pieces.
• Decorative interior elements.
• Accent lighting.
• Textured wall finishes.
• Premium materials and finishes.
• Space-efficient interior planning.
• Brand-led interior detailing.
• Delivery and installation.

Outcome

Pedjas Kraft Coffee Shop was completed as a cohesive hospitality environment combining functionality, comfort and a distinct visual identity.

The custom joinery provided practical display, storage and service infrastructure, while bespoke furniture, lighting and decorative finishes established the atmosphere of the space.

The project demonstrates how Evolution Scenic's fabrication and fit-out capabilities can be applied to permanent hospitality interiors, where joinery, furniture, finishes and customer experience need to work together as part of a single integrated environment.

Project Ecosystem

Evolution Scenic – Interior fit-out, custom joinery, bespoke furniture, display cabinets, counters, shelving, decorative finishes, material selection, lighting integration, delivery and installation.
