Why We Love A Client Who Says “I Don’t Know”

There are two types of project briefing.

The first sounds very confident. The client knows exactly what they want. Every dimension is fixed, every material has been selected and every technical decision appears to have already been made.

The second briefing sounds very different.

The client says:

“We know what we want to achieve. We don’t know the best way to build it.”

Interestingly, the second type of briefing often produces the strongest result.

This is not because uncertainty is desirable for its own sake. It is because scenic fabrication is fundamentally a problem-solving process. A clear objective combined with an open technical discussion gives designers, engineers and fabricators the opportunity to find the most effective way of turning an idea into a physical environment.

Clients are experts in their audience, brand, event or organisation. Scenic fabricators are experts in understanding materials, structures, manufacturing processes, transport restrictions, installation sequences and operational requirements.

When those areas of expertise are brought together early, a project can become safer, more efficient and more practical without losing the original creative intent.

Starting With The Outcome

One of the most valuable questions in scenic fabrication is:

“What are you trying to achieve?”

It sounds simple, but the answer often reveals more than a detailed material specification.

A client may initially request a solid timber wall when the real objective is to conceal a backstage area. Depending on the environment, a fabric masking system, modular graphic wall or lightweight framed partition may achieve the same result with less weight, faster installation and simpler storage.

A large sculptural feature may be specified in steel because it needs to appear substantial. However, the visible volume might be created more efficiently using an engineered steel subframe with CNC-machined timber ribs, lightweight cladding and a specialist scenic finish.

A display may be designed as one continuous structure, but dividing it into transportable modules could make it easier to manufacture, move through venue access routes and install within a restricted working period.

None of these decisions necessarily changes what the visitor sees. They change how intelligently the environment is built. The client defines the destination. The fabrication team helps establish the most practical route to reach it.

Collaboration Before Construction

Strong scenic projects are rarely developed through a simple sequence of instruction and production. They are usually shaped through discussion between the client, creative team, technical designers, engineers, project managers and workshop specialists.

Early collaboration allows potential challenges to be identified while they are still relatively easy to solve.

A concept may contain curved surfaces that require further development before they can be manufactured accurately. A suspended feature may need structural review, suitable lifting points and coordination with the venue’s rigging system. A temporary architectural structure may need to be divided into modules because of door dimensions, vehicle capacity or maximum lifting weights.

These are not reasons to reduce creative ambition. They are opportunities to develop the concept properly. At Evolution Scenic, technical development often involves reviewing the design from several perspectives at the same time:

• How will each component be manufactured?
• How will the structure be assembled?
• Can it be transported efficiently?
• What happens if the venue access is restricted?
• How will graphics, lighting or technology be integrated?
• Can the installation team reach every connection safely?
• What happens to the structure after the project finishes?

The answers influence technical drawings, engineering, material selection, workshop methodology and installation planning. When this process begins early, the final structure usually feels more resolved because its appearance and construction method have been developed together.

Turning Concepts Into Buildable Information

A strong visual concept communicates the intended experience, but it does not always explain how the structure should be fabricated.

Technical development turns the creative idea into coordinated, buildable information.

This may involve establishing accurate dimensions, connection details, structural frameworks, material build-ups, access panels, fixing methods, tolerances and assembly sequences. It may also involve coordinating carpentry, metal fabrication, CNC machining, graphics, scenic painting, lighting and integrated technology.

The purpose of this stage is not simply to produce drawings. It is to remove uncertainty before materials enter the workshop.

A carefully developed drawing package helps different departments understand how their work connects. The metalwork team can confirm where structural members and fixing plates are required. The carpentry team can coordinate cladding, reveals and removable panels. Graphics can be prepared to suit finished surfaces and panel divisions. Installation crews can understand the sequence in which modules must arrive and be assembled.

This coordination reduces rework and allows problems to be resolved digitally or through prototypes rather than during installation.

For clients, the technical development process also provides greater visibility. Decisions become easier to review, costs become easier to understand and responsibilities become clearer.

Value Engineering Without Losing The Idea

Value engineering is sometimes misunderstood as a process of removing quality until a project becomes cheaper.

Good value engineering does something very different.

It protects the essential design intent while finding a more efficient way to manufacture, transport, install or operate the structure.

This might involve changing a concealed structural material while retaining the same visible finish. It could mean standardising repeated components so they can be CNC-machined more efficiently. A large feature might be divided into reusable modules, reducing future fabrication requirements. A heavy assembly might be redesigned using aluminium or a hybrid construction system to reduce lifting requirements.

Even small adjustments can have a significant effect.

Changing the position of a panel joint may reduce sheet waste. Revising a frame dimension may allow more components to fit within a vehicle. Introducing mechanical fixings instead of permanent adhesive connections may make future maintenance and reuse possible. Selecting a finish that can be repaired locally may extend the working life of an installation.

The lowest material cost does not always produce the best project value. A cheaper material that requires more labour, additional reinforcement or specialist transport may ultimately cost more than a better-suited alternative.

The objective is not to make every component cheaper. It is to ensure that the available budget is spent where it contributes most to the project.

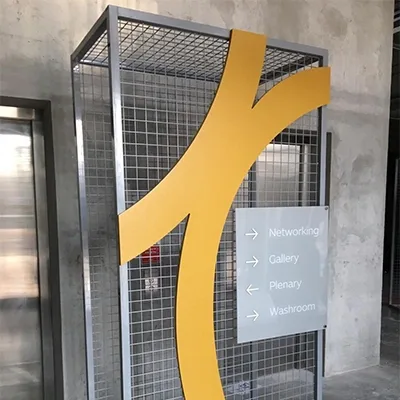

Material Selection Is A Technical Decision

Materials are often chosen for their appearance, but scenic fabrication requires them to be considered as part of a complete construction system.

Timber offers flexibility, speed and compatibility with many scenic finishes. Steel provides strength and can support slender structural forms, although its weight must be considered. Aluminium can reduce weight and improve handling but may require different fabrication techniques. Fabric can create large surfaces with very little material mass. Composite panels, plastics and specialist boards can support complex geometry or particular finish requirements.

The correct choice depends on more than what the material looks like.

Fabricators must consider structural performance, fire requirements, surface quality, weight, transport conditions, connection methods, workshop processes, environmental exposure and expected lifespan.

A material that works well for a three-day indoor exhibition may not be appropriate for a semi-permanent visitor experience. A finish designed for close inspection requires a different preparation process from an element viewed at distance. A structure intended for repeated use needs connections and surfaces that can withstand assembly, dismantling, packing and storage.

An open brief allows these decisions to be made according to the actual project requirements rather than an assumption made at the beginning.

Designing For Installation And Operation

A scenic environment is not complete when it leaves the workshop.

It still needs to be transported, unloaded, assembled, tested, operated and eventually dismantled. Every one of these stages can influence the design.

Installation planning may determine the maximum size of a module, the location of lifting points or the type of connection used between sections. Restricted venue access may require components to be moved manually or through passenger lifts. Limited installation time may justify additional prefabrication in the workshop. Working at height may influence how graphics, lighting or finishes are completed before delivery.

Operational planning is equally important.

A reception counter may need concealed cable routes, equipment ventilation and secure storage. A display wall may require removable panels for technology maintenance. An immersive environment may need discreet access for technicians. A stage feature may need to accommodate lighting, audio equipment or performer access without compromising the visible design.

These details are not always obvious in a concept render, but they have a major influence on whether the finished environment works properly.

The best time to discuss them is before fabrication begins.

A Fabrication Partner, Not Simply A Supplier

A supplier is usually asked to manufacture something that has already been completely defined.

A fabrication partner contributes to the process of defining how the idea should become real.

That distinction matters.

Evolution Scenic’s role is not to replace the client’s creative direction. It is to support that direction with practical fabrication knowledge, engineering insight and workshop experience. Sometimes that means recommending a different material. Sometimes it means adjusting a hidden framework, introducing a removable section or revising the installation sequence.

Occasionally it means explaining that a particular detail will create unnecessary risk, cost or complexity and proposing an alternative that achieves the same visual result. Honest technical advice is most valuable before a project becomes committed to a construction method.

A client who says “I don’t know” is not arriving without direction. They are recognising that the best solution may emerge through collaboration. That creates space for meaningful technical development, practical value engineering and better-informed decision-making.

The strongest projects are rarely the result of one person having every answer at the beginning. They are usually created by people who understand their own expertise, respect the expertise of others and are willing to solve the difficult parts together.

For a scenic fabricator, that is not an incomplete brief. It is the beginning of a productive partnership.

Why Fabric Is Sometimes Better Than Building A Wall

Scenic fabrication companies are usually associated with timber, steel, paint, CNC machines and power tools. Sometimes, however, the smartest solution is a sewing machine.

Many scenic challenges are approached with the assumption that something solid must be built. A temporary partition becomes a timber wall. A backstage area becomes a series of framed panels. A conference perimeter becomes a substantial scenic structure.

Yet the environment may not actually require a wall. It may simply need separation, visual screening, branding or a change in atmosphere. In those situations, fabric can achieve the same objective faster, lighter and with considerably less installation complexity.

The important question is not whether fabric is better than timber or steel. It is whether a solid structure is genuinely necessary in the first place.

Starting With the Problem, Not the Material

Experienced scenic teams rarely begin a project by selecting a material. They begin by understanding what the finished environment needs to do. Does the installation need to prevent people from passing through it, or does it only need to block a sightline?

Does it need to support screens, shelving or graphics, or is it simply creating a visual boundary?

Will visitors touch the surface?

Does the partition require acoustic performance, complete privacy or impact resistance?

How long will the environment remain installed?

The answers to these questions determine whether the solution should be a timber wall, a metal-framed structure, a tensioned fabric system, traditional drapery or a combination of several methods.

A scenic wall is appropriate when rigidity, durability or load-bearing capacity is required. However, building a substantial structure simply to conceal a backstage route or divide a temporary hall can introduce unnecessary materials, labour, transport and installation time. Fabric offers an alternative that responds directly to the actual requirement.

Drape Systems as Temporary Architecture

Drapery is often treated as decoration, but professionally designed drape systems function as a form of temporary architecture.

Pipe-and-drape systems, ceiling-mounted tracks and ground-supported frames can define rooms, create corridors, conceal service areas and divide large venues without constructing conventional walls. Within an exhibition hall, hundreds of square metres can be reorganised using relatively lightweight components.

The apparent simplicity of these systems should not be confused with a lack of technical planning.

The fabric type, fullness, drop height, suspension method, support spacing and base stability must all be considered. Long fabric drops can be affected by air movement from ventilation systems, opening doors and nearby production equipment. Ground-supported systems must be appropriately weighted and positioned so that they remain stable throughout operation.

Fire performance is another essential consideration. Exhibition halls, conference venues and public environments commonly require fabrics to meet specific flame-retardancy standards, supported by valid certification. The fixing method and proximity to lighting, electrical equipment and escape routes may also influence the final specification.

When these details are resolved properly, drapery can create clean, controlled spaces with very little physical construction.

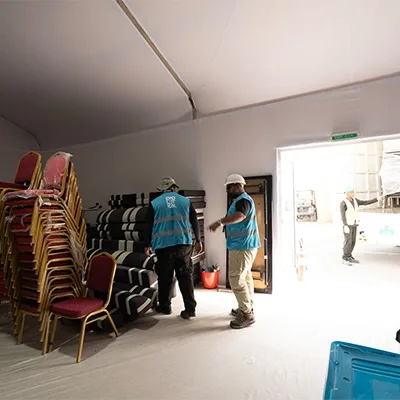

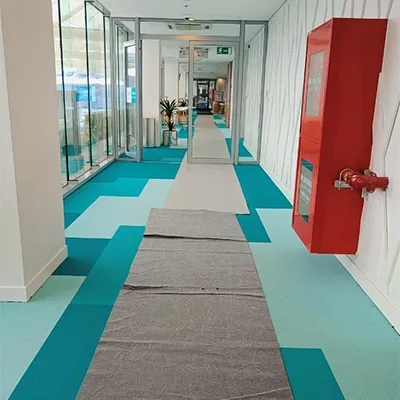

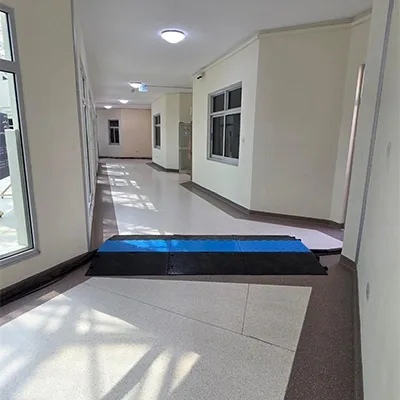

Temporary Partitions and Back-of-House Masking

One of the most practical uses of fabric is visual masking.

Backstage environments rarely need fully finished architectural walls. They need controlled sightlines that prevent technical equipment, storage areas, preparation zones and operational routes from being visible from public areas.

A fabric masking system can provide this separation quickly while remaining easy to adjust as the layout develops.

This flexibility is particularly useful during installation, when access requirements frequently change. A section of drape can be moved, opened or temporarily removed without dismantling an entire wall. Additional openings can be introduced for crew circulation, equipment movement or emergency access with minimal disruption.

Fabric is also valuable when working around existing venue services. Conventional scenic walls may conflict with fire equipment, access panels, columns, ventilation outlets or electrical infrastructure. Drapery can often be shaped around these elements more easily, provided that all statutory clearances remain unobstructed.

It is important, however, to understand the limitations. Standard drapery provides visual separation, not full acoustic isolation. It will not offer the security, impact resistance or load-bearing performance of a solid partition. Where those requirements exist, a different construction method—or a hybrid solution—will be needed.

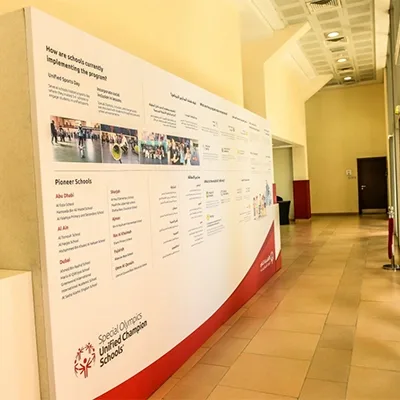

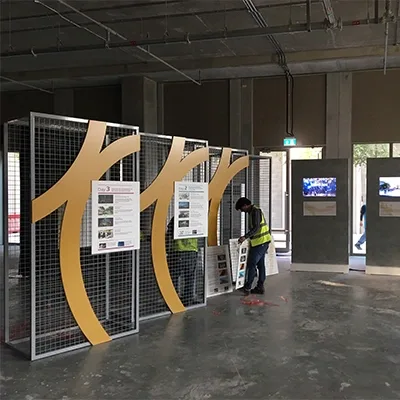

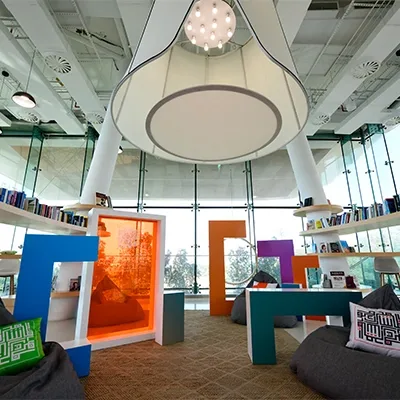

Tensioned Fabric Systems

Not every fabric installation needs to look like a curtain.

Tensioned fabric systems can produce crisp, architectural surfaces with very little visible structure. Fabric can be stretched over aluminium profiles, custom frames or purpose-built scenic forms to create seamless walls, overhead features, illuminated elements and branded environments.

The tension removes folds and gives the surface a more controlled appearance. Depending on the material, the fabric may be printed, front-lit, backlit or used as a neutral scenic finish.

Silicone-edge graphic systems are commonly used where graphics need to be installed cleanly and replaced efficiently. The printed textile is tensioned into a perimeter profile, creating a flat visual surface without visible mechanical fixings. This approach is particularly useful for conference environments, exhibition displays and brand activations where messaging may change between installations.

Fabric tension systems can also create complex forms that would be comparatively heavy or time-consuming to produce using rigid sheet materials. Curved surfaces, suspended volumes and large-format illuminated features can often be fabricated using lightweight frames covered with carefully patterned textiles.

The result may appear simple, but it still requires accurate fabrication. Frame geometry, seam positioning, fabric stretch, print alignment and installation sequence must be coordinated closely. Poorly calculated tension can cause creasing, distortion or excessive loading on the supporting structure.

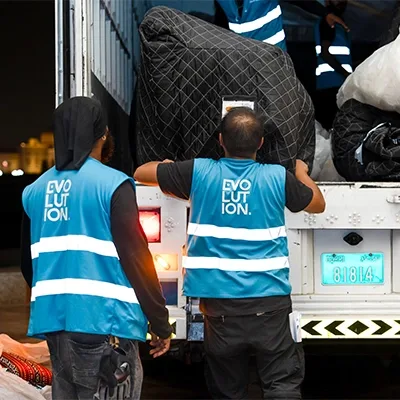

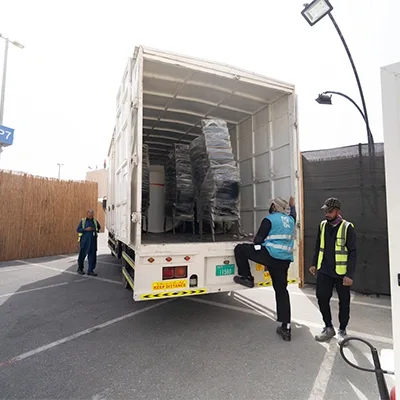

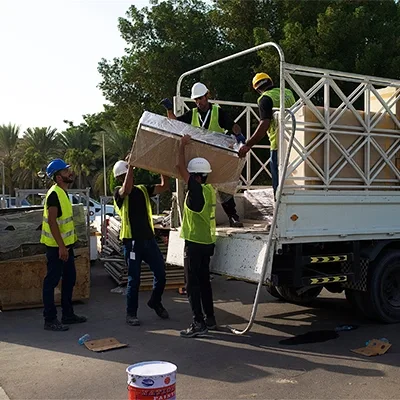

The Logistics Advantage

One of fabric’s greatest strengths becomes apparent before it reaches the venue.

A large scenic wall may require stacks of timber flats, metal frames, protective packaging and dedicated transport. The equivalent area of drapery can often be packed into a comparatively small volume.

This reduction in size and weight can influence the entire delivery strategy.

Fewer vehicles may be required. Loading and unloading become faster. Components are easier to move through service corridors, lifts and restricted loading areas. Installation teams may need less material-handling equipment, and fewer heavy components need to be carried across finished venue floors.

The benefits continue after dismantling. Fabric systems are relatively compact to store and can often be adapted for future projects. A neutral black masking drape, for example, may be used repeatedly in different configurations. Modular frames and tracks can also be reconfigured rather than remanufactured.

Careful handling is still necessary. Fabric must be packed to avoid damage, contamination and severe creasing. Printed textiles require particular protection to prevent scuffing or transfer between surfaces. Storage conditions should also control moisture, dust and prolonged compression.

Lightweight does not mean maintenance-free, but it can significantly simplify the logistics surrounding a temporary environment.

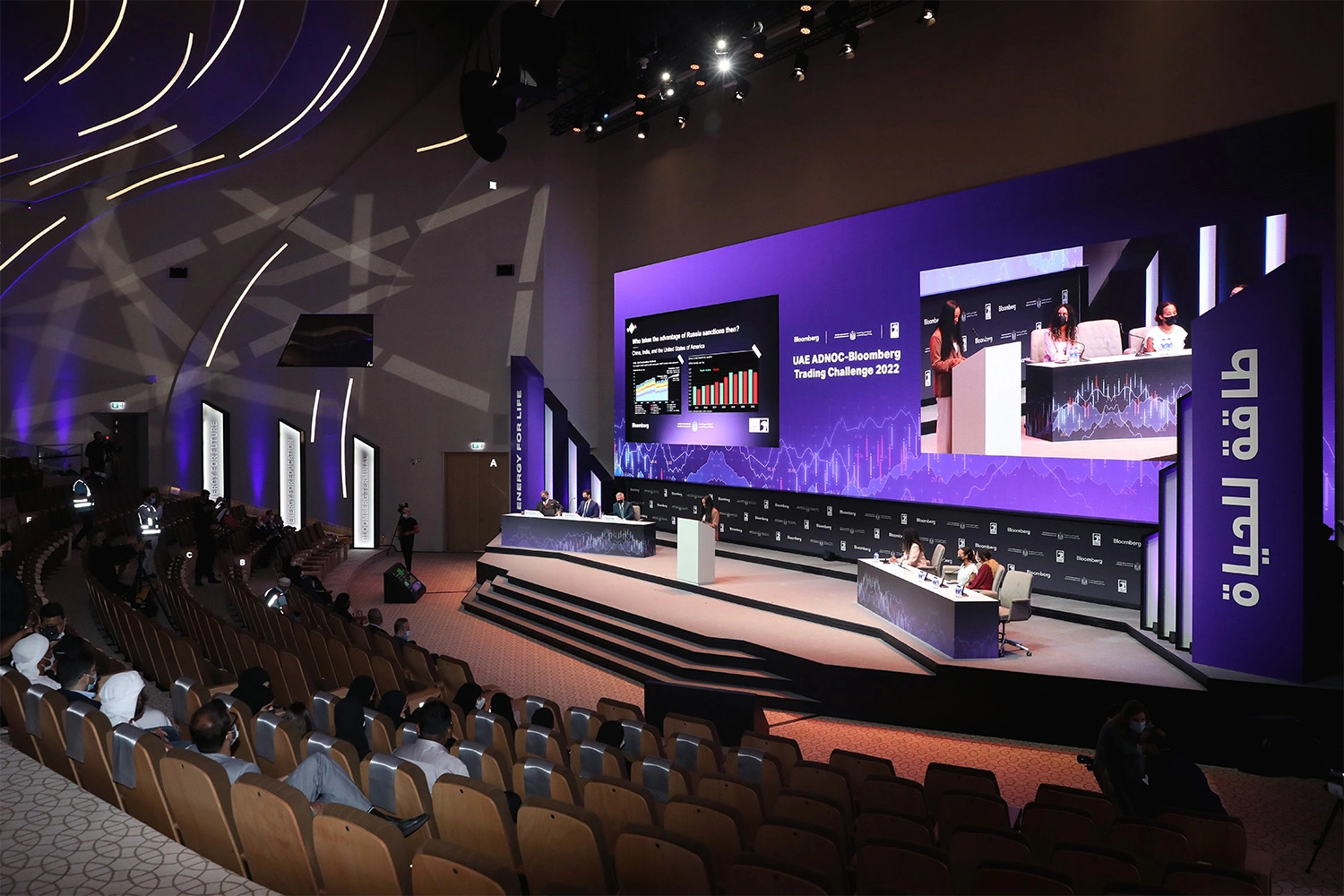

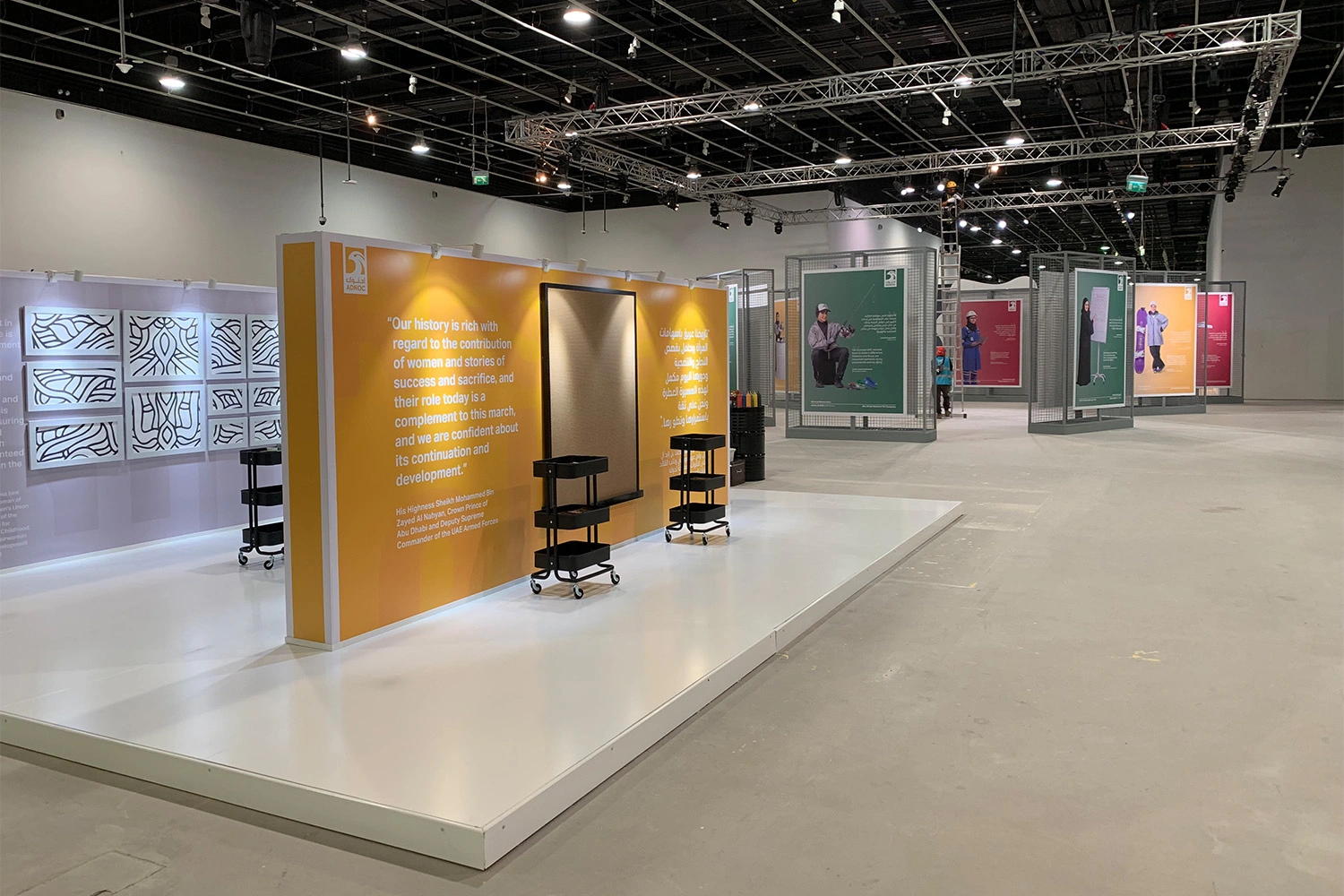

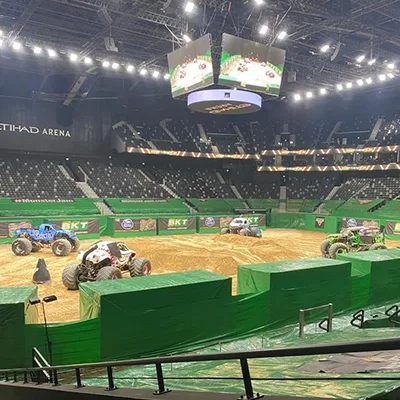

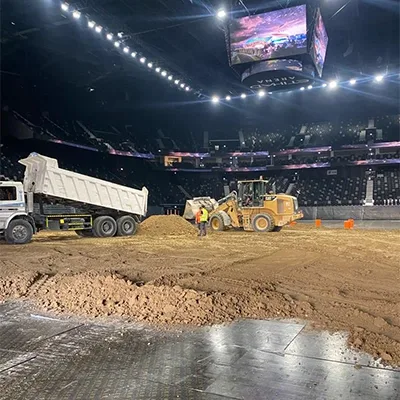

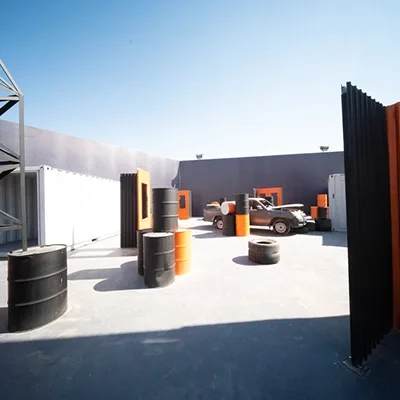

Transforming Conference and Exhibition Venues

Exhibition halls and conference venues are usually designed as large, flexible spaces rather than finished scenic environments. Their scale is useful operationally, but the exposed structure, services and long sightlines can make them feel visually uncontrolled.

Fabric allows scenic teams to reshape these spaces quickly.

Large drape lines can reduce the apparent size of a hall, conceal unused areas and create more deliberate boundaries. Fabric ceilings or overhead treatments can lower the perceived height of a space, while tensioned graphics can introduce colour, branding and visual hierarchy.

This does not necessarily require the venue to be filled with decorative material. Strategic fabric placement can have a greater impact than constructing numerous scenic elements.

A carefully positioned perimeter drape may remove distracting backgrounds from every camera angle. A tensioned fabric wall can establish the main visual identity of a conference environment. A lightweight textile feature can conceal venue architecture while supporting integrated lighting or graphic content.

The effectiveness comes from understanding where the material will make the greatest difference.

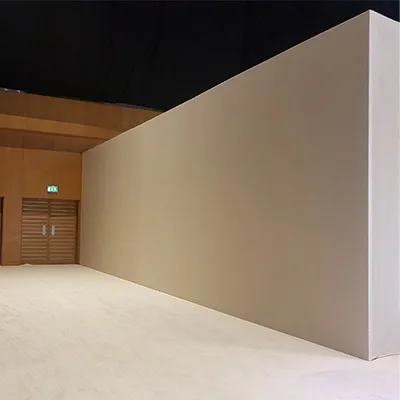

When a Wall Is Still the Better Answer

Fabric is not a universal replacement for scenic construction.

A solid wall remains the correct choice when the structure needs to support mounted equipment, resist frequent contact, provide secure separation or achieve a specific acoustic performance. Areas exposed to public interaction may require robust surfaces that can withstand impact and repeated cleaning.

Fabric may also be unsuitable where airflow cannot be controlled, where precise physical protection is required or where the installation must perform for a long period without regular adjustment.

In many projects, the best solution is a hybrid. A rigid lower section can provide impact resistance while fabric completes the upper surface. A lightweight metal frame may carry tensioned graphics while concealed timber reinforcement supports screens or equipment. Solid scenic portals can define entrances, with drapery extending the visual boundary beyond them. The objective is not to avoid construction. It is to build only what the environment genuinely requires.

Practical Problem Solving Through Fabrication

Good scenic fabrication is not measured by how much material is used. It is measured by how effectively the finished environment performs.

Choosing fabric instead of a wall can reduce weight, shorten installation programmes, simplify transport and make a venue easier to transform. In the right application, it can also provide a cleaner and more adaptable result.

That decision still depends on professional judgement. Fabric specification, fire certification, support systems, tension, seam placement, access and installation methodology all require proper consideration.

The most experienced scenic teams understand that practical problem solving often means challenging the most obvious construction method. Sometimes the answer is timber. Sometimes it is steel. And sometimes a few hundred metres of fabric will outperform both.

Why The Cheapest Fabrication Quote Often Becomes The Most Expensive

Every fabrication company has encountered the same situation. A client requests several quotations for a scenic structure, exhibition environment or temporary installation. One proposal arrives at a noticeably lower price than the others, making it appear to be the obvious commercial choice.

The difference may look like a saving during procurement. Once technical development, manufacturing and installation begin, however, unresolved items can quickly turn that saving into additional expenditure. The issue is rarely the quoted price alone. The real challenge is that fabrication quotations do not always compare like for like.

The Same Design Can Represent Very Different Scopes

A concept render communicates the intended appearance of a project, but it does not always explain how the structure will be engineered, manufactured, transported or installed. Two fabricators may therefore price the same visual concept using very different assumptions.

One quotation might include:

• Technical design development
• Structural engineering reviews
• Detailed fabrication drawings
• Material samples and finish approvals
• CNC programming and production
• Trial assembly
• Protective packaging
• Transport planning
• Site supervision
• Installation labour
• Access equipment
• Final adjustments and snagging support

Another quotation may cover only the physical manufacture of the visible elements. Neither approach is automatically incorrect. The difficulty begins when the exclusions, assumptions and responsibilities are not clearly understood. A lower headline figure may simply mean that important parts of the project remain unpriced.

A meaningful quotation comparison should therefore examine scope before cost. The key question is not only, “How much is the structure?” It is also, “What work is required to deliver it successfully, and who is responsible for each stage?”

Engineering Work Is Easy to Overlook

Engineering reviews, technical drawings and buildability studies are often less visible than finished scenic surfaces, yet they can influence almost every part of a fabrication project.

Before manufacturing begins, the fabrication team may need to determine:

• How loads move through the structure
• Where steel or aluminium reinforcement is required
• How separate components will connect
• Whether the installation can be safely lifted
• How the structure will be restrained on site
• Whether floor, rigging or venue loading limits apply
• How maintenance or technology access will be provided
• How the structure will be divided for transport

This work takes time, but it also resolves problems while they are still relatively inexpensive to correct. When engineering development is excluded or reduced, technical decisions may be postponed until the workshop or installation stage. By that point, materials may already have been purchased, components manufactured and transport booked. Alterations become slower, more disruptive and more expensive.

The value of technical development is not always obvious in the final appearance. Its benefit is often measured by the problems that never occur.

Material Substitutions Can Change More Than Appearance

Material selection is another area where quotations can differ significantly. Two structures may appear identical in a render but perform very differently depending on how they are built. A wall could be manufactured using timber framing, lightweight steel, aluminium extrusion, composite panels, MDF, plywood or a hybrid construction method. Each option affects weight, durability, finish quality, fire performance, handling and installation.

Material substitution is not necessarily a negative practice. It can form part of responsible value engineering when the alternative has been properly assessed. The problem arises when a cheaper material changes the performance of the structure without that difference being clearly communicated.

A lower-cost board, for example, may require additional support, more careful handling or greater finishing time. A heavier structural system may increase vehicle requirements, lifting arrangements and installation labour. A finish that performs well in a controlled exhibition hall may be unsuitable for an outdoor public installation exposed to heat, moisture, dust or repeated handling. The cost of a material should therefore be considered alongside its effect on the complete build methodology.

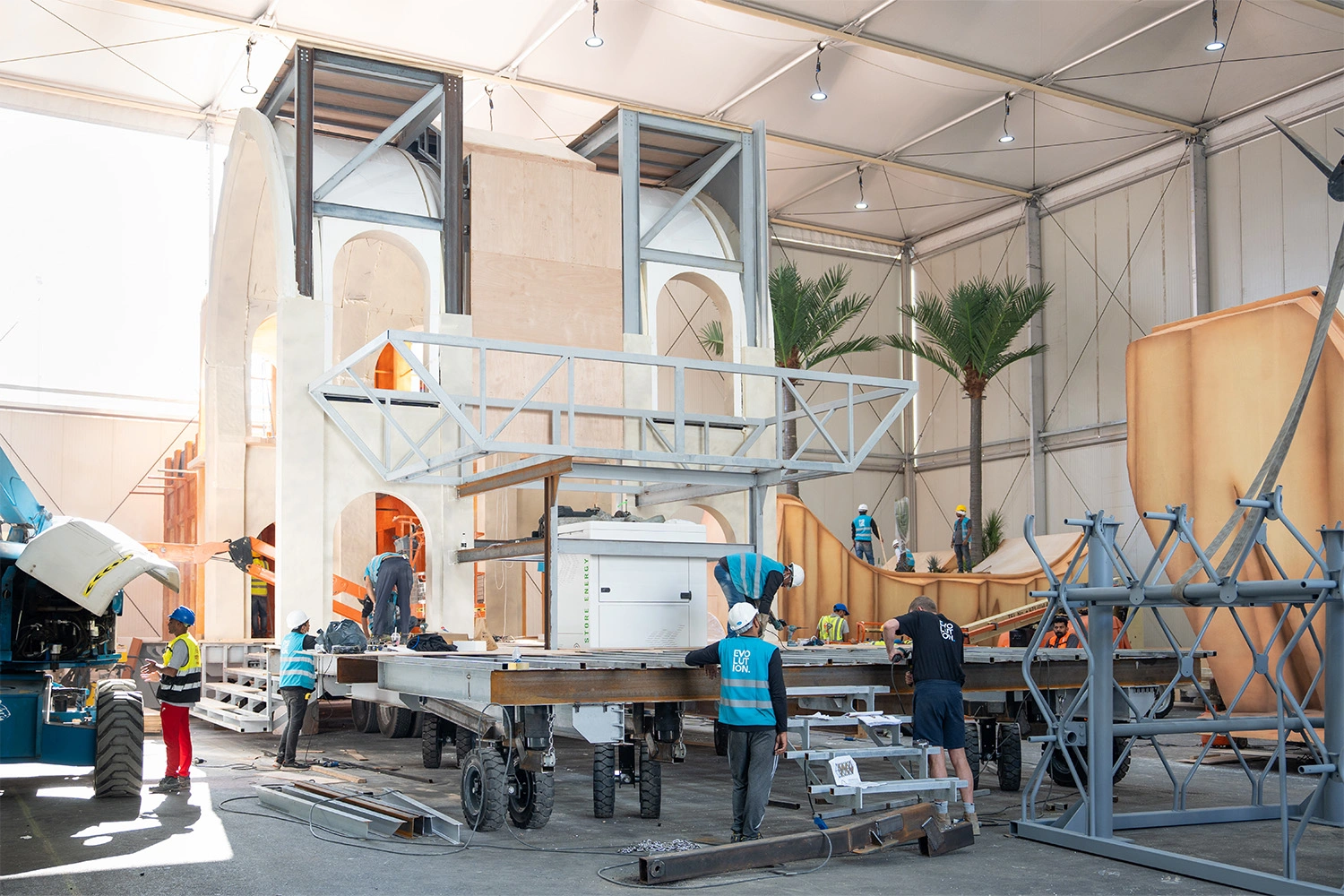

Installation Is Where Omissions Become Visible

Many hidden costs only become apparent once a project reaches site. A structure may have been manufactured correctly in isolation but still be difficult to assemble within the available installation window. Connections may be inaccessible. Modules may be too large for venue entrances. Components may require more labour than anticipated. Fixing points may conflict with existing services or venue restrictions.

When installation planning has been considered from the beginning, scenic components can be designed around practical site conditions. Modules can be sized for access routes, connections can be positioned where installers can reach them, and the build sequence can be coordinated with flooring, graphics, lighting and audiovisual systems.

Without that preparation, the site team may need to improvise. Additional labour, overnight working, access equipment, cutting, welding, repainting and last-minute hardware can quickly increase the final cost. Delays may also affect other contractors whose work depends on the scenic installation being completed. Installation support is therefore not simply an optional service added after fabrication. It is part of the overall construction methodology.

Transportation Is Part of the Design

Transport costs are sometimes treated as a separate logistical item, but transportation requirements are often established by design and fabrication decisions. A structure that cannot be dismantled efficiently may require larger vehicles or multiple journeys. Fragile finishes may need specialist crates. Oversized components may require permits, escorts or alternative delivery routes. Poorly planned loading can increase handling time and the risk of damage.

Experienced fabrication teams consider transportation while the structure is still being developed. Components may be divided into practical modules, nesting arrangements may be planned, lifting points incorporated and protective packaging designed around vulnerable surfaces. These decisions can reduce vehicle space, improve loading efficiency and minimise site handling.

A cheaper manufacturing method can become expensive when it produces oversized, heavy or difficult-to-protect components. The relevant comparison is therefore not only the workshop price, but the total cost of delivering the fabricated work to its final position.

Rework Is Rarely Limited to One Cost

Rework is one of the most common ways an apparently economical quotation becomes expensive.

A single fabrication issue can create several connected costs:

• Replacement materials
• Additional workshop labour
• Revised technical drawings
• Repeat finishing
• New transport arrangements
• Additional installation labour
• Extended equipment hire
• Delays to dependent trades
• Damage to completed scenic finishes

There may also be a quality impact. Repairs carried out under severe time pressure do not always achieve the same finish as work completed in controlled workshop conditions. This is why experienced scenic teams place such importance on technical reviews, material testing, prototypes and trial assemblies.

These activities add effort before installation, but they help identify dimensional conflicts, connection issues and finish problems early. The objective is not to make the quotation larger. It is to make the delivery process more predictable.

Value Engineering Is Different From Cost Cutting

A well-developed quotation should not prevent a project from being economical. In many cases, technical expertise creates opportunities to reduce cost without weakening the finished result. This is the purpose of value engineering.

Effective value engineering may involve:

• Simplifying concealed framing
• Standardising repeated components
• Reducing unnecessary material thickness
• Selecting lighter structural systems
• Using CNC machining to improve production efficiency
• Dividing components to optimise transport
• Designing reusable modular assemblies
• Concentrating premium finishes where they have the greatest visual impact
• Adjusting connection details to reduce installation time

These decisions preserve the design intent while improving how the project is manufactured and installed. Cost cutting takes a different approach. It removes expenditure without always considering the wider consequences. The immediate quotation becomes lower, but the saving may transfer risk into durability, coordination, transportation or site installation.

Good value engineering looks at the complete project. It considers the relationship between material cost, labour, logistics, programme, performance and finish quality.

How to Compare Fabrication Quotations Properly

A useful quotation review should examine more than the final total.

Before selecting a supplier, clients and project teams should confirm:

1. Scope: What is included, excluded and assumed?
2. Engineering: Are structural reviews and technical drawings included?
3. Materials: Are the proposed materials clearly specified?
4. Finishes: Are samples, testing and approval processes covered?
5. Transport: Is packaging, loading and delivery included?
6. Installation: Who provides labour, supervision, tools and access equipment?
7. Site conditions: Have access restrictions, working hours and venue rules been considered?
8. Coordination: Who manages interfaces with lighting, graphics, audiovisual systems and other contractors?
9. Revisions: How are design changes and additional work handled?
10. Handover: Are snagging, final adjustments and completion support included?

This does not mean the most expensive quotation is automatically the best. A high price can also contain inefficiencies or unnecessary allowances. The aim is to compare the same responsibilities, performance standards and delivery requirements. Only then does the price comparison become meaningful.

Engineering A Moving Parade Float

At first glance, a parade float can appear relatively straightforward. A decorative structure is mounted onto a vehicle, driven along a route, and viewed by spectators before being dismantled at the end of the event. In reality, moving scenic structures present some of the most demanding engineering challenges encountered within scenic fabrication.

Unlike a static scenic structure, a parade float must withstand forces that change continuously throughout operation. Braking, acceleration, cornering, vibration, road conditions, and wind load all influence structural performance. Every engineering decision must consider not only how the structure looks, but how it behaves while moving.

That distinction is critical. A scenic feature that performs perfectly when stationary may react very differently once it is travelling over uneven ground, negotiating a bend or stopping under load. Tall elements can sway. Unsupported finishes can vibrate. Bolted interfaces can loosen. Lightweight cladding can become vulnerable to wind pressure. Mechanical components can move beyond their intended tolerances.

For this reason, a parade float cannot simply be treated as a decorative object placed onto a vehicle. It must be designed as an integrated mobile structure in which the vehicle, structural frame, scenic envelope, mechanical systems and operational requirements work together.

Vehicle Integration Comes First

The starting point for most parade float projects is understanding the vehicle platform.

Dimensions, weight limitations, axle capacities, suspension behaviour, wheelbase, turning circle and access requirements influence almost every aspect of the design. The available vehicle may be a truck, trailer, low-loader, electric platform or purpose-built chassis, but in every case the scenic structure must respond to the platform beneath it.

A creative concept that appears achievable on paper may require significant modification once vehicle restrictions and operational realities are taken into account. A structure may need to be reduced in height to pass beneath bridges or overhead services. The footprint may need to change to maintain clearances around steering components. Additional space may be required for the driver, operators, generators, batteries, hydraulic systems or emergency access.

The connection between the scenic structure and the vehicle is also fundamental. The float cannot rely on improvised fixings or surface-level attachments. Loads must be transferred safely into suitable points on the chassis or subframe, while avoiding damage to vehicle components and preserving access for inspection.

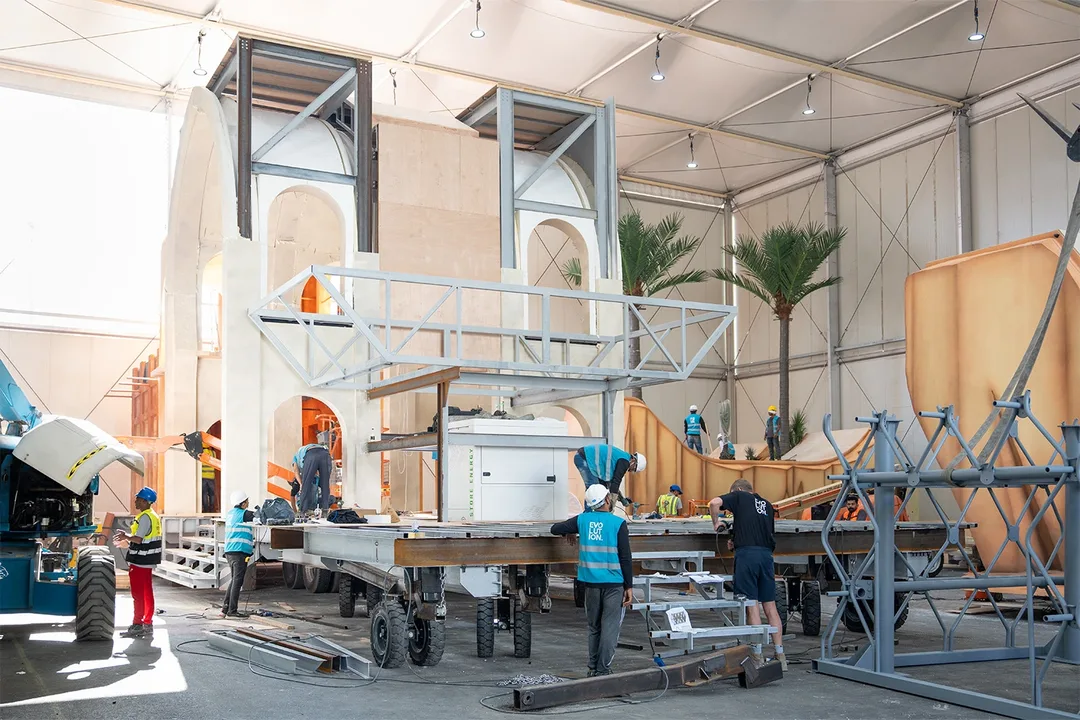

In some cases, a fabricated steel subframe is installed above the vehicle bed to create a controlled interface between the vehicle and the scenic build. This allows the structural team to establish known connection points, distribute loads and create a consistent base for modular scenic components.

The subframe may also support access decks, balustrades, service routes, equipment housings and fixing plates. By resolving these practical requirements early, the scenic design can develop around a reliable engineering framework rather than attempting to accommodate essential systems at the end of fabrication.

Calculating For Movement

Structural calculations for a mobile scenic structure must account for more than self-weight.

Dead loads include the structure itself, scenic finishes, mechanical equipment, lighting, power systems and any fixed operational components. Live loads may include technicians, operators, maintenance personnel or moving scenic parts. Dynamic loads are introduced by the vehicle's motion and can vary significantly with speed, road conditions, and route geometry.

Braking creates longitudinal forces. Cornering produces lateral forces. Uneven surfaces generate vertical movement and vibration. Wind can act from different directions as the float changes orientation along the route. These forces may occur individually or in combination.

A conservative engineering approach is therefore essential. Connections, welds, bolted joints and support members must be designed for the loads they are expected to experience, with appropriate allowances for uncertainty and repeated movement.

The scenic structure must also be stiff enough to control deformation. Excessive flexibility can damage finishes, open joints, disturb graphics and place stress on cladding or decorative elements. However, over-engineering every component in heavy steel can create its own problems by increasing overall weight.

The challenge is to place strength where it is required, reduce unnecessary mass and ensure that the load path remains clear. Primary steelwork may carry the main structural forces, while lighter secondary framing supports the scenic envelope. Bracing can be integrated into concealed areas, and removable sections can be designed around defined structural interfaces.

This is where scenic engineering differs from conventional structural work. The final form may be irregular, sculptural or intentionally deceptive. Structural members must often be hidden within curved profiles, oversized props or layered scenic finishes. The engineering solution must support the creative geometry without compromising inspection, access or assembly.

Centre Of Gravity And Stability

Weight distribution is one of the most important considerations in parade float design.

Large scenic elements positioned high above the vehicle can raise the centre of gravity and affect stability. A float may appear balanced when stationary but behave differently during turning, braking or travel across a sloped surface. The higher the mass is positioned, the greater its influence on the vehicle’s response. Engineers and fabrication teams must therefore understand not only the total weight, but where that weight is located.

Heavy components should generally be positioned as low as practical. Generators, ballast, mechanical equipment and structural steelwork can often be arranged close to the vehicle platform, while upper sections are fabricated from lighter materials. Tall scenic forms may use aluminium framing, lightweight timber construction, sculpted foam or composite skins to reduce mass at height. The location of weight relative to the axles is equally important. Excessive loading at the front or rear can affect steering, braking and suspension performance. Uneven side-to-side loading can cause the vehicle to sit incorrectly and increase the risk of instability.

For complex floats, the fabrication team may prepare a detailed weight schedule showing the estimated mass of each structural and scenic component. This can be reviewed against axle limitations and updated as fabrication progresses. Actual component weights should be recorded where possible. Material thicknesses, steel section sizes, equipment weights and scenic build-ups can all change during development. A disciplined weight-control process prevents small additions from accumulating into a significant operational problem.

Weight control is not simply an engineering exercise. It influences every department. Scenic carpentry, metal fabrication, CNC production, finishes, graphics, lighting, and mechanical design must all understand the agreed weight strategy.

Selecting The Right Materials

Material selection plays a significant role in balancing strength, weight, durability, cost and fabrication time.

Structural steel is frequently used for primary framing because it is strong, familiar to fabrication teams and well suited to welded construction. It can provide robust connection points and predictable structural behavior. Its disadvantage is weight, particularly when used in upper sections or in areas where lighter materials would perform adequately.

Aluminium can reduce overall mass and is useful for secondary frames, tall features and removable modules. However, aluminium requires suitable welding expertise, careful detailing and an understanding of how it behaves under repeated loading. Material cost and workshop capability must also be considered.

Timber and sheet materials remain important within scenic construction. Plywood, MDF and timber framing can be used for faceted forms, curved profiles, internal decks and detailed scenic carpentry. Their use must be appropriate to the load, exposure and expected movement. Unsupported sheet materials can flex or crack, while poorly sealed edges may be vulnerable to moisture during outdoor operation.

CNC machining allows components to be produced accurately from plywood, foam, plastics and composite boards. This is particularly valuable where complex curves, repeated profiles or precise assembly slots are required. Digitally manufactured parts can help control tolerances and reduce weight by placing material only where it is needed.

Foam-carved scenic elements are often used for oversized decorative forms because they provide volume without excessive mass. These elements may be coated with hard finishes, reinforced with internal frames or protected with durable scenic skins depending on their location.

Composite materials can also be useful where low weight and complex geometry are required. Glass-reinforced plastics, laminated skins and specialist coatings allow sculptural forms to be produced with relatively thin sections. Their fixing methodology, fire performance, impact resistance and repair process must all be considered.

Scenic finishes must be selected with movement in mind. A finish that looks convincing in the workshop must remain stable during transport and operation. Flexible coatings may perform better on surfaces subject to vibration, while brittle build-ups can crack at joints or around connection points.

Paint systems, applied graphics, laminates and decorative textures must also account for weather exposure, cleaning, handling and maintenance. Outdoor floats may experience dust, heat, humidity, wind and sudden changes in temperature. The finish specification should reflect the operational environment rather than purely the visual reference.

Designing For Fabrication And Assembly

Fabrication methodology is equally important.

Large parade floats are rarely transported as complete structures. Components are often manufactured in sections, assembled within the workshop for testing, and then broken down again for transportation to site.

This approach allows engineers and fabricators to verify structural performance before installation while reducing transport challenges. It also creates an opportunity to identify clashes, access problems and sequence issues before the float reaches the event location.

Modularisation must be planned rather than added later. Every module requires defined lifting points, connection details, tolerances and an assembly sequence. Scenic joints should be positioned where they can be concealed or finished efficiently. Structural connections must remain accessible for tightening and inspection.

The size of each module is typically determined by transport limitations, workshop access, lifting equipment and site conditions. A large curved feature may need to be divided into several sections to pass through a workshop door or fit onto a flatbed trailer. The joints must then be designed so that the assembled form reads as a single continuous structure.

Repeatable fixing systems are valuable. Bolted plates, locating pins, cleats and indexed connection points can help modules align quickly and accurately. Where a structure will be assembled more than once, the interfaces must be durable enough to withstand repeated handling.

The build methodology should also consider the order in which disciplines work. Structural steelwork may be completed first, followed by secondary framing, scenic carpentry, sculptural components, mechanical systems, electrical containment, finishes and graphics.

However, a strictly linear sequence is not always possible. Some internal systems must be installed before the scenic skin closes. Access panels may be required for future maintenance. Certain finishes may need to be completed before neighbouring components are fitted.

Experienced scenic teams review these dependencies early, using drawings, three-dimensional models, prototypes and workshop trials to reduce rework.

Workshop Testing And Quality Control

A full workshop assembly is one of the most valuable stages in parade float fabrication.

It allows the team to confirm that the structural frame aligns correctly, the scenic modules fit, the vehicle remains within agreed dimensions and maintenance areas remain accessible.

Where practical, the float should also undergo controlled movement testing. This may include low-speed driving, turning, braking and observation of tall or projecting elements. The objective is to identify unexpected vibration, deflection, noise or movement before the float enters a live route.

Connections should be checked after testing. Bolts may require re-tightening, locking methods may need to be improved and flexible elements may need additional restraint.

Mechanical components should be operated repeatedly under realistic conditions. Moving features, rotating elements, lifts, doors or articulated parts must perform safely while the vehicle is stationary and, where intended, in motion. Emergency stops, manual overrides and isolation points should be tested and clearly identified.

Workshop testing should include the scenic finish as well as the structure. Cracking around joints, movement in cladding, loose graphics and rubbing between components often become visible only after handling or operation.

Quality-control records help ensure that nothing is overlooked. Weld inspections, material certificates, bolt checks, electrical testing, load verification and photographic records can all form part of the handover package.

Route Constraints Shape The Build

A parade route is not simply a line on a map. It is a physical environment with restrictions that can directly influence the float design.

Overall height must be checked against bridges, gantries, overhead cables, signage and temporary installations. Width must account for road furniture, barriers, kerbs and narrow turning points. Ground clearance can become critical on ramps, speed humps and changes in road level.

Turning analysis is particularly important for long vehicles and trailers. A route that appears wide enough may still create problems at junctions because of rear overhang, swept path or the position of projecting scenic elements.

Road camber and surface condition should also be considered. A tall float travelling across a sloped section may lean noticeably, increasing the effect of its centre of gravity. Loose surfaces, drainage channels and uneven paving can introduce vibration and sudden vertical movement.

Wind conditions can vary along the route, particularly between buildings or in open areas. Large scenic surfaces can behave like sails, even where the materials themselves are lightweight.

Perforation, open framing, reduced surface area or controlled gaps may be used to reduce wind pressure.

Where height restrictions are unavoidable, fold-down or telescopic components may be considered. These mechanisms must be engineered carefully, with secure locking positions and clear operating procedures. A moving section should never rely solely on an actuator or motor to remain safe; positive mechanical locking is usually required.

Route surveys should be completed early enough to influence the design. Discovering a height restriction or impossible turning point after fabrication can result in extensive redesign.

Logistics And Transport Planning

Transport is part of the engineering process, not a separate activity. A float may need to travel from the fabrication workshop to a holding area, rehearsal location, and final route. Scenic modules may be carried on separate vehicles and assembled close to site. Each movement introduces handling, lifting and protection requirements.

Transport frames can protect delicate scenic components and provide safe forklift or crane access. Large sculptural pieces may need custom cradles to prevent distortion. Finished surfaces should be protected without trapping moisture or placing pressure on detailed areas.

Loading order matters. Components required first on site should remain accessible. Lifting accessories, fixings, tools and spare materials should travel with the relevant module rather than being treated as general workshop equipment.

Site assembly may take place under restricted timeframes, at night or within controlled road closures. The methodology must therefore be efficient and predictable. Detailed installation drawings, labelled components and clear connection systems reduce risk during assembly.

The team should also plan for dismantling. Temporary structures must be removed safely and efficiently after operation. Fixings should remain accessible, modules should be capable of being separated without damage and transport packaging should be available for the return journey.

Where floats are intended for reuse, the dismantling process becomes even more important. Components may require storage, repair, repainting or adaptation for future projects. Durable modular construction can significantly extend the useful life of the scenic build.

Operational Access And Maintenance

Operational considerations continue long after fabrication is complete. Access for maintenance, emergency procedures, driver visibility, operator movement and route-specific constraints all influence final construction decisions.

The driver must maintain adequate sightlines, either directly or through approved camera systems. Ventilation around engines, generators and electrical equipment must not be blocked by scenic cladding. Heat-producing equipment should be separated from combustible materials and provided with suitable access.

Technicians may need to reach mechanical or electrical systems quickly during rehearsals or operation. Removable panels, inspection hatches and clearly marked isolation points can make the difference between a minor adjustment and a major delay.

Internal access routes should be wide enough to use safely and free from sharp edges, exposed fixings or unprotected moving parts. Where personnel stand or work on the float, suitable decks, guardrails, handholds and non-slip surfaces may be required.

Maintenance tasks should be anticipated during design. Lamps may fail, graphics may lift, mechanisms may require adjustment and scenic finishes may be damaged during transport. Providing access and keeping spare materials available allows the team to carry out repairs without dismantling major areas of the float.

Public Safety Requirements

Parade floats operate in public spaces, often close to barriers, other vehicles and temporary infrastructure. The scenic construction must therefore be developed with a strong understanding of public safety.

Projecting components should be reviewed carefully. Sharp edges, low-level protrusions and fragile decorative details can create avoidable hazards. External parts must be securely fixed and capable of resisting vibration throughout the route.

Fire performance is also important. Material specifications, coatings, fabrics, foams and electrical systems may need to meet project-specific requirements. The presence of generators, batteries, fuel systems or heat-producing equipment must be considered within the overall risk assessment.

Emergency procedures should be practical. The vehicle must be able to stop safely. Moving features should have reliable emergency stops and safe states. Operators should understand how to isolate systems, access critical equipment and respond to faults.

A well-engineered float does not depend on perfect conditions. It is designed with sensible margins, redundancy where appropriate and clear procedures for foreseeable problems.

Solving Problems Before They Reach The Route

Successful parade float engineering is largely about resolving conflicts early.

The creative design may demand height, scale and movement. The vehicle imposes limits on weight, access and stability. The route introduces clearances and turning constraints. The scenic finish requires continuity and visual quality. Logistics demand modular construction. Operations require access and reliability.

These requirements cannot be addressed independently.

The most effective projects bring structural engineers, scenic fabricators, metalworkers, carpenters, CNC teams, scenic artists, mechanical specialists and logistics coordinators into the process from the beginning.

Early collaboration allows the team to identify where a curved scenic feature can conceal structural bracing, where a lightweight material can replace heavy construction, where a module joint can align with a graphic break and where maintenance access can be integrated without affecting the appearance.

Large public celebration projects, including national parades and ceremonial processions, frequently require this level of coordination. Multiple floats may need to follow a common technical framework while maintaining different scenic forms. Standardised vehicle interfaces, shared engineering principles and consistent installation methods can improve reliability across the full production.

The visible result may appear effortless, but that impression is supported by extensive engineering, fabrication planning and testing.

Engineering Ambition Into A Reliable Structure

The most successful parade floats are not created by separating design, engineering, fabrication and operation into isolated stages. They are developed as complete mobile systems.

Movement, transport, installation, maintenance and dismantling must be considered alongside proportion, form, colour and finish. Vehicle limitations must inform the design before fabrication begins. Structural calculations must reflect dynamic forces. Material selection must balance weight and durability. Workshop testing must verify both performance and assembly.

When these requirements are resolved together, ambitious scenic concepts can be transformed into safe, reliable and visually impressive mobile structures.

That is the central challenge of engineering a moving parade float: creating something that appears imaginative and expressive while behaving predictably under real operating conditions.

For Evolution Scenic, this means combining scenic engineering, metal fabrication, scenic carpentry, CNC machining, sculptural production, specialist finishes, modular construction and logistics planning within one coordinated build methodology. The decorative surface may be what is seen from the route, but the success of the float depends on everything beneath it.
