Why The Loading Dock Is More Important Than The Main Entrance
Why The Loading Dock Is More Important Than The Main Entrance
Clients spend months discussing the front entrance.
Fabricators spend months worrying about the back entrance.
More specifically, the loading dock.
From a scenic fabrication perspective, the loading dock can have a greater influence on project success than almost any other part of the venue.
A feature structure may look spectacular in a render.
Unfortunately, the render rarely shows the service corridor it needs to travel through.
Or the lift it needs to fit inside.
Or the loading dock canopy sitting 150 millimetres lower than the top of the transport frame.
The structure may be perfectly buildable.
The real question is whether it can actually reach the place where it needs to be installed.
The Scenic Structure Still Has To Get Through The Door
This sounds obvious, but access constraints regularly become some of the most influential technical inputs on a scenic project.
A large feature wall may be straightforward to fabricate as one complete assembly in the workshop. Doing so might even produce the cleanest finish and fastest manufacturing process.
If the venue loading door is smaller than the wall, however, that manufacturing advantage becomes irrelevant.
The same problem can occur with stages, exhibition structures, entrance portals, sculptural features and temporary architectural elements. Once completed, they must travel from the fabrication workshop onto a vehicle, through the loading dock, along the service route and into the final installation area.
Every part of that journey places a physical limit on the size of the components.
For experienced scenic teams, buildability therefore includes more than asking, “Can we manufacture this?”
It also means asking, “Can we move it?”
Venue Surveys Are Fabrication Surveys
This is why venue surveys matter so much.
A useful scenic survey does not stop at recording the dimensions of the final installation space.
The route into that space needs to be understood as well.
Evolution Scenic teams may record loading dock dimensions, door widths, overhead restrictions, corridor clearances, lift sizes, ramp gradients and turning areas as part of technical development.
These measurements then become fabrication information.
If the narrowest doorway on the delivery route is 1,800 millimetres wide, there is little benefit in manufacturing a rigid module that is 1,900 millimetres wide and hoping everybody becomes more optimistic on installation day.
Access dimensions should influence the fabrication drawings before production begins.
Service Lifts Can Design The Structure For You
Service lifts can quickly turn ambitious scenic concepts into practical engineering exercises. When a structure must reach an upper floor, basement or internal ballroom, the lift becomes part of the transport envelope, with width, height, depth, load capacity, door operation and turning space all affecting the design. A component may fit on paper but still be impossible to manoeuvre through the opening, so large elements need to be assessed three-dimensionally. Sometimes a few centimetres determine whether a wall travels upright, diagonally or not at all. A photograph of someone standing inside the lift with a tape measure may not make the presentation, but it can save the project.
Modularisation Starts With Access
Once access restrictions are understood, the scenic structure can be divided around them.
Modularisation is often discussed in relation to transportation and installation efficiency, but restricted venue access is frequently what defines the module size in the first place.
A large wall can be split into smaller framed panels.
A portal can be manufactured as separate legs and header sections.
A steel structure can use bolted connections rather than permanent welded assemblies.
Decorative cladding can be installed after the structural modules reach site.
The objective is to reduce the structure into pieces that can physically travel through the venue while still returning accurately to the intended finished geometry.
This requires proper connection design.
Bolted steel plates, locating pins, indexed fixing points and repeatable timber interfaces can allow modules to reconnect accurately after transport.
When the installation is complete, the audience should have no idea that the apparently continuous structure arrived through the building in six separate pieces.

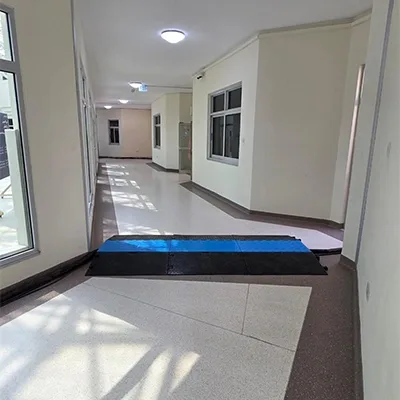

Corridors Have Turning Radii Too
Door width is only one part of the access problem.
A scenic panel might comfortably fit through a 1,500-millimetre-wide corridor while travelling in a straight line.
Then it reaches a ninety-degree corner.
Suddenly the effective space available is very different.
Long modules require enough clearance to rotate.
Ceiling-mounted services can reduce usable height.
Handrails, door frames, fire equipment and architectural projections can all reduce the manoeuvring space further.
This becomes especially important when moving rigid steel frames or fully finished scenic elements that cannot be bent, tilted aggressively or allowed to contact surrounding surfaces.
Installation route planning should therefore consider the complete geometry of the journey rather than simply checking the smallest doorway.
The Loading Dock Has Its Own Problems

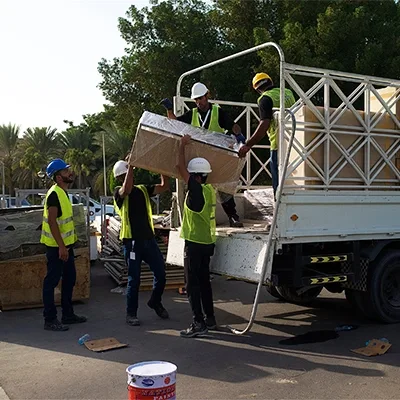

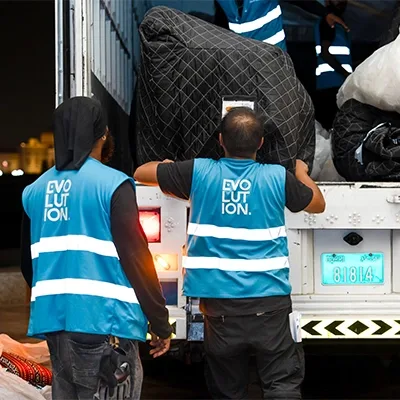

Even reaching the venue does not guarantee that the load can be unloaded successfully. Loading docks vary enormously, from dedicated bays that accommodate large articulated vehicles to tight urban service roads, steep ramps and shared basement loading areas. Maximum vehicle heights, trailer length restrictions, timed booking slots, limited dock levellers and security procedures can all affect the delivery, as can restrictions on engines running during unloading.
The transport strategy therefore needs to work with the venue’s specific conditions. A large scenic structure may require a low-loader because of its height, but the vehicle may not negotiate the access ramp into a basement loading area. A rigid truck may fit the dock but lack sufficient internal length for the fabricated modules. Transport and fabrication must therefore be coordinated from the outset rather than treated as separate stages.
Sometimes The Truck Cannot Get Anywhere Near The Stage

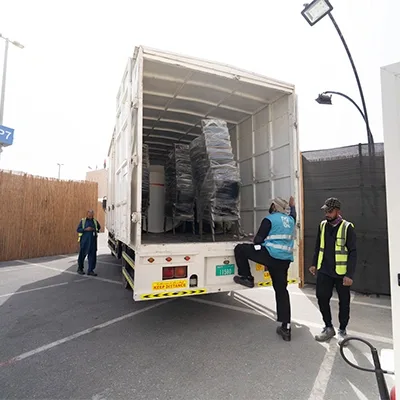

The unloading point may also be surprisingly far from the installation location.
At large venues, scenic components can travel hundreds of metres after leaving the truck.

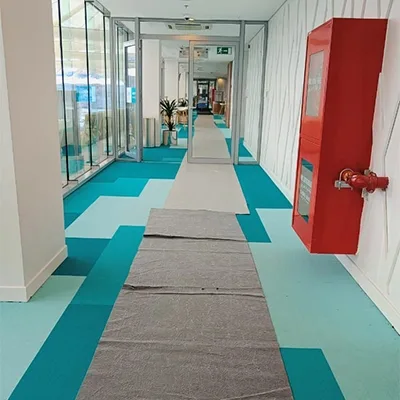

They may move through service corridors, goods lifts, back-of-house areas and temporary access routes before reaching the stage or exhibition space.
This internal transport creates another handling phase.
Large modules may need dollies, trolleys or compact lifting equipment.
Finished surfaces require protection.
Components need stable handling points.
Weight distribution matters.
A structure that can be safely lifted by forklift in the workshop may need a completely different handling method once it enters a narrow corridor.
Good build methodology considers these transitions.
The journey does not end when the scenic element comes off the truck.
Installation Sequence Often Begins At The Dock
Restricted access also affects the order in which components are delivered.
If the venue has limited storage, scenic modules may need to arrive in approximately the same sequence in which they will be installed.
The first structural elements required on site should ideally not be buried behind decorative panels needed several hours later.
Transport frames and stillages can be labelled according to build sequence.
Connection hardware can travel with the relevant module.
Finishing components can be grouped so they are protected until the structure is ready to receive them.
This reduces unnecessary movement in areas where space is already limited.
It also avoids the familiar installation problem of discovering that the one component everybody needs is currently sitting at the back of the third truck.
Access Restrictions Change Workshop Strategy
Restricted access does not necessarily make fabrication more difficult.
It changes where certain parts of the work happen.

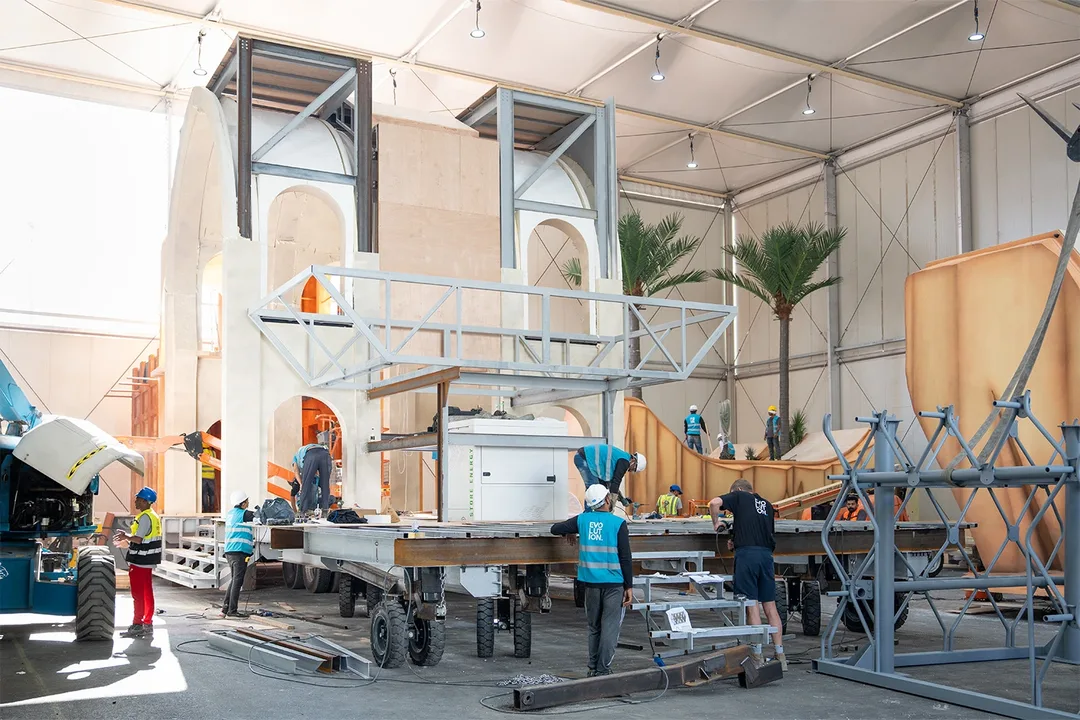

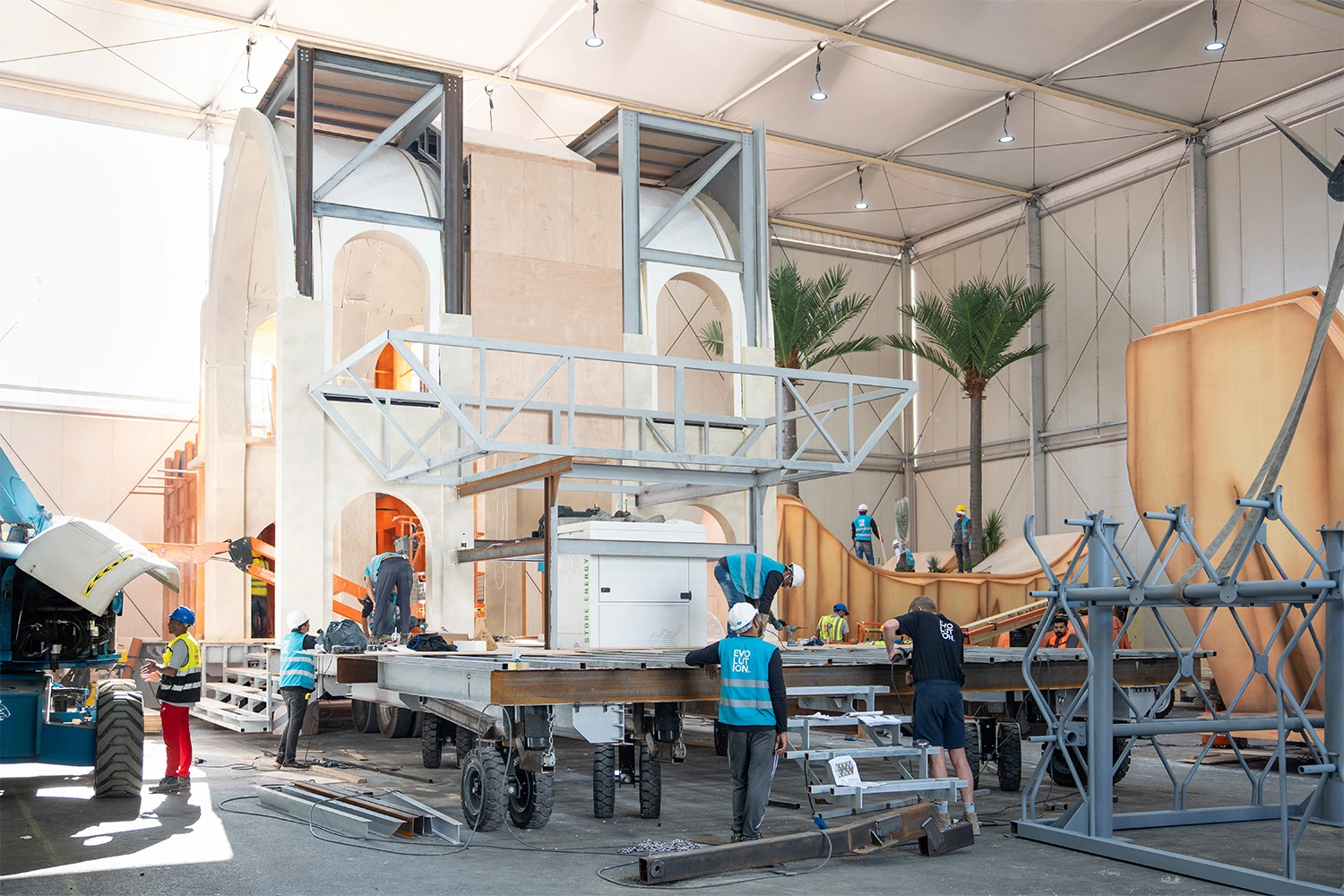

Where large assemblies cannot enter the venue complete, more structural assembly may need to occur on site.
The workshop can still complete as much work as practical beforehand.
Frames can be trial assembled.
Connections can be tested.
Panels can be CNC machined and pre-fitted.
Finishes can be completed where appropriate.
Modules can then be separated, protected and transported in access-compatible sections.
This allows much of the precision and quality control to remain within the workshop while acknowledging that final assembly must happen inside the venue.
Mock-ups and trial assemblies become particularly useful when multiple modules need to reconnect quickly during a restricted installation period.
Loading Docks Are Shared Resources

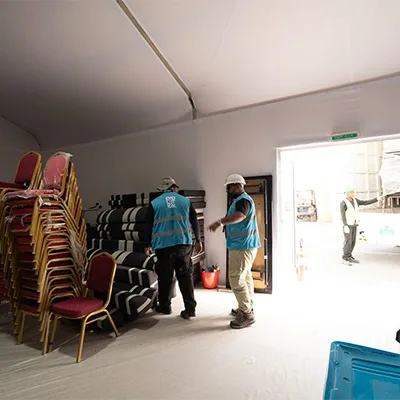

Large venues rarely give the scenic team exclusive use of the loading dock. Lighting, audio, video, rigging, furniture, catering, graphics and production equipment may all be arriving through the same service entrance, with each contractor working to a tightly controlled schedule.
Loading bays and goods lifts therefore become shared, scheduled resources rather than open access points. A scenic delivery that misses its allocated slot may not simply arrive thirty minutes later; it may lose access until another period becomes available, affecting the wider installation programme.
Careful planning is essential. Vehicle arrival times, unloading durations, labour availability and the onward movement of materials from the dock should be coordinated in advance, particularly during short build periods when even a small delay can disrupt the entire installation sequence.
Night Installations Make Access Planning Even More Important
Many scenic installations happen overnight or during tightly controlled venue closures, leaving limited time for improvisation. If a module does not fit through the planned route at midnight, the service lift is smaller than expected or a loading dock booking expires, there may be no venue engineer, workshop machinery or additional access slot available to resolve the problem.
The workshop is the best place to solve access issues; the venue at two o’clock in the morning is generally not. This is why seemingly mundane information collected during technical development, from lift dimensions to delivery timings, can become extremely valuable during installation.
The Finished Structure Should Hide All Of This
The interesting thing about access-led fabrication is that none of it should be obvious once installation is complete. A large scenic wall may have arrived through a small service lift in five sections, a sculptural feature may have travelled down a corridor on specially fabricated trolleys, and a stage portal may have been assembled from bolted steel modules because the loading door was too low for the completed structure.
The finished environment should still appear deliberate and continuous. Connection lines are concealed, finishes are completed, alignment is checked and temporary transport hardware disappears, leaving no visible evidence of the logistical challenges involved in getting the structure into position.
Good scenic engineering allows the practical realities of access to shape the construction without allowing those compromises to define the visual result.
Sometimes The Most Important Drawing Is The Access Route
Technical drawings for scenic projects naturally focus on what is being built: elevations, sections, structural frames, details and connections. But on access-sensitive projects, a route drawing can be equally important. It can record the loading dock, doors, corridors, lifts, turning areas and final assembly location, allowing each module to be checked against the route during technical development.
This turns venue access from a vague logistical concern into something measurable. It also gives fabrication, transport and installation teams a shared understanding of how the structure is expected to reach site, helping identify access problems before manufacturing begins.
Measure The Lift Before Manufacturing The Wall

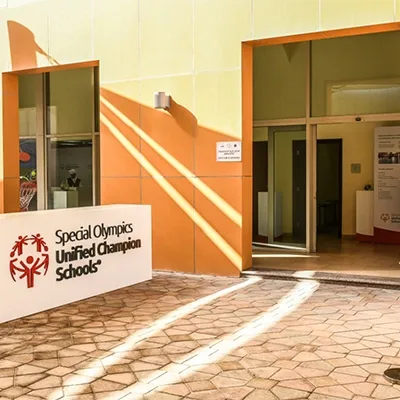

The main entrance may receive all the attention, with its signage, architectural features and finished scenic elements designed for photographs. But the project probably did not enter through it. It arrived through the service road, loading dock, corridors and service lifts before reaching the final installation area.
At Evolution Scenic, these less glamorous parts of the venue are treated as part of the fabrication problem from the beginning. Loading dock dimensions, lift capacities, transport constraints and installation routes can all influence how scenic structures are engineered, modularised and manufactured. The strongest projects are not simply those that can be built, but those that can be transported, delivered and assembled without discovering that the final obstacle is a doorway nobody remembered to measure. The render may show the front entrance; the fabrication team will still want to see the loading dock.
