• Why Nobody Notices Good Scenic Fabrication

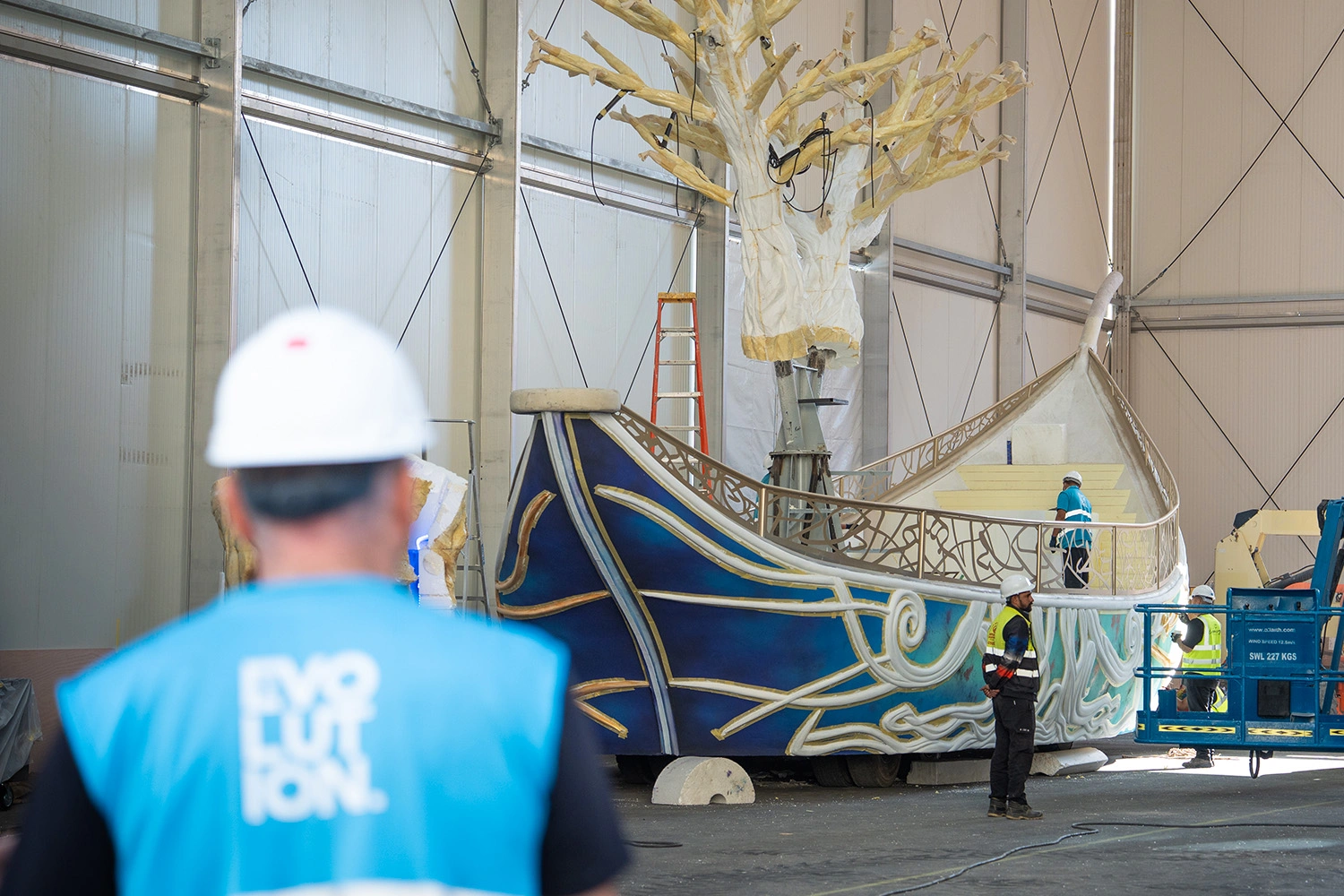

    Image description

    Why Nobody Notices Good Scenic Fabrication


    Good scenic fabrication is often invisible.


    Visitors notice when a wall is leaning. They notice when a sign falls over, a door sticks, a graphic begins to peel or a scenic element arrives damaged.


    What they rarely notice is everything working exactly as intended.


    They do not see the engineering review that strengthened a large feature without changing its appearance. They do not see the workshop team adjusting a connection before it creates a problem on site. They do not see the transport frame protecting a delicate surface or the installation plan developed around a narrow access route.


    When scenic fabrication is done well, the finished environment feels effortless.


    That apparent simplicity is the result of hundreds of decisions made throughout technical design, material selection, engineering, manufacturing, transport and installation.


    Good fabrication is often the absence of problems. That is usually one of the strongest compliments a workshop can receive.

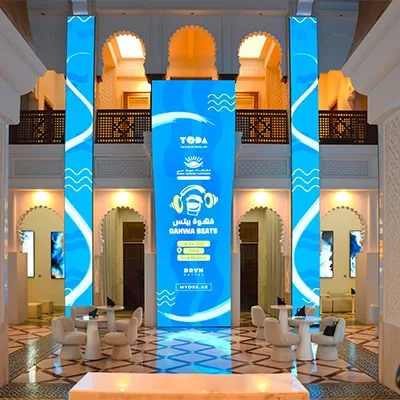

    Supporting The Wider Environment


    The purpose of scenic fabrication is rarely to draw attention to the construction itself.


    A successful exhibition stand should feel complete rather than assembled. A stage set should appear stable and intentional. An activation should operate smoothly without visitors becoming aware of structural frames, hidden fixings or technical access panels.


    The fabrication exists to support the wider environment.


    This means resolving practical requirements without allowing them to interrupt the design. Structural supports must fit behind the visible surfaces. Module joints need to remain discreet. Access panels must be usable without appearing obvious.

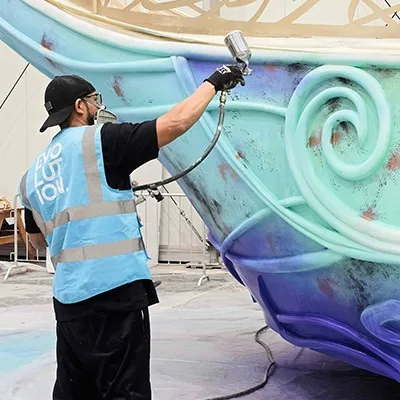

    The same principle applies to scenic finishes. A surface should not look impressive only when viewed from one carefully chosen angle. It must remain consistent under venue lighting, at realistic viewing distances and after transportation and installation.


    When all of these elements work together, visitors focus on the environment rather than the structure behind it.

    Quality Begins Before Manufacturing


    Many fabrication problems begin before the first material is cut.


    Incomplete drawings, unresolved dimensions and unclear interfaces can create issues that only become visible once production is under way. By then, changes may affect several connected components.


    Experienced scenic teams review information before manufacturing begins.


    They assess whether the proposed structure can be fabricated efficiently, whether the connections remain accessible and whether the completed modules can be transported through the available routes.


    A large wall may be stable once fully assembled but difficult to control during lifting. A sculptural element may fit inside the workshop but exceed the dimensions of the loading door. A maintenance panel may exist on the drawing but prove too small for a technician to remove the equipment behind it.


    These are not dramatic problems. They are practical problems, and practical problems can quickly become expensive when discovered late.


    Good technical review prevents them from reaching the workshop or site.

    Engineering That Disappears


    Engineering is one of the least visible parts of scenic fabrication.


    Visitors may see a lightweight architectural feature or a clean branded wall, but behind it may sit a carefully designed framework, bracing system or weighted base.


    Engineering reviews consider how the structure will perform during every stage of its life. This includes fabrication, transport, lifting, installation, operation and dismantling.


    The structure may need to support suspended equipment, graphics, lighting or audiovisual systems. It may also need to resist visitor contact or environmental forces such as wind.


    For temporary structures, the challenge is often to provide sufficient strength without introducing unnecessary weight. The frame must remain practical to transport and assemble while still delivering reliable stability.


    The best engineering solutions are integrated early. They support the intended form without forcing visible changes after the design has already been developed.


    Once the structure is complete, most people will never see the engineering.

    That is often the point.

    Workshop Standards

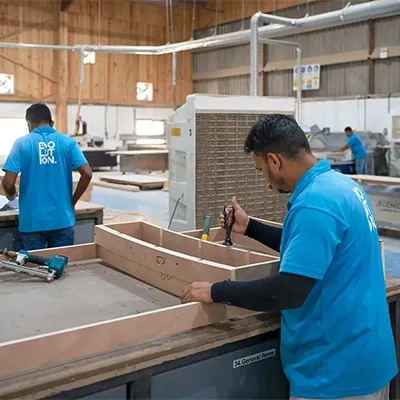

    A scenic workshop is where visual ideas become physical environments.


    The standard of the finished work depends heavily on the consistency of the manufacturing process.


    Accurate setting out, controlled cutting and careful assembly all contribute to the result. So do material storage, component labelling, surface protection and workshop organisation.


    Fabrication tolerances are particularly important within modular environments.


    A small dimensional variation may appear insignificant on one panel. Repeated across a large structure, it can create visible gaps, misaligned graphics and uneven architectural lines.

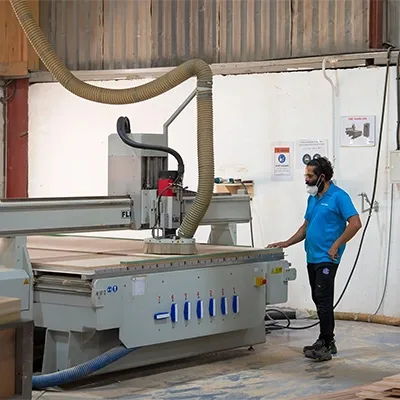

    Templates, jigs and CNC production can improve repeatability, but machinery alone does not guarantee accuracy. Components still need to be measured, checked and assembled by experienced teams.


    Workshop standards also affect efficiency. Clearly labelled modules are easier to pack and install. Protected surfaces are less likely to require repair. Organised work areas reduce the risk of components being damaged or confused.


    Quality is not created during a single final inspection. It is built into the process from the beginning.

    Test Assembly and Quality Control


    Whenever practical, important scenic structures should be tested before they leave the workshop.


    Test assembly confirms that modules align, connections fit and the intended installation sequence is achievable. It also allows teams to check areas that will become difficult to access once the structure is complete.


    Doors can be opened and closed. Removable panels can be tested. Graphics can be reviewed across adjoining sections. Lighting and audiovisual equipment can be checked within their fabricated housings.


    The purpose is not simply to prove that the structure can be assembled. It is to identify where the process can be improved.


    A fixing that is awkward to reach in the workshop will be even more difficult during a restricted installation window. A joint that requires excessive force may damage the finish after repeated use.


    These issues can usually be resolved calmly during workshop testing. On site, the same adjustments may delay several teams working around the installation.


    Good quality control reduces that uncertainty.

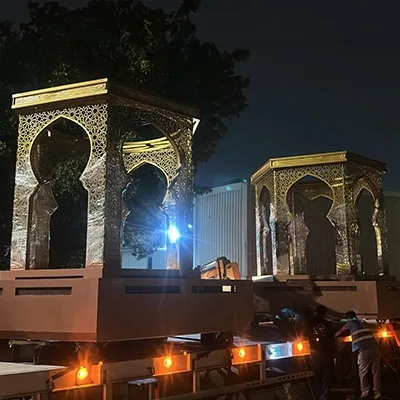

    Planning For Transportation


    Fabrication is not complete when the structure looks finished inside the workshop.


    It still needs to reach the site without damage.


    Transportation planning influences module dimensions, joint locations and material choices. Large scenic features may be lightweight but physically awkward, making them difficult to support inside a vehicle.


    Custom stillages and protective frames may be required for sculptural forms, curved walls and delicate finishes. Corners and projecting details often need additional protection because they are particularly vulnerable during handling.


    Packing order also matters.


    Components required first during installation should remain accessible. Fragile modules should not need to be moved repeatedly to reach heavier structural items.


    Labels and reference markings must remain visible after packing so the site team can identify each component quickly.


    When transport has been considered properly, modules arrive in the correct order and in the expected condition.


    Nobody notices this preparation when it works. They notice it immediately when it does not.

    Installation Planning

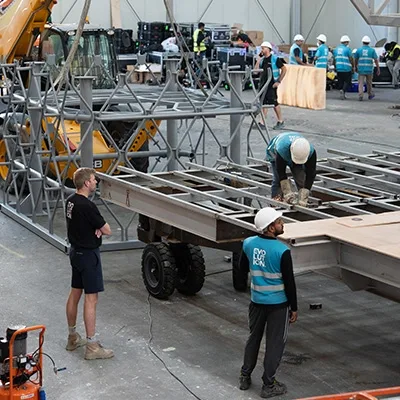

    Site installation is often where the quality of the earlier planning becomes clear.


    A workshop provides controlled conditions. A venue may have limited access, uneven floors and several contractors working in the same area.


    The scenic structure must be designed around those realities.


    Installation drawings, module references and coordinated loading plans help the team understand what arrives first and how each component connects.


    Temporary bracing may be required while larger structures are assembled. Lifting points must remain accessible, and final scenic finishing areas must not be blocked too early.


    The easiest environments to install are not necessarily the smallest or simplest. They are the ones designed with the installation sequence in mind.


    Connections remain accessible. Adjustments can be made where required. Technology can be fitted without dismantling completed work.


    Careful preparation reduces the amount of improvisation needed on site and gives the installation team greater control over both safety and finish quality.

    Preventing Problems

    Much of scenic fabrication expertise is preventative.


    It involves recognising what could go wrong and resolving it before it becomes visible.


    A vulnerable corner can be reinforced before finishing. A module joint can be moved into a natural architectural line. A technical access panel can be enlarged while the structure is still being designed.


    These decisions rarely receive attention because the problems they prevent never occur.


    Problem prevention also protects the programme. Rebuilding an incorrect module or repairing a damaged scenic finish on site can affect the work of other contractors.


    The same issue resolved during technical design or workshop production is usually quicker, safer and easier to control.


    Experienced workshops still encounter challenges. Scenic fabrication combines many disciplines, materials and deadlines, so unexpected conditions are inevitable.


    The difference lies in how early those challenges are identified and how effectively they are resolved.

    Safety Behind The Finished Result


    Health and safety is another area where success is measured by what does not happen.


    Workshop teams need suitable extraction, machinery controls, protective equipment and safe handling methods. Large scenic components must be lifted and moved using planned procedures.

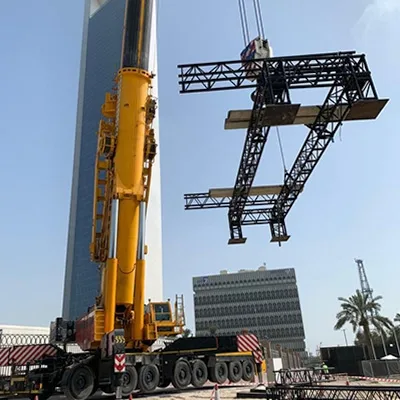

    On site, temporary stability, access equipment and lifting strategies require the same level of consideration as the finished structure.


    These systems may never appear in the final photography, but they influence the quality of the work.


    When teams have the correct access, equipment and working method, they can complete tasks more accurately and with less risk of damage.


    Safety and quality are not separate priorities. Both depend on careful planning and controlled processes.

    Hidden Expertise


    Scenic fabrication brings together engineering, carpentry, metalwork, CNC machining, sculpture, scenic painting, graphics, logistics and installation.

    Once the project is complete, much of this expertise disappears behind the finished surface.


    The steel frame is enclosed. Mechanical fixings are concealed. Transport joints are filled and painted. Cable routes remain hidden but accessible.


    This hidden work is not secondary to the visible result. It is what makes that result possible.


    Visitors should not need to understand how the environment was fabricated. They should simply encounter a structure that feels stable, accurate and complete.

    The Absence Of Problems


    Good scenic fabrication rarely announces itself.


    Doors open smoothly. Graphics remain aligned. Structures stay stable. Scenic finishes survive transportation. Technology works and remains accessible.


    For Evolution Scenic, this reliability comes from engineering reviews, workshop standards, quality control and detailed installation planning.


    The completed environment may appear effortless, but that is because the difficult decisions have already been made behind the scenes.


    Good fabrication is often the absence of problems.


    And when nobody notices the fabrication at all, it has usually performed exactly as intended.

  • Why Temporary Structures Need Permanent Thinking

    Evolution Scenic temporary scenic frame being fabricated and checked in the workshop

    Temporary structures may have short lifespans, but their fabrication demands the same disciplined thinking applied to permanent construction.

    Why Temporary Structures Need Permanent Thinking

    One of the biggest misconceptions surrounding temporary environments is that a short lifespan somehow means they require less engineering, less planning or less attention to detail. In scenic fabrication, the opposite is often true.


    A structure that will exist for only a few days may still need to perform to an extremely high standard while dealing with a far more compressed and demanding project lifecycle.


    Temporary is therefore a description of how long something will remain in place, not the standard to which it should be designed. Whether Evolution Scenic is fabricating an exhibition environment, brand activation, temporary architectural structure or touring installation, the structure still needs to be safe, stable, accurately manufactured and practical to install.

    Close detail of engineered connection hardware within a temporary scenic structure

    Reliable, repeatable connections are central to structures that must be assembled, operated and dismantled within compressed programmes.

    Temporary Does Not Mean Simple


    A temporary structure passes through an unusually concentrated lifecycle.


    It is fabricated in the workshop, inspected, packed, transported, unloaded, installed, operated, dismantled and removed, sometimes within the space of only a few weeks. On particularly fast projects, several of these stages can happen within days of one another.


    At the same time, temporary environments are frequently expected to achieve the same visual quality as permanent interiors. Exhibition walls still need clean junctions. Branded structures still need accurate geometry.


    Feature elements still require high-quality scenic finishes. The difference is that these elements may also need to be lightweight, modular, transportable and capable of being assembled during a tightly controlled installation window.

    Engineering for Speed, Stability and Low Weight


    One of the central challenges in temporary scenic engineering is balancing weight against structural performance. Structures need to be light enough to transport and handle efficiently, but sufficiently rigid to remain stable once installed.


    Depending on the application, this may involve considering crowd interaction, suspended elements, integrated equipment, wind exposure, vibration or loads created by cladding and finishes.


    The connection system becomes particularly important. Bolted connections, pinned joints, locating plates, captive fixings and pre-drilled interfaces can allow large structures to be assembled rapidly without sacrificing accuracy.


    Good temporary engineering avoids relying on crews to make components fit on site. The aim is to create predictable connections that naturally locate components in the correct position.

    Designing the Installation Before Fabrication


    Experienced scenic teams think about installation long before the structure reaches the workshop floor. Module sizes may be determined by loading dock dimensions, passenger or goods lifts, door openings, vehicle capacities or the amount of space available for manoeuvring components inside the venue.


    The sequence of assembly must also be considered. Structural frames may need to be installed before finished skins can be applied. Certain fixings need to remain accessible until adjacent modules are secured. Decorative panels may conceal structural connections, meaning they must be removable or installed at carefully planned stages of the build.


    Dismantling should be considered at exactly the same time. If a structure needs to leave a venue overnight, the team needs to know how finishing panels are removed, where lifting or handling points are located and which connections can be released first without making the remaining structure unstable. A good temporary build methodology works just as effectively in reverse.


    Venue restrictions introduce another layer of complexity. Floors may need protection. Drilling into existing surfaces may be prohibited. Structural loads may need to be distributed carefully. Fire requirements, escape routes, working-at-height controls, noise restrictions and limited installation hours can all influence how the scenic structure is developed.

    Modular Construction and Reusability


    Modular construction is one of the most effective approaches to temporary architecture. Instead of treating every structure as a single assembly, fabrication teams can divide it into manageable sections that are easier to manufacture, transport, install and replace.


    For reusable structures, the modular strategy becomes even more important. A core steel or aluminium frame can potentially support multiple configurations while interchangeable scenic skins, graphic panels or architectural finishes create a different appearance for each deployment. This approach is particularly valuable for touring activations, exhibition systems and repeat brand environments.


    However, reuse requires more than making something strong. Edges need to withstand repeated handling. Fixings need to survive multiple assembly cycles. Decorative surfaces may need replaceable sacrificial layers. Components need to be clearly labelled, packed and stored so that they can be identified months later. Hardware needs inspection and worn components need to be replaceable without rebuilding the entire structure.

    Touring Environments


    Touring environments introduce an additional design consideration: transport geometry. The dimensions of modules may be influenced by truck bodies, containers, pallets, flight cases or available loading equipment.


    A structure that performs perfectly once assembled but occupies unnecessary transport volume can become expensive and inefficient to tour.


    Different venues can also introduce different tolerances. Floors may not be perfectly level. Access conditions may change.


    Installation spaces can vary slightly from drawings. Adjustable feet, controlled tolerances, replaceable interface plates and carefully considered junction details allow touring structures to accommodate these differences without compromising the finished appearance.


    Digital manufacturing is particularly valuable here. CNC routing and other digitally controlled processes allow repeated components to be produced consistently from the same manufacturing information.


    If a damaged component needs replacement during a touring programme, an accurately developed digital production file can make reproduction significantly easier.

    Materials, Finishes and Integrated Technology


    Temporary construction does not automatically mean inexpensive materials. Material selection needs to respond to what each component actually needs to achieve. Plywood, MDF, aluminium, steel, composite sheet materials, foams and specialist scenic products all have different advantages depending on span, weight, finish quality, fire performance and expected handling.

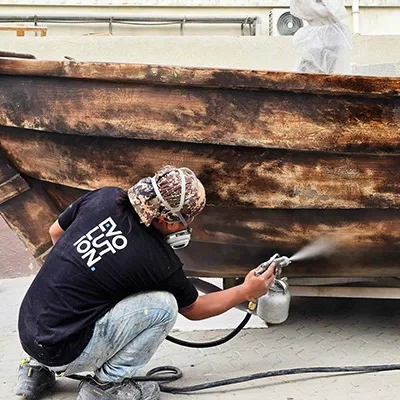

    Scenic finishes also need to survive more than the finished installation.


    A painted surface may be handled in the workshop, wrapped for transport, loaded into a vehicle, carried through a venue and assembled alongside other components. Corners, edges and high-contact areas therefore require particular attention if the finish is expected to remain clean once the installation is complete.


    Technology integration requires the same level of planning. Screens, lighting, speakers, sensors and other equipment may need secure mounting points, ventilation, power distribution and cable routes. Access panels need to remain reachable for maintenance. Technology should be integrated into the scenic structure rather than treated as something that can simply be added once everything else has been built.

    Logistics Are Part of Fabrication


    For temporary environments, logistics are closely connected to fabrication methodology. A structure can be beautifully manufactured and still become difficult to install if components arrive in the wrong order, fixings cannot be located quickly or large modules are packed behind items that need to be installed first.


    Workshop dry-fitting is one of the most effective ways to reduce this risk. Assembling key sections before dispatch allows the fabrication team to check alignment, tolerances, finishes and connection details while workshop tools and machinery are still available. Numbering and coding the modules also gives the installation team a clear system to follow once the structure reaches site.


    Packing can then follow the installation sequence. Structural elements required first can remain accessible, while finished components are protected until needed. Hardware kits can be organised by module or assembly stage. The result is fewer unnecessary movements on site and less time spent searching for components during a limited installation window.


    Removal requires the same consideration. Temporary structures may need to return to the workshop, travel to another venue, enter storage or be separated into reusable and non-reusable materials. Protective packaging, transport routes and storage requirements should therefore be planned before the structure is ever delivered.

    Permanent Thinking for a Temporary Lifespan


    Permanent thinking does not mean constructing temporary environments using permanent-building methods. It means applying the same discipline to structural behaviour, detailing, material selection and buildability while also designing specifically for transportation, fast installation and eventual removal.


    In many ways, temporary architecture requires greater precision because there is less time available to solve problems on site. Connection systems need to work immediately. Modules need to align correctly. Finishes need to arrive protected. Technology needs to connect as intended. Installation teams need a clear sequence rather than relying on improvisation.


    The most successful temporary scenic environments are therefore designed around their complete lifecycle. From technical development and workshop fabrication through transport, installation, operation and dismantling, every stage affects the next.


    The structure may only exist for a few days, but the thinking behind it needs to account for everything that happens before, during and after those days.

  • Why We Ask So Many Questions Before We Build Anything

    Evolution Scenic reviewing technical drawings before scenic fabrication begins

    The questions asked before fabrication are often what make the final installation straightforward.

    Why We Ask So Many Questions Before We Build Anything

    One of the most common questions clients ask during the early stages of a scenic project is surprisingly simple: “Why do you need to know all of this?”


    It usually comes somewhere between a question about the loading dock and another about the dimensions of a service lift.


    The answer is that scenic fabrication projects are rarely defined only by what is being built. More often, they are defined by where it needs to go, how it needs to get there, how long we have to install it and what needs to happen once it arrives.

    Fabricated scenic components laid out beside transport drawings and a site access plan in the workshop.

    Scenic components planned around transport routes, site access and installation requirements

    The Thing Being Built Is Only Half the Brief


    A reception desk may appear straightforward on a drawing.


    Timber carcass, finished panels, perhaps some metalwork, graphics and lighting. Then somebody mentions that it needs to reach the twenty-third floor of a hotel through a passenger lift. Suddenly the most important dimension is not the width of the desk. It is the clear opening of the lift door.


    In scenic fabrication, the route between the workshop and the final position is effectively part of the design. Large walls, branded structures, exhibition environments and temporary architectural features often need to be divided into modules, rotated through corridors, moved across finished floors or assembled in spaces where traditional construction methods simply would not be practical.

    Access Routes Are Part of the Engineering


    Access planning starts before the structure reaches the venue.


    We want to understand vehicle access, unloading positions, doorways, corridors, ramps, ceiling heights, floor levels and any turns the components need to negotiate. A measurement that appears insignificant during design can determine whether something arrives on site as one large assembly or twelve smaller ones.


    A large scenic structure may therefore be engineered with bolted connections, removable finishes or concealed joining details simply because the final object cannot physically travel through the route available to it.


    When those decisions are made early, they are straightforward fabrication choices. When they are discovered at 2am during installation, they become considerably more entertaining for everyone except the installation team.

    Passenger Lifts Do Not Negotiate


    Lifts deserve particular attention because they are remarkably unforgiving pieces of infrastructure. A scenic unit that is 20mm too tall does not become more cooperative because the installation window is nearly finished.


    We normally need more than the advertised lift capacity or nominal internal dimensions. The clear door opening matters. So does the depth of the lift car, the height beneath lighting or ceiling fittings and the space available immediately outside the lift. A long component may technically fit inside diagonally but still be impossible to turn through the doorway.


    That information can completely change the fabrication strategy. Joinery might be designed as flat-pack sections. Decorative panels may use concealed mechanical fixings rather than permanent adhesive joints. Large frames may be broken into engineered modules and assembled on the destination floor.


    The finished appearance remains the same, but the build methodology has been designed around the reality of the building.

    The Loading Dock Is Part of the Project Too


    Loading docks create a different set of questions. What size vehicles are permitted? Is there a height restriction? Can a forty-foot trailer reach the dock?


    Is there a tail lift, forklift or loading platform? How far is the unloading point from the installation area?


    Vehicle selection, crate dimensions and handling equipment all influence fabrication and packing. A large welded frame might be perfectly efficient to manufacture as one piece, but not if the available vehicle cannot carry it or the venue cannot unload it.


    In that case, engineered joints and planned lifting points become part of the scenic design rather than an afterthought.

    Scenic crates and fabricated modules staged beside a loading dock with handling equipment ready for unloading.

    Scenic modules staged for efficient unloading at a venue loading dock

    Every Venue Has Its Own Rules


    Then there are venue restrictions. These can influence everything from the materials used to the type of wheels underneath an installation trolley. Finished floors may require protection. Certain areas may prohibit drilling or mechanical fixing. Noise, dust, paint spraying, hot works and cutting may all be restricted.


    Shopping centres are a good example. Scenic installations frequently take place after trading hours, with tight controls around noise, access and cleanliness.


    Hotels introduce another challenge because the route to the installation may pass through completed guest areas. Exhibition halls usually provide excellent loading infrastructure, but the available build period can be extremely compressed. The physical environment changes, so the fabrication strategy changes with it.

    Installation Windows Change How We Build


    Time is another design constraint. A structure that can be assembled comfortably over two days may need a completely different methodology if the venue allows only a six-hour overnight installation window.


    For a shopping centre installation, for example, the aim may be to maximise workshop preassembly so site work consists mainly of positioning modules, completing mechanical connections, aligning finishes and applying final graphics.


    The more testing and dry-fitting that can happen in the workshop, the fewer unanswered questions remain once the installation clock starts.

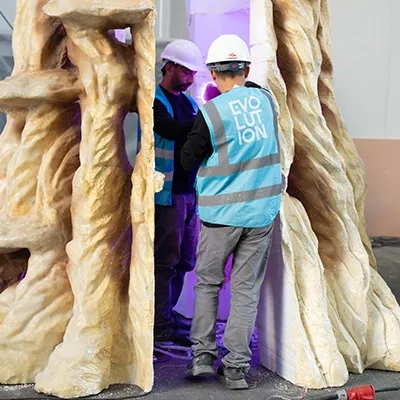

    Evolution Scenic dry-fitting complex scenery before a restricted installation window

    Workshop dry fits remove uncertainty before the clock starts running on site.

    The Structure Also Has to Survive the Journey


    Transportation deserves the same attention as installation. Scenic work often includes delicate painted finishes, laminates, graphics, acrylic components, lighting and accurately aligned joinery. A structure can leave the workshop looking perfect and still arrive damaged if transport has not been considered properly.


    Protective frames, crates, wrapped edges, transport restraints and numbered modules are therefore part of the production process. Packing sequence matters too. There is little benefit in carefully packing the first component required for installation at the very back of a fully loaded vehicle beneath everything else.

    Numbered scenic modules packed in installation sequence for efficient site assembly

    Packing order can be as important as fabrication order when installation time is limited.

    Public Spaces Bring Another Set of Questions


    Outdoor installations and public spaces introduce further considerations. Wind exposure, weather resistance, ballast, anchoring, drainage and public interaction may all influence the engineering. A branded feature intended to operate outdoors for three days requires a different material and structural strategy from scenery installed indoors for an evening.


    We also ask what happens after installation. Does the structure contain equipment that requires maintenance access? Will staff need to move it? Does a panel need to be removable? Will graphics be replaced? Can the installation be safely cleaned? Temporary does not mean disposable, and operational requirements often influence the detailing of scenic structures just as much as their appearance.

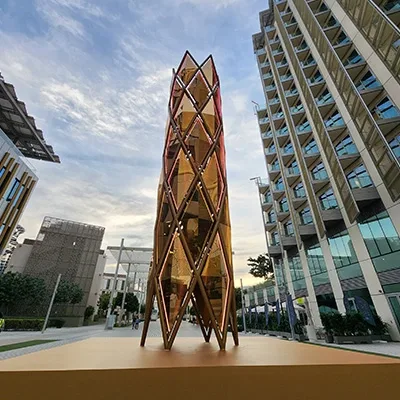

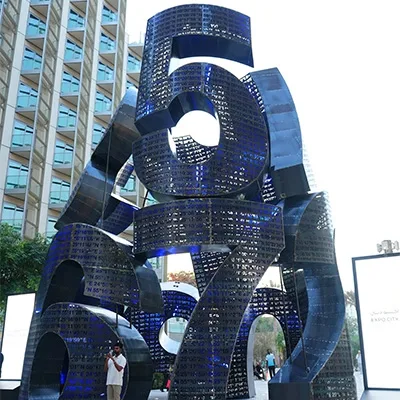

    Evolution Scenic outdoor feature with engineered frame and weather-resistant scenic finish

    Outdoor scenic work needs to account for weather, stability, public contact and repeated operation.

    Questions Become Build Methodology


    All of these questions eventually become technical information. Access surveys inform module sizes. Transport requirements influence frame splits. Installation windows determine connection details.


    Venue restrictions affect material choices. Structural requirements establish where reinforcement, ballast or fixing points are required.


    Experienced fabrication teams gradually build up a mental catalogue of things that can go wrong. Not because every project becomes more complicated, but because delivering more projects teaches you where apparently innocent assumptions tend to hide.


    Finding those issues during technical development is usually inexpensive. Finding them when a truck is waiting at the loading dock is rarely quite as economical.

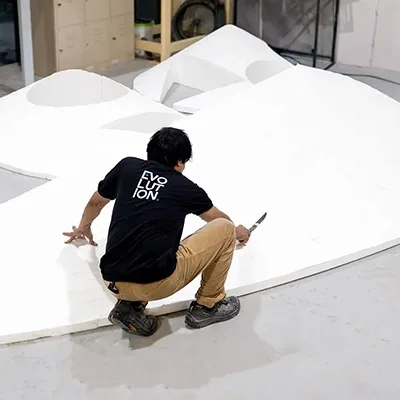

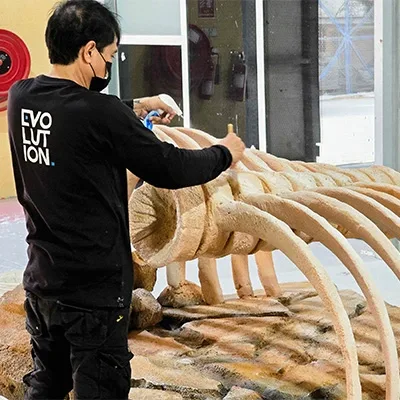

    Scenic fabrication team resolving buildability details around a full-size prototype

    The cheapest problem to solve is usually the one found before fabrication begins.

    The Best Installation Day Is Usually Quite Boring


    The objective behind all these questions is not to create obstacles. It is actually the opposite. We want the installation itself to be uneventful: the vehicle arrives, the components unload in the correct order, everything fits through the available access, the modules connect as planned and the finished scenic environment lands where the drawings said it would.


    Good questions are therefore not a sign that a project is becoming unnecessarily complicated. They are usually a sign that somebody is thinking beyond the drawing.


    At Evolution Scenic, that early interrogation is part of turning creative ideas into scenery that can actually be fabricated, transported, installed and operated successfully in the real world.

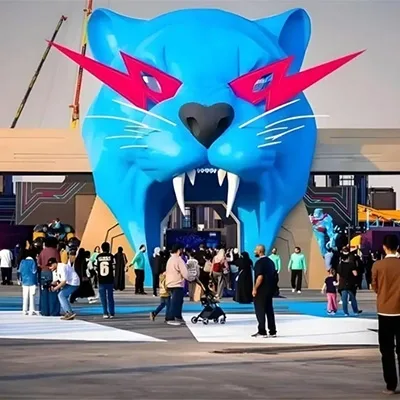

    Evolution Scenic installation completed cleanly after detailed pre-production planning

    The best installation days often look uneventful because the difficult thinking happened earlier.

  • Why We Sometimes Say No To Creative Ideas

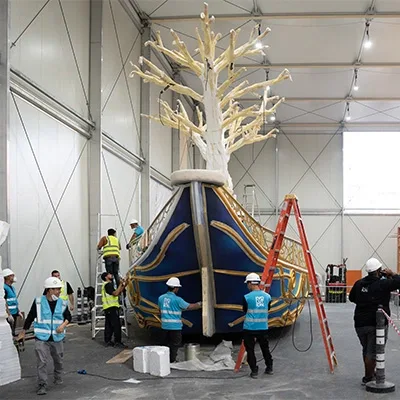

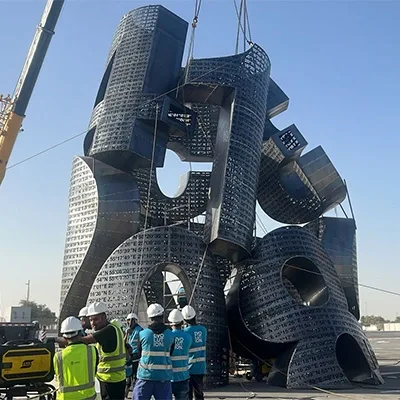

    Evolution Scenic fabricators assembling a large bespoke scenic feature with complex geometry

    Challenging projects bring together engineering, craftsmanship and practical problem-solving.

    Why We Sometimes Say No To Creative Ideas

    Contrary to popular belief, fabrication teams enjoy ambitious ideas.


    Complex structures, unusual geometry and concepts that have never been built before are often some of the most rewarding projects a workshop can undertake. They force designers, engineers, carpenters, metal fabricators and scenic artists to solve problems that do not have an obvious answer.


    So why do fabricators sometimes say no?


    Usually, it is not because the idea cannot be built.


    More often, it is because the way the idea has initially been proposed introduces engineering, transportation, installation or operational risks that outweigh the benefits of building it in that form.

    A No Is Usually A Risk Assessment


    Scenic fabrication exists in the space between creative ambition and physical reality.


    A structure may need to support significant loads while remaining visually lightweight. It may need to stand several metres high while being installed without fixing into the venue floor.


    It may need to move, rotate or travel on a vehicle while maintaining stability. It may need to appear monolithic while actually being manufactured as dozens of separate components.

    Each of those requirements introduces engineering questions that are not always visible in the original concept.


    Load paths, deflection, bracing, connection details, centre of gravity, lifting points and wind exposure can all affect whether a scenic structure will behave as intended.


    Temporary structures introduce another layer of complexity because they also need to be assembled, dismantled, transported and sometimes reused.


    A connection that works perfectly for a permanent installation may be completely impractical when a structure needs to be installed during a short overnight access window.


    This is why an experienced fabrication team may challenge the proposed solution even when they strongly support the creative idea behind it.


    The distinction is important.


    The concept may be perfectly achievable.


    The first construction method may not be.

    Buildability Is Part Of Creative Development


    A render can show almost anything.


    Fabrication development begins when that image has to become a physical object.


    At this stage, dimensions become components, surfaces become material build-ups and apparently simple forms become networks of frames, connections, brackets, panels and finishes.

    Technical drawings are critical to this process. Sections reveal available structural depth.


    Connection details establish how modules will join. Material specifications determine weight and behaviour. Tolerances establish whether hundreds of individually manufactured parts will actually align when assembled.


    This is also where CNC machining, scenic carpentry, metal fabrication and finishing methods begin to influence the design.


    A complicated curved form, for example, may be perfectly achievable but inefficient if every component needs to be manually set out. Developing the geometry for CNC routing can make the same feature faster to manufacture, more accurate and considerably easier to reproduce.

    The earlier these conversations happen, the more creative freedom usually remains.


    Discovering a buildability issue while reviewing technical drawings may require a minor change.

    Discovering the same problem while a structure is being installed on site can require a major compromise.

    Venue Constraints Can Change The Answer


    Sometimes the structure itself is not the problem.


    The building around it is.


    Loading doors, goods lifts, corridors, ceiling heights and turning spaces can determine the maximum size of every scenic module before fabrication even begins.


    A six-metre-high feature wall may fit comfortably into the final installation space but still be impossible to move through the venue as a single assembly.


    The solution is not necessarily to reduce the height.


    The better solution may be to divide the wall into transportable modules with engineered connections, alignment systems and concealed joints so that it still appears continuous after installation.


    Venue restrictions can also affect structural methodology.


    Floor loading limits may restrict ballast. Rigging rules may prevent suspension from certain locations. Existing finishes may prohibit drilling.


    Hot-work restrictions may limit on-site welding. Noise restrictions may reduce the amount of fabrication that can realistically take place during installation.


    These conditions all influence what should happen in the workshop.


    Where site fabrication is restricted, more work may need to be completed during pre-assembly. Components can be dry-fitted, labelled and tested before delivery so that installation becomes primarily an assembly process rather than a construction exercise.


    Good scenic engineering therefore considers the venue before manufacturing begins.

    Transport Shapes What Gets Fabricated


    Large scenic structures also need to leave the workshop.


    This sounds obvious, but transportation is one of the most common reasons a technically achievable design needs further development.


    Vehicle dimensions, container sizes, road restrictions, loading methods and handling equipment all affect component size.


    A scenic structure that measures eight metres in one direction may eventually need to be fabricated as four separate modules simply because that is the most practical way to transport it safely.


    Designing those break points intelligently is part of the fabrication process.

    Connections need to remain accessible. Finished surfaces require protection. Modules need suitable lifting or handling points. Packing sequences need to consider which elements will be required first during installation.


    A strong modular strategy can dramatically improve both logistics and site efficiency.

    Large structures can be assembled completely within the workshop, checked for alignment, dismantled into transportable sections and then reassembled on site using the same predetermined connections.


    What appears to be one enormous object in the finished environment may therefore have been designed from the beginning as a carefully coordinated kit of parts.

    The Best Response Is Often An Alternative


    Experienced scenic teams rarely want the conversation to end with the word “no”.


    The more useful response is:

    “What if we did it this way instead?”

    Sometimes the alternative involves changing the structure while leaving the visible design untouched.


    Sometimes it involves changing the material.


    A feature designed to look like carved stone, for example, does not necessarily need to be manufactured from a heavy solid material. A lightweight internal structure combined with carved or CNC-produced scenic surfaces and an appropriate finish may achieve the same visual character while reducing weight, handling requirements and structural demand.

    The same principle applies to steelwork.


    Steel may provide excellent strength, but using it everywhere can introduce unnecessary weight. Depending on the structure, a combination of steel, aluminium, timber, plywood, composite materials and lightweight scenic components may produce a more efficient solution.

    Material selection is therefore rarely based on appearance alone.


    Weight, strength, fabrication method, fire performance, finish quality, durability, transportation and installation all need to be considered together.


    Moving structures make these decisions even more important.


    Consider a tall scenic feature mounted onto a moving platform or vehicle. The creative objective may be to create maximum height and visual impact, but placing too much weight high above the base can raise the centre of gravity and reduce stability.


    The answer does not have to be a shorter structure.


    The lower portion might use a stronger structural chassis while the upper scenic elements are redesigned using lightweight materials. Elements may fold, detach or telescope for transportation before being secured in their operating position.


    The creative silhouette remains.


    The engineering underneath it becomes considerably more intelligent.

    Why Collaboration Matters


    The relationship between creative and technical teams works best when neither side treats the other as an obstacle.


    Creative teams should be able to propose ambitious ideas without designing every connection or fabrication detail themselves.


    Equally, fabrication teams should not simply reject an idea because the first version is difficult to manufacture.


    Their role is to understand the intention behind the concept and determine how that intention can be translated into something buildable.


    That requires asking the right questions.

    How will it stand?

    How will it be transported?

    How does it enter the venue?

    Where can it be lifted?

    What happens if the floor cannot be fixed into?

    Can someone reach the connection during installation?

    What happens to the finished surface when two modules are joined?

    Can the structure be dismantled without destroying it?

    These questions are not designed to restrict creativity.


    They reveal the practical conditions that allow creativity to survive fabrication.


    When technical teams become involved early, potential problems can often be converted into design opportunities.


    A required structural joint can become part of a panel rhythm. A transport break can be concealed behind a graphic feature. A necessary support can be incorporated into the visual geometry.


    The technical solution begins to support the design rather than compete with it.

    Creative and technical teams reviewing scenic assembly during workshop dry-fit

    The strongest solutions emerge when creative intent and fabrication knowledge develop together.

    A Better Idea Is Often The Engineered Version


    The first creative idea is not always the strongest version of the project.


    Sometimes it needs to be challenged.


    Not because the ambition is unrealistic, but because there may be a safer, lighter, faster or more elegant way of achieving the same result.


    At Evolution Scenic, this is where technical drawings, scenic engineering, material selection, workshop testing and fabrication experience become part of the creative process.

    The objective is not to reduce ambitious ideas until they become easy to build.


    It is to understand which parts of the idea are essential, identify the practical constraints around them and develop a fabrication methodology capable of delivering the intended result.

    Sometimes that means saying no to the first solution.


    More importantly, it means finding a better way to say yes.

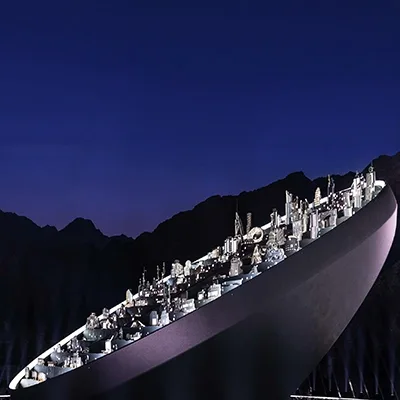

    Completed Evolution Scenic environment combining engineered structure and refined scenic finishes

    Sometimes saying no to the first method is how a stronger version of the idea gets built.

  • Why The Loading Dock Is More Important Than The Main Entrance

    Image description

    Why The Loading Dock Is More Important Than The Main Entrance


    Clients spend months discussing the front entrance.


    Fabricators spend months worrying about the back entrance.


    More specifically, the loading dock.


    From a scenic fabrication perspective, the loading dock can have a greater influence on project success than almost any other part of the venue.


    A feature structure may look spectacular in a render.


    Unfortunately, the render rarely shows the service corridor it needs to travel through.


    Or the lift it needs to fit inside.


    Or the loading dock canopy sitting 150 millimetres lower than the top of the transport frame.


    The structure may be perfectly buildable.


    The real question is whether it can actually reach the place where it needs to be installed.

    The Scenic Structure Still Has To Get Through The Door


    This sounds obvious, but access constraints regularly become some of the most influential technical inputs on a scenic project.


    A large feature wall may be straightforward to fabricate as one complete assembly in the workshop. Doing so might even produce the cleanest finish and fastest manufacturing process.


    If the venue loading door is smaller than the wall, however, that manufacturing advantage becomes irrelevant.


    The same problem can occur with stages, exhibition structures, entrance portals, sculptural features and temporary architectural elements. Once completed, they must travel from the fabrication workshop onto a vehicle, through the loading dock, along the service route and into the final installation area.


    Every part of that journey places a physical limit on the size of the components.


    For experienced scenic teams, buildability therefore includes more than asking, “Can we manufacture this?”


    It also means asking, “Can we move it?”

    Venue Surveys Are Fabrication Surveys


    This is why venue surveys matter so much.


    A useful scenic survey does not stop at recording the dimensions of the final installation space.

    The route into that space needs to be understood as well.


    Evolution Scenic teams may record loading dock dimensions, door widths, overhead restrictions, corridor clearances, lift sizes, ramp gradients and turning areas as part of technical development.


    These measurements then become fabrication information.


    If the narrowest doorway on the delivery route is 1,800 millimetres wide, there is little benefit in manufacturing a rigid module that is 1,900 millimetres wide and hoping everybody becomes more optimistic on installation day.


    Access dimensions should influence the fabrication drawings before production begins.

    Service Lifts Can Design The Structure For You


    Service lifts can quickly turn ambitious scenic concepts into practical engineering exercises. When a structure must reach an upper floor, basement or internal ballroom, the lift becomes part of the transport envelope, with width, height, depth, load capacity, door operation and turning space all affecting the design. A component may fit on paper but still be impossible to manoeuvre through the opening, so large elements need to be assessed three-dimensionally. Sometimes a few centimetres determine whether a wall travels upright, diagonally or not at all. A photograph of someone standing inside the lift with a tape measure may not make the presentation, but it can save the project.

    Image description

    Modularisation Starts With Access


    Once access restrictions are understood, the scenic structure can be divided around them.


    Modularisation is often discussed in relation to transportation and installation efficiency, but restricted venue access is frequently what defines the module size in the first place.


    A large wall can be split into smaller framed panels.


    A portal can be manufactured as separate legs and header sections.


    A steel structure can use bolted connections rather than permanent welded assemblies.


    Decorative cladding can be installed after the structural modules reach site.


    The objective is to reduce the structure into pieces that can physically travel through the venue while still returning accurately to the intended finished geometry.


    This requires proper connection design.


    Bolted steel plates, locating pins, indexed fixing points and repeatable timber interfaces can allow modules to reconnect accurately after transport.


    When the installation is complete, the audience should have no idea that the apparently continuous structure arrived through the building in six separate pieces.

    Corridors Have Turning Radii Too


    Door width is only one part of the access problem.


    A scenic panel might comfortably fit through a 1,500-millimetre-wide corridor while travelling in a straight line.


    Then it reaches a ninety-degree corner.


    Suddenly the effective space available is very different.


    Long modules require enough clearance to rotate.


    Ceiling-mounted services can reduce usable height.


    Handrails, door frames, fire equipment and architectural projections can all reduce the manoeuvring space further.


    This becomes especially important when moving rigid steel frames or fully finished scenic elements that cannot be bent, tilted aggressively or allowed to contact surrounding surfaces.


    Installation route planning should therefore consider the complete geometry of the journey rather than simply checking the smallest doorway.

    The Loading Dock Has Its Own Problems


    Even reaching the venue does not guarantee that the load can be unloaded successfully. Loading docks vary enormously, from dedicated bays that accommodate large articulated vehicles to tight urban service roads, steep ramps and shared basement loading areas. Maximum vehicle heights, trailer length restrictions, timed booking slots, limited dock levellers and security procedures can all affect the delivery, as can restrictions on engines running during unloading.


    The transport strategy therefore needs to work with the venue’s specific conditions. A large scenic structure may require a low-loader because of its height, but the vehicle may not negotiate the access ramp into a basement loading area. A rigid truck may fit the dock but lack sufficient internal length for the fabricated modules. Transport and fabrication must therefore be coordinated from the outset rather than treated as separate stages.

    Image description

    Sometimes The Truck Cannot Get Anywhere Near The Stage


    The unloading point may also be surprisingly far from the installation location.


    At large venues, scenic components can travel hundreds of metres after leaving the truck.


    They may move through service corridors, goods lifts, back-of-house areas and temporary access routes before reaching the stage or exhibition space.


    This internal transport creates another handling phase.


    Large modules may need dollies, trolleys or compact lifting equipment.


    Finished surfaces require protection.


    Components need stable handling points.


    Weight distribution matters.


    A structure that can be safely lifted by forklift in the workshop may need a completely different handling method once it enters a narrow corridor.


    Good build methodology considers these transitions.


    The journey does not end when the scenic element comes off the truck.

    Installation Sequence Often Begins At The Dock


    Restricted access also affects the order in which components are delivered.


    If the venue has limited storage, scenic modules may need to arrive in approximately the same sequence in which they will be installed.


    The first structural elements required on site should ideally not be buried behind decorative panels needed several hours later.


    Transport frames and stillages can be labelled according to build sequence.


    Connection hardware can travel with the relevant module.


    Finishing components can be grouped so they are protected until the structure is ready to receive them.


    This reduces unnecessary movement in areas where space is already limited.


    It also avoids the familiar installation problem of discovering that the one component everybody needs is currently sitting at the back of the third truck.

    Access Restrictions Change Workshop Strategy


    Restricted access does not necessarily make fabrication more difficult.


    It changes where certain parts of the work happen.


    Where large assemblies cannot enter the venue complete, more structural assembly may need to occur on site.


    The workshop can still complete as much work as practical beforehand.


    Frames can be trial assembled.


    Connections can be tested.


    Panels can be CNC machined and pre-fitted.


    Finishes can be completed where appropriate.


    Modules can then be separated, protected and transported in access-compatible sections.


    This allows much of the precision and quality control to remain within the workshop while acknowledging that final assembly must happen inside the venue.


    Mock-ups and trial assemblies become particularly useful when multiple modules need to reconnect quickly during a restricted installation period.

    Loading Docks Are Shared Resources


    Large venues rarely give the scenic team exclusive use of the loading dock. Lighting, audio, video, rigging, furniture, catering, graphics and production equipment may all be arriving through the same service entrance, with each contractor working to a tightly controlled schedule.


    Loading bays and goods lifts therefore become shared, scheduled resources rather than open access points. A scenic delivery that misses its allocated slot may not simply arrive thirty minutes later; it may lose access until another period becomes available, affecting the wider installation programme.


    Careful planning is essential. Vehicle arrival times, unloading durations, labour availability and the onward movement of materials from the dock should be coordinated in advance, particularly during short build periods when even a small delay can disrupt the entire installation sequence.

    Night Installations Make Access Planning Even More Important


    Many scenic installations happen overnight or during tightly controlled venue closures, leaving limited time for improvisation. If a module does not fit through the planned route at midnight, the service lift is smaller than expected or a loading dock booking expires, there may be no venue engineer, workshop machinery or additional access slot available to resolve the problem.


    The workshop is the best place to solve access issues; the venue at two o’clock in the morning is generally not. This is why seemingly mundane information collected during technical development, from lift dimensions to delivery timings, can become extremely valuable during installation.

    Image description

    The Finished Structure Should Hide All Of This


    The interesting thing about access-led fabrication is that none of it should be obvious once installation is complete. A large scenic wall may have arrived through a small service lift in five sections, a sculptural feature may have travelled down a corridor on specially fabricated trolleys, and a stage portal may have been assembled from bolted steel modules because the loading door was too low for the completed structure.


    The finished environment should still appear deliberate and continuous. Connection lines are concealed, finishes are completed, alignment is checked and temporary transport hardware disappears, leaving no visible evidence of the logistical challenges involved in getting the structure into position.


    Good scenic engineering allows the practical realities of access to shape the construction without allowing those compromises to define the visual result.

    Sometimes The Most Important Drawing Is The Access Route


    Technical drawings for scenic projects naturally focus on what is being built: elevations, sections, structural frames, details and connections. But on access-sensitive projects, a route drawing can be equally important. It can record the loading dock, doors, corridors, lifts, turning areas and final assembly location, allowing each module to be checked against the route during technical development.


    This turns venue access from a vague logistical concern into something measurable. It also gives fabrication, transport and installation teams a shared understanding of how the structure is expected to reach site, helping identify access problems before manufacturing begins.

    Measure The Lift Before Manufacturing The Wall


    The main entrance may receive all the attention, with its signage, architectural features and finished scenic elements designed for photographs. But the project probably did not enter through it. It arrived through the service road, loading dock, corridors and service lifts before reaching the final installation area.


    At Evolution Scenic, these less glamorous parts of the venue are treated as part of the fabrication problem from the beginning. Loading dock dimensions, lift capacities, transport constraints and installation routes can all influence how scenic structures are engineered, modularised and manufactured. The strongest projects are not simply those that can be built, but those that can be transported, delivered and assembled without discovering that the final obstacle is a doorway nobody remembered to measure. The render may show the front entrance; the fabrication team will still want to see the loading dock.

  • From Concept Model To Giant Sculpture

    Image description

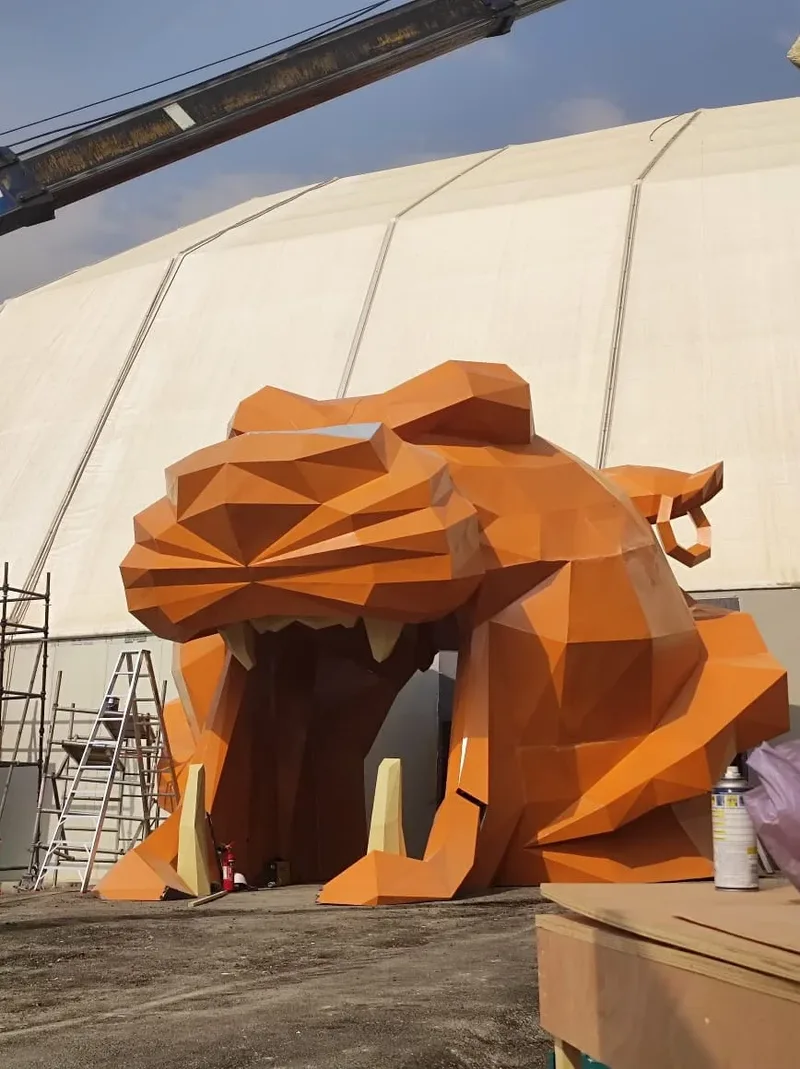

    From Concept Model To Giant Sculpture


    Large-scale sculptures often begin as surprisingly small objects. A physical maquette, scale model or digital rendering may capture the creative intent, establish the overall proportions and communicate how a form should be experienced. Transforming that idea into a structure several metres high, however, is not simply a matter of enlarging every dimension.


    Scale changes everything.


    As a sculpture grows, its weight, structural behaviour, material requirements and relationship with its surroundings all change. Transportation becomes more complicated. Installation methods must be considered much earlier. Internal support structures may become necessary, and surfaces that appear perfectly smooth on a small model can require extensive digital development, CNC machining and hand finishing at full scale.


    The most successful projects preserve the character of the original concept while adapting it intelligently for fabrication, engineering, transport and installation.

    Understanding The Original Model


    The first stage is to understand what the concept model is actually communicating.


    Some models are highly resolved and include accurate contours, textures and construction details. Others are intentionally loose, designed primarily to convey silhouette, movement or personality. A sculptural maquette may have been shaped by hand, which means its subtle asymmetries and tool marks may form an important part of its visual identity.


    Before production begins, the scenic fabrication team must determine which details are essential and which can be adjusted without compromising the design.


    This can involve measuring and digitally scanning a physical object, interpreting design drawings or rebuilding the form from reference imagery. The aim is not always to create a mathematically perfect surface. It is to reproduce the qualities that make the original design distinctive.


    At Evolution Scenic, this development stage is where creative interpretation and build methodology begin to overlap. The form must remain visually convincing, but it must also be capable of being divided, manufactured, supported and assembled.

    Scaling Without Losing Proportion


    A form that works at tabletop scale may not read in the same way when it becomes six or eight metres high.


    Small surface details can disappear when viewed from a distance. Conversely, minor irregularities may become highly visible once enlarged. Curves that look gentle on a maquette can become broad structural spans, while narrow features may become too fragile or heavy to manufacture as originally drawn.


    Digital modelling allows these issues to be studied before physical production begins. The sculpture can be viewed from anticipated sightlines, checked against surrounding architecture and divided into practical manufacturing zones.


    This process also helps to preserve proportion. Rather than relying on manual enlargement alone, a controlled digital workflow provides a consistent geometric reference throughout CNC machining, steel fabrication, carpentry and final assembly.


    Where appropriate, certain details may be deliberately exaggerated so that they remain visible at distance. These changes should be subtle and considered. The purpose is to retain the visual effect of the original model, not to alter its character.

    Engineering The Unseen Structure


    Large-scale sculpture is often defined as much by what cannot be seen as by its finished surface.


    Behind a carved foam skin or scenic finish there may be a carefully designed framework of steel, aluminium, timber or composite materials. This internal structure must support the sculpture’s own weight, resist movement and provide reliable connection points between sections.


    The engineering approach depends on the sculpture’s scale, intended lifespan, location and exposure. An indoor scenic feature may require a relatively lightweight support system, while an external installation must account for wind loading, weather, public interaction and the condition of the supporting surface.


    Temporary structures still require disciplined engineering. Their limited installation period does not reduce the importance of stability, safe access or predictable assembly.


    A scenic engineering team will usually consider:

    • primary structural frames and load paths;
    • baseplates, ballast or anchoring systems;
    • lifting points and handling zones;
    • connection details between manufactured sections;
    • access for inspection, maintenance and repair;
    • surface tolerances and allowances for scenic finishes.


    These requirements influence the sculpture from an early stage. A successful design conceals the engineering without fighting against it.

    Developing The CNC Workflow


    CNC production has transformed the way complex sculptural forms can be translated from digital models into physical components.


    Once the sculpture has been accurately modelled, the geometry can be divided into machinable sections. These sections may be cut from blocks of expanded polystyrene, polyurethane tooling board, timber, sheet materials or other substrates, depending on the project.


    Toolpaths must be planned around machine dimensions, cutter reach, material depth and the level of detail required. Large forms may be rough-cut quickly before receiving a slower finishing pass. More detailed areas may need smaller tooling or separate machining strategies.


    The digital model also helps control alignment. Registration points, joining faces and internal voids can be incorporated into the CNC files, making it easier to assemble multiple parts accurately in the workshop.


    CNC machining provides consistency, but it is rarely the end of the sculptural process. Machine-cut surfaces often require substantial hand finishing, particularly where the finished object needs to feel organic rather than mechanically produced.

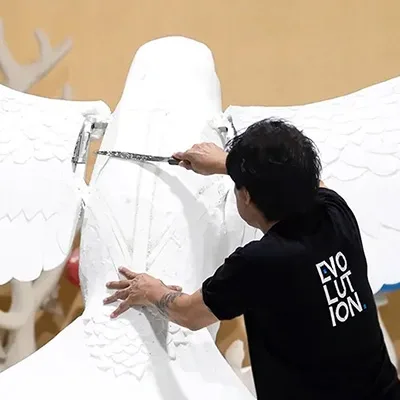

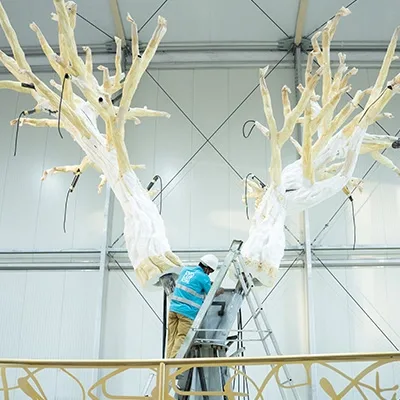

    Foam Carving & Hand Refinement


    Foam is widely used in large-scale scenic sculpture because it is lightweight, adaptable and suitable for both CNC machining and hand carving.


    For complex forms, CNC-cut foam sections provide an accurate starting point. Scenic sculptors can then refine transitions, soften machine marks and restore the subtle character found in the original model. This combination of digital precision and traditional craft is especially valuable where the sculpture contains expressive curves, figurative details or deliberately irregular surfaces.


    Hand carving also allows the team to respond to the object at full scale. Some forms need adjustment once they are viewed upright and from their intended distance. A transition that appeared correct on screen may need to be softened, sharpened or rebalanced when the complete sculpture is assembled.


    After carving, the foam may receive a protective coating, hard shell, fibreglass skin or specialist scenic treatment. The chosen system will depend on durability requirements, surface texture, weight restrictions and whether the sculpture is intended for indoor or outdoor use.


    The coating process must be considered alongside the carving process. Every added layer affects detail, edge definition and final dimensions.

    Creating Convincing Scenic Finishes


    The finish determines whether the sculpture reads as carved stone, polished metal, aged bronze, painted machinery or something entirely imagined.


    Large-scale scenic finishes are usually built through multiple stages rather than a single coat of paint. Primers, textured layers, base colours, glazes, washes and highlights may all be used to create depth.


    A convincing finish must also work across multiple components. Where a sculpture has been divided for transport, the colour, texture and weathering must continue across joint lines without revealing how the object was assembled.


    Material simulation requires an understanding of scale. A stone texture that looks appropriate on a small sample may appear too fine when applied to a monumental object. Grain, patination and tonal variation often need to be enlarged or adjusted so they remain visible from the intended viewing distance.


    Scenic painting is therefore closely connected to the original concept model. The painters are not simply applying colour; they are interpreting how material, light and scale combine to produce the final visual effect.

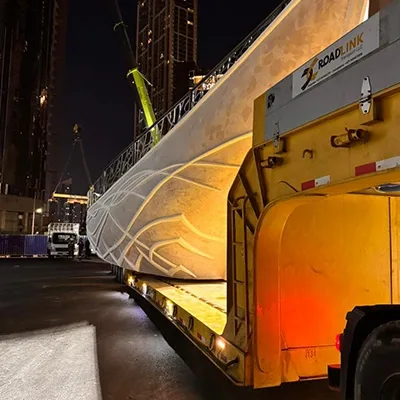

    Designing For Transport


    A giant sculpture may leave the workshop as a collection of carefully planned components.


    Road access, vehicle dimensions, loading restrictions and venue entry points can all determine how the sculpture is divided. A form may need to pass through a loading bay, travel in a standard trailer or be moved through a constrained public space before assembly.


    The challenge is to create sections that are practical to handle without introducing visible or structurally awkward joints.

    Connection points are typically positioned along natural lines in the form, behind overlapping features or within areas that can be refinished after installation. Internal frames may include bolted flanges, locating pins or fabricated brackets that allow the structure to be assembled accurately on site.


    Transport cradles and stillages are often manufactured specifically for unusual sculptural components. These protect delicate edges, support curved surfaces and keep lifting operations controlled.


    Good logistics planning begins during design development, not after fabrication is complete.

    Planning The Installation


    Installation methodology influences almost every major fabrication decision.


    Before the sculpture reaches site, the installation team needs to understand how each section will be unloaded, lifted, positioned and connected. Crane access, lifting equipment, working height, exclusion zones and the sequence of assembly must all be considered.


    Large components may require certified lifting points integrated into their internal frames. Other pieces may be installed using telehandlers, mobile access equipment, chain hoists or temporary support towers.


    The sequence matters. Internal connections must remain accessible until they have been secured, but access panels and joint lines must eventually disappear within the finished form.


    Trial assembly in the workshop can be particularly valuable. It allows the team to verify alignment, confirm tolerances and rehearse the installation sequence before working within the tighter constraints of the final location.


    For complex public landmarks or destination environments, installation planning may also include staged deliveries, traffic management, overnight working and coordination with structural bases prepared by others.

    Sculptures As Landmarks


    Large-scale sculptures often become visual anchors within public spaces, cultural destinations and branded environments.


    Their impact comes partly from their size, but scale alone is not enough. A successful landmark has a strong silhouette, a clear relationship with its surroundings and sufficient surface detail to reward closer viewing.


    Projects such as Evolution Scenic’s Nano Robot Structure demonstrate the value of combining sculptural fabrication with engineered construction. Highly recognisable forms can contain complex internal frameworks, CNC-produced components, carved surfaces and layered scenic finishes, all coordinated through a single build methodology.


    This integrated approach is important because landmark structures are experienced from multiple distances. From afar, the overall proportion must be clear. At mid-range, the principal forms and finishes need to remain convincing. Close up, joints, coatings and fabricated details must withstand scrutiny.


    The sculpture must therefore be designed simultaneously as an image, a structure and a manufactured object.

    Where Digital & Traditional Skills Meet


    The journey from concept model to giant sculpture relies on a combination of technologies and workshop disciplines.


    Digital modelling controls geometry. Scenic engineering makes the form stable and buildable. CNC production creates repeatable components. Metal fabrication and scenic carpentry form the supporting structure. Foam carving restores character and detail. Scenic painting and finishing unify the surface.


    No single process can deliver the finished sculpture in isolation.

    The strongest results come from collaboration between designers, engineers, CNC technicians, fabricators, sculptors, scenic artists and installation teams. Each discipline identifies different risks and opportunities within the same form.


    This collaboration is especially important when producing temporary architecture and public-facing scenic landmarks. The sculpture must achieve its visual purpose while remaining efficient to manufacture, manageable to transport and predictable to install.

    More Than Making Something Bigger


    The real challenge in large-scale sculpture is not enlargement. It is translation.


    A successful fabrication team must translate artistic intent into geometry, geometry into engineered components and those components into a finished structure that feels coherent and effortless.


    Every stage affects the next. The way a model is digitised influences CNC production. The internal frame affects how the foam is divided. Transport limits influence joint positions. Installation access shapes the sequence of construction. Scenic finishes must disguise the evidence of all these practical decisions.


    When these considerations are resolved early, the finished sculpture can retain the simplicity and clarity of the original concept.


    What appears to be a single monumental object is often the result of hundreds of carefully coordinated fabrication decisions. That is the craft of scaling sculpture: preserving the idea while completely rethinking how it is made.
