Maintenance Planning For Public Installations

The success of a public installation is not determined on opening day, but by how well it continues to perform over time.

Finishes require cleaning, lighting and technology may need replacement, moving components need inspection and high-contact surfaces will eventually show wear.

Maintenance should therefore be considered during design and fabrication, not after installation. Poorly positioned equipment, undersized access panels and difficult-to-repair finishes can make routine servicing unnecessarily disruptive.

Well-planned access panels, removable components, documented finish systems and clear service routes make future maintenance far more practical.

Environmental conditions also matter. Outdoor installations may face heat, UV exposure, wind, dust and moisture, while museums and visitor centres experience continuous public use, frequent cleaning and long operating hours.

Integrated screens, lighting, sensors and control systems must also remain accessible for testing, servicing and replacement.

The strongest public installations are designed around lifecycle performance, with maintenance influencing engineering, fabrication and installation from the beginning.

Designing Public Installations For Maintenance

Maintenance planning begins with understanding how long the installation will operate and which components will require regular access.

Lighting, screens, control systems, sensors, mechanical parts, structural connections, finishes, ventilation and weatherproofing may all need inspection, servicing or replacement during the installation’s life.

Access panels should therefore be sized for practical maintenance, not just visual inspection. Equipment may need to be removed completely, so clearance for tools, replacement components and safe working access must be considered.

Removable scenic panels can simplify both technical servicing and finish repair. Where replacement is expected, retaining CNC files, paint references, material specifications and manufacturing drawings allows damaged components to be reproduced accurately.

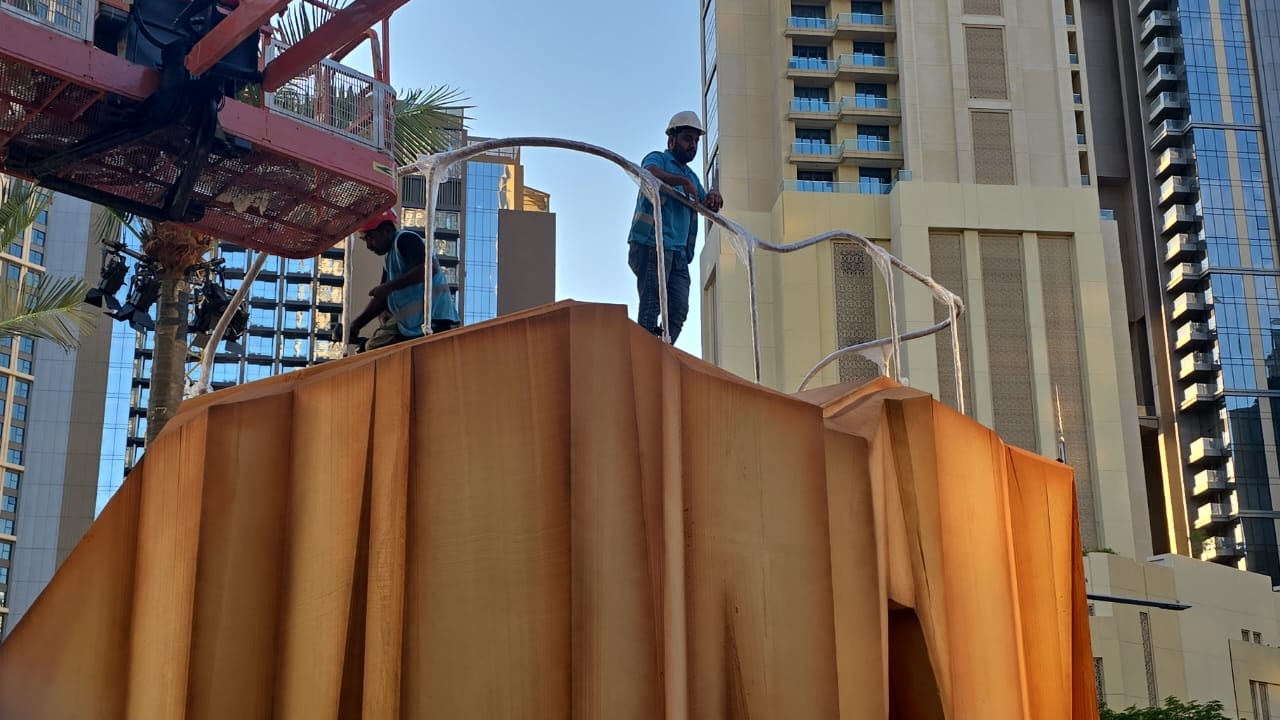

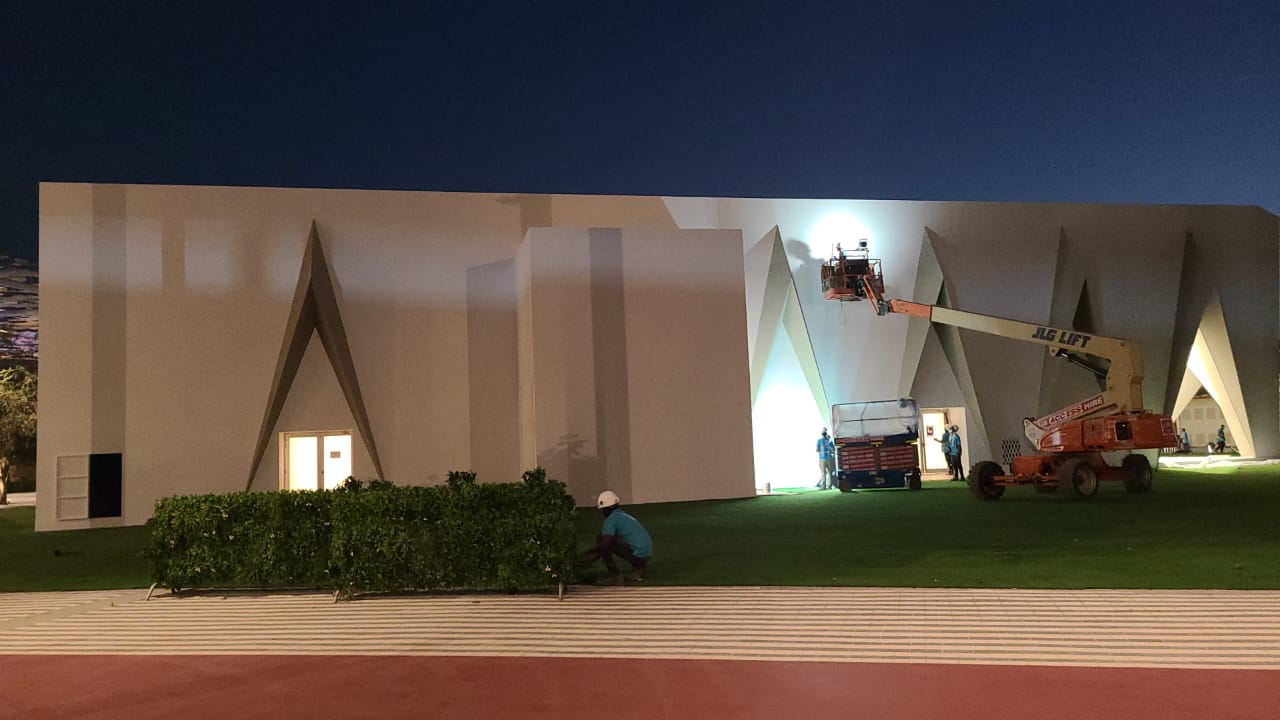

Access must also be safe. Elevated equipment may require powered access or service platforms, while internal routes should remain clear of sharp edges, exposed fixings and unnecessary obstructions.

Ventilation is equally important where lighting, displays or control equipment are enclosed within scenic structures. Cooling systems and filters should remain accessible for routine cleaning and maintenance.

The best maintenance provisions are integrated into the scenic design so they remain visually discreet while still providing practical, repeatable access.

Maintaining Structure, Finishes & Integrated Technology

Different parts of a public installation require different maintenance strategies.

Structural elements may need periodic inspection, while scenic finishes require cleaning and local repair. Technical systems such as screens, lighting, controls and sensors may need servicing or replacement according to their operating life.

Outdoor installations face additional demands from heat, UV exposure, dust, moisture and wind. Metalwork should be checked for corrosion, timber-based materials for swelling or delamination, and seals, drainage points and protective coatings for deterioration.

Indoor environments usually experience wear through repeated public contact. Counters, plinths, interactive surfaces and low-level walls may require more frequent cleaning and repair than decorative elements positioned out of reach.

Cleaning methods should therefore be defined alongside the finish specification. Documented paint references, graphic files, material samples and approved products make future repairs more consistent.

Technology also needs to remain accessible. Screens, media players, lighting equipment and control systems often have shorter service lives than the scenic structures surrounding them, so replacement should be possible without major dismantling.

Clear cable routes, ventilation, equipment identification and accurate drawings make fault-finding and servicing more efficient.

The maintenance plan should distinguish between routine servicing, planned replacement and unexpected failure so that access, spare parts and budgets can be prepared in advance.

Inspection Schedules, Records & Replacement Planning

Maintenance is more effective when it follows a structured inspection programme rather than waiting for visible damage or failure.

Inspection frequency should reflect the environment, complexity and level of public use. Outdoor installations may need additional checks after severe weather, while museums, visitor centres and interactive environments may require regular reviews of finishes, lighting and technical systems.

A typical programme may include frequent visual checks, scheduled technical inspections and event-based reviews following impact, water ingress, system failure or reported movement.

The schedule should define what is inspected, how often, who is responsible, how findings are recorded and which defects require immediate action.

Maintenance records are equally important. Logs, photographs and repair histories help identify recurring issues and provide continuity when teams or contractors change.

Replacement planning should also consider lead times and future availability. Critical screens, lighting components, control equipment and specialist hardware may require planned spares or approved alternatives.

A complete handover package should retain key information such as as-built drawings, equipment schedules, paint references, material specifications, CNC and graphic files, access-panel locations and maintenance instructions.

Long-term installations should also allow for future upgrades. Replaceable graphics, modular display elements and adaptable technology zones can extend the useful life of the environment without major reconstruction.

When inspection, documentation and replacement planning are considered from the beginning, public installations remain easier to maintain, update and operate throughout their intended life.

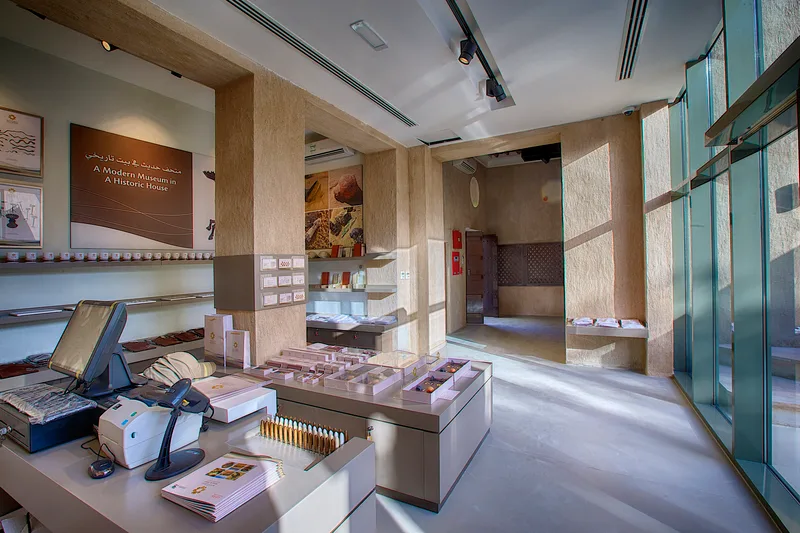

Custom Joinery For Public Environments

Joinery within public environments faces a distinctive set of challenges. Unlike domestic furniture or low-traffic interior fittings, public-facing installations may be used continuously by hundreds or thousands of people.

Visitor centres, museums, experience centres and destination environments frequently rely on bespoke joinery to create functional and visually coherent spaces. Reception desks, interpretation displays, information points, technology housings and storage systems may all form part of the wider scenic environment.

The challenge is not simply creating attractive joinery. Every component must withstand repeated interaction, support daily operations and remain practical to maintain throughout its working life.

Museums And Interpretation Environments

Museum joinery often brings together architecture, interpretation, technology and object display.

Plinths, showcases, media housings and interpretive furniture must complement the exhibition without distracting from its content. They may also need to accommodate graphics, lighting, security systems, object mounts and audiovisual equipment.

Accuracy is especially important where access becomes restricted after installation. Poorly positioned cable routes or inadequate service panels can create significant complications once objects and technology are in place.

For long-term installations, removable panels, replaceable finishes and modular internal structures can make future updates easier without compromising the finished appearance.

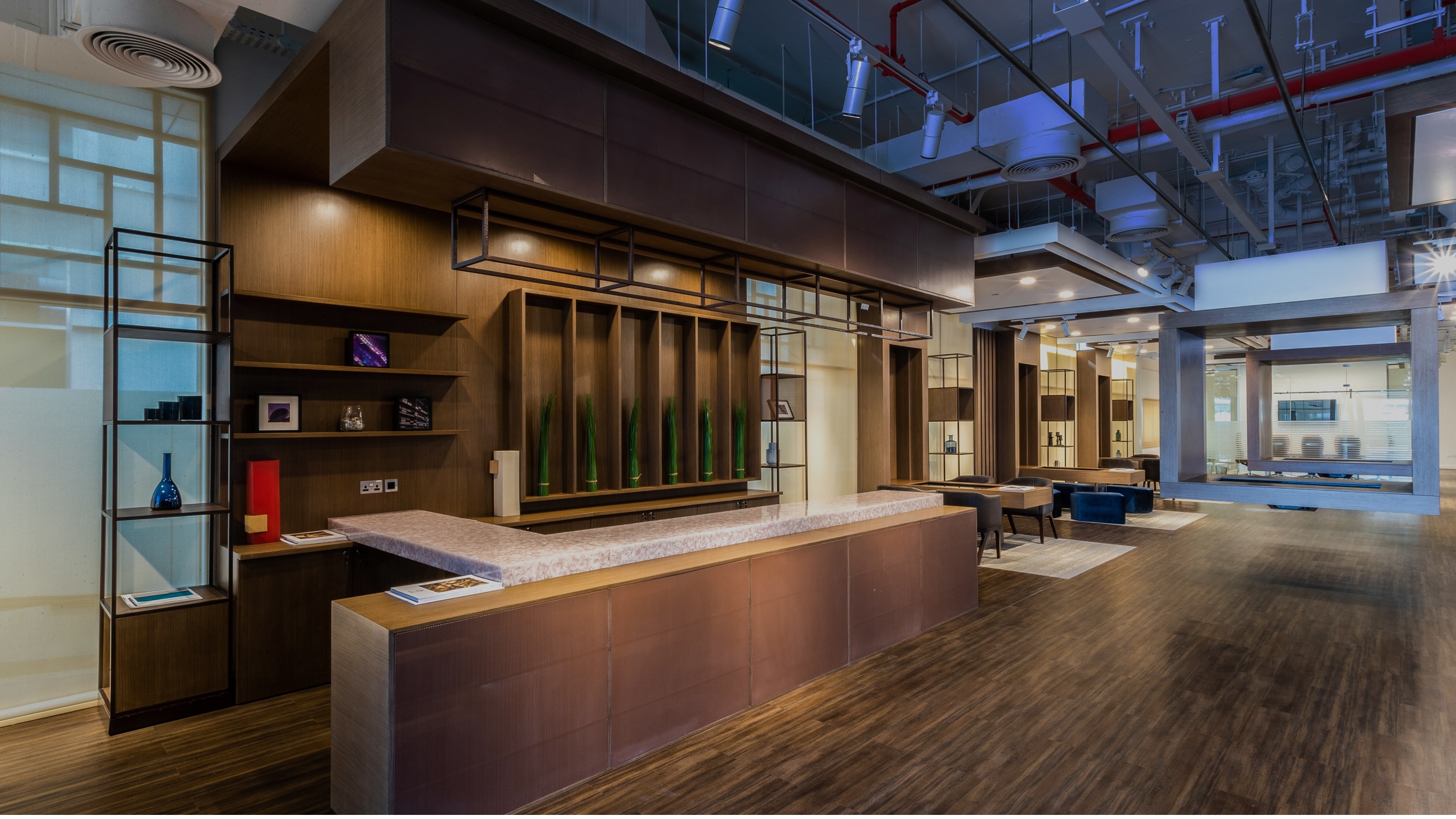

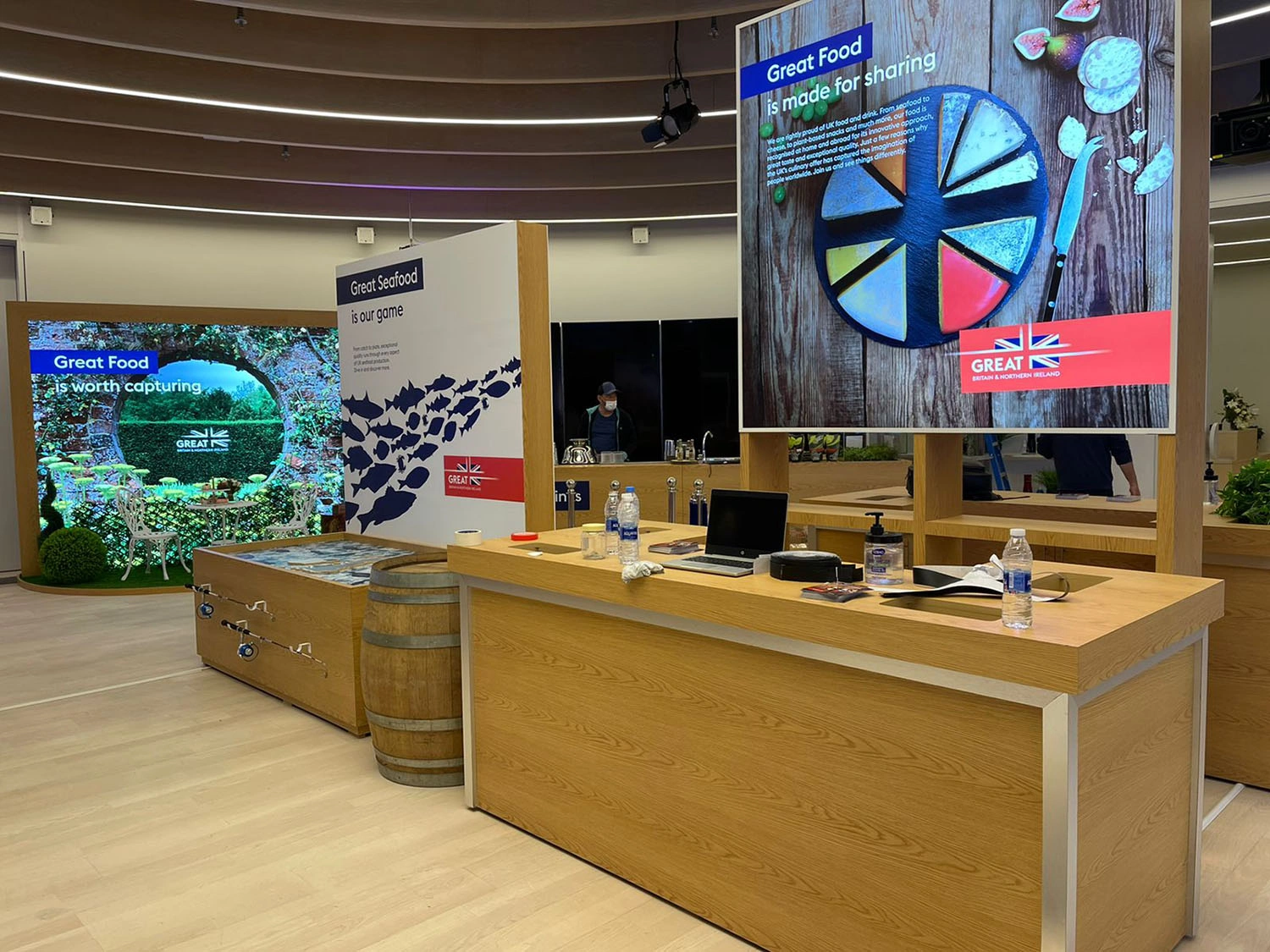

Visitor Centres And Reception Environments

Visitor centres often combine reception, interpretation, orientation and technology within one environment.

A custom reception counter may need to welcome visitors while supporting staff, concealing equipment and providing accessible interaction points. Behind the finished façade, it may contain computers, printers, storage, power supplies and data connections.

Good joinery considers both sides of the desk.

The visitor-facing surface should feel clear and integrated, while the staff side must operate as an efficient workspace. Internal layouts, cable management and storage should reflect how the environment will actually be used.

Integrated Technology

Technology increasingly influences public joinery.

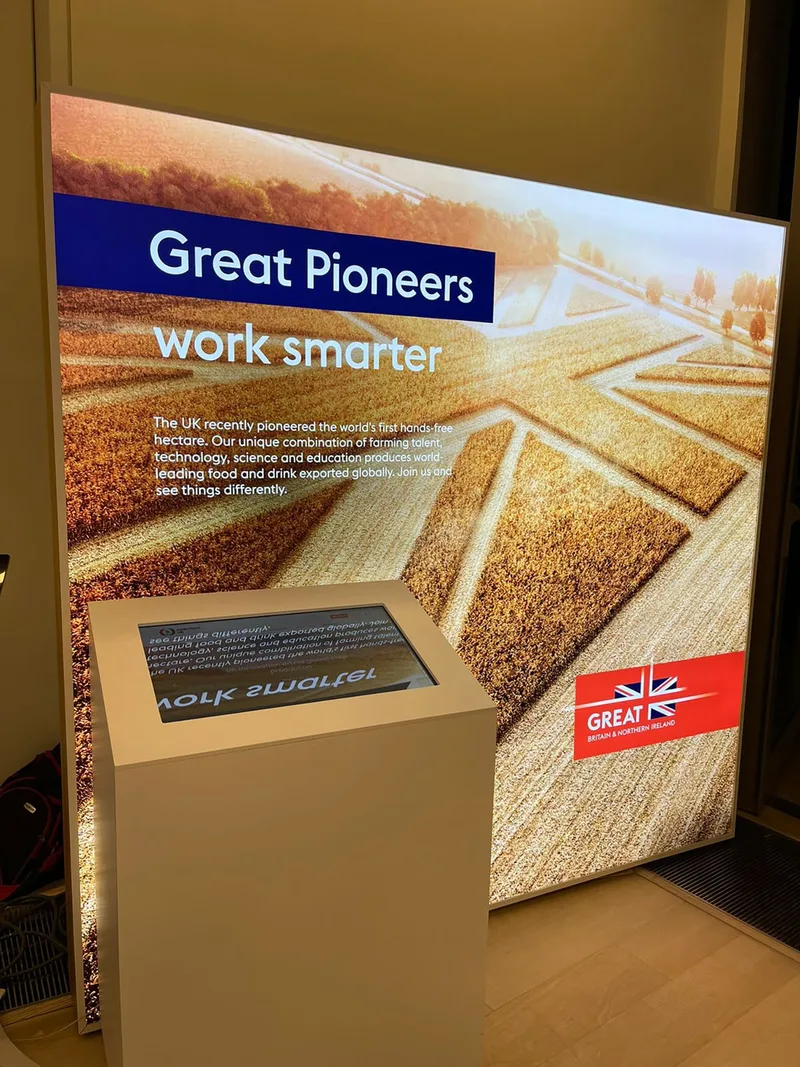

Touchscreens, digital signage, sensors, speakers and lighting systems may all be incorporated into custom-built units. These systems introduce requirements for ventilation, cabling, access and future replacement.

A flush-mounted screen may appear simple, but the surrounding joinery must support accurate alignment, sufficient airflow and practical removal.

Access can be provided through concealed doors, lift-off panels or removable bezels. Cable routes should remain organised and accessible without creating visible openings in the finished surface.

The aim is to integrate technology into the joinery from the beginning rather than adding it after fabrication.

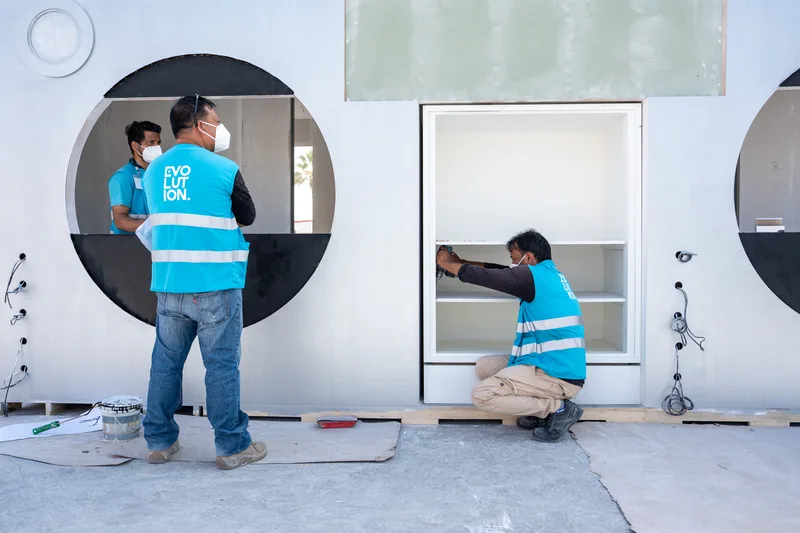

Maintenance Access

Maintenance access is one of the most important aspects of public-environment joinery.

Screens fail, hinges loosen, lighting drivers need replacing and graphics are updated. Without planned access, a minor repair can require disruptive or destructive work.

Access panels must therefore be large enough and positioned correctly for the task. A small hatch has little value if equipment cannot be removed through it.

Concealed hinges, magnetic catches and controlled joint lines can keep service panels discreet while preserving practical access.

High-wear surfaces and technology surrounds can also be designed as replaceable components, allowing damaged areas to be renewed without rebuilding the entire unit.

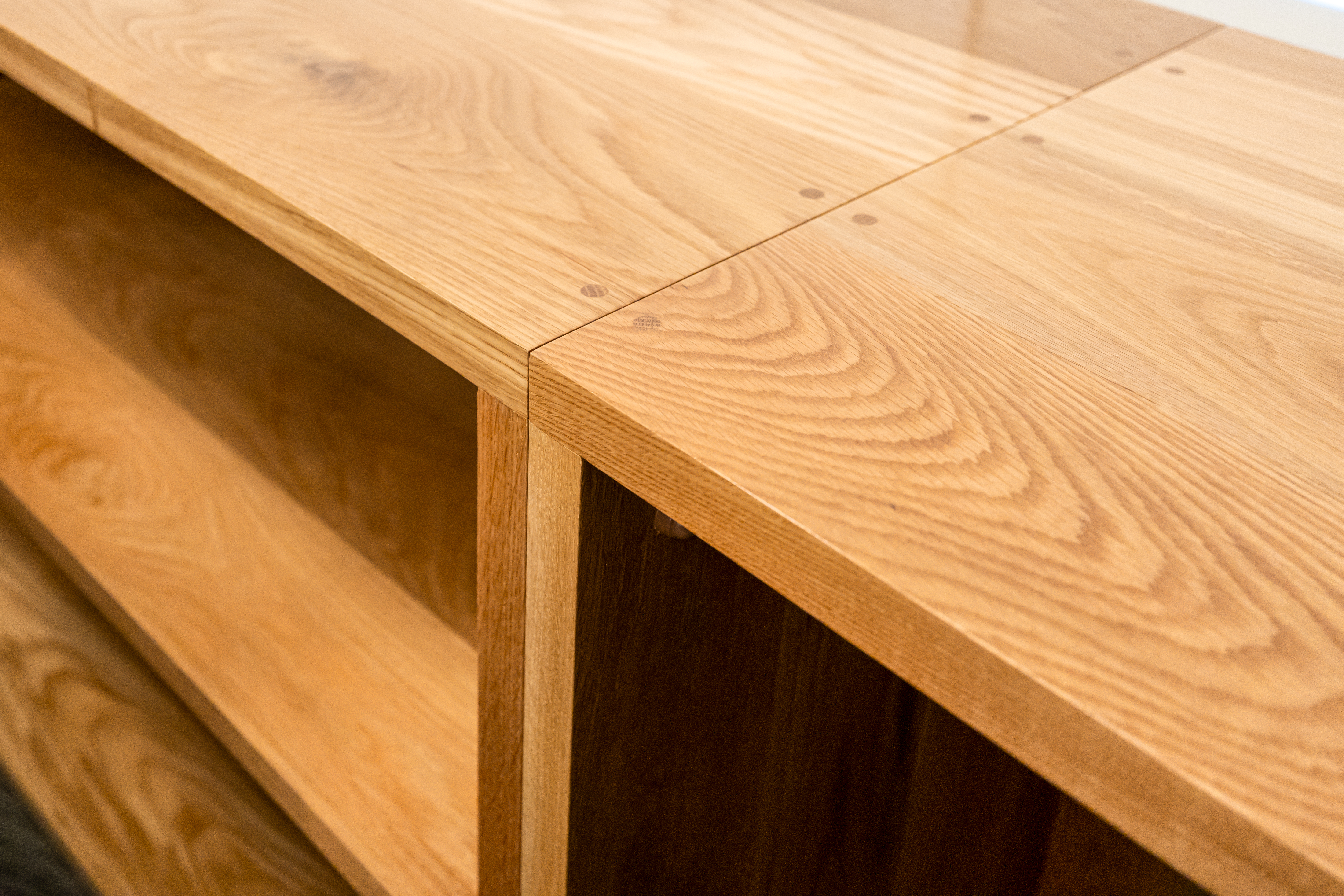

Material Selection

There is no single ideal material for public joinery.

The correct choice depends on appearance, structural requirements, environmental conditions, cleaning procedures and intended lifespan.

Plywood may be selected where strength and reliable fixing are important. MDF can provide a smooth surface for painted finishes in suitable environments. Laminates offer durable finishes for counters and high-contact areas, while solid-surface materials may be appropriate where cleanability and moisture resistance are priorities.

Metal frames can reinforce large counters, long spans and heavily loaded display units. Protective coatings and reinforced edges may also be required in areas exposed to frequent contact.

Material selection should always reflect the operational environment rather than appearance alone.

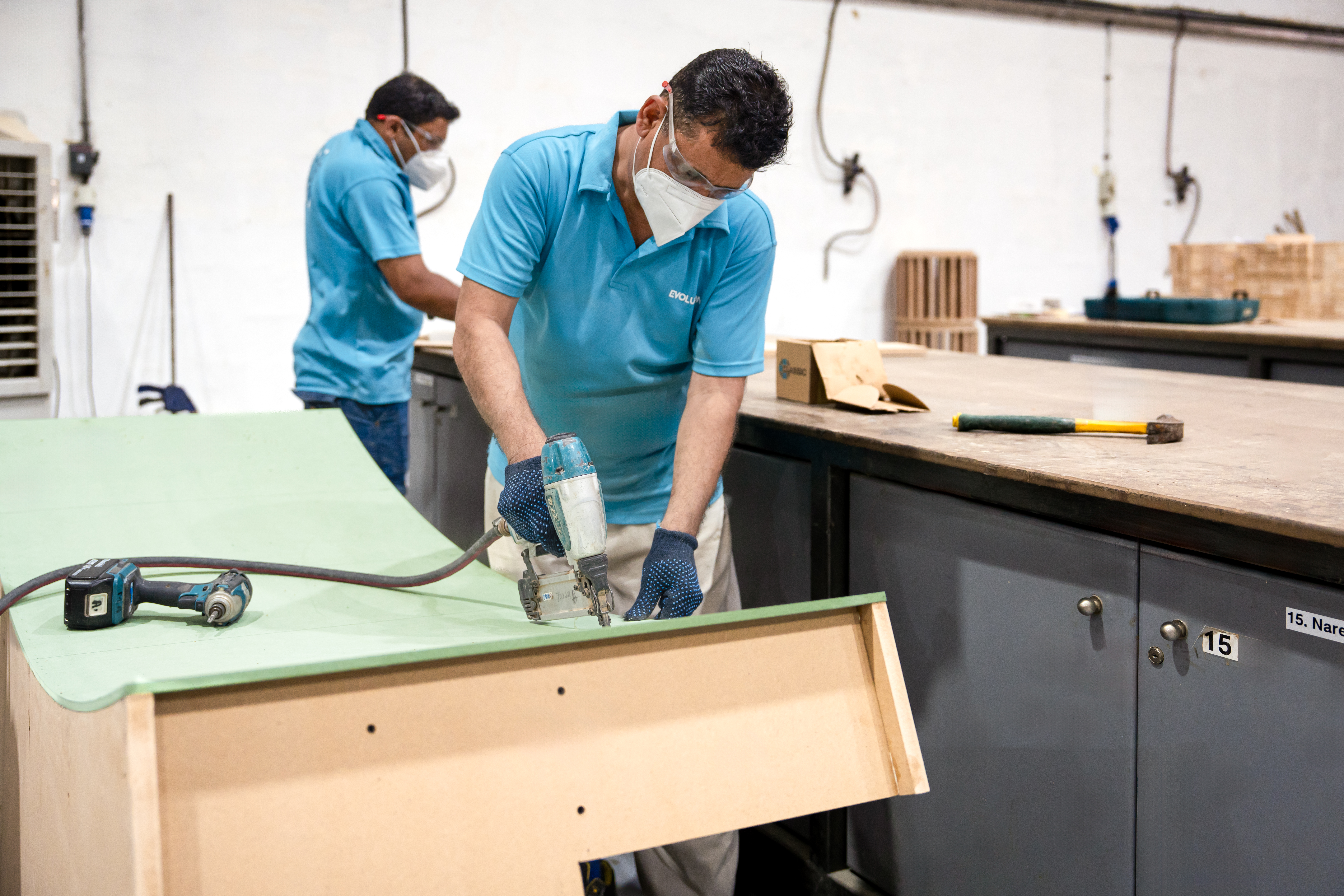

Manufacturing And Installation

Public joinery often needs to integrate precisely with floors, walls, graphics and technical systems.

CNC machining allows Evolution Scenic to produce accurate apertures, repeatable components and complex geometries directly from coordinated CAD information. This precision is combined with skilled scenic carpentry, assembly and finishing.

Installation planning is equally important.

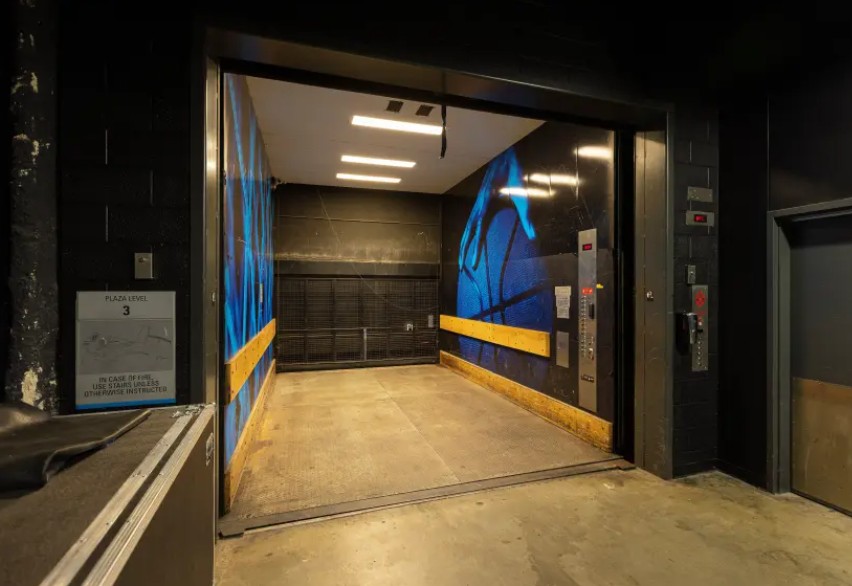

Large units may need to pass through restricted access routes or finished public spaces. Modular construction allows substantial elements to be transported in manageable sections and assembled on site.

Joint positions, removable façades and fixing methods must be planned so the completed installation still appears unified.

Built For Operational Longevity

The quality of public joinery is not defined only by how it looks when an environment opens.

Its real performance becomes apparent after months and years of use.

Well-designed joinery remains stable, presentable and serviceable. Technology can be accessed, surfaces can be repaired and staff can use the environment without compromising its appearance.

The strongest museum, visitor centre and experience-centre installations combine craftsmanship with practical construction.

Good public joinery is not simply built for opening day.

It is built for everything that happens afterwards.

Large Scale Scenic Carpentry Explained

Carpentry remains one of the most important disciplines within scenic fabrication. Despite advances in digital manufacturing, metal fabrication and composite construction, timber continues to play a central role in the creation of stages, exhibition structures, cultural installations and temporary architectural environments.

Its value lies partly in its versatility. Timber can be cut, machined, laminated, curved, reinforced, clad and finished in countless ways. It can form the hidden framework behind a decorative surface or become a highly visible architectural feature in its own right. It can also be combined effectively with steel, aluminium, acrylic, fabric, graphics, lighting and integrated technology.  However, large-scale scenic carpentry is very different from conventional joinery.

Traditional joinery often focuses on permanent, highly finished elements designed for buildings, furniture or interiors. Scenic carpentry is concerned with structures that may need to be fabricated quickly, transported efficiently, installed within restricted timeframes and removed just as rapidly.

A scenic structure must not only look convincing. It must also survive handling, transportation, assembly and repeated interaction while remaining practical for the workshop and installation teams responsible for delivering it.

Scenic Carpentry Versus Traditional Joinery

The distinction between scenic carpentry and traditional joinery is not simply one of scale. Scenic carpenters frequently work with architectural forms that are temporary, modular or highly irregular. These may include sweeping stage surrounds, oversized entrance portals, exhibition pavilions, museum environments, heritage-inspired façades or immersive scenic interiors.

Unlike conventional cabinetry or architectural joinery, scenic elements are often designed around a defined operational period. A structure may be required for a three-day exhibition, a touring environment, a cultural festival or a temporary visitor installation. This affects almost every fabrication decision.

A scenic wall, for example, may need to divide into sections small enough to pass through a loading bay or passenger lift. A stage feature may need to accommodate integrated lighting, access panels, structural steelwork and concealed cable routes. A heritage-inspired structure may need to reproduce traditional architectural detailing while being manufactured from lightweight, transportable components.

The visible finish is therefore only one part of the challenge. Behind every successful scenic environment is a construction system designed around fabrication, logistics and installation.

Timber Construction Systems

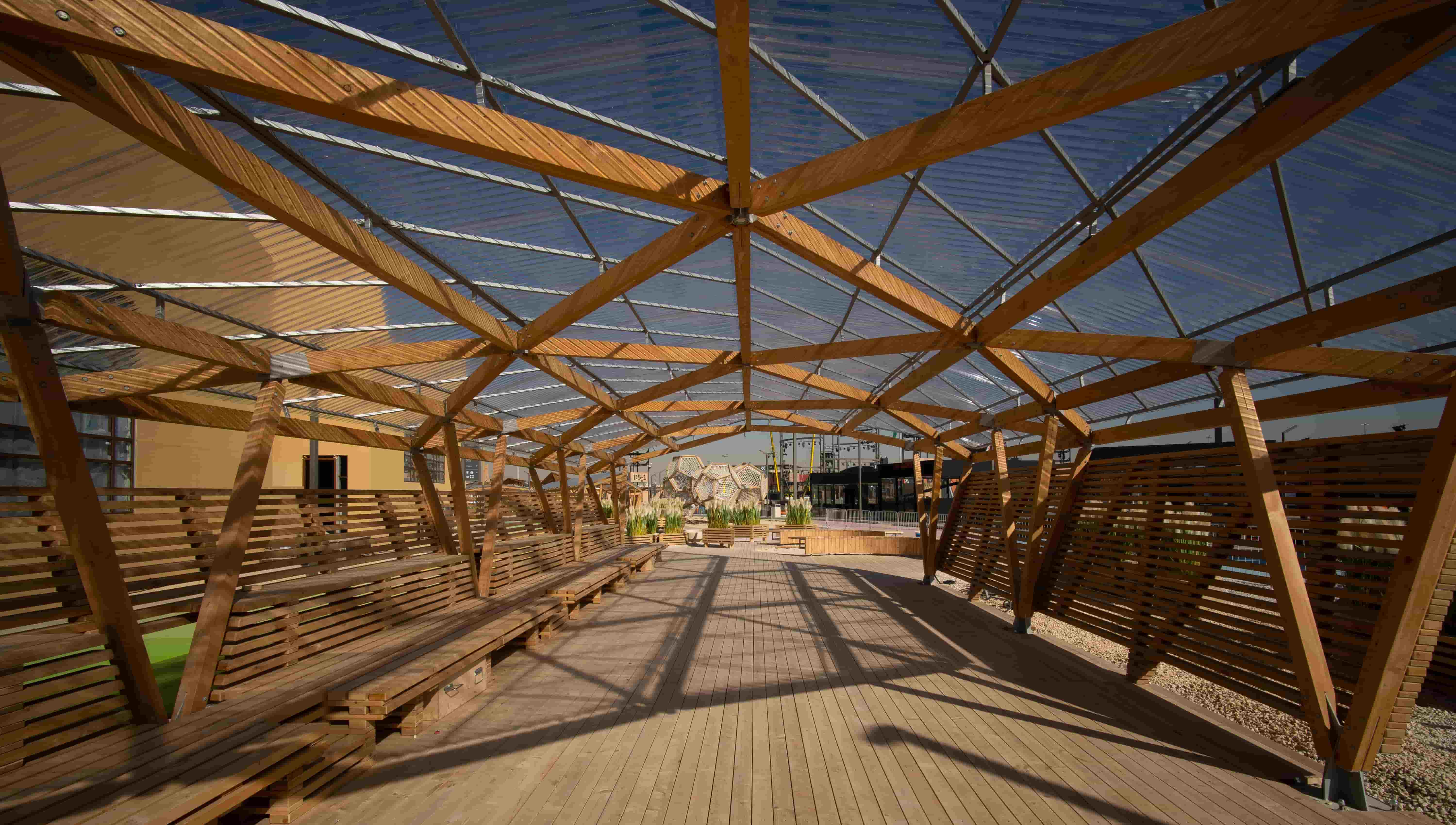

Large-scale scenic carpentry relies upon carefully developed timber construction systems. Depending on the project, these may include framed flats, ribbed structures, laminated components, modular wall panels, box sections, platforms, portals and CNC-cut structural profiles. Sheet materials such as plywood, MDF and specialist boards are selected according to their structural role, surface requirements, weight and intended finish. The choice of construction method is rarely based upon appearance alone.

A tall exhibition wall may require a lightweight internal frame that can be handled safely during installation. A large scenic arch may use layered CNC-cut ribs to control its geometry. A stage platform may require robust timber decking supported by an engineered substructure. A sculptural façade may use a combination of timber framing and flexible cladding to achieve a complex curved surface.

Where greater spans or concentrated loads are involved, timber construction may also be integrated with steel or aluminium reinforcement. Scenic carpentry frequently operates as part of a wider fabrication system rather than as an isolated discipline. The most effective solution is usually the one that balances strength, weight, manufacturing efficiency and installation practicality.

Designing for Modular Fabrication

Modularity is one of the defining characteristics of large-scale scenic carpentry. Very few scenic environments can be transported or installed as a single complete structure. They must be divided into manageable components that can move through the workshop, fit onto vehicles and pass through the venue’s access routes. This requires careful planning during technical development.

Panel sizes, joint positions, lifting requirements and assembly sequences all influence how a structure is divided. Connections must be secure enough to create a stable finished environment while remaining efficient for installation teams to assemble under time pressure. Good modular design also considers how components will be packed, labelled and protected during transportation. Delicate finished surfaces may need to face inward. Repeating components may require clear identification. Large sections may need dedicated lifting points or temporary bracing.

The objective is not simply to make a structure smaller. It is to create a system in which every component has a logical relationship to the fabrication process, transportation method and installation sequence. When this is considered early, modular construction can significantly reduce time on site. It can also improve finish quality because more work can be completed under controlled workshop conditions rather than during installation.

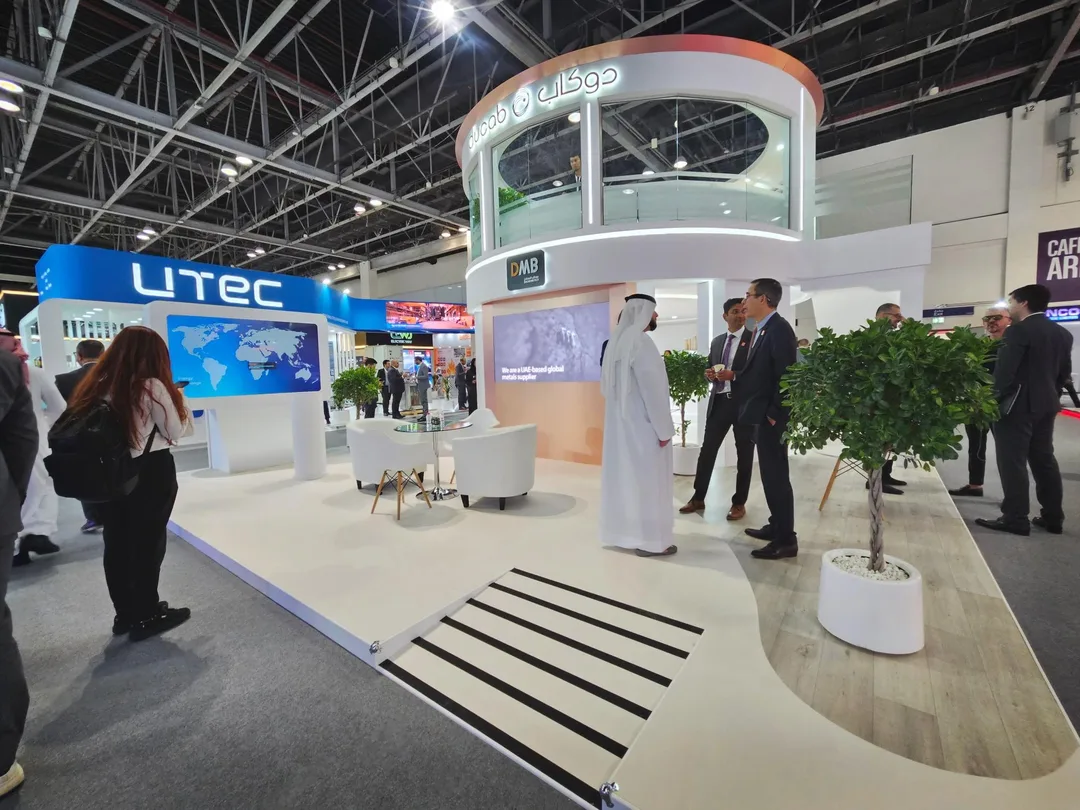

Exhibition Environments

Exhibition structures demonstrate many of the advantages of scenic carpentry. Timber systems can be used to create pavilion walls, feature ceilings, branded portals, product displays, presentation areas, reception desks and architectural focal points. Because exhibition environments are often temporary, the structure must combine visual impact with efficient installation and removal.

Large exhibition builds may also need to accommodate graphics, illuminated logos, display screens, concealed storage, electrical distribution and specialist finishes. The carpentry is therefore rarely a simple shell.

Internal framing may be designed around graphic panel sizes. Access hatches may be incorporated for technical equipment. Wall depths may be increased to conceal cabling or structural support. Removable panels may be required so that technology can be serviced during the exhibition. A successful exhibition structure appears resolved from the visitor-facing side while remaining practical behind the scenes. That balance is one of the central skills of scenic carpentry.

Scenic Stages and Show Environments

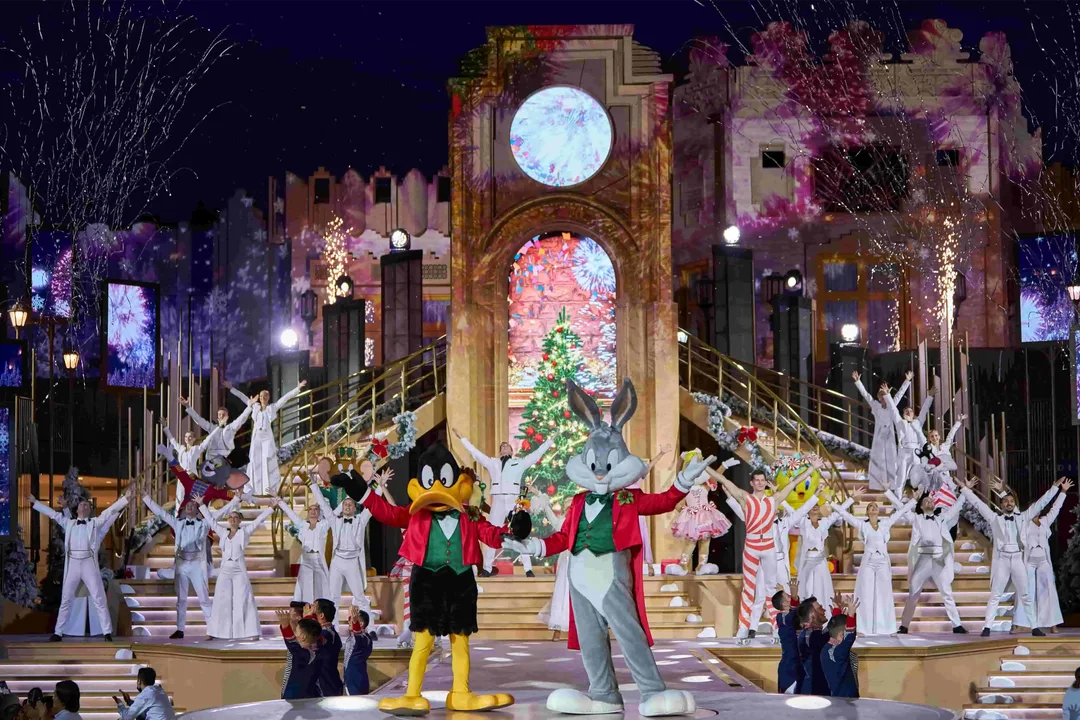

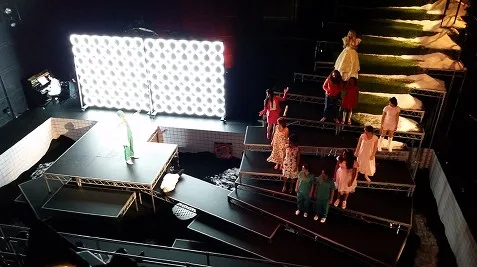

Scenic stages often involve some of the largest and most complex timber structures produced within a fabrication workshop.  These may include stage surrounds, presentation backdrops, scenic towers, proscenium-style structures, stepped platforms, architectural arches and large decorative surfaces.  Stage environments must often integrate with multiple technical systems. LED screens, projection surfaces, lighting equipment, loudspeakers and show-control technology may all influence the scenic construction.

Accuracy is particularly important where timber elements meet digital screens or technical infrastructure. Small dimensional errors can create visible gaps, misaligned surfaces or installation conflicts.  The structure must also be designed around safe access. Technicians may need to reach equipment behind scenic walls. Lighting systems may require ventilation. Screens may need to be installed before surrounding scenic panels are closed.

This means that the carpentry build cannot be developed independently from the wider show environment. The strongest stage structures result from coordinated technical design in which scenic, structural and production requirements are resolved together.

Cultural and Heritage Environments

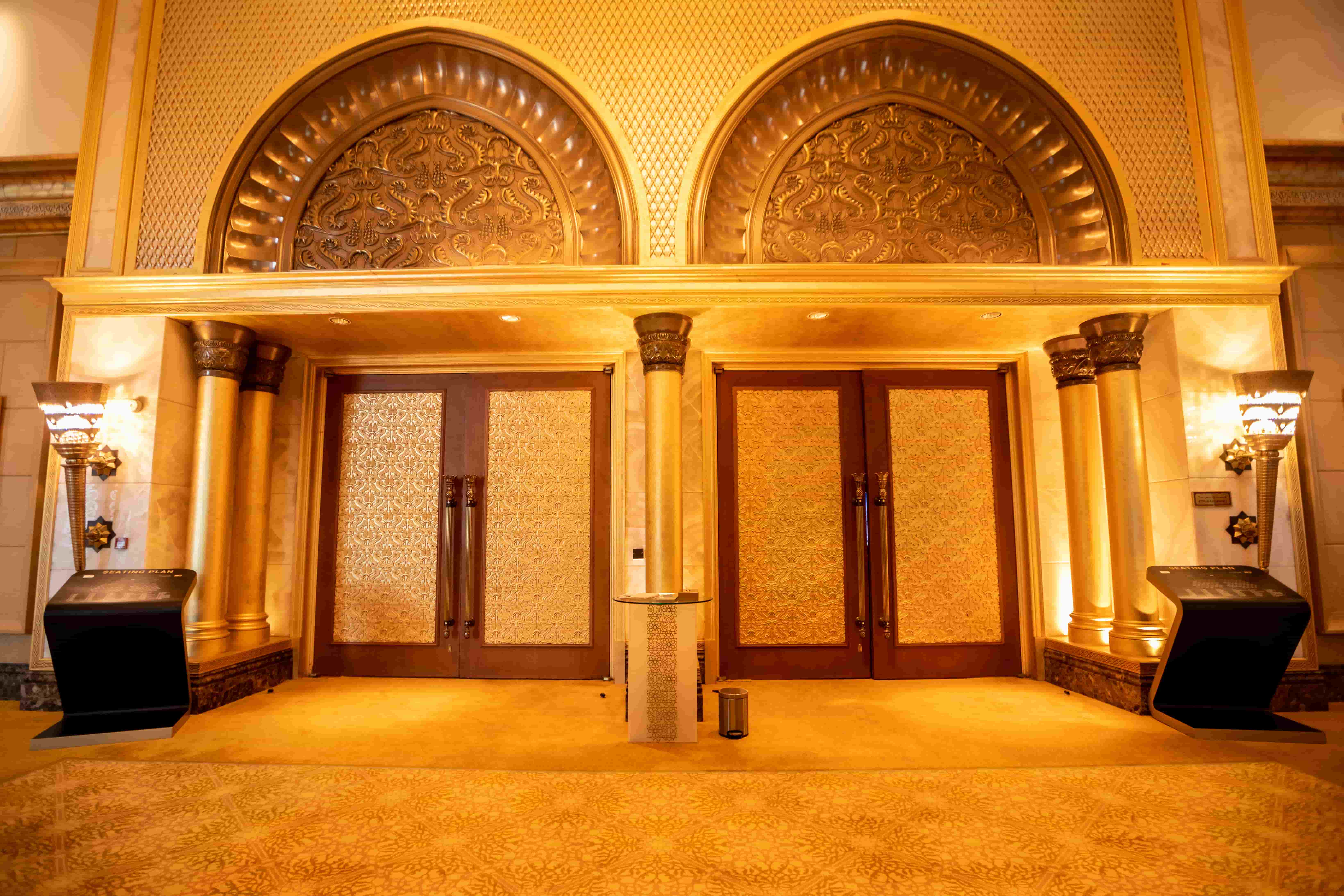

Cultural installations and heritage-inspired environments present a different set of challenges. These projects may require scenic carpentry to reproduce architectural styles, decorative forms or traditional materials without relying upon conventional permanent construction methods. Timber is particularly useful in these environments because it can provide both structure and sculptural flexibility.

A heritage-inspired façade may begin as a framed timber structure before receiving moulded details, scenic finishes and decorative graphics. A museum environment may use timber walls to create a sequence of galleries, interpretation spaces or reconstructed settings. A cultural installation may incorporate arches, screens, patterned surfaces or carved elements derived from regional architecture.

The objective is not necessarily to imitate traditional construction exactly.

It is to capture the appropriate visual character while creating a scenic system that can be manufactured, transported and installed efficiently. This often requires close collaboration between technical designers, carpenters, CNC operators, scenic artists and finishing teams.

CNC Integration

Modern scenic carpentry increasingly combines traditional workshop skills with CNC  manufacturing. CNC machining allows complex geometry to be produced directly from approved digital models. Curved ribs, decorative panels, structural profiles, repeated patterns and interlocking components can all be manufactured with a high level of consistency. This is particularly valuable on large-scale projects where small inaccuracies can multiply across repeated elements.

For example, a curved stage surround may use a series of CNC-cut ribs to establish its overall form. An exhibition pavilion may use digitally machined panels to create a repeated geometric pattern. A cultural structure may incorporate intricate screens or decorative motifs that would be time-consuming to reproduce manually.

CNC manufacturing does not replace skilled carpentry. Instead, it gives scenic carpenters a more accurate starting point. Machined components still need to be assembled, reinforced, adjusted, clad and finished. Workshop experience remains essential when resolving joints, managing material behaviour and adapting digital information to real fabrication conditions. The strongest results come from combining digital precision with practical craftsmanship.

Buildability Determines Success

The success of large-scale scenic carpentry is often determined long before the first timber section is cut. Technical designers and fabrication teams must consider how the structure will be built, handled, transported and assembled. They must also account for venue access, installation windows, finish requirements and integration with other trades.

A structure that appears straightforward within a concept visual may require extensive development before it becomes buildable. Curves need to be rationalised into manufacturable geometry. Tall elements may need concealed support systems. Finished panels may need removable sections for access. Decorative details may need to be simplified so that they remain durable during transportation and installation. These decisions do not reduce the creative ambition of a project.

They allow it to be delivered successfully. Well-designed timber structures move efficiently through the workshop. They are easier to transport, faster to install and less likely to require last-minute modification on site. They also produce better finished environments because the construction methodology has been resolved before manufacturing begins.

An Adaptable Scenic Discipline

Carpentry remains one of the most adaptable tools available to scenic fabricators.  It can create the structural framework behind an immersive environment, the architectural form of an exhibition pavilion or the detailed surface of a heritage-inspired installation. It can support technology, receive specialist finishes and combine with metalwork, graphics and lighting systems.

Its continued importance is not based upon tradition alone. Timber remains relevant because it can respond effectively to the practical demands of temporary construction. When supported by detailed technical design, CNC manufacturing and experienced workshop craftsmanship, scenic carpentry offers an efficient way to create structures that are large, complex and visually convincing.

The finished environment may appear seamless. Behind it is a carefully developed system of frames, panels, joints, ribs, platforms and connections designed to perform throughout fabrication, installation and operation. That is the real value of large-scale scenic carpentry. It turns ambitious visual ideas into physical environments that can be manufactured, transported and installed successfully.

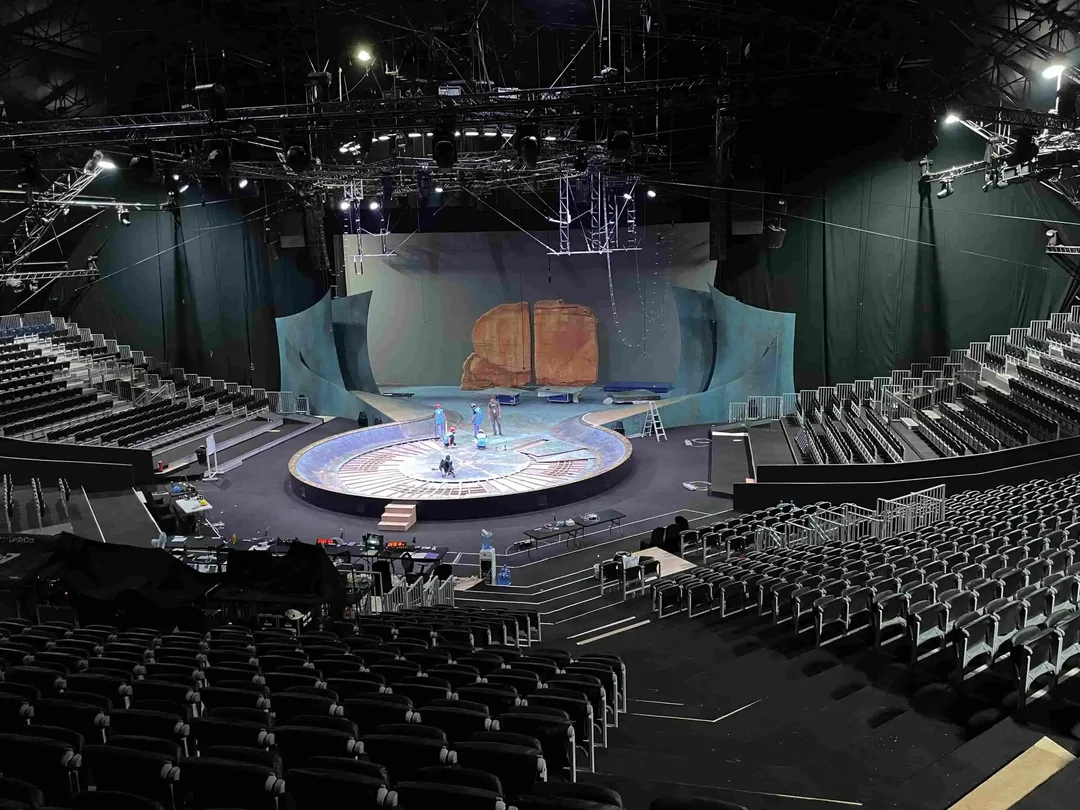

Why Theatre Sets Are Built To Be Seen From One Direction

One of the first surprises for people new to theatre production is discovering that many stage sets only need to work from one direction.

Unlike exhibitions, activations or public environments where visitors may walk around a structure, theatre scenery is normally viewed from a fixed audience position. The auditorium defines the principal viewing angle, while lighting, masking and stage architecture control what remains visible.

The audience sees the front.

The audience rarely sees the back.

This changes almost everything about how a set is designed, fabricated and installed.

A brick wall may consist of a lightweight scenic panel only a few millimetres thick. A grand stone arch may be formed from timber framing, carved foam and painted texture. A realistic fireplace may exist only on the audience-facing side, with open framing and practical supports clearly visible backstage.

This is not cutting corners. It is an established scenic principle: build what the production needs and place effort where the audience will see it.

Theatre has always relied on controlled perspective. Scenic designers and fabricators use sightlines, viewing distance, lighting and audience position to create convincing environments without reproducing every element as a complete architectural object.

The challenge is knowing exactly where the illusion begins and ends.

Build too little and the backstage structure becomes visible. Build too much and the production carries unnecessary weight, material, labour and installation complexity.

The strongest theatre scenery achieves a precise balance between realism and practicality. The audience believes it is looking at a complete world, while the workshop understands exactly which parts of that world need to exist.

Designing Around Sightlines and Audience Perspective

Theatre scenery begins with the audience’s point of view.

A set may appear complete when viewed from the centre of the auditorium but reveal unfinished edges, open framing or technical equipment when seen from the far-left or far-right seats.

Sightline planning therefore considers the complete audience area rather than one ideal viewing position.

The scenic team reviews how the set will be seen from:

• Central seating positions
• Extreme side seats
• Balconies and elevated levels
• Front rows close to the stage
• Camera positions where recording or broadcast is involved
• Performer entrances and exposed wing areas

These viewing angles help establish which surfaces must be finished, how far scenery should extend and where masking is required.

A wall positioned at the rear of the stage may only need a detailed front surface because the audience cannot see its sides. A scenic structure placed close to the front row may require finished returns, concealed edges and greater surface detail because spectators can view it from sharper angles.

The required level of finish also changes with distance.

A large stone texture viewed from the back of an auditorium can be created with broad carving, painted shadows and exaggerated joints. The same treatment may appear crude when positioned close to the audience. Scenic scale, texture and paint detail must therefore respond to the actual viewing distance.

Lighting further shapes what the audience perceives.

Directional light can strengthen shallow texture and make lightweight scenery appear substantial.

Painted highlights and shadows can create apparent depth where very little physical relief exists.

Dark masking can conceal unfinished edges, supporting structures and crew routes.

However, lighting can also expose weaknesses. Side light may reveal a flat surface that appeared convincing under front light. High-gloss paint may reflect technical equipment, while gaps between panels can become visible once illuminated.

Scenic samples should therefore be reviewed under lighting conditions similar to those expected on stage.

Forced Perspective

Forced perspective is one of theatre’s most established visual techniques.

Objects and architectural elements are deliberately altered in scale to create the impression of greater distance or depth. Floor patterns may narrow towards the back of the stage. Doorways may become progressively smaller. Rooflines, columns and decorative details can reduce in scale as they move away from the audience.

When viewed from the intended seating position, these changes make the stage appear deeper than it actually is.

The technique depends on controlled sightlines. If viewed from backstage or an extreme side angle, the distortion becomes obvious. From the audience position, however, the elements align to form a convincing environment.

Forced perspective can be particularly effective within musicals, theatrical productions, awards shows and scenic stage environments where the available stage depth is limited.

It must be coordinated carefully with performers and moving scenery. A reduced-scale doorway may appear correct visually but still needs to accommodate performer access where required.

Sloping floors and narrowing routes must not create unsafe movement conditions backstage.

Perspective decisions therefore combine visual design with practical stage operation.

Scenic Illusion and Selective Detail

Not every visible surface requires the same degree of detail.

The eye is naturally drawn towards illuminated focal points, performers and key architectural features. Scenic fabricators use this hierarchy to decide where physical depth, specialist finishes and detailed construction will have the greatest impact.

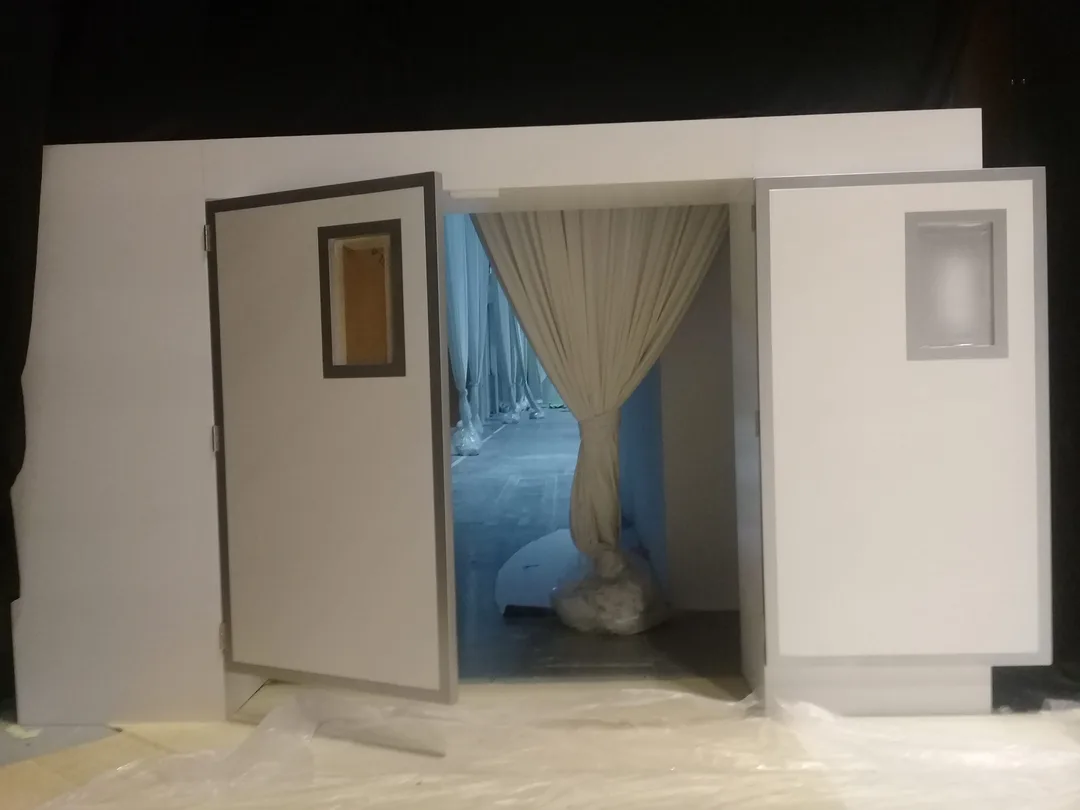

A hero doorway may include layered mouldings, carved panels and aged scenic finishes. A surrounding wall may use simpler painted texture because it sits outside the main visual focus.

Depth can also be suggested through layered flats rather than complete structures. Several thin scenic elements positioned at different distances can create a richer stage picture while remaining lightweight and easy to handle.

Traditional theatre scenery has long relied on painted backdrops, flats, borders and profile pieces. Modern fabrication adds CNC machining, digital printing, carved foam, lightweight composites and integrated lighting, but the underlying principle remains the same: construct enough information for the audience to complete the illusion.

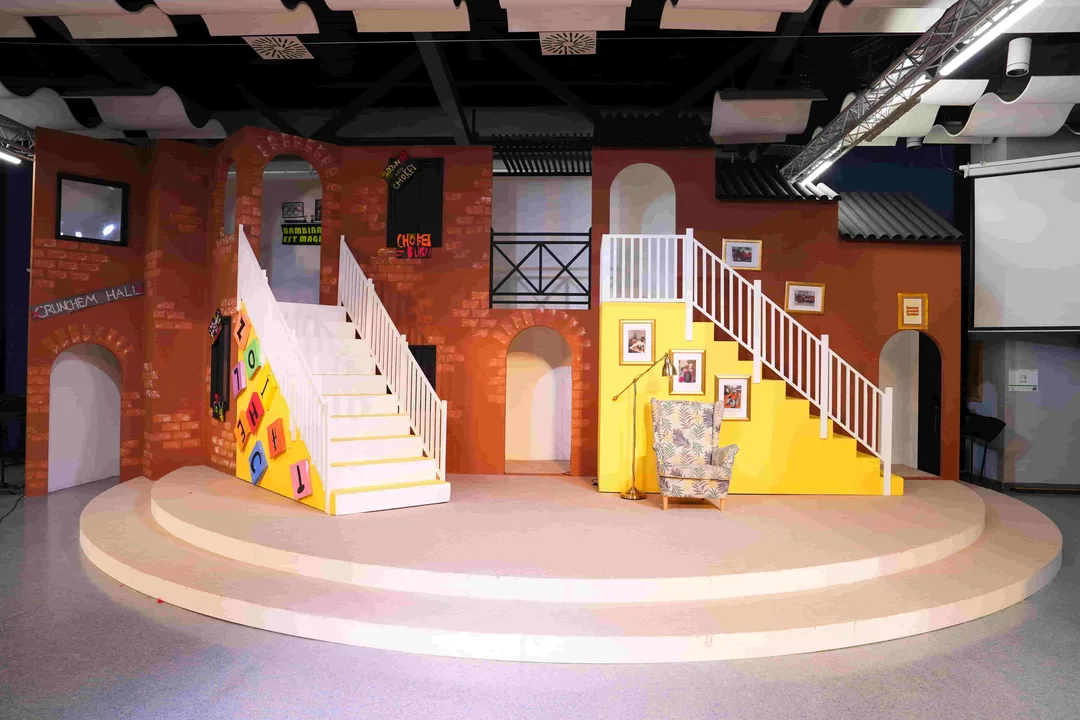

Building Lightweight Scenery That Works From the Front

Once the viewing angles are understood, the set can be fabricated around what is actually required.

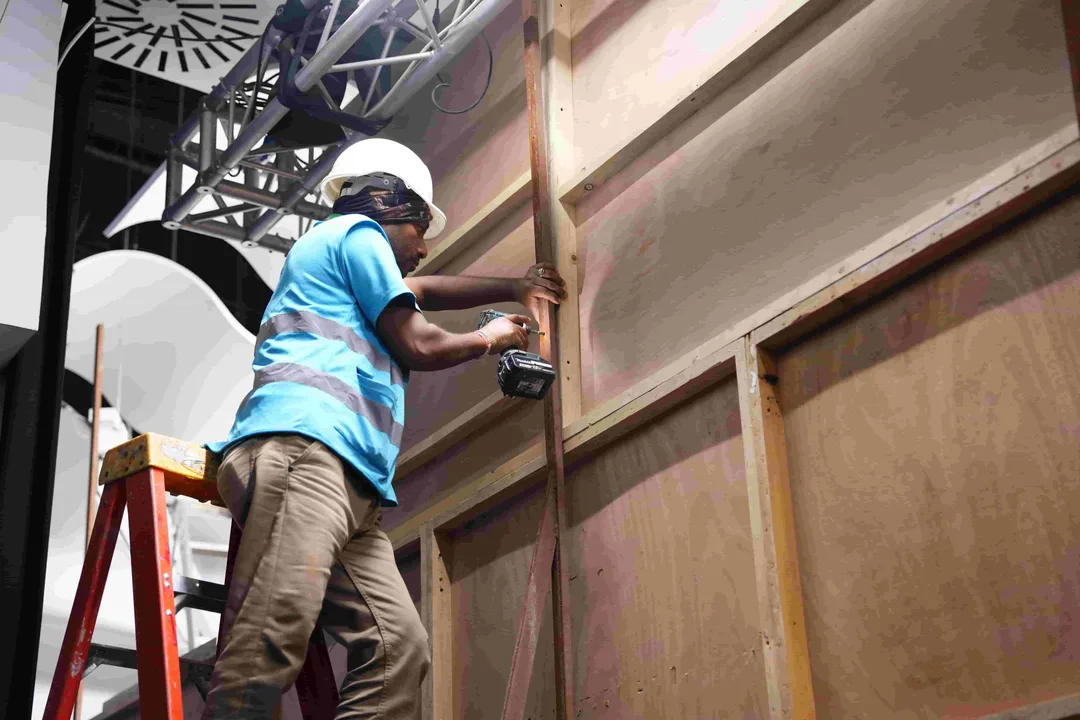

A theatrical wall is usually very different from a permanent architectural wall. It may contain lightweight timber or aluminium framing, thin sheet cladding and scenic finishes designed to read correctly from the auditorium.

The rear face often remains open.

This allows scenic teams to reduce weight, access fixings and integrate braces, cables, lighting equipment or operating mechanisms. It also makes the scenery easier to move, store and repair.

Common stage-set construction methods include:

• Timber-framed scenic flats
• Aluminium-framed touring panels
• Plywood or MDF scenic skins
• CNC-cut ribs and decorative profiles
• Carved foam architectural details
• Lightweight moulded components
• Printed backdrops and scenic cloths

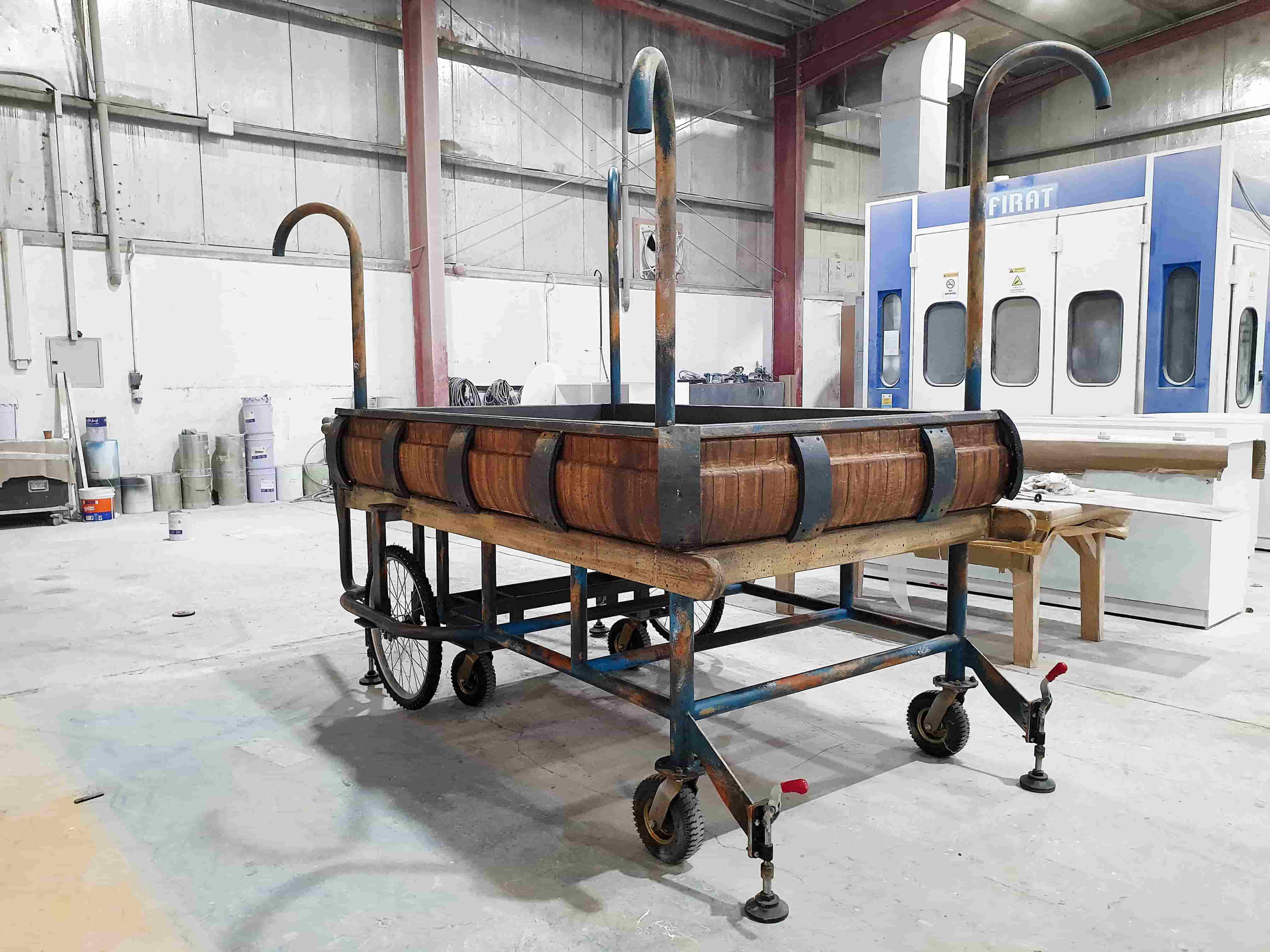

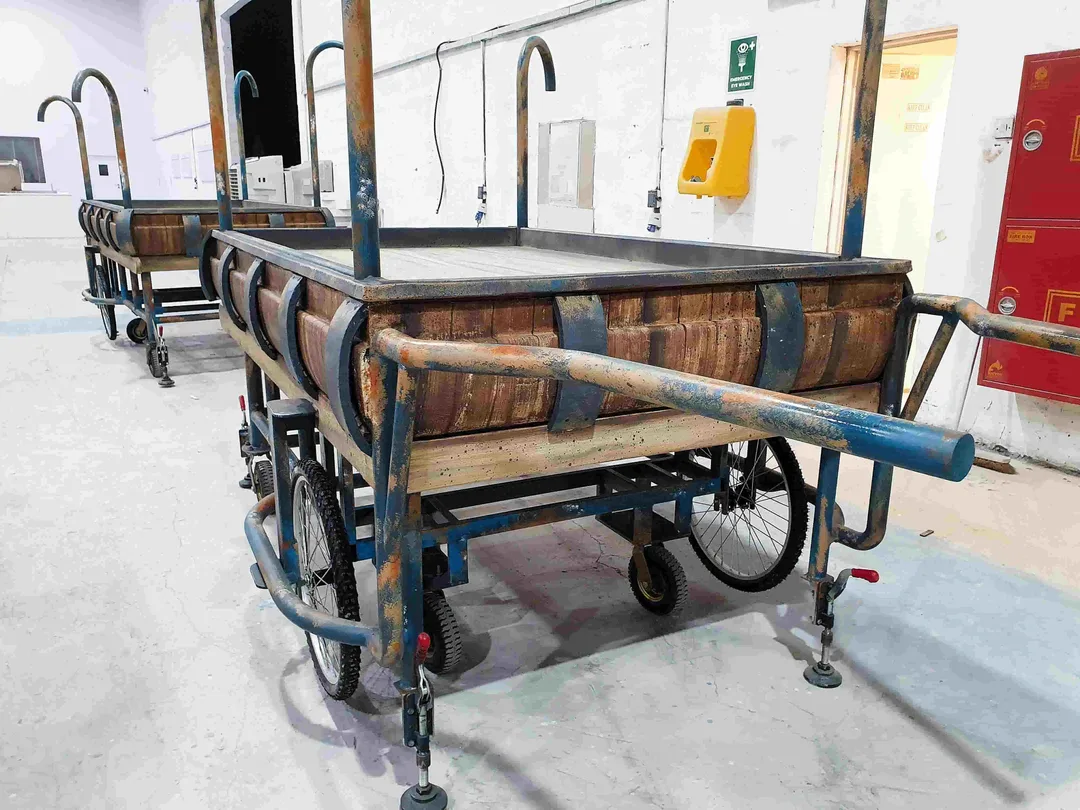

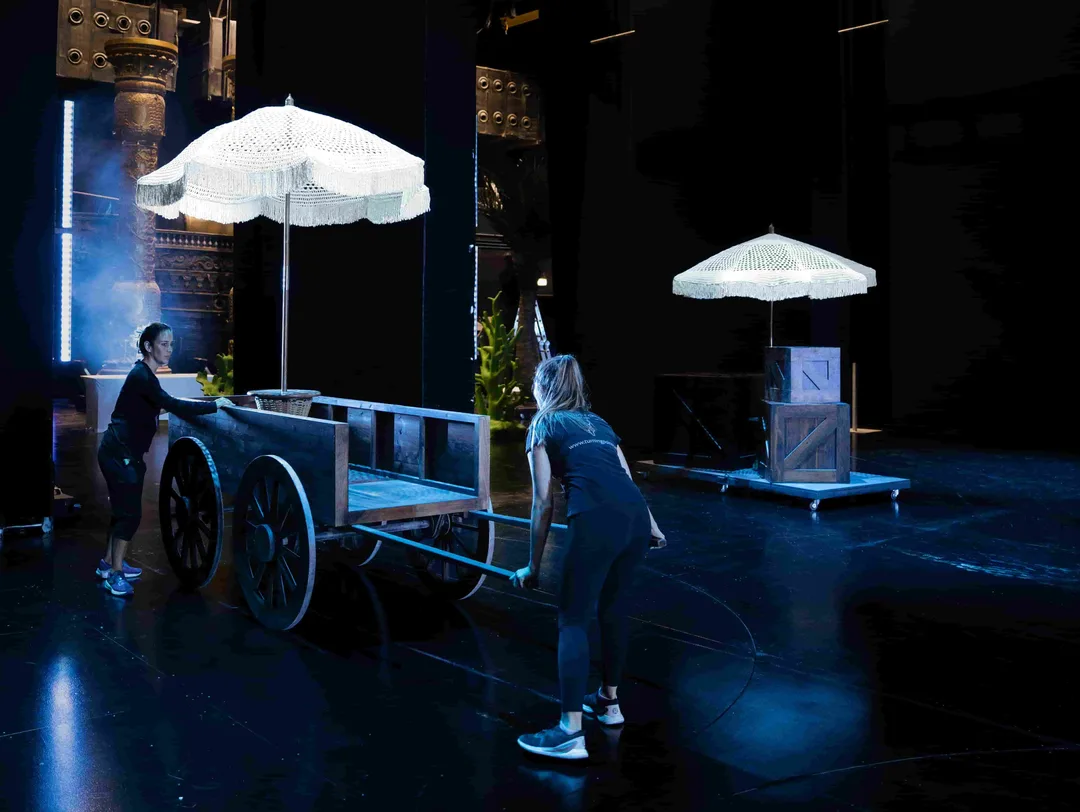

• Wheeled scenic wagons
• Modular bolted structures
• Painted trompe-l'œil surfaces

The correct method depends on the scale, duration, movement requirements and viewing distance of the production.

Scenic Flats and One-Sided Walls

Scenic flats are among the most recognisable examples of one-directional construction.

A flat typically consists of a lightweight frame covered with fabric, plywood or another thin scenic surface. From the audience side, it may represent a complete wall, interior room or architectural façade. From backstage, the bracing and framing remain visible.

Flats can be connected to create larger environments, supported with stage braces or mounted onto wheeled bases for scene changes.

Their light weight is an advantage during installation and live operation. Crew members can move large scenic surfaces without the lifting equipment required for equivalent architectural construction.

Lightweight does not mean unstable. Frames, joints and bracing must still be designed around the height of the scenery, movement requirements and any attached decorative elements.

Large scenic walls may require steel base frames, reinforced connections or overhead restraint even when their visible surfaces remain very light.

Touring, Installation and Live Stage Operation

One-directional construction becomes especially valuable when scenery must tour.

Touring productions repeatedly load, transport, assemble, operate and dismantle the same scenic elements. Weight, module size and connection speed become critical.

A set designed as permanent architecture would be impractical to move between venues. Touring scenery must pack efficiently, pass through loading docks and adapt to different stage dimensions.

Modular construction allows large visual environments to be divided into manageable sections.

Walls may use bolted frames and removable scenic skins. Columns may separate into stackable sections. Decorative features can be detached and packed within protected transport cases.

The visual joints between modules are often concealed within architectural lines, panel divisions or scenic texture.

Aluminium framing is frequently useful for touring because it reduces weight and provides accurate repeatable assemblies. Timber remains valuable where rapid modification or repair may be required. Steel may be incorporated selectively within bases, lifting points or high-load connections.

Trial assembly helps confirm that touring modules align correctly and can be built within the available installation period.

Venue Adaptation

The same stage set may behave differently in every venue.

Stage width, proscenium opening, wing space, overhead rigging capacity and audience sightlines can vary significantly. Scenery must sometimes be repositioned or reduced to suit a smaller stage.

Masking systems help adapt the visible environment. Additional legs, borders and black drapes can conceal unused stage areas or sections of scenery that cannot be installed within a particular venue.

The scenic design may include optional modules so that the set can expand or contract without losing its visual coherence.

Sightlines should be reviewed at each venue. A side structure concealed in one theatre may become visible in another with wider seating. Additional returns, masking or finish treatment may be required.

Movement and Scene Changes

Scenery built for one-directional viewing may also be designed to transform quickly.

A scenic wagon can present one environment to the audience, rotate or move offstage, and be replaced by another. Revolving structures may contain several finished faces, each intended for a different scene, while internal areas remain open for access and mechanical systems.

Quick changes rely on controlled movement.

Wheels, tracks, brakes and guiding systems must support accurate placement. Crew handles and operating positions remain hidden from the audience but accessible backstage.

The scenery must also remain stable at every stage. Lightweight structures can still create significant hazards if they are tall, poorly braced or moved without appropriate control.

Stage teams therefore inspect connections, castors, brakes, braces and overhead restraints before operation.

Awards Shows and Corporate Stage Environments

The same principles extend beyond traditional theatre.

Awards shows, concert environments and corporate productions often create elaborate stage architecture intended to be viewed primarily from the auditorium and camera positions.

These sets may include large portals, layered scenic walls, integrated LED surfaces and sculptural features that appear complete from the front but remain open and technical behind the scenes.

Camera coverage can expand the required viewing angles. A structure that works for a seated audience may need additional finishing if cameras move into the wings or capture reverse angles.

The scenic team must therefore understand both the live audience perspective and the planned broadcast positions.

At Evolution Scenic, stage-set fabrication begins with how the environment will actually be viewed and operated. Sightlines, lighting, material selection, movement and backstage access are coordinated so that the visible world remains convincing while the hidden structure stays practical.

Theatre scenery does not need to reproduce a complete building.

It needs to reproduce the right view of that building.

That distinction allows scenic teams to create environments that are lighter, faster to install and more adaptable without weakening the audience’s belief in what they see.

The audience experiences a complete room, street, palace or landscape.

Behind it may be timber framing, stage braces, wheels, labels and carefully positioned masking.

The illusion works because every visible element has been considered.

Everything else exists only where the production needs it.

Modular scenic components planned around restricted access before controlled movement into the installation area.

Solving Access And Venue Constraints

Many scenic structures are significantly easier to fabricate than they are to install. Within a workshop, teams can work with clear floor space, lifting equipment, unrestricted access and controlled working conditions. Once the same structure reaches site, however, every component may need to pass through loading docks, service corridors, lifts, doorways and operational areas before it reaches its final position. For scenic fabrication teams, the route between the delivery vehicle and the installation location can therefore become as important as the structure itself.

Access limitations frequently become one of the most influential factors within scenic delivery. Loading dock dimensions, service lift capacities, narrow corridors, restricted vehicle access, existing finishes and operational limitations can all affect how a structure is engineered and constructed. Even relatively simple scenic walls or feature structures can become difficult to install when individual components are too large to turn through a corridor, too heavy for a service lift or impossible to unload close to the installation area.

The challenge should rarely be discovered on installation day. Successful projects begin by understanding venue constraints during technical development, allowing access information to influence structural design, fabrication methodology, transport planning and installation sequencing before production begins.

A scenic build engineered in modules so workshop fabrication can translate efficiently into site installation.

Access Planning Starts Before Fabrication

A detailed access survey is one of the most useful pieces of information available during scenic technical development. The objective is not simply to record the size of a doorway. The complete installation route needs to be considered, including loading locations, ramps, floor levels, lift capacities, corridor widths, turning spaces, ceiling heights and any obstacles that could restrict movement. Where accurate venue drawings are unavailable, physical surveys and dimensional checks become particularly important.

Service lifts are a common example. A structure may comfortably fit through the lift doors but still exceed the internal car dimensions once positioned horizontally or diagonally. Weight capacity must also be checked, particularly where steel-framed scenic modules, large joinery elements or equipment-integrated structures are involved. Engineers may consequently determine maximum module dimensions directly from the usable dimensions and capacity of the lift rather than from the overall scenic design.

Restricted corridors introduce another layer of complexity. Long scenic sections may physically fit through a doorway yet be impossible to rotate around a corner. Temporary handrails, door closers, ceiling services and wall finishes can further reduce the available envelope. Effective planning therefore considers the entire movement geometry rather than relying only on individual opening dimensions.

Restricted doors, corridors and service routes often define the maximum practical scenic module size.

Modular Construction As An Access Strategy

Engineers and fabrication teams frequently adapt scenic structures specifically to suit access requirements. Large assemblies can be divided into smaller modules that remain efficient to fabricate while being practical to transport and handle on site. Modularisation is therefore not simply a logistics exercise. It directly influences the structural frame, panel sizes, finish strategy and final assembly methodology.

Connection systems become especially important when structures are divided because of restricted access. Bolted steel connections, locating pins, concealed mechanical fixings and removable timber sections can allow large scenic elements to be assembled rapidly once they reach the installation area. Connections must provide sufficient tolerance for site assembly while maintaining alignment and structural integrity when the modules are brought together.

Visible finishes also need to be considered. A scenic wall may have to arrive as four separate sections because of a service lift, but it should still appear as one continuous surface when completed. Joint positions can therefore be coordinated with architectural features, graphic breaks, shadow gaps or removable finishing trims. This allows access-driven modularisation to remain invisible within the finished environment.

Access planning begins during technical development, before fabrication dimensions and connection details are finalised.

Different Venues Create Different Constraints

Exhibition halls may initially appear straightforward because of their large internal volumes, but installation access can still be highly controlled. Loading docks operate to strict schedules, freight doors may only be available during designated periods and several contractors may share the same logistics routes. Scenic modules must therefore be sized not only for the final stand or environment but also for efficient unloading, movement and temporary storage within the hall.

Hotels, shopping centres and other live commercial environments typically involve a different set of restrictions. Scenic components may need to pass through back-of-house corridors or goods lifts while avoiding guest and public circulation. Working hours can be restricted to overnight periods, while noise, dust and material handling may be tightly controlled. These conditions often favour smaller prefabricated modules that can be assembled quickly using low-impact installation methods.

Museums, cultural venues and heritage sites require particularly careful planning because access constraints may be combined with restrictions around the existing building fabric. Historic floors, walls, finishes or architectural details may not be suitable for direct fixing or heavy equipment movement. Scenic structures may therefore need to be freestanding, lightweight or designed with reversible fixing systems. Protective floor coverings, controlled load paths and carefully planned handling procedures become part of the build methodology.

Urban venues create further challenges before materials even reach the building. Limited loading bays, narrow streets, parking restrictions and controlled delivery times can determine the size and type of vehicle that can access the location. In dense city environments, the practical unloading period may be measured in minutes rather than hours. Packaging, vehicle loading order and module identification therefore need to support rapid unloading and immediate movement towards the installation area

Accurate surveys convert venue constraints into measurable design inputs for scenic engineering and buildability.

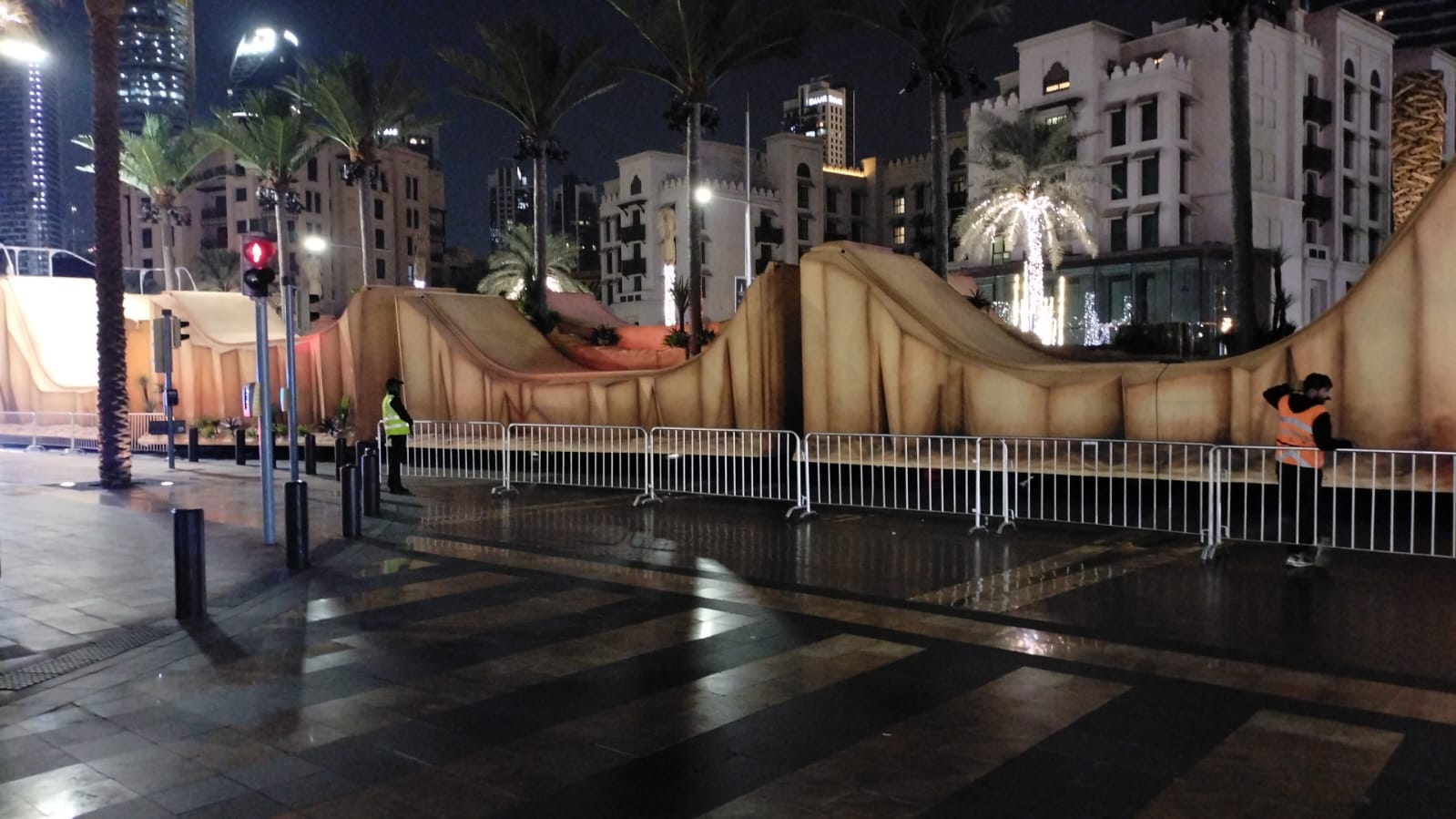

Crane Access And Internal Handling

Venue constraints can also influence lifting operations. Large scenic structures are sometimes designed with the expectation that they can be craned directly into position, but crane access is not always available. Nearby buildings, restricted road closures, overhead structures, underground services or limited working radii can make external lifting impractical.

Where crane operations are possible, the module design still needs to reflect the lifting methodology. Engineered lifting points, suitable frame reinforcement and balanced lifting geometry may need to be incorporated during fabrication. The structure must also be designed around the maximum size and weight that can be safely handled within the available crane radius.

When cranes cannot reach the installation area, internal handling becomes the primary consideration. Scenic modules may need to move using pallet trucks, machinery skates, trolleys or manual handling teams. Steel structures can incorporate lifting pockets or temporary handling points, while timber modules may be engineered to remain light enough for controlled movement. These decisions are considerably easier to make during fabrication than after a structure arrives on site.

Installation sequencing is equally important. In constrained environments, completing one section too early can physically block access required for later elements. Large scenic walls, overhead features, integrated technical equipment and finishing panels therefore need to arrive and be assembled in a carefully planned sequence. Component numbering, delivery order and clearly coordinated installation drawings help ensure that the route remains usable throughout the build.

Service lift dimensions can determine module width, height, weight and the orientation used during movement.

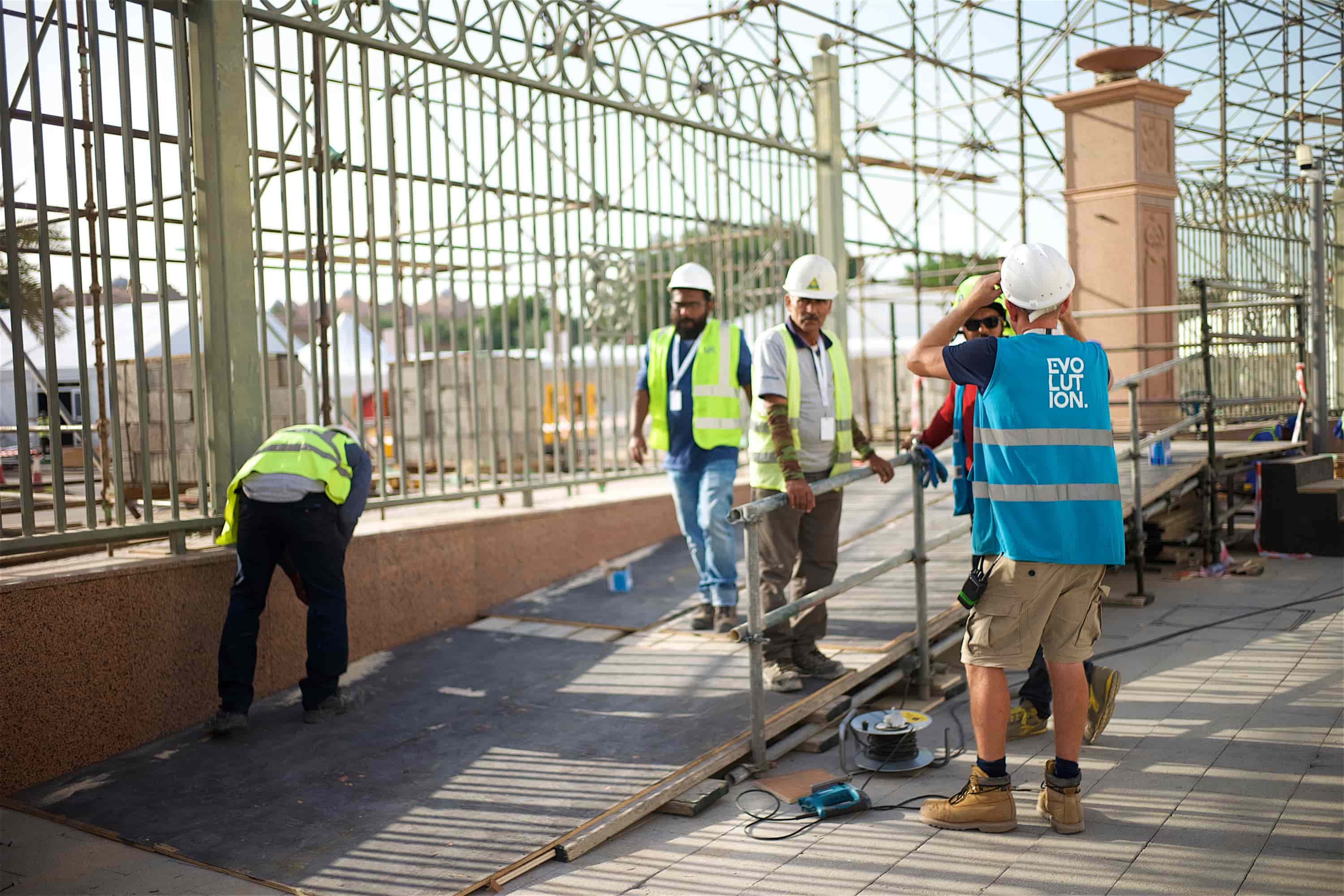

Installing Within Live Environments

Operational venues introduce constraints that extend beyond physical dimensions. Hotels, museums, retail environments and cultural venues may remain partially open while scenic installation takes place. Teams must therefore control noise, dust, tools, material storage and movement while maintaining safe separation from other activities.

This can influence the fabrication strategy considerably. Work that would normally be completed on site may instead be carried out in the workshop so that finished modules arrive ready for rapid assembly. Integrated lighting channels, graphics, scenic finishes and internal support frames can all be pre-installed wherever practical. Reducing site fabrication shortens the installation window and limits disruption within the venue.

Protection and logistics also become part of the scenic methodology. Finished modules may require padded transport frames, edge protection or removable protective films. Existing floors, doorframes, lifts and wall finishes may need temporary protection throughout the movement route. These measures protect both the scenic fabrication and the venue itself, particularly when installation takes place within completed premium interiors.

The strongest projects are those where access requirements are viewed as design inputs rather than installation problems. When loading routes, service lifts, heritage restrictions, crane limitations and operational conditions are understood early, scenic structures can be engineered around those realities from the outset. For Evolution Scenic, this means coordinating fabrication, modular construction, handling methodology, logistics and installation sequencing as one connected process. When access constraints are resolved during technical development, even complex temporary environments can move through difficult venues efficiently and arrive in their final position exactly as intended.

Theatre scenery is built to look convincing while surviving constant movement, impact and repeated use.

Why Theatre Scenery Has To Survive Being Hit By People Everyday

Many people assume theatre scenery only needs to look good. In reality, it also needs to survive.

Actors lean on it. Sit on it. Run into it. Move it. Climb it. And occasionally forget that it exists altogether.

A theatre set may appear delicate, decorative or highly detailed from the auditorium, but behind the painted surfaces there is usually a much more practical piece of construction. Walls need to remain straight, platforms need to stay rigid, doors need to keep opening, stairs need to tolerate constant footfall, and moving scenic units need to survive being pushed into position night after night.

Unlike many temporary environments that operate for only a few days, theatre scenery may be used repeatedly across weeks, months or even years. That repeated use changes the way experienced scenic workshops approach construction from the beginning.

The audience sees the finish, but the structure behind it is built to withstand daily use.

Theatre Scenery Is Working Scenery

A scenic wall may look like part of a house, hotel, palace or street, but from the workshop’s perspective, it is also a working structure.

Performers may lean against it during a scene, furniture may be pushed into it during a changeover, technicians may handle it during resets, doors may slam into it, and touring crews may dismantle and rebuild it repeatedly. That means scenic construction has to account for forces that are not always obvious from the audience side.

Where repeated impact or concentrated loads are expected, timber framing can be strengthened with additional studs, noggins, plywood skins, steel brackets or local reinforcement. Fixings may also be upgraded in areas that experience frequent movement, while corners that are repeatedly handled can be constructed differently from decorative areas that remain untouched.

The reinforcement is rarely visible. That is the point. The audience sees the scenic finish rather than the engineering required to keep it there.

Theatre scenery is handled, leaned on, climbed and moved far more often than most audiences realise.

Practical Doors Have A Hard Life

Few components demonstrate repeated use better than a practical stage door. During a production, the same door might open and close dozens of times during every performance. Multiply that by rehearsals, matinees and a long production run, and the hardware can experience thousands of operating cycles.

A scenic door therefore needs more than an attractive painted finish. The jamb must remain square, the hinges need reliable fixing points, the latch has to continue aligning, and the surrounding wall needs enough stiffness to prevent movement every time the door is opened or slammed.

Where required, Evolution Scenic can reinforce jambs internally, introduce additional timber or steel support around hinge positions, and select durable hardware that can be adjusted or replaced during the production. Even seemingly minor details matter: if hinge screws are fixed into insufficient material, repeated movement can gradually loosen them, while a scenic wall that flexes every time the door closes can eventually create alignment problems elsewhere.

A practical door is not simply a scenic prop. It is a small mechanical system operating inside the set.

Reinforcement is concentrated where performers, moving scenery and repeated impacts create the highest loads.

Scenic Stairs Are Used Constantly

Stairs present a similar challenge. A scenic staircase may be crossed hundreds of times every week, sometimes quickly and sometimes while performers are carrying props, moving furniture or executing choreography. The structure therefore needs sufficient strength and stiffness for repeated use.

Stringers, treads and landings can require additional reinforcement depending on their size and intended loading. Larger scenic staircases may combine carpentry with fabricated steelwork to achieve the required rigidity without making the structure unnecessarily heavy.

The most heavily used areas also need particular attention. Stair nosings take repeated foot contact, edges receive impact, handrails are pushed and pulled, and painted surfaces gradually wear. A well-built scenic staircase anticipates this rather than assuming every component will remain untouched.

Replaceable nosings, reinforced edges and durable surface finishes can make maintenance considerably easier later in the production.

A working stage door may open and close thousands of times during a production run.

Moving Scenery Has Another Problem: It Moves

Some scenery remains fixed for the entire show, while other scenic elements spend their lives travelling across the stage. Scenic wagons, rolling platforms and mobile walls may be pushed into position repeatedly during rehearsals and performances, introducing an entirely different set of loads into the structure.

The scenic surface is no longer only resisting people leaning against it. The entire structure is accelerating, stopping, turning and occasionally meeting another piece of scenery slightly faster than planned. Castors therefore need strong mounting positions, as fixing a heavy-duty wheel directly into lightweight sheet material is unlikely to remain reliable for long. Scenic wagons are generally designed so loads transfer into reinforced timber sections, steel plates or structural framing.

Corners may also require reinforcement because mobile scenic units are regularly handled from the same locations. When movement is part of the performance, durability becomes part of the engineering.

Scenic stairs must withstand repeated footfall, movement and performance loads without losing alignment.

Platforms Need To Stay Quiet As Well As Strong

Stage platforms and rostra have another practical requirement: they need to feel solid. A platform that flexes excessively underfoot may still be technically standing, but it does not inspire confidence in the performer using it.

Movement can also create noise. Loose deck panels, poorly supported joints or developing gaps can become surprisingly audible in a quiet performance environment. Scenic platforms are therefore constructed around stiffness as well as load capacity, with timber decks, internal framing, steel support structures and bracing coordinated to create a stable working surface.

Connections between platform sections also need to remain tight through repeated use. A scenic structure that performs correctly on opening night but gradually loosens during the run has not really solved the problem.

High-wear areas such as stair nosings and platform edges need extra protection from repeated contact.

Some Areas Will Wear Out First

Every theatre set develops high-contact areas. People tend to grab the same edges, doors contact the same stops, scenic wagons are pushed from the same corners, stair nosings receive the same foot traffic, and moving sections rub against the same adjoining surfaces.

Experienced scenic workshops identify these areas before fabrication is complete. Instead of treating every part of the set identically, construction methods can be adjusted according to expected use.

A heavily handled scenic edge might use a tougher substrate or replaceable trim, while a painted section beside a moving unit may receive additional protection. A handhold area might also be reinforced internally even if it looks identical to the panel beside it.

This is one of the differences between scenery that simply looks finished and scenery that has been built to operate.

Moving scenery must withstand both performance use and the mechanical stresses created by repeated scene changes.

Maintenance Is Part Of The Build

Durability does not mean nothing will ever require maintenance. It means maintenance can be anticipated and managed.

Long-running productions inevitably experience wear. Hinges loosen, wheels need adjustment, paint gets marked, hardware wears, and repeated movement gradually exposes small issues that may never appear during the initial workshop build.

The best response is not necessarily to make every component massively over-engineered, but to make the right components serviceable. Mechanical hardware can be positioned where technicians can reach it, hinges can be replaceable, bolted brackets can be tightened, access panels can allow inspection of concealed mechanisms, and common wear components can be replaced without dismantling substantial scenic sections.

Routine inspection also becomes important. Practical doors, stairs, railings, platforms and mobile scenery can be checked during the run so small adjustments are dealt with before they develop into larger failures.

In theatre, reliability is often the result of many small maintenance decisions being made at the right time.

Wheel loads and repeated movement require strong mounting points rather than simply attaching castors to finished panels.

Touring Productions Are Even Harder On Scenery

Touring theatre introduces another level of punishment. The scenery does not only have to survive the performance; it also has to survive being dismantled, packed, loaded, transported, unloaded, reassembled and then do the entire thing again.

A scenic wall used in one theatre may remain untouched for months, while the same wall in a touring production may be repeatedly separated from adjoining modules and connected again in different venues. That makes connection design particularly important.

Bolted interfaces, steel plates, alignment pins and repeatable mechanical connections can help modules return to their intended position after repeated assembly cycles. Fixings also need to tolerate being used many times, as a connection that works perfectly once but gradually damages the timber surrounding it is not suitable for long-term touring.

Protective edge details and transport considerations also become part of the scenic construction. Many touring sets are damaged during handling rather than during performance, so vulnerable surfaces need to be identified and protected when modules are developed.

Platforms and rostra need stiffness, stability and repeatable performance throughout the run.

Scenic Construction Is Usually Layered

What the audience sees is generally only the final layer of the set. Behind a painted brick wall might be plywood, behind that timber framing, behind that steel reinforcement, and behind that brackets connecting the entire scenic unit to another structure.

Different materials are doing different jobs. Timber is frequently used because it is practical to fabricate, relatively lightweight for its strength and easy to modify. Plywood provides durable skins and structural stiffness, while MDF can create clean decorative surfaces where appropriate.

Steel can reinforce concentrated loads, large spans, mobile structures and connection points, while CNC machining allows repeated components and complex profiles to be produced accurately. Scenic painting and finishing then conceal much of this construction behind the visual language required by the production.

The result might look like stone, plaster, timber, metal or architecture. It still needs to behave like scenery.

Durable scenic construction anticipates which areas will need touch-ups, repair or replacement first.

Live Shows Depend On Repeatability

A theatre performance is repeated, so the scenery needs to repeat as well. A door should close in the same position each night, a wagon should stop where it is expected, a stair should remain stable, a removable section should reconnect accurately, and a practical element should behave predictably whether it is performance number three or performance number three hundred.

This reliability is particularly important because performers develop familiarity with the environment around them. They learn where a step begins, how much force a door requires, and where a scenic unit will stop. Changes caused by loose hardware, movement or wear can affect that familiarity.

Good scenic construction therefore contributes directly to consistency. The better the fabrication, maintenance and reinforcement strategy, the less the scenery changes beneath the people using it.

Routine inspection keeps practical scenery reliable across long performance schedules.

The Best Scenic Engineering Is Usually Invisible

There is something slightly unfair about durable theatre scenery: if it works properly, nobody notices. The audience does not admire the reinforced door jamb, discuss the steel plate under the castor or compliment the additional framing behind the staircase. They see the finished set, and that is exactly how it should be.

The structural work, carpentry, steel fabrication, connections, reinforcement and maintenance planning all exist to support the visual result without becoming visible themselves. At Evolution Scenic, theatre scenery is approached as working fabrication rather than decorative background. Practical elements need to operate repeatedly, moving units need to remain reliable, and high-contact structures need to withstand the realities of rehearsal, performance, maintenance and, where applicable, touring.

The audience may only ever see the finished surface, but behind it can sit considerably more engineering than they realise. The best theatre scenery performs the same way on the final performance as it did on opening night.

And ideally, nobody has to think about how many times somebody has already run into it.
