Maintenance Planning For Public Installations

The success of a public installation is not determined on opening day, but by how well it continues to perform over time.

Finishes require cleaning, lighting and technology may need replacement, moving components need inspection and high-contact surfaces will eventually show wear.

Maintenance should therefore be considered during design and fabrication, not after installation. Poorly positioned equipment, undersized access panels and difficult-to-repair finishes can make routine servicing unnecessarily disruptive.

Well-planned access panels, removable components, documented finish systems and clear service routes make future maintenance far more practical.

Environmental conditions also matter. Outdoor installations may face heat, UV exposure, wind, dust and moisture, while museums and visitor centres experience continuous public use, frequent cleaning and long operating hours.

Integrated screens, lighting, sensors and control systems must also remain accessible for testing, servicing and replacement.

The strongest public installations are designed around lifecycle performance, with maintenance influencing engineering, fabrication and installation from the beginning.

Designing Public Installations For Maintenance

Maintenance planning begins with understanding how long the installation will operate and which components will require regular access.

Lighting, screens, control systems, sensors, mechanical parts, structural connections, finishes, ventilation and weatherproofing may all need inspection, servicing or replacement during the installation’s life.

Access panels should therefore be sized for practical maintenance, not just visual inspection. Equipment may need to be removed completely, so clearance for tools, replacement components and safe working access must be considered.

Removable scenic panels can simplify both technical servicing and finish repair. Where replacement is expected, retaining CNC files, paint references, material specifications and manufacturing drawings allows damaged components to be reproduced accurately.

Access must also be safe. Elevated equipment may require powered access or service platforms, while internal routes should remain clear of sharp edges, exposed fixings and unnecessary obstructions.

Ventilation is equally important where lighting, displays or control equipment are enclosed within scenic structures. Cooling systems and filters should remain accessible for routine cleaning and maintenance.

The best maintenance provisions are integrated into the scenic design so they remain visually discreet while still providing practical, repeatable access.

Maintaining Structure, Finishes & Integrated Technology

Different parts of a public installation require different maintenance strategies.

Structural elements may need periodic inspection, while scenic finishes require cleaning and local repair. Technical systems such as screens, lighting, controls and sensors may need servicing or replacement according to their operating life.

Outdoor installations face additional demands from heat, UV exposure, dust, moisture and wind. Metalwork should be checked for corrosion, timber-based materials for swelling or delamination, and seals, drainage points and protective coatings for deterioration.

Indoor environments usually experience wear through repeated public contact. Counters, plinths, interactive surfaces and low-level walls may require more frequent cleaning and repair than decorative elements positioned out of reach.

Cleaning methods should therefore be defined alongside the finish specification. Documented paint references, graphic files, material samples and approved products make future repairs more consistent.

Technology also needs to remain accessible. Screens, media players, lighting equipment and control systems often have shorter service lives than the scenic structures surrounding them, so replacement should be possible without major dismantling.

Clear cable routes, ventilation, equipment identification and accurate drawings make fault-finding and servicing more efficient.

The maintenance plan should distinguish between routine servicing, planned replacement and unexpected failure so that access, spare parts and budgets can be prepared in advance.

Inspection Schedules, Records & Replacement Planning

Maintenance is more effective when it follows a structured inspection programme rather than waiting for visible damage or failure.

Inspection frequency should reflect the environment, complexity and level of public use. Outdoor installations may need additional checks after severe weather, while museums, visitor centres and interactive environments may require regular reviews of finishes, lighting and technical systems.

A typical programme may include frequent visual checks, scheduled technical inspections and event-based reviews following impact, water ingress, system failure or reported movement.

The schedule should define what is inspected, how often, who is responsible, how findings are recorded and which defects require immediate action.

Maintenance records are equally important. Logs, photographs and repair histories help identify recurring issues and provide continuity when teams or contractors change.

Replacement planning should also consider lead times and future availability. Critical screens, lighting components, control equipment and specialist hardware may require planned spares or approved alternatives.

A complete handover package should retain key information such as as-built drawings, equipment schedules, paint references, material specifications, CNC and graphic files, access-panel locations and maintenance instructions.

Long-term installations should also allow for future upgrades. Replaceable graphics, modular display elements and adaptable technology zones can extend the useful life of the environment without major reconstruction.

When inspection, documentation and replacement planning are considered from the beginning, public installations remain easier to maintain, update and operate throughout their intended life.

Why Temporary Structures Need Permanent Thinking

One of the biggest misconceptions surrounding temporary environments is that a short lifespan somehow means they require less engineering, less planning or less attention to detail. In scenic fabrication, the opposite is often true.

A structure that will exist for only a few days may still need to perform to an extremely high standard while dealing with a far more compressed and demanding project lifecycle.

Temporary is therefore a description of how long something will remain in place, not the standard to which it should be designed. Whether Evolution Scenic is fabricating an exhibition environment, brand activation, temporary architectural structure or touring installation, the structure still needs to be safe, stable, accurately manufactured and practical to install.

Temporary Does Not Mean Simple

A temporary structure passes through an unusually concentrated lifecycle.

It is fabricated in the workshop, inspected, packed, transported, unloaded, installed, operated, dismantled and removed, sometimes within the space of only a few weeks. On particularly fast projects, several of these stages can happen within days of one another.

At the same time, temporary environments are frequently expected to achieve the same visual quality as permanent interiors. Exhibition walls still need clean junctions. Branded structures still need accurate geometry.

Feature elements still require high-quality scenic finishes. The difference is that these elements may also need to be lightweight, modular, transportable and capable of being assembled during a tightly controlled installation window.

Engineering for Speed, Stability and Low Weight

One of the central challenges in temporary scenic engineering is balancing weight against structural performance. Structures need to be light enough to transport and handle efficiently, but sufficiently rigid to remain stable once installed.

Depending on the application, this may involve considering crowd interaction, suspended elements, integrated equipment, wind exposure, vibration or loads created by cladding and finishes.

The connection system becomes particularly important. Bolted connections, pinned joints, locating plates, captive fixings and pre-drilled interfaces can allow large structures to be assembled rapidly without sacrificing accuracy.

Good temporary engineering avoids relying on crews to make components fit on site. The aim is to create predictable connections that naturally locate components in the correct position.

Designing the Installation Before Fabrication

Experienced scenic teams think about installation long before the structure reaches the workshop floor. Module sizes may be determined by loading dock dimensions, passenger or goods lifts, door openings, vehicle capacities or the amount of space available for manoeuvring components inside the venue.

The sequence of assembly must also be considered. Structural frames may need to be installed before finished skins can be applied. Certain fixings need to remain accessible until adjacent modules are secured. Decorative panels may conceal structural connections, meaning they must be removable or installed at carefully planned stages of the build.

Dismantling should be considered at exactly the same time. If a structure needs to leave a venue overnight, the team needs to know how finishing panels are removed, where lifting or handling points are located and which connections can be released first without making the remaining structure unstable. A good temporary build methodology works just as effectively in reverse.

Venue restrictions introduce another layer of complexity. Floors may need protection. Drilling into existing surfaces may be prohibited. Structural loads may need to be distributed carefully. Fire requirements, escape routes, working-at-height controls, noise restrictions and limited installation hours can all influence how the scenic structure is developed.

Modular Construction and Reusability

Modular construction is one of the most effective approaches to temporary architecture. Instead of treating every structure as a single assembly, fabrication teams can divide it into manageable sections that are easier to manufacture, transport, install and replace.

For reusable structures, the modular strategy becomes even more important. A core steel or aluminium frame can potentially support multiple configurations while interchangeable scenic skins, graphic panels or architectural finishes create a different appearance for each deployment. This approach is particularly valuable for touring activations, exhibition systems and repeat brand environments.

However, reuse requires more than making something strong. Edges need to withstand repeated handling. Fixings need to survive multiple assembly cycles. Decorative surfaces may need replaceable sacrificial layers. Components need to be clearly labelled, packed and stored so that they can be identified months later. Hardware needs inspection and worn components need to be replaceable without rebuilding the entire structure.

Touring Environments

Touring environments introduce an additional design consideration: transport geometry. The dimensions of modules may be influenced by truck bodies, containers, pallets, flight cases or available loading equipment.

A structure that performs perfectly once assembled but occupies unnecessary transport volume can become expensive and inefficient to tour.

Different venues can also introduce different tolerances. Floors may not be perfectly level. Access conditions may change.

Installation spaces can vary slightly from drawings. Adjustable feet, controlled tolerances, replaceable interface plates and carefully considered junction details allow touring structures to accommodate these differences without compromising the finished appearance.

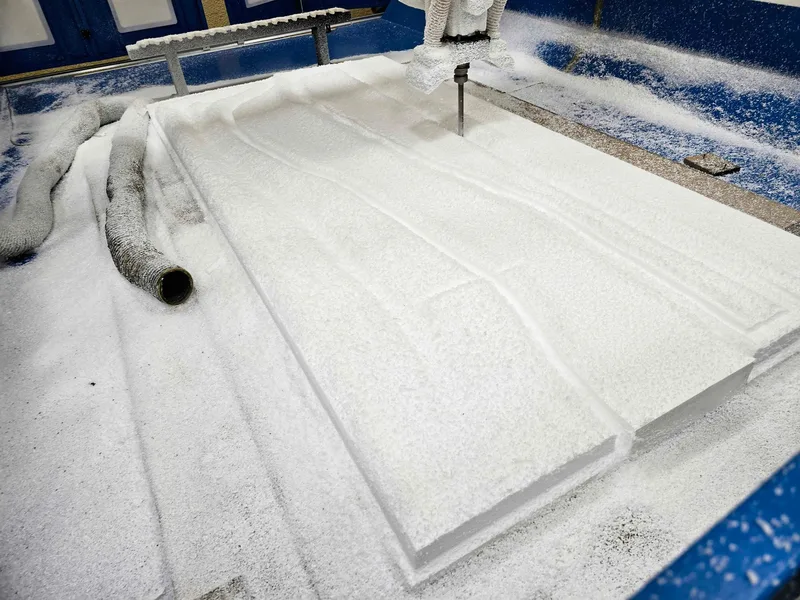

Digital manufacturing is particularly valuable here. CNC routing and other digitally controlled processes allow repeated components to be produced consistently from the same manufacturing information.

If a damaged component needs replacement during a touring programme, an accurately developed digital production file can make reproduction significantly easier.

Materials, Finishes and Integrated Technology

Temporary construction does not automatically mean inexpensive materials. Material selection needs to respond to what each component actually needs to achieve. Plywood, MDF, aluminium, steel, composite sheet materials, foams and specialist scenic products all have different advantages depending on span, weight, finish quality, fire performance and expected handling.

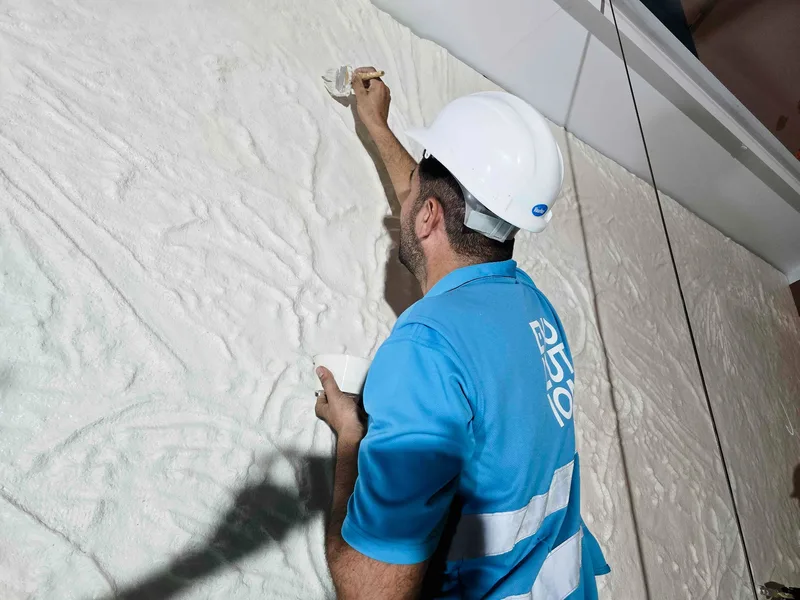

Scenic finishes also need to survive more than the finished installation.

A painted surface may be handled in the workshop, wrapped for transport, loaded into a vehicle, carried through a venue and assembled alongside other components. Corners, edges and high-contact areas therefore require particular attention if the finish is expected to remain clean once the installation is complete.

Technology integration requires the same level of planning. Screens, lighting, speakers, sensors and other equipment may need secure mounting points, ventilation, power distribution and cable routes. Access panels need to remain reachable for maintenance. Technology should be integrated into the scenic structure rather than treated as something that can simply be added once everything else has been built.

Logistics Are Part of Fabrication

For temporary environments, logistics are closely connected to fabrication methodology. A structure can be beautifully manufactured and still become difficult to install if components arrive in the wrong order, fixings cannot be located quickly or large modules are packed behind items that need to be installed first.

Workshop dry-fitting is one of the most effective ways to reduce this risk. Assembling key sections before dispatch allows the fabrication team to check alignment, tolerances, finishes and connection details while workshop tools and machinery are still available. Numbering and coding the modules also gives the installation team a clear system to follow once the structure reaches site.

Packing can then follow the installation sequence. Structural elements required first can remain accessible, while finished components are protected until needed. Hardware kits can be organised by module or assembly stage. The result is fewer unnecessary movements on site and less time spent searching for components during a limited installation window.

Removal requires the same consideration. Temporary structures may need to return to the workshop, travel to another venue, enter storage or be separated into reusable and non-reusable materials. Protective packaging, transport routes and storage requirements should therefore be planned before the structure is ever delivered.

Permanent Thinking for a Temporary Lifespan

Permanent thinking does not mean constructing temporary environments using permanent-building methods. It means applying the same discipline to structural behaviour, detailing, material selection and buildability while also designing specifically for transportation, fast installation and eventual removal.

In many ways, temporary architecture requires greater precision because there is less time available to solve problems on site. Connection systems need to work immediately. Modules need to align correctly. Finishes need to arrive protected. Technology needs to connect as intended. Installation teams need a clear sequence rather than relying on improvisation.

The most successful temporary scenic environments are therefore designed around their complete lifecycle. From technical development and workshop fabrication through transport, installation, operation and dismantling, every stage affects the next.

The structure may only exist for a few days, but the thinking behind it needs to account for everything that happens before, during and after those days.

Why We Sometimes Say No To Creative Ideas

Contrary to popular belief, fabrication teams enjoy ambitious ideas.

Complex structures, unusual geometry and concepts that have never been built before are often some of the most rewarding projects a workshop can undertake. They force designers, engineers, carpenters, metal fabricators and scenic artists to solve problems that do not have an obvious answer.

So why do fabricators sometimes say no?

Usually, it is not because the idea cannot be built.

More often, it is because the way the idea has initially been proposed introduces engineering, transportation, installation or operational risks that outweigh the benefits of building it in that form.

A No Is Usually A Risk Assessment

Scenic fabrication exists in the space between creative ambition and physical reality.

A structure may need to support significant loads while remaining visually lightweight. It may need to stand several metres high while being installed without fixing into the venue floor.

It may need to move, rotate or travel on a vehicle while maintaining stability. It may need to appear monolithic while actually being manufactured as dozens of separate components.

Each of those requirements introduces engineering questions that are not always visible in the original concept.

Load paths, deflection, bracing, connection details, centre of gravity, lifting points and wind exposure can all affect whether a scenic structure will behave as intended.

Temporary structures introduce another layer of complexity because they also need to be assembled, dismantled, transported and sometimes reused.

A connection that works perfectly for a permanent installation may be completely impractical when a structure needs to be installed during a short overnight access window.

This is why an experienced fabrication team may challenge the proposed solution even when they strongly support the creative idea behind it.

The distinction is important.

The concept may be perfectly achievable.

The first construction method may not be.

Buildability Is Part Of Creative Development

A render can show almost anything.

Fabrication development begins when that image has to become a physical object.

At this stage, dimensions become components, surfaces become material build-ups and apparently simple forms become networks of frames, connections, brackets, panels and finishes.

Technical drawings are critical to this process. Sections reveal available structural depth.

Connection details establish how modules will join. Material specifications determine weight and behaviour. Tolerances establish whether hundreds of individually manufactured parts will actually align when assembled.

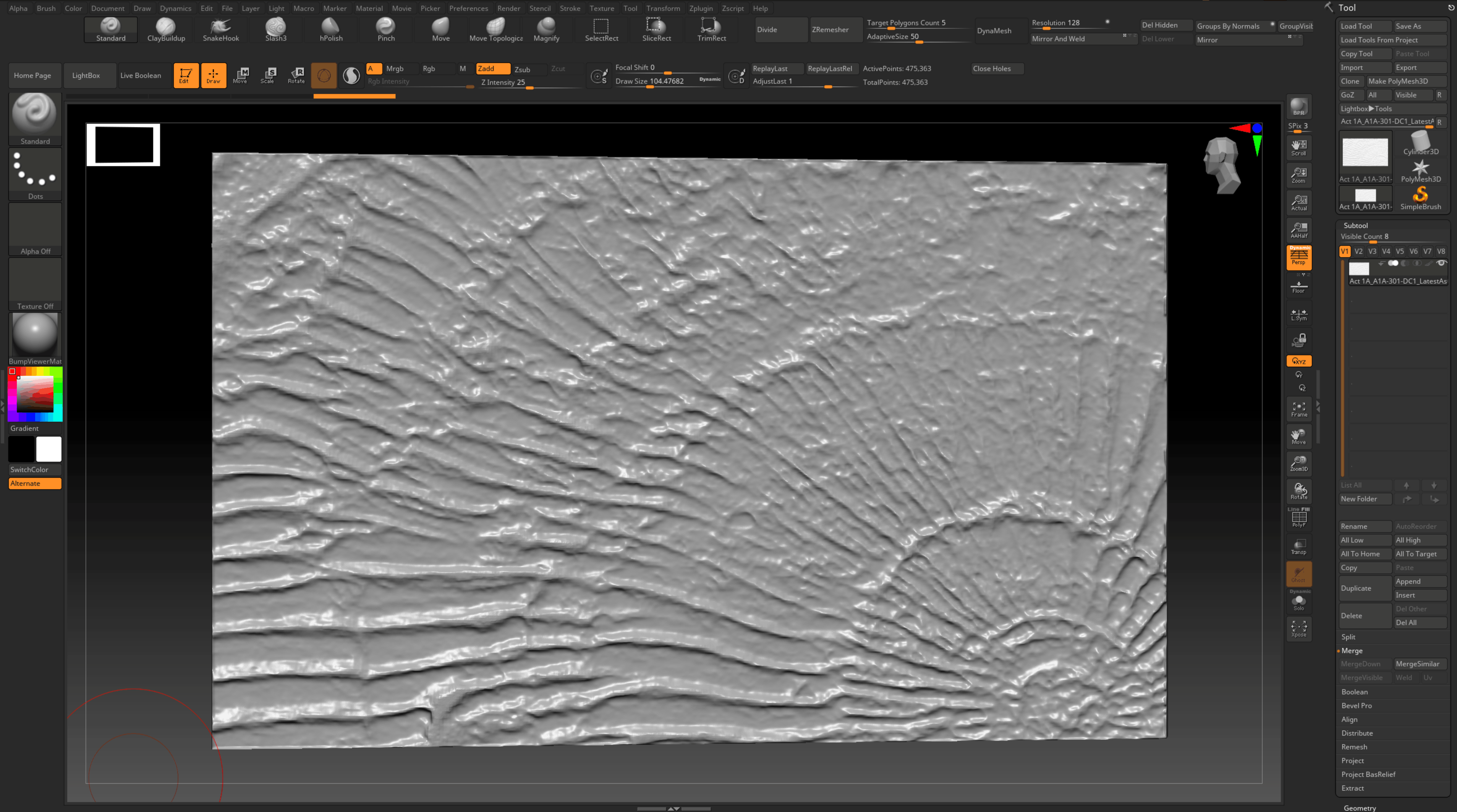

This is also where CNC machining, scenic carpentry, metal fabrication and finishing methods begin to influence the design.

A complicated curved form, for example, may be perfectly achievable but inefficient if every component needs to be manually set out. Developing the geometry for CNC routing can make the same feature faster to manufacture, more accurate and considerably easier to reproduce.

The earlier these conversations happen, the more creative freedom usually remains.

Discovering a buildability issue while reviewing technical drawings may require a minor change.

Discovering the same problem while a structure is being installed on site can require a major compromise.

Venue Constraints Can Change The Answer

Sometimes the structure itself is not the problem.

The building around it is.

Loading doors, goods lifts, corridors, ceiling heights and turning spaces can determine the maximum size of every scenic module before fabrication even begins.

A six-metre-high feature wall may fit comfortably into the final installation space but still be impossible to move through the venue as a single assembly.

The solution is not necessarily to reduce the height.

The better solution may be to divide the wall into transportable modules with engineered connections, alignment systems and concealed joints so that it still appears continuous after installation.

Venue restrictions can also affect structural methodology.

Floor loading limits may restrict ballast. Rigging rules may prevent suspension from certain locations. Existing finishes may prohibit drilling.

Hot-work restrictions may limit on-site welding. Noise restrictions may reduce the amount of fabrication that can realistically take place during installation.

These conditions all influence what should happen in the workshop.

Where site fabrication is restricted, more work may need to be completed during pre-assembly. Components can be dry-fitted, labelled and tested before delivery so that installation becomes primarily an assembly process rather than a construction exercise.

Good scenic engineering therefore considers the venue before manufacturing begins.

Transport Shapes What Gets Fabricated

Large scenic structures also need to leave the workshop.

This sounds obvious, but transportation is one of the most common reasons a technically achievable design needs further development.

Vehicle dimensions, container sizes, road restrictions, loading methods and handling equipment all affect component size.

A scenic structure that measures eight metres in one direction may eventually need to be fabricated as four separate modules simply because that is the most practical way to transport it safely.

Designing those break points intelligently is part of the fabrication process.

Connections need to remain accessible. Finished surfaces require protection. Modules need suitable lifting or handling points. Packing sequences need to consider which elements will be required first during installation.

A strong modular strategy can dramatically improve both logistics and site efficiency.

Large structures can be assembled completely within the workshop, checked for alignment, dismantled into transportable sections and then reassembled on site using the same predetermined connections.

What appears to be one enormous object in the finished environment may therefore have been designed from the beginning as a carefully coordinated kit of parts.

The Best Response Is Often An Alternative

Experienced scenic teams rarely want the conversation to end with the word “no”.

The more useful response is:

“What if we did it this way instead?”

Sometimes the alternative involves changing the structure while leaving the visible design untouched.

Sometimes it involves changing the material.

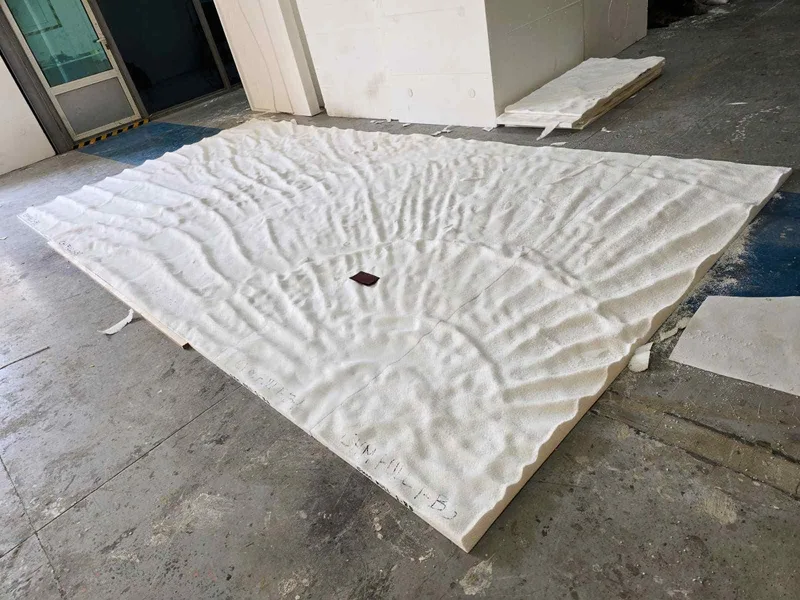

A feature designed to look like carved stone, for example, does not necessarily need to be manufactured from a heavy solid material. A lightweight internal structure combined with carved or CNC-produced scenic surfaces and an appropriate finish may achieve the same visual character while reducing weight, handling requirements and structural demand.

The same principle applies to steelwork.

Steel may provide excellent strength, but using it everywhere can introduce unnecessary weight. Depending on the structure, a combination of steel, aluminium, timber, plywood, composite materials and lightweight scenic components may produce a more efficient solution.

Material selection is therefore rarely based on appearance alone.

Weight, strength, fabrication method, fire performance, finish quality, durability, transportation and installation all need to be considered together.

Moving structures make these decisions even more important.

Consider a tall scenic feature mounted onto a moving platform or vehicle. The creative objective may be to create maximum height and visual impact, but placing too much weight high above the base can raise the centre of gravity and reduce stability.

The answer does not have to be a shorter structure.

The lower portion might use a stronger structural chassis while the upper scenic elements are redesigned using lightweight materials. Elements may fold, detach or telescope for transportation before being secured in their operating position.

The creative silhouette remains.

The engineering underneath it becomes considerably more intelligent.

Why Collaboration Matters

The relationship between creative and technical teams works best when neither side treats the other as an obstacle.

Creative teams should be able to propose ambitious ideas without designing every connection or fabrication detail themselves.

Equally, fabrication teams should not simply reject an idea because the first version is difficult to manufacture.

Their role is to understand the intention behind the concept and determine how that intention can be translated into something buildable.

That requires asking the right questions.

How will it stand?

How will it be transported?

How does it enter the venue?

Where can it be lifted?

What happens if the floor cannot be fixed into?

Can someone reach the connection during installation?

What happens to the finished surface when two modules are joined?

Can the structure be dismantled without destroying it?

These questions are not designed to restrict creativity.

They reveal the practical conditions that allow creativity to survive fabrication.

When technical teams become involved early, potential problems can often be converted into design opportunities.

A required structural joint can become part of a panel rhythm. A transport break can be concealed behind a graphic feature. A necessary support can be incorporated into the visual geometry.

The technical solution begins to support the design rather than compete with it.

A Better Idea Is Often The Engineered Version

The first creative idea is not always the strongest version of the project.

Sometimes it needs to be challenged.

Not because the ambition is unrealistic, but because there may be a safer, lighter, faster or more elegant way of achieving the same result.

At Evolution Scenic, this is where technical drawings, scenic engineering, material selection, workshop testing and fabrication experience become part of the creative process.

The objective is not to reduce ambitious ideas until they become easy to build.

It is to understand which parts of the idea are essential, identify the practical constraints around them and develop a fabrication methodology capable of delivering the intended result.

Sometimes that means saying no to the first solution.

More importantly, it means finding a better way to say yes.

Why The Loading Dock Is More Important Than The Main Entrance

Clients spend months discussing the front entrance.

Fabricators spend months worrying about the back entrance.

More specifically, the loading dock.

From a scenic fabrication perspective, the loading dock can have a greater influence on project success than almost any other part of the venue.

A feature structure may look spectacular in a render.

Unfortunately, the render rarely shows the service corridor it needs to travel through.

Or the lift it needs to fit inside.

Or the loading dock canopy sitting 150 millimetres lower than the top of the transport frame.

The structure may be perfectly buildable.

The real question is whether it can actually reach the place where it needs to be installed.

The Scenic Structure Still Has To Get Through The Door

This sounds obvious, but access constraints regularly become some of the most influential technical inputs on a scenic project.

A large feature wall may be straightforward to fabricate as one complete assembly in the workshop. Doing so might even produce the cleanest finish and fastest manufacturing process.

If the venue loading door is smaller than the wall, however, that manufacturing advantage becomes irrelevant.

The same problem can occur with stages, exhibition structures, entrance portals, sculptural features and temporary architectural elements. Once completed, they must travel from the fabrication workshop onto a vehicle, through the loading dock, along the service route and into the final installation area.

Every part of that journey places a physical limit on the size of the components.

For experienced scenic teams, buildability therefore includes more than asking, “Can we manufacture this?”

It also means asking, “Can we move it?”

Venue Surveys Are Fabrication Surveys

This is why venue surveys matter so much.

A useful scenic survey does not stop at recording the dimensions of the final installation space.

The route into that space needs to be understood as well.

Evolution Scenic teams may record loading dock dimensions, door widths, overhead restrictions, corridor clearances, lift sizes, ramp gradients and turning areas as part of technical development.

These measurements then become fabrication information.

If the narrowest doorway on the delivery route is 1,800 millimetres wide, there is little benefit in manufacturing a rigid module that is 1,900 millimetres wide and hoping everybody becomes more optimistic on installation day.

Access dimensions should influence the fabrication drawings before production begins.

Service Lifts Can Design The Structure For You

Service lifts can quickly turn ambitious scenic concepts into practical engineering exercises. When a structure must reach an upper floor, basement or internal ballroom, the lift becomes part of the transport envelope, with width, height, depth, load capacity, door operation and turning space all affecting the design. A component may fit on paper but still be impossible to manoeuvre through the opening, so large elements need to be assessed three-dimensionally. Sometimes a few centimetres determine whether a wall travels upright, diagonally or not at all. A photograph of someone standing inside the lift with a tape measure may not make the presentation, but it can save the project.

Modularisation Starts With Access

Once access restrictions are understood, the scenic structure can be divided around them.

Modularisation is often discussed in relation to transportation and installation efficiency, but restricted venue access is frequently what defines the module size in the first place.

A large wall can be split into smaller framed panels.

A portal can be manufactured as separate legs and header sections.

A steel structure can use bolted connections rather than permanent welded assemblies.

Decorative cladding can be installed after the structural modules reach site.

The objective is to reduce the structure into pieces that can physically travel through the venue while still returning accurately to the intended finished geometry.

This requires proper connection design.

Bolted steel plates, locating pins, indexed fixing points and repeatable timber interfaces can allow modules to reconnect accurately after transport.

When the installation is complete, the audience should have no idea that the apparently continuous structure arrived through the building in six separate pieces.

Corridors Have Turning Radii Too

Door width is only one part of the access problem.

A scenic panel might comfortably fit through a 1,500-millimetre-wide corridor while travelling in a straight line.

Then it reaches a ninety-degree corner.

Suddenly the effective space available is very different.

Long modules require enough clearance to rotate.

Ceiling-mounted services can reduce usable height.

Handrails, door frames, fire equipment and architectural projections can all reduce the manoeuvring space further.

This becomes especially important when moving rigid steel frames or fully finished scenic elements that cannot be bent, tilted aggressively or allowed to contact surrounding surfaces.

Installation route planning should therefore consider the complete geometry of the journey rather than simply checking the smallest doorway.

The Loading Dock Has Its Own Problems

Even reaching the venue does not guarantee that the load can be unloaded successfully. Loading docks vary enormously, from dedicated bays that accommodate large articulated vehicles to tight urban service roads, steep ramps and shared basement loading areas. Maximum vehicle heights, trailer length restrictions, timed booking slots, limited dock levellers and security procedures can all affect the delivery, as can restrictions on engines running during unloading.

The transport strategy therefore needs to work with the venue’s specific conditions. A large scenic structure may require a low-loader because of its height, but the vehicle may not negotiate the access ramp into a basement loading area. A rigid truck may fit the dock but lack sufficient internal length for the fabricated modules. Transport and fabrication must therefore be coordinated from the outset rather than treated as separate stages.

Sometimes The Truck Cannot Get Anywhere Near The Stage

The unloading point may also be surprisingly far from the installation location.

At large venues, scenic components can travel hundreds of metres after leaving the truck.

They may move through service corridors, goods lifts, back-of-house areas and temporary access routes before reaching the stage or exhibition space.

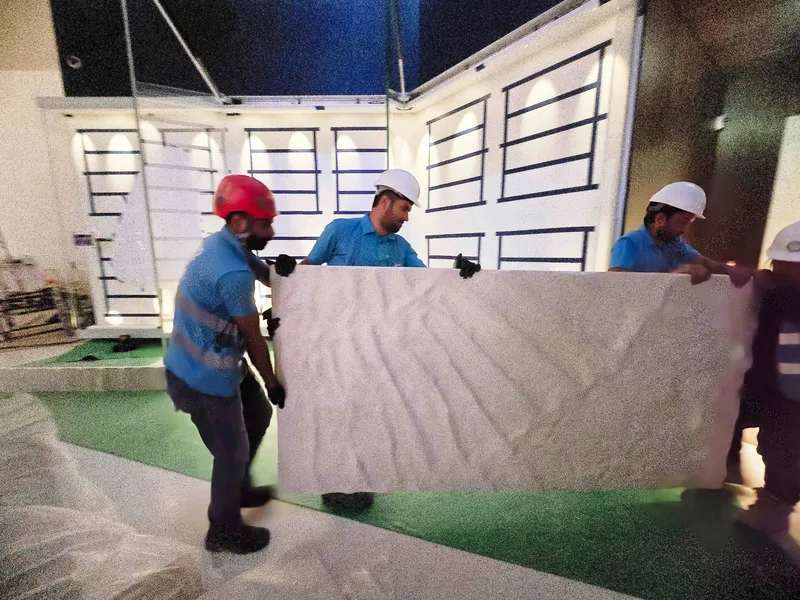

This internal transport creates another handling phase.

Large modules may need dollies, trolleys or compact lifting equipment.

Finished surfaces require protection.

Components need stable handling points.

Weight distribution matters.

A structure that can be safely lifted by forklift in the workshop may need a completely different handling method once it enters a narrow corridor.

Good build methodology considers these transitions.

The journey does not end when the scenic element comes off the truck.

Installation Sequence Often Begins At The Dock

Restricted access also affects the order in which components are delivered.

If the venue has limited storage, scenic modules may need to arrive in approximately the same sequence in which they will be installed.

The first structural elements required on site should ideally not be buried behind decorative panels needed several hours later.

Transport frames and stillages can be labelled according to build sequence.

Connection hardware can travel with the relevant module.

Finishing components can be grouped so they are protected until the structure is ready to receive them.

This reduces unnecessary movement in areas where space is already limited.

It also avoids the familiar installation problem of discovering that the one component everybody needs is currently sitting at the back of the third truck.

Access Restrictions Change Workshop Strategy

Restricted access does not necessarily make fabrication more difficult.

It changes where certain parts of the work happen.

Where large assemblies cannot enter the venue complete, more structural assembly may need to occur on site.

The workshop can still complete as much work as practical beforehand.

Frames can be trial assembled.

Connections can be tested.

Panels can be CNC machined and pre-fitted.

Finishes can be completed where appropriate.

Modules can then be separated, protected and transported in access-compatible sections.

This allows much of the precision and quality control to remain within the workshop while acknowledging that final assembly must happen inside the venue.

Mock-ups and trial assemblies become particularly useful when multiple modules need to reconnect quickly during a restricted installation period.

Loading Docks Are Shared Resources

Large venues rarely give the scenic team exclusive use of the loading dock. Lighting, audio, video, rigging, furniture, catering, graphics and production equipment may all be arriving through the same service entrance, with each contractor working to a tightly controlled schedule.

Loading bays and goods lifts therefore become shared, scheduled resources rather than open access points. A scenic delivery that misses its allocated slot may not simply arrive thirty minutes later; it may lose access until another period becomes available, affecting the wider installation programme.

Careful planning is essential. Vehicle arrival times, unloading durations, labour availability and the onward movement of materials from the dock should be coordinated in advance, particularly during short build periods when even a small delay can disrupt the entire installation sequence.

Night Installations Make Access Planning Even More Important

Many scenic installations happen overnight or during tightly controlled venue closures, leaving limited time for improvisation. If a module does not fit through the planned route at midnight, the service lift is smaller than expected or a loading dock booking expires, there may be no venue engineer, workshop machinery or additional access slot available to resolve the problem.

The workshop is the best place to solve access issues; the venue at two o’clock in the morning is generally not. This is why seemingly mundane information collected during technical development, from lift dimensions to delivery timings, can become extremely valuable during installation.

The Finished Structure Should Hide All Of This

The interesting thing about access-led fabrication is that none of it should be obvious once installation is complete. A large scenic wall may have arrived through a small service lift in five sections, a sculptural feature may have travelled down a corridor on specially fabricated trolleys, and a stage portal may have been assembled from bolted steel modules because the loading door was too low for the completed structure.

The finished environment should still appear deliberate and continuous. Connection lines are concealed, finishes are completed, alignment is checked and temporary transport hardware disappears, leaving no visible evidence of the logistical challenges involved in getting the structure into position.

Good scenic engineering allows the practical realities of access to shape the construction without allowing those compromises to define the visual result.

Sometimes The Most Important Drawing Is The Access Route

Technical drawings for scenic projects naturally focus on what is being built: elevations, sections, structural frames, details and connections. But on access-sensitive projects, a route drawing can be equally important. It can record the loading dock, doors, corridors, lifts, turning areas and final assembly location, allowing each module to be checked against the route during technical development.

This turns venue access from a vague logistical concern into something measurable. It also gives fabrication, transport and installation teams a shared understanding of how the structure is expected to reach site, helping identify access problems before manufacturing begins.

Measure The Lift Before Manufacturing The Wall

The main entrance may receive all the attention, with its signage, architectural features and finished scenic elements designed for photographs. But the project probably did not enter through it. It arrived through the service road, loading dock, corridors and service lifts before reaching the final installation area.

At Evolution Scenic, these less glamorous parts of the venue are treated as part of the fabrication problem from the beginning. Loading dock dimensions, lift capacities, transport constraints and installation routes can all influence how scenic structures are engineered, modularised and manufactured. The strongest projects are not simply those that can be built, but those that can be transported, delivered and assembled without discovering that the final obstacle is a doorway nobody remembered to measure. The render may show the front entrance; the fabrication team will still want to see the loading dock.

Building A Museum Environment That Lasts For Years

Museum environments operate under a unique set of requirements. They must remain visually consistent, technically reliable and operationally practical while supporting continuous public use over extended periods.

Unlike short-term exhibitions or temporary installations, a museum environment may be expected to perform for many years. This changes how every element is designed, engineered and fabricated.

Materials must withstand repeated contact. Scenic finishes need to remain convincing after regular cleaning. Lighting, audiovisual equipment and interactive systems require maintenance and eventual replacement. Access panels, service routes and removable components must be integrated without weakening the visitor experience.

A successful museum environment is therefore not designed only for opening day. It is developed as a long-term operational asset.

Designing For Long-Term Use

Museum fabrication begins with understanding how the environment will be used throughout its life.

Visitor numbers, opening hours, cleaning routines, staffing, maintenance schedules and the expected lifespan of individual exhibits all influence the construction strategy.

A surface positioned behind a barrier may require less protection than an interactive element touched by thousands of visitors each week. A decorative feature installed above eye level will perform differently from a plinth, handrail or touchscreen surround exposed to constant contact.

These operational conditions should be identified early. They affect material selection, structural details, finish specifications and the degree of access required behind the completed environment.

The aim is not to make every component unnecessarily heavy or permanent. It is to apply the appropriate level of durability to each part of the installation.

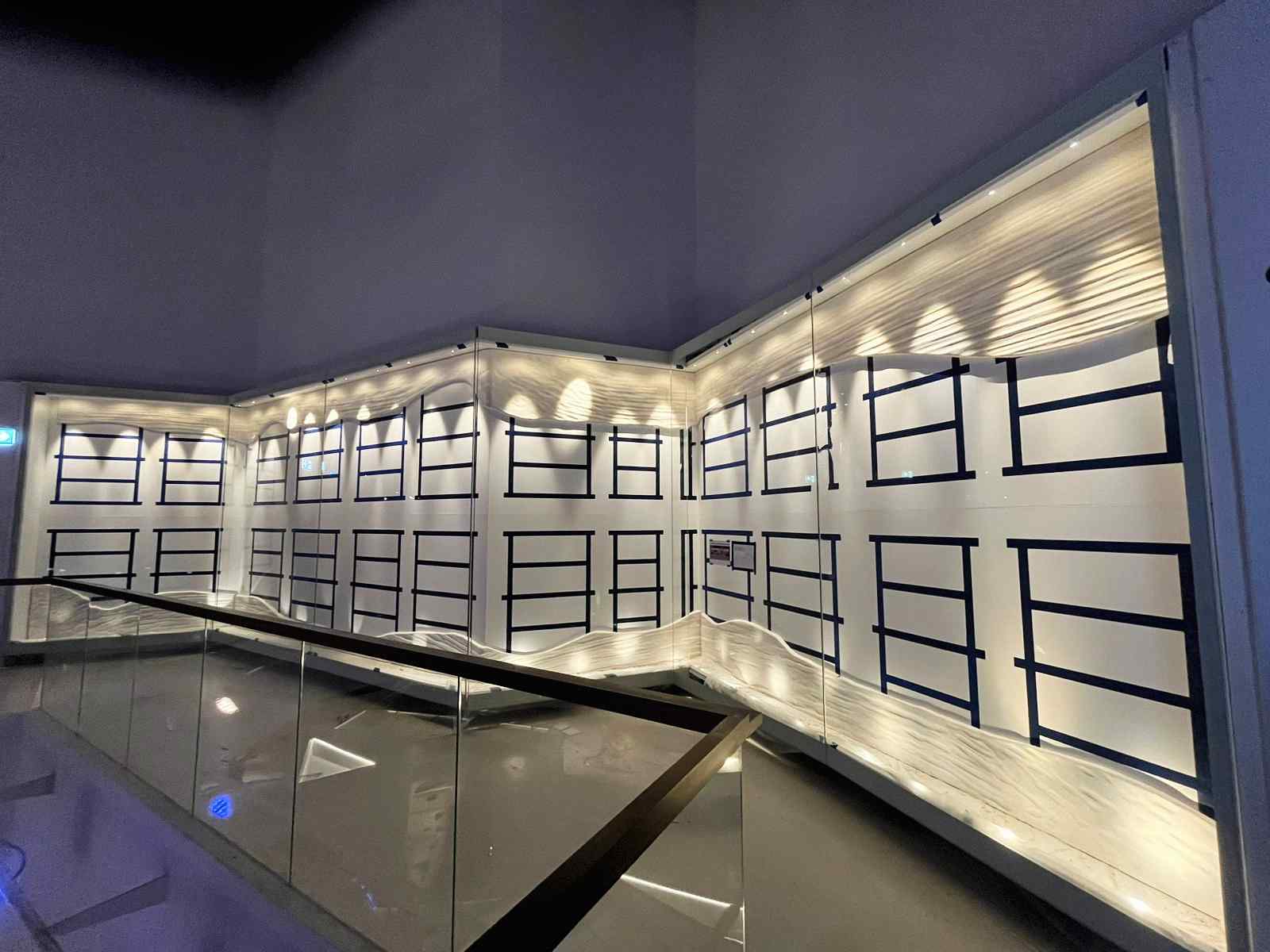

Interpretation Environments

Museum and heritage interpretation environments are designed to communicate information through a combination of physical displays, graphics, objects, lighting, media and spatial design.

The fabrication must support this content without competing with it.

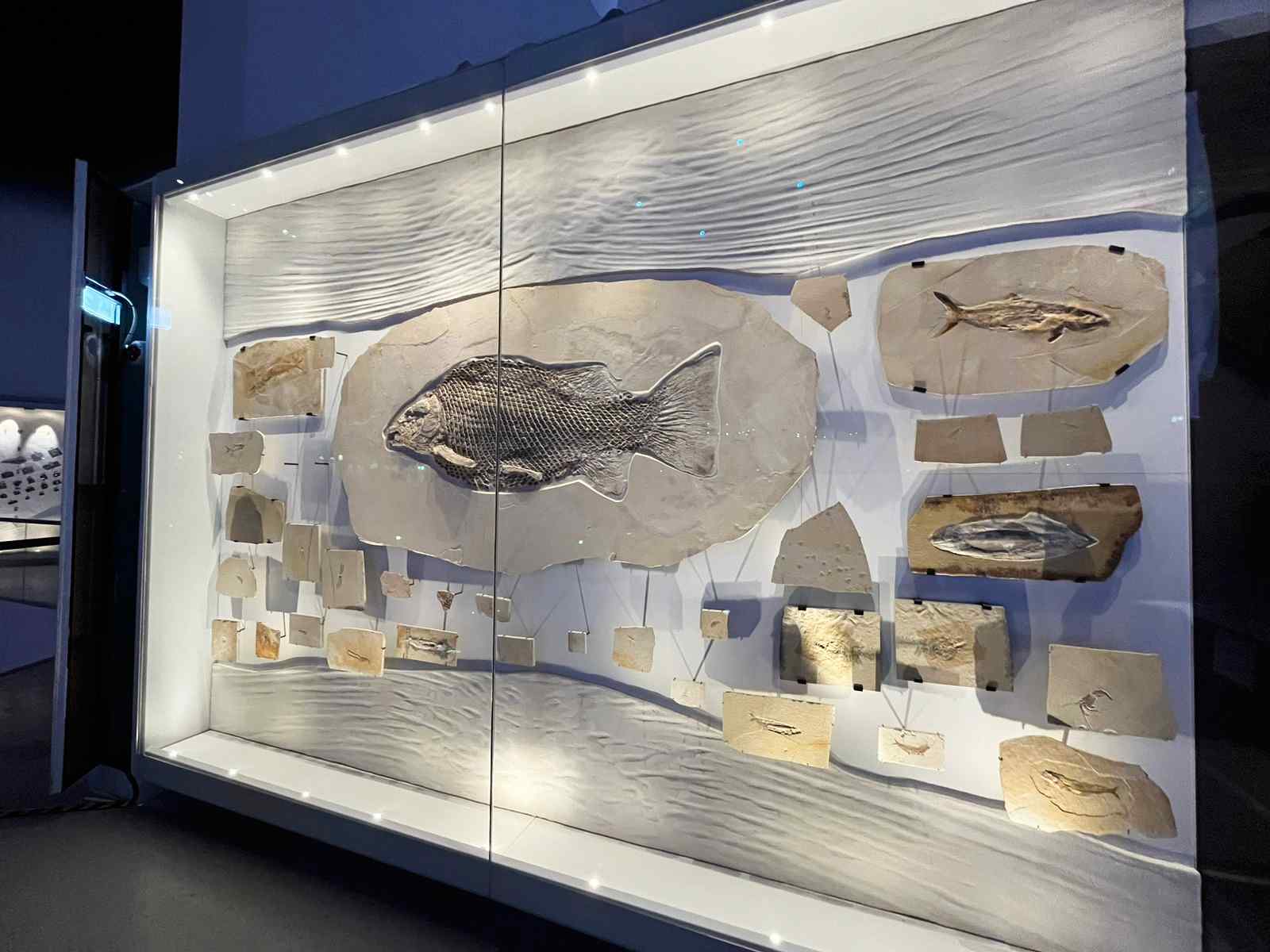

Display structures may need to incorporate artefacts, replicas, printed interpretation, digital screens, projection systems and interactive components within one coordinated assembly. Each element has different requirements for access, ventilation, security and maintenance.

The construction also needs to remain adaptable. Interpretation content may be updated as research develops, objects are rotated or new media is introduced.

Replaceable graphic panels, removable display components and modular internal systems allow these changes to take place without rebuilding the entire environment.

This flexibility is particularly valuable in cultural destinations and visitor centres where content may evolve while the main architectural and scenic structure remains in place.

Visitor Flow & Physical Performance

Visitor flow is not only a planning consideration. It directly affects fabrication.

Narrow circulation areas, queue points and popular interactive exhibits are exposed to greater levels of contact and wear. Corners, bases and projecting details can be damaged by bags, mobility equipment, cleaning machines and repeated visitor movement.

These areas may require harder finishes, reinforced edges or materials that can be repaired easily.

The position of displays also influences construction tolerances. Elements close to circulation routes must not create unexpected obstructions or hazardous projections. Floor transitions, ramps and integrated seating need to be fabricated with consistent levels and secure connections.

For high-capacity public environments, durability must be combined with accessibility. Display heights, reach ranges and clear circulation widths influence the physical dimensions of the fabricated components.

The strongest museum environments accommodate these requirements without making the space feel purely functional.

Choosing Materials for Longevity

Material selection has a major influence on how well a museum environment performs over time.

Timber, plywood, metal, glass, solid surfaces, laminates, acrylics, composites and specialist scenic materials can all be used within museum fabrication. The correct choice depends on where the component is positioned, how it will be used and how it will be maintained.

High-contact surfaces may benefit from hard-wearing laminates, metal edging or replaceable protective layers. Scenic surfaces can be strengthened with durable coatings while retaining their intended texture and appearance.

Materials should also be selected for dimensional stability. Changes in temperature and humidity can cause timber products to expand, contract or distort, particularly where several materials are joined together.

Cleaning requirements must be considered as well. Highly textured finishes may look convincing but can collect dust and become difficult to maintain. Glossy surfaces may be easy to clean but expose fingerprints and scratches.

The most appropriate material is therefore not always the most visually impressive sample. It is the one that balances appearance, durability, maintenance and long-term performance.

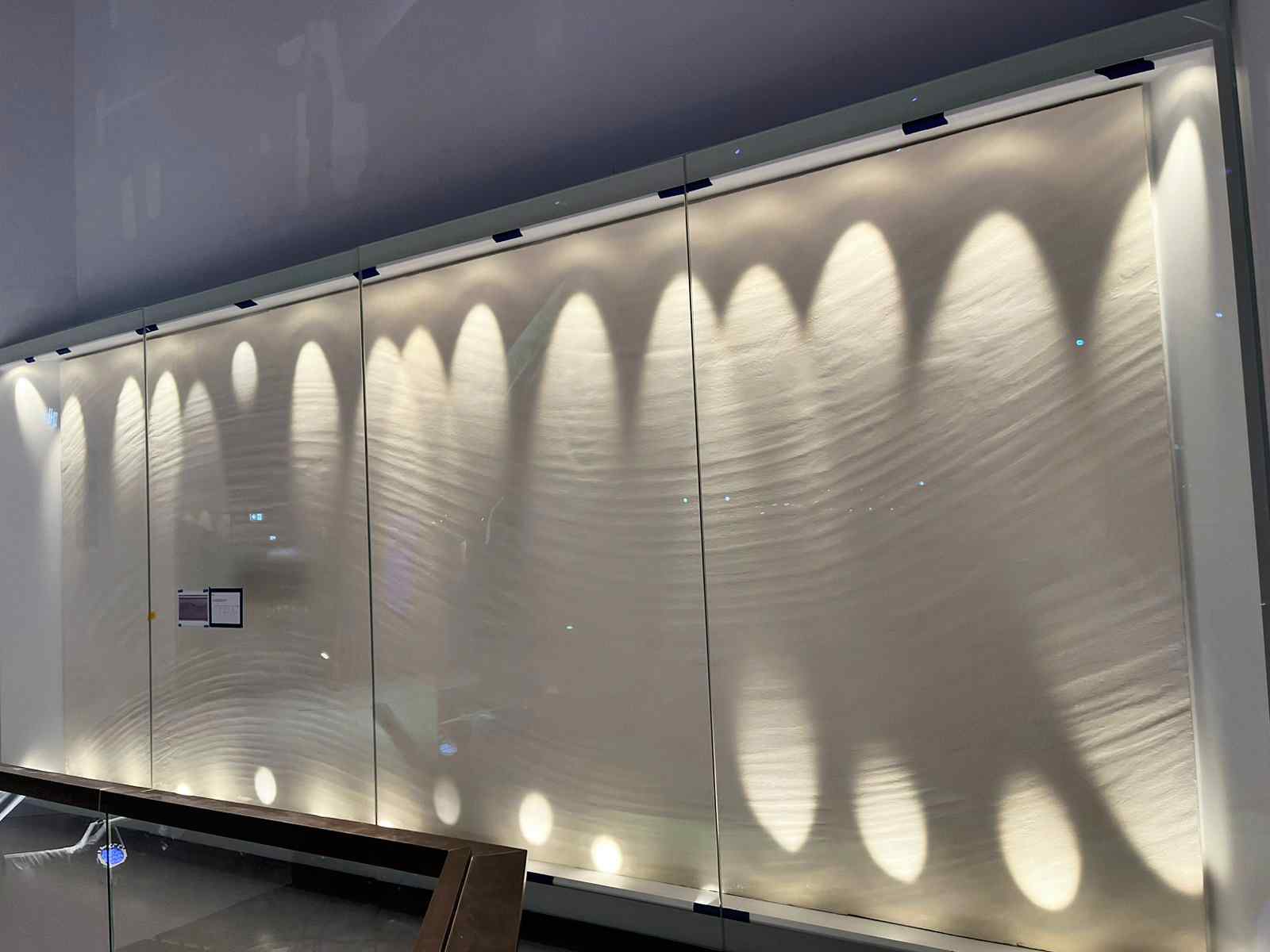

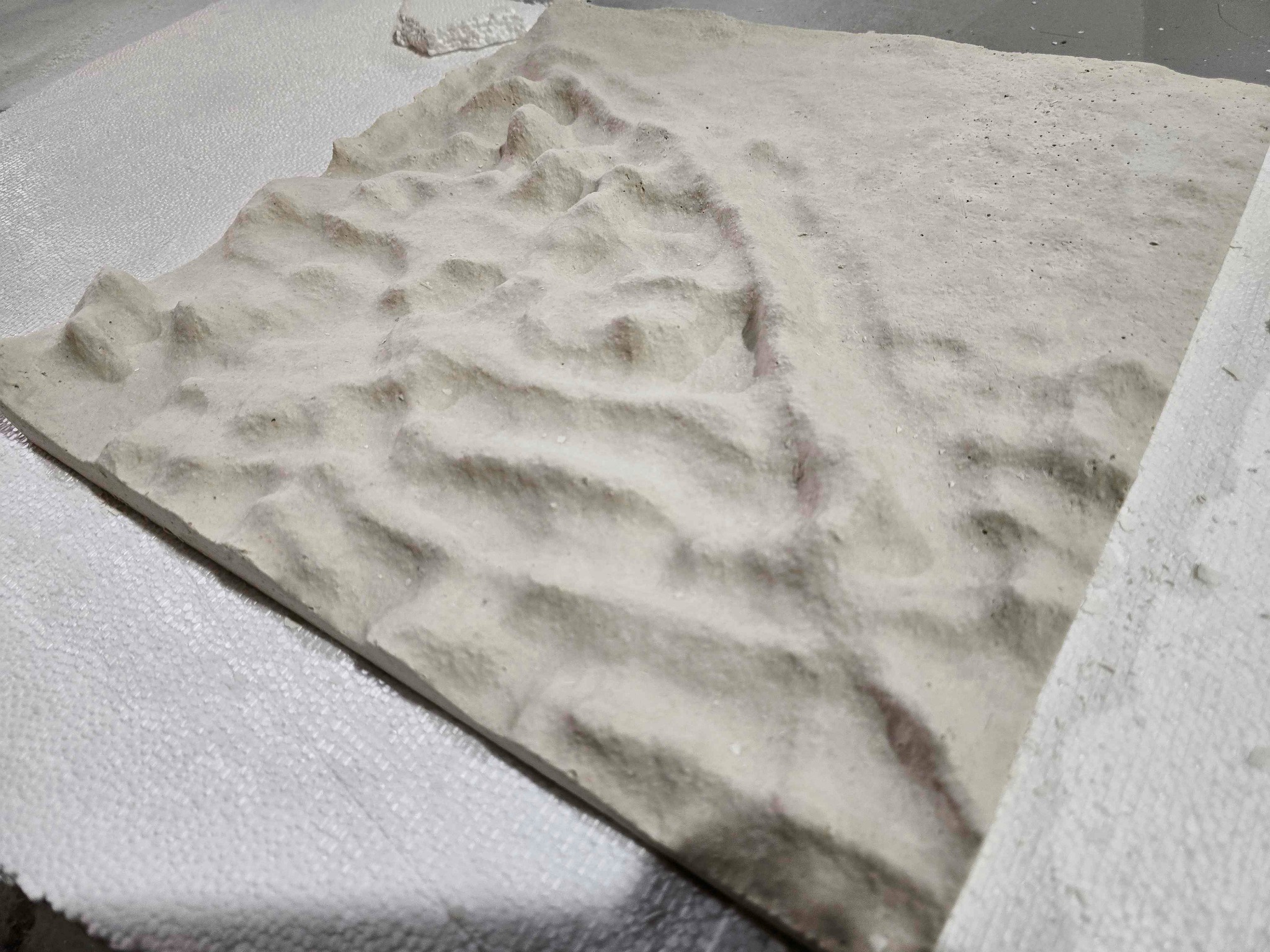

Durable Scenic Finishes

Museum finishes often need to combine scenic realism with greater durability than those used for short-term environments.

Faux stone, aged timber, traditional plaster, weathered metal and heritage architectural surfaces may all be created using lightweight fabrication methods. However, the finish system must withstand regular cleaning and continuous public operation.

This may require harder base coats, reinforced textures or specialist protective sealers. High-contact areas can receive additional protection without changing the overall appearance of the environment.

The chosen coating should also allow localised repairs. A finish that can only be reproduced through a highly complex workshop process may be difficult to maintain once installed.

Reference samples, paint specifications and approved repair methods can be retained as part of the handover information. These help future maintenance teams restore damaged areas more consistently.

A successful scenic finish should age gradually and predictably rather than fail suddenly through peeling, cracking or excessive wear.

Integrating Technology

Technology integration is now central to many museum environments.

Touchscreens, projection systems, interactive controls, lighting equipment, sensors, audio systems and media players are often built directly into scenic structures, display cases and interpretation furniture.

These systems require more than an opening in a panel.

Equipment may need ventilation, cable management, power distribution, data connections, acoustic treatment and secure mounting. Screens must be installed at appropriate viewing heights and angles while remaining accessible for maintenance.

Heat is a particularly important consideration. Electronic equipment installed inside enclosed cabinetry can fail prematurely if ventilation and airflow are not resolved properly.

The technology itself may also have a shorter lifespan than the fabricated environment around it. A display wall might remain operational for ten years while screens, processors and media equipment are replaced several times.

For this reason, technical components should be integrated in a way that allows future upgrades without major damage to the surrounding scenic work.

Planning Maintenance Access

Maintenance access is one of the most important and least visible parts of museum fabrication.

A completed environment may appear seamless, but behind its surfaces there are often cables, drivers, lighting controls, ventilation routes and structural fixings that require inspection or replacement.

Access panels must be large enough for practical maintenance rather than simply technically present. Their position should allow equipment to be removed without dismantling major sections of the display.

Magnetic panels, concealed hinges, removable trims and mechanically fixed components can all provide access while maintaining a clean finished appearance.

The sequence of removal should also be considered. A technician should not need to disturb delicate objects, graphics or scenic finishes simply to reach a power supply.

Where access is limited, components requiring frequent maintenance should be positioned closer to service openings. Less accessible locations should contain equipment with lower maintenance demands.

Good access planning reduces disruption, protects the surrounding fabrication and extends the operational life of the environment.

Designing Replaceable Components

Not every part of a museum environment needs to last for the same period.

Graphics may be updated regularly. Interactive devices may become obsolete. Upholstery, protective films and high-contact panels may need replacement due to wear.

These elements should be identified as replaceable components rather than permanently bonded into the construction.

Graphic panels can be mechanically fixed or mounted within removable frames. Touchscreens can be installed behind detachable bezels. Interpretation furniture can include exchangeable top surfaces or access panels.

This approach allows the museum to refresh or repair selected elements while retaining the main fabricated structure.

It also reduces the risk that a small failure will require extensive dismantling or expensive reconstruction.

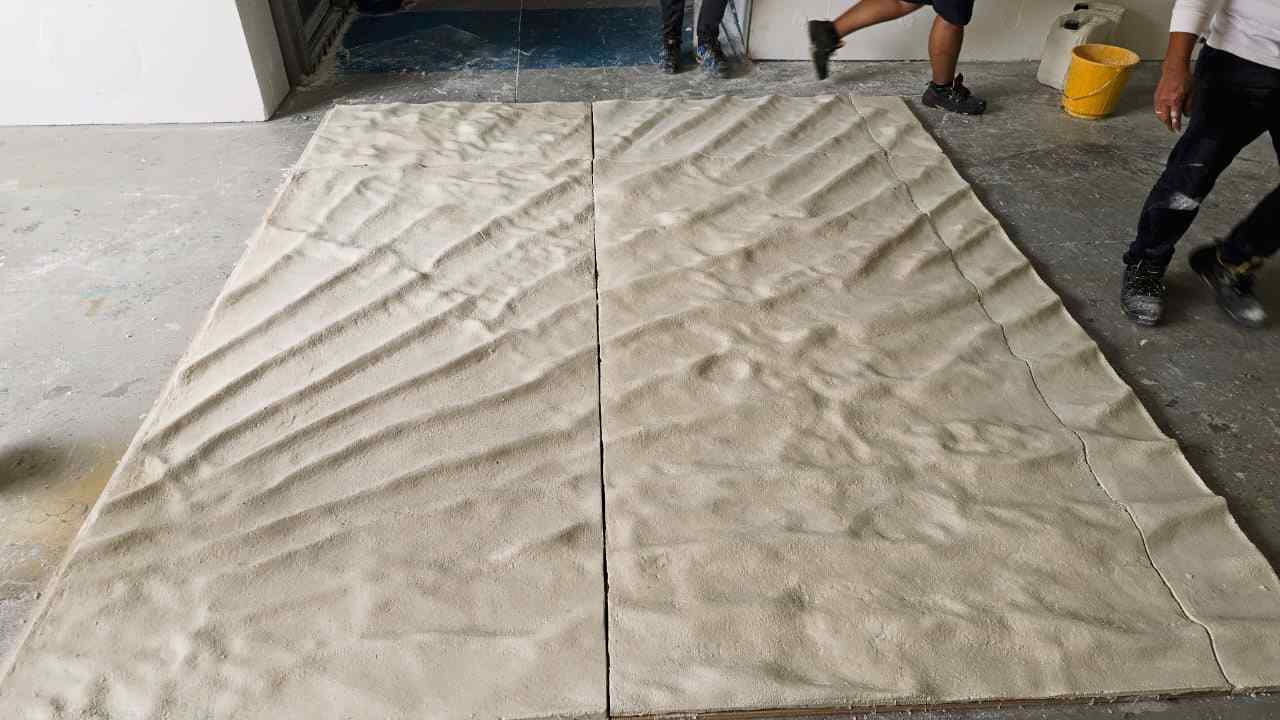

Workshop Testing & Quality Control

Long-term performance depends on resolving problems before installation.

Museum components are often assembled and tested in the workshop so that alignment, movement, access and technology integration can be reviewed under controlled conditions.

Doors and drawers are operated repeatedly. Access panels are removed and replaced. Lighting equipment is tested for heat build-up, and audiovisual components are checked within their final enclosures.

Full-size prototypes or finish samples may be used to assess wear, cleanability and visual performance under representative lighting.

These reviews help identify weak edges, difficult service routes and components that are too complex to maintain.

Quality control should also include consistency across repeated elements. Display cases, plinths and interpretation furniture may be manufactured in large quantities, and small differences can become noticeable once installed together.

Accurate CNC production, controlled assembly methods and documented finish standards all contribute to a more consistent result.

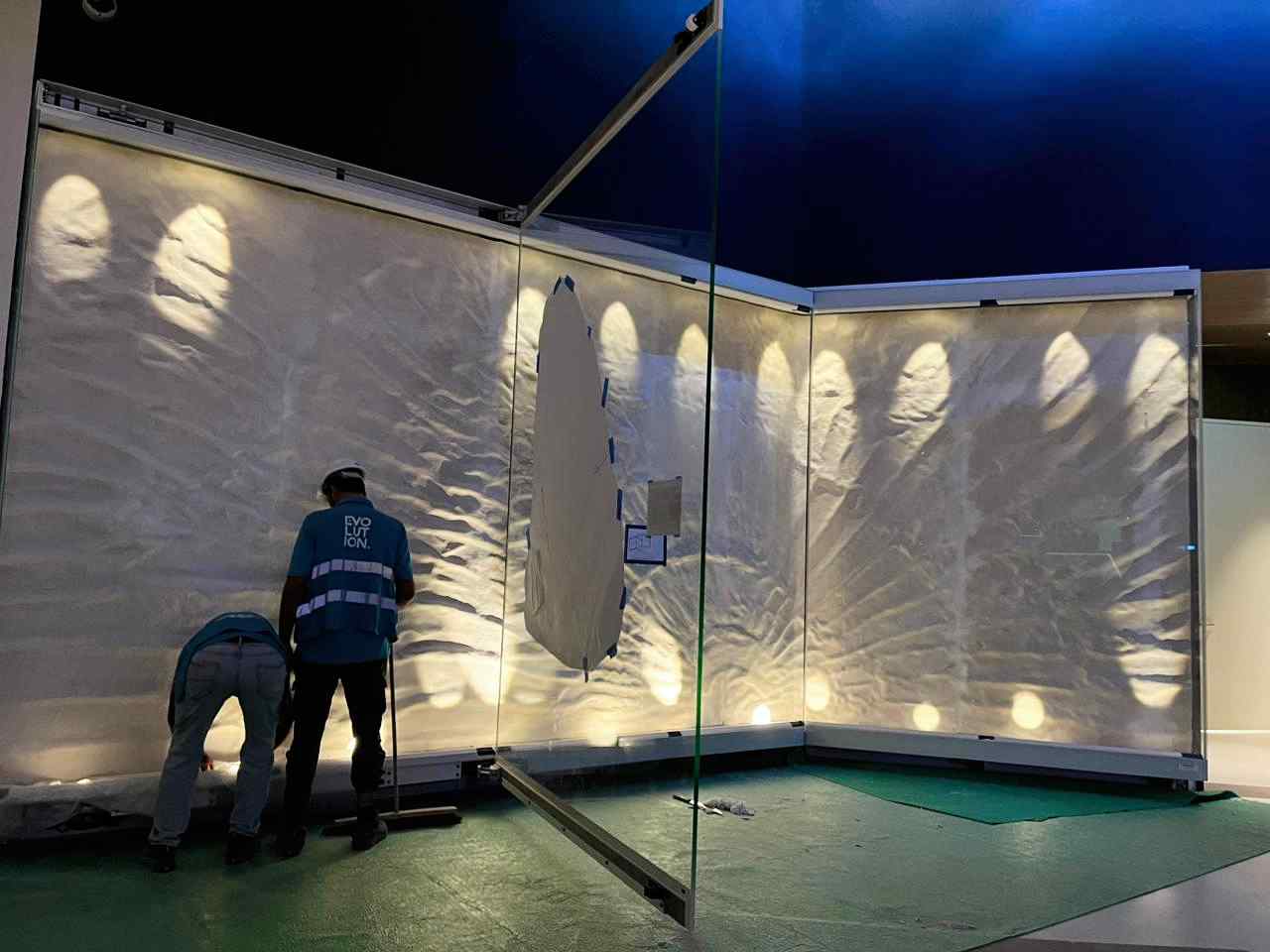

Installation & Commissioning

Museum installation frequently involves several specialist disciplines working within the same environment.

Scenic fabricators, display-case installers, lighting teams, audiovisual technicians, graphic installers and object-mounting specialists may all require coordinated access.

The installation sequence is critical.

Large structural elements and fixed joinery are generally installed before delicate finishes, technology and museum objects. However, hidden infrastructure must remain accessible throughout the process.

Once the physical fabrication is complete, the environment enters commissioning. Lighting is adjusted, media systems are tested, interactive elements are calibrated and access procedures are reviewed.

Final scenic touch-ups are completed after the main installation activity has finished. Joints, fixings and transport damage are repaired so that the completed environment reads as one continuous installation.

Commissioning should confirm not only that each system works, but that it can be maintained safely after the project team leaves site.

Handover & Lifecycle Planning

A museum environment requires a more detailed handover than many temporary installations.

Operational teams may need information covering cleaning methods, paint references, replacement materials, access procedures, equipment specifications and recommended inspection intervals.

Spare components can be supplied for items likely to receive wear or become difficult to source later. These might include graphic panels, specialist fixings, lighting components or samples of scenic finishes.

Lifecycle planning also helps museums anticipate future expenditure.

Some systems will require routine maintenance, while others may need replacement after several years. Understanding these cycles allows the operator to plan upgrades without disrupting the entire visitor environment.

The value of good documentation becomes more important as staff and contractors change over time. Clear records help future teams understand how the environment was constructed and how individual components can be serviced.

A Long-Term Operational Asset

The strongest museum environments balance visual quality with operational practicality.

They are built using materials appropriate to continuous public use. Technology is integrated with ventilation and future replacement in mind. Maintenance access is concealed but practical. Scenic finishes are durable, repairable and compatible with regular cleaning.

For Evolution Scenic, museum fabrication involves thinking beyond the initial installation. Every component must be considered in relation to visitor movement, servicing, maintenance and the expected life of the environment.

A successful museum installation is not simply one that opens on time and looks complete.

It is one that continues to function, communicate and perform reliably for many years.

Building Registration Desks For Conferences

Registration desks are often among the first physical elements visitors encounter when arriving at a conference, forum, corporate event or exhibition. They establish an immediate visual presence, but their real purpose is operational. A successful registration environment must support staff, equipment, storage, visitor movement and technology while remaining robust enough to perform throughout the event.

Although registration desks can appear relatively simple, they are rarely just counters with graphics applied to the front. Behind the finished surfaces is a coordinated piece of scenic fabrication that may include modular carcasses, reinforced worktops, lockable storage, ventilation, power distribution, data routes and access panels.

Every element must work together within a structure that can be transported efficiently, installed within a limited access period and maintained throughout the event.

The strongest registration environments are therefore not defined by appearance alone. They are shaped by how effectively fabrication, technology and day-to-day operation have been resolved before manufacturing begins.

Designing Around Operation

The development of a registration desk should begin with an understanding of how the structure will be used.

The required working height, number of registration staff, equipment layout and visitor interaction points all influence its dimensions. A desk intended for a small corporate forum may only need one or two service positions. A larger conference registration environment might require an extended run of counters with multiple badge-printing stations, accessible sections and dedicated collection points.

These requirements affect more than the desk’s length. They influence internal compartment sizes, legroom, worktop depth, cable routes and the positioning of equipment.

The rear of the desk is particularly important. Staff need sufficient space to work without colliding with internal supports, loose wiring or poorly positioned storage. Printers and laptops must sit at practical heights, while consumables such as badge stock, lanyards and stationery need to remain close at hand.

This operational planning allows the scenic structure to support the registration process rather than obstruct it.

Modular Construction For Changing Venues

Registration desks frequently need to move between events or be reconfigured for different venues. Modular construction provides a practical way to accommodate these changes.

Instead of producing one long, rigid counter, the desk can be divided into manageable sections. Each module may contain its own internal framework, finished panels and connection points, allowing several units to be assembled into a continuous registration line.

The size of each module must be determined by more than appearance. Fabricators need to consider loading-door dimensions, lift access, vehicle capacity, handling weight and the number of installers available on site.

Sections that are too large may be difficult to transport or manoeuvre through a venue. Sections that are unnecessarily small can increase assembly time and create additional joints that need to align accurately.

A well-developed modular system balances these requirements. Modules should connect securely, worktops should meet cleanly, graphics should remain aligned and the completed structure should read as one continuous environment rather than a collection of separate boxes.

This relies on accurate fabrication. Repeated modules need consistent dimensions, and connection details must tolerate frequent assembly without loosening or damaging adjacent finishes.

Where the same registration environment is expected to tour, components may also be labelled or indexed so that installation teams can quickly identify their position within the overall layout.

Integrating Badge-Printing Equipment

Badge printing is one of the most common technical requirements within modern conference registration desks.

Printers, laptops, scanners and network equipment all occupy space, generate heat and require reliable access to power and data. These systems cannot simply be placed into the structure after fabrication without considering how they will be used and maintained.

Printer dimensions need to be confirmed early, including the space required to load badge stock, remove printed passes and access controls. Some machines require clearance above or behind the unit, while others need regular access to side panels.

Ventilation may also be necessary where equipment is enclosed within the desk. Discreet openings, perforated panels or concealed airflow gaps can prevent heat from building up without compromising the external appearance.

Equipment can be integrated in several ways. Printers may sit on the main working surface, within recessed compartments or on internal pull-out shelves. Each solution affects usability differently.

A recessed printer may reduce visual clutter but must remain easy to operate. A pull-out shelf can simplify maintenance but requires suitable runners, clearances and cable flexibility. Equipment mounted directly on the worktop is easy to reach but occupies valuable working space.

The correct solution depends on the equipment and registration workflow. Scenic fabrication must respond to those practical requirements rather than forcing the technology into a predetermined shape.

Concealed Cable Management

Technology integration creates a second challenge: cable management.

Registration desks may require power for printers, monitors, laptops, lighting and charging points, together with data connections for registration systems. Without planned cable routes, the rear of the counter can quickly become cluttered and difficult to operate safely.

Cables should be directed through the structure using cut-outs, grommets, internal channels and accessible service voids. Power distribution units can be mounted securely inside the desk rather than left loose on the floor or worktop.

Where several modules are connected, cable routes must continue between sections without becoming trapped at the joints. Removable panels or hinged access doors can provide access to connectors while keeping the technical infrastructure concealed during operation.

Entry points from the venue floor also need consideration. Power and data supplies may arrive from beneath a raised floor, from a nearby wall or through surface-mounted cable ramps. The desk design should be able to accept these services without exposing unnecessary wiring.

Effective cable management does not mean making every cable inaccessible. Systems still need to be inspected, disconnected and repaired. The best approach conceals cables from view while keeping them organised and reachable by the technical team.

Storage Built Into The Structure

Registration environments often require more storage than is initially anticipated.

Badge stock, lanyards, stationery, spare equipment, printed schedules, personal belongings and packaging materials may all need to be stored behind the desk. Without dedicated compartments, these items can quickly occupy the work surface or become visible to arriving visitors.

Internal shelving, drawers and lockable cupboards can be incorporated into the modular carcasses. Their placement should reflect how the desk will be operated. Frequently used materials need to be accessible without staff leaving their positions, while less commonly used items can be placed in lower or enclosed compartments.

Lockable storage can be particularly useful for laptops, scanners and other equipment when the registration area is unattended. Doors and drawers must open without restricting circulation behind the counter, and hardware needs to withstand repeated use.

Storage also contributes to transportation efficiency. Where practical, loose components such as shelves, plinths or removable signage can be packed inside the desk modules during transit. This reduces the number of separate items that must be handled and helps keep the installation package organised.

However, storage spaces intended for transport must be designed to secure their contents. Unrestrained components can damage internal finishes or hardware while the units are being moved.

Branding As Part Of The Fabrication

Registration desks often carry prominent event or corporate branding. Front panels, illuminated logos, digital displays and header structures can all form part of the finished environment.

Branding should be integrated into the construction method rather than treated as a final decorative layer.

Large-format graphics require smooth, accurately prepared surfaces. Applied vinyl needs edges and joints positioned so that the graphic can be installed cleanly. Printed tension fabric requires suitable frames and fixing details. Dimensional lettering may need concealed studs, templates or internal reinforcement.

For events with changing identities, replaceable graphic panels can make the registration desk more adaptable. Magnetic skins, mechanically fixed panels or tension-fabric graphics allow the same core structure to be rebranded without rebuilding the entire counter.

Illuminated logos and lightboxes introduce further technical requirements, including LED access, ventilation, transformers and cable routing. These elements must remain serviceable after installation.

Whatever the branding method, it should not interfere with operation. Graphic panels must not block access doors, logos should not prevent modules from separating, and illuminated elements need to survive transport without becoming vulnerable points within the structure.

Supporting queue layouts through fabrication

Queue management is partly influenced by the physical configuration of the registration environment.

The length and orientation of the counter help determine how visitors approach, where they wait and how individual registration positions are identified. The structure may include dedicated areas for pre-registered guests, new registrations, badge collection or assistance.

These functions can be communicated through suspended signs, raised header panels, illuminated identifiers or modular branding elements mounted above the desk. Such features must be engineered so that they remain stable without creating excessive base weight or obstructing staff.

Accessible registration positions may also require lower counter sections or open knee spaces. These areas need to be incorporated into the construction from the beginning, as they affect framework, storage and graphic layouts.

Where queue barriers connect visually or physically with the desk, their placement should be coordinated with base plinths, floor finishes and service routes. The objective is not to plan the event operation, but to ensure the fabricated environment supports the intended layout without introducing physical obstacles.

Transportation & Site Installation

A registration desk that performs well in the workshop must also reach the venue safely and assemble efficiently.

Transport considerations influence material selection, module size and packaging. Timber-based scenic construction offers flexibility and a high-quality finish, but weight must be controlled. Metal subframes may be introduced where additional strength or repeated handling is expected.

Lightweight panels and aluminium components can reduce the load where touring requirements are significant.

Exposed corners and finished edges are particularly vulnerable during transport. Protective covers, padded flight cases or dedicated stillages may be required depending on the finish and expected number of journeys.

On site, the installation sequence should be straightforward. Base modules are positioned and connected before worktops, graphic skins and technical equipment are added. Adjustable feet or levelling systems can compensate for uneven venue floors and keep long counter runs aligned.

Connection points should be accessible to installers without requiring unnecessary dismantling.

Fixings must be secure but practical, particularly where installation time is limited.

Technology teams may need access before the desk is fully closed so that power, data and registration equipment can be tested. Coordinating these stages within the build methodology helps prevent finished panels from being repeatedly removed and refitted.

Finishes that withstand continuous use

Registration desks experience constant physical contact. Bags are placed on worktops, staff move equipment across surfaces, cupboard doors are opened repeatedly and visitors lean against front panels.

Material and finish selection should reflect this level of use.

Worktops need durable surfaces with cleanable finishes and protected edges. High-pressure laminates, solid-surface materials, painted timber products and other scenic finishes can all be appropriate depending on the design, budget and expected lifespan.

Painted finishes require careful preparation to remain consistent across modules. Edges and corners may need additional reinforcement or harder-wearing coatings, particularly for touring desks.

Gloss finishes can create a premium appearance but reveal fingerprints and surface imperfections more readily. Textured or satin finishes may provide greater tolerance in high-contact areas.

Graphics should also be selected with durability in mind. Replaceable skins can protect the core structure, while direct-applied finishes may be more suitable for short-term use.

The objective is not simply to make the desk look presentable at the beginning of the event. It should remain clean, aligned and operational after sustained use.

Complexity hidden behind a simple counter

The most successful registration desks rarely draw attention to their technical details.

Visitors see a clear branded surface and an organised point of arrival. Behind it are carefully positioned printers, concealed cables, accessible storage, reinforced modules and connections designed for rapid installation.

The structure works because those requirements were resolved during design development and fabrication.

At Evolution Scenic, registration environments are approached as working scenic structures rather than standalone pieces of furniture. Their effectiveness depends on buildability, operational access, transportation and repeated performance as much as their finished appearance.

When modular construction, technology integration, branding and site logistics are considered together, the result is a registration desk that looks straightforward because the complex work has already been done.
