Installing Large Scenic Structures

Fabrication is only one part of delivering a large scenic structure. The process of transporting, lifting, assembling and commissioning it on site can introduce constraints that influence almost every decision made during design and production.

Large structures rarely arrive fully assembled. Vehicle dimensions, road restrictions, venue access, lifting capacity and available installation space usually require the build to be divided into transportable modules. Those modules must then reconnect accurately, safely and efficiently within a limited installation window.

This creates a direct relationship between fabrication methodology and installation strategy. Connection details, module sizes, lifting points, transport frames, temporary supports and assembly sequences must be developed before production begins. When installation is treated as a separate final stage, even a well-fabricated structure can become difficult, slow or unsafe to deploy.

The most successful installations are therefore planned from the site backwards. The final position, access route, lifting method and sequence of work are understood first, allowing the structure to be engineered and fabricated around real site conditions.

Designing and Fabricating for Installation

Installation planning should begin during the earliest design and engineering stages. Before materials are ordered or fabrication drawings are released, the project team must understand how the completed structure will be divided, transported, handled and assembled.

A buildability review is one of the most valuable steps in this process. Designers, engineers, workshop supervisors, logistics teams and installation managers review the proposed structure together, identifying anything that may create difficulty during production or deployment.

This review may examine:

The dimensions and weight of each module
Vehicle and trailer limitations
Loading dock and site access dimensions
Available lifting equipment
Connection locations and assembly tolerances
Temporary stability during installation
The order in which components must be installed
Access for final fixing, inspection and maintenance

These considerations often lead to a modular construction strategy.

A large scenic façade, entrance portal, stage environment or exhibition pavilion may be divided into primary structural modules, secondary framing, cladding panels and decorative elements. Each section can then be fabricated and finished under controlled workshop conditions before being transported to site.

Effective modularisation is not simply about making components smaller. Modules must be sized around transport, handling and installation requirements while maintaining structural integrity and visual continuity.

Connection details are particularly important. Bolted plates, splice connections, alignment pins and concealed mechanical fixings must be positioned where installation teams can reach them. Connections should be repeatable and robust enough to accommodate normal fabrication and site tolerances without creating visible misalignment.

A connection that appears straightforward on a drawing may be difficult to complete when it is positioned several metres above ground, behind cladding or within a restricted access zone.

Installation managers therefore assess not only whether a connection works structurally, but whether it can be installed safely with the available tools and working space.

Trial assembly can further reduce site risk. Large or geometrically complex structures may be partially or fully assembled in the workshop before dispatch. This confirms that modules align correctly, connection points are accessible and decorative finishes continue accurately across joints.

Trial builds also allow installation teams to establish the correct assembly sequence before arriving on site. Components can be labelled, photographed and documented, creating a clear reference for final deployment.

Lifting points should also be integrated during fabrication. Certified lifting eyes, engineered pick points or temporary lifting attachments allow modules to be handled without damaging the structure or its finished surfaces. Their position must account for the centre of gravity, lifting angle and structural behaviour of the module while suspended.

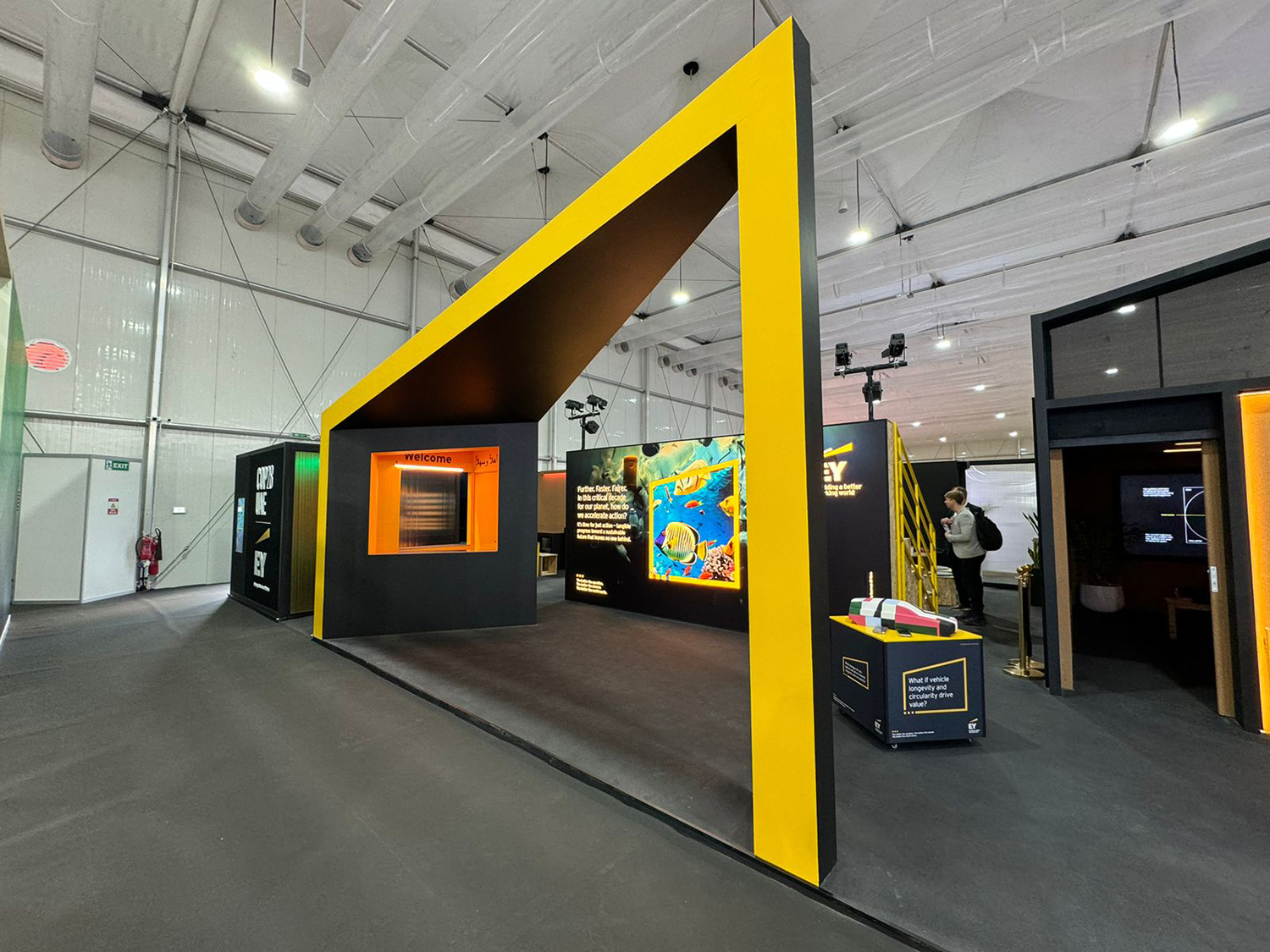

Temporary works are equally important. A structure may be stable when complete but unstable during intermediate stages of assembly. Temporary braces, support frames, kentledge, propping systems or restraint cables may therefore be required until all permanent connections are secured.

Designing these measures in advance prevents site teams from having to develop improvised solutions during installation.

Planning Transport, Access and Lifting Operations

The route from the workshop to the final installation position must be understood in detail. This includes more than the road journey. It also covers unloading areas, loading docks, service corridors, lifts, doorways, ramps, temporary roads and the final movement of each component across the site.

Access constraints frequently determine the maximum size of each fabricated module.

An exhibition pavilion may need to pass through a loading dock with fixed height restrictions. A cultural installation may need to move through an operational building without affecting existing finishes. An urban structure may require delivery through narrow streets during a limited road closure. A waterfront installation may involve soft ground, restricted crane positioning or access from a barge.

These conditions must be verified rather than assumed.

Site surveys should record clear dimensions, turning circles, ground levels, overhead restrictions and the load capacity of access routes. Photographs, marked drawings and physical measurements help the production team understand the environment in which the structure will be installed.

Where possible, installation managers should also review the venue’s logistics regulations.

Exhibition halls often operate strict delivery booking systems, vehicle time slots, floor-loading limits and working-hour restrictions. Materials may need to arrive in a precise sequence because there is little space available for storage or pre-assembly.

Public installations introduce different requirements. Road closures, municipal permits, pedestrian controls, security zones and restrictions on noisy or high-risk work can significantly reduce the usable installation period. Delivery and lifting operations may need to take place overnight or within carefully controlled time windows.

Transport frames help protect large scenic components during these movements. They are designed to support each module, prevent distortion and protect finished surfaces from straps, forks and handling equipment.

A good transport frame also supports efficient unloading. Components should be packed in the order they will be required, with lifting points and identification labels remaining accessible. If the first item needed on site is positioned behind several later-stage components, valuable installation time may be lost reorganising the load.

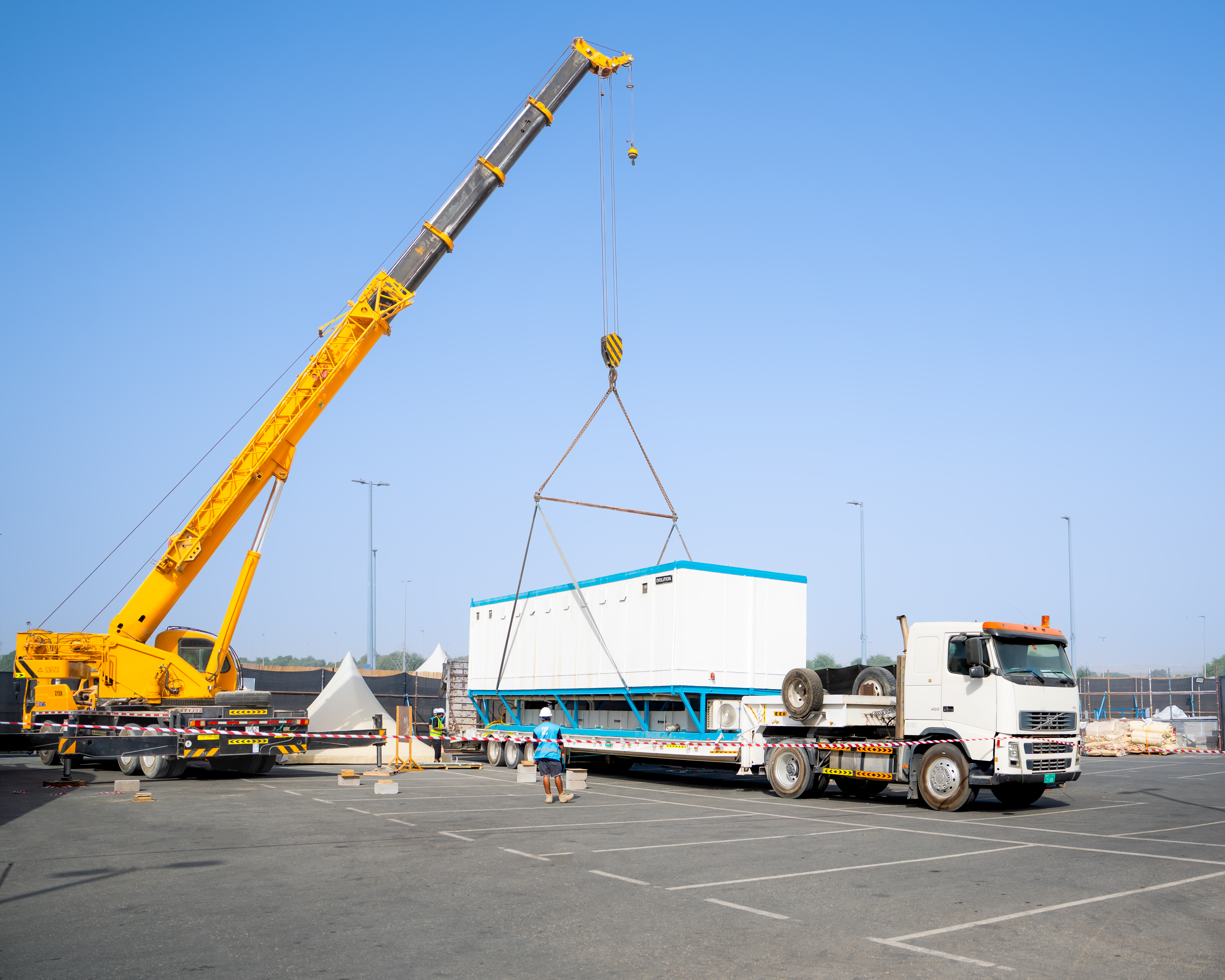

Cranage planning requires similarly detailed preparation.

Before selecting a crane, the team must understand:

The verified weight of each lifted component
The required lifting radius
The final installation height
The crane’s available setup area
Ground-bearing capacity
Outrigger positions
Nearby structures and overhead obstructions
Wind limitations
Rigging arrangements
Exclusion-zone requirements

The weight of each module should be calculated during engineering and confirmed during fabrication where practical. Decorative cladding, integrated equipment and finishing materials can add considerable weight after the primary frame has been completed.

The lifting radius is equally significant. Crane capacity reduces as the distance between the crane and the load increases. A module that appears relatively light may require a substantially larger crane if the equipment cannot be positioned close to the installation area.

Rigging must be coordinated with the module geometry. Spreader beams, lifting slings, shackles and tag lines may be required to control the load and prevent compression or damage. Finished components may also need protective padding where lifting equipment could contact visible surfaces.

All lifting operations should be supported by an approved lifting plan. This establishes the equipment, personnel, communication procedures, weather limits and sequence required for each lift.

Managing Site Assembly, Temporary Works and Commissioning

Once components arrive on site, installation must follow a controlled and clearly communicated sequence.

The first stage is usually site preparation. This may include setting out reference points, confirming floor levels, checking foundations, installing base plates or preparing temporary working areas. Any discrepancy between the surveyed site and the actual conditions should be identified before major structural modules are unloaded.

Accurate setting out is essential. Small errors at base level can become significant alignment problems higher in the structure. Survey equipment, laser levels and coordinated datum points help ensure that primary frames are positioned correctly before secondary elements are added.

The sequence of assembly must maintain stability at every stage.

Primary steel or aluminium frames are generally installed first, followed by secondary supports, scenic cladding, decorative features, graphics and integrated technology. However, the exact sequence depends on access. Some lighting, cabling or internal components may need to be installed before external panels close the structure.

Temporary works remain in place until the permanent structure is complete and sufficiently stable. Their removal should be treated as a planned activity rather than an informal final step. Engineers may specify that particular connections, ballast systems or structural elements must be inspected before temporary supports are released.

Exclusion zones are also essential during lifting and overhead work. Only authorised personnel should enter areas beneath or around suspended loads, mobile access equipment and incomplete structures.

Method statements and risk assessments establish how individual tasks will be carried out. These documents should reflect the actual site conditions, equipment and sequence rather than relying on generic procedures.

Daily briefings help ensure that workshop crews, riggers, crane operators, access technicians, electricians and scenic installers understand the planned activities and interfaces. Where several teams are working simultaneously, clear coordination prevents one operation from obstructing or destabilising another.

Exhibition halls present particular coordination challenges because many contractors may be working within the same space. Shared loading routes, limited plant access and strict completion deadlines require careful scheduling. Scenic components should therefore arrive ready for efficient assembly, with unnecessary cutting, painting or modification minimised on site.

Urban and public environments require additional controls. Work areas may need temporary barriers, traffic management, protected pedestrian routes, noise controls and secured material storage. Structures must remain stable and protected even if installation pauses between permitted working periods.

Weather can also affect outdoor installations. Wind speed must be monitored during cranage and when handling large scenic panels. Rain, heat and airborne dust may influence adhesives, coatings, electrical connections and working conditions. Contingency measures should be included within the installation methodology rather than developed only when conditions deteriorate.

After structural assembly, the installation moves into alignment, finishing and commissioning.

Bolted connections are checked and tightened, structural elements are inspected, and temporary handling marks are repaired. Scenic joints are closed, graphics are aligned and surface finishes are touched up. Integrated lighting, screens, motors or interactive systems are tested in coordination with the relevant specialists.

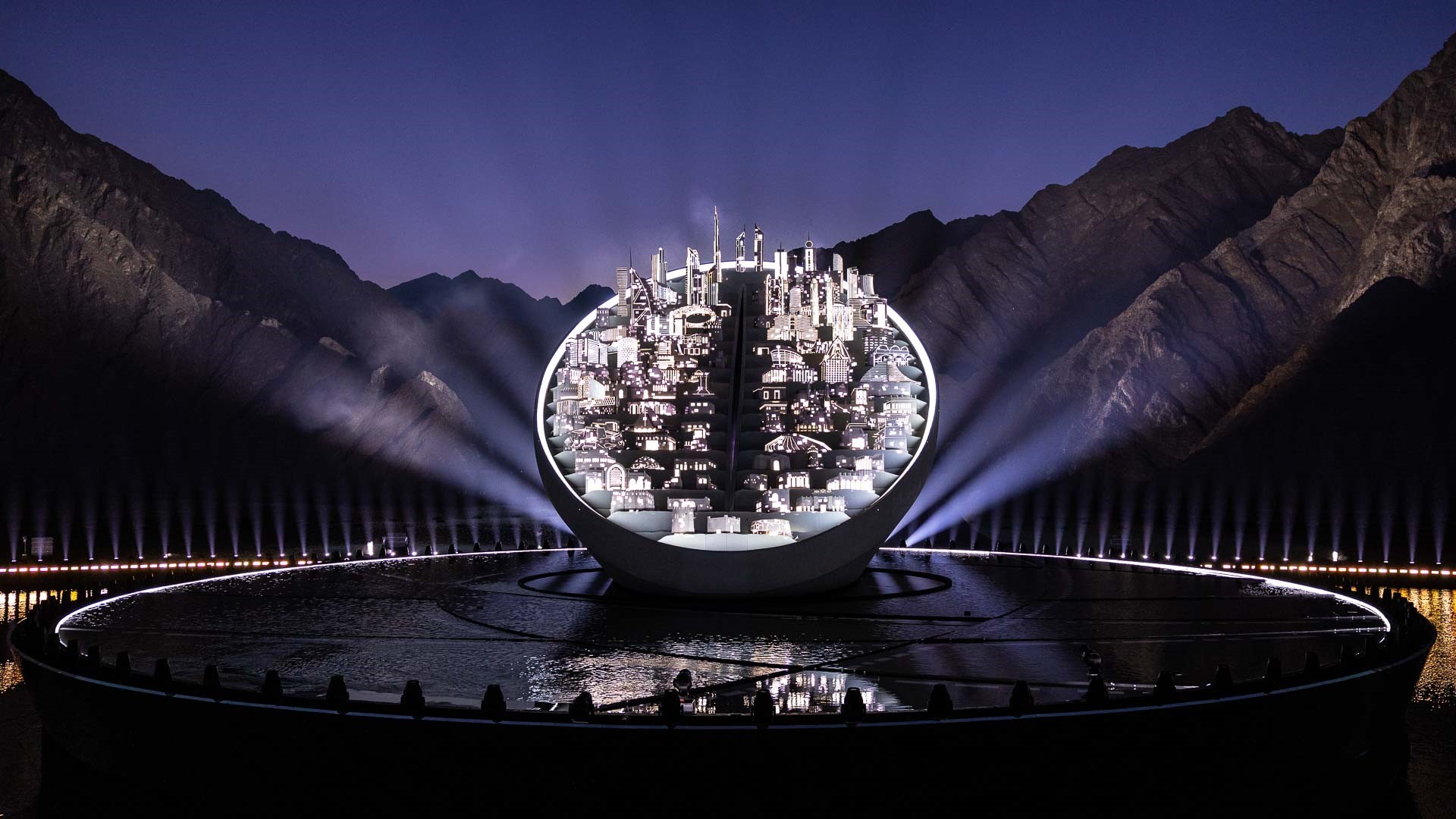

A final inspection should confirm that the installed structure matches the approved drawings, remains stable and is ready for its intended operation. Any ongoing maintenance, access or dismantling requirements should also be documented.

Successful installation projects are rarely won during the final hours on site. They are usually won much earlier through accurate surveys, practical engineering, controlled modularisation and close coordination between design, fabrication, logistics and installation teams.

At Evolution Scenic, installation methodology forms part of the build strategy from the beginning. Structures are developed around how they will travel, how they will be lifted and how they will be assembled under real site conditions.

When scenic structures are designed with installation in mind, deployment becomes safer, faster and more predictable. Installation stops being a challenge to overcome and becomes an integrated part of the complete fabrication process.
