Installing Large Scenic Structures

Fabrication is only one part of delivering a large scenic structure. The process of transporting, lifting, assembling and commissioning it on site can introduce constraints that influence almost every decision made during design and production.

Large structures rarely arrive fully assembled. Vehicle dimensions, road restrictions, venue access, lifting capacity and available installation space usually require the build to be divided into transportable modules. Those modules must then reconnect accurately, safely and efficiently within a limited installation window.

This creates a direct relationship between fabrication methodology and installation strategy. Connection details, module sizes, lifting points, transport frames, temporary supports and assembly sequences must be developed before production begins. When installation is treated as a separate final stage, even a well-fabricated structure can become difficult, slow or unsafe to deploy.

The most successful installations are therefore planned from the site backwards. The final position, access route, lifting method and sequence of work are understood first, allowing the structure to be engineered and fabricated around real site conditions.

Designing and Fabricating for Installation

Installation planning should begin during the earliest design and engineering stages. Before materials are ordered or fabrication drawings are released, the project team must understand how the completed structure will be divided, transported, handled and assembled.

A buildability review is one of the most valuable steps in this process. Designers, engineers, workshop supervisors, logistics teams and installation managers review the proposed structure together, identifying anything that may create difficulty during production or deployment.

This review may examine:

• The dimensions and weight of each module
• Vehicle and trailer limitations
• Loading dock and site access dimensions
• Available lifting equipment
• Connection locations and assembly tolerances
• Temporary stability during installation
• The order in which components must be installed
• Access for final fixing, inspection and maintenance

These considerations often lead to a modular construction strategy.

A large scenic façade, entrance portal, stage environment or exhibition pavilion may be divided into primary structural modules, secondary framing, cladding panels and decorative elements. Each section can then be fabricated and finished under controlled workshop conditions before being transported to site.

Effective modularisation is not simply about making components smaller. Modules must be sized around transport, handling and installation requirements while maintaining structural integrity and visual continuity.

Connection details are particularly important. Bolted plates, splice connections, alignment pins and concealed mechanical fixings must be positioned where installation teams can reach them. Connections should be repeatable and robust enough to accommodate normal fabrication and site tolerances without creating visible misalignment.

A connection that appears straightforward on a drawing may be difficult to complete when it is positioned several metres above ground, behind cladding or within a restricted access zone.

Installation managers therefore assess not only whether a connection works structurally, but whether it can be installed safely with the available tools and working space.

Trial assembly can further reduce site risk. Large or geometrically complex structures may be partially or fully assembled in the workshop before dispatch. This confirms that modules align correctly, connection points are accessible and decorative finishes continue accurately across joints.

Trial builds also allow installation teams to establish the correct assembly sequence before arriving on site. Components can be labelled, photographed and documented, creating a clear reference for final deployment.

Lifting points should also be integrated during fabrication. Certified lifting eyes, engineered pick points or temporary lifting attachments allow modules to be handled without damaging the structure or its finished surfaces. Their position must account for the centre of gravity, lifting angle and structural behaviour of the module while suspended.

Temporary works are equally important. A structure may be stable when complete but unstable during intermediate stages of assembly. Temporary braces, support frames, kentledge, propping systems or restraint cables may therefore be required until all permanent connections are secured.

Designing these measures in advance prevents site teams from having to develop improvised solutions during installation.

Planning Transport, Access and Lifting Operations

The route from the workshop to the final installation position must be understood in detail. This includes more than the road journey. It also covers unloading areas, loading docks, service corridors, lifts, doorways, ramps, temporary roads and the final movement of each component across the site.

Access constraints frequently determine the maximum size of each fabricated module.

An exhibition pavilion may need to pass through a loading dock with fixed height restrictions. A cultural installation may need to move through an operational building without affecting existing finishes. An urban structure may require delivery through narrow streets during a limited road closure. A waterfront installation may involve soft ground, restricted crane positioning or access from a barge.

These conditions must be verified rather than assumed.

Site surveys should record clear dimensions, turning circles, ground levels, overhead restrictions and the load capacity of access routes. Photographs, marked drawings and physical measurements help the production team understand the environment in which the structure will be installed.

Where possible, installation managers should also review the venue’s logistics regulations.

Exhibition halls often operate strict delivery booking systems, vehicle time slots, floor-loading limits and working-hour restrictions. Materials may need to arrive in a precise sequence because there is little space available for storage or pre-assembly.

Public installations introduce different requirements. Road closures, municipal permits, pedestrian controls, security zones and restrictions on noisy or high-risk work can significantly reduce the usable installation period. Delivery and lifting operations may need to take place overnight or within carefully controlled time windows.

Transport frames help protect large scenic components during these movements. They are designed to support each module, prevent distortion and protect finished surfaces from straps, forks and handling equipment.

A good transport frame also supports efficient unloading. Components should be packed in the order they will be required, with lifting points and identification labels remaining accessible. If the first item needed on site is positioned behind several later-stage components, valuable installation time may be lost reorganising the load.

Cranage planning requires similarly detailed preparation.

Before selecting a crane, the team must understand:

• The verified weight of each lifted component
• The required lifting radius
• The final installation height
• The crane’s available setup area
• Ground-bearing capacity
• Outrigger positions
• Nearby structures and overhead obstructions
• Wind limitations
• Rigging arrangements
• Exclusion-zone requirements

The weight of each module should be calculated during engineering and confirmed during fabrication where practical. Decorative cladding, integrated equipment and finishing materials can add considerable weight after the primary frame has been completed.

The lifting radius is equally significant. Crane capacity reduces as the distance between the crane and the load increases. A module that appears relatively light may require a substantially larger crane if the equipment cannot be positioned close to the installation area.

Rigging must be coordinated with the module geometry. Spreader beams, lifting slings, shackles and tag lines may be required to control the load and prevent compression or damage. Finished components may also need protective padding where lifting equipment could contact visible surfaces.

All lifting operations should be supported by an approved lifting plan. This establishes the equipment, personnel, communication procedures, weather limits and sequence required for each lift.

Managing Site Assembly, Temporary Works and Commissioning

Once components arrive on site, installation must follow a controlled and clearly communicated sequence.

The first stage is usually site preparation. This may include setting out reference points, confirming floor levels, checking foundations, installing base plates or preparing temporary working areas. Any discrepancy between the surveyed site and the actual conditions should be identified before major structural modules are unloaded.

Accurate setting out is essential. Small errors at base level can become significant alignment problems higher in the structure. Survey equipment, laser levels and coordinated datum points help ensure that primary frames are positioned correctly before secondary elements are added.

The sequence of assembly must maintain stability at every stage.

Primary steel or aluminium frames are generally installed first, followed by secondary supports, scenic cladding, decorative features, graphics and integrated technology. However, the exact sequence depends on access. Some lighting, cabling or internal components may need to be installed before external panels close the structure.

Temporary works remain in place until the permanent structure is complete and sufficiently stable. Their removal should be treated as a planned activity rather than an informal final step. Engineers may specify that particular connections, ballast systems or structural elements must be inspected before temporary supports are released.

Exclusion zones are also essential during lifting and overhead work. Only authorised personnel should enter areas beneath or around suspended loads, mobile access equipment and incomplete structures.

Method statements and risk assessments establish how individual tasks will be carried out. These documents should reflect the actual site conditions, equipment and sequence rather than relying on generic procedures.

Daily briefings help ensure that workshop crews, riggers, crane operators, access technicians, electricians and scenic installers understand the planned activities and interfaces. Where several teams are working simultaneously, clear coordination prevents one operation from obstructing or destabilising another.

Exhibition halls present particular coordination challenges because many contractors may be working within the same space. Shared loading routes, limited plant access and strict completion deadlines require careful scheduling. Scenic components should therefore arrive ready for efficient assembly, with unnecessary cutting, painting or modification minimised on site.

Urban and public environments require additional controls. Work areas may need temporary barriers, traffic management, protected pedestrian routes, noise controls and secured material storage. Structures must remain stable and protected even if installation pauses between permitted working periods.

Weather can also affect outdoor installations. Wind speed must be monitored during cranage and when handling large scenic panels. Rain, heat and airborne dust may influence adhesives, coatings, electrical connections and working conditions. Contingency measures should be included within the installation methodology rather than developed only when conditions deteriorate.

After structural assembly, the installation moves into alignment, finishing and commissioning.

Bolted connections are checked and tightened, structural elements are inspected, and temporary handling marks are repaired. Scenic joints are closed, graphics are aligned and surface finishes are touched up. Integrated lighting, screens, motors or interactive systems are tested in coordination with the relevant specialists.

A final inspection should confirm that the installed structure matches the approved drawings, remains stable and is ready for its intended operation. Any ongoing maintenance, access or dismantling requirements should also be documented.

Successful installation projects are rarely won during the final hours on site. They are usually won much earlier through accurate surveys, practical engineering, controlled modularisation and close coordination between design, fabrication, logistics and installation teams.

At Evolution Scenic, installation methodology forms part of the build strategy from the beginning. Structures are developed around how they will travel, how they will be lifted and how they will be assembled under real site conditions.

When scenic structures are designed with installation in mind, deployment becomes safer, faster and more predictable. Installation stops being a challenge to overcome and becomes an integrated part of the complete fabrication process.

Public Safety Within Scenic Environments

Scenic structures are often designed to attract attention, encourage interaction and create a strong visual presence. At the same time, they must operate safely within environments that may contain large numbers of people, changing conditions and complex operational requirements.

Public safety influences almost every decision made throughout the development of a scenic project. It affects structural engineering, material selection, surface detailing, access planning, installation methodology and the way the completed environment is inspected and managed.

Structural stability forms the foundation of safe scenic construction, but public safety extends far beyond engineering calculations. Access routes, edge protection, maintenance requirements, operational procedures, environmental exposure and anticipated visitor behaviour all contribute to the overall safety of an installation.

Public-facing environments also experience behaviour that can be difficult to predict. Visitors may lean against structures, sit on low-level scenic elements, pull decorative components, step onto platforms or climb features that were not intended for access. Children may interact with an installation differently from adults, while busy public areas can create crowd movements and loading conditions that were not apparent during the initial design phase.

Experienced scenic fabrication teams understand these realities and incorporate them into design reviews, engineering decisions and operational planning. Safety is not achieved through one barrier, warning sign or structural calculation. It results from hundreds of coordinated decisions made throughout design, fabrication, installation and ongoing operation.

Designing for Public Interaction and Predictable Misuse

The first stage of public safety planning is understanding how people are likely to interact with the completed scenic environment.

The intended use provides a starting point, but it should not be the only consideration. A feature wall may be designed primarily as a visual backdrop, yet visitors may lean against it while taking photographs. A low scenic platform may appear to be a convenient seat. Decorative projections may become handholds, and an accessible ledge may encourage climbing even when it was not designed for that purpose.

Design reviews should therefore consider both intended interaction and reasonably predictable misuse.

This does not mean every scenic structure must be designed for every possible action. It means identifying behaviours that are likely within the specific environment and removing unnecessary opportunities for unsafe interaction wherever practical.

Public interaction reviews may consider:

• Whether low-level elements could be climbed or used as seating
• Whether projecting details could become handholds or trip hazards
• Whether visitors can access the rear or internal areas of the structure
• Whether sharp corners, exposed fixings or fragile surfaces are within reach
• Whether gaps could trap fingers, clothing or personal belongings
• Whether moving components require guarding or controlled operating zones
• Whether children can access areas not intended for public use
• Whether queues or crowd movement could place pressure against the structure

The geometry of a scenic element can often reduce risk without affecting its visual character.

Sloped surfaces may discourage sitting or climbing. Concealed fixings can remove exposed edges. Decorative forms can be detailed without accessible footholds, while doors and maintenance panels can be integrated into the design rather than appearing as obvious access points.

Material selection also influences public safety.

Surfaces within reach should be robust enough to tolerate repeated touching and occasional impact. Brittle materials may crack or produce sharp edges if damaged. Lightweight decorative components must be securely fixed so they cannot be dislodged through normal interaction.

Transparent materials such as acrylic and polycarbonate require careful edge treatment and suitable fixing methods. Glass elements must be specified according to their position, size and potential impact exposure. Timber surfaces should be free from splinters, while metalwork requires smooth edges, dressed welds and protected corners.

Surface temperature may also need consideration. Dark metal elements exposed to direct sunlight can become uncomfortable or unsafe to touch. Integrated lighting, electrical equipment and mechanical systems should be positioned so that heat, movement and service access do not create hazards within public areas.

Structural design should account for more than the self-weight of the scenic installation. Where public contact is expected, engineers may need to consider horizontal loads, impact, crowd pressure or concentrated loading on accessible surfaces.

A decorative railing, for example, may visually match the surrounding scenic environment but still needs to perform as an effective protective barrier. A raised platform may require edge protection even when its height appears modest, particularly where lighting levels are low or crowd density is high.

The strongest safety solutions are integrated into the structure from the beginning. Barriers, guards and protective elements can often be incorporated into scenic joinery, metalwork and architectural detailing without appearing as later additions.

Managing Access, Environmental Exposure and Installation Safety

A scenic environment must remain safe not only for visitors but also for the teams responsible for installing, inspecting, cleaning and maintaining it.

Maintenance access is frequently overlooked during early design development. Lighting, screens, motors, electrical connections and structural fixings may require inspection or replacement after installation. If these components cannot be reached safely, maintenance teams may be forced to use unsuitable access methods or remove finished scenic elements unnecessarily.

Access panels should be positioned where they can be opened without entering public circulation routes or destabilising surrounding components. Panels may require locks, concealed hinges, controlled opening limits or secondary restraints to prevent accidental removal.

Elevated components may need permanent access provisions or a clearly defined mobile access strategy. Where ladders, mobile towers or powered access equipment will be required, the surrounding floor area and working clearance must be considered during layout planning.

Maintenance routes should also avoid exposing staff to electrical hazards, moving parts, sharp edges or unsupported components. Isolators, control panels and inspection points should be clearly identified and accessible to authorised personnel.

Environmental exposure creates additional public safety considerations, particularly for outdoor scenic structures.

Wind is one of the most significant factors affecting temporary architecture, entrance features, scenic façades, graphic panels and freestanding installations. Large surfaces can generate substantial forces even when the structure appears visually lightweight.

Structural engineering must consider the exposed area, installation location, expected wind conditions and duration of use. Ballast, anchoring systems and foundations should be designed around verified loads rather than general assumptions.

Environmental conditions can also change during the operating period. Fabric graphics may loosen, decorative panels may move and temporary ground conditions may deteriorate. Outdoor structures should therefore be inspected after strong winds, heavy rain, accidental impact or any event that could affect stability.

Heat, ultraviolet exposure, humidity and dust can influence materials, adhesives and mechanical components. Timber may expand or deteriorate if edges are not sealed. Adhesives and vinyl graphics may soften or fail when exposed to high surface temperatures. Metalwork may corrode if protective coatings are damaged, while dust can interfere with moving mechanisms and ventilation systems.

Drainage is another practical consideration. Horizontal surfaces and concealed cavities should not collect water. Moisture trapped within scenic structures can damage materials, increase weight and affect electrical systems.

Installation methodology has a direct effect on public safety because the structure must remain controlled and stable throughout every phase of assembly.

A completed scenic environment may be structurally secure, yet individual modules can remain unstable before all connections, braces and ballast systems are installed. Temporary supports should therefore be planned and engineered rather than developed informally on site.

Installation areas require exclusion zones, controlled access and coordination between scenic installers, riggers, lifting teams, electricians and venue personnel. Public routes may need to be diverted while overhead work, lifting or incomplete structures remain present.

Where installation takes place within an operational destination, museum, retail environment or public space, the work may need to be phased around visitor access. Barriers should clearly separate the working area without creating new trip hazards, restricted exits or congestion points.

Components should be secured whenever work pauses. Tools, fixings and unfinished materials must not be left where they can fall, be moved by unauthorised persons or obstruct emergency routes.

Pre-opening inspections should confirm that all temporary works have either been removed or approved to remain, structural connections are complete, access panels are secured and unfinished areas are isolated from the public.

Inspection, Monitoring and Operational Safety

Public safety continues after the scenic environment has opened.

Structures can change during operation. Connections may loosen, surfaces may become damaged and components may be affected by repeated interaction. Operational teams therefore need a clear inspection and monitoring process appropriate to the duration, complexity and location of the installation.

A short-term activation may require daily visual checks, while a longer-term visitor centre or museum installation may need scheduled technical inspections supported by maintenance records.

Inspection procedures may include:

• Checking that structural elements remain aligned and stable
• Confirming ballast, anchors and restraints have not moved
• Inspecting accessible surfaces for cracks, sharp edges or damage
• Checking barriers, handrails and edge protection
• Confirming access doors and maintenance panels remain secured
• Inspecting moving components and guarding systems
• Reviewing electrical enclosures, cable routes and illuminated features
• Checking outdoor structures after adverse weather
• Confirming emergency routes remain unobstructed
• Recording defects and completing corrective work

The inspection process should distinguish between issues that can be monitored and those requiring immediate action. A damaged decorative finish may be visually undesirable but present little immediate risk. A loose panel, exposed sharp edge or unstable barrier requires the affected area to be isolated until it is repaired.

Operational monitoring is particularly important where installations contain moving parts, interactive features or changing scenic configurations. Operators must understand safe operating limits, controlled movement zones and emergency-stop procedures.

Mechanical systems should not rely solely on operator awareness. Guards, sensors, limit switches and physical separation may be required depending on how the public can approach the equipment.

Crowd behaviour can also change the way a scenic environment performs. A structure positioned within an open public area may experience temporary crowd pressure during peak periods, photography moments or queue formation.

Operational teams should observe how people actually use the space and identify behaviours that were not anticipated during design. Barriers, queue routes or staff positions may need to be adjusted if visitors repeatedly enter restricted areas or gather against particular scenic features.

Safety barriers should be proportionate to the environment. In some locations, substantial physical separation may be necessary. In others, a low integrated rail, change in floor level or carefully positioned scenic element may guide visitor movement without affecting the intended appearance.

The design of these controls should consider visibility, accessibility and emergency movement. A barrier that protects one feature should not narrow an escape route, introduce a trip hazard or create crowd congestion elsewhere.

Clear responsibility is essential. The operational team should understand who is authorised to inspect, isolate, repair and approve the structure. Maintenance procedures, finish specifications, engineering limitations and emergency information should be included within the handover documentation.

For long-term installations, records help identify repeated defects or areas experiencing more wear than expected. This information can support preventative maintenance and future design improvements.

At Evolution Scenic, public safety is considered throughout the complete fabrication and installation process. Engineering, materials, surface detailing, access planning and operational requirements are reviewed together so that safety measures support the physical environment rather than appearing as disconnected additions.

The strongest public environments are often those where safety controls are barely noticed. Edges are protected through the form of the structure, barriers are incorporated into scenic detailing and maintenance access is provided without disrupting the visual finish.

Public safety is not one final check completed before opening. It is an ongoing process shaped by design decisions, fabrication quality, installation control and active operational monitoring.

When these elements are coordinated from the beginning, scenic environments can remain visually ambitious, practical to maintain and safe for the people who use them.

Managing Oversized Scenic Deliveries Across The GCC

The GCC offers significant opportunities for large-scale scenic projects, but it also presents logistical conditions that can influence a structure long before it leaves the workshop.

Exhibition pavilions, scenic stage environments, public installations, entrance structures and oversized branded features may travel between cities, regions and countries before reaching their final destination. Every movement introduces practical considerations involving vehicle capacity, route restrictions, border documentation, handling equipment and installation schedules.

As a structure becomes larger, logistics becomes increasingly influential.

A scenic feature may be straightforward to fabricate as one complete assembly, but impossible to transport through road networks, customs facilities or restricted site access. A module may fit comfortably onto a trailer yet exceed the dimensions of the final loading dock. Decorative components may survive workshop handling but require additional reinforcement and protection for a long-distance journey.

Oversized scenic delivery is therefore not simply a transport exercise completed after fabrication. It is a coordinated process linking engineering, manufacturing, packing, customs clearance, route planning and site installation.

Projects moving between Dubai, Riyadh and other GCC destinations require particular attention to timing. Border processes, vehicle restrictions, regional working practices and final installation windows must all be considered within the programme.

The objective is not only to move scenic components from one location to another. They must arrive safely, in the correct order and ready to be installed without unnecessary modification or rehandling.

The strongest delivery strategies begin while the structure is still being designed.

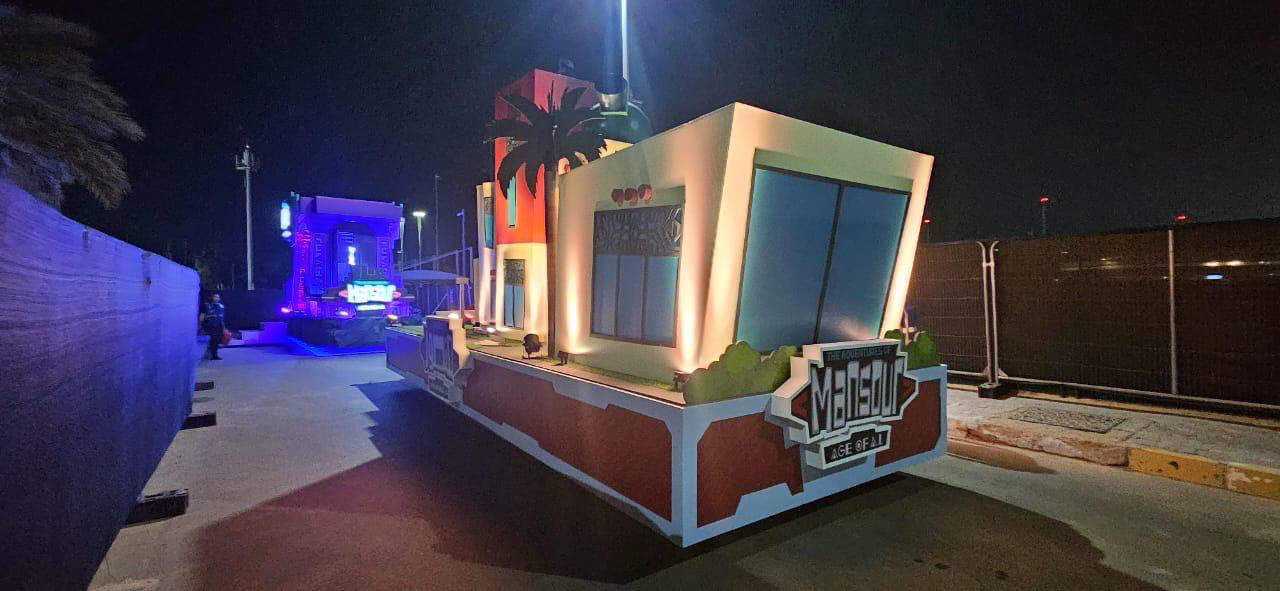

Designing and Fabricating Scenic Structures for Transport

Transport planning should begin before detailed fabrication drawings are approved.

At this stage, engineers, workshop teams and logistics specialists can review how the completed structure will be divided, handled and secured. Module sizes, structural connections and lifting points can then be developed around the complete journey rather than only the final installed condition.

The first question is often whether the structure can travel within standard vehicle dimensions.

Where possible, scenic components are designed to fit conventional trailers, box vehicles or enclosed transport units. This can simplify scheduling, reduce route restrictions and provide greater protection from weather and road debris.

Large scenic structures, however, may exceed standard limits because of their height, width, length or overall weight. These components may require low-bed trailers, extendable vehicles, specialist loading equipment or phased transportation.

The decision to transport an oversized module should be made carefully. Producing a larger assembly can reduce site installation time, but it may introduce more complex vehicle requirements, route surveys and handling operations.

Dividing the structure into smaller modules may simplify transportation but increase the number of site connections, lifting operations and finishing joints.

The correct balance depends on:

• Vehicle and trailer dimensions
• Module weight
• Road and route limitations
• Border and customs arrangements
• Loading and unloading capacity
• Site access restrictions
• Available cranage
• Installation duration
• Surface-finish requirements
• The number of visible site joints

Modular construction is most effective when transport divisions follow the logic of the structure.

A large scenic façade may be separated at architectural joints or shadow gaps. A stage environment may be divided into structural frames, scenic cladding and decorative features. An exhibition pavilion may use repeatable wall, roof and floor modules that can be packed efficiently and assembled in a controlled sequence.

Connections should be strong, accessible and repeatable.

Bolted steel plates, alignment pins, splice connections and mechanical panel fixings allow structures to be reassembled without relying on extensive site welding or permanent bonding. Connection points can often be concealed within decorative trims, graphic panels or recessed architectural details.

Transport tolerances must also be considered. Long-distance movement can introduce vibration and minor structural movement. Modules should be rigid enough to maintain their geometry without making site alignment unnecessarily difficult.

Trial assembly provides an opportunity to confirm that sections fit correctly before dispatch. It also allows installation teams to review the connection sequence, tools, lifting arrangements and temporary supports required on site.

Lifting points should be integrated during fabrication.

Large scenic modules may need to be moved several times between workshop assembly, packing, vehicle loading, customs inspection and final installation. Certified lifting eyes, reinforced pick points or dedicated forklift channels can reduce handling risk and protect finished components.

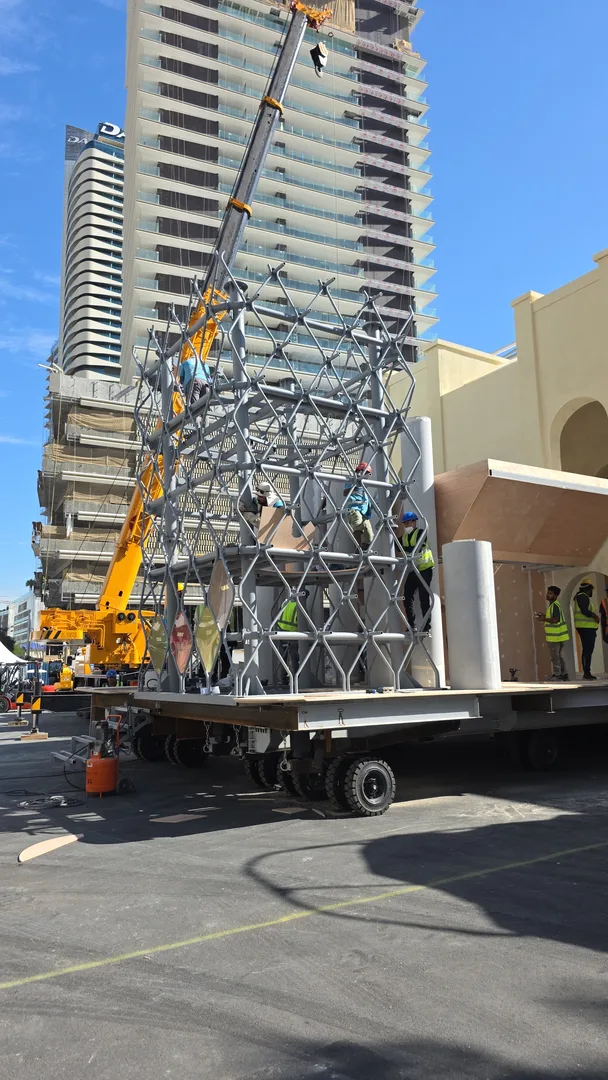

The centre of gravity should be understood before lifting begins. Irregular scenic structures may not balance where their external shape suggests, particularly when internal steelwork or integrated equipment is concentrated within one area.

Transport frames are equally important.

A purpose-built frame supports the module at engineered positions, prevents twisting and creates safe locations for straps and restraints. It also protects decorative surfaces from direct contact with vehicle decks, forklifts and neighbouring components.

Transport frames can be particularly valuable for:

• Finished wall and façade modules
• Curved scenic panels
• Large freestanding letters
• Sculptural forms
• Integrated LED surrounds
• Decorative metalwork
• Fragile moulded components
• Reusable exhibition structures

Packing should protect both appearance and structural alignment.

Soft finishes may require non-abrasive wrapping, corner protection and separation layers. Painted components must be sufficiently cured before packing, while protective films should not react with coatings during prolonged exposure to heat.

Items should also be packed according to the installation sequence. Components required first should remain accessible during unloading. Temporary braces, base frames and connection hardware should not be buried behind later-stage decorative elements.

Detailed identification supports this process. Module labels, packing lists and installation references allow site teams to confirm where each component belongs without repeatedly opening or moving protected items.

Coordinating Oversized Transport, Routes and Cross-Border Requirements

Once the structure has been designed for movement, the complete transport route must be reviewed.

The route from the workshop to the installation position includes much more than the main highway journey. It may also involve industrial access roads, border facilities, urban streets, venue loading docks, temporary compounds and restricted site entrances.

An oversized vehicle may be capable of travelling between cities but unable to complete the final kilometre because of a low bridge, narrow turning radius or restricted delivery gate.

Route planning should consider:

• Bridge and overhead clearances
• Road width and turning circles
• Vehicle weight restrictions
• Tunnel dimensions
• Temporary roadworks
• Urban access controls
• Border-facility capacity
• Vehicle holding areas
• Final delivery entrances
• Ground conditions at unloading points

Where a load exceeds normal road dimensions, specialist logistics providers may need to conduct a route survey. This confirms whether the proposed vehicle can travel safely and identifies locations requiring additional control.

Depending on the load and route, oversized transport may involve escort vehicles, approved travel periods or coordination with local authorities. These requirements should be understood early because they can influence both the delivery date and the permitted vehicle configuration.

Large structures may need to move at night or during lower-traffic periods. Urban destinations can impose additional restrictions on vehicle access, noise and unloading operations.

Projects travelling between Dubai and Riyadh or across other GCC borders introduce customs and documentation requirements.

The precise documentation depends on the origin, destination, ownership and intended duration of the goods. Scenic shipments may include fabricated structures, electrical equipment, specialist coatings, tools, spare parts and reusable production materials, each of which must be described accurately.

Typical shipment information may include:

• Commercial or pro forma invoices
• Detailed packing lists
• Material descriptions
• Component quantities and values
• Weight and dimensional information
• Country-of-origin details
• Commodity classifications
• Vehicle and driver documentation
• Importer or consignee information
• Supporting permits where applicable

Descriptions should be clear enough for customs teams to understand what is being transported.

Generic terms such as “event materials” may not provide sufficient detail for a shipment containing fabricated steel structures, timber scenic walls and integrated technical components.

Documentation should match the physical load. Module labels, packing references and declared quantities need to remain consistent so that inspections can be completed without unnecessary confusion.

Temporary projects may require a different customs strategy from permanent installations. Some scenic structures will return to the country of origin after use, while others will remain at the destination, be stored locally or be disposed of after the project.

These intentions should be established before shipment because they can affect import arrangements, declared values and re-export documentation.

Cross-border timelines should include reasonable allowance for review, inspection and clearance. Programming transport around the fastest theoretical journey can create significant risk if documentation requires correction or a physical inspection is requested.

The condition of the load during customs inspection should also be considered.

Components may need to be visible or accessible without dismantling the complete transport frame. Packing lists and photographs can help explain the arrangement, while clear labelling allows specific items to be located more efficiently.

Hazardous or controlled materials require particular care. Paints, coatings, batteries, pressurised products and certain chemicals may be subject to transport restrictions or require separate documentation. These materials should be reviewed before loading rather than discovered during vehicle inspection.

Phased transportation is often the most practical solution for complex projects.

The first shipment may contain structural bases, steel frames and temporary works. Later vehicles may carry scenic cladding, graphics, integrated equipment and delicate finishing components.

This sequence allows installation to begin while remaining elements are still in transit, but only when the site programme and border timing have been coordinated accurately.

Phasing also reduces congestion at the destination. Large exhibition and stage sites may have limited unloading space, making it impractical for every vehicle to arrive simultaneously.

Each delivery should have a defined unloading time, holding area and site contact. Where vehicles are delayed, the installation team needs enough flexibility to continue safely without compromising the planned sequence.

Managing Site Arrival and Installation Readiness

Delivery is not complete when the vehicle reaches the site gate.

The final stage involves unloading, checking, positioning and releasing components into the installation sequence. This often requires close coordination between logistics teams, site managers, crane operators, riggers and scenic installers.

Before the vehicle arrives, the unloading area should be confirmed.

The surface must be suitable for the expected vehicle and lifting equipment. Temporary roads, compacted ground or load-spreading systems may be required where the site is undeveloped, sandy or affected by recent weather.

Crane and forklift access should remain clear. Outrigger positions, lifting radii and exclusion zones must be established before vehicles are placed within the unloading area.

Arrival times should reflect site conditions.

Exhibition halls may operate booked loading slots with limited vehicle dwell times. Public installations may depend on temporary road closures or restricted working periods. Stage structures may need to arrive in sequence with rigging, flooring and technical systems.

A vehicle arriving too early can create congestion. One arriving late may interrupt the complete installation programme.

On arrival, the shipment should be checked against its dispatch records.

This may include reviewing:

• Vehicle seals and restraints
• Transport-frame condition
• Module identification
• Visible transit damage
• Packing-list quantities
• Connection hardware
• Lifting accessories
• Finish protection
• Required installation order

Any damage should be photographed before the load is disturbed. Early documentation helps the team determine whether the issue occurred during transport and allows repair requirements to be assessed immediately.

Transport protection should be removed in a controlled sequence. A module should not be released from its frame until the lifting equipment, installation area and temporary supports are ready.

Large components may depend on the transport frame for stability. Removing restraints too early can allow the module to twist, move or become vulnerable to wind.

Site storage should be minimised where possible.

Scenic modules are generally safer when they move directly from the vehicle into their installation position. Where temporary storage is unavoidable, the components need level support, weather protection and secure restraint.

Outdoor GCC conditions introduce additional considerations.

Heat can affect wrapped finishes, adhesives and graphic materials. Dust can enter open technical components, while sudden wind can make lightweight panels difficult to handle.

Sensitive items may need to remain in enclosed vehicles or protected storage until the installation team is ready. Finished components should not be left exposed simply because they arrived ahead of programme.

Coordination between Dubai fabrication teams, regional logistics partners and Riyadh site personnel can help maintain continuity across the delivery process. The same module references, installation drawings and packing information should be used by every team.

This becomes especially important when the personnel receiving the structure were not directly involved in its fabrication.

Installation packs can include:

• Module drawings
• Assembly sequences
• Connection details
• Verified weights
• Lifting-point locations
• Temporary-bracing requirements
• Packing references
• Finish and repair information
• Inspection hold points

Remote workshop support may also assist site teams when questions arise, but it should complement clear manufacturing information rather than replace it.

The completed installation should be inspected after all modules have been connected. Transport restraints must be removed, structural connections confirmed and any handling marks repaired.

Where the structure will later return to Dubai or move to another GCC destination, dismantling and repacking should also be considered. Transport frames, labels and protective materials may need to be retained throughout the operational period.

Reusable scenic systems benefit from consistent documentation. Each journey provides information about handling, packing and connection details that can improve the next deployment.

At Evolution Scenic, GCC logistics is treated as part of the fabrication methodology. Engineering, modular construction, transport frames, customs documentation and site sequencing are coordinated around the complete journey from workshop to installation.

The largest scenic structures do not become manageable simply because a specialist vehicle is available.

They become manageable when every module has been designed around how it will be lifted, protected, transported, cleared and installed.

When logistics planning begins early, oversized structures can move between Dubai, Riyadh and other GCC destinations with greater control and fewer site modifications.

The final installation may appear as one continuous scenic environment.

Its successful delivery depends on hundreds of coordinated movements that began long before the first vehicle left the workshop.

Large Scale Digital Manufacturing Explained

As scenic structures become larger and more complex, traditional fabrication methods alone can struggle to deliver the accuracy, consistency and production speed required. Large-scale digital manufacturing has therefore become an increasingly important part of modern scenic production, particularly for projects involving complex geometry, repeated components or oversized structures.

Digital manufacturing connects design technology directly with workshop production. CNC routers, foam cutting systems and automated machining processes allow fabrication teams to convert digital models into accurately manufactured physical components.

The value of this process is not simply that a machine can cut material quickly. Its real strength lies in the way design information, engineering requirements, manufacturing tolerances and assembly logic can be coordinated before material reaches the workshop floor.

For Evolution Scenic, digital manufacturing is part of a wider fabrication methodology. It supports scenic carpentry, structural fabrication, sculptural production, finishing and installation rather than replacing them.

From Digital Model to Manufactured Component

The manufacturing process begins with a properly developed digital model.

A visually accurate model is not automatically ready for production. Geometry must first be reviewed against available materials, machine capabilities, tooling restrictions, structural requirements and the intended assembly sequence.

Individual parts are extracted from the model and prepared as manufacturing files. During this stage, the fabrication team considers cutter diameter, machining depth, material thickness, grain direction, edge conditions and the amount of material required around fixings or connection points.

Components can then be nested efficiently across standard sheet sizes. Good nesting reduces waste, improves material utilisation and helps organise production into manageable batches.

This preparation stage is critical. A CNC machine will manufacture the information it receives with considerable consistency, but it cannot determine whether the design is structurally practical, easy to assemble or appropriate for the selected material. Those decisions still depend on experienced engineers, technical designers and fabricators.

CNC Routers as Scenic Production Tools

Large-format CNC routers are among the most versatile digital manufacturing tools used in scenic fabrication.

They can produce profiles, openings, rebates, pockets, grooves, engraved markings and interlocking joints across materials such as plywood, MDF, plastics, composite sheets and selected non-ferrous materials when suitable tooling and machining strategies are used.

For exhibition pavilions and large branded installations, CNC-routed parts are often used to create structural ribs, wall profiles, curved frameworks, display components and decorative layers.

Complex curved forms can be divided into a series of accurately cut sections. These sections may then be assembled into a lightweight framework before being clad, filled or finished. What appears as a continuous sculptural surface can therefore be built from an organised system of numbered, repeatable components.

CNC production is particularly useful where parts must connect accurately. Slots, tabs, locating points and fixing holes can be incorporated directly into the manufacturing files, reducing the amount of manual setting-out required in the workshop.

However, accurate machining depends on more than the digital file. Tool condition, machine calibration, vacuum hold-down, extraction, feed speed and material stability all affect the final result. Large-scale CNC production therefore requires both technical preparation and disciplined workshop control.

Foam Cutting and Sculptural Manufacturing

Foam cutting systems extend digital manufacturing into more organic and sculptural forms.

Hot-wire cutting can produce large profiles efficiently from suitable foam blocks, while CNC milling systems can machine more complex three-dimensional geometry. Depending on the project, the manufactured foam may form the finished scenic volume or act as a base for coatings, reinforcement, fibreglass, hard shells or specialist painted finishes.

This process is valuable for sculptural environments, public structures, parade elements and branded installations where conventional sheet construction would require excessive labour or create unnecessary weight.

Large forms can also be divided digitally into sections that suit available foam blocks, machine capacity, transport dimensions and installation access. Registration points and internal references help those sections reconnect accurately during assembly.

Material selection remains important. Foam density, surface vulnerability, fire performance, environmental exposure and the intended finishing system must all be assessed. A lightweight sculptural form used inside an exhibition environment requires a different construction approach from an external public feature exposed to handling, wind, moisture or repeated transport.

Digital cutting provides the geometry, but the durability and visual quality of the completed element depend on the build-up that follows.

Accuracy and Repeatability

One of the most important advantages of digital manufacturing is repeatability.

A single component can be tested, adjusted and approved before the same production data is used across an entire batch. This is especially valuable where hundreds of similar fins, panels, ribs or decorative elements must align across a large installation.

Repeatability does not mean that every material behaves identically. Timber-based sheets can vary slightly in thickness, foam blocks may have dimensional differences, and some materials can move as temperature or humidity changes. Manufacturing tolerances must therefore reflect the behaviour of the material rather than relying on theoretical dimensions alone.

Where components interface with fabricated steelwork, aluminium frames, graphics, lighting or mechanical equipment, the tolerance strategy becomes even more important. Parts may require controlled clearances, adjustable brackets or deliberately oversized fixing points to accommodate workshop and site conditions.

Quality control continues throughout production. Components are checked against drawings, templates or reference dimensions, while sample assemblies can confirm that repeated parts fit together as intended.

The objective is not simply to produce identical pieces. It is to produce parts that perform consistently within the completed scenic system.

Engineering Integration

Digital manufacturing is most effective when engineering information is incorporated before production begins.

Load paths, connection zones, fixing positions and structural interfaces can influence the shape of a manufactured component. A plywood rib may require additional depth around a bolted connection. A routed panel may need access openings for steel brackets. A sculptural shell may require internal channels for reinforcement, lighting or lifting points.

By coordinating these details within the digital model, fabrication teams can reduce drilling, cutting and modification after components have been manufactured.

This is particularly important on large scenic structures where small inconsistencies can multiply across the installation. A minor dimensional error repeated through fifty components can affect alignment, cladding, graphics and final assembly.

Engineering integration also improves communication between departments. Scenic carpenters, metal fabricators, CNC operators, technical designers and installation teams can work from coordinated information rather than developing separate solutions in isolation.

At Evolution Scenic, the digital workflow is therefore connected to the overall build methodology. Production files are developed with consideration for how components will be fabricated, dry-fitted, finished, labelled, packed, transported and installed.

Large-Volume Production

Digital manufacturing allows large volumes of components to be produced efficiently, but machine speed is only one part of the operation.

Once parts leave the cutting bed, they must be identified, inspected, sorted and transferred to the next workshop process. Edges may require preparation, components may need lamination or reinforcement, and individual parts may be assembled into larger modules.

A high-volume project can quickly become difficult to manage if hundreds of similar components are not labelled and sequenced properly. Part numbering, batch references and installation zones can be machined or marked directly onto concealed surfaces, helping the workshop and site teams identify where each component belongs.

Production planning must also consider storage space, material handling and the sequence in which completed parts will be needed. Manufacturing everything at once may create congestion rather than efficiency. In many cases, controlled batches aligned with assembly and finishing capacity provide a better result.

Digital scalability therefore depends on the entire production system. Cutting, assembly, finishing, quality control, packing and logistics must progress at compatible rates.

Scaling Different Types of Scenic Project

The same digital manufacturing principles can support very different scenic applications.

For an exhibition pavilion, CNC production may create a kit of structural ribs, wall sections, counters and architectural features that can be assembled quickly within a restricted installation period.

For a large public structure, digitally manufactured templates and profiles can help control complex geometry while fabricated steelwork provides the primary support.

Within a branded installation, repeated elements may need to align precisely with graphics, lighting and product displays across multiple elevations.

For sculptural environments, foam cutting and CNC machining can establish the underlying form before scenic artists apply texture, colour and specialist finishes.

In each case, the technology remains similar, but the manufacturing strategy changes according to scale, structural performance, finish quality, programme, transport limitations and site access.

Technology Supported by Workshop Skill

Digital manufacturing should not be viewed as a replacement for traditional workshop expertise.

A CNC router can manufacture a complicated profile accurately, but it cannot judge whether the component is easy to handle, whether a joint will remain accessible during installation or whether the chosen finish will conceal the construction method.

Those decisions rely on the practical knowledge of scenic carpenters, metal fabricators, sculptors, painters, engineers and installation teams.

The strongest outcomes come from combining both approaches. Digital tools provide accuracy, repeatability and production capacity. Skilled fabricators provide judgement, adaptation and an understanding of how materials behave in real conditions.

This combination allows ambitious scenic structures to be produced at a scale that would otherwise be difficult, slow or impractical to achieve.

Large-scale digital manufacturing is therefore not simply about automated cutting. It is a coordinated process that connects design, engineering, workshop production and installation.

When those disciplines are developed together, digital manufacturing becomes a powerful tool for delivering complex scenic environments accurately, efficiently and at scale.

Engineering Scenic Steel Structures

Steel remains one of the most important materials used within scenic engineering. Its strength, versatility and adaptability allow fabrication teams to deliver structures that would be difficult to achieve using many alternative construction methods.

Yet successful scenic steelwork is not simply a matter of selecting a strong material and adding enough of it to support the structure. Every decision affects another part of the project. Increasing a member size may improve structural capacity, but it also increases weight. Adding welded connections may produce a rigid frame, but it may complicate transport or prevent efficient dismantling. Reducing the number of components may simplify installation, but create modules that are too large to pass through the venue access route.

For Evolution Scenic, engineering steel structures is therefore an exercise in balancing structural performance with fabrication, transportation, installation and operational requirements.

Engineering Begins Before Fabrication

The engineering process starts long before steel reaches the workshop.

At the earliest stage, the scenic concept must be assessed as a physical structure rather than only a visual composition. Engineers and fabricators consider the overall geometry, expected loads, support conditions, venue restrictions, installation sequence and intended operational period.

A scenic stage may need to support architectural cladding, lighting equipment, LED screens, suspended technical systems and maintenance access. An exhibition pavilion may need long, unobstructed spans while remaining demountable and suitable for installation within strict venue working hours. A large public structure may need to resist wind, interaction from visitors and changing environmental conditions.

These requirements influence the structural arrangement from the beginning. The position of columns, bracing, connection points and foundations cannot be developed independently from the scenic design. They must be coordinated so that the final framework supports the visual intent without creating unnecessary weight, visible obstructions or impractical assembly conditions.

Structural Calculations for Scenic Environments

Structural calculations establish how the steel structure will behave under the loads it may experience throughout its working life.

This normally begins with the self-weight of the steel frame, but the structure rarely carries only itself. Scenic finishes, timber substrates, graphics, lighting systems, AV equipment, access platforms and suspended features all contribute additional permanent loads.

Temporary and imposed loads must also be considered. These may include technicians accessing a structure, equipment being moved during installation, wind acting on large scenic surfaces or operational loads generated by moving components. In public environments, engineers may also need to account for accidental interaction, guarding requirements and areas where visitors could lean against or touch fabricated elements.

Temporary structures require particular attention because their loading conditions can change during installation. A partially assembled frame may behave very differently from the completed structure. Bracing that provides stability in the finished arrangement may not yet be installed during the early construction stages.

Engineering calculations therefore need to consider both the completed structure and the temporary conditions created while it is being assembled or dismantled.

Establishing Clear Load Paths

A load path describes how forces move through a structure and eventually reach the supporting surface.

For example, wind acting on a tall scenic wall may transfer through the cladding into secondary rails, then into the primary steel frame, through diagonal bracing and finally into base plates, anchors or ballast. A suspended scenic feature may transfer its weight through lifting points, beams, columns and foundations.

A clear load path allows each structural component to perform a defined role. When load paths are poorly resolved, forces can become concentrated in unexpected areas, creating excessive movement or requiring unnecessary reinforcement.

This is why bracing positions, beam directions and support locations are important engineering decisions rather than workshop details. The objective is not simply to create a strong collection of steel members. It is to create an efficient structural system in which loads travel predictably through the frame.

Well-resolved load paths can also reduce the total amount of material required. A correctly positioned brace may provide more stability than increasing the size of several beams. A carefully located support may shorten a span and significantly reduce member weight.

Connection Design

Connections are often the most critical parts of a scenic steel structure.

Members may have sufficient capacity individually, but the structure will only perform successfully if forces can be transferred safely between them. Connection design considers plate thicknesses, bolt sizes, weld requirements, hole positions, edge distances and the forces acting at each structural node.

Scenic structures also introduce practical connection requirements that may not exist within permanent construction. Components often need to be transported separately, assembled quickly and removed without damage. This makes bolted and demountable connections particularly valuable.

Workshop-welded assemblies can provide rigidity and accuracy, while bolted site connections allow the structure to be divided into manageable modules. Splice plates, flange connections, captive nuts and accurately coordinated hole patterns can reduce installation time and limit the amount of site welding required.

Accessibility is equally important. A connection that works perfectly within a structural model may be difficult to reach once cladding, decking or technical equipment has been installed. Installation teams need enough space for tools, hands and lifting equipment.

Effective connection design therefore considers structural capacity and the physical reality of assembling the structure on site.

Fabrication Detailing

Once the engineering principles have been established, fabrication detailing converts the structural design into information the workshop can manufacture accurately.

Detailed drawings identify member profiles, steel grades, plate thicknesses, weld sizes, hole diameters, connection references and overall dimensions. They also define how individual components relate to the complete structure.

The choice between rectangular hollow sections, circular hollow sections, universal beams, channels and fabricated plate assemblies depends on more than strength. The selected profile may need to accept cladding, conceal services, create a curved outline or provide a clean interface with timber and scenic finishes.

Fabrication detailing must also account for workshop access. Welds need to be positioned where they can be completed and inspected. Bolts need sufficient clearance. Plates must be shaped to avoid clashes. Tolerances must be coordinated so components can be assembled without creating visible gaps or forcing members into position.

Digital modelling and CNC-controlled production can improve accuracy, particularly where structures contain repeated components, complex geometry or precisely aligned interfaces. However, digital accuracy must still be supported by practical workshop knowledge. Steel moves during welding, frames can distort and apparently minor tolerance issues may multiply across a large structure.

Good detailing anticipates these realities before fabrication begins.

Workshop Processes and Quality Control

Inside the workshop, structural steel components move through cutting, drilling, profiling, welding, grinding, trial assembly and finishing processes.

CNC cutting, laser profiling and automated drilling allow plates and members to be produced with consistent hole patterns and accurate geometry. Fabrication jigs help maintain alignment while repeated frames or connection assemblies are welded.

Welding sequence is important because concentrated heat can distort steel. Experienced fabricators control this by balancing welds, using temporary restraints and checking dimensions throughout production rather than only after a component has been completed.

Where practical, scenic steel structures may be trial assembled in the workshop. This provides an opportunity to confirm that connection holes align, modules fit together, bracing can be installed and scenic interfaces are located correctly.

Components can then be labelled according to the installation sequence. Clear identification becomes especially valuable on large structures containing similar members or mirrored assemblies.

The result is not simply a collection of manufactured parts. It is a coordinated structural kit prepared for efficient assembly.

Designing for Transportation and Installation

A structure cannot be considered successful if it performs structurally but cannot be transported or installed efficiently.

Module sizes must reflect vehicle capacities, road restrictions, loading methods, venue access routes and available handling equipment. A large welded frame may reduce the number of site connections, but it may require specialist transport or lifting equipment. Smaller modules may be easier to handle but increase assembly time.

Installation planning therefore influences the engineering arrangement. Lifting points may be integrated into major modules. Temporary bracing may be added to stabilise frames before the permanent structure is complete. Connections may be positioned so they remain accessible from mobile elevated work platforms or scaffold towers.

The sequence of installation must also be understood. Engineers need to know which parts will be erected first, where lateral stability will come from at each stage and when cladding or technical systems will be added.

For temporary structures, dismantling is part of the same process. Connections should remain accessible, components should be removable without damaging adjacent scenic finishes and modules should be suitable for storage or future reuse where required.

Different Structures Require Different Decisions

Large public structures often require substantial resistance to wind, environmental exposure and visitor interaction. Their steel frameworks may support complex sculptural forms while remaining almost completely hidden beneath finished surfaces.

Scenic stages can introduce long spans, suspended loads, integrated LED screens and concentrated equipment loads. The structure must achieve the required rigidity while allowing production systems, access routes and scenic cladding to be coordinated around it.

Exhibition pavilions frequently prioritise modularity, efficient installation and controlled floor loading. Steel may be combined with aluminium, timber and CNC-manufactured panels to create a hybrid system that uses each material where it performs most effectively.

Cultural installations may require the steel frame to follow unusual geometries or support detailed scenic finishes. In these environments, close coordination between structural engineers, metal fabricators, scenic carpenters, CNC teams and finishing departments becomes particularly important.

Engineering for Performance, Not Excess

The most successful scenic steel structures are not necessarily those containing the greatest amount of material.

They are the structures that achieve the required performance with a clear structural strategy, efficient load paths, practical connections and a considered installation methodology.

Steel provides strength, but engineering determines how effectively that strength is used.

Fabrication detailing turns engineering intent into manufacturable components. Workshop expertise controls accuracy and quality. Installation planning ensures the finished system can be assembled safely within the realities of the site.

At Evolution Scenic, these disciplines operate together throughout the delivery process. The aim is not simply to manufacture steelwork, but to engineer scenic structures that are safe, efficient, transportable and appropriate for the environments in which they will operate.

Vehicle Mounted Structural Systems

Many scenic structures are designed to remain in one position throughout their operational life. Once a structure is installed onto a moving vehicle, however, the engineering brief changes completely.

A vehicle-mounted scenic structure is not simply a static build placed on wheels. It becomes part of a moving system affected by braking, acceleration, vibration, cornering, road gradients, surface conditions and lateral forces. Every scenic element must therefore be considered in relation to the behaviour of the vehicle beneath it.

The strongest solutions begin with movement as a fundamental design condition rather than treating it as a complication to resolve after the creative concept has been approved.

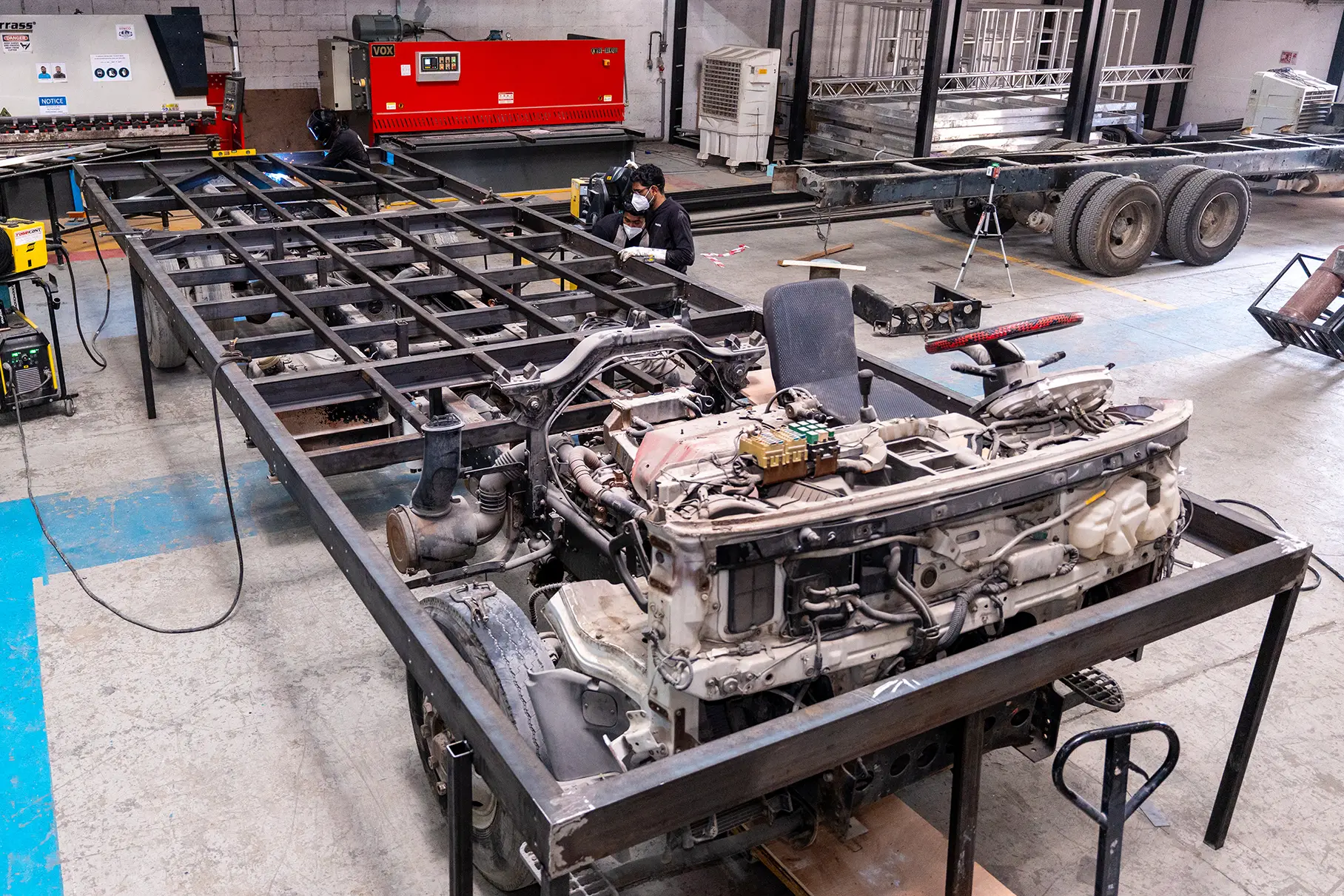

The Vehicle Is Part Of The Structure

Vehicle integration should begin before the scenic design is fully developed.

The chassis type, wheelbase, suspension, gross vehicle weight, permitted payload and available mounting positions can influence almost every aspect of the finished structure. The usable platform shown in a drawing may not represent the areas capable of accepting structural loads, while apparently convenient fixing points may belong to bodywork rather than the primary chassis.

A clear distinction must therefore be made between the vehicle chassis, any intermediate subframe and the scenic structure itself. Each layer performs a different role.

The chassis provides the moving foundation. The subframe distributes loads and creates controlled connection points. The scenic construction delivers the required form, finish and visual identity.

Understanding these interfaces early allows the engineering and fabrication teams to establish reliable load paths before manufacturing begins. It also reduces the risk of discovering during installation that the proposed structure cannot be safely connected to the selected vehicle.

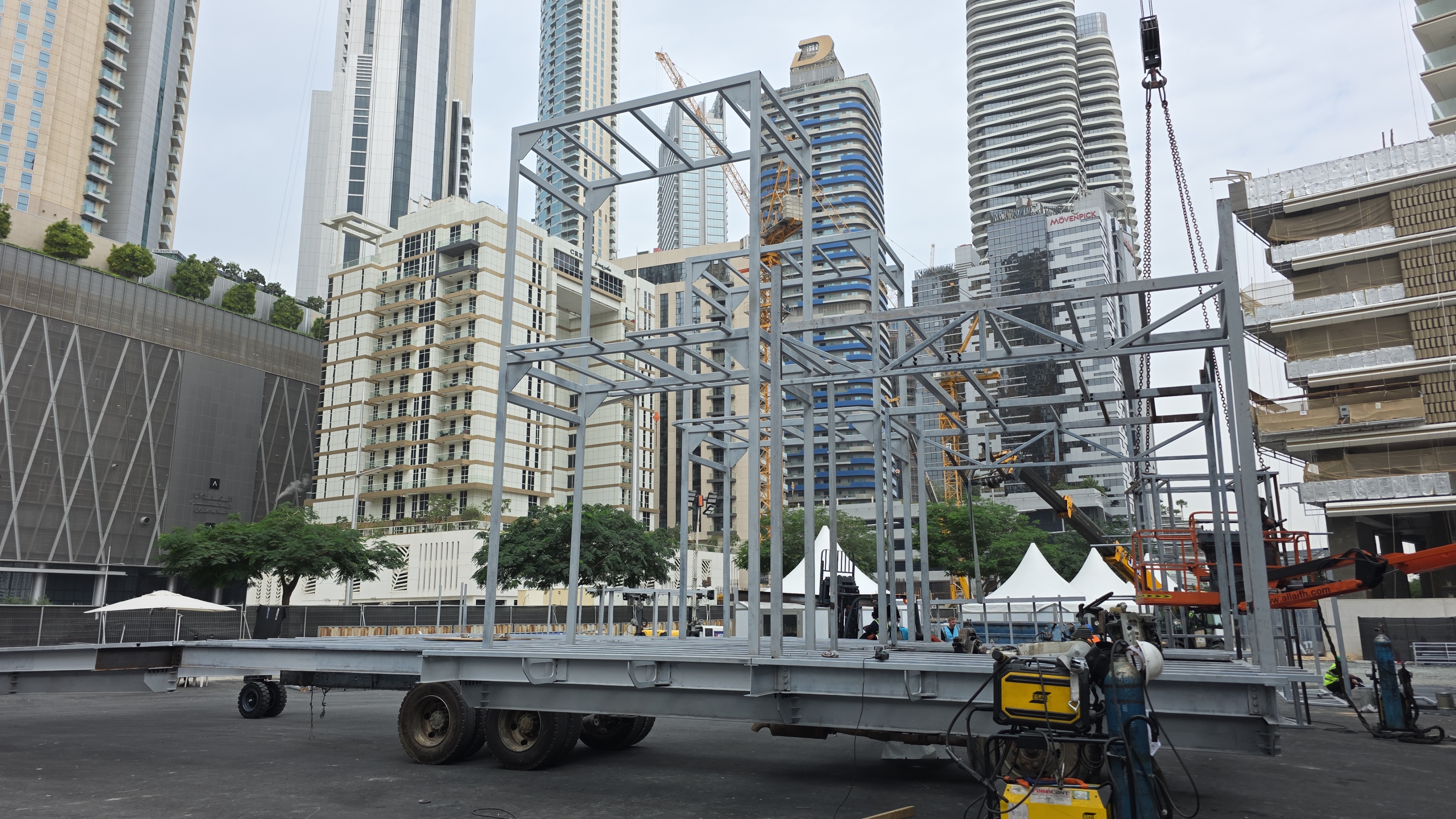

Total Weight Is Only Part Of The Calculation

Remaining within the vehicle’s total payload is essential, but total weight does not tell the whole story.

Axle loading must also be understood.

A structure may fall within the permitted gross vehicle weight while still applying too much load to the front or rear axle. The position of heavy components can significantly affect this balance, particularly when generators, batteries, hydraulic equipment, steelwork, ballast or integrated technology are concentrated within a small area.

Fabrication teams should develop a weight schedule that identifies the estimated mass and position of each major component. The calculations should consider the completed operating condition rather than only the structural frame.

Scenic cladding, lighting equipment, cabling, access platforms, onboard technical systems and removable decorative pieces all contribute to the final load. Fuel level, operational personnel and stored equipment may also influence the vehicle during use.

Where appropriate, the completed platform can be checked using axle scales or a suitable weighbridge. Physical verification provides an opportunity to compare the manufactured result with the original engineering assumptions before the vehicle enters operation.

Managing The Centre Of Gravity

Centre of gravity is one of the most important considerations within vehicle-mounted structural design.

Large scenic forms are often positioned high above the vehicle to increase visibility and create a stronger silhouette. Unfortunately, raising mass also raises the centre of gravity, which can reduce stability during cornering, braking or movement across uneven surfaces.

The issue is not limited to overall height. The horizontal position of the mass also matters. A heavy element located towards one side of the vehicle can produce an uneven load condition, while a large structure extending beyond the platform can introduce additional leverage.

Effective engineering generally aims to keep dense structural components as low and as central as practical. Lightweight materials can then be used for elevated scenic elements where visual volume is required without unnecessary mass.

This approach is particularly valuable for National Day floats, Union Parade structures and other public celebration vehicles where a large visual form may need to travel along an extended route.

Ballast can sometimes be used to improve stability, but it should not be treated as a substitute for efficient design. Additional ballast consumes payload capacity and increases axle loads. It is normally more effective to manage weight distribution through the structure itself.

Designing For Dynamic Loading

A stationary structure experiences loads differently from a moving one.

When a vehicle brakes, the structure attempts to continue moving forwards. During acceleration, the forces act in the opposite direction. Cornering produces lateral forces, while potholes, ramps, road joints and uneven surfaces can create vertical impacts and repeated vibration.

These conditions can magnify forces beyond those suggested by the static weight of the structure.

Dynamic loading must therefore influence the design of the primary frame, mounting system, connections and scenic finishes. Welded joints, bolted connections, brackets, secondary framing and decorative elements all need to remain secure throughout operation.

Repeated vibration is especially important. A connection may withstand a single load but gradually loosen or fatigue after repeated movement. Locking hardware, secondary retention, appropriate welding details and accessible inspection points can all reduce this risk.

The vehicle chassis may also flex during operation. A scenic frame that is excessively rigid or connected without allowing for the behaviour of the platform can experience unintended stresses.

The mounting strategy must account for the relationship between the chassis, subframe and scenic superstructure rather than assuming the vehicle remains perfectly flat.

Creating Reliable Mounting Systems

The mounting system is the physical interface between the vehicle and the scenic build.

Its purpose is not simply to prevent the structure from moving. It must transfer forces into suitable areas of the vehicle while allowing the installation to be inspected, maintained and, where required, removed.

Depending on the project, the solution may use bolted plates, welded subframes, pinned connections, proprietary locking systems or demountable steel interfaces. The correct method depends on the vehicle, operational loads, installation programme and required level of reuse.

Connections should create clear and predictable load paths. Where possible, primary fixings should remain accessible after scenic cladding has been installed. Concealing every structural connection may produce a cleaner finish, but it can make inspection and maintenance unnecessarily difficult.

Modifications to the vehicle chassis should always be carefully controlled. Drilling, welding or cutting structural chassis members without appropriate review can affect vehicle performance, manufacturer requirements or regulatory compliance.

For structures intended to be installed repeatedly, consistency becomes particularly important.

Locating pins, labelled connection points, repeatable bolt patterns and clear assembly drawings can reduce installation time while helping the team reproduce the engineered configuration accurately.

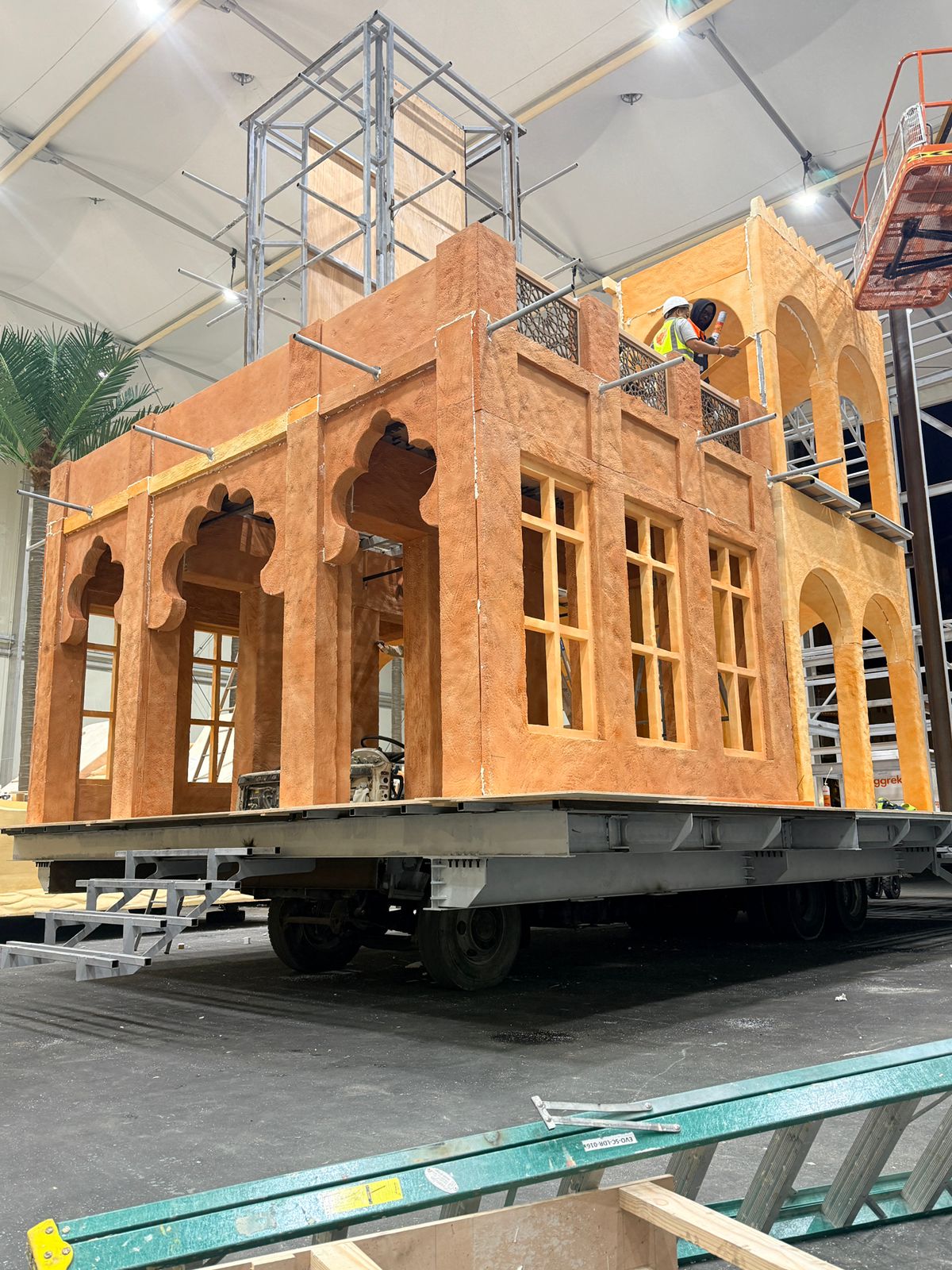

Hybrid Construction For Strength And Weight Control

Vehicle-mounted structures frequently use hybrid construction because no single material can efficiently perform every function.

Structural steel may be used close to the vehicle where concentrated loads and robust mounting connections are required. Aluminium can reduce the weight of elevated frames and large-volume scenic forms. CNC-machined plywood, composites, fabrics, moulded materials and specialist foams can then create the finished geometry and surface treatment.

The objective is not necessarily to make every component as light as possible. It is to place strength, stiffness and mass where they provide the greatest value.

A lightweight scenic panel still requires appropriate support. An aluminium frame still needs carefully designed joints. Composite or foam elements still require secure attachment and secondary retention where failure could create an operational risk.

Material compatibility should also be considered. Dissimilar metals may require isolation, while finishes must tolerate movement, vibration, handling and exposure to the expected environment.

For mobile activation structures used across multiple locations, repairability and repeated assembly may be as important as initial weight. Components should be designed so that local damage can be addressed without dismantling the complete structure.

Route Planning Is Part Of The Design Process

The route should be reviewed while the structure is still being developed.

Vehicle height and width are obvious considerations, but route planning also includes turning radius, road camber, gradients, overhead services, bridges, gateways, trees, surface quality and access into holding or assembly areas.

A vehicle may be capable of travelling along a straight road yet unable to negotiate a tight service entrance or turning area. A structure that clears an overhead obstruction on level ground may behave differently when the vehicle crosses a ramp or sloping surface.

Route information can influence the decision to use folding, telescopic or removable scenic elements. It may also establish separate travel and operating configurations, allowing a structure to remain compact during transportation before being deployed at the destination.

For parade floats, clearance should be assessed across the complete route rather than only at the start and finish points. For mobile activation structures, the arrival sequence, parking condition, levelling requirements and deployment space must also be understood.

The safest solution is often the one that removes uncertainty before the vehicle leaves the workshop.

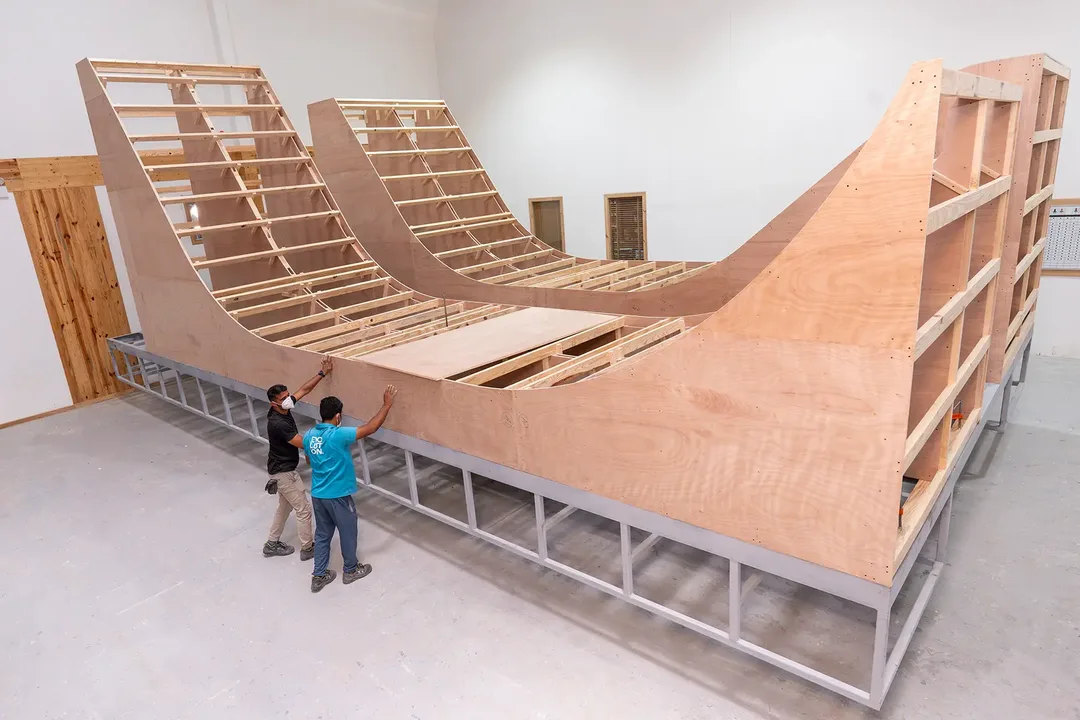

Operational Safety Beyond Structural Calculations

Engineering calculations provide the basis for a safe structure, but operational procedures determine how that structure performs in practice.

Vehicle speed, braking distances, weather limits, driver visibility and communication between operators should all be defined. Access platforms, guardrails, service hatches, electrical systems and moving mechanisms must remain safe throughout installation, testing and operation.

Pre-deployment inspections may include:

·       Checking primary mounting connections and torque markings.

·       Inspecting secondary retention systems.

·       Confirming that removable scenic pieces are locked in position.

·       Reviewing cable containment and electrical connections.

·       Checking access routes, guardrails and working platforms.

·       Confirming that no components interfere with the wheels, steering or vehicle controls.

·       Recording any changes made after the original engineering review.

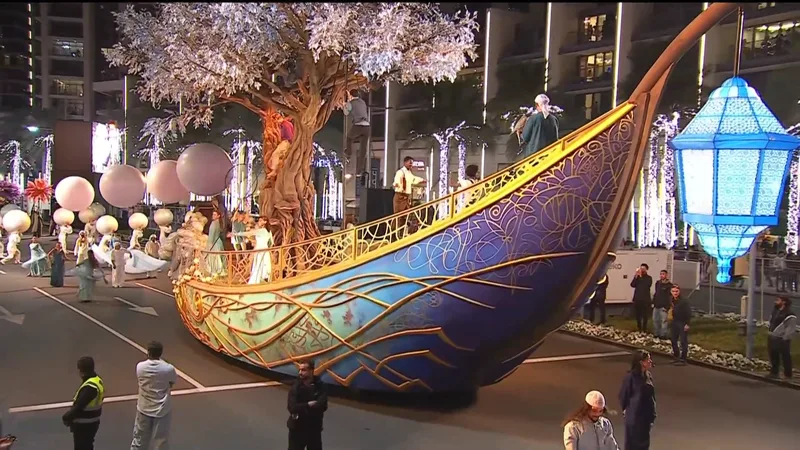

A controlled movement test is also valuable. Low-speed braking, turning and surface-transition

tests can reveal vibration, deflection or clearance issues that may not be visible while the vehicle is stationary.

Rehearsal should confirm the engineering rather than compensate for missing engineering.

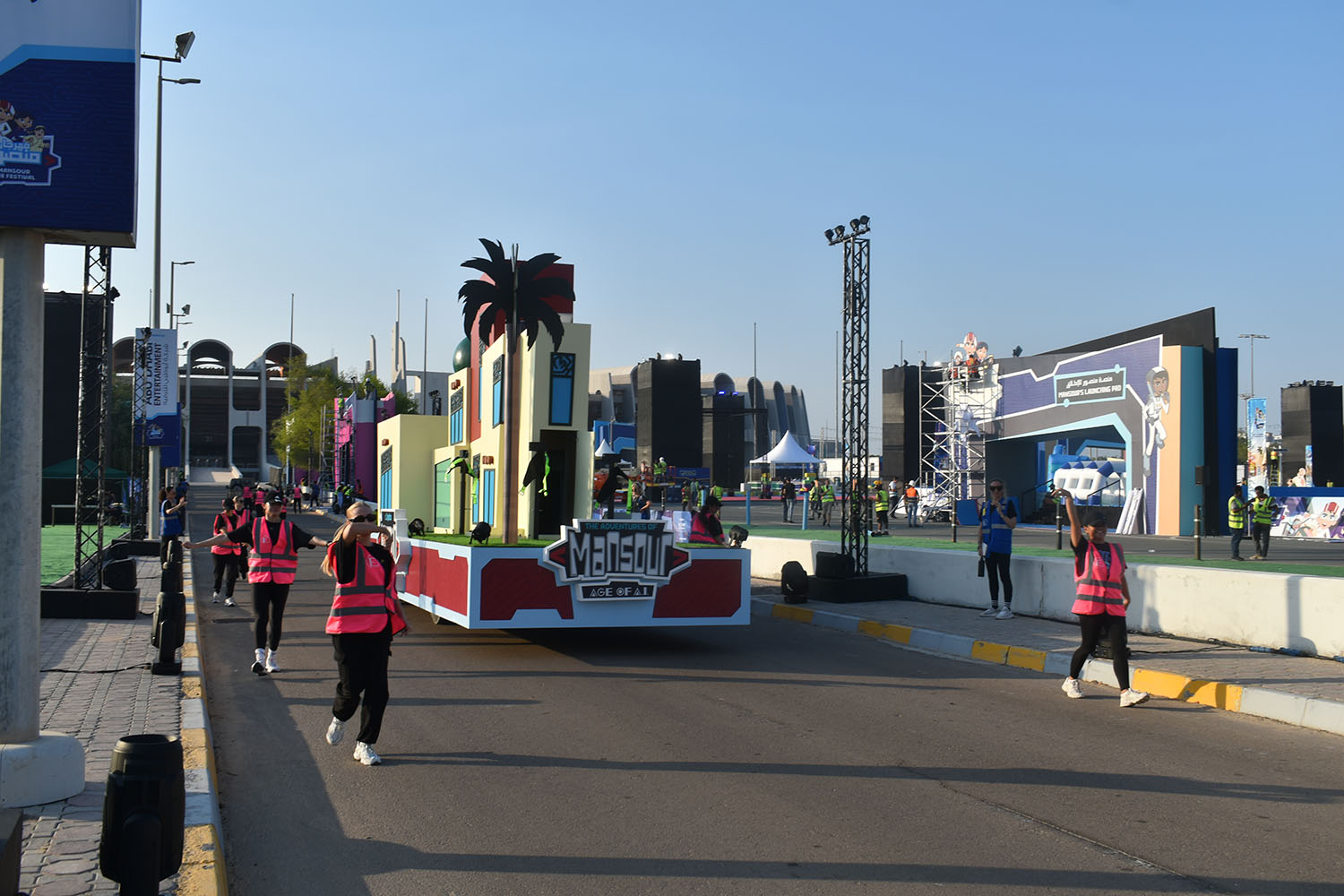

Applying The Principles Across Different Projects

The same principles apply across a wide range of mobile scenic structures.

Union Parade and National Day floats may require tall, highly visible scenic forms operating as part of a coordinated vehicle procession. Mobile activation structures may travel between several locations before opening into a branded or immersive environment. Promotional vehicles may incorporate fold-out platforms, lighting, graphics, technology and integrated storage.

The scale and operating conditions may change, but the engineering questions remain similar:

Where do the loads enter the vehicle?

How are they distributed between the axles?

Where is the centre of gravity?

How will the structure behave during braking and cornering?

Can every critical connection be inspected?

Can the vehicle complete its intended route?

What happens if a component needs to be repaired or removed?

Answering these questions early produces a safer, more efficient and more practical scenic system.

Engineering Movement From The Beginning

Successful vehicle-mounted structures require close collaboration between structural engineers, scenic fabricators, vehicle specialists, transport teams and operational personnel.

The process should produce more than a visually convincing design. It should establish vehicle interface drawings, weight schedules, mounting details, material specifications, assembly methodologies, inspection requirements and operational limits.

At Evolution Scenic, the focus is on translating ambitious scenic concepts into structures that can be fabricated, installed and operated reliably. That means considering not only how the finished environment appears, but how every component behaves while the vehicle is moving.

A mobile scenic structure succeeds when the engineering is largely invisible during operation.

The vehicle moves as intended.

The structure remains stable.

The finishes perform correctly.

The installation team can inspect and maintain it.

And the creative concept reaches the route exactly as it was designed to be experienced.
