Engineering Scenic Steel Structures
Large-scale scenic steelwork brought together through coordinated engineering, fabrication and trial assembly.
Engineering Scenic Steel Structures
Steel remains one of the most important materials used within scenic engineering. Its strength, versatility and adaptability allow fabrication teams to deliver structures that would be difficult to achieve using many alternative construction methods.
Yet successful scenic steelwork is not simply a matter of selecting a strong material and adding enough of it to support the structure. Every decision affects another part of the project. Increasing a member size may improve structural capacity, but it also increases weight. Adding welded connections may produce a rigid frame, but it may complicate transport or prevent efficient dismantling. Reducing the number of components may simplify installation, but create modules that are too large to pass through the venue access route.
For Evolution Scenic, engineering steel structures is therefore an exercise in balancing structural performance with fabrication, transportation, installation and operational requirements.

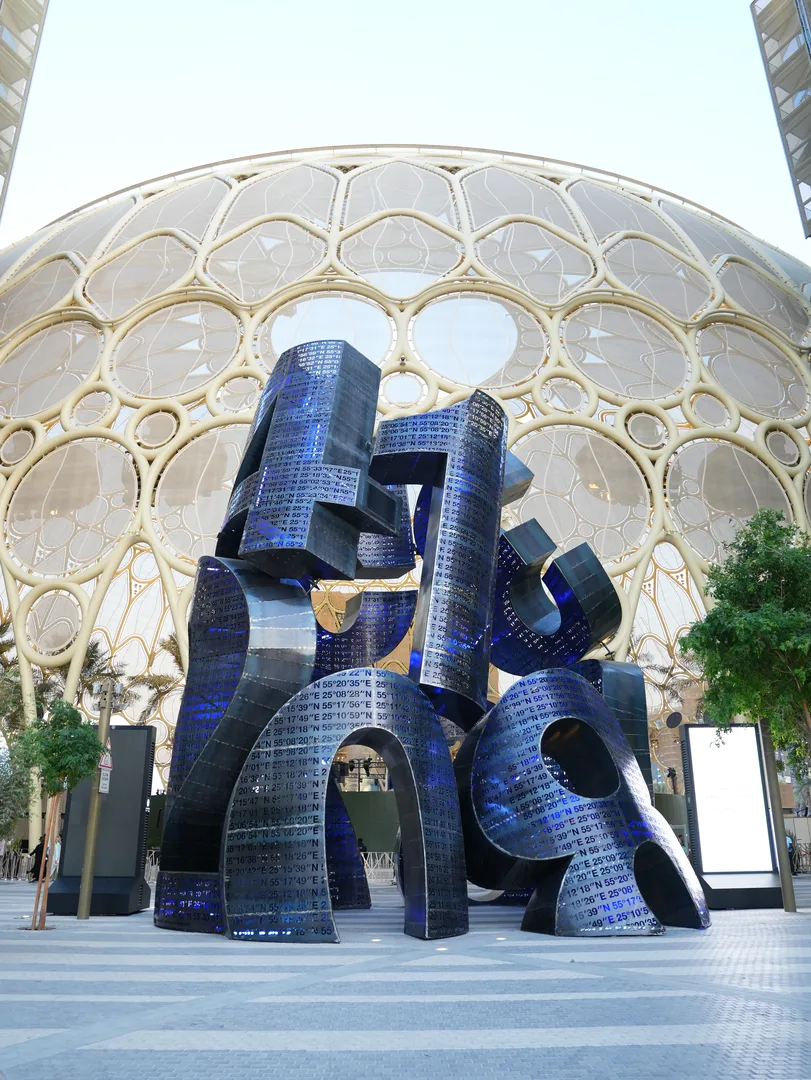

Steel provides the structural freedom needed to realise ambitious scenic forms and large-scale temporary architecture.
Engineering Begins Before Fabrication
The engineering process starts long before steel reaches the workshop.
At the earliest stage, the scenic concept must be assessed as a physical structure rather than only a visual composition. Engineers and fabricators consider the overall geometry, expected loads, support conditions, venue restrictions, installation sequence and intended operational period.
A scenic stage may need to support architectural cladding, lighting equipment, LED screens, suspended technical systems and maintenance access. An exhibition pavilion may need long, unobstructed spans while remaining demountable and suitable for installation within strict venue working hours. A large public structure may need to resist wind, interaction from visitors and changing environmental conditions.
These requirements influence the structural arrangement from the beginning. The position of columns, bracing, connection points and foundations cannot be developed independently from the scenic design. They must be coordinated so that the final framework supports the visual intent without creating unnecessary weight, visible obstructions or impractical assembly conditions.

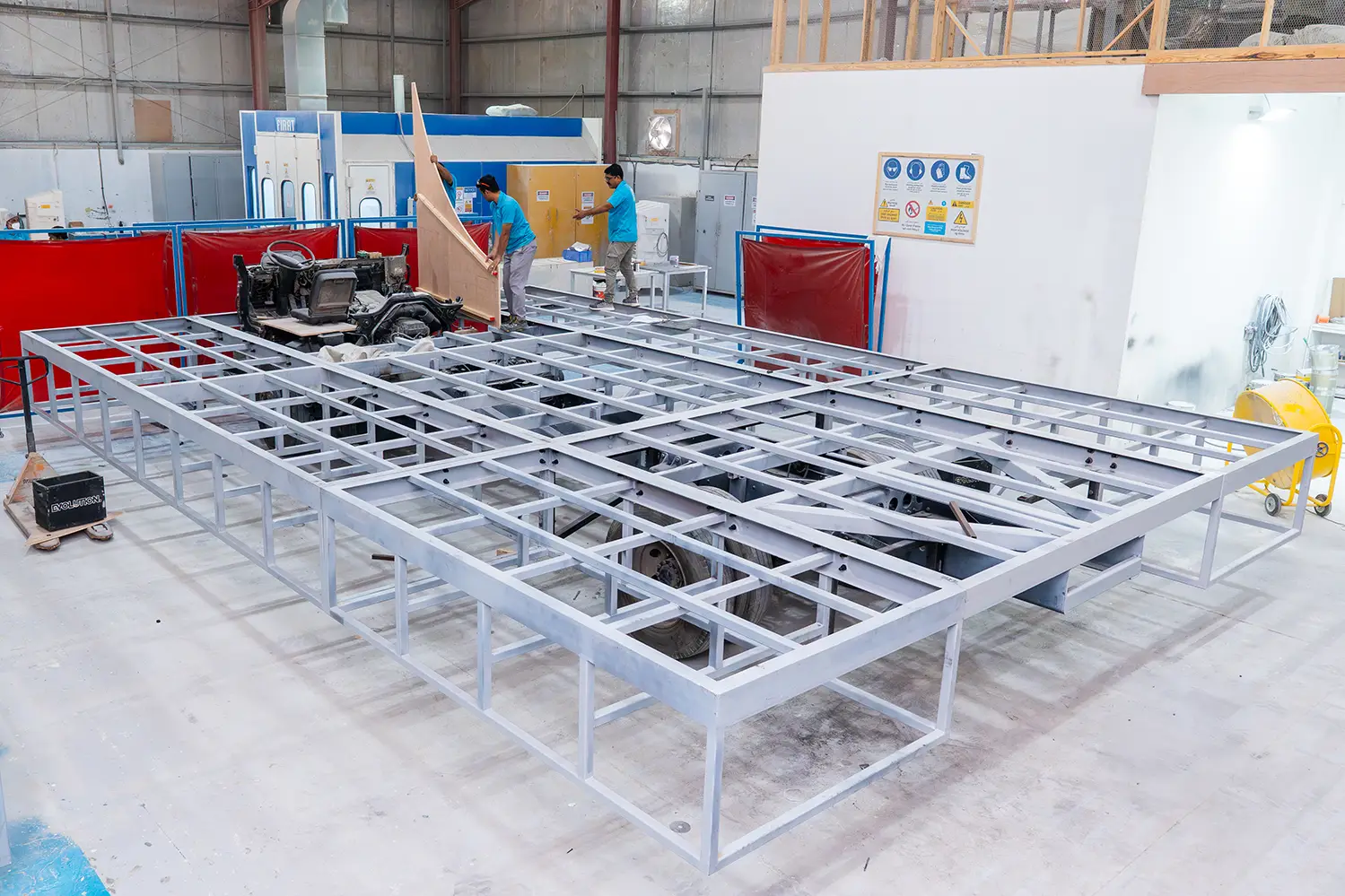

Engineering considers how the structure behaves during installation as well as after completion.
Structural Calculations for Scenic Environments
Structural calculations establish how the steel structure will behave under the loads it may experience throughout its working life.
This normally begins with the self-weight of the steel frame, but the structure rarely carries only itself. Scenic finishes, timber substrates, graphics, lighting systems, AV equipment, access platforms and suspended features all contribute additional permanent loads.
Temporary and imposed loads must also be considered. These may include technicians accessing a structure, equipment being moved during installation, wind acting on large scenic surfaces or operational loads generated by moving components. In public environments, engineers may also need to account for accidental interaction, guarding requirements and areas where visitors could lean against or touch fabricated elements.
Temporary structures require particular attention because their loading conditions can change during installation. A partially assembled frame may behave very differently from the completed structure. Bracing that provides stability in the finished arrangement may not yet be installed during the early construction stages.
Engineering calculations therefore need to consider both the completed structure and the temporary conditions created while it is being assembled or dismantled.

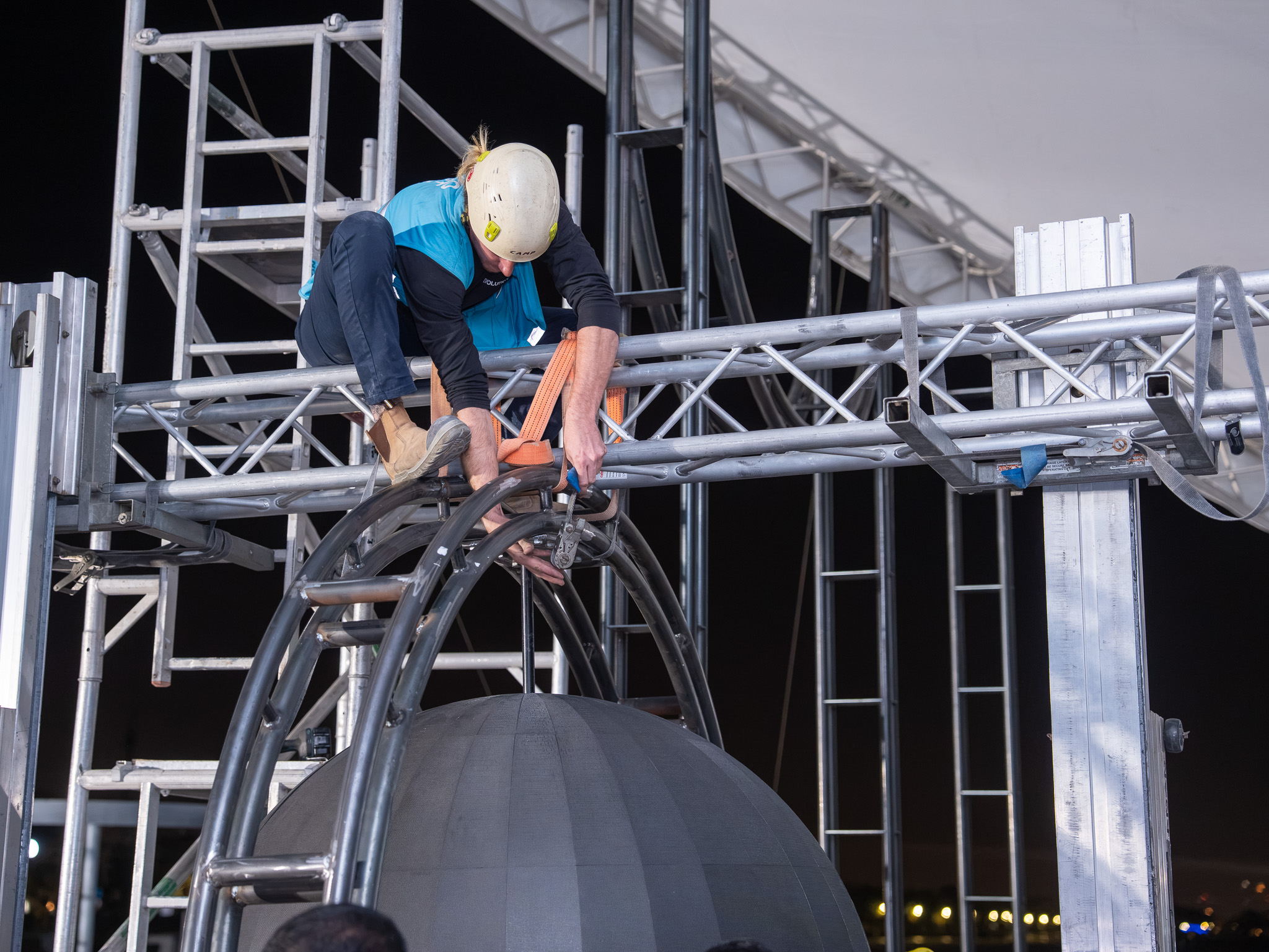

The steel frame must account for every permanent component attached to the finished environment.
Establishing Clear Load Paths
A load path describes how forces move through a structure and eventually reach the supporting surface.
For example, wind acting on a tall scenic wall may transfer through the cladding into secondary rails, then into the primary steel frame, through diagonal bracing and finally into base plates, anchors or ballast. A suspended scenic feature may transfer its weight through lifting points, beams, columns and foundations.
A clear load path allows each structural component to perform a defined role. When load paths are poorly resolved, forces can become concentrated in unexpected areas, creating excessive movement or requiring unnecessary reinforcement.
This is why bracing positions, beam directions and support locations are important engineering decisions rather than workshop details. The objective is not simply to create a strong collection of steel members. It is to create an efficient structural system in which loads travel predictably through the frame.
Well-resolved load paths can also reduce the total amount of material required. A correctly positioned brace may provide more stability than increasing the size of several beams. A carefully located support may shorten a span and significantly reduce member weight.

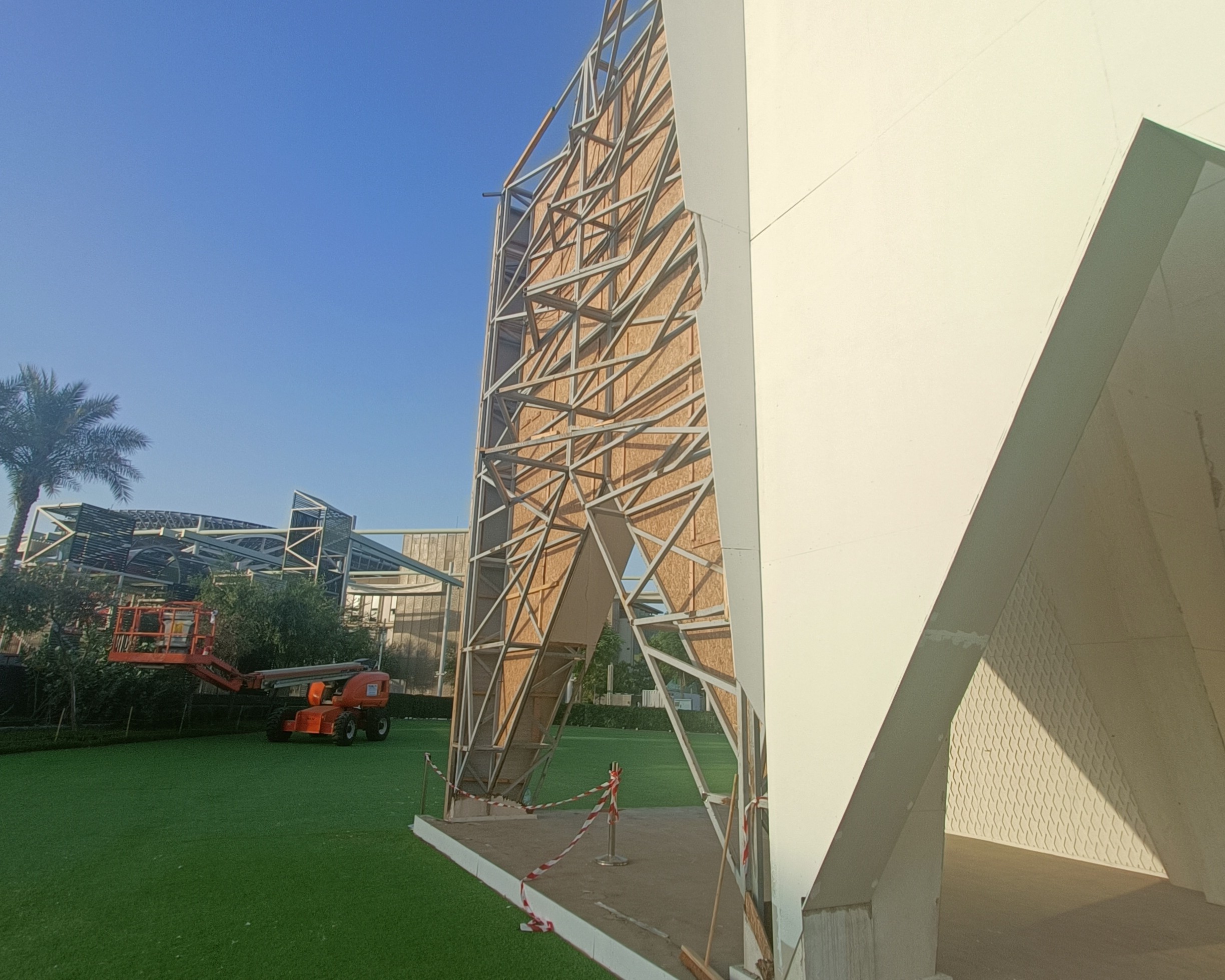

Good engineering creates a predictable route for forces to travel through the structure.
Connection Design
Connections are often the most critical parts of a scenic steel structure.
Members may have sufficient capacity individually, but the structure will only perform successfully if forces can be transferred safely between them. Connection design considers plate thicknesses, bolt sizes, weld requirements, hole positions, edge distances and the forces acting at each structural node.
Scenic structures also introduce practical connection requirements that may not exist within permanent construction. Components often need to be transported separately, assembled quickly and removed without damage. This makes bolted and demountable connections particularly valuable.
Workshop-welded assemblies can provide rigidity and accuracy, while bolted site connections allow the structure to be divided into manageable modules. Splice plates, flange connections, captive nuts and accurately coordinated hole patterns can reduce installation time and limit the amount of site welding required.
Accessibility is equally important. A connection that works perfectly within a structural model may be difficult to reach once cladding, decking or technical equipment has been installed. Installation teams need enough space for tools, hands and lifting equipment.
Effective connection design therefore considers structural capacity and the physical reality of assembling the structure on site.

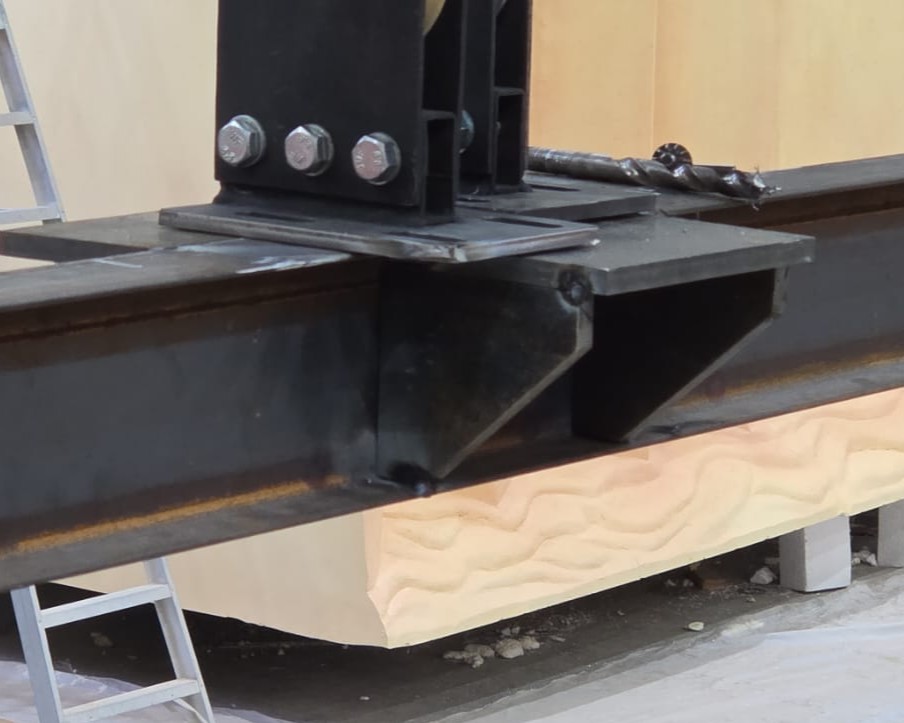

Connection detailing safely transfers forces between individual fabricated components.
Fabrication Detailing
Once the engineering principles have been established, fabrication detailing converts the structural design into information the workshop can manufacture accurately.
Detailed drawings identify member profiles, steel grades, plate thicknesses, weld sizes, hole diameters, connection references and overall dimensions. They also define how individual components relate to the complete structure.
The choice between rectangular hollow sections, circular hollow sections, universal beams, channels and fabricated plate assemblies depends on more than strength. The selected profile may need to accept cladding, conceal services, create a curved outline or provide a clean interface with timber and scenic finishes.
Fabrication detailing must also account for workshop access. Welds need to be positioned where they can be completed and inspected. Bolts need sufficient clearance. Plates must be shaped to avoid clashes. Tolerances must be coordinated so components can be assembled without creating visible gaps or forcing members into position.
Digital modelling and CNC-controlled production can improve accuracy, particularly where structures contain repeated components, complex geometry or precisely aligned interfaces. However, digital accuracy must still be supported by practical workshop knowledge. Steel moves during welding, frames can distort and apparently minor tolerance issues may multiply across a large structure.
Good detailing anticipates these realities before fabrication begins.
Digital manufacturing improves precision where scenic steelwork contains repeated or complex geometry.
Workshop Processes and Quality Control
Inside the workshop, structural steel components move through cutting, drilling, profiling, welding, grinding, trial assembly and finishing processes.
CNC cutting, laser profiling and automated drilling allow plates and members to be produced with consistent hole patterns and accurate geometry. Fabrication jigs help maintain alignment while repeated frames or connection assemblies are welded.
Welding sequence is important because concentrated heat can distort steel. Experienced fabricators control this by balancing welds, using temporary restraints and checking dimensions throughout production rather than only after a component has been completed.
Where practical, scenic steel structures may be trial assembled in the workshop. This provides an opportunity to confirm that connection holes align, modules fit together, bracing can be installed and scenic interfaces are located correctly.
Components can then be labelled according to the installation sequence. Clear identification becomes especially valuable on large structures containing similar members or mirrored assemblies.
The result is not simply a collection of manufactured parts. It is a coordinated structural kit prepared for efficient assembly.

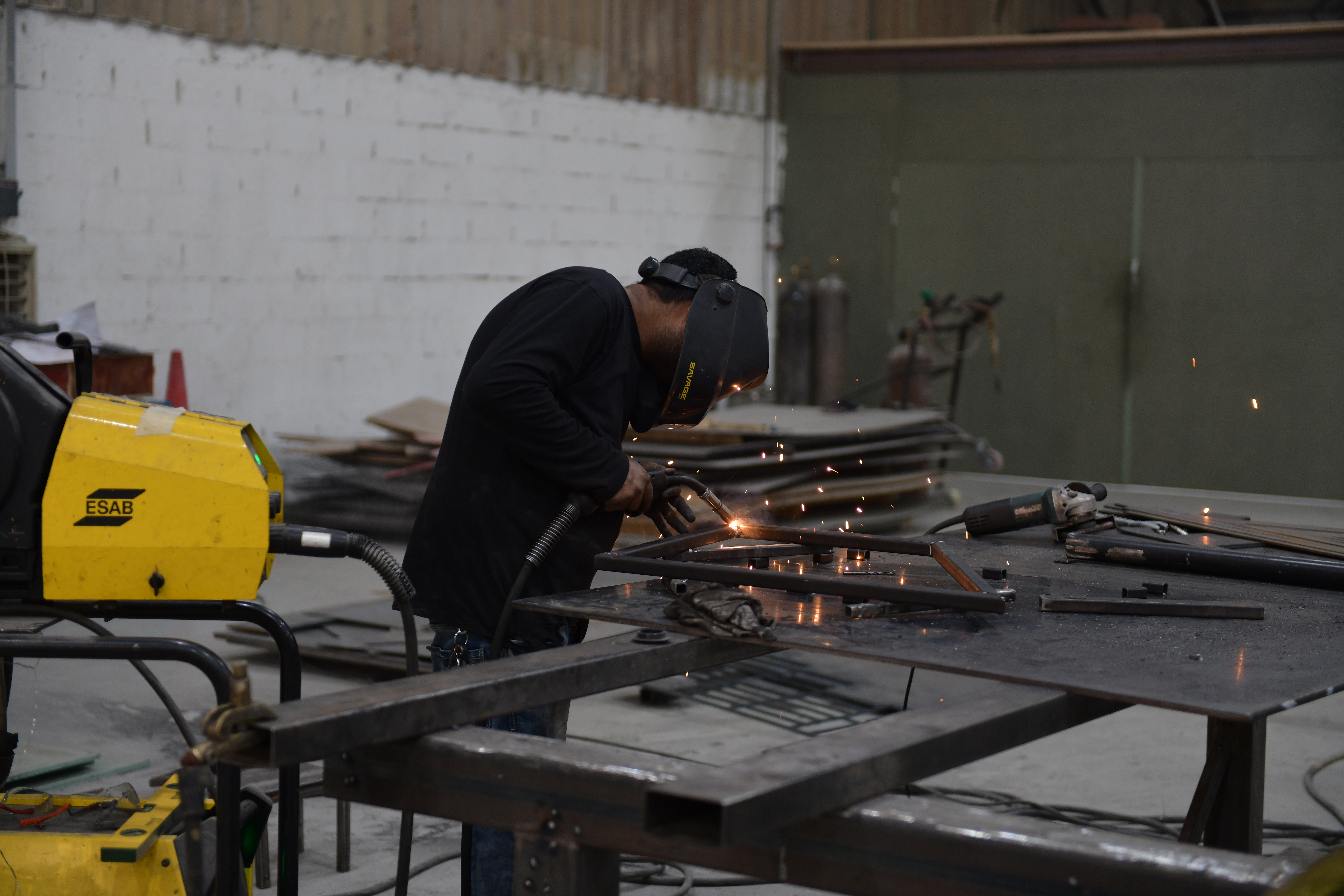

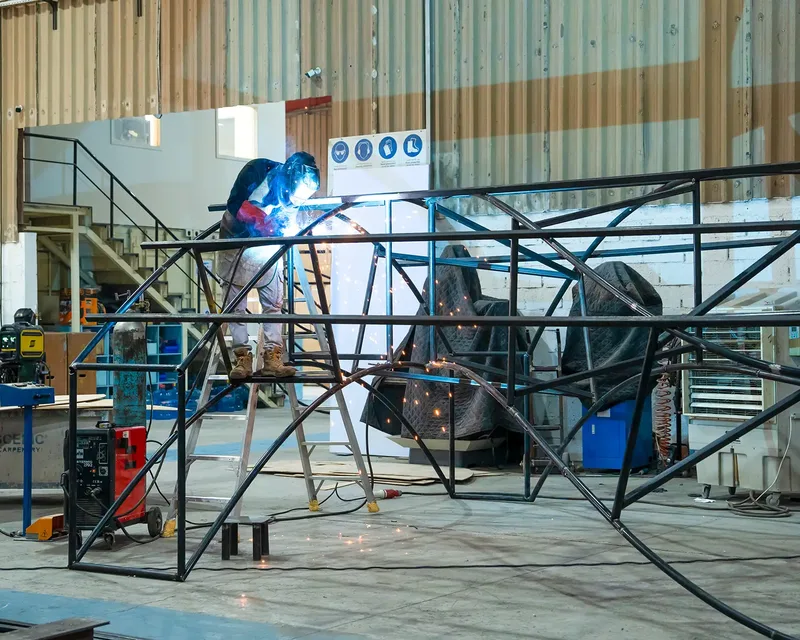

Welding methodology is carefully managed to maintain accuracy and minimise heat distortion.
Designing for Transportation and Installation
A structure cannot be considered successful if it performs structurally but cannot be transported or installed efficiently.
Module sizes must reflect vehicle capacities, road restrictions, loading methods, venue access routes and available handling equipment. A large welded frame may reduce the number of site connections, but it may require specialist transport or lifting equipment. Smaller modules may be easier to handle but increase assembly time.
Installation planning therefore influences the engineering arrangement. Lifting points may be integrated into major modules. Temporary bracing may be added to stabilise frames before the permanent structure is complete. Connections may be positioned so they remain accessible from mobile elevated work platforms or scaffold towers.
The sequence of installation must also be understood. Engineers need to know which parts will be erected first, where lateral stability will come from at each stage and when cladding or technical systems will be added.
For temporary structures, dismantling is part of the same process. Connections should remain accessible, components should be removable without damaging adjacent scenic finishes and modules should be suitable for storage or future reuse where required.
Structural performance must be matched by a practical strategy for moving and installing the structure.
Different Structures Require Different Decisions
Large public structures often require substantial resistance to wind, environmental exposure and visitor interaction. Their steel frameworks may support complex sculptural forms while remaining almost completely hidden beneath finished surfaces.
Scenic stages can introduce long spans, suspended loads, integrated LED screens and concentrated equipment loads. The structure must achieve the required rigidity while allowing production systems, access routes and scenic cladding to be coordinated around it.
Exhibition pavilions frequently prioritise modularity, efficient installation and controlled floor loading. Steel may be combined with aluminium, timber and CNC-manufactured panels to create a hybrid system that uses each material where it performs most effectively.

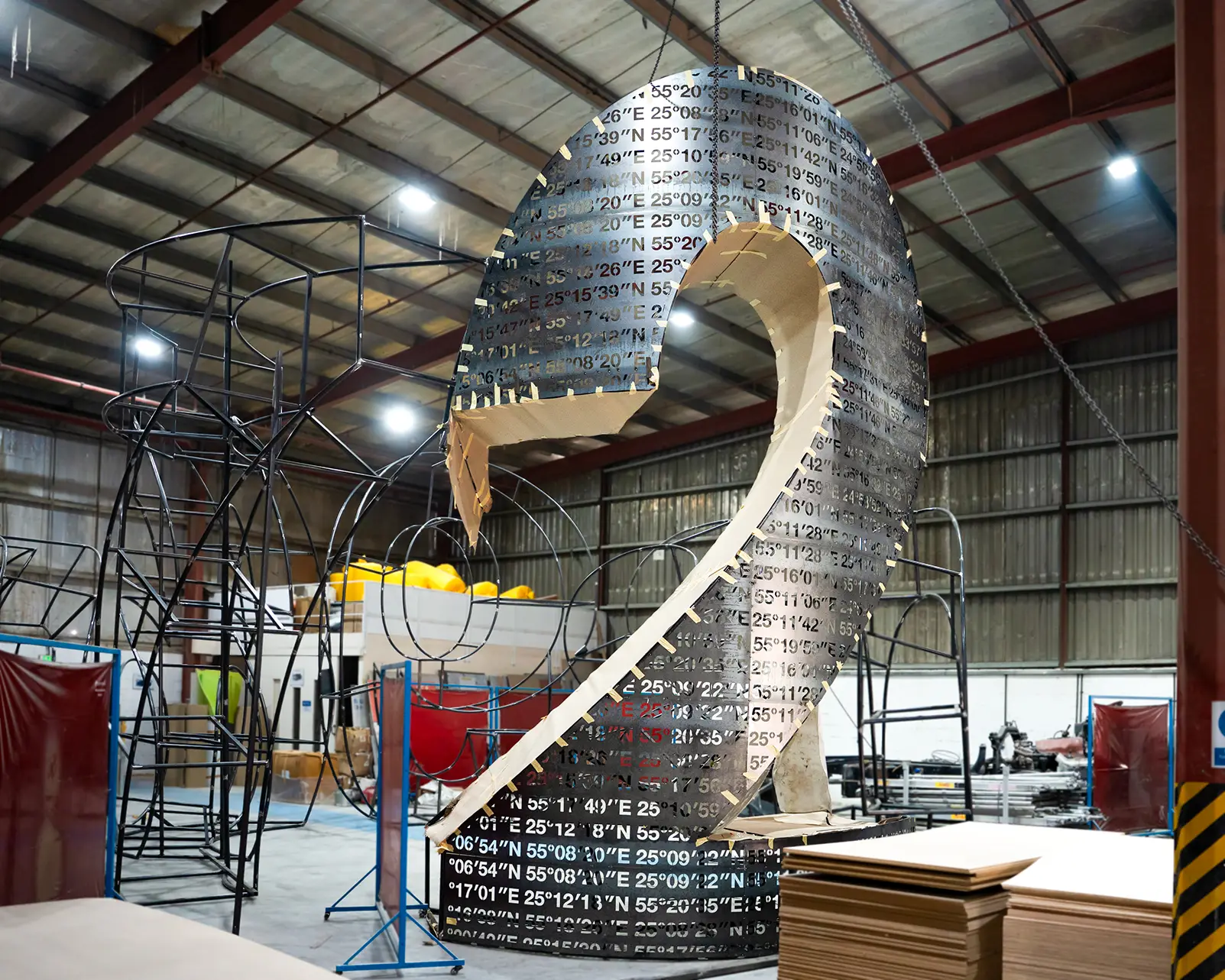

Cultural installations may require the steel frame to follow unusual geometries or support detailed scenic finishes. In these environments, close coordination between structural engineers, metal fabricators, scenic carpenters, CNC teams and finishing departments becomes particularly important.
Unusual forms require close coordination between engineering, metalwork, carpentry and scenic finishing teams.
Engineering for Performance, Not Excess

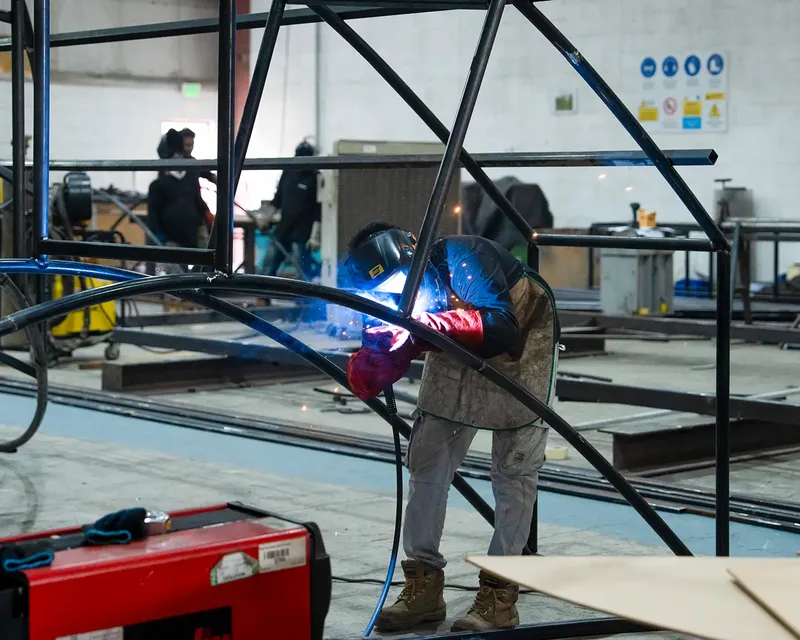

The most successful scenic steel structures are not necessarily those containing the greatest amount of material.
They are the structures that achieve the required performance with a clear structural strategy, efficient load paths, practical connections and a considered installation methodology.
Steel provides strength, but engineering determines how effectively that strength is used.
Fabrication detailing turns engineering intent into manufacturable components. Workshop expertise controls accuracy and quality. Installation planning ensures the finished system can be assembled safely within the realities of the site.
At Evolution Scenic, these disciplines operate together throughout the delivery process. The aim is not simply to manufacture steelwork, but to engineer scenic structures that are safe, efficient, transportable and appropriate for the environments in which they will operate.
