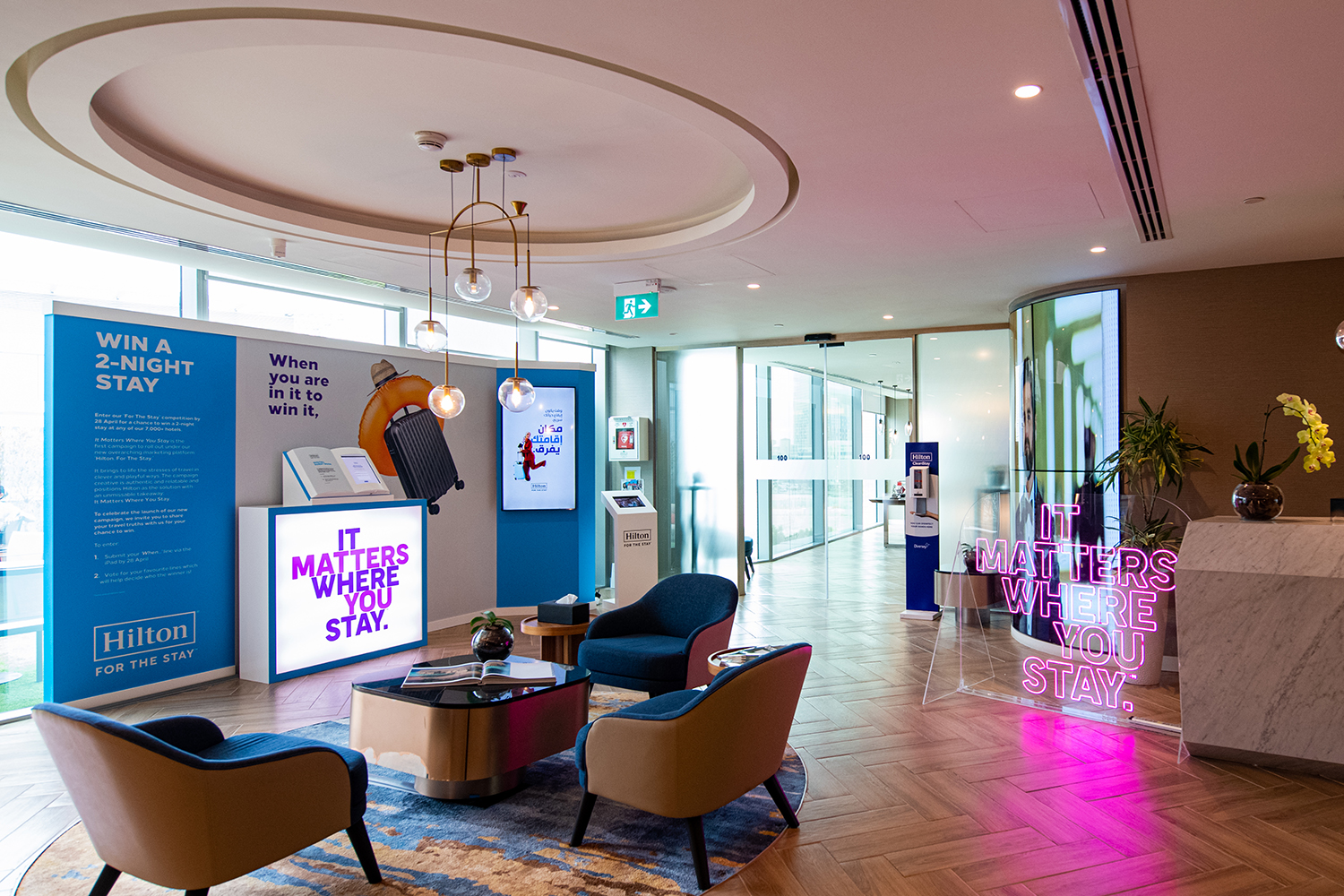

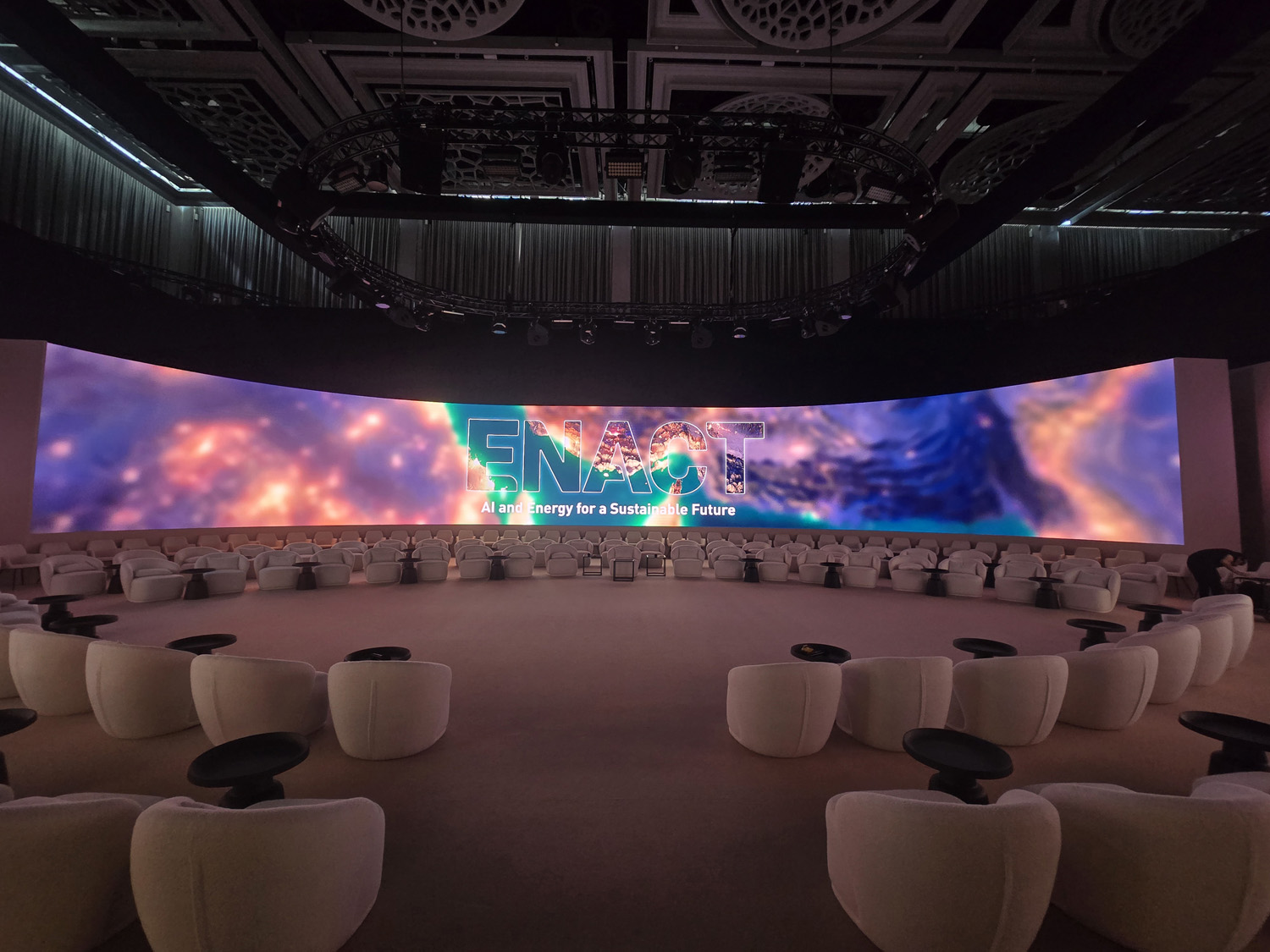

A completed scenic environment where digital technology is integrated seamlessly within fabricated architectural elements.
Integrating Technology Into Scenic Environments
Technology is now embedded within many scenic environments, yet the most successful installations are often those where the technology feels like a natural part of the architecture rather than equipment added afterwards.
LED displays, projection systems, lighting, sensors, touchscreens, audio equipment and control infrastructure can all be incorporated directly into scenic structures. Doing this successfully requires considerably more than creating an opening for a screen or concealing a few cables behind a wall.
The scenic construction must support the equipment, protect it, provide ventilation, maintain accurate alignment and allow technicians to reach it throughout the life of the installation.
The result should feel visually seamless while remaining practical to operate, maintain, dismantle and upgrade.

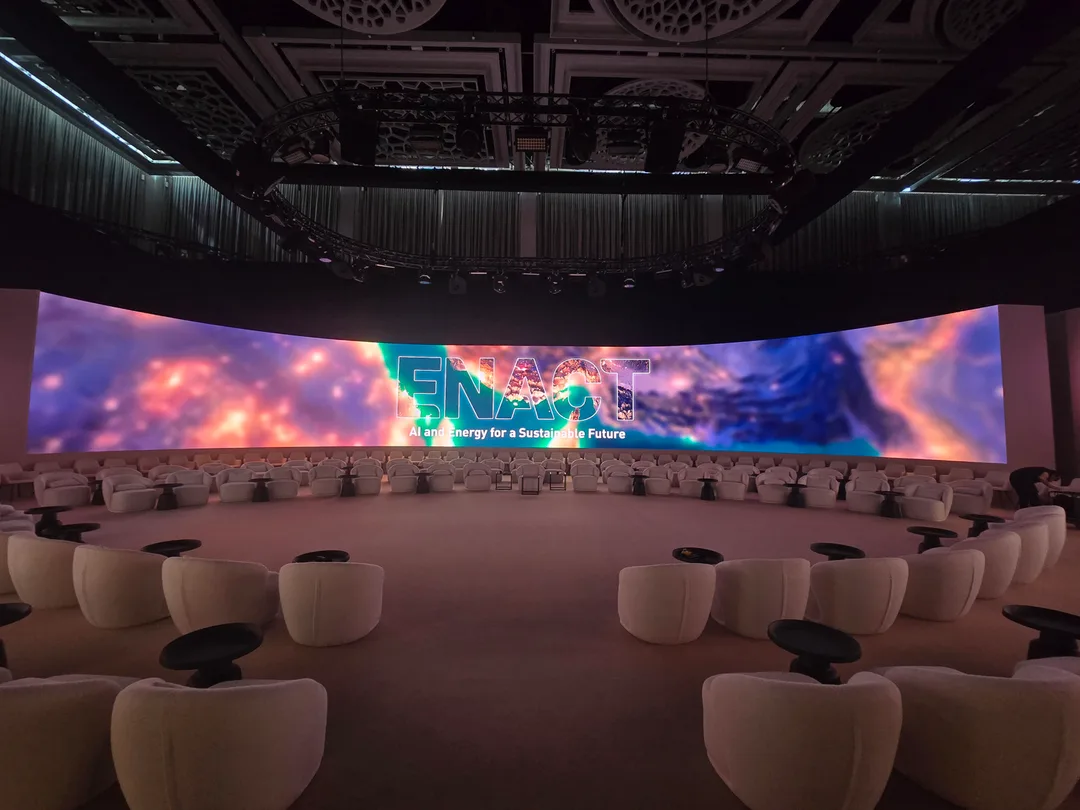

Technology becomes part of the scenic architecture rather than appearing as equipment added afterwards.
Technology Integration Begins During Technical Development
The most reliable technology-integrated environments are developed collaboratively from the earliest stages of the project.
Before fabrication begins, the scenic team needs accurate information about equipment dimensions, weights, mounting points, cable connections, ventilation requirements and maintenance clearances. These details influence the internal framework, material selection, panel construction and assembly sequence.
A screen may appear to occupy a simple rectangular opening within a design, but the structure behind it may need to accommodate mounting rails, adjustment brackets, power supplies, data connections, cable bend radii and access space.
Technical coordination therefore becomes part of the scenic engineering process.
Digital models and coordinated production drawings allow these requirements to be incorporated before components reach the workshop. This reduces the risk of site modifications, protects finished surfaces and helps ensure that the scenic structure and technical equipment arrive ready to connect as a coordinated system.

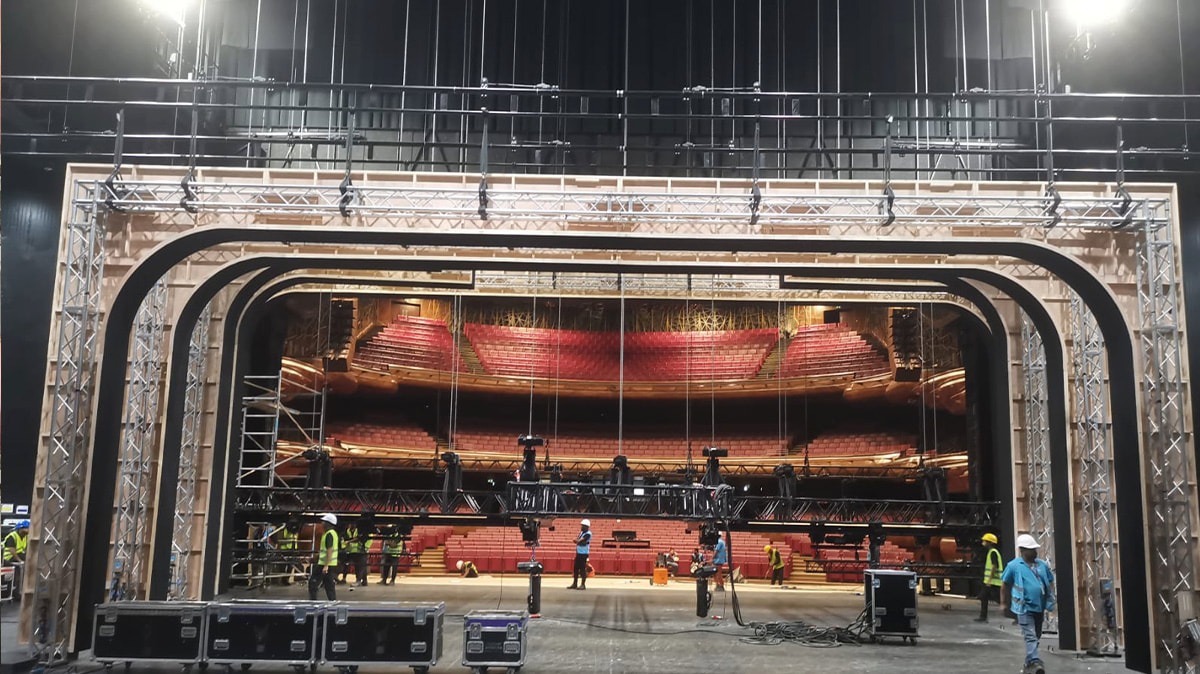

Scenic and technical requirements are resolved together before manufacturing begins.
Integrating LED Displays Into Scenic Structures
LED integration is one of the most common requirements within exhibitions, experience centres and immersive environments.
Although the visible display surface may appear simple, the supporting structure must be manufactured with a high level of accuracy. LED cabinets need consistent alignment, controlled tolerances and a stable mounting surface. Even small variations can create visible steps, uneven joints or inconsistent transitions between the screen and the surrounding scenic finish.
The scenic framework must also manage the concentrated weight of the display system.
Depending on the installation, this may involve fabricated steel frames, aluminium support systems or reinforced timber structures designed around the selected LED configuration.
Access strategy is equally important.
Some LED systems are serviced from the front, while others require rear access. The scenic construction must respond accordingly through removable trims, access corridors, demountable panels or dedicated maintenance openings.
The edges around the display must also be protected during transport and installation. Carefully detailed trims can conceal the structural interface while preventing damage to the screen modules and surrounding finishes.
Good LED integration is therefore not simply about hiding the frame. It is about creating a precisely manufactured scenic structure that allows the display to perform correctly and remain serviceable.

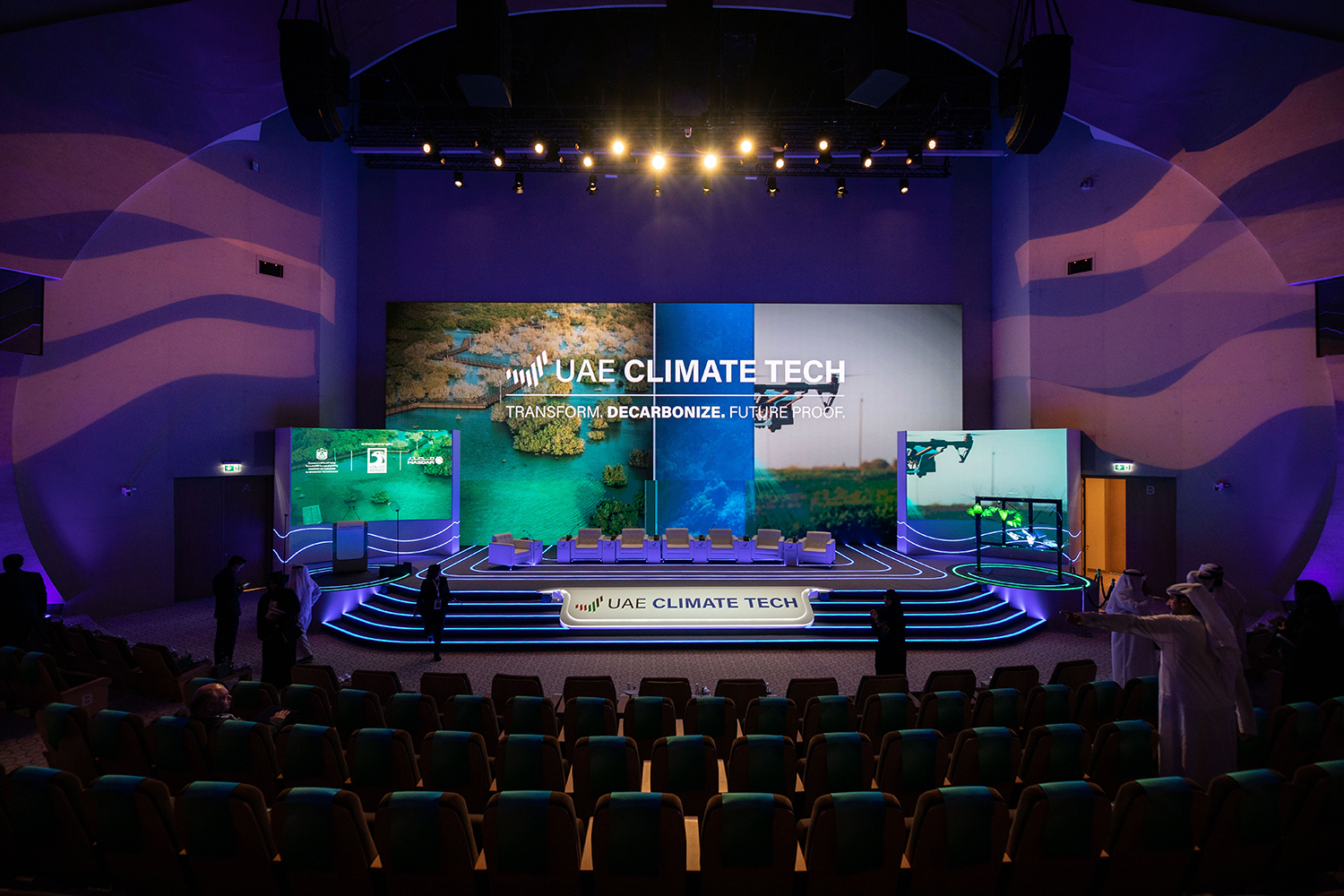

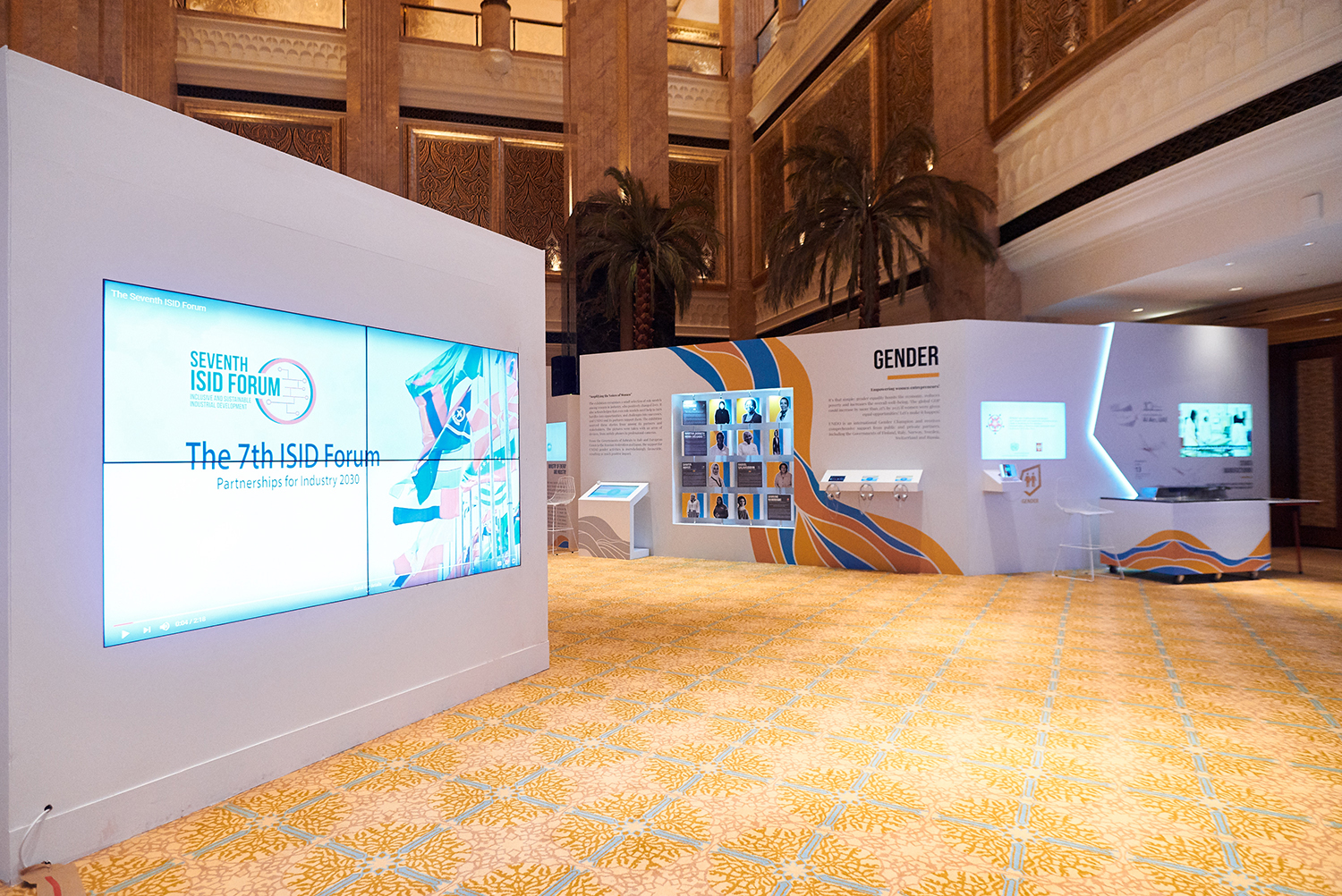

LED displays frequently become integral components within exhibitions, experience centres and immersive environments.
Scenic Fabrication for Projection Systems
Projection systems create different fabrication challenges.
The quality of the projected image depends heavily on the surface receiving it. Flatness, curvature, joint treatment, surface colour, reflectivity and texture can all affect the final result.
For this reason, projection surfaces should be treated as engineered scenic components rather than ordinary decorative walls.
CNC-cut ribs, accurately fabricated substrates and carefully prepared joints can be used to create large projection surfaces with controlled geometry. Scenic finishing teams must then produce a consistent surface without visible seams, localised texture changes or irregular reflections.
Where curved or sculptural projection surfaces are required, the geometry must be coordinated with the projector positions and intended content. The scenic structure needs to hold its shape throughout fabrication, transport and installation so that alignment remains consistent.
Projector housings and mounting positions may also be concealed within ceilings, walls or feature structures. These areas still require sufficient ventilation, adjustment space and access for calibration or replacement.
A visually clean projection environment depends on the quality of the physical surface and the stability of everything supporting it.

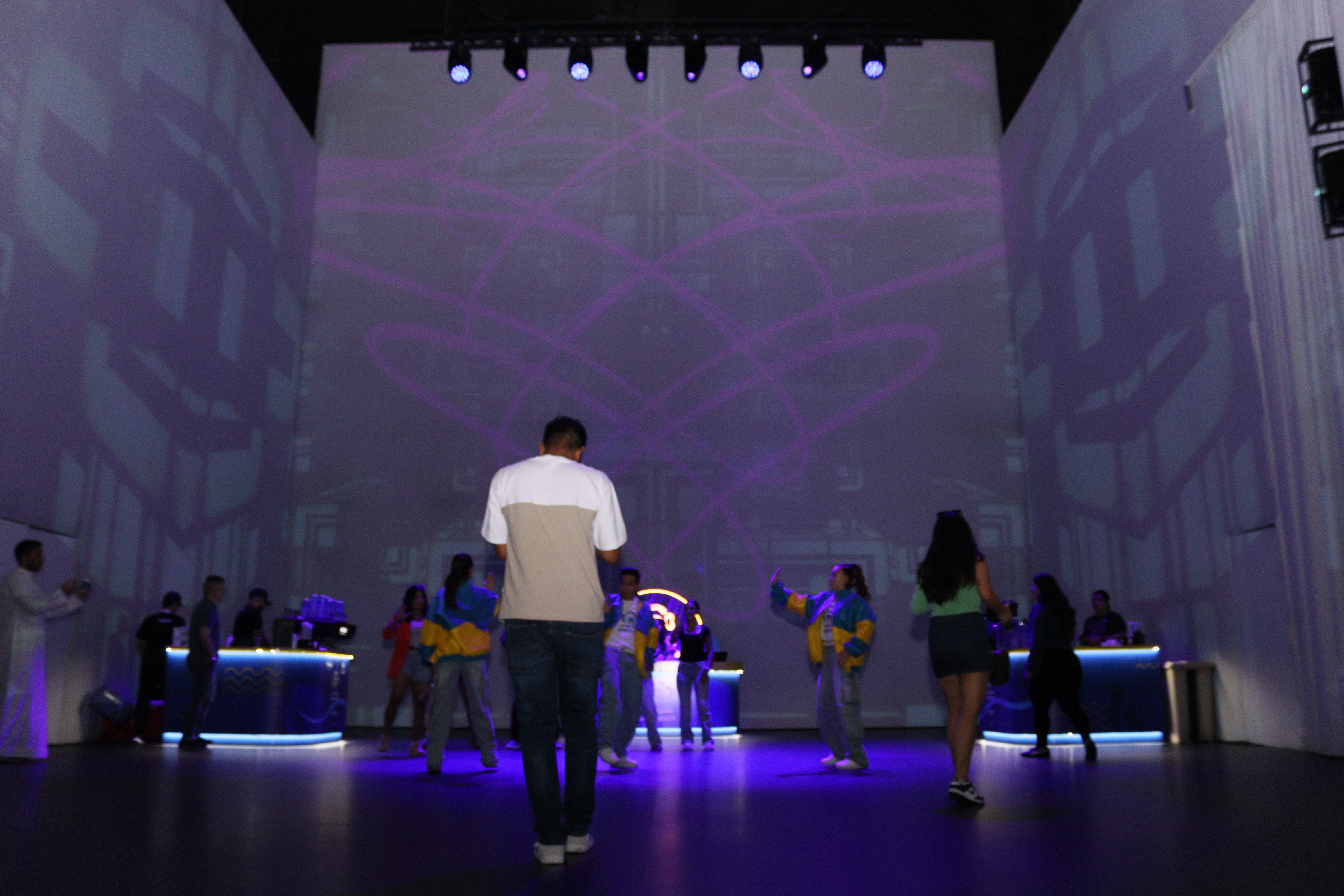

Surface flatness, texture and reflectivity directly influence the quality of projected content.
Building Interactive Installations
Interactive installations often combine touchscreens, sensors, cameras, mechanical elements and control equipment within custom scenic housings.
These installations are designed to be handled, touched and used repeatedly. The scenic structure must therefore provide more than an attractive finish. It needs to withstand physical contact, protect sensitive equipment and allow damaged or outdated components to be replaced.
Interactive screens may be integrated into plinths, counters, feature walls or sculptural forms. The supporting construction must hold the equipment securely while maintaining accurate screen positioning and comfortable user access.
Sensors and cameras also require clear operating zones. Decorative trims, glazing, structural members or projecting scenic elements must not interfere with their field of view.
Where movement or mechanical interaction is involved, the scenic enclosure must keep moving components separate from delicate finishes and provide safe internal clearances.
Prototyping can be particularly valuable for interactive installations. Testing a section of the scenic assembly before full production allows the team to confirm screen positions, access methods, sensor performance and finishing details while changes are still practical.

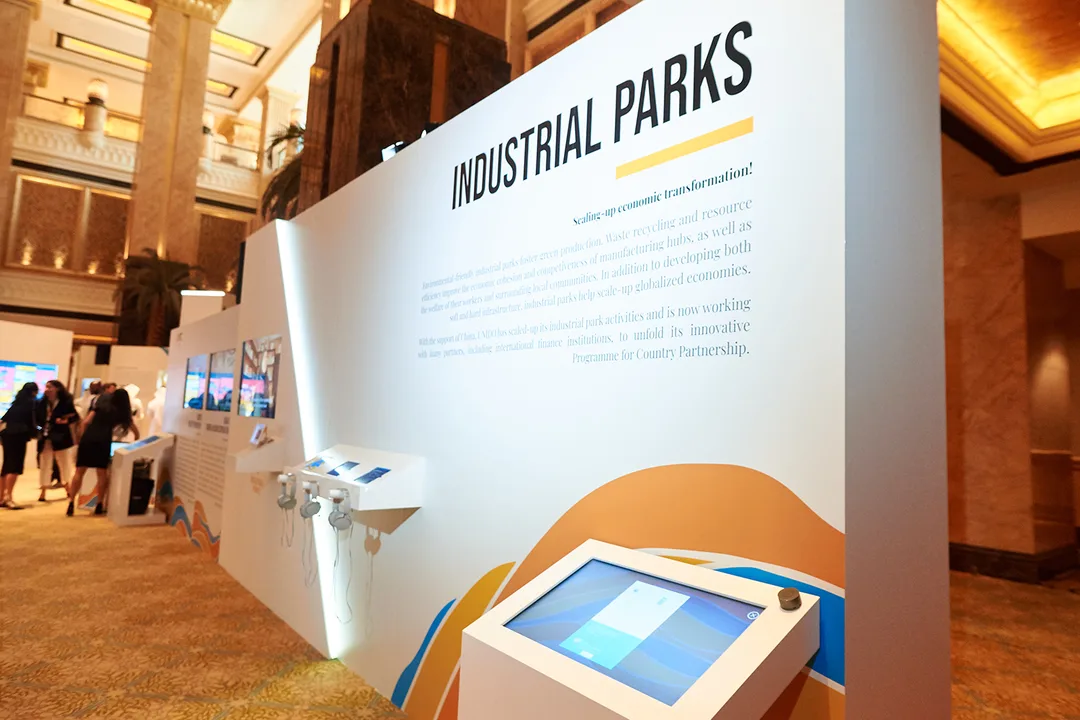

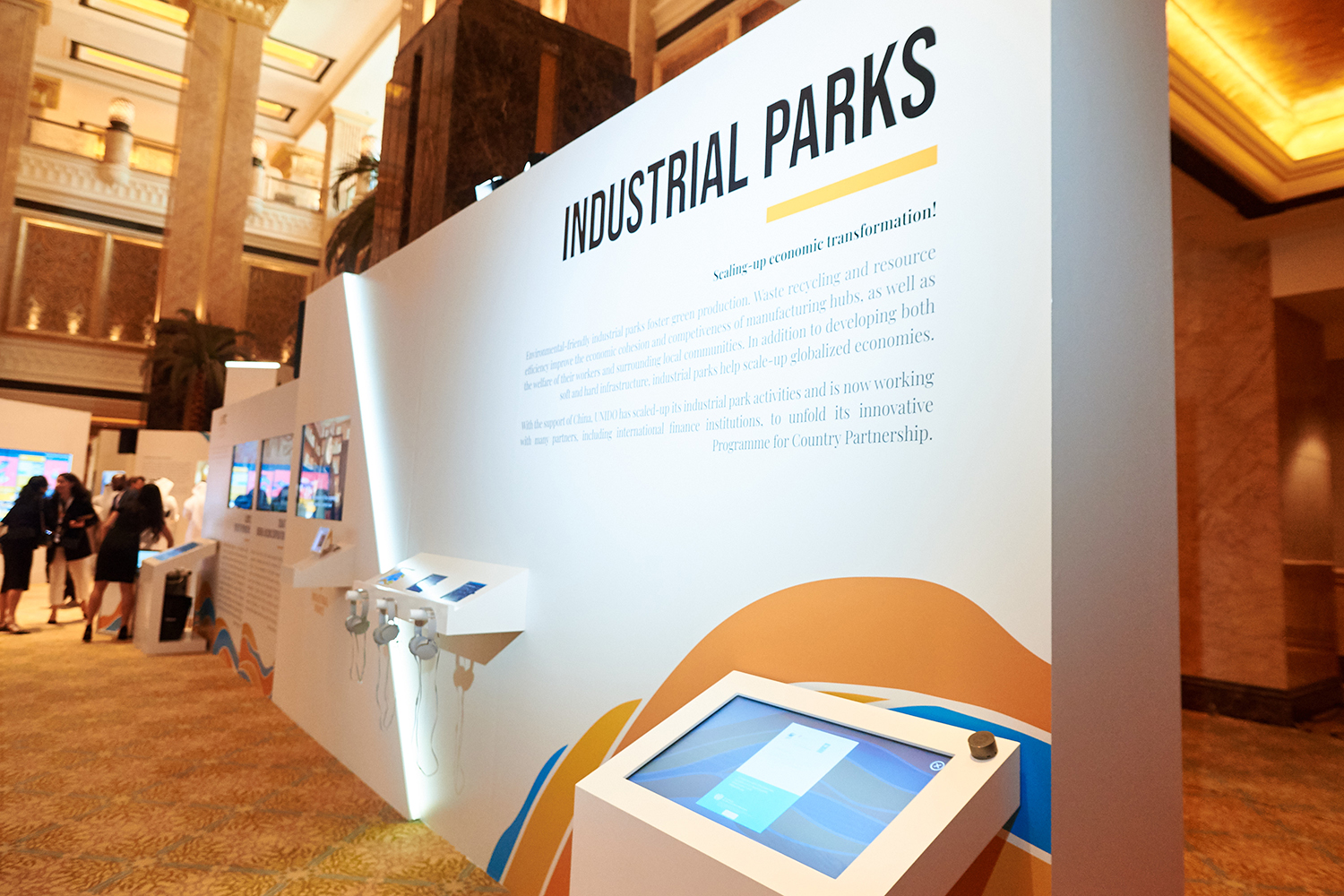

Interactive equipment can be incorporated directly into custom-manufactured scenic furniture and structures.
Cable Management as Part of the Build
Cable management is rarely visible in the completed environment, but it has a significant effect on installation efficiency and long-term reliability.
Power, data and control cables need protected routes through scenic walls, floors, ceilings, plinths and structural frames. Openings must be positioned accurately and finished with suitable protection so that cables are not damaged by sharp edges or compressed during assembly.
Cable trays, conduits, pull paths and connection points should be incorporated into the fabrication drawings rather than introduced on site.
Where appropriate, power and data routes may need to be separated. Sufficient space should also be allowed for connectors, cable bends, strain relief and future replacement.
Labelling and repeatable connection points become especially valuable within temporary or modular environments. When a structure is dismantled and reinstalled, organised cable looms and clearly identified routes can significantly reduce site time and prevent incorrect connections.
The objective is not simply to conceal cables. It is to make the infrastructure orderly, protected and accessible.

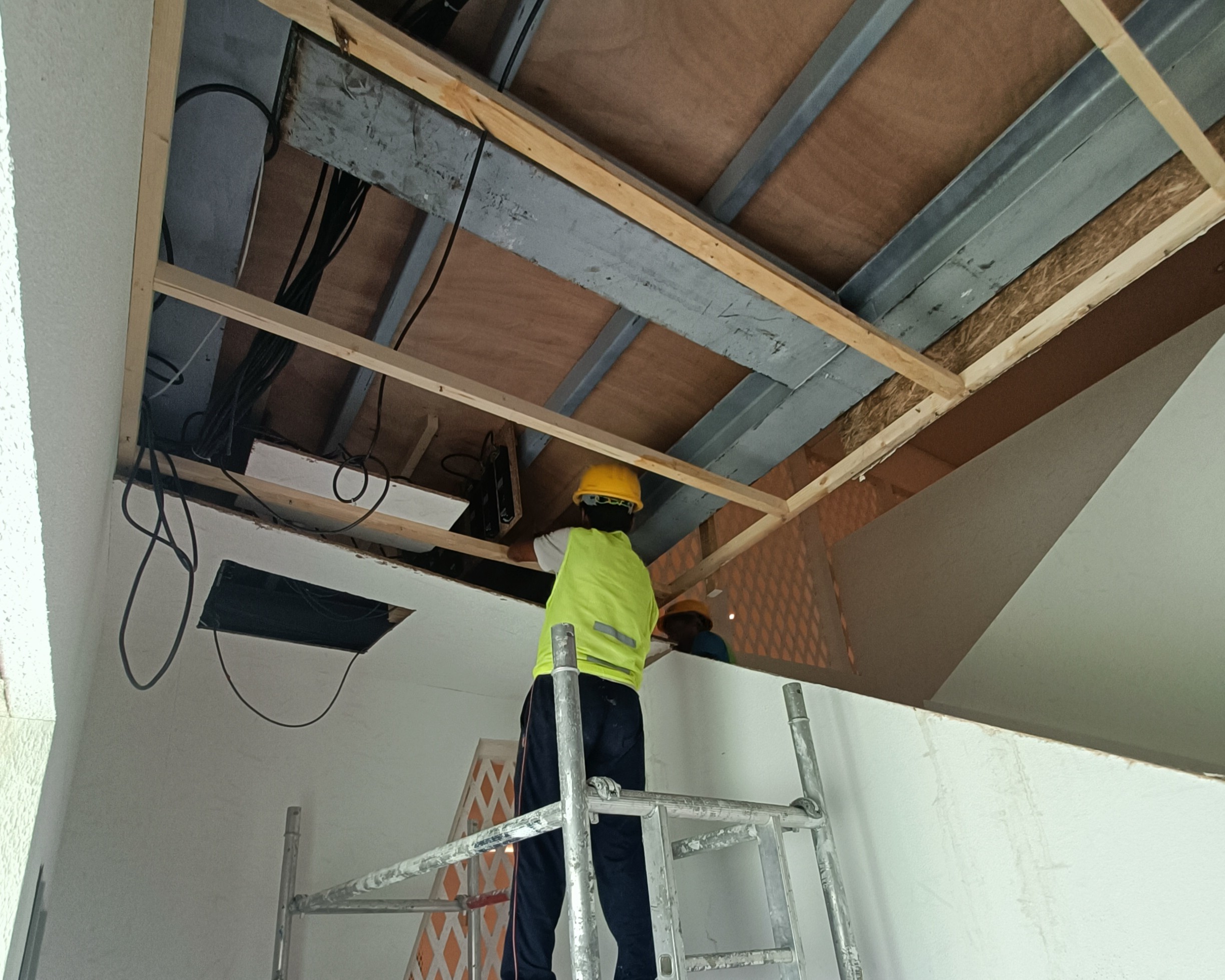

Cable openings are positioned and protected during fabrication to prevent damage during installation.
Access Panels and Maintenance Strategy
A scenic environment may look perfect when it opens, but its quality will quickly be compromised if every technical fault requires finished panels to be cut open.
Maintenance access should therefore be designed into the scenic construction from the beginning.
Access panels can be incorporated using shadow gaps, concealed hinges, magnetic fixings, quarter-turn fasteners or removable finished trims. The correct method depends on the panel size, finish, frequency of access and equipment located behind it.
A successful access panel should be easy to identify for the maintenance team while remaining unobtrusive within the completed design. It should also open without damaging adjacent paintwork, graphics or specialist finishes.
The access opening must be large enough for the intended task. Reaching a cable connection may require only a small panel, while replacing a screen, power supply or projector may require a much larger removable section.
Maintenance routes should also consider how equipment will be physically removed. It is not enough to reach a component if it cannot pass through the available opening.

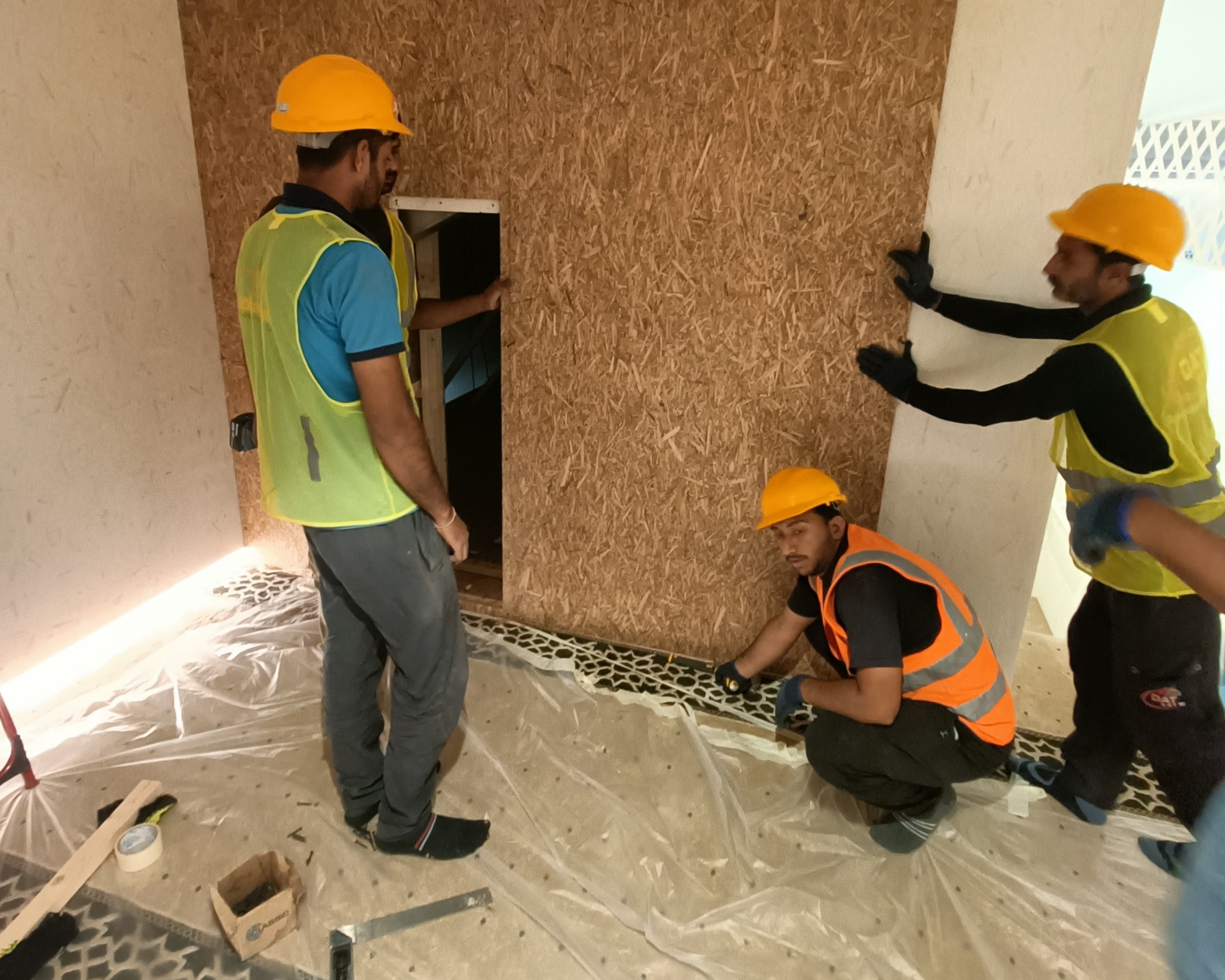

Maintenance requirements are incorporated before manufacturing rather than added after installation.
Cooling and Ventilation Without Visual Compromise
Technology generates heat, particularly when multiple screens, processors and power supplies are enclosed within scenic structures.
Without adequate airflow, equipment can overheat, performance can become unreliable and the life of the system may be reduced. Heat can also affect scenic materials, adhesives and finished surfaces.
Ventilation requirements should be established before fabrication begins.
Air intake and exhaust routes can be incorporated through concealed grilles, perforated details, shadow gaps or internal ventilation plenums. These features must provide genuine airflow rather than simply appearing to be ventilated.
The internal layout should prevent hot air from becoming trapped around equipment. Filters, fans and cooling components must also remain accessible for cleaning and replacement.
Achieving this without interrupting the visual design requires close coordination between the technical and scenic teams.

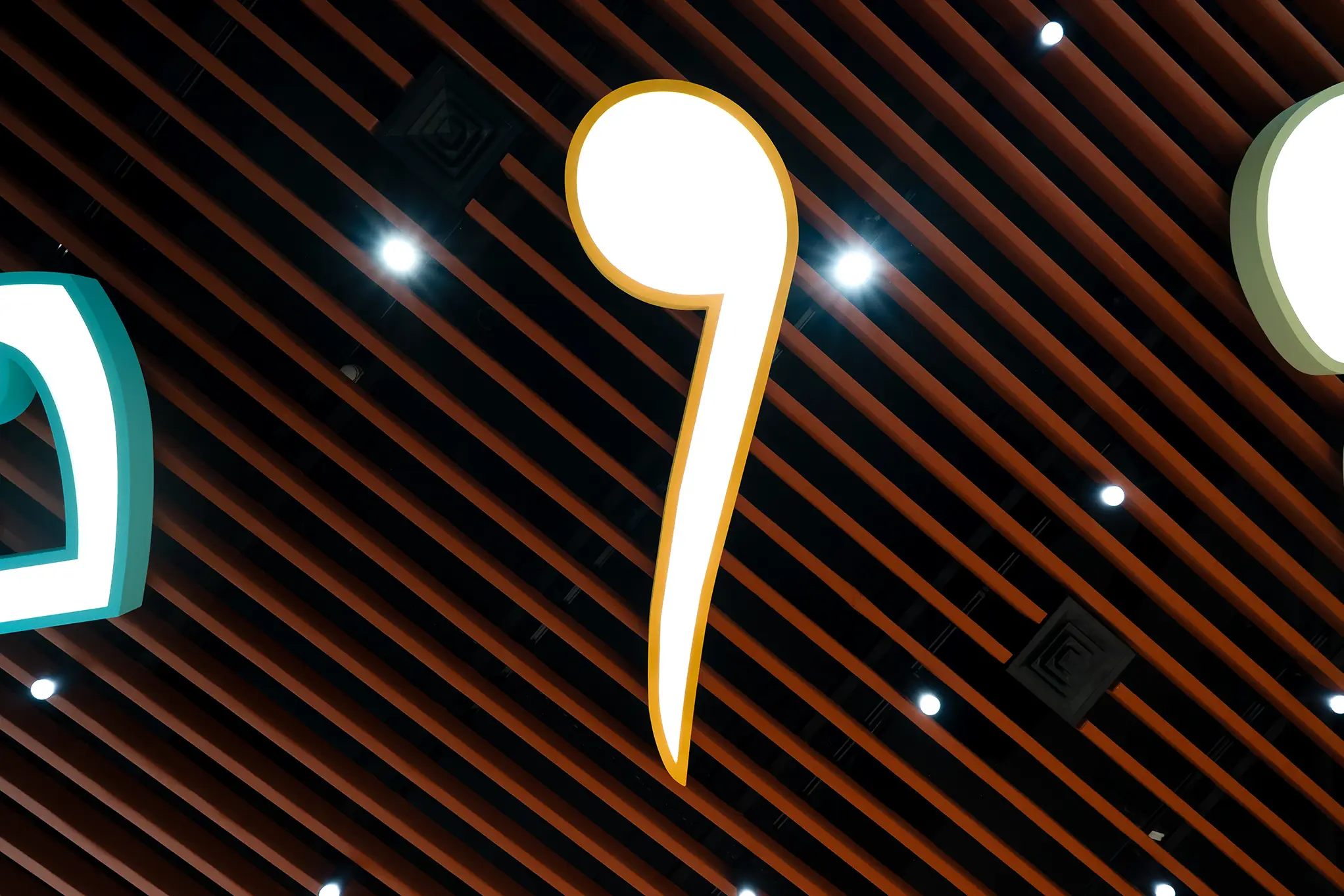

Ventilation openings can be integrated discreetly without disrupting the overall scenic design.
Designing for Future Upgrades
Technology often changes more quickly than the scenic environment surrounding it.
A display, media player, sensor or control unit may need to be replaced while the main structure remains in use. Designing the scenic build exclusively around one specific item of equipment can make future upgrades unnecessarily difficult.
Modular technology cassettes, adjustable brackets and demountable scenic facings can help separate the technical layer from the finished architectural layer.
Standardised openings, spare cable capacity and adaptable mounting points can also provide flexibility without compromising the initial installation.
This does not mean creating large unused spaces throughout the structure. It means identifying which components are likely to change and ensuring they can be reached or replaced without rebuilding the surrounding environment.

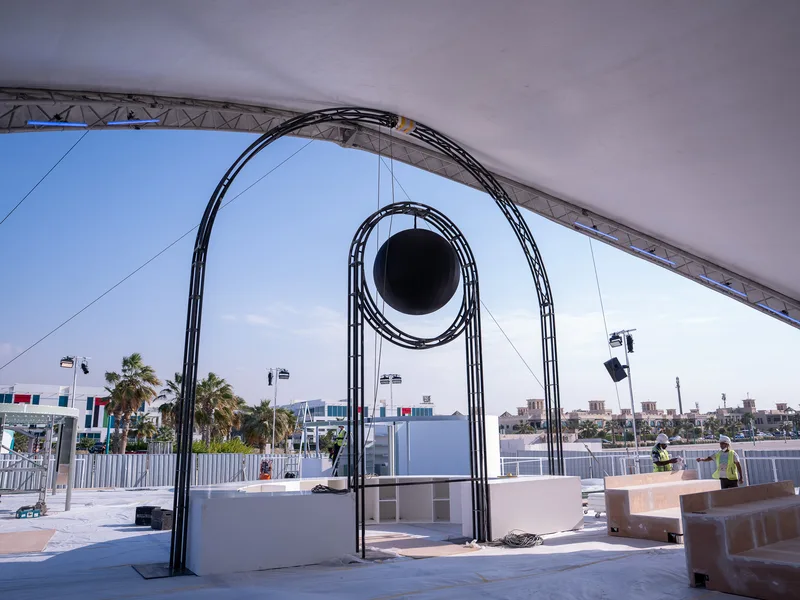

Futureproofing focuses on identifying equipment likely to change and making it replaceable.
Where Scenic Technology Integration Adds the Most Value
Technology integration is particularly important within experience centres, museums, exhibitions and immersive environments.
These spaces often combine digital content with physical architecture across a continuous visitor journey. Screens, projections and interactive systems must sit comfortably within walls, objects, displays and sculptural forms rather than appearing as isolated equipment.
Museums and experience centres may require extended operating periods, durable finishes and regular maintenance access. Exhibition environments may prioritise modular construction, fast installation and repeatable connections. Immersive environments often demand uninterrupted surfaces, hidden infrastructure and carefully controlled interfaces between physical and digital elements.
In every case, the scenic fabrication provides the physical system that allows the technology to operate successfully.
Experience centres and immersive environments benefit from close coordination between physical and digital systems.
Connecting Scenic Fabrication With Evolution Technical
Close coordination between Evolution Scenic and Evolution Technical allows scenic structures and technical systems to be considered together rather than developed as separate packages.
The scenic team can incorporate structural supports, housings, ventilation, cable routes and access requirements into the manufactured environment, while the technical requirements inform equipment positioning, service clearances and installation sequencing.
This coordinated approach protects both the creative intent and the practical performance of the finished installation.
Technology integration is not ultimately about making equipment invisible. It is about creating scenic environments where the physical construction and technical infrastructure operate as one carefully resolved system.
