Large Scale Digital Manufacturing Explained

As scenic structures become larger and more complex, traditional fabrication methods alone can struggle to deliver the accuracy, consistency and production speed required. Large-scale digital manufacturing has therefore become an increasingly important part of modern scenic production, particularly for projects involving complex geometry, repeated components or oversized structures.

Digital manufacturing connects design technology directly with workshop production. CNC routers, foam cutting systems and automated machining processes allow fabrication teams to convert digital models into accurately manufactured physical components.

The value of this process is not simply that a machine can cut material quickly. Its real strength lies in the way design information, engineering requirements, manufacturing tolerances and assembly logic can be coordinated before material reaches the workshop floor.

For Evolution Scenic, digital manufacturing is part of a wider fabrication methodology. It supports scenic carpentry, structural fabrication, sculptural production, finishing and installation rather than replacing them.

From Digital Model to Manufactured Component

The manufacturing process begins with a properly developed digital model.

A visually accurate model is not automatically ready for production. Geometry must first be reviewed against available materials, machine capabilities, tooling restrictions, structural requirements and the intended assembly sequence.

Individual parts are extracted from the model and prepared as manufacturing files. During this stage, the fabrication team considers cutter diameter, machining depth, material thickness, grain direction, edge conditions and the amount of material required around fixings or connection points.

Components can then be nested efficiently across standard sheet sizes. Good nesting reduces waste, improves material utilisation and helps organise production into manageable batches.

This preparation stage is critical. A CNC machine will manufacture the information it receives with considerable consistency, but it cannot determine whether the design is structurally practical, easy to assemble or appropriate for the selected material. Those decisions still depend on experienced engineers, technical designers and fabricators.

CNC Routers as Scenic Production Tools

Large-format CNC routers are among the most versatile digital manufacturing tools used in scenic fabrication.

They can produce profiles, openings, rebates, pockets, grooves, engraved markings and interlocking joints across materials such as plywood, MDF, plastics, composite sheets and selected non-ferrous materials when suitable tooling and machining strategies are used.

For exhibition pavilions and large branded installations, CNC-routed parts are often used to create structural ribs, wall profiles, curved frameworks, display components and decorative layers.

Complex curved forms can be divided into a series of accurately cut sections. These sections may then be assembled into a lightweight framework before being clad, filled or finished. What appears as a continuous sculptural surface can therefore be built from an organised system of numbered, repeatable components.

CNC production is particularly useful where parts must connect accurately. Slots, tabs, locating points and fixing holes can be incorporated directly into the manufacturing files, reducing the amount of manual setting-out required in the workshop.

However, accurate machining depends on more than the digital file. Tool condition, machine calibration, vacuum hold-down, extraction, feed speed and material stability all affect the final result. Large-scale CNC production therefore requires both technical preparation and disciplined workshop control.

Foam Cutting and Sculptural Manufacturing

Foam cutting systems extend digital manufacturing into more organic and sculptural forms.

Hot-wire cutting can produce large profiles efficiently from suitable foam blocks, while CNC milling systems can machine more complex three-dimensional geometry. Depending on the project, the manufactured foam may form the finished scenic volume or act as a base for coatings, reinforcement, fibreglass, hard shells or specialist painted finishes.

This process is valuable for sculptural environments, public structures, parade elements and branded installations where conventional sheet construction would require excessive labour or create unnecessary weight.

Large forms can also be divided digitally into sections that suit available foam blocks, machine capacity, transport dimensions and installation access. Registration points and internal references help those sections reconnect accurately during assembly.

Material selection remains important. Foam density, surface vulnerability, fire performance, environmental exposure and the intended finishing system must all be assessed. A lightweight sculptural form used inside an exhibition environment requires a different construction approach from an external public feature exposed to handling, wind, moisture or repeated transport.

Digital cutting provides the geometry, but the durability and visual quality of the completed element depend on the build-up that follows.

Accuracy and Repeatability

One of the most important advantages of digital manufacturing is repeatability.

A single component can be tested, adjusted and approved before the same production data is used across an entire batch. This is especially valuable where hundreds of similar fins, panels, ribs or decorative elements must align across a large installation.

Repeatability does not mean that every material behaves identically. Timber-based sheets can vary slightly in thickness, foam blocks may have dimensional differences, and some materials can move as temperature or humidity changes. Manufacturing tolerances must therefore reflect the behaviour of the material rather than relying on theoretical dimensions alone.

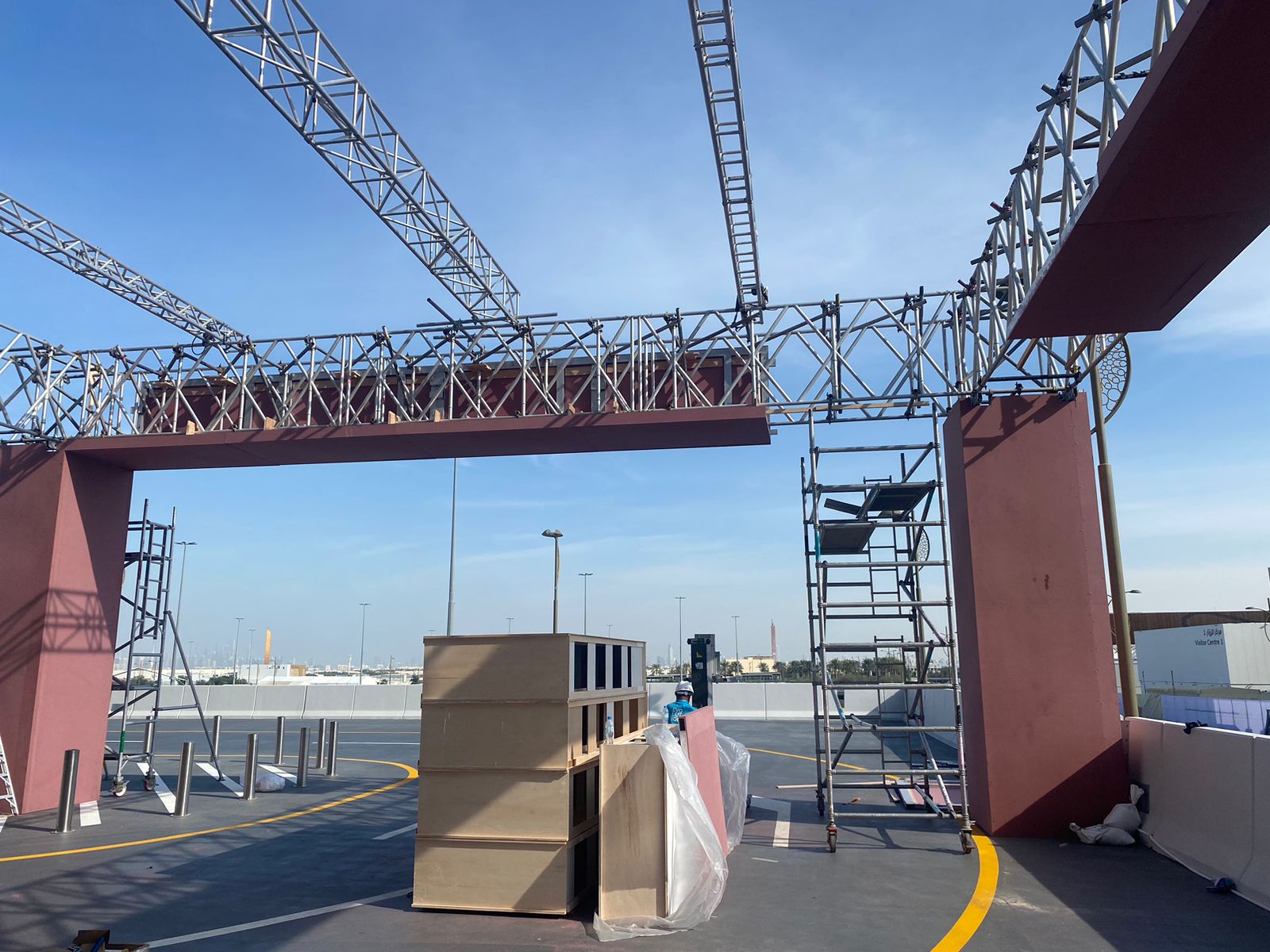

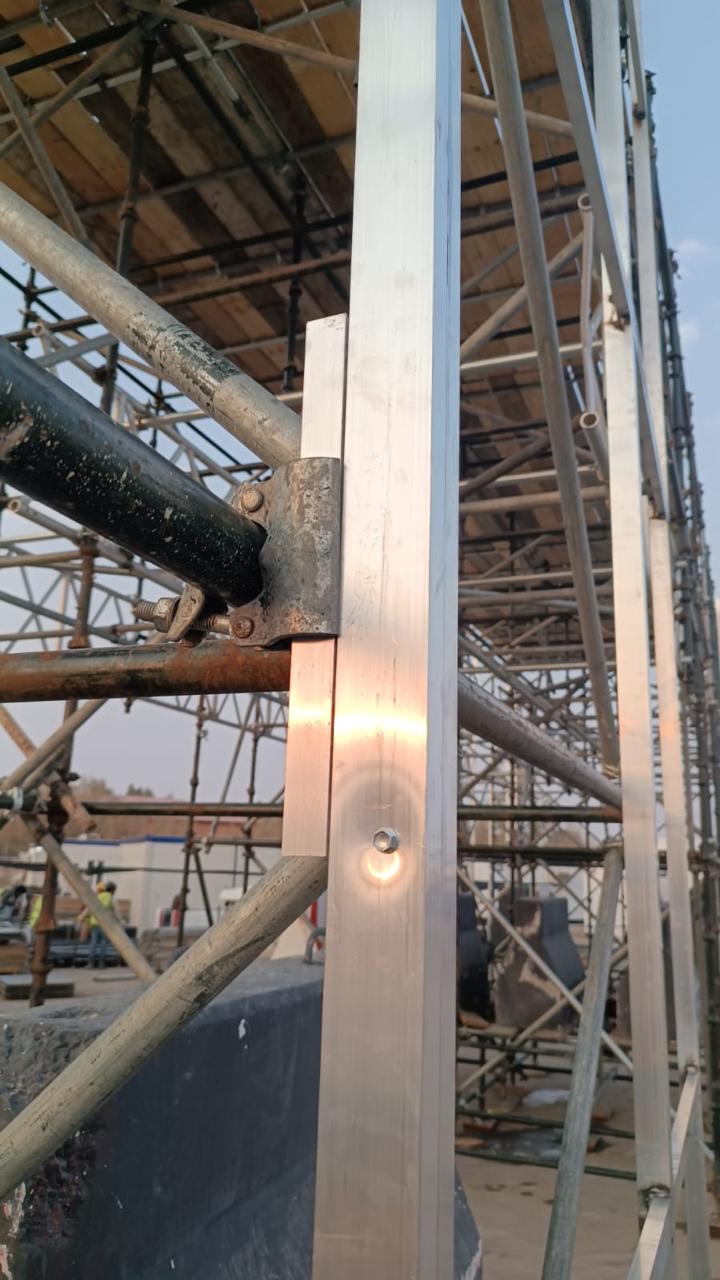

Where components interface with fabricated steelwork, aluminium frames, graphics, lighting or mechanical equipment, the tolerance strategy becomes even more important. Parts may require controlled clearances, adjustable brackets or deliberately oversized fixing points to accommodate workshop and site conditions.

Quality control continues throughout production. Components are checked against drawings, templates or reference dimensions, while sample assemblies can confirm that repeated parts fit together as intended.

The objective is not simply to produce identical pieces. It is to produce parts that perform consistently within the completed scenic system.

Engineering Integration

Digital manufacturing is most effective when engineering information is incorporated before production begins.

Load paths, connection zones, fixing positions and structural interfaces can influence the shape of a manufactured component. A plywood rib may require additional depth around a bolted connection. A routed panel may need access openings for steel brackets. A sculptural shell may require internal channels for reinforcement, lighting or lifting points.

By coordinating these details within the digital model, fabrication teams can reduce drilling, cutting and modification after components have been manufactured.

This is particularly important on large scenic structures where small inconsistencies can multiply across the installation. A minor dimensional error repeated through fifty components can affect alignment, cladding, graphics and final assembly.

Engineering integration also improves communication between departments. Scenic carpenters, metal fabricators, CNC operators, technical designers and installation teams can work from coordinated information rather than developing separate solutions in isolation.

At Evolution Scenic, the digital workflow is therefore connected to the overall build methodology. Production files are developed with consideration for how components will be fabricated, dry-fitted, finished, labelled, packed, transported and installed.

Large-Volume Production

Digital manufacturing allows large volumes of components to be produced efficiently, but machine speed is only one part of the operation.

Once parts leave the cutting bed, they must be identified, inspected, sorted and transferred to the next workshop process. Edges may require preparation, components may need lamination or reinforcement, and individual parts may be assembled into larger modules.

A high-volume project can quickly become difficult to manage if hundreds of similar components are not labelled and sequenced properly. Part numbering, batch references and installation zones can be machined or marked directly onto concealed surfaces, helping the workshop and site teams identify where each component belongs.

Production planning must also consider storage space, material handling and the sequence in which completed parts will be needed. Manufacturing everything at once may create congestion rather than efficiency. In many cases, controlled batches aligned with assembly and finishing capacity provide a better result.

Digital scalability therefore depends on the entire production system. Cutting, assembly, finishing, quality control, packing and logistics must progress at compatible rates.

Scaling Different Types of Scenic Project

The same digital manufacturing principles can support very different scenic applications.

For an exhibition pavilion, CNC production may create a kit of structural ribs, wall sections, counters and architectural features that can be assembled quickly within a restricted installation period.

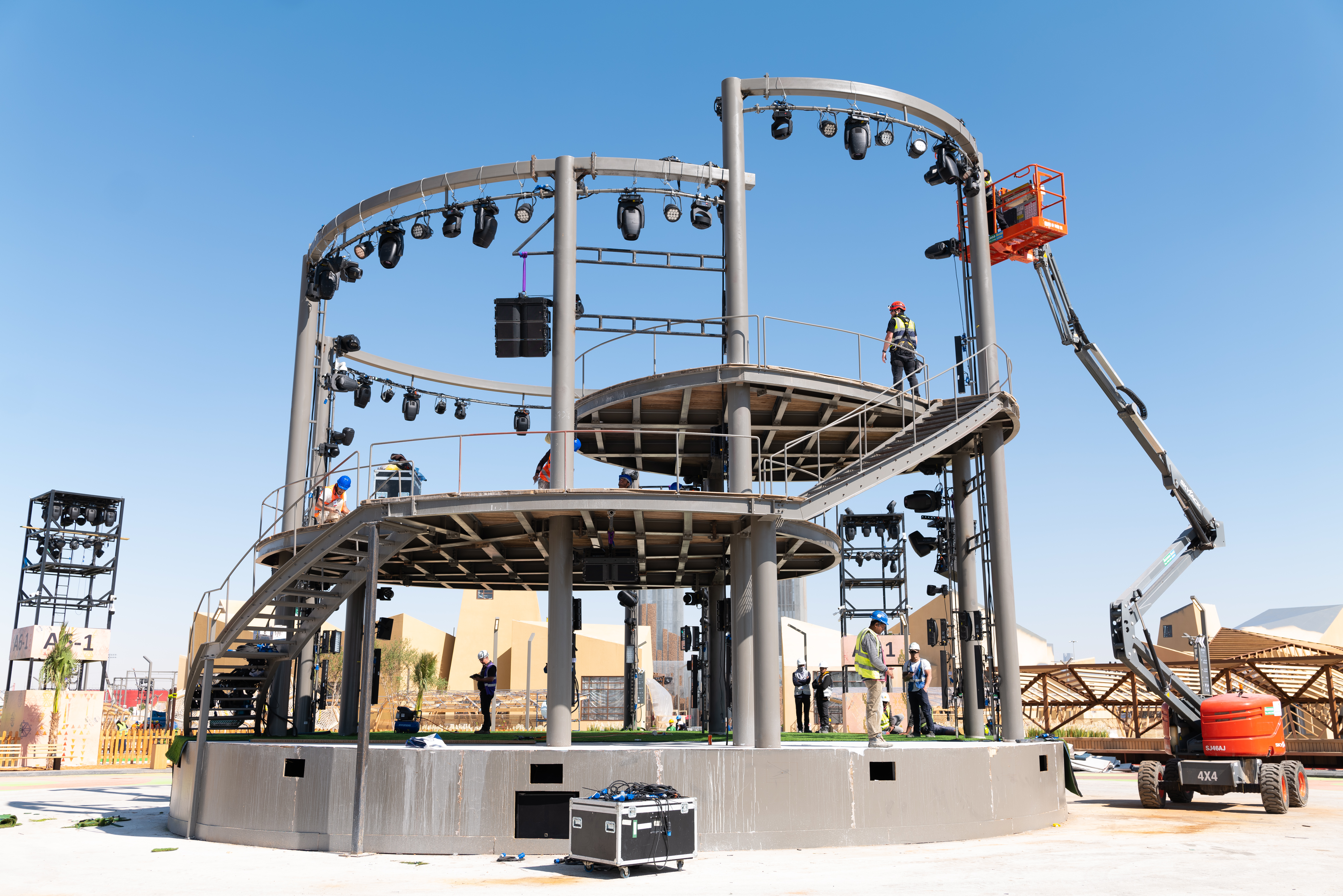

For a large public structure, digitally manufactured templates and profiles can help control complex geometry while fabricated steelwork provides the primary support.

Within a branded installation, repeated elements may need to align precisely with graphics, lighting and product displays across multiple elevations.

For sculptural environments, foam cutting and CNC machining can establish the underlying form before scenic artists apply texture, colour and specialist finishes.

In each case, the technology remains similar, but the manufacturing strategy changes according to scale, structural performance, finish quality, programme, transport limitations and site access.

Technology Supported by Workshop Skill

Digital manufacturing should not be viewed as a replacement for traditional workshop expertise.

A CNC router can manufacture a complicated profile accurately, but it cannot judge whether the component is easy to handle, whether a joint will remain accessible during installation or whether the chosen finish will conceal the construction method.

Those decisions rely on the practical knowledge of scenic carpenters, metal fabricators, sculptors, painters, engineers and installation teams.

The strongest outcomes come from combining both approaches. Digital tools provide accuracy, repeatability and production capacity. Skilled fabricators provide judgement, adaptation and an understanding of how materials behave in real conditions.

This combination allows ambitious scenic structures to be produced at a scale that would otherwise be difficult, slow or impractical to achieve.

Large-scale digital manufacturing is therefore not simply about automated cutting. It is a coordinated process that connects design, engineering, workshop production and installation.

When those disciplines are developed together, digital manufacturing becomes a powerful tool for delivering complex scenic environments accurately, efficiently and at scale.

Integrating Technology Into Scenic Environments

Technology is now embedded within many scenic environments, yet the most successful installations are often those where the technology feels like a natural part of the architecture rather than equipment added afterwards.

LED displays, projection systems, lighting, sensors, touchscreens, audio equipment and control infrastructure can all be incorporated directly into scenic structures. Doing this successfully requires considerably more than creating an opening for a screen or concealing a few cables behind a wall.

The scenic construction must support the equipment, protect it, provide ventilation, maintain accurate alignment and allow technicians to reach it throughout the life of the installation.

The result should feel visually seamless while remaining practical to operate, maintain, dismantle and upgrade.

Technology Integration Begins During Technical Development

The most reliable technology-integrated environments are developed collaboratively from the earliest stages of the project.

Before fabrication begins, the scenic team needs accurate information about equipment dimensions, weights, mounting points, cable connections, ventilation requirements and maintenance clearances. These details influence the internal framework, material selection, panel construction and assembly sequence.

A screen may appear to occupy a simple rectangular opening within a design, but the structure behind it may need to accommodate mounting rails, adjustment brackets, power supplies, data connections, cable bend radii and access space.

Technical coordination therefore becomes part of the scenic engineering process.

Digital models and coordinated production drawings allow these requirements to be incorporated before components reach the workshop. This reduces the risk of site modifications, protects finished surfaces and helps ensure that the scenic structure and technical equipment arrive ready to connect as a coordinated system.

Integrating LED Displays Into Scenic Structures

LED integration is one of the most common requirements within exhibitions, experience centres and immersive environments.

Although the visible display surface may appear simple, the supporting structure must be manufactured with a high level of accuracy. LED cabinets need consistent alignment, controlled tolerances and a stable mounting surface. Even small variations can create visible steps, uneven joints or inconsistent transitions between the screen and the surrounding scenic finish.

The scenic framework must also manage the concentrated weight of the display system.

Depending on the installation, this may involve fabricated steel frames, aluminium support systems or reinforced timber structures designed around the selected LED configuration.

Access strategy is equally important.

Some LED systems are serviced from the front, while others require rear access. The scenic construction must respond accordingly through removable trims, access corridors, demountable panels or dedicated maintenance openings.

The edges around the display must also be protected during transport and installation. Carefully detailed trims can conceal the structural interface while preventing damage to the screen modules and surrounding finishes.

Good LED integration is therefore not simply about hiding the frame. It is about creating a precisely manufactured scenic structure that allows the display to perform correctly and remain serviceable.

Scenic Fabrication for Projection Systems

Projection systems create different fabrication challenges.

The quality of the projected image depends heavily on the surface receiving it. Flatness, curvature, joint treatment, surface colour, reflectivity and texture can all affect the final result.

For this reason, projection surfaces should be treated as engineered scenic components rather than ordinary decorative walls.

CNC-cut ribs, accurately fabricated substrates and carefully prepared joints can be used to create large projection surfaces with controlled geometry. Scenic finishing teams must then produce a consistent surface without visible seams, localised texture changes or irregular reflections.

Where curved or sculptural projection surfaces are required, the geometry must be coordinated with the projector positions and intended content. The scenic structure needs to hold its shape throughout fabrication, transport and installation so that alignment remains consistent.

Projector housings and mounting positions may also be concealed within ceilings, walls or feature structures. These areas still require sufficient ventilation, adjustment space and access for calibration or replacement.

A visually clean projection environment depends on the quality of the physical surface and the stability of everything supporting it.

Building Interactive Installations

Interactive installations often combine touchscreens, sensors, cameras, mechanical elements and control equipment within custom scenic housings.

These installations are designed to be handled, touched and used repeatedly. The scenic structure must therefore provide more than an attractive finish. It needs to withstand physical contact, protect sensitive equipment and allow damaged or outdated components to be replaced.

Interactive screens may be integrated into plinths, counters, feature walls or sculptural forms. The supporting construction must hold the equipment securely while maintaining accurate screen positioning and comfortable user access.

Sensors and cameras also require clear operating zones. Decorative trims, glazing, structural members or projecting scenic elements must not interfere with their field of view.

Where movement or mechanical interaction is involved, the scenic enclosure must keep moving components separate from delicate finishes and provide safe internal clearances.

Prototyping can be particularly valuable for interactive installations. Testing a section of the scenic assembly before full production allows the team to confirm screen positions, access methods, sensor performance and finishing details while changes are still practical.

Cable Management as Part of the Build

Cable management is rarely visible in the completed environment, but it has a significant effect on installation efficiency and long-term reliability.

Power, data and control cables need protected routes through scenic walls, floors, ceilings, plinths and structural frames. Openings must be positioned accurately and finished with suitable protection so that cables are not damaged by sharp edges or compressed during assembly.

Cable trays, conduits, pull paths and connection points should be incorporated into the fabrication drawings rather than introduced on site.

Where appropriate, power and data routes may need to be separated. Sufficient space should also be allowed for connectors, cable bends, strain relief and future replacement.

Labelling and repeatable connection points become especially valuable within temporary or modular environments. When a structure is dismantled and reinstalled, organised cable looms and clearly identified routes can significantly reduce site time and prevent incorrect connections.

The objective is not simply to conceal cables. It is to make the infrastructure orderly, protected and accessible.

Access Panels and Maintenance Strategy

A scenic environment may look perfect when it opens, but its quality will quickly be compromised if every technical fault requires finished panels to be cut open.

Maintenance access should therefore be designed into the scenic construction from the beginning.

Access panels can be incorporated using shadow gaps, concealed hinges, magnetic fixings, quarter-turn fasteners or removable finished trims. The correct method depends on the panel size, finish, frequency of access and equipment located behind it.

A successful access panel should be easy to identify for the maintenance team while remaining unobtrusive within the completed design. It should also open without damaging adjacent paintwork, graphics or specialist finishes.

The access opening must be large enough for the intended task. Reaching a cable connection may require only a small panel, while replacing a screen, power supply or projector may require a much larger removable section.

Maintenance routes should also consider how equipment will be physically removed. It is not enough to reach a component if it cannot pass through the available opening.

Cooling and Ventilation Without Visual Compromise

Technology generates heat, particularly when multiple screens, processors and power supplies are enclosed within scenic structures.

Without adequate airflow, equipment can overheat, performance can become unreliable and the life of the system may be reduced. Heat can also affect scenic materials, adhesives and finished surfaces.

Ventilation requirements should be established before fabrication begins.

Air intake and exhaust routes can be incorporated through concealed grilles, perforated details, shadow gaps or internal ventilation plenums. These features must provide genuine airflow rather than simply appearing to be ventilated.

The internal layout should prevent hot air from becoming trapped around equipment. Filters, fans and cooling components must also remain accessible for cleaning and replacement.

Achieving this without interrupting the visual design requires close coordination between the technical and scenic teams.

Designing for Future Upgrades

Technology often changes more quickly than the scenic environment surrounding it.

A display, media player, sensor or control unit may need to be replaced while the main structure remains in use. Designing the scenic build exclusively around one specific item of equipment can make future upgrades unnecessarily difficult.

Modular technology cassettes, adjustable brackets and demountable scenic facings can help separate the technical layer from the finished architectural layer.

Standardised openings, spare cable capacity and adaptable mounting points can also provide flexibility without compromising the initial installation.

This does not mean creating large unused spaces throughout the structure. It means identifying which components are likely to change and ensuring they can be reached or replaced without rebuilding the surrounding environment.

Where Scenic Technology Integration Adds the Most Value

Technology integration is particularly important within experience centres, museums, exhibitions and immersive environments.

These spaces often combine digital content with physical architecture across a continuous visitor journey. Screens, projections and interactive systems must sit comfortably within walls, objects, displays and sculptural forms rather than appearing as isolated equipment.

Museums and experience centres may require extended operating periods, durable finishes and regular maintenance access. Exhibition environments may prioritise modular construction, fast installation and repeatable connections. Immersive environments often demand uninterrupted surfaces, hidden infrastructure and carefully controlled interfaces between physical and digital elements.

In every case, the scenic fabrication provides the physical system that allows the technology to operate successfully.

Connecting Scenic Fabrication With Evolution Technical

Close coordination between Evolution Scenic and Evolution Technical allows scenic structures and technical systems to be considered together rather than developed as separate packages.

The scenic team can incorporate structural supports, housings, ventilation, cable routes and access requirements into the manufactured environment, while the technical requirements inform equipment positioning, service clearances and installation sequencing.

This coordinated approach protects both the creative intent and the practical performance of the finished installation.

Technology integration is not ultimately about making equipment invisible. It is about creating scenic environments where the physical construction and technical infrastructure operate as one carefully resolved system.

Engineering Scenic Steel Structures

Steel remains one of the most important materials used within scenic engineering. Its strength, versatility and adaptability allow fabrication teams to deliver structures that would be difficult to achieve using many alternative construction methods.

Yet successful scenic steelwork is not simply a matter of selecting a strong material and adding enough of it to support the structure. Every decision affects another part of the project. Increasing a member size may improve structural capacity, but it also increases weight. Adding welded connections may produce a rigid frame, but it may complicate transport or prevent efficient dismantling. Reducing the number of components may simplify installation, but create modules that are too large to pass through the venue access route.

For Evolution Scenic, engineering steel structures is therefore an exercise in balancing structural performance with fabrication, transportation, installation and operational requirements.

Engineering Begins Before Fabrication

The engineering process starts long before steel reaches the workshop.

At the earliest stage, the scenic concept must be assessed as a physical structure rather than only a visual composition. Engineers and fabricators consider the overall geometry, expected loads, support conditions, venue restrictions, installation sequence and intended operational period.

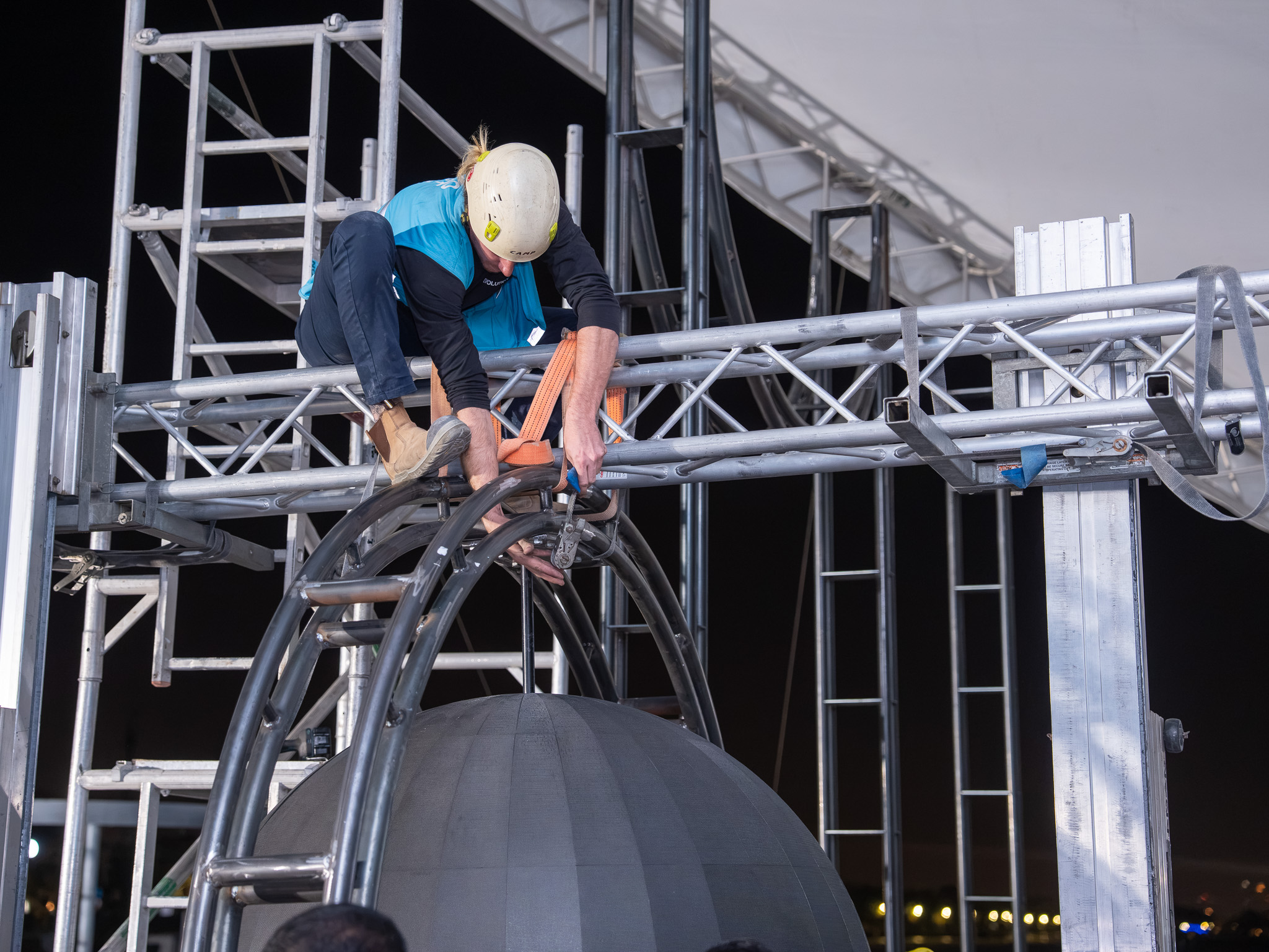

A scenic stage may need to support architectural cladding, lighting equipment, LED screens, suspended technical systems and maintenance access. An exhibition pavilion may need long, unobstructed spans while remaining demountable and suitable for installation within strict venue working hours. A large public structure may need to resist wind, interaction from visitors and changing environmental conditions.

These requirements influence the structural arrangement from the beginning. The position of columns, bracing, connection points and foundations cannot be developed independently from the scenic design. They must be coordinated so that the final framework supports the visual intent without creating unnecessary weight, visible obstructions or impractical assembly conditions.

Structural Calculations for Scenic Environments

Structural calculations establish how the steel structure will behave under the loads it may experience throughout its working life.

This normally begins with the self-weight of the steel frame, but the structure rarely carries only itself. Scenic finishes, timber substrates, graphics, lighting systems, AV equipment, access platforms and suspended features all contribute additional permanent loads.

Temporary and imposed loads must also be considered. These may include technicians accessing a structure, equipment being moved during installation, wind acting on large scenic surfaces or operational loads generated by moving components. In public environments, engineers may also need to account for accidental interaction, guarding requirements and areas where visitors could lean against or touch fabricated elements.

Temporary structures require particular attention because their loading conditions can change during installation. A partially assembled frame may behave very differently from the completed structure. Bracing that provides stability in the finished arrangement may not yet be installed during the early construction stages.

Engineering calculations therefore need to consider both the completed structure and the temporary conditions created while it is being assembled or dismantled.

Establishing Clear Load Paths

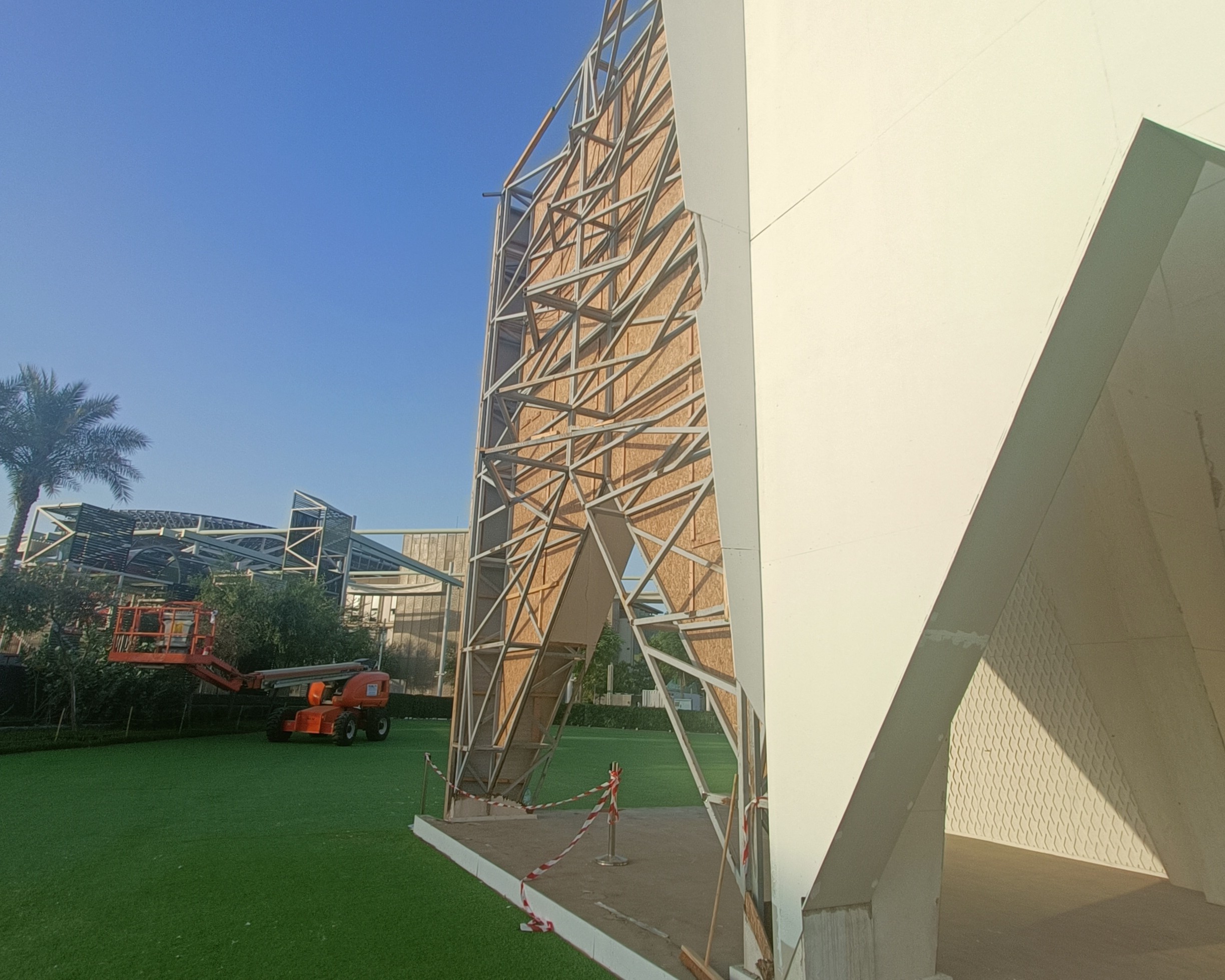

A load path describes how forces move through a structure and eventually reach the supporting surface.

For example, wind acting on a tall scenic wall may transfer through the cladding into secondary rails, then into the primary steel frame, through diagonal bracing and finally into base plates, anchors or ballast. A suspended scenic feature may transfer its weight through lifting points, beams, columns and foundations.

A clear load path allows each structural component to perform a defined role. When load paths are poorly resolved, forces can become concentrated in unexpected areas, creating excessive movement or requiring unnecessary reinforcement.

This is why bracing positions, beam directions and support locations are important engineering decisions rather than workshop details. The objective is not simply to create a strong collection of steel members. It is to create an efficient structural system in which loads travel predictably through the frame.

Well-resolved load paths can also reduce the total amount of material required. A correctly positioned brace may provide more stability than increasing the size of several beams. A carefully located support may shorten a span and significantly reduce member weight.

Connection Design

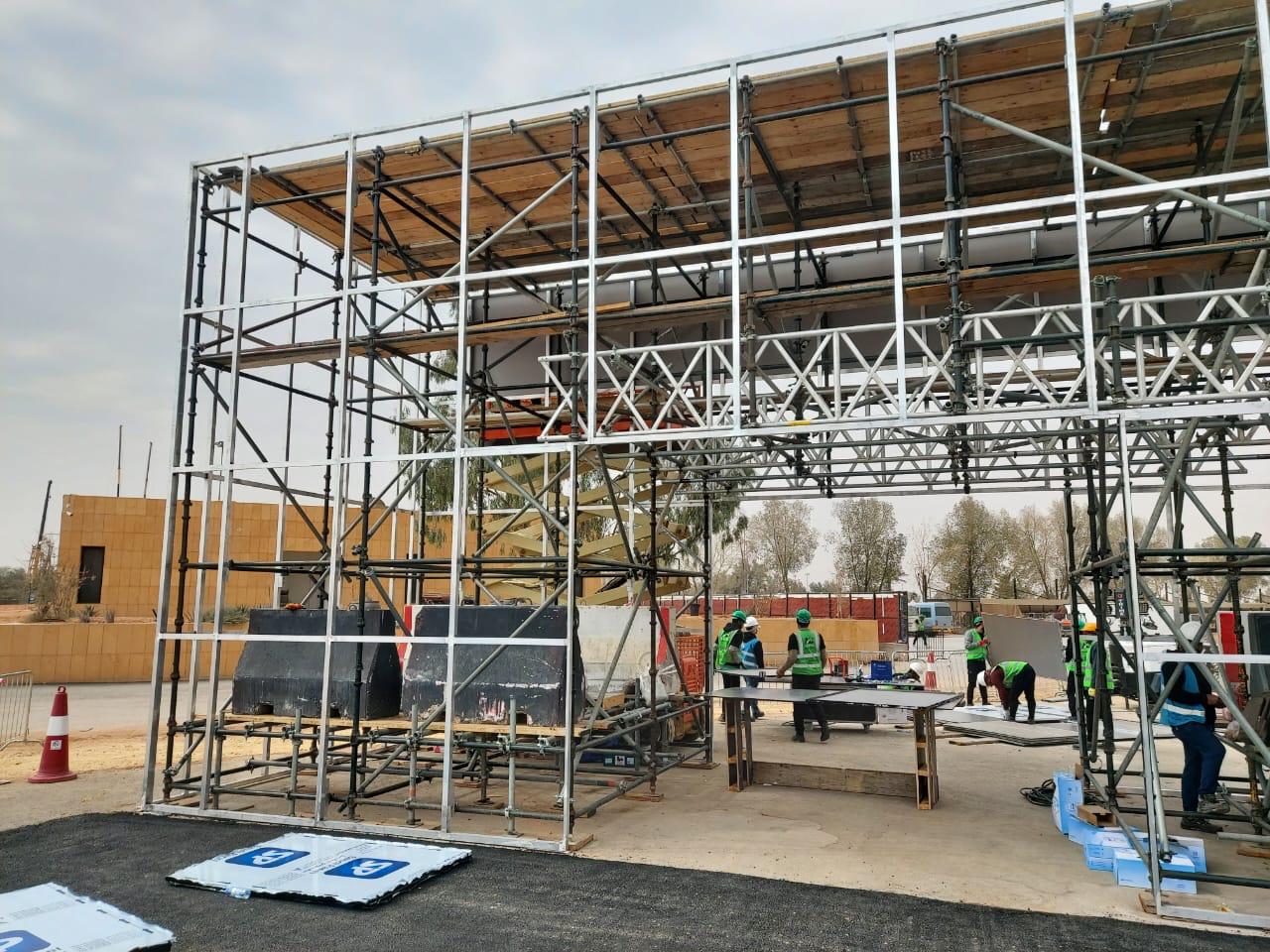

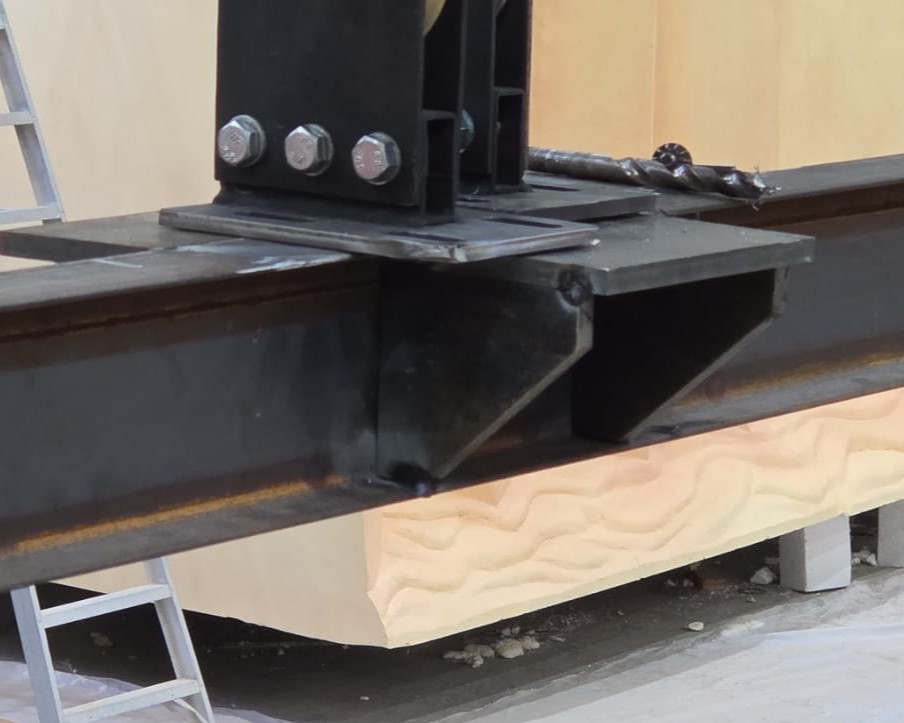

Connections are often the most critical parts of a scenic steel structure.

Members may have sufficient capacity individually, but the structure will only perform successfully if forces can be transferred safely between them. Connection design considers plate thicknesses, bolt sizes, weld requirements, hole positions, edge distances and the forces acting at each structural node.

Scenic structures also introduce practical connection requirements that may not exist within permanent construction. Components often need to be transported separately, assembled quickly and removed without damage. This makes bolted and demountable connections particularly valuable.

Workshop-welded assemblies can provide rigidity and accuracy, while bolted site connections allow the structure to be divided into manageable modules. Splice plates, flange connections, captive nuts and accurately coordinated hole patterns can reduce installation time and limit the amount of site welding required.

Accessibility is equally important. A connection that works perfectly within a structural model may be difficult to reach once cladding, decking or technical equipment has been installed. Installation teams need enough space for tools, hands and lifting equipment.

Effective connection design therefore considers structural capacity and the physical reality of assembling the structure on site.

Fabrication Detailing

Once the engineering principles have been established, fabrication detailing converts the structural design into information the workshop can manufacture accurately.

Detailed drawings identify member profiles, steel grades, plate thicknesses, weld sizes, hole diameters, connection references and overall dimensions. They also define how individual components relate to the complete structure.

The choice between rectangular hollow sections, circular hollow sections, universal beams, channels and fabricated plate assemblies depends on more than strength. The selected profile may need to accept cladding, conceal services, create a curved outline or provide a clean interface with timber and scenic finishes.

Fabrication detailing must also account for workshop access. Welds need to be positioned where they can be completed and inspected. Bolts need sufficient clearance. Plates must be shaped to avoid clashes. Tolerances must be coordinated so components can be assembled without creating visible gaps or forcing members into position.

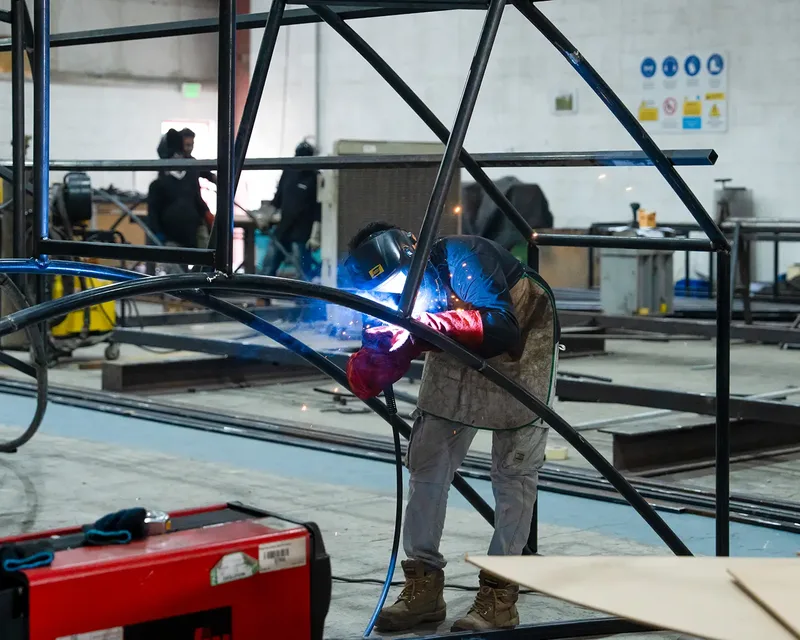

Digital modelling and CNC-controlled production can improve accuracy, particularly where structures contain repeated components, complex geometry or precisely aligned interfaces. However, digital accuracy must still be supported by practical workshop knowledge. Steel moves during welding, frames can distort and apparently minor tolerance issues may multiply across a large structure.

Good detailing anticipates these realities before fabrication begins.

Workshop Processes and Quality Control

Inside the workshop, structural steel components move through cutting, drilling, profiling, welding, grinding, trial assembly and finishing processes.

CNC cutting, laser profiling and automated drilling allow plates and members to be produced with consistent hole patterns and accurate geometry. Fabrication jigs help maintain alignment while repeated frames or connection assemblies are welded.

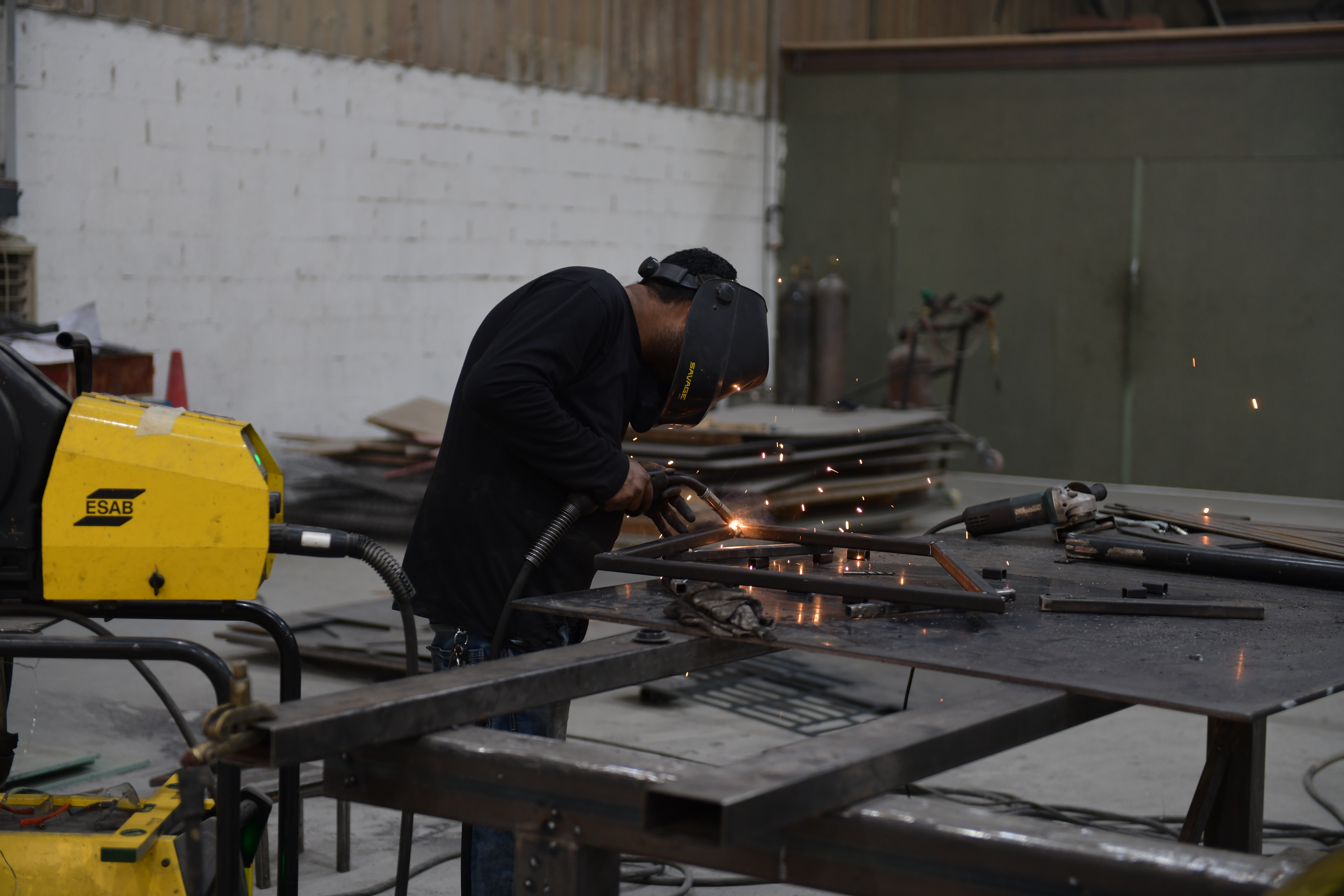

Welding sequence is important because concentrated heat can distort steel. Experienced fabricators control this by balancing welds, using temporary restraints and checking dimensions throughout production rather than only after a component has been completed.

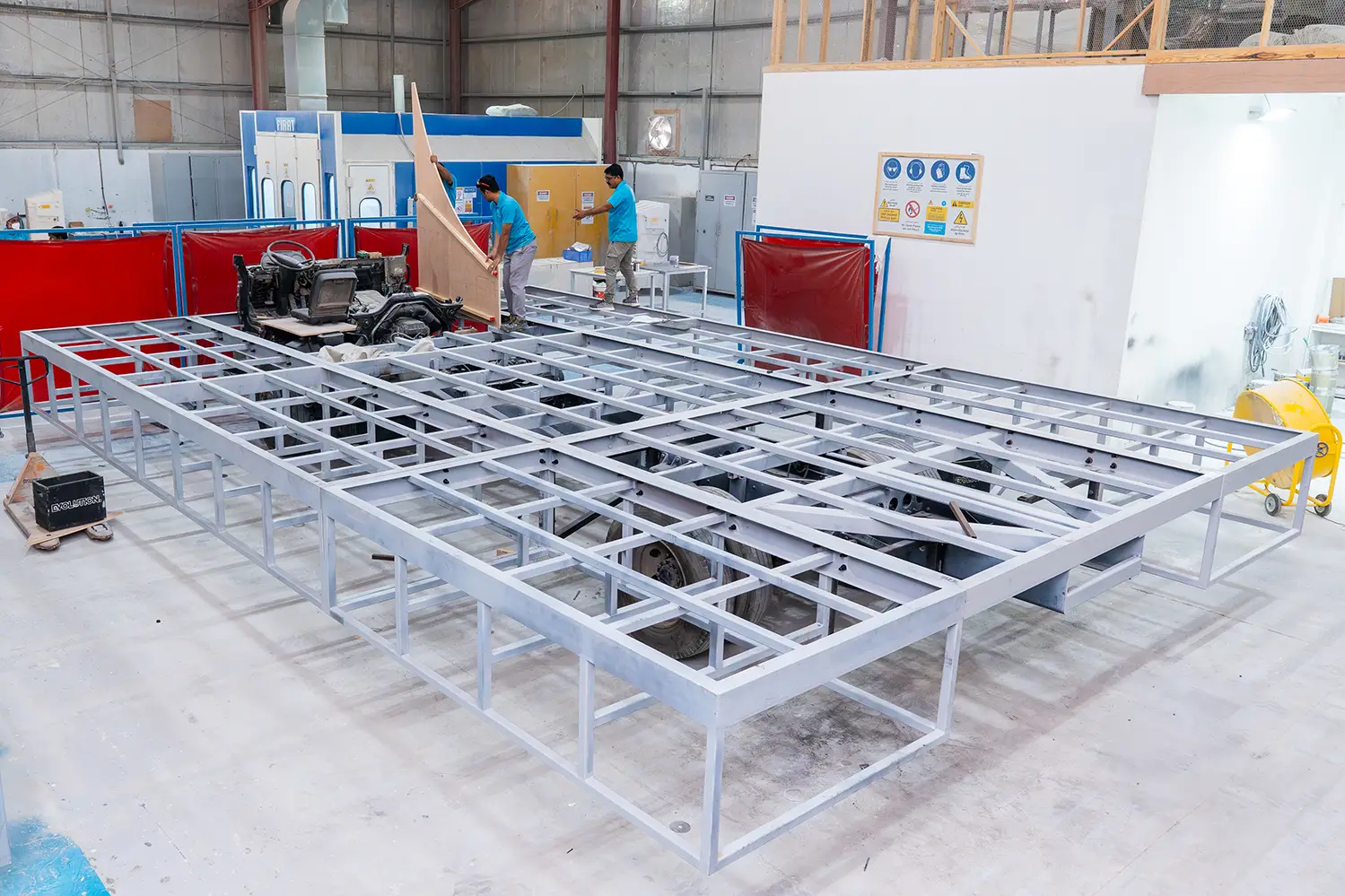

Where practical, scenic steel structures may be trial assembled in the workshop. This provides an opportunity to confirm that connection holes align, modules fit together, bracing can be installed and scenic interfaces are located correctly.

Components can then be labelled according to the installation sequence. Clear identification becomes especially valuable on large structures containing similar members or mirrored assemblies.

The result is not simply a collection of manufactured parts. It is a coordinated structural kit prepared for efficient assembly.

Designing for Transportation and Installation

A structure cannot be considered successful if it performs structurally but cannot be transported or installed efficiently.

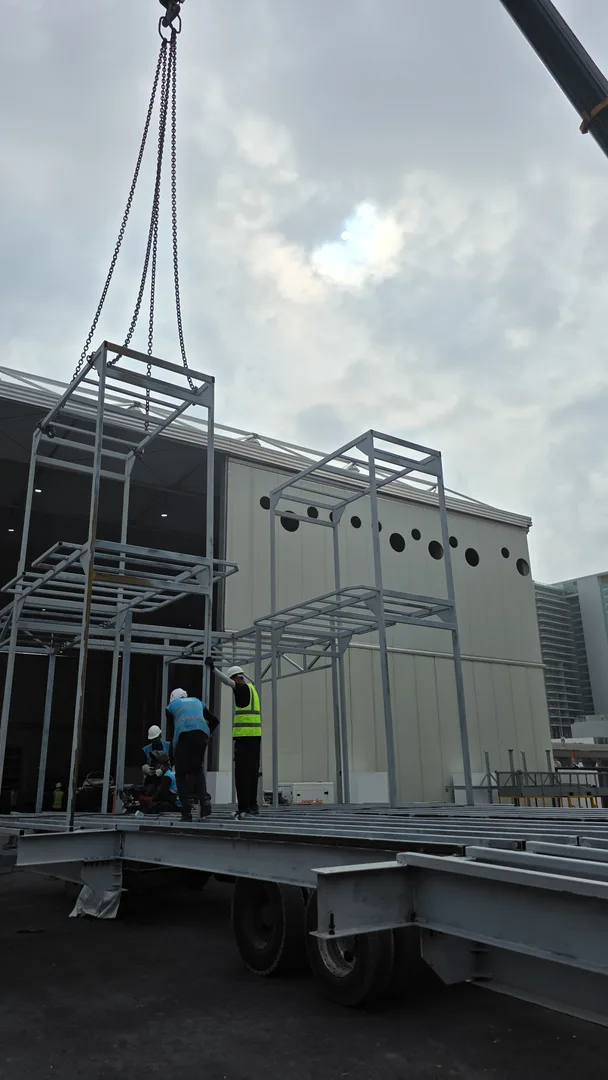

Module sizes must reflect vehicle capacities, road restrictions, loading methods, venue access routes and available handling equipment. A large welded frame may reduce the number of site connections, but it may require specialist transport or lifting equipment. Smaller modules may be easier to handle but increase assembly time.

Installation planning therefore influences the engineering arrangement. Lifting points may be integrated into major modules. Temporary bracing may be added to stabilise frames before the permanent structure is complete. Connections may be positioned so they remain accessible from mobile elevated work platforms or scaffold towers.

The sequence of installation must also be understood. Engineers need to know which parts will be erected first, where lateral stability will come from at each stage and when cladding or technical systems will be added.

For temporary structures, dismantling is part of the same process. Connections should remain accessible, components should be removable without damaging adjacent scenic finishes and modules should be suitable for storage or future reuse where required.

Different Structures Require Different Decisions

Large public structures often require substantial resistance to wind, environmental exposure and visitor interaction. Their steel frameworks may support complex sculptural forms while remaining almost completely hidden beneath finished surfaces.

Scenic stages can introduce long spans, suspended loads, integrated LED screens and concentrated equipment loads. The structure must achieve the required rigidity while allowing production systems, access routes and scenic cladding to be coordinated around it.

Exhibition pavilions frequently prioritise modularity, efficient installation and controlled floor loading. Steel may be combined with aluminium, timber and CNC-manufactured panels to create a hybrid system that uses each material where it performs most effectively.

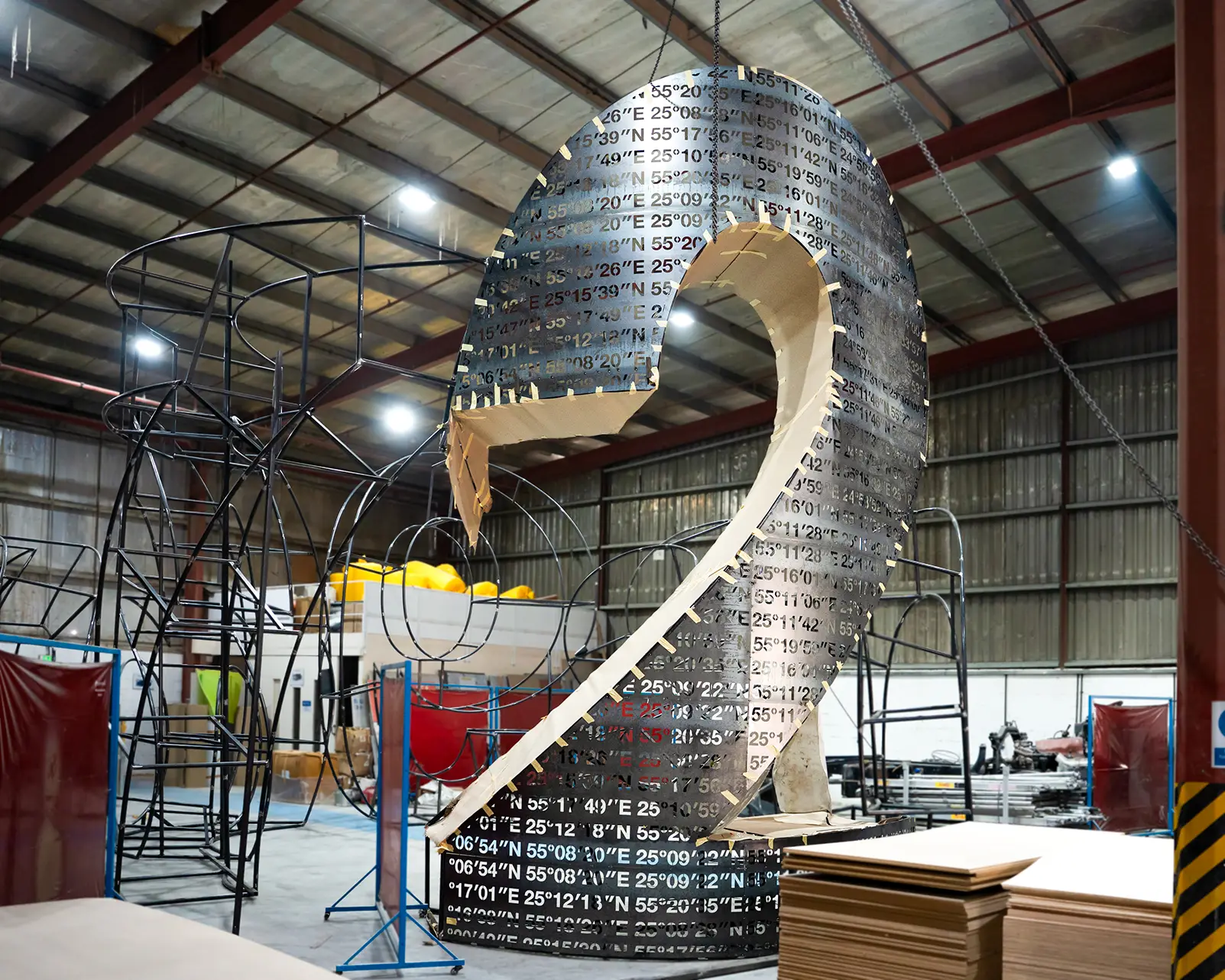

Cultural installations may require the steel frame to follow unusual geometries or support detailed scenic finishes. In these environments, close coordination between structural engineers, metal fabricators, scenic carpenters, CNC teams and finishing departments becomes particularly important.

Engineering for Performance, Not Excess

The most successful scenic steel structures are not necessarily those containing the greatest amount of material.

They are the structures that achieve the required performance with a clear structural strategy, efficient load paths, practical connections and a considered installation methodology.

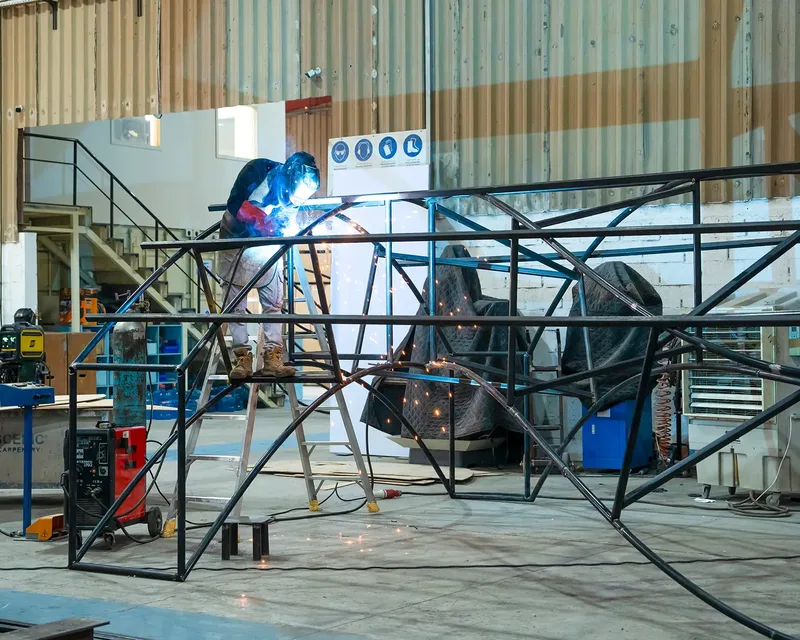

Steel provides strength, but engineering determines how effectively that strength is used.

Fabrication detailing turns engineering intent into manufacturable components. Workshop expertise controls accuracy and quality. Installation planning ensures the finished system can be assembled safely within the realities of the site.

At Evolution Scenic, these disciplines operate together throughout the delivery process. The aim is not simply to manufacture steelwork, but to engineer scenic structures that are safe, efficient, transportable and appropriate for the environments in which they will operate.

Steel And Aluminium In Scenic Fabrication

Finished cladding, specialist paint, graphics and architectural surfaces may define the visual experience, but steel and aluminium often provide the structural foundation that makes the environment safe, stable and practical.

Both materials are used extensively in scenic fabrication, yet they solve different problems. Selecting between them is not simply a matter of strength or cost. The decision can influence structural performance, fabrication methodology, workshop time, transportation, installation sequencing, maintenance and the ability to reuse a structure in the future.

In many projects, the strongest solution is not steel or aluminium. It is a carefully developed combination of both.

The Structure Behind the Scenic Finish

Scenic structures are often expected to achieve ambitious visual results while remaining temporary, transportable and fast to install. A large stage façade may appear solid and architectural while actually being formed from a lightweight cladding system supported by an engineered metal frame. An exhibition pavilion may contain long cantilevers, suspended features or curved surfaces that require substantial structural support without making the finished environment feel heavy.

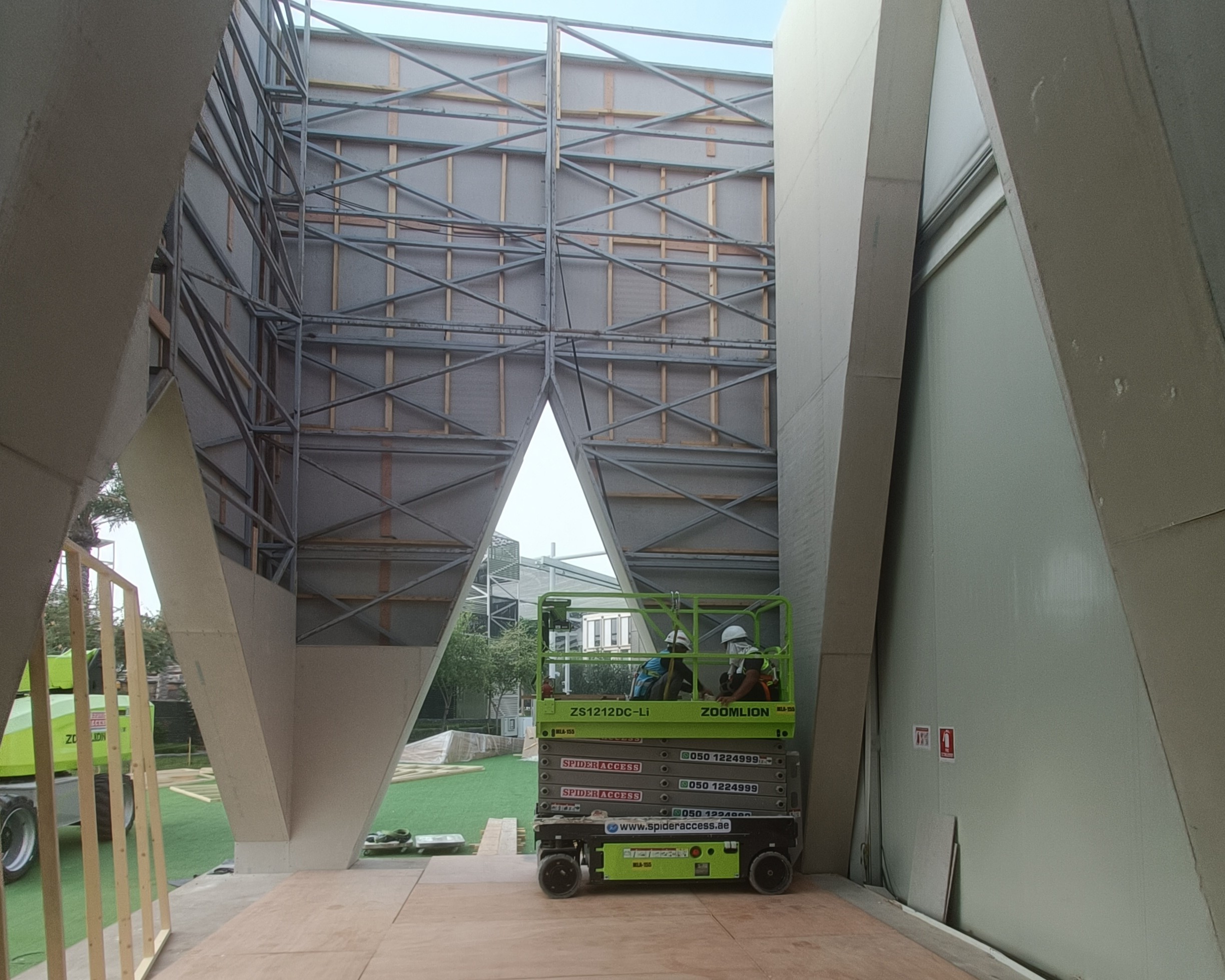

The metal framework has to resolve far more than the visible shape. It may need to resist wind loads, support integrated lighting and audiovisual equipment, provide fixing points for scenic cladding, accommodate access routes and allow the entire structure to be assembled within a restricted installation programme.

Deflection is particularly important. A frame may be strong enough to carry its intended load but still move more than the scenic finishes can tolerate. Excessive movement can crack rigid coatings, disturb graphic alignment or cause joints between cladding panels to become visible. Structural performance therefore has to be considered alongside the behaviour of every finish attached to the frame.

Where Steel Performs Best

Steel is frequently selected where strength, stiffness and dependable structural performance are the primary concerns.

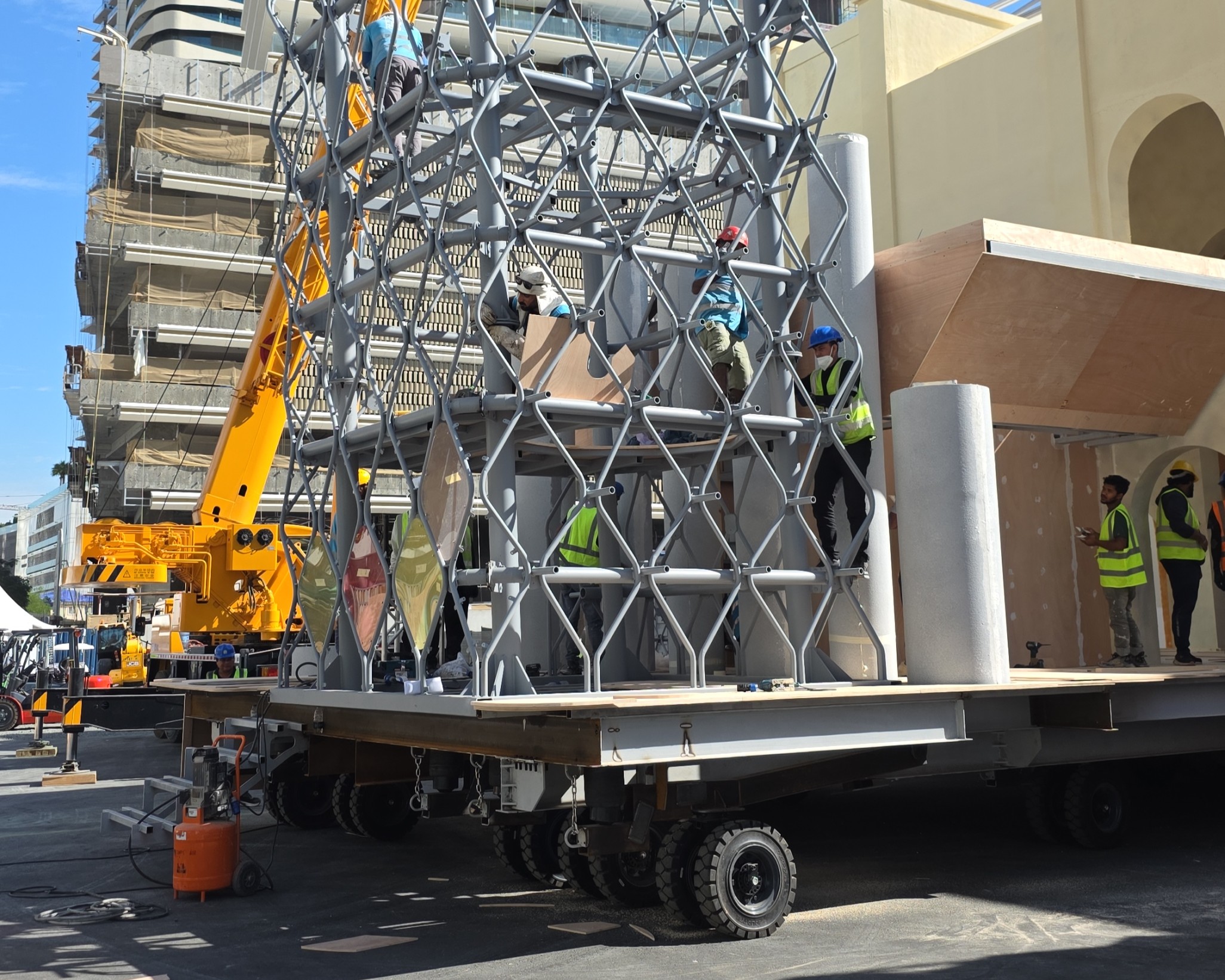

Large scenic stages, exhibition pavilions, public installations and long-span structures often rely on fabricated steel frameworks. Rectangular and square hollow sections, plates, channels and custom brackets can be welded into rigid assemblies capable of supporting significant loads.

Its stiffness makes steel particularly useful for primary base frames, tall scenic structures and elements with substantial cantilevers. It can provide stable connection points for ballast, foundations, lifting equipment or secondary framing. In public installations, where structures may be exposed to wind, crowd interaction or extended operational periods, this rigidity can be essential.

Steel is also well suited to vehicle-mounted structures such as parade floats. The lower frame can be integrated with the vehicle chassis or transport platform, creating a robust base capable of handling vibration, acceleration, braking and changing road conditions.

The disadvantage is weight. A design that relies too heavily on steel may become difficult to transport, lift or assemble. Increased weight can affect crane requirements, vehicle capacity, floor loading and the number of operatives needed during installation. For this reason, steel is most effective when used deliberately rather than automatically.

Where Aluminium Changes the Build Strategy

Aluminium offers a different combination of properties. It is considerably lighter than steel, making it valuable where handling, transport efficiency and repeat installation are important.

Touring environments, modular exhibition structures, temporary pavilions and mobile scenic systems can all benefit from aluminium construction. Reduced component weight allows modules to be handled more easily, can decrease lifting requirements and may enable more fabricated elements to be transported within the same vehicle.

This weight reduction can influence the entire build methodology. Larger modules may be assembled in the workshop, allowing more finishing and quality control to be completed before delivery. Site installation can then become a process of positioning and connecting prepared sections rather than carrying out extensive fabrication in the venue.

Aluminium is not simply a lightweight replacement for steel. It has different structural behaviour, connection requirements and welding characteristics. Sections may need to be larger to achieve the required stiffness, and local reinforcement may be necessary around lifting points or highly loaded connections.

Thermal expansion must also be considered, particularly for outdoor structures operating in the GCC. Long aluminium members can experience noticeable dimensional movement as temperatures change. Connection details and cladding interfaces may need to accommodate this movement without damaging finishes or creating visible distortion.

Fabrication Starts With the Build Methodology

Good metal fabrication begins before any material reaches the workshop. The structure should be developed around how it will be manufactured, transported, installed and dismantled.

A scenic frame that appears straightforward in a technical drawing may be impossible to move through the venue loading door as a single assembly. Alternatively, dividing it into too many small pieces may create excessive site labour, alignment problems and a large number of visible joints.

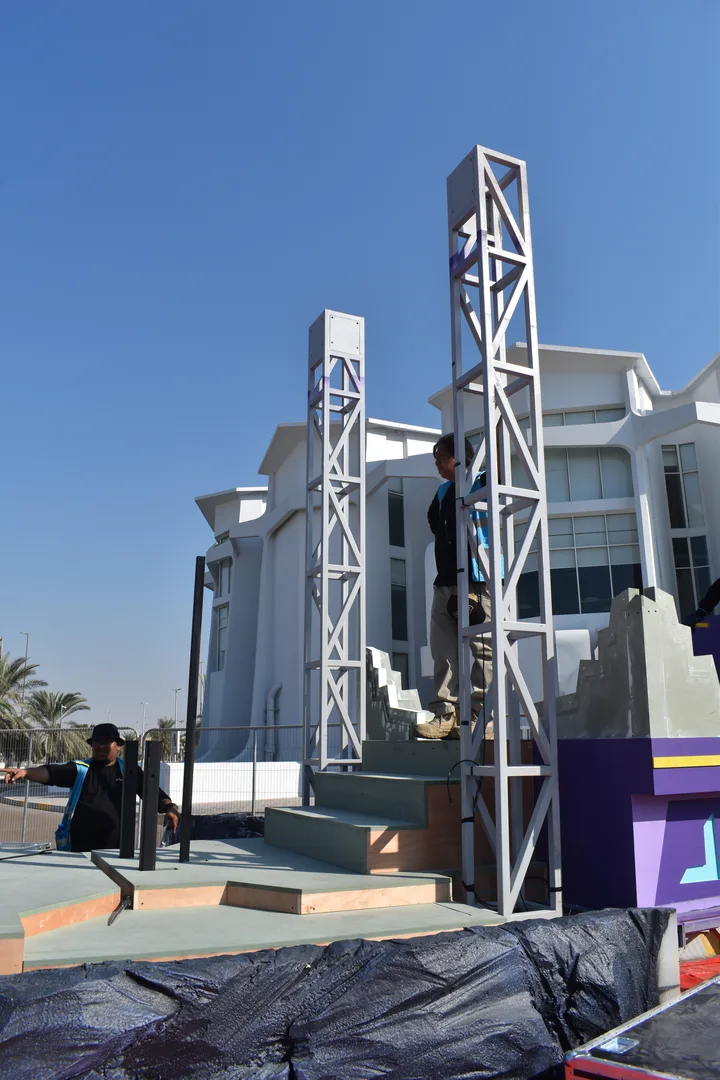

Module sizes are therefore influenced by workshop access, transport dimensions, lifting equipment, venue restrictions and the installation sequence. Connection points need to be accessible to installers, even after cladding or technology has been added. Lifting points should be positioned around the actual centre of gravity rather than the geometric centre of the frame.

Workshop pre-assembly is one of the most useful stages in this process. It allows fabricators to confirm tolerances, check alignment, identify clashes and test the order in which modules will be connected. For complex scenic structures, this trial assembly can prevent significant delays on site.

Welding, Bolting and Demountable Connections

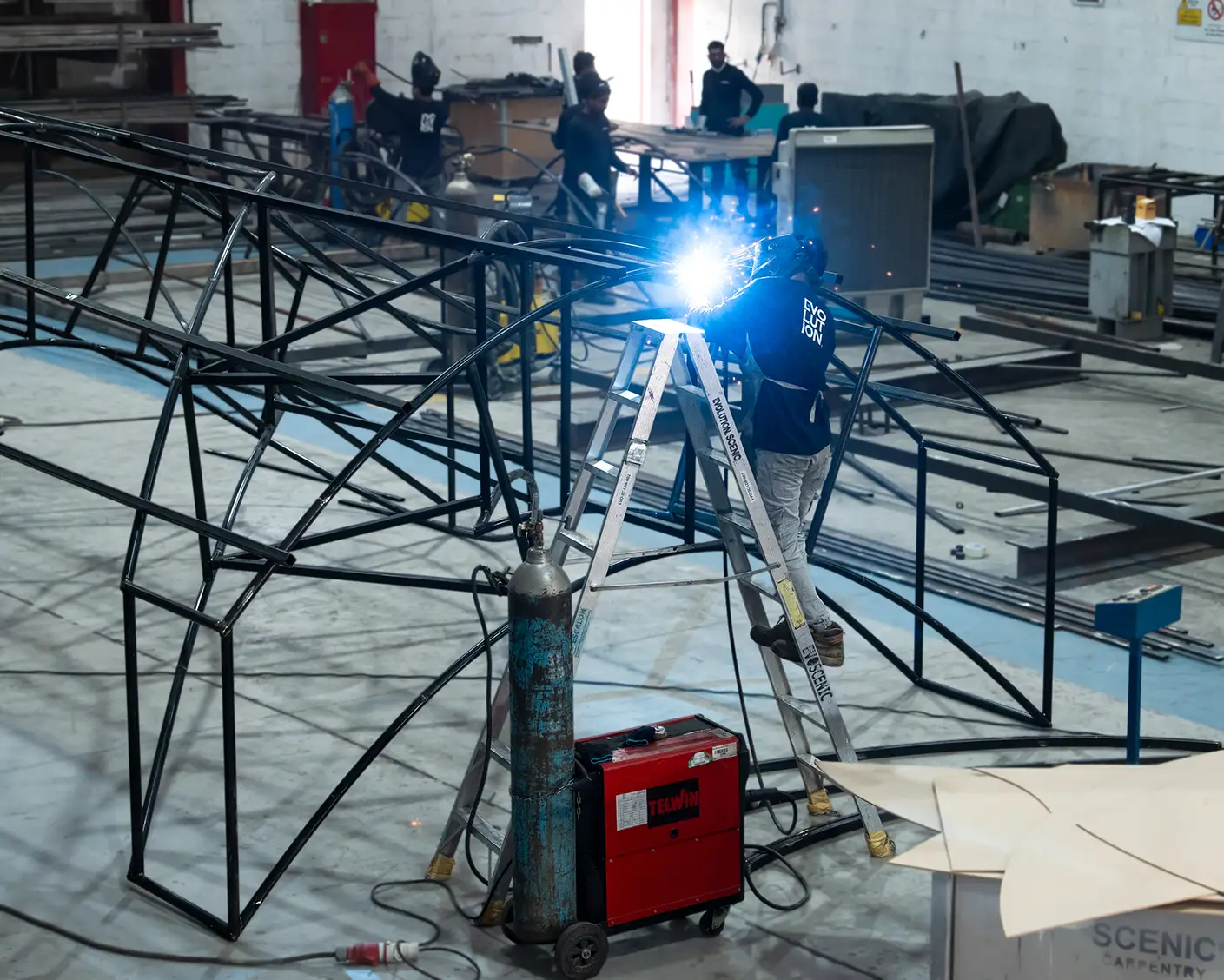

Welding creates rigid, reliable assemblies, but the process must be appropriate to the material and the intended use of the structure.

Steel fabrication commonly uses welded joints for primary frames, reinforced with plates, gussets or internal sleeves where required. Weld sequencing is important because concentrated heat can introduce distortion. Large frames may need to be welded in controlled stages and checked continually against jigs or reference dimensions.

Aluminium welding demands its own procedures and skilled operatives. Heat can affect the properties of the material around the weld, while lightweight sections may distort more easily during fabrication. Joint preparation, access and welding sequence should therefore be considered during technical development rather than resolved on the workshop floor.

Not every connection should be welded. Bolted joints, pinned connections and mechanical interfaces are essential for structures that need to be transported, installed quickly or reused. The most effective modular systems use repeatable connections that are easy to identify and difficult to assemble incorrectly.

Where steel and aluminium meet, the detail must also account for dissimilar-metal corrosion. Isolation pads, suitable coatings and compatible fixings can help prevent direct contact and protect the structure during storage and operation.

Combining Steel and Aluminium

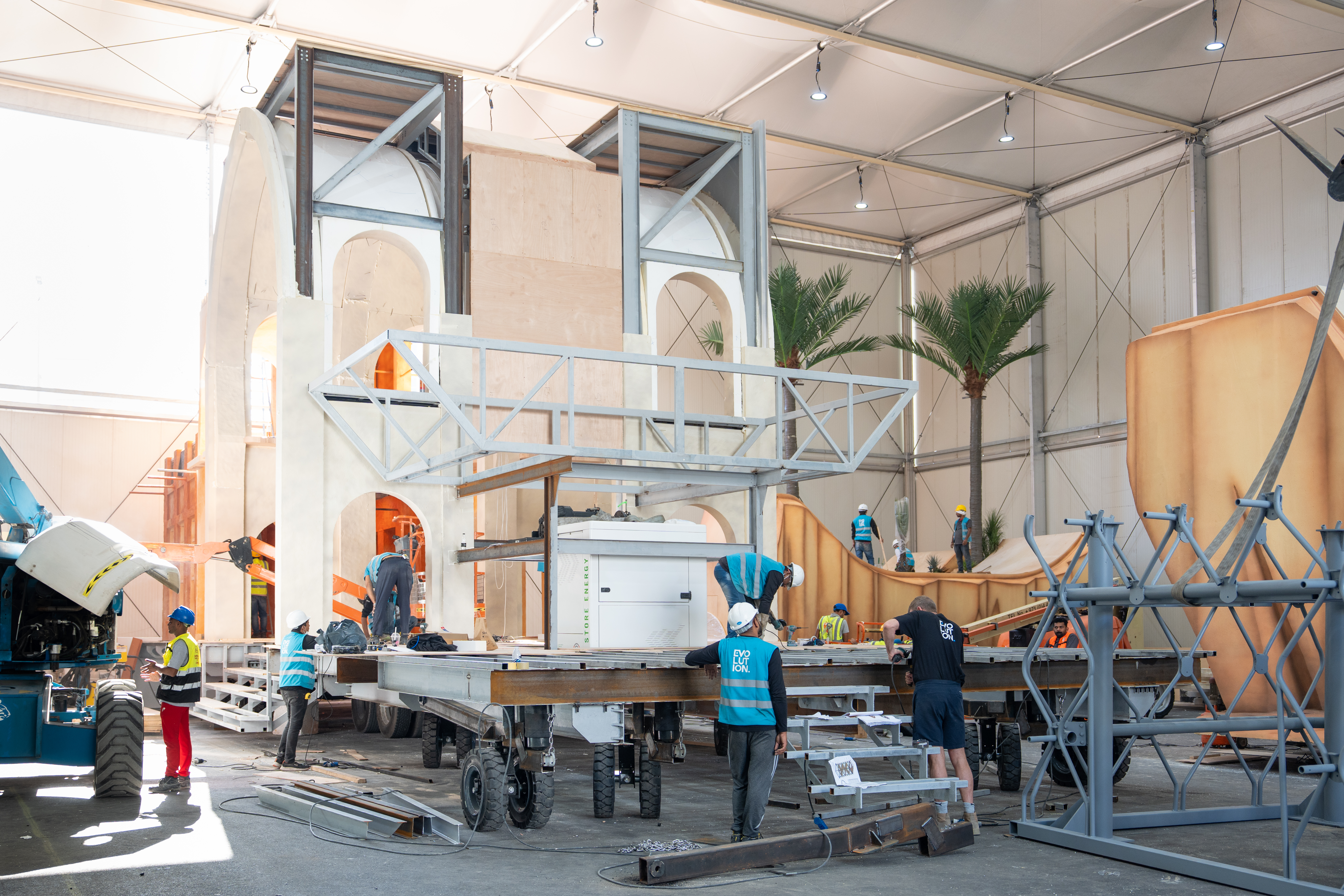

Many successful scenic projects use hybrid construction.

A large public structure may use a steel base to provide weight, rigidity and secure fixing points, with an aluminium upper frame reducing the load placed on the foundations. A parade float may use steel around the chassis and aluminium for elevated scenic forms, helping to control the centre of gravity.

A stage environment may combine steel primary trusses with aluminium secondary framing that supports curved cladding, graphics or lightweight architectural features. The materials are not competing with each other. Each is positioned where its properties provide the greatest benefit.

Hybrid structures can also make repairs and modifications easier. Lightweight aluminium scenic modules can be replaced or adapted without disturbing the main steel frame. This is particularly valuable for repeat events, touring projects and structures that may receive new branding or revised scenic treatments.

Transport and Touring Applications

Transport is not a separate logistics exercise. It is part of the engineering strategy.

Every additional kilogram can influence vehicle selection, loading time, fuel consumption, lifting requirements and manual handling. However, reducing weight without considering stiffness can create components that are difficult to align or vulnerable to damage.

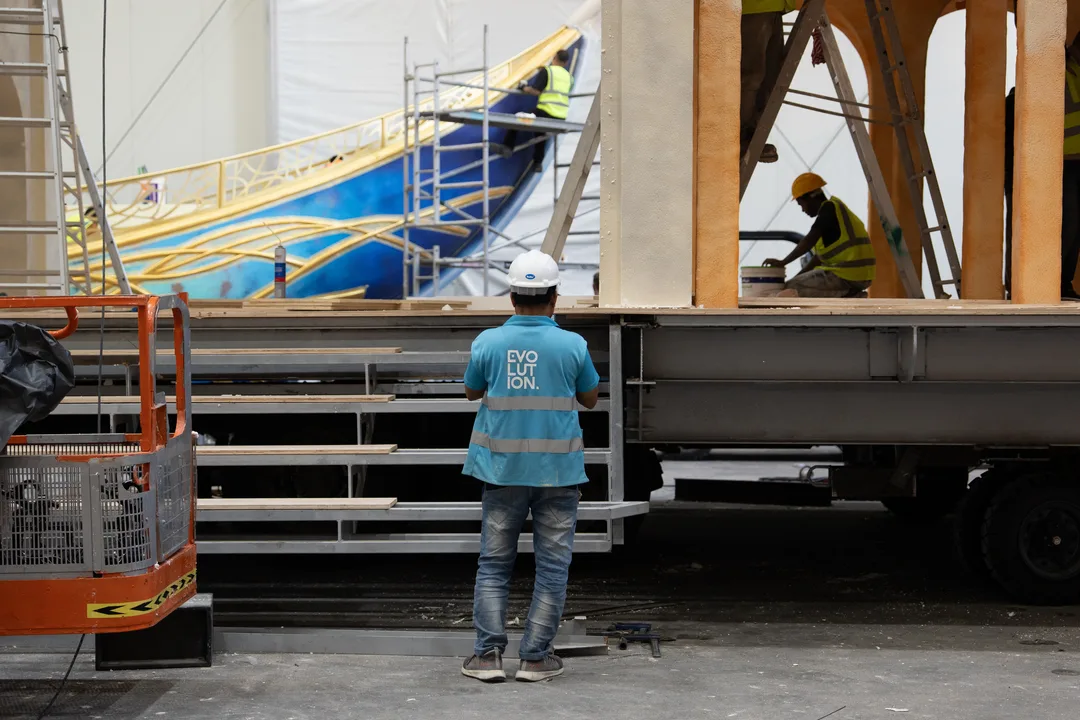

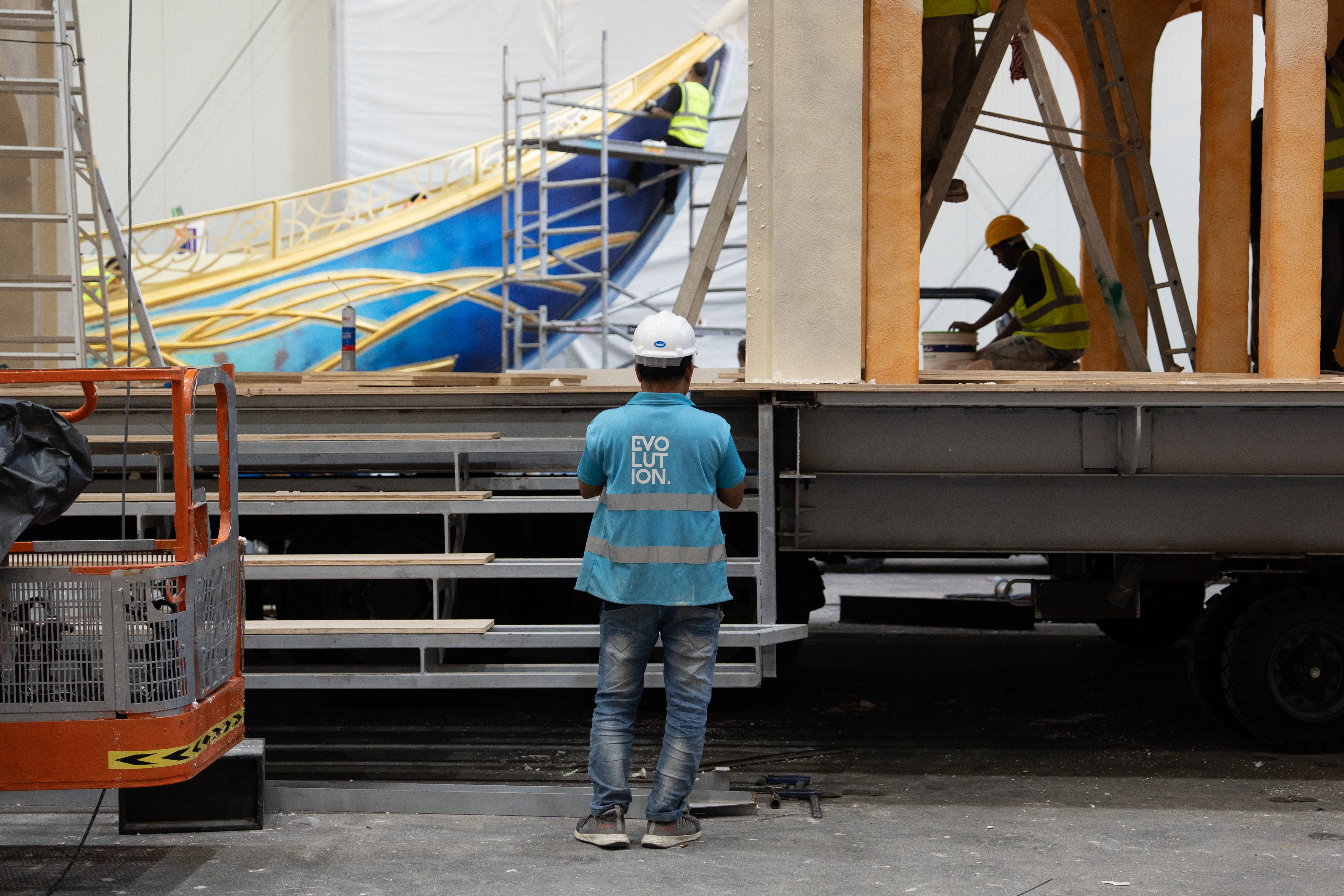

Touring systems must also withstand repeated loading, unloading and assembly. Connections that perform well during a single installation may loosen or wear after multiple cycles. Frames require suitable protection during transport, while projecting brackets and delicate interfaces may need removable or replaceable components.

Efficient systems are designed to stack, nest or pack into dedicated stillages. Components should be clearly labelled, and the installation sequence should correspond with the order in which modules are unloaded. These decisions reduce handling and prevent finished scenic elements from being moved unnecessarily around the site.

Large Public Structures

Public scenic installations introduce additional responsibilities. Structures may remain operational for extended periods, be accessible to visitors or operate outdoors under changing environmental conditions.

Wind loading, ballast, anchoring, maintenance access and inspection requirements must be integrated from the beginning. Public-facing surfaces should conceal the engineering without preventing access to critical connections.

Protective finishes also matter. Steel may require suitable paint systems, galvanising or other corrosion protection depending on the operating environment. Aluminium may need anodising, powder coating or isolation from incompatible materials. These treatments must be coordinated with the scenic finish so that structural protection and visual appearance work together.

For large temporary architecture, the most important details are often those the visitor never notices: drainage paths, accessible fixings, replaceable panels, protected cable routes and clearly defined inspection points.

Designing for the Complete Lifecycle

The correct metal is the one that supports the complete life of the scenic structure.

A short-term activation may prioritise rapid fabrication and efficient installation. A touring structure may place greater importance on low weight, demountable connections and durable transport protection. A public installation may require heavier structural systems, long-term corrosion protection and straightforward access for inspection.

End-of-life planning can also influence the design. Bolted modules are easier to separate, refurbish and reuse than fully welded assemblies. Standard section sizes can simplify repairs, while replaceable scenic layers can extend the useful life of the main frame.

At Evolution Scenic, steel and aluminium are treated as part of a wider fabrication strategy. Their value lies not simply in their material properties, but in how effectively they support scenic carpentry, cladding, finishes, graphics, technology, transport and installation.

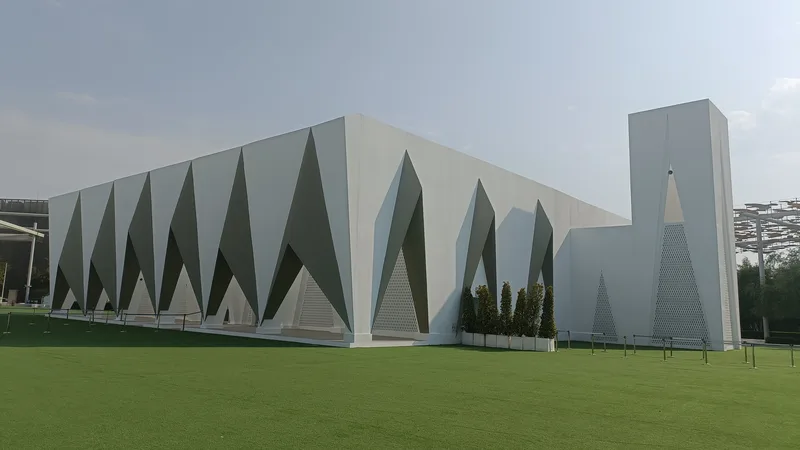

The public may never see the framework behind the completed environment. Its performance, however, can be seen in every clean joint, stable surface and efficiently installed scenic element.

The strongest structures are not those that use the most metal. They are those that use the right material, in the right location, for the right reason.

Opening ceremonies require scenic elements that operate at architectural scale while responding precisely to choreography, lighting and live performance.

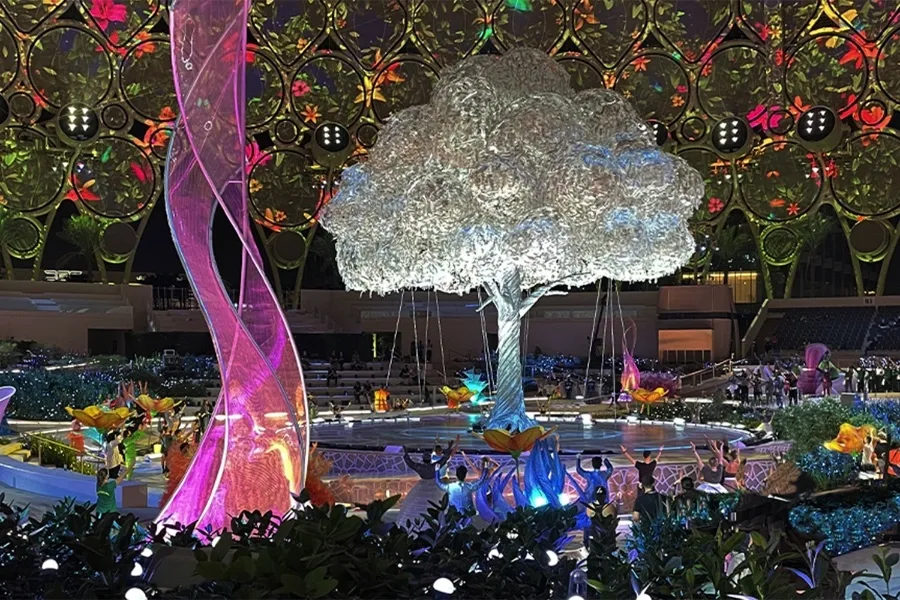

For the Expo 2020 Opening Ceremony on 1 October 2021, Evolution Scenic produced six large-scale kinetic flower sculptures and a collection of engineered scenic features for the performance beneath the Al Wasl Dome.

The package included moving flowers with illuminated details, interactive six-metre performance poles, manually operated flower props, a motorised stage-reveal mechanism and a 12-metre-diameter rehearsal stage. Each element combined specialist fabrication with mechanical movement, technical integration and detailed testing.

The Challenge

The scenic features needed to remain visually effective against the immense scale of the Al Wasl Dome while integrating closely with performers and the ceremony’s choreography.

The six kinetic flowers required dependable movement and illumination without restricting their scenic appearance. Hydraulic mechanisms, fibre optics, LEDs, batteries and wireless controls needed to be integrated within the fabricated forms.

The performance poles had to allow artists to move in different directions while suspended from their upper sections. This required careful attention to their bases, counterweights and structural behaviour.

A separate motorised quick-release system was also required for a precisely timed stage reveal. All elements needed to be delivered early enough for rehearsals and produced within the ceremony’s fixed timeframe.

Strict site-access and health requirements applied throughout delivery. Crew members were required to complete venue inductions and undergo regular COVID-19 testing.

The Solution

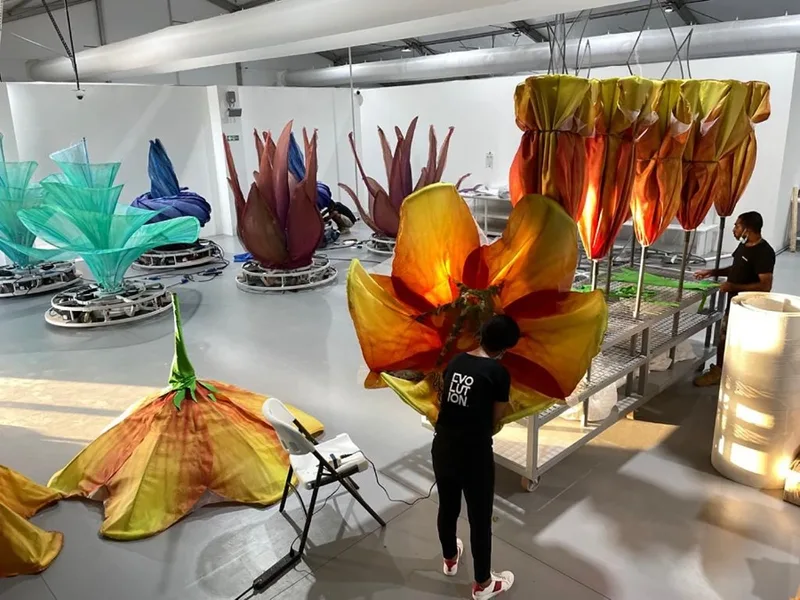

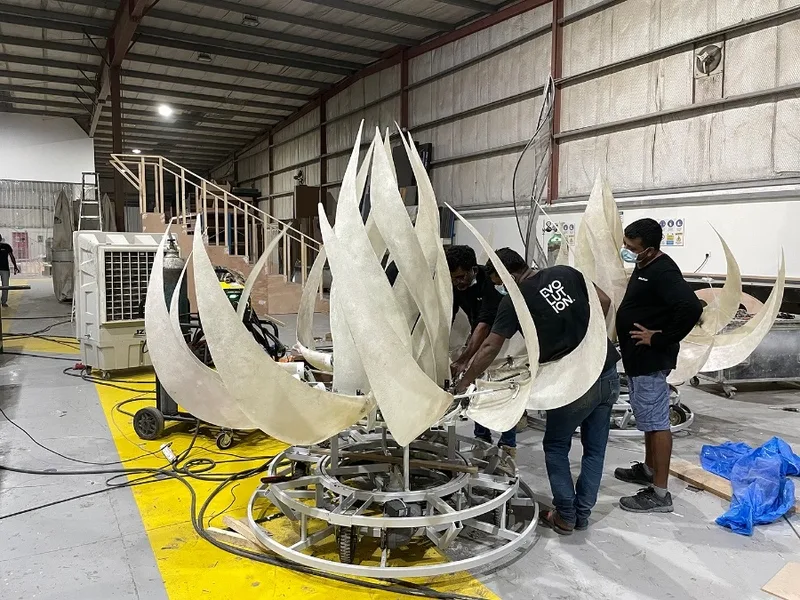

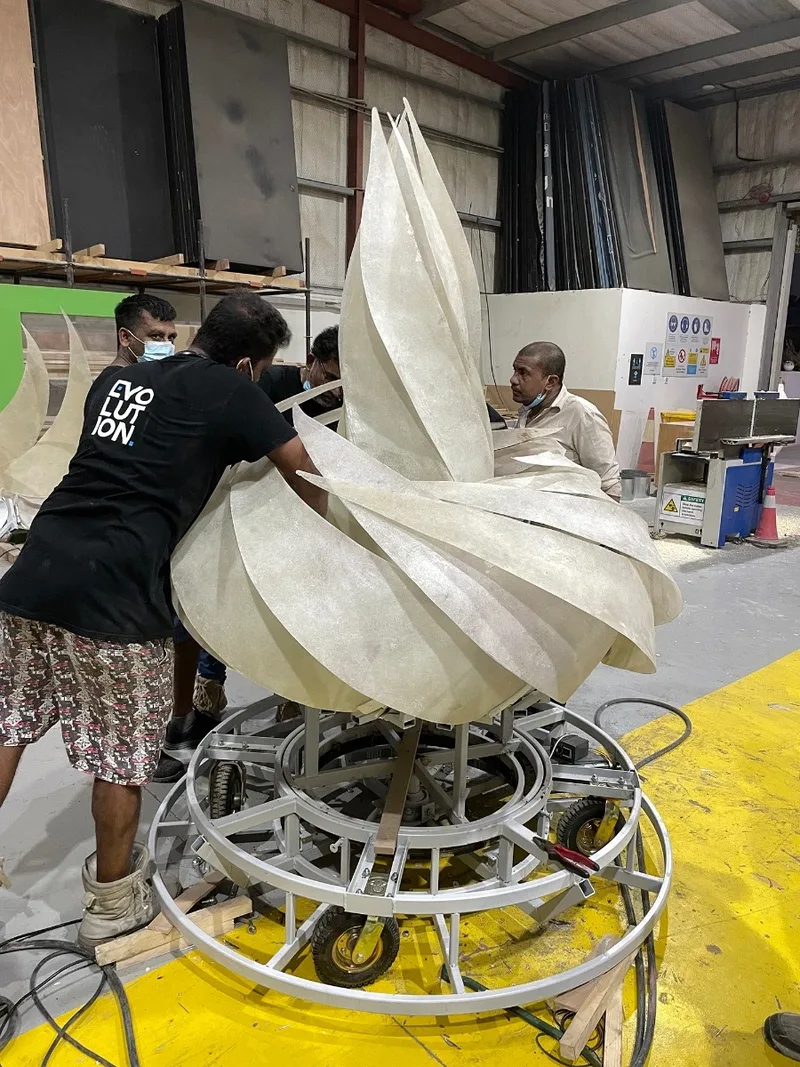

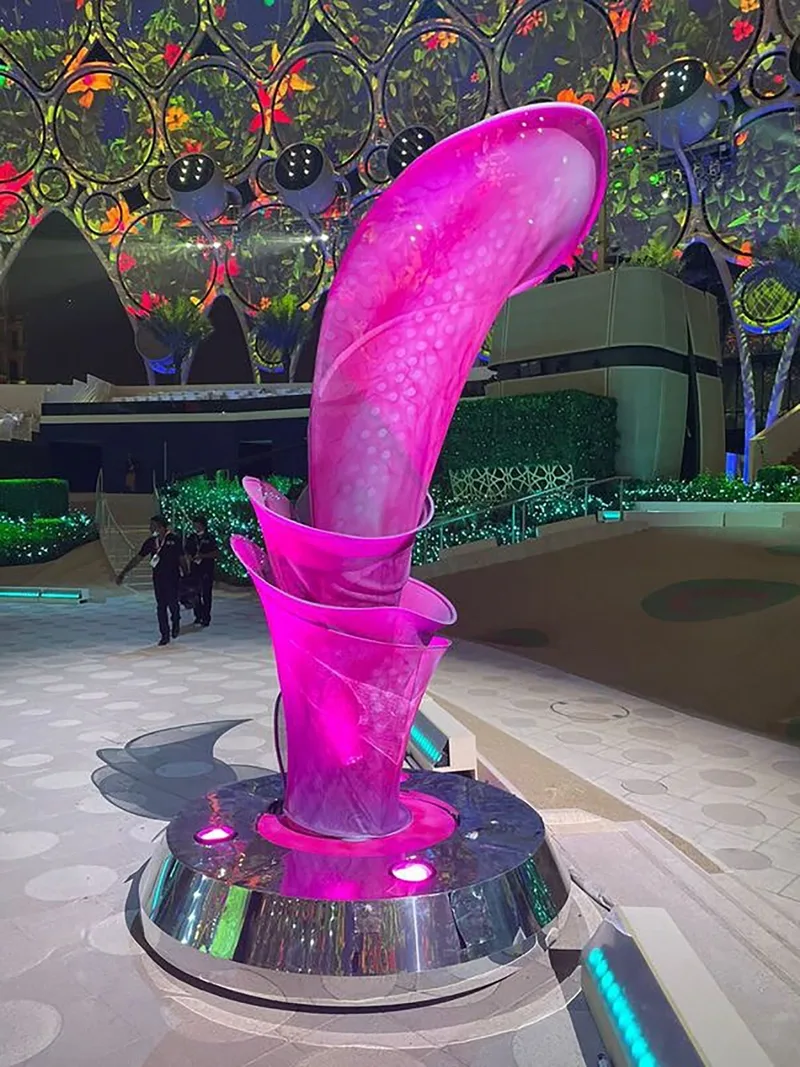

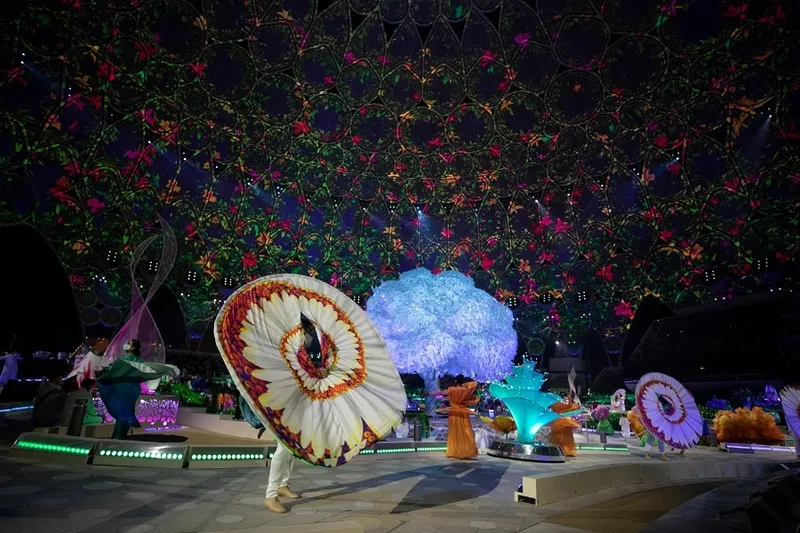

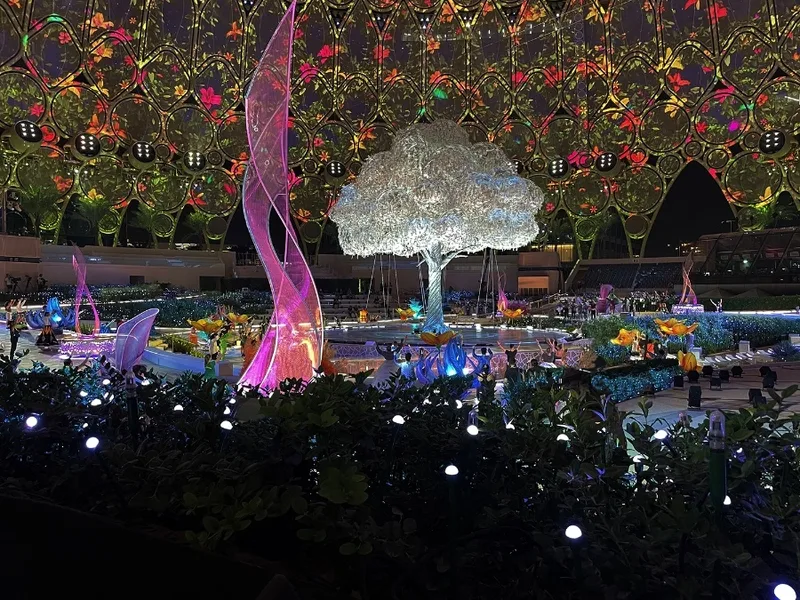

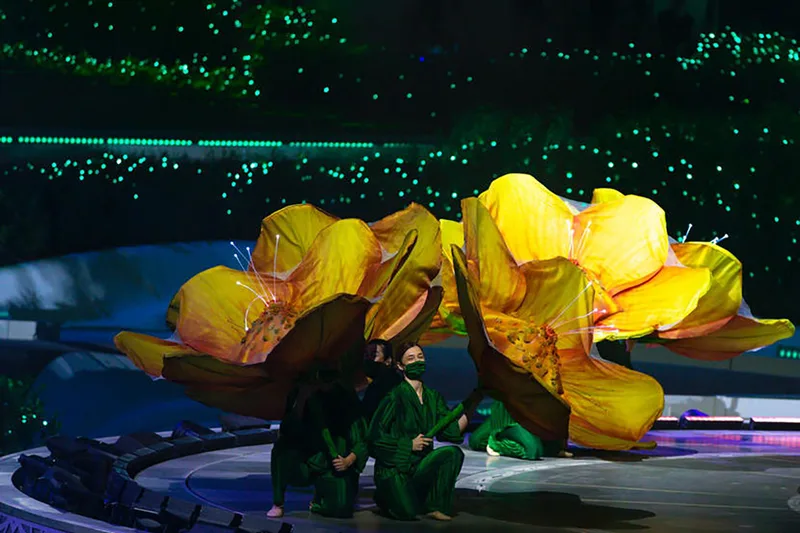

Evolution Scenic designed and fabricated six giant kinetic flower sculptures in different forms. Hydraulic systems were integrated with the petals to create controlled blooming movement, including twisting, spiralling and synchronised sequences.

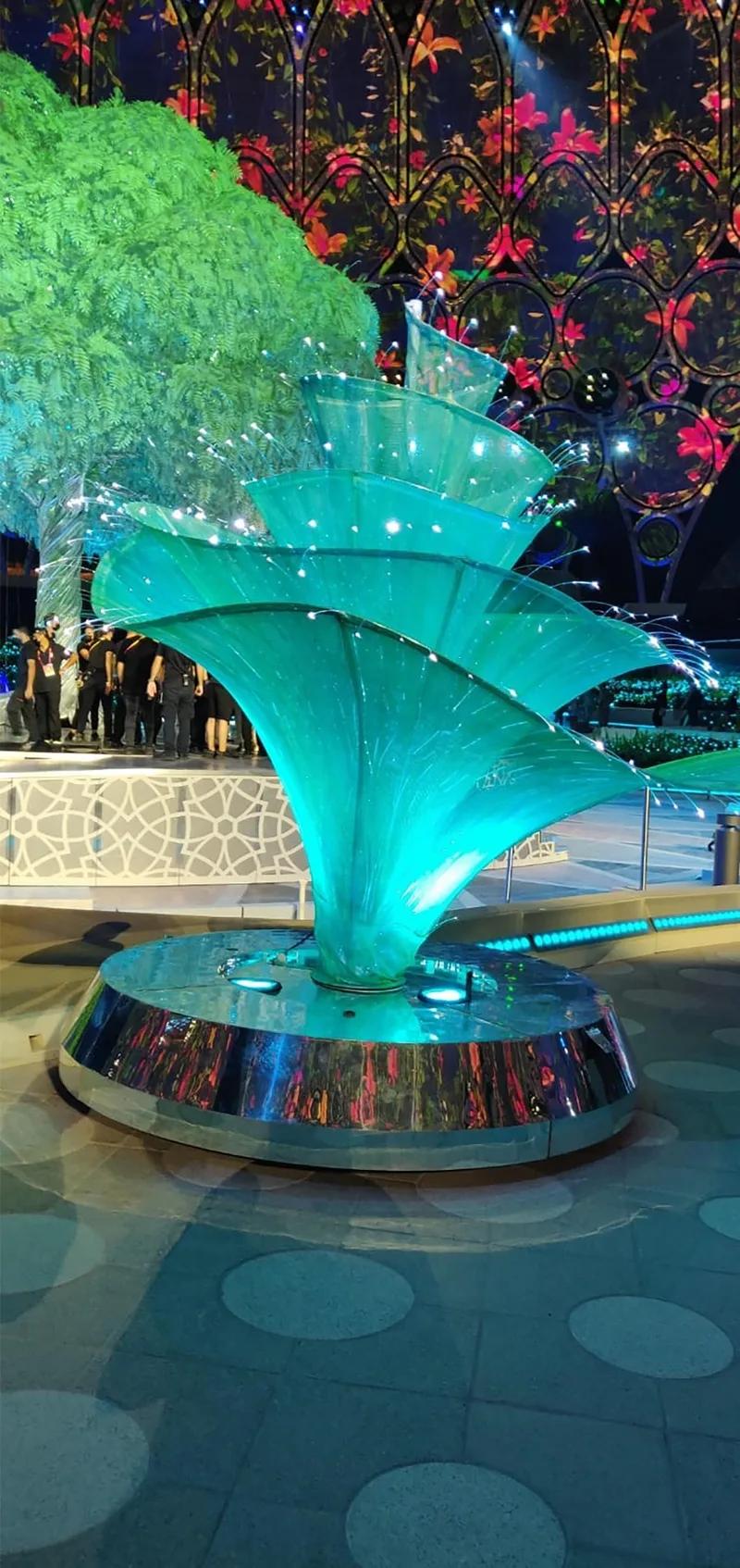

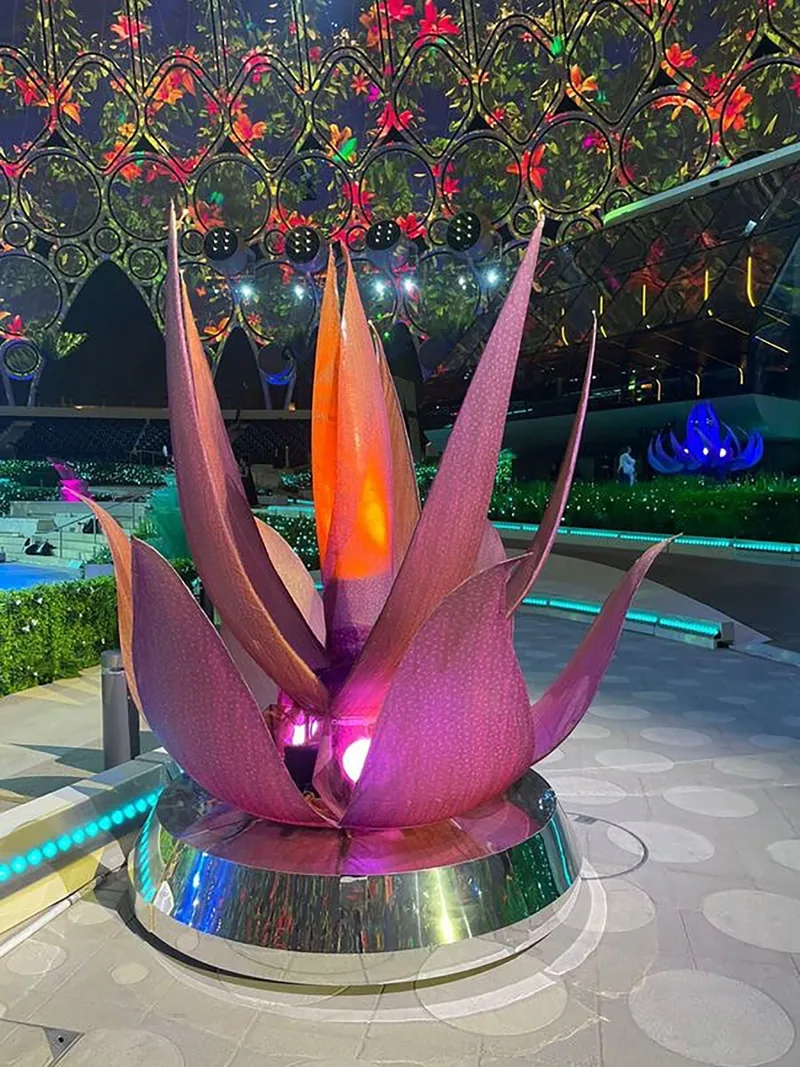

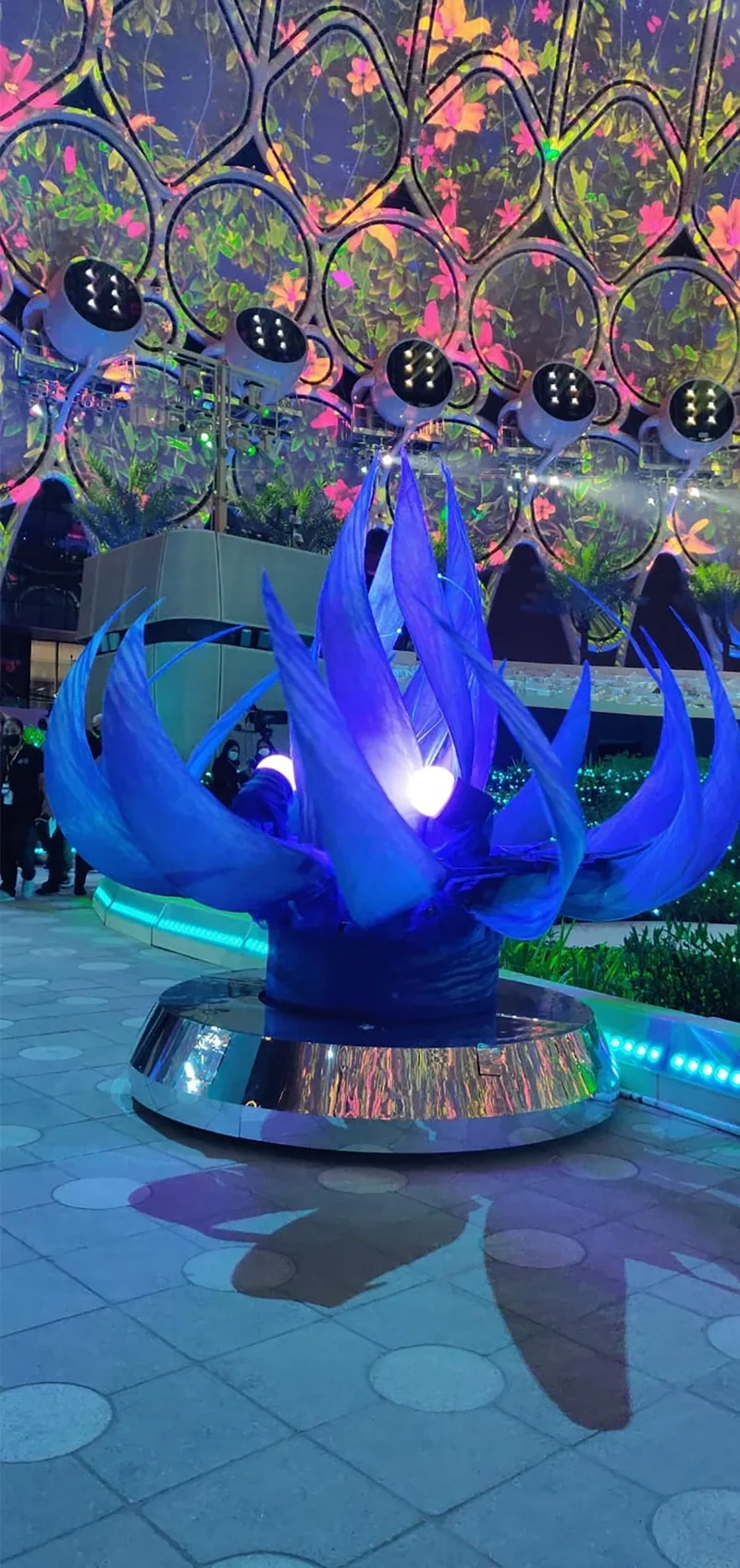

Fairy lights, fibre optics and battery-powered LED systems were incorporated into the flowers to produce changing colours and illuminated effects. Wireless functionality allowed the movement and lighting to operate without visible connections interfering with the performance.

Additional flower props were fabricated with spring mechanisms, enabling dancers to open and close them manually during the ceremony.

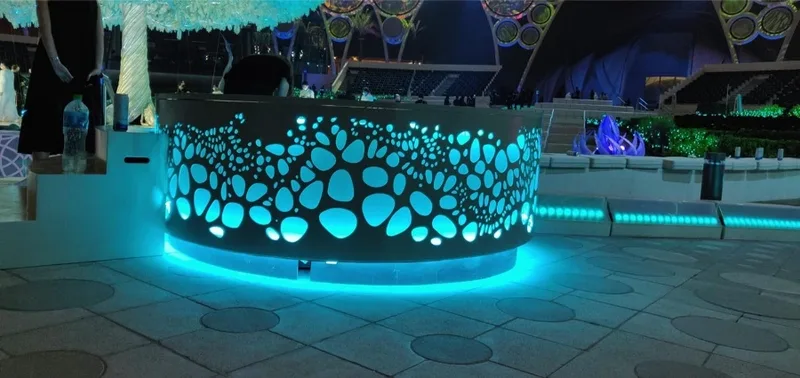

Six-metre-high scenic poles were constructed with circular bases, integrated LED decoration and counterweights. These structures allowed performers positioned at the top to swing and travel in multiple directions as part of the choreography.

For the stage reveal, the team developed a motorised quick-release mechanism using a steel-wire system. Its operation was tested and refined to ensure the reveal could be synchronised with the live performance.

A 12-metre-diameter rehearsal stage was also constructed and delivered to the client’s designated location, providing a full-scale environment for daily performer rehearsals.

The scenic elements were produced using timber, metal and fabric, with repeated testing undertaken to verify movement, durability and safe operation before delivery to Expo.

Delivery Highlights

• Six large-scale kinetic flower sculptures
• Hydraulic petal movement
• Twisting and spiralling flower actions
• Synchronised blooming sequences
• Battery-powered scenic elements
• Integrated fibre optics
• Wireless LED illumination
• Fairy-light detailing
• Spring-operated dancer flower props
• Six-metre interactive performance poles
• Circular pole bases and counterweights
• Integrated LED pole decoration
• Motorised quick-release stage mechanism
• Steel-wire stage-reveal system
• 12-metre-diameter rehearsal stage
• Timber, metal and fabric construction
• Factory testing and technical refinement
• Transportation from the Evolution facility to Expo
• Venue induction and COVID-19 testing compliance

Outcome

The kinetic flowers and engineered scenic features became integral components of the Expo 2020 Opening Ceremony’s visual storytelling.

The flowers combined large-scale sculptural forms with controlled movement and illuminated effects, while the performance poles enabled dynamic interaction between the artists and scenery. The motorised quick-release system delivered the planned stage-reveal moment in coordination with the choreography.

The full-scale rehearsal stage allowed the performance team to practise with an environment suited to the production’s requirements before the live ceremony.

Through detailed fabrication, mechanical integration and extensive testing, Evolution Scenic delivered a complex scenic package for one of Dubai’s most significant global ceremonies.

Project Ecosystem

Evolution Scenic – Kinetic flower fabrication, hydraulic mechanisms, illuminated scenic integration, performer props, counterweighted poles, motorised stage-reveal engineering, rehearsal-stage construction, testing and delivery.

Seasonal destinations rely on scenic environments to create a strong sense of place while offering visitors memorable opportunities for interaction, photography and family activity.

For Christmas at Expo City Dubai in 2022, Evolution Scenic fabricated a wide-ranging collection of festive installations that transformed the venue into an immersive winter environment.

The project included large snow-covered décor islands, giant baubles, illuminated reindeer, stylised trees, Santa’s sleigh, oversized nutcrackers, Santa’s house, festive retail units and a Letters to Santa activation. Each feature combined specialist fabrication with detailed scenic finishing to create a cohesive seasonal experience.

The Challenge

The project involved numerous large-scale scenic elements, each with different structural, material and finishing requirements.

The freestanding décor islands were particularly difficult to handle. Their substantial size and lack of caster wheels made them challenging to move through confined workshop areas while snow-effect flocking was being applied in different locations.

Santa’s sleigh and reindeer also required careful fabrication. The sleigh needed to accommodate children safely for photography, while both elements required sufficient structural strength and detailed scenic finishes.

All installations needed to work together visually while supporting different functions, including photography, children’s activities, retail and general venue decoration.

The Solution

Evolution Scenic constructed the freestanding décor islands using expanded polystyrene foam and moisture-resistant medium-density fibreboard. Snow-textured finishes were applied to create the winter appearance required for the wider environment.

Stacks of oversized baubles were designed and fabricated as colourful focal points, while illuminated reindeer and stylised tree sculptures introduced light and visual depth throughout the venue.

Santa’s sleigh was built at a scale suitable for children to sit inside for photographs. The sleigh and accompanying reindeer were fabricated from a combination of polystyrene and timber, then completed with detailed scenic painting to create a more realistic appearance.

Oversized nutcracker sculptures provided additional festive landmarks and photography opportunities. A custom Santa’s house was fabricated as a central attraction, incorporating detailed architectural and decorative features.

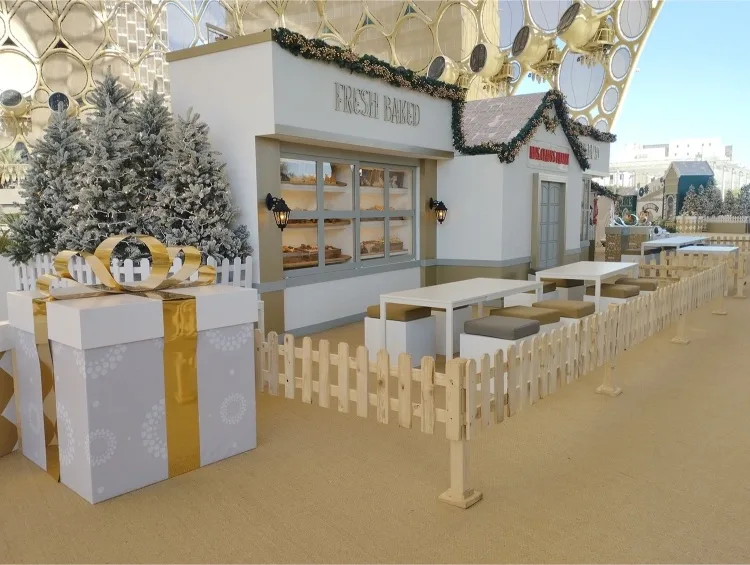

Holiday-themed retail units were produced to support event activities and merchandise sales. Evolution Scenic also created a giant Letters to Santa mailbox with custom tables and seating, forming a dedicated writing activity for children.

Delivery Highlights

• Large freestanding festive décor islands
• Expanded polystyrene foam fabrication
• Moisture-resistant MDF construction
• Applied snow-texture finishes
• Stacked giant bauble installations
• Illuminated reindeer
• Stylised illuminated tree sculptures
• Santa’s sleigh for children’s photography
• Scenic reindeer fabricated from foam and timber
• Detailed scenic painting
• Oversized nutcracker sculptures
• Custom-built Santa’s house
• Holiday-themed retail units
• Giant Letters to Santa mailbox
• Custom children’s tables and seating
• Installation across Expo City Dubai

Outcome

The completed installations transformed Expo City into a varied festive environment offering visual landmarks, interactive activities and photography experiences for visitors of different ages.

Santa’s house, sleigh and oversized nutcrackers created recognisable seasonal attractions, while the illuminated reindeer, stylised trees and giant baubles extended the winter theme throughout the venue.

The Letters to Santa area provided a dedicated children’s activity, and the festive retail units supported the event’s commercial requirements.

By coordinating structural fabrication, sculptural production, scenic painting and snow-effect finishing, Evolution Scenic delivered a cohesive Christmas environment despite the handling and installation challenges created by the scale of the individual elements.

Project Ecosystem

Evolution Scenic – Scenic development, EPS-foam fabrication, moisture-resistant MDF construction, sculptural production, timber fabrication, scenic painting, snow-effect finishing, festive retail units, interactive installations and venue installation.
