Steel And Aluminium In Scenic Fabrication

Steel And Aluminium In Scenic Fabrication

Finished cladding, specialist paint, graphics and architectural surfaces may define the visual experience, but steel and aluminium often provide the structural foundation that makes the environment safe, stable and practical.

Both materials are used extensively in scenic fabrication, yet they solve different problems. Selecting between them is not simply a matter of strength or cost. The decision can influence structural performance, fabrication methodology, workshop time, transportation, installation sequencing, maintenance and the ability to reuse a structure in the future.

In many projects, the strongest solution is not steel or aluminium. It is a carefully developed combination of both.

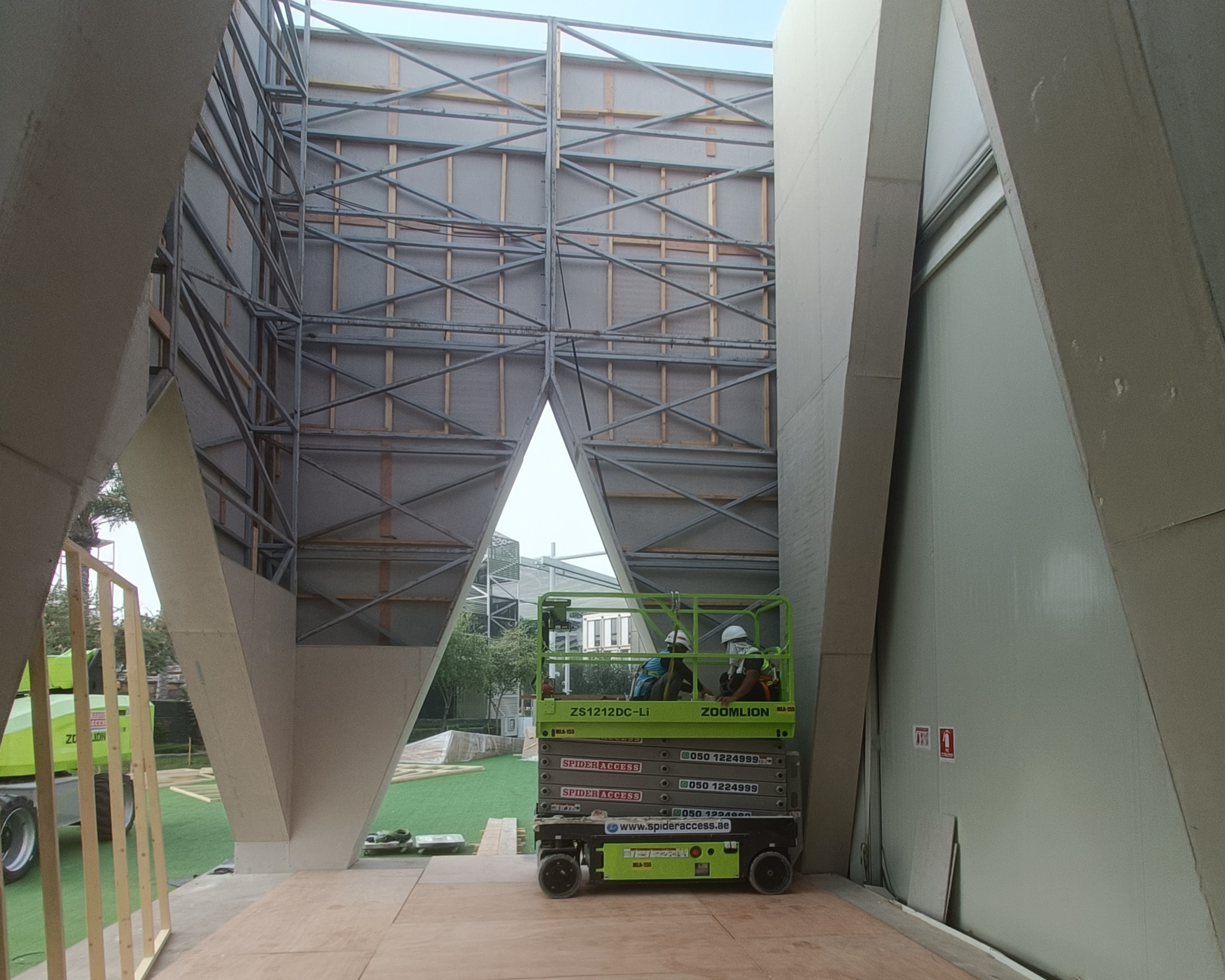

The Structure Behind the Scenic Finish

Scenic structures are often expected to achieve ambitious visual results while remaining temporary, transportable and fast to install. A large stage façade may appear solid and architectural while actually being formed from a lightweight cladding system supported by an engineered metal frame. An exhibition pavilion may contain long cantilevers, suspended features or curved surfaces that require substantial structural support without making the finished environment feel heavy.

The metal framework has to resolve far more than the visible shape. It may need to resist wind loads, support integrated lighting and audiovisual equipment, provide fixing points for scenic cladding, accommodate access routes and allow the entire structure to be assembled within a restricted installation programme.

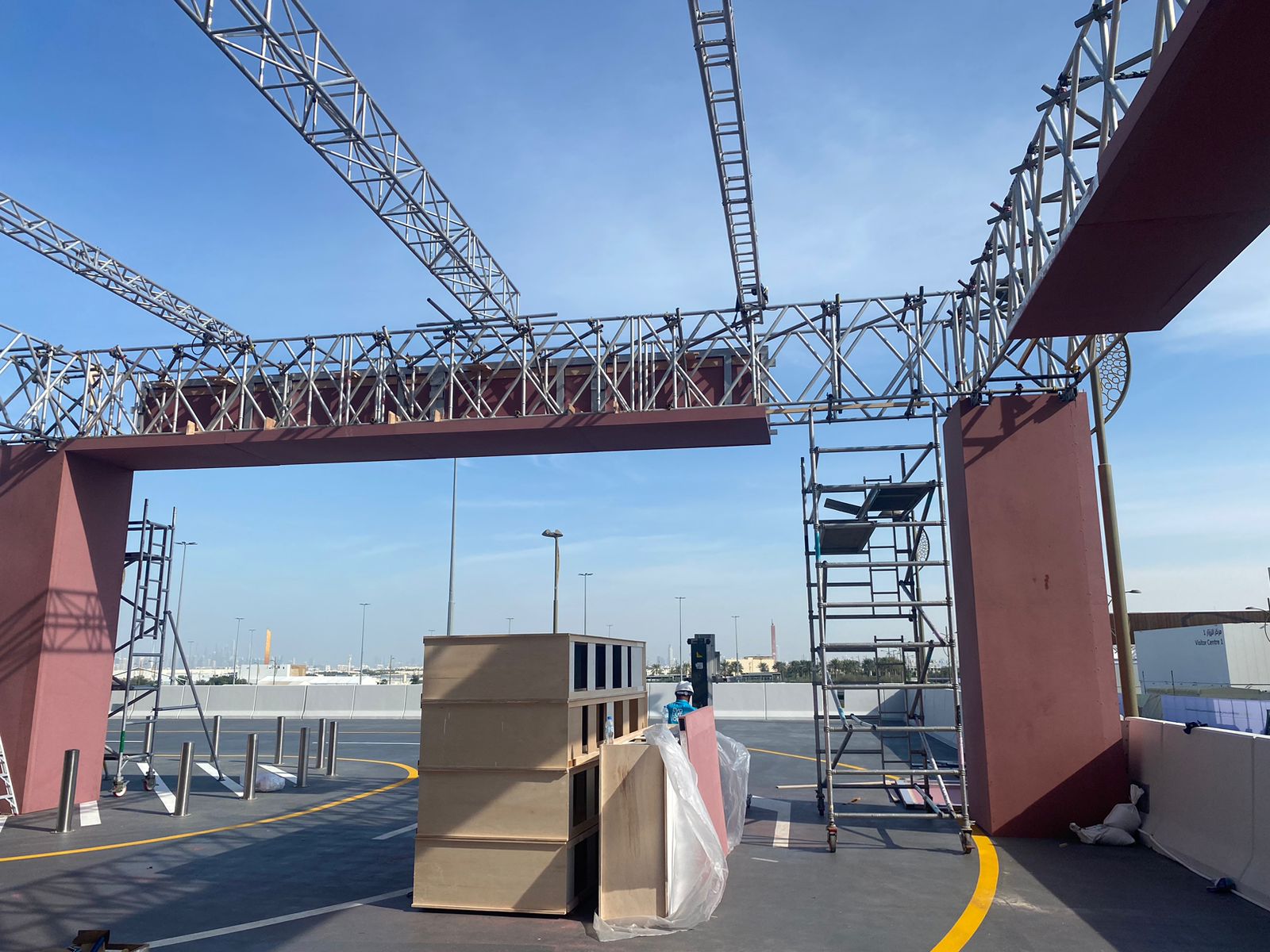

Deflection is particularly important. A frame may be strong enough to carry its intended load but still move more than the scenic finishes can tolerate. Excessive movement can crack rigid coatings, disturb graphic alignment or cause joints between cladding panels to become visible. Structural performance therefore has to be considered alongside the behaviour of every finish attached to the frame.

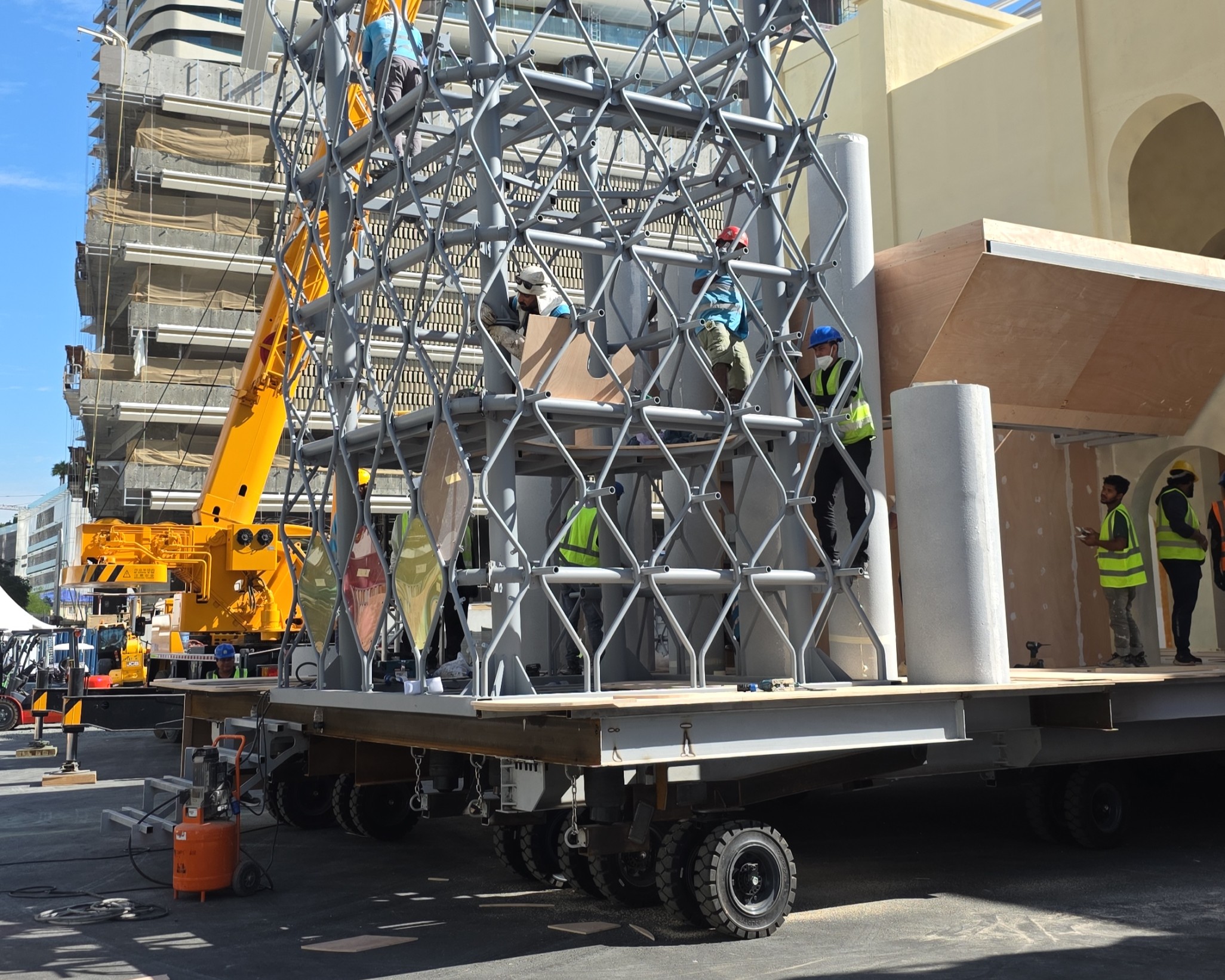

Where Steel Performs Best

Steel is frequently selected where strength, stiffness and dependable structural performance are the primary concerns.

Large scenic stages, exhibition pavilions, public installations and long-span structures often rely on fabricated steel frameworks. Rectangular and square hollow sections, plates, channels and custom brackets can be welded into rigid assemblies capable of supporting significant loads.

Its stiffness makes steel particularly useful for primary base frames, tall scenic structures and elements with substantial cantilevers. It can provide stable connection points for ballast, foundations, lifting equipment or secondary framing. In public installations, where structures may be exposed to wind, crowd interaction or extended operational periods, this rigidity can be essential.

Steel is also well suited to vehicle-mounted structures such as parade floats. The lower frame can be integrated with the vehicle chassis or transport platform, creating a robust base capable of handling vibration, acceleration, braking and changing road conditions.

The disadvantage is weight. A design that relies too heavily on steel may become difficult to transport, lift or assemble. Increased weight can affect crane requirements, vehicle capacity, floor loading and the number of operatives needed during installation. For this reason, steel is most effective when used deliberately rather than automatically.

Where Aluminium Changes the Build Strategy

Aluminium offers a different combination of properties. It is considerably lighter than steel, making it valuable where handling, transport efficiency and repeat installation are important.

Touring environments, modular exhibition structures, temporary pavilions and mobile scenic systems can all benefit from aluminium construction. Reduced component weight allows modules to be handled more easily, can decrease lifting requirements and may enable more fabricated elements to be transported within the same vehicle.

This weight reduction can influence the entire build methodology. Larger modules may be assembled in the workshop, allowing more finishing and quality control to be completed before delivery. Site installation can then become a process of positioning and connecting prepared sections rather than carrying out extensive fabrication in the venue.

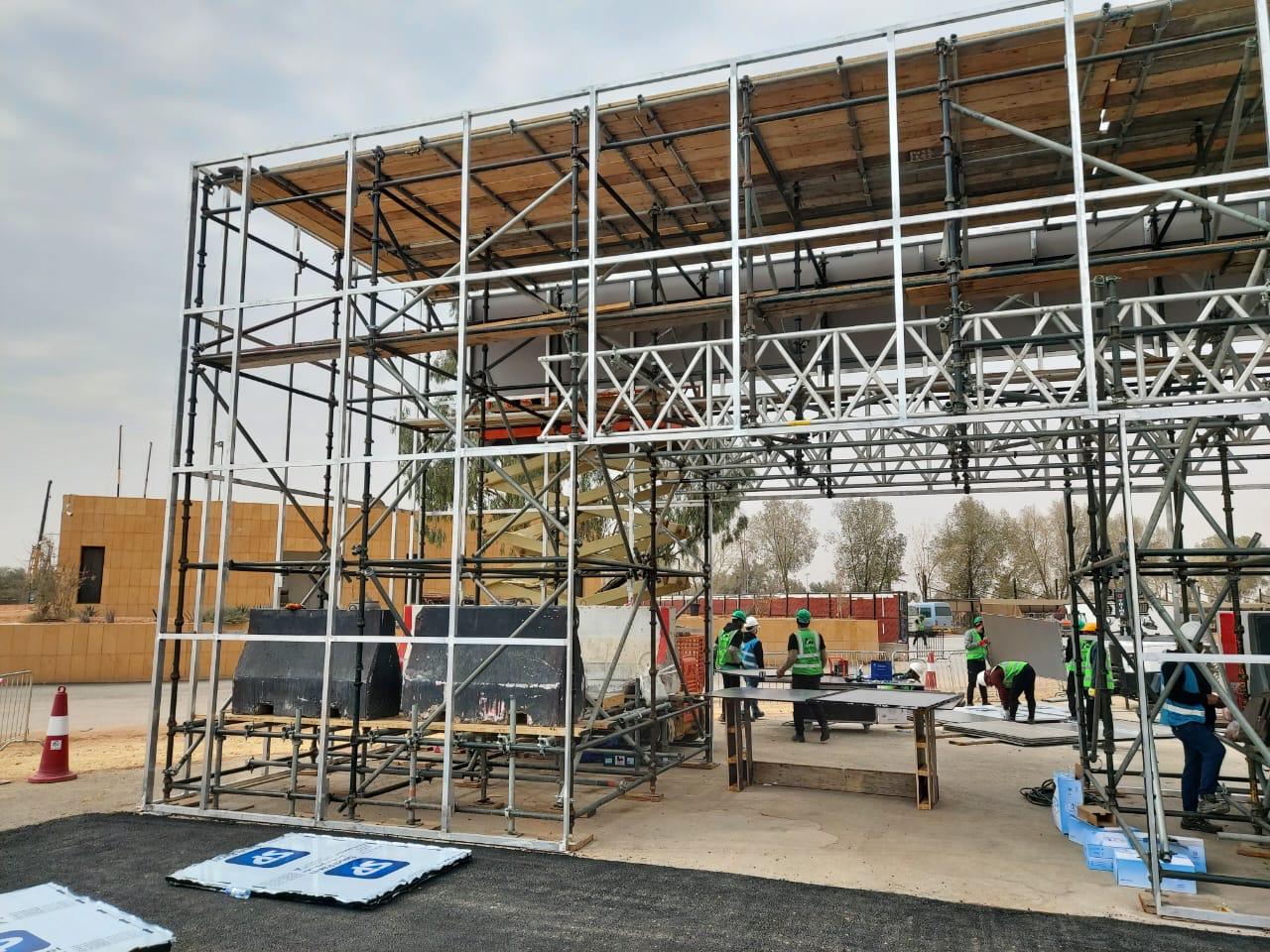

Aluminium is not simply a lightweight replacement for steel. It has different structural behaviour, connection requirements and welding characteristics. Sections may need to be larger to achieve the required stiffness, and local reinforcement may be necessary around lifting points or highly loaded connections.

Thermal expansion must also be considered, particularly for outdoor structures operating in the GCC. Long aluminium members can experience noticeable dimensional movement as temperatures change. Connection details and cladding interfaces may need to accommodate this movement without damaging finishes or creating visible distortion.

Fabrication Starts With the Build Methodology

Good metal fabrication begins before any material reaches the workshop. The structure should be developed around how it will be manufactured, transported, installed and dismantled.

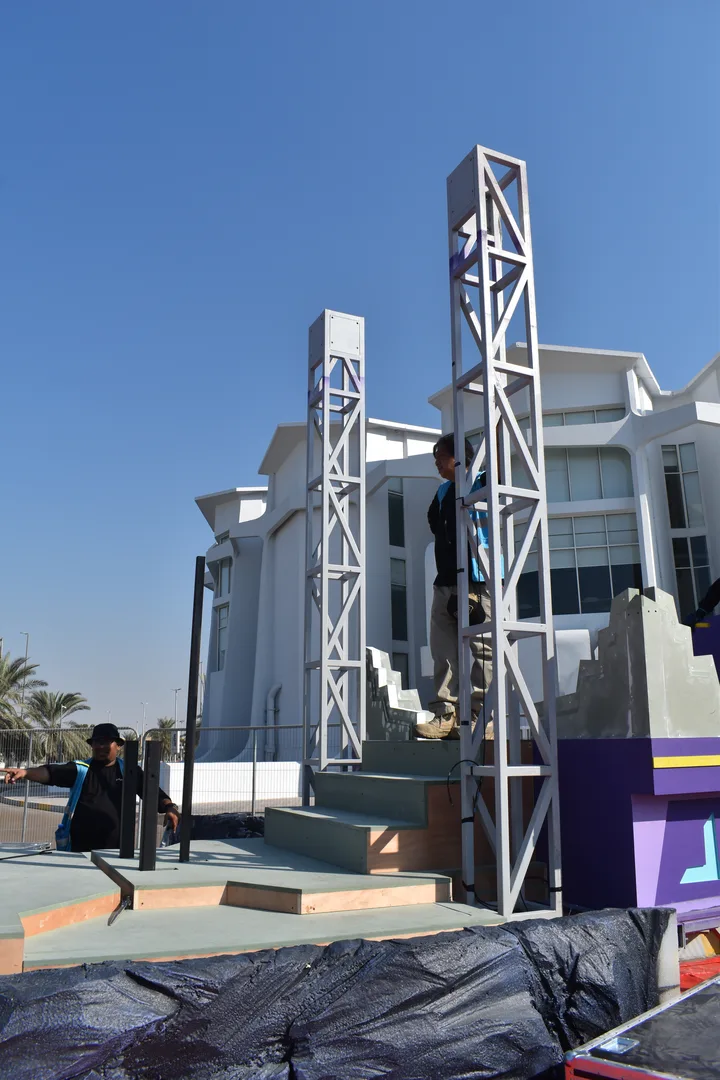

A scenic frame that appears straightforward in a technical drawing may be impossible to move through the venue loading door as a single assembly. Alternatively, dividing it into too many small pieces may create excessive site labour, alignment problems and a large number of visible joints.

Module sizes are therefore influenced by workshop access, transport dimensions, lifting equipment, venue restrictions and the installation sequence. Connection points need to be accessible to installers, even after cladding or technology has been added. Lifting points should be positioned around the actual centre of gravity rather than the geometric centre of the frame.

Workshop pre-assembly is one of the most useful stages in this process. It allows fabricators to confirm tolerances, check alignment, identify clashes and test the order in which modules will be connected. For complex scenic structures, this trial assembly can prevent significant delays on site.

Welding, Bolting and Demountable Connections

Welding creates rigid, reliable assemblies, but the process must be appropriate to the material and the intended use of the structure.

Steel fabrication commonly uses welded joints for primary frames, reinforced with plates, gussets or internal sleeves where required. Weld sequencing is important because concentrated heat can introduce distortion. Large frames may need to be welded in controlled stages and checked continually against jigs or reference dimensions.

Aluminium welding demands its own procedures and skilled operatives. Heat can affect the properties of the material around the weld, while lightweight sections may distort more easily during fabrication. Joint preparation, access and welding sequence should therefore be considered during technical development rather than resolved on the workshop floor.

Not every connection should be welded. Bolted joints, pinned connections and mechanical interfaces are essential for structures that need to be transported, installed quickly or reused. The most effective modular systems use repeatable connections that are easy to identify and difficult to assemble incorrectly.

Where steel and aluminium meet, the detail must also account for dissimilar-metal corrosion. Isolation pads, suitable coatings and compatible fixings can help prevent direct contact and protect the structure during storage and operation.

Combining Steel and Aluminium

Many successful scenic projects use hybrid construction.

A large public structure may use a steel base to provide weight, rigidity and secure fixing points, with an aluminium upper frame reducing the load placed on the foundations. A parade float may use steel around the chassis and aluminium for elevated scenic forms, helping to control the centre of gravity.

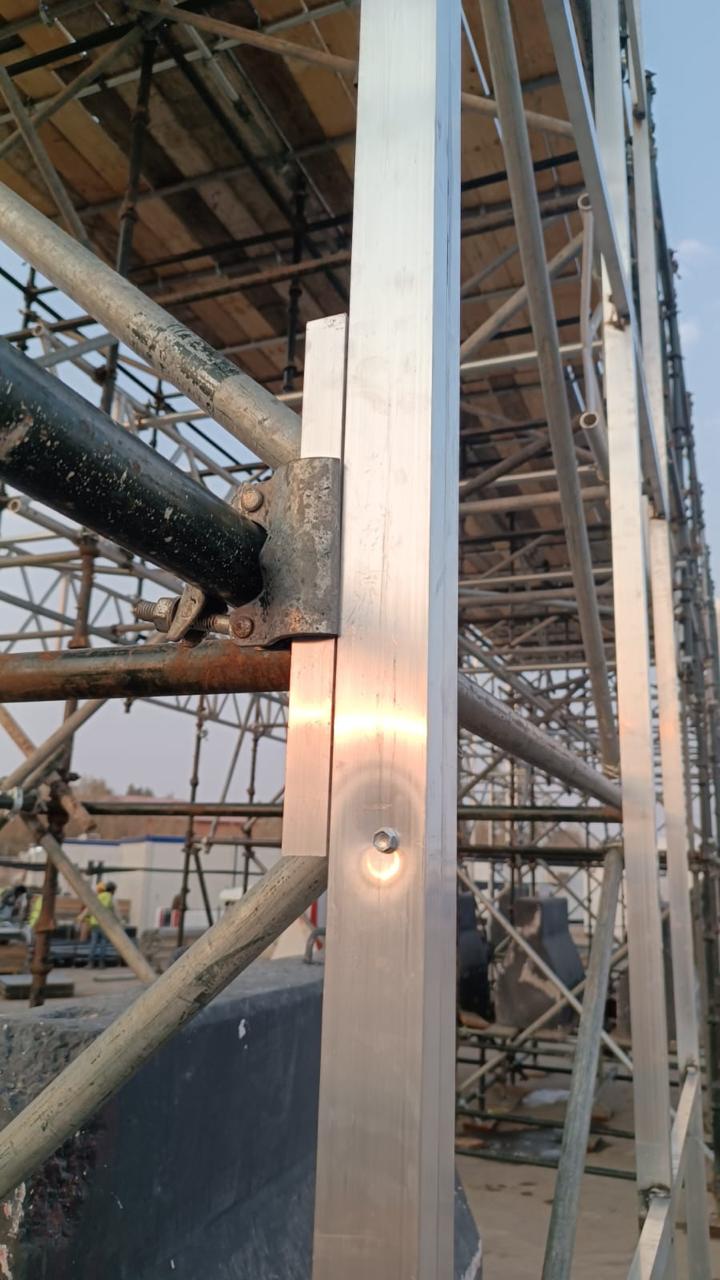

A stage environment may combine steel primary trusses with aluminium secondary framing that supports curved cladding, graphics or lightweight architectural features. The materials are not competing with each other. Each is positioned where its properties provide the greatest benefit.

Hybrid structures can also make repairs and modifications easier. Lightweight aluminium scenic modules can be replaced or adapted without disturbing the main steel frame. This is particularly valuable for repeat events, touring projects and structures that may receive new branding or revised scenic treatments.

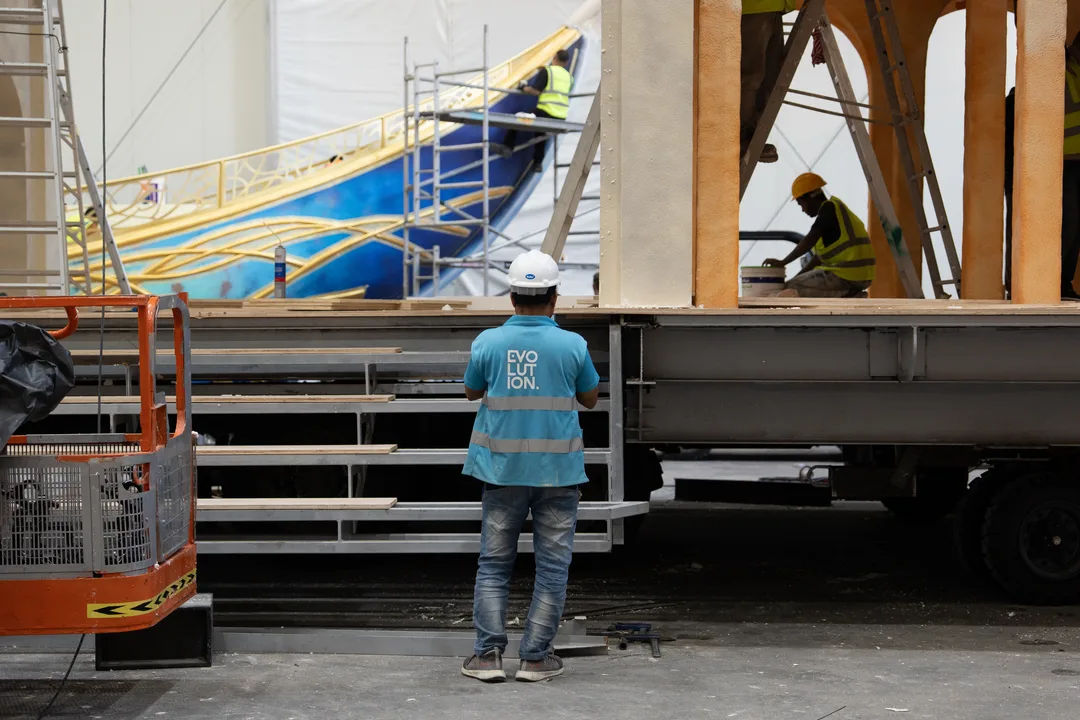

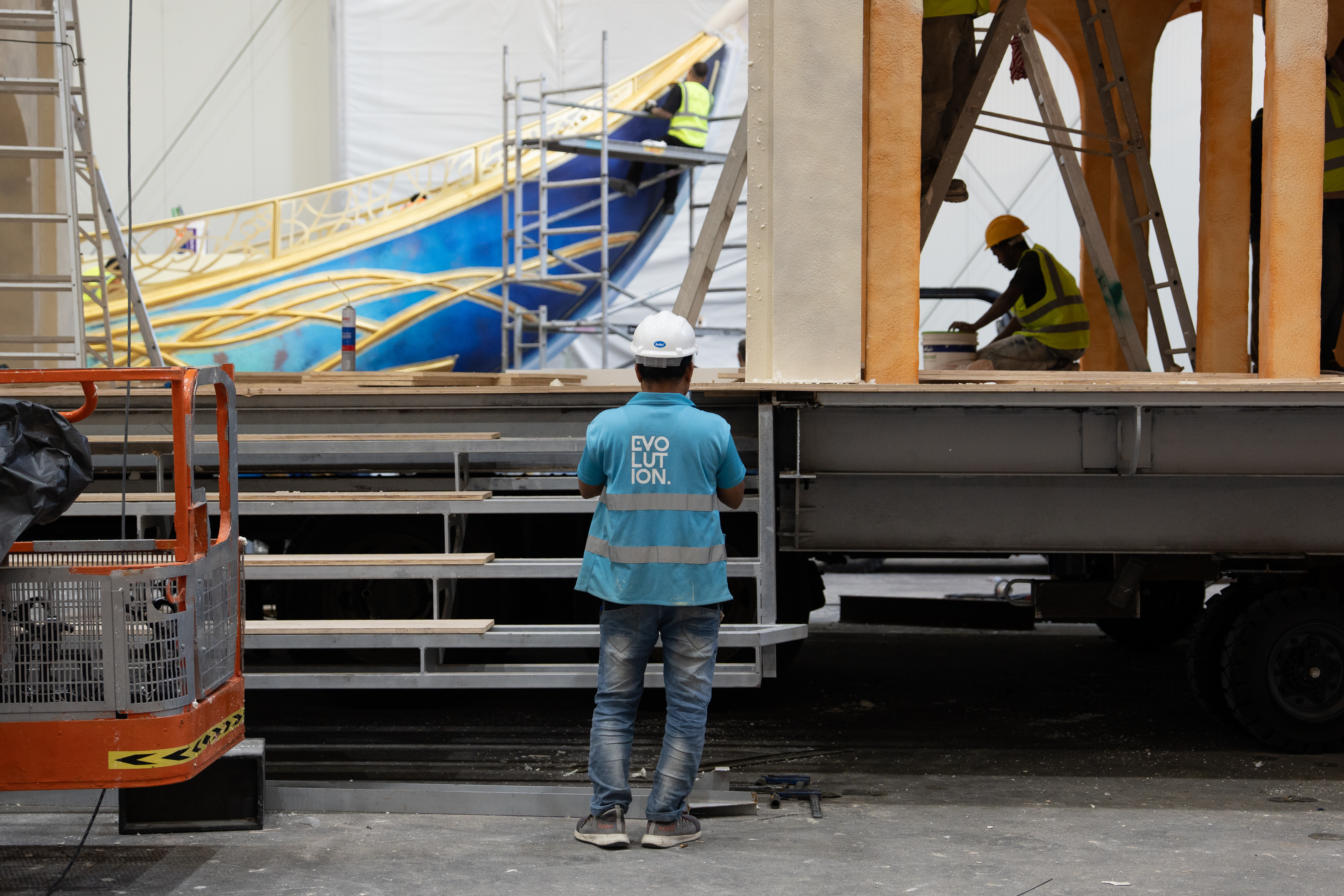

Transport and Touring Applications

Transport is not a separate logistics exercise. It is part of the engineering strategy.

Every additional kilogram can influence vehicle selection, loading time, fuel consumption, lifting requirements and manual handling. However, reducing weight without considering stiffness can create components that are difficult to align or vulnerable to damage.

Touring systems must also withstand repeated loading, unloading and assembly. Connections that perform well during a single installation may loosen or wear after multiple cycles. Frames require suitable protection during transport, while projecting brackets and delicate interfaces may need removable or replaceable components.

Efficient systems are designed to stack, nest or pack into dedicated stillages. Components should be clearly labelled, and the installation sequence should correspond with the order in which modules are unloaded. These decisions reduce handling and prevent finished scenic elements from being moved unnecessarily around the site.

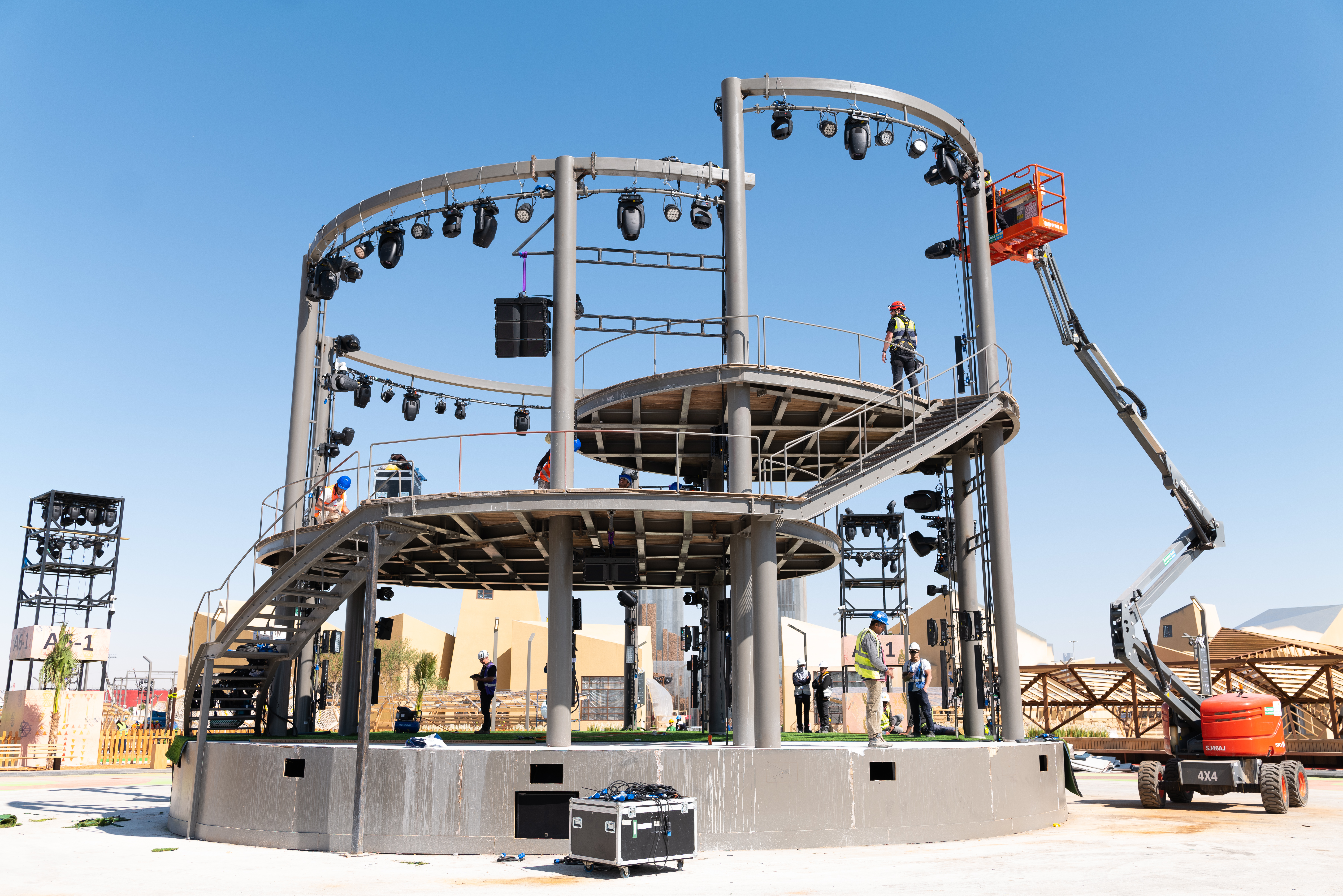

Large Public Structures

Public scenic installations introduce additional responsibilities. Structures may remain operational for extended periods, be accessible to visitors or operate outdoors under changing environmental conditions.

Wind loading, ballast, anchoring, maintenance access and inspection requirements must be integrated from the beginning. Public-facing surfaces should conceal the engineering without preventing access to critical connections.

Protective finishes also matter. Steel may require suitable paint systems, galvanising or other corrosion protection depending on the operating environment. Aluminium may need anodising, powder coating or isolation from incompatible materials. These treatments must be coordinated with the scenic finish so that structural protection and visual appearance work together.

For large temporary architecture, the most important details are often those the visitor never notices: drainage paths, accessible fixings, replaceable panels, protected cable routes and clearly defined inspection points.

Designing for the Complete Lifecycle

The correct metal is the one that supports the complete life of the scenic structure.

A short-term activation may prioritise rapid fabrication and efficient installation. A touring structure may place greater importance on low weight, demountable connections and durable transport protection. A public installation may require heavier structural systems, long-term corrosion protection and straightforward access for inspection.

End-of-life planning can also influence the design. Bolted modules are easier to separate, refurbish and reuse than fully welded assemblies. Standard section sizes can simplify repairs, while replaceable scenic layers can extend the useful life of the main frame.

At Evolution Scenic, steel and aluminium are treated as part of a wider fabrication strategy. Their value lies not simply in their material properties, but in how effectively they support scenic carpentry, cladding, finishes, graphics, technology, transport and installation.

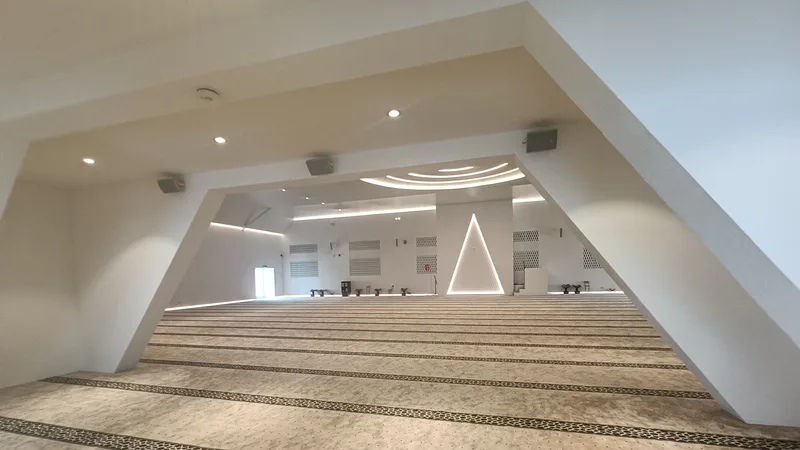

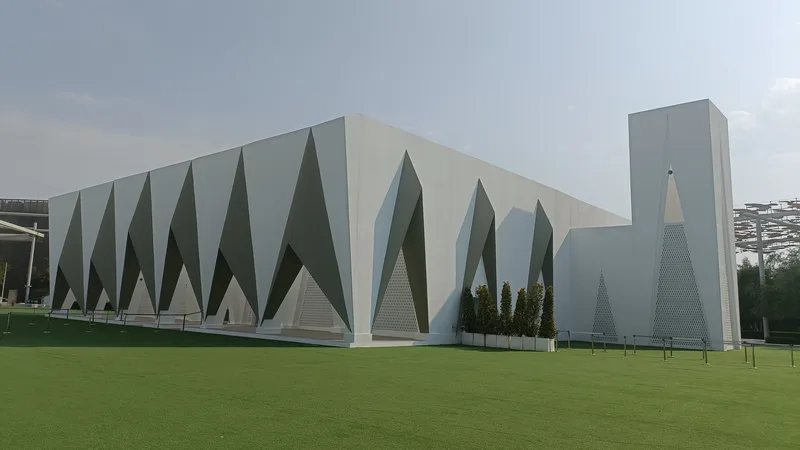

The public may never see the framework behind the completed environment. Its performance, however, can be seen in every clean joint, stable surface and efficiently installed scenic element.

The strongest structures are not those that use the most metal. They are those that use the right material, in the right location, for the right reason.
