Vehicle Mounted Structural Systems
A completed vehicle-mounted scenic structure brings together chassis integration, structural engineering, lightweight fabrication and premium scenic finishing.
Vehicle Mounted Structural Systems
Many scenic structures are designed to remain in one position throughout their operational life. Once a structure is installed onto a moving vehicle, however, the engineering brief changes completely.
A vehicle-mounted scenic structure is not simply a static build placed on wheels. It becomes part of a moving system affected by braking, acceleration, vibration, cornering, road gradients, surface conditions and lateral forces. Every scenic element must therefore be considered in relation to the behaviour of the vehicle beneath it.
The strongest solutions begin with movement as a fundamental design condition rather than treating it as a complication to resolve after the creative concept has been approved.

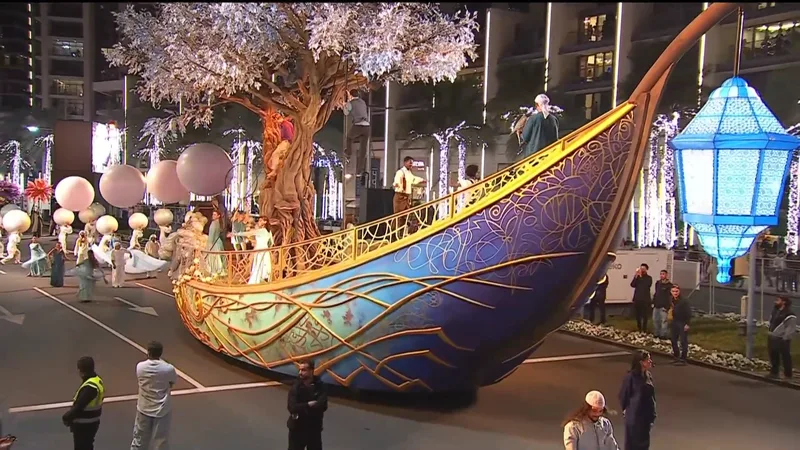

A completed mobile scenic build demonstrates how vehicle-mounted fabrication differs from a conventional static installation.
The Vehicle Is Part Of The Structure
Vehicle integration should begin before the scenic design is fully developed.
The chassis type, wheelbase, suspension, gross vehicle weight, permitted payload and available mounting positions can influence almost every aspect of the finished structure. The usable platform shown in a drawing may not represent the areas capable of accepting structural loads, while apparently convenient fixing points may belong to bodywork rather than the primary chassis.
A clear distinction must therefore be made between the vehicle chassis, any intermediate subframe and the scenic structure itself. Each layer performs a different role.
The chassis provides the moving foundation. The subframe distributes loads and creates controlled connection points. The scenic construction delivers the required form, finish and visual identity.
Understanding these interfaces early allows the engineering and fabrication teams to establish reliable load paths before manufacturing begins. It also reduces the risk of discovering during installation that the proposed structure cannot be safely connected to the selected vehicle.

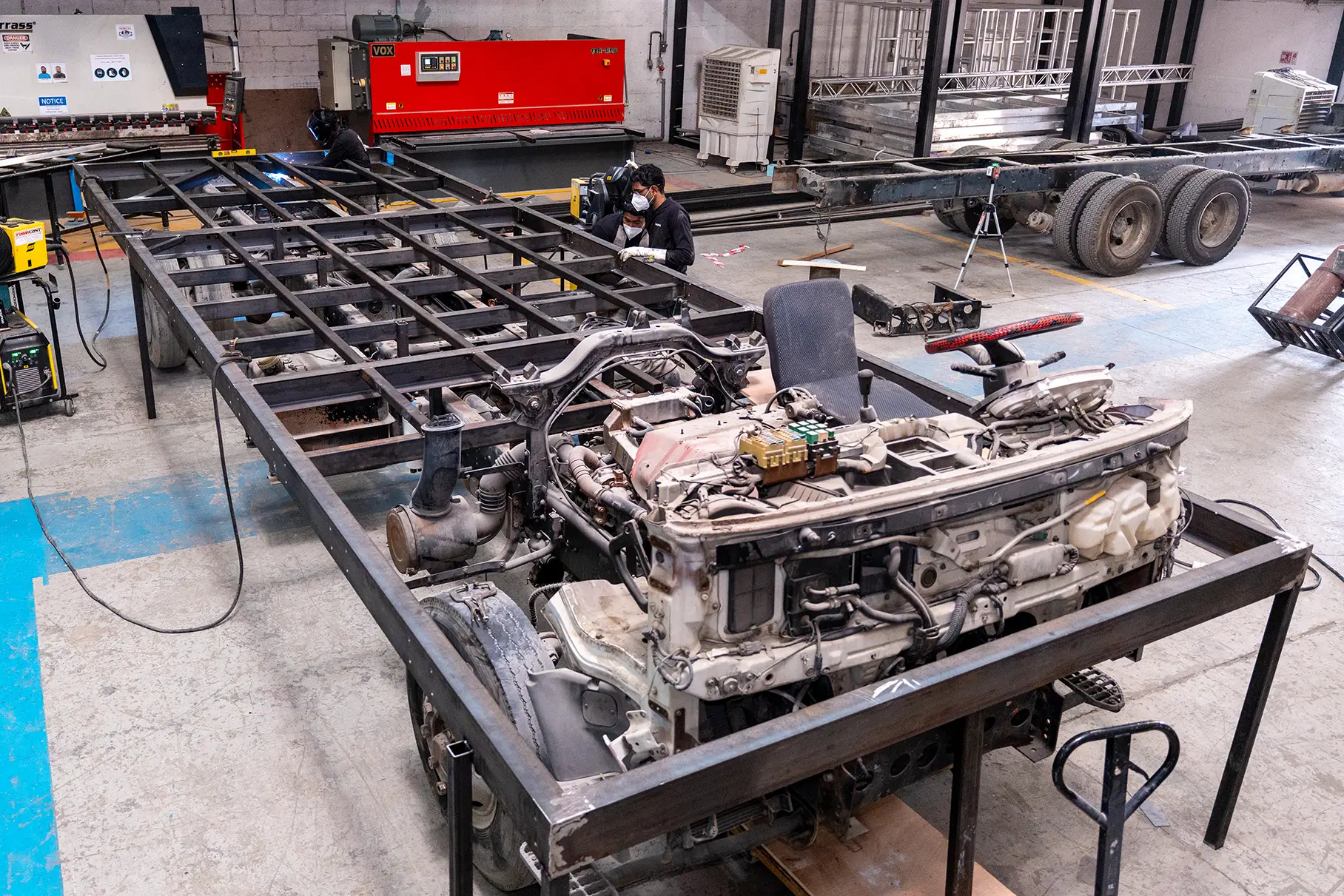

Vehicle integration is most effective when it begins before the scenic form is fully developed.
Total Weight Is Only Part Of The Calculation
Remaining within the vehicle’s total payload is essential, but total weight does not tell the whole story.
Axle loading must also be understood.
A structure may fall within the permitted gross vehicle weight while still applying too much load to the front or rear axle. The position of heavy components can significantly affect this balance, particularly when generators, batteries, hydraulic equipment, steelwork, ballast or integrated technology are concentrated within a small area.
Fabrication teams should develop a weight schedule that identifies the estimated mass and position of each major component. The calculations should consider the completed operating condition rather than only the structural frame.
Scenic cladding, lighting equipment, cabling, access platforms, onboard technical systems and removable decorative pieces all contribute to the final load. Fuel level, operational personnel and stored equipment may also influence the vehicle during use.
Where appropriate, the completed platform can be checked using axle scales or a suitable weighbridge. Physical verification provides an opportunity to compare the manufactured result with the original engineering assumptions before the vehicle enters operation.

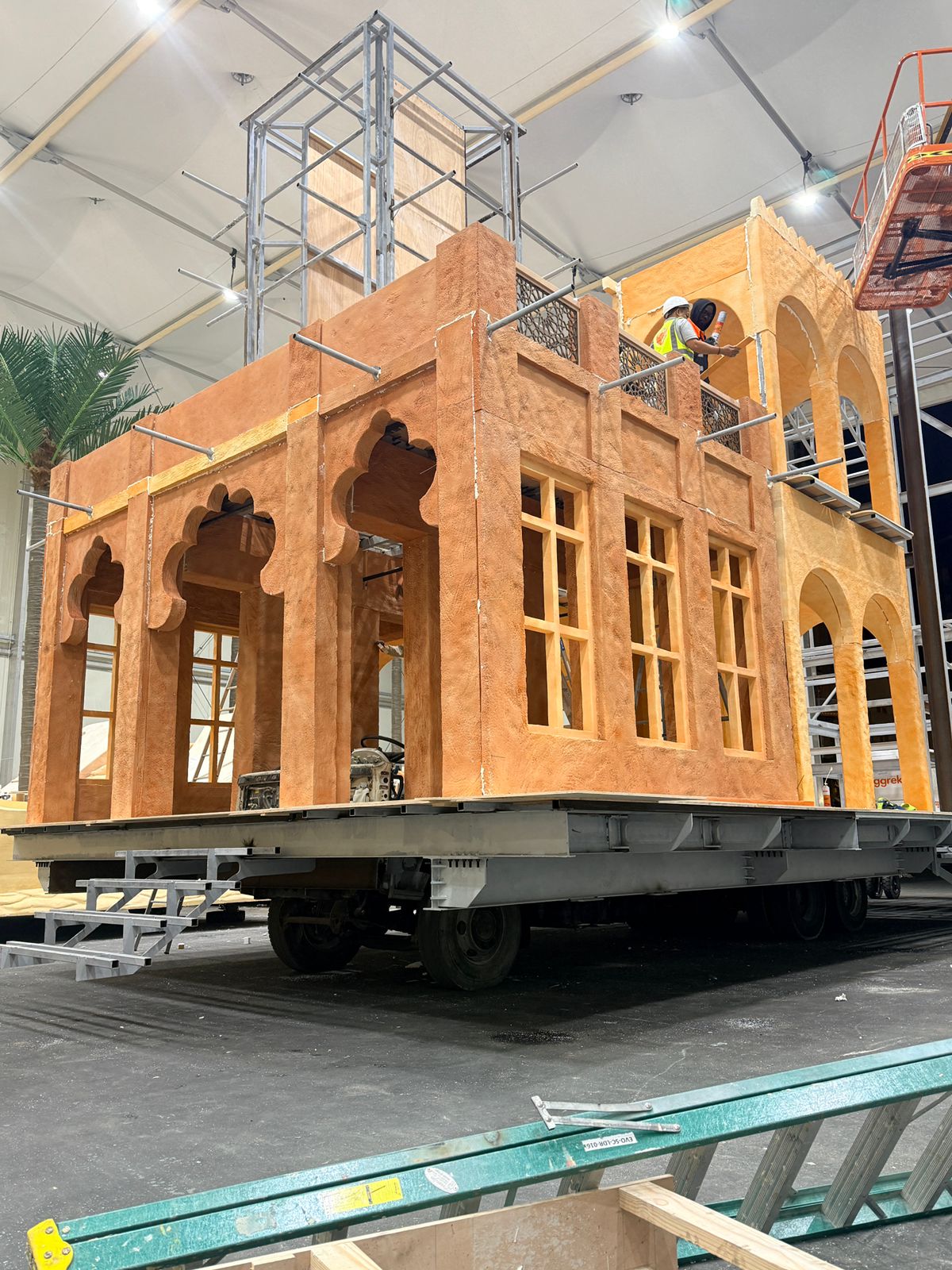

Total vehicle payload is checked throughout fabrication rather than treated as a final-stage calculation.
Managing The Centre Of Gravity
Centre of gravity is one of the most important considerations within vehicle-mounted structural design.
Large scenic forms are often positioned high above the vehicle to increase visibility and create a stronger silhouette. Unfortunately, raising mass also raises the centre of gravity, which can reduce stability during cornering, braking or movement across uneven surfaces.
The issue is not limited to overall height. The horizontal position of the mass also matters. A heavy element located towards one side of the vehicle can produce an uneven load condition, while a large structure extending beyond the platform can introduce additional leverage.
Effective engineering generally aims to keep dense structural components as low and as central as practical. Lightweight materials can then be used for elevated scenic elements where visual volume is required without unnecessary mass.
This approach is particularly valuable for National Day floats, Union Parade structures and other public celebration vehicles where a large visual form may need to travel along an extended route.
Ballast can sometimes be used to improve stability, but it should not be treated as a substitute for efficient design. Additional ballast consumes payload capacity and increases axle loads. It is normally more effective to manage weight distribution through the structure itself.

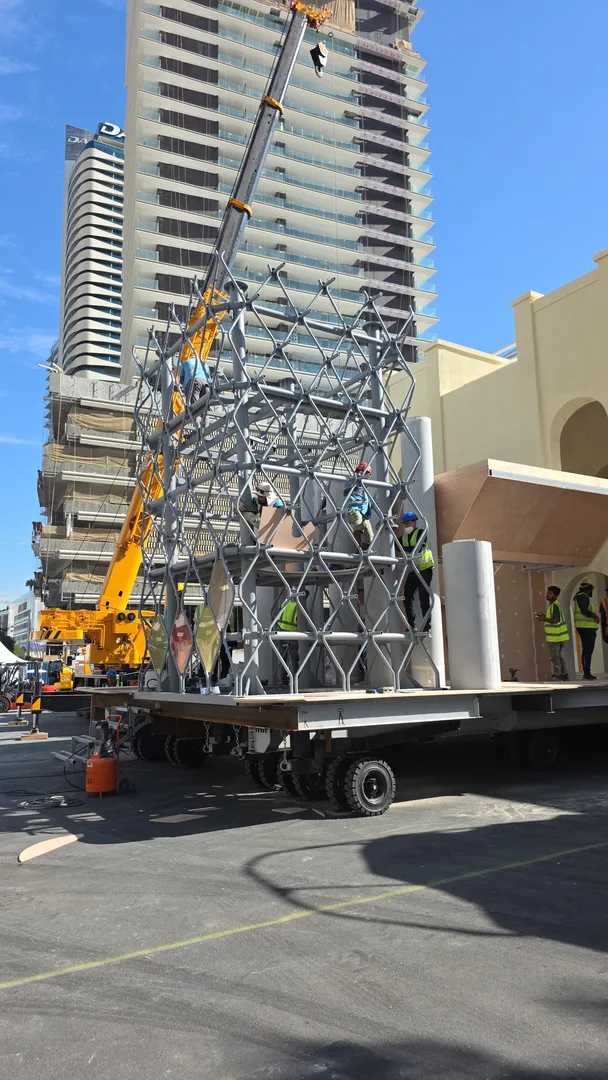

Centre-of-gravity control begins with how structural mass is distributed vertically through the build.
Designing For Dynamic Loading
A stationary structure experiences loads differently from a moving one.
When a vehicle brakes, the structure attempts to continue moving forwards. During acceleration, the forces act in the opposite direction. Cornering produces lateral forces, while potholes, ramps, road joints and uneven surfaces can create vertical impacts and repeated vibration.
These conditions can magnify forces beyond those suggested by the static weight of the structure.
Dynamic loading must therefore influence the design of the primary frame, mounting system, connections and scenic finishes. Welded joints, bolted connections, brackets, secondary framing and decorative elements all need to remain secure throughout operation.
Repeated vibration is especially important. A connection may withstand a single load but gradually loosen or fatigue after repeated movement. Locking hardware, secondary retention, appropriate welding details and accessible inspection points can all reduce this risk.
The vehicle chassis may also flex during operation. A scenic frame that is excessively rigid or connected without allowing for the behaviour of the platform can experience unintended stresses.
The mounting strategy must account for the relationship between the chassis, subframe and scenic superstructure rather than assuming the vehicle remains perfectly flat.
A moving scenic structure requires different engineering from an installation that remains stationary.
Creating Reliable Mounting Systems
The mounting system is the physical interface between the vehicle and the scenic build.
Its purpose is not simply to prevent the structure from moving. It must transfer forces into suitable areas of the vehicle while allowing the installation to be inspected, maintained and, where required, removed.
Depending on the project, the solution may use bolted plates, welded subframes, pinned connections, proprietary locking systems or demountable steel interfaces. The correct method depends on the vehicle, operational loads, installation programme and required level of reuse.
Connections should create clear and predictable load paths. Where possible, primary fixings should remain accessible after scenic cladding has been installed. Concealing every structural connection may produce a cleaner finish, but it can make inspection and maintenance unnecessarily difficult.
Modifications to the vehicle chassis should always be carefully controlled. Drilling, welding or cutting structural chassis members without appropriate review can affect vehicle performance, manufacturer requirements or regulatory compliance.
For structures intended to be installed repeatedly, consistency becomes particularly important.
Locating pins, labelled connection points, repeatable bolt patterns and clear assembly drawings can reduce installation time while helping the team reproduce the engineered configuration accurately.

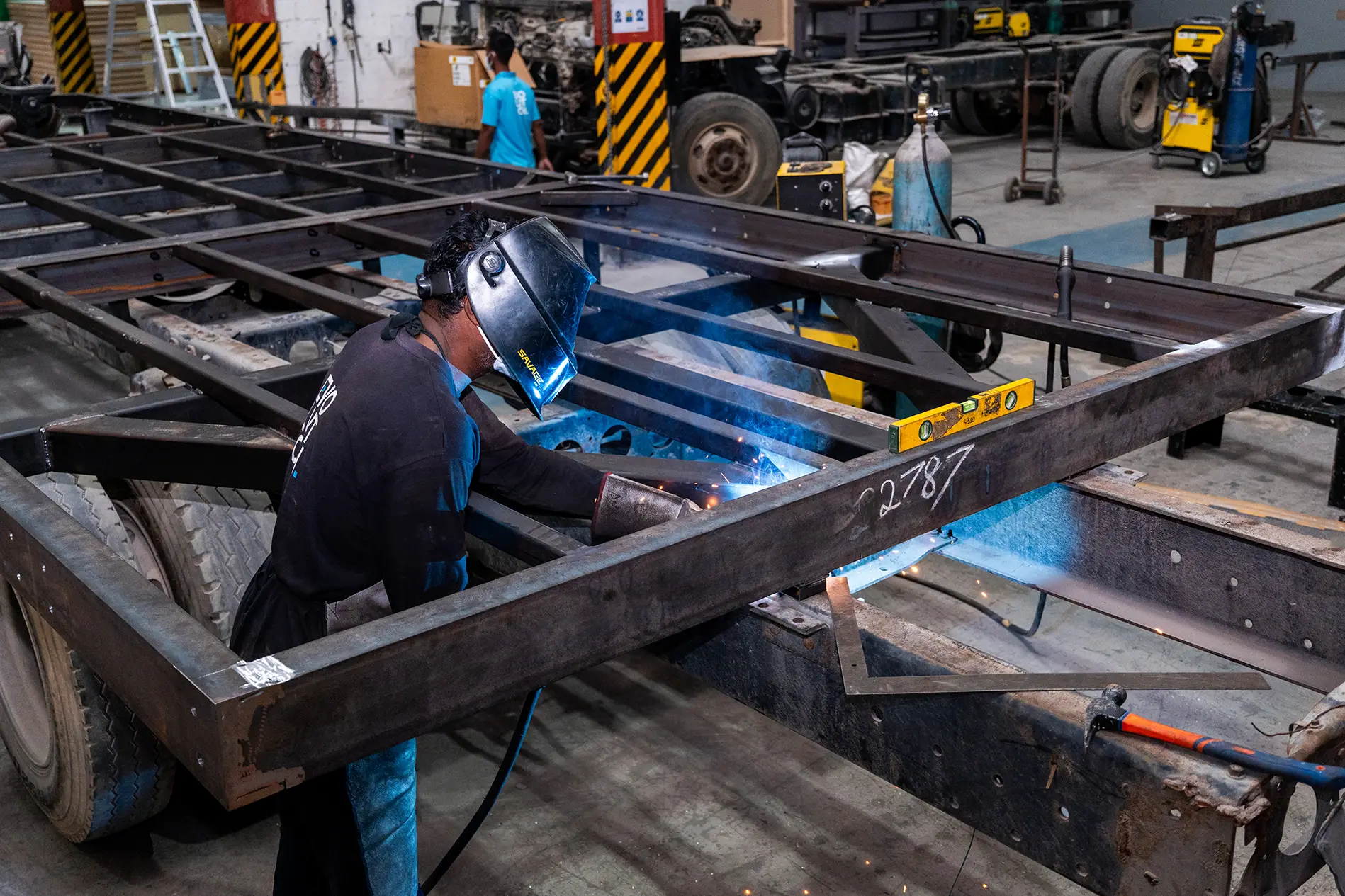

The mounting system is the physical connection between the moving vehicle and the scenic build.
Hybrid Construction For Strength And Weight Control
Vehicle-mounted structures frequently use hybrid construction because no single material can efficiently perform every function.
Structural steel may be used close to the vehicle where concentrated loads and robust mounting connections are required. Aluminium can reduce the weight of elevated frames and large-volume scenic forms. CNC-machined plywood, composites, fabrics, moulded materials and specialist foams can then create the finished geometry and surface treatment.
The objective is not necessarily to make every component as light as possible. It is to place strength, stiffness and mass where they provide the greatest value.
A lightweight scenic panel still requires appropriate support. An aluminium frame still needs carefully designed joints. Composite or foam elements still require secure attachment and secondary retention where failure could create an operational risk.
Material compatibility should also be considered. Dissimilar metals may require isolation, while finishes must tolerate movement, vibration, handling and exposure to the expected environment.
For mobile activation structures used across multiple locations, repairability and repeated assembly may be as important as initial weight. Components should be designed so that local damage can be addressed without dismantling the complete structure.

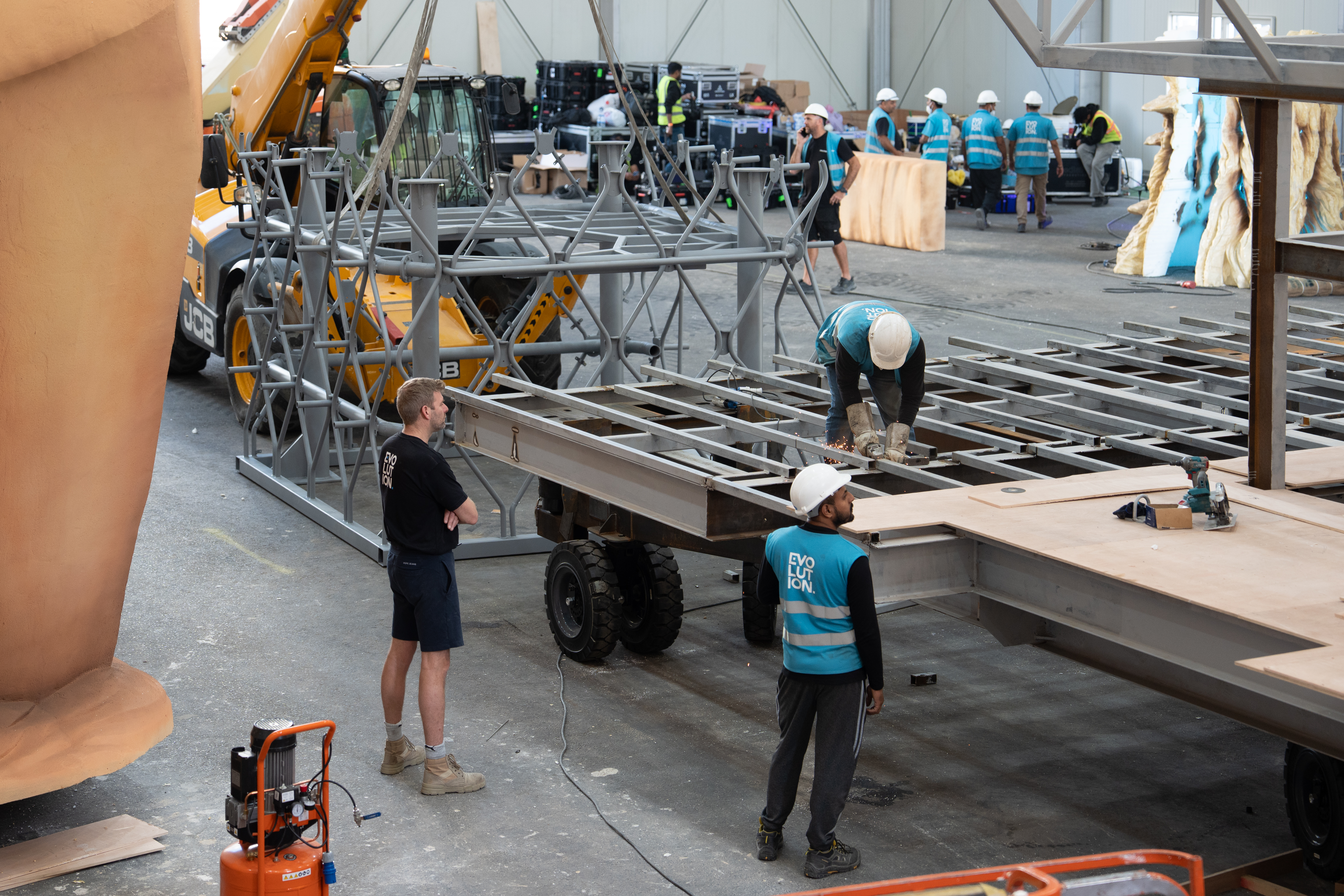

Hybrid construction places different materials where their structural and scenic properties are most useful.
Route Planning Is Part Of The Design Process
The route should be reviewed while the structure is still being developed.
Vehicle height and width are obvious considerations, but route planning also includes turning radius, road camber, gradients, overhead services, bridges, gateways, trees, surface quality and access into holding or assembly areas.
A vehicle may be capable of travelling along a straight road yet unable to negotiate a tight service entrance or turning area. A structure that clears an overhead obstruction on level ground may behave differently when the vehicle crosses a ramp or sloping surface.
Route information can influence the decision to use folding, telescopic or removable scenic elements. It may also establish separate travel and operating configurations, allowing a structure to remain compact during transportation before being deployed at the destination.
For parade floats, clearance should be assessed across the complete route rather than only at the start and finish points. For mobile activation structures, the arrival sequence, parking condition, levelling requirements and deployment space must also be understood.
The safest solution is often the one that removes uncertainty before the vehicle leaves the workshop.

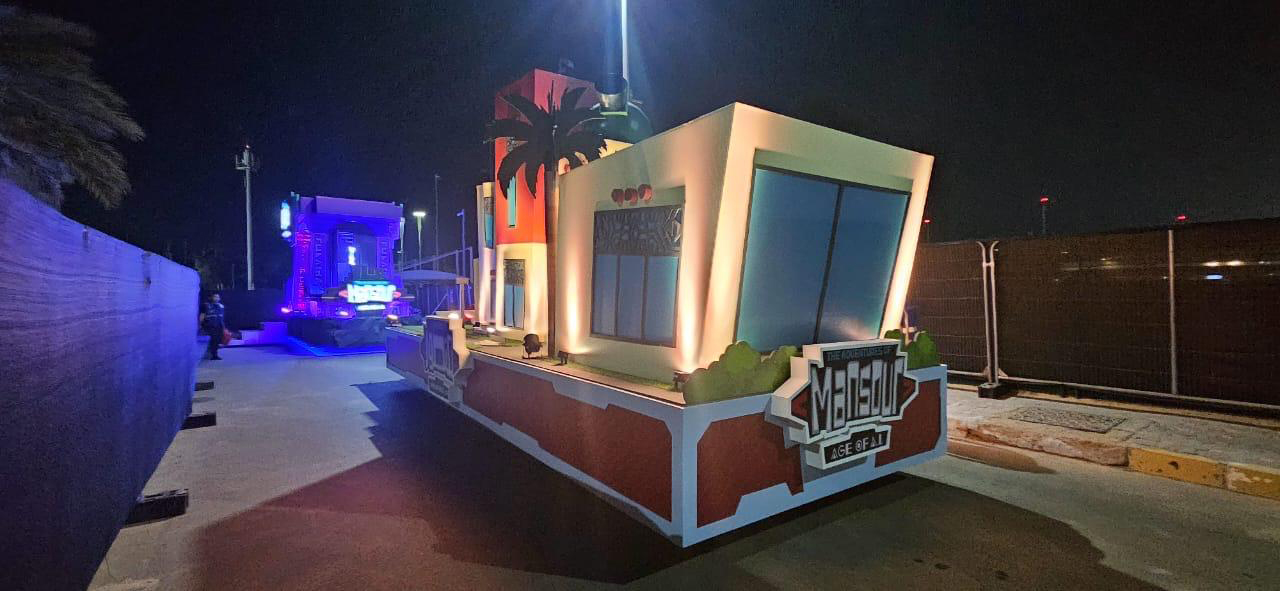

Height, width, turning radius and overhead restrictions all influence the buildable mobile scenic envelope.
Operational Safety Beyond Structural Calculations
Engineering calculations provide the basis for a safe structure, but operational procedures determine how that structure performs in practice.
Vehicle speed, braking distances, weather limits, driver visibility and communication between operators should all be defined. Access platforms, guardrails, service hatches, electrical systems and moving mechanisms must remain safe throughout installation, testing and operation.
Pre-deployment inspections may include:
· Checking primary mounting connections and torque markings.
· Inspecting secondary retention systems.
· Confirming that removable scenic pieces are locked in position.
· Reviewing cable containment and electrical connections.
· Checking access routes, guardrails and working platforms.
· Confirming that no components interfere with the wheels, steering or vehicle controls.
· Recording any changes made after the original engineering review.
A controlled movement test is also valuable. Low-speed braking, turning and surface-transition
tests can reveal vibration, deflection or clearance issues that may not be visible while the vehicle is stationary.
Rehearsal should confirm the engineering rather than compensate for missing engineering.

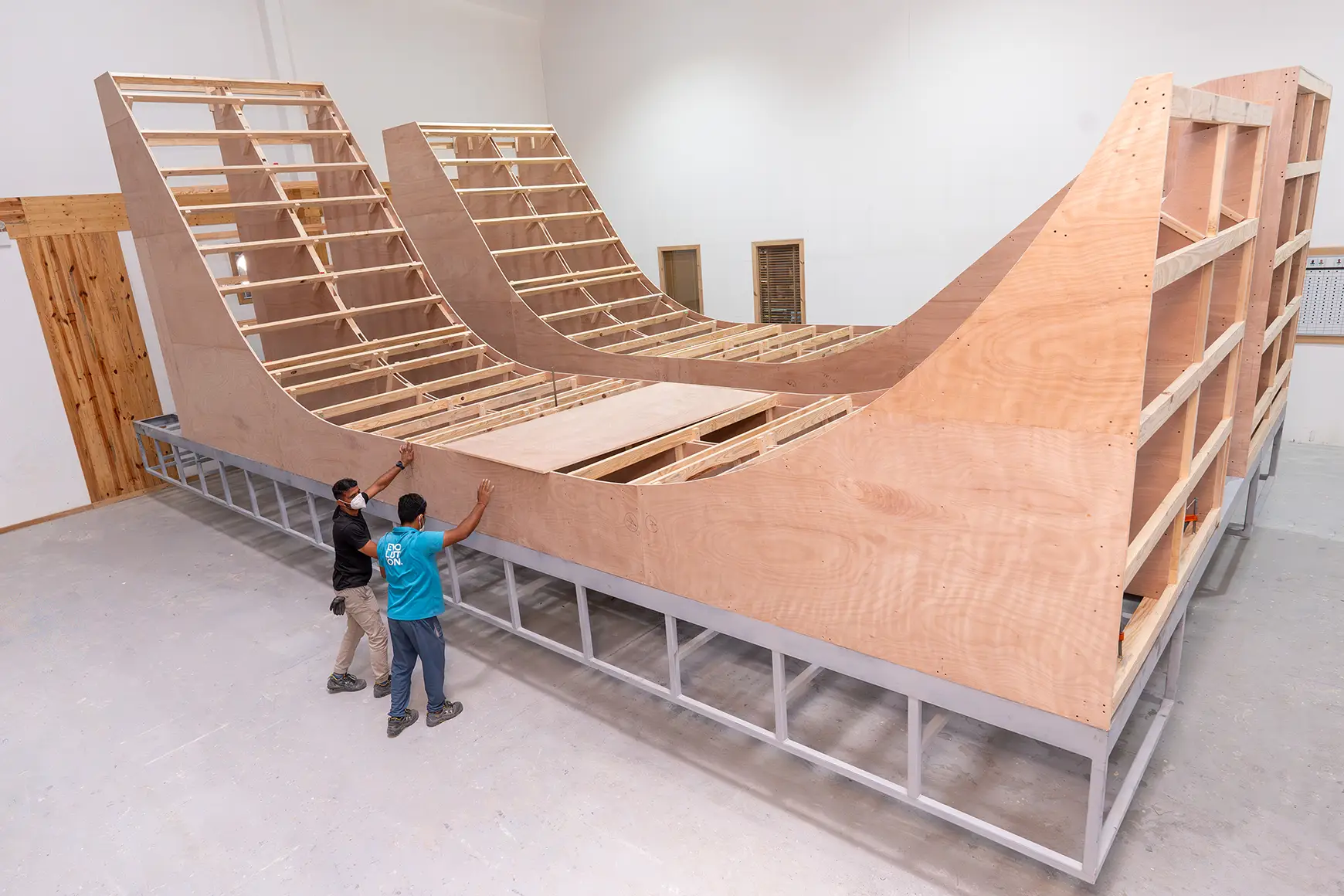

Engineering calculations are supported by practical operational checks throughout fabrication, testing and deployment.
Applying The Principles Across Different Projects
The same principles apply across a wide range of mobile scenic structures.
Union Parade and National Day floats may require tall, highly visible scenic forms operating as part of a coordinated vehicle procession. Mobile activation structures may travel between several locations before opening into a branded or immersive environment. Promotional vehicles may incorporate fold-out platforms, lighting, graphics, technology and integrated storage.
The scale and operating conditions may change, but the engineering questions remain similar:
Where do the loads enter the vehicle?
How are they distributed between the axles?
Where is the centre of gravity?
How will the structure behave during braking and cornering?
Can every critical connection be inspected?
Can the vehicle complete its intended route?
What happens if a component needs to be repaired or removed?
Answering these questions early produces a safer, more efficient and more practical scenic system.

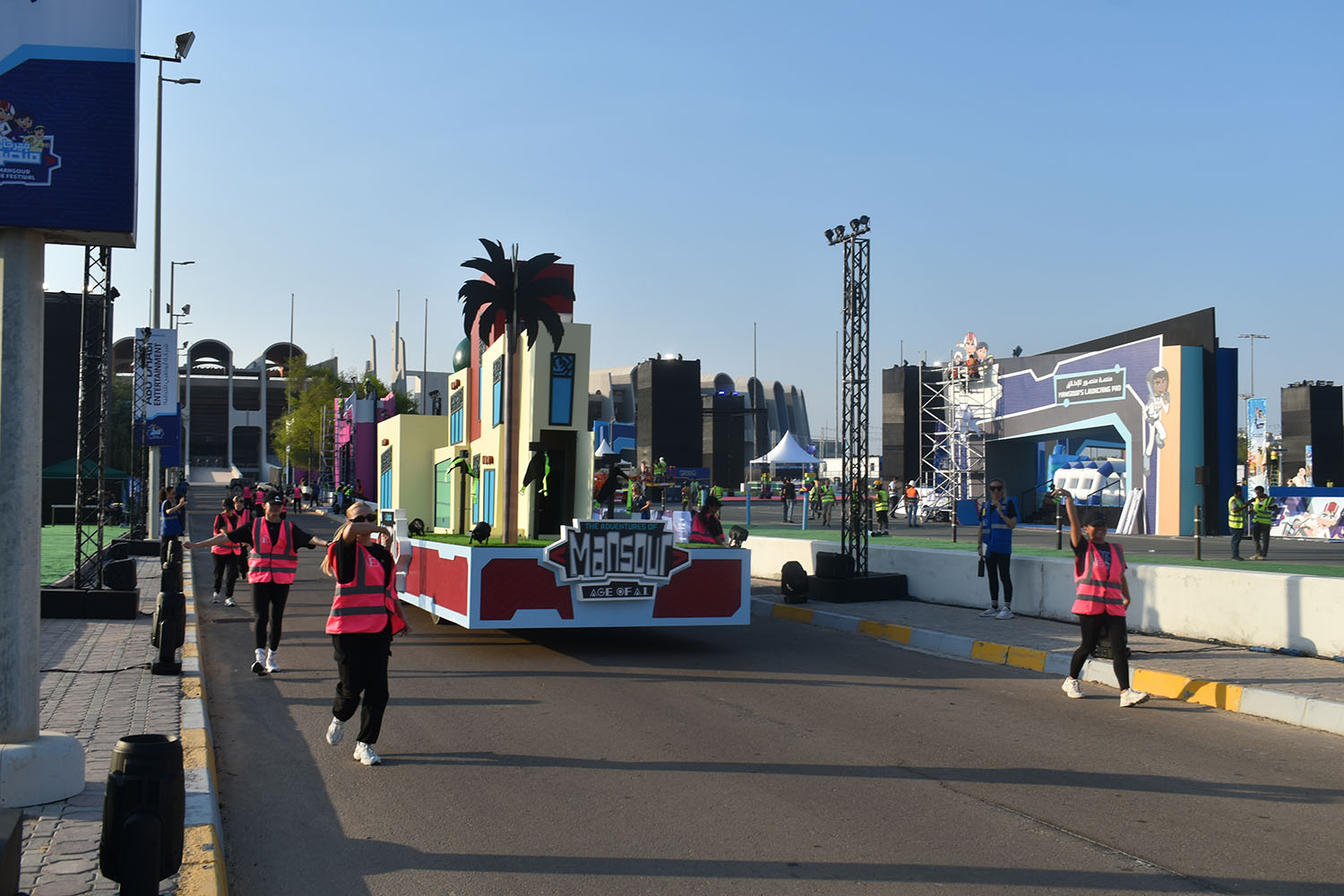

The same engineering principles apply across many types of vehicle-mounted scenic fabrication.
Engineering Movement From The Beginning
Successful vehicle-mounted structures require close collaboration between structural engineers, scenic fabricators, vehicle specialists, transport teams and operational personnel.
The process should produce more than a visually convincing design. It should establish vehicle interface drawings, weight schedules, mounting details, material specifications, assembly methodologies, inspection requirements and operational limits.
At Evolution Scenic, the focus is on translating ambitious scenic concepts into structures that can be fabricated, installed and operated reliably. That means considering not only how the finished environment appears, but how every component behaves while the vehicle is moving.
A mobile scenic structure succeeds when the engineering is largely invisible during operation.
The vehicle moves as intended.
The structure remains stable.
The finishes perform correctly.
The installation team can inspect and maintain it.
And the creative concept reaches the route exactly as it was designed to be experienced.
