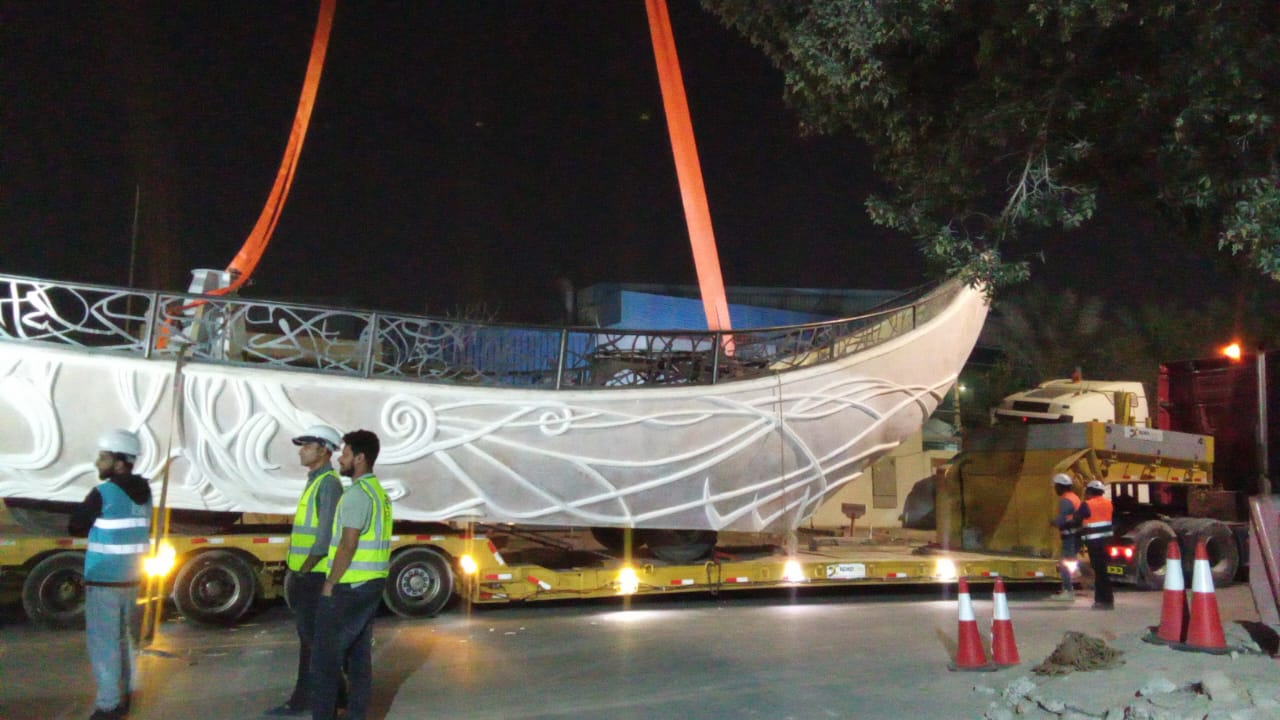

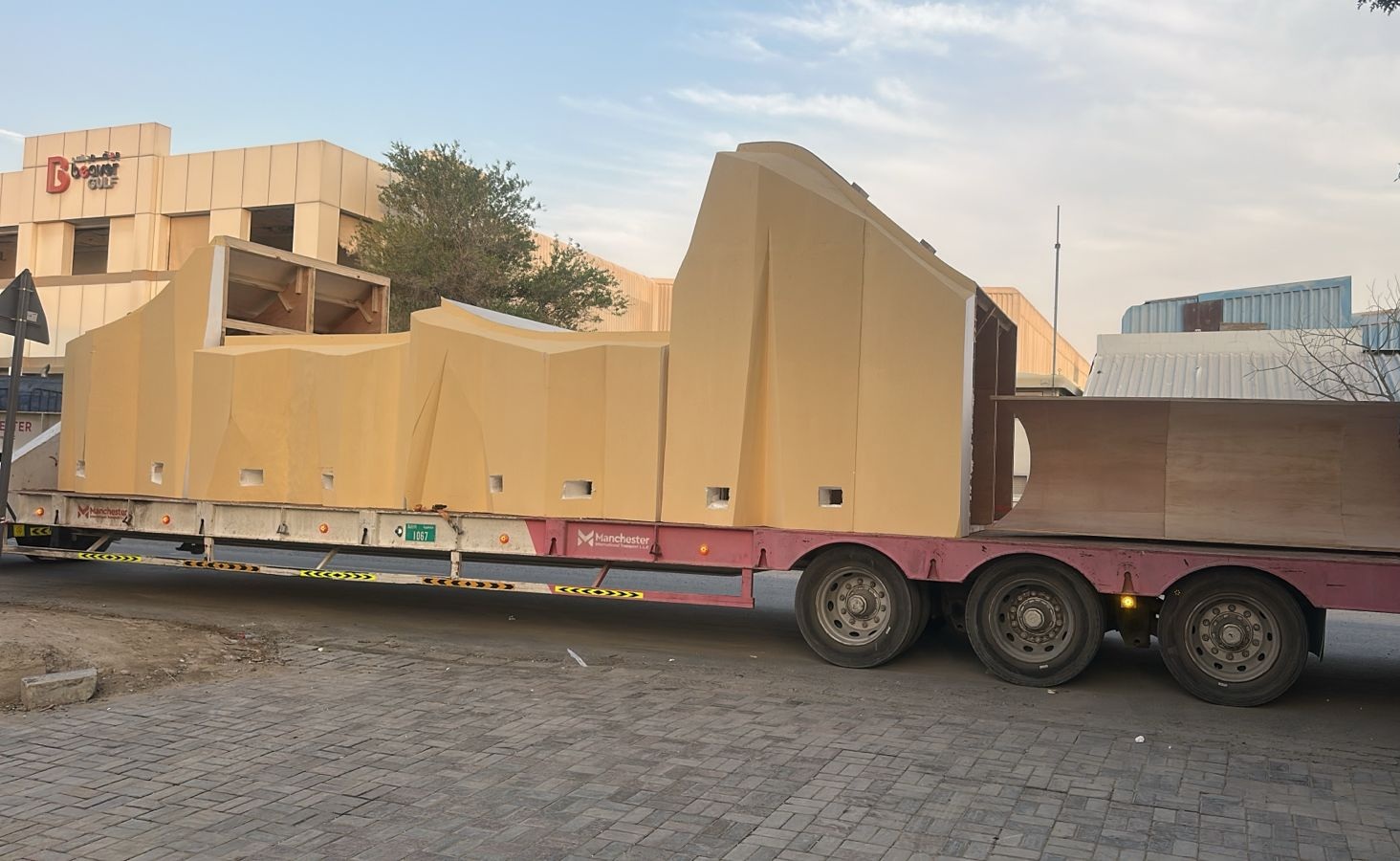

A transport-ready scenic structure engineered in modules for safe movement from workshop to site.

Transporting Large Scenic Structures

The successful delivery of a scenic structure often depends as much on transportation planning as it does on fabrication quality. A structure may leave the workshop structurally complete and visually immaculate, but it still has to survive loading, road transport, unloading and final installation without losing alignment, damaging its finish or creating unnecessary work once it reaches site. For Evolution Scenic, logistics therefore forms part of the fabrication methodology rather than becoming a separate consideration at the end of production.

Transportation requirements can influence a project from the earliest stages of technical development. Maximum vehicle dimensions, trailer capacities, loading heights, road regulations, turning radii, bridge clearances, delivery gates and site access restrictions can all determine how a scenic structure needs to be engineered. When these constraints are identified early, they can be incorporated into the manufacturing drawings rather than discovered when a completed structure is already waiting for dispatch.

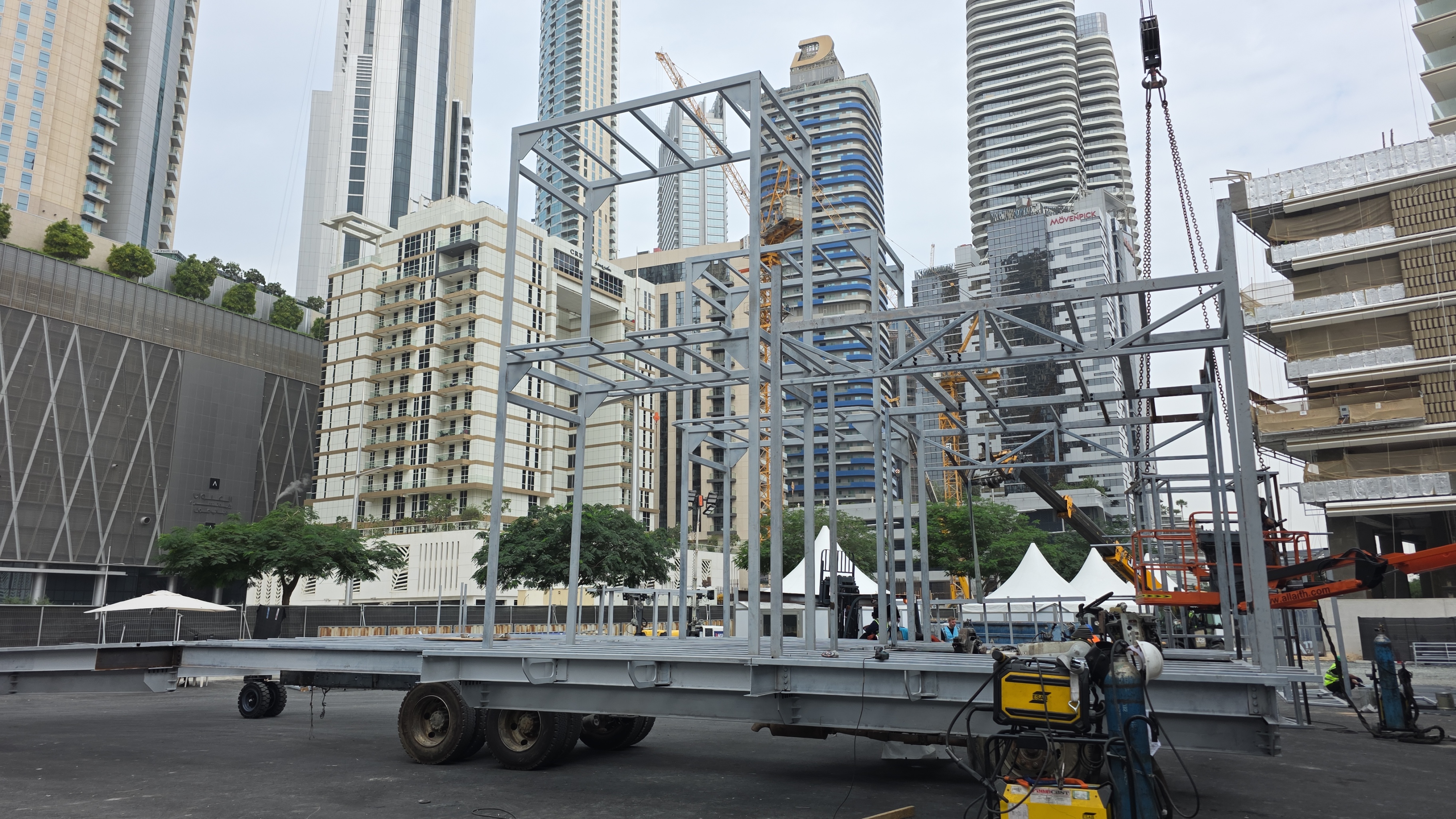

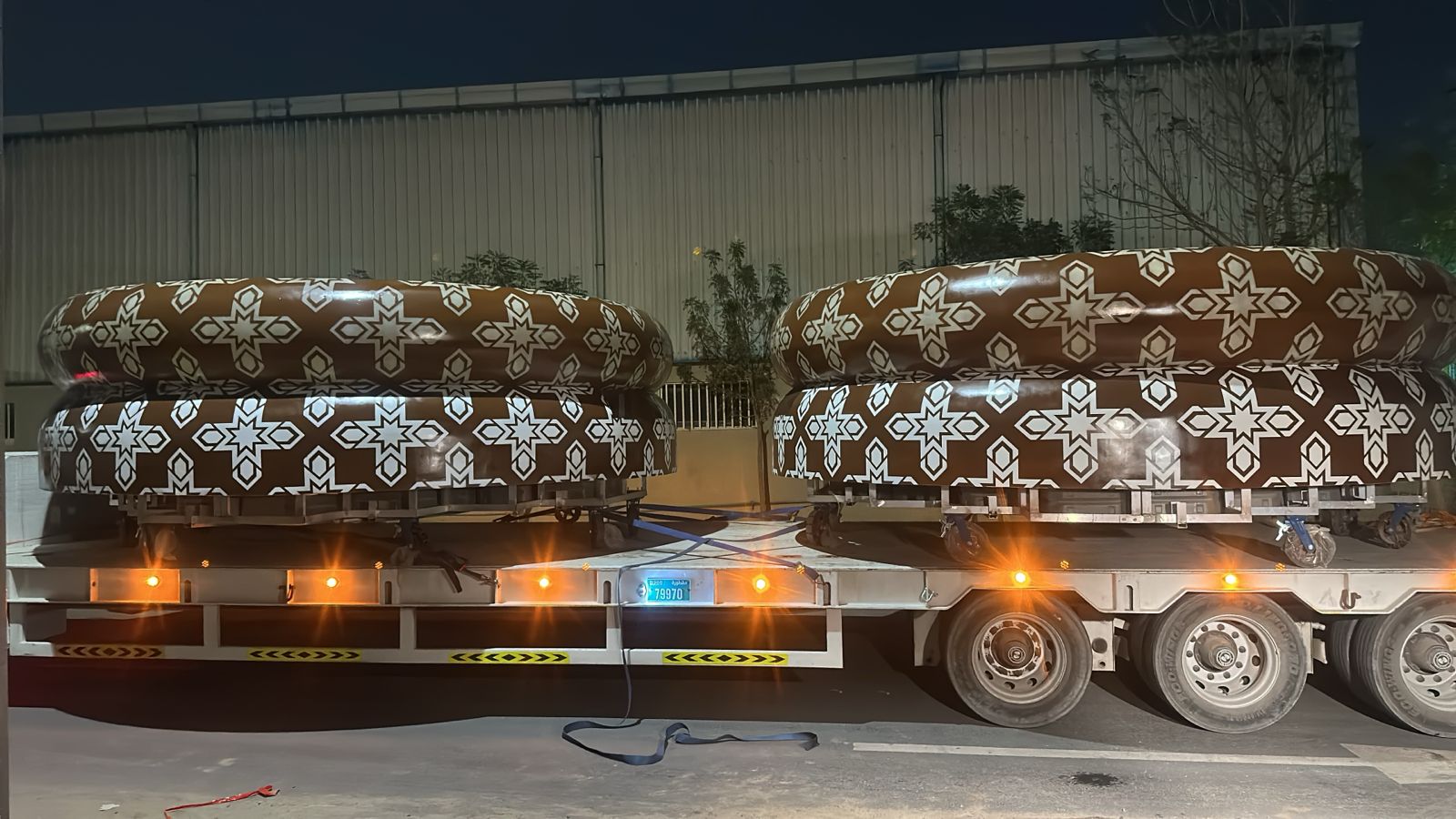

Fabrication quality must be matched by transport planning that protects every finished component.

Designing Scenic Structures Around The Journey

Large scenic projects are rarely transported as complete assemblies. The more practical approach is usually to divide the structure into engineered modules that can be fabricated and finished in the workshop, transported within manageable dimensions and then accurately reassembled on site. The objective is not simply to cut a large structure into smaller pieces. Each module needs to be considered in terms of structural behaviour, transport weight, lifting method, finish continuity and installation sequence.

Connections between modules are particularly important. Bolted plates, locating pins, indexed fixing positions, mechanical joints and concealed connection details can all be developed so that components return to their intended geometry during installation. Well-designed interfaces reduce the amount of adjustment, drilling and remedial work required on site, where working time is usually much more restricted than it is in the workshop.

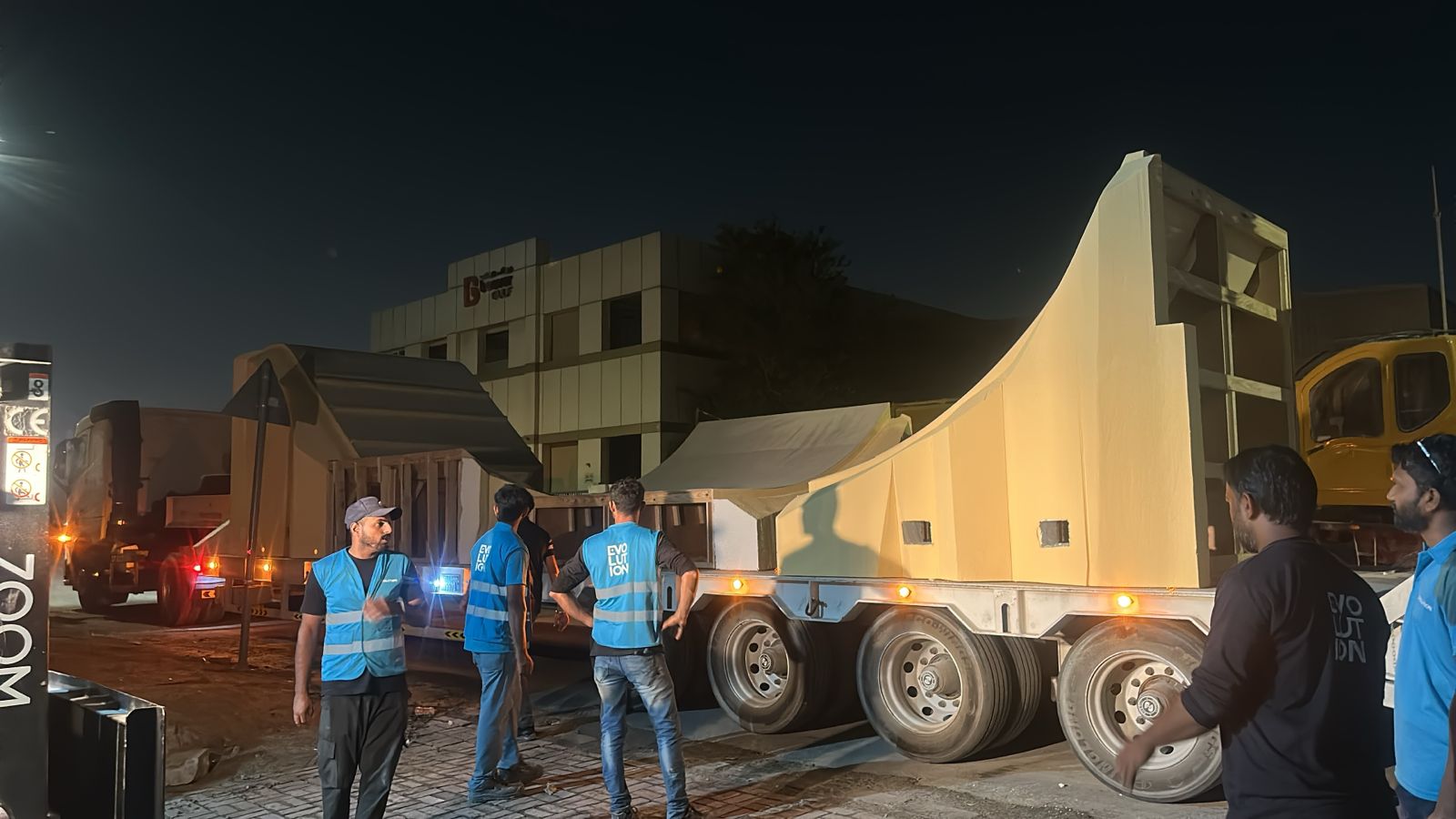

Road limits and site access can influence scenic engineering from the earliest design stages.

Oversized Loads And Route Planning

As scenic structures increase in scale, standard transport arrangements may no longer be sufficient. Tall frameworks, large sculptural forms, parade structures and unusually wide scenic assemblies can exceed normal road transport dimensions, requiring low-loader trailers, specialist vehicles or controlled oversized-load movements.

Depending on the journey, oversized transportation may also involve permits, escort vehicles, restricted travelling hours or coordination with road authorities. These requirements can have a direct effect on the production programme. A fabrication team therefore needs to understand not only when the scenic structure will be complete, but when the permitted transport movement can actually take place.

Route planning should also extend beyond checking the distance between the workshop and the venue. Vehicle height and width need to be considered against bridges, tunnels, overhead services, road furniture, temporary barriers, site entrances and turning circles. The final few hundred metres of a delivery can sometimes present more difficulty than the entire motorway journey. A route survey, dimensional review or trial movement can identify these problems before the transport vehicle is committed.

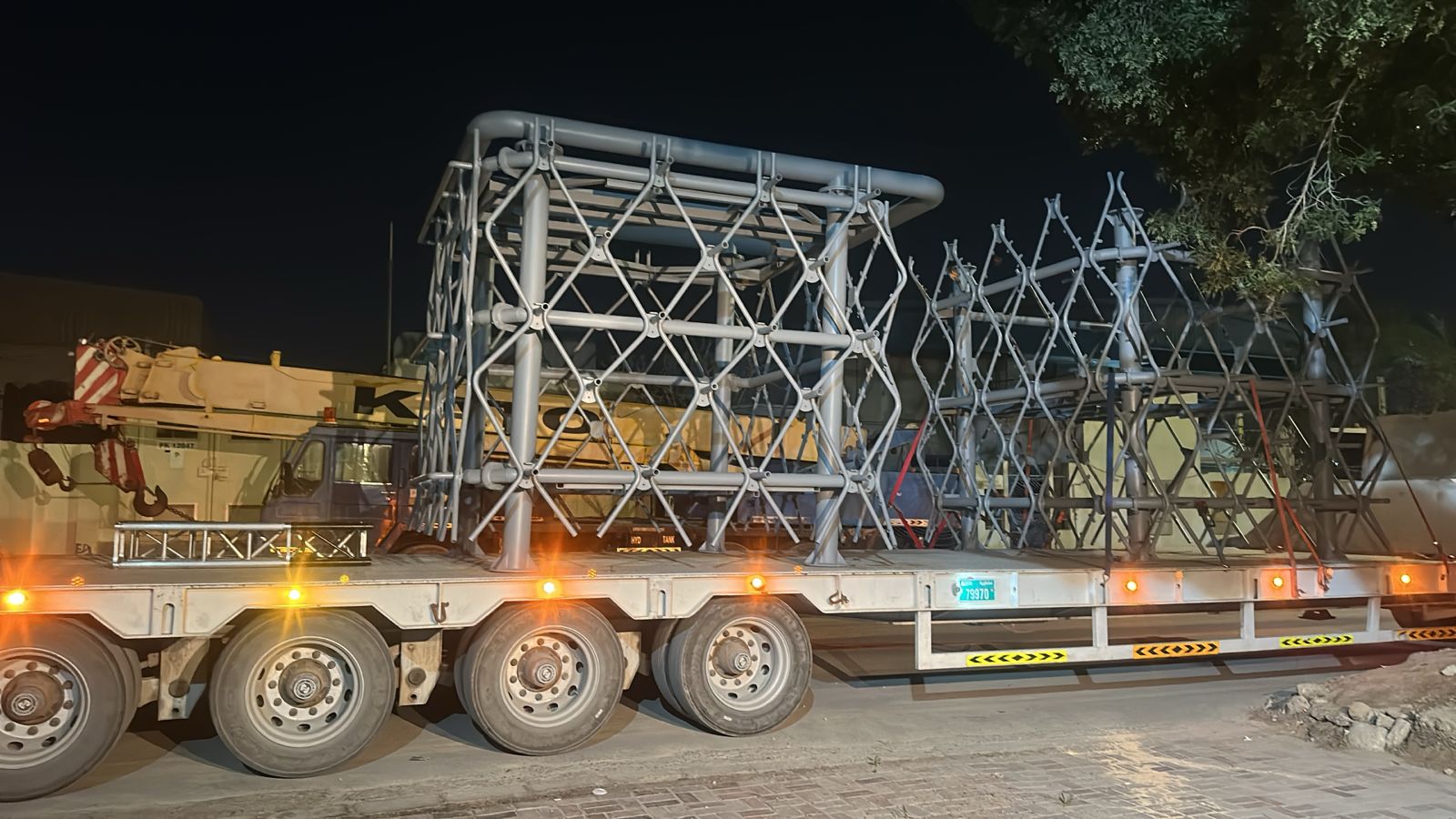

Modularisation allows large scenic builds to travel efficiently before controlled reassembly on site.

Modularisation Without Compromising The Scenic Built

Good modularisation should make a structure easier to move without making it look modular when assembled. Visible joint lines, changes in surface level and inconsistencies in scenic finishes need to be considered during technical development so that the finished installation still reads as one continuous environment or architectural form.

Evolution Scenic can develop modules around practical transport and handling dimensions while maintaining the intent of the finished structure. Steel frames may be divided at engineered connection points, timber skins can be designed around removable panels, and complex scenic forms can use concealed joints or overlapping finishes to disguise assembly lines.

Handling also needs to be considered before fabrication begins. Forklift pockets, lifting eyes, temporary bracing points and crane lifting locations can be incorporated directly into structural frames. Designing these features into the structure is considerably safer and more efficient than trying to establish lifting arrangements after fabrication is complete.

Repeatable interfaces reduce rework and help installation teams reconnect modules accurately under time pressure.

Transport Frames, Stillages And Packing Systems

The structure itself is only one part of the transport solution. Large scenic projects frequently require purpose-built stillages, transport frames, crates or reusable support systems that hold components securely throughout loading and movement.

A painted panel, polished surface or detailed scenic sculpture cannot simply be strapped tightly to a trailer. The method used to restrain it must transfer transport loads without marking, crushing or distorting the finished surface. Steel transport racks can therefore incorporate padded support points, soft separators and designated restraint locations so that straps act against the frame rather than directly against decorative finishes.

Packing systems should also be designed around the way the components will be handled. Protective film can help protect certain painted or laminated surfaces, while foam edges, padded blankets and rigid corner protection can reduce damage during repeated loading and unloading. Fragile projections and sculptural details may require dedicated transport cradles rather than conventional packing.

Particular care is needed with premium scenic finishes. Metallic coatings, gloss-painted surfaces, printed graphics, laminates, acrylic details and specialist scenic treatments can be extremely visible once installed. A minor abrasion caused during transport can become a major finishing issue under exhibition or stage lighting. Protection therefore needs to be applied in a way that prevents impact and friction while avoiding adhesives, pressure marks or trapped moisture that could damage the surface it is intended to protect.

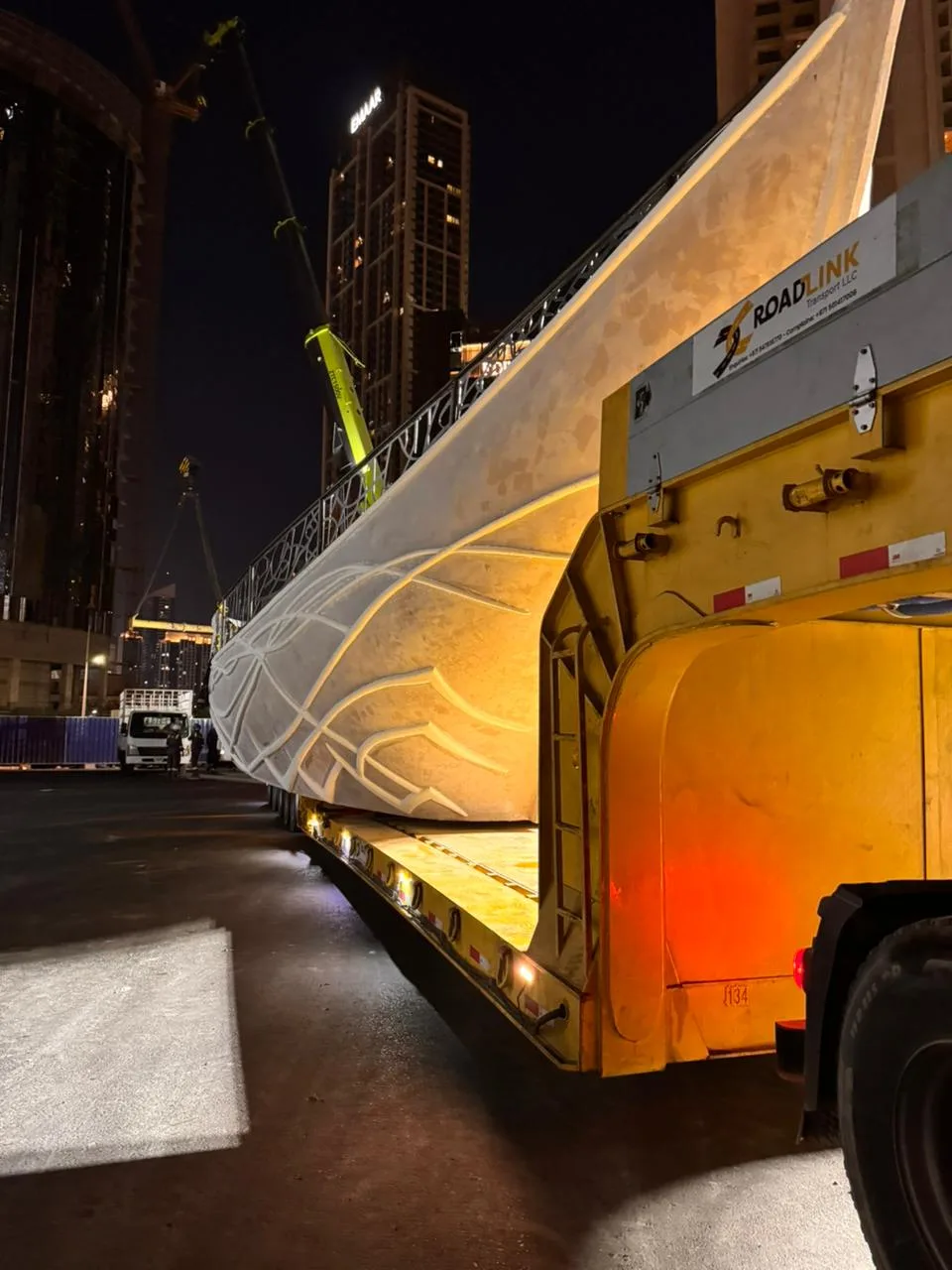

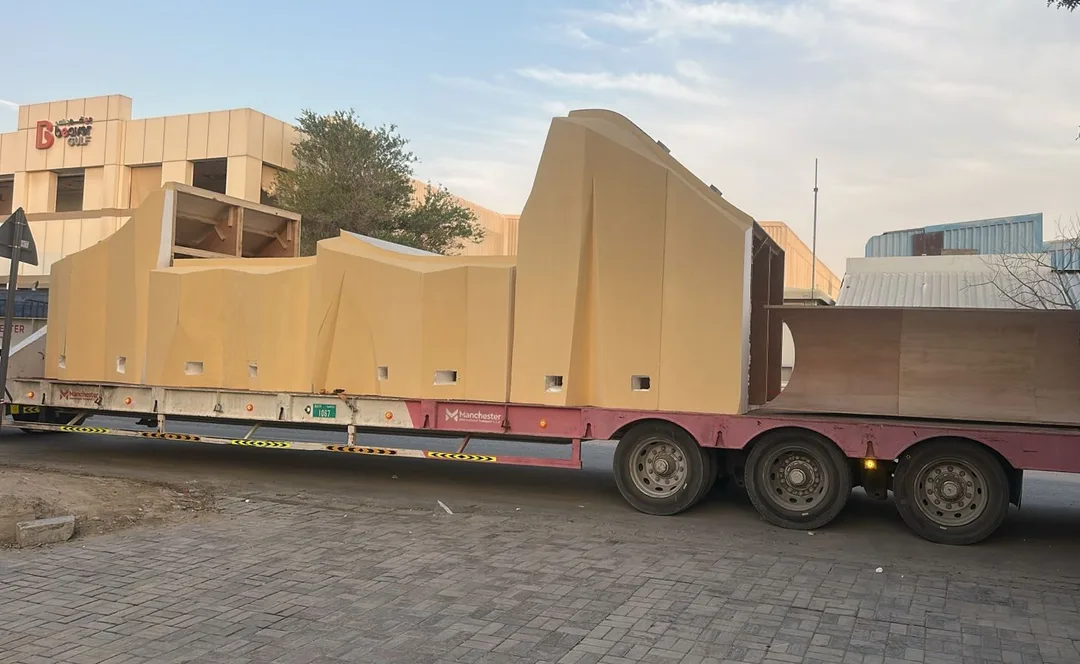

Oversized scenic loads may require specialist vehicles, permits and controlled transport movements.

Permits, Export And Customs

Transportation planning becomes more complex when scenic structures move across national borders. GCC projects regularly require fabricated items to travel between workshops, project sites and temporary installations in different countries, introducing customs procedures alongside the physical transport requirements.

Accurate documentation becomes essential. Packing lists should correspond clearly with the items being transported, and crates, stillages and modules need logical identification. Where temporary export or re-export arrangements are involved, the movement of equipment and reusable scenic components should be planned with the appropriate logistics and customs specialists in advance.

Documentation requirements can also influence how modules are grouped and labelled. A transport frame identified in the workshop should remain identifiable through loading, customs inspection, site unloading and eventual return transport. Clear labelling reduces the risk of components becoming separated and helps installation teams understand exactly what has arrived.

Transport permits present a similar programming consideration. Oversized-load approvals cannot necessarily be arranged at the moment a structure is ready to leave. Vehicle information, dimensions, load data and proposed routes may be required in advance, making early communication between production, engineering and logistics teams essential.

Route planning verifies that the planned vehicle and scenic load can physically reach installation areas.

The Realities Of GCC Scenic Deployment

Scenic logistics across the GCC often involves more than moving a structure from one local workshop to one nearby venue. Projects may require fabrication in one city, consolidation in another, border movements, temporary storage and final installation hundreds or thousands of kilometres away.

That means delivery planning needs to remain coordinated with fabrication status. A delayed finish to one component may affect an entire vehicle load if other modules depend on it for installation. Equally, dispatching components too early can create unnecessary storage and handling risks at site. The strongest programmes coordinate manufacturing, packing, inspection, transport and installation as one continuous sequence.

Regional environmental conditions also matter. Scenic components may spend significant periods in external loading yards, border inspection areas or temporary holding locations. Heat, dust and direct sunlight can affect painted finishes, graphics, adhesives, plastics and protective wrapping. Packing needs to protect the structure while allowing for the conditions it may encounter during the journey.

Good modularisation balances transport efficiency with structural performance, finish continuity and assembly speed.

Parade Floats, Sculptures And Touring Installations

Parade floats illustrate many of these challenges particularly clearly. They can combine fabricated steel chassis, scenic skins, large sculptural forms, integrated mechanical systems and detailed painted finishes within one moving structure. At the same time, they must operate within road or transport envelopes before reaching the route where they will be used. Removable upper sections, detachable scenic features and engineered connection points can therefore become essential parts of the fabrication strategy.

Large sculptures face similar constraints. A form that appears completely continuous when installed may have been manufactured as several independent structural sections. The connection between those sections needs to disappear visually while still providing the strength, alignment and repeatability needed for assembly. Dedicated cradles may also be fabricated so complex curved surfaces or projecting elements are supported safely during transit.

Touring installations add another layer because the packing and assembly process has to work repeatedly. A connection that is acceptable for one installation may not be suitable for a structure that will be assembled and dismantled many times. Reusable transport frames, durable fixing systems, indexed modules and replaceable protection materials become increasingly valuable as the number of deployments increases.

For multi-city GCC programmes, repeatability can significantly improve delivery efficiency. Scenic modules can be organised into consistent transport sets, with common packing methods, connection details and installation logic. This helps maintain build quality while allowing different site teams and logistics providers to work from the same established methodology.

Lifting, fork access and temporary bracing are engineered into modules before they leave the workshop.

Packing For Installation, Not Just Transportation

Efficient scenic logistics does not end when the transport vehicle reaches site. The order in which components are loaded can directly affect the speed of installation. If the first module required during the build is buried behind every other item on the vehicle, unnecessary handling immediately begins.

Whenever practical, loads can be organised around the installation sequence. Frames, scenic skins, connection components and specialist finishes can be grouped so that the build progresses logically from unloading through assembly. Clear labelling and packing schedules allow site teams to identify the correct elements without opening multiple crates or moving finished structures unnecessarily.

The strongest scenic projects are therefore not simply designed to be fabricated successfully. They are designed to be packed, lifted, transported, unloaded, installed and, where required, dismantled and deployed again. By considering logistics during technical development, Evolution Scenic can engineer large scenic structures around their complete lifecycle rather than treating transportation as the final step between workshop and site.
