Maintenance Planning For Public Installations

The success of a public installation is not determined on opening day, but by how well it continues to perform over time.

Finishes require cleaning, lighting and technology may need replacement, moving components need inspection and high-contact surfaces will eventually show wear.

Maintenance should therefore be considered during design and fabrication, not after installation. Poorly positioned equipment, undersized access panels and difficult-to-repair finishes can make routine servicing unnecessarily disruptive.

Well-planned access panels, removable components, documented finish systems and clear service routes make future maintenance far more practical.

Environmental conditions also matter. Outdoor installations may face heat, UV exposure, wind, dust and moisture, while museums and visitor centres experience continuous public use, frequent cleaning and long operating hours.

Integrated screens, lighting, sensors and control systems must also remain accessible for testing, servicing and replacement.

The strongest public installations are designed around lifecycle performance, with maintenance influencing engineering, fabrication and installation from the beginning.

Designing Public Installations For Maintenance

Maintenance planning begins with understanding how long the installation will operate and which components will require regular access.

Lighting, screens, control systems, sensors, mechanical parts, structural connections, finishes, ventilation and weatherproofing may all need inspection, servicing or replacement during the installation’s life.

Access panels should therefore be sized for practical maintenance, not just visual inspection. Equipment may need to be removed completely, so clearance for tools, replacement components and safe working access must be considered.

Removable scenic panels can simplify both technical servicing and finish repair. Where replacement is expected, retaining CNC files, paint references, material specifications and manufacturing drawings allows damaged components to be reproduced accurately.

Access must also be safe. Elevated equipment may require powered access or service platforms, while internal routes should remain clear of sharp edges, exposed fixings and unnecessary obstructions.

Ventilation is equally important where lighting, displays or control equipment are enclosed within scenic structures. Cooling systems and filters should remain accessible for routine cleaning and maintenance.

The best maintenance provisions are integrated into the scenic design so they remain visually discreet while still providing practical, repeatable access.

Maintaining Structure, Finishes & Integrated Technology

Different parts of a public installation require different maintenance strategies.

Structural elements may need periodic inspection, while scenic finishes require cleaning and local repair. Technical systems such as screens, lighting, controls and sensors may need servicing or replacement according to their operating life.

Outdoor installations face additional demands from heat, UV exposure, dust, moisture and wind. Metalwork should be checked for corrosion, timber-based materials for swelling or delamination, and seals, drainage points and protective coatings for deterioration.

Indoor environments usually experience wear through repeated public contact. Counters, plinths, interactive surfaces and low-level walls may require more frequent cleaning and repair than decorative elements positioned out of reach.

Cleaning methods should therefore be defined alongside the finish specification. Documented paint references, graphic files, material samples and approved products make future repairs more consistent.

Technology also needs to remain accessible. Screens, media players, lighting equipment and control systems often have shorter service lives than the scenic structures surrounding them, so replacement should be possible without major dismantling.

Clear cable routes, ventilation, equipment identification and accurate drawings make fault-finding and servicing more efficient.

The maintenance plan should distinguish between routine servicing, planned replacement and unexpected failure so that access, spare parts and budgets can be prepared in advance.

Inspection Schedules, Records & Replacement Planning

Maintenance is more effective when it follows a structured inspection programme rather than waiting for visible damage or failure.

Inspection frequency should reflect the environment, complexity and level of public use. Outdoor installations may need additional checks after severe weather, while museums, visitor centres and interactive environments may require regular reviews of finishes, lighting and technical systems.

A typical programme may include frequent visual checks, scheduled technical inspections and event-based reviews following impact, water ingress, system failure or reported movement.

The schedule should define what is inspected, how often, who is responsible, how findings are recorded and which defects require immediate action.

Maintenance records are equally important. Logs, photographs and repair histories help identify recurring issues and provide continuity when teams or contractors change.

Replacement planning should also consider lead times and future availability. Critical screens, lighting components, control equipment and specialist hardware may require planned spares or approved alternatives.

A complete handover package should retain key information such as as-built drawings, equipment schedules, paint references, material specifications, CNC and graphic files, access-panel locations and maintenance instructions.

Long-term installations should also allow for future upgrades. Replaceable graphics, modular display elements and adaptable technology zones can extend the useful life of the environment without major reconstruction.

When inspection, documentation and replacement planning are considered from the beginning, public installations remain easier to maintain, update and operate throughout their intended life.

Custom Joinery For Public Environments

Joinery within public environments faces a distinctive set of challenges. Unlike domestic furniture or low-traffic interior fittings, public-facing installations may be used continuously by hundreds or thousands of people.

Visitor centres, museums, experience centres and destination environments frequently rely on bespoke joinery to create functional and visually coherent spaces. Reception desks, interpretation displays, information points, technology housings and storage systems may all form part of the wider scenic environment.

The challenge is not simply creating attractive joinery. Every component must withstand repeated interaction, support daily operations and remain practical to maintain throughout its working life.

Museums And Interpretation Environments

Museum joinery often brings together architecture, interpretation, technology and object display.

Plinths, showcases, media housings and interpretive furniture must complement the exhibition without distracting from its content. They may also need to accommodate graphics, lighting, security systems, object mounts and audiovisual equipment.

Accuracy is especially important where access becomes restricted after installation. Poorly positioned cable routes or inadequate service panels can create significant complications once objects and technology are in place.

For long-term installations, removable panels, replaceable finishes and modular internal structures can make future updates easier without compromising the finished appearance.

Visitor Centres And Reception Environments

Visitor centres often combine reception, interpretation, orientation and technology within one environment.

A custom reception counter may need to welcome visitors while supporting staff, concealing equipment and providing accessible interaction points. Behind the finished façade, it may contain computers, printers, storage, power supplies and data connections.

Good joinery considers both sides of the desk.

The visitor-facing surface should feel clear and integrated, while the staff side must operate as an efficient workspace. Internal layouts, cable management and storage should reflect how the environment will actually be used.

Integrated Technology

Technology increasingly influences public joinery.

Touchscreens, digital signage, sensors, speakers and lighting systems may all be incorporated into custom-built units. These systems introduce requirements for ventilation, cabling, access and future replacement.

A flush-mounted screen may appear simple, but the surrounding joinery must support accurate alignment, sufficient airflow and practical removal.

Access can be provided through concealed doors, lift-off panels or removable bezels. Cable routes should remain organised and accessible without creating visible openings in the finished surface.

The aim is to integrate technology into the joinery from the beginning rather than adding it after fabrication.

Maintenance Access

Maintenance access is one of the most important aspects of public-environment joinery.

Screens fail, hinges loosen, lighting drivers need replacing and graphics are updated. Without planned access, a minor repair can require disruptive or destructive work.

Access panels must therefore be large enough and positioned correctly for the task. A small hatch has little value if equipment cannot be removed through it.

Concealed hinges, magnetic catches and controlled joint lines can keep service panels discreet while preserving practical access.

High-wear surfaces and technology surrounds can also be designed as replaceable components, allowing damaged areas to be renewed without rebuilding the entire unit.

Material Selection

There is no single ideal material for public joinery.

The correct choice depends on appearance, structural requirements, environmental conditions, cleaning procedures and intended lifespan.

Plywood may be selected where strength and reliable fixing are important. MDF can provide a smooth surface for painted finishes in suitable environments. Laminates offer durable finishes for counters and high-contact areas, while solid-surface materials may be appropriate where cleanability and moisture resistance are priorities.

Metal frames can reinforce large counters, long spans and heavily loaded display units. Protective coatings and reinforced edges may also be required in areas exposed to frequent contact.

Material selection should always reflect the operational environment rather than appearance alone.

Manufacturing And Installation

Public joinery often needs to integrate precisely with floors, walls, graphics and technical systems.

CNC machining allows Evolution Scenic to produce accurate apertures, repeatable components and complex geometries directly from coordinated CAD information. This precision is combined with skilled scenic carpentry, assembly and finishing.

Installation planning is equally important.

Large units may need to pass through restricted access routes or finished public spaces. Modular construction allows substantial elements to be transported in manageable sections and assembled on site.

Joint positions, removable façades and fixing methods must be planned so the completed installation still appears unified.

Built For Operational Longevity

The quality of public joinery is not defined only by how it looks when an environment opens.

Its real performance becomes apparent after months and years of use.

Well-designed joinery remains stable, presentable and serviceable. Technology can be accessed, surfaces can be repaired and staff can use the environment without compromising its appearance.

The strongest museum, visitor centre and experience-centre installations combine craftsmanship with practical construction.

Good public joinery is not simply built for opening day.

It is built for everything that happens afterwards.

Installing Large Scenic Structures

Fabrication is only one part of delivering a large scenic structure. The process of transporting, lifting, assembling and commissioning it on site can introduce constraints that influence almost every decision made during design and production.

Large structures rarely arrive fully assembled. Vehicle dimensions, road restrictions, venue access, lifting capacity and available installation space usually require the build to be divided into transportable modules. Those modules must then reconnect accurately, safely and efficiently within a limited installation window.

This creates a direct relationship between fabrication methodology and installation strategy. Connection details, module sizes, lifting points, transport frames, temporary supports and assembly sequences must be developed before production begins. When installation is treated as a separate final stage, even a well-fabricated structure can become difficult, slow or unsafe to deploy.

The most successful installations are therefore planned from the site backwards. The final position, access route, lifting method and sequence of work are understood first, allowing the structure to be engineered and fabricated around real site conditions.

Designing and Fabricating for Installation

Installation planning should begin during the earliest design and engineering stages. Before materials are ordered or fabrication drawings are released, the project team must understand how the completed structure will be divided, transported, handled and assembled.

A buildability review is one of the most valuable steps in this process. Designers, engineers, workshop supervisors, logistics teams and installation managers review the proposed structure together, identifying anything that may create difficulty during production or deployment.

This review may examine:

• The dimensions and weight of each module
• Vehicle and trailer limitations
• Loading dock and site access dimensions
• Available lifting equipment
• Connection locations and assembly tolerances
• Temporary stability during installation
• The order in which components must be installed
• Access for final fixing, inspection and maintenance

These considerations often lead to a modular construction strategy.

A large scenic façade, entrance portal, stage environment or exhibition pavilion may be divided into primary structural modules, secondary framing, cladding panels and decorative elements. Each section can then be fabricated and finished under controlled workshop conditions before being transported to site.

Effective modularisation is not simply about making components smaller. Modules must be sized around transport, handling and installation requirements while maintaining structural integrity and visual continuity.

Connection details are particularly important. Bolted plates, splice connections, alignment pins and concealed mechanical fixings must be positioned where installation teams can reach them. Connections should be repeatable and robust enough to accommodate normal fabrication and site tolerances without creating visible misalignment.

A connection that appears straightforward on a drawing may be difficult to complete when it is positioned several metres above ground, behind cladding or within a restricted access zone.

Installation managers therefore assess not only whether a connection works structurally, but whether it can be installed safely with the available tools and working space.

Trial assembly can further reduce site risk. Large or geometrically complex structures may be partially or fully assembled in the workshop before dispatch. This confirms that modules align correctly, connection points are accessible and decorative finishes continue accurately across joints.

Trial builds also allow installation teams to establish the correct assembly sequence before arriving on site. Components can be labelled, photographed and documented, creating a clear reference for final deployment.

Lifting points should also be integrated during fabrication. Certified lifting eyes, engineered pick points or temporary lifting attachments allow modules to be handled without damaging the structure or its finished surfaces. Their position must account for the centre of gravity, lifting angle and structural behaviour of the module while suspended.

Temporary works are equally important. A structure may be stable when complete but unstable during intermediate stages of assembly. Temporary braces, support frames, kentledge, propping systems or restraint cables may therefore be required until all permanent connections are secured.

Designing these measures in advance prevents site teams from having to develop improvised solutions during installation.

Planning Transport, Access and Lifting Operations

The route from the workshop to the final installation position must be understood in detail. This includes more than the road journey. It also covers unloading areas, loading docks, service corridors, lifts, doorways, ramps, temporary roads and the final movement of each component across the site.

Access constraints frequently determine the maximum size of each fabricated module.

An exhibition pavilion may need to pass through a loading dock with fixed height restrictions. A cultural installation may need to move through an operational building without affecting existing finishes. An urban structure may require delivery through narrow streets during a limited road closure. A waterfront installation may involve soft ground, restricted crane positioning or access from a barge.

These conditions must be verified rather than assumed.

Site surveys should record clear dimensions, turning circles, ground levels, overhead restrictions and the load capacity of access routes. Photographs, marked drawings and physical measurements help the production team understand the environment in which the structure will be installed.

Where possible, installation managers should also review the venue’s logistics regulations.

Exhibition halls often operate strict delivery booking systems, vehicle time slots, floor-loading limits and working-hour restrictions. Materials may need to arrive in a precise sequence because there is little space available for storage or pre-assembly.

Public installations introduce different requirements. Road closures, municipal permits, pedestrian controls, security zones and restrictions on noisy or high-risk work can significantly reduce the usable installation period. Delivery and lifting operations may need to take place overnight or within carefully controlled time windows.

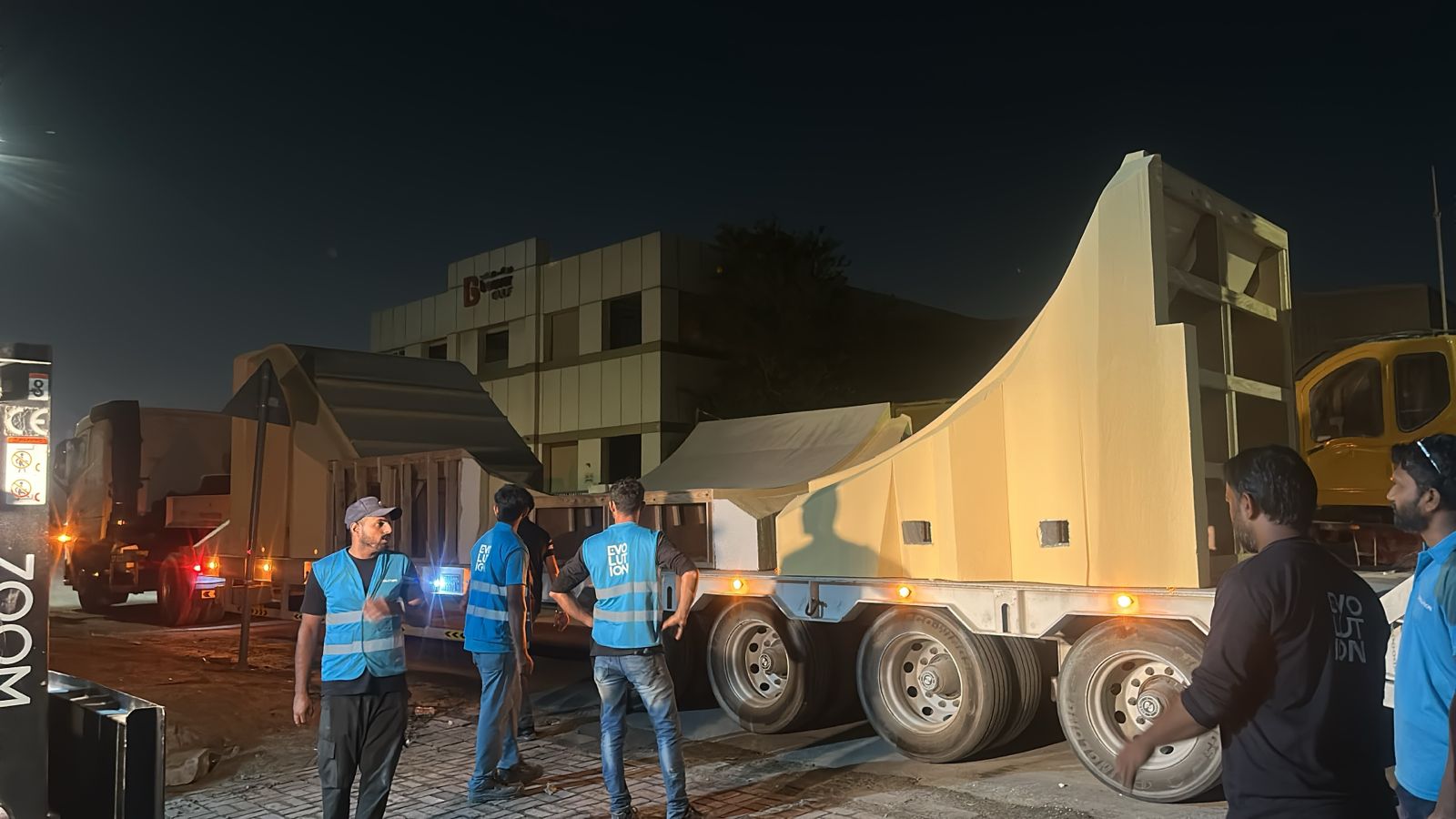

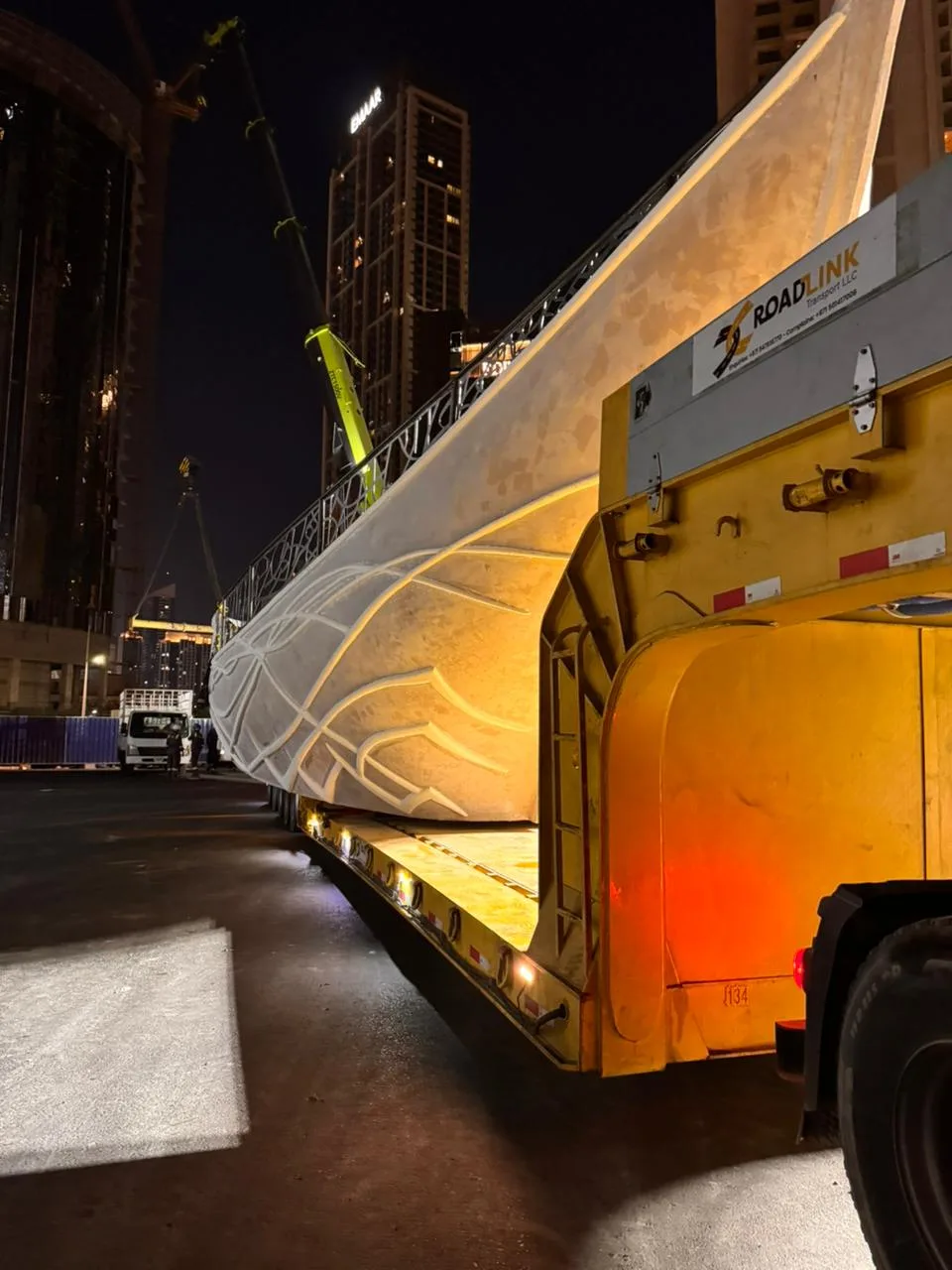

Transport frames help protect large scenic components during these movements. They are designed to support each module, prevent distortion and protect finished surfaces from straps, forks and handling equipment.

A good transport frame also supports efficient unloading. Components should be packed in the order they will be required, with lifting points and identification labels remaining accessible. If the first item needed on site is positioned behind several later-stage components, valuable installation time may be lost reorganising the load.

Cranage planning requires similarly detailed preparation.

Before selecting a crane, the team must understand:

• The verified weight of each lifted component
• The required lifting radius
• The final installation height
• The crane’s available setup area
• Ground-bearing capacity
• Outrigger positions
• Nearby structures and overhead obstructions
• Wind limitations
• Rigging arrangements
• Exclusion-zone requirements

The weight of each module should be calculated during engineering and confirmed during fabrication where practical. Decorative cladding, integrated equipment and finishing materials can add considerable weight after the primary frame has been completed.

The lifting radius is equally significant. Crane capacity reduces as the distance between the crane and the load increases. A module that appears relatively light may require a substantially larger crane if the equipment cannot be positioned close to the installation area.

Rigging must be coordinated with the module geometry. Spreader beams, lifting slings, shackles and tag lines may be required to control the load and prevent compression or damage. Finished components may also need protective padding where lifting equipment could contact visible surfaces.

All lifting operations should be supported by an approved lifting plan. This establishes the equipment, personnel, communication procedures, weather limits and sequence required for each lift.

Managing Site Assembly, Temporary Works and Commissioning

Once components arrive on site, installation must follow a controlled and clearly communicated sequence.

The first stage is usually site preparation. This may include setting out reference points, confirming floor levels, checking foundations, installing base plates or preparing temporary working areas. Any discrepancy between the surveyed site and the actual conditions should be identified before major structural modules are unloaded.

Accurate setting out is essential. Small errors at base level can become significant alignment problems higher in the structure. Survey equipment, laser levels and coordinated datum points help ensure that primary frames are positioned correctly before secondary elements are added.

The sequence of assembly must maintain stability at every stage.

Primary steel or aluminium frames are generally installed first, followed by secondary supports, scenic cladding, decorative features, graphics and integrated technology. However, the exact sequence depends on access. Some lighting, cabling or internal components may need to be installed before external panels close the structure.

Temporary works remain in place until the permanent structure is complete and sufficiently stable. Their removal should be treated as a planned activity rather than an informal final step. Engineers may specify that particular connections, ballast systems or structural elements must be inspected before temporary supports are released.

Exclusion zones are also essential during lifting and overhead work. Only authorised personnel should enter areas beneath or around suspended loads, mobile access equipment and incomplete structures.

Method statements and risk assessments establish how individual tasks will be carried out. These documents should reflect the actual site conditions, equipment and sequence rather than relying on generic procedures.

Daily briefings help ensure that workshop crews, riggers, crane operators, access technicians, electricians and scenic installers understand the planned activities and interfaces. Where several teams are working simultaneously, clear coordination prevents one operation from obstructing or destabilising another.

Exhibition halls present particular coordination challenges because many contractors may be working within the same space. Shared loading routes, limited plant access and strict completion deadlines require careful scheduling. Scenic components should therefore arrive ready for efficient assembly, with unnecessary cutting, painting or modification minimised on site.

Urban and public environments require additional controls. Work areas may need temporary barriers, traffic management, protected pedestrian routes, noise controls and secured material storage. Structures must remain stable and protected even if installation pauses between permitted working periods.

Weather can also affect outdoor installations. Wind speed must be monitored during cranage and when handling large scenic panels. Rain, heat and airborne dust may influence adhesives, coatings, electrical connections and working conditions. Contingency measures should be included within the installation methodology rather than developed only when conditions deteriorate.

After structural assembly, the installation moves into alignment, finishing and commissioning.

Bolted connections are checked and tightened, structural elements are inspected, and temporary handling marks are repaired. Scenic joints are closed, graphics are aligned and surface finishes are touched up. Integrated lighting, screens, motors or interactive systems are tested in coordination with the relevant specialists.

A final inspection should confirm that the installed structure matches the approved drawings, remains stable and is ready for its intended operation. Any ongoing maintenance, access or dismantling requirements should also be documented.

Successful installation projects are rarely won during the final hours on site. They are usually won much earlier through accurate surveys, practical engineering, controlled modularisation and close coordination between design, fabrication, logistics and installation teams.

At Evolution Scenic, installation methodology forms part of the build strategy from the beginning. Structures are developed around how they will travel, how they will be lifted and how they will be assembled under real site conditions.

When scenic structures are designed with installation in mind, deployment becomes safer, faster and more predictable. Installation stops being a challenge to overcome and becomes an integrated part of the complete fabrication process.

Engineering Reviews And Risk Management

Many of the most successful scenic projects are remembered for what never happened. Structures remained stable, installations proceeded safely, operational requirements were met and potential problems were resolved before they affected fabrication or site delivery.

These outcomes rarely happen by chance. They are usually the result of structured engineering reviews, disciplined risk management and clear coordination between the teams designing, manufacturing, transporting, installing and operating the scenic environment.

Every scenic structure contains assumptions. Drawings may assume that an existing floor can support a particular load, that a crane can reach the installation position or that a completed structure will remain stable throughout every stage of assembly. Materials may be selected on the assumption that they can tolerate outdoor exposure, repeated public contact or long operating periods.

Engineering reviews challenge these assumptions before they become embedded in the finished build.

The objective is not to complicate the design process or slow production. A well-managed review often makes delivery more efficient by identifying structural, fabrication and installation issues while they can still be resolved through drawings, calculations and coordinated planning.

Reviewing Design, Engineering and Buildability

Engineering review should begin before fabrication drawings are released. At this stage, the project is sufficiently developed for meaningful technical assessment, but changes can still be made without disrupting completed workshop production.

The review starts by confirming the intended use of the structure. Engineers need to understand whether it will be installed indoors or outdoors, remain in place for several years or operate as a short-term temporary structure. They must also consider whether it will support people, suspended equipment, scenic finishes, integrated screens, lighting systems or moving components.

These operational details influence the design criteria against which the structure is assessed.

A large scenic entrance, for example, may appear to function primarily as a decorative feature. In engineering terms, however, it may also behave as a substantial wind-catching surface. An exhibition platform may need to accommodate equipment loads, concentrated point loads and continuous public access. A sculptural installation may require internal framing that supports irregular forms while remaining concealed behind lightweight scenic finishes.

The engineering review considers how these elements work together.

Primary structural frames, secondary supports, cladding panels, connection details, ballast systems and foundations must form a coordinated assembly. Reviewing only the visible structure without understanding the attached scenic materials can result in incomplete calculations or poorly detailed interfaces.

Design reviews should also assess load paths. Every applied load must transfer safely through the structure to the supporting floor, ballast system, foundation or approved fixing point. Weaknesses often occur at transitions between materials or disciplines rather than within the principal frame itself.

A steel frame may be structurally adequate, for example, while the timber support carrying its decorative cladding is not. A suspended scenic component may be light enough for the supporting truss, but the selected fixing or connection detail may introduce an unacceptable local load.

Buildability reviews bring workshop and site knowledge into this process.

A structure can be structurally sound while remaining difficult to manufacture, transport or install. Fabrication teams may identify welds that are inaccessible, connections that cannot be reached once cladding is installed or modules that exceed workshop handling capacity.

Installation managers may highlight lifting points that are incorrectly positioned, temporary stability issues during assembly or structural sections that cannot pass through the available access route.

These practical observations should be resolved before manufacturing begins. The engineering review is therefore not limited to confirming whether the finished structure will stand. It should also confirm whether the structure can be fabricated and assembled safely through every stage of its development.

Formal design reviews commonly examine:

• Structural calculations and design criteria
• Material grades and section sizes
• Primary and secondary load paths
• Connection and fixing details
• Wind loading and environmental exposure
• Ballast, anchoring or foundation requirements
• Fabrication tolerances
• Transportable module sizes and weights
• Lifting points and centres of gravity
• Temporary stability during assembly
• Access for inspection and maintenance
• Interfaces with lighting, video and mechanical systems

Following the review, comments should be recorded, assigned and closed out. This prevents important observations from being discussed during meetings but omitted from the final drawings.

Engineering sign-off should only take place once the approved design, calculations and fabrication information are aligned. Changes made after sign-off must be managed through a controlled revision process, particularly where they affect structural dimensions, materials, connections or loading.

Managing Risk Across Fabrication and Installation

Structural engineering forms only one part of the overall risk profile.

Risk management must consider how the scenic structure will be manufactured, handled, transported, installed, operated, maintained and dismantled. A structure that performs safely in its completed condition may still create significant risk during fabrication or installation.

A formal risk assessment helps identify these hazards and establish appropriate controls.

Within the workshop, risks may include heavy steel sections, suspended loads, hot works, machinery, sharp edges, chemical coatings and the movement of large modules through shared production areas. The fabrication methodology should reflect the size, weight and geometry of the structure rather than relying solely on standard workshop procedures.

Large assemblies may require dedicated lifting frames, controlled turning operations or temporary supports during welding and cladding. The order of fabrication can also affect stability. A frame that becomes top-heavy after decorative components are added may require additional bracing before it can be moved safely.

Transport introduces another set of risks.

Modules must be adequately supported to prevent movement, distortion and damage. Custom transport frames may be required for irregular structures, finished scenic panels or components with sensitive integrated systems. Loading points, restraint methods and vehicle capacities should be defined before dispatch.

Site installation usually carries the highest concentration of interfaces.

Scenic installers may be working alongside crane operators, riggers, access technicians, electricians, audiovisual contractors and venue teams. Each group may have its own working method, but their activities must be coordinated as part of one installation sequence.

Method statements translate the installation strategy into a clear working procedure. They explain how each operation will be completed, which equipment will be used, what sequence must be followed and which controls must remain in place.

For a large scenic structure, the method statement may cover:

• Delivery and unloading
• Site access and component movement
• Setting out and base preparation
• Crane or lifting equipment positioning
• Module lifting and placement
• Temporary bracing and restraint
• Bolted and welded connections
• Installation of secondary structures
• Cladding and scenic finishes
• Integrated lighting or technical systems
• Inspection and engineering approval
• Removal of temporary works
• Final commissioning and handover

The associated risk assessment identifies the hazards within each activity and establishes controls such as exclusion zones, certified equipment, competent personnel, protective systems, weather limitations and communication procedures.

Temporary works require particular attention.

Large scenic structures are often engineered around their completed configuration. During installation, however, only part of the permanent frame may be connected. This can create periods where the structure has limited resistance to wind, movement or accidental loading.

Temporary supports, bracing frames, kentledge, propping systems or guy restraints may be required until permanent stability has been achieved. These systems should be engineered and documented with the same discipline as the final structure.

Temporary works must also have a defined installation and removal sequence. Removing bracing too early can compromise stability, while leaving temporary elements in place may obstruct cladding, services or final inspection.

Installation reviews should therefore take place before mobilisation. The engineering, fabrication and site teams should assess the latest drawings, verified component weights, lifting arrangements, access restrictions and site conditions together.

This review is especially important where projects involve exhibition halls, public areas, waterfront locations, restricted urban sites or operational cultural destinations.

Exhibition venues may impose limits on floor loading, vehicle access, working hours, hot works and overhead lifting. Public installations may require road closures, pedestrian management, controlled exclusion zones and coordination with municipal authorities. Waterfront or outdoor structures may require additional consideration of wind, ground conditions, corrosion and access for lifting equipment.

The review should confirm that the proposed method reflects the actual site rather than assumptions made earlier in the project.

Operational Reviews, Governance and Sign-Off

Engineering and risk management continue after the structure has been installed.

Before handover, an operational review should confirm that the scenic environment is safe and appropriate for its intended use. This includes checking the completed structure against approved drawings, verifying critical connections and confirming that operational loads remain within the engineered limits.

Where the structure includes moving elements, access platforms, doors, screens, lighting equipment or mechanical systems, each component should be reviewed as part of the complete installation.

Operational risks may include unauthorised climbing, impact from equipment, public contact with sharp or hot surfaces, access to electrical systems and the movement of scenic or mechanical elements. Barriers, guarding, signage, restricted access panels and emergency procedures may be required depending on the installation.

Maintenance requirements should also be established.

Long-term scenic installations may require regular inspections of connections, coatings, ballast systems, moving parts and exposed finishes. Temporary outdoor structures may need weather monitoring and additional checks after strong winds or other adverse conditions.

Inspection frequency should reflect the structure’s environment, operating duration and level of interaction. Responsibilities must be clearly assigned so that inspections and corrective actions are not left to assumption.

Show-readiness or final handover reviews provide an opportunity to bring all disciplines together before the structure becomes operational.

The review may confirm:

• Completion of structural inspections
• Closure of engineering comments
• Correct installation of ballast or anchors
• Tightening and marking of critical connections
• Removal or approval of temporary works
• Completion of scenic finishes
• Safe routing of cables and services
• Access for maintenance and emergency response
• Approved operating procedures
• Documentation of outstanding limitations
• Handover to the responsible operational team

Good governance supports each of these stages.

Documented quality, engineering and health and safety systems provide a consistent framework for reviews, approvals and change management. Processes aligned with recognised management standards, including ISO-based quality and occupational health and safety systems, can help establish clear responsibilities, auditable records and defined approval routes.

The practical value of these systems lies in consistency. Drawings are issued under revision control. Review comments are documented. Design changes are assessed before implementation. Inspection records are retained, and responsibilities for approval remain clear.

This becomes increasingly important as scenic projects grow in scale and involve several specialist contractors.

Multi-disciplinary coordination allows risks to be assessed from more than one perspective.

Engineers understand structural behaviour. Workshop teams understand manufacturing tolerances and material performance. Logistics teams understand transport and handling.

Installation managers understand access, sequencing and site interfaces.

No single discipline sees the complete risk profile independently.

At Evolution Scenic, engineering review and risk management are treated as part of the fabrication methodology rather than as separate administrative exercises. Design, manufacturing, logistics and installation decisions are reviewed together so that potential issues can be resolved while practical options remain available.

Well-managed scenic projects rarely rely upon luck. They rely on structured reviews, controlled information and experienced teams willing to challenge assumptions before construction begins.

When engineering and risk management are integrated into the complete build process, structures become safer, fabrication becomes more predictable and installation teams arrive on site with a clear, tested methodology.

Managing Oversized Scenic Deliveries Across The GCC

The GCC offers significant opportunities for large-scale scenic projects, but it also presents logistical conditions that can influence a structure long before it leaves the workshop.

Exhibition pavilions, scenic stage environments, public installations, entrance structures and oversized branded features may travel between cities, regions and countries before reaching their final destination. Every movement introduces practical considerations involving vehicle capacity, route restrictions, border documentation, handling equipment and installation schedules.

As a structure becomes larger, logistics becomes increasingly influential.

A scenic feature may be straightforward to fabricate as one complete assembly, but impossible to transport through road networks, customs facilities or restricted site access. A module may fit comfortably onto a trailer yet exceed the dimensions of the final loading dock. Decorative components may survive workshop handling but require additional reinforcement and protection for a long-distance journey.

Oversized scenic delivery is therefore not simply a transport exercise completed after fabrication. It is a coordinated process linking engineering, manufacturing, packing, customs clearance, route planning and site installation.

Projects moving between Dubai, Riyadh and other GCC destinations require particular attention to timing. Border processes, vehicle restrictions, regional working practices and final installation windows must all be considered within the programme.

The objective is not only to move scenic components from one location to another. They must arrive safely, in the correct order and ready to be installed without unnecessary modification or rehandling.

The strongest delivery strategies begin while the structure is still being designed.

Designing and Fabricating Scenic Structures for Transport

Transport planning should begin before detailed fabrication drawings are approved.

At this stage, engineers, workshop teams and logistics specialists can review how the completed structure will be divided, handled and secured. Module sizes, structural connections and lifting points can then be developed around the complete journey rather than only the final installed condition.

The first question is often whether the structure can travel within standard vehicle dimensions.

Where possible, scenic components are designed to fit conventional trailers, box vehicles or enclosed transport units. This can simplify scheduling, reduce route restrictions and provide greater protection from weather and road debris.

Large scenic structures, however, may exceed standard limits because of their height, width, length or overall weight. These components may require low-bed trailers, extendable vehicles, specialist loading equipment or phased transportation.

The decision to transport an oversized module should be made carefully. Producing a larger assembly can reduce site installation time, but it may introduce more complex vehicle requirements, route surveys and handling operations.

Dividing the structure into smaller modules may simplify transportation but increase the number of site connections, lifting operations and finishing joints.

The correct balance depends on:

• Vehicle and trailer dimensions
• Module weight
• Road and route limitations
• Border and customs arrangements
• Loading and unloading capacity
• Site access restrictions
• Available cranage
• Installation duration
• Surface-finish requirements
• The number of visible site joints

Modular construction is most effective when transport divisions follow the logic of the structure.

A large scenic façade may be separated at architectural joints or shadow gaps. A stage environment may be divided into structural frames, scenic cladding and decorative features. An exhibition pavilion may use repeatable wall, roof and floor modules that can be packed efficiently and assembled in a controlled sequence.

Connections should be strong, accessible and repeatable.

Bolted steel plates, alignment pins, splice connections and mechanical panel fixings allow structures to be reassembled without relying on extensive site welding or permanent bonding. Connection points can often be concealed within decorative trims, graphic panels or recessed architectural details.

Transport tolerances must also be considered. Long-distance movement can introduce vibration and minor structural movement. Modules should be rigid enough to maintain their geometry without making site alignment unnecessarily difficult.

Trial assembly provides an opportunity to confirm that sections fit correctly before dispatch. It also allows installation teams to review the connection sequence, tools, lifting arrangements and temporary supports required on site.

Lifting points should be integrated during fabrication.

Large scenic modules may need to be moved several times between workshop assembly, packing, vehicle loading, customs inspection and final installation. Certified lifting eyes, reinforced pick points or dedicated forklift channels can reduce handling risk and protect finished components.

The centre of gravity should be understood before lifting begins. Irregular scenic structures may not balance where their external shape suggests, particularly when internal steelwork or integrated equipment is concentrated within one area.

Transport frames are equally important.

A purpose-built frame supports the module at engineered positions, prevents twisting and creates safe locations for straps and restraints. It also protects decorative surfaces from direct contact with vehicle decks, forklifts and neighbouring components.

Transport frames can be particularly valuable for:

• Finished wall and façade modules
• Curved scenic panels
• Large freestanding letters
• Sculptural forms
• Integrated LED surrounds
• Decorative metalwork
• Fragile moulded components
• Reusable exhibition structures

Packing should protect both appearance and structural alignment.

Soft finishes may require non-abrasive wrapping, corner protection and separation layers. Painted components must be sufficiently cured before packing, while protective films should not react with coatings during prolonged exposure to heat.

Items should also be packed according to the installation sequence. Components required first should remain accessible during unloading. Temporary braces, base frames and connection hardware should not be buried behind later-stage decorative elements.

Detailed identification supports this process. Module labels, packing lists and installation references allow site teams to confirm where each component belongs without repeatedly opening or moving protected items.

Coordinating Oversized Transport, Routes and Cross-Border Requirements

Once the structure has been designed for movement, the complete transport route must be reviewed.

The route from the workshop to the installation position includes much more than the main highway journey. It may also involve industrial access roads, border facilities, urban streets, venue loading docks, temporary compounds and restricted site entrances.

An oversized vehicle may be capable of travelling between cities but unable to complete the final kilometre because of a low bridge, narrow turning radius or restricted delivery gate.

Route planning should consider:

• Bridge and overhead clearances
• Road width and turning circles
• Vehicle weight restrictions
• Tunnel dimensions
• Temporary roadworks
• Urban access controls
• Border-facility capacity
• Vehicle holding areas
• Final delivery entrances
• Ground conditions at unloading points

Where a load exceeds normal road dimensions, specialist logistics providers may need to conduct a route survey. This confirms whether the proposed vehicle can travel safely and identifies locations requiring additional control.

Depending on the load and route, oversized transport may involve escort vehicles, approved travel periods or coordination with local authorities. These requirements should be understood early because they can influence both the delivery date and the permitted vehicle configuration.

Large structures may need to move at night or during lower-traffic periods. Urban destinations can impose additional restrictions on vehicle access, noise and unloading operations.

Projects travelling between Dubai and Riyadh or across other GCC borders introduce customs and documentation requirements.

The precise documentation depends on the origin, destination, ownership and intended duration of the goods. Scenic shipments may include fabricated structures, electrical equipment, specialist coatings, tools, spare parts and reusable production materials, each of which must be described accurately.

Typical shipment information may include:

• Commercial or pro forma invoices
• Detailed packing lists
• Material descriptions
• Component quantities and values
• Weight and dimensional information
• Country-of-origin details
• Commodity classifications
• Vehicle and driver documentation
• Importer or consignee information
• Supporting permits where applicable

Descriptions should be clear enough for customs teams to understand what is being transported.

Generic terms such as “event materials” may not provide sufficient detail for a shipment containing fabricated steel structures, timber scenic walls and integrated technical components.

Documentation should match the physical load. Module labels, packing references and declared quantities need to remain consistent so that inspections can be completed without unnecessary confusion.

Temporary projects may require a different customs strategy from permanent installations. Some scenic structures will return to the country of origin after use, while others will remain at the destination, be stored locally or be disposed of after the project.

These intentions should be established before shipment because they can affect import arrangements, declared values and re-export documentation.

Cross-border timelines should include reasonable allowance for review, inspection and clearance. Programming transport around the fastest theoretical journey can create significant risk if documentation requires correction or a physical inspection is requested.

The condition of the load during customs inspection should also be considered.

Components may need to be visible or accessible without dismantling the complete transport frame. Packing lists and photographs can help explain the arrangement, while clear labelling allows specific items to be located more efficiently.

Hazardous or controlled materials require particular care. Paints, coatings, batteries, pressurised products and certain chemicals may be subject to transport restrictions or require separate documentation. These materials should be reviewed before loading rather than discovered during vehicle inspection.

Phased transportation is often the most practical solution for complex projects.

The first shipment may contain structural bases, steel frames and temporary works. Later vehicles may carry scenic cladding, graphics, integrated equipment and delicate finishing components.

This sequence allows installation to begin while remaining elements are still in transit, but only when the site programme and border timing have been coordinated accurately.

Phasing also reduces congestion at the destination. Large exhibition and stage sites may have limited unloading space, making it impractical for every vehicle to arrive simultaneously.

Each delivery should have a defined unloading time, holding area and site contact. Where vehicles are delayed, the installation team needs enough flexibility to continue safely without compromising the planned sequence.

Managing Site Arrival and Installation Readiness

Delivery is not complete when the vehicle reaches the site gate.

The final stage involves unloading, checking, positioning and releasing components into the installation sequence. This often requires close coordination between logistics teams, site managers, crane operators, riggers and scenic installers.

Before the vehicle arrives, the unloading area should be confirmed.

The surface must be suitable for the expected vehicle and lifting equipment. Temporary roads, compacted ground or load-spreading systems may be required where the site is undeveloped, sandy or affected by recent weather.

Crane and forklift access should remain clear. Outrigger positions, lifting radii and exclusion zones must be established before vehicles are placed within the unloading area.

Arrival times should reflect site conditions.

Exhibition halls may operate booked loading slots with limited vehicle dwell times. Public installations may depend on temporary road closures or restricted working periods. Stage structures may need to arrive in sequence with rigging, flooring and technical systems.

A vehicle arriving too early can create congestion. One arriving late may interrupt the complete installation programme.

On arrival, the shipment should be checked against its dispatch records.

This may include reviewing:

• Vehicle seals and restraints
• Transport-frame condition
• Module identification
• Visible transit damage
• Packing-list quantities
• Connection hardware
• Lifting accessories
• Finish protection
• Required installation order

Any damage should be photographed before the load is disturbed. Early documentation helps the team determine whether the issue occurred during transport and allows repair requirements to be assessed immediately.

Transport protection should be removed in a controlled sequence. A module should not be released from its frame until the lifting equipment, installation area and temporary supports are ready.

Large components may depend on the transport frame for stability. Removing restraints too early can allow the module to twist, move or become vulnerable to wind.

Site storage should be minimised where possible.

Scenic modules are generally safer when they move directly from the vehicle into their installation position. Where temporary storage is unavoidable, the components need level support, weather protection and secure restraint.

Outdoor GCC conditions introduce additional considerations.

Heat can affect wrapped finishes, adhesives and graphic materials. Dust can enter open technical components, while sudden wind can make lightweight panels difficult to handle.

Sensitive items may need to remain in enclosed vehicles or protected storage until the installation team is ready. Finished components should not be left exposed simply because they arrived ahead of programme.

Coordination between Dubai fabrication teams, regional logistics partners and Riyadh site personnel can help maintain continuity across the delivery process. The same module references, installation drawings and packing information should be used by every team.

This becomes especially important when the personnel receiving the structure were not directly involved in its fabrication.

Installation packs can include:

• Module drawings
• Assembly sequences
• Connection details
• Verified weights
• Lifting-point locations
• Temporary-bracing requirements
• Packing references
• Finish and repair information
• Inspection hold points

Remote workshop support may also assist site teams when questions arise, but it should complement clear manufacturing information rather than replace it.

The completed installation should be inspected after all modules have been connected. Transport restraints must be removed, structural connections confirmed and any handling marks repaired.

Where the structure will later return to Dubai or move to another GCC destination, dismantling and repacking should also be considered. Transport frames, labels and protective materials may need to be retained throughout the operational period.

Reusable scenic systems benefit from consistent documentation. Each journey provides information about handling, packing and connection details that can improve the next deployment.

At Evolution Scenic, GCC logistics is treated as part of the fabrication methodology. Engineering, modular construction, transport frames, customs documentation and site sequencing are coordinated around the complete journey from workshop to installation.

The largest scenic structures do not become manageable simply because a specialist vehicle is available.

They become manageable when every module has been designed around how it will be lifted, protected, transported, cleared and installed.

When logistics planning begins early, oversized structures can move between Dubai, Riyadh and other GCC destinations with greater control and fewer site modifications.

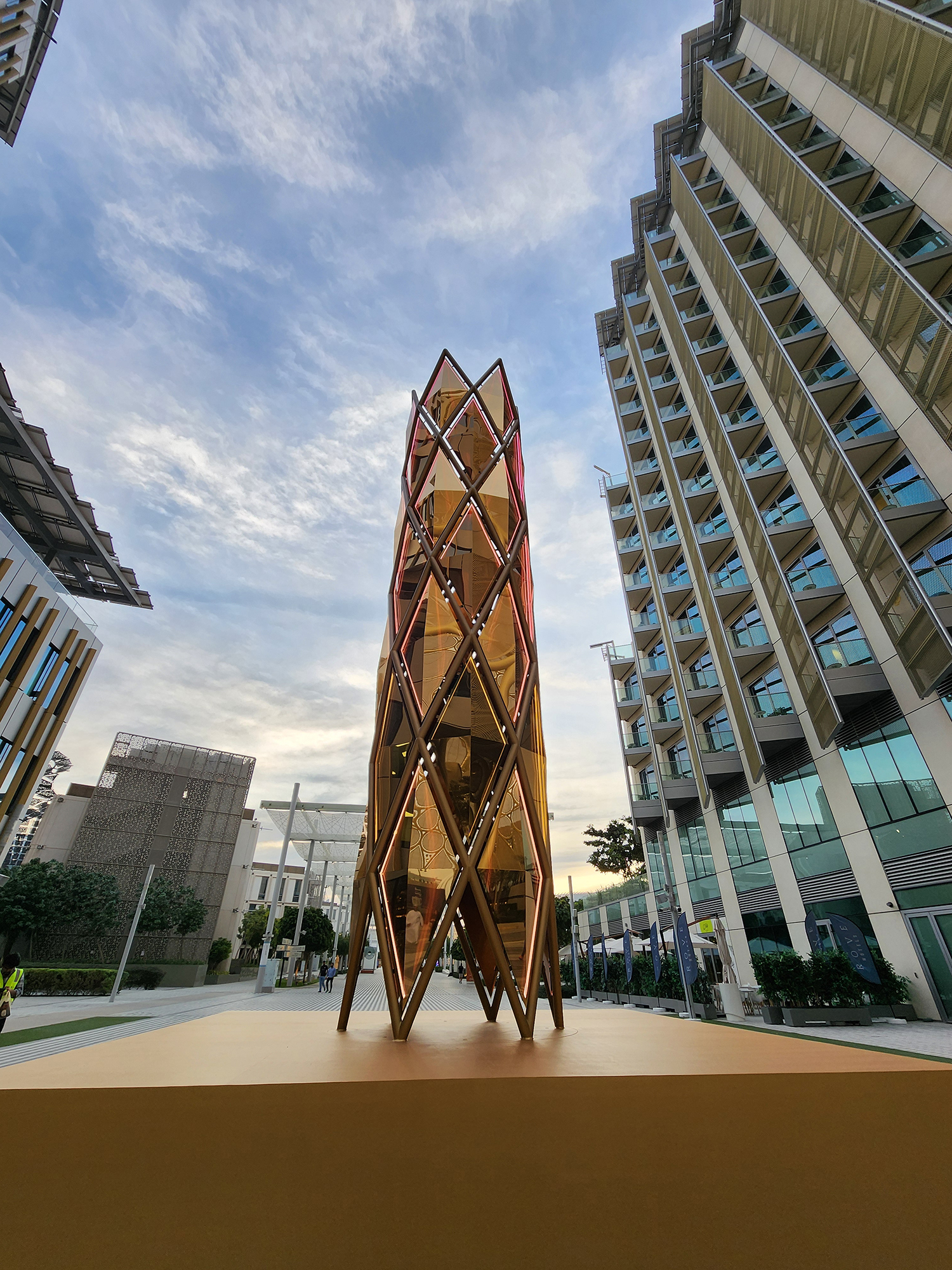

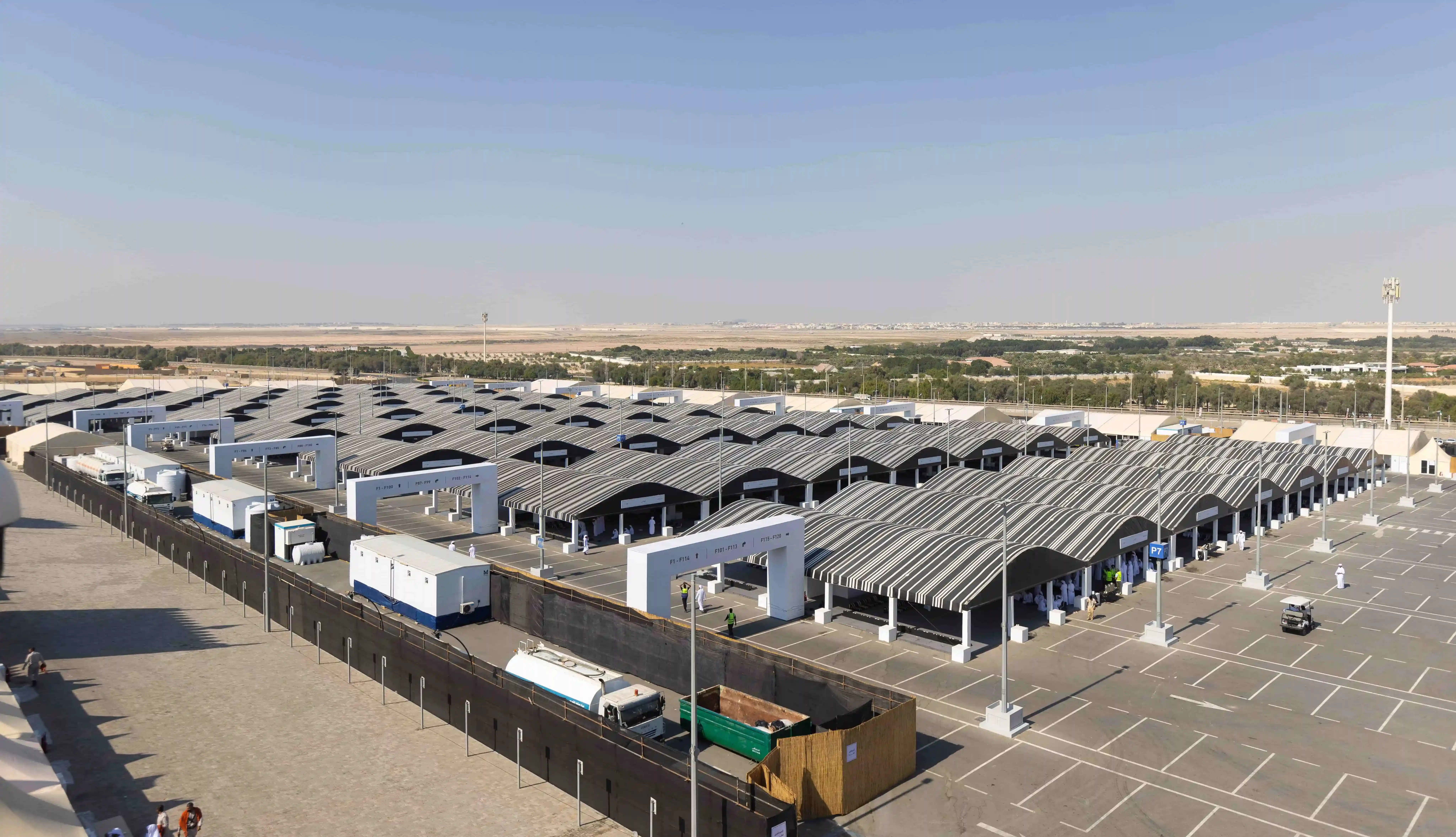

The final installation may appear as one continuous scenic environment.

Its successful delivery depends on hundreds of coordinated movements that began long before the first vehicle left the workshop.

Working Within Live Public Environments

Not every scenic project takes place within an empty venue.

Shopping centres, museums, visitor attractions, cultural destinations and public spaces frequently remain operational while fabrication components are delivered, assembled and installed. Visitors continue moving through the building, staff maintain normal operations and neighbouring businesses or exhibitions may remain open throughout the work.

These conditions fundamentally change the delivery methodology.

Access routes may be shared with the public. Loading periods may be restricted to overnight windows. Noise, dust, odour and temporary barriers must be controlled carefully. Installation activities that would be straightforward within an empty exhibition hall may require detailed phasing when carried out inside a working destination.

Safety planning also becomes more complex. The installation team must protect its own workforce while preventing visitors and operational staff from entering active work areas.

Emergency routes, accessibility provisions and everyday venue functions must remain available wherever required.

The most effective approach is usually to transfer as much work as possible away from the live site. Detailed surveys, modular construction, workshop trial assembly and completed off-site finishes can substantially reduce the amount of cutting, welding, painting and adjustment required during installation.

Working successfully within a live public environment requires more than technical competence. It requires a clear understanding of how the site operates and a delivery strategy that works around those operational realities.

Planning Around an Operational Site

The first stage is understanding how the environment functions before installation begins.

A live shopping centre operates differently from a museum, and a museum operates differently from an outdoor visitor attraction. Each has its own opening hours, public routes, delivery procedures, security requirements and restrictions on construction activities.

A detailed site survey should therefore record more than physical dimensions. It should also establish:

• Public opening and closing times
• Permitted delivery and installation periods
• Loading dock procedures
• Staff and contractor access routes
• Security and permit requirements
• Emergency exits and evacuation routes
• Restrictions on noise, dust, odour and vibration
• Protection requirements for existing floors and finishes
• Available storage and waste-removal areas
• Access to power, lighting and temporary services
• Interfaces with neighbouring tenants or exhibitions
• Requirements for barriers and temporary public routes

These operational details often influence the scenic design itself.

A large structure may need to be divided into smaller modules because the main public entrance cannot be used for deliveries. Components may need to pass through service lifts, back-of-house corridors or restricted loading areas before reaching their final position.

Working hours can also affect module size. If the installation team only has a short overnight window, larger preassembled sections may reduce site activity. However, those sections must still fit through the available access route and be handled using equipment permitted within the venue.

This balance should be resolved during design development.

Buildability reviews allow scenic designers, engineers, workshop supervisors and installation managers to assess the proposed construction against the actual site conditions. The review should consider how every major component will arrive, move through the building and reach its final position.

In a shopping centre, for example, floor-loading restrictions may limit the use of heavy lifting equipment. In a museum, the movement route may pass close to existing displays, requiring compact handling systems and additional protection. Within a visitor attraction, work may need to be phased so that one section remains operational while another is isolated.

The installation methodology should therefore be planned from the site backwards.

The team first identifies the final position, available working space and permitted installation window. The structure can then be divided and fabricated around those limitations.

Off-site fabrication is particularly valuable within live environments.

Scenic modules can be cut, assembled, finished and trial-fitted in the workshop before dispatch. This reduces the need for noisy machinery, wet paint, excessive packaging and large quantities of waste on site.

Where possible, modules should arrive with:

• Structural framing complete
• Scenic panels pre-fitted
• Finishes fully cured
• Graphics prepared or installed
• Integrated equipment pre-tested
• Connection points clearly labelled
• Fixings packed by assembly stage
• Protective transport systems in place

Trial assembly can identify alignment or access issues before the installation team enters the operational site. It also allows the assembly sequence to be documented through drawings, photographs and component references.

This preparation is often what makes a restricted installation window achievable.

Controlling Installation Within Public Operations

Once work begins, the installation area must remain clearly separated from public activity.

Barriers should provide more than a visual boundary. They must prevent unauthorised access, remain stable and avoid creating additional hazards within public circulation areas.

The barrier layout should account for queue formation, accessible routes, emergency movement and changes in visitor numbers. A temporary enclosure that appears adequate during quiet hours may become unsuitable during peak periods if it narrows a major circulation route.

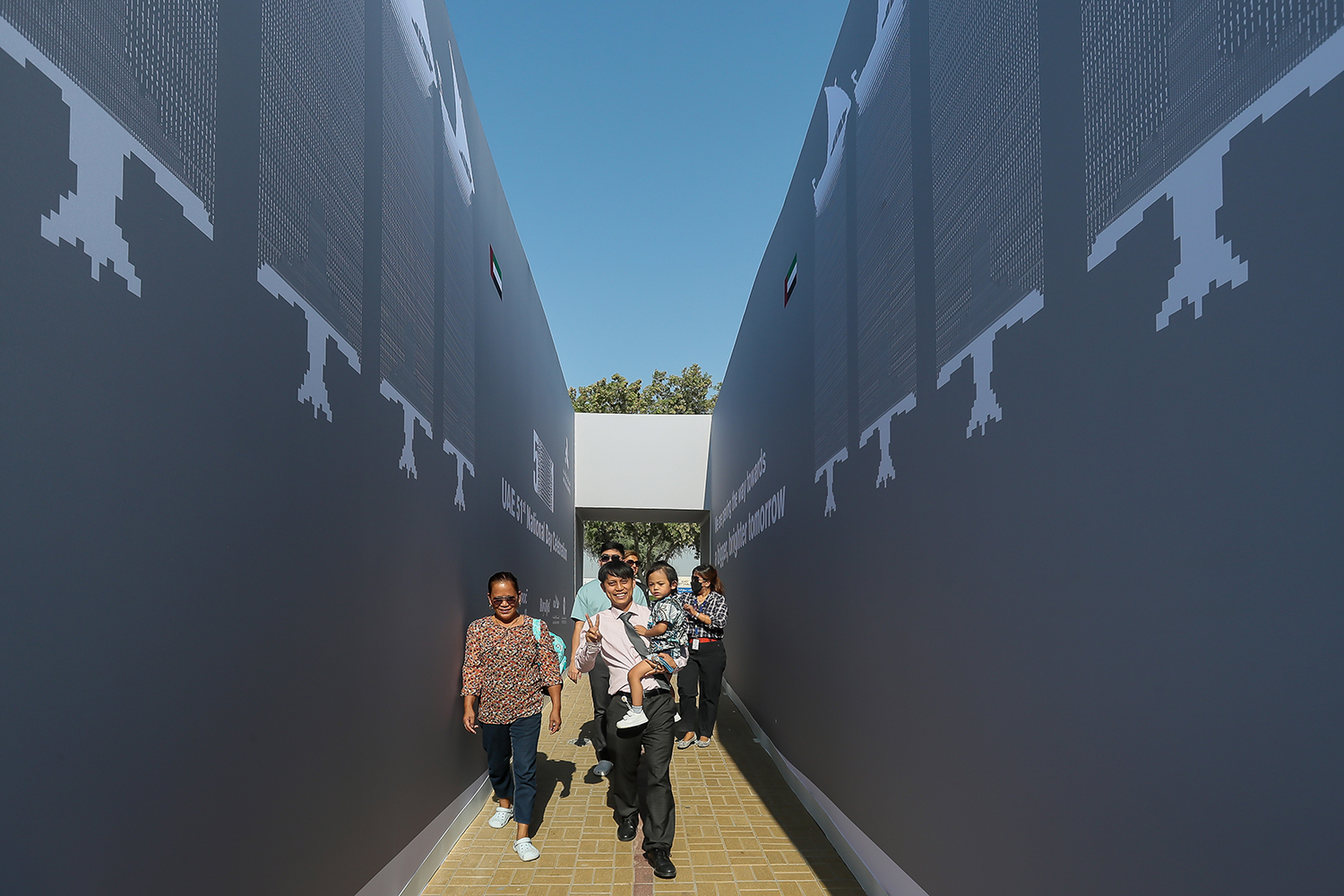

Where work continues behind temporary hoarding, the enclosure may also need to control dust, light spill and noise. Joints, doors and service penetrations should be detailed so that the work zone remains properly contained.

Site access should be managed through defined entry points. Tools, materials and equipment should not move through public routes without suitable supervision and control.

Deliveries are usually scheduled outside normal operating hours, but this does not remove the need for careful coordination. Security teams, loading dock personnel and venue management must know which vehicles are arriving, what equipment will be used and how long unloading is expected to take.

Components should be loaded according to the installation sequence. Items required first should remain immediately accessible, reducing the need to reorganise materials within a restricted delivery area.

Temporary storage should be minimised. Where storage is necessary, it must not obstruct emergency routes, staff access or venue operations. Large scenic modules may also require restraints to prevent movement while waiting for installation.

Noise control is a common requirement.

Cutting, drilling, grinding and impact tools may be prohibited during public opening hours. The fabrication methodology should therefore reduce these activities through accurate workshop production and mechanical connections.

Bolted frames, pre-drilled panels, alignment pins and modular fixing systems can allow components to be assembled with relatively limited noise. Any unavoidable high-noise work can be grouped into approved periods rather than occurring intermittently throughout the installation.

Dust and odour require similar planning.

Site cutting should use suitable extraction systems, while surrounding surfaces and air-handling equipment may need protection. Solvent-based paints, adhesives and coatings may be unsuitable for use within an occupied interior.

Low-odour products, prefabricated finishes and mechanically fixed components can reduce these concerns. Where touch-ups are required, the materials and ventilation method should be approved in advance.

Existing finishes must also be protected.

Shopping centres, museums and visitor attractions often contain polished stone, specialist flooring, finished joinery and sensitive architectural surfaces. Temporary floor protection should be compatible with the substrate and capable of supporting the expected equipment loads.

Protection should extend along the complete delivery route rather than only within the final installation area. Corners, door frames, lifts and wall finishes may require additional guarding where large modules pass through restricted spaces.

Lifting and access equipment must suit the operational environment.

Large cranes and forklifts may not be available within an interior destination. Installation teams may need to use compact material lifts, pallet trucks, chain hoists, mobile access towers or low-ground-pressure equipment.

Equipment selection should account for floor loading, door dimensions, overhead clearances and turning space. Battery-powered equipment may be preferred where emissions and noise must be controlled.

The installation sequence should maintain stability at every stage.

A completed scenic structure may be secure, while individual modules remain vulnerable during assembly. Temporary braces, support frames and controlled exclusion zones may be required until permanent connections are complete.

These temporary systems must remain contained within the approved work area and should not interfere with public routes or venue operations.

Daily coordination is essential when the environment remains active.

Before each working period, the scenic installation team and venue representatives should confirm:

• The area available for work
• Public and staff routes
• Planned deliveries
• High-risk activities
• Noise or dust-producing operations
• Required isolations
• Temporary barrier changes
• Emergency arrangements
• Handover requirements before reopening

At the end of each shift, the area should be left in a safe and controlled condition. Tools and materials must be secured, unfinished structures stabilised and public routes returned to the agreed standard.
