As scenic structures become larger and more complex, traditional fabrication methods alone can struggle to deliver the accuracy, consistency and production speed required. Large-scale digital manufacturing has therefore become an increasingly important part of modern scenic production, particularly for projects involving complex geometry, repeated components or oversized structures.

Digital manufacturing connects design technology directly with workshop production. CNC routers, foam cutting systems and automated machining processes allow fabrication teams to convert digital models into accurately manufactured physical components.

The value of this process is not simply that a machine can cut material quickly. Its real strength lies in the way design information, engineering requirements, manufacturing tolerances and assembly logic can be coordinated before material reaches the workshop floor.

For Evolution Scenic, digital manufacturing is part of a wider fabrication methodology. It supports scenic carpentry, structural fabrication, sculptural production, finishing and installation rather than replacing them.

From Digital Model to Manufactured Component

The manufacturing process begins with a properly developed digital model.

A visually accurate model is not automatically ready for production. Geometry must first be reviewed against available materials, machine capabilities, tooling restrictions, structural requirements and the intended assembly sequence.

Individual parts are extracted from the model and prepared as manufacturing files. During this stage, the fabrication team considers cutter diameter, machining depth, material thickness, grain direction, edge conditions and the amount of material required around fixings or connection points.

Components can then be nested efficiently across standard sheet sizes. Good nesting reduces waste, improves material utilisation and helps organise production into manageable batches.

This preparation stage is critical. A CNC machine will manufacture the information it receives with considerable consistency, but it cannot determine whether the design is structurally practical, easy to assemble or appropriate for the selected material. Those decisions still depend on experienced engineers, technical designers and fabricators.

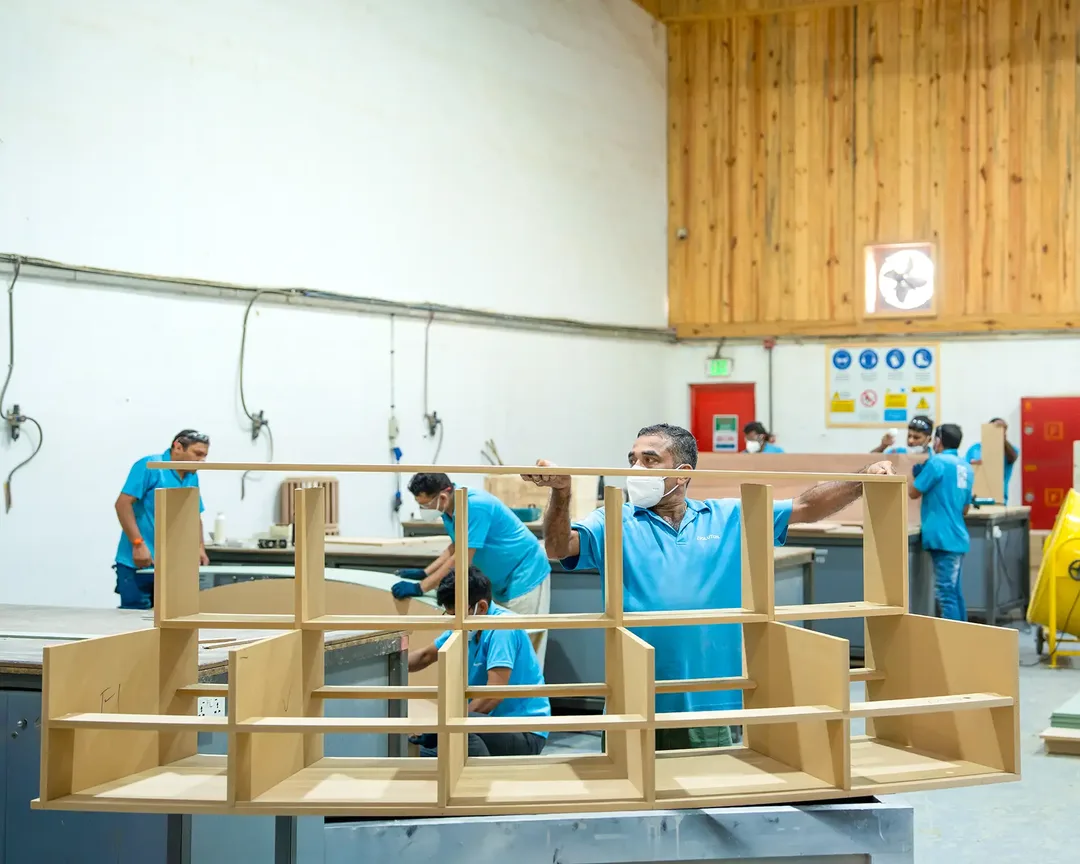

CNC Routers as Scenic Production Tools

Large-format CNC routers are among the most versatile digital manufacturing tools used in scenic fabrication.

They can produce profiles, openings, rebates, pockets, grooves, engraved markings and interlocking joints across materials such as plywood, MDF, plastics, composite sheets and selected non-ferrous materials when suitable tooling and machining strategies are used.

For exhibition pavilions and large branded installations, CNC-routed parts are often used to create structural ribs, wall profiles, curved frameworks, display components and decorative layers.

Complex curved forms can be divided into a series of accurately cut sections. These sections may then be assembled into a lightweight framework before being clad, filled or finished. What appears as a continuous sculptural surface can therefore be built from an organised system of numbered, repeatable components.

CNC production is particularly useful where parts must connect accurately. Slots, tabs, locating points and fixing holes can be incorporated directly into the manufacturing files, reducing the amount of manual setting-out required in the workshop.

However, accurate machining depends on more than the digital file. Tool condition, machine calibration, vacuum hold-down, extraction, feed speed and material stability all affect the final result. Large-scale CNC production therefore requires both technical preparation and disciplined workshop control.

Foam Cutting and Sculptural Manufacturing

Foam cutting systems extend digital manufacturing into more organic and sculptural forms.

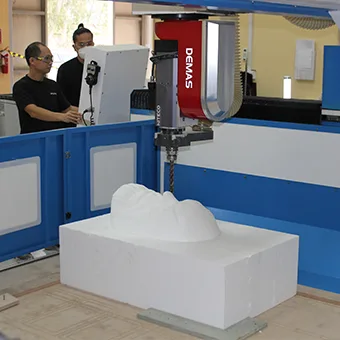

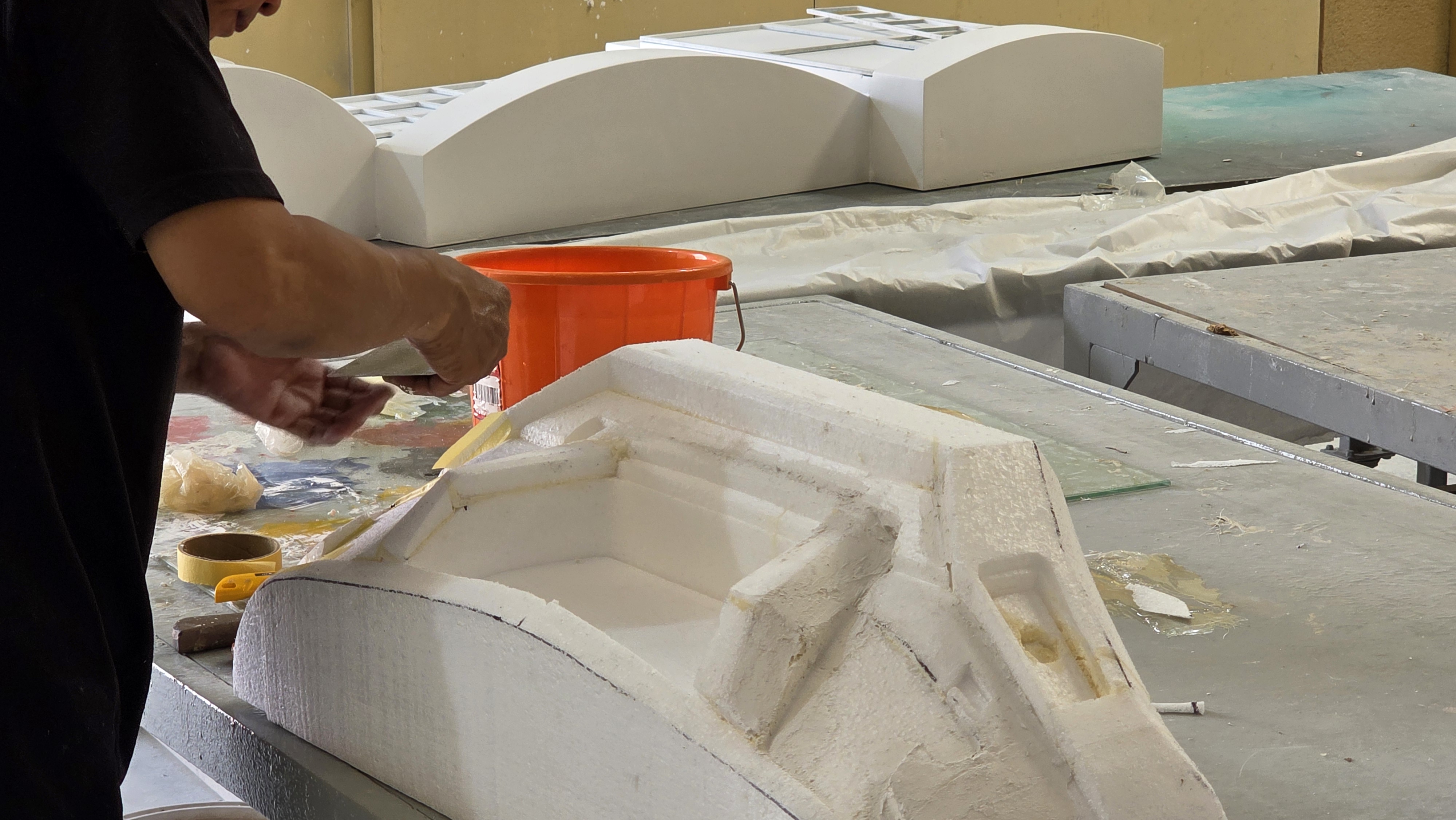

Hot-wire cutting can produce large profiles efficiently from suitable foam blocks, while CNC milling systems can machine more complex three-dimensional geometry. Depending on the project, the manufactured foam may form the finished scenic volume or act as a base for coatings, reinforcement, fibreglass, hard shells or specialist painted finishes.

This process is valuable for sculptural environments, public structures, parade elements and branded installations where conventional sheet construction would require excessive labour or create unnecessary weight.

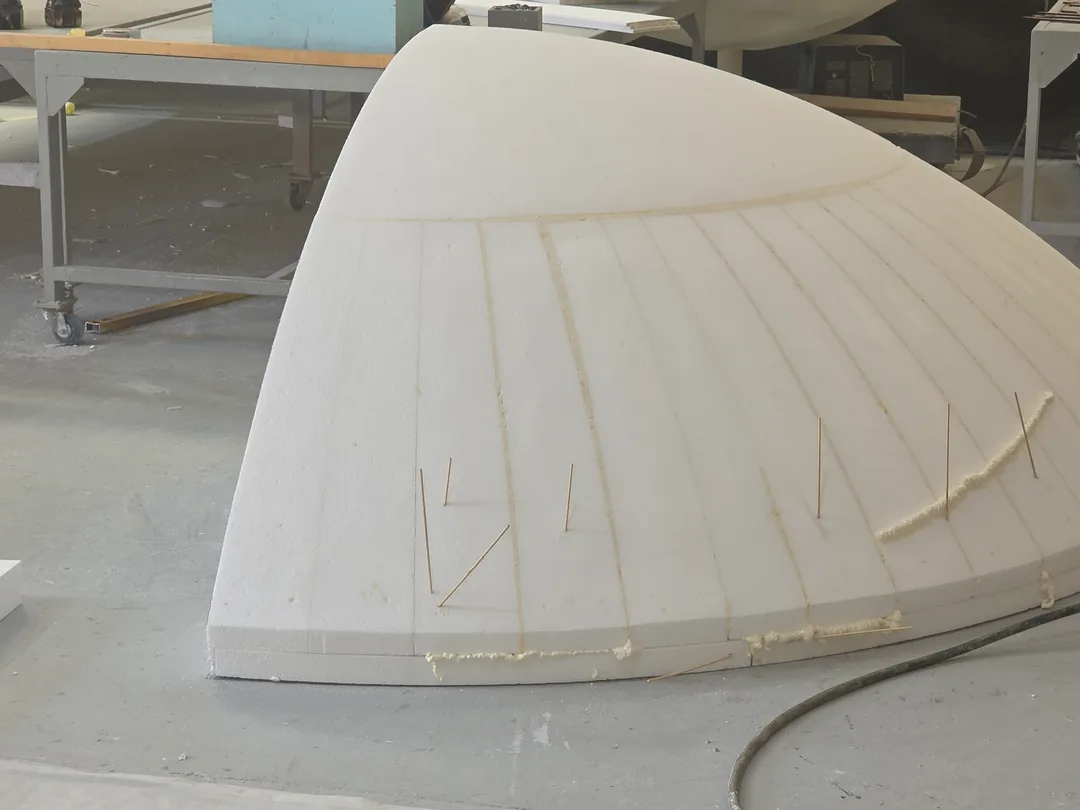

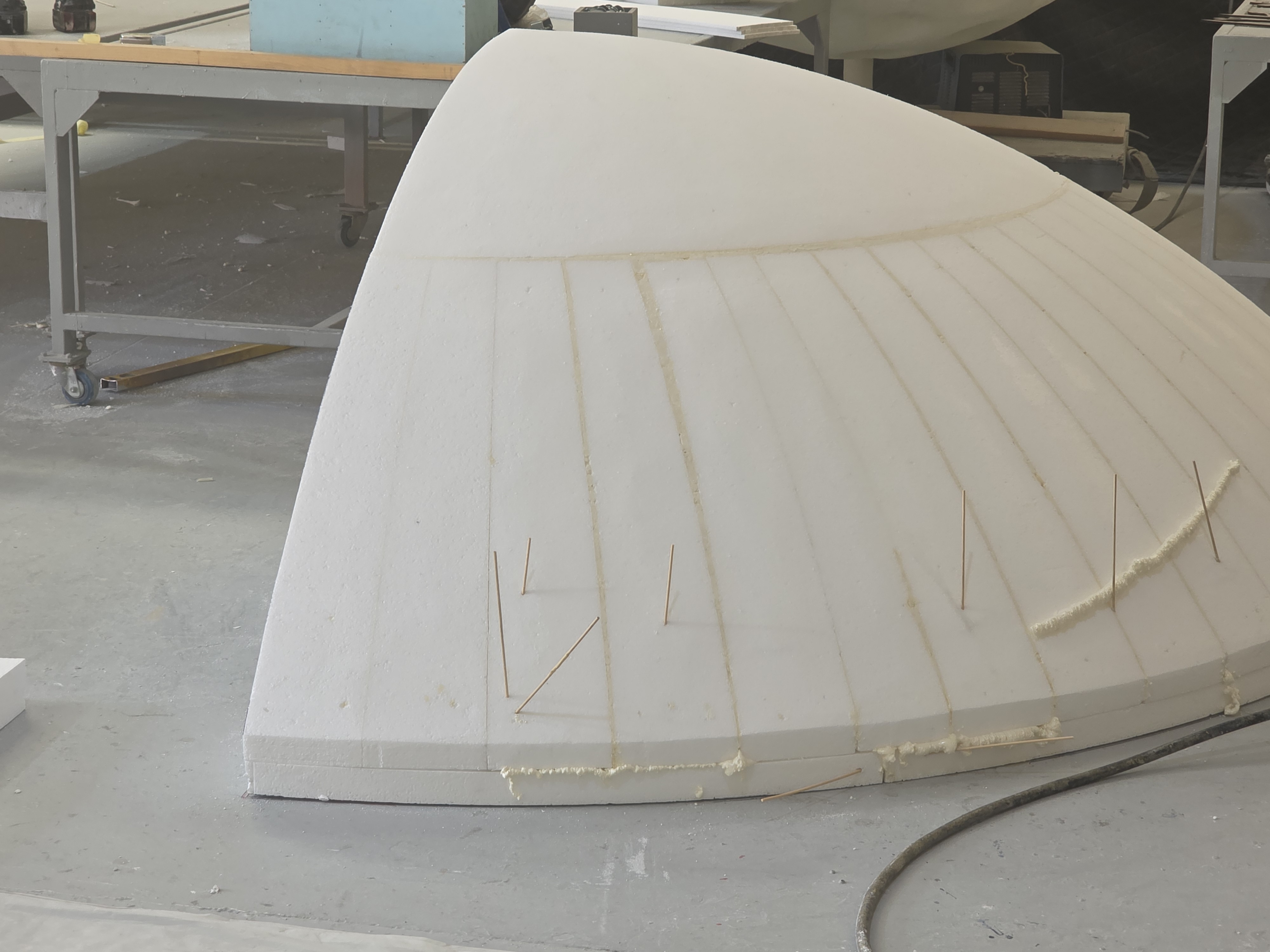

Large forms can also be divided digitally into sections that suit available foam blocks, machine capacity, transport dimensions and installation access. Registration points and internal references help those sections reconnect accurately during assembly.

Material selection remains important. Foam density, surface vulnerability, fire performance, environmental exposure and the intended finishing system must all be assessed. A lightweight sculptural form used inside an exhibition environment requires a different construction approach from an external public feature exposed to handling, wind, moisture or repeated transport.

Digital cutting provides the geometry, but the durability and visual quality of the completed element depend on the build-up that follows.

Accuracy and Repeatability

One of the most important advantages of digital manufacturing is repeatability.

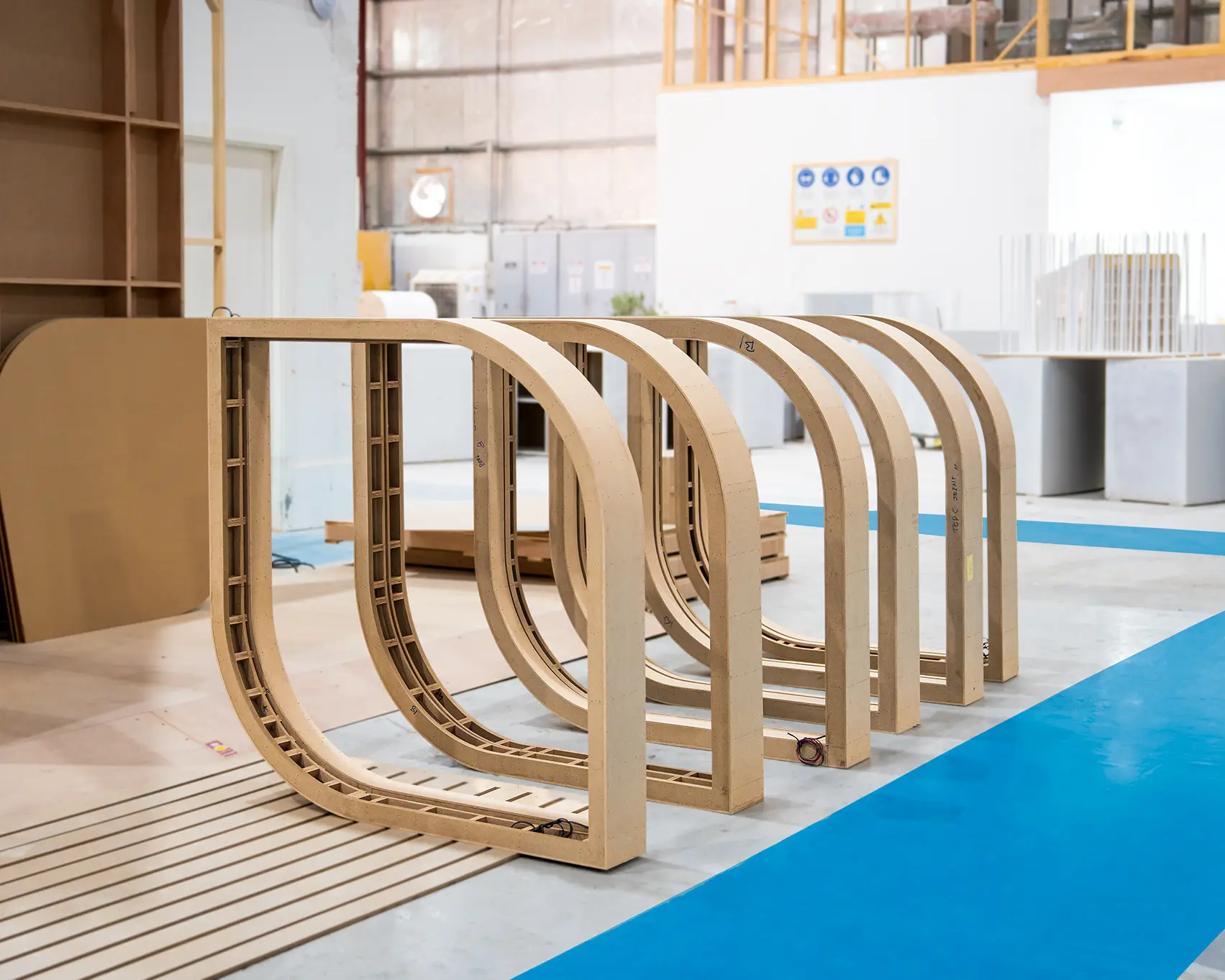

A single component can be tested, adjusted and approved before the same production data is used across an entire batch. This is especially valuable where hundreds of similar fins, panels, ribs or decorative elements must align across a large installation.

Repeatability does not mean that every material behaves identically. Timber-based sheets can vary slightly in thickness, foam blocks may have dimensional differences, and some materials can move as temperature or humidity changes. Manufacturing tolerances must therefore reflect the behaviour of the material rather than relying on theoretical dimensions alone.

Where components interface with fabricated steelwork, aluminium frames, graphics, lighting or mechanical equipment, the tolerance strategy becomes even more important. Parts may require controlled clearances, adjustable brackets or deliberately oversized fixing points to accommodate workshop and site conditions.

Quality control continues throughout production. Components are checked against drawings, templates or reference dimensions, while sample assemblies can confirm that repeated parts fit together as intended.

The objective is not simply to produce identical pieces. It is to produce parts that perform consistently within the completed scenic system.

Engineering Integration

Digital manufacturing is most effective when engineering information is incorporated before production begins.

Load paths, connection zones, fixing positions and structural interfaces can influence the shape of a manufactured component. A plywood rib may require additional depth around a bolted connection. A routed panel may need access openings for steel brackets. A sculptural shell may require internal channels for reinforcement, lighting or lifting points.

By coordinating these details within the digital model, fabrication teams can reduce drilling, cutting and modification after components have been manufactured.

This is particularly important on large scenic structures where small inconsistencies can multiply across the installation. A minor dimensional error repeated through fifty components can affect alignment, cladding, graphics and final assembly.

Engineering integration also improves communication between departments. Scenic carpenters, metal fabricators, CNC operators, technical designers and installation teams can work from coordinated information rather than developing separate solutions in isolation.

At Evolution Scenic, the digital workflow is therefore connected to the overall build methodology. Production files are developed with consideration for how components will be fabricated, dry-fitted, finished, labelled, packed, transported and installed.

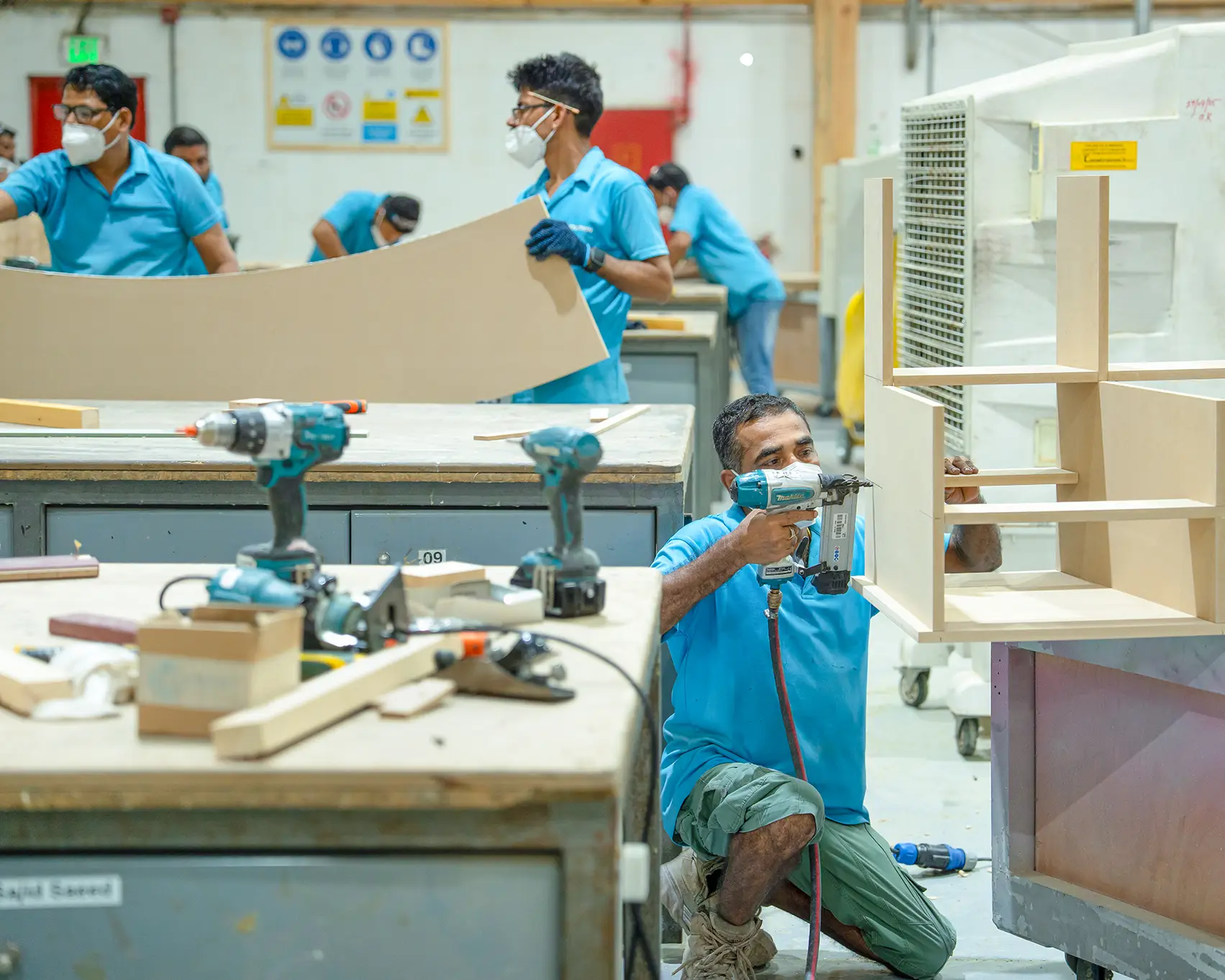

Large-Volume Production

Digital manufacturing allows large volumes of components to be produced efficiently, but machine speed is only one part of the operation.

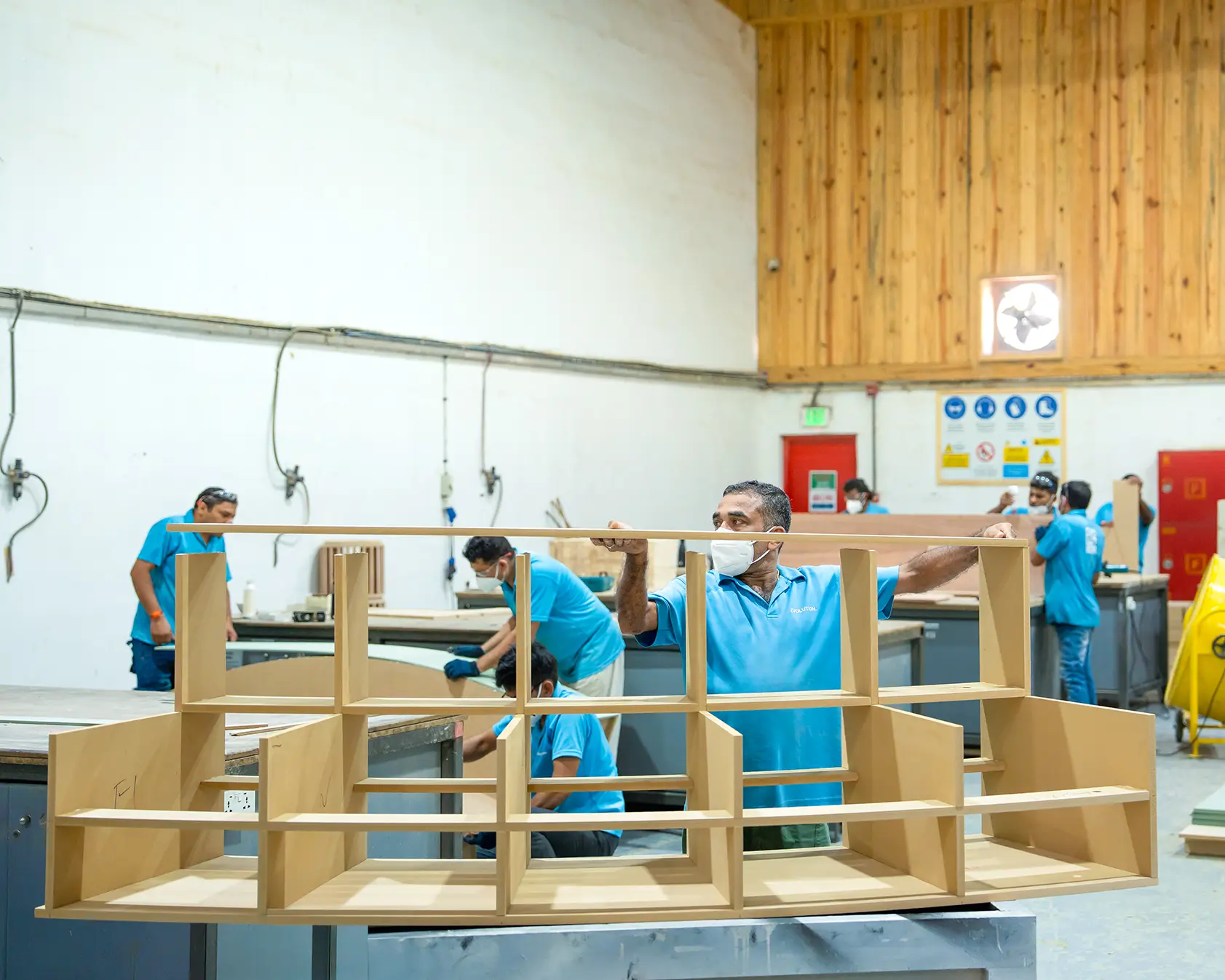

Once parts leave the cutting bed, they must be identified, inspected, sorted and transferred to the next workshop process. Edges may require preparation, components may need lamination or reinforcement, and individual parts may be assembled into larger modules.

A high-volume project can quickly become difficult to manage if hundreds of similar components are not labelled and sequenced properly. Part numbering, batch references and installation zones can be machined or marked directly onto concealed surfaces, helping the workshop and site teams identify where each component belongs.

Production planning must also consider storage space, material handling and the sequence in which completed parts will be needed. Manufacturing everything at once may create congestion rather than efficiency. In many cases, controlled batches aligned with assembly and finishing capacity provide a better result.

Digital scalability therefore depends on the entire production system. Cutting, assembly, finishing, quality control, packing and logistics must progress at compatible rates.

Scaling Different Types of Scenic Project

The same digital manufacturing principles can support very different scenic applications.

For an exhibition pavilion, CNC production may create a kit of structural ribs, wall sections, counters and architectural features that can be assembled quickly within a restricted installation period.

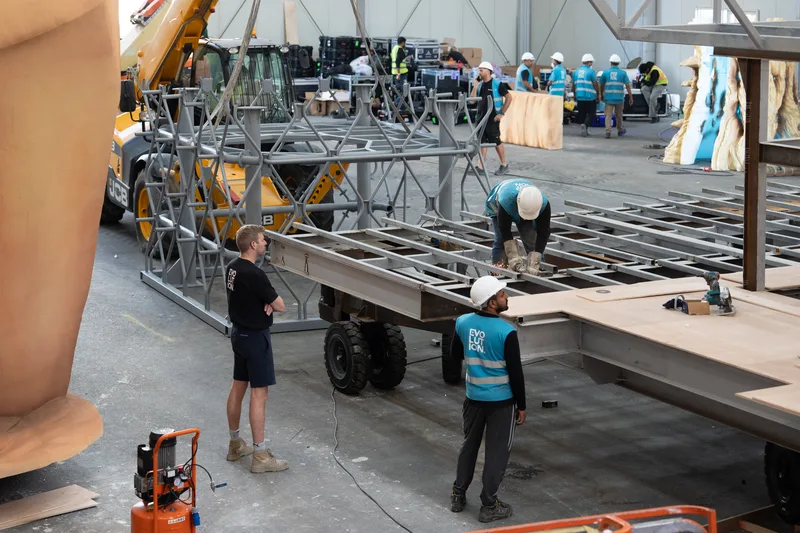

For a large public structure, digitally manufactured templates and profiles can help control complex geometry while fabricated steelwork provides the primary support.

Within a branded installation, repeated elements may need to align precisely with graphics, lighting and product displays across multiple elevations.

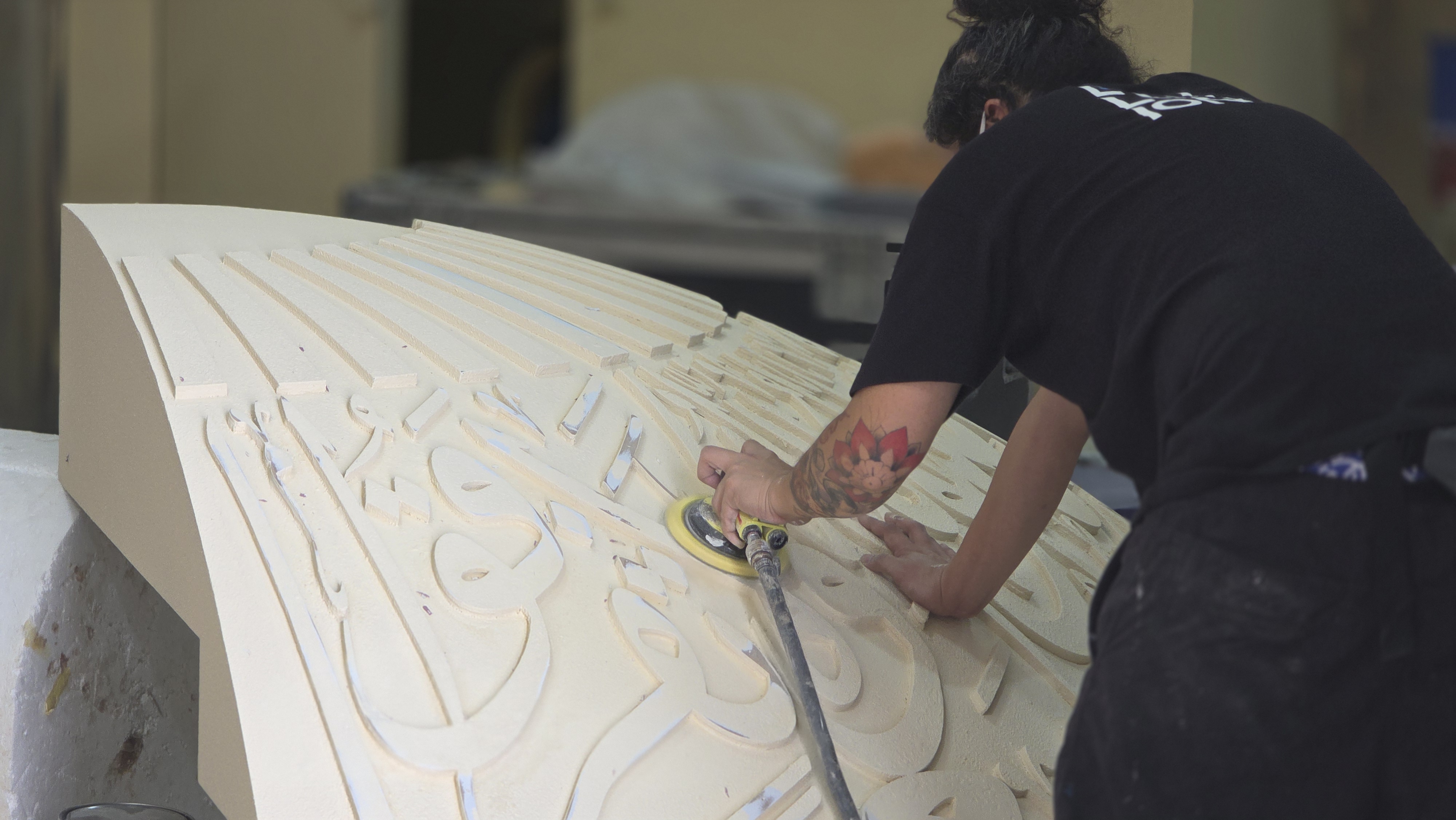

For sculptural environments, foam cutting and CNC machining can establish the underlying form before scenic artists apply texture, colour and specialist finishes.

In each case, the technology remains similar, but the manufacturing strategy changes according to scale, structural performance, finish quality, programme, transport limitations and site access.

Technology Supported by Workshop Skill

Digital manufacturing should not be viewed as a replacement for traditional workshop expertise.

A CNC router can manufacture a complicated profile accurately, but it cannot judge whether the component is easy to handle, whether a joint will remain accessible during installation or whether the chosen finish will conceal the construction method.

Those decisions rely on the practical knowledge of scenic carpenters, metal fabricators, sculptors, painters, engineers and installation teams.

The strongest outcomes come from combining both approaches. Digital tools provide accuracy, repeatability and production capacity. Skilled fabricators provide judgement, adaptation and an understanding of how materials behave in real conditions.

This combination allows ambitious scenic structures to be produced at a scale that would otherwise be difficult, slow or impractical to achieve.

Large-scale digital manufacturing is therefore not simply about automated cutting. It is a coordinated process that connects design, engineering, workshop production and installation.

When those disciplines are developed together, digital manufacturing becomes a powerful tool for delivering complex scenic environments accurately, efficiently and at scale.
