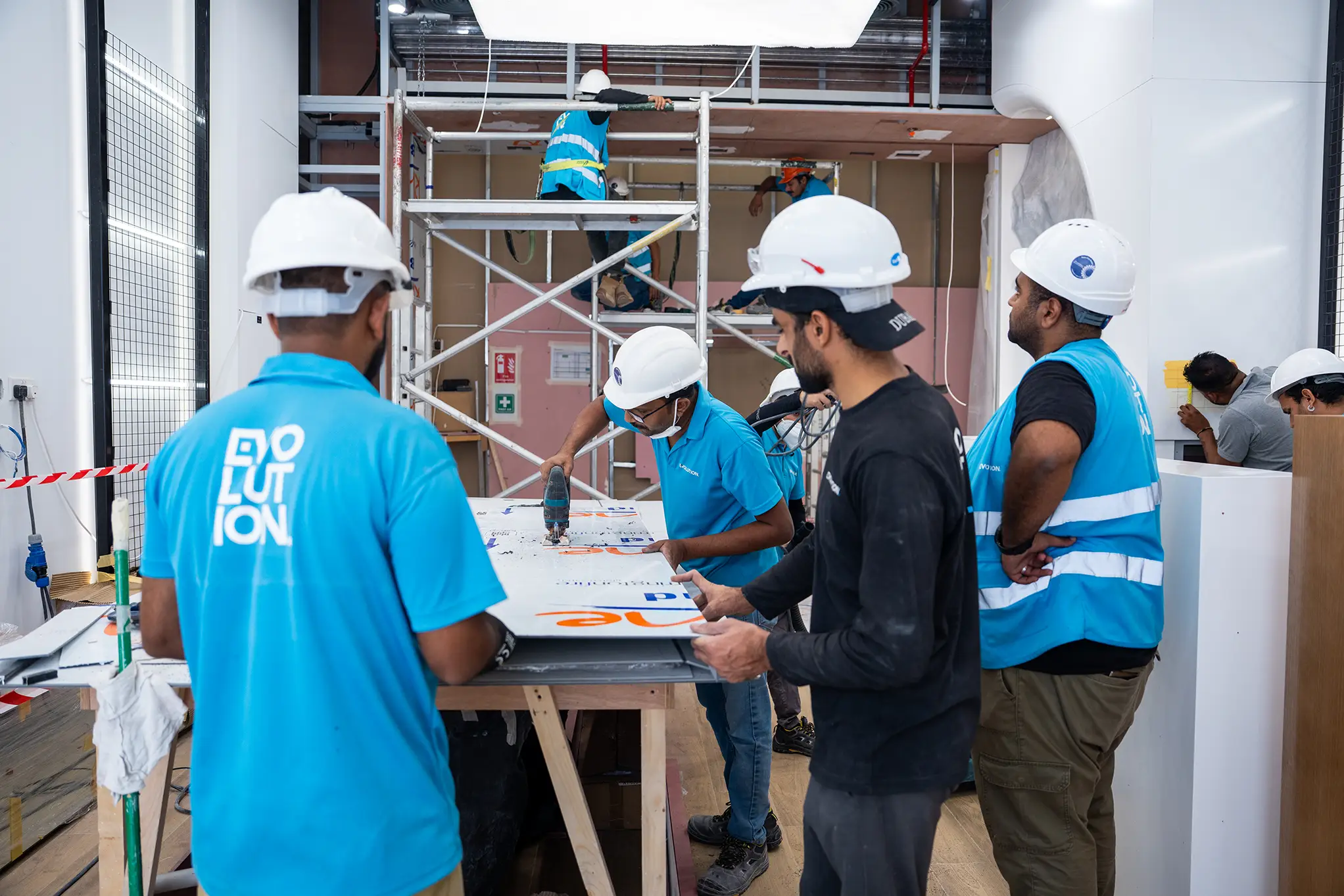

    Image description

    Hidden Infrastructure Explained


    Many of the most successful scenic environments contain extensive infrastructure that visitors never see.


    Behind finished walls, beneath raised floors and inside structural frameworks sit the systems that allow an environment to function. Power distribution, data networks, lighting controls, ventilation routes, equipment housings, maintenance access points and structural supports may occupy a significant part of the build, despite remaining almost completely concealed once installation is complete.


    This hidden layer is particularly important within museums, visitor centres, immersive environments and experience centres, where technology and scenic fabrication must operate as one coordinated system. Screens, lighting, sensors, audio equipment and interactive devices may need to perform continuously without interrupting the appearance of the environment.


    Designing for hidden infrastructure requires careful coordination between scenic engineering, fabrication and technical teams. Space must be allocated for equipment, cable routes and ventilation without weakening the structure, reducing installation access or compromising the intended visual finish.


    One of the greatest challenges is balancing concealment with accessibility. Technical systems must remain out of sight, but technicians still need to inspect, isolate, maintain and eventually replace them.


    The most successful environments resolve these requirements during design development. Infrastructure is not treated as equipment that must somehow fit behind the scenery once fabrication has begun. It becomes part of the structure, build methodology and installation sequence from the outset.

    Image description

    Coordinating Infrastructure Within the Scenic Build


    Hidden infrastructure begins with coordinated spatial planning.


    A scenic wall may appear relatively simple from the public side, yet its internal depth may need to accommodate structural framing, electrical containment, data cables, lighting drivers, ventilation openings and removable access panels. If these requirements are not identified early, different systems can begin competing for the same limited space.


    Structural members may obstruct cable routes. Screen supports may conflict with access doors. Ventilation ducts may require openings through areas intended to provide bracing. Equipment may be positioned behind a finished panel that cannot be removed without damaging surrounding surfaces.


    These issues are much easier to resolve on coordinated drawings than during workshop fabrication or site installation.


    Early reviews should identify the principal infrastructure requirements, including:

    • Power and data distribution routes
    • Lighting control equipment and drivers
    • Integrated screens and media hardware
    • Audio equipment and loudspeaker locations
    • Sensors, cameras and interactive devices
    • Ventilation and heat-management requirements
    • Structural supports and mounting frames
    • Access panels and maintenance clearances
    • Isolation points and equipment enclosures
    • Future technology replacement routes


    The internal space required for infrastructure must be realistic.

    A cable may have a relatively small diameter, but it still requires suitable bend radii, containment, fixing points and clearance from other services. Equipment needs space for connectors, ventilation and safe removal. A screen may fit within an opening, but the surrounding structure must also allow technicians to reach its mounting points and disconnect the equipment.


    Coordination should therefore consider the complete installed system rather than the external dimensions of individual components.


    Cable management plays a particularly important role.


    Uncontrolled cable runs can obstruct access, restrict ventilation and make future maintenance unnecessarily difficult. Power, data, control and audio cables may also have different routing requirements and should be organised accordingly.


    Purpose-built cable trays, conduits, trunking and fixing points help maintain clear routes through the scenic structure. Cables should be supported rather than left resting on equipment, sharp edges or unfinished framing.


    Where cabling passes through steelwork, timber panels or sheet materials, openings should be prepared with suitable edge protection. This prevents abrasion and allows the cables to be replaced without damage.


    Cable routes should also avoid becoming permanently trapped behind bonded scenic panels. Where systems may require future replacement, accessible containment or removable covers provide a more practical solution.


    Labelling is equally important. A concealed environment can contain hundreds of cables and connection points that appear identical after installation. Clear identification at both ends of each cable can reduce fault-finding time and prevent accidental disconnection.


    Structural coordination must take place alongside these technical requirements.

    Large screens, equipment racks and suspended technical components can introduce significant loads. These loads must transfer into the primary frame rather than relying on decorative cladding or lightweight scenic panels.


    Secondary steelwork, reinforced timber framing or dedicated equipment brackets may therefore be integrated into the scenic structure. Their position should be coordinated with maintenance access and final surface finishes.


    The order of installation must also be considered.


    Some systems need to be installed before walls, floors or ceiling panels are closed. Others must remain removable after handover. A clear installation sequence helps prevent finished scenic elements from being repeatedly removed while technical systems are connected and tested.


    Trial assembly can be particularly valuable for complex environments. Building key sections in the workshop allows the scenic and technical teams to confirm clearances, mounting points, cable routes and access before the structure reaches site.

    Image description

    Concealing Services Without Preventing Access


    Hidden infrastructure should remain visually discreet without becoming inaccessible.


    This balance is achieved through carefully planned access panels, removable scenic components and defined maintenance routes.

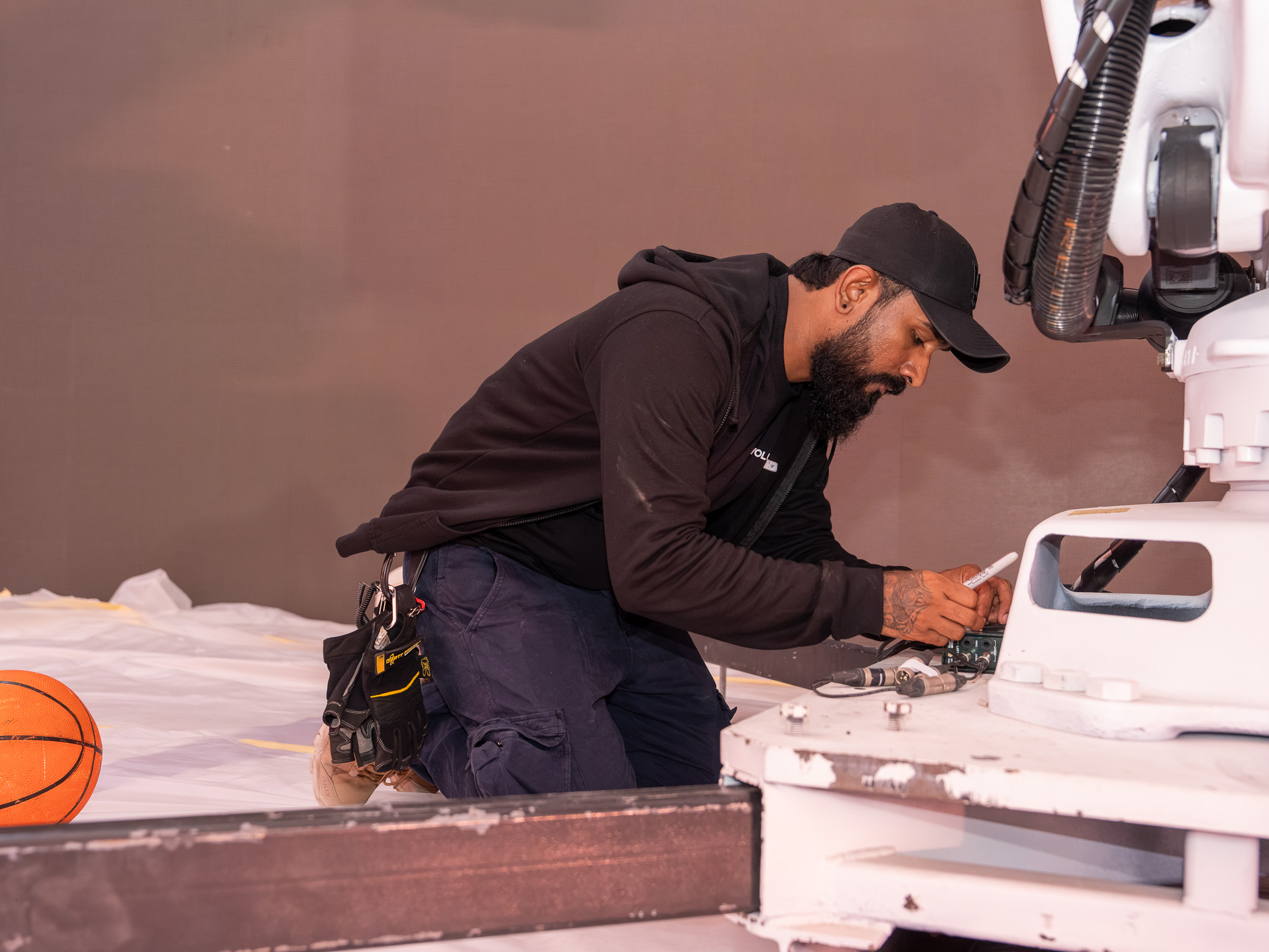

    Access panels should be designed around the work that will take place behind them. A small opening may allow a technician to see a lighting driver, but it may not provide enough room to disconnect and remove it.


    The panel size should therefore respond to the largest component, tool or hand movement required during maintenance.


    Opening direction also matters. A hinged panel may be difficult to use if it opens against a wall, display case or public circulation route. Overhead panels may require retaining cables, controlled hinges or secondary restraints to prevent them falling during servicing.


    Access panels can be integrated into scenic joinery, architectural lines, graphic layouts or material transitions. Magnetically retained covers, concealed hinges and flush mechanical fixings can preserve the finished appearance while providing practical access.


    However, concealment should not make panels difficult for maintenance teams to identify. As-built drawings, discreet internal labels and clear access schedules should record every service point.


    Some scenic environments require internal maintenance routes.


    Large immersive installations, interpretation environments and stage structures may contain walkable voids, rear service corridors or technical platforms. These areas allow equipment to be accessed without entering public spaces or dismantling the visible environment.


    Maintenance routes need sufficient width, lighting and headroom for safe use. They should remain free from exposed fixings, unsupported panels and uncontrolled cabling.


    Where access involves ladders, mobile platforms or temporary removal of flooring, the method should be understood during design development. Equipment should not be placed in locations that can only be reached through unsafe or impractical working methods.


    Ventilation is another major consideration.


    LED screens, media players, power supplies, lighting drivers and control systems generate heat. When enclosed behind scenic walls or within sculptural forms, this heat can build quickly and reduce equipment reliability.


    Ventilation requirements should therefore be coordinated with the scenic design.


    Passive ventilation may be achieved through concealed slots, shadow gaps, perforated panels or openings integrated into decorative features. More demanding systems may require fans, ducting or filtered air movement.


    The airflow path must be complete. An intake opening provides limited benefit if heated air has no route to escape. Similarly, a fan cannot operate effectively if equipment blocks the internal airflow.


    Dust should also be considered, particularly in outdoor or high-traffic environments. Open ventilation can introduce airborne particles that collect on equipment and restrict cooling.


    Filters may be required, but they must remain accessible for cleaning and replacement. A concealed filter that cannot be serviced will eventually become an obstruction rather than a protective measure.


    Acoustic performance may influence infrastructure planning as well.


    Ventilation fans, equipment racks and power systems can generate noise that becomes noticeable within quiet museum or visitor environments. Equipment isolation, acoustic lining and careful positioning can reduce this impact without compromising ventilation.


    Integrated screens require particular attention because they combine structural, electrical, data and thermal requirements.


    The screen support must maintain accurate alignment while allowing individual panels or modules to be removed. Cabling must remain organised and serviceable. Heat must be managed, and technicians need enough working space to reach power supplies, processors and connections.


    A scenic surround should not prevent the screen from being serviced. Removable trims, accessible rear cavities and dedicated maintenance panels can allow the technical system to be repaired without damaging the surrounding finish.


    Floor systems may also conceal substantial infrastructure.


    Raised scenic floors can carry power, data, lighting and interactive sensor systems while preserving a clean public surface. However, cable routes, floor-loading requirements and access panels must be coordinated carefully.


    Floor hatches should sit flush and remain secure under public use. Their position should avoid primary visitor routes where possible, particularly if regular access is required. Cables beneath the floor should remain protected from crushing, moisture and accidental fixing during later modifications.


    The most effective concealed infrastructure is visually quiet but operationally clear. Visitors see a complete scenic environment, while technicians have defined and practical access to the systems behind it.

    Image description

    Planning for Maintenance, Replacement and Future Upgrades


    Technology rarely remains unchanged for as long as the scenic structure surrounding it.


    Screens, processors, lighting fixtures, sensors and control systems may be replaced several times during the operational life of a museum, visitor centre or immersive installation. Hidden infrastructure should therefore support future change rather than locking the original equipment permanently into the build.


    Upgrade pathways begin with removable components and realistic equipment routes.

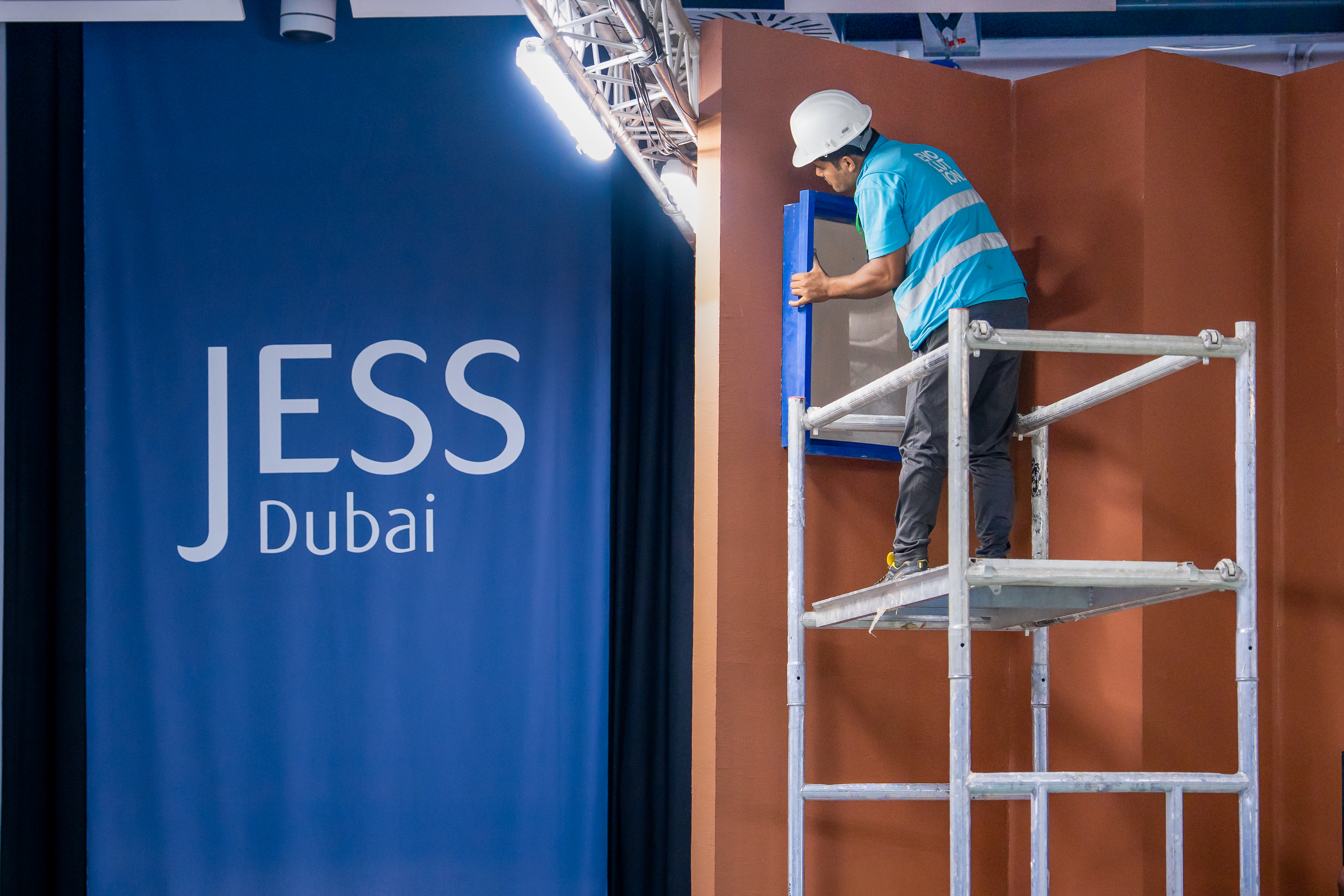

    A replacement screen or processor may be a different size from the original. Cable types may change, ventilation demands may increase and new control equipment may require additional space.


    Providing spare containment, accessible cable routes and adaptable mounting systems can make these changes significantly easier.


    The structure should also allow old equipment to be removed physically. A service panel may provide access to connections, but it is of limited value if the equipment itself cannot pass through the opening.


    Replacement routes should be checked against doors, corridors, hatches and internal structural members. Large technical components may require removable scenic sections or dedicated lifting points.


    Long-term operation also depends on good documentation.


    The handover information should show more than the visible scenic construction. It should record:

    • Access panel locations
    • Internal equipment positions
    • Cable and containment routes
    • Electrical isolation points
    • Ventilation openings and filters
    • Equipment mounting details
    • Removable scenic components
    • Safe maintenance routes
    • Recommended inspection intervals
    • Replacement and upgrade procedures


    As-built drawings are particularly important because infrastructure can change during fabrication and installation. Drawings should reflect the final installed condition rather than an earlier design that was modified on site.


    Equipment and cable labels should correspond with the final documentation. This creates a clear link between the physical installation and the information used by future maintenance teams.

    Planned inspection supports reliable operation.


    Ventilation openings may need cleaning, cables may require checking and access panels should be inspected for damage or loose fixings. Equipment enclosures should remain dry, secure and free from excessive dust.


    Technical systems may also require remote monitoring. Equipment status, internal temperature and system faults can sometimes be reviewed without opening the scenic structure, allowing maintenance teams to identify problems before a complete failure occurs.


    However, remote monitoring does not remove the need for physical access. Components still require inspection, cleaning and eventual replacement.


    The surrounding scenic finishes must also tolerate maintenance activity.


    Repeated panel removal can damage painted edges, graphics and concealed fixings if the details are not designed for regular use. Durable edge treatments, replaceable trims and robust hardware can preserve the visual quality of the environment.


    Where equipment is expected to require frequent attention, the access system should be designed for repeated operation rather than occasional emergency use.


    Future upgrades may also affect structural loading.


    A replacement screen, loudspeaker or mechanical system may be heavier than the original component. Mounting frames and support structures should not be assumed to accept increased loads without review.


    Similarly, additional ventilation openings or site-cut cable penetrations should not be introduced without considering their effect on structural members, fire performance and scenic finishes.


    At Evolution Scenic, hidden infrastructure is developed as part of the complete fabrication strategy. Scenic framing, equipment supports, cable routes, access panels, ventilation and maintenance requirements are coordinated so that technical systems can operate effectively behind the visible environment.


    The strongest immersive environments, museums and visitor centres do not simply conceal technology. They provide the space, access and organisation required to support it throughout its operational life.


    When infrastructure is planned from the beginning, technical systems become easier to install, service and upgrade. The finished environment remains visually controlled, while the complex network behind it continues to operate without disrupting the intended experience.


  • Large Scale Digital Manufacturing Explained

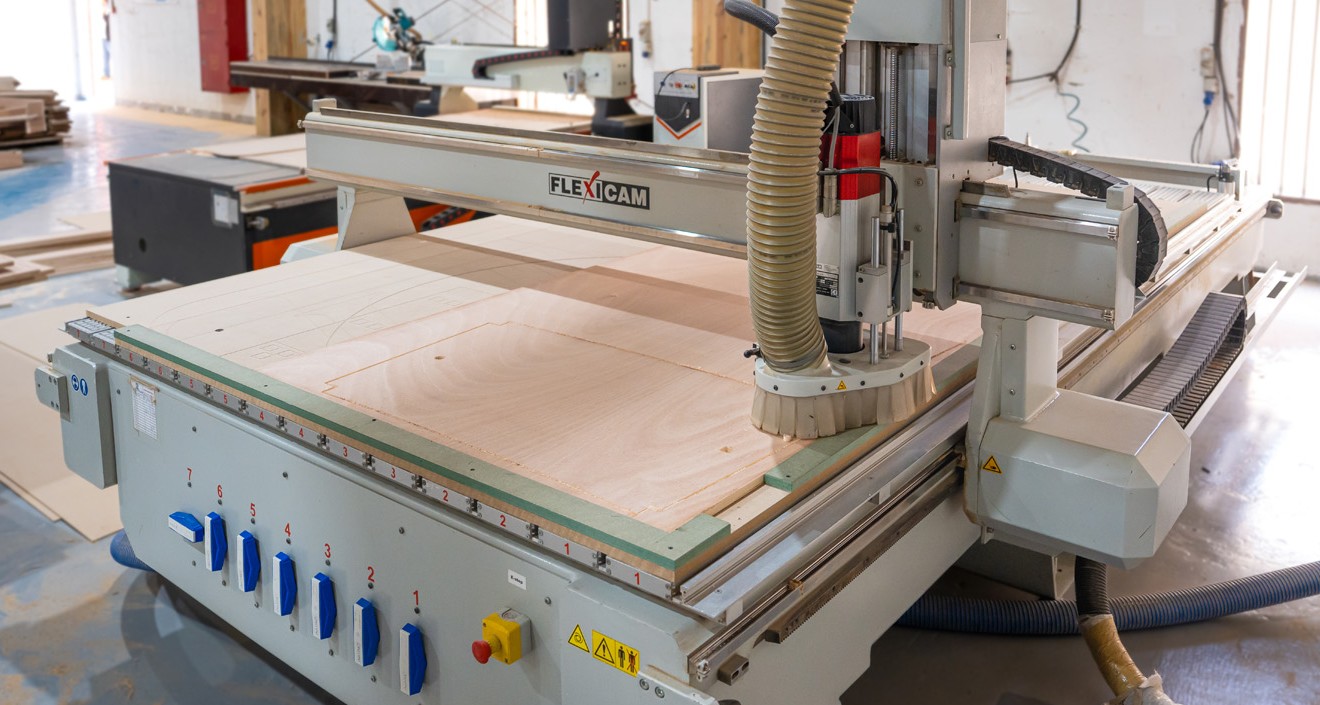

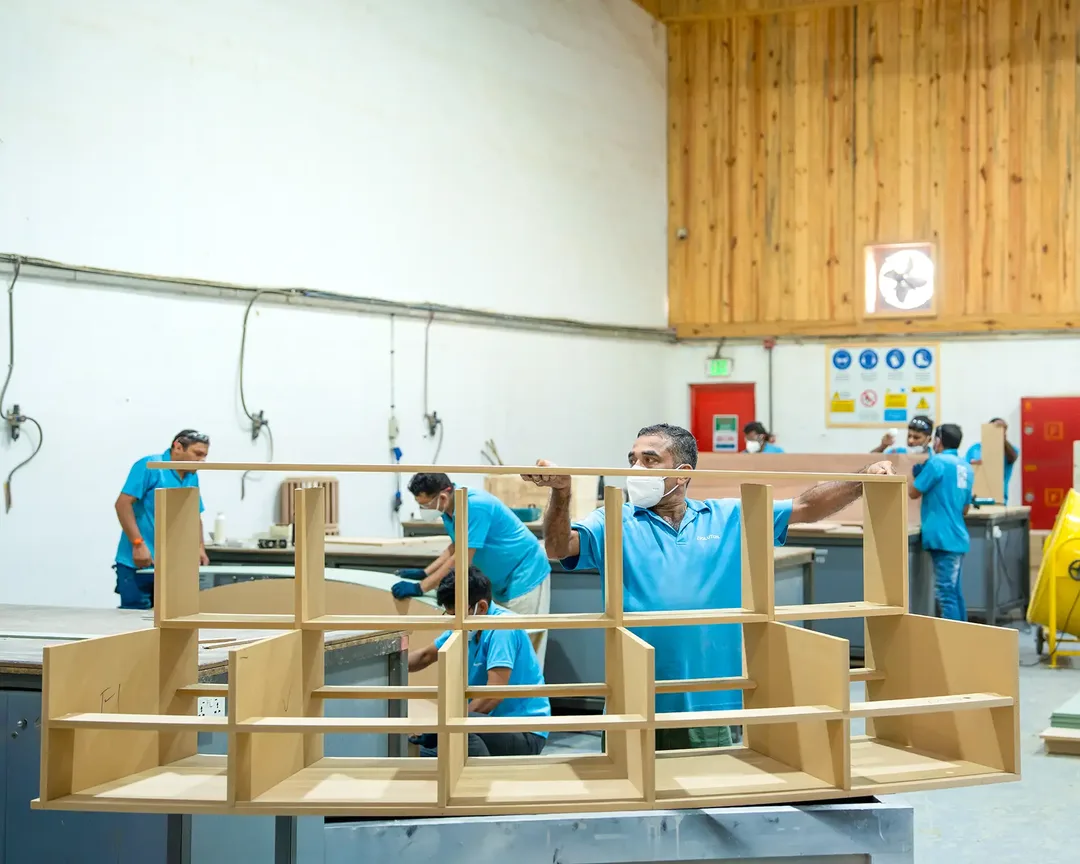

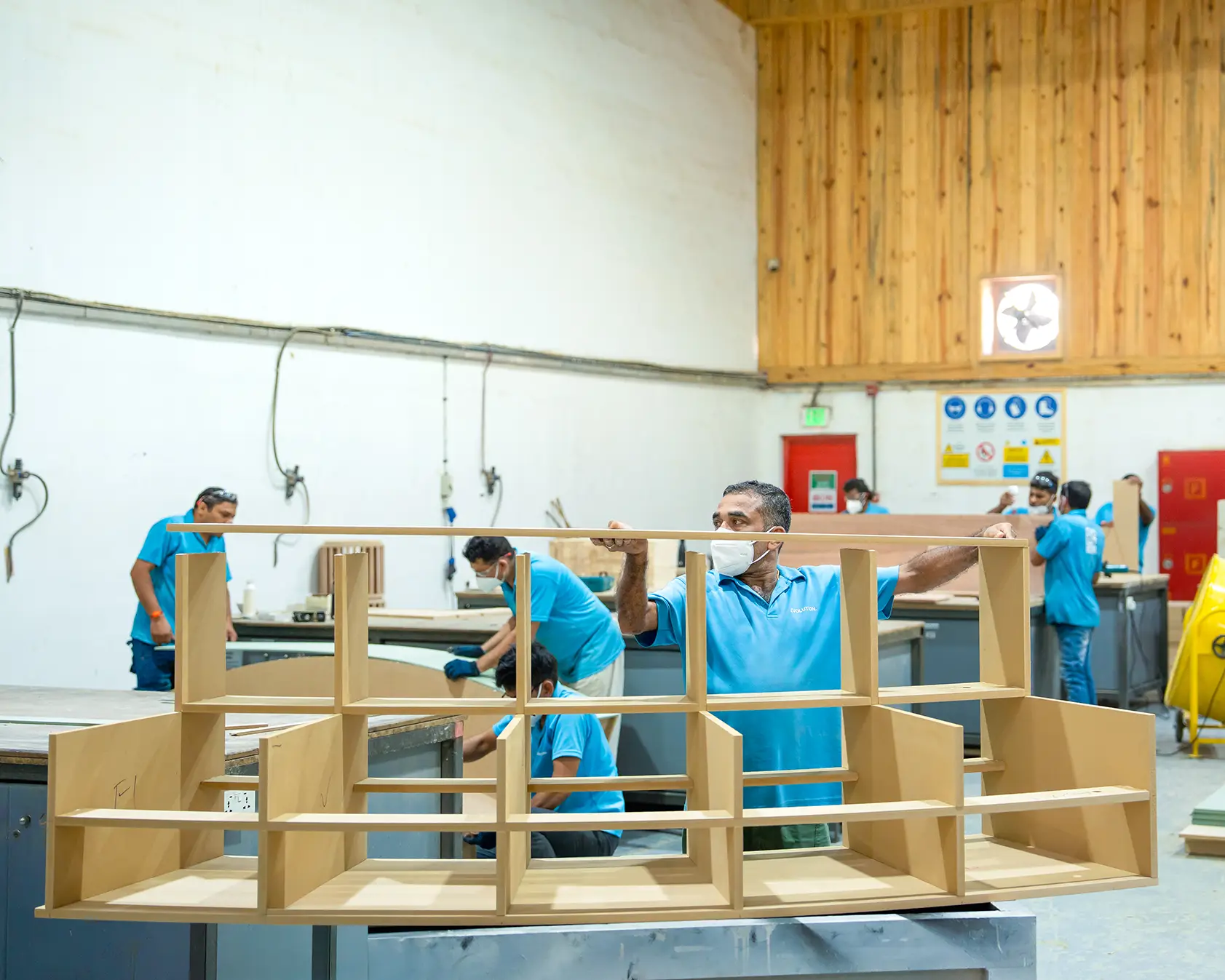

    Evolution Scenic CNC router manufacturing oversized scenic components inside the workshop.

    Large-scale digital manufacturing connects CNC machining, scenic engineering and skilled workshop fabrication within one coordinated production process.

    Large Scale Digital Manufacturing Explained


    As scenic structures become larger and more complex, traditional fabrication methods alone can struggle to deliver the accuracy, consistency and production speed required. Large-scale digital manufacturing has therefore become an increasingly important part of modern scenic production, particularly for projects involving complex geometry, repeated components or oversized structures.


    Digital manufacturing connects design technology directly with workshop production. CNC routers, foam cutting systems and automated machining processes allow fabrication teams to convert digital models into accurately manufactured physical components.


    The value of this process is not simply that a machine can cut material quickly. Its real strength lies in the way design information, engineering requirements, manufacturing tolerances and assembly logic can be coordinated before material reaches the workshop floor.


    For Evolution Scenic, digital manufacturing is part of a wider fabrication methodology. It supports scenic carpentry, structural fabrication, sculptural production, finishing and installation rather than replacing them.

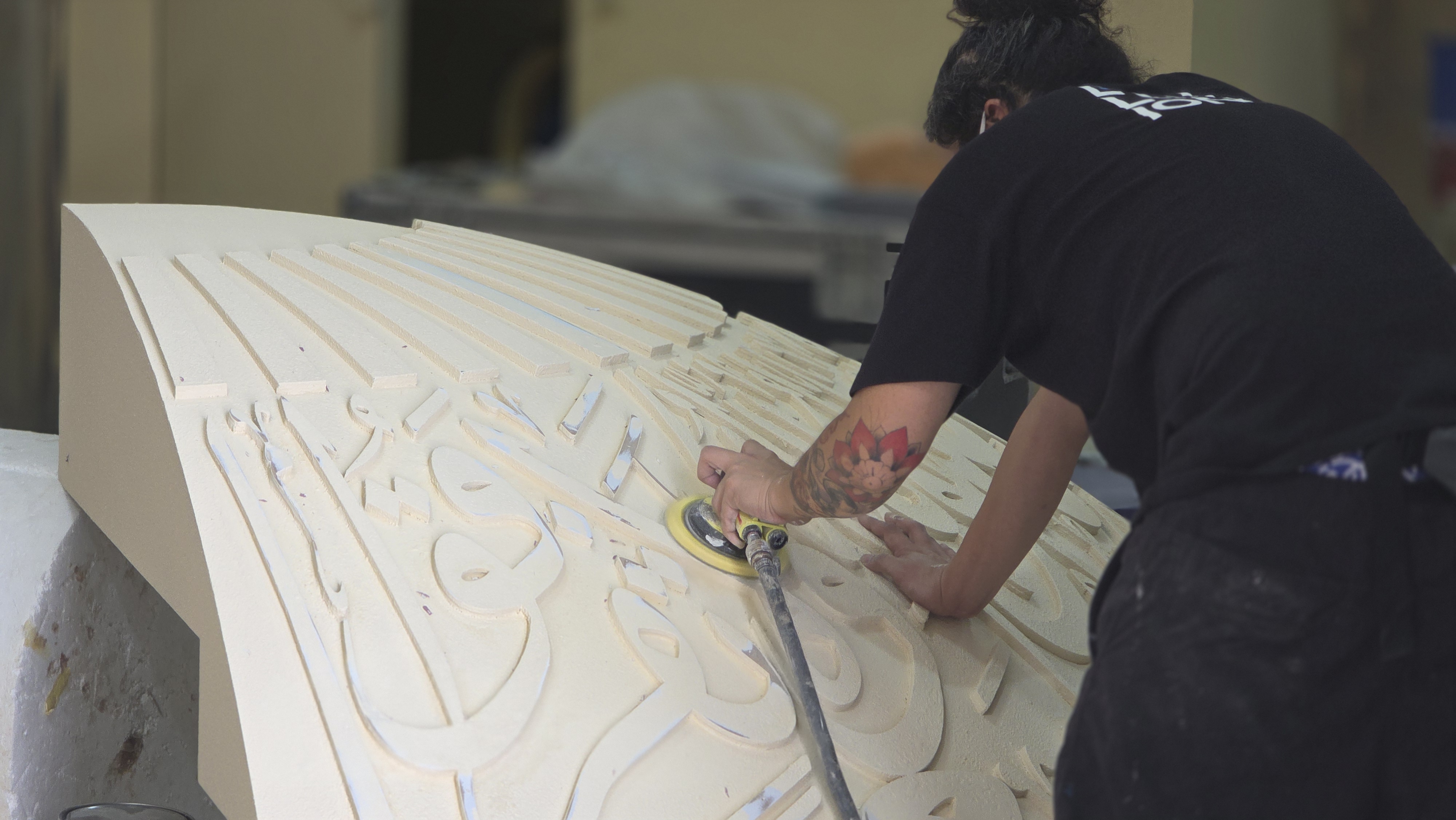

    Coordinated production drawings showing scenic engineering details and CNC cutting paths.

    Engineering, tolerances and assembly logic are resolved before the first sheet of material is machined.

    From Digital Model to Manufactured Component


    The manufacturing process begins with a properly developed digital model.


    A visually accurate model is not automatically ready for production. Geometry must first be reviewed against available materials, machine capabilities, tooling restrictions, structural requirements and the intended assembly sequence.


    Individual parts are extracted from the model and prepared as manufacturing files. During this stage, the fabrication team considers cutter diameter, machining depth, material thickness, grain direction, edge conditions and the amount of material required around fixings or connection points.

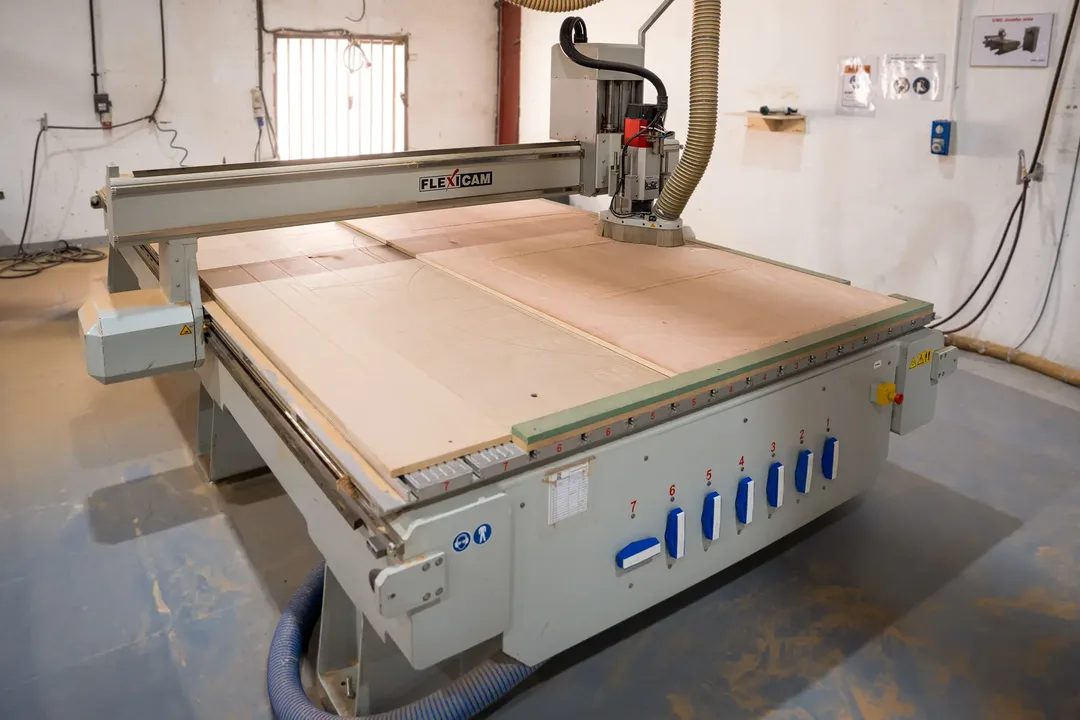

    Components can then be nested efficiently across standard sheet sizes. Good nesting reduces waste, improves material utilisation and helps organise production into manageable batches.


    This preparation stage is critical. A CNC machine will manufacture the information it receives with considerable consistency, but it cannot determine whether the design is structurally practical, easy to assemble or appropriate for the selected material. Those decisions still depend on experienced engineers, technical designers and fabricators.

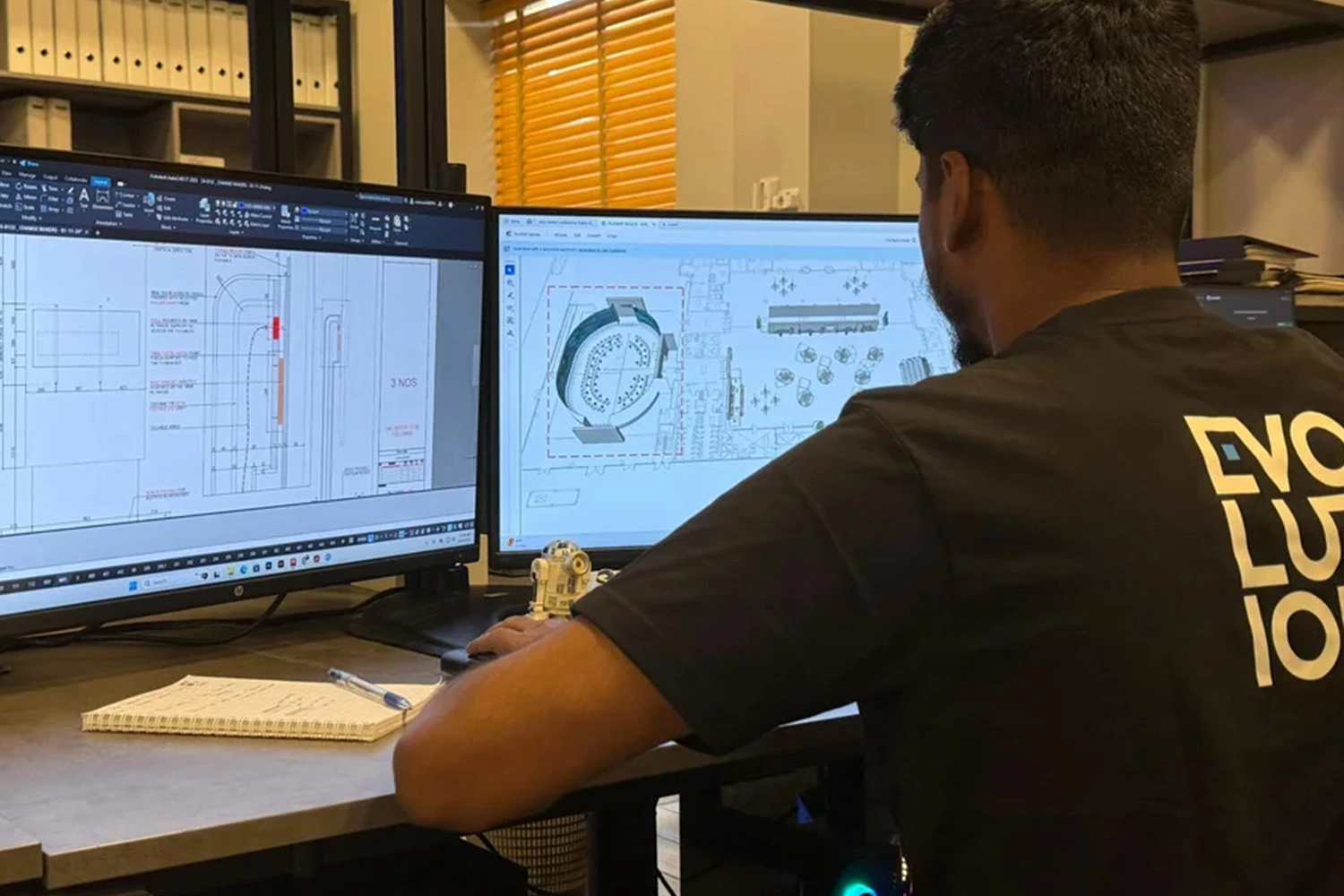

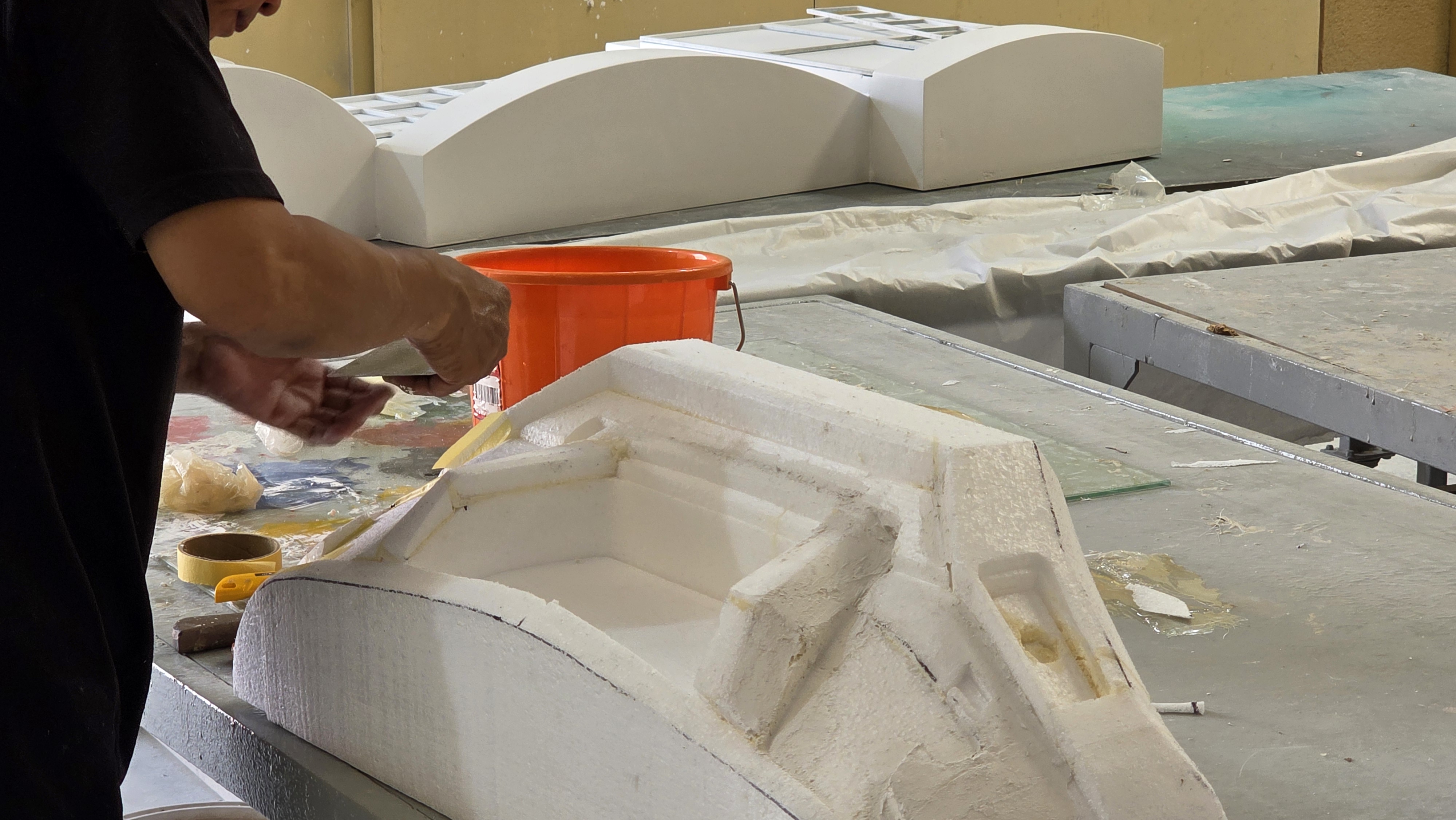

    Technical designer developing complex scenic geometry for digital manufacturing.

    Every digitally manufactured component begins with a properly developed and coordinated production model.

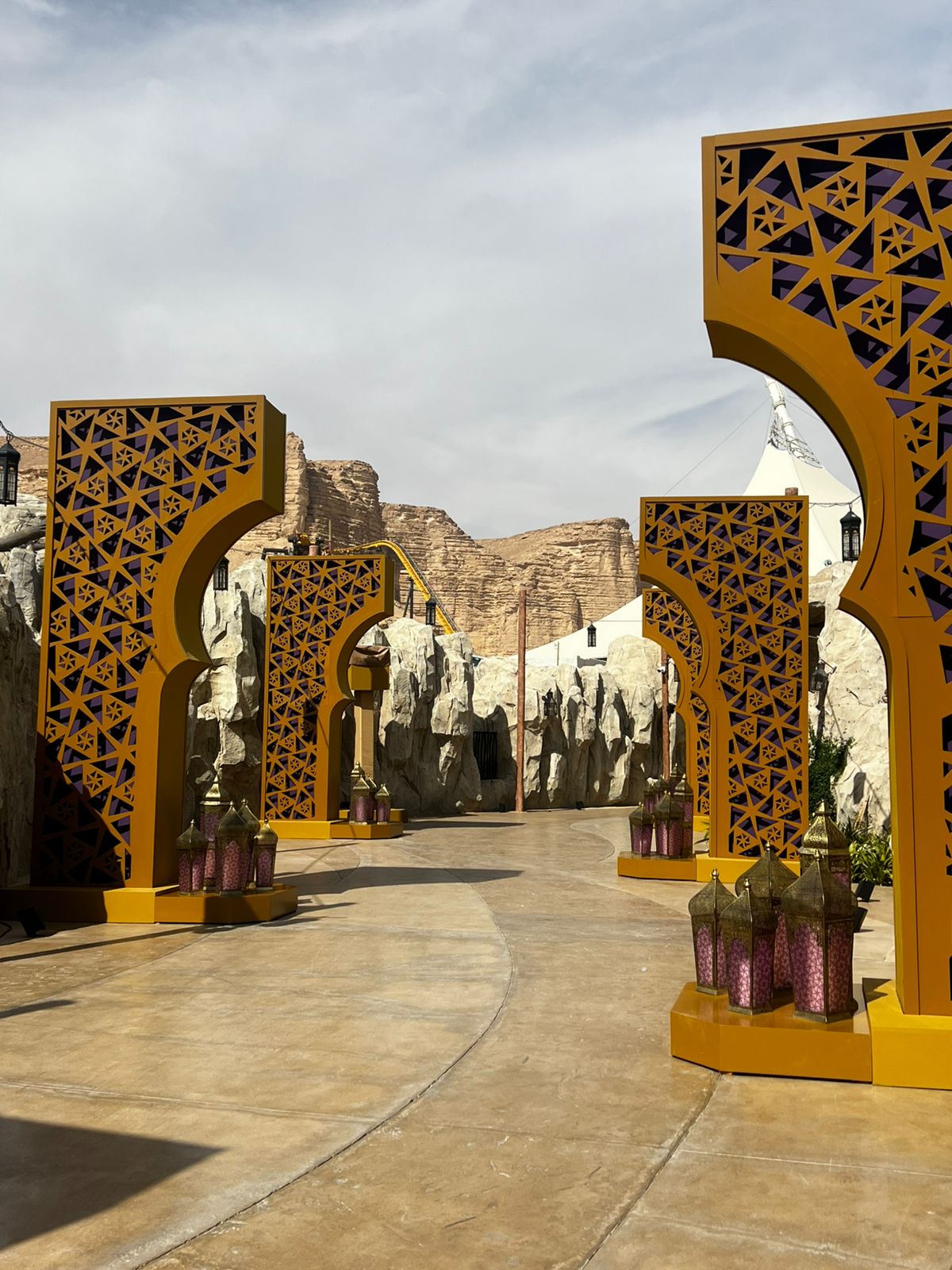

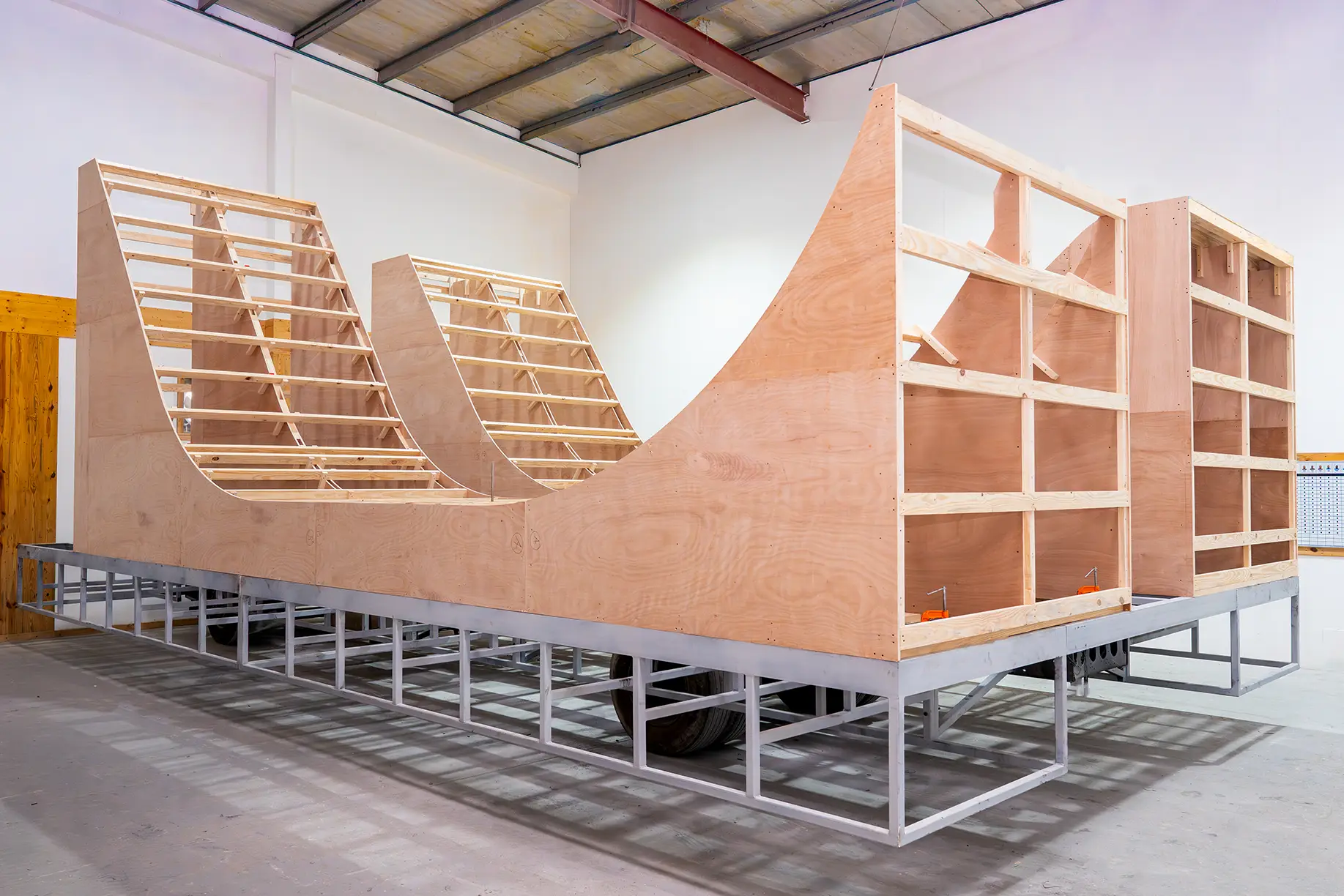

    CNC Routers as Scenic Production Tools

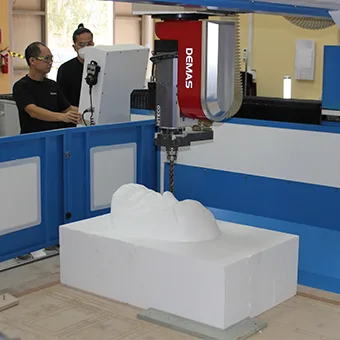

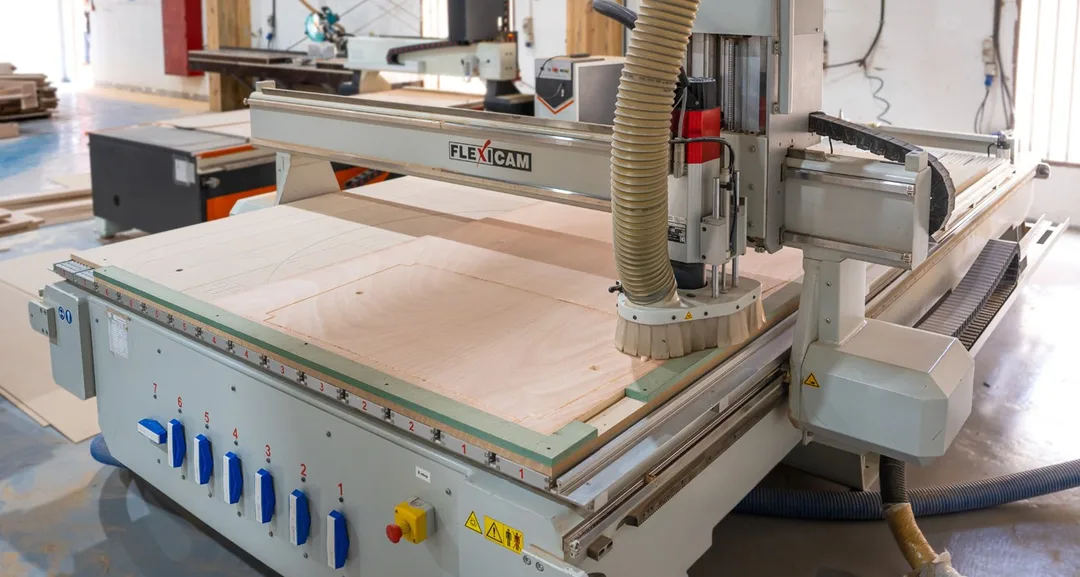

    Large-format CNC routers are among the most versatile digital manufacturing tools used in scenic fabrication.


    They can produce profiles, openings, rebates, pockets, grooves, engraved markings and interlocking joints across materials such as plywood, MDF, plastics, composite sheets and selected non-ferrous materials when suitable tooling and machining strategies are used.


    For exhibition pavilions and large branded installations, CNC-routed parts are often used to create structural ribs, wall profiles, curved frameworks, display components and decorative layers.


    Complex curved forms can be divided into a series of accurately cut sections. These sections may then be assembled into a lightweight framework before being clad, filled or finished. What appears as a continuous sculptural surface can therefore be built from an organised system of numbered, repeatable components.


    CNC production is particularly useful where parts must connect accurately. Slots, tabs, locating points and fixing holes can be incorporated directly into the manufacturing files, reducing the amount of manual setting-out required in the workshop.


    However, accurate machining depends on more than the digital file. Tool condition, machine calibration, vacuum hold-down, extraction, feed speed and material stability all affect the final result. Large-scale CNC production therefore requires both technical preparation and disciplined workshop control.

    Image description

    Foam Cutting and Sculptural Manufacturing


    Foam cutting systems extend digital manufacturing into more organic and sculptural forms.

    Hot-wire cutting can produce large profiles efficiently from suitable foam blocks, while CNC milling systems can machine more complex three-dimensional geometry. Depending on the project, the manufactured foam may form the finished scenic volume or act as a base for coatings, reinforcement, fibreglass, hard shells or specialist painted finishes.


    This process is valuable for sculptural environments, public structures, parade elements and branded installations where conventional sheet construction would require excessive labour or create unnecessary weight.


    Large forms can also be divided digitally into sections that suit available foam blocks, machine capacity, transport dimensions and installation access. Registration points and internal references help those sections reconnect accurately during assembly.


    Material selection remains important. Foam density, surface vulnerability, fire performance, environmental exposure and the intended finishing system must all be assessed. A lightweight sculptural form used inside an exhibition environment requires a different construction approach from an external public feature exposed to handling, wind, moisture or repeated transport.

    Digital cutting provides the geometry, but the durability and visual quality of the completed element depend on the build-up that follows.

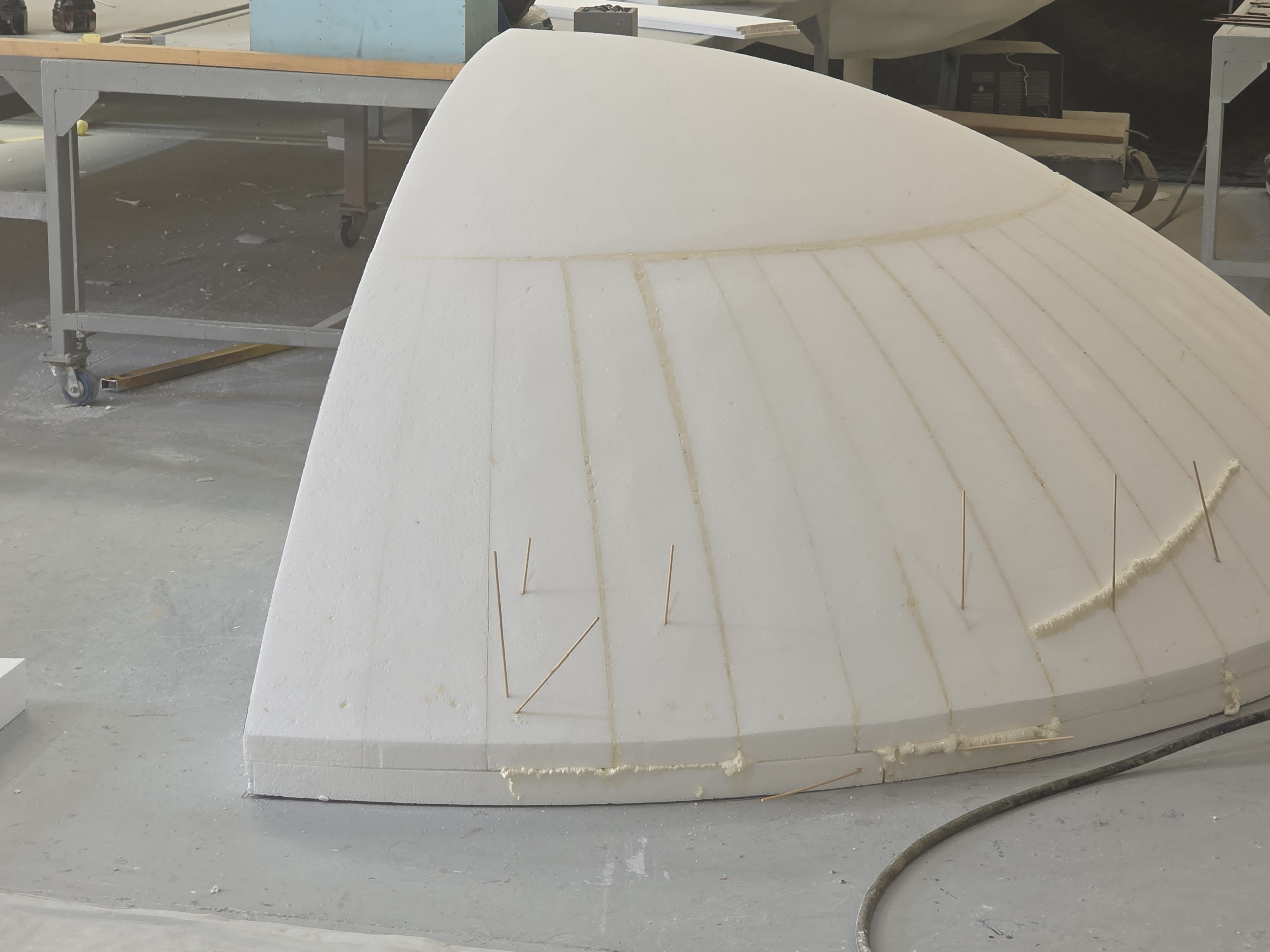

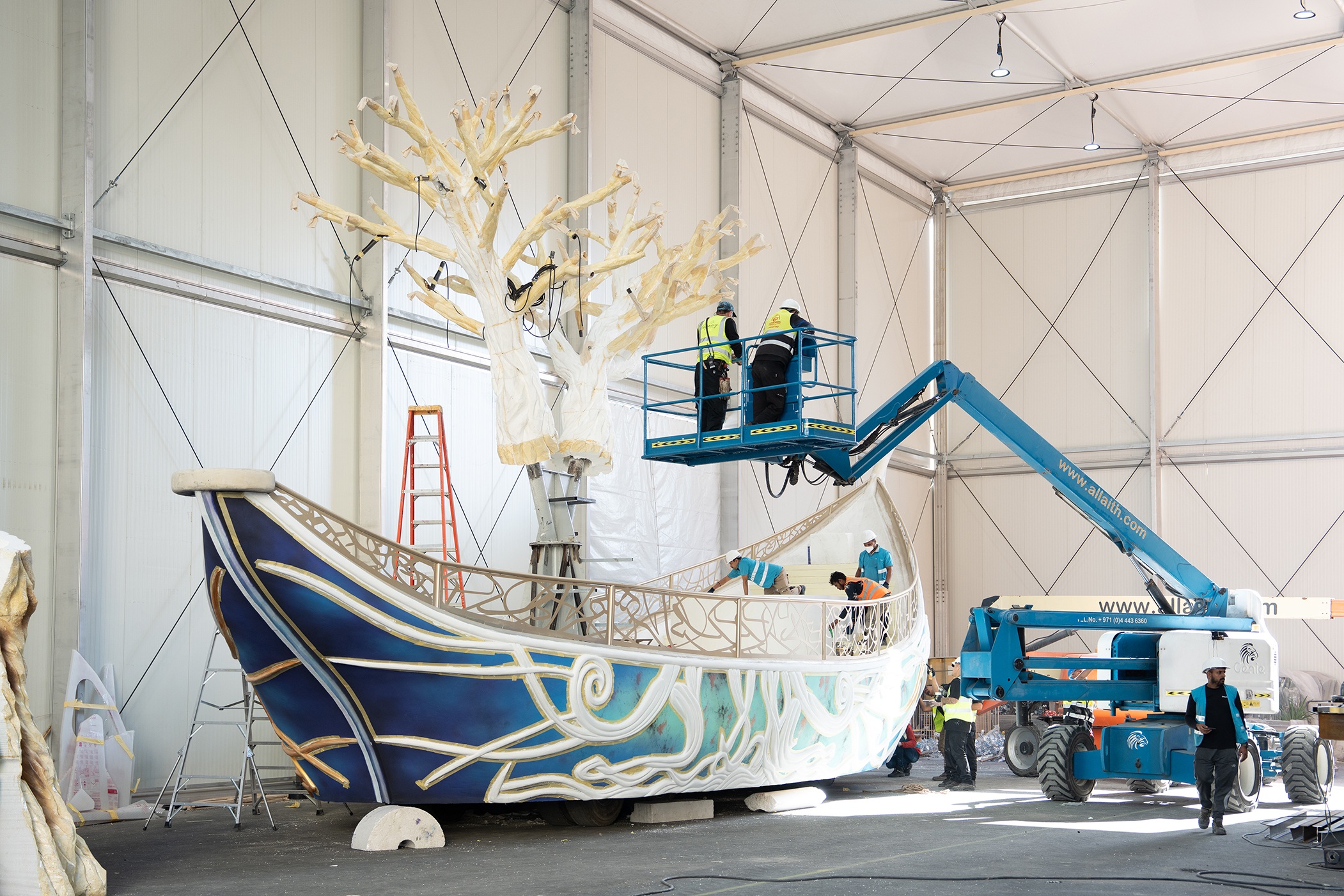

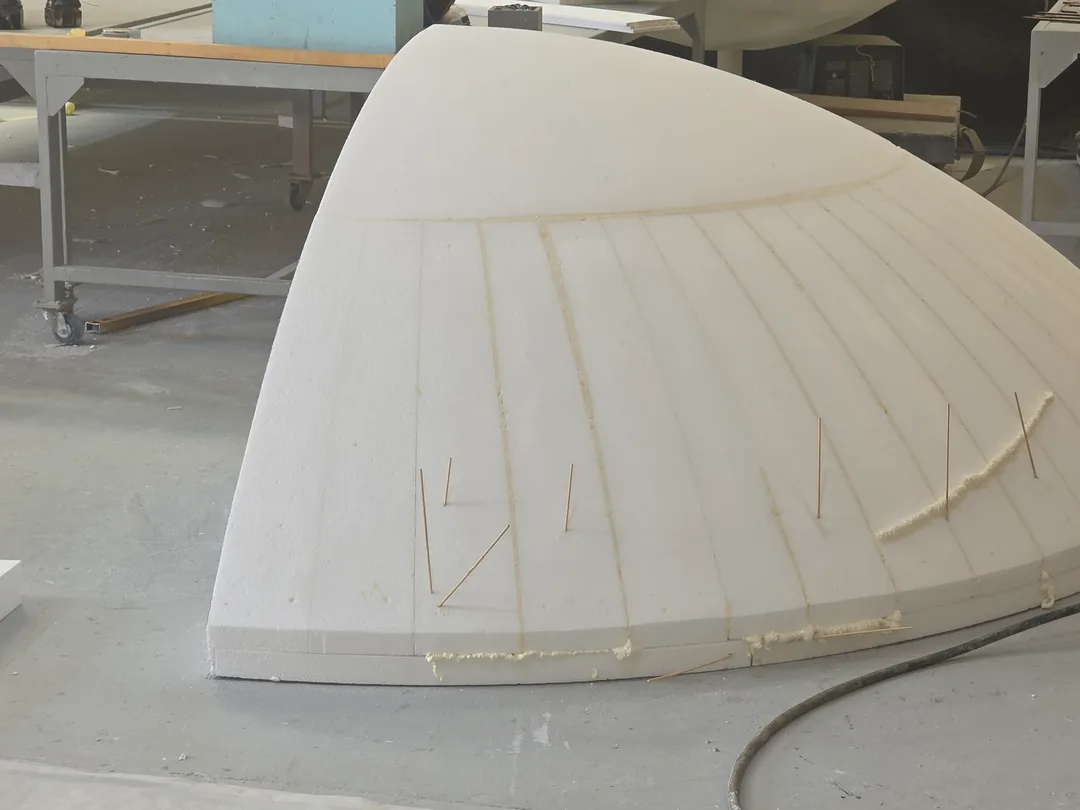

    Large foam cutting system producing an oversized scenic sculpture.

    Digital foam production makes large organic and sculptural scenic forms practical to manufacture.

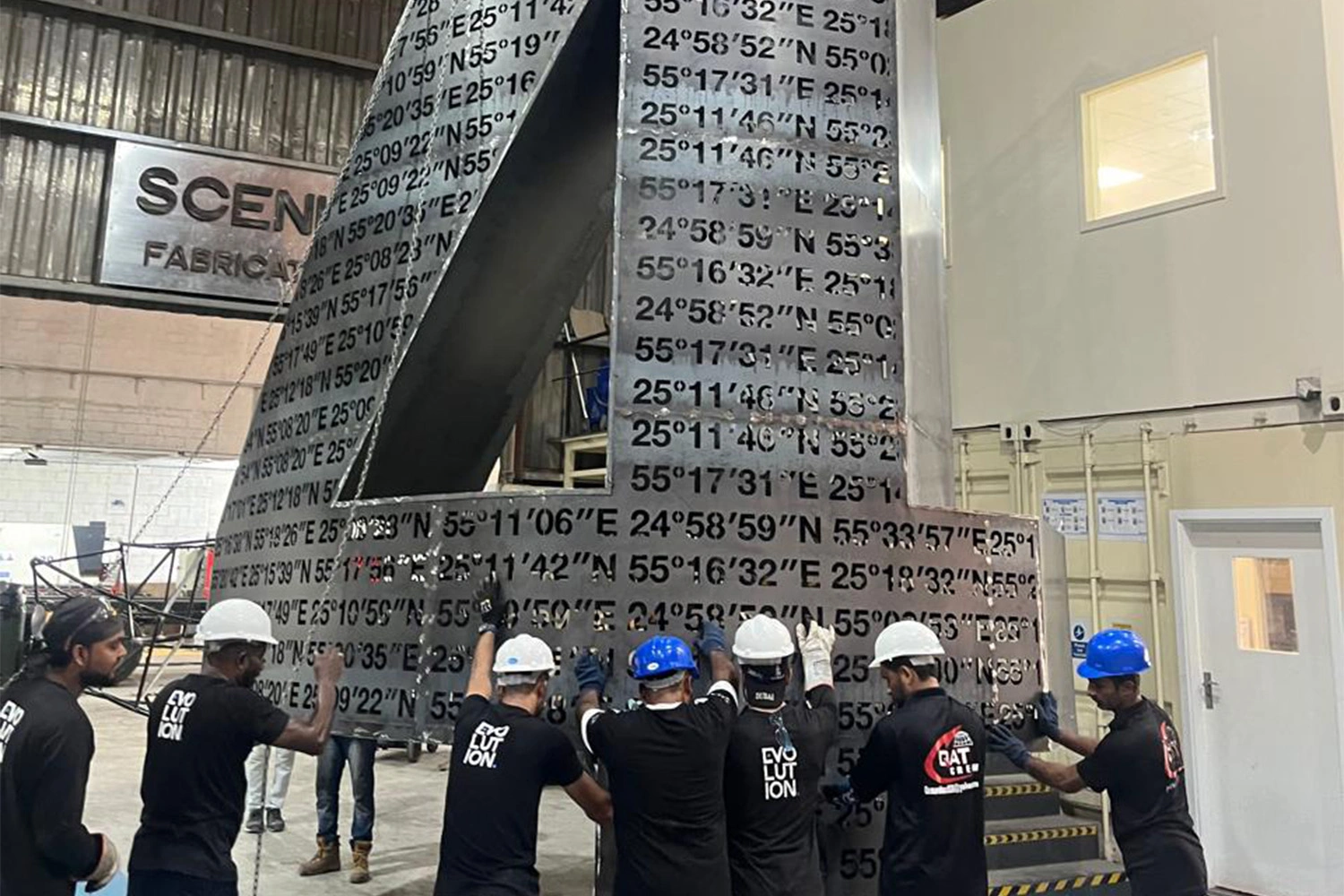

    Accuracy and Repeatability


    One of the most important advantages of digital manufacturing is repeatability.

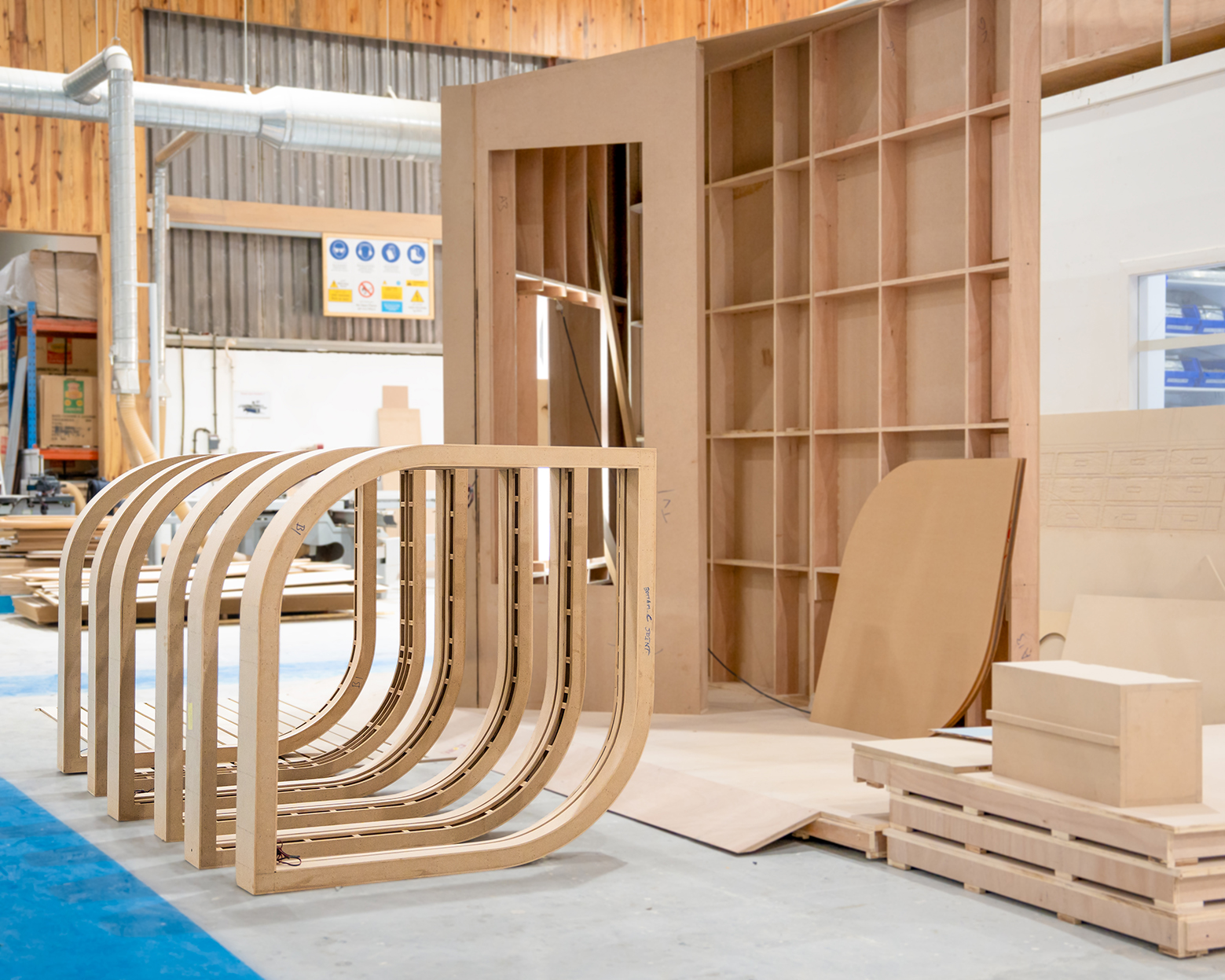

    A single component can be tested, adjusted and approved before the same production data is used across an entire batch. This is especially valuable where hundreds of similar fins, panels, ribs or decorative elements must align across a large installation.


    Repeatability does not mean that every material behaves identically. Timber-based sheets can vary slightly in thickness, foam blocks may have dimensional differences, and some materials can move as temperature or humidity changes. Manufacturing tolerances must therefore reflect the behaviour of the material rather than relying on theoretical dimensions alone.


    Where components interface with fabricated steelwork, aluminium frames, graphics, lighting or mechanical equipment, the tolerance strategy becomes even more important. Parts may require controlled clearances, adjustable brackets or deliberately oversized fixing points to accommodate workshop and site conditions.


    Quality control continues throughout production. Components are checked against drawings, templates or reference dimensions, while sample assemblies can confirm that repeated parts fit together as intended.


    The objective is not simply to produce identical pieces. It is to produce parts that perform consistently within the completed scenic system.

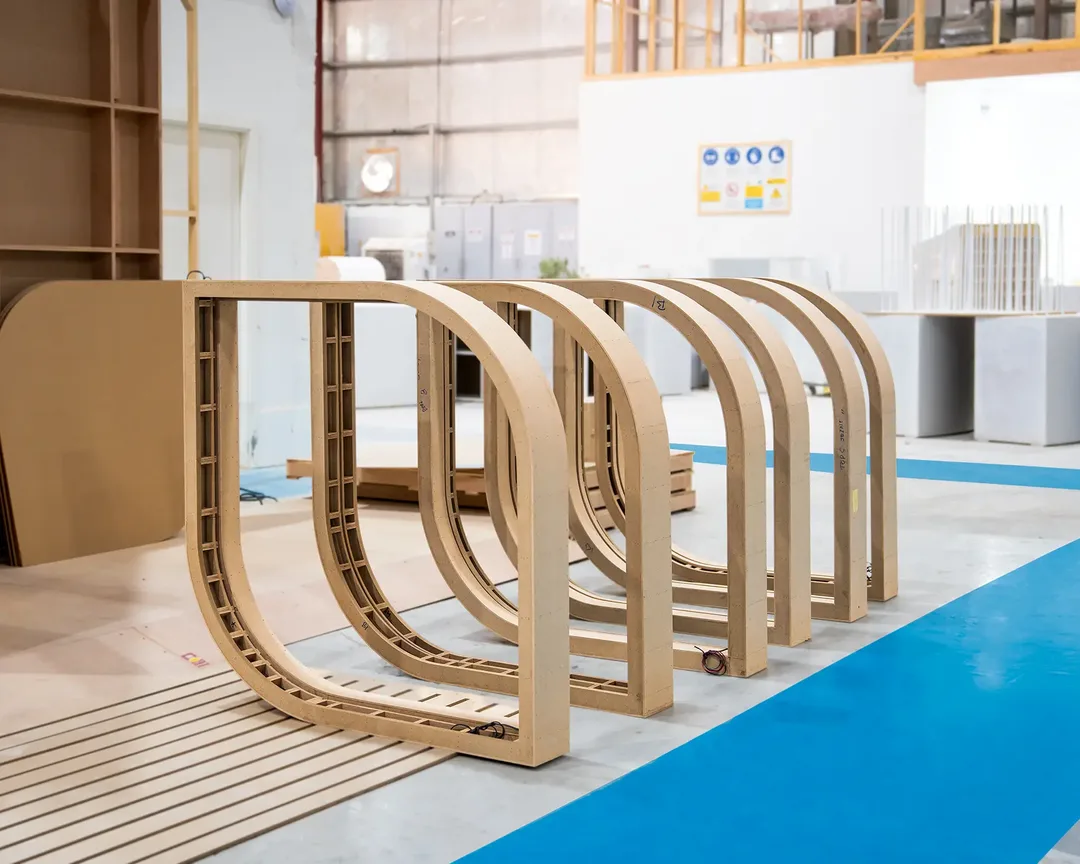

    Evolution Scenic prototype approved before repeated CNC component production.

    Testing one component before full production reduces risk across the complete manufacturing batch.

    Engineering Integration


    Digital manufacturing is most effective when engineering information is incorporated before production begins.


    Load paths, connection zones, fixing positions and structural interfaces can influence the shape of a manufactured component. A plywood rib may require additional depth around a bolted connection. A routed panel may need access openings for steel brackets. A sculptural shell may require internal channels for reinforcement, lighting or lifting points.


    By coordinating these details within the digital model, fabrication teams can reduce drilling, cutting and modification after components have been manufactured.


    This is particularly important on large scenic structures where small inconsistencies can multiply across the installation. A minor dimensional error repeated through fifty components can affect alignment, cladding, graphics and final assembly.


    Engineering integration also improves communication between departments. Scenic carpenters, metal fabricators, CNC operators, technical designers and installation teams can work from coordinated information rather than developing separate solutions in isolation.


    At Evolution Scenic, the digital workflow is therefore connected to the overall build methodology. Production files are developed with consideration for how components will be fabricated, dry-fitted, finished, labelled, packed, transported and installed.

    Scenic fabrication departments coordinating around a digitally manufactured assembly.

    Shared production information helps different workshop disciplines develop one coordinated solution.

    Large-Volume Production


    Digital manufacturing allows large volumes of components to be produced efficiently, but machine speed is only one part of the operation.


    Once parts leave the cutting bed, they must be identified, inspected, sorted and transferred to the next workshop process. Edges may require preparation, components may need lamination or reinforcement, and individual parts may be assembled into larger modules.

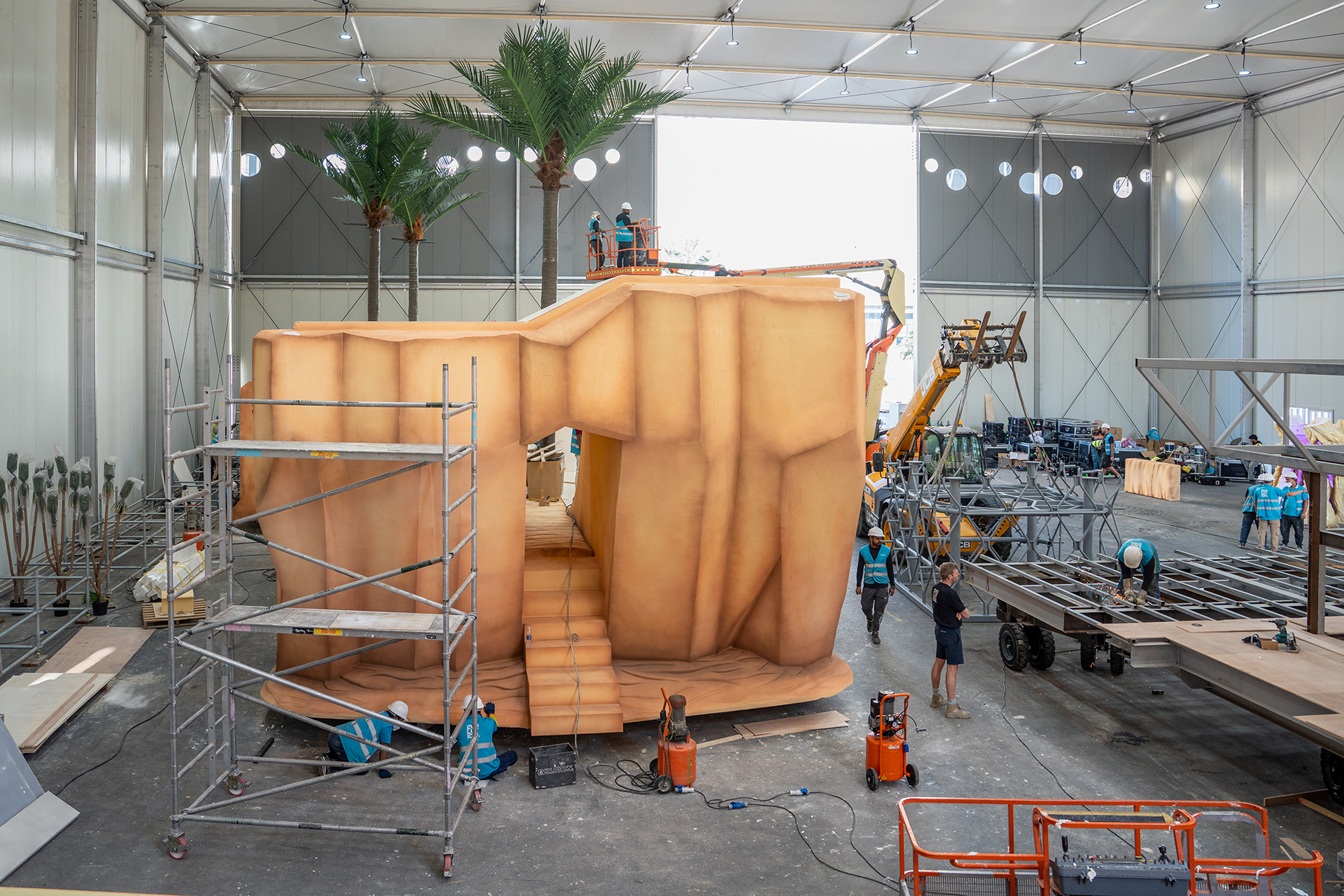

    A high-volume project can quickly become difficult to manage if hundreds of similar components are not labelled and sequenced properly. Part numbering, batch references and installation zones can be machined or marked directly onto concealed surfaces, helping the workshop and site teams identify where each component belongs.


    Production planning must also consider storage space, material handling and the sequence in which completed parts will be needed. Manufacturing everything at once may create congestion rather than efficiency. In many cases, controlled batches aligned with assembly and finishing capacity provide a better result.


    Digital scalability therefore depends on the entire production system. Cutting, assembly, finishing, quality control, packing and logistics must progress at compatible rates.

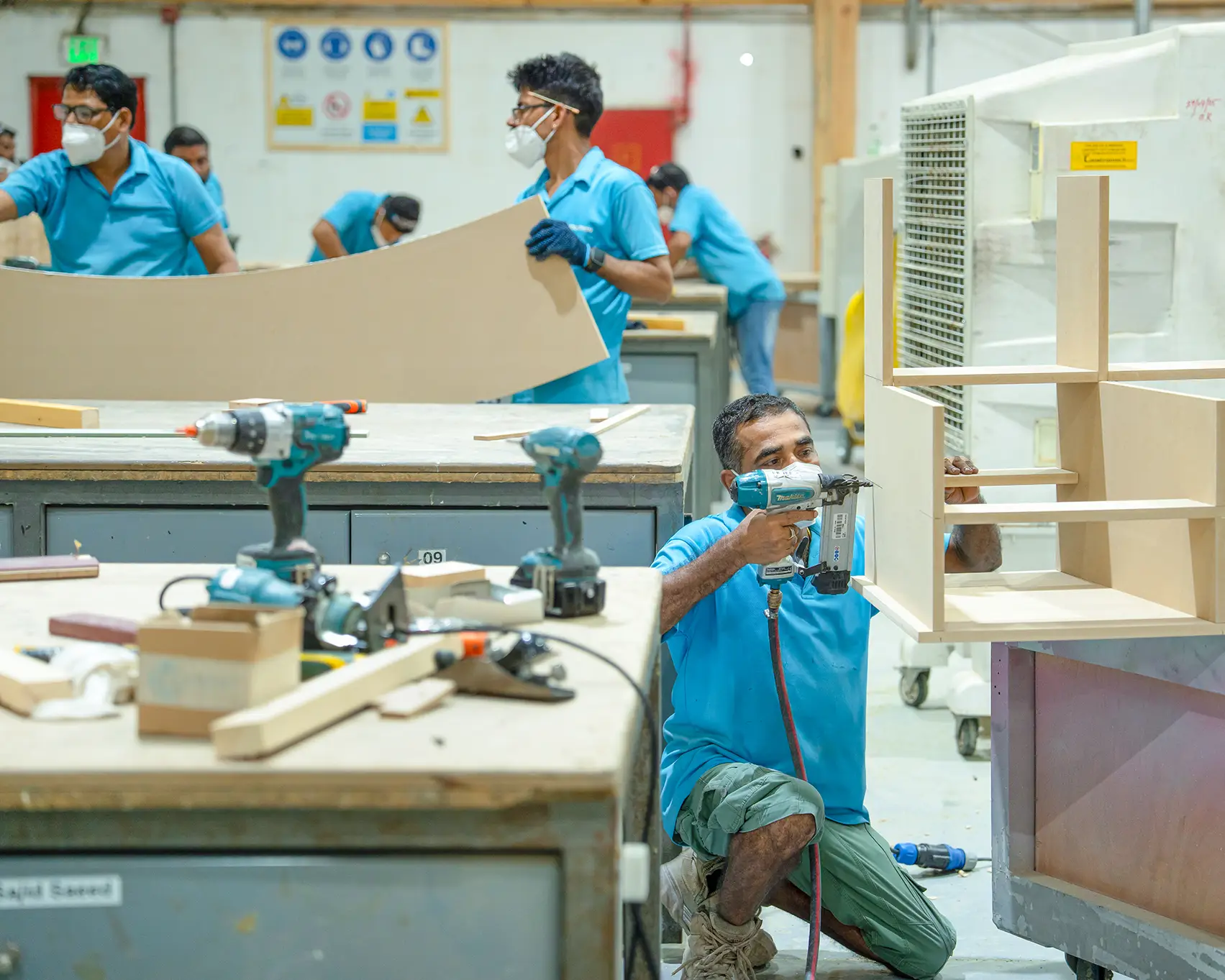

    Evolution Scenic workshop coordinating machining, assembly, finishing and packing.

    True scalability relies on every production department operating as one connected system.

    Scaling Different Types of Scenic Project


    The same digital manufacturing principles can support very different scenic applications.

    For an exhibition pavilion, CNC production may create a kit of structural ribs, wall sections, counters and architectural features that can be assembled quickly within a restricted installation period.


    For a large public structure, digitally manufactured templates and profiles can help control complex geometry while fabricated steelwork provides the primary support.


    Within a branded installation, repeated elements may need to align precisely with graphics, lighting and product displays across multiple elevations.


    For sculptural environments, foam cutting and CNC machining can establish the underlying form before scenic artists apply texture, colour and specialist finishes.


    In each case, the technology remains similar, but the manufacturing strategy changes according to scale, structural performance, finish quality, programme, transport limitations and site access.

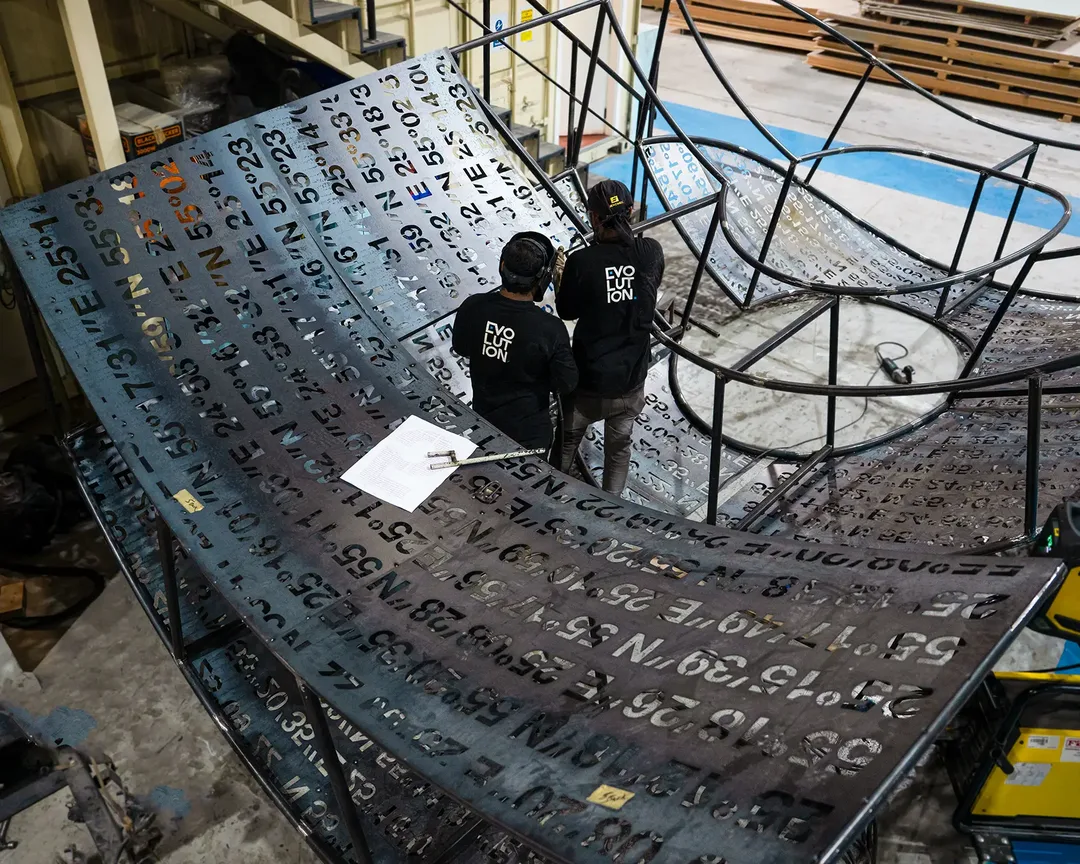

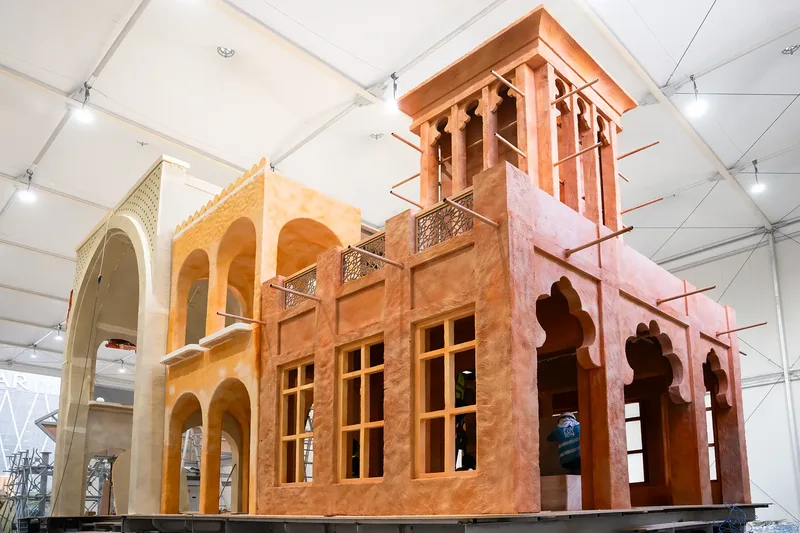

    Digitally manufactured components prepared for several scenic project types.

    The same digital tools can support many project types through different fabrication strategies.

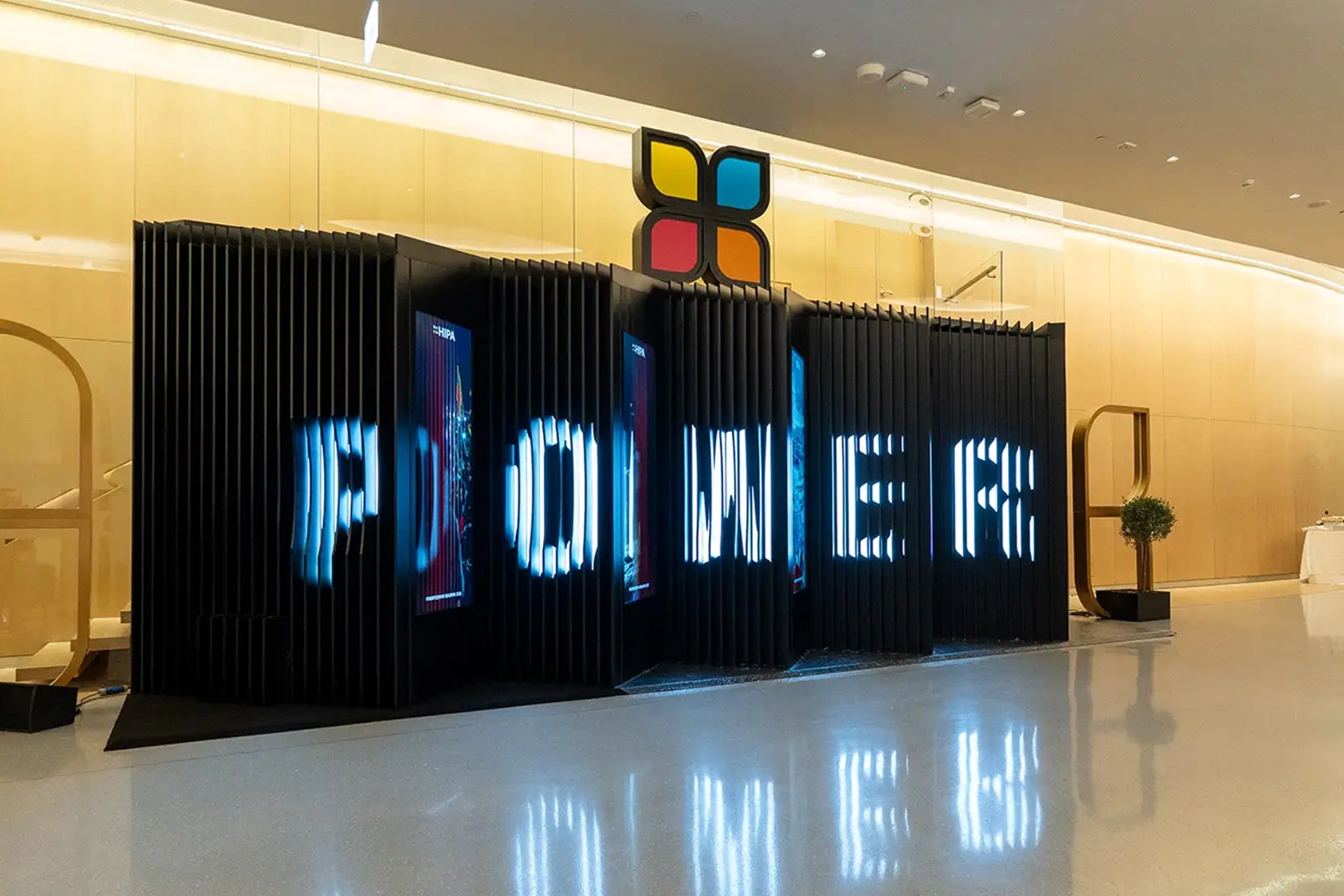

    Technology Supported by Workshop Skill


    Digital manufacturing should not be viewed as a replacement for traditional workshop expertise.

    A CNC router can manufacture a complicated profile accurately, but it cannot judge whether the component is easy to handle, whether a joint will remain accessible during installation or whether the chosen finish will conceal the construction method.

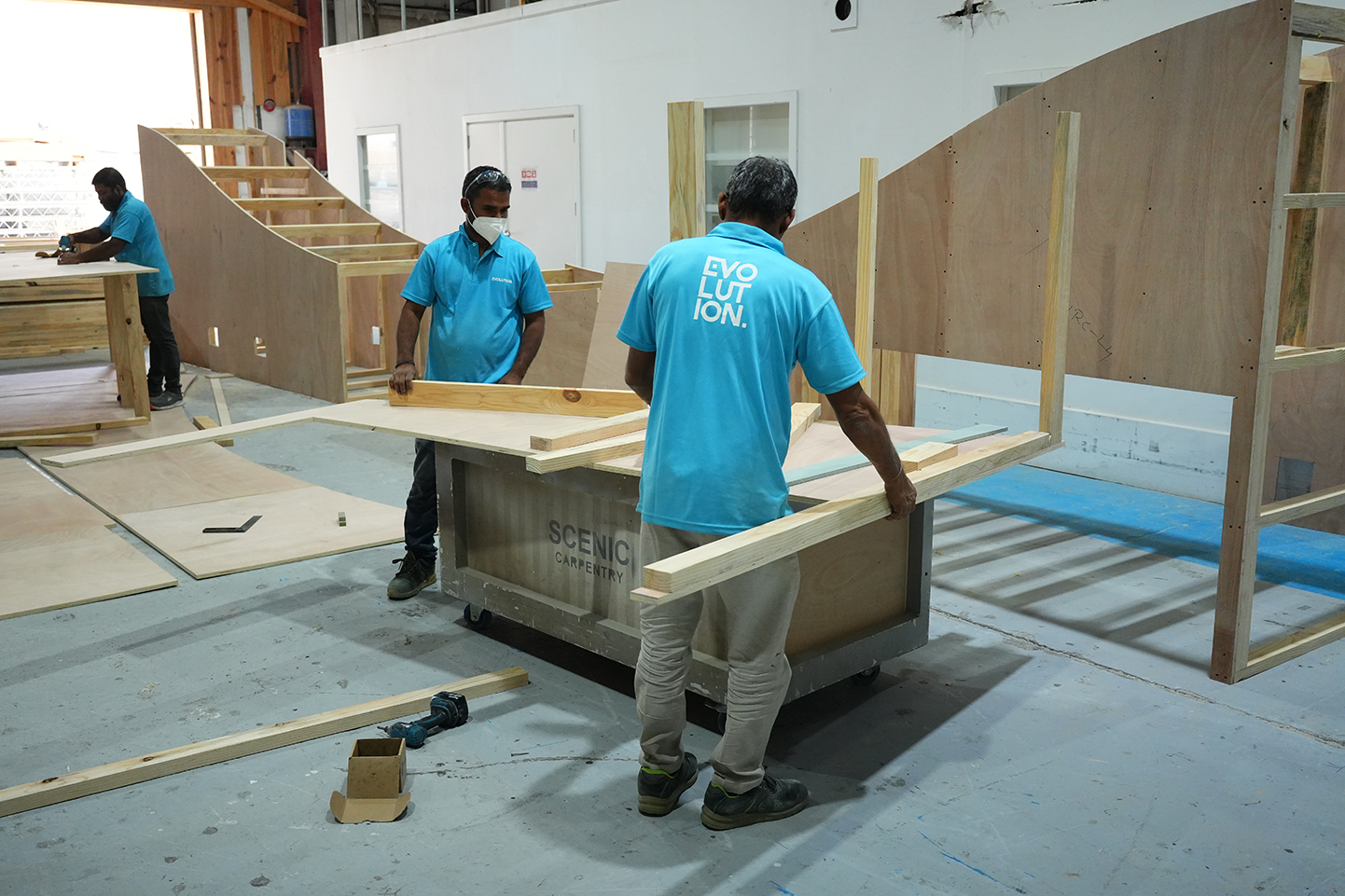

    Those decisions rely on the practical knowledge of scenic carpenters, metal fabricators, sculptors, painters, engineers and installation teams.


    The strongest outcomes come from combining both approaches. Digital tools provide accuracy, repeatability and production capacity. Skilled fabricators provide judgement, adaptation and an understanding of how materials behave in real conditions.


    This combination allows ambitious scenic structures to be produced at a scale that would otherwise be difficult, slow or impractical to achieve.


    Large-scale digital manufacturing is therefore not simply about automated cutting. It is a coordinated process that connects design, engineering, workshop production and installation.

    When those disciplines are developed together, digital manufacturing becomes a powerful tool for delivering complex scenic environments accurately, efficiently and at scale.

  • Building Permanent Brand Environments

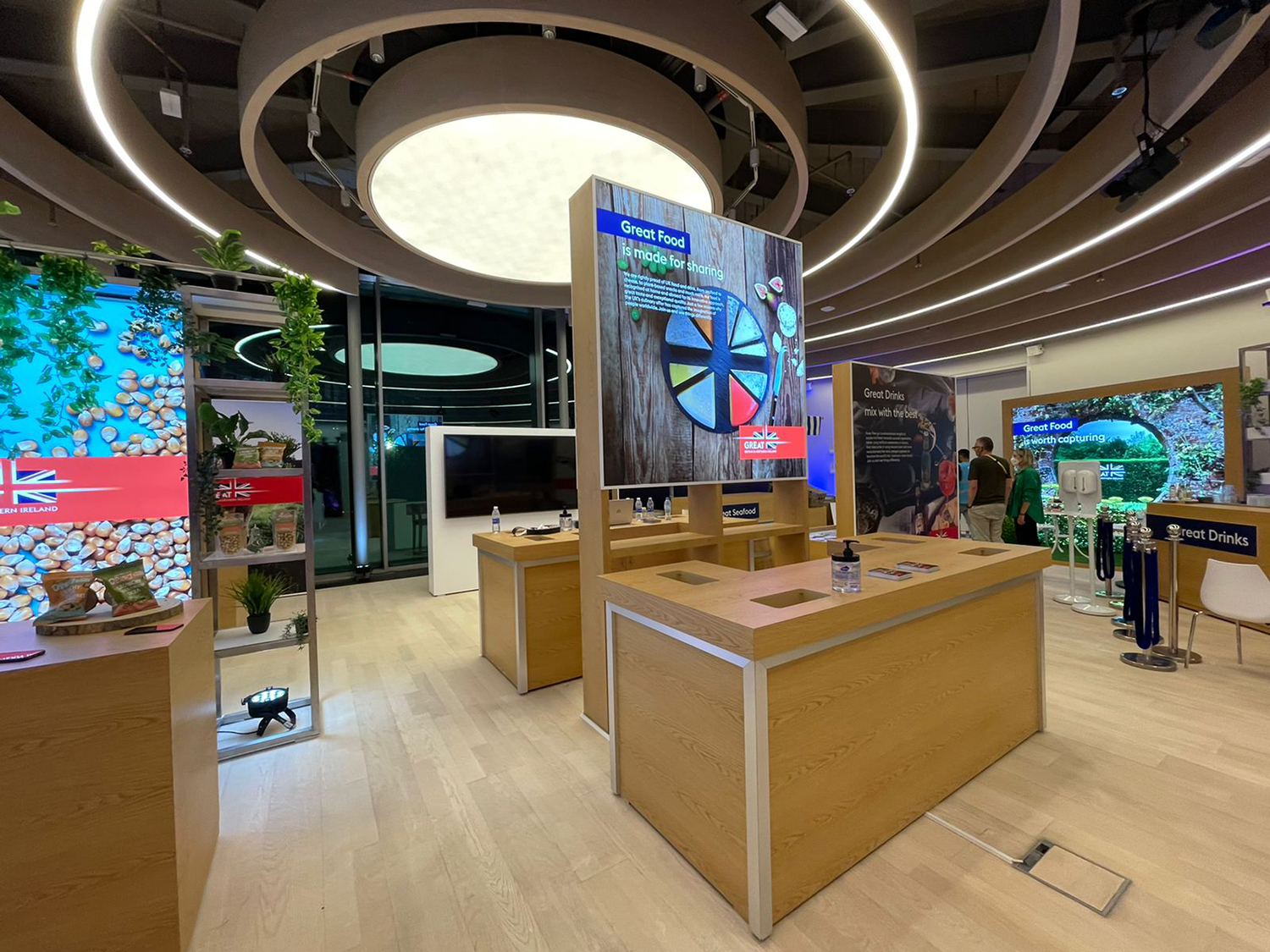

    Evolution Scenic permanent experience centre with bespoke joinery, illuminated displays and integrated technology.

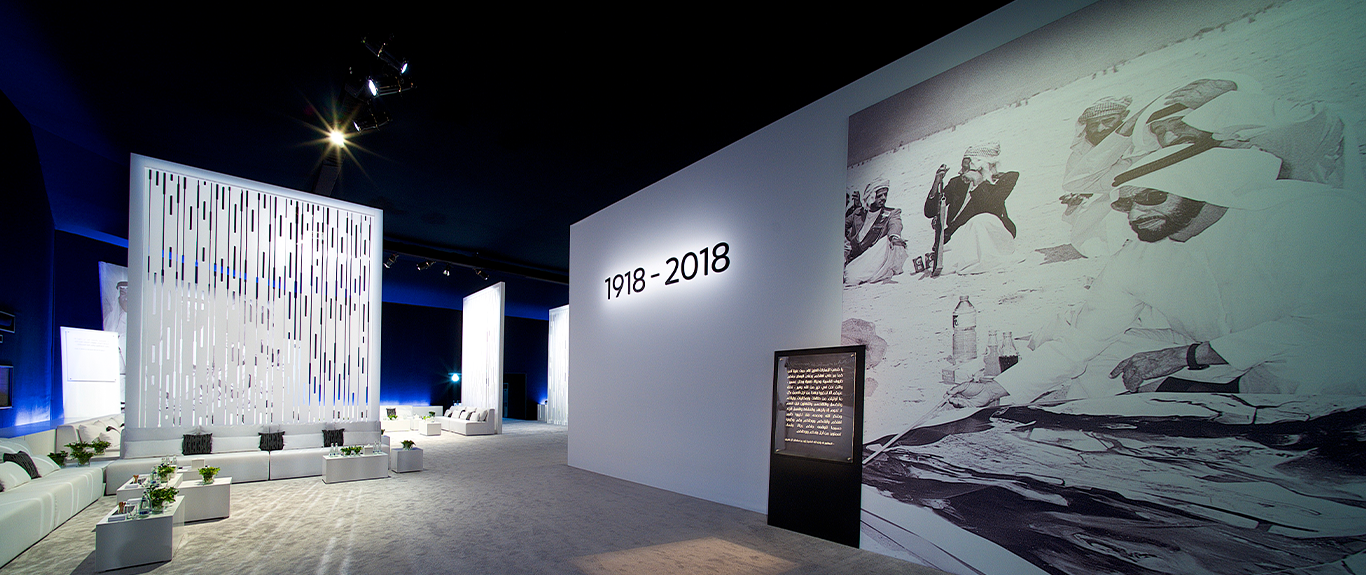

    A permanent brand environment combining scenic fabrication, architectural detailing and serviceable technology within one coordinated installation.

    Building Permanent Brand Environments


    Permanent brand environments often bring scenic fabrication, specialist finishes, architectural detailing and integrated technology together within one coordinated installation. Experience centres, brand homes and product showcase environments may share some construction techniques with temporary scenic projects, but the operational requirements are very different.

    A temporary activation may only need to perform for several days or months. A permanent environment is expected to operate continuously, retain its appearance and accommodate maintenance, repairs and technical upgrades over several years.


    From a fabrication perspective, permanence changes everything.

    Permanent brand environment combining scenic fabrication, bespoke joinery and integrated digital technology.

    Permanent environments require scenic fabrication, specialist finishes and technology to function as one coordinated system.

    Permanence Changes the Build Brief


    A permanent brand environment should not be treated as a temporary scenic installation made from heavier materials. Its entire build methodology needs to reflect how the environment will be used, cleaned, maintained and updated throughout its lifespan.


    The visible surfaces may include decorative wall systems, illuminated features, bespoke joinery, product displays, sculptural structures and integrated screens. Behind those surfaces, however, sits a more complex arrangement of structural framing, cable routes, ventilation systems, access zones and connection details.


    These hidden elements often determine whether the finished environment remains practical after handover.


    At Evolution Scenic, the fabrication process therefore begins by considering more than the final appearance. The team must understand anticipated operating hours, expected visitor contact, cleaning procedures, maintenance responsibilities and the likely service life of integrated equipment. These factors influence material selection, structural detailing and the way individual components are manufactured.

    Cutaway permanent scenic wall showing framing, cable routes and integrated display infrastructure.

    Behind every finished surface sits a coordinated system of structure, services and technical equipment.

    Experience Centres, Brand Homes and Product Showcases


    Permanent brand environments take many forms. An experience centre may contain large architectural features, interactive displays, demonstration areas and concealed technical systems. A brand home may combine exhibition-style fabrication with high-quality interior detailing. A product showcase environment may require illuminated display recesses, precision plinths, secure cases and adaptable graphics.


    Although these environments have different functions, they share a common fabrication challenge: the scenic work must operate as part of a permanent setting without becoming difficult to maintain.


    Display structures need to remain dimensionally stable. Doors and access panels must continue to align correctly. Illuminated features must allow failed components to be replaced. Product plinths should resist repeated contact, while removable graphics and display inserts should be changeable without damaging the surrounding finish.


    This requires careful coordination between scenic carpentry, metal fabrication, CNC machining, graphics, lighting and technical integration. Each discipline affects the others, so decisions cannot be made in isolation.

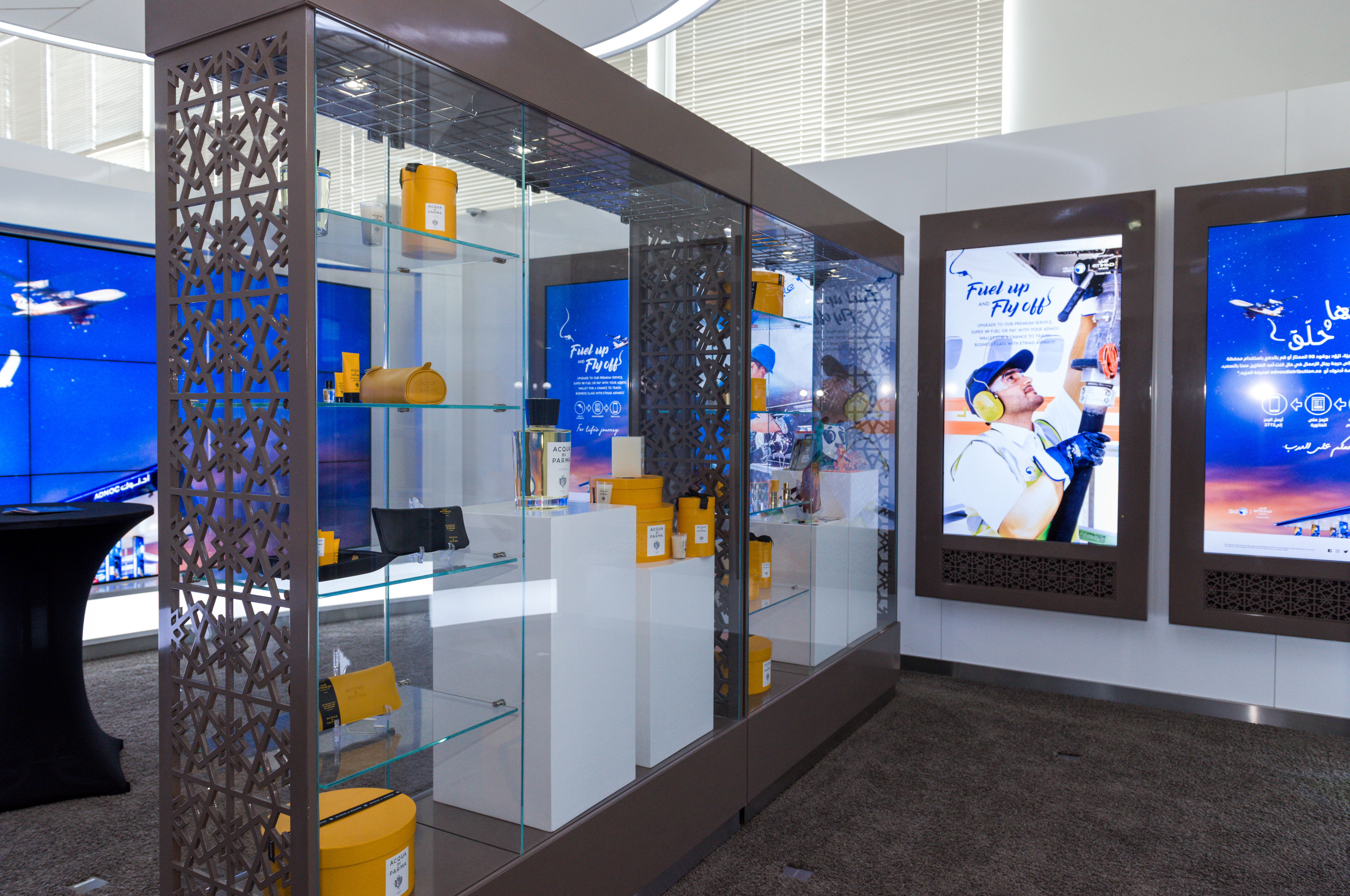

    Permanent experience centre with bespoke product plinths, sculptural walls and integrated displays.

    Experience centres and product showcases combine several forms of custom fabrication within one environment.

    Designing from the Structure Outwards


    Reliable permanent environments are designed from their internal structure outwards rather than from their decorative finish backwards.


    Steel or aluminium frameworks may be required where structures span large distances, carry displays or support heavy scenic features. Timber and engineered board systems may be used for wall build-ups, cabinetry, sculptural forms and detailed display components. CNC-machined parts allow repeated elements, service openings and connection points to be manufactured accurately.

    The supporting structure must account for load paths, fixing locations, deflection and movement. A display wall may appear static, but the framework behind it could be carrying suspended screens, lighting equipment, shelving, graphics and removable panels.


    Connections also need to remain accessible where inspection or future adjustment may be required. Permanently sealing every fixing behind decorative finishes can create unnecessary problems later. A better approach is to identify which connections can remain concealed for the life of the installation and which must be reachable through removable panels or service zones.

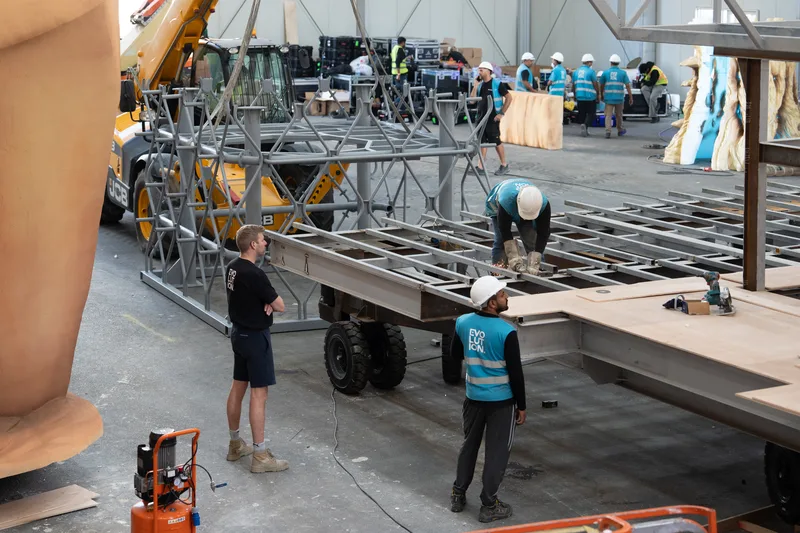

    Permanent environment constructed from internal structural framing towards finished decorative surfaces.

    Reliable scenic structures are developed from their supporting framework out towards the visible finish.

    Selecting Materials for Long-Term Operation


    Materials that are suitable for short-term scenic use are not automatically suitable for permanent operation.


    High-contact surfaces need to resist abrasion, impact and repeated cleaning. Exposed corners may require reinforced edges or replaceable protective details. Painted surfaces should be specified according to expected wear, while laminates, solid surfaces, veneers and metal finishes need appropriate substrates and fixing methods.


    Cleaning products also matter. A finish that performs well under normal handling may deteriorate when exposed repeatedly to strong cleaning chemicals. Areas near entrances or glazing may experience increased ultraviolet exposure, while illuminated enclosures can be affected by heat generated by technical equipment.


    Mock-ups are particularly valuable for permanent installations. They allow fabrication teams to test finish quality, junction details, access methods and material compatibility before full production begins. A small amount of development work at this stage can prevent widespread remedial work after installation.


    The objective is not simply to select the most durable material available. Materials must also remain practical to fabricate, transport, install, repair and eventually replace.

    Scenic fabrication materials compared for temporary use and long-term permanent operation.

    Material performance requirements change significantly when an environment must remain operational for years.

    Integrated Technology Must Remain Serviceable


    Technology integration is frequently one of the most demanding parts of a permanent environment.


    LED displays, projection systems, interactive interfaces, architectural lighting, speakers, sensors and control equipment all have different installation and maintenance requirements. They generate heat, require power and data connections, and may need periodic calibration or replacement.

    The scenic structure must accommodate these systems without compromising the finished appearance. Screen housings require accurate apertures and suitable support. Projection systems need controlled sightlines and access for alignment. Interactive components may require robust mounting because they are handled repeatedly.


    Ventilation is equally important. Equipment enclosed behind scenic finishes can overheat when there is insufficient airflow. Passive ventilation may be suitable for some installations, while others require fans, ducting or connection to a wider cooling strategy. Ventilation openings must be integrated carefully so they do not interrupt the design or become blocked during operation.

    Cable management should also be considered during fabrication rather than added afterwards. Dedicated routes, segregation between power and data, protected entry points and labelled connections make future maintenance considerably easier.

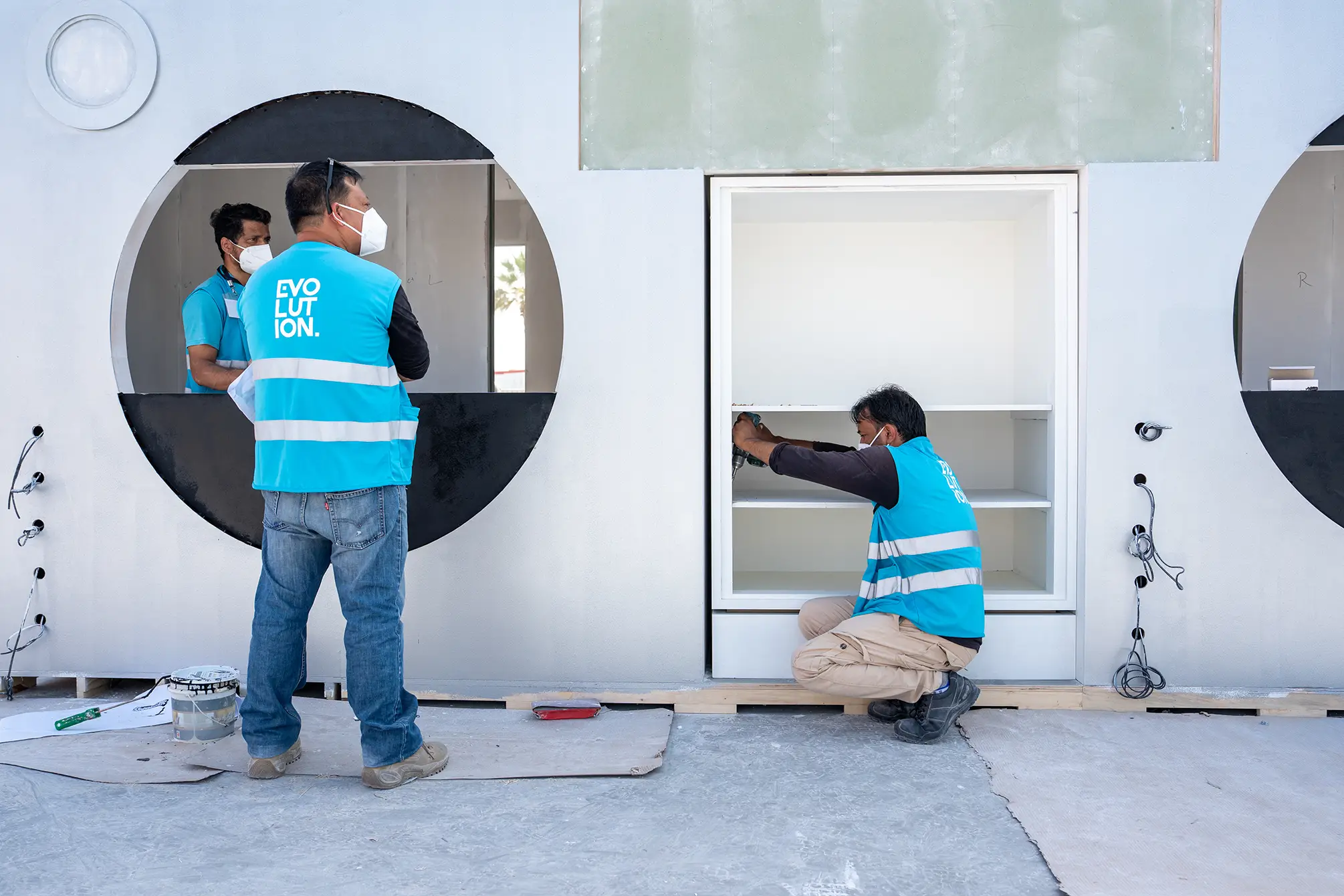

    Permanent scenic technology bay integrating displays, lighting controls, sensors and organised cabling.

    Integrated technology introduces additional structural, cooling, access and maintenance requirements.

    Maintenance Access Should Be Designed, Not Improvised


    One of the clearest differences between temporary and permanent fabrication is the importance of maintenance access.


    A technical system will eventually need attention. Screens fail, drivers require replacement, cables are damaged and control equipment becomes obsolete. The question is not whether access will be needed, but how it will be provided without damaging the environment.

    Access panels can be hinged, lift-off, magnetic or mechanically fixed depending on their size and location. Their edges must remain aligned with the surrounding finish, while catches and fixings should tolerate repeated use. Larger service zones may require removable wall sections or concealed doors.


    Good access design also considers the person carrying out the maintenance. There should be enough working space to remove equipment safely, disconnect cables and inspect surrounding components. A technically accessible panel is of little value when the equipment behind it cannot physically be removed.


    Evolution Scenic coordinates these requirements during technical development so access details form part of the manufactured system rather than appearing as late alterations.

    Technician servicing display equipment through a removable permanent scenic access panel.

    Technical components must be replaceable without damaging the surrounding fabricated environment.

    Hidden Infrastructure Determines Operational Quality


    The quality of a permanent environment is often defined by infrastructure that is never visible during normal operation.


    Service voids, cable trays, ventilation routes, mounting plates, structural supports and equipment brackets all need to be organised clearly. Poorly coordinated infrastructure can make routine maintenance unnecessarily disruptive and may force technicians to remove finished components to reach basic connections.


    Labelling is a simple but valuable part of this process. Cables, control equipment, removable panels and service zones should be identified consistently. As-built drawings and maintenance information should correspond with the installed arrangement rather than an earlier design version.


    Where appropriate, components can be designed as modular assemblies. A complete technology bay, illuminated display unit or product showcase can then be removed, serviced or replaced independently from the surrounding scenic construction.

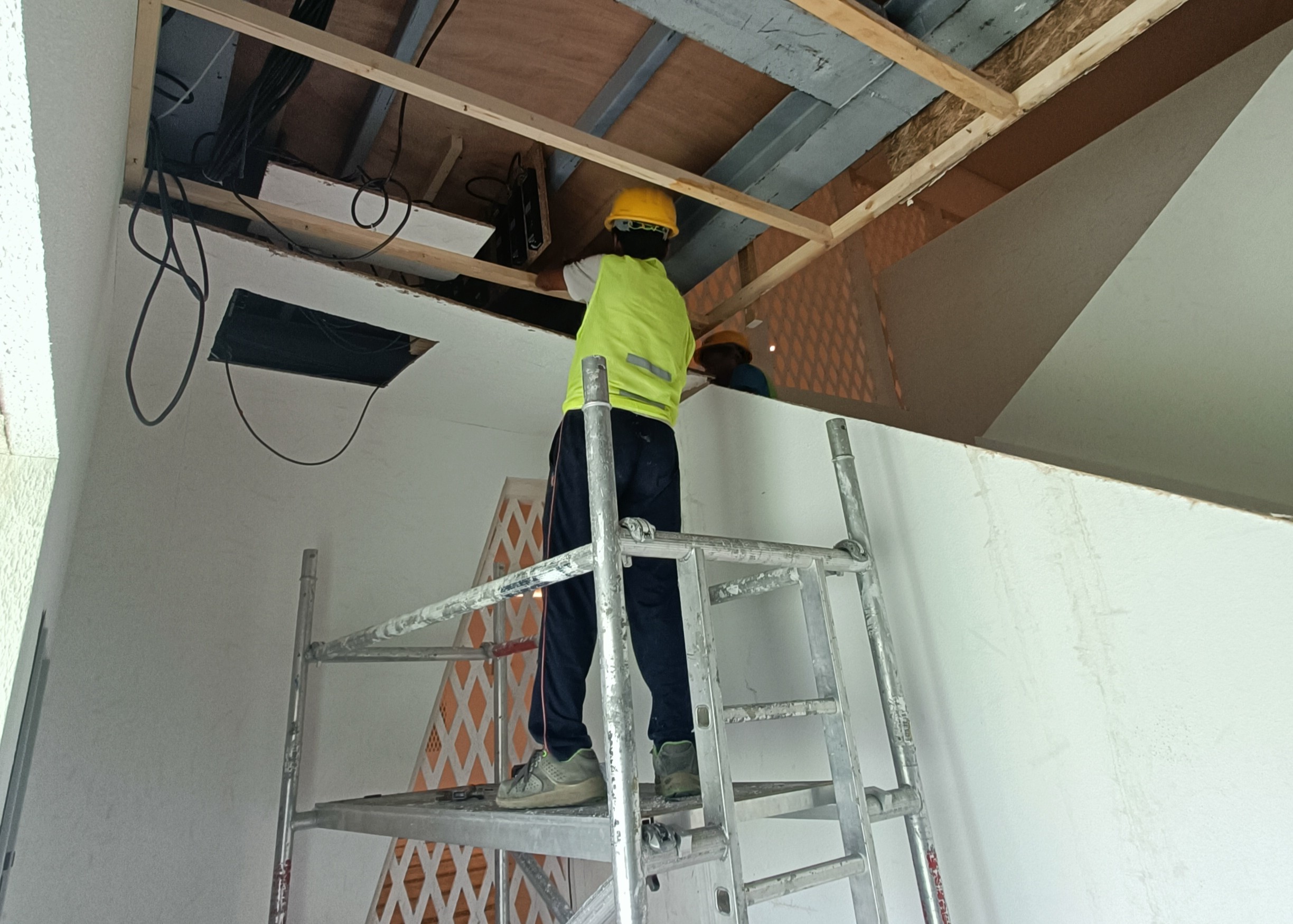

    Finished permanent scenic wall shown beside its concealed structural and technical infrastructure.

    Much of a permanent environment’s operational quality is created behind its visible surfaces.

    Planning for Future Upgrades


    Technology usually has a shorter service life than the fabricated environment around it. Displays change format, control equipment becomes outdated and new systems may have different cooling or connection requirements.


    Upgrade planning does not mean predicting every future product. It means avoiding unnecessary restrictions.


    Mounting systems can include adjustment zones or replaceable interface plates. Cable routes can allow limited additional capacity. Access openings can be sized around the removal of equipment rather than the dimensions of the current screen alone. Decorative trims may be removable so apertures can be adapted without rebuilding an entire wall.


    This approach helps protect the main scenic structure when technology changes. Instead of dismantling finished surfaces, technical components can be replaced within a controlled and accessible framework.

    A worker on a small scaffold adjusts a tall brown scenic panel beside a blue JESS Dubai sign.

    Adjustable mountings and removable finishes allow equipment to change without rebuilding the entire wall.

    Installation Inside Operational Buildings


    Permanent environments are frequently installed inside active buildings, public facilities, commercial interiors or operational experience centres. These locations introduce constraints that must be considered before manufacturing begins.


    Access routes may limit module sizes. Goods lifts, door openings and corridor dimensions can determine how structures are divided. Working hours may be restricted, while noise, dust and hot works may be tightly controlled.


    Modular construction is often the most efficient response. Scenic structures can be prefabricated in the workshop, tested and finished before being transported to site in manageable sections. This reduces on-site cutting, improves quality control and shortens the period of disruption.


    Installation sequencing is equally important. Structural frames, technical systems, scenic finishes and graphics must be installed in an order that protects completed work while maintaining access for other trades. Connection details should be repeatable, accurately located and suitable for the available installation space.

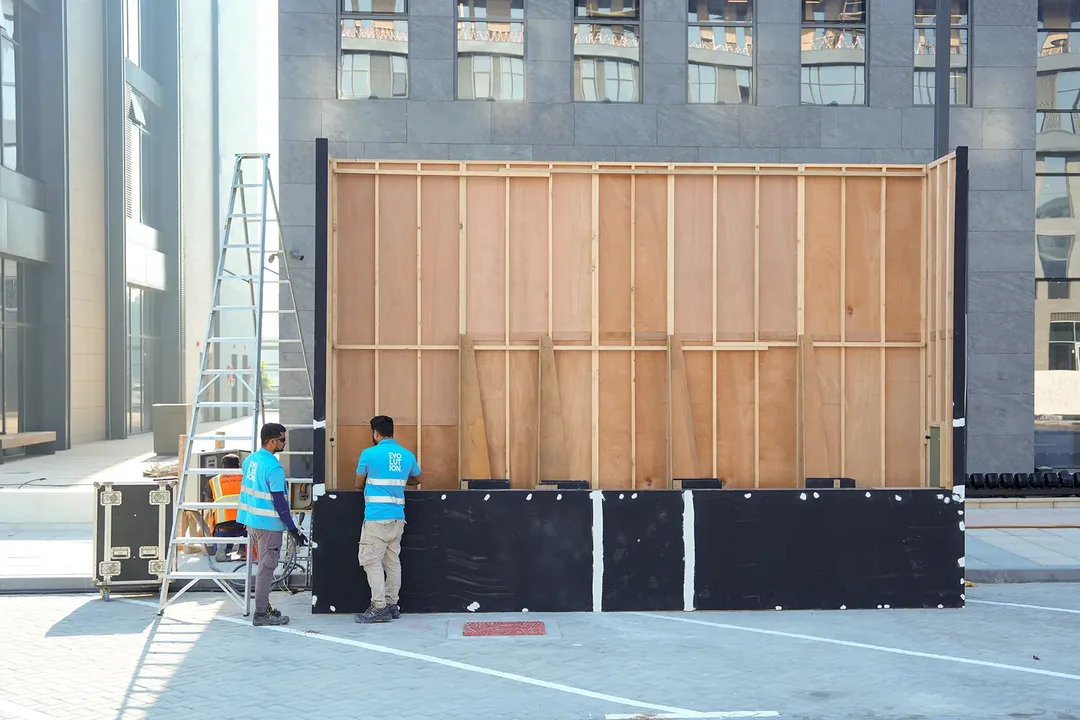

    Permanent scenic installation sequenced through framing, technology, finishes and graphics.

    Careful sequencing protects completed work while maintaining access for every specialist trade.

    Handover Is Part of the Fabrication Process


    A permanent environment is not complete when the final panel is fitted.


    Before handover, access panels, lighting, technical housings and removable components should be tested under realistic operating conditions. Maintenance teams need to understand how systems are accessed and which components can be removed. Spare finishes, replacement graphics, touch-up information and component references may also be required.


    A clear handover reduces the risk of future maintenance damaging the scenic work. It also allows the environment to be operated as intended rather than relying on trial and error after the fabrication team has left site.


    The most successful permanent brand environments are rarely defined by their visible finishes alone. Their long-term performance depends on the engineering, fabrication and infrastructure concealed behind those surfaces.


    When structural systems, technology, maintenance access and operational requirements are considered together, the result is an environment that remains practical to operate, easier to update and better able to retain its quality throughout its working life.

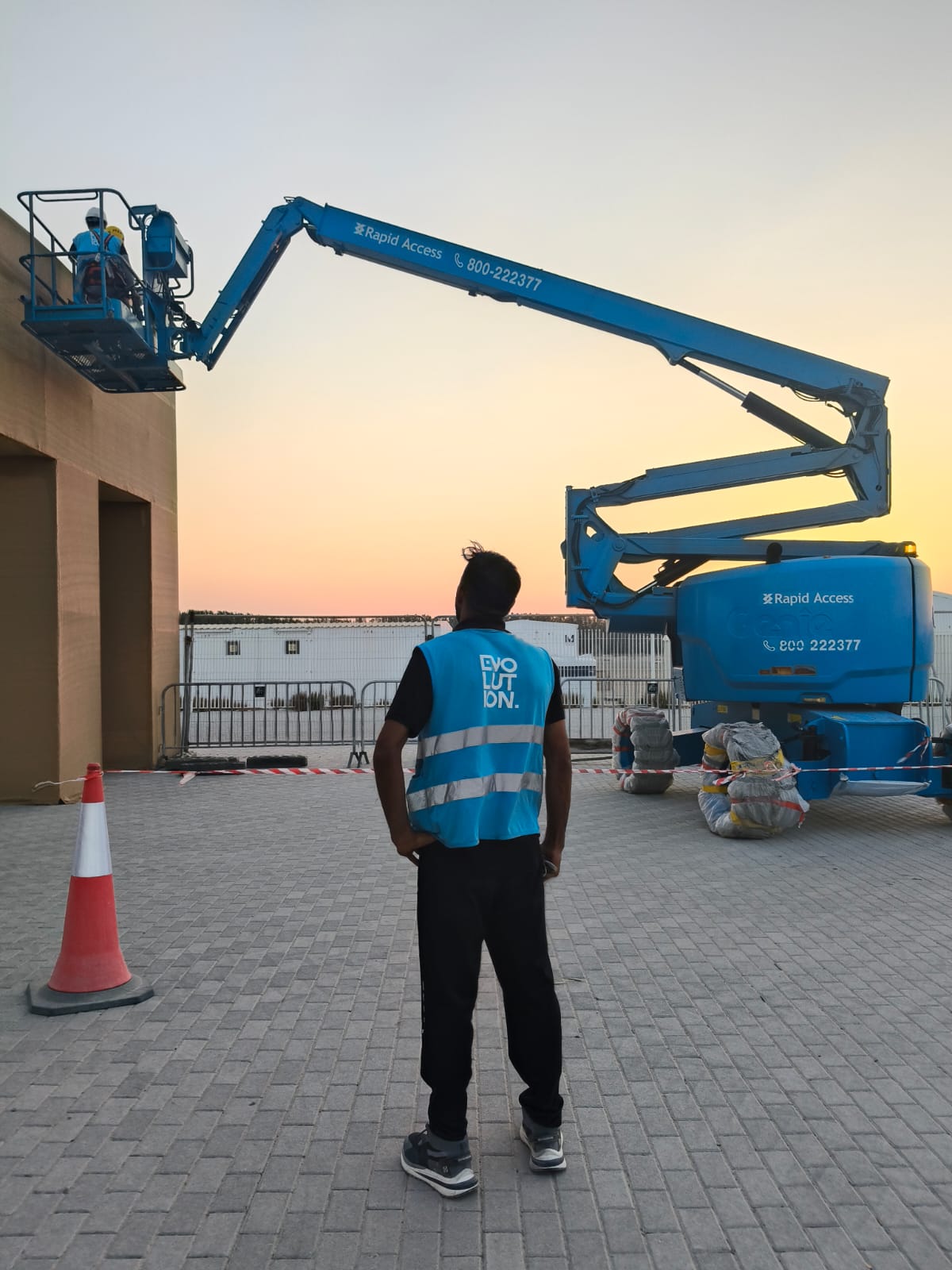

    Final inspection of permanent scenic panels, lighting systems and maintenance access.

    Fabrication is not complete until the installed system has been inspected and tested.

  • Why Your LED Screen Doesn't Fit The Scenic Wall (Even Everyone Did Their Job)

    Image description

    A coordinated scenic LED wall depends on the final screen specification matching the fabrication information.

    Why Your LED Screen Doesn't Fit The Scenic Wall (Even Everyone Did Their Job)


    The scenic wall has been fabricated. Installation day arrives. The LED supplier turns up. And the screen they deliver is not quite the same screen everyone designed around. Welcome to one of the more familiar conversations in scenic fabrication. The frustrating part is that nobody has necessarily done anything wrong.


    Months earlier, the scenic team may have received cabinet dimensions, structural information and technical specifications for a particular LED product. Those dimensions were incorporated into coordinated drawings. The scenic opening was developed around them. Steelwork, timber construction and finished trims were manufactured accordingly.


    Then reality happens. Stock availability changes. A different supplier is appointed. An alternative cabinet becomes available. The original product is allocated elsewhere. Or the technical team arrives on site with a perfectly capable LED system that happens to be slightly different from the one used during scenic development. Now the wall and the screen are both correct. They are simply correct to two different sets of information.

    Image description

    The scenic wall can be completely finished before the final LED product arrives.

    A Few Millimetres Can Become A Very Large Problem


    LED integration is one of those areas where apparently small dimensional changes can become surprisingly visible. A cabinet may only differ from the coordinated product by a few millimetres in width or height. Across one cabinet, that might appear insignificant. Across ten, fifteen or twenty cabinets, however, the difference accumulates.


    A five-millimetre variation across twelve cabinets becomes 60 millimetres. That is no longer a tolerance. It is a gap, a clash or a scenic modification. Cabinet dimensions are also only part of the equation. Different LED systems can use different locking mechanisms, frame profiles, locating hardware and structural connections. The physical display area may be similar while the equipment surrounding it behaves very differently.


    For scenic fabrication, the important dimensions are therefore not simply the advertised screen size. The actual cabinet geometry, installed tolerances and interface between the screen and scenic finish all need to be understood.

    Image description

    Installation day can reveal a mismatch when the delivered LED differs from the coordinated product.

    The Scenic Opening Is More Than A Rectangle


    On a drawing, an LED screen can look deceptively simple: a rectangle inside another rectangle. On site, that rectangle needs support, tolerance, ventilation, cabling and maintenance access.


    A scenic bezel that is intended to finish tightly against the active LED surface may only have a limited amount of adjustment available. If the screen becomes slightly wider, the finished trim can clash with the cabinet. If it becomes slightly narrower, an unwanted gap may appear.


    The same applies vertically. Floor levels, LED support structures, cabinet stacking tolerances and scenic framing all contribute to the final installed position.


    This becomes particularly noticeable on conference stages, product launches and broadcast environments where LED edges frequently sit close to clean architectural scenic lines. A small discrepancy can become visually obvious precisely because everything around it has been fabricated to appear precise.

    Image description

    Fabrication is only as accurate as the technical information issued and approved during development.

    Front Service Or Rear Service?


    One of the first technical questions a scenic team needs answered is how the LED will be maintained. Some systems are front-serviceable. Individual LED modules, power supplies or receiving cards can be accessed from the front of the display.


    Others require rear access. That difference can completely change the scenic construction around the screen. A rear-service LED wall may require sufficient space behind the cabinets for technicians to work, remove components and reach power or data connections. The scenic wall may therefore need accessible rear zones, removable panels, service doors or increased structural depth.


    A front-service system can reduce some of those requirements, but the surrounding scenic bezel still needs to allow the appropriate service tools and LED modules to be removed without damaging finished surfaces. Changing between these two approaches after fabrication has started is therefore considerably more significant than simply changing the brand of LED cabinet.

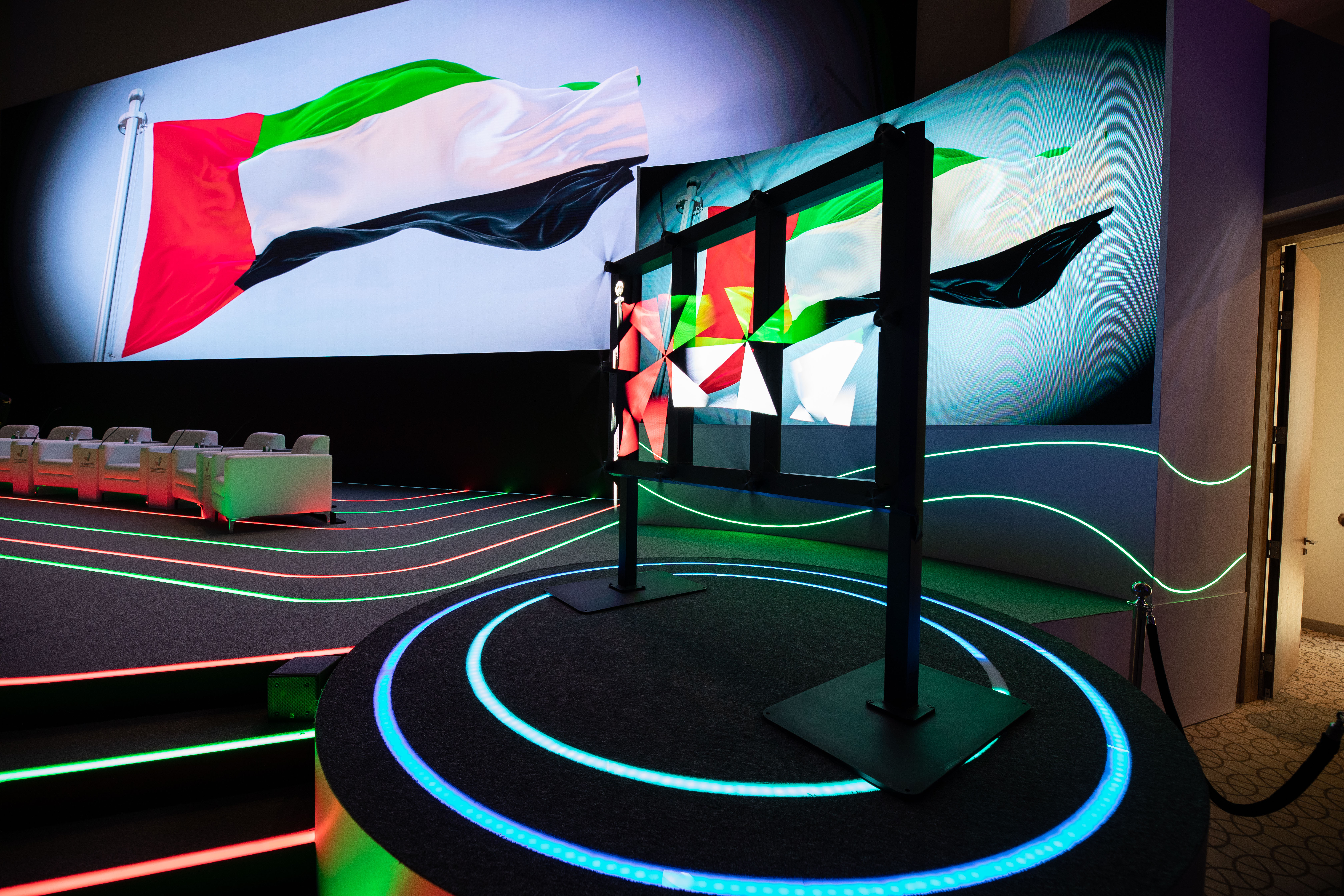

    Image description

    Alternative LED products can introduce dimensional differences even when nominal screen size remains unchanged.

    LED Screens Need To Breathe


    Ventilation is another detail that can easily disappear between the technical drawing and the finished scenic elevation. LED equipment produces heat. Power supplies, processing equipment and closely packed cabinets can all require airflow.


    A scenic enclosure that wraps tightly around the screen may look clean, but it cannot obstruct ventilation required by the equipment. Depending on the system, this may influence the clearance above, below or behind the display.


    Ventilation can be incorporated discreetly through shadow gaps, perforated panels, open rear cavities or concealed air paths within the scenic construction. The important point is that these requirements need to be coordinated before the wall is built.


    Changing the LED product may also change those requirements. One cabinet may tolerate an arrangement that another does not.

    Image description

    Small cabinet tolerances can accumulate across a large LED wall and affect the final scenic opening.

    Then There Are The Cables


    A screen is not only the visible LED surface. Behind it are power feeds, data lines, processors, distribution hardware and connections between cabinets. Those cables need somewhere to go.


    Scenic fabrication frequently incorporates concealed cable routes, access voids, floor penetrations and removable panels so that the technical installation can remain tidy while still being maintainable.


    Connector positions matter as well. If one LED product has power and data connections in a different location from another, an existing cable opening or support rail may suddenly sit exactly where the technician needs access.


    The solution may be relatively straightforward if discovered during technical development. It can become considerably less elegant once painted panels, steelwork and finished trims are already installed.

    Image description

    Service access requirements can change the depth, clearances and construction of the surrounding scenic wall.

    The Screen Has Weight Too


    Structural coordination is another reason why changing LED products cannot always be treated as a straightforward substitution. Different cabinet systems can have different weights, mounting methods and load distributions.


    The scenic construction may incorporate a dedicated steel frame designed around the loads and fixing positions supplied during development. If the equipment changes, the structural interface may need to be reviewed as well.


    This is particularly important where large LED surfaces are incorporated into stages, exhibition structures or permanent environments. A technically acceptable alternative screen does not automatically mean it can be attached to the existing scenic structure without review.


    The mounting rails may differ. The cabinet locking points may move. The overall weight may change. The centre of gravity may change. Those differences need to be understood before anyone starts modifying finished fabrication on site.

    Image description

    Front-service and rear-service LED systems demand different scenic detailing and maintenance strategies.

    Everyone Needs To Be Looking At The Same Drawing


    Most LED integration problems are ultimately information problems. The scenic fabricator may be working from drawing revision five. The technical supplier may have changed equipment using revision seven. The structural engineer may still be reviewing the previous cabinet loading. None of those teams necessarily made a mistake. They simply stopped working from one coordinated source of information.


    This is why shared drawing packages are so important. The scenic GA, LED layout, structural support details, equipment schedule and relevant technical specifications should all reference the same approved product and revision.


    At Evolution Scenic, our fabrication teams regularly coordinate directly with the engineers, technicians and project teams at Evolution Technical during development. Because those teams can review scenic fabrication and technical requirements together, cabinet dimensions, service arrangements, cable requirements and revisions can be resolved before manufacturing reaches the point where changes become expensive.


    That coordination is particularly valuable when the installation combines technical equipment with tightly finished scenic architecture.

    Image description

    LED ventilation needs can influence scenic panel spacing, enclosure depth and hidden air routes.

    What Happens When Something Changes?


    Equipment changes are normal. The problem is not that changes happen. The problem is when the change does not travel through the complete coordination chain. If the LED product changes, somebody needs to determine what else that change affects.


    • Does the scenic opening change?
    • Does the support steelwork change?
    • Do the fixing points change?
    • Does the rear access requirement change?
    • Does the screen require different ventilation?
    • Do cable penetrations need moving?
    • Does the weight need structural review?


    These questions form a basic change-management process. The revised equipment specification should be circulated, affected drawings updated and the consequences reviewed before fabrication continues wherever possible.


    That may sound procedural, but it is considerably easier than standing beside a completed scenic wall with an angle grinder and explaining why a supposedly minor technical substitution now requires physical modification.

    Image description

    Cable routing must be coordinated before fabrication so connectors and looms remain accessible and protected.

    Mock It Up When The Interface Matters


    For particularly tight integrations, a small physical mock-up can be extremely useful. A sample LED cabinet or representative frame can be checked against the scenic bezel, support detail and proposed access arrangement before the complete wall is manufactured. This allows teams to verify dimensions that are difficult to understand purely from drawings.


    • How close can the scenic trim actually sit to the LED?
    • Can a front-service module still be removed?
    • Is there sufficient room for the cabinet locking mechanism?
    • Can the power connector be reached?
    • Does the proposed shadow gap work when the real equipment is installed?


    Resolving these questions in the workshop is generally preferable to discovering them during a restricted installation window.

    Image description

    Changing LED products can alter structural loads, mounting points and support-frame requirements.

    The Same Problem Appears In Very Different Environments


    Conference stages frequently use large LED surfaces surrounded by precise scenic framing. Here, dimensional discrepancies become particularly visible because screens often form the centre of the stage architecture. Product launches can create even tighter relationships between LED and scenic finishes. Screens may disappear into architectural portals, curved scenic surfaces or sculptural structures where adjustment space is intentionally minimal.


    Exhibition stands often combine multiple digital displays with timber construction, graphics, shelving and product presentation. A screen specification change can therefore affect several surrounding fabricated components rather than one isolated opening. Permanent installations introduce another consideration: maintenance. The LED may need servicing or replacement several years later. Scenic construction should allow that work to happen without dismantling half of the environment.


    Broadcast environments can be more demanding still because camera framing exposes inconsistencies that may be less noticeable to the eye. Screen edges, scenic lines and surrounding finishes frequently need extremely accurate coordination. The physical environment changes. The underlying lesson does not.

    Image description

    Shared drawing packages keep fabrication, engineering and technical teams aligned to the same specification.

    Installation Day Is The Worst Time To Discover A Revision


    Late changes can usually be solved. Scenic fabrication is inherently practical, and experienced site teams are accustomed to adapting when conditions change. A bezel can sometimes be adjusted. A trim can be remade. Steelwork can occasionally be modified. A panel can be recut.


    But every site modification introduces additional time, labour and risk to finishes that were already completed correctly in the workshop. Changes made under installation pressure also tend to have fewer options available. A solution that could have been elegantly incorporated into workshop fabrication may need to become a compromise when the venue is open, other contractors are working around the area and the stage must be completed that night.


    That is why the objective is not to eliminate every project change. It is to discover the important ones early enough that they can still be engineered properly.

    Image description

    Formal change management helps ensure revised LED information reaches fabrication before manufacturing continues.

    The Problem Usually Is Not The Wall Or The Screen


    External LED suppliers can deliver excellent systems. Scenic fabricators can manufacture extremely accurate structures. Neither fact guarantees that the two will fit together. Successful integration depends on the interface between them. The scenic structure can only be fabricated around the technical information available at the time. If that information changes, the effect on the surrounding construction needs to be reviewed.


    The issue is therefore rarely that one supplier performed badly. More often, different teams were simply working from different versions of the truth. The most successful LED integrations are the result of engineers, scenic fabricators, structural teams and technical specialists sharing the same final information before manufacturing begins.


    When that happens, cabinets align, access remains usable, cables reach where they need to go and finished scenic trims sit exactly where everyone expected them to. Installation day becomes considerably less exciting. Which, in scenic fabrication, is often a very good sign.

  • Future-Proofing Visitor Centre Environments

    Image description

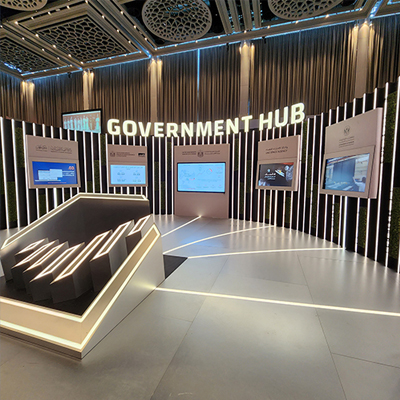

    A future-ready visitor centre environment built around modular interpretation, concealed services and maintainable scenic construction.

    Future-Proofing Visitor Centre Environments


    Visitor centres are often expected to remain operational for many years while supporting changing information, evolving destinations and advancing technology. The physical environment may remain largely unchanged, but interpretation content, graphics, digital displays and operational requirements can alter repeatedly throughout its lifespan. For that reason, long-term visitor centre fabrication needs to accommodate change without requiring major reconstruction every time an element becomes outdated.


    From a scenic fabrication perspective, future-proofing begins well before installation. Decisions made during technical development determine whether an environment will be straightforward to maintain and modify or increasingly difficult to work with as it ages. Panel construction, fixing methods, structural interfaces, equipment access and concealed service routes all influence how effectively the environment can respond to future requirements.

    Image description

    Long-life visitor centre construction must accommodate content and operational change without major rebuilding.

    Building Interpretation Systems That Can Change


    Interpretation content rarely has the same lifespan as the structure supporting it. Destination information changes, exhibits are refreshed and operational messaging develops over time. Building every graphic or information panel permanently into the surrounding construction can make relatively simple updates unnecessarily disruptive.


    Modular interpretation systems offer a more practical approach. Scenic walling can provide the long-term structural framework while graphic panels, display inserts and interpretation surfaces are treated as replaceable components. Removable face panels, concealed mechanical fixings, magnetic systems and accurately registered inserts can allow individual sections to be updated without disturbing neighbouring fabrication.


    The connection detail is critical. A replaceable panel still needs to sit accurately within the surrounding finish, maintain consistent shadow gaps and return to the same position after removal. Repeated access should not enlarge fixing holes, damage painted edges or weaken the surrounding substrate. Precision CNC machining, repeatable locating points and properly selected hardware can make these systems considerably more durable over their operating life.

    Image description

    Future-proofing begins during technical development, when access, connections and replacement strategies are resolved.

    Separating Technology From The Scenic Structure


    Technology generally develops much faster than the physical environment around it. Screens, media players, interactive hardware, lighting drivers, sensors and control equipment may all be replaced several times during the life of a visitor centre.


    If that technology is permanently trapped within scenic construction, even routine replacement can require substantial dismantling. A screen change might otherwise involve removing finished wall sections, disturbing graphics or cutting through joinery simply to reach equipment that was always expected to become obsolete.


    At Evolution Scenic, technology integration can instead be approached as a serviceable layer within the wider fabrication. Screens can sit within removable bezels, equipment can be positioned on accessible shelves and service panels can be incorporated discreetly into scenic surfaces. The finished environment remains visually resolved, while the equipment behind it stays accessible.


    Maintenance access does not necessarily need to be visible. Flush panels, concealed hinges, magnetic closures and removable sections can all be incorporated within scenic joinery. The important point is that access is deliberately engineered rather than improvised during maintenance years later.

    Image description

    Modular interpretation systems allow information to change without replacing the surrounding fabricated environment.

    Making Hidden Infrastructure Usable


    Hidden infrastructure is valuable only if technicians can reach and understand it.

    Power distribution, data cabling, control wiring and equipment connections can become extremely difficult to maintain when routed through inaccessible cavities. Service zones therefore need sufficient physical space for maintenance, not simply enough space for the initial installation.


    Cable routes can be organised onto trays or dedicated containment, with logical separation between systems where required. Connections should remain visible and identifiable when an access panel is opened. Labelling cables, equipment feeds and termination points may appear like a small production detail, but it can save significant time during future fault-finding and upgrades.


    Spare capacity can also be valuable where practical. Additional cable routes, accessible containment or allowance for replacement equipment can make later technology upgrades considerably easier. The aim is not to predict every future system, but to avoid constructing an environment so tightly around today's equipment that tomorrow's replacement cannot physically fit.


    Ventilation should be treated with the same level of consideration. Screens, media equipment and control components generate heat, yet ventilation openings must often remain visually discreet. Perforated panels, hidden ventilation paths and removable equipment enclosures can help protect technology without compromising the surrounding scenic finish.

    Image description

    Replaceable graphics work best when fixing methods are designed for repeated access without damaging finished surfaces.

    Fabricating For Continuous Public Use


    Future-proofing is not limited to change. It also means surviving daily operation.


    Visitor centres are public environments, and their fabricated elements can experience thousands of interactions over their lifespan. Lower wall panels may be repeatedly contacted by bags, shoes, cleaning equipment and maintenance trolleys. Counter edges, interpretation surfaces and display surrounds can experience constant handling.


    Material selection therefore needs to reflect where and how each component will be used. A finish that performs well high on a feature wall may not be appropriate at floor level or around a frequently touched exhibit. High-contact areas can require tougher laminates, reinforced corners, durable paint systems or replaceable surface layers.


    The underlying scenic construction also matters. Properly framed panels, stable substrates and accurately fabricated joints reduce movement over time. Edges that are poorly supported may begin to chip or separate, while large unsupported boards can distort under changing environmental conditions. Long-term environments benefit from fabrication methods that consider what happens after months and years of continuous operation, not simply how the structure appears when it leaves the workshop.

    Image description

    Technology enclosures should anticipate shorter equipment lifecycles than the scenic structures surrounding them.

    Designing Components To Be Repaired


    Even durable environments eventually require repair. The difference between a serviceable installation and a difficult one is often whether individual components can be replaced independently.


    A damaged panel should not ideally require the removal of an entire feature wall. A worn plinth top should be replaceable without rebuilding its structural base. An access door should allow hinges or latches to be serviced without disturbing surrounding scenic finishes.


    This can influence how scenic modules are constructed. Structural frames may remain as the permanent layer, while external faces, trims or high-wear surfaces are mechanically fixed and independently replaceable. Where appearance requires concealed connections, those fixings still need to remain accessible to the maintenance team.


    Modular display furniture can be developed in the same way. Plinths, interpretation cases and display housings can use removable tops, service panels or interchangeable internal supports so that future exhibits can be accommodated without replacing the entire fabricated unit.

    Image description

    Hidden access panels allow maintenance and upgrades without dismantling the wider visitor centre environment.

    Planning Maintenance Access Before Installation


    Maintenance access is most effective when it is resolved during technical development rather than added after the environment has been designed around inaccessible equipment.


    Access panels need to be large enough for the task they are intended to support. Reaching a cable connector requires far less space than replacing a large screen or removing a complete media unit. Equipment should also be positioned so it can physically pass through the proposed opening.


    The route to the equipment matters as much as the final access panel. A removable wall section is of limited value if fixed furniture prevents it from opening or if another component has to be dismantled before technicians can reach it.


    In operational visitor centres, maintenance may need to take place during restricted closure periods. Localised access allows technicians to work within one controlled section of the environment rather than opening substantial areas of completed scenic fabrication.

    Image description

    Hidden infrastructure remains useful only when it is organised, documented and physically accessible for future work.

    Recording How The Environment Was Built


    One of the most useful tools for future maintenance is accurate production information.


    Materials, paint references, laminates, CNC files, fixing types and fabrication drawings can all support repair work several years after installation. If a damaged panel needs replacing, documented manufacturing information allows a new component to be produced far more accurately than attempting to reverse-engineer the original construction on site.


    Finish records are particularly useful. Colour references alone may not fully describe a scenic finish if the original appearance depended on a particular substrate, primer, texture or application technique. Maintaining clear production information helps future replacement components integrate more convincingly with the existing environment.


    Component labelling can also support maintenance. Removable panels, access doors and technical enclosures can use discreet identifiers corresponding with drawings or maintenance records. This becomes particularly valuable in large visitor centres containing numerous similar display systems.

    Image description

    Ventilation and equipment clearances help protect integrated technology and simplify future replacement.

    Destination Visitor Centres & Long-Term Operation


    Destination visitor centres often operate under conditions that place significant demands on scenic fabrication. They may experience long opening hours, substantial visitor numbers and continuous interaction while also needing to update interpretation as destinations develop.


    In these environments, shutting down substantial sections for routine content changes is rarely desirable. Modular construction and localised access can allow graphic updates, screen replacements and technical maintenance to be carried out with far less disruption.


    Long-term fabrication also benefits from repeatability. If wall sections, access panels or display housings use consistent construction principles, replacement components can be manufactured more efficiently. Common fixing methods and documented interfaces also make the environment easier for maintenance teams to understand.


    This repeatability does not mean every visitor centre component needs to look identical. It means the concealed technical logic behind the environment can be rationalised even when the visible scenic treatment varies considerably.

    Image description

    Operational durability depends on selecting materials and details suited to continuous public use.

    Building For The Full Lifecycle


    The most effective visitor centre environments separate elements according to their likely lifespan.


    Structural framing and core scenic architecture may remain operational for many years. Surface graphics might change several times. Digital displays may be replaced more frequently still. Viewing all of these elements as one permanent construction system makes future intervention unnecessarily difficult.


    A more considered fabrication methodology allows long-life structures to remain in place while shorter-life components are removed and replaced around them. Mechanical fixings, modular panels, accessible technology enclosures and documented service routes all support this principle.


    At Evolution Scenic, future-proofing therefore becomes a question of buildability and lifecycle planning. The environment needs to look complete when it opens, but its fabrication should also acknowledge that maintenance, content changes and technology upgrades will inevitably follow.


    The strongest visitor centres are not simply fabricated for opening day. They are engineered so panels can be accessed, equipment can be replaced, finishes can be repaired and information can evolve while the wider environment continues to perform reliably for years.

    Image description

    Corners, lower wall zones and high-contact surfaces require finishes that tolerate cleaning, impact and repeated use.

  • EY Stand at COP28 – Sustainable Exhibition Stand Fabrication, Dubai (2023)

    Matte black scenic wall with COP28 UAE and EY graphics fabricated for the Dubai exhibition environment.

    Exhibition stands designed for international conferences must combine a strong visual identity with practical functionality, efficient installation and a clear response to the event’s wider objectives. For EY’s presence at COP28, Evolution Scenic delivered a sustainable exhibition environment at Expo City Dubai that reflected the organisation’s commitment to environmental responsibility.


    The 6m × 6m stand combined modular scenic construction with recyclable and reusable materials, integrated presentation technology and an immersive multi-screen room. Delivered within a tight timeframe, the project brought scenic fabrication and technical systems together to create an engaging environment for presentations, digital content and visitor interaction.

    Integrated digital display recessed into the custom fabricated EY COP28 scenic wall structure in Dubai.

    The Challenge


    The stand needed to communicate EY’s environmental commitments while meeting the aesthetic and functional requirements of a high-profile international conference. Sustainability therefore needed to influence the physical construction of the stand rather than simply appear within its messaging.


    The project also had to be completed within a tight programme. Scenic fabrication, specialist finishes, lighting, audio, digital signage and immersive content systems all needed to be coordinated into one integrated environment.


    Access to Expo City during COP28 required careful logistical planning and the necessary permits. The stand’s modular components also needed to support efficient assembly while reducing waste and allowing materials to be reused or recycled after the event.

    The Solution


    Evolution developed the concept and design for the stand following research into sustainable materials and their potential reuse or recycling after the event. Evolution Scenic then fabricated the exhibition structure using an interlocking 6m × 6m steel frame and modular components designed to support efficient assembly.


    Specialist cork sheets, rubber sheets and shark-tooth fabric were applied across selected wall surfaces. These materials contributed to the stand’s visual and tactile character while supporting the project’s wider sustainability objectives.


    A multi-screen immersive room formed a central part of the visitor experience. Environmental video content was controlled using Ventuz technology and supported by L-Acoustics audio, creating a coordinated audiovisual environment within the stand.


    Digital signage and presentation screens were integrated into the scenic design. Custom lighting was provided around the stand perimeter and main speech area, while audio systems supported ambient music, presentations and the immersive room.


    The Evolution team also managed project logistics and secured the permits required for access to Expo City during COP28, supporting the stand’s delivery and installation within the available timeframe.

    Delivery Highlights


    • Sustainable exhibition stand for EY at COP28
    • 6m × 6m interlocking steel-frame structure
    • Modular scenic construction
    • Recyclable and reusable materials
    • Specialist cork-sheet wall finishes
    • Rubber-sheet wall treatments
    • Shark-tooth fabric finishes
    • Multi-screen immersive room
    • Ventuz-controlled content delivery
    • L-Acoustics audio
    • Integrated digital signage
    • Presentation screens
    • Perimeter and speech-area lighting
    • Ambient and presentation audio
    • Expo City access permits and logistics
    • Delivery within a tight timeframe


    Custom fabricated immersive room with multiple digital screens and dark scenic wall finishes for EY COP28.

    Outcome


    The completed stand gave EY a distinctive presence at COP28 while translating its environmental messaging into the physical design and construction of the exhibition environment.


    Modular fabrication and recyclable materials helped reduce waste and provided opportunities for post-event reuse or recycling. The integrated immersive room, presentation displays, lighting and audio created an engaging platform through which EY could communicate environmental content to visitors.


    By coordinating sustainable scenic fabrication, integrated technology and event-site logistics, Evolution delivered a functional and visually impactful exhibition environment within the project’s demanding programme.

    Custom OSB-style scenic furniture and yellow metal railings within the EY COP28 exhibition environment.

    Project Ecosystem


    Evolution Scenic – Sustainable material research, modular exhibition construction, steel-frame fabrication, specialist wall finishes, scenic integration, delivery and installation.


    Evolution Technical – Stand-perimeter and speech-area lighting, ambient and immersive-room audio, digital signage, presentation screens, Ventuz content control and L-Acoustics audio integration.
