Hidden Infrastructure Explained

Many of the most successful scenic environments contain extensive infrastructure that visitors never see.

Behind finished walls, beneath raised floors and inside structural frameworks sit the systems that allow an environment to function. Power distribution, data networks, lighting controls, ventilation routes, equipment housings, maintenance access points and structural supports may occupy a significant part of the build, despite remaining almost completely concealed once installation is complete.

This hidden layer is particularly important within museums, visitor centres, immersive environments and experience centres, where technology and scenic fabrication must operate as one coordinated system. Screens, lighting, sensors, audio equipment and interactive devices may need to perform continuously without interrupting the appearance of the environment.

Designing for hidden infrastructure requires careful coordination between scenic engineering, fabrication and technical teams. Space must be allocated for equipment, cable routes and ventilation without weakening the structure, reducing installation access or compromising the intended visual finish.

One of the greatest challenges is balancing concealment with accessibility. Technical systems must remain out of sight, but technicians still need to inspect, isolate, maintain and eventually replace them.

The most successful environments resolve these requirements during design development. Infrastructure is not treated as equipment that must somehow fit behind the scenery once fabrication has begun. It becomes part of the structure, build methodology and installation sequence from the outset.

Coordinating Infrastructure Within the Scenic Build

Hidden infrastructure begins with coordinated spatial planning.

A scenic wall may appear relatively simple from the public side, yet its internal depth may need to accommodate structural framing, electrical containment, data cables, lighting drivers, ventilation openings and removable access panels. If these requirements are not identified early, different systems can begin competing for the same limited space.

Structural members may obstruct cable routes. Screen supports may conflict with access doors. Ventilation ducts may require openings through areas intended to provide bracing. Equipment may be positioned behind a finished panel that cannot be removed without damaging surrounding surfaces.

These issues are much easier to resolve on coordinated drawings than during workshop fabrication or site installation.

Early reviews should identify the principal infrastructure requirements, including:

Power and data distribution routes
Lighting control equipment and drivers
Integrated screens and media hardware
Audio equipment and loudspeaker locations
Sensors, cameras and interactive devices
Ventilation and heat-management requirements
Structural supports and mounting frames
Access panels and maintenance clearances
Isolation points and equipment enclosures
Future technology replacement routes

The internal space required for infrastructure must be realistic.

A cable may have a relatively small diameter, but it still requires suitable bend radii, containment, fixing points and clearance from other services. Equipment needs space for connectors, ventilation and safe removal. A screen may fit within an opening, but the surrounding structure must also allow technicians to reach its mounting points and disconnect the equipment.

Coordination should therefore consider the complete installed system rather than the external dimensions of individual components.

Cable management plays a particularly important role.

Uncontrolled cable runs can obstruct access, restrict ventilation and make future maintenance unnecessarily difficult. Power, data, control and audio cables may also have different routing requirements and should be organised accordingly.

Purpose-built cable trays, conduits, trunking and fixing points help maintain clear routes through the scenic structure. Cables should be supported rather than left resting on equipment, sharp edges or unfinished framing.

Where cabling passes through steelwork, timber panels or sheet materials, openings should be prepared with suitable edge protection. This prevents abrasion and allows the cables to be replaced without damage.

Cable routes should also avoid becoming permanently trapped behind bonded scenic panels. Where systems may require future replacement, accessible containment or removable covers provide a more practical solution.

Labelling is equally important. A concealed environment can contain hundreds of cables and connection points that appear identical after installation. Clear identification at both ends of each cable can reduce fault-finding time and prevent accidental disconnection.

Structural coordination must take place alongside these technical requirements.

Large screens, equipment racks and suspended technical components can introduce significant loads. These loads must transfer into the primary frame rather than relying on decorative cladding or lightweight scenic panels.

Secondary steelwork, reinforced timber framing or dedicated equipment brackets may therefore be integrated into the scenic structure. Their position should be coordinated with maintenance access and final surface finishes.

The order of installation must also be considered.

Some systems need to be installed before walls, floors or ceiling panels are closed. Others must remain removable after handover. A clear installation sequence helps prevent finished scenic elements from being repeatedly removed while technical systems are connected and tested.

Trial assembly can be particularly valuable for complex environments. Building key sections in the workshop allows the scenic and technical teams to confirm clearances, mounting points, cable routes and access before the structure reaches site.

Concealing Services Without Preventing Access

Hidden infrastructure should remain visually discreet without becoming inaccessible.

This balance is achieved through carefully planned access panels, removable scenic components and defined maintenance routes.

Access panels should be designed around the work that will take place behind them. A small opening may allow a technician to see a lighting driver, but it may not provide enough room to disconnect and remove it.

The panel size should therefore respond to the largest component, tool or hand movement required during maintenance.

Opening direction also matters. A hinged panel may be difficult to use if it opens against a wall, display case or public circulation route. Overhead panels may require retaining cables, controlled hinges or secondary restraints to prevent them falling during servicing.

Access panels can be integrated into scenic joinery, architectural lines, graphic layouts or material transitions. Magnetically retained covers, concealed hinges and flush mechanical fixings can preserve the finished appearance while providing practical access.

However, concealment should not make panels difficult for maintenance teams to identify. As-built drawings, discreet internal labels and clear access schedules should record every service point.

Some scenic environments require internal maintenance routes.

Large immersive installations, interpretation environments and stage structures may contain walkable voids, rear service corridors or technical platforms. These areas allow equipment to be accessed without entering public spaces or dismantling the visible environment.

Maintenance routes need sufficient width, lighting and headroom for safe use. They should remain free from exposed fixings, unsupported panels and uncontrolled cabling.

Where access involves ladders, mobile platforms or temporary removal of flooring, the method should be understood during design development. Equipment should not be placed in locations that can only be reached through unsafe or impractical working methods.

Ventilation is another major consideration.

LED screens, media players, power supplies, lighting drivers and control systems generate heat. When enclosed behind scenic walls or within sculptural forms, this heat can build quickly and reduce equipment reliability.

Ventilation requirements should therefore be coordinated with the scenic design.

Passive ventilation may be achieved through concealed slots, shadow gaps, perforated panels or openings integrated into decorative features. More demanding systems may require fans, ducting or filtered air movement.

The airflow path must be complete. An intake opening provides limited benefit if heated air has no route to escape. Similarly, a fan cannot operate effectively if equipment blocks the internal airflow.

Dust should also be considered, particularly in outdoor or high-traffic environments. Open ventilation can introduce airborne particles that collect on equipment and restrict cooling.

Filters may be required, but they must remain accessible for cleaning and replacement. A concealed filter that cannot be serviced will eventually become an obstruction rather than a protective measure.

Acoustic performance may influence infrastructure planning as well.

Ventilation fans, equipment racks and power systems can generate noise that becomes noticeable within quiet museum or visitor environments. Equipment isolation, acoustic lining and careful positioning can reduce this impact without compromising ventilation.

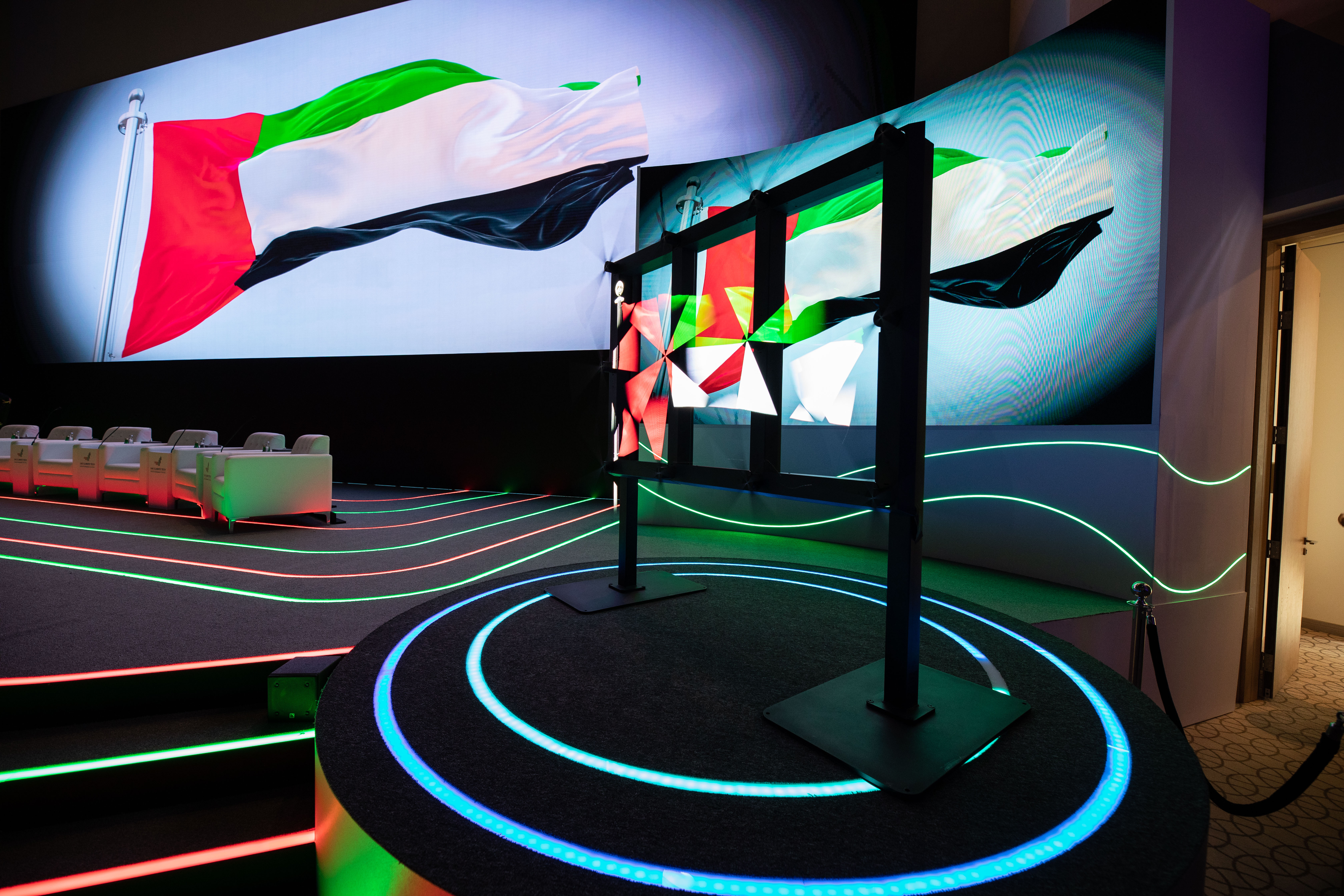

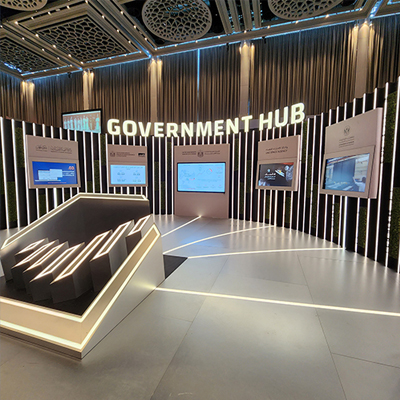

Integrated screens require particular attention because they combine structural, electrical, data and thermal requirements.

The screen support must maintain accurate alignment while allowing individual panels or modules to be removed. Cabling must remain organised and serviceable. Heat must be managed, and technicians need enough working space to reach power supplies, processors and connections.

A scenic surround should not prevent the screen from being serviced. Removable trims, accessible rear cavities and dedicated maintenance panels can allow the technical system to be repaired without damaging the surrounding finish.

Floor systems may also conceal substantial infrastructure.

Raised scenic floors can carry power, data, lighting and interactive sensor systems while preserving a clean public surface. However, cable routes, floor-loading requirements and access panels must be coordinated carefully.

Floor hatches should sit flush and remain secure under public use. Their position should avoid primary visitor routes where possible, particularly if regular access is required. Cables beneath the floor should remain protected from crushing, moisture and accidental fixing during later modifications.

The most effective concealed infrastructure is visually quiet but operationally clear. Visitors see a complete scenic environment, while technicians have defined and practical access to the systems behind it.

Planning for Maintenance, Replacement and Future Upgrades

Technology rarely remains unchanged for as long as the scenic structure surrounding it.

Screens, processors, lighting fixtures, sensors and control systems may be replaced several times during the operational life of a museum, visitor centre or immersive installation. Hidden infrastructure should therefore support future change rather than locking the original equipment permanently into the build.

Upgrade pathways begin with removable components and realistic equipment routes.

A replacement screen or processor may be a different size from the original. Cable types may change, ventilation demands may increase and new control equipment may require additional space.

Providing spare containment, accessible cable routes and adaptable mounting systems can make these changes significantly easier.

The structure should also allow old equipment to be removed physically. A service panel may provide access to connections, but it is of limited value if the equipment itself cannot pass through the opening.

Replacement routes should be checked against doors, corridors, hatches and internal structural members. Large technical components may require removable scenic sections or dedicated lifting points.

Long-term operation also depends on good documentation.

The handover information should show more than the visible scenic construction. It should record:

Access panel locations
Internal equipment positions
Cable and containment routes
Electrical isolation points
Ventilation openings and filters
Equipment mounting details
Removable scenic components
Safe maintenance routes
Recommended inspection intervals
Replacement and upgrade procedures

As-built drawings are particularly important because infrastructure can change during fabrication and installation. Drawings should reflect the final installed condition rather than an earlier design that was modified on site.

Equipment and cable labels should correspond with the final documentation. This creates a clear link between the physical installation and the information used by future maintenance teams.

Planned inspection supports reliable operation.

Ventilation openings may need cleaning, cables may require checking and access panels should be inspected for damage or loose fixings. Equipment enclosures should remain dry, secure and free from excessive dust.

Technical systems may also require remote monitoring. Equipment status, internal temperature and system faults can sometimes be reviewed without opening the scenic structure, allowing maintenance teams to identify problems before a complete failure occurs.

However, remote monitoring does not remove the need for physical access. Components still require inspection, cleaning and eventual replacement.

The surrounding scenic finishes must also tolerate maintenance activity.

Repeated panel removal can damage painted edges, graphics and concealed fixings if the details are not designed for regular use. Durable edge treatments, replaceable trims and robust hardware can preserve the visual quality of the environment.

Where equipment is expected to require frequent attention, the access system should be designed for repeated operation rather than occasional emergency use.

Future upgrades may also affect structural loading.

A replacement screen, loudspeaker or mechanical system may be heavier than the original component. Mounting frames and support structures should not be assumed to accept increased loads without review.

Similarly, additional ventilation openings or site-cut cable penetrations should not be introduced without considering their effect on structural members, fire performance and scenic finishes.

At Evolution Scenic, hidden infrastructure is developed as part of the complete fabrication strategy. Scenic framing, equipment supports, cable routes, access panels, ventilation and maintenance requirements are coordinated so that technical systems can operate effectively behind the visible environment.

The strongest immersive environments, museums and visitor centres do not simply conceal technology. They provide the space, access and organisation required to support it throughout its operational life.

When infrastructure is planned from the beginning, technical systems become easier to install, service and upgrade. The finished environment remains visually controlled, while the complex network behind it continues to operate without disrupting the intended experience.
