Maintenance Planning For Public Installations

The success of a public installation is not determined on opening day, but by how well it continues to perform over time.

Finishes require cleaning, lighting and technology may need replacement, moving components need inspection and high-contact surfaces will eventually show wear.

Maintenance should therefore be considered during design and fabrication, not after installation. Poorly positioned equipment, undersized access panels and difficult-to-repair finishes can make routine servicing unnecessarily disruptive.

Well-planned access panels, removable components, documented finish systems and clear service routes make future maintenance far more practical.

Environmental conditions also matter. Outdoor installations may face heat, UV exposure, wind, dust and moisture, while museums and visitor centres experience continuous public use, frequent cleaning and long operating hours.

Integrated screens, lighting, sensors and control systems must also remain accessible for testing, servicing and replacement.

The strongest public installations are designed around lifecycle performance, with maintenance influencing engineering, fabrication and installation from the beginning.

Designing Public Installations For Maintenance

Maintenance planning begins with understanding how long the installation will operate and which components will require regular access.

Lighting, screens, control systems, sensors, mechanical parts, structural connections, finishes, ventilation and weatherproofing may all need inspection, servicing or replacement during the installation’s life.

Access panels should therefore be sized for practical maintenance, not just visual inspection. Equipment may need to be removed completely, so clearance for tools, replacement components and safe working access must be considered.

Removable scenic panels can simplify both technical servicing and finish repair. Where replacement is expected, retaining CNC files, paint references, material specifications and manufacturing drawings allows damaged components to be reproduced accurately.

Access must also be safe. Elevated equipment may require powered access or service platforms, while internal routes should remain clear of sharp edges, exposed fixings and unnecessary obstructions.

Ventilation is equally important where lighting, displays or control equipment are enclosed within scenic structures. Cooling systems and filters should remain accessible for routine cleaning and maintenance.

The best maintenance provisions are integrated into the scenic design so they remain visually discreet while still providing practical, repeatable access.

Maintaining Structure, Finishes & Integrated Technology

Different parts of a public installation require different maintenance strategies.

Structural elements may need periodic inspection, while scenic finishes require cleaning and local repair. Technical systems such as screens, lighting, controls and sensors may need servicing or replacement according to their operating life.

Outdoor installations face additional demands from heat, UV exposure, dust, moisture and wind. Metalwork should be checked for corrosion, timber-based materials for swelling or delamination, and seals, drainage points and protective coatings for deterioration.

Indoor environments usually experience wear through repeated public contact. Counters, plinths, interactive surfaces and low-level walls may require more frequent cleaning and repair than decorative elements positioned out of reach.

Cleaning methods should therefore be defined alongside the finish specification. Documented paint references, graphic files, material samples and approved products make future repairs more consistent.

Technology also needs to remain accessible. Screens, media players, lighting equipment and control systems often have shorter service lives than the scenic structures surrounding them, so replacement should be possible without major dismantling.

Clear cable routes, ventilation, equipment identification and accurate drawings make fault-finding and servicing more efficient.

The maintenance plan should distinguish between routine servicing, planned replacement and unexpected failure so that access, spare parts and budgets can be prepared in advance.

Inspection Schedules, Records & Replacement Planning

Maintenance is more effective when it follows a structured inspection programme rather than waiting for visible damage or failure.

Inspection frequency should reflect the environment, complexity and level of public use. Outdoor installations may need additional checks after severe weather, while museums, visitor centres and interactive environments may require regular reviews of finishes, lighting and technical systems.

A typical programme may include frequent visual checks, scheduled technical inspections and event-based reviews following impact, water ingress, system failure or reported movement.

The schedule should define what is inspected, how often, who is responsible, how findings are recorded and which defects require immediate action.

Maintenance records are equally important. Logs, photographs and repair histories help identify recurring issues and provide continuity when teams or contractors change.

Replacement planning should also consider lead times and future availability. Critical screens, lighting components, control equipment and specialist hardware may require planned spares or approved alternatives.

A complete handover package should retain key information such as as-built drawings, equipment schedules, paint references, material specifications, CNC and graphic files, access-panel locations and maintenance instructions.

Long-term installations should also allow for future upgrades. Replaceable graphics, modular display elements and adaptable technology zones can extend the useful life of the environment without major reconstruction.

When inspection, documentation and replacement planning are considered from the beginning, public installations remain easier to maintain, update and operate throughout their intended life.

Why Nobody Notices Good Scenic Fabrication

Good scenic fabrication is often invisible.

Visitors notice when a wall is leaning. They notice when a sign falls over, a door sticks, a graphic begins to peel or a scenic element arrives damaged.

What they rarely notice is everything working exactly as intended.

They do not see the engineering review that strengthened a large feature without changing its appearance. They do not see the workshop team adjusting a connection before it creates a problem on site. They do not see the transport frame protecting a delicate surface or the installation plan developed around a narrow access route.

When scenic fabrication is done well, the finished environment feels effortless.

That apparent simplicity is the result of hundreds of decisions made throughout technical design, material selection, engineering, manufacturing, transport and installation.

Good fabrication is often the absence of problems. That is usually one of the strongest compliments a workshop can receive.

Supporting The Wider Environment

The purpose of scenic fabrication is rarely to draw attention to the construction itself.

A successful exhibition stand should feel complete rather than assembled. A stage set should appear stable and intentional. An activation should operate smoothly without visitors becoming aware of structural frames, hidden fixings or technical access panels.

The fabrication exists to support the wider environment.

This means resolving practical requirements without allowing them to interrupt the design. Structural supports must fit behind the visible surfaces. Module joints need to remain discreet. Access panels must be usable without appearing obvious.

The same principle applies to scenic finishes. A surface should not look impressive only when viewed from one carefully chosen angle. It must remain consistent under venue lighting, at realistic viewing distances and after transportation and installation.

When all of these elements work together, visitors focus on the environment rather than the structure behind it.

Quality Begins Before Manufacturing

Many fabrication problems begin before the first material is cut.

Incomplete drawings, unresolved dimensions and unclear interfaces can create issues that only become visible once production is under way. By then, changes may affect several connected components.

Experienced scenic teams review information before manufacturing begins.

They assess whether the proposed structure can be fabricated efficiently, whether the connections remain accessible and whether the completed modules can be transported through the available routes.

A large wall may be stable once fully assembled but difficult to control during lifting. A sculptural element may fit inside the workshop but exceed the dimensions of the loading door. A maintenance panel may exist on the drawing but prove too small for a technician to remove the equipment behind it.

These are not dramatic problems. They are practical problems, and practical problems can quickly become expensive when discovered late.

Good technical review prevents them from reaching the workshop or site.

Engineering That Disappears

Engineering is one of the least visible parts of scenic fabrication.

Visitors may see a lightweight architectural feature or a clean branded wall, but behind it may sit a carefully designed framework, bracing system or weighted base.

Engineering reviews consider how the structure will perform during every stage of its life. This includes fabrication, transport, lifting, installation, operation and dismantling.

The structure may need to support suspended equipment, graphics, lighting or audiovisual systems. It may also need to resist visitor contact or environmental forces such as wind.

For temporary structures, the challenge is often to provide sufficient strength without introducing unnecessary weight. The frame must remain practical to transport and assemble while still delivering reliable stability.

The best engineering solutions are integrated early. They support the intended form without forcing visible changes after the design has already been developed.

Once the structure is complete, most people will never see the engineering.

That is often the point.

Workshop Standards

A scenic workshop is where visual ideas become physical environments.

The standard of the finished work depends heavily on the consistency of the manufacturing process.

Accurate setting out, controlled cutting and careful assembly all contribute to the result. So do material storage, component labelling, surface protection and workshop organisation.

Fabrication tolerances are particularly important within modular environments.

A small dimensional variation may appear insignificant on one panel. Repeated across a large structure, it can create visible gaps, misaligned graphics and uneven architectural lines.

Templates, jigs and CNC production can improve repeatability, but machinery alone does not guarantee accuracy. Components still need to be measured, checked and assembled by experienced teams.

Workshop standards also affect efficiency. Clearly labelled modules are easier to pack and install. Protected surfaces are less likely to require repair. Organised work areas reduce the risk of components being damaged or confused.

Quality is not created during a single final inspection. It is built into the process from the beginning.

Test Assembly and Quality Control

Whenever practical, important scenic structures should be tested before they leave the workshop.

Test assembly confirms that modules align, connections fit and the intended installation sequence is achievable. It also allows teams to check areas that will become difficult to access once the structure is complete.

Doors can be opened and closed. Removable panels can be tested. Graphics can be reviewed across adjoining sections. Lighting and audiovisual equipment can be checked within their fabricated housings.

The purpose is not simply to prove that the structure can be assembled. It is to identify where the process can be improved.

A fixing that is awkward to reach in the workshop will be even more difficult during a restricted installation window. A joint that requires excessive force may damage the finish after repeated use.

These issues can usually be resolved calmly during workshop testing. On site, the same adjustments may delay several teams working around the installation.

Good quality control reduces that uncertainty.

Planning For Transportation

Fabrication is not complete when the structure looks finished inside the workshop.

It still needs to reach the site without damage.

Transportation planning influences module dimensions, joint locations and material choices. Large scenic features may be lightweight but physically awkward, making them difficult to support inside a vehicle.

Custom stillages and protective frames may be required for sculptural forms, curved walls and delicate finishes. Corners and projecting details often need additional protection because they are particularly vulnerable during handling.

Packing order also matters.

Components required first during installation should remain accessible. Fragile modules should not need to be moved repeatedly to reach heavier structural items.

Labels and reference markings must remain visible after packing so the site team can identify each component quickly.

When transport has been considered properly, modules arrive in the correct order and in the expected condition.

Nobody notices this preparation when it works. They notice it immediately when it does not.

Installation Planning

Site installation is often where the quality of the earlier planning becomes clear.

A workshop provides controlled conditions. A venue may have limited access, uneven floors and several contractors working in the same area.

The scenic structure must be designed around those realities.

Installation drawings, module references and coordinated loading plans help the team understand what arrives first and how each component connects.

Temporary bracing may be required while larger structures are assembled. Lifting points must remain accessible, and final scenic finishing areas must not be blocked too early.

The easiest environments to install are not necessarily the smallest or simplest. They are the ones designed with the installation sequence in mind.

Connections remain accessible. Adjustments can be made where required. Technology can be fitted without dismantling completed work.

Careful preparation reduces the amount of improvisation needed on site and gives the installation team greater control over both safety and finish quality.

Preventing Problems

Much of scenic fabrication expertise is preventative.

It involves recognising what could go wrong and resolving it before it becomes visible.

A vulnerable corner can be reinforced before finishing. A module joint can be moved into a natural architectural line. A technical access panel can be enlarged while the structure is still being designed.

These decisions rarely receive attention because the problems they prevent never occur.

Problem prevention also protects the programme. Rebuilding an incorrect module or repairing a damaged scenic finish on site can affect the work of other contractors.

The same issue resolved during technical design or workshop production is usually quicker, safer and easier to control.

Experienced workshops still encounter challenges. Scenic fabrication combines many disciplines, materials and deadlines, so unexpected conditions are inevitable.

The difference lies in how early those challenges are identified and how effectively they are resolved.

Safety Behind The Finished Result

Health and safety is another area where success is measured by what does not happen.

Workshop teams need suitable extraction, machinery controls, protective equipment and safe handling methods. Large scenic components must be lifted and moved using planned procedures.

On site, temporary stability, access equipment and lifting strategies require the same level of consideration as the finished structure.

These systems may never appear in the final photography, but they influence the quality of the work.

When teams have the correct access, equipment and working method, they can complete tasks more accurately and with less risk of damage.

Safety and quality are not separate priorities. Both depend on careful planning and controlled processes.

Hidden Expertise

Scenic fabrication brings together engineering, carpentry, metalwork, CNC machining, sculpture, scenic painting, graphics, logistics and installation.

Once the project is complete, much of this expertise disappears behind the finished surface.

The steel frame is enclosed. Mechanical fixings are concealed. Transport joints are filled and painted. Cable routes remain hidden but accessible.

This hidden work is not secondary to the visible result. It is what makes that result possible.

Visitors should not need to understand how the environment was fabricated. They should simply encounter a structure that feels stable, accurate and complete.

The Absence Of Problems

Good scenic fabrication rarely announces itself.

Doors open smoothly. Graphics remain aligned. Structures stay stable. Scenic finishes survive transportation. Technology works and remains accessible.

For Evolution Scenic, this reliability comes from engineering reviews, workshop standards, quality control and detailed installation planning.

The completed environment may appear effortless, but that is because the difficult decisions have already been made behind the scenes.

Good fabrication is often the absence of problems.

And when nobody notices the fabrication at all, it has usually performed exactly as intended.

Why Stage Stairs Are More Complicated Than They Look

Stage stairs seem simple.

They are, after all, just stairs.

Until somebody needs to walk down them in darkness.

Or in high heels.

Or while carrying an award.

Or wearing a costume that weighs twenty kilograms.

Or while being followed by a television camera that is broadcasting the entire journey to several million people.

Suddenly, those “simple stairs” become one of the most important structures on the stage.

Every staircase within a live production environment needs to balance appearance, safety and practicality. It may occupy only a small part of the finished set, but it can experience more concentrated use than almost any other scenic element.

Performers, presenters, stage managers, camera operators and technical crews may all rely upon it. Some will use it during rehearsals under full working light. Others will encounter it during the show, while concentrating on dialogue, choreography, timing or the location of the nearest camera.

A staircase that looks elegant in a render can therefore become a serious problem if it feels uncomfortable, restricts movement or becomes difficult to read under production lighting.

Scenic Stairs Are Not Ordinary Stairs

Permanent architectural stairs are generally designed for a known building, a fixed location and long-term use. Scenic stairs often operate under very different conditions.

They may need to be fabricated in sections, transported by road, moved through restricted venue access routes and installed within a limited production window. They may connect to a temporary stage deck, align with modular scenic structures or incorporate finishes that visually continue across the rest of the set.

They may also need to disappear almost completely into the design.

A flight of stairs could be disguised within a sculptural stage edge, integrated into a sweeping scenic form or finished to match a reflective, metallic or highly decorative environment. The audience should see one coherent visual composition rather than a staircase that appears to have been added after somebody remembered that presenters cannot levitate.

This places considerable responsibility on the technical design and fabrication teams.

The structure must support repeated use while remaining stable, accurately aligned and practical to assemble. At the same time, tread dimensions, transitions, edge details and surface finishes must allow people to move confidently.

Small Dimensions Make a Significant Difference

The height, width and depth of each step influence how a staircase feels.

Minor dimensional changes that appear insignificant on a drawing can become surprisingly noticeable when somebody walks the stairs at speed. Inconsistent riser heights are particularly uncomfortable because people establish a rhythm as they climb or descend. A small variation can interrupt that movement and create a trip risk.

Tread depth also matters. A visually compact staircase may save valuable stage space, but it can feel steep or awkward in use. Wider scenic stairs can create a more generous entrance and accommodate groups, although they require greater structural support and occupy more of the stage footprint.

The correct solution depends upon the production.

A staircase intended for a single presenter may have different requirements from a wide ceremonial staircase used by an entire cast. A theatre production involving choreography needs to consider repeated movement patterns, while an awards show may need to accommodate formal clothing, long dresses, unfamiliar footwear and winners who are understandably paying more attention to their speech than to their feet.

This is why scenic staircases are frequently tested physically rather than assessed only on screen.

Mock-ups, sample steps or early workshop assemblies allow the production team to review proportions, movement and visibility before the finished scenic treatment is applied. It is far easier to adjust a staircase during technical development than after it has been installed, painted and surrounded by several tonnes of scenery.

Presenter Movement Changes the Design

Presenters and performers rarely use stage stairs in the calm, deliberate manner imagined on a technical drawing.

They turn towards cameras. They pause for applause. They carry props, envelopes, trophies and microphones. They may need to enter in pairs, pass one another or stop halfway down for a rehearsed moment.

The staircase must support these movements without creating awkward bottlenecks.

Approach and departure routes are just as important as the stairs themselves. There must be sufficient space at the top and bottom for people to transition naturally onto the stage. Scenic walls, screens, lighting positions and technical equipment should not force users into sudden turns or narrow gaps.

Rehearsal feedback can be extremely valuable. A staircase may comply with the intended technical dimensions and still feel uncomfortable when used as part of the show sequence. Adjustments to handrail positions, edge markings, lighting or surrounding scenery can make movement feel significantly more natural.

The most successful scenic structures are not merely safe in isolation. They work as part of the entire performance environment.

Awards Shows Introduce Their Own Particular Problems

Awards shows are especially demanding because stage stairs often form part of a highly visible arrival sequence.

A winner may approach from the auditorium, climb onto the stage, greet the host, collect an award and move towards a microphone position. Every part of that journey can be captured from multiple angles.

The stairs therefore need to work for the person using them and for the cameras recording them.

Wide lenses may exaggerate steepness or distortion. Low camera positions can reveal construction details beneath the treads. Side angles may expose structural supports that were invisible in the original front-facing render. Reflective stair finishes can produce unwanted highlights, while dark finishes may cause tread edges to disappear under show lighting.

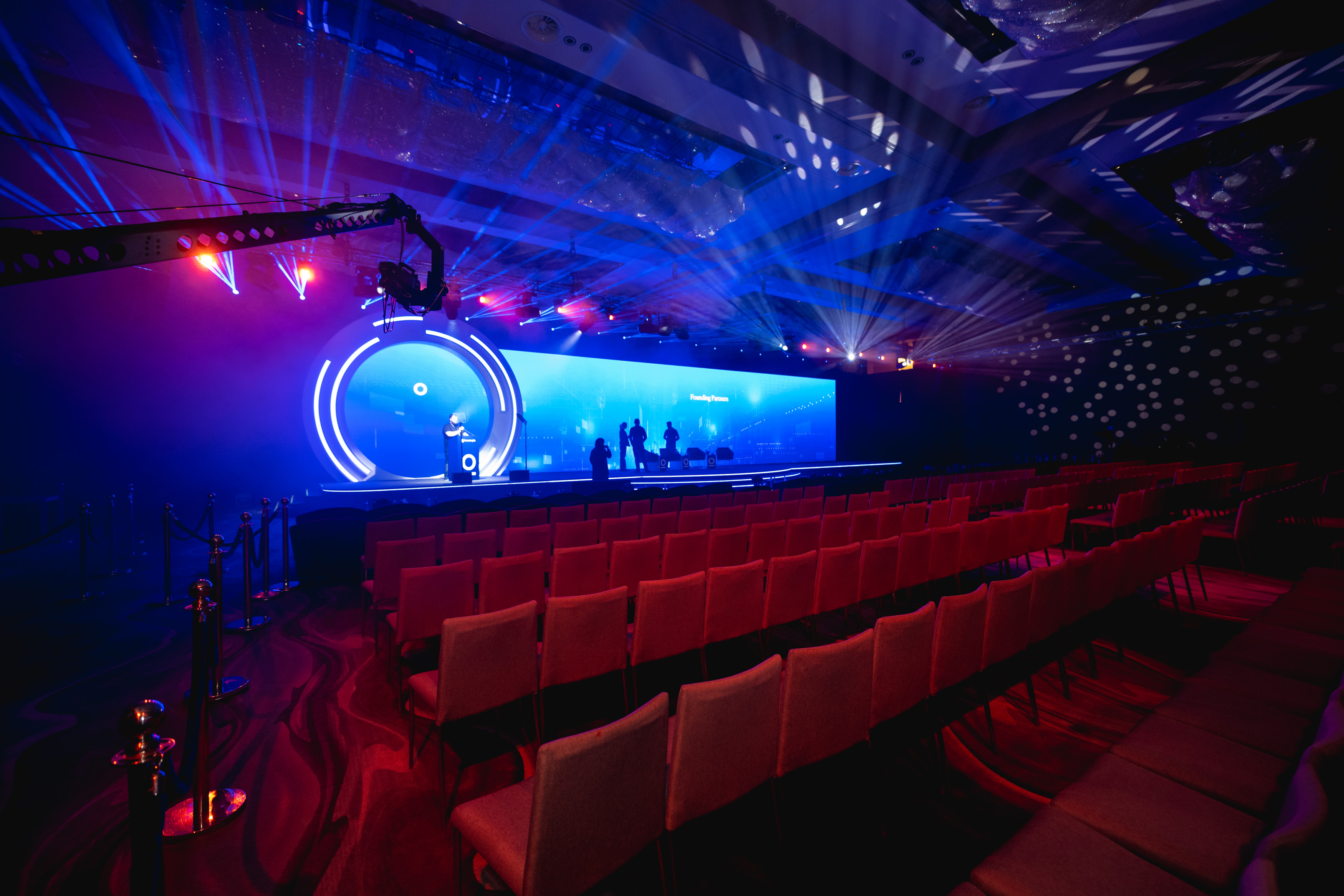

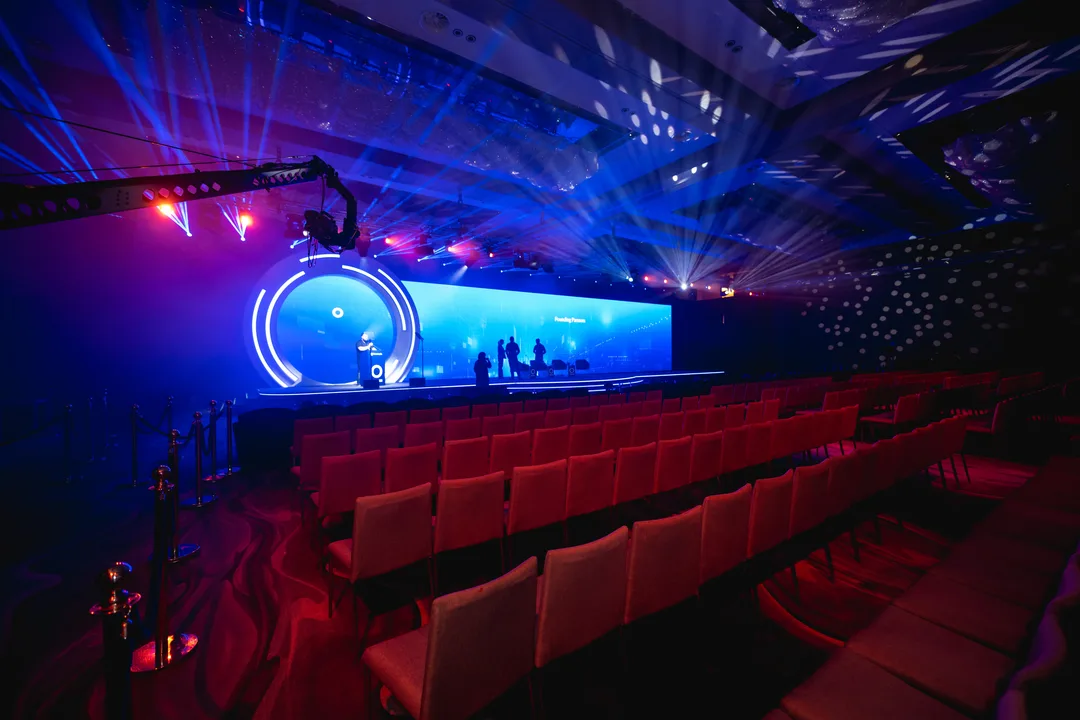

The scenic design must consequently be reviewed from more than the audience’s central viewpoint.

Technical teams consider likely camera positions, sightlines and lighting states while developing the stair structure and finish. Fascias, stringers, joints and support systems may require careful concealment because television cameras have an impressive ability to discover the one unfinished detail nobody expected them to see.

Theatre Stairs Must Survive Repetition

In theatre, a staircase may be used in exactly the same sequence night after night.

That repetition creates different fabrication priorities.

Connections must remain secure throughout the run. Finishes must resist wear at the leading edges of treads. Any movement or noise within the structure needs to be minimised, particularly during quiet scenes.

Scenic staircases may also move as part of a scene change. They can be mounted on trucks, incorporated into rotating scenery or designed as modular units that are repositioned by stage crews. In these situations, the structure must remain rigid during use but practical to handle when it is moved.

Locking systems, castors, floor interfaces and alignment details all become part of the build methodology. A staircase that is safe once positioned must also be safe while being transported, stored and reset.

The visible decorative finish is only the outer layer of a much more technical object.

Accessibility Must Be Considered Early

Stage access cannot be designed around stairs alone.

Productions need to consider how people with different mobility requirements will reach and move through the stage environment. Depending on the project, this may involve an integrated ramp, platform lift, alternative entrance route or a revised stage arrangement.

These solutions are most successful when developed as part of the scenic design rather than treated as a late addition.

Retrofitting access after fabrication can affect the stage footprint, structural layout, backstage circulation and visual composition. Early coordination allows accessible routes to be integrated more naturally and ensures that the necessary clearances, transitions and operating space are protected.

Accessibility is therefore not separate from scenic engineering. It is part of designing an environment that can be used properly by the people who need to enter it.

The Structure Nobody Sees

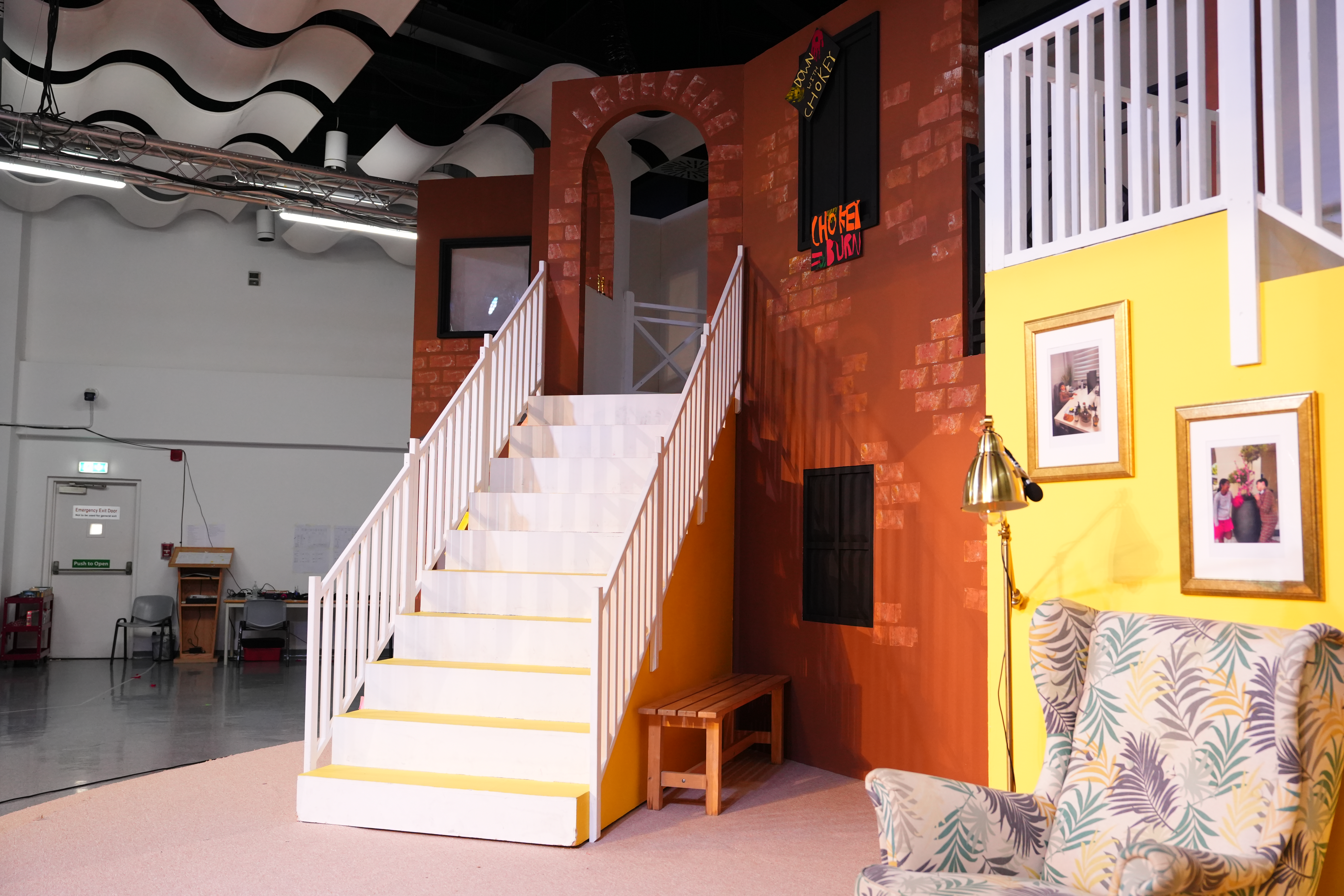

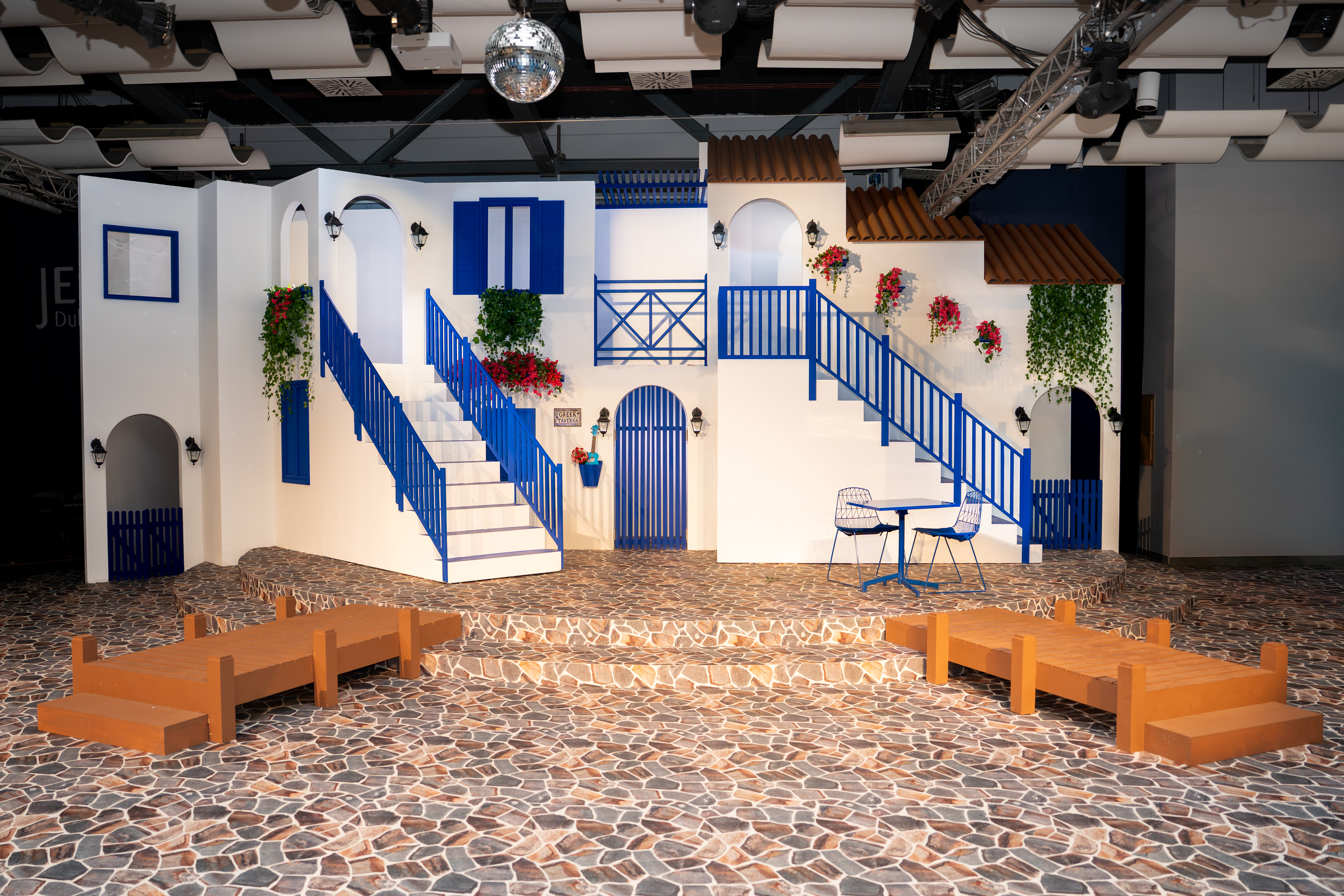

The decorative staircase visible to the audience may conceal a substantial structural system.

Depending on its size and application, the internal build may include timber framing, steel supports, adjustable feet, anchoring points and connections to the main stage deck. Larger stair units may need to be divided into transportable sections without creating movement at the joints.

The void beneath the stairs can also be useful.

It may accommodate cable routes, lighting equipment, control hardware or other technical infrastructure. Access panels might be incorporated so that equipment remains reachable without exposing it to the audience.

These hidden functions must be coordinated carefully. Cables cannot interfere with structural members or become trapped during assembly. Access openings should not weaken critical areas. Heat-producing equipment may require ventilation, and anything needing maintenance must remain genuinely accessible once the scenery is installed.

“Accessible” should mean that a technician can reach it during the production.

It should not mean removing half the stage with a drill.

Buildability Matters From the Beginning

Like every scenic element, stage stairs need to be designed for more than their final position.

Fabricators must consider workshop assembly, transportation, venue access and installation sequencing. A staircase built as one large unit may be exceptionally rigid but impossible to move through the loading dock. A highly modular structure may be easier to transport but require additional care to prevent movement between sections.

The best construction method balances these competing requirements.

Digital modelling allows the scenic engineering team to coordinate dimensions, structure, interfaces and finishes before manufacturing begins. CNC-cut components can improve consistency within timber structures, while fabricated metalwork may provide strength in areas where depth is limited.

Workshop pre-assembly is particularly valuable. It allows the team to check fit, stability, alignment and finish transitions before the staircase arrives on site. Problems can then be corrected under controlled conditions rather than during an overnight installation with the rest of the production waiting.

Good Stairs Rarely Receive Compliments

The audience rarely notices a good staircase.

People move across it confidently. The structure remains solid. The finish works under the lighting. The cameras capture the intended shot. Nobody pauses to wonder how the presenter reached the stage without incident.

A bad staircase receives considerably more attention.

That is why Evolution Scenic treats stage stairs as engineered scenic structures rather than decorative afterthoughts. Their design requires coordination between scenic fabrication, structural development, finishes, production lighting, camera sightlines, installation and real human movement.

They may still look simple when they are finished.

That is usually the point.

Hidden Infrastructure Explained

Many of the most successful scenic environments contain extensive infrastructure that visitors never see.

Behind finished walls, beneath raised floors and inside structural frameworks sit the systems that allow an environment to function. Power distribution, data networks, lighting controls, ventilation routes, equipment housings, maintenance access points and structural supports may occupy a significant part of the build, despite remaining almost completely concealed once installation is complete.

This hidden layer is particularly important within museums, visitor centres, immersive environments and experience centres, where technology and scenic fabrication must operate as one coordinated system. Screens, lighting, sensors, audio equipment and interactive devices may need to perform continuously without interrupting the appearance of the environment.

Designing for hidden infrastructure requires careful coordination between scenic engineering, fabrication and technical teams. Space must be allocated for equipment, cable routes and ventilation without weakening the structure, reducing installation access or compromising the intended visual finish.

One of the greatest challenges is balancing concealment with accessibility. Technical systems must remain out of sight, but technicians still need to inspect, isolate, maintain and eventually replace them.

The most successful environments resolve these requirements during design development. Infrastructure is not treated as equipment that must somehow fit behind the scenery once fabrication has begun. It becomes part of the structure, build methodology and installation sequence from the outset.

Coordinating Infrastructure Within the Scenic Build

Hidden infrastructure begins with coordinated spatial planning.

A scenic wall may appear relatively simple from the public side, yet its internal depth may need to accommodate structural framing, electrical containment, data cables, lighting drivers, ventilation openings and removable access panels. If these requirements are not identified early, different systems can begin competing for the same limited space.

Structural members may obstruct cable routes. Screen supports may conflict with access doors. Ventilation ducts may require openings through areas intended to provide bracing. Equipment may be positioned behind a finished panel that cannot be removed without damaging surrounding surfaces.

These issues are much easier to resolve on coordinated drawings than during workshop fabrication or site installation.

Early reviews should identify the principal infrastructure requirements, including:

• Power and data distribution routes
• Lighting control equipment and drivers
• Integrated screens and media hardware
• Audio equipment and loudspeaker locations
• Sensors, cameras and interactive devices
• Ventilation and heat-management requirements
• Structural supports and mounting frames
• Access panels and maintenance clearances
• Isolation points and equipment enclosures
• Future technology replacement routes

The internal space required for infrastructure must be realistic.

A cable may have a relatively small diameter, but it still requires suitable bend radii, containment, fixing points and clearance from other services. Equipment needs space for connectors, ventilation and safe removal. A screen may fit within an opening, but the surrounding structure must also allow technicians to reach its mounting points and disconnect the equipment.

Coordination should therefore consider the complete installed system rather than the external dimensions of individual components.

Cable management plays a particularly important role.

Uncontrolled cable runs can obstruct access, restrict ventilation and make future maintenance unnecessarily difficult. Power, data, control and audio cables may also have different routing requirements and should be organised accordingly.

Purpose-built cable trays, conduits, trunking and fixing points help maintain clear routes through the scenic structure. Cables should be supported rather than left resting on equipment, sharp edges or unfinished framing.

Where cabling passes through steelwork, timber panels or sheet materials, openings should be prepared with suitable edge protection. This prevents abrasion and allows the cables to be replaced without damage.

Cable routes should also avoid becoming permanently trapped behind bonded scenic panels. Where systems may require future replacement, accessible containment or removable covers provide a more practical solution.

Labelling is equally important. A concealed environment can contain hundreds of cables and connection points that appear identical after installation. Clear identification at both ends of each cable can reduce fault-finding time and prevent accidental disconnection.

Structural coordination must take place alongside these technical requirements.

Large screens, equipment racks and suspended technical components can introduce significant loads. These loads must transfer into the primary frame rather than relying on decorative cladding or lightweight scenic panels.

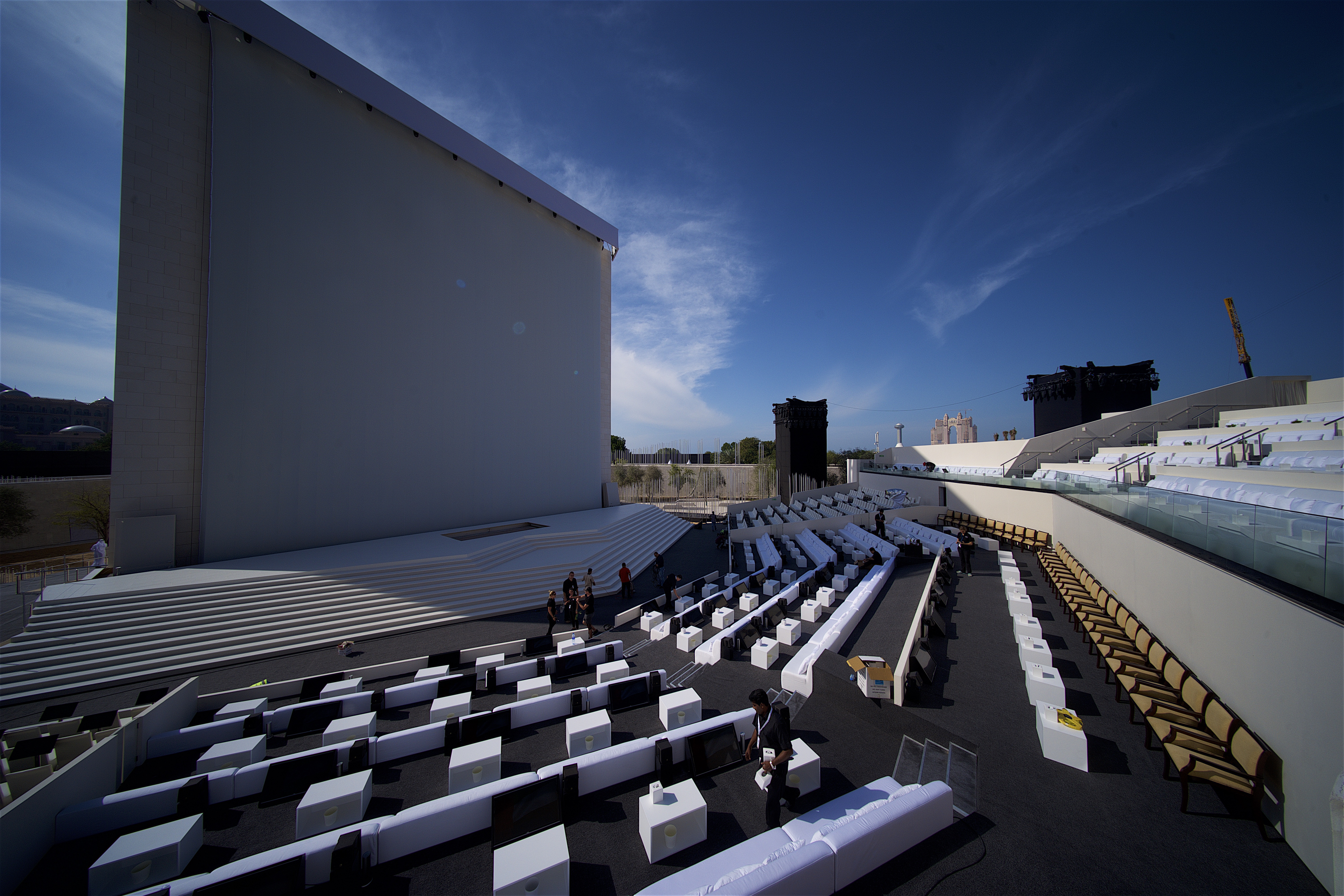

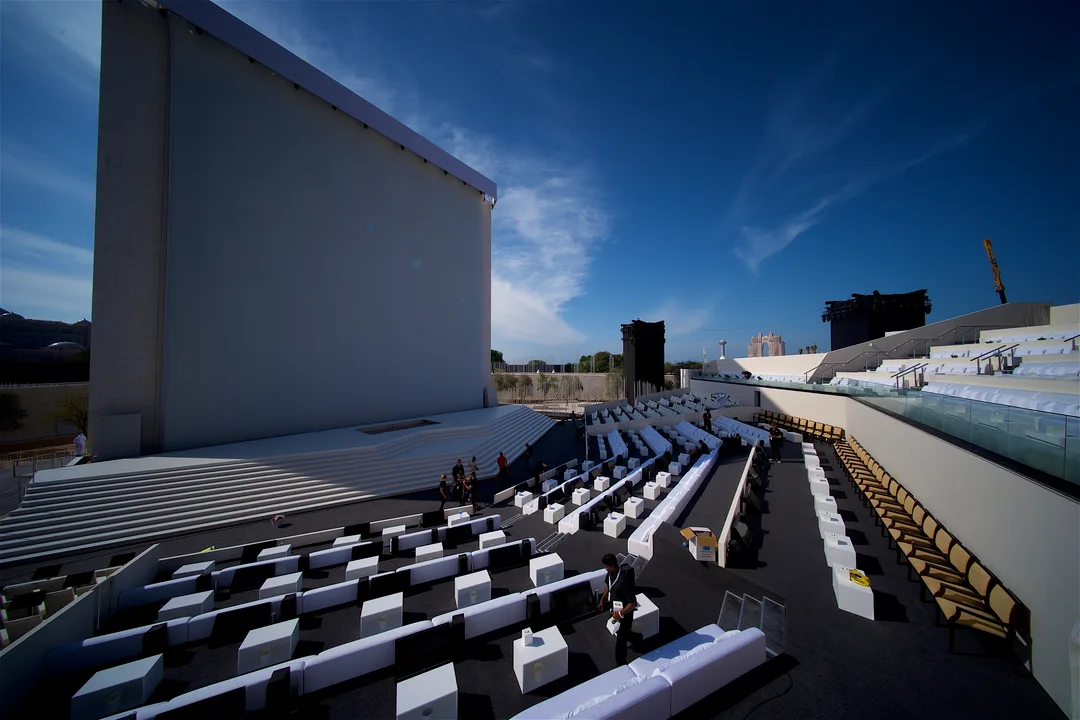

Secondary steelwork, reinforced timber framing or dedicated equipment brackets may therefore be integrated into the scenic structure. Their position should be coordinated with maintenance access and final surface finishes.

The order of installation must also be considered.

Some systems need to be installed before walls, floors or ceiling panels are closed. Others must remain removable after handover. A clear installation sequence helps prevent finished scenic elements from being repeatedly removed while technical systems are connected and tested.

Trial assembly can be particularly valuable for complex environments. Building key sections in the workshop allows the scenic and technical teams to confirm clearances, mounting points, cable routes and access before the structure reaches site.

Concealing Services Without Preventing Access

Hidden infrastructure should remain visually discreet without becoming inaccessible.

This balance is achieved through carefully planned access panels, removable scenic components and defined maintenance routes.

Access panels should be designed around the work that will take place behind them. A small opening may allow a technician to see a lighting driver, but it may not provide enough room to disconnect and remove it.

The panel size should therefore respond to the largest component, tool or hand movement required during maintenance.

Opening direction also matters. A hinged panel may be difficult to use if it opens against a wall, display case or public circulation route. Overhead panels may require retaining cables, controlled hinges or secondary restraints to prevent them falling during servicing.

Access panels can be integrated into scenic joinery, architectural lines, graphic layouts or material transitions. Magnetically retained covers, concealed hinges and flush mechanical fixings can preserve the finished appearance while providing practical access.

However, concealment should not make panels difficult for maintenance teams to identify. As-built drawings, discreet internal labels and clear access schedules should record every service point.

Some scenic environments require internal maintenance routes.

Large immersive installations, interpretation environments and stage structures may contain walkable voids, rear service corridors or technical platforms. These areas allow equipment to be accessed without entering public spaces or dismantling the visible environment.

Maintenance routes need sufficient width, lighting and headroom for safe use. They should remain free from exposed fixings, unsupported panels and uncontrolled cabling.

Where access involves ladders, mobile platforms or temporary removal of flooring, the method should be understood during design development. Equipment should not be placed in locations that can only be reached through unsafe or impractical working methods.

Ventilation is another major consideration.

LED screens, media players, power supplies, lighting drivers and control systems generate heat. When enclosed behind scenic walls or within sculptural forms, this heat can build quickly and reduce equipment reliability.

Ventilation requirements should therefore be coordinated with the scenic design.

Passive ventilation may be achieved through concealed slots, shadow gaps, perforated panels or openings integrated into decorative features. More demanding systems may require fans, ducting or filtered air movement.

The airflow path must be complete. An intake opening provides limited benefit if heated air has no route to escape. Similarly, a fan cannot operate effectively if equipment blocks the internal airflow.

Dust should also be considered, particularly in outdoor or high-traffic environments. Open ventilation can introduce airborne particles that collect on equipment and restrict cooling.

Filters may be required, but they must remain accessible for cleaning and replacement. A concealed filter that cannot be serviced will eventually become an obstruction rather than a protective measure.

Acoustic performance may influence infrastructure planning as well.

Ventilation fans, equipment racks and power systems can generate noise that becomes noticeable within quiet museum or visitor environments. Equipment isolation, acoustic lining and careful positioning can reduce this impact without compromising ventilation.

Integrated screens require particular attention because they combine structural, electrical, data and thermal requirements.

The screen support must maintain accurate alignment while allowing individual panels or modules to be removed. Cabling must remain organised and serviceable. Heat must be managed, and technicians need enough working space to reach power supplies, processors and connections.

A scenic surround should not prevent the screen from being serviced. Removable trims, accessible rear cavities and dedicated maintenance panels can allow the technical system to be repaired without damaging the surrounding finish.

Floor systems may also conceal substantial infrastructure.

Raised scenic floors can carry power, data, lighting and interactive sensor systems while preserving a clean public surface. However, cable routes, floor-loading requirements and access panels must be coordinated carefully.

Floor hatches should sit flush and remain secure under public use. Their position should avoid primary visitor routes where possible, particularly if regular access is required. Cables beneath the floor should remain protected from crushing, moisture and accidental fixing during later modifications.

The most effective concealed infrastructure is visually quiet but operationally clear. Visitors see a complete scenic environment, while technicians have defined and practical access to the systems behind it.

Planning for Maintenance, Replacement and Future Upgrades

Technology rarely remains unchanged for as long as the scenic structure surrounding it.

Screens, processors, lighting fixtures, sensors and control systems may be replaced several times during the operational life of a museum, visitor centre or immersive installation. Hidden infrastructure should therefore support future change rather than locking the original equipment permanently into the build.

Upgrade pathways begin with removable components and realistic equipment routes.

A replacement screen or processor may be a different size from the original. Cable types may change, ventilation demands may increase and new control equipment may require additional space.

Providing spare containment, accessible cable routes and adaptable mounting systems can make these changes significantly easier.

The structure should also allow old equipment to be removed physically. A service panel may provide access to connections, but it is of limited value if the equipment itself cannot pass through the opening.

Replacement routes should be checked against doors, corridors, hatches and internal structural members. Large technical components may require removable scenic sections or dedicated lifting points.

Long-term operation also depends on good documentation.

The handover information should show more than the visible scenic construction. It should record:

• Access panel locations
• Internal equipment positions
• Cable and containment routes
• Electrical isolation points
• Ventilation openings and filters
• Equipment mounting details
• Removable scenic components
• Safe maintenance routes
• Recommended inspection intervals
• Replacement and upgrade procedures

As-built drawings are particularly important because infrastructure can change during fabrication and installation. Drawings should reflect the final installed condition rather than an earlier design that was modified on site.

Equipment and cable labels should correspond with the final documentation. This creates a clear link between the physical installation and the information used by future maintenance teams.

Planned inspection supports reliable operation.

Ventilation openings may need cleaning, cables may require checking and access panels should be inspected for damage or loose fixings. Equipment enclosures should remain dry, secure and free from excessive dust.

Technical systems may also require remote monitoring. Equipment status, internal temperature and system faults can sometimes be reviewed without opening the scenic structure, allowing maintenance teams to identify problems before a complete failure occurs.

However, remote monitoring does not remove the need for physical access. Components still require inspection, cleaning and eventual replacement.

The surrounding scenic finishes must also tolerate maintenance activity.

Repeated panel removal can damage painted edges, graphics and concealed fixings if the details are not designed for regular use. Durable edge treatments, replaceable trims and robust hardware can preserve the visual quality of the environment.

Where equipment is expected to require frequent attention, the access system should be designed for repeated operation rather than occasional emergency use.

Future upgrades may also affect structural loading.

A replacement screen, loudspeaker or mechanical system may be heavier than the original component. Mounting frames and support structures should not be assumed to accept increased loads without review.

Similarly, additional ventilation openings or site-cut cable penetrations should not be introduced without considering their effect on structural members, fire performance and scenic finishes.

At Evolution Scenic, hidden infrastructure is developed as part of the complete fabrication strategy. Scenic framing, equipment supports, cable routes, access panels, ventilation and maintenance requirements are coordinated so that technical systems can operate effectively behind the visible environment.

The strongest immersive environments, museums and visitor centres do not simply conceal technology. They provide the space, access and organisation required to support it throughout its operational life.

When infrastructure is planned from the beginning, technical systems become easier to install, service and upgrade. The finished environment remains visually controlled, while the complex network behind it continues to operate without disrupting the intended experience.

What Actually Happens Behind The Stage Curtain

For most audiences, the stage curtain represents a boundary.

Everything important appears to happen in front of it.

The reality is usually the exact opposite.

Behind the curtain sits a complete operational environment responsible for making the visible production work. Scenery, lighting equipment, cable infrastructure, technical systems, stage management positions, performers, crew routes and storage areas may all occupy the same limited space.

Backstage rarely looks as polished as the environment presented to the audience. It is practical, controlled and constantly active. Scenic elements wait in predetermined positions. Drapes conceal technical equipment. Crew members move through narrow routes. Performers prepare for entrances, while stage managers coordinate cues and transitions from positions that remain hidden from view.

The challenge is not simply fitting everything into the available space. It is ensuring that every element can operate safely and efficiently without becoming visible from the auditorium.

This is where scenic planning, backstage layouts and drapery systems become critical. Masking curtains control sightlines. Soft goods create concealed access routes. Scenic structures define storage and working zones. Power and data infrastructure remain available to technical teams without interrupting the visual composition of the stage.

Many of the most important decisions within theatre, concert and live production environments are made backstage. A well-planned backstage area can reduce changeover times, improve safety and allow complex scenery and technical systems to operate reliably throughout a performance.

The audience may never see any of it.

That is exactly the point.

Backstage as a Working Scenic Environment

Backstage space is rarely generous.

In permanent theatres, the available area may be defined by the existing architecture, stage house, wings and loading access. In temporary concert, awards or corporate environments, backstage areas may need to be created within exhibition halls, ballrooms, outdoor structures or temporary stage compounds.

The layout must accommodate several activities at once.

Scenic pieces may need to enter and leave the stage quickly. Performers require clear access to entrances. Technical teams need routes to lighting, audio, video and automation equipment. Stage management requires positions with visibility, communication and access to the production area.

These requirements often compete for the same space.

A scenic wall stored in the wrong position may block a performer entrance. A cable route may cross the path of a wheeled scenic element. A technical equipment rack may restrict access to a curtain track or emergency route. Even a small conflict can create delays or safety concerns during a live production.

Backstage planning therefore begins with movement.

The scenic team needs to understand how each component arrives, where it waits, how it enters the stage and where it moves after use. This creates a practical sequence rather than a collection of objects placed wherever space remains available.

Large scenery may be divided into modular sections or mounted on wheeled bases so that it can move efficiently through the wings. Handles, push points and brakes should be positioned where crew members can operate them without entering audience sightlines.

The dimensions of backstage routes also influence scenic fabrication. A large scenic feature may appear suitable for the stage but prove impossible to move through the loading dock, backstage corridor or wing opening.

Door heights, turning circles, floor levels and changes in surface should be reviewed before fabrication begins. In some productions, scenery must pass through temporary tunnels or narrow access routes created behind masking systems.

Storage is another major consideration.

Scenic elements that are not currently in use need secure holding positions. These positions should prevent movement, protect decorative finishes and keep operational routes clear.

Tall units may require restraints or dedicated support frames. Lightweight panels may need protected racks to prevent warping or surface damage. Wheeled pieces should have effective brakes, chocks or secondary restraints so they cannot move unexpectedly.

Storage order should reflect the running sequence. A scenic item needed early in the production should not be trapped behind several components used later.

The same principle applies to props, furniture and technical equipment. Clearly defined storage zones reduce searching, unnecessary movement and congestion during scene changes.

Stage management positions also need to be coordinated with the scenic layout.

A stage manager may require a concealed desk, communication system, cue lights, show monitors and a direct route to the stage. This position must remain protected from moving scenery while providing enough visibility and access to coordinate the production.

Within temporary environments, scenic structures may be fabricated to create dedicated technical desks, screened communication areas or backstage control positions. These need to integrate equipment, cable routes and ventilation while remaining visually concealed.

The most effective backstage environments are not created by adding operational requirements after the visible stage design has been completed. They are developed alongside it.

Masking, Drapery and Hidden Technical Infrastructure

Drapery systems form one of the most important layers of backstage planning.

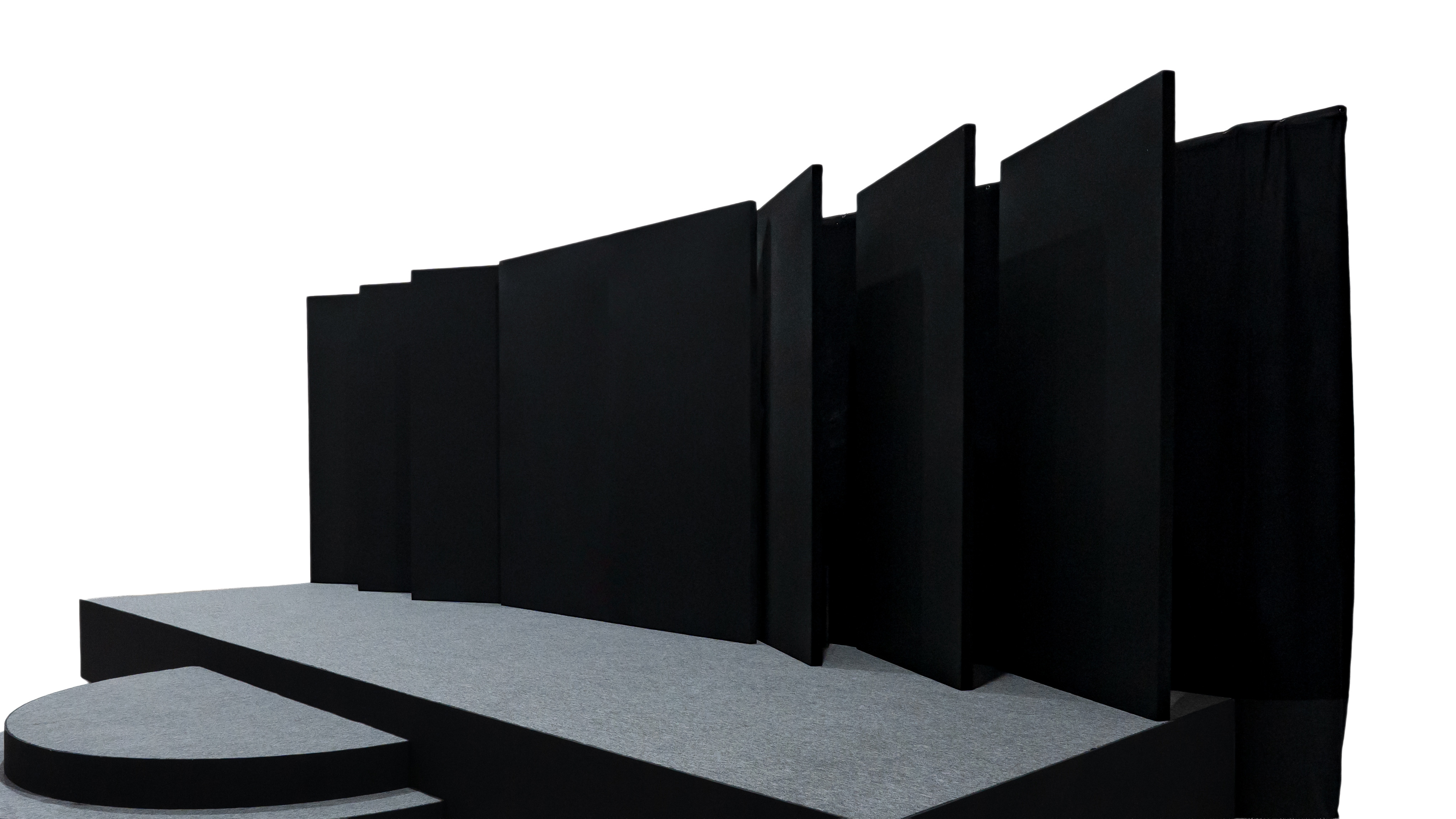

Legs, borders, tabs, travellers and masking curtains help control what the audience can see. They conceal equipment, frame the performance area and create protected routes for performers and crew.

A masking system must respond to the actual sightlines of the venue.

What appears hidden from the centre of the auditorium may remain visible from seats at the far sides. Lighting positions, stage width, audience elevation and camera angles can all reveal backstage areas that initially appeared concealed.

Sightline studies help determine the position, width and height of each masking element. Curtains may need to overlap, extend beyond scenic openings or continue behind structures to prevent unwanted views into the wings.

The fabric selection also matters.

Black wool serge and similar theatrical fabrics are commonly used because they absorb light and provide effective visual masking. Other soft goods may be selected for decorative, acoustic or projection requirements.

The drapery must be appropriately flame-retardant for its intended use and installed using suitable tracks, pipes, fixings and support systems. Large curtains carry considerable weight, particularly when gathered or installed across wide stage openings.

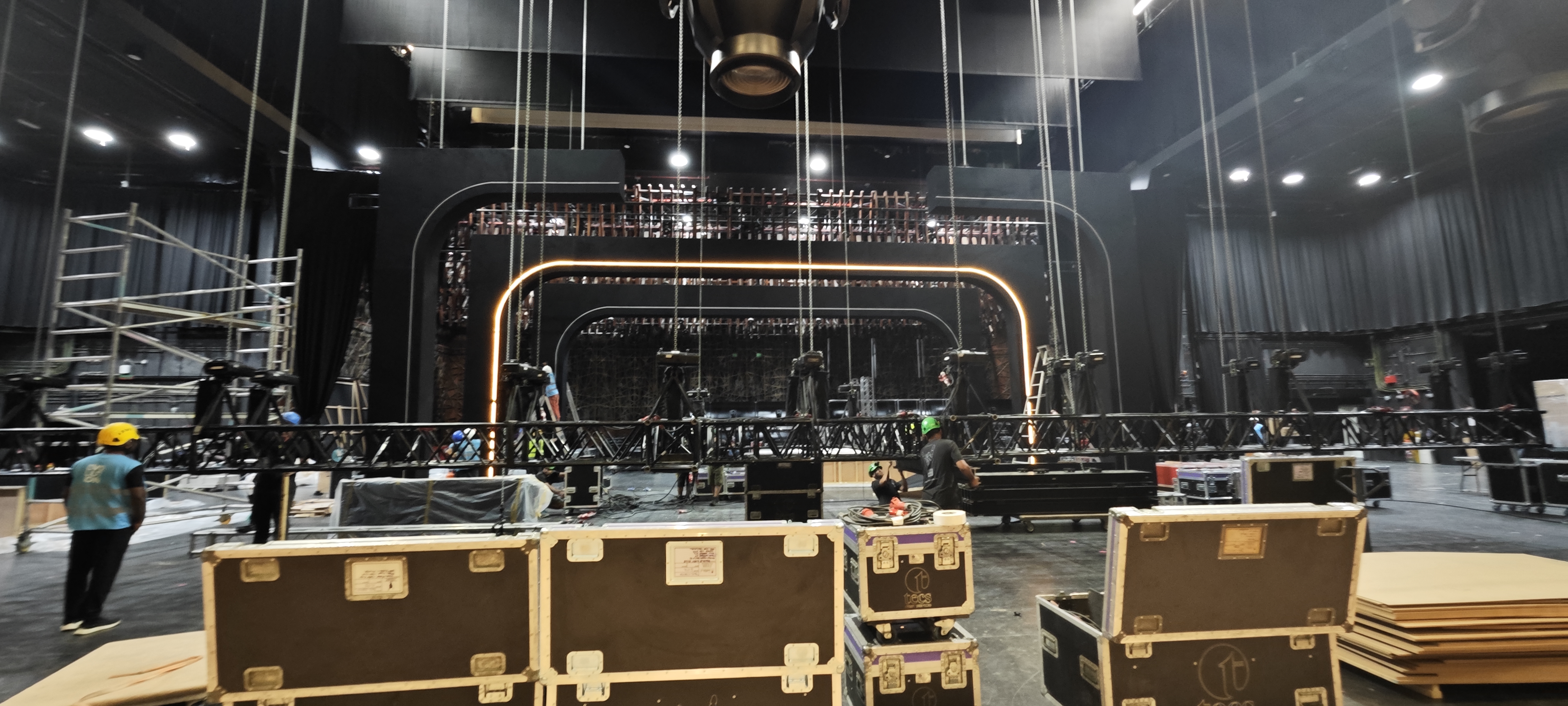

Tracks must be aligned and securely supported so that travellers operate smoothly. Curtains that drag, catch or move unevenly can disrupt cues and create unnecessary manual handling.

Floor clearance requires careful adjustment. A curtain that sits too high may reveal backstage light or equipment beneath it. One that rests heavily on the floor can collect dust, obstruct movement or become caught under wheeled scenery.

Soft goods can also create temporary corridors and working zones.

A draped passage behind the stage may provide performers with a concealed crossover route between opposite wings. Temporary changing areas, quick-change positions and technical workspaces can be formed using pipe-and-drape systems or custom scenic partitions.

These areas must still remain practical. Drapes should not reduce required escape widths, conceal trip hazards or block access to fire equipment and technical systems.

Cable routes are another essential part of the hidden environment.

Audio, lighting, video, communications and show-control systems may require substantial power and data distribution behind the stage. These routes must remain organised while allowing scenery and people to move safely.

Cables should follow defined paths using trays, ramps, overhead systems or protected floor routes. Loose cables across backstage walkways create trip hazards and can be damaged by scenic wheels, equipment cases or access machinery.

Where cables cross movement routes, suitable protection and load capacity are required. Cable ramps should not be positioned where they will interfere with the movement of heavy scenery or create unstable transitions beneath wheeled components.

Overhead cable management can reduce floor congestion, but it requires adequate support and accessible connection points. Hanging looms should not obstruct curtain tracks, flying systems or scenic movement.

Technical infrastructure also generates heat and noise.

Lighting dimmers, power supplies, video processors and equipment racks may require ventilation. If these systems are enclosed behind scenic walls or drapery, airflow must be maintained without creating visible light spill or audible fan noise.

Ventilation openings can be integrated into scenic panels, technical housings or concealed backstage zones. Equipment should remain accessible for inspection and replacement without removing major scenic elements.

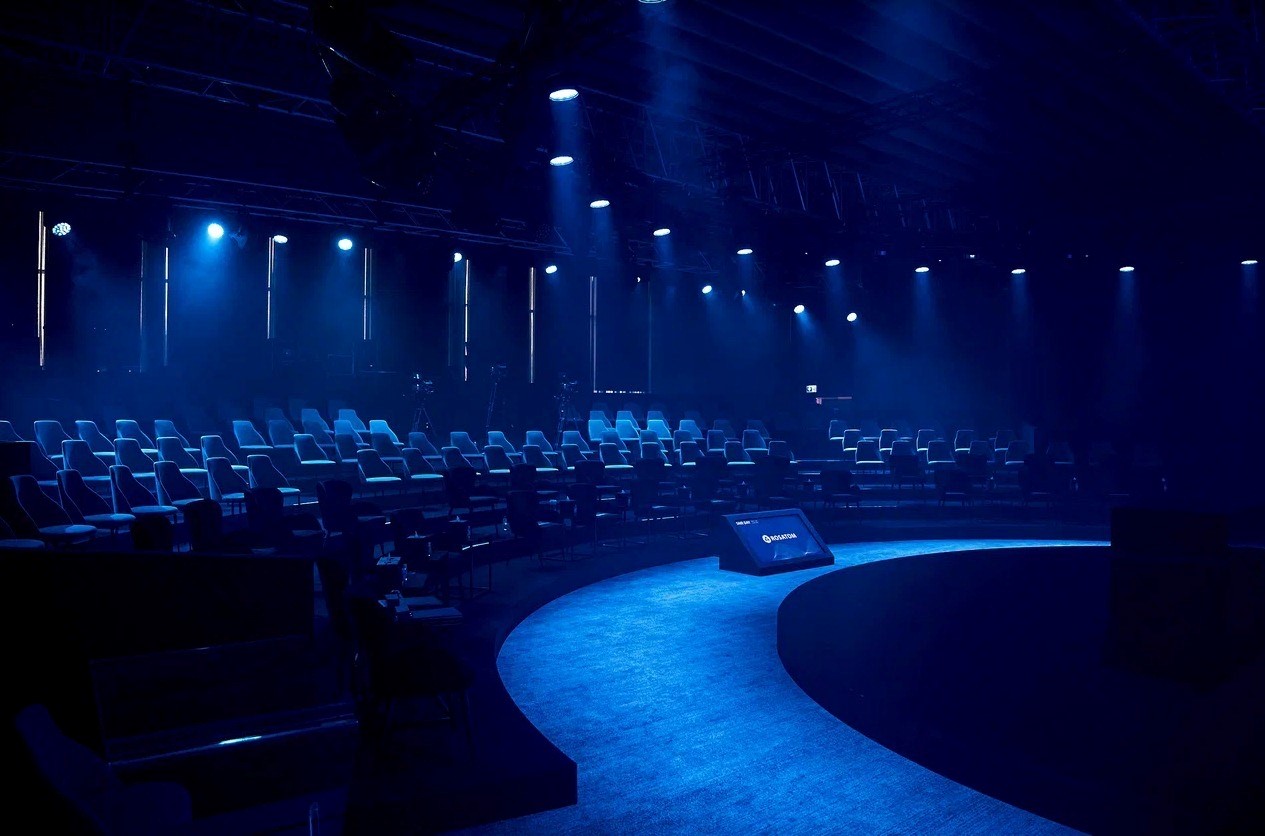

Work lights are equally important.

Backstage areas must remain dark enough to avoid being visible to the audience, but crew members still need sufficient light to move and operate safely. Low-level blue working lights, controlled task lighting and shielded fixtures are commonly used to provide visibility without spilling into the stage picture.

Light placement should account for curtains, equipment and moving scenery. A useful backstage light becomes ineffective if it is later blocked by a stored scenic wall.

At Evolution Scenic, drapery, scenic structures and hidden infrastructure are coordinated as part of one backstage system. The objective is not simply to conceal technical equipment, but to create an organised working environment behind the visible production.

Crew Movement, Quick Changes and Live Operation

Backstage planning is ultimately tested during live operation.

A layout may appear logical on a drawing but behave very differently once performers, technicians, scenery and equipment begin moving simultaneously.

Crew routes need to be direct, clear and predictable.

Scenic changeovers often happen within seconds. Crew members may move large wagons, rotate walls, remove furniture or reposition props in limited light. Each movement must follow a rehearsed path without conflicting with performers, cables or other scenic elements.

Wheeled scenery should move smoothly and stop accurately. Castors must be suitable for the floor surface and the weight of the unit. Brakes, tracking guides or mechanical location points may be required to ensure pieces return to the correct position.

Handles and operating points should be clearly identified and positioned away from visible faces. Crew members need enough space to control the scenic element without placing hands near pinch points or moving mechanisms.

Temporary spikes, floor marks or concealed stops can support accurate placement. For more complex environments, guide tracks, indexing systems or automated scenic mechanisms may be used.

Quick-change areas require similar planning.

Performers may need to change costumes rapidly before entering from another position. These spaces should be located close to the relevant entrance while remaining protected from scenery, cables and general backstage traffic.

Temporary scenic partitions, curtains, mirrors, lighting, costume rails and storage can be integrated into compact backstage zones. The layout should provide enough working room for performers and dressers without narrowing escape routes or blocking technical access.

Crossovers allow performers and crew to move behind the stage from one side to the other without entering the visible performance area. In some venues, permanent rear-stage routes exist. In temporary productions, concealed crossovers may need to be created using masking drapes or scenic walls.

These routes must remain clear throughout the production. Stored equipment, empty flight cases and unused scenic components can gradually reduce the available width if backstage discipline is not maintained.

Stage management coordinates these activities through cueing, communication and operational control.

Clear-com headsets, cue lights, show monitors and communication systems connect the stage management team with departments positioned across the venue. Their cabling and equipment must remain reliable and protected from scenic movement.

Cueing positions should provide access to the stage while avoiding conflict with entrances and changeover routes. Emergency stops, technical isolators and manual overrides may also need to be accessible from controlled backstage locations.

Safety remains central throughout live operation.

Backstage teams work in reduced light, often close to heavy scenery, moving equipment and suspended loads. Floors must remain clear, scenic pieces should be restrained when stored and access to lifting or automation zones must be controlled.

Changes made during rehearsals should be reviewed carefully. Moving a curtain, equipment rack or scenic storage position may appear minor but can affect sightlines, access and crew movement.

Daily inspections can confirm that:

• Scenic storage areas remain organised
• Wheels and brakes operate correctly
• Curtain tracks and soft goods are secure
• Cable routes remain protected
• Work lights are operational
• Access routes and crossovers remain clear
• Quick-change areas are safely arranged
• Technical panels and equipment remain accessible
• No scenic components have shifted or become damaged

Rehearsals are essential because they reveal practical issues that may not be visible during fabrication or installation.

A scenic piece may take longer to move than expected. Two crew routes may intersect. A curtain may obscure a handhold, or a quick-change position may require more space.

These issues can usually be resolved through revised storage, adjusted masking, clearer operating points or minor scenic modifications. The objective is to improve the backstage system before live operation begins.

The most successful stage environments allow every hidden activity to happen without distracting from the visible production.

Scenery arrives at the correct moment. Performers reach their entrances. Technical teams access the systems they need. Curtains conceal the entire process.

The audience sees only the finished result.

Behind the curtain, however, that result depends on disciplined planning, coordinated scenic fabrication and a backstage environment designed around the people and equipment operating within it.

Like many aspects of scenic production, the best backstage systems are often the ones nobody notices.

Why Theatre Sets Are Built To Be Seen From One Direction

One of the first surprises for people new to theatre production is discovering that many stage sets only need to work from one direction.

Unlike exhibitions, activations or public environments where visitors may walk around a structure, theatre scenery is normally viewed from a fixed audience position. The auditorium defines the principal viewing angle, while lighting, masking and stage architecture control what remains visible.

The audience sees the front.

The audience rarely sees the back.

This changes almost everything about how a set is designed, fabricated and installed.

A brick wall may consist of a lightweight scenic panel only a few millimetres thick. A grand stone arch may be formed from timber framing, carved foam and painted texture. A realistic fireplace may exist only on the audience-facing side, with open framing and practical supports clearly visible backstage.

This is not cutting corners. It is an established scenic principle: build what the production needs and place effort where the audience will see it.

Theatre has always relied on controlled perspective. Scenic designers and fabricators use sightlines, viewing distance, lighting and audience position to create convincing environments without reproducing every element as a complete architectural object.

The challenge is knowing exactly where the illusion begins and ends.

Build too little and the backstage structure becomes visible. Build too much and the production carries unnecessary weight, material, labour and installation complexity.

The strongest theatre scenery achieves a precise balance between realism and practicality. The audience believes it is looking at a complete world, while the workshop understands exactly which parts of that world need to exist.

Designing Around Sightlines and Audience Perspective

Theatre scenery begins with the audience’s point of view.

A set may appear complete when viewed from the centre of the auditorium but reveal unfinished edges, open framing or technical equipment when seen from the far-left or far-right seats.

Sightline planning therefore considers the complete audience area rather than one ideal viewing position.

The scenic team reviews how the set will be seen from:

• Central seating positions
• Extreme side seats
• Balconies and elevated levels
• Front rows close to the stage
• Camera positions where recording or broadcast is involved
• Performer entrances and exposed wing areas

These viewing angles help establish which surfaces must be finished, how far scenery should extend and where masking is required.

A wall positioned at the rear of the stage may only need a detailed front surface because the audience cannot see its sides. A scenic structure placed close to the front row may require finished returns, concealed edges and greater surface detail because spectators can view it from sharper angles.

The required level of finish also changes with distance.

A large stone texture viewed from the back of an auditorium can be created with broad carving, painted shadows and exaggerated joints. The same treatment may appear crude when positioned close to the audience. Scenic scale, texture and paint detail must therefore respond to the actual viewing distance.

Lighting further shapes what the audience perceives.

Directional light can strengthen shallow texture and make lightweight scenery appear substantial.

Painted highlights and shadows can create apparent depth where very little physical relief exists.

Dark masking can conceal unfinished edges, supporting structures and crew routes.

However, lighting can also expose weaknesses. Side light may reveal a flat surface that appeared convincing under front light. High-gloss paint may reflect technical equipment, while gaps between panels can become visible once illuminated.

Scenic samples should therefore be reviewed under lighting conditions similar to those expected on stage.

Forced Perspective

Forced perspective is one of theatre’s most established visual techniques.

Objects and architectural elements are deliberately altered in scale to create the impression of greater distance or depth. Floor patterns may narrow towards the back of the stage. Doorways may become progressively smaller. Rooflines, columns and decorative details can reduce in scale as they move away from the audience.

When viewed from the intended seating position, these changes make the stage appear deeper than it actually is.

The technique depends on controlled sightlines. If viewed from backstage or an extreme side angle, the distortion becomes obvious. From the audience position, however, the elements align to form a convincing environment.

Forced perspective can be particularly effective within musicals, theatrical productions, awards shows and scenic stage environments where the available stage depth is limited.

It must be coordinated carefully with performers and moving scenery. A reduced-scale doorway may appear correct visually but still needs to accommodate performer access where required.

Sloping floors and narrowing routes must not create unsafe movement conditions backstage.

Perspective decisions therefore combine visual design with practical stage operation.

Scenic Illusion and Selective Detail

Not every visible surface requires the same degree of detail.

The eye is naturally drawn towards illuminated focal points, performers and key architectural features. Scenic fabricators use this hierarchy to decide where physical depth, specialist finishes and detailed construction will have the greatest impact.

A hero doorway may include layered mouldings, carved panels and aged scenic finishes. A surrounding wall may use simpler painted texture because it sits outside the main visual focus.

Depth can also be suggested through layered flats rather than complete structures. Several thin scenic elements positioned at different distances can create a richer stage picture while remaining lightweight and easy to handle.

Traditional theatre scenery has long relied on painted backdrops, flats, borders and profile pieces. Modern fabrication adds CNC machining, digital printing, carved foam, lightweight composites and integrated lighting, but the underlying principle remains the same: construct enough information for the audience to complete the illusion.

Building Lightweight Scenery That Works From the Front

Once the viewing angles are understood, the set can be fabricated around what is actually required.

A theatrical wall is usually very different from a permanent architectural wall. It may contain lightweight timber or aluminium framing, thin sheet cladding and scenic finishes designed to read correctly from the auditorium.

The rear face often remains open.

This allows scenic teams to reduce weight, access fixings and integrate braces, cables, lighting equipment or operating mechanisms. It also makes the scenery easier to move, store and repair.

Common stage-set construction methods include:

• Timber-framed scenic flats
• Aluminium-framed touring panels
• Plywood or MDF scenic skins
• CNC-cut ribs and decorative profiles
• Carved foam architectural details
• Lightweight moulded components
• Printed backdrops and scenic cloths
• Wheeled scenic wagons
• Modular bolted structures
• Painted trompe-l'œil surfaces

The correct method depends on the scale, duration, movement requirements and viewing distance of the production.

Scenic Flats and One-Sided Walls

Scenic flats are among the most recognisable examples of one-directional construction.

A flat typically consists of a lightweight frame covered with fabric, plywood or another thin scenic surface. From the audience side, it may represent a complete wall, interior room or architectural façade. From backstage, the bracing and framing remain visible.

Flats can be connected to create larger environments, supported with stage braces or mounted onto wheeled bases for scene changes.

Their light weight is an advantage during installation and live operation. Crew members can move large scenic surfaces without the lifting equipment required for equivalent architectural construction.

Lightweight does not mean unstable. Frames, joints and bracing must still be designed around the height of the scenery, movement requirements and any attached decorative elements.

Large scenic walls may require steel base frames, reinforced connections or overhead restraint even when their visible surfaces remain very light.

Touring, Installation and Live Stage Operation

One-directional construction becomes especially valuable when scenery must tour.

Touring productions repeatedly load, transport, assemble, operate and dismantle the same scenic elements. Weight, module size and connection speed become critical.

A set designed as permanent architecture would be impractical to move between venues. Touring scenery must pack efficiently, pass through loading docks and adapt to different stage dimensions.

Modular construction allows large visual environments to be divided into manageable sections.

Walls may use bolted frames and removable scenic skins. Columns may separate into stackable sections. Decorative features can be detached and packed within protected transport cases.

The visual joints between modules are often concealed within architectural lines, panel divisions or scenic texture.

Aluminium framing is frequently useful for touring because it reduces weight and provides accurate repeatable assemblies. Timber remains valuable where rapid modification or repair may be required. Steel may be incorporated selectively within bases, lifting points or high-load connections.

Trial assembly helps confirm that touring modules align correctly and can be built within the available installation period.

Venue Adaptation

The same stage set may behave differently in every venue.

Stage width, proscenium opening, wing space, overhead rigging capacity and audience sightlines can vary significantly. Scenery must sometimes be repositioned or reduced to suit a smaller stage.

Masking systems help adapt the visible environment. Additional legs, borders and black drapes can conceal unused stage areas or sections of scenery that cannot be installed within a particular venue.

The scenic design may include optional modules so that the set can expand or contract without losing its visual coherence.

Sightlines should be reviewed at each venue. A side structure concealed in one theatre may become visible in another with wider seating. Additional returns, masking or finish treatment may be required.

Movement and Scene Changes

Scenery built for one-directional viewing may also be designed to transform quickly.

A scenic wagon can present one environment to the audience, rotate or move offstage, and be replaced by another. Revolving structures may contain several finished faces, each intended for a different scene, while internal areas remain open for access and mechanical systems.

Quick changes rely on controlled movement.

Wheels, tracks, brakes and guiding systems must support accurate placement. Crew handles and operating positions remain hidden from the audience but accessible backstage.

The scenery must also remain stable at every stage. Lightweight structures can still create significant hazards if they are tall, poorly braced or moved without appropriate control.

Stage teams therefore inspect connections, castors, brakes, braces and overhead restraints before operation.

Awards Shows and Corporate Stage Environments

The same principles extend beyond traditional theatre.

Awards shows, concert environments and corporate productions often create elaborate stage architecture intended to be viewed primarily from the auditorium and camera positions.

These sets may include large portals, layered scenic walls, integrated LED surfaces and sculptural features that appear complete from the front but remain open and technical behind the scenes.

Camera coverage can expand the required viewing angles. A structure that works for a seated audience may need additional finishing if cameras move into the wings or capture reverse angles.

The scenic team must therefore understand both the live audience perspective and the planned broadcast positions.

At Evolution Scenic, stage-set fabrication begins with how the environment will actually be viewed and operated. Sightlines, lighting, material selection, movement and backstage access are coordinated so that the visible world remains convincing while the hidden structure stays practical.

Theatre scenery does not need to reproduce a complete building.

It needs to reproduce the right view of that building.

That distinction allows scenic teams to create environments that are lighter, faster to install and more adaptable without weakening the audience’s belief in what they see.

The audience experiences a complete room, street, palace or landscape.

Behind it may be timber framing, stage braces, wheels, labels and carefully positioned masking.

The illusion works because every visible element has been considered.

Everything else exists only where the production needs it.
