Engineering Scenic Steel Structures

Steel remains one of the most important materials used within scenic engineering. Its strength, versatility and adaptability allow fabrication teams to deliver structures that would be difficult to achieve using many alternative construction methods.

Yet successful scenic steelwork is not simply a matter of selecting a strong material and adding enough of it to support the structure. Every decision affects another part of the project. Increasing a member size may improve structural capacity, but it also increases weight. Adding welded connections may produce a rigid frame, but it may complicate transport or prevent efficient dismantling. Reducing the number of components may simplify installation, but create modules that are too large to pass through the venue access route.

For Evolution Scenic, engineering steel structures is therefore an exercise in balancing structural performance with fabrication, transportation, installation and operational requirements.

Engineering Begins Before Fabrication

The engineering process starts long before steel reaches the workshop.

At the earliest stage, the scenic concept must be assessed as a physical structure rather than only a visual composition. Engineers and fabricators consider the overall geometry, expected loads, support conditions, venue restrictions, installation sequence and intended operational period.

A scenic stage may need to support architectural cladding, lighting equipment, LED screens, suspended technical systems and maintenance access. An exhibition pavilion may need long, unobstructed spans while remaining demountable and suitable for installation within strict venue working hours. A large public structure may need to resist wind, interaction from visitors and changing environmental conditions.

These requirements influence the structural arrangement from the beginning. The position of columns, bracing, connection points and foundations cannot be developed independently from the scenic design. They must be coordinated so that the final framework supports the visual intent without creating unnecessary weight, visible obstructions or impractical assembly conditions.

Structural Calculations for Scenic Environments

Structural calculations establish how the steel structure will behave under the loads it may experience throughout its working life.

This normally begins with the self-weight of the steel frame, but the structure rarely carries only itself. Scenic finishes, timber substrates, graphics, lighting systems, AV equipment, access platforms and suspended features all contribute additional permanent loads.

Temporary and imposed loads must also be considered. These may include technicians accessing a structure, equipment being moved during installation, wind acting on large scenic surfaces or operational loads generated by moving components. In public environments, engineers may also need to account for accidental interaction, guarding requirements and areas where visitors could lean against or touch fabricated elements.

Temporary structures require particular attention because their loading conditions can change during installation. A partially assembled frame may behave very differently from the completed structure. Bracing that provides stability in the finished arrangement may not yet be installed during the early construction stages.

Engineering calculations therefore need to consider both the completed structure and the temporary conditions created while it is being assembled or dismantled.

Establishing Clear Load Paths

A load path describes how forces move through a structure and eventually reach the supporting surface.

For example, wind acting on a tall scenic wall may transfer through the cladding into secondary rails, then into the primary steel frame, through diagonal bracing and finally into base plates, anchors or ballast. A suspended scenic feature may transfer its weight through lifting points, beams, columns and foundations.

A clear load path allows each structural component to perform a defined role. When load paths are poorly resolved, forces can become concentrated in unexpected areas, creating excessive movement or requiring unnecessary reinforcement.

This is why bracing positions, beam directions and support locations are important engineering decisions rather than workshop details. The objective is not simply to create a strong collection of steel members. It is to create an efficient structural system in which loads travel predictably through the frame.

Well-resolved load paths can also reduce the total amount of material required. A correctly positioned brace may provide more stability than increasing the size of several beams. A carefully located support may shorten a span and significantly reduce member weight.

Connection Design

Connections are often the most critical parts of a scenic steel structure.

Members may have sufficient capacity individually, but the structure will only perform successfully if forces can be transferred safely between them. Connection design considers plate thicknesses, bolt sizes, weld requirements, hole positions, edge distances and the forces acting at each structural node.

Scenic structures also introduce practical connection requirements that may not exist within permanent construction. Components often need to be transported separately, assembled quickly and removed without damage. This makes bolted and demountable connections particularly valuable.

Workshop-welded assemblies can provide rigidity and accuracy, while bolted site connections allow the structure to be divided into manageable modules. Splice plates, flange connections, captive nuts and accurately coordinated hole patterns can reduce installation time and limit the amount of site welding required.

Accessibility is equally important. A connection that works perfectly within a structural model may be difficult to reach once cladding, decking or technical equipment has been installed. Installation teams need enough space for tools, hands and lifting equipment.

Effective connection design therefore considers structural capacity and the physical reality of assembling the structure on site.

Fabrication Detailing

Once the engineering principles have been established, fabrication detailing converts the structural design into information the workshop can manufacture accurately.

Detailed drawings identify member profiles, steel grades, plate thicknesses, weld sizes, hole diameters, connection references and overall dimensions. They also define how individual components relate to the complete structure.

The choice between rectangular hollow sections, circular hollow sections, universal beams, channels and fabricated plate assemblies depends on more than strength. The selected profile may need to accept cladding, conceal services, create a curved outline or provide a clean interface with timber and scenic finishes.

Fabrication detailing must also account for workshop access. Welds need to be positioned where they can be completed and inspected. Bolts need sufficient clearance. Plates must be shaped to avoid clashes. Tolerances must be coordinated so components can be assembled without creating visible gaps or forcing members into position.

Digital modelling and CNC-controlled production can improve accuracy, particularly where structures contain repeated components, complex geometry or precisely aligned interfaces. However, digital accuracy must still be supported by practical workshop knowledge. Steel moves during welding, frames can distort and apparently minor tolerance issues may multiply across a large structure.

Good detailing anticipates these realities before fabrication begins.

Workshop Processes and Quality Control

Inside the workshop, structural steel components move through cutting, drilling, profiling, welding, grinding, trial assembly and finishing processes.

CNC cutting, laser profiling and automated drilling allow plates and members to be produced with consistent hole patterns and accurate geometry. Fabrication jigs help maintain alignment while repeated frames or connection assemblies are welded.

Welding sequence is important because concentrated heat can distort steel. Experienced fabricators control this by balancing welds, using temporary restraints and checking dimensions throughout production rather than only after a component has been completed.

Where practical, scenic steel structures may be trial assembled in the workshop. This provides an opportunity to confirm that connection holes align, modules fit together, bracing can be installed and scenic interfaces are located correctly.

Components can then be labelled according to the installation sequence. Clear identification becomes especially valuable on large structures containing similar members or mirrored assemblies.

The result is not simply a collection of manufactured parts. It is a coordinated structural kit prepared for efficient assembly.

Designing for Transportation and Installation

A structure cannot be considered successful if it performs structurally but cannot be transported or installed efficiently.

Module sizes must reflect vehicle capacities, road restrictions, loading methods, venue access routes and available handling equipment. A large welded frame may reduce the number of site connections, but it may require specialist transport or lifting equipment. Smaller modules may be easier to handle but increase assembly time.

Installation planning therefore influences the engineering arrangement. Lifting points may be integrated into major modules. Temporary bracing may be added to stabilise frames before the permanent structure is complete. Connections may be positioned so they remain accessible from mobile elevated work platforms or scaffold towers.

The sequence of installation must also be understood. Engineers need to know which parts will be erected first, where lateral stability will come from at each stage and when cladding or technical systems will be added.

For temporary structures, dismantling is part of the same process. Connections should remain accessible, components should be removable without damaging adjacent scenic finishes and modules should be suitable for storage or future reuse where required.

Different Structures Require Different Decisions

Large public structures often require substantial resistance to wind, environmental exposure and visitor interaction. Their steel frameworks may support complex sculptural forms while remaining almost completely hidden beneath finished surfaces.

Scenic stages can introduce long spans, suspended loads, integrated LED screens and concentrated equipment loads. The structure must achieve the required rigidity while allowing production systems, access routes and scenic cladding to be coordinated around it.

Exhibition pavilions frequently prioritise modularity, efficient installation and controlled floor loading. Steel may be combined with aluminium, timber and CNC-manufactured panels to create a hybrid system that uses each material where it performs most effectively.

Cultural installations may require the steel frame to follow unusual geometries or support detailed scenic finishes. In these environments, close coordination between structural engineers, metal fabricators, scenic carpenters, CNC teams and finishing departments becomes particularly important.

Engineering for Performance, Not Excess

The most successful scenic steel structures are not necessarily those containing the greatest amount of material.

They are the structures that achieve the required performance with a clear structural strategy, efficient load paths, practical connections and a considered installation methodology.

Steel provides strength, but engineering determines how effectively that strength is used.

Fabrication detailing turns engineering intent into manufacturable components. Workshop expertise controls accuracy and quality. Installation planning ensures the finished system can be assembled safely within the realities of the site.

At Evolution Scenic, these disciplines operate together throughout the delivery process. The aim is not simply to manufacture steelwork, but to engineer scenic structures that are safe, efficient, transportable and appropriate for the environments in which they will operate.

Structural Calculations Explained

Structural calculations often sit quietly behind the scenes of scenic projects. Clients, agencies and visitors rarely see them, yet they can influence almost every significant decision made during design, fabrication and installation.

Many scenic structures appear relatively straightforward once complete. A feature wall may seem to be a simple vertical surface. A stage set may look like a collection of decorative forms, while a parade float might appear to be a lightweight scenic composition fixed to a vehicle.

Behind the finished surfaces, however, engineers, designers and fabrication teams are often resolving a far more complex set of questions. They must determine how the structure will carry its own weight, how it will respond to people, equipment and environmental forces, and how it can be transported, assembled and operated safely.

Structural calculations are therefore not simply documents produced to prove that something will remain standing. They are practical tools that help turn ambitious creative ideas into safe, efficient and buildable scenic structures.

Understanding How Forces Move Through a Structure

One of the most important principles in structural engineering is the load path. A load path describes how force travels through a structure until it reaches a stable supporting point, such as the floor, a foundation, a vehicle chassis or an approved venue connection.

For example, the weight of a large scenic feature may pass through its decorative skin into a secondary framework, then into a primary steel structure and finally down through base plates into the floor. Every connection along that route must be capable of transferring the required force safely.

This can become particularly important in scenic fabrication, where the visible shape of a structure may not follow conventional architectural forms. Curved walls, cantilevered features, suspended elements and oversized sculptural components can create unusual load paths that require careful analysis.

A structure may appear substantial from the outside while relying on a relatively lightweight internal framework. Alternatively, an apparently simple scenic wall may require significant concealed steelwork because of its height, shape or exposure to wind.

Understanding the load path early allows the engineering and fabrication teams to identify where reinforcement is genuinely required, rather than simply adding unnecessary material throughout the structure.

Dead Loads and the Weight of the Build

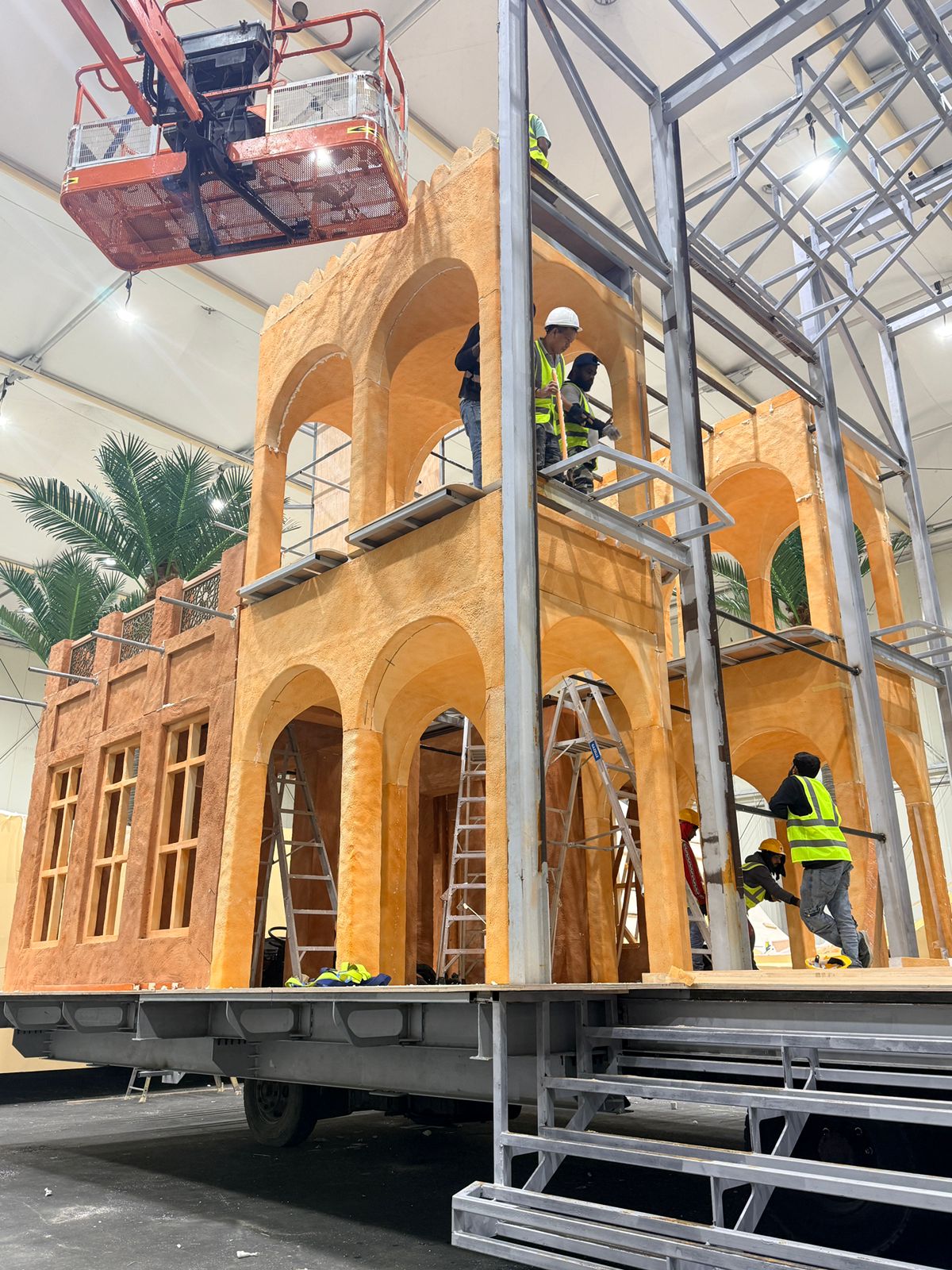

Dead load is the permanent weight of the structure itself. In scenic construction, this may include structural steel, timber framing, plywood, aluminium, CNC-machined components, scenic finishes, LED screens, lighting equipment, graphics, cladding and any permanently attached mechanical elements.

Dead loads can accumulate quickly. A decorative finish that appears relatively light across a small sample can add considerable weight when applied over hundreds of square metres. Screens, suspended lighting features and specialist cladding systems may also introduce concentrated loads that must be allowed for within the supporting framework.

Managing dead load is especially important for temporary structures because weight affects more than structural performance. It also influences transport, lifting operations, installation labour, vehicle capacity and the speed at which the structure can be assembled.

Reducing weight does not necessarily mean reducing strength. A well-developed design may use aluminium instead of steel in selected areas, hollow fabricated sections instead of solid forms, or CNC-cut ribs to create volume without excessive mass.

Structural calculations help the team understand where weight can be removed safely and where additional material is essential.

Live Loads and Public Interaction

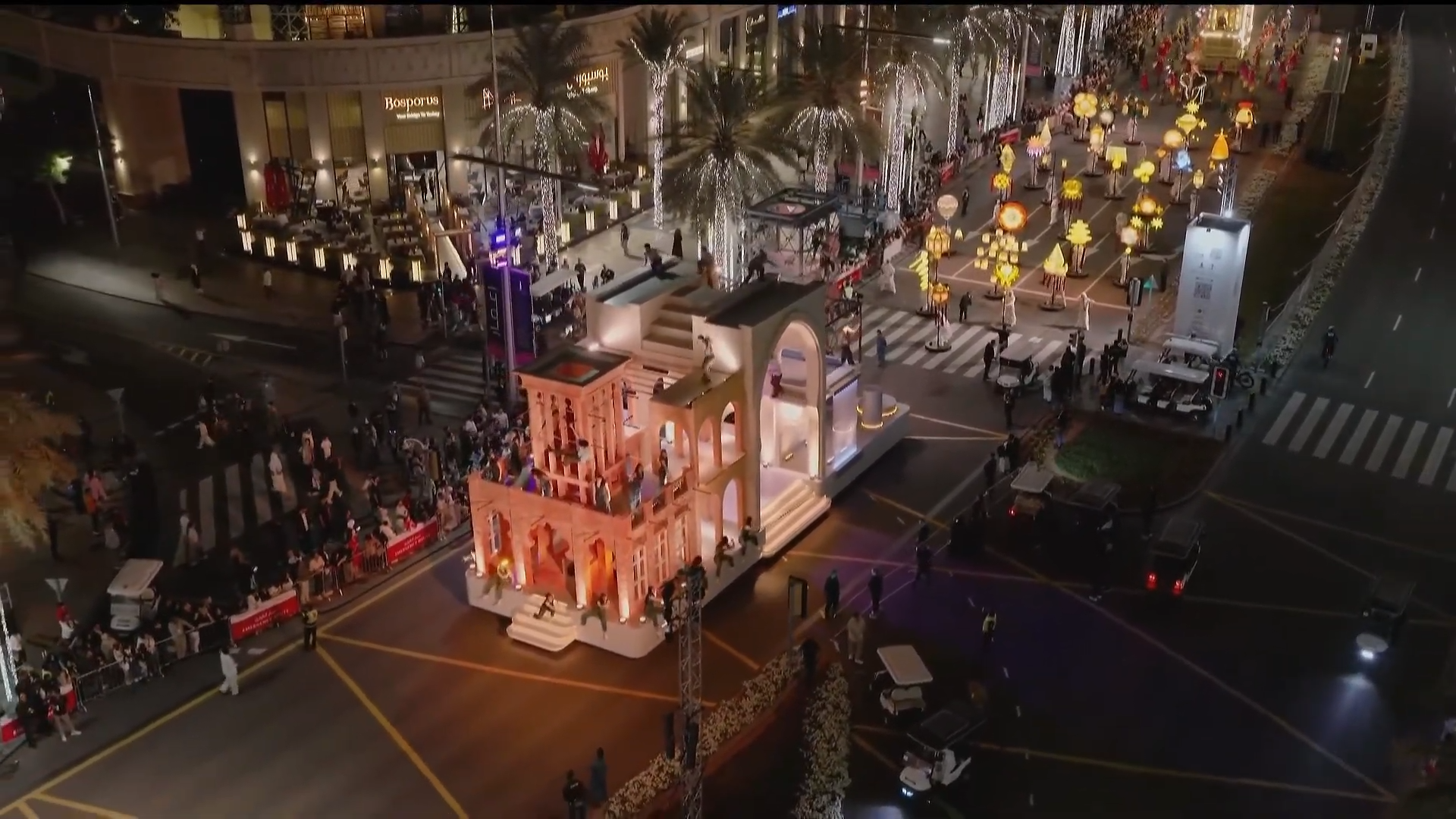

Live loads are forces that may change during the use of a structure. These can include people, movable equipment, performers, furniture, temporary displays, stored materials and operational loads introduced during maintenance or installation.

For a scenic stage, live loads may come from performers, stage equipment, scenic props, cameras or mobile platforms. An exhibition pavilion may need to support visitors leaning against counters, interacting with displays or gathering within particular areas.

Public-facing scenic structures require particular care because people do not always interact with them in the way originally intended. Visitors may lean against walls, sit on plinths, climb onto low-level features or gather around popular installations.

Structural calculations allow these possibilities to be considered in advance. They help the project team determine suitable safety factors, connection details and reinforcement requirements without compromising the visual design.

This is particularly important when a scenic element looks solid or architectural. Its appearance can encourage people to treat it as a permanent structure, even when it has been designed as a temporary installation.

Wind Loading and Large Scenic Surfaces

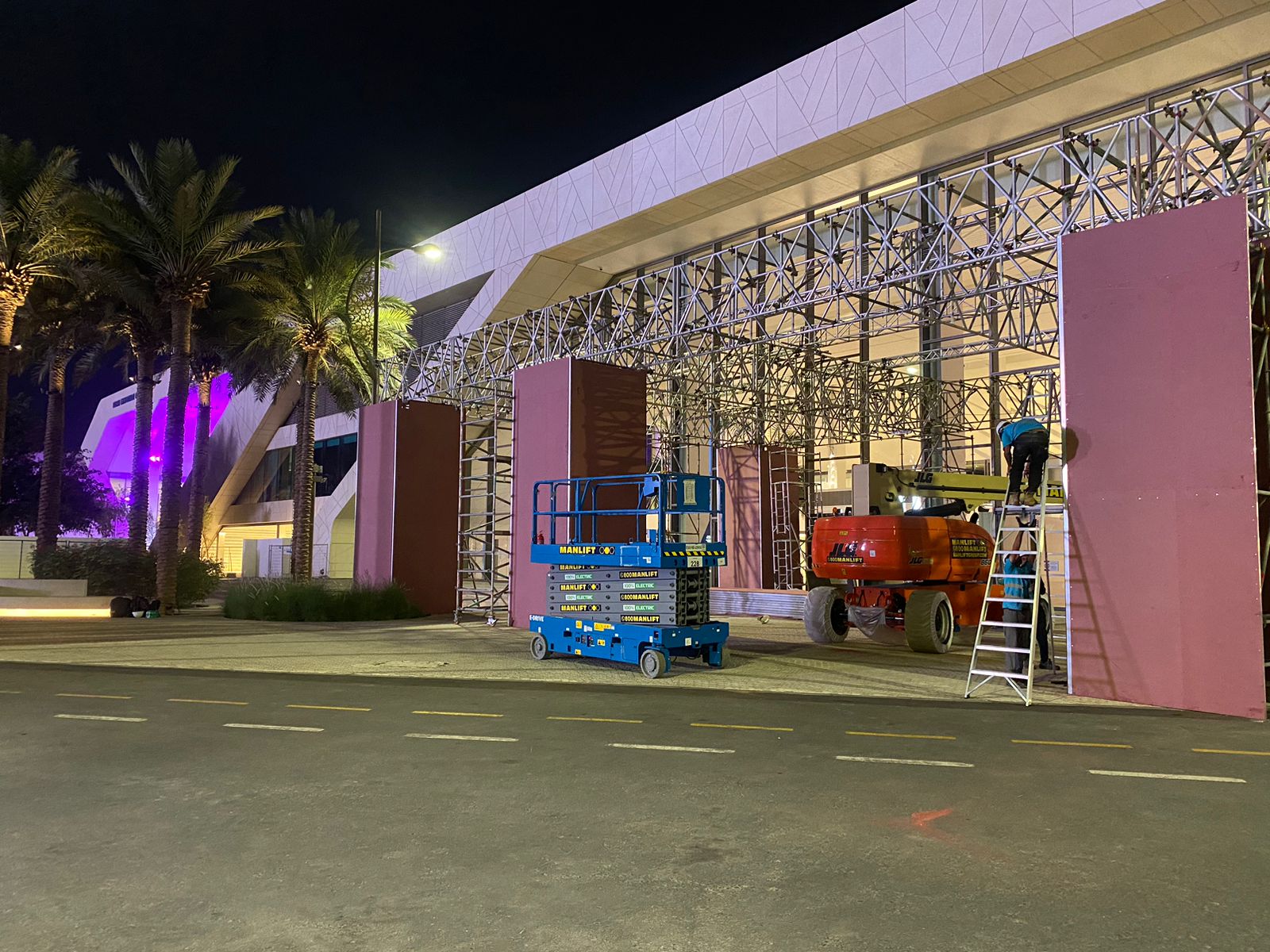

Wind loading is one of the most influential considerations for outdoor scenic structures.

A large flat surface can behave like a sail, creating significant pressure on the supporting structure, connections and foundations. The taller and wider the surface becomes, the greater the potential force.

Wind does not only affect outdoor installations. It may also influence entrance features, structures positioned near open venue doors or temporary builds exposed during installation before the final enclosure is complete.

Parade floats present a particularly interesting example. A scenic element mounted on a moving vehicle may experience both natural wind and airflow created by the vehicle’s movement. Large decorative panels, elevated figures and lightweight cladding must therefore be designed to resist uplift, vibration and repeated movement.

Where possible, engineers and fabricators may reduce wind pressure by introducing openings, perforations or controlled airflow through the scenic form. In other cases, additional ballast, wider bases, structural outriggers or ground anchors may be required.

These decisions must be coordinated carefully with the visual concept. The aim is not to simplify the design unnecessarily, but to develop a safe structural solution that remains faithful to the creative intent.

Dynamic Loading and Moving Structures

Dynamic loads occur when forces change over time. Unlike a static load, which remains relatively constant, a dynamic load may be created by movement, acceleration, braking, vibration, impact or repeated operation.

Parade floats are a clear example. Their scenic structures must respond to cornering, changes in speed, uneven road surfaces and vibration from the vehicle platform. A component that performs well while stationary may behave very differently once the float begins moving.

Dynamic loading can also affect automated stage elements, rotating platforms, moving scenery and suspended features. Repeated movement may gradually loosen fixings or place stress on joints if the connections have not been designed appropriately.

Structural reviews for moving scenic structures therefore consider more than maximum weight. They assess how forces are introduced, how frequently the structure will move and how the build can be inspected throughout rehearsals and operation. Fabrication tolerances, locking systems, connection details and access for maintenance all become part of the engineering strategy.

Temporary and Permanent Structures

Temporary scenic structures are sometimes assumed to require less engineering than permanent construction. In practice, they can introduce a different set of challenges.

A temporary structure must often be assembled quickly, used intensively and dismantled within a short period. It may need to be installed without permanent foundations, transported in modular sections and adapted to venue restrictions.

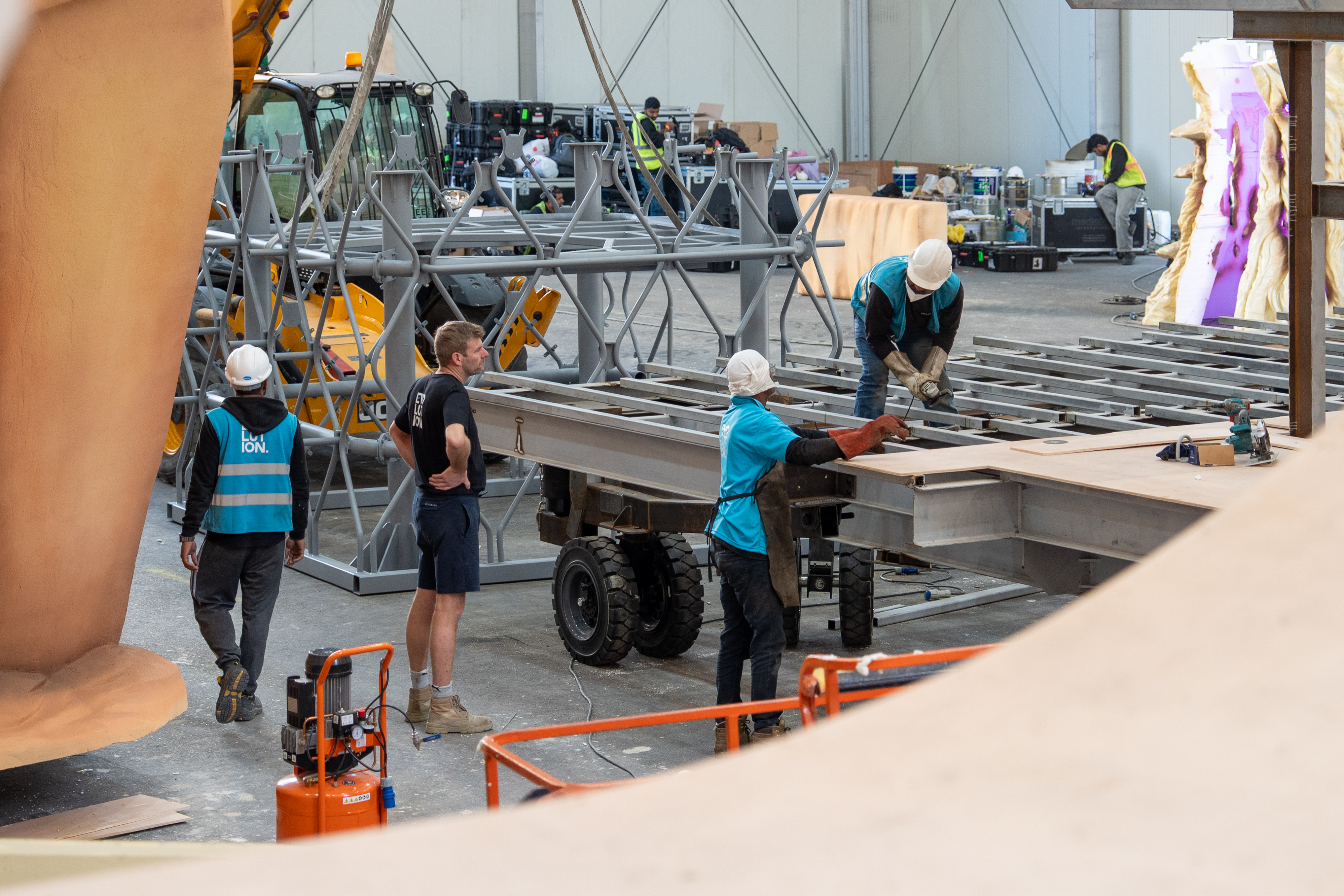

Connections must therefore be strong but also practical to assemble. Components may need to fit within transport limits, pass through loading doors and be lifted using equipment available on site.

Temporary structures can also experience unusual conditions during installation. A tall feature wall may be stable once fully connected, but vulnerable while only partially assembled. The installation sequence must therefore be considered as part of the structural methodology.

Permanent structures may be designed for long-term environmental exposure, fatigue, maintenance and durability. Temporary structures, by contrast, require careful attention to repeated assembly, transportation damage and operational handling.

Neither approach is inherently simpler. The engineering strategy must reflect how the structure will actually be fabricated, transported, installed, used and removed.

Structural Calculations in Scenic Stages and Feature Structures

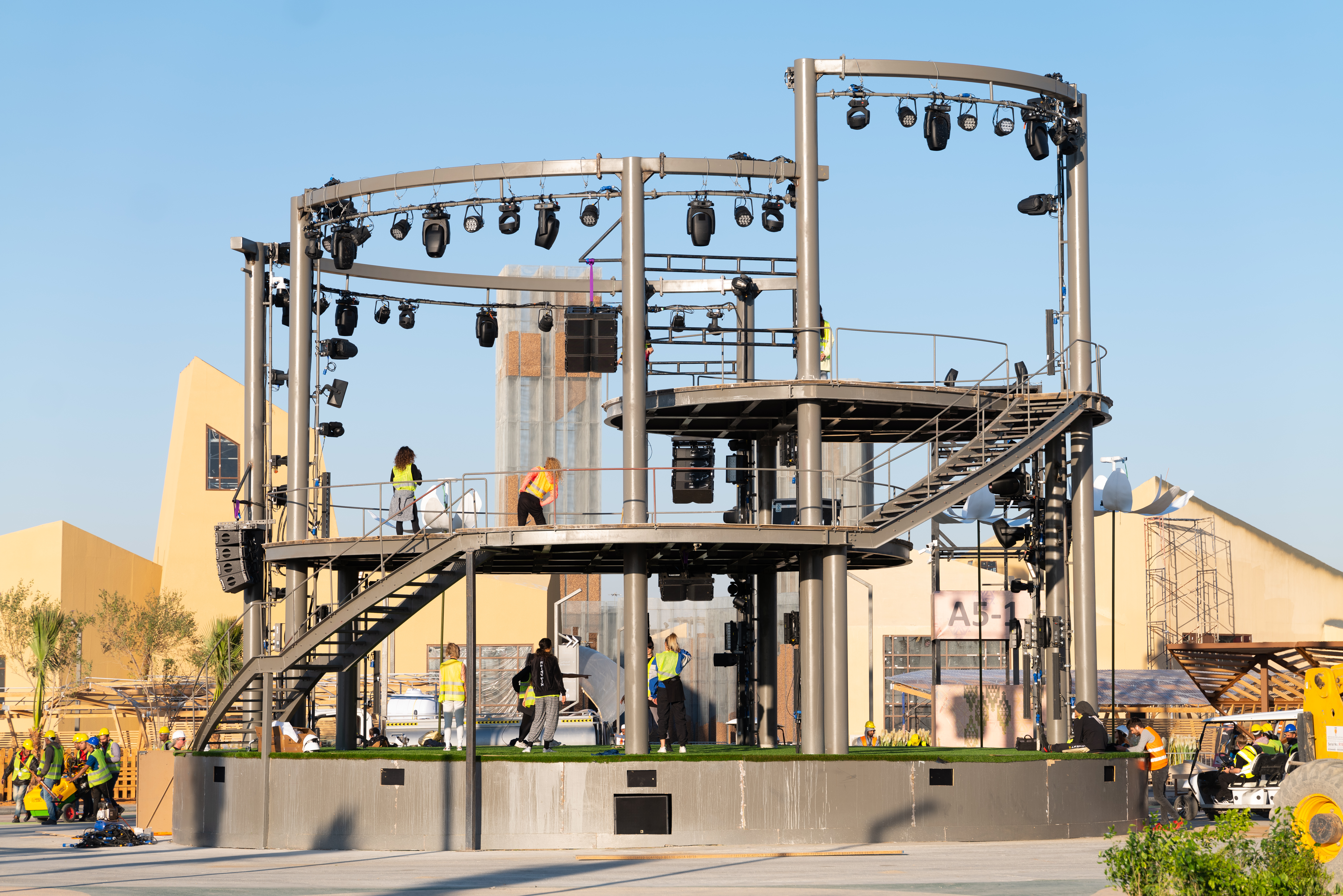

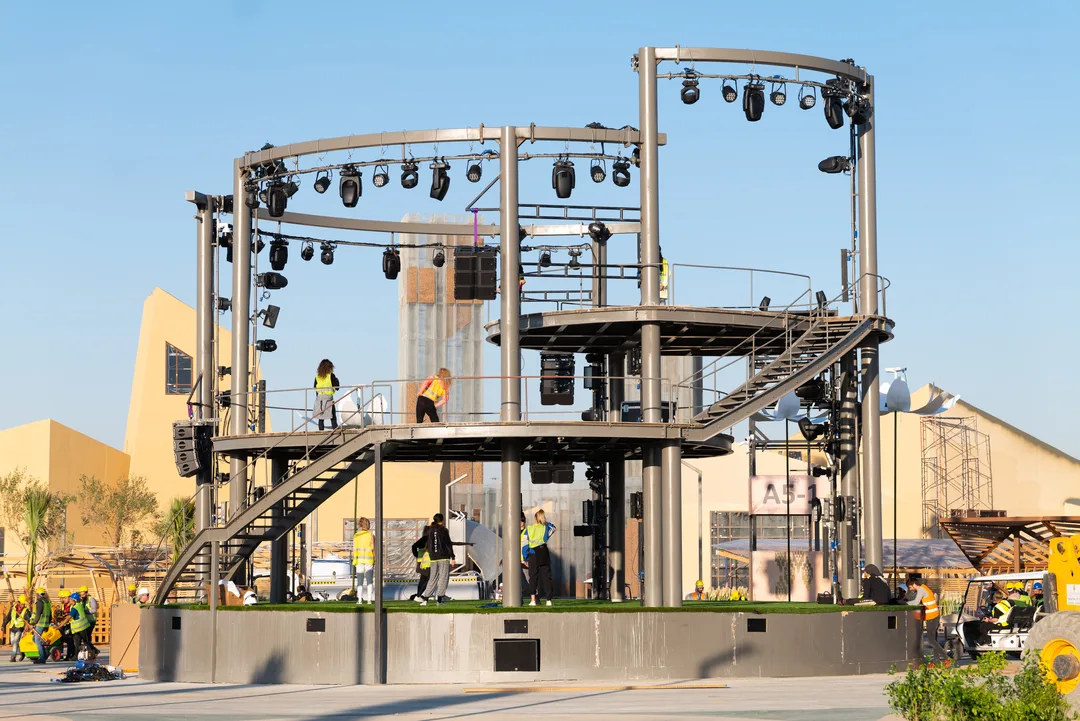

Large scenic stages often combine several structural systems within a single design. A stage may include primary steel frames, raised platforms, suspended scenic elements, LED screens, decorative façades, access stairs and technical equipment. Each system may introduce different loads and connection requirements.

Large feature structures present similar challenges. Their sculptural geometry may hide complex internal frameworks that must support cladding, lighting and secondary scenic finishes while remaining accessible for fabrication and installation.

Early structural coordination helps prevent situations where scenic finishes conflict with structural members or where critical connections become impossible to access on site.

It also allows the fabrication team to design modular sections around transport and lifting requirements. Rather than engineering the structure as one continuous object, the build can be divided into manageable units with clearly defined connection points.

This often produces a safer and more efficient installation without changing the finished appearance.

Exhibition Pavilions and Temporary Architecture

Exhibition pavilions can look architectural, but they are usually designed and fabricated within compressed programmes and strict venue conditions.

Structural calculations may need to consider tall walls, overhead features, suspended signage, integrated screens, hospitality spaces and areas of concentrated visitor movement.

Venue regulations can also influence the engineering approach. Floor loading limits, restricted fixing points, fire safety requirements and maximum build heights may all affect the structural design.

Because exhibition builds are temporary, the supporting structure is often concealed within joinery, cladding and graphic finishes. The challenge is to create sufficient structural strength without making the pavilion unnecessarily heavy or difficult to install.

Well-coordinated calculations allow the engineering solution to support the visual design rather than compete with it.

Engineering Approvals and Documentation

Structural calculations often form part of the approval process for venues, local authorities, event organisers and health and safety teams.

Depending on the project, the required documentation may include calculation reports, structural drawings, connection details, material specifications, foundation or ballast information and installation methodology.

For complex public structures, the engineering package may also require independent review or approval by a licensed structural engineer.

The approval process works best when engineering is introduced early. Attempting to calculate a fully developed design at the end of the process can lead to major revisions, particularly if the structure has not allowed space for bracing, connections or suitable foundations.

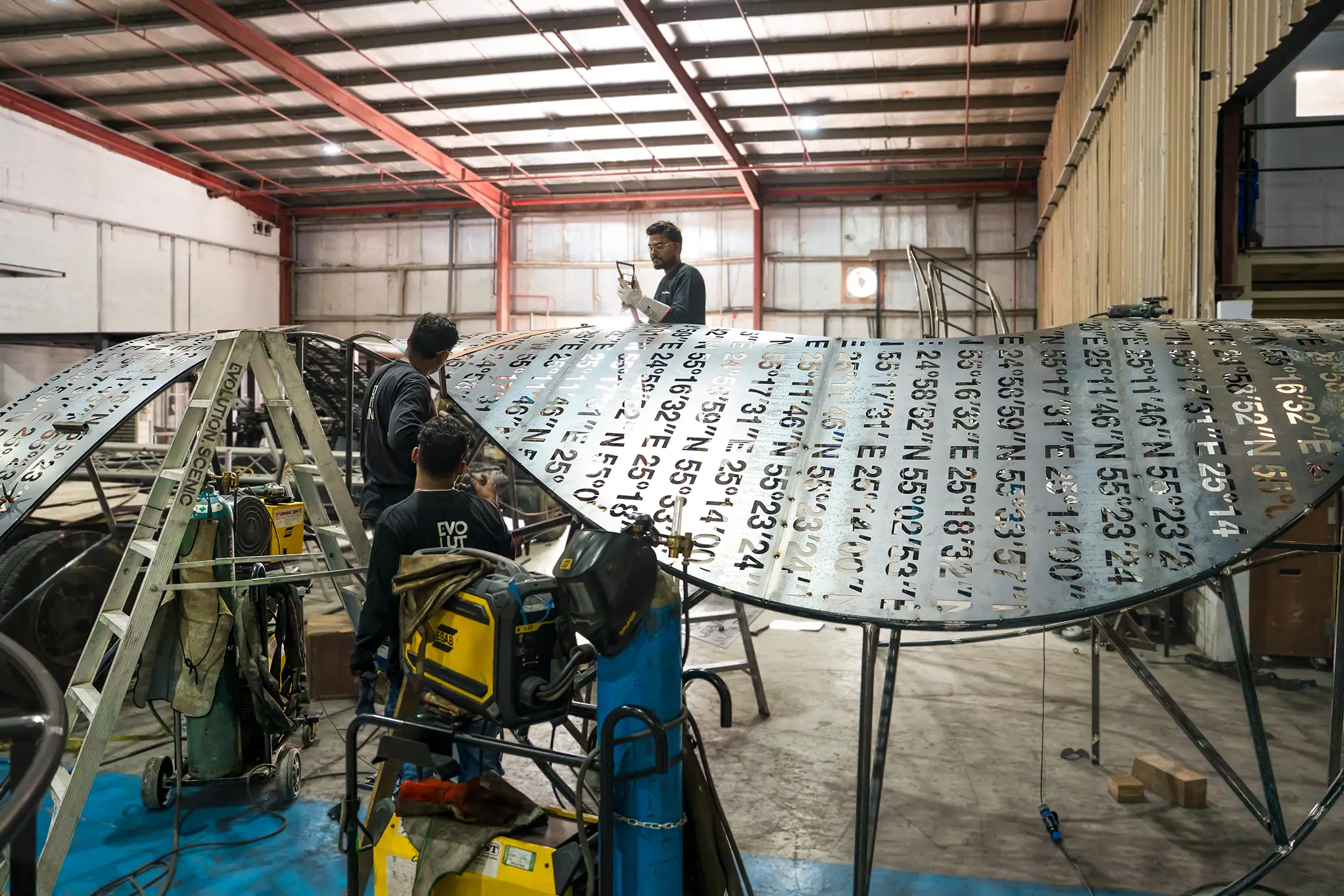

Early collaboration between creative designers, structural engineers and scenic fabricators helps identify these issues before they affect programme, cost or visual quality.

Structural Engineering as Part of Scenic Fabrication

For scenic fabricators, structural calculations are rarely treated as an isolated engineering exercise. They form part of a wider process that combines creative development, material knowledge, fabrication methodology, logistics planning and operational experience.

A calculation may confirm that a steel frame is strong enough, but the fabrication team must still determine whether it can be manufactured efficiently, transported within the available vehicle limits and assembled safely within the installation programme.

Similarly, a theoretically sound connection may need to be adjusted because it is inaccessible once the scenic finish is installed. A support system may require modification because the venue does not permit floor fixings, or because the structure must be dismantled and reused.

The strongest engineering solutions are therefore developed through collaboration. Structural performance, fabrication practicality and visual quality must be considered together.

Protecting Public Safety Without Restricting Creativity

Public safety is the central purpose behind structural calculations, but safety and creativity should not be viewed as opposing forces. Good engineering does not simply remove risk by making every structure heavier or more conservative. It identifies where the real risks are, then develops focused solutions that allow the creative concept to be delivered responsibly.

This may involve refining proportions, redistributing weight, improving the load path, introducing concealed bracing or selecting a more appropriate material. In some cases, a small adjustment made during technical development can prevent a much larger compromise later in the project.

At Evolution Scenic, structural calculations are understood as part of the creative realisation process. They provide the technical confidence required to fabricate ambitious stages, exhibition pavilions, parade floats and large-scale scenic structures safely.

The calculations may remain hidden once the installation is complete, but their influence can be seen in every element that fits together correctly, travels safely, installs efficiently and performs as intended.
