Engineering A Moving Parade Float

At first glance, a parade float can appear relatively straightforward. A decorative structure is mounted onto a vehicle, driven along a route, and viewed by spectators before being dismantled at the end of the event. In reality, moving scenic structures present some of the most demanding engineering challenges encountered within scenic fabrication.

Unlike a static scenic structure, a parade float must withstand forces that change continuously throughout operation. Braking, acceleration, cornering, vibration, road conditions, and wind load all influence structural performance. Every engineering decision must consider not only how the structure looks, but how it behaves while moving.

That distinction is critical. A scenic feature that performs perfectly when stationary may react very differently once it is travelling over uneven ground, negotiating a bend or stopping under load. Tall elements can sway. Unsupported finishes can vibrate. Bolted interfaces can loosen. Lightweight cladding can become vulnerable to wind pressure. Mechanical components can move beyond their intended tolerances.

For this reason, a parade float cannot simply be treated as a decorative object placed onto a vehicle. It must be designed as an integrated mobile structure in which the vehicle, structural frame, scenic envelope, mechanical systems and operational requirements work together.

Vehicle Integration Comes First

The starting point for most parade float projects is understanding the vehicle platform.

Dimensions, weight limitations, axle capacities, suspension behaviour, wheelbase, turning circle and access requirements influence almost every aspect of the design. The available vehicle may be a truck, trailer, low-loader, electric platform or purpose-built chassis, but in every case the scenic structure must respond to the platform beneath it.

A creative concept that appears achievable on paper may require significant modification once vehicle restrictions and operational realities are taken into account. A structure may need to be reduced in height to pass beneath bridges or overhead services. The footprint may need to change to maintain clearances around steering components. Additional space may be required for the driver, operators, generators, batteries, hydraulic systems or emergency access.

The connection between the scenic structure and the vehicle is also fundamental. The float cannot rely on improvised fixings or surface-level attachments. Loads must be transferred safely into suitable points on the chassis or subframe, while avoiding damage to vehicle components and preserving access for inspection.

In some cases, a fabricated steel subframe is installed above the vehicle bed to create a controlled interface between the vehicle and the scenic build. This allows the structural team to establish known connection points, distribute loads and create a consistent base for modular scenic components.

The subframe may also support access decks, balustrades, service routes, equipment housings and fixing plates. By resolving these practical requirements early, the scenic design can develop around a reliable engineering framework rather than attempting to accommodate essential systems at the end of fabrication.

Calculating For Movement

Structural calculations for a mobile scenic structure must account for more than self-weight.

Dead loads include the structure itself, scenic finishes, mechanical equipment, lighting, power systems and any fixed operational components. Live loads may include technicians, operators, maintenance personnel or moving scenic parts. Dynamic loads are introduced by the vehicle's motion and can vary significantly with speed, road conditions, and route geometry.

Braking creates longitudinal forces. Cornering produces lateral forces. Uneven surfaces generate vertical movement and vibration. Wind can act from different directions as the float changes orientation along the route. These forces may occur individually or in combination.

A conservative engineering approach is therefore essential. Connections, welds, bolted joints and support members must be designed for the loads they are expected to experience, with appropriate allowances for uncertainty and repeated movement.

The scenic structure must also be stiff enough to control deformation. Excessive flexibility can damage finishes, open joints, disturb graphics and place stress on cladding or decorative elements. However, over-engineering every component in heavy steel can create its own problems by increasing overall weight.

The challenge is to place strength where it is required, reduce unnecessary mass and ensure that the load path remains clear. Primary steelwork may carry the main structural forces, while lighter secondary framing supports the scenic envelope. Bracing can be integrated into concealed areas, and removable sections can be designed around defined structural interfaces.

This is where scenic engineering differs from conventional structural work. The final form may be irregular, sculptural or intentionally deceptive. Structural members must often be hidden within curved profiles, oversized props or layered scenic finishes. The engineering solution must support the creative geometry without compromising inspection, access or assembly.

Centre Of Gravity And Stability

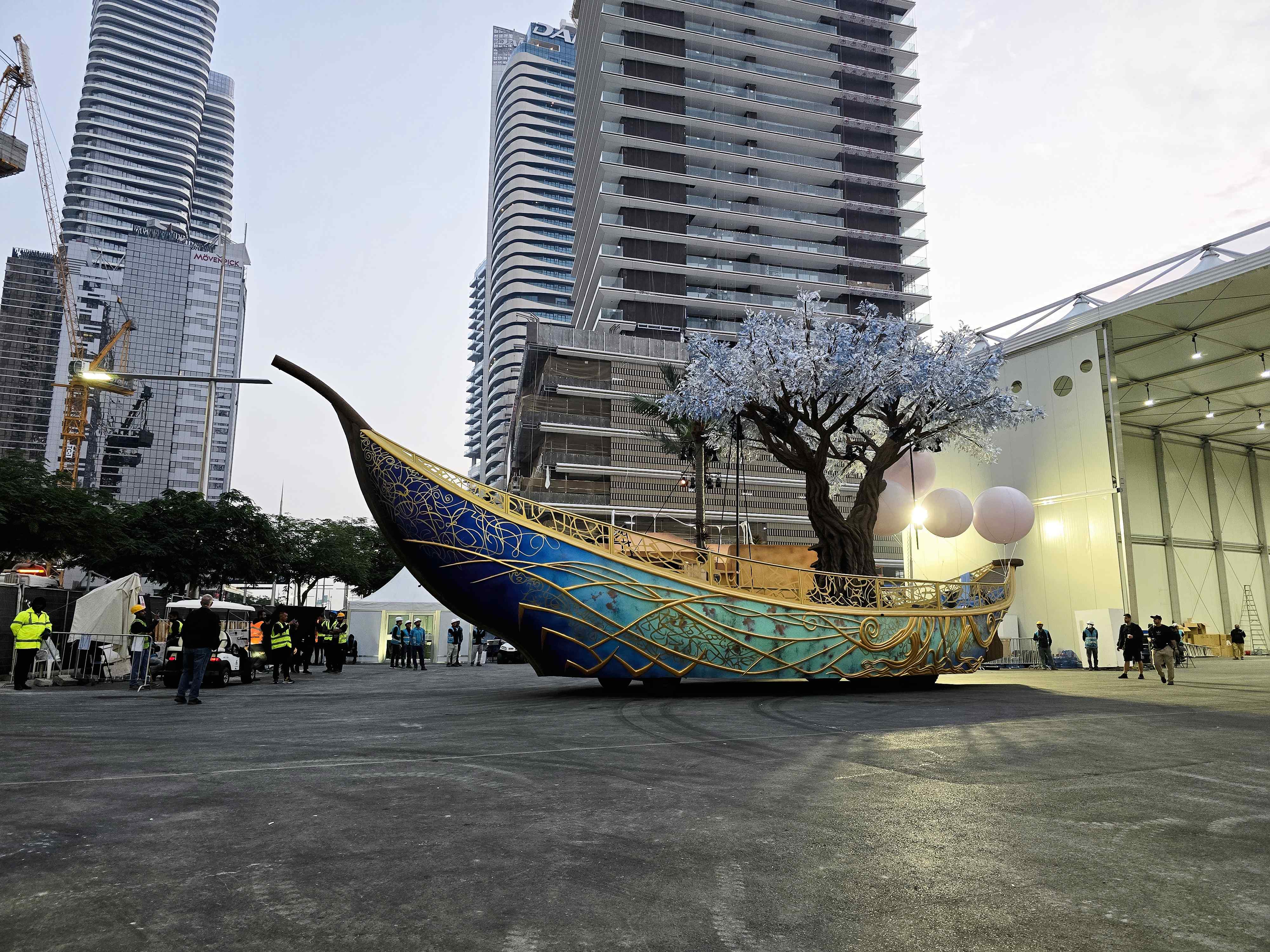

Weight distribution is one of the most important considerations in parade float design.

Large scenic elements positioned high above the vehicle can raise the centre of gravity and affect stability. A float may appear balanced when stationary but behave differently during turning, braking or travel across a sloped surface. The higher the mass is positioned, the greater its influence on the vehicle’s response. Engineers and fabrication teams must therefore understand not only the total weight, but where that weight is located.

Heavy components should generally be positioned as low as practical. Generators, ballast, mechanical equipment and structural steelwork can often be arranged close to the vehicle platform, while upper sections are fabricated from lighter materials. Tall scenic forms may use aluminium framing, lightweight timber construction, sculpted foam or composite skins to reduce mass at height. The location of weight relative to the axles is equally important. Excessive loading at the front or rear can affect steering, braking and suspension performance. Uneven side-to-side loading can cause the vehicle to sit incorrectly and increase the risk of instability.

For complex floats, the fabrication team may prepare a detailed weight schedule showing the estimated mass of each structural and scenic component. This can be reviewed against axle limitations and updated as fabrication progresses. Actual component weights should be recorded where possible. Material thicknesses, steel section sizes, equipment weights and scenic build-ups can all change during development. A disciplined weight-control process prevents small additions from accumulating into a significant operational problem.

Weight control is not simply an engineering exercise. It influences every department. Scenic carpentry, metal fabrication, CNC production, finishes, graphics, lighting, and mechanical design must all understand the agreed weight strategy.

Selecting The Right Materials

Material selection plays a significant role in balancing strength, weight, durability, cost and fabrication time.

Structural steel is frequently used for primary framing because it is strong, familiar to fabrication teams and well suited to welded construction. It can provide robust connection points and predictable structural behavior. Its disadvantage is weight, particularly when used in upper sections or in areas where lighter materials would perform adequately.

Aluminium can reduce overall mass and is useful for secondary frames, tall features and removable modules. However, aluminium requires suitable welding expertise, careful detailing and an understanding of how it behaves under repeated loading. Material cost and workshop capability must also be considered.

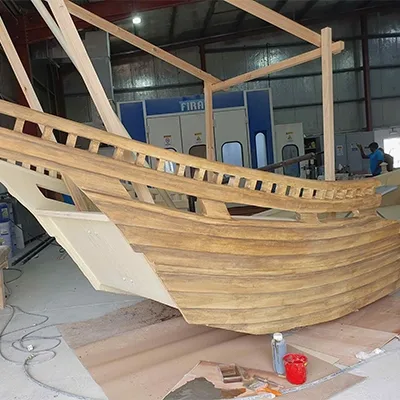

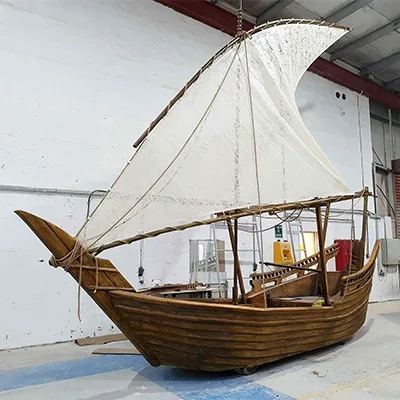

Timber and sheet materials remain important within scenic construction. Plywood, MDF and timber framing can be used for faceted forms, curved profiles, internal decks and detailed scenic carpentry. Their use must be appropriate to the load, exposure and expected movement. Unsupported sheet materials can flex or crack, while poorly sealed edges may be vulnerable to moisture during outdoor operation.

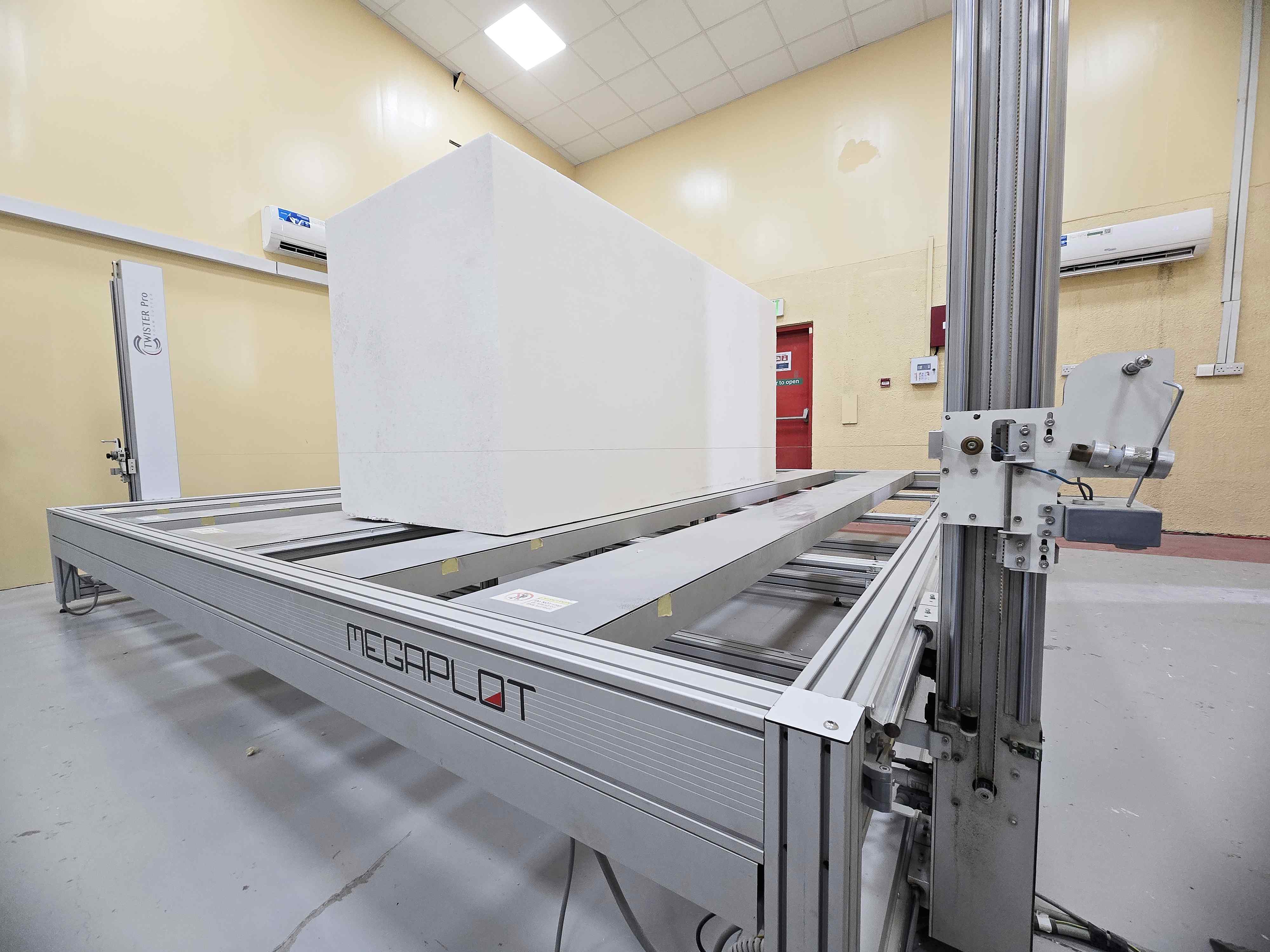

CNC machining allows components to be produced accurately from plywood, foam, plastics and composite boards. This is particularly valuable where complex curves, repeated profiles or precise assembly slots are required. Digitally manufactured parts can help control tolerances and reduce weight by placing material only where it is needed.

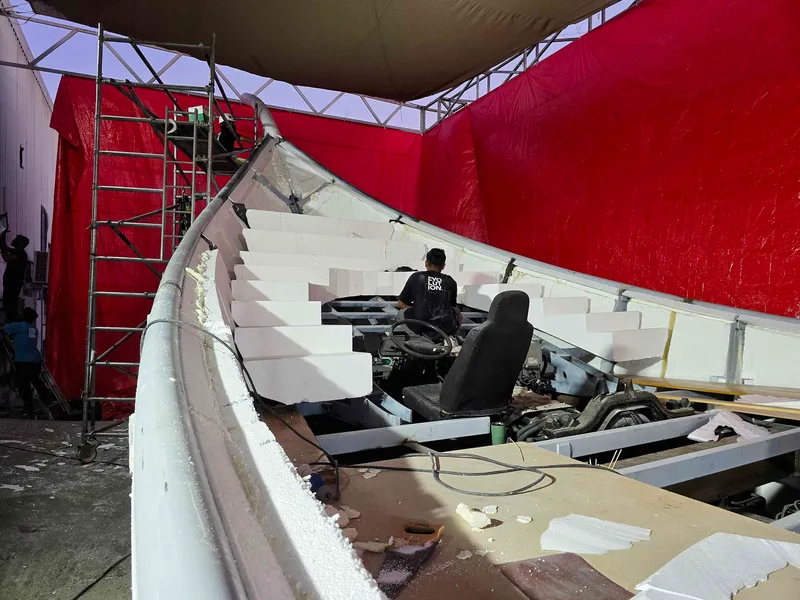

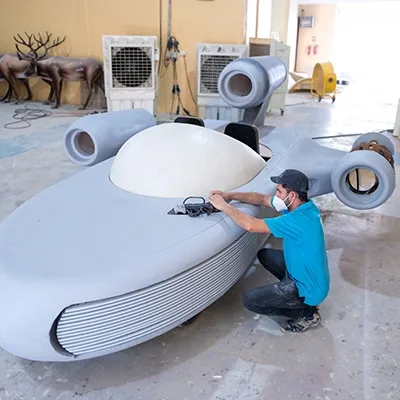

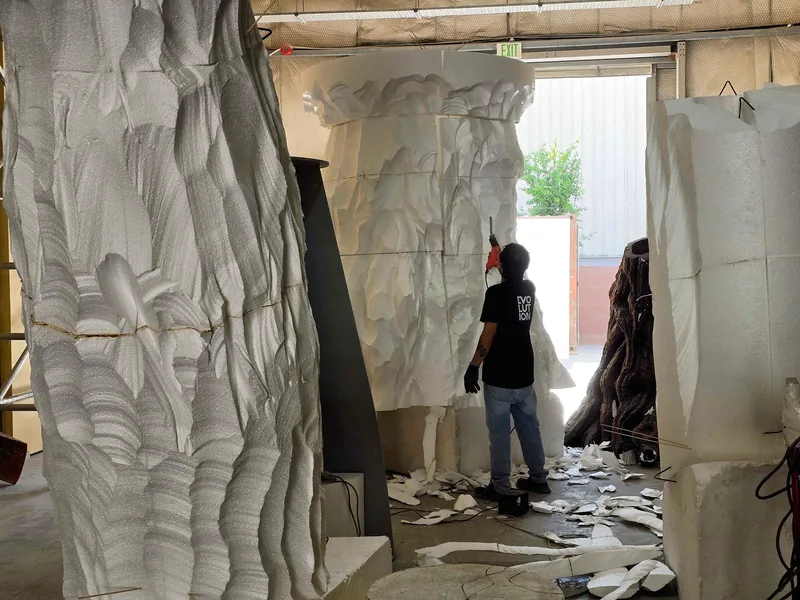

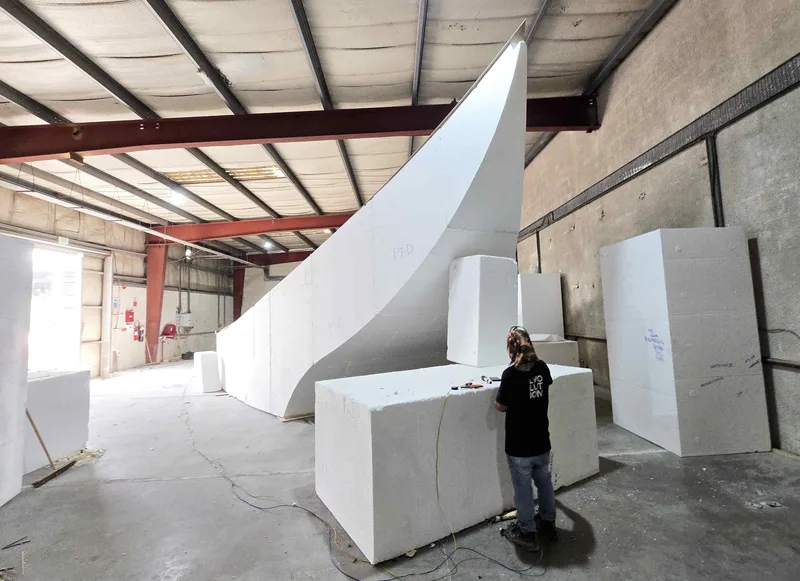

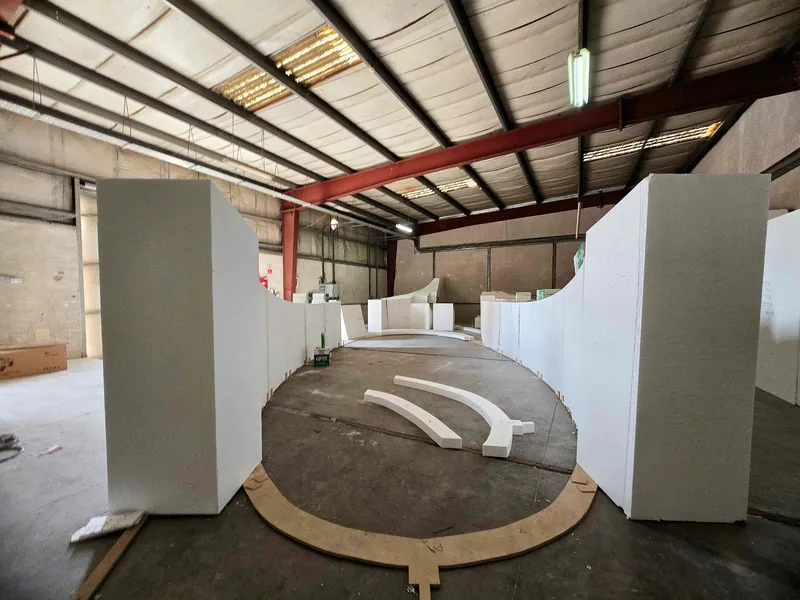

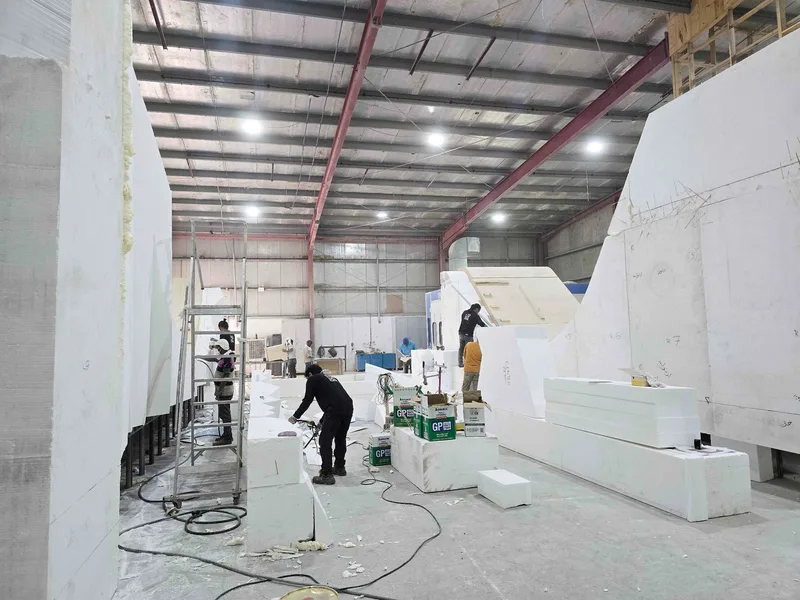

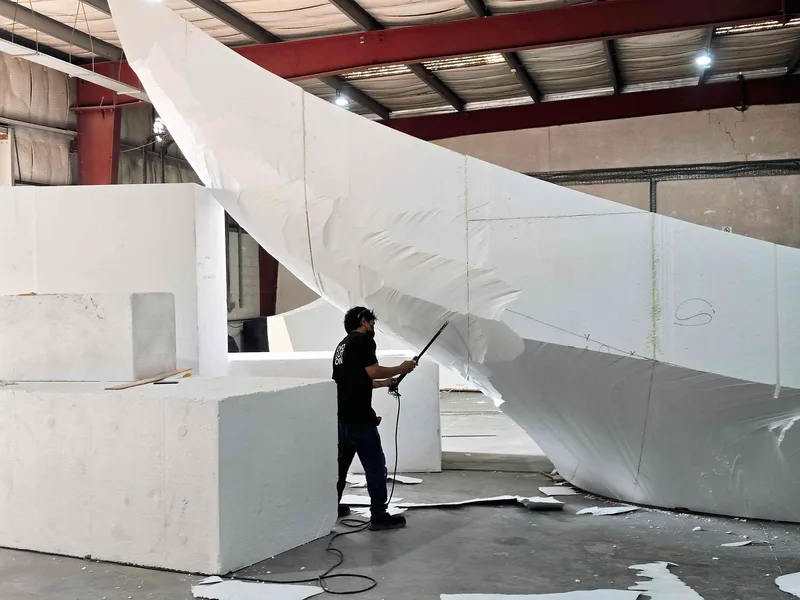

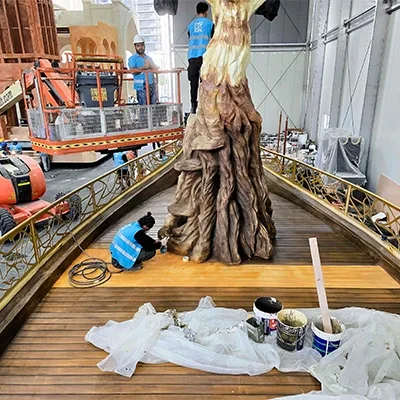

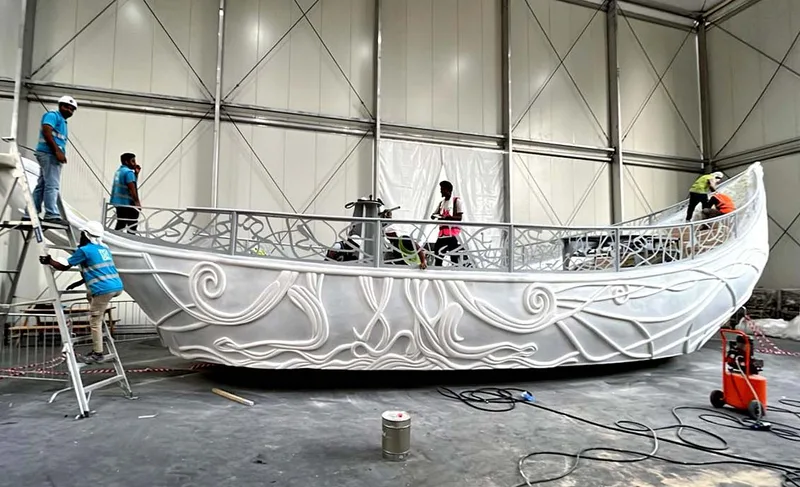

Foam-carved scenic elements are often used for oversized decorative forms because they provide volume without excessive mass. These elements may be coated with hard finishes, reinforced with internal frames or protected with durable scenic skins depending on their location.

Composite materials can also be useful where low weight and complex geometry are required. Glass-reinforced plastics, laminated skins and specialist coatings allow sculptural forms to be produced with relatively thin sections. Their fixing methodology, fire performance, impact resistance and repair process must all be considered.

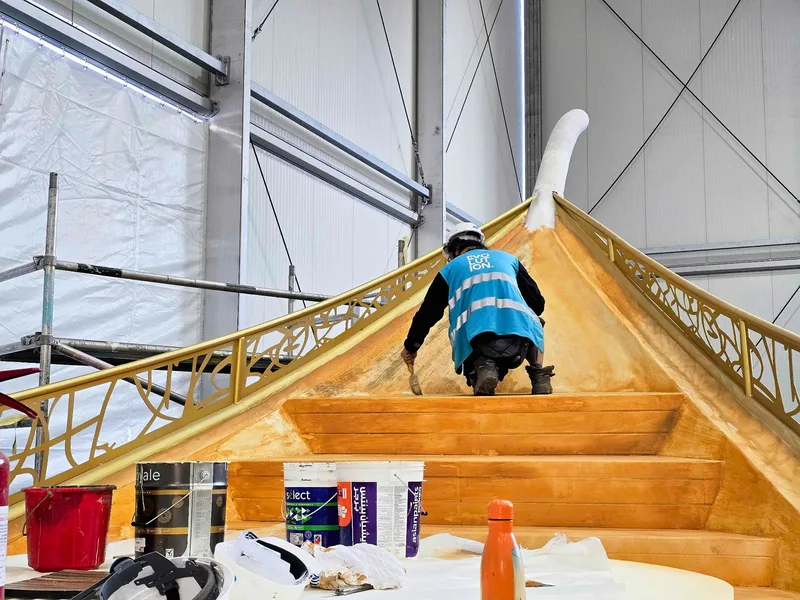

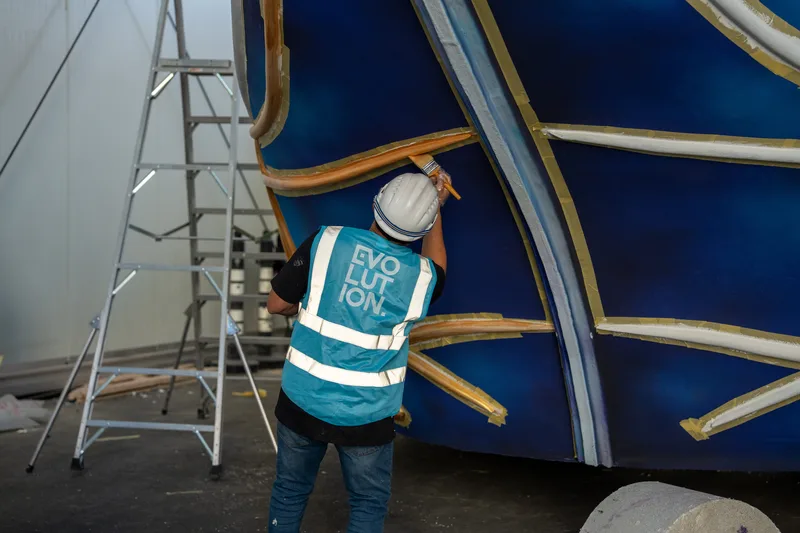

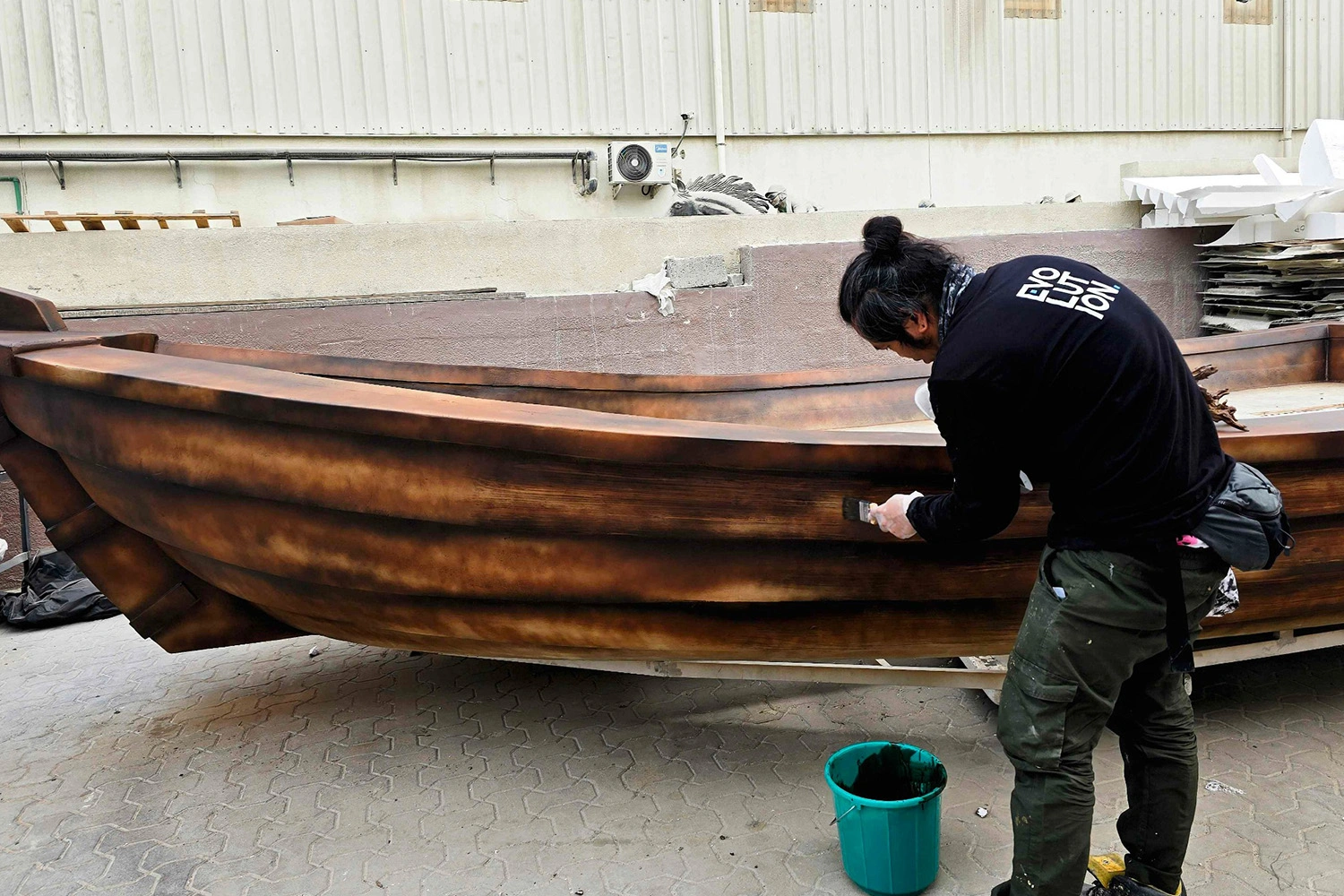

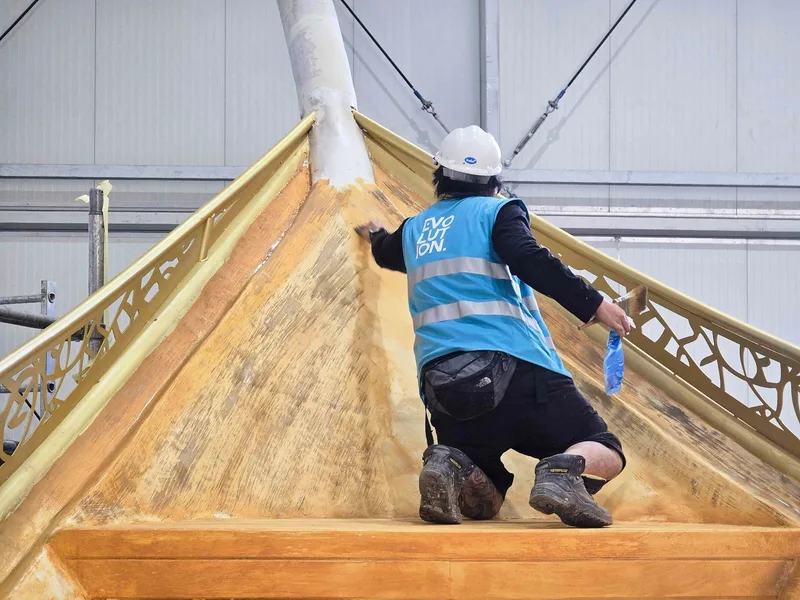

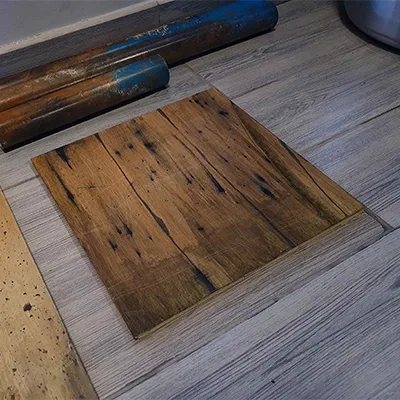

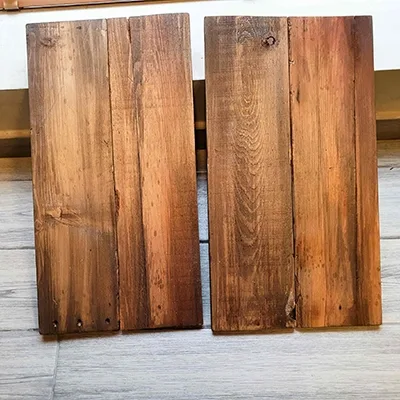

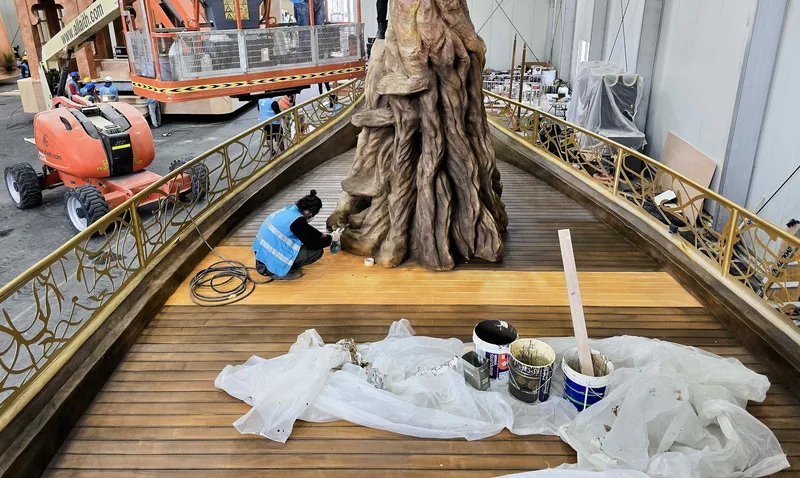

Scenic finishes must be selected with movement in mind. A finish that looks convincing in the workshop must remain stable during transport and operation. Flexible coatings may perform better on surfaces subject to vibration, while brittle build-ups can crack at joints or around connection points.

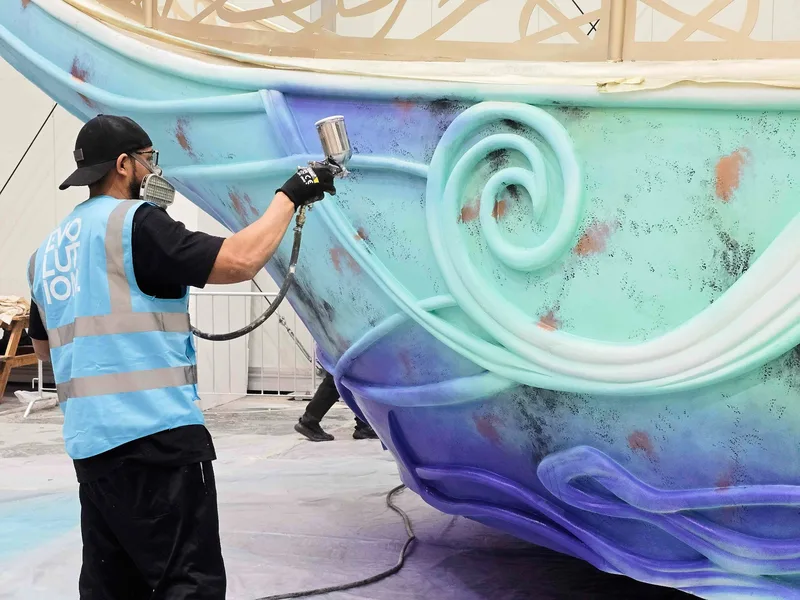

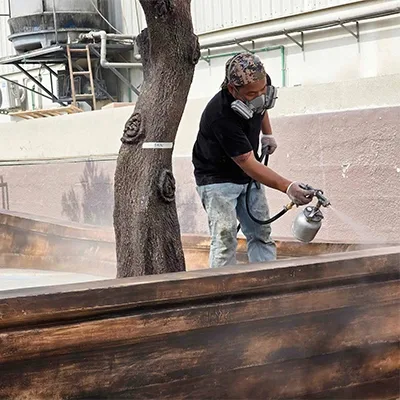

Paint systems, applied graphics, laminates and decorative textures must also account for weather exposure, cleaning, handling and maintenance. Outdoor floats may experience dust, heat, humidity, wind and sudden changes in temperature. The finish specification should reflect the operational environment rather than purely the visual reference.

Designing For Fabrication And Assembly

Fabrication methodology is equally important.

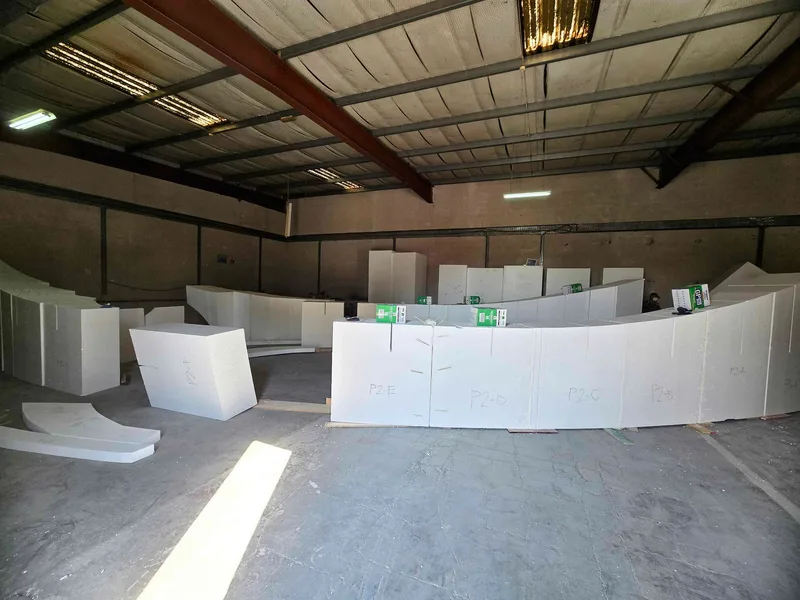

Large parade floats are rarely transported as complete structures. Components are often manufactured in sections, assembled within the workshop for testing, and then broken down again for transportation to site.

This approach allows engineers and fabricators to verify structural performance before installation while reducing transport challenges. It also creates an opportunity to identify clashes, access problems and sequence issues before the float reaches the event location.

Modularisation must be planned rather than added later. Every module requires defined lifting points, connection details, tolerances and an assembly sequence. Scenic joints should be positioned where they can be concealed or finished efficiently. Structural connections must remain accessible for tightening and inspection.

The size of each module is typically determined by transport limitations, workshop access, lifting equipment and site conditions. A large curved feature may need to be divided into several sections to pass through a workshop door or fit onto a flatbed trailer. The joints must then be designed so that the assembled form reads as a single continuous structure.

Repeatable fixing systems are valuable. Bolted plates, locating pins, cleats and indexed connection points can help modules align quickly and accurately. Where a structure will be assembled more than once, the interfaces must be durable enough to withstand repeated handling.

The build methodology should also consider the order in which disciplines work. Structural steelwork may be completed first, followed by secondary framing, scenic carpentry, sculptural components, mechanical systems, electrical containment, finishes and graphics.

However, a strictly linear sequence is not always possible. Some internal systems must be installed before the scenic skin closes. Access panels may be required for future maintenance. Certain finishes may need to be completed before neighbouring components are fitted.

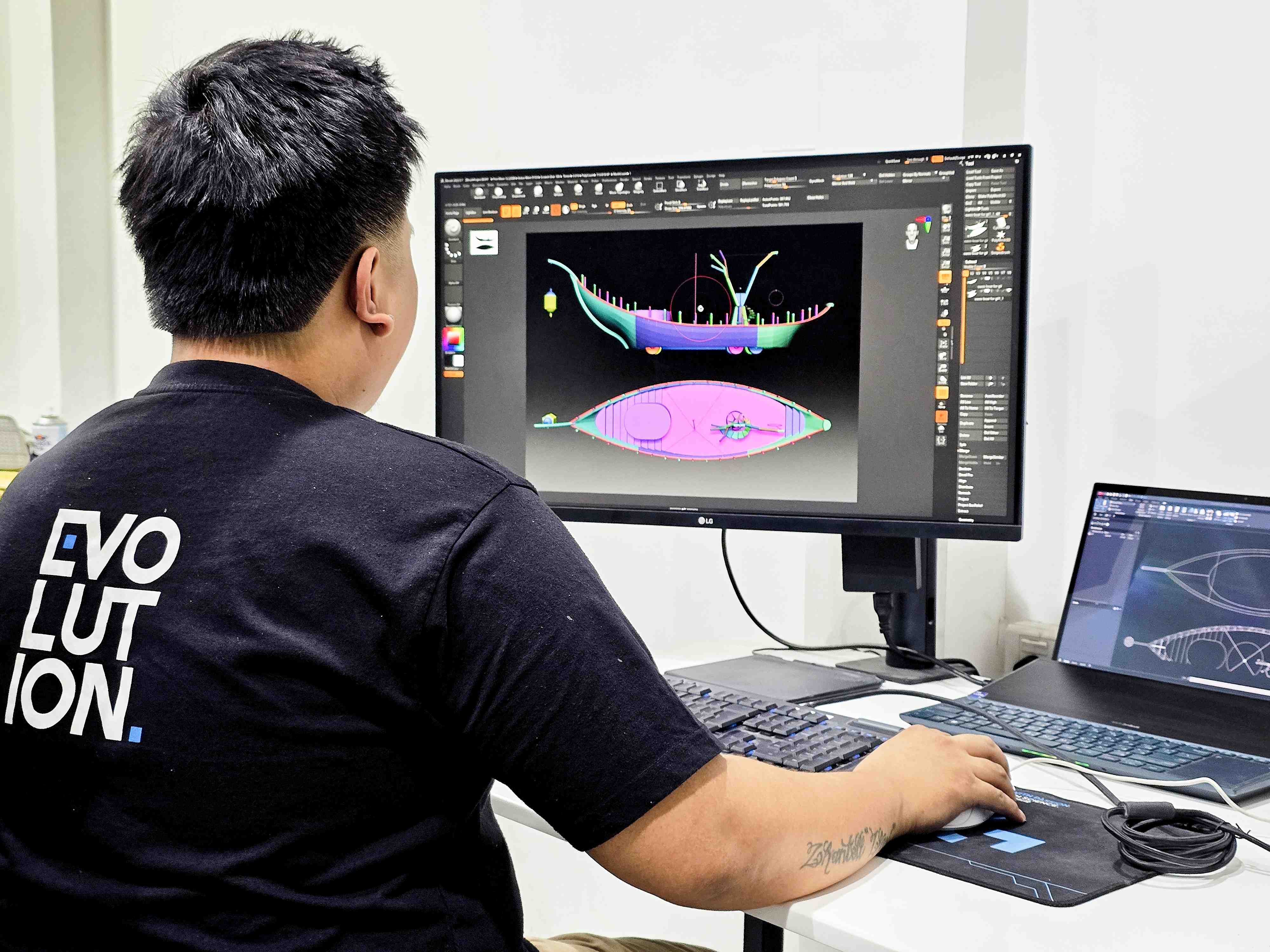

Experienced scenic teams review these dependencies early, using drawings, three-dimensional models, prototypes and workshop trials to reduce rework.

Workshop Testing And Quality Control

A full workshop assembly is one of the most valuable stages in parade float fabrication.

It allows the team to confirm that the structural frame aligns correctly, the scenic modules fit, the vehicle remains within agreed dimensions and maintenance areas remain accessible.

Where practical, the float should also undergo controlled movement testing. This may include low-speed driving, turning, braking and observation of tall or projecting elements. The objective is to identify unexpected vibration, deflection, noise or movement before the float enters a live route.

Connections should be checked after testing. Bolts may require re-tightening, locking methods may need to be improved and flexible elements may need additional restraint.

Mechanical components should be operated repeatedly under realistic conditions. Moving features, rotating elements, lifts, doors or articulated parts must perform safely while the vehicle is stationary and, where intended, in motion. Emergency stops, manual overrides and isolation points should be tested and clearly identified.

Workshop testing should include the scenic finish as well as the structure. Cracking around joints, movement in cladding, loose graphics and rubbing between components often become visible only after handling or operation.

Quality-control records help ensure that nothing is overlooked. Weld inspections, material certificates, bolt checks, electrical testing, load verification and photographic records can all form part of the handover package.

Route Constraints Shape The Build

A parade route is not simply a line on a map. It is a physical environment with restrictions that can directly influence the float design.

Overall height must be checked against bridges, gantries, overhead cables, signage and temporary installations. Width must account for road furniture, barriers, kerbs and narrow turning points. Ground clearance can become critical on ramps, speed humps and changes in road level.

Turning analysis is particularly important for long vehicles and trailers. A route that appears wide enough may still create problems at junctions because of rear overhang, swept path or the position of projecting scenic elements.

Road camber and surface condition should also be considered. A tall float travelling across a sloped section may lean noticeably, increasing the effect of its centre of gravity. Loose surfaces, drainage channels and uneven paving can introduce vibration and sudden vertical movement.

Wind conditions can vary along the route, particularly between buildings or in open areas. Large scenic surfaces can behave like sails, even where the materials themselves are lightweight.

Perforation, open framing, reduced surface area or controlled gaps may be used to reduce wind pressure.

Where height restrictions are unavoidable, fold-down or telescopic components may be considered. These mechanisms must be engineered carefully, with secure locking positions and clear operating procedures. A moving section should never rely solely on an actuator or motor to remain safe; positive mechanical locking is usually required.

Route surveys should be completed early enough to influence the design. Discovering a height restriction or impossible turning point after fabrication can result in extensive redesign.

Logistics And Transport Planning

Transport is part of the engineering process, not a separate activity. A float may need to travel from the fabrication workshop to a holding area, rehearsal location, and final route. Scenic modules may be carried on separate vehicles and assembled close to site. Each movement introduces handling, lifting and protection requirements.

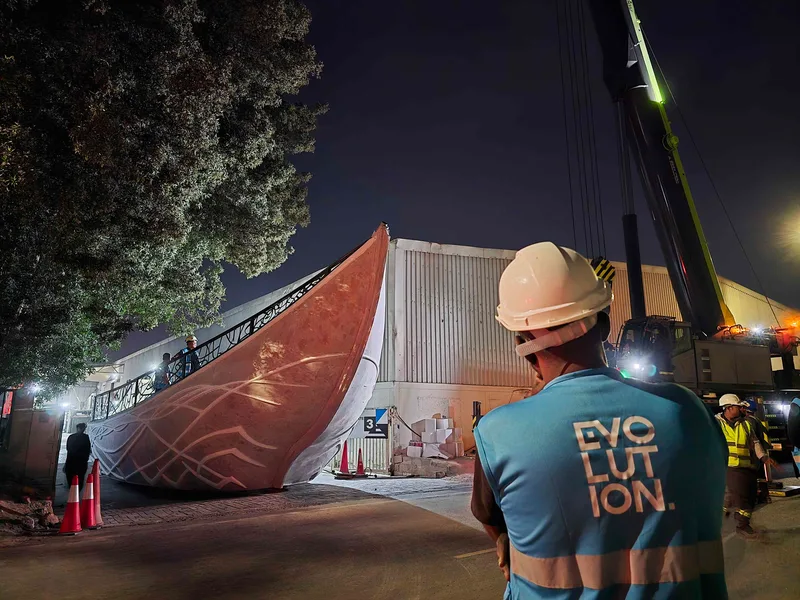

Transport frames can protect delicate scenic components and provide safe forklift or crane access. Large sculptural pieces may need custom cradles to prevent distortion. Finished surfaces should be protected without trapping moisture or placing pressure on detailed areas.

Loading order matters. Components required first on site should remain accessible. Lifting accessories, fixings, tools and spare materials should travel with the relevant module rather than being treated as general workshop equipment.

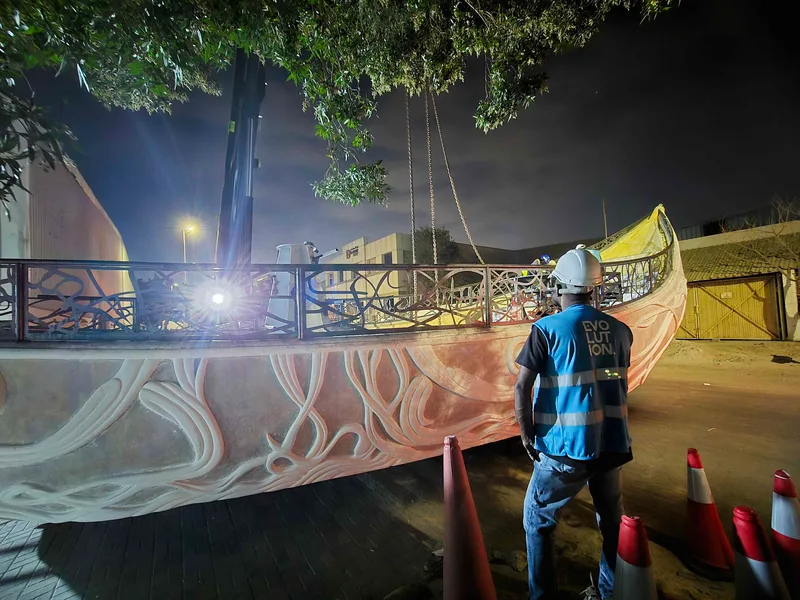

Site assembly may take place under restricted timeframes, at night or within controlled road closures. The methodology must therefore be efficient and predictable. Detailed installation drawings, labelled components and clear connection systems reduce risk during assembly.

The team should also plan for dismantling. Temporary structures must be removed safely and efficiently after operation. Fixings should remain accessible, modules should be capable of being separated without damage and transport packaging should be available for the return journey.

Where floats are intended for reuse, the dismantling process becomes even more important. Components may require storage, repair, repainting or adaptation for future projects. Durable modular construction can significantly extend the useful life of the scenic build.

Operational Access And Maintenance

Operational considerations continue long after fabrication is complete. Access for maintenance, emergency procedures, driver visibility, operator movement and route-specific constraints all influence final construction decisions.

The driver must maintain adequate sightlines, either directly or through approved camera systems. Ventilation around engines, generators and electrical equipment must not be blocked by scenic cladding. Heat-producing equipment should be separated from combustible materials and provided with suitable access.

Technicians may need to reach mechanical or electrical systems quickly during rehearsals or operation. Removable panels, inspection hatches and clearly marked isolation points can make the difference between a minor adjustment and a major delay.

Internal access routes should be wide enough to use safely and free from sharp edges, exposed fixings or unprotected moving parts. Where personnel stand or work on the float, suitable decks, guardrails, handholds and non-slip surfaces may be required.

Maintenance tasks should be anticipated during design. Lamps may fail, graphics may lift, mechanisms may require adjustment and scenic finishes may be damaged during transport. Providing access and keeping spare materials available allows the team to carry out repairs without dismantling major areas of the float.

Public Safety Requirements

Parade floats operate in public spaces, often close to barriers, other vehicles and temporary infrastructure. The scenic construction must therefore be developed with a strong understanding of public safety.

Projecting components should be reviewed carefully. Sharp edges, low-level protrusions and fragile decorative details can create avoidable hazards. External parts must be securely fixed and capable of resisting vibration throughout the route.

Fire performance is also important. Material specifications, coatings, fabrics, foams and electrical systems may need to meet project-specific requirements. The presence of generators, batteries, fuel systems or heat-producing equipment must be considered within the overall risk assessment.

Emergency procedures should be practical. The vehicle must be able to stop safely. Moving features should have reliable emergency stops and safe states. Operators should understand how to isolate systems, access critical equipment and respond to faults.

A well-engineered float does not depend on perfect conditions. It is designed with sensible margins, redundancy where appropriate and clear procedures for foreseeable problems.

Solving Problems Before They Reach The Route

Successful parade float engineering is largely about resolving conflicts early.

The creative design may demand height, scale and movement. The vehicle imposes limits on weight, access and stability. The route introduces clearances and turning constraints. The scenic finish requires continuity and visual quality. Logistics demand modular construction. Operations require access and reliability.

These requirements cannot be addressed independently.

The most effective projects bring structural engineers, scenic fabricators, metalworkers, carpenters, CNC teams, scenic artists, mechanical specialists and logistics coordinators into the process from the beginning.

Early collaboration allows the team to identify where a curved scenic feature can conceal structural bracing, where a lightweight material can replace heavy construction, where a module joint can align with a graphic break and where maintenance access can be integrated without affecting the appearance.

Large public celebration projects, including national parades and ceremonial processions, frequently require this level of coordination. Multiple floats may need to follow a common technical framework while maintaining different scenic forms. Standardised vehicle interfaces, shared engineering principles and consistent installation methods can improve reliability across the full production.

The visible result may appear effortless, but that impression is supported by extensive engineering, fabrication planning and testing.

Engineering Ambition Into A Reliable Structure

The most successful parade floats are not created by separating design, engineering, fabrication and operation into isolated stages. They are developed as complete mobile systems.

Movement, transport, installation, maintenance and dismantling must be considered alongside proportion, form, colour and finish. Vehicle limitations must inform the design before fabrication begins. Structural calculations must reflect dynamic forces. Material selection must balance weight and durability. Workshop testing must verify both performance and assembly.

When these requirements are resolved together, ambitious scenic concepts can be transformed into safe, reliable and visually impressive mobile structures.

That is the central challenge of engineering a moving parade float: creating something that appears imaginative and expressive while behaving predictably under real operating conditions.
