Why Black Drape Solves More Problems Than Almost Anything Else

Ask a scenic carpenter how to solve a problem and they will probably suggest building something.

Timber framing, plywood, steelwork and scenic finishes can solve an enormous range of challenges, and fabrication teams naturally think in terms of physical construction.

But not every problem needs another wall, another frame or another piece of scenery.

Ask an experienced theatre technician the same question and there is a good chance they will suggest black drape.

It is one of the least glamorous materials in scenic production, yet few materials solve such a broad range of practical problems so quickly.

Across theatres, conference environments, concerts, exhibitions and temporary installations, black drape quietly does an extraordinary amount of work.

One Material, Many Problems Solved

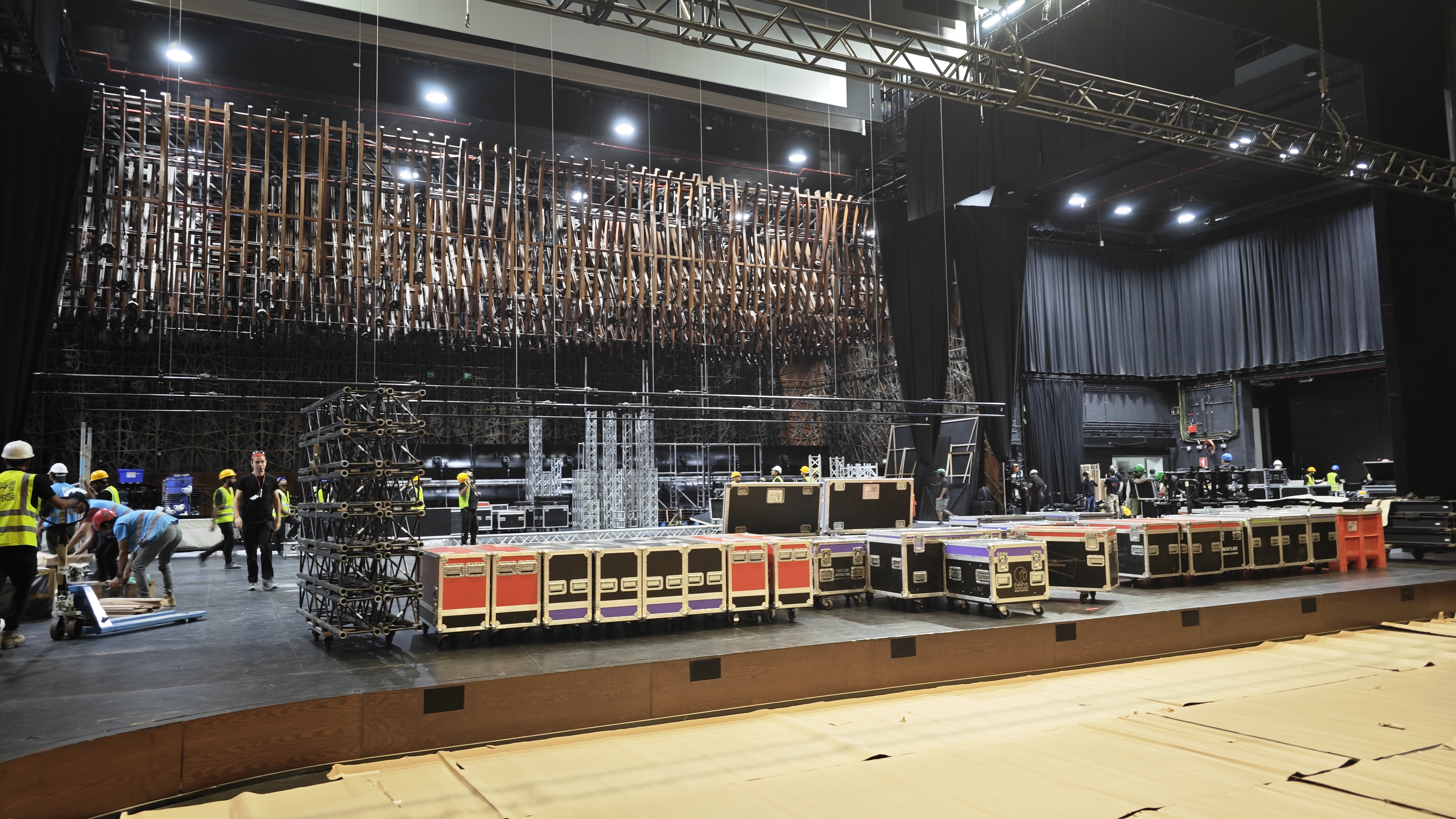

Need to hide a cable route?

Black drape.

Need to disguise an unfinished venue wall?

Black drape.

Need to conceal equipment cases?

Black drape.

Need to create a backstage area or separate operational spaces from public-facing environments?

Again, black drape.

One properly planned masking system can often eliminate several fabrication problems simultaneously without adding substantial structure.

That makes it particularly valuable in temporary environments, where speed, transport volume, installation labour and dismantling requirements all matter.

Why Black Drape Works So Well

The reason black drape works so effectively is that it is usually designed not to be noticed.

Most scenic fabrication exists to attract attention. Feature walls, architectural structures, branded environments and scenic finishes are intentionally visible.

Masking works in the opposite direction.

Its job is to remove visual information, suppress distractions and allow the important parts of the environment to remain dominant.

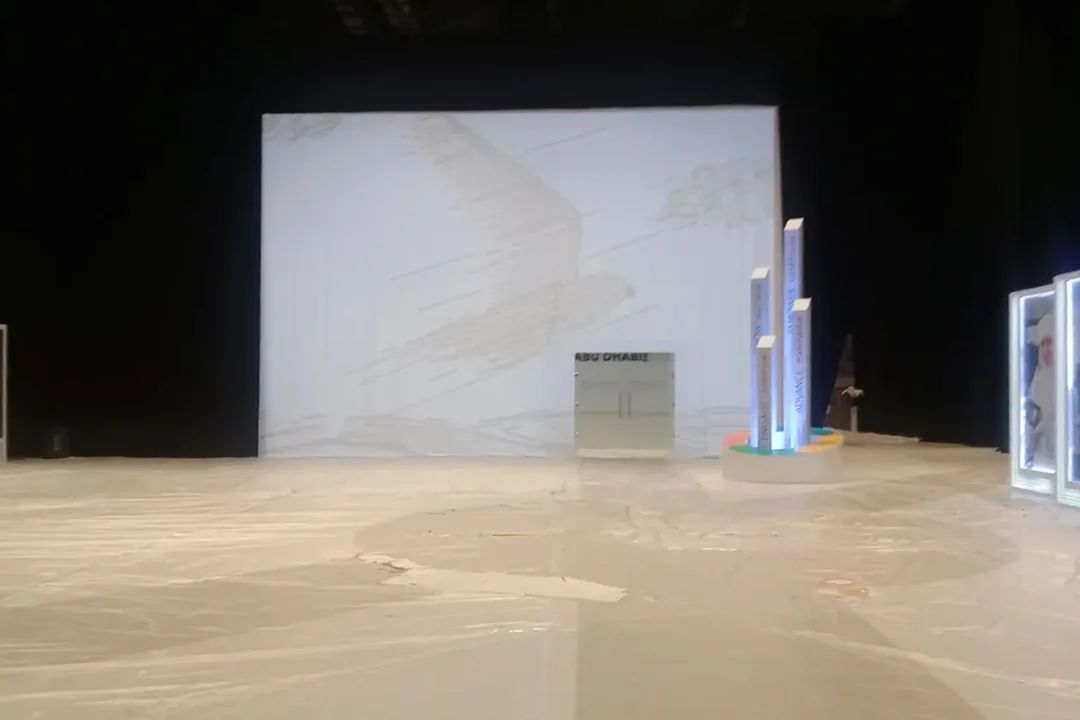

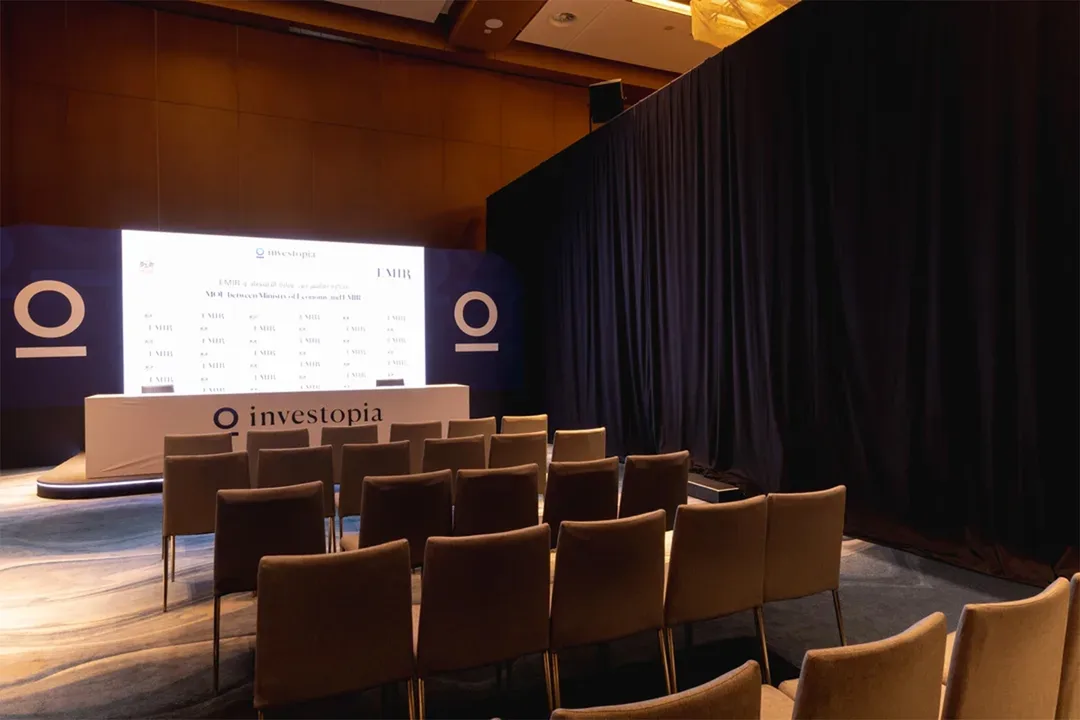

When installed properly, black drape does not compete with the scenic design.

It simply allows everything else to look cleaner.

Masking Is More Than Hanging Fabric

A proper masking system is far more sophisticated than simply hanging fabric around the perimeter of a room.

Sightlines need to be considered carefully.

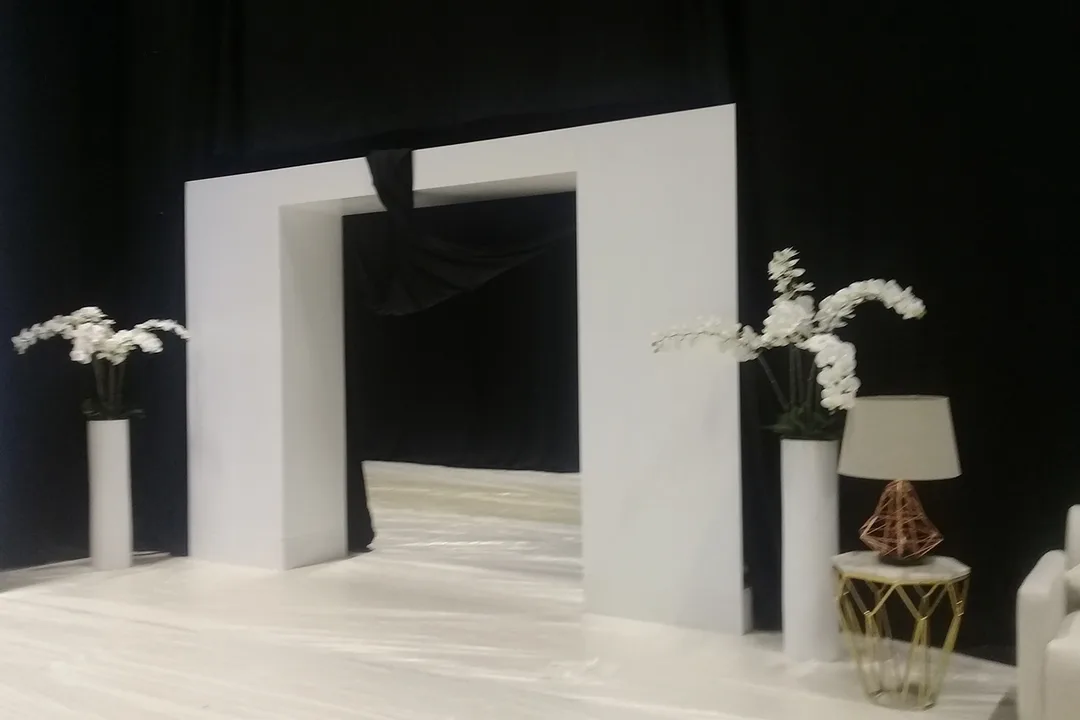

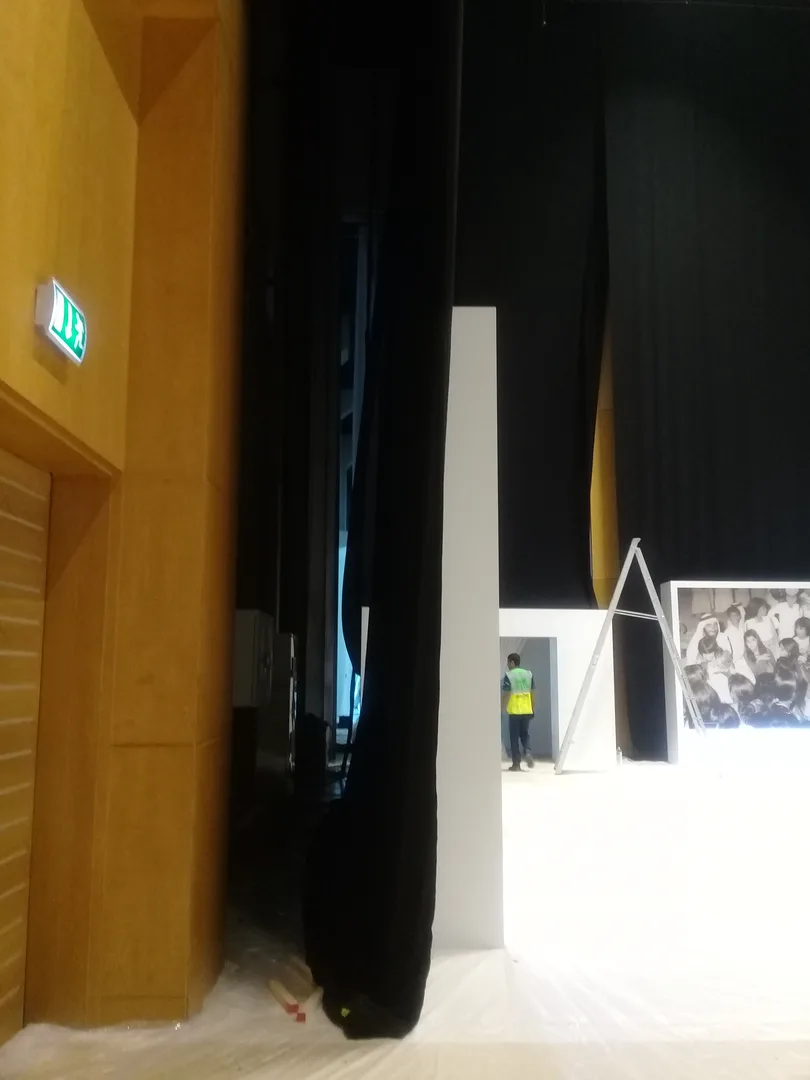

Drapes may require overlapping returns so people viewing from an angle cannot see into backstage areas.

Access openings need enough overlap to remain visually closed while still allowing crew, cases and equipment to pass through.

Corners, doorways, service routes and changes in floor level all need to be resolved rather than simply covered.

The best masking systems are planned as part of the overall scenic methodology, not added as an afterthought at the end of installation.

Theatre Applications

Theatre environments provide some of the clearest examples of how effective black drape can be.

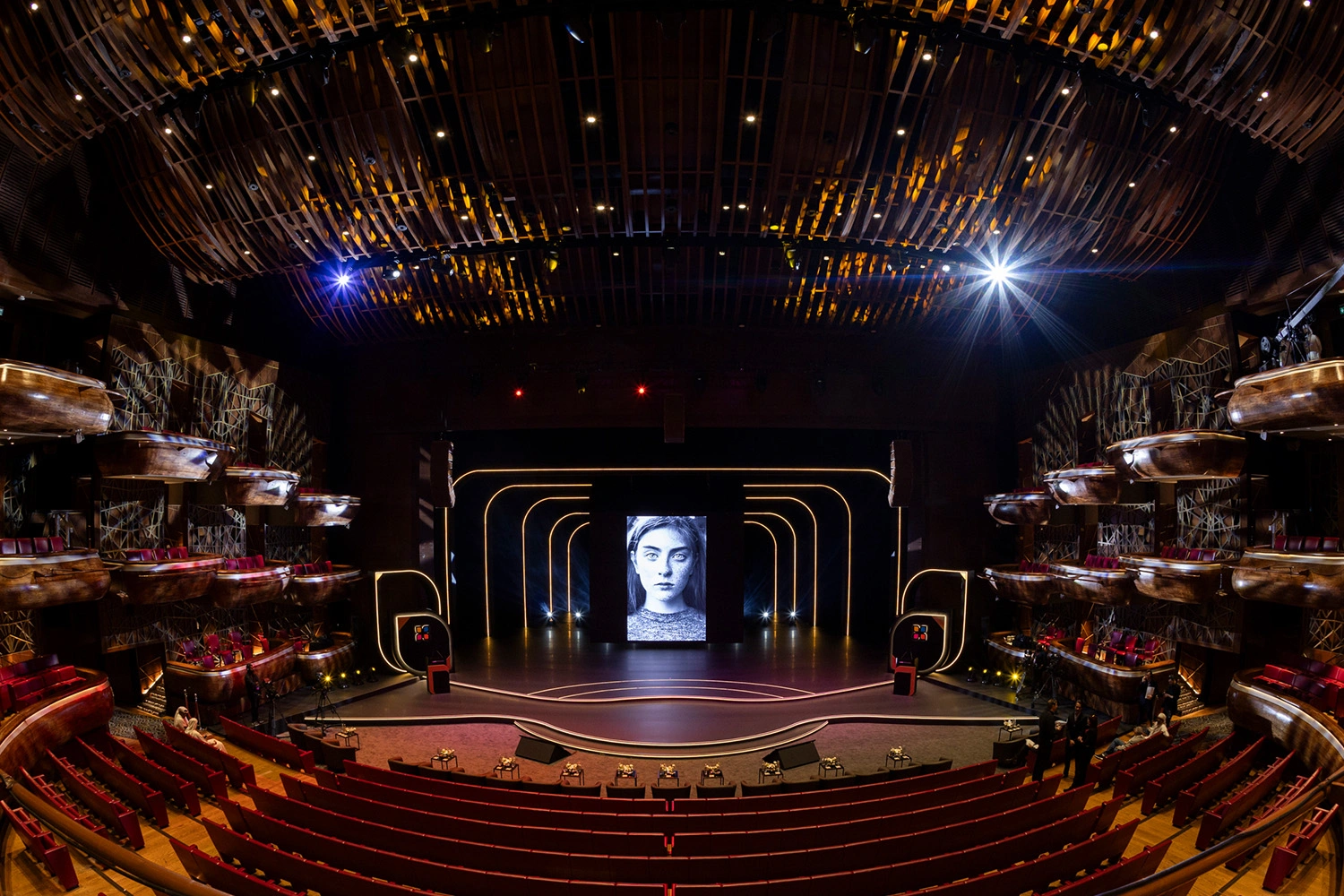

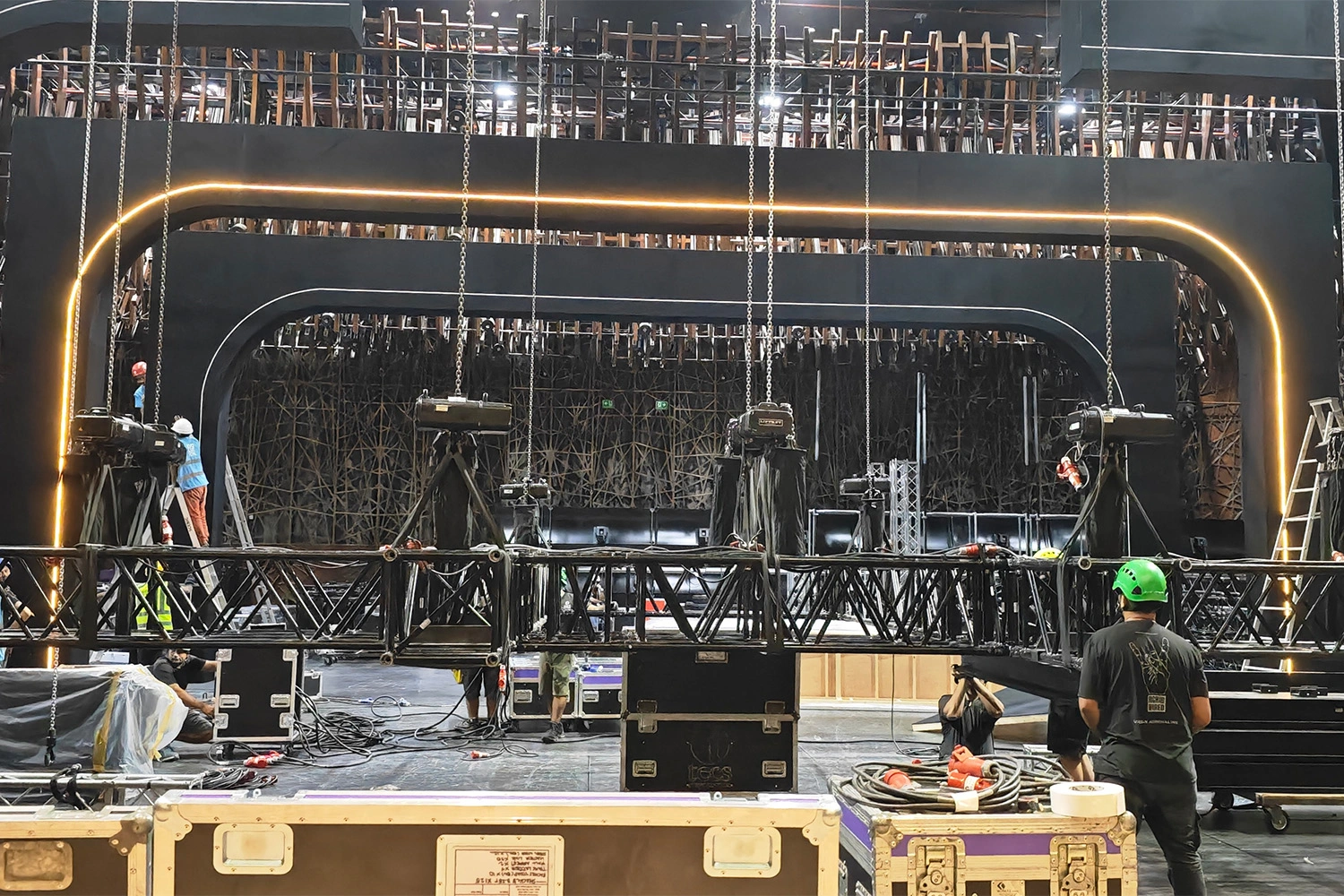

Black legs can mask stage wings.

Borders can conceal overhead rigging.

Additional masking can control exactly how much of the stage house is visible from the auditorium.

The positioning is often surprisingly precise.

Move a masking leg too far onstage and it reduces the usable performance area.

Move it too far offstage and lighting equipment, technical infrastructure or backstage activity may suddenly become visible.

The drape itself may appear simple, but the sightline control behind it is often carefully considered.

Conference Stages

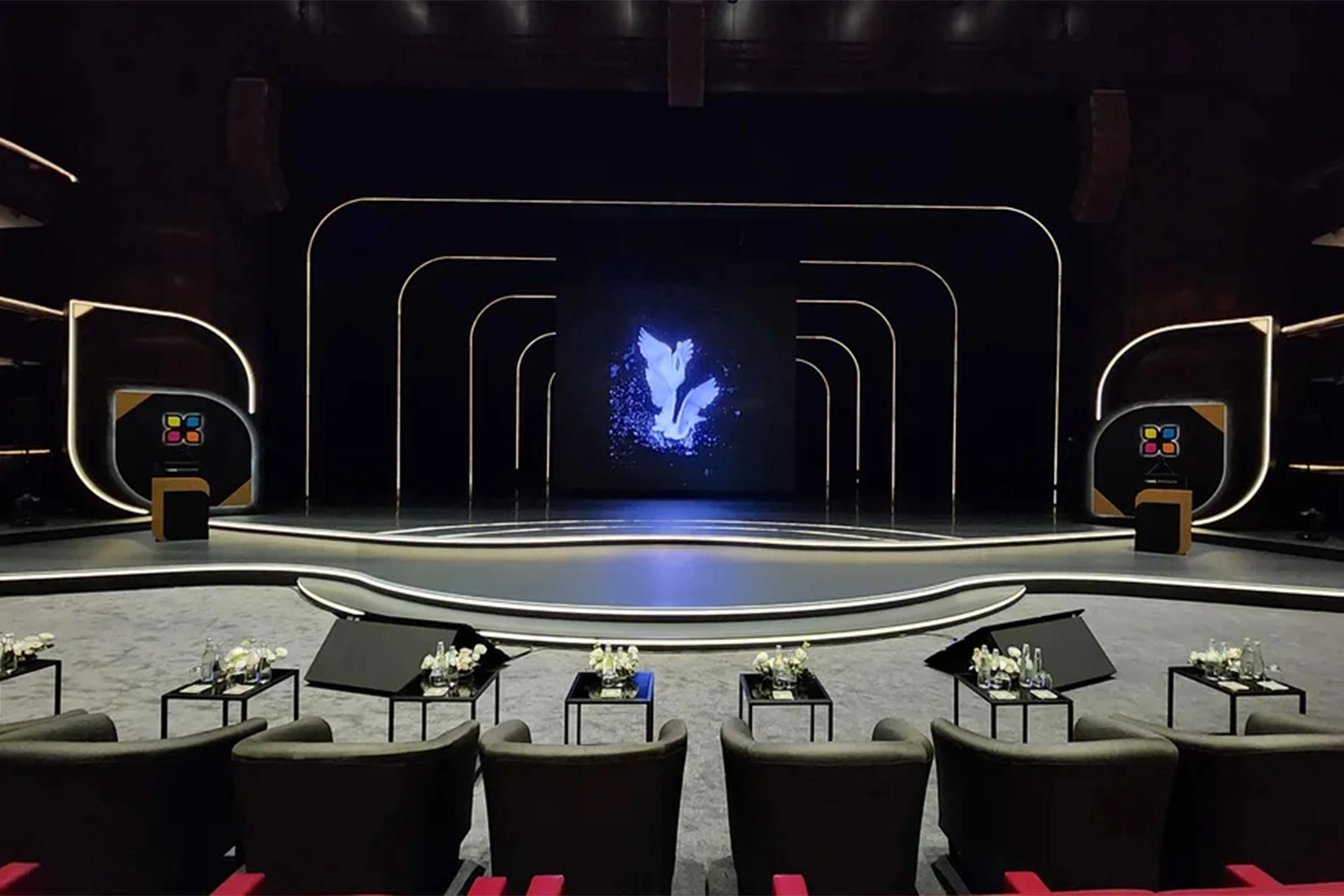

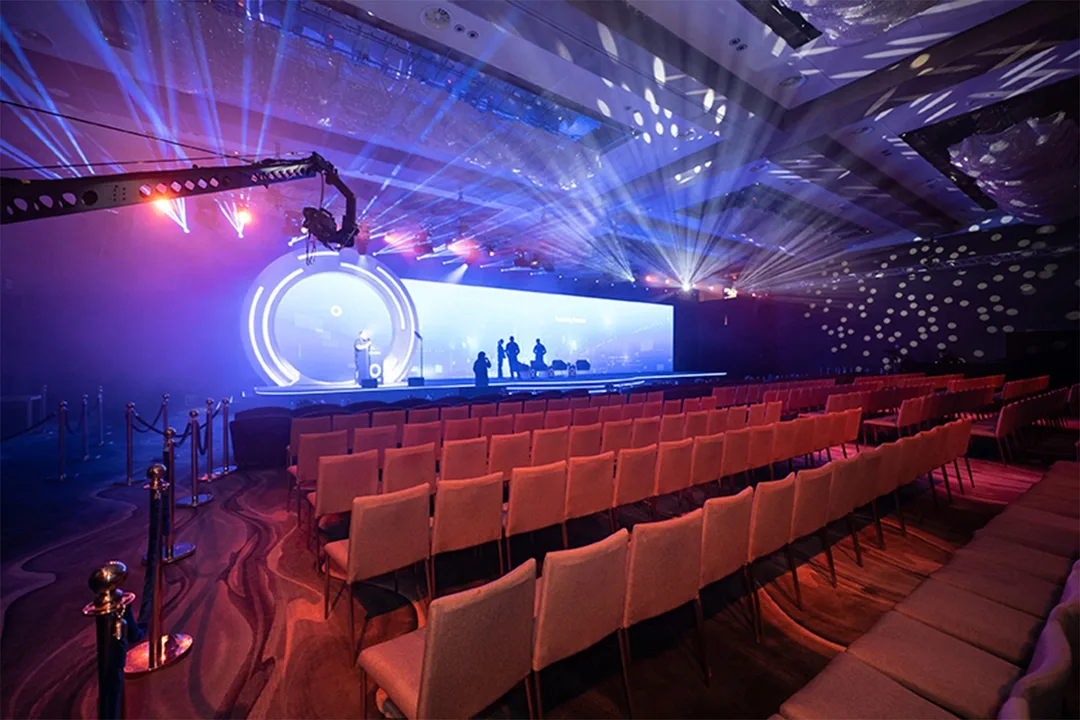

Conference stages use the same principles for slightly different purposes.

Scenic architecture may only occupy the central portion of a much larger ballroom or exhibition hall.

Surrounding that finished environment may be AV equipment, structural supports, cable routes, staging components, storage areas and access corridors.

Well-planned black drape creates the visual boundary between the finished scenic environment and everything required to make that environment function.

This allows technical infrastructure to remain close to the stage without becoming part of the visible design.

Transforming Exhibition Halls

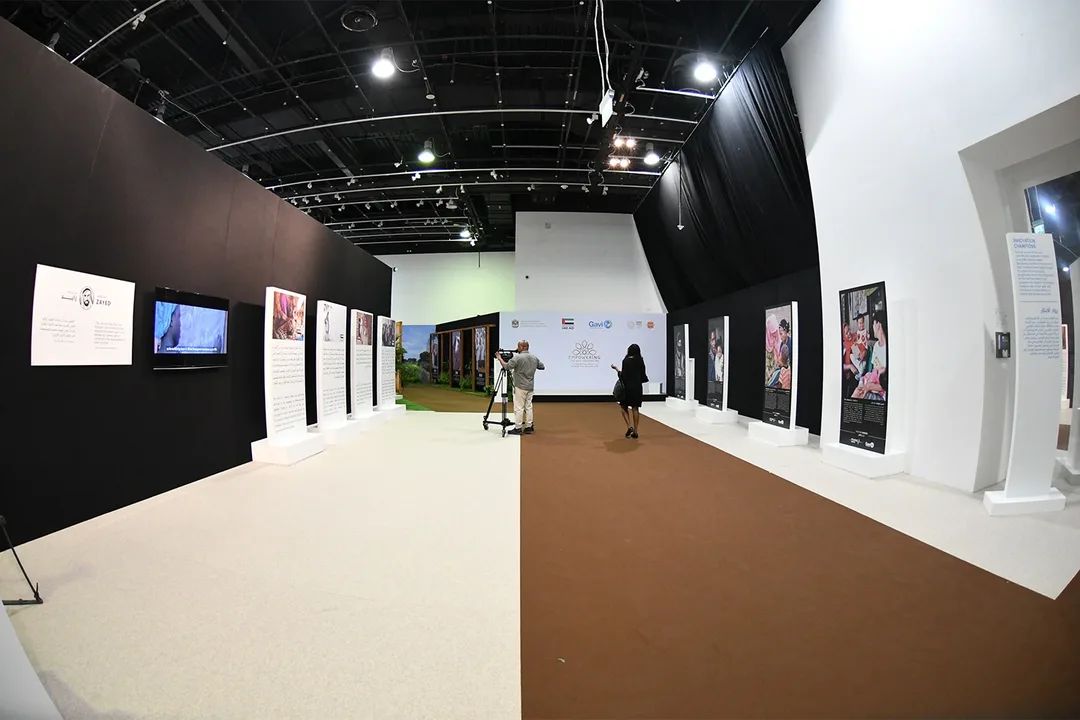

Exhibition halls present an even larger version of the same problem.

These spaces are designed to accommodate many different uses, which means their base architecture is rarely visually neutral.

Roller shutters, service doors, concrete walls, loading entrances, columns and unused areas can all remain within the visitor sightline.

Long masking runs can rapidly divide the hall, hide unused spaces and create a much more controlled temporary environment.

Achieving the same result using solid scenic walling could require hundreds of square metres of additional fabrication.

Changing the Perceived Size of a Venue

This ability to reshape a venue is one of black drape's greatest strengths.

A large room does not always need to look large.

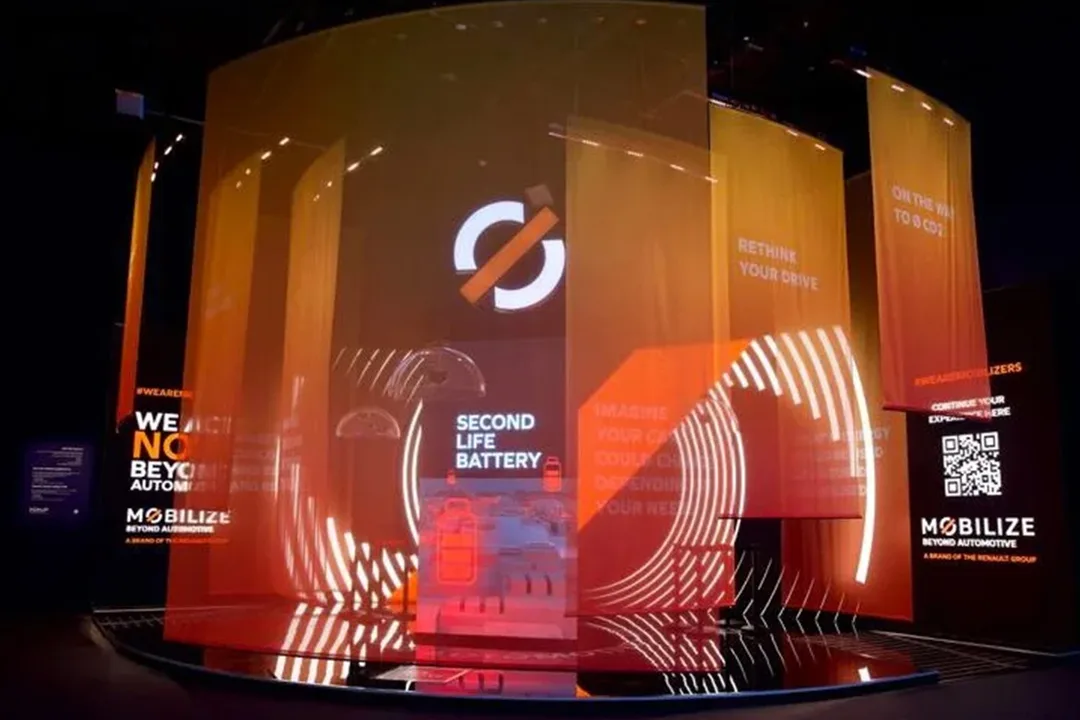

Unused bays can disappear behind masking.

Back-of-house areas can be created where none previously existed.

Existing venue finishes that clash with a scenic concept can effectively be removed from view.

The physical building remains unchanged, but the part perceived as the finished environment can be dramatically reduced.

This is one of the simplest ways to make a difficult venue feel intentional.

Choosing the Right Fabric

Not every piece of black fabric performs equally well.

Fabric weight, density, surface finish and opacity all influence the result.

Lightweight material may be suitable for short-term separation where there is little backlighting, but it can look thin or reveal shapes behind it in more exposed positions.

Heavier scenic fabrics generally hang more cleanly and absorb more light, helping them visually recede into the background.

Materials such as velour, molton and other specialist masking fabrics should therefore be selected according to the application rather than treating all black drape as interchangeable.

Fullness Ratios Matter

Fullness is another important part of the specification.

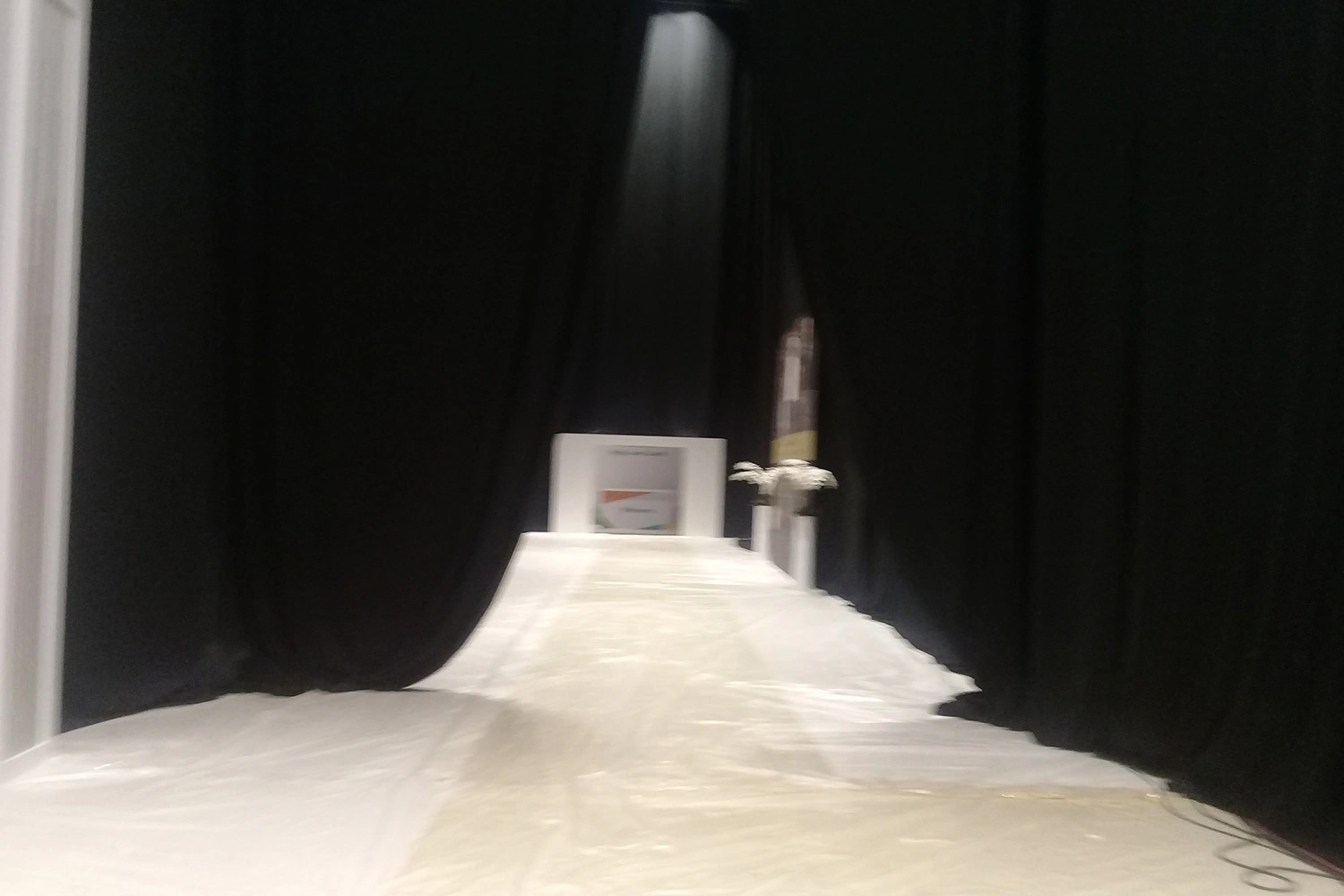

Hanging fabric completely flat is economical, but it exposes every inconsistency in the supporting structure and can make even good-quality material appear temporary.

Adding additional fabric width creates folds that give the drape more visual depth.

These folds also make minor alignment differences less noticeable and help reduce visible gaps.

Depending on the application, fullness may be relatively modest or approach twice the finished width.

The correct ratio depends on appearance, available space, fabric weight, movement requirements and budget rather than following one universal rule.

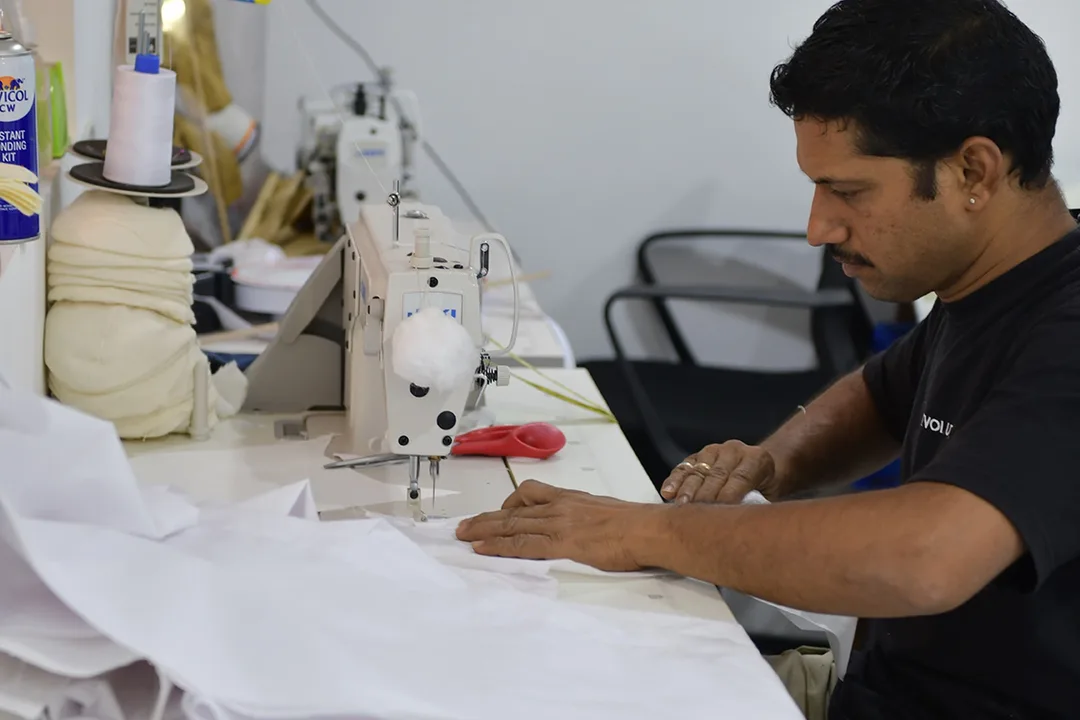

Sewing and Soft-Goods Fabrication

The quality of the sewing matters as well.

Long drape runs place considerable demands on hems, joins and suspension details.

Reinforced webbing, eyelets, ties, hook-and-loop fixings and properly finished bottom edges can make installation significantly easier and extend the useful life of the fabric.

At Evolution Scenic, soft-goods fabrication should be approached with the same attention to detail as scenic carpentry, metal fabrication or CNC production.

The details may eventually disappear from view, but they still need to be properly made.

Flame-Retardant Fabrics

Fire performance is particularly important in temporary environments.

Drapes can cover very large surface areas and may be positioned close to lighting, electrical infrastructure or occupied access routes.

For that reason, the correct flame-retardant specification and supporting certification may be required by venues or approving authorities.

Some fabrics are manufactured with inherent flame-retardant properties.

Others rely on treatments whose performance may be affected by washing, cleaning or environmental conditions.

Checking the specification and documentation before installation is considerably easier than discovering during venue inspection that the material is unsuitable.

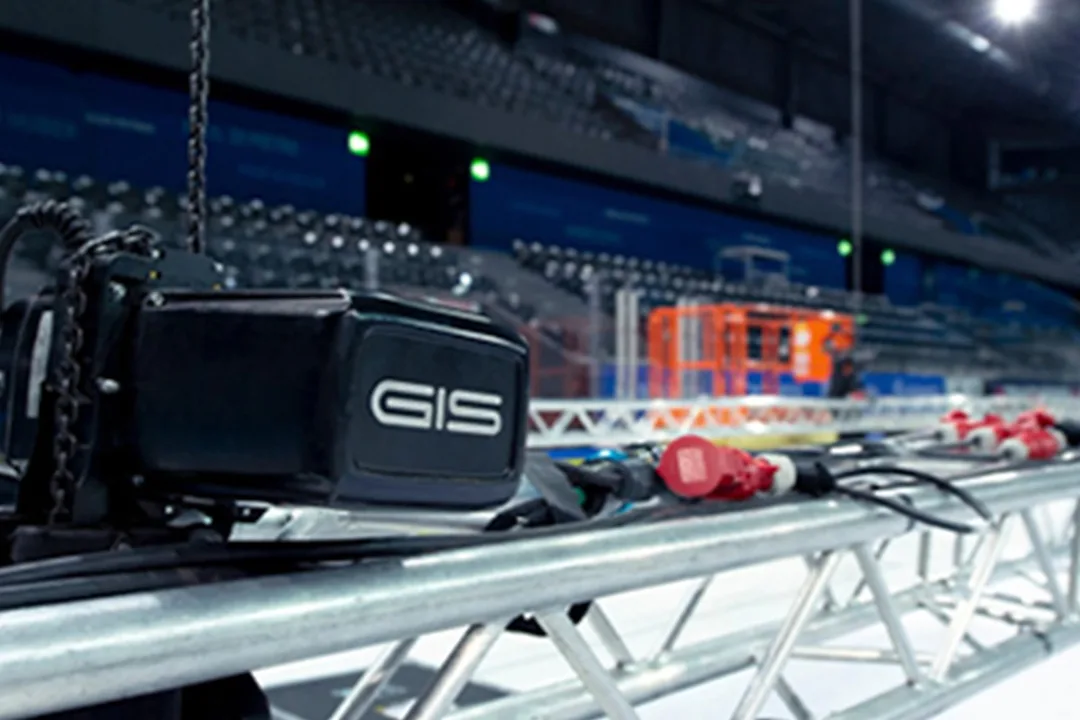

Drape Tracks and Support Systems

The track and support system deserves equal attention.

Fixed drape can sometimes be tied directly to pipework, truss or purpose-built support frames.

Movable masking normally requires an appropriate track with correctly spaced carriers.

The support structure must accommodate the weight of the fabric and allow the drape to travel smoothly without excessive friction or sagging.

Long track runs also require careful alignment.

A relatively small change in level or direction can become a much larger problem once several metres of heavy fabric are suspended from it.

Installation Quality Makes the Difference

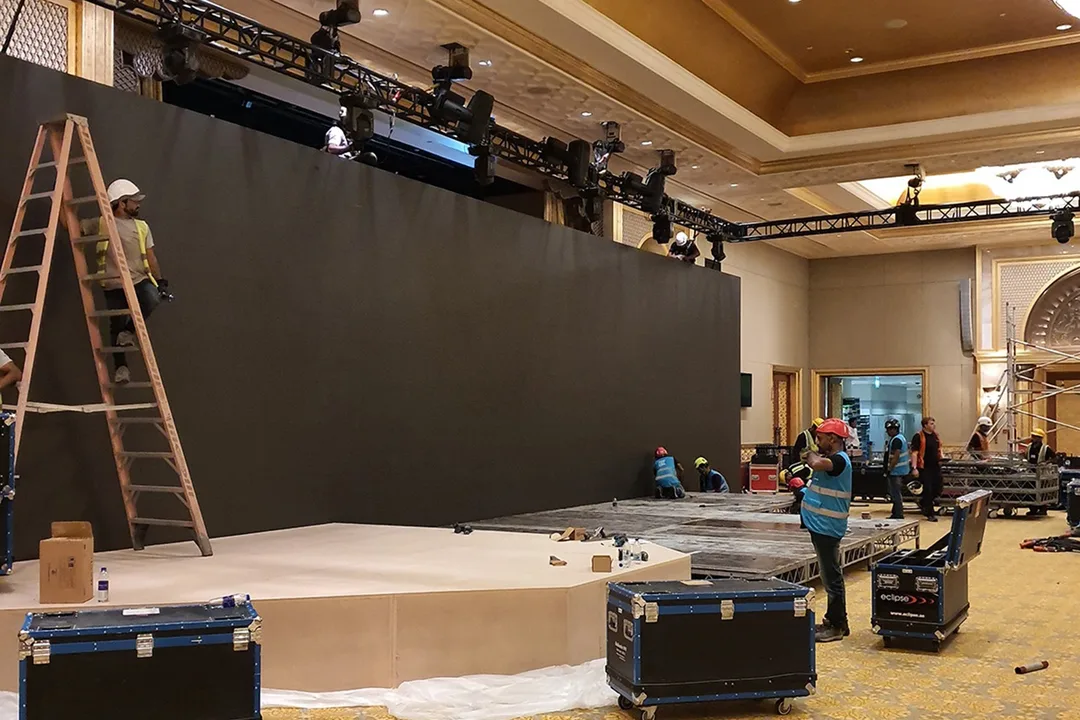

Installation is where the difference between acceptable drape and excellent drape becomes obvious.

Wrinkles, inconsistent pleats, visible joints, gaps beneath the fabric or light leaking between panels immediately reveal the masking system.

Good installers adjust overlap, bottom clearance, fullness and tension until the surface becomes visually quiet.

Individual panels stop reading as individual pieces of fabric.

The entire area simply becomes dark and unobtrusive.

That is exactly what good masking is supposed to achieve.

A Highly Efficient Temporary Solution

There is also a strong logistical argument for using drape where appropriate.

Hundreds of square metres of fabric can be folded, bagged and transported in a fraction of the volume required for an equivalent area of timber walling.

Track systems can be modular, labelled and reused.

Installation can often be completed with smaller teams, fewer vehicle movements and less material handling.

For temporary architecture, where every component must eventually arrive, be installed and leave again, those advantages can significantly simplify the overall build methodology.

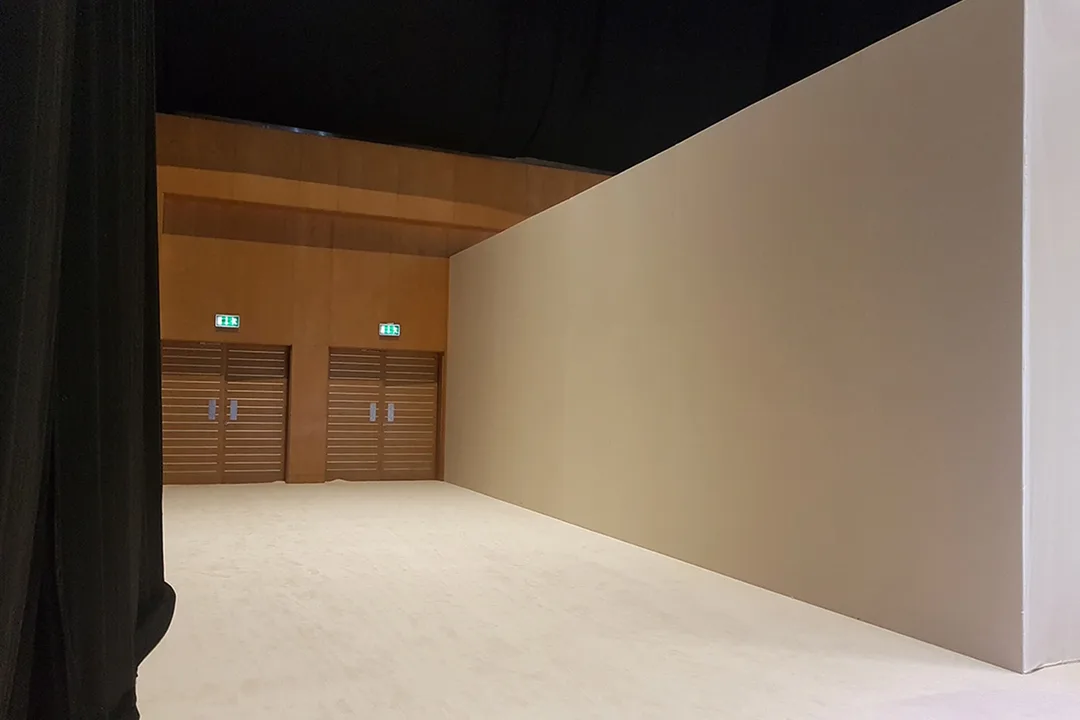

Knowing When Not to Use Drape

Black drape is not the answer to everything.

It cannot provide the rigidity of a scenic wall.

It cannot support mounted graphics, screens or displays without additional structure.

It does not offer the same impact resistance as solid construction.

It also cannot create the precise architectural finish required for every environment.

The skill lies in recognising which parts of a project genuinely require fabrication and which simply need to disappear.

Sometimes building less is the more technically intelligent solution.

The Best Black Drape Is the Drape Nobody Notices

That is why black drape remains one of the industry's most reliable problem-solving tools.

The best examples rarely receive compliments because nobody notices them.

They simply hide the unfinished surfaces, technical infrastructure and operational spaces that were never intended to become part of the visible environment.

The scenic work looks cleaner.

The venue feels more controlled.

The masking quietly disappears.

And that is precisely why it works so well.

Building Scenic Structures For Broadcast

Broadcast environments place unusual demands on scenic fabrication. A structure may look perfectly convincing when viewed from the studio floor, yet behave very differently once professional cameras, lenses and lighting systems are introduced.

Live audiences generally experience an environment from a limited number of positions. Cameras do not. They move through wide shots, close-ups, low angles and side views, revealing surfaces, joints and transitions that may never have been intended as principal viewpoints.

They also magnify detail.

A small inconsistency in a painted finish, a slightly uneven joint or an unwanted reflection can become surprisingly prominent on screen. For this reason, scenic structures for broadcast must be engineered and fabricated not only to look impressive in person, but to remain controlled, consistent and convincing through the camera.

The Camera Is an Unforgiving Client

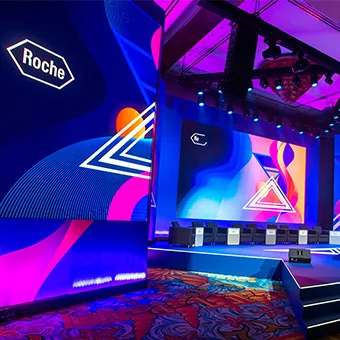

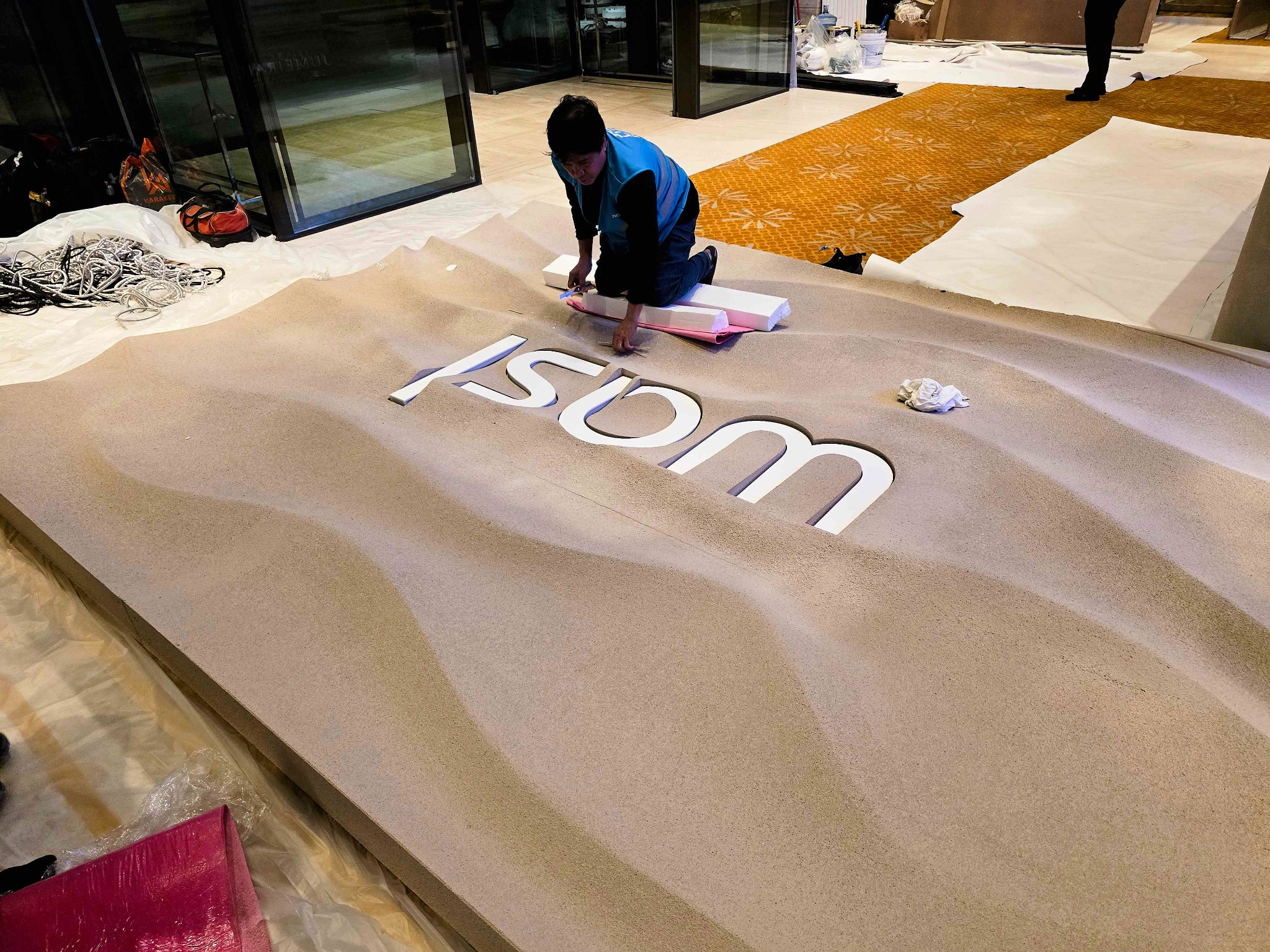

The phrase “camera-facing finish” can sound as though it simply means applying a better coat of paint. In reality, it affects the entire construction process.

Panel alignment, edge preparation, joint positions, fixing methods and material transitions all influence the final on-screen result. Even internal framing can affect visible surfaces if it creates movement, distortion or shadow lines across finished panels.

Broadcast cameras are particularly good at revealing repeated imperfections. A slightly uneven reveal may be difficult to notice when standing beside a structure, but it can become obvious when viewed as a continuous line across a large studio shot.

This means tolerances need to be considered from the technical design stage. Scenic walls, portals, desks, platforms and screen surrounds should be developed with predictable joints, controlled shadow gaps and sufficient structural support behind the visible surface.

Good camera-facing construction is rarely about eliminating every joint. It is about deciding where those joints belong and ensuring that they appear intentional.

Designing Finishes for Studio Lighting

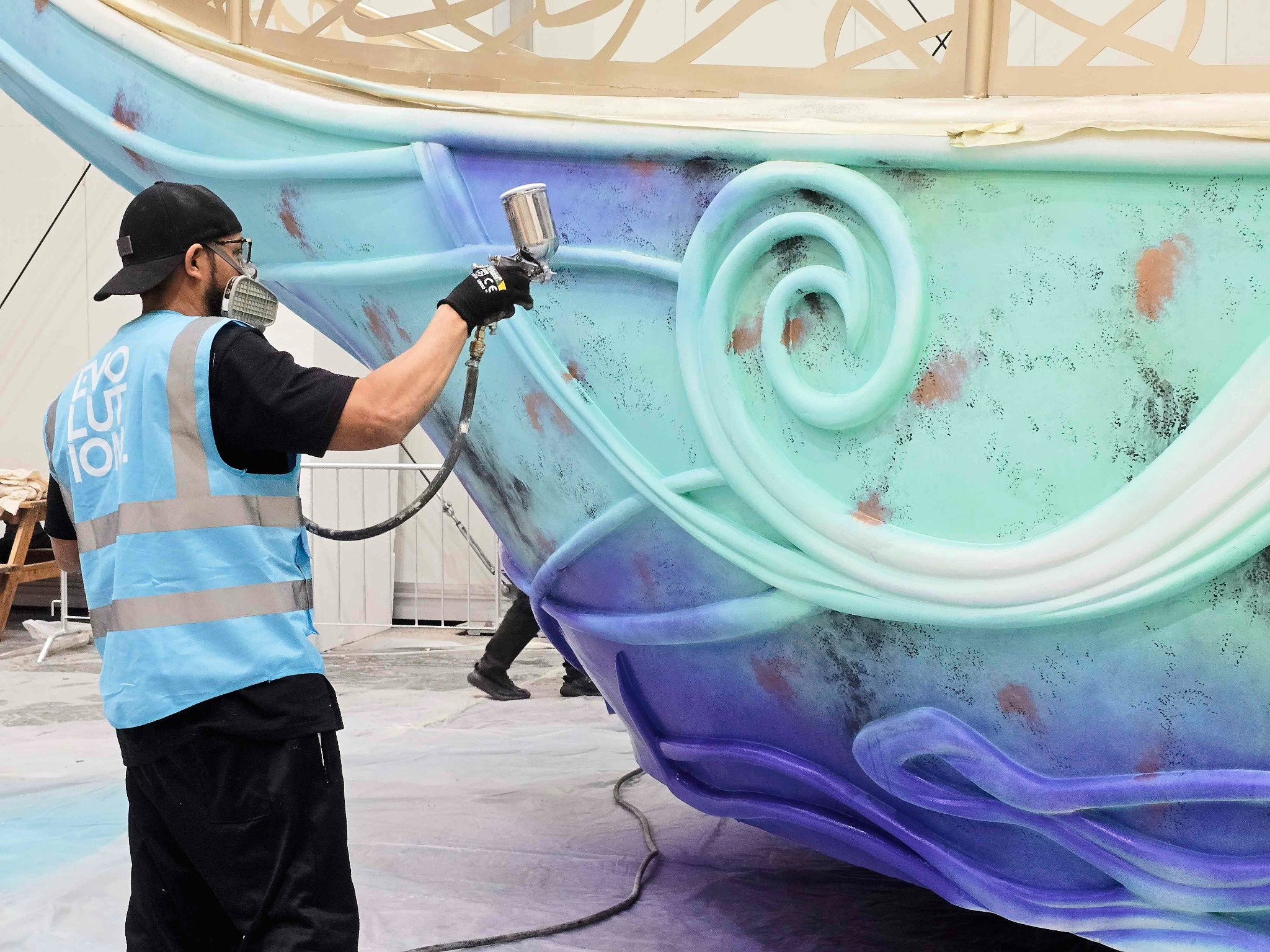

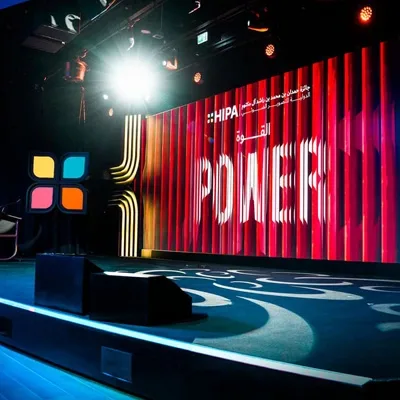

Studio lighting can be significantly more demanding than normal architectural or event lighting.

High-output fixtures, directional lighting and strong colour temperatures can expose surface variations that would remain hidden under softer ambient illumination. Raking light travelling across a wall can reveal sanding marks, filling inconsistencies, panel movement and changes in paint texture.

Reflectivity is another important consideration. Highly polished surfaces may create unwanted hotspots, show camera equipment or reflect sections of the studio that were never intended to appear in shot. Completely matt finishes can create their own challenges, including inconsistent absorption and visible handling marks.

The correct solution depends on the intended camera position, lighting design and visual treatment. Scenic finish samples should therefore be reviewed under lighting conditions that resemble the final studio environment wherever possible.

Colour consistency also matters. Two surfaces may appear identical under workshop lighting but respond differently beneath broadcast fixtures. Substrate type, primer, application method and topcoat all influence the result. When several materials meet within one camera-facing composition, the finishing system should be developed to make them read as a coordinated whole.

Material Selection Behind the Image

Broadcast scenery often combines timber, sheet materials, steel, aluminium, plastics, fabrics, composites and specialist coatings. Each material is selected not only for its appearance, but for its structural behaviour, weight, finishing properties and relationship with technical equipment.

Timber and CNC-cut sheet materials are particularly useful for producing accurate scenic forms, screen housings and repeated details. Steel may provide the structural skeleton for large portals, elevated platforms or suspended features. Aluminium can reduce module weight where scenic elements need to be frequently reconfigured.

The visible finish may conceal a far more complex hybrid construction.

A curved studio wall, for example, might combine a steel base frame, CNC-cut timber ribs, flexible facing materials, reinforced screen openings and a multi-stage painted finish. Each layer performs a different role, but all must work together without creating movement or visible distortion.

Material selection must also consider handling. Broadcast environments are often adjusted between productions, which means exposed corners, removable panels and floor-level finishes may experience repeated contact. Delicate finishes need protection, replaceable sections or repair strategies built into the construction methodology.

Integrating Broadcast Infrastructure

A broadcast set is never simply scenery. It sits within a dense network of power, data, lighting, video, audio, monitoring and control systems.

These services frequently pass through, behind or beneath the scenic environment. Without careful coordination, cables can appear in camera shots, access panels can interrupt key surfaces and equipment may become difficult to maintain.

Cable routes should be planned before fabrication begins. This may involve concealed floor channels, removable skirting sections, access voids within scenic walls or dedicated pathways through structural frames. Routes must remain large enough for the required connectors and should avoid tight turns that make installation or replacement unnecessarily difficult.

Separation between power, data and signal cables may also be required. The scenic structure therefore needs to respond to technical layouts rather than treating cable management as an issue to be solved during installation.

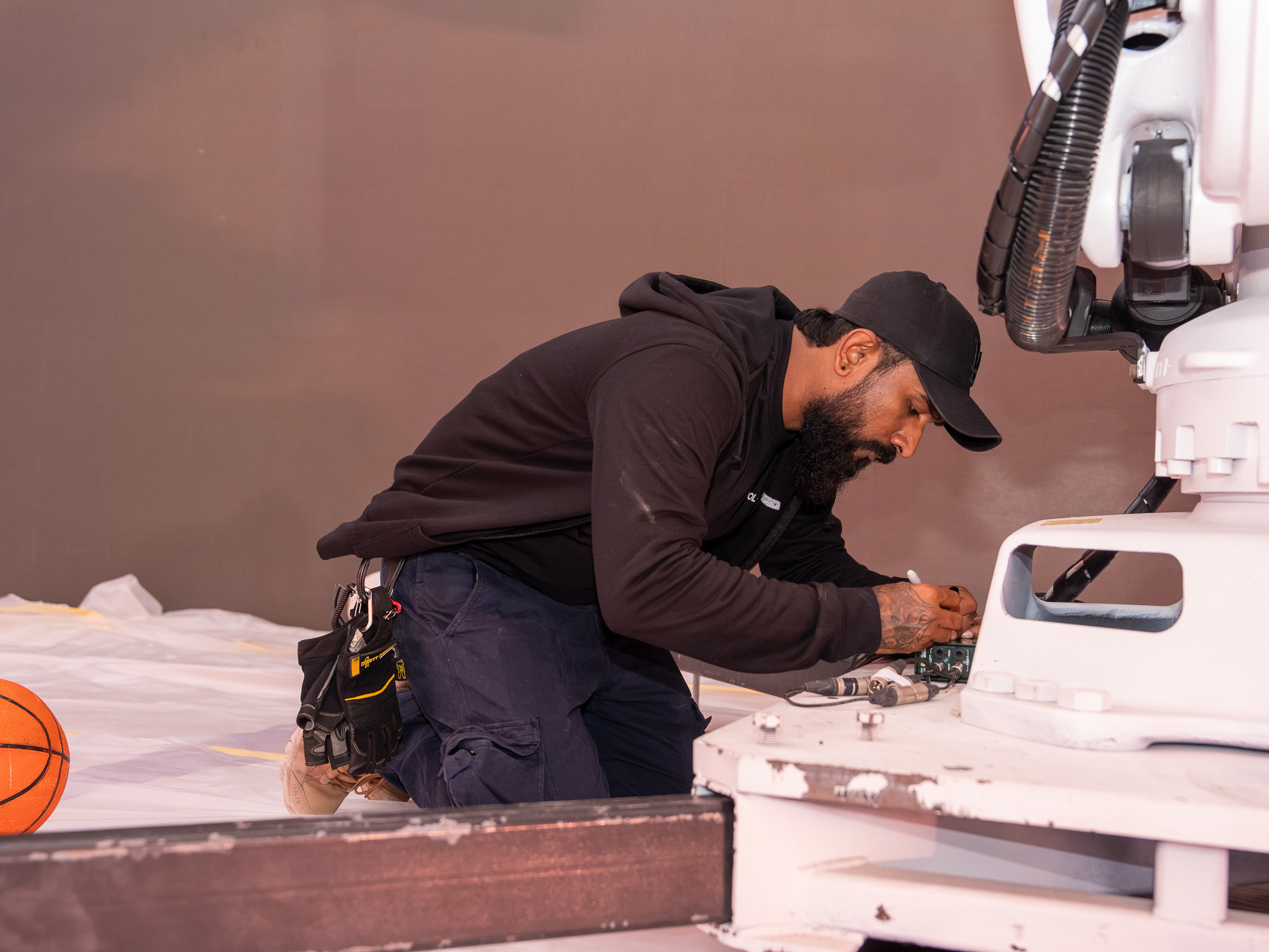

Access is equally important. Screens, lighting components, processors and control equipment may require servicing or replacement. Removable panels and maintenance hatches should be positioned where they can be reached without dismantling large sections of the set.

The best access panel is usually the one nobody notices until it is needed.

Screens, Lighting and Technical Equipment

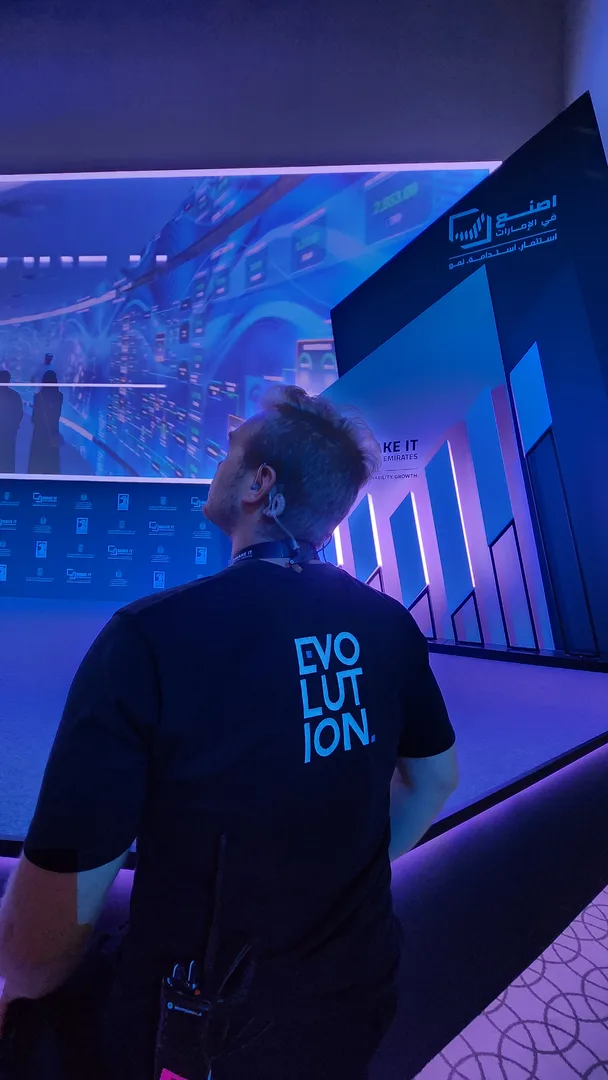

LED displays and other screen systems are regularly integrated into broadcast scenery. Their support structures must provide accurate openings, suitable load paths, ventilation and safe access while keeping the visible bezel and surrounding finish consistent.

Small dimensional errors around a screen can become highly visible on camera. Uneven gaps, misaligned corners or inconsistent returns can make an otherwise high-quality environment appear unfinished.

Lighting integration presents similar challenges. Scenic structures may need to accommodate linear lighting, practical fixtures, illuminated reveals or concealed equipment. Heat, ventilation, driver access and cable replacement all need to be considered alongside appearance.

Where technical equipment generates heat, ventilation openings must be incorporated without compromising the camera-facing design. This may involve concealed slots, shadow-gap ventilation or openings placed outside principal sightlines.

Successful integration does not mean permanently sealing equipment behind scenery. It means giving technical teams the access they require while preserving the intended image.

Building for Camera Positions and Sightlines

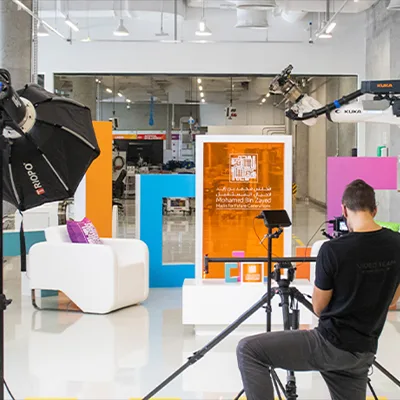

Broadcast structures are often viewed from several planned camera positions, each revealing a different part of the environment.

A scenic return that is invisible in the hero shot may be exposed by a tracking camera. The unfinished back of a feature wall may appear through a reflection. A floor cable may disappear from one angle and become highly visible from another.

Technical development should therefore consider camera sightlines alongside structural and fabrication requirements. Three-dimensional models can help identify exposed edges, reflected surfaces and potential gaps before manufacturing begins.

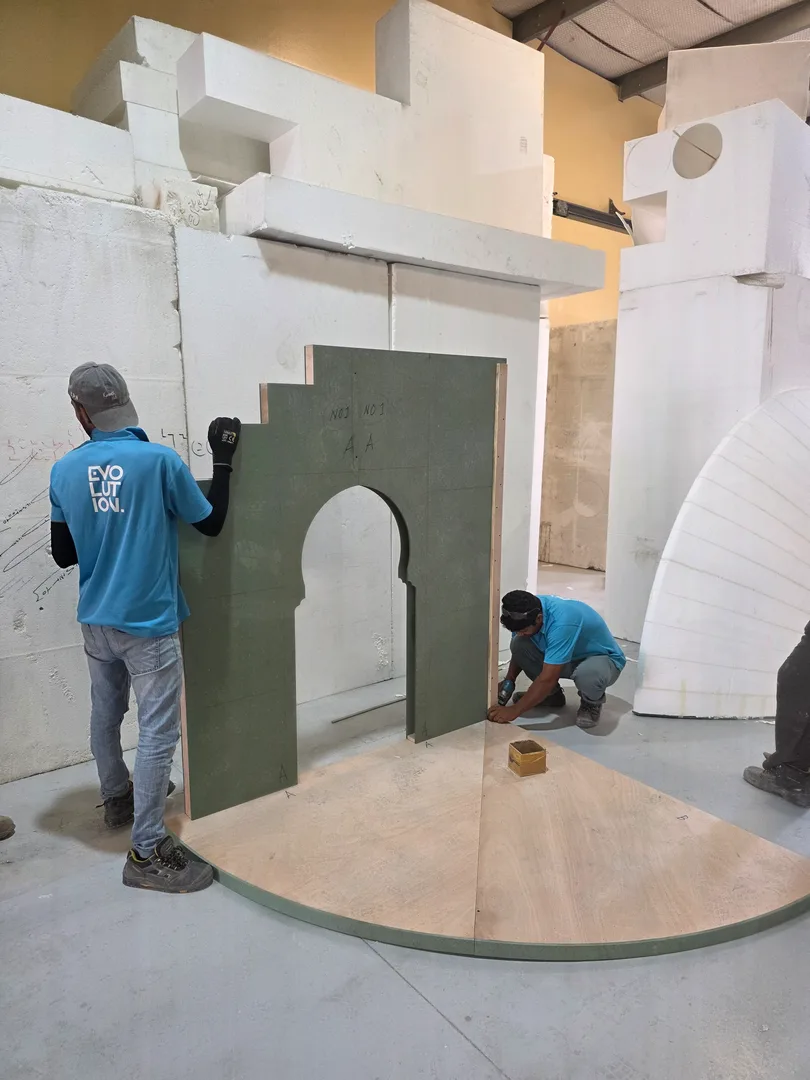

Full-scale workshop pre-assembly is particularly valuable. It allows fabrication teams to check joint alignment, screen openings, graphic positions and lighting behaviour before components arrive on site.

Where possible, test cameras or representative lenses can be used to review key details. The objective is not to turn the workshop into a complete studio, but to identify issues that are much easier to correct before installation.

Modular Construction and Rapid Reconfiguration

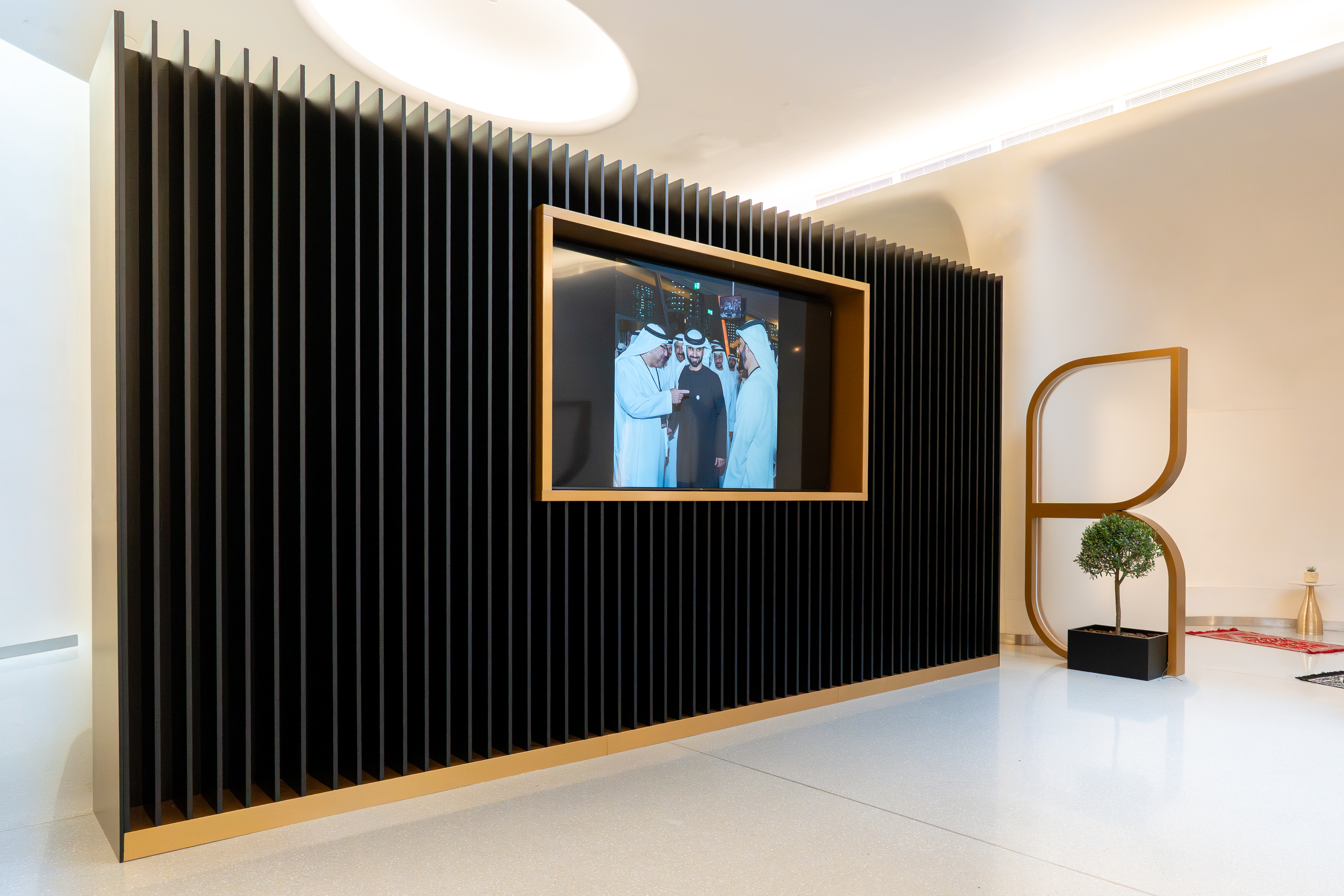

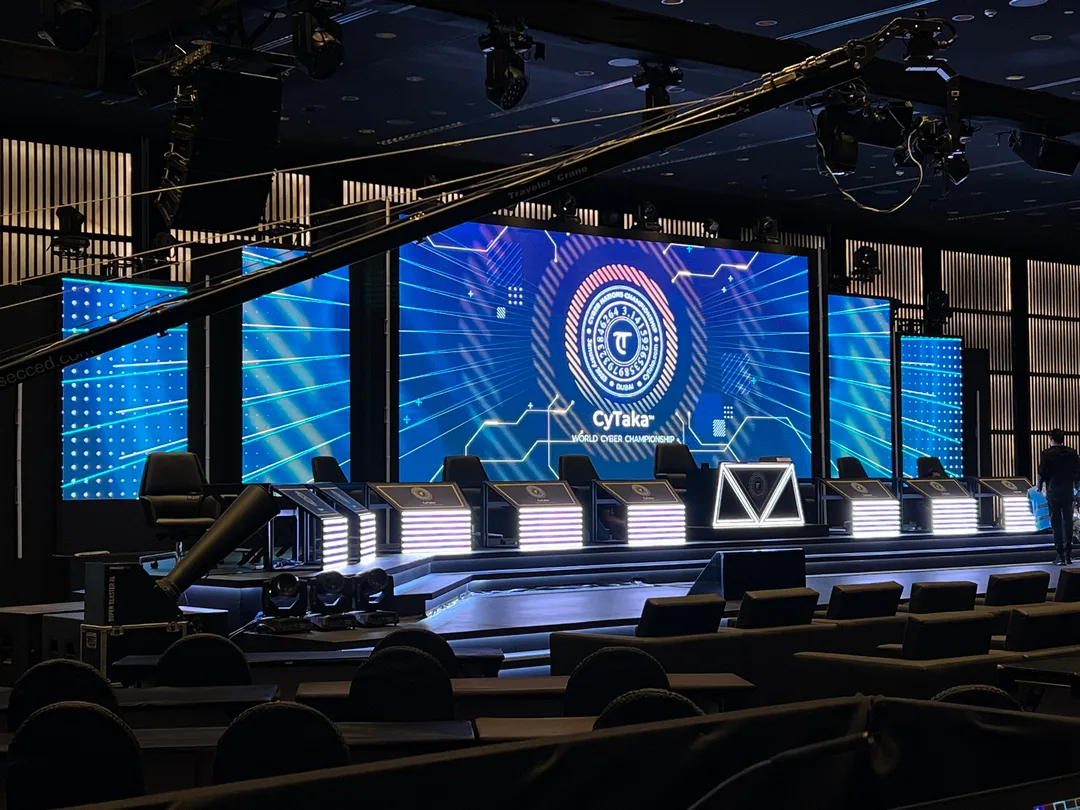

Many broadcast stages, product launch environments and television sets need to be installed quickly or modified between uses.

Modular construction allows large environments to be divided into transportable sections that can be assembled efficiently while maintaining accurate alignment. Connections must be strong, repeatable and accessible, especially where the same scenic elements will be dismantled and rebuilt several times.

Module sizes are influenced by vehicle capacity, venue access, lifting restrictions and installation sequencing. Protective handling is also essential because camera-facing finishes may need to arrive on site in near-final condition.

Replaceable facing panels can be useful where branding, graphics or colours change regularly. Structural frames can remain in service while selected surfaces are updated, reducing the need to rebuild the entire environment.

However, modularity should not create unnecessary joint lines. The engineering and scenic design teams must coordinate module breaks so that they align with architectural features, graphic boundaries or controlled shadow gaps.

A modular set should appear unified once installed, regardless of how many components sit behind the finished surface.

Quality Control Before Installation

Broadcast scenic work benefits from a disciplined quality-control process.

Dimensions should be checked against screen systems, technical drawings and camera-facing compositions. Finished surfaces should be reviewed under strong directional light. Removable panels should be tested repeatedly, and cable pathways should be checked using the actual connector sizes wherever possible.

Graphic alignment is another important consideration. Large-format graphics, illuminated logos and screen content may all need to align with fabricated features. Small discrepancies can become very obvious when the camera frames them together.

Pre-assembly also allows installation crews to understand the intended sequence. Components can be labelled, connection hardware can be verified and sensitive finishes can be protected before transport.

These steps may add time in the workshop, but they frequently save considerably more time in the studio, where access windows are limited and multiple technical departments may be working simultaneously.

Fabricating for Different Broadcast Environments

The principles of camera-facing construction apply across a wide range of projects.

A television environment may require long-term durability, repeatable access and the ability to accommodate ongoing technical changes. A product launch stage may prioritise rapid installation, integrated LED surfaces and extremely clean presentation for close-up filming. A live event broadcast may involve large scenic structures designed to perform under changing camera positions and intensive show lighting.

The visual language may vary, but the fabrication requirements remain closely connected: accurate construction, stable surfaces, controlled finishes, integrated services and reliable access.

Behind every clean broadcast image sits a substantial amount of work that the viewer will never see.

Internal frames keep surfaces stable. Access panels allow technical teams to service equipment. Cable routes prevent infrastructure from entering shot. Modular connections allow environments to be installed and modified efficiently.

When these elements are properly coordinated, the scenic environment appears effortless on camera. That apparent simplicity is usually the result of careful engineering, experienced fabrication and a great deal of attention paid to details that were never intended to be noticed.

How Scenic Concepts Become Buildable Reality

The earliest stages of a scenic project can appear deceptively simple. A concept visual may communicate a striking structure, sculptural environment or ambitious architectural feature through only a handful of carefully rendered images. The proportions look resolved, the surfaces are clean and the finished environment can appear almost ready to manufacture. In reality, approval of the concept is often the point at which the most technically demanding work begins.

The visual now has to become a physical structure capable of being engineered, fabricated, finished, transported and installed within real project conditions. Every visible surface needs an appropriate substrate. Every large form requires an internal structure. Joints, connections, supports, lifting points and access requirements all need to be resolved, while the completed components must remain practical to manufacture using real workshop processes.

At Evolution Scenic, technical development forms the bridge between creative intent and physical production. The objective is not simply to reproduce what appears in a render, but to understand how that appearance can be achieved through materials, engineering, fabrication and installation. A successful scenic structure is one in which the visible design and the construction behind it have been developed together from the beginning.

From Creative Intent to Technical Information

Many initial concepts are developed without detailed consideration for structural performance, material limitations, transport restrictions or installation methodology. This is entirely normal. Early visuals are intended to communicate scale, atmosphere, proportion and overall design intent rather than provide a complete manufacturing solution.

The role of the scenic development team is not to reduce the ambition of the concept. It is to understand what the designer is trying to achieve and then identify the most practical way to deliver it.

This requires careful interpretation. A curved feature wall shown as a continuous surface may need to be divided into CNC-machined ribs, plywood skins and transportable modules. A suspended sculptural feature may require an internal aluminium frame, engineered lifting points and carefully coordinated connection details. A large branded portal may appear monolithic in the visual but need to be broken into sections that can pass through venue access doors and be assembled efficiently on site. The appearance remains consistent, but the internal logic of the structure changes considerably.

Technical Review and Buildability Assessment

Technical development usually begins with a detailed review of the available information. Concept visuals, drawings, venue plans, specifications and client requirements are assessed together to identify potential fabrication and installation challenges.

The scenic team will typically review:

·       Overall dimensions and clearances

·       Structural loading requirements

·       Venue access and loading routes

·       Floor loading limitations

·       Suspension and rigging restrictions

·       Fire-performance requirements

·       Environmental conditions

·       Installation and dismantling periods

·       Transport dimensions

·       Interfaces with lighting, graphics and audiovisual systems

A buildability assessment then considers whether the proposed form can be produced using available materials, machinery and workshop processes.

This does not simply answer whether something can be built. Almost anything can be fabricated with enough time and budget. The more useful question is whether it can be built efficiently, safely and in a way that suits the project programme.

For example, a complex freeform surface may be achievable through CNC machining, traditional scenic carpentry, fibreglass moulding or a combination of techniques. Each approach will produce different results in terms of cost, weight, strength, finish quality and production time.

The correct solution depends on the priorities of the project.

Developing the Construction Methodology

Once the overall form has been understood, the scenic team begins defining how the structure will be assembled. This stage often involves breaking the concept into primary structure, secondary framing, surface materials, decorative finishes and removable components. The sequence of fabrication is also considered, particularly where different departments must work on the same element.

A scenic structure may pass through several workshop processes. Steel frames may be fabricated first, followed by timber infill, CNC-machined cladding, scenic finishing, graphics and final assembly. Lighting channels, cable routes, access panels and service points may need to be incorporated before surfaces are closed.

Poor sequencing can create unnecessary rework. A graphic panel may become difficult to install if the supporting frame is completed too early. A lighting component may become inaccessible once cladding is fixed. A decorative finish may be damaged if heavy mechanical work continues nearby. Technical planning helps prevent these issues by establishing a logical build methodology before fabrication starts.

Material Selection

Material selection is one of the most influential parts of scenic development. Timber, steel, aluminium, composites, fabrics, plastics, foams and specialist scenic coatings all offer different advantages. The correct choice depends on the required strength, finish, weight, lifespan, installation method and budget.

Steel is often used where high structural strength or long unsupported spans are required. It can provide a reliable framework for large scenic structures, entrance features and elevated platforms. However, it also adds weight and may require lifting equipment or larger transport vehicles.

Aluminium can offer a lighter alternative, particularly where repeated handling, modularity or suspended structures are involved. It is easier to transport but may require more specialised fabrication and connection detailing.

Timber remains one of the most adaptable materials in scenic construction. It can be cut, shaped, laminated, CNC-machined and finished in many different ways. Scenic carpentry is particularly effective for walls, curved forms, platforms, decorative elements and lightweight modular structures.

Composite panels and specialist sheet materials can help reduce weight while maintaining stiffness. Foams and lightweight modelling materials are often used for complex sculptural features, although they must be carefully detailed to achieve suitable durability and fire performance.

Material decisions also influence the final scenic finish. A surface intended to resemble stone, concrete, metal or timber may use a completely different substrate beneath the visible coating. The finish provides the appearance, while the internal construction provides the required performance.

Engineering Reviews

Engineering reviews frequently run alongside design development rather than taking place only after the design is complete. Structural calculations, load paths, connection details, support systems and fixing methods are examined as the concept evolves. This allows potential problems to be resolved before production drawings are issued.

A large scenic wall, for example, must be checked for overturning, lateral stability and connection strength. A suspended feature must be reviewed for self-weight, dynamic loading and rigging capacity. A platform may require checks for live loads, deflection and edge protection.

The visible structure is only one part of the problem. Engineers must also understand how forces move through the structure and into the supporting floor, roof system, ballast arrangement or temporary subframe. Temporary structures often require a different mindset from permanent construction. They must be strong enough to perform safely, but they must also be assembled quickly, dismantled efficiently and transported without unnecessary complexity.

The strongest solution is not always the best solution. A scenic structure can become unnecessarily heavy, difficult to install and expensive to transport if engineering is approached without considering the temporary nature of the build. The most effective engineering solutions balance safety, fabrication efficiency, installation speed and visual intent.

Technical Drawings and Production Information

Once the build methodology has been agreed, detailed production information can be prepared.

Technical drawings translate the visual concept into dimensions, components and fabrication instructions. Depending on the project, this may include:

·       General arrangement drawings

·       Setting-out drawings

·       Steel fabrication details

·       Scenic carpentry drawings

·       CNC cutting files

·       Connection details

·       Assembly diagrams

·       Graphic artwork locations

·       Lighting and audiovisual coordination

·       Installation sequencing

·       Numbered component layouts

These drawings must provide enough information for workshop teams to manufacture accurately while remaining clear enough for site teams to assemble the structure under time pressure.

Production drawings are often supported by physical prototypes, sample panels or test assemblies. A curved junction may be mocked up to confirm the geometry. A scenic finish may be tested under show lighting. A connection may be trialled to check whether it can be installed using the available tools and access.

These tests reduce uncertainty and allow problems to be solved before full-scale production begins.

Collaboration With Agencies and Designers

Successful scenic development depends on clear collaboration between creative teams, technical designers, engineers, fabricators and installation crews.

The scenic team must protect the original design intent while communicating the practical implications of different decisions. This is not achieved by simply rejecting difficult ideas. It requires proposing workable alternatives.

If a structure is too large to transport in one piece, it may be divided into concealed modules. If a finish is too fragile for repeated handling, a more durable scenic coating may be developed. If a proposed material creates excessive weight, a lightweight substrate may be used without changing the final appearance.

The most productive conversations focus on solutions.

Early collaboration is particularly valuable. When fabricators and engineers become involved before the design is fully fixed, they can help shape the project around real manufacturing processes. This often improves quality while reducing unnecessary cost, weight and complexity.

Late technical changes are usually more disruptive. Once graphics, lighting, finishes and production schedules have been confirmed, even a small structural adjustment can affect several other workstreams.

Designing for Transport and Installation

A scenic structure is not complete when it leaves the workshop. It must still reach the venue and be installed safely.

Transport requirements influence module sizes, packaging, lifting points and component protection. Large assemblies may need to fit within standard trucks or shipping containers. Delicate scenic finishes may require custom crates, padded supports or removable protective layers.

Venue conditions also play a major role. Limited loading access, narrow corridors, low ceiling heights and restricted working hours can all affect the installation strategy.

A structure that is easy to assemble in an open workshop may be much harder to install inside a finished venue. Technical development must therefore consider the actual site conditions from the beginning.

Connections should be accessible. Modules should be clearly labelled. Lifting points should be positioned correctly. The installation sequence should avoid trapping components or blocking access for other trades.

Where possible, complex structures are pre-assembled in the workshop before delivery. This allows the team to check alignment, finish quality and connection accuracy while there is still time to make adjustments.

Hundreds of Practical Decisions

Successful scenic projects rarely depend on a single brilliant idea. More often, they depend on hundreds of practical decisions made throughout design development, engineering and fabrication.

A joint is moved to improve transport efficiency. A steel frame is replaced with aluminium to reduce weight. A surface is divided into CNC-produced sections to improve accuracy. A removable panel is added for cable access. A hidden bracket is redesigned so it can be installed quickly on site.

Individually, these decisions may appear minor. Together, they determine whether the final structure is safe, accurate, efficient and visually convincing.

At Evolution Scenic, this process sits at the centre of scenic fabrication. Concepts are developed through technical drawings, engineering coordination, material testing, workshop knowledge and installation planning.

The objective is not simply to reproduce an image. It is to understand the idea behind it, solve the practical challenges and develop a construction system that can deliver the intended result in the real world.

That is how scenic concepts become buildable reality.
