Building Scenic Structures For Broadcast

Building Scenic Structures For Broadcast

Broadcast environments place unusual demands on scenic fabrication. A structure may look perfectly convincing when viewed from the studio floor, yet behave very differently once professional cameras, lenses and lighting systems are introduced.

Live audiences generally experience an environment from a limited number of positions. Cameras do not. They move through wide shots, close-ups, low angles and side views, revealing surfaces, joints and transitions that may never have been intended as principal viewpoints.

They also magnify detail.

A small inconsistency in a painted finish, a slightly uneven joint or an unwanted reflection can become surprisingly prominent on screen. For this reason, scenic structures for broadcast must be engineered and fabricated not only to look impressive in person, but to remain controlled, consistent and convincing through the camera.

The Camera Is an Unforgiving Client

The phrase “camera-facing finish” can sound as though it simply means applying a better coat of paint. In reality, it affects the entire construction process.

Panel alignment, edge preparation, joint positions, fixing methods and material transitions all influence the final on-screen result. Even internal framing can affect visible surfaces if it creates movement, distortion or shadow lines across finished panels.

Broadcast cameras are particularly good at revealing repeated imperfections. A slightly uneven reveal may be difficult to notice when standing beside a structure, but it can become obvious when viewed as a continuous line across a large studio shot.

This means tolerances need to be considered from the technical design stage. Scenic walls, portals, desks, platforms and screen surrounds should be developed with predictable joints, controlled shadow gaps and sufficient structural support behind the visible surface.

Good camera-facing construction is rarely about eliminating every joint. It is about deciding where those joints belong and ensuring that they appear intentional.

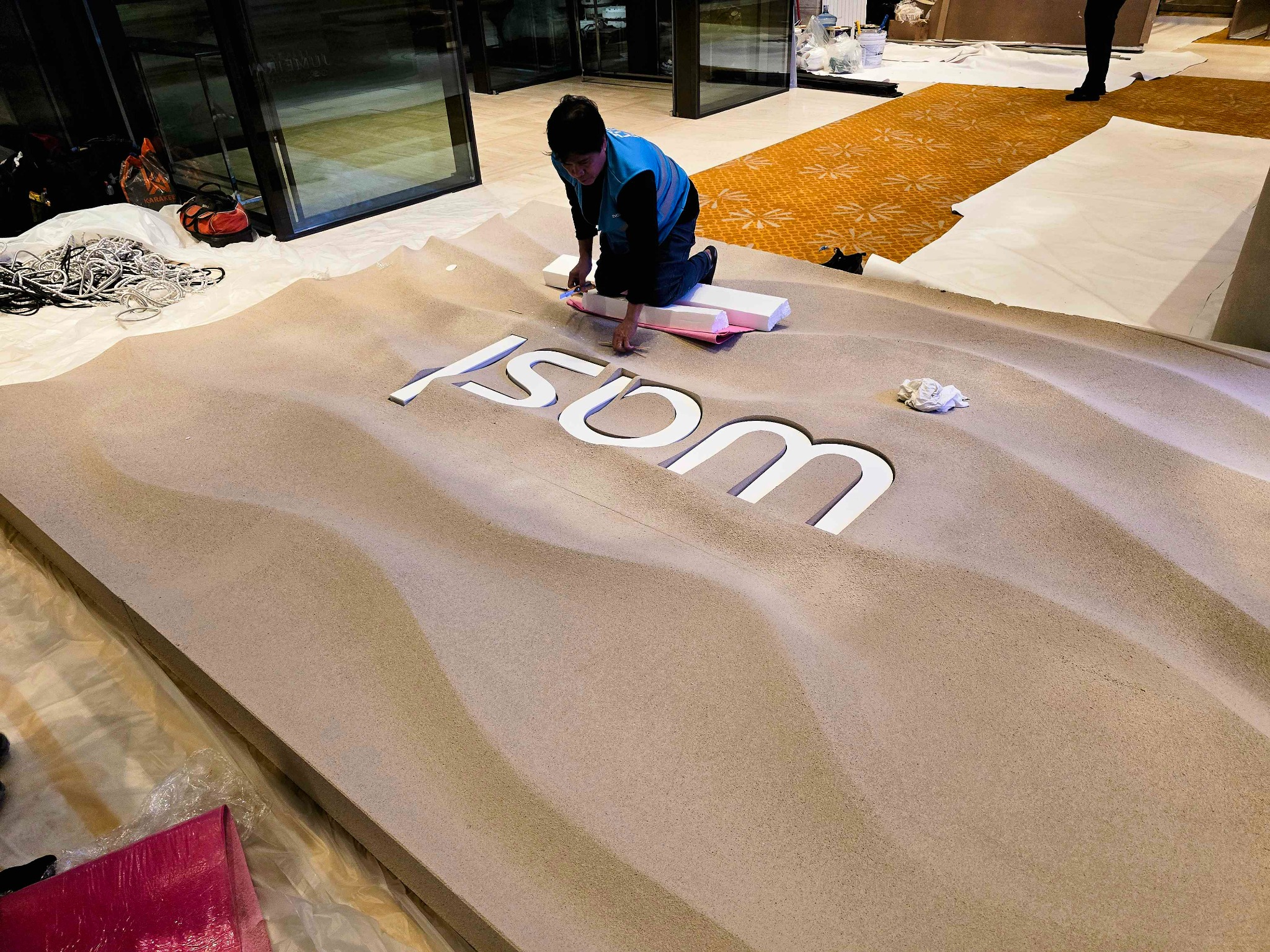

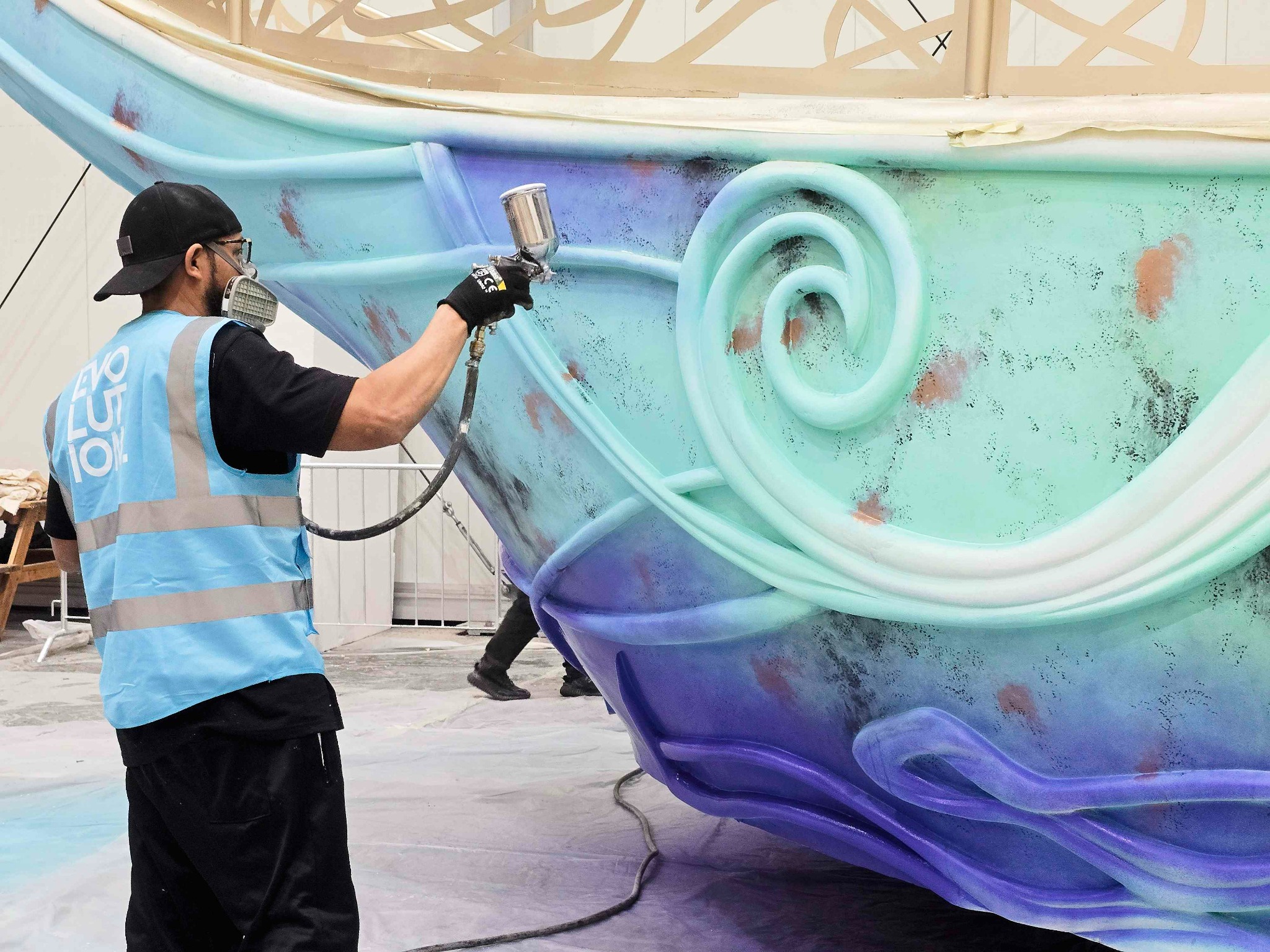

Designing Finishes for Studio Lighting

Studio lighting can be significantly more demanding than normal architectural or event lighting.

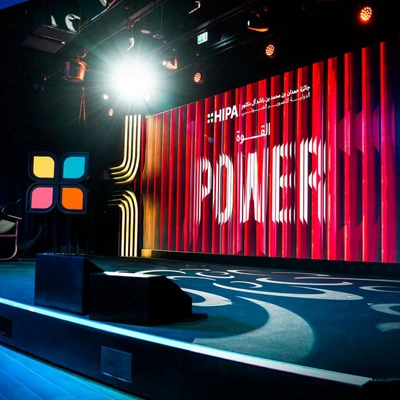

High-output fixtures, directional lighting and strong colour temperatures can expose surface variations that would remain hidden under softer ambient illumination. Raking light travelling across a wall can reveal sanding marks, filling inconsistencies, panel movement and changes in paint texture.

Reflectivity is another important consideration. Highly polished surfaces may create unwanted hotspots, show camera equipment or reflect sections of the studio that were never intended to appear in shot. Completely matt finishes can create their own challenges, including inconsistent absorption and visible handling marks.

The correct solution depends on the intended camera position, lighting design and visual treatment. Scenic finish samples should therefore be reviewed under lighting conditions that resemble the final studio environment wherever possible.

Colour consistency also matters. Two surfaces may appear identical under workshop lighting but respond differently beneath broadcast fixtures. Substrate type, primer, application method and topcoat all influence the result. When several materials meet within one camera-facing composition, the finishing system should be developed to make them read as a coordinated whole.

Material Selection Behind the Image

Broadcast scenery often combines timber, sheet materials, steel, aluminium, plastics, fabrics, composites and specialist coatings. Each material is selected not only for its appearance, but for its structural behaviour, weight, finishing properties and relationship with technical equipment.

Timber and CNC-cut sheet materials are particularly useful for producing accurate scenic forms, screen housings and repeated details. Steel may provide the structural skeleton for large portals, elevated platforms or suspended features. Aluminium can reduce module weight where scenic elements need to be frequently reconfigured.

The visible finish may conceal a far more complex hybrid construction.

A curved studio wall, for example, might combine a steel base frame, CNC-cut timber ribs, flexible facing materials, reinforced screen openings and a multi-stage painted finish. Each layer performs a different role, but all must work together without creating movement or visible distortion.

Material selection must also consider handling. Broadcast environments are often adjusted between productions, which means exposed corners, removable panels and floor-level finishes may experience repeated contact. Delicate finishes need protection, replaceable sections or repair strategies built into the construction methodology.

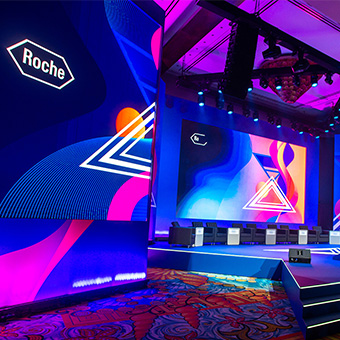

Integrating Broadcast Infrastructure

A broadcast set is never simply scenery. It sits within a dense network of power, data, lighting, video, audio, monitoring and control systems.

These services frequently pass through, behind or beneath the scenic environment. Without careful coordination, cables can appear in camera shots, access panels can interrupt key surfaces and equipment may become difficult to maintain.

Cable routes should be planned before fabrication begins. This may involve concealed floor channels, removable skirting sections, access voids within scenic walls or dedicated pathways through structural frames. Routes must remain large enough for the required connectors and should avoid tight turns that make installation or replacement unnecessarily difficult.

Separation between power, data and signal cables may also be required. The scenic structure therefore needs to respond to technical layouts rather than treating cable management as an issue to be solved during installation.

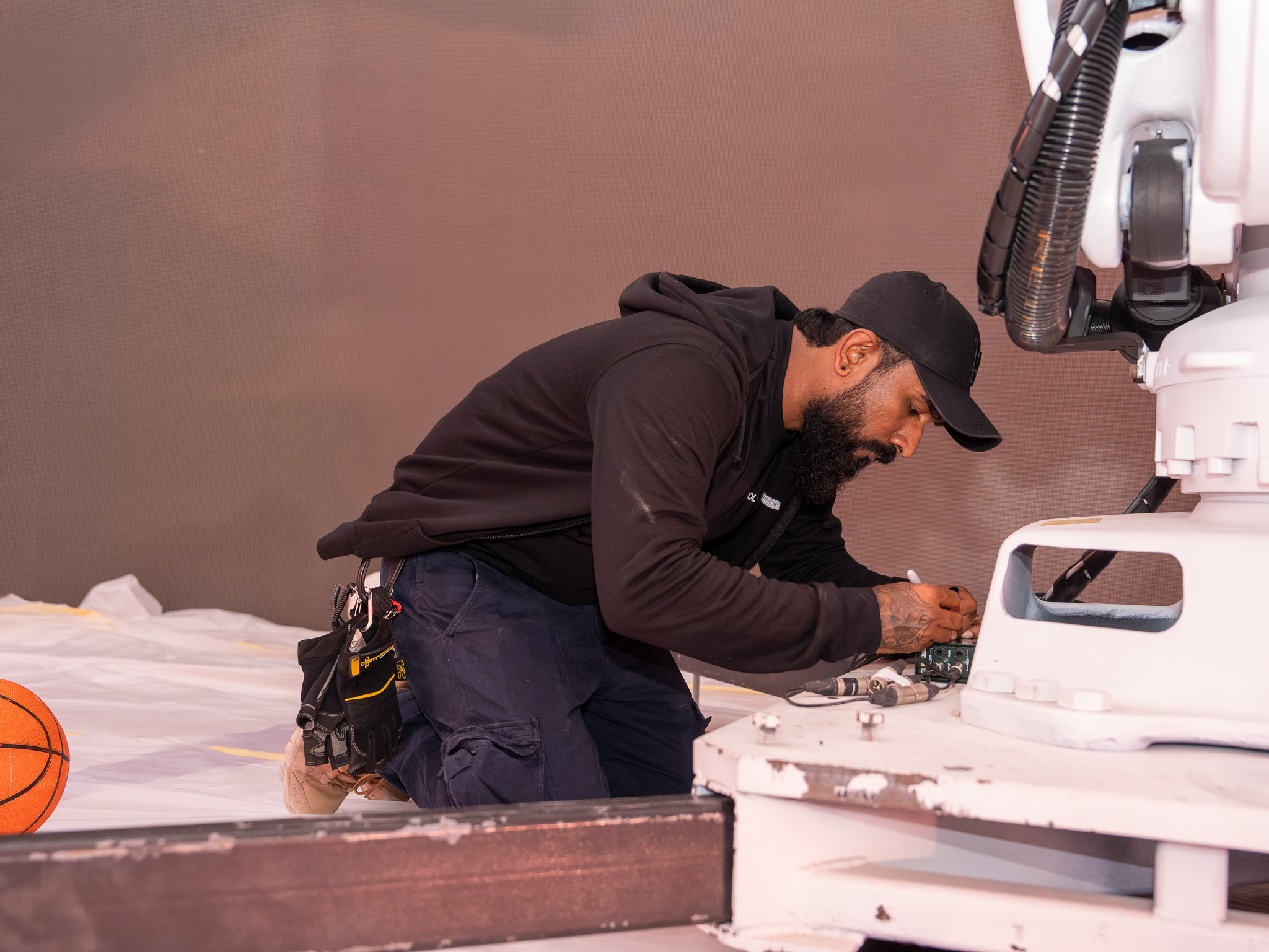

Access is equally important. Screens, lighting components, processors and control equipment may require servicing or replacement. Removable panels and maintenance hatches should be positioned where they can be reached without dismantling large sections of the set.

The best access panel is usually the one nobody notices until it is needed.

Screens, Lighting and Technical Equipment

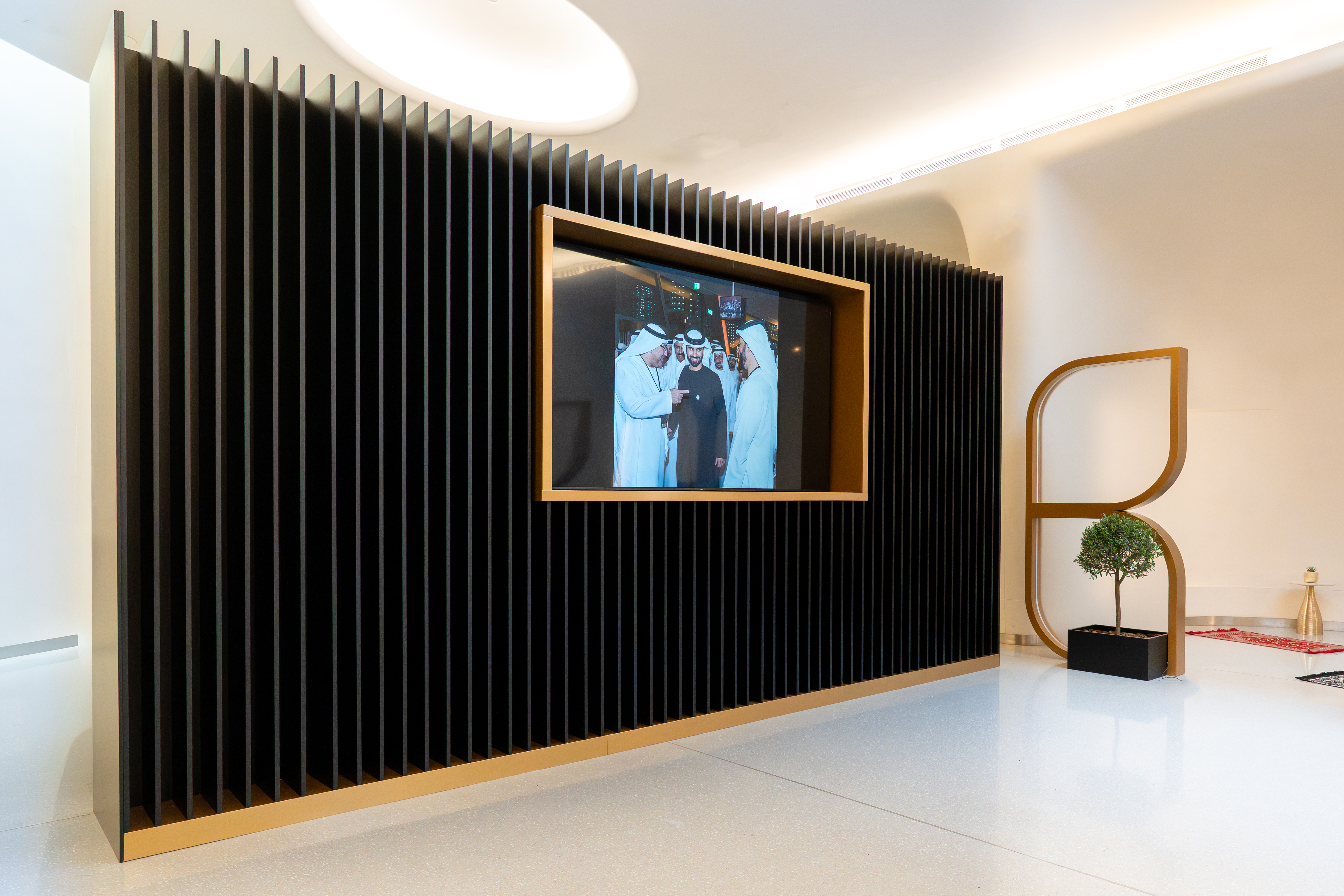

LED displays and other screen systems are regularly integrated into broadcast scenery. Their support structures must provide accurate openings, suitable load paths, ventilation and safe access while keeping the visible bezel and surrounding finish consistent.

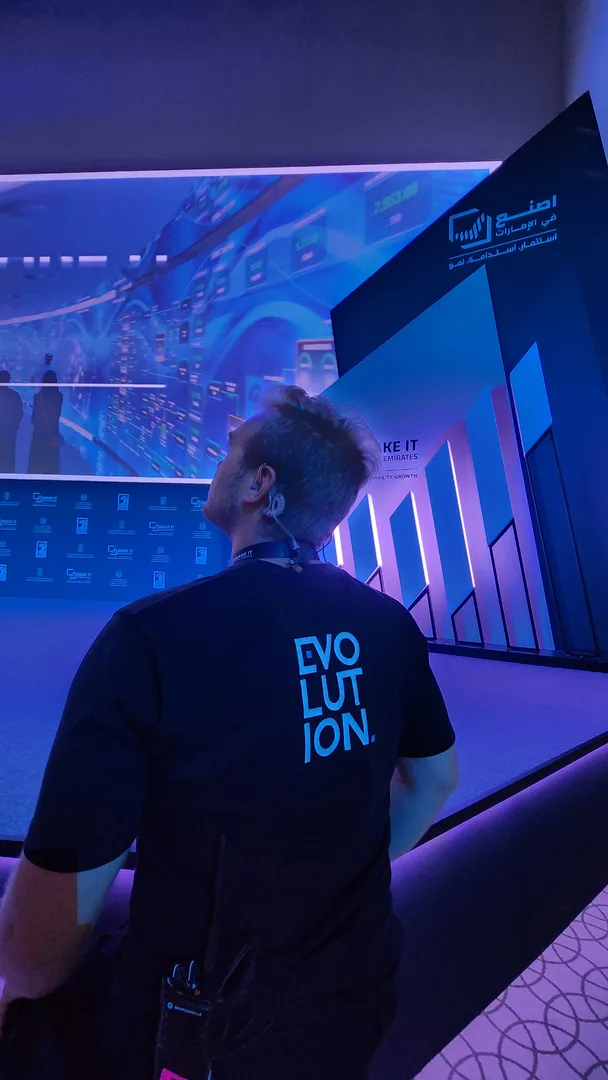

Small dimensional errors around a screen can become highly visible on camera. Uneven gaps, misaligned corners or inconsistent returns can make an otherwise high-quality environment appear unfinished.

Lighting integration presents similar challenges. Scenic structures may need to accommodate linear lighting, practical fixtures, illuminated reveals or concealed equipment. Heat, ventilation, driver access and cable replacement all need to be considered alongside appearance.

Where technical equipment generates heat, ventilation openings must be incorporated without compromising the camera-facing design. This may involve concealed slots, shadow-gap ventilation or openings placed outside principal sightlines.

Successful integration does not mean permanently sealing equipment behind scenery. It means giving technical teams the access they require while preserving the intended image.

Building for Camera Positions and Sightlines

Broadcast structures are often viewed from several planned camera positions, each revealing a different part of the environment.

A scenic return that is invisible in the hero shot may be exposed by a tracking camera. The unfinished back of a feature wall may appear through a reflection. A floor cable may disappear from one angle and become highly visible from another.

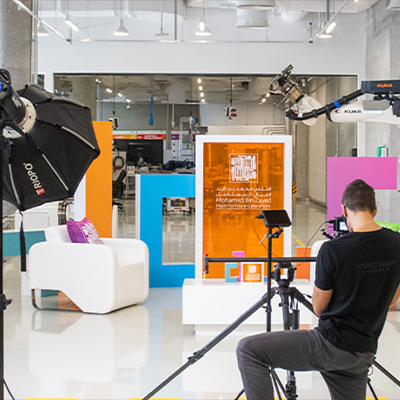

Technical development should therefore consider camera sightlines alongside structural and fabrication requirements. Three-dimensional models can help identify exposed edges, reflected surfaces and potential gaps before manufacturing begins.

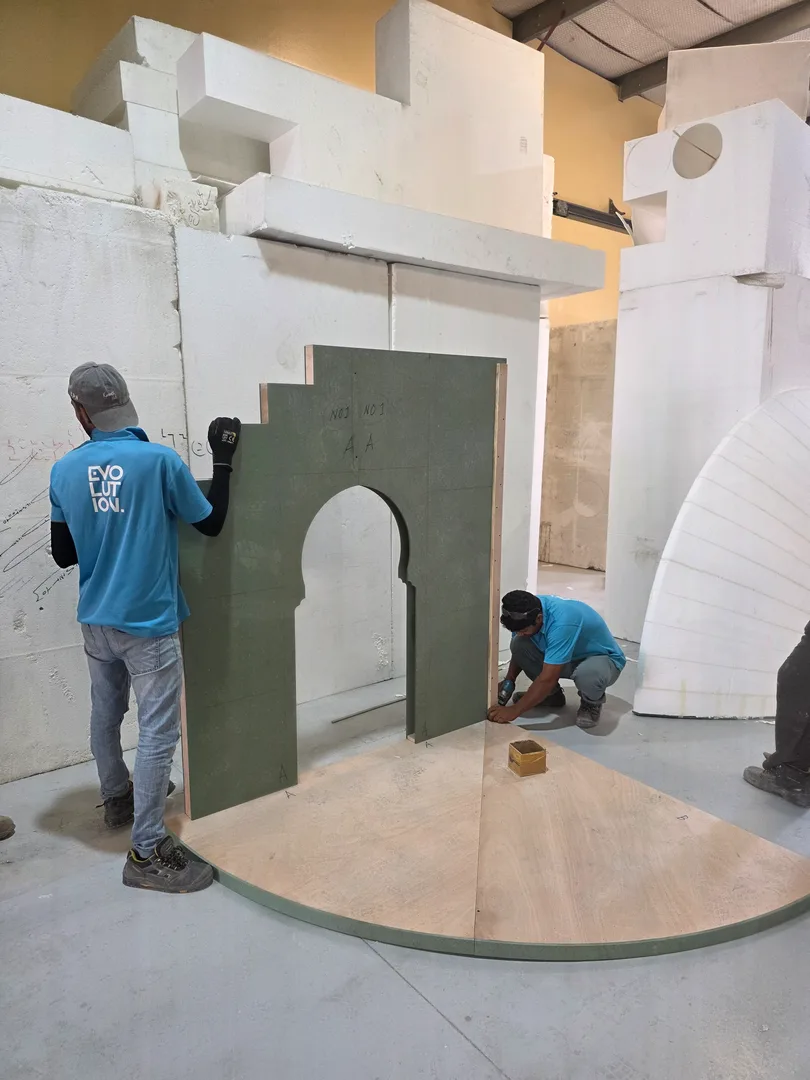

Full-scale workshop pre-assembly is particularly valuable. It allows fabrication teams to check joint alignment, screen openings, graphic positions and lighting behaviour before components arrive on site.

Where possible, test cameras or representative lenses can be used to review key details. The objective is not to turn the workshop into a complete studio, but to identify issues that are much easier to correct before installation.

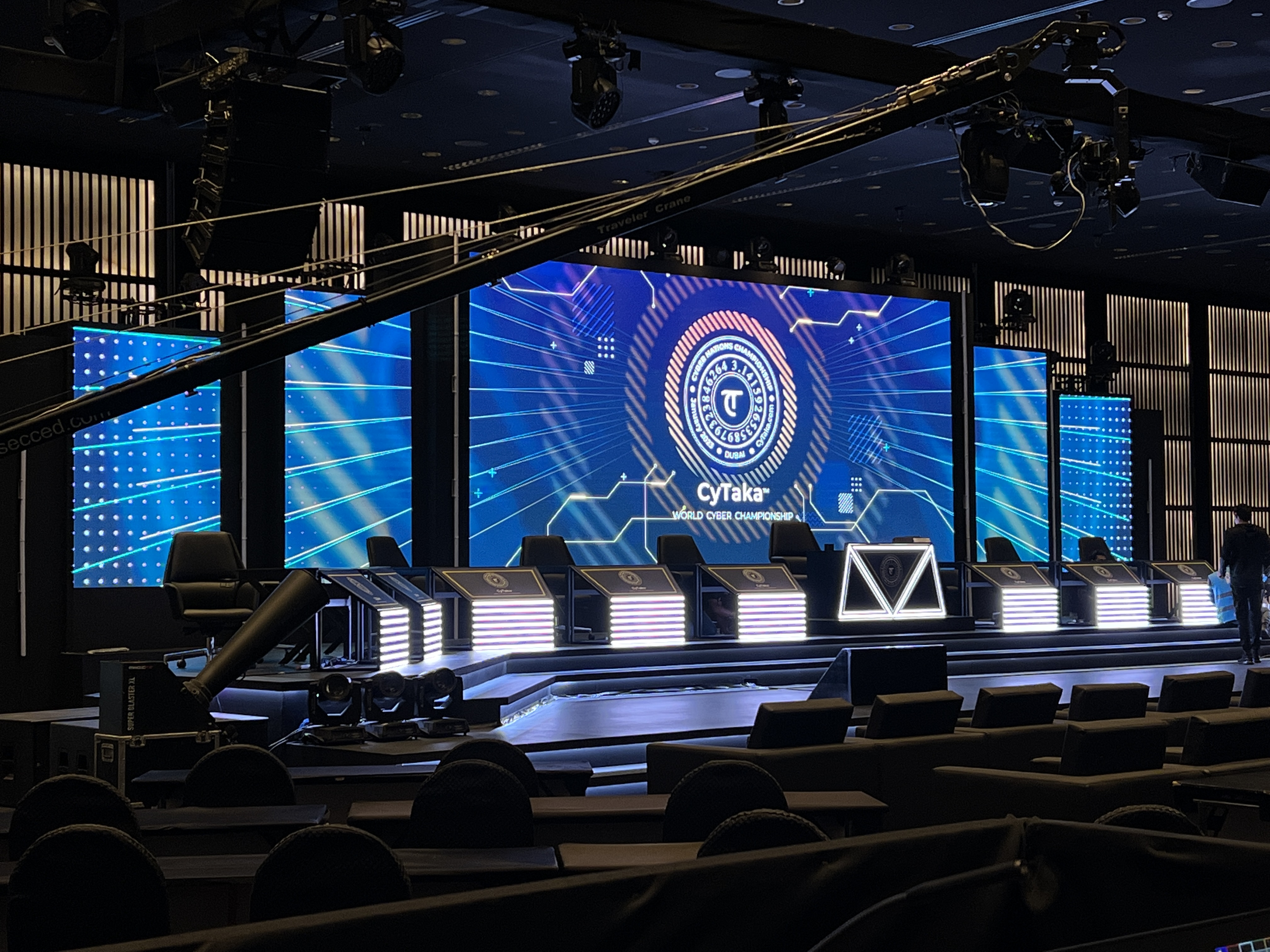

Modular Construction and Rapid Reconfiguration

Many broadcast stages, product launch environments and television sets need to be installed quickly or modified between uses.

Modular construction allows large environments to be divided into transportable sections that can be assembled efficiently while maintaining accurate alignment. Connections must be strong, repeatable and accessible, especially where the same scenic elements will be dismantled and rebuilt several times.

Module sizes are influenced by vehicle capacity, venue access, lifting restrictions and installation sequencing. Protective handling is also essential because camera-facing finishes may need to arrive on site in near-final condition.

Replaceable facing panels can be useful where branding, graphics or colours change regularly. Structural frames can remain in service while selected surfaces are updated, reducing the need to rebuild the entire environment.

However, modularity should not create unnecessary joint lines. The engineering and scenic design teams must coordinate module breaks so that they align with architectural features, graphic boundaries or controlled shadow gaps.

A modular set should appear unified once installed, regardless of how many components sit behind the finished surface.

Quality Control Before Installation

Broadcast scenic work benefits from a disciplined quality-control process.

Dimensions should be checked against screen systems, technical drawings and camera-facing compositions. Finished surfaces should be reviewed under strong directional light. Removable panels should be tested repeatedly, and cable pathways should be checked using the actual connector sizes wherever possible.

Graphic alignment is another important consideration. Large-format graphics, illuminated logos and screen content may all need to align with fabricated features. Small discrepancies can become very obvious when the camera frames them together.

Pre-assembly also allows installation crews to understand the intended sequence. Components can be labelled, connection hardware can be verified and sensitive finishes can be protected before transport.

These steps may add time in the workshop, but they frequently save considerably more time in the studio, where access windows are limited and multiple technical departments may be working simultaneously.

Fabricating for Different Broadcast Environments

The principles of camera-facing construction apply across a wide range of projects.

A television environment may require long-term durability, repeatable access and the ability to accommodate ongoing technical changes. A product launch stage may prioritise rapid installation, integrated LED surfaces and extremely clean presentation for close-up filming. A live event broadcast may involve large scenic structures designed to perform under changing camera positions and intensive show lighting.

The visual language may vary, but the fabrication requirements remain closely connected: accurate construction, stable surfaces, controlled finishes, integrated services and reliable access.

Behind every clean broadcast image sits a substantial amount of work that the viewer will never see.

Internal frames keep surfaces stable. Access panels allow technical teams to service equipment. Cable routes prevent infrastructure from entering shot. Modular connections allow environments to be installed and modified efficiently.

When these elements are properly coordinated, the scenic environment appears effortless on camera. That apparent simplicity is usually the result of careful engineering, experienced fabrication and a great deal of attention paid to details that were never intended to be noticed.
