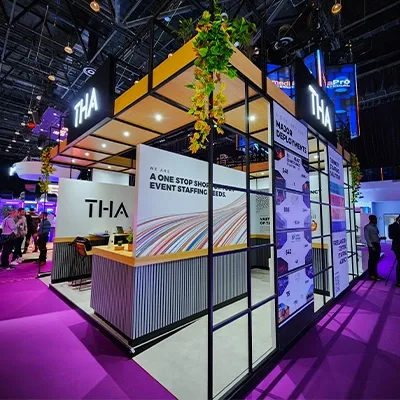

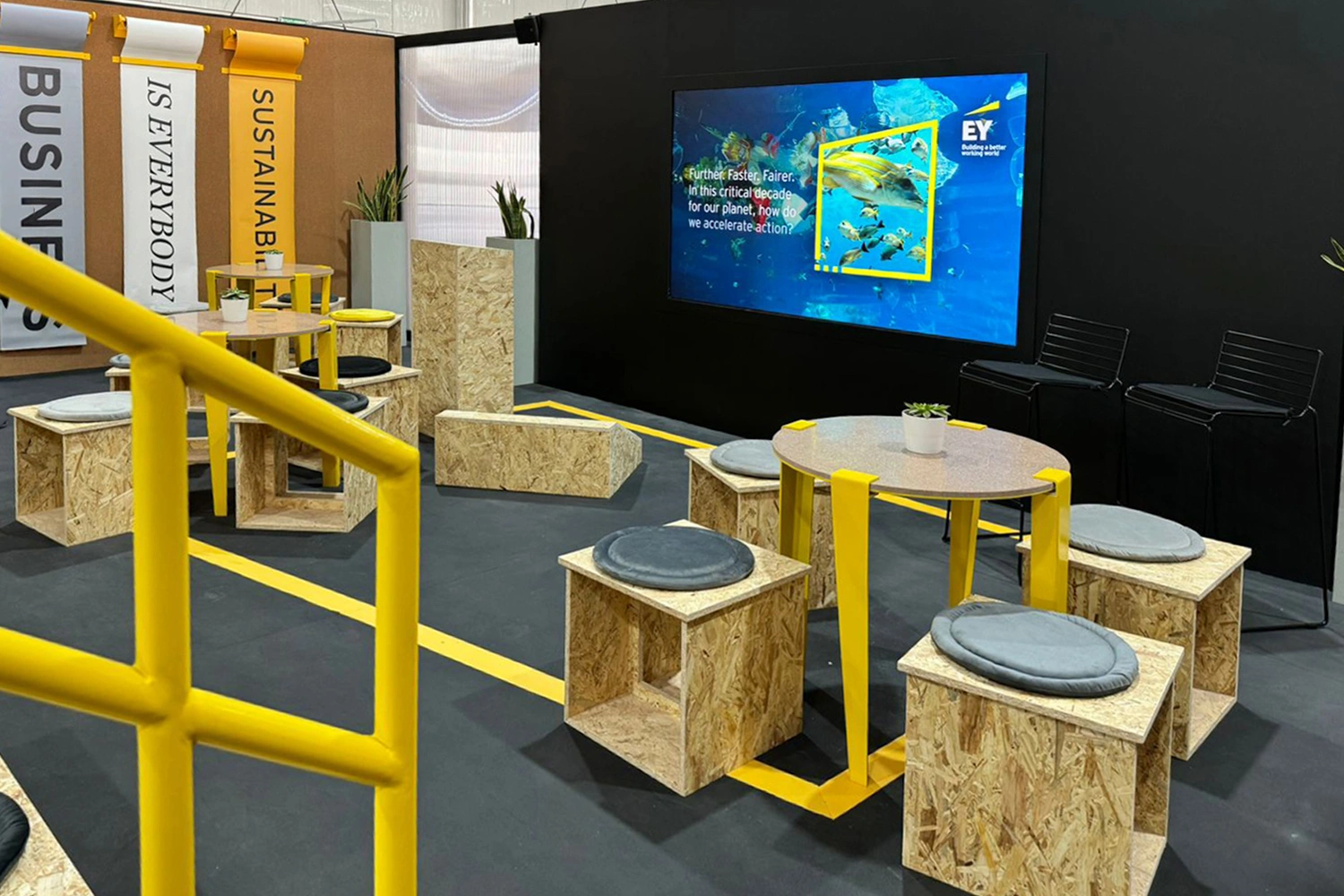

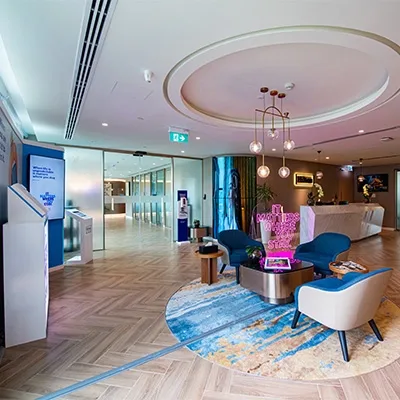

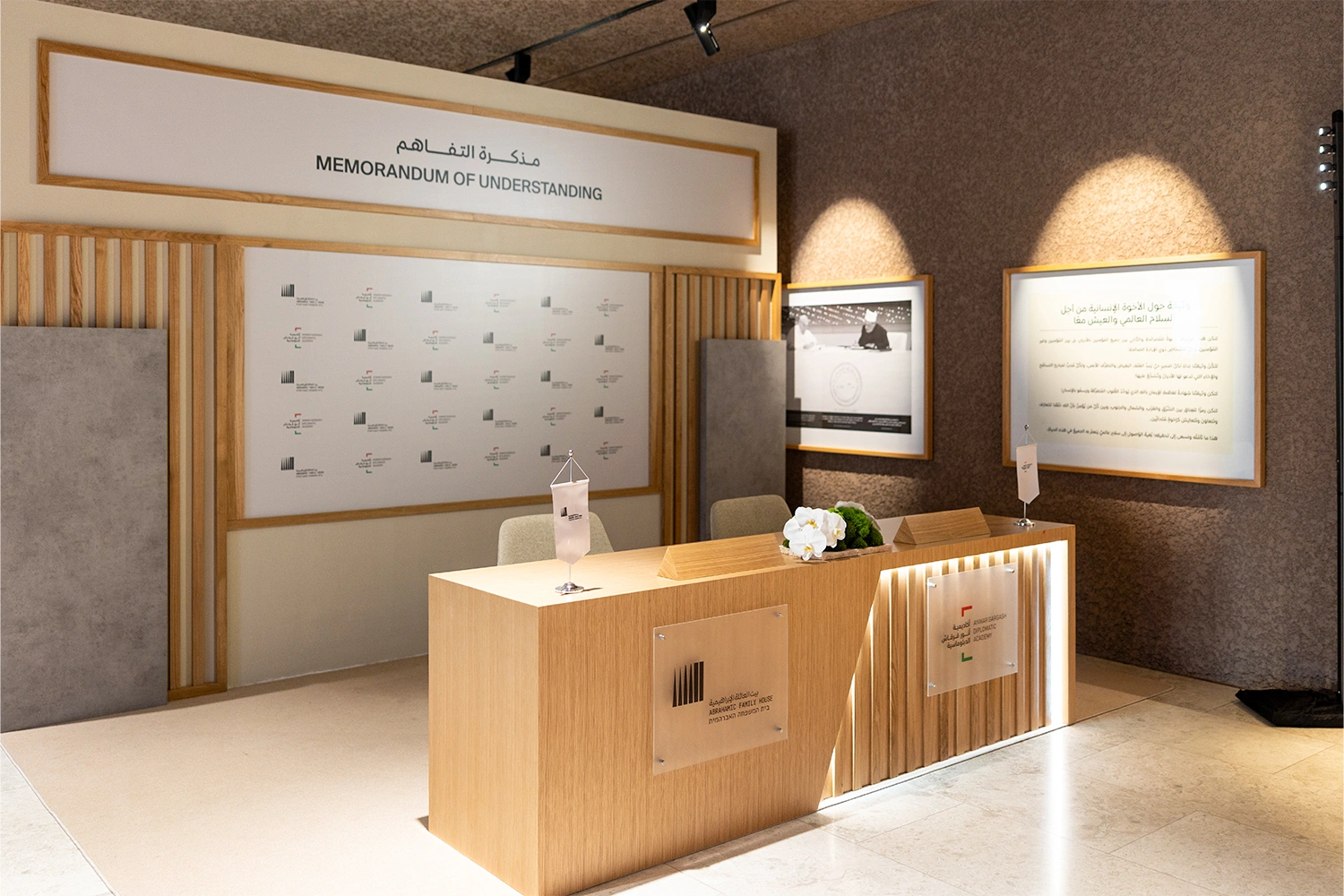

Why Exhibition Counters Always Look Simple (But Aren’t)

Reception counters, registration desks and exhibition counters often appear simple.

A rectangular box. Some branding. A work surface.

Job done.

In reality, a well-made counter is a compact operational workspace. It may need to integrate storage, technology, power, graphics, lighting and concealed cabling while remaining practical to manufacture, transport and install.

The best counters hide this complexity behind a clean, effortless finish.

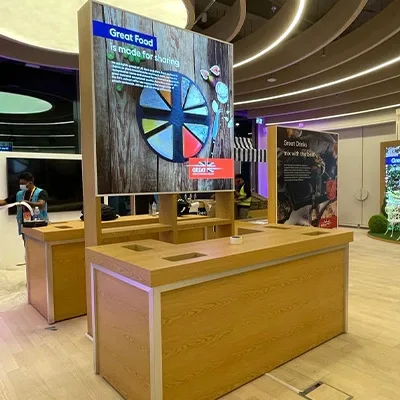

Simple On The Outside, Highly Considered Within

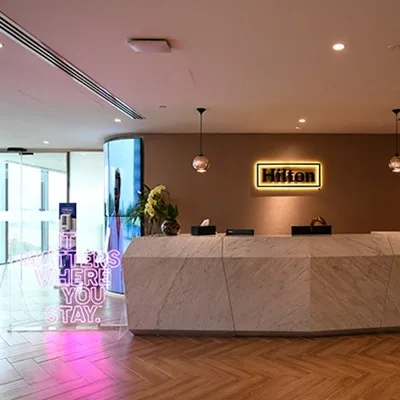

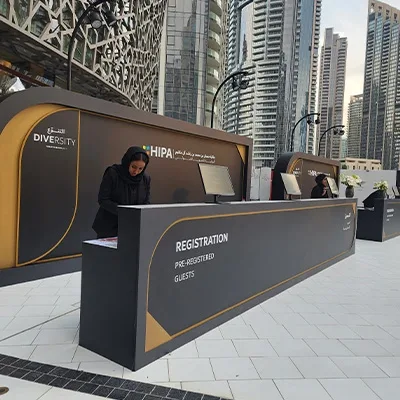

A counter may serve as a reception point, registration desk, information station, product display or technology hub.

Behind its minimal exterior, staff may need space for laptops, printers, scanners, stationery and personal belongings. Power and data connections must remain accessible without creating visible clutter, while doors and shelves need to operate without restricting the workspace.

Bringing these requirements together demands accurate fabrication. Simple forms leave little room to hide poor alignment, uneven joints or inconsistent finishes. Corners, worktops and graphic panels must all meet precisely.

Minimal scenic elements are often among the least forgiving to build.

Designing Around The People Using It

Operational requirements should shape the counter from the beginning.

Worktop depth, equipment positions and legroom all affect staff comfort and efficiency. A lower concealed working surface can keep technology below the public sightline while maintaining a clean front elevation.

Storage and access are equally important. Frequently used items should remain within reach, while technical equipment may require lockable cupboards or removable access panels.

These details may not be visible once the counter is installed, but they determine whether it works smoothly throughout the day.

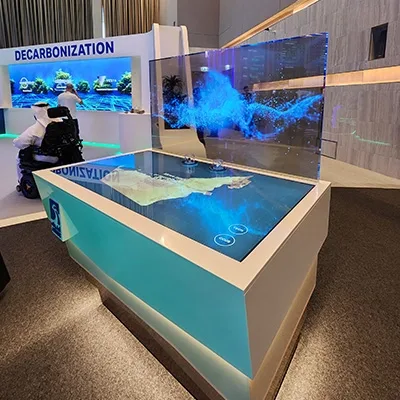

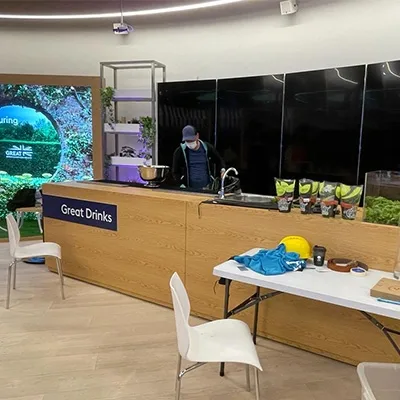

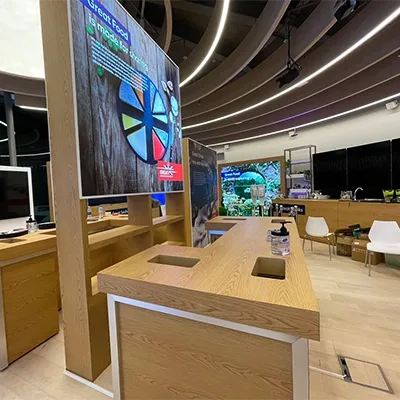

Integrating Technology Without Exposing The Infrastructure

Technology is one of the main reasons exhibition counters become more complex than they appear. Registration desks may need to house laptops, badge printers, scanners, tablets, charging equipment and network hardware. Product launch counters may also integrate screens, lighting, touch interfaces or concealed control systems.

Power routes, ventilation, equipment access and cable management must therefore be planned from the beginning. Evolution Scenic may incorporate cable apertures, removable panels, internal conduits and recessed service zones to keep technology accessible without disrupting the finished appearance.

Every opening must align with the final equipment layout. Effective integration depends on close coordination between the scenic drawings, equipment requirements and on-site services.

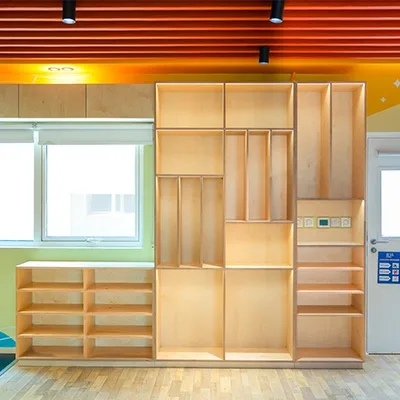

Storage Without Compromising The Form

Storage can have a significant impact on the counter’s internal construction.

Open shelves may provide quick access to equipment, while lockable cupboards can protect stock, personal items or valuable technology. Adjustable shelving can also make counters more adaptable for future use.

These features must be built into the carcass without weakening the structure or exposing unnecessary fixings. Hinges, catches and handles should remain durable while supporting the intended visual finish.

Weight distribution also matters. Heavy equipment must be positioned so the counter remains stable and practical to move.

What appears to be a simple scenic volume may contain a carefully planned arrangement of shelves, reinforcements, access panels and service spaces.

Modular Construction & Repeatable Accuracy

Exhibition and registration environments often require several matching counters that can operate separately or combine into one continuous desk.

Modular construction makes this flexibility possible, but every unit must be manufactured consistently. Worktops, graphics and connection points need to align accurately without leaving visible gaps.

Joining methods should also allow installation teams to assemble the counters quickly while keeping fixings hidden from public view.

CNC machining helps produce repeatable panels, apertures and connection points, while careful scenic carpentry ensures the final edging, finishing and adjustment remain precise.

A modular counter is not simply divided into smaller sections. It must be designed around transport, assembly, stability and visual alignment.

Building Counters That Can Travel

Counters designed to move between venues require a different fabrication approach.

Touring units may need to break down into smaller sections so they can pass through loading areas, fit within transport vehicles and be handled safely on site. Demountable construction reduces transport volume, but joints must remain durable and accurate through repeated assembly. Corners, edges and base sections also need extra protection, as these areas are most vulnerable during handling.

Flight cases, padded stillages or custom crates can help protect finished surfaces in transit.

Transport planning should therefore begin alongside fabrication. A counter is only fully resolved when it can be moved, installed and reassembled efficiently without compromising its finish.

Building Counters That Can Travel

Counters designed to travel require a different fabrication approach.

Touring units may need to break down into smaller sections so they can pass through loading areas, fit within transport vehicles and be handled safely on site.

Demountable construction reduces transport volume, but joints must remain accurate and durable through repeated assembly. Corners, edges and base sections also need protection, as these areas are most vulnerable during handling.

Flight cases, padded stillages or custom crates can protect finished surfaces in transit.

Transport planning is therefore part of the fabrication process. A counter is only fully resolved when it can be moved, installed and reassembled efficiently.

Selecting Finishes For Appearance & Performance

Counter finishes are viewed and touched at close range, so they must combine appearance with durability.

Paint, laminates, veneers, solid surfaces, metal trims and printed graphics can all be used depending on the design and level of wear expected.

A product launch counter may prioritise visual refinement, while a registration desk must withstand repeated contact, equipment movement and cleaning.

Edges and worktops require particular attention, as they are most exposed to damage. Graphics must also align with joints, doors and removable panels so the finished branding appears clean and deliberate.

Installation Is Part Of The Design

Counters must be designed around real site conditions.

Uneven floors, changing service positions and restricted access can all affect installation. Levelling feet, adjustable plinths and removable skirting panels help maintain a clean finished appearance.

The build methodology should also allow power, technology and graphics to be connected or adjusted without damaging the counter.

By considering installation order and coordination with other contractors, Evolution Scenic can ensure each unit fits efficiently within the wider environment.

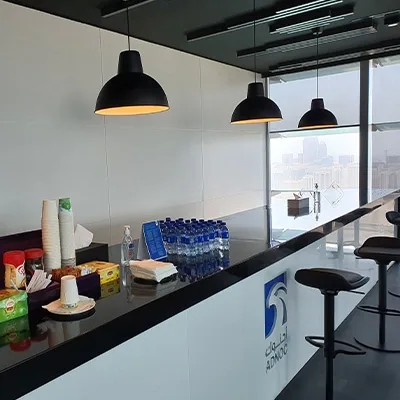

Different Environments, Similar Challenges

The requirements may vary, but the fabrication challenges remain similar.

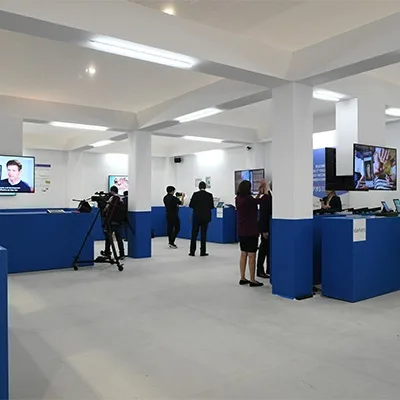

Conference counters must conceal printers, cables and working materials. Exhibition counters need useful storage and durable finishes. Product launch counters may integrate lighting, screens or interactive technology, while visitor centre counters often require longer-term access and maintenance.

In every case, the counter must balance appearance, operation, technology and durability.

Complexity Hidden In Plain Sight

A successful exhibition counter does not draw attention to its hinges, cable routes or internal structure.

It simply works.

Its modules align, technology remains accessible, storage is practical and graphics sit cleanly across the finished surfaces.

The best counters feel effortless because careful planning, engineering and fabrication have resolved the complexity behind the scenes.

Visitors rarely notice a well-designed counter, but they immediately notice one that does not work.

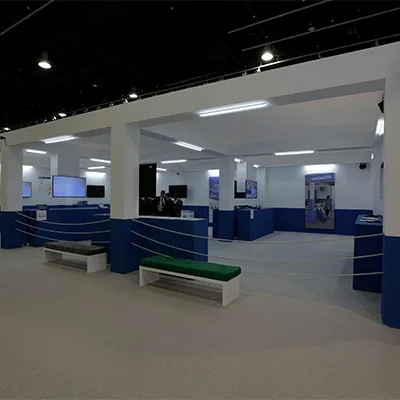

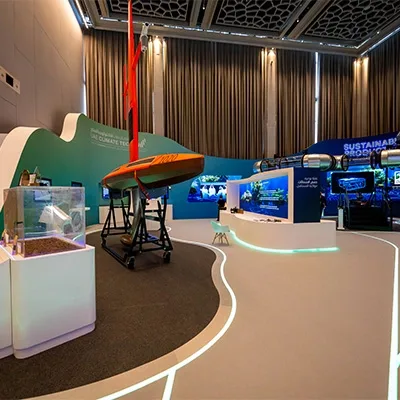

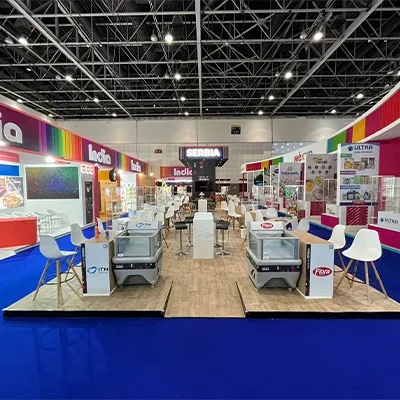

Why Exhibition Stands Always Take Longer To Build Than Clients Expect (And It’s Usually Not The Build)

Almost every exhibition project starts with the same reassuring sentence.

“It’s only a stand.”

A few walls. Some graphics. A reception counter. Perhaps a meeting room and a screen.

On a render, it can look remarkably straightforward. In a fabrication workshop, however, the visible stand is only part of the job.

The surprising part is that the actual cutting, welding, carpentry, CNC machining, painting and finishing is often not what takes the most time. The longer process is usually turning an attractive concept into a temporary environment that can be engineered, manufactured, transported, installed, operated and dismantled without creating problems for everyone involved.

The Render Is Usually the Beginning

One of the biggest misconceptions in exhibition fabrication is that manufacturing starts when the render is approved.

In reality, an approved render often marks the point where the fabrication team can begin asking the questions that the image was never intended to answer.

Concept visuals are excellent at communicating atmosphere, proportions, branding and creative intent. They are not always designed to explain wall build-ups, fixing points, cable routes, access panels, fire-performance requirements, structural connections or how a six-metre feature will physically pass through the loading dock.

That is completely normal.

A concept image has a different job. It sells the idea. Technical development then has to convert that idea into a set of buildable decisions.

This distinction has become even more noticeable with the increasing use of AI-generated imagery. It is now possible to produce extremely convincing exhibition concepts very quickly. They can be imaginative, visually polished and useful during early creative conversations.

What they cannot automatically provide is construction logic.

A wall may apparently float. A screen may be embedded into a surface with no visible structure behind it. A feature may have geometry that would be exceptionally difficult to manufacture.

Storage, power, servicing and access may simply not exist.

That does not make the visual wrong. It simply means the next stage of work has not happened yet.

A Beautiful Image Does Not Need A Store Room

One of the first things technical development tends to reveal is that exhibition stands require considerably more practical space than the render suggests.

A reception area may contain brochures, merchandise, catering equipment, spare stationery, staff belongings, bottled water and cleaning materials.

In the concept, these things apparently disappear when they are not being used.

Real exhibition teams are less magical.

Back-of-house space has to come from somewhere. Storage cupboards need usable door swings. Shelving needs sufficient depth. Refrigeration may require ventilation. Staff need somewhere to put supplies. Equipment needs to remain accessible throughout the show.

Introducing these functions can change wall thicknesses, room sizes and circulation.

The challenge is to integrate them without making the stand feel compromised. Good technical development hides operational requirements inside the architecture rather than allowing them to look like additions made after everything else was finished.

Sometimes a wall that appears 150mm deep in a render becomes 400mm deep because it contains storage, steelwork, cables and equipment.

Visually, very little may change.

Operationally, almost everything has improved.

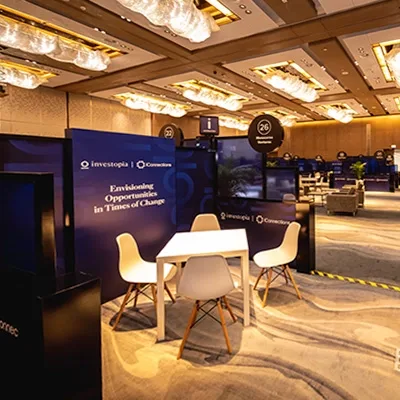

Meeting Rooms Have To Work As Rooms

Meeting rooms create a similar problem.

On a plan, a table and six chairs may technically fit within a room.

That does not necessarily mean six people can comfortably use it.

People need enough clearance to pull chairs backwards, walk around the table, enter through the door and move through the space without asking everyone else to stand up.

Doors also need somewhere to swing. Screens need appropriate viewing distances. Power and data may be required around the table. Air movement needs to be considered, particularly in enclosed meeting spaces positioned inside a busy exhibition hall.

Acoustic expectations matter as well.

A lightweight scenic partition beside a crowded aisle behaves very differently from a conventional office wall. Where privacy is important, the wall build-up, door detailing, ceiling treatment and service penetrations all need to be considered.

Again, the objective is not to redesign the creative concept unnecessarily.

It is to make the room function like a room.

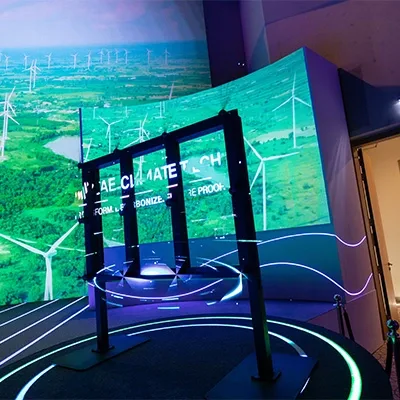

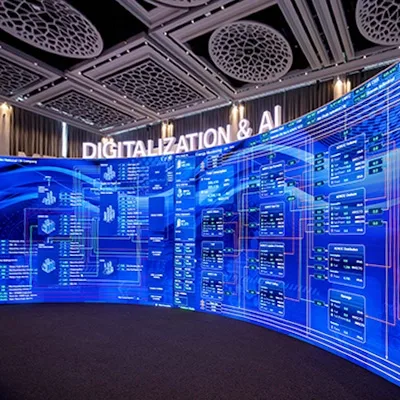

Technology Takes Up More Space Than The Screen

Technology integration creates another layer of hidden development.

A display screen is not simply a rectangle on a wall.

It has weight. It needs brackets. It needs power and signal infrastructure. Cables require routes and sensible bend radii. Equipment may generate heat. Screens, processors and power supplies eventually require maintenance.

LED installations may require front or rear servicing, and that decision can completely change the construction behind the display.

Interactive screens introduce further considerations. Sensors, media players, speakers, networking equipment and control systems may all need to be concealed somewhere within the scenic construction.

The cleaner the finished stand looks, the more coordination may be happening behind the surfaces.

A perfectly flush screen installation can therefore require considerably more technical development than simply mounting a display to a wall.

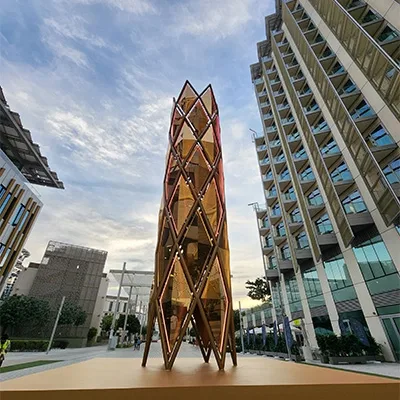

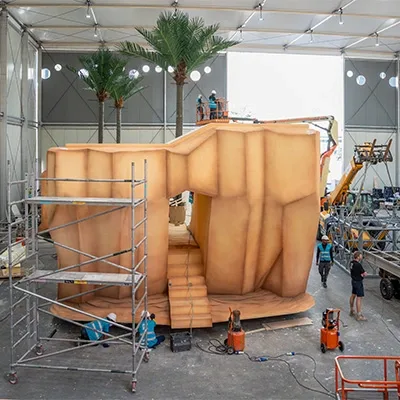

Structural Requirements Are Rarely Visible In The Concept

Large exhibition features often appear deliberately lightweight.

Tall portals, suspended structures, projecting canopies and oversized branded walls may have very little visible structure.

Physics remains less interested in the visual intention.

Loads still need to travel safely through the structure and into suitable bases, floor systems, overhead rigging or approved structural connections.

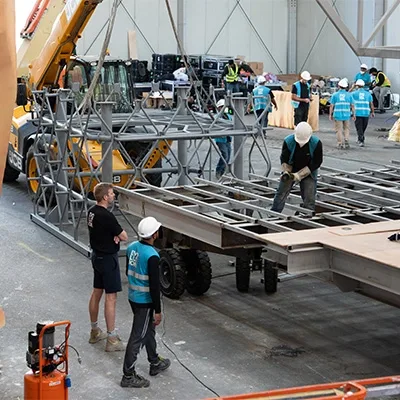

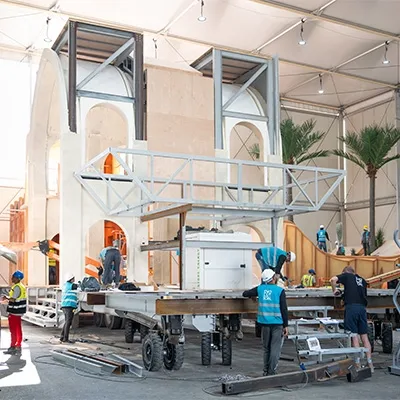

This is where scenic engineering and metal fabrication frequently become part of what initially appeared to be a straightforward carpentry package.

Steel frames may need to be introduced inside timber-clad walls. Connection plates may be developed. Bases may become larger. Bracing may be concealed inside cavities. Ballast requirements may influence the lower sections of the structure.

The method also has to account for assembly.

A structure that is perfectly stable once complete may still need temporary support while individual modules are being connected during installation.

None of this engineering should alter the creative intention unnecessarily.

The aim is for the structure to behave properly while keeping the engineering visually quiet.

Value Engineering Is More Than Making Something Cheaper

Value engineering also tends to happen during this period, and the term is frequently misunderstood.

Good value engineering is not simply an exercise in removing cost.

It is a review of how to achieve the required appearance, durability and performance through a more efficient construction method.

A complicated curved wall might be rationalised into repeatable CNC-cut ribs. A solid-looking architectural feature may become a lightweight framed assembly. An expensive surface material might be recreated through laminates, scenic painting, printed finishes or another manufactured system better suited to temporary use.

A seemingly minor change in construction can dramatically reduce workshop hours, weight, transport volume or installation time while producing almost no visible difference in the finished environment.

Transport itself can influence these decisions.

A scenic element that can theoretically be fabricated as one enormous piece may be significantly more practical as three accurately indexed modules that fit onto standard vehicles and reconnect cleanly on site.

That is value engineering through buildability rather than simple cost cutting.

The Exhibition Hall Has Its Own Opinion

Then there is the exhibition hall itself.

Every venue introduces rules that have absolutely nothing to do with how attractive the render looks.

There may be maximum construction heights, floor-loading limits, approved fixing methods, fire-certification requirements, rigging restrictions, hot-work controls and limitations on when specific installation activities can take place.

Loading docks have dimensions.

Service lifts have dimensions.

Doors have dimensions.

Vehicle movements may require booked delivery slots. Forklifts and access equipment may only operate in particular areas. Packaging and empty transport cases need somewhere to go once the stand is inside.

In some venues, the largest scenic component that can be comfortably manufactured in the workshop simply cannot physically reach the stand location at its finished size.

That discovery is considerably more useful during technical drawing than at two o’clock in the morning on installation day.

Venue restrictions therefore become fabrication inputs.

They determine module sizes, connection systems, packing methods and sometimes the entire installation sequence.

Buildability Reviews Prevent Expensive Surprises

A buildability review brings all of these considerations together.

The concept, engineering, fabrication method, transport strategy and venue conditions are considered as one system.

Experienced fabrication teams tend to look closely at interfaces because interfaces are where apparently simple projects become complicated.

Can the wall be assembled in the available sequence?

Can the ceiling feature be lifted safely?

Can the graphics be applied in the workshop, or will modular joints become visible?

Can the screen be removed if it fails?

Can someone physically reach the bolts required to connect the steel frame?

Will the finished counter fit through the service lift?

Can the structure be dismantled without destroying it?

These questions can seem excessively detailed while the project still exists on screen.

On site, they become extremely practical.

A few hours spent resolving a connection detail in technical development can prevent a much longer discussion involving a drill, a grinder and several people standing around a half-finished wall at midnight.

Installation Planning Starts Before The Truck Leaves

Installation methodology should therefore develop alongside fabrication.

Components need to arrive on site in a useful order, not simply in the order they happened to be completed in the workshop.

Primary steelwork may need to arrive before wall panels.

Services may need to be installed before cladding closes access.

AV equipment might need to enter a structure before decorative panels make the opening smaller.

Graphics and delicate scenic finishes may need to remain protected until heavy installation work is complete.

A stand containing twenty obvious visual elements can easily contain many more concealed components, brackets, fixings, access pieces and numbered modules.

Packing and labelling therefore become part of the build methodology.

A beautifully fabricated component is not particularly helpful if it is buried underneath six tonnes of other scenery at the back of the wrong truck.

Good logistics should make the installation sequence feel almost obvious.

The right item arrives when it is needed, in a condition that allows it to be installed immediately.

Sometimes The Concept Has To Evolve

There are projects where technical development results in very little visible change.

There are others where the original concept evolves substantially before fabrication begins.

A feature wall may become deeper to accommodate structure and technology.

A store room may appear behind what was originally a decorative surface.

A meeting room may grow slightly so the furniture actually works.

A suspended element may be divided into lighter modules.

A sculptural feature may be rebuilt around a concealed steel skeleton so it can be transported and installed safely.

From the outside, these can look like design changes.

From a fabrication perspective, they are often the decisions that protect the design by making it possible.

The best development process keeps the important visual characteristics while changing whatever is necessary behind them.

Visitors should still recognise the original concept.

They simply receive a version that also works.

Why The Workshop Is Waiting

This explains the period that can sometimes feel frustrating between visual approval and full production.

The workshop is not necessarily waiting for someone to press the start button.

Technical drawings are being coordinated. Structural systems are being reviewed. Material availability is being checked. Samples may be produced. Technology is being coordinated. Connections are being developed. Venue requirements are being incorporated. Installation sequences are being discussed.

In some cases, prototypes or partial workshop assemblies are created to check particularly difficult details before committing to the final build.

Starting fabrication before this information is stable can feel faster for a few days.

It normally stops feeling fast when panels need to be remade, steelwork needs modifying, integrated technology no longer fits or site conditions force changes that could have been resolved beforehand.

Technical development is therefore not time lost before fabrication.

It is part of fabrication.

The Finished Stand Should Hide The Effort

At Evolution Scenic, the task is not simply to reproduce what appears in a render.

The real work is resolving the practical, structural, operational and logistical requirements that allow the environment to function in the real world while preserving the original creative intent.

That can involve scenic carpentry, steel fabrication, CNC machining, graphics, integrated technology, specialist finishes, structural support, transport engineering and detailed installation planning.

When that process is done properly, visitors see none of it.

They see clean finishes, precise graphics, integrated screens, comfortable meeting spaces and architectural features that appear effortless.

They do not see the revised wall build-up.

They do not see the concealed steel frame.

They do not see the removable service panel.

They do not see the numbered transport modules.

They do not see the cable route behind the display or the discussion about whether a scenic feature can physically make the turn between the loading dock and the exhibition hall.

Which is probably how it should be.

The best exhibition fabrication quietly solves hundreds of practical problems.

By opening day, all that complexity has disappeared into something that looks, once again, like “only a stand.”

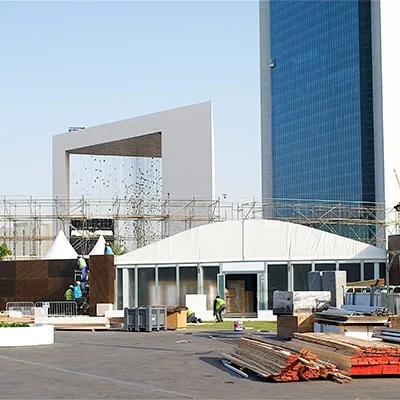

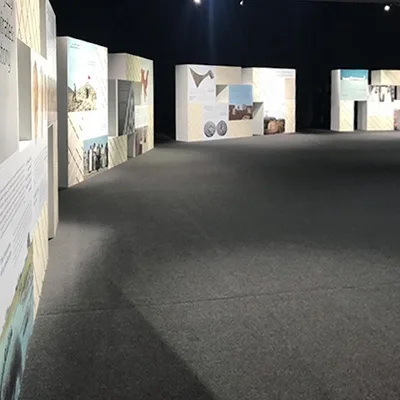

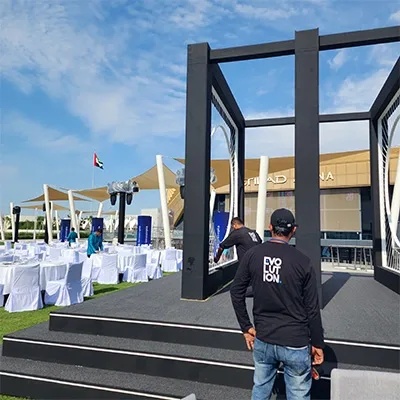

Modular Construction For Efficient Deployment

Many large scenic environments appear to be single, continuous structures once installation is complete. Finished surfaces align, joints disappear and architectural forms read as one coordinated environment. Behind that seamless appearance, however, there may be dozens or even hundreds of individual components designed to connect, separate, travel and reconnect with accuracy.

Modular construction has become one of the most effective ways to manage the practical demands of large-scale scenic fabrication. It allows complex structures to be manufactured in controlled workshop conditions while remaining manageable enough to transport, handle and install efficiently.

The principle is straightforward: instead of attempting to fabricate and move an entire structure as one assembly, the environment is divided into planned modules. Each module forms part of a wider system, with defined dimensions, connection points, tolerances and installation requirements.

When properly developed, modular construction is more than a workshop technique. It becomes the strategy through which the entire project is engineered, fabricated, transported, installed, maintained and potentially reused.

Modularity Begins With Deployment Planning

An effective modular system starts with an understanding of how the finished environment will reach its destination.

Truck dimensions, shipping-container openings, loading dock restrictions, lifting equipment, venue access routes and available installation space can all influence module sizes. Even the width of a doorway or the turning radius within a service corridor may determine how a scenic structure needs to be divided.

The largest possible module is not always the most efficient one. Large assemblies may reduce the number of site connections, but they can also require specialist transport, lifting machinery or additional handling space. Smaller modules are easier to move but may introduce more components, more hardware and longer assembly times.

The correct balance depends on the project. Exhibition structures may be designed around repeatable transport stillages. Touring productions often prioritise fast handling and predictable truck packs. Retail environments may need modules that can pass through existing shopfronts and be installed outside trading hours.

At Evolution Scenic, these practical constraints are considered alongside the intended appearance, structural requirements and fabrication methodology. Module boundaries are planned so they support deployment rather than becoming visible compromises within the finished design.

Designing Logical Module Boundaries

Dividing a structure into equal sections is rarely enough. Module boundaries need to respond to geometry, structural load paths, material behaviour, finishes and installation sequencing.

A tall feature wall, for example, might be separated horizontally to suit transport height, while its internal steel frame may require connections positioned around areas of concentrated load. A curved timber structure may be divided according to CNC sheet sizes or the natural break points within its geometry. A finished surface may require joints to align with shadow gaps, graphic changes or architectural details so that the modular system remains visually discreet.

The construction method also affects how each module should be handled. Some components may be light enough to position manually, while others require lifting points or temporary bracing. Fragile scenic finishes may need to be installed after the primary structural modules are connected, rather than travelling as part of the main assembly.

Digital modelling helps technical and fabrication teams study these relationships before production begins. Modules can be tested for transport dimensions, assembly clearances and workshop access while connection locations are coordinated with structure, cladding, lighting and technical services.

This early planning reduces the need to solve deployment problems during installation, when time, access and available resources are usually more restricted.

Connection Systems That Support Repeated Assembly

Connections are central to every modular scenic system. They determine how accurately components align, how quickly they can be installed and how well the structure performs after repeated use.

Depending on the application, modules may use bolted plates, locating pins, cleats, spigots, cam locks, captive fixings or concealed brackets. Structural connections need to transfer the required forces, while scenic connections must maintain clean lines and consistent surfaces.

Locating features are particularly useful because they help modules find the correct position before final fixings are tightened. This can improve alignment and reduce the amount of adjustment needed on site. Captive bolts and retained hardware can also prevent small components from being lost during dismantling and transport.

Connection details must allow for realistic fabrication tolerances. Workshop-built components are accurate, but large assemblies can still be affected by material movement, floor conditions and minor site variations. Adjustable feet, shims, slotted holes and finishing trims can provide controlled flexibility without weakening the wider system.

Where modules will be assembled repeatedly, connections should also be accessible and robust enough to withstand regular use. A hidden fixing that is difficult to reach may produce a clean first installation but create unnecessary delays during every later deployment.

Good modular engineering therefore considers the full operational life of the structure, not only its first assembly.

Transportation Benefits

One of the clearest advantages of modular construction is the ability to plan transport more efficiently.

Modules can be designed to nest, stack or travel flat-packed. Structural frames may share transport stillages, while scenic panels can be stored vertically with protective separators between finished surfaces. Repeated components can be packed together and clearly labelled according to installation zone or sequence.

The order of packing is also important. Components needed first on site should remain accessible rather than being buried behind finishing elements required later. In many cases, the truck pack is effectively the installation sequence in reverse.

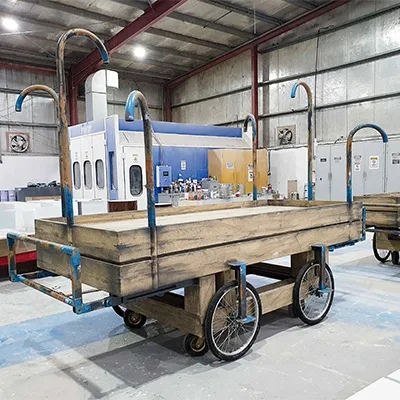

Purpose-built stillages and crates can reduce handling damage, improve loading speed and make inventory checks easier. They also help protect high-quality scenic finishes, CNC components, graphics and integrated technical elements during repeated transport.

For touring and multi-location projects, efficient packing can reduce the number of vehicles required and simplify the movement of the environment between destinations. It can also make warehouse storage more predictable between deployments.

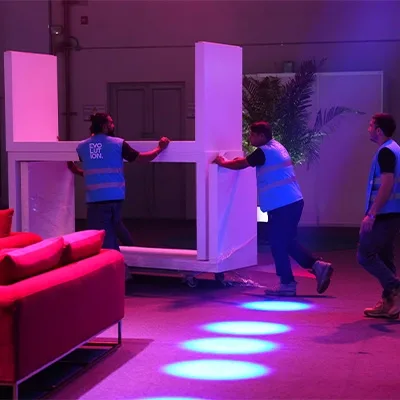

Faster and More Controlled Installation

Modular construction shifts a greater proportion of work into the workshop, where conditions, tools and quality-control processes are easier to manage.

Modules can be trial assembled before dispatch, allowing teams to check alignment, connection details and finish interfaces. Hardware can be pre-kitted, components can be labelled and installation drawings can be prepared around the actual assembly sequence.

On site, crews are then working with a coordinated kit rather than a collection of unrelated fabricated elements. Primary frames can be positioned first, followed by secondary structures, scenic cladding, graphics and technical components.

Numbering systems, colour-coded zones and consistent connection details can make the process easier to understand, particularly when several installation teams are working simultaneously.

This approach is valuable for exhibitions, retail activations and temporary architecture, where access periods are often tightly controlled. Reducing cutting, adjustment and finishing work on site can improve programme reliability while limiting disruption to surrounding operations.

Modularity does not remove the need for experienced installers. It gives those installers a clearer and more repeatable method of working.

Touring Environments and Multi-Location Deployment

Touring productions and multi-location activations place additional demands on modular structures. The same environment may need to operate in venues with different floor levels, access conditions, ceiling heights or service locations.

A well-developed system can accommodate these differences through adjustable interfaces, interchangeable components and standardised structural bays. Graphic skins, branded panels or decorative features can be changed while the underlying framework remains consistent.

For simultaneous deployments, multiple sets of repeatable modules can be fabricated from the same coordinated production information. CNC machining, fabrication jigs and controlled workshop processes help maintain consistency between separate kits.

This is particularly useful for retail campaigns, touring exhibitions and branded environments installed across several cities. Local site conditions may vary, but the principal components, connections and installation methods remain familiar.

Standardisation also makes training and documentation easier. Installation teams can work from consistent drawings, packing lists and component references rather than learning an entirely new system at every location.

Maintenance Access Within Modular Structures

Scenic environments increasingly contain integrated lighting, graphics, displays, cabling and control equipment. These systems may require inspection, adjustment or replacement during the operational period.

Modular construction can support maintenance by incorporating removable panels, service cavities and accessible technical zones. Instead of dismantling a large area of finished scenery, a specific module or access panel can be removed to reach the equipment behind it.

Cable routes can be contained within repeatable channels, while lighting drivers and control components can be positioned in identified service locations. Replaceable scenic panels may also be used in areas likely to experience wear, allowing damaged finishes to be changed without rebuilding the wider structure.

Maintenance access should be coordinated during technical development. Adding it after fabrication usually results in visible fixings, difficult working positions or unnecessary disruption to the finish.

Reuse and Adaptability

Modular construction can extend the useful life of scenic structures by separating permanent project-specific elements from components that can be retained and adapted.

A steel or aluminium framework may be reused with new cladding. Timber modules may be modified, refinished or rearranged. Graphic panels and branded skins can be replaced while the underlying connection system remains unchanged.

This does not mean that every module should be designed as a generic component. Over-standardisation can restrict the creative result or add unnecessary complexity. The objective is to identify which parts of the structure genuinely benefit from repeatability.

Reusable systems also require proper documentation, storage and inspection. Components need clear identification, connection hardware must remain organised and structural elements should be checked before redeployment.

When these requirements are planned properly, adaptation becomes a controlled fabrication process rather than an improvised exercise.

A Practical Delivery Strategy

Exhibition structures, touring productions, retail environments and large activations all benefit from modular thinking, but the value comes from more than simply cutting a large design into smaller pieces.

Successful modular construction coordinates scenic engineering, manufacturing, logistics and installation as one continuous process. Module sizes respond to transport. Connections respond to assembly. Finishes respond to joint positions. Packing responds to installation sequencing. Access panels respond to future maintenance.

The result is a scenic environment that can still appear singular and seamless while behaving as an efficient, transportable and serviceable system behind the surface.

For Evolution Scenic, this is the real value of modular construction. It allows ambitious temporary environments to be delivered with greater control, while giving fabrication and installation teams a practical methodology for moving complex work from the workshop into the real world.

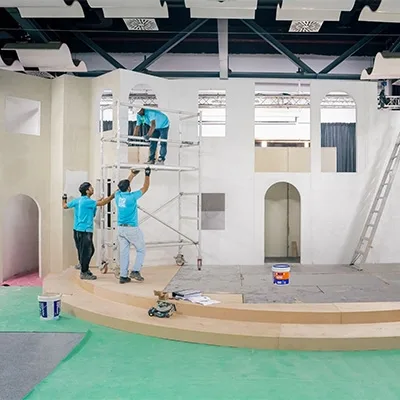

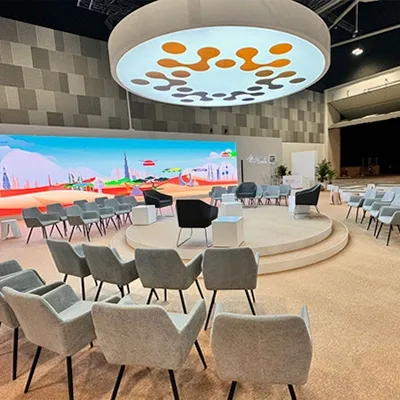

How Scenic Concepts Become Buildable Reality

The earliest stages of a scenic project can appear deceptively simple. A concept visual may communicate a striking structure, sculptural environment or ambitious architectural feature through only a handful of carefully rendered images. The proportions look resolved, the surfaces are clean and the finished environment can appear almost ready to manufacture. In reality, approval of the concept is often the point at which the most technically demanding work begins.

The visual now has to become a physical structure capable of being engineered, fabricated, finished, transported and installed within real project conditions. Every visible surface needs an appropriate substrate. Every large form requires an internal structure. Joints, connections, supports, lifting points and access requirements all need to be resolved, while the completed components must remain practical to manufacture using real workshop processes.

At Evolution Scenic, technical development forms the bridge between creative intent and physical production. The objective is not simply to reproduce what appears in a render, but to understand how that appearance can be achieved through materials, engineering, fabrication and installation. A successful scenic structure is one in which the visible design and the construction behind it have been developed together from the beginning.

From Creative Intent to Technical Information

Many initial concepts are developed without detailed consideration for structural performance, material limitations, transport restrictions or installation methodology. This is entirely normal. Early visuals are intended to communicate scale, atmosphere, proportion and overall design intent rather than provide a complete manufacturing solution.

The role of the scenic development team is not to reduce the ambition of the concept. It is to understand what the designer is trying to achieve and then identify the most practical way to deliver it.

This requires careful interpretation. A curved feature wall shown as a continuous surface may need to be divided into CNC-machined ribs, plywood skins and transportable modules. A suspended sculptural feature may require an internal aluminium frame, engineered lifting points and carefully coordinated connection details. A large branded portal may appear monolithic in the visual but need to be broken into sections that can pass through venue access doors and be assembled efficiently on site. The appearance remains consistent, but the internal logic of the structure changes considerably.

Technical Review and Buildability Assessment

Technical development usually begins with a detailed review of the available information. Concept visuals, drawings, venue plans, specifications and client requirements are assessed together to identify potential fabrication and installation challenges.

The scenic team will typically review:

·       Overall dimensions and clearances

·       Structural loading requirements

·       Venue access and loading routes

·       Floor loading limitations

·       Suspension and rigging restrictions

·       Fire-performance requirements

·       Environmental conditions

·       Installation and dismantling periods

·       Transport dimensions

·       Interfaces with lighting, graphics and audiovisual systems

A buildability assessment then considers whether the proposed form can be produced using available materials, machinery and workshop processes.

This does not simply answer whether something can be built. Almost anything can be fabricated with enough time and budget. The more useful question is whether it can be built efficiently, safely and in a way that suits the project programme.

For example, a complex freeform surface may be achievable through CNC machining, traditional scenic carpentry, fibreglass moulding or a combination of techniques. Each approach will produce different results in terms of cost, weight, strength, finish quality and production time.

The correct solution depends on the priorities of the project.

Developing the Construction Methodology

Once the overall form has been understood, the scenic team begins defining how the structure will be assembled. This stage often involves breaking the concept into primary structure, secondary framing, surface materials, decorative finishes and removable components. The sequence of fabrication is also considered, particularly where different departments must work on the same element.

A scenic structure may pass through several workshop processes. Steel frames may be fabricated first, followed by timber infill, CNC-machined cladding, scenic finishing, graphics and final assembly. Lighting channels, cable routes, access panels and service points may need to be incorporated before surfaces are closed.

Poor sequencing can create unnecessary rework. A graphic panel may become difficult to install if the supporting frame is completed too early. A lighting component may become inaccessible once cladding is fixed. A decorative finish may be damaged if heavy mechanical work continues nearby. Technical planning helps prevent these issues by establishing a logical build methodology before fabrication starts.

Material Selection

Material selection is one of the most influential parts of scenic development. Timber, steel, aluminium, composites, fabrics, plastics, foams and specialist scenic coatings all offer different advantages. The correct choice depends on the required strength, finish, weight, lifespan, installation method and budget.

Steel is often used where high structural strength or long unsupported spans are required. It can provide a reliable framework for large scenic structures, entrance features and elevated platforms. However, it also adds weight and may require lifting equipment or larger transport vehicles.

Aluminium can offer a lighter alternative, particularly where repeated handling, modularity or suspended structures are involved. It is easier to transport but may require more specialised fabrication and connection detailing.

Timber remains one of the most adaptable materials in scenic construction. It can be cut, shaped, laminated, CNC-machined and finished in many different ways. Scenic carpentry is particularly effective for walls, curved forms, platforms, decorative elements and lightweight modular structures.

Composite panels and specialist sheet materials can help reduce weight while maintaining stiffness. Foams and lightweight modelling materials are often used for complex sculptural features, although they must be carefully detailed to achieve suitable durability and fire performance.

Material decisions also influence the final scenic finish. A surface intended to resemble stone, concrete, metal or timber may use a completely different substrate beneath the visible coating. The finish provides the appearance, while the internal construction provides the required performance.

Engineering Reviews

Engineering reviews frequently run alongside design development rather than taking place only after the design is complete. Structural calculations, load paths, connection details, support systems and fixing methods are examined as the concept evolves. This allows potential problems to be resolved before production drawings are issued.

A large scenic wall, for example, must be checked for overturning, lateral stability and connection strength. A suspended feature must be reviewed for self-weight, dynamic loading and rigging capacity. A platform may require checks for live loads, deflection and edge protection.

The visible structure is only one part of the problem. Engineers must also understand how forces move through the structure and into the supporting floor, roof system, ballast arrangement or temporary subframe. Temporary structures often require a different mindset from permanent construction. They must be strong enough to perform safely, but they must also be assembled quickly, dismantled efficiently and transported without unnecessary complexity.

The strongest solution is not always the best solution. A scenic structure can become unnecessarily heavy, difficult to install and expensive to transport if engineering is approached without considering the temporary nature of the build. The most effective engineering solutions balance safety, fabrication efficiency, installation speed and visual intent.

Technical Drawings and Production Information

Once the build methodology has been agreed, detailed production information can be prepared.

Technical drawings translate the visual concept into dimensions, components and fabrication instructions. Depending on the project, this may include:

·       General arrangement drawings

·       Setting-out drawings

·       Steel fabrication details

·       Scenic carpentry drawings

·       CNC cutting files

·       Connection details

·       Assembly diagrams

·       Graphic artwork locations

·       Lighting and audiovisual coordination

·       Installation sequencing

·       Numbered component layouts

These drawings must provide enough information for workshop teams to manufacture accurately while remaining clear enough for site teams to assemble the structure under time pressure.

Production drawings are often supported by physical prototypes, sample panels or test assemblies. A curved junction may be mocked up to confirm the geometry. A scenic finish may be tested under show lighting. A connection may be trialled to check whether it can be installed using the available tools and access.

These tests reduce uncertainty and allow problems to be solved before full-scale production begins.

Collaboration With Agencies and Designers

Successful scenic development depends on clear collaboration between creative teams, technical designers, engineers, fabricators and installation crews.

The scenic team must protect the original design intent while communicating the practical implications of different decisions. This is not achieved by simply rejecting difficult ideas. It requires proposing workable alternatives.

If a structure is too large to transport in one piece, it may be divided into concealed modules. If a finish is too fragile for repeated handling, a more durable scenic coating may be developed. If a proposed material creates excessive weight, a lightweight substrate may be used without changing the final appearance.

The most productive conversations focus on solutions.

Early collaboration is particularly valuable. When fabricators and engineers become involved before the design is fully fixed, they can help shape the project around real manufacturing processes. This often improves quality while reducing unnecessary cost, weight and complexity.

Late technical changes are usually more disruptive. Once graphics, lighting, finishes and production schedules have been confirmed, even a small structural adjustment can affect several other workstreams.

Designing for Transport and Installation

A scenic structure is not complete when it leaves the workshop. It must still reach the venue and be installed safely.

Transport requirements influence module sizes, packaging, lifting points and component protection. Large assemblies may need to fit within standard trucks or shipping containers. Delicate scenic finishes may require custom crates, padded supports or removable protective layers.

Venue conditions also play a major role. Limited loading access, narrow corridors, low ceiling heights and restricted working hours can all affect the installation strategy.

A structure that is easy to assemble in an open workshop may be much harder to install inside a finished venue. Technical development must therefore consider the actual site conditions from the beginning.

Connections should be accessible. Modules should be clearly labelled. Lifting points should be positioned correctly. The installation sequence should avoid trapping components or blocking access for other trades.

Where possible, complex structures are pre-assembled in the workshop before delivery. This allows the team to check alignment, finish quality and connection accuracy while there is still time to make adjustments.

Hundreds of Practical Decisions

Successful scenic projects rarely depend on a single brilliant idea. More often, they depend on hundreds of practical decisions made throughout design development, engineering and fabrication.

A joint is moved to improve transport efficiency. A steel frame is replaced with aluminium to reduce weight. A surface is divided into CNC-produced sections to improve accuracy. A removable panel is added for cable access. A hidden bracket is redesigned so it can be installed quickly on site.

Individually, these decisions may appear minor. Together, they determine whether the final structure is safe, accurate, efficient and visually convincing.

At Evolution Scenic, this process sits at the centre of scenic fabrication. Concepts are developed through technical drawings, engineering coordination, material testing, workshop knowledge and installation planning.

The objective is not simply to reproduce an image. It is to understand the idea behind it, solve the practical challenges and develop a construction system that can deliver the intended result in the real world.

That is how scenic concepts become buildable reality.
