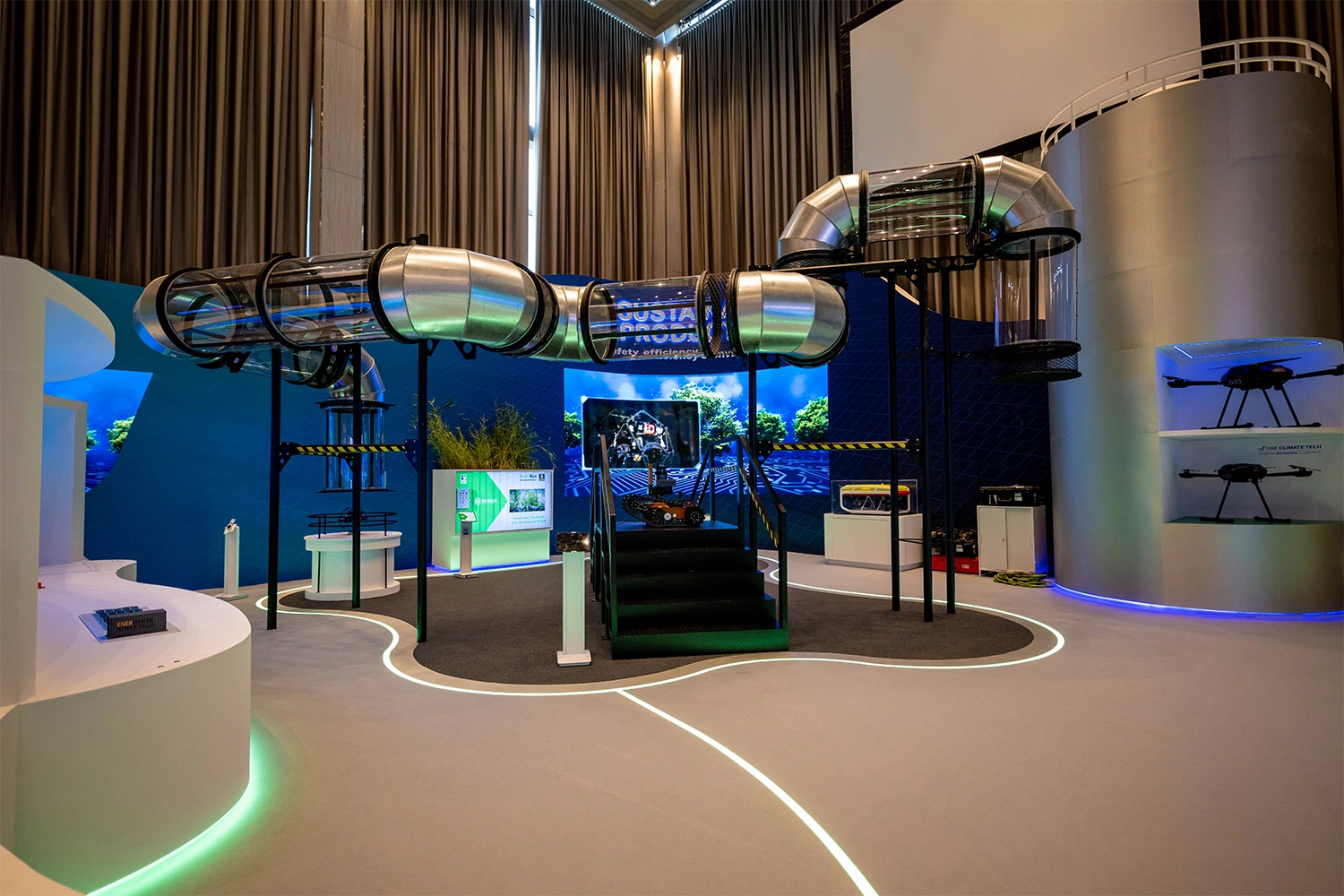

Why A Great Render Doesn’t Always Make A Great Scenic Build

Renders are incredibly useful. They help communicate ideas, establish visual direction and allow clients, designers and fabrication teams to understand an environment before anything is manufactured. A strong render can explain scale, composition, colour, branding, lighting and atmosphere more effectively than pages of written description.

It can also create the impression that the project has already been resolved. That is where problems can begin. A render only needs to look convincing from a chosen viewpoint. A scenic structure must be engineered, fabricated, transported, installed and operated safely in the real world. It has to stand correctly, fit through the available access routes, respond to the venue conditions and perform reliably throughout its intended use.

The difference between those two requirements matters. A beautifully rendered structure may contain large unsupported elements, extremely slender profiles or apparently seamless surfaces. Materials with completely different weights and structural properties may look identical on screen. Connections, access panels, lifting points, base plates, ballast, service routes and installation tolerances are often invisible.

This does not make the render inaccurate. It simply means the render represents the visual intention of the project rather than the complete solution.

A Render Communicates Intent, Not Construction

A render is usually designed to answer visual questions. What will the environment look like? How will the main feature appear within the venue? Does the branding feel integrated? Are the proportions, finishes and lighting appropriate?

Those are important questions, but they are not the same questions a fabrication team must answer.

Fabricators need to understand what supports the structure, how loads travel through it, where components divide, how the finishes are applied and how the entire environment will be assembled. They also need to consider whether the structure can be transported efficiently and installed within the time, access and working restrictions of the venue.

Perspective, lighting and camera position can conceal many of these practical issues. A cantilever may look lightweight because its support is outside the rendered viewpoint. A wall may appear perfectly smooth because no joints are visible. A suspended feature may look effortless even though the venue does not permit rigging in the required location.

The render may still communicate the correct design. It simply cannot communicate every technical condition at the same time.

Technical Development Turns The Concept Into A Buildable System

Technical development is the process that connects visual ambition with physical reality. At Evolution Scenic, this stage involves examining the rendered concept and identifying how it can be divided into components that are practical to manufacture, transport and assemble. Structural grids, framing systems, connection details, access panels, service routes and installation tolerances begin to replace visual assumptions with defined construction information.

This is not about redesigning the concept unnecessarily. The objective is to preserve the qualities that make the render effective while developing a build methodology that works outside the image. The overall form, proportion and finish may remain unchanged, even though the structure behind them develops considerably.

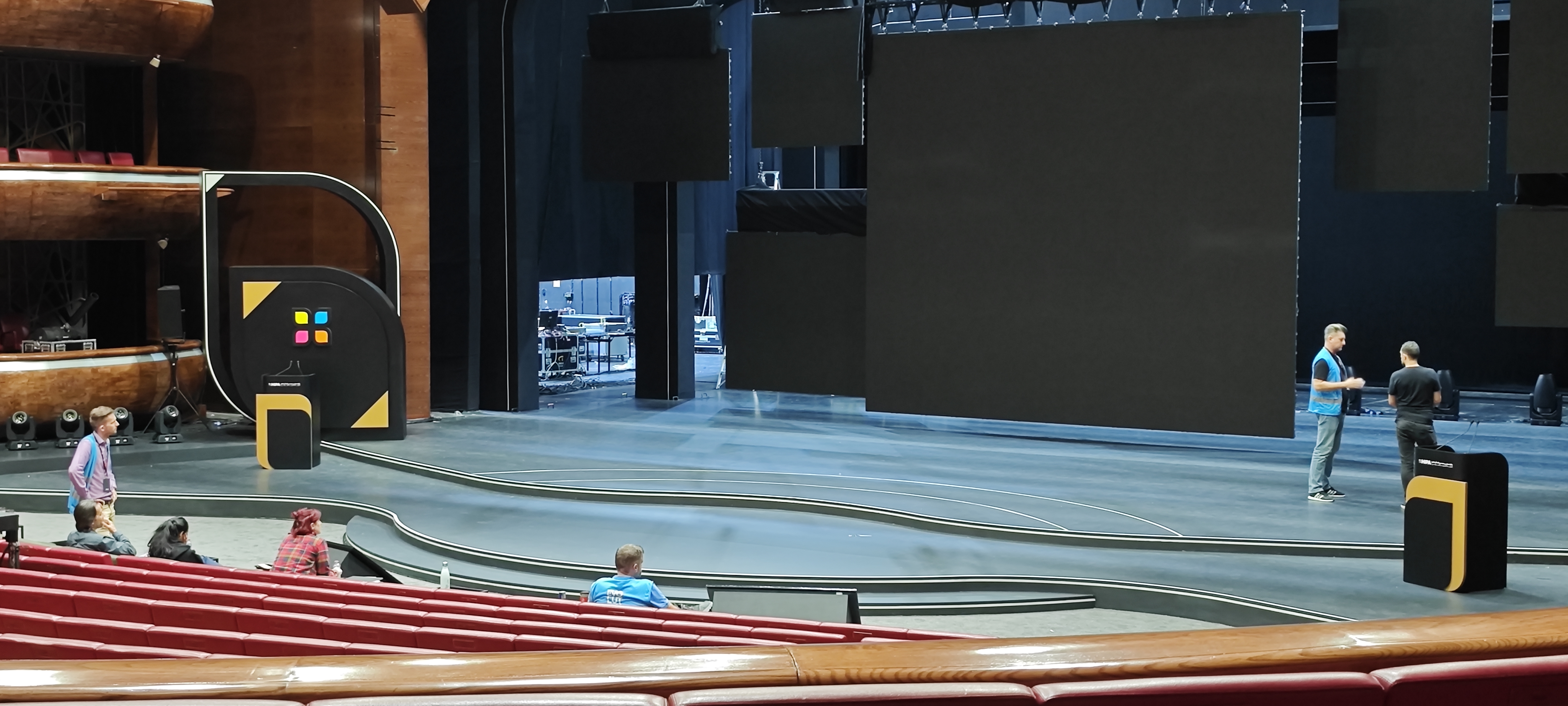

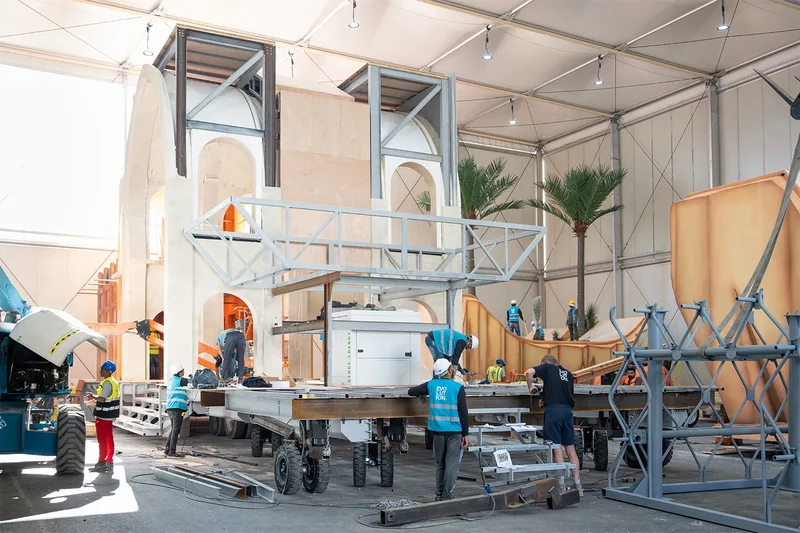

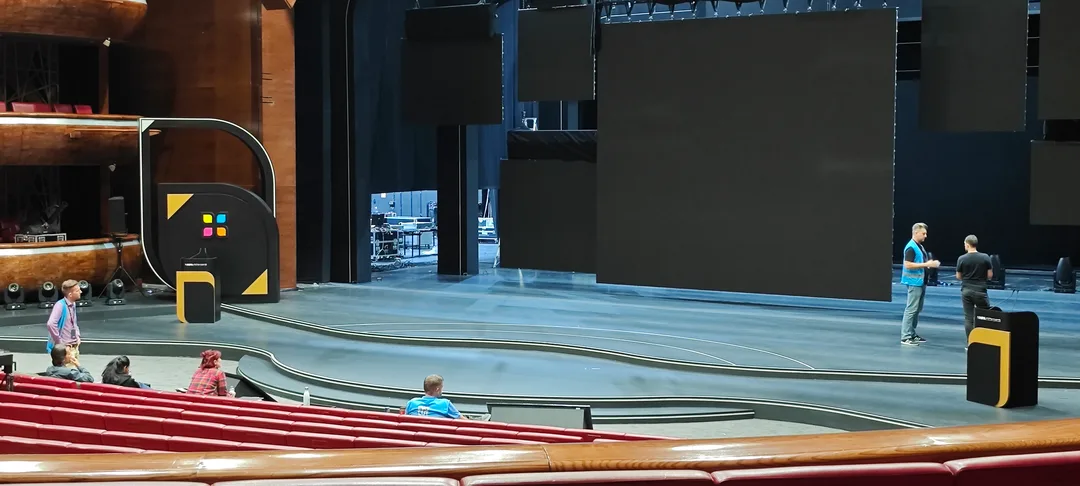

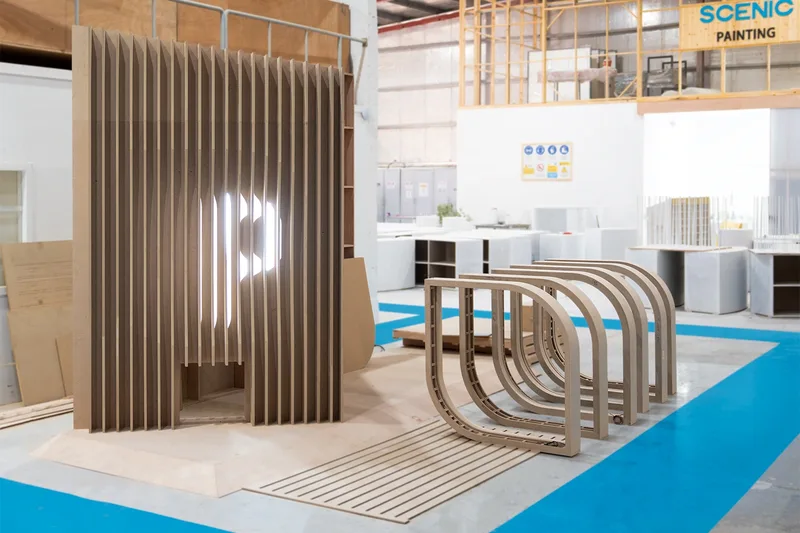

Large scenic forms may need to be divided into transportable modules. Apparently seamless surfaces may require carefully positioned joints. Curved elements may be developed as CNC-machined ribs, rolled metal frames, laminated timber forms or lightweight composite skins, depending on the scale and performance required.

The better this technical development is resolved, the fewer surprises are likely to emerge in the workshop or during installation.

Engineering Reviews Reveal What The Image Cannot Show

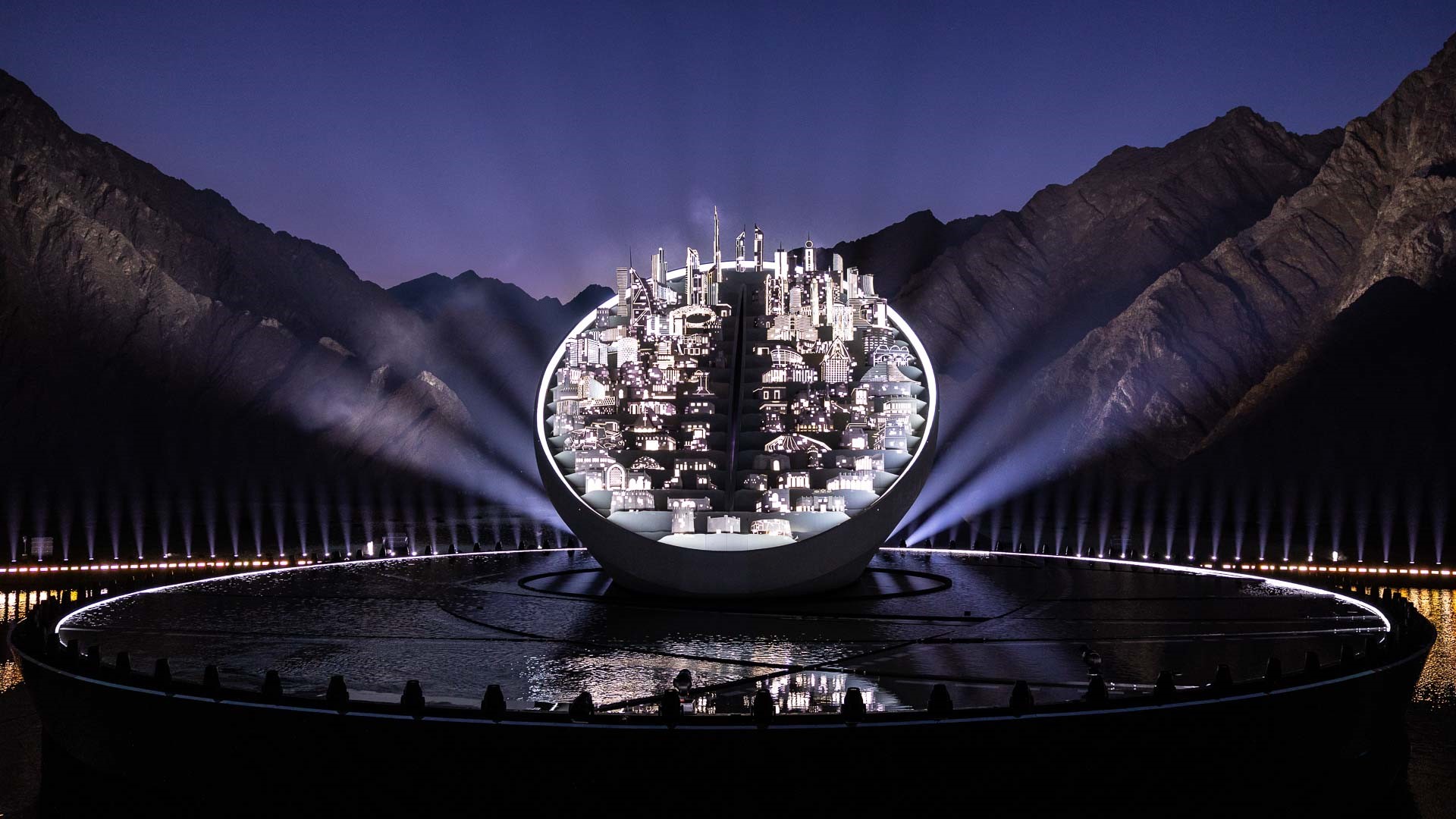

Engineering reviews are particularly important for large activations, temporary public structures, parade floats and exhibition environments. A visual element that appears simple may introduce significant structural questions. Its height, weight, centre of gravity, supporting surface and exposure to movement or wind can all affect how it should be constructed.

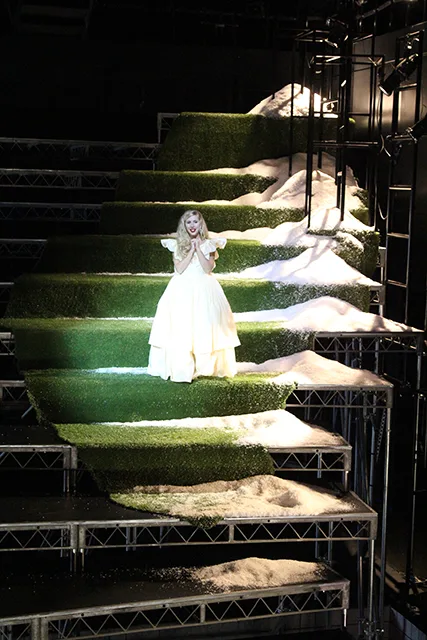

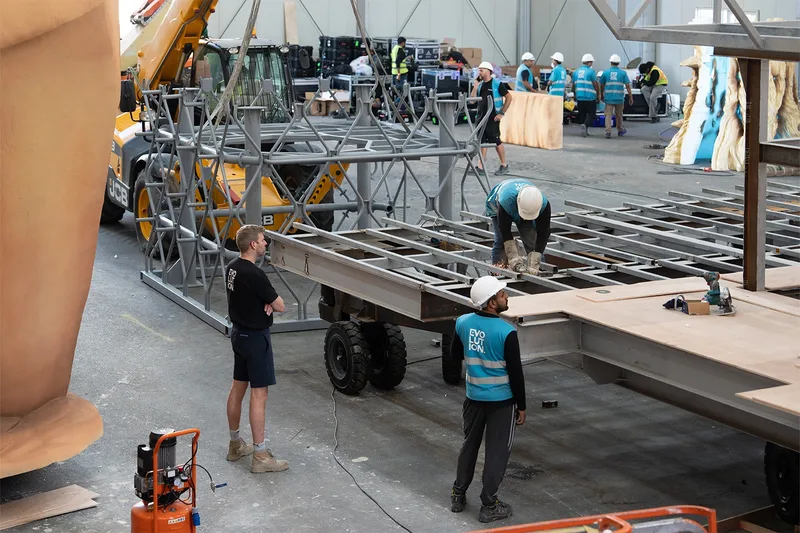

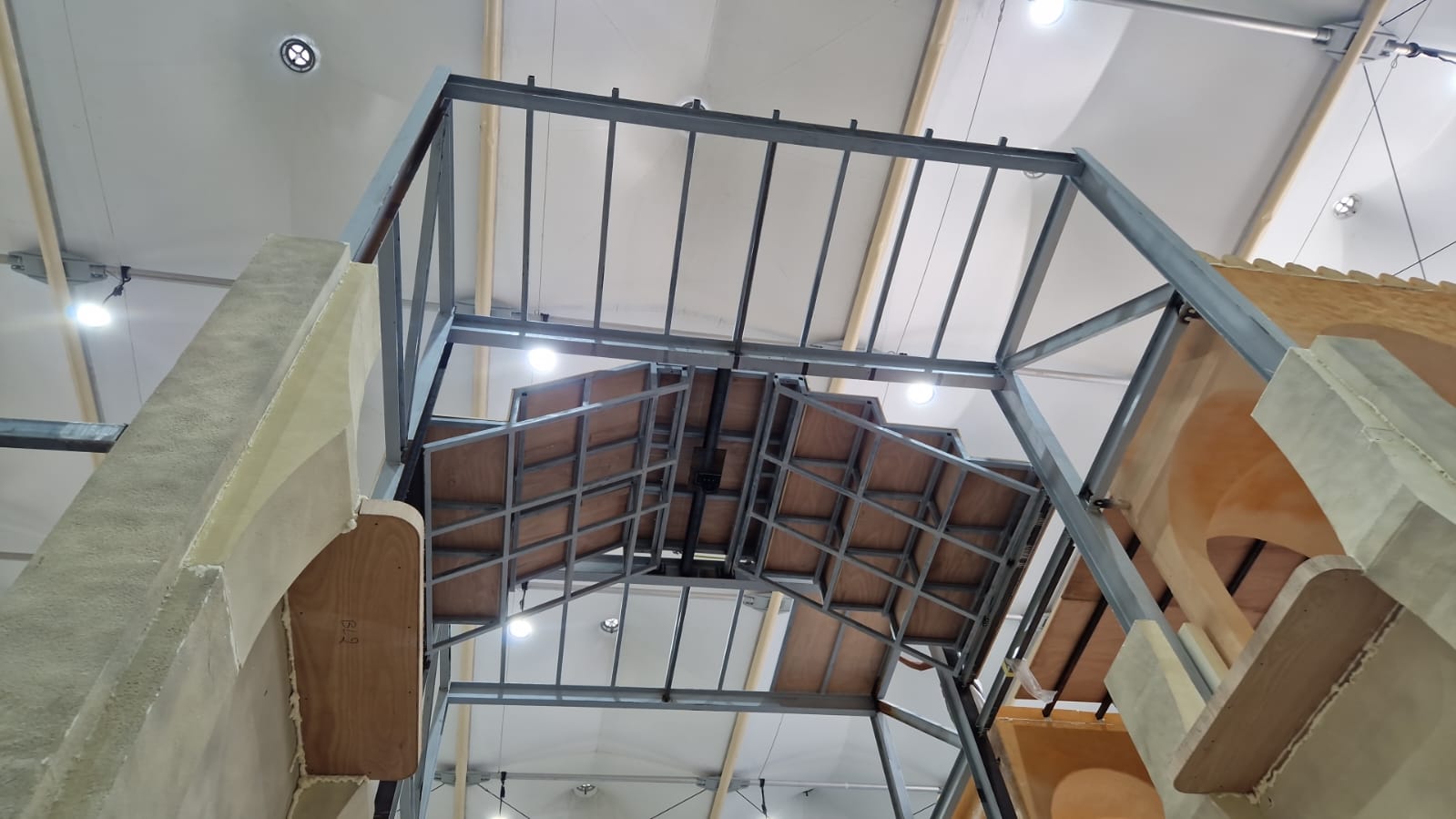

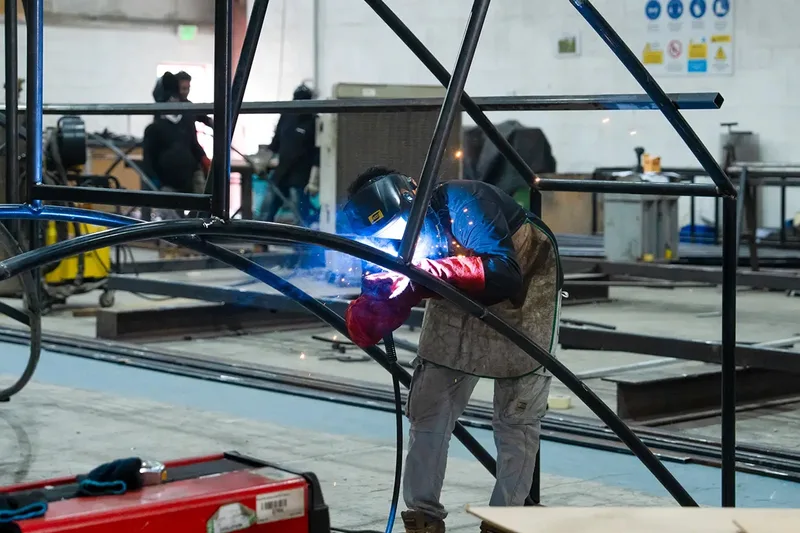

The engineering process considers load paths, bracing, connection strength, base conditions and overall stability. It may also examine dynamic forces created by moving platforms, suspended components or interactive elements. For temporary structures, the engineering solution must often work without permanent connections to the venue. This can require carefully designed base frames, ballast systems or temporary fixings that remain concealed within the finished scenic treatment.

The most successful engineering solutions are rarely the most visible. They allow the completed structure to retain the apparent simplicity of the render while providing the support and stability that the physical environment requires.

Material Selection Is About More Than Appearance

Materials that look similar in a render may behave very differently during fabrication.

A surface represented as a single coloured plane could potentially be manufactured from plywood, MDF, aluminium composite panel, sheet metal, fabric, acrylic, fibreglass or another specialist scenic material. Each option introduces different implications for weight, strength, finish quality, fire performance, transport and installation.

Material selection should therefore begin with the role the component needs to perform. A structural frame may require steel where rigidity is important, while aluminium may be more suitable where weight reduction and repeated handling are priorities. CNC-machined timber components may provide an efficient way to create complex geometry, while lightweight cladding can reduce pressure on supporting frames and installation crews.

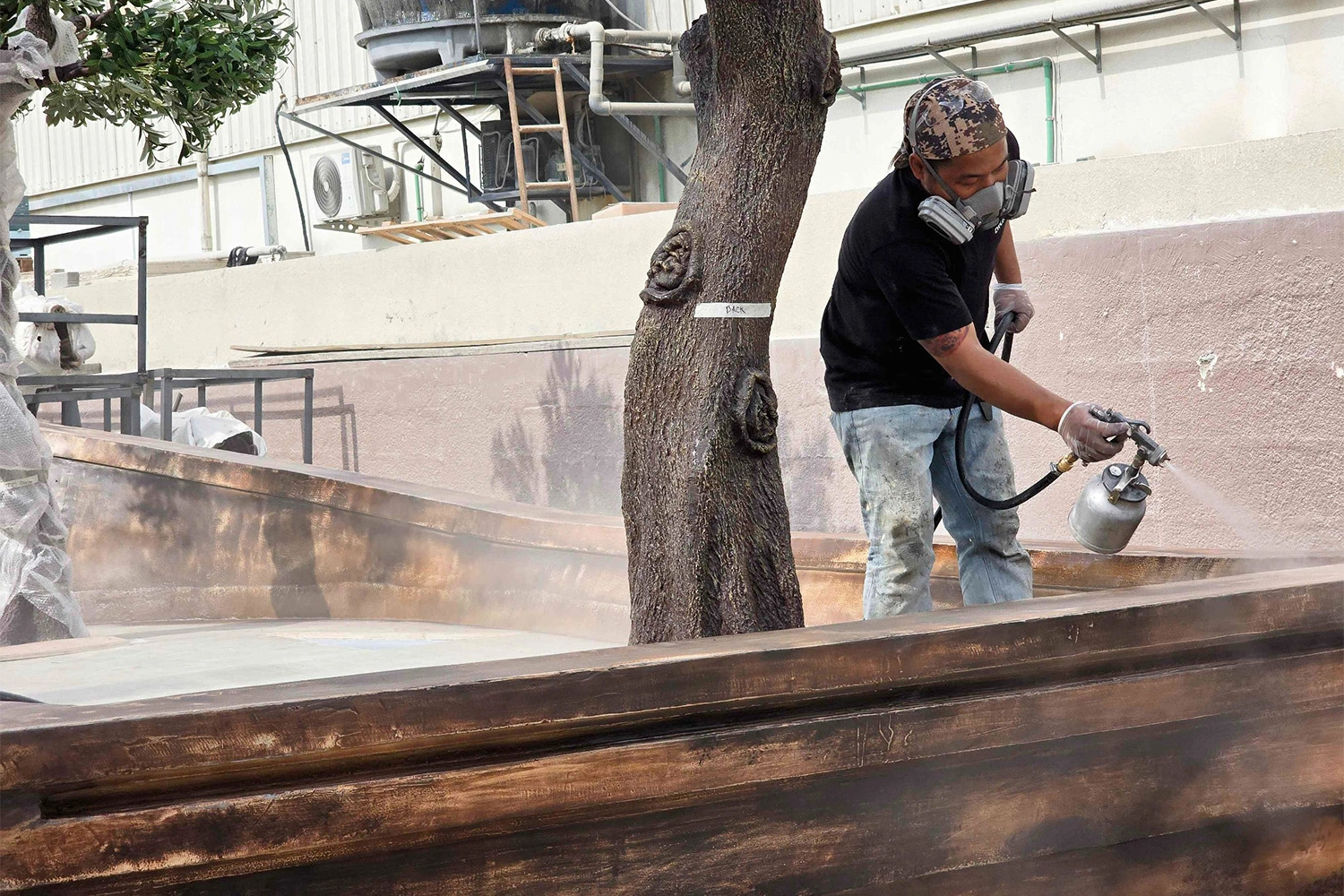

The finish matters as well. High-contact areas may require greater durability than surfaces positioned beyond reach. Components intended for repeated use need finishes that can survive transportation, storage, touch-ups and multiple installation cycles. A render shows how the material should appear. Technical development determines what that material should actually be.

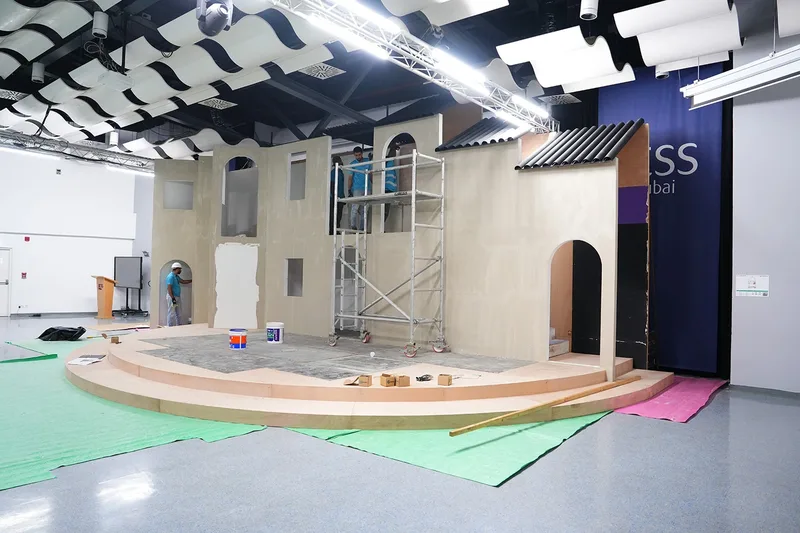

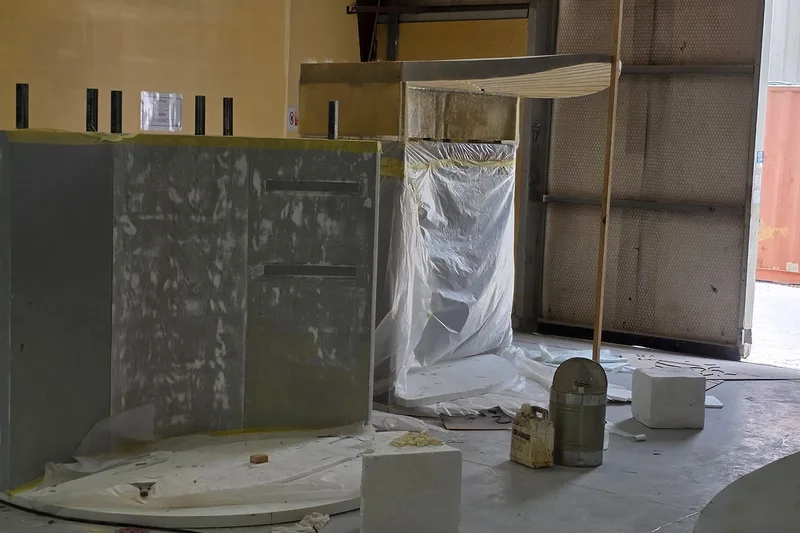

Venue Restrictions Shape The Build

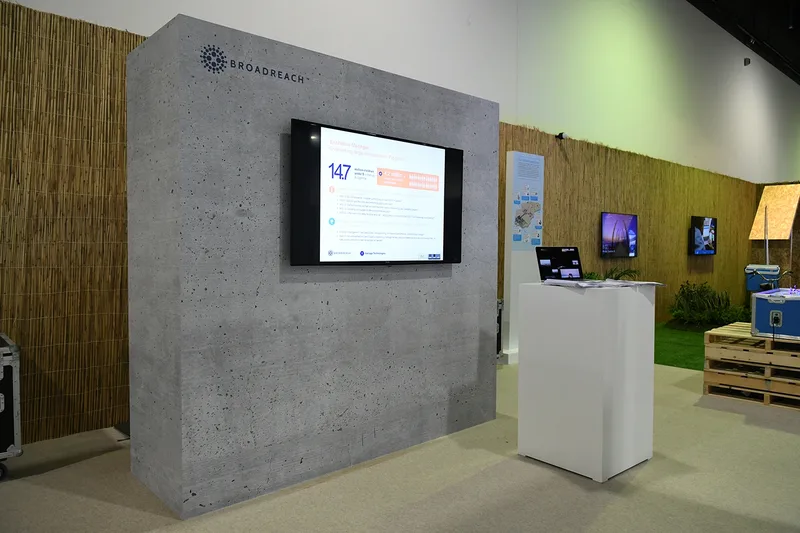

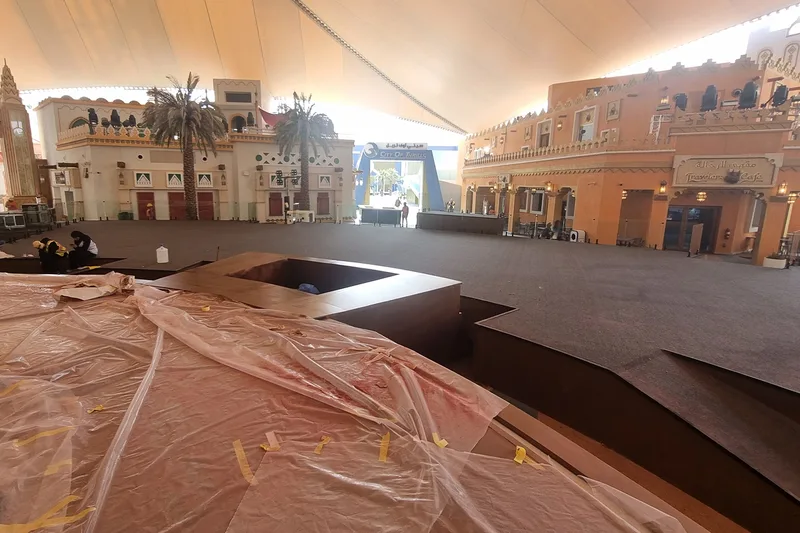

A structure may fit comfortably within the final exhibition hall while being impossible to move through the loading bay that serves it.

This is one of the most common differences between rendered scale and installation reality.

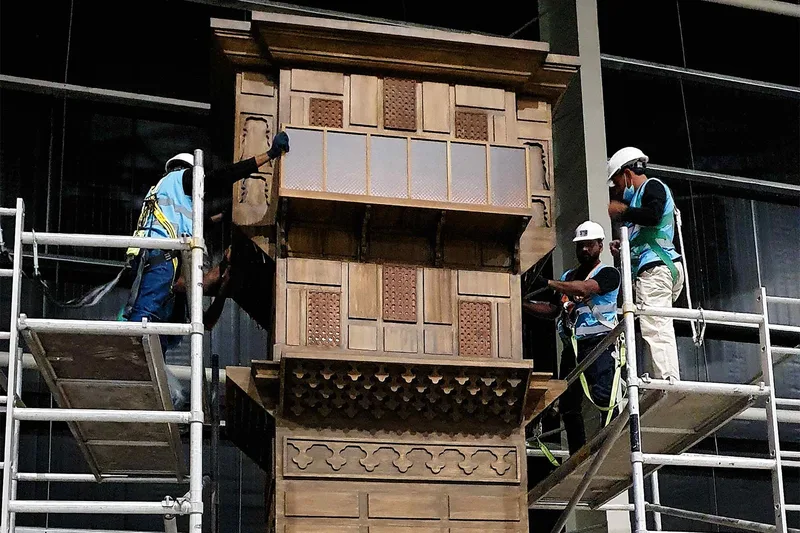

Loading-door dimensions, goods lifts, corridors, turning circles, ceiling heights and floor loading restrictions can all influence how scenic elements must be divided. Venue rules may also restrict hot works, noisy operations, overhead lifting or the use of certain equipment.

These conditions should be reviewed before fabrication begins.

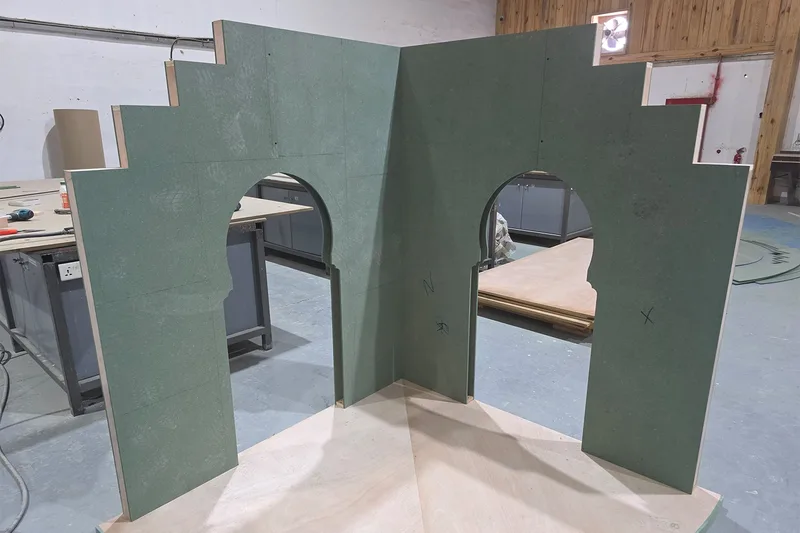

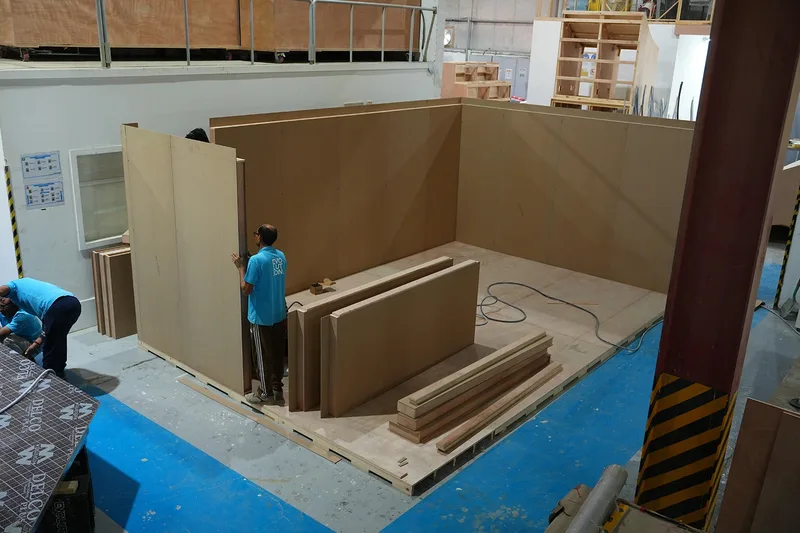

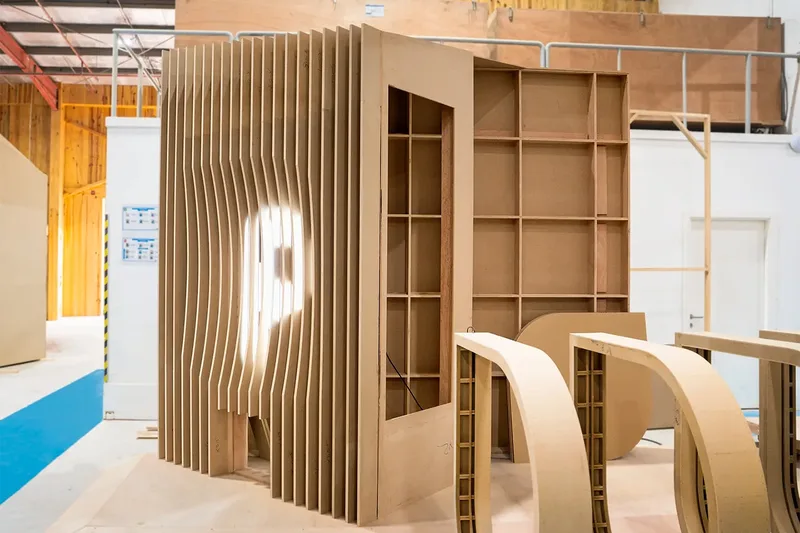

Large scenic features often need to be designed as a sequence of smaller modules that can move through the available access routes and then connect accurately on site. The location of those divisions must be coordinated with structural requirements, scenic finishes and the final viewing angles.

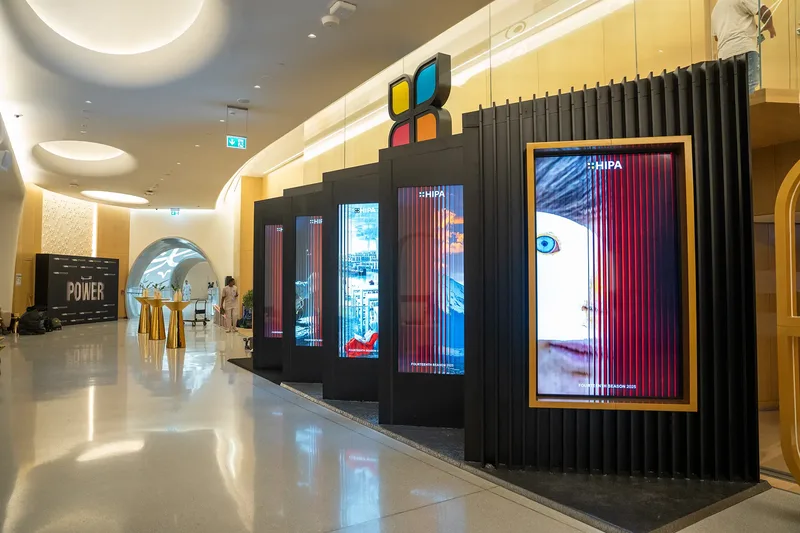

Good modularization should not make the completed structure look modular. Joints can be concealed within graphic lines, shadow gaps, changes in material or natural divisions in the design. When access constraints are considered early, they become part of the methodology rather than an installation-day problem.

Installation Methodology Should Influence The Design

A scenic structure is not fully resolved until there is a practical plan for assembling it.

Installation methodology considers the sequence in which components arrive, how they are unloaded, where they are temporarily stored and how they connect. It also identifies the crew, tools, access equipment and lifting methods required.

The order of assembly can influence the design itself.

Some connections must remain accessible until later stages of the installation. Electrical or lighting systems may need to be installed before cladding closes the structure. Large components may require lifting points, temporary braces or alignment features that disappear once the build is complete.

Workshop pre-assembly is often valuable because it allows modules, finishes and connection details to be tested in a controlled environment. Components can be labelled, adjusted and packed according to the installation sequence before reaching site.

This preparation is particularly important where venue access is limited or installation programmes are compressed. Every issue resolved in the workshop is one less issue competing for attention on site.

Value Engineering Should Protect The Visual Intent

Value engineering is sometimes misunderstood as a process of making the project cheaper by removing quality. Done properly, it is the process of identifying what matters most within the concept and finding the most efficient way to deliver it.

The fabrication team may determine that an expensive material is only required in high-visibility areas, while a more practical alternative can be used elsewhere. Repeated components may be standardised. Hidden framing may be simplified. A heavy construction method may be replaced with a lighter modular system that produces the same finished appearance.

The objective is not to weaken the render. It is to protect the qualities that make the render successful while reducing unnecessary cost, weight, labour or installation risk. Early value engineering also gives clients and designers more control. Decisions can be reviewed while there is still time to compare options, rather than being forced during fabrication or installation.

Different Scenic Projects Expose Different Challenges

The gap between a render and a build appears differently depending on the project.

A large brand activation may contain dramatic cantilevers, integrated screens and complex illuminated surfaces. A public structure may need to account for weather exposure, public interaction and concealed ballast. An exhibition environment may be governed by strict loading schedules, limited access and venue regulations.

Parade floats introduce another layer of complexity. The scenic structure must respond to acceleration, braking, vibration, cornering and changing wind conditions while remaining within the limits of the vehicle platform.

In each case, the render remains an essential communication tool. It establishes the ambition. The fabrication process determines how that ambition can perform safely and successfully.

Collaboration Produces Better Builds

The strongest projects are rarely those where nothing changes after the render.

They are the projects where designers, engineers and scenic fabricators work together to understand which parts of the concept are essential and which details can be refined.

Early collaboration creates space for better decisions. Materials can be tested. Structural assumptions can be reviewed. Access constraints can be incorporated. Prototypes and mock-ups can confirm finishes, geometry and assembly details before full production begins.

Evolution Scenic’s role is not to reduce the ambition of a render. It is to help turn that ambition into an engineered, manufacturable and installable environment.

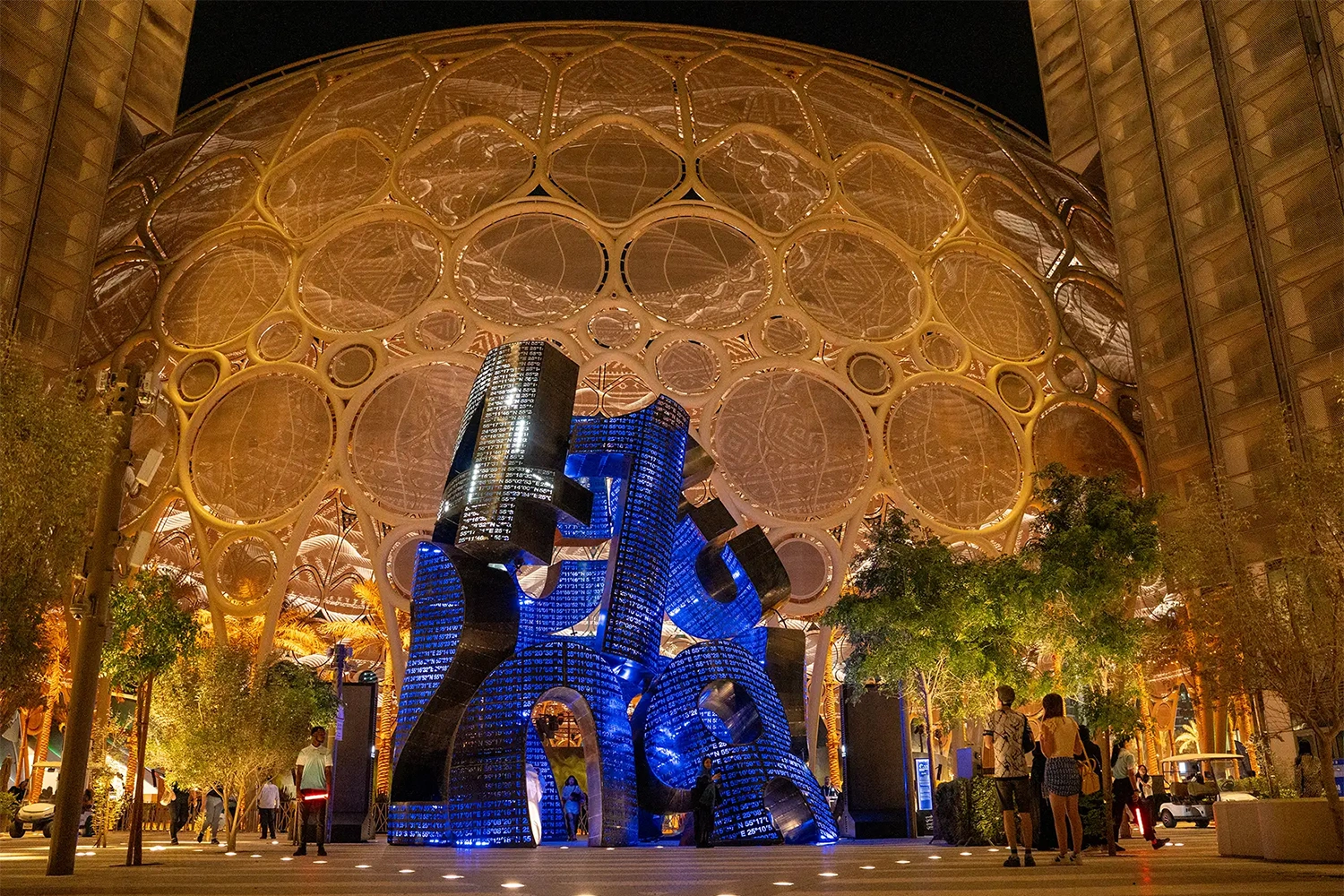

A successful scenic build should still feel like the original concept.

It should simply contain far more intelligence than the final image could ever show.

A great render is the beginning of a project.

Not the end of one.

Why We Love A Client Who Says “I Don’t Know”

There are two types of project briefing.

The first sounds very confident. The client knows exactly what they want. Every dimension is fixed, every material has been selected and every technical decision appears to have already been made.

The second briefing sounds very different.

The client says:

“We know what we want to achieve. We don’t know the best way to build it.”

Interestingly, the second type of briefing often produces the strongest result.

This is not because uncertainty is desirable for its own sake. It is because scenic fabrication is fundamentally a problem-solving process. A clear objective combined with an open technical discussion gives designers, engineers and fabricators the opportunity to find the most effective way of turning an idea into a physical environment.

Clients are experts in their audience, brand, event or organisation. Scenic fabricators are experts in understanding materials, structures, manufacturing processes, transport restrictions, installation sequences and operational requirements.

When those areas of expertise are brought together early, a project can become safer, more efficient and more practical without losing the original creative intent.

Starting With The Outcome

One of the most valuable questions in scenic fabrication is:

“What are you trying to achieve?”

It sounds simple, but the answer often reveals more than a detailed material specification.

A client may initially request a solid timber wall when the real objective is to conceal a backstage area. Depending on the environment, a fabric masking system, modular graphic wall or lightweight framed partition may achieve the same result with less weight, faster installation and simpler storage.

A large sculptural feature may be specified in steel because it needs to appear substantial. However, the visible volume might be created more efficiently using an engineered steel subframe with CNC-machined timber ribs, lightweight cladding and a specialist scenic finish.

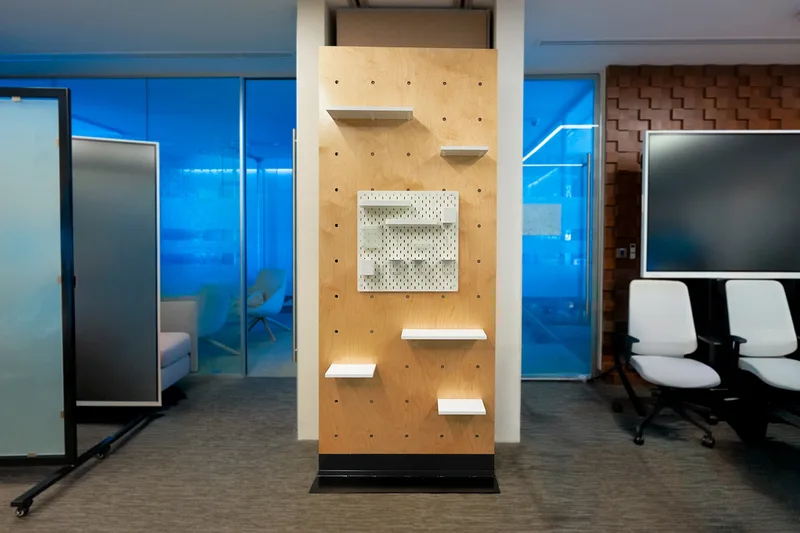

A display may be designed as one continuous structure, but dividing it into transportable modules could make it easier to manufacture, move through venue access routes and install within a restricted working period.

None of these decisions necessarily changes what the visitor sees. They change how intelligently the environment is built. The client defines the destination. The fabrication team helps establish the most practical route to reach it.

Collaboration Before Construction

Strong scenic projects are rarely developed through a simple sequence of instruction and production. They are usually shaped through discussion between the client, creative team, technical designers, engineers, project managers and workshop specialists.

Early collaboration allows potential challenges to be identified while they are still relatively easy to solve.

A concept may contain curved surfaces that require further development before they can be manufactured accurately. A suspended feature may need structural review, suitable lifting points and coordination with the venue’s rigging system. A temporary architectural structure may need to be divided into modules because of door dimensions, vehicle capacity or maximum lifting weights.

These are not reasons to reduce creative ambition. They are opportunities to develop the concept properly. At Evolution Scenic, technical development often involves reviewing the design from several perspectives at the same time:

• How will each component be manufactured?
• How will the structure be assembled?
• Can it be transported efficiently?
• What happens if the venue access is restricted?
• How will graphics, lighting or technology be integrated?
• Can the installation team reach every connection safely?
• What happens to the structure after the project finishes?

The answers influence technical drawings, engineering, material selection, workshop methodology and installation planning. When this process begins early, the final structure usually feels more resolved because its appearance and construction method have been developed together.

Turning Concepts Into Buildable Information

A strong visual concept communicates the intended experience, but it does not always explain how the structure should be fabricated.

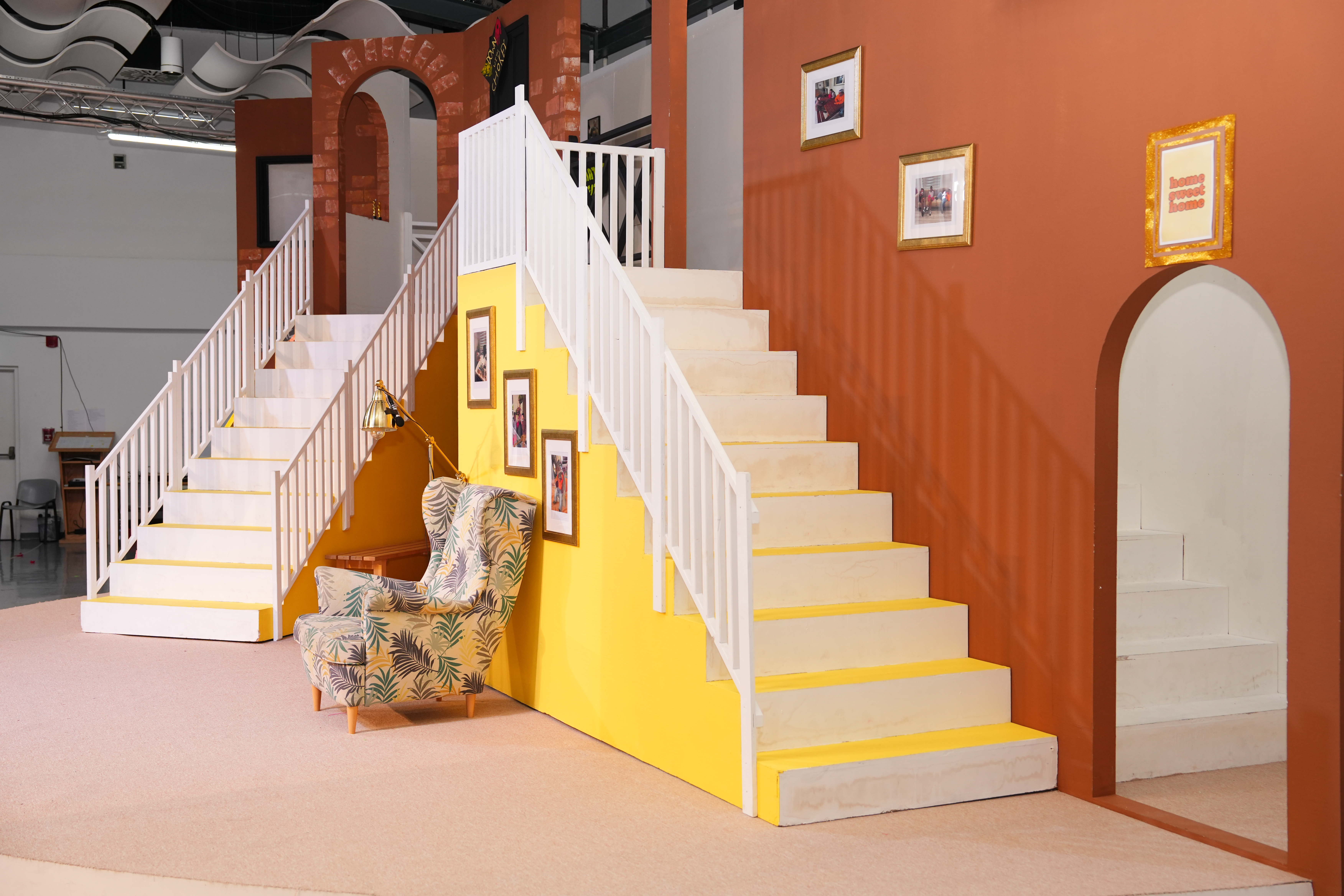

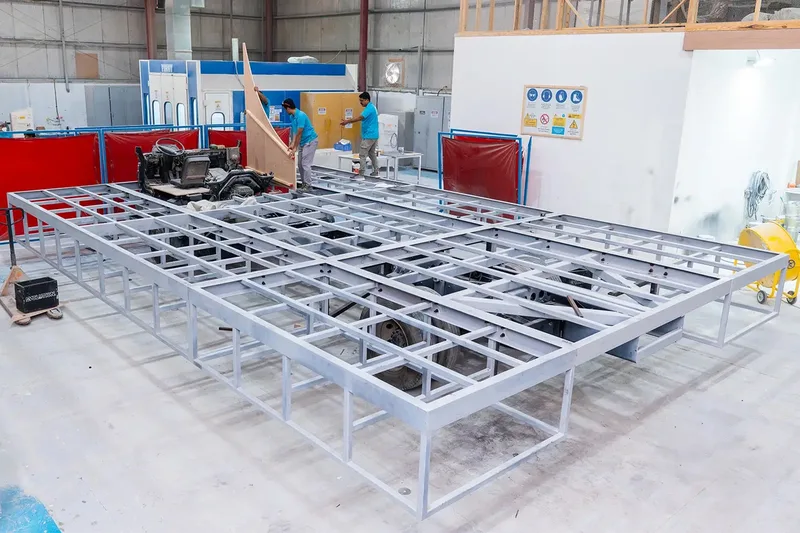

Technical development turns the creative idea into coordinated, buildable information.

This may involve establishing accurate dimensions, connection details, structural frameworks, material build-ups, access panels, fixing methods, tolerances and assembly sequences. It may also involve coordinating carpentry, metal fabrication, CNC machining, graphics, scenic painting, lighting and integrated technology.

The purpose of this stage is not simply to produce drawings. It is to remove uncertainty before materials enter the workshop.

A carefully developed drawing package helps different departments understand how their work connects. The metalwork team can confirm where structural members and fixing plates are required. The carpentry team can coordinate cladding, reveals and removable panels. Graphics can be prepared to suit finished surfaces and panel divisions. Installation crews can understand the sequence in which modules must arrive and be assembled.

This coordination reduces rework and allows problems to be resolved digitally or through prototypes rather than during installation.

For clients, the technical development process also provides greater visibility. Decisions become easier to review, costs become easier to understand and responsibilities become clearer.

Value Engineering Without Losing The Idea

Value engineering is sometimes misunderstood as a process of removing quality until a project becomes cheaper.

Good value engineering does something very different.

It protects the essential design intent while finding a more efficient way to manufacture, transport, install or operate the structure.

This might involve changing a concealed structural material while retaining the same visible finish. It could mean standardising repeated components so they can be CNC-machined more efficiently. A large feature might be divided into reusable modules, reducing future fabrication requirements. A heavy assembly might be redesigned using aluminium or a hybrid construction system to reduce lifting requirements.

Even small adjustments can have a significant effect.

Changing the position of a panel joint may reduce sheet waste. Revising a frame dimension may allow more components to fit within a vehicle. Introducing mechanical fixings instead of permanent adhesive connections may make future maintenance and reuse possible. Selecting a finish that can be repaired locally may extend the working life of an installation.

The lowest material cost does not always produce the best project value. A cheaper material that requires more labour, additional reinforcement or specialist transport may ultimately cost more than a better-suited alternative.

The objective is not to make every component cheaper. It is to ensure that the available budget is spent where it contributes most to the project.

Material Selection Is A Technical Decision

Materials are often chosen for their appearance, but scenic fabrication requires them to be considered as part of a complete construction system.

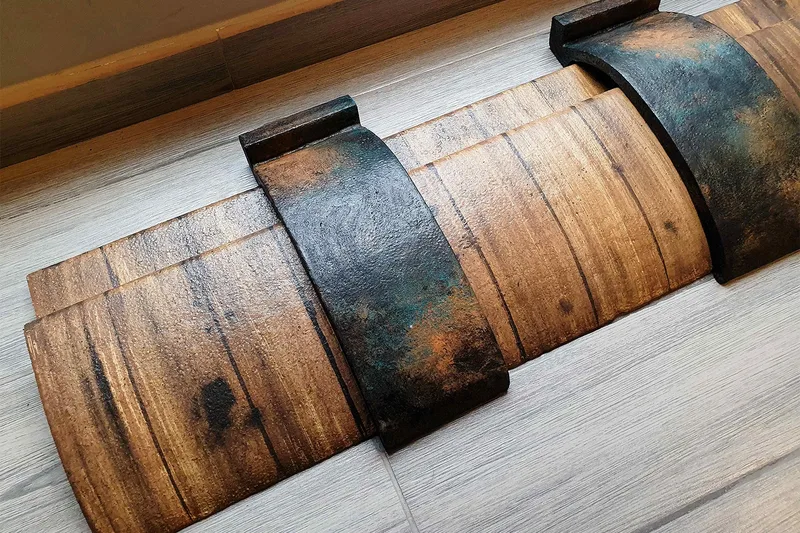

Timber offers flexibility, speed and compatibility with many scenic finishes. Steel provides strength and can support slender structural forms, although its weight must be considered. Aluminium can reduce weight and improve handling but may require different fabrication techniques. Fabric can create large surfaces with very little material mass. Composite panels, plastics and specialist boards can support complex geometry or particular finish requirements.

The correct choice depends on more than what the material looks like.

Fabricators must consider structural performance, fire requirements, surface quality, weight, transport conditions, connection methods, workshop processes, environmental exposure and expected lifespan.

A material that works well for a three-day indoor exhibition may not be appropriate for a semi-permanent visitor experience. A finish designed for close inspection requires a different preparation process from an element viewed at distance. A structure intended for repeated use needs connections and surfaces that can withstand assembly, dismantling, packing and storage.

An open brief allows these decisions to be made according to the actual project requirements rather than an assumption made at the beginning.

Designing For Installation And Operation

A scenic environment is not complete when it leaves the workshop.

It still needs to be transported, unloaded, assembled, tested, operated and eventually dismantled. Every one of these stages can influence the design.

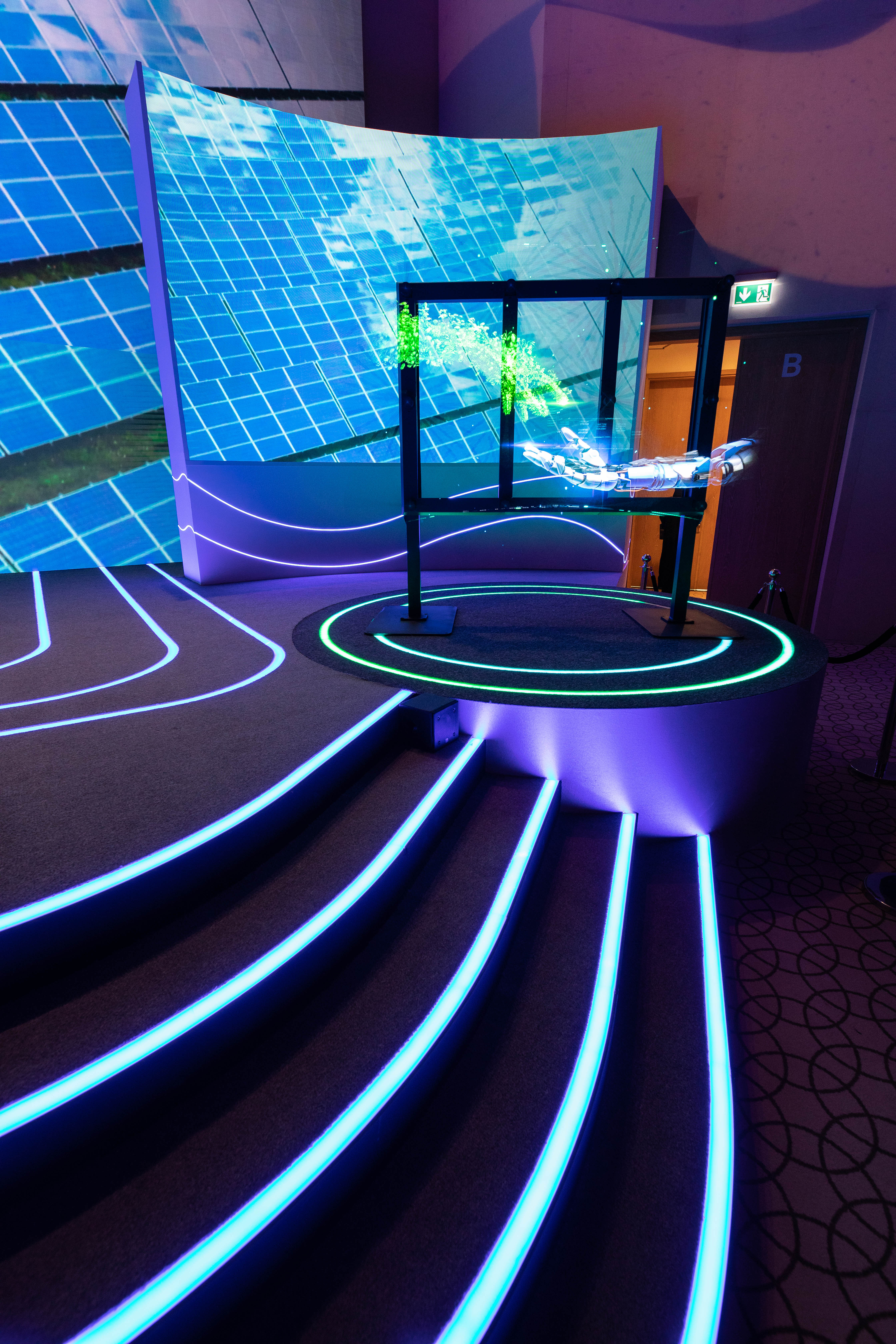

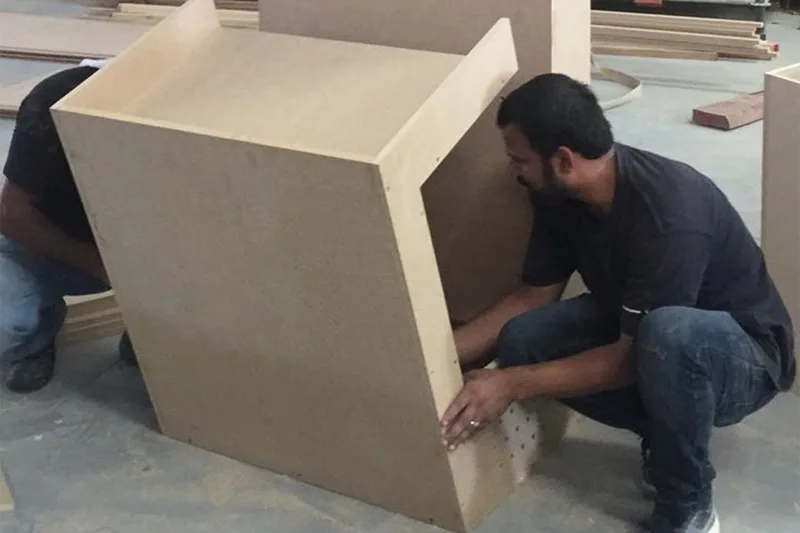

Installation planning may determine the maximum size of a module, the location of lifting points or the type of connection used between sections. Restricted venue access may require components to be moved manually or through passenger lifts. Limited installation time may justify additional prefabrication in the workshop. Working at height may influence how graphics, lighting or finishes are completed before delivery.

Operational planning is equally important.

A reception counter may need concealed cable routes, equipment ventilation and secure storage. A display wall may require removable panels for technology maintenance. An immersive environment may need discreet access for technicians. A stage feature may need to accommodate lighting, audio equipment or performer access without compromising the visible design.

These details are not always obvious in a concept render, but they have a major influence on whether the finished environment works properly.

The best time to discuss them is before fabrication begins.

A Fabrication Partner, Not Simply A Supplier

A supplier is usually asked to manufacture something that has already been completely defined.

A fabrication partner contributes to the process of defining how the idea should become real.

That distinction matters.

Evolution Scenic’s role is not to replace the client’s creative direction. It is to support that direction with practical fabrication knowledge, engineering insight and workshop experience. Sometimes that means recommending a different material. Sometimes it means adjusting a hidden framework, introducing a removable section or revising the installation sequence.

Occasionally it means explaining that a particular detail will create unnecessary risk, cost or complexity and proposing an alternative that achieves the same visual result. Honest technical advice is most valuable before a project becomes committed to a construction method.

A client who says “I don’t know” is not arriving without direction. They are recognising that the best solution may emerge through collaboration. That creates space for meaningful technical development, practical value engineering and better-informed decision-making.

The strongest projects are rarely the result of one person having every answer at the beginning. They are usually created by people who understand their own expertise, respect the expertise of others and are willing to solve the difficult parts together.

For a scenic fabricator, that is not an incomplete brief. It is the beginning of a productive partnership.

Why The Cheapest Fabrication Quote Often Becomes The Most Expensive

Every fabrication company has encountered the same situation. A client requests several quotations for a scenic structure, exhibition environment or temporary installation. One proposal arrives at a noticeably lower price than the others, making it appear to be the obvious commercial choice.

The difference may look like a saving during procurement. Once technical development, manufacturing and installation begin, however, unresolved items can quickly turn that saving into additional expenditure. The issue is rarely the quoted price alone. The real challenge is that fabrication quotations do not always compare like for like.

The Same Design Can Represent Very Different Scopes

A concept render communicates the intended appearance of a project, but it does not always explain how the structure will be engineered, manufactured, transported or installed. Two fabricators may therefore price the same visual concept using very different assumptions.

One quotation might include:

• Technical design development
• Structural engineering reviews
• Detailed fabrication drawings
• Material samples and finish approvals
• CNC programming and production
• Trial assembly
• Protective packaging
• Transport planning
• Site supervision
• Installation labour
• Access equipment
• Final adjustments and snagging support

Another quotation may cover only the physical manufacture of the visible elements. Neither approach is automatically incorrect. The difficulty begins when the exclusions, assumptions and responsibilities are not clearly understood. A lower headline figure may simply mean that important parts of the project remain unpriced.

A meaningful quotation comparison should therefore examine scope before cost. The key question is not only, “How much is the structure?” It is also, “What work is required to deliver it successfully, and who is responsible for each stage?”

Engineering Work Is Easy to Overlook

Engineering reviews, technical drawings and buildability studies are often less visible than finished scenic surfaces, yet they can influence almost every part of a fabrication project.

Before manufacturing begins, the fabrication team may need to determine:

• How loads move through the structure
• Where steel or aluminium reinforcement is required
• How separate components will connect
• Whether the installation can be safely lifted
• How the structure will be restrained on site
• Whether floor, rigging or venue loading limits apply
• How maintenance or technology access will be provided
• How the structure will be divided for transport

This work takes time, but it also resolves problems while they are still relatively inexpensive to correct. When engineering development is excluded or reduced, technical decisions may be postponed until the workshop or installation stage. By that point, materials may already have been purchased, components manufactured and transport booked. Alterations become slower, more disruptive and more expensive.

The value of technical development is not always obvious in the final appearance. Its benefit is often measured by the problems that never occur.

Material Substitutions Can Change More Than Appearance

Material selection is another area where quotations can differ significantly. Two structures may appear identical in a render but perform very differently depending on how they are built. A wall could be manufactured using timber framing, lightweight steel, aluminium extrusion, composite panels, MDF, plywood or a hybrid construction method. Each option affects weight, durability, finish quality, fire performance, handling and installation.

Material substitution is not necessarily a negative practice. It can form part of responsible value engineering when the alternative has been properly assessed. The problem arises when a cheaper material changes the performance of the structure without that difference being clearly communicated.

A lower-cost board, for example, may require additional support, more careful handling or greater finishing time. A heavier structural system may increase vehicle requirements, lifting arrangements and installation labour. A finish that performs well in a controlled exhibition hall may be unsuitable for an outdoor public installation exposed to heat, moisture, dust or repeated handling. The cost of a material should therefore be considered alongside its effect on the complete build methodology.

Installation Is Where Omissions Become Visible

Many hidden costs only become apparent once a project reaches site. A structure may have been manufactured correctly in isolation but still be difficult to assemble within the available installation window. Connections may be inaccessible. Modules may be too large for venue entrances. Components may require more labour than anticipated. Fixing points may conflict with existing services or venue restrictions.

When installation planning has been considered from the beginning, scenic components can be designed around practical site conditions. Modules can be sized for access routes, connections can be positioned where installers can reach them, and the build sequence can be coordinated with flooring, graphics, lighting and audiovisual systems.

Without that preparation, the site team may need to improvise. Additional labour, overnight working, access equipment, cutting, welding, repainting and last-minute hardware can quickly increase the final cost. Delays may also affect other contractors whose work depends on the scenic installation being completed. Installation support is therefore not simply an optional service added after fabrication. It is part of the overall construction methodology.

Transportation Is Part of the Design

Transport costs are sometimes treated as a separate logistical item, but transportation requirements are often established by design and fabrication decisions. A structure that cannot be dismantled efficiently may require larger vehicles or multiple journeys. Fragile finishes may need specialist crates. Oversized components may require permits, escorts or alternative delivery routes. Poorly planned loading can increase handling time and the risk of damage.

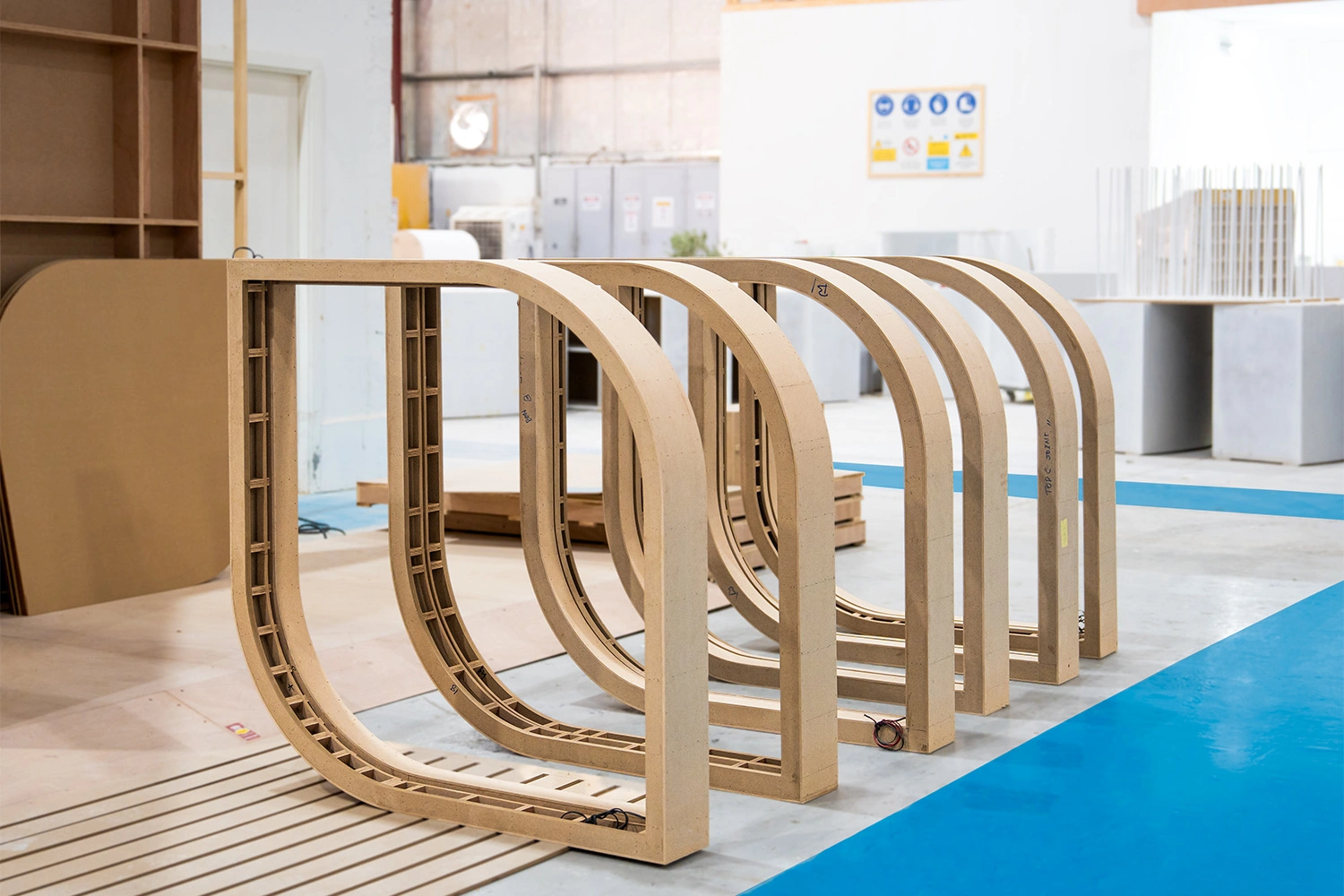

Experienced fabrication teams consider transportation while the structure is still being developed. Components may be divided into practical modules, nesting arrangements may be planned, lifting points incorporated and protective packaging designed around vulnerable surfaces. These decisions can reduce vehicle space, improve loading efficiency and minimise site handling.

A cheaper manufacturing method can become expensive when it produces oversized, heavy or difficult-to-protect components. The relevant comparison is therefore not only the workshop price, but the total cost of delivering the fabricated work to its final position.

Rework Is Rarely Limited to One Cost

Rework is one of the most common ways an apparently economical quotation becomes expensive.

A single fabrication issue can create several connected costs:

• Replacement materials
• Additional workshop labour
• Revised technical drawings
• Repeat finishing
• New transport arrangements
• Additional installation labour
• Extended equipment hire
• Delays to dependent trades
• Damage to completed scenic finishes

There may also be a quality impact. Repairs carried out under severe time pressure do not always achieve the same finish as work completed in controlled workshop conditions. This is why experienced scenic teams place such importance on technical reviews, material testing, prototypes and trial assemblies.

These activities add effort before installation, but they help identify dimensional conflicts, connection issues and finish problems early. The objective is not to make the quotation larger. It is to make the delivery process more predictable.

Value Engineering Is Different From Cost Cutting

A well-developed quotation should not prevent a project from being economical. In many cases, technical expertise creates opportunities to reduce cost without weakening the finished result. This is the purpose of value engineering.

Effective value engineering may involve:

• Simplifying concealed framing
• Standardising repeated components
• Reducing unnecessary material thickness
• Selecting lighter structural systems
• Using CNC machining to improve production efficiency
• Dividing components to optimise transport

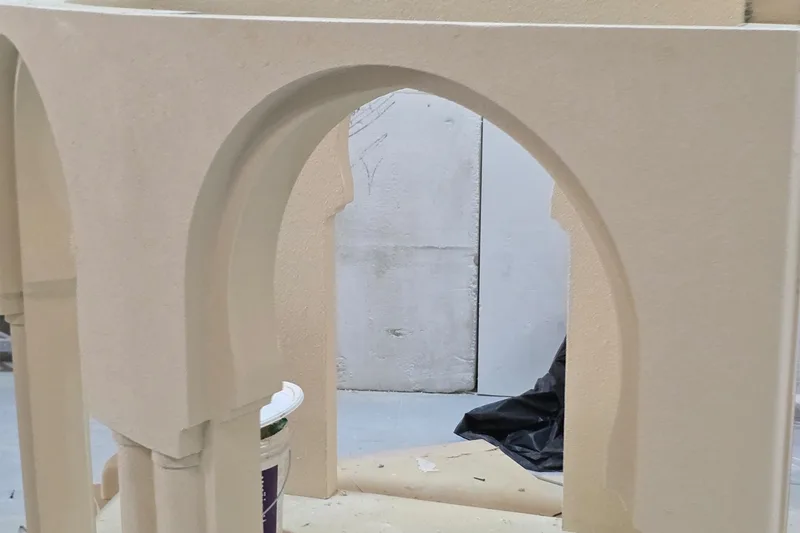

• Designing reusable modular assemblies
• Concentrating premium finishes where they have the greatest visual impact
• Adjusting connection details to reduce installation time

These decisions preserve the design intent while improving how the project is manufactured and installed. Cost cutting takes a different approach. It removes expenditure without always considering the wider consequences. The immediate quotation becomes lower, but the saving may transfer risk into durability, coordination, transportation or site installation.

Good value engineering looks at the complete project. It considers the relationship between material cost, labour, logistics, programme, performance and finish quality.

How to Compare Fabrication Quotations Properly

A useful quotation review should examine more than the final total.

Before selecting a supplier, clients and project teams should confirm:

1. Scope: What is included, excluded and assumed?
2. Engineering: Are structural reviews and technical drawings included?
3. Materials: Are the proposed materials clearly specified?
4. Finishes: Are samples, testing and approval processes covered?
5. Transport: Is packaging, loading and delivery included?
6. Installation: Who provides labour, supervision, tools and access equipment?
7. Site conditions: Have access restrictions, working hours and venue rules been considered?
8. Coordination: Who manages interfaces with lighting, graphics, audiovisual systems and other contractors?
9. Revisions: How are design changes and additional work handled?
10. Handover: Are snagging, final adjustments and completion support included?

This does not mean the most expensive quotation is automatically the best. A high price can also contain inefficiencies or unnecessary allowances. The aim is to compare the same responsibilities, performance standards and delivery requirements. Only then does the price comparison become meaningful.

Designing Installations For Long-Term Operation

Many scenic structures are designed to operate for only a few days or weeks. Others remain in service for years. These permanent and semi-permanent environments require a fundamentally different approach to design, engineering and fabrication.

A temporary exhibition feature may only need to perform reliably throughout a short installation period. By comparison, a museum environment, visitor centre, experience centre or public installation may be expected to operate every day for several years. During that time, it must withstand repeated public interaction, cleaning, maintenance, environmental changes and the gradual replacement of integrated technology.

Long-term scenic fabrication therefore begins with a broader question. It is not simply whether an installation can be built and installed successfully, but whether it can continue to operate safely, efficiently and convincingly throughout its intended life.

Planning the Complete Installation Lifecycle

Lifecycle planning considers every stage of an installation, from early design development through fabrication, operation, maintenance, refurbishment and eventual removal or replacement.

This process should begin before materials are ordered or detailed drawings are produced. The expected operational period, visitor numbers, environmental conditions and level of physical interaction all influence the construction methodology.

A display inside a climate-controlled museum presents different challenges from an outdoor public installation exposed to heat, moisture, dust and ultraviolet light. Similarly, an interactive experience centre may require components to withstand thousands of repeated uses, while a protected interpretation display may experience relatively little physical contact.

Understanding these conditions allows designers, engineers and fabricators to make informed decisions about:

• Structural systems and expected loading
• Material durability
• Replaceable components
• Maintenance access
• Surface finishes
• Technology integration
• Cleaning requirements
• Future refurbishment
• End-of-life dismantling

Lifecycle planning does not necessarily mean making every component heavier or more expensive. It means using the appropriate material and fabrication method for the actual operational requirement.

Designing for Durability

Durability is often discussed as though it were a single material property. In practice, it depends on how materials, connections, finishes and environmental conditions interact. A robust structural frame may perform for many years, but the installation can still deteriorate quickly if decorative surfaces are vulnerable to impact or difficult to repair. Likewise, a high-quality scenic finish may fail prematurely if the substrate beneath it moves, absorbs moisture or expands under changing temperatures.

Timber, steel, aluminium, composites and specialist scenic materials each offer different advantages. The correct choice depends on the installation’s structural requirements, weight restrictions, exposure conditions, maintenance strategy and visual objectives.

Steel may provide strength and rigidity for large structural elements, while aluminium can reduce weight and improve corrosion resistance. CNC-machined timber components may be appropriate for complex architectural forms, provided edges, joints and surfaces are properly sealed and protected. Composite materials can produce lightweight sculptural elements, but their long-term performance must be considered in relation to fire requirements, impact resistance and environmental exposure.

Connections are equally important. Mechanical fixings, access panels and replaceable modules can make future repairs considerably easier than permanently bonded assemblies. Where possible, vulnerable components should be designed so they can be removed without dismantling the entire installation.

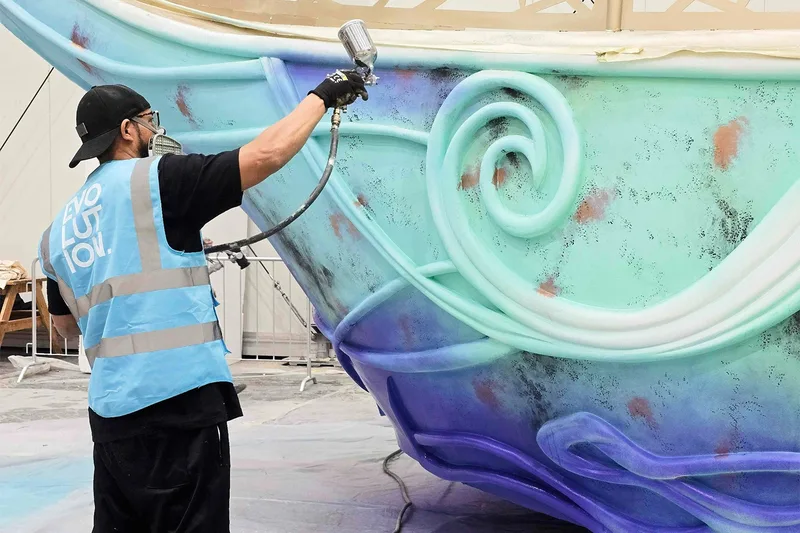

Scenic Finishes That Can Be Maintained

Scenic finishes are often responsible for the character of an environment, but they also receive much of the operational wear.

Corners, lower wall sections, hand-contact areas, display edges and interactive surfaces are particularly vulnerable. These areas may require harder coatings, sacrificial protective layers or replaceable panels. The finish specification should also consider how the installation will be cleaned and which products the operator is likely to use.

A finish that looks exceptional on installation day but cannot tolerate routine cleaning may become impractical very quickly. For this reason, sample testing should assess more than colour and texture. Samples can also be reviewed for scratch resistance, cleaning performance, colour stability, adhesion and repairability.

Repair methodology should be documented wherever bespoke scenic painting or specialist finishing techniques are used. Retaining colour references, coating specifications and application records makes it easier for maintenance teams to reproduce the original appearance later.

Maintenance Access Must Be Designed In

Access for maintenance should never be treated as an afterthought. Lighting systems, digital screens, speakers, sensors, mechanical elements and specialist finishes may all require periodic inspection, servicing or replacement.

Poor access can turn a minor maintenance task into a major dismantling exercise. A failed lighting driver should not require the removal of an entire feature wall. A digital screen should not be permanently trapped behind decorative joinery. A mechanical component should not be positioned where technicians cannot safely reach it.

Access panels must be large enough for the intended task, positioned in practical locations and detailed so they remain visually integrated with the surrounding scenic work. Where access is from above or behind, sufficient clearance should be maintained for tools, replacement parts and safe working.

The maintenance sequence should also be considered. Technicians need to understand which components must be removed first, how panels are supported and whether specialist lifting equipment is required. Where installations include suspended elements or work at height, safe maintenance positions, anchor points and access equipment may need to form part of the wider engineering strategy.

Preparing for Technology Upgrades

Technology often becomes outdated before the surrounding scenic construction reaches the end of its physical life. Screens, projectors, lighting fixtures, sensors, control systems and interactive equipment may require replacement several times during the life of a visitor centre or museum environment. Designing only around the dimensions of the original equipment can create expensive problems when replacement models differ in size, ventilation requirements or connection type.

Upgrade-ready environments use adaptable mounting systems, accessible cable routes and removable scenic panels. Equipment zones can include reasonable tolerance for future hardware, while ventilation and power systems can be planned with sufficient capacity for likely changes.

Cable containment is particularly important. Clearly organised routes, accessible junction points and documented connections make future upgrades faster and reduce the risk of damaging finished scenic surfaces.

Technology integration should also consider heat generation, airflow and noise. A projector concealed inside scenic architecture may require ventilation, filtration and acoustic treatment. These requirements should be coordinated during design development rather than added after fabrication.

Museums, Visitor Centres and Experience Environments

Museums and visitor centres often combine scenic construction, architectural finishes, graphics, display cases, lighting, interactive technology and interpretation elements within a single environment.

These installations must balance visual quality with public safety, accessibility, conservation requirements and operational practicality. High visitor numbers can place significant demands on flooring transitions, handrails, interactive components, display edges and queueing areas.

Experience centres may introduce additional complexity through moving features, immersive lighting, projection surfaces, automated sequences and concealed technical systems. The scenic construction must provide the required visual effect while allowing technicians to reach the equipment behind it.

Public-facing installations also require careful consideration of misuse and unexpected interaction. Visitors may lean against elements, touch surfaces that were not intended to be touched or place loads on projections and ledges. Scenic engineering should anticipate these behaviours rather than relying entirely on signage or supervision.

Establishing Operational Ownership

One of the most important long-term considerations is deciding who owns the installation after handover. Responsibility may be divided between the client, venue operator, facilities management team, technology supplier, specialist maintenance contractor and original fabricator. Unless these roles are clearly defined, small issues can remain unresolved until they develop into larger failures.

A practical operational plan should identify:

• Who carries out routine inspections
• Who approves repairs
• Who maintains integrated technology
• Which components have warranties
• Which materials require specialist cleaning
• Who holds spare parts and finish samples
• When preventative maintenance should take place
• Who updates drawings and technical records after modifications
•


Operational ownership should be agreed before the installation opens. This allows maintenance access, documentation and spare-part requirements to be incorporated into the fabrication process.

For complex environments, the handover should include more than a set of drawings. Maintenance manuals, material schedules, paint references, equipment data, inspection requirements and replacement procedures can all support the long-term operation of the installation.

Preventative Maintenance and Inspection

Preventative maintenance is usually more effective than waiting for visible failure. Regular inspections can identify loose fixings, surface damage, water ingress, movement, worn components and ventilation problems before they become serious. Inspection frequency should reflect the type of installation, its environment and the level of public interaction.

Outdoor installations may require checks after severe weather, while interactive exhibits may need frequent operational inspections. Suspended structures, mechanical systems and load-bearing public elements may require formal inspection by competent specialists.

Maintenance information should be realistic and easy to follow. Overly complicated procedures are unlikely to be completed consistently. Clear inspection points, labelled access panels and concise maintenance schedules help operational teams manage the environment effectively.

Designing for Repair, Adaptation and Refurbishment

Long-term environments are rarely completely static. Graphics may be updated, exhibitions may change and technology may be replaced. Some spaces are refurbished gradually rather than removed and rebuilt in a single phase.

Modular construction can support this process. Replaceable graphic panels, demountable display units and mechanically fixed scenic components allow selected areas to be updated without affecting the wider installation.

Standardising concealed fixings and internal components can also simplify future repairs. Bespoke visible forms may still be required, but the systems behind them can often be rationalised.

Documentation should be updated whenever significant modifications are made. Without accurate records, maintenance teams may not know which materials, fixings or services are concealed behind finished surfaces.

Thinking Beyond Installation Day

Successful long-term installations balance immediate project objectives with future operational realities. The most effective environments are not only visually convincing when they open; they remain safe, functional and practical to operate years after the original installation has been completed.

This requires collaboration between creative designers, technical designers, engineers, fabricators, technology specialists and operational teams. Decisions made during early design development can reduce future maintenance costs, improve safety and extend the useful life of the environment.

For scenic fabricators, designing for long-term operation means thinking beyond the completed appearance. It means considering how structures will be inspected, how finishes will be repaired, how technology will be upgraded and how the installation will eventually be adapted or dismantled. The quality of a long-term installation is ultimately measured not only by how it looks on opening day, but by how successfully it continues to perform throughout its complete operational life.

Structural Calculations Explained

Structural calculations often sit quietly behind the scenes of scenic projects. Clients, agencies and visitors rarely see them, yet they can influence almost every significant decision made during design, fabrication and installation.

Many scenic structures appear relatively straightforward once complete. A feature wall may seem to be a simple vertical surface. A stage set may look like a collection of decorative forms, while a parade float might appear to be a lightweight scenic composition fixed to a vehicle.

Behind the finished surfaces, however, engineers, designers and fabrication teams are often resolving a far more complex set of questions. They must determine how the structure will carry its own weight, how it will respond to people, equipment and environmental forces, and how it can be transported, assembled and operated safely.

Structural calculations are therefore not simply documents produced to prove that something will remain standing. They are practical tools that help turn ambitious creative ideas into safe, efficient and buildable scenic structures.

Understanding How Forces Move Through a Structure

One of the most important principles in structural engineering is the load path. A load path describes how force travels through a structure until it reaches a stable supporting point, such as the floor, a foundation, a vehicle chassis or an approved venue connection.

For example, the weight of a large scenic feature may pass through its decorative skin into a secondary framework, then into a primary steel structure and finally down through base plates into the floor. Every connection along that route must be capable of transferring the required force safely.

This can become particularly important in scenic fabrication, where the visible shape of a structure may not follow conventional architectural forms. Curved walls, cantilevered features, suspended elements and oversized sculptural components can create unusual load paths that require careful analysis.

A structure may appear substantial from the outside while relying on a relatively lightweight internal framework. Alternatively, an apparently simple scenic wall may require significant concealed steelwork because of its height, shape or exposure to wind.

Understanding the load path early allows the engineering and fabrication teams to identify where reinforcement is genuinely required, rather than simply adding unnecessary material throughout the structure.

Dead Loads and the Weight of the Build

Dead load is the permanent weight of the structure itself. In scenic construction, this may include structural steel, timber framing, plywood, aluminium, CNC-machined components, scenic finishes, LED screens, lighting equipment, graphics, cladding and any permanently attached mechanical elements.

Dead loads can accumulate quickly. A decorative finish that appears relatively light across a small sample can add considerable weight when applied over hundreds of square metres. Screens, suspended lighting features and specialist cladding systems may also introduce concentrated loads that must be allowed for within the supporting framework.

Managing dead load is especially important for temporary structures because weight affects more than structural performance. It also influences transport, lifting operations, installation labour, vehicle capacity and the speed at which the structure can be assembled.

Reducing weight does not necessarily mean reducing strength. A well-developed design may use aluminium instead of steel in selected areas, hollow fabricated sections instead of solid forms, or CNC-cut ribs to create volume without excessive mass.

Structural calculations help the team understand where weight can be removed safely and where additional material is essential.

Live Loads and Public Interaction

Live loads are forces that may change during the use of a structure. These can include people, movable equipment, performers, furniture, temporary displays, stored materials and operational loads introduced during maintenance or installation.

For a scenic stage, live loads may come from performers, stage equipment, scenic props, cameras or mobile platforms. An exhibition pavilion may need to support visitors leaning against counters, interacting with displays or gathering within particular areas.

Public-facing scenic structures require particular care because people do not always interact with them in the way originally intended. Visitors may lean against walls, sit on plinths, climb onto low-level features or gather around popular installations.

Structural calculations allow these possibilities to be considered in advance. They help the project team determine suitable safety factors, connection details and reinforcement requirements without compromising the visual design.

This is particularly important when a scenic element looks solid or architectural. Its appearance can encourage people to treat it as a permanent structure, even when it has been designed as a temporary installation.

Wind Loading and Large Scenic Surfaces

Wind loading is one of the most influential considerations for outdoor scenic structures.

A large flat surface can behave like a sail, creating significant pressure on the supporting structure, connections and foundations. The taller and wider the surface becomes, the greater the potential force.

Wind does not only affect outdoor installations. It may also influence entrance features, structures positioned near open venue doors or temporary builds exposed during installation before the final enclosure is complete.

Parade floats present a particularly interesting example. A scenic element mounted on a moving vehicle may experience both natural wind and airflow created by the vehicle’s movement. Large decorative panels, elevated figures and lightweight cladding must therefore be designed to resist uplift, vibration and repeated movement.

Where possible, engineers and fabricators may reduce wind pressure by introducing openings, perforations or controlled airflow through the scenic form. In other cases, additional ballast, wider bases, structural outriggers or ground anchors may be required.

These decisions must be coordinated carefully with the visual concept. The aim is not to simplify the design unnecessarily, but to develop a safe structural solution that remains faithful to the creative intent.

Dynamic Loading and Moving Structures

Dynamic loads occur when forces change over time. Unlike a static load, which remains relatively constant, a dynamic load may be created by movement, acceleration, braking, vibration, impact or repeated operation.

Parade floats are a clear example. Their scenic structures must respond to cornering, changes in speed, uneven road surfaces and vibration from the vehicle platform. A component that performs well while stationary may behave very differently once the float begins moving.

Dynamic loading can also affect automated stage elements, rotating platforms, moving scenery and suspended features. Repeated movement may gradually loosen fixings or place stress on joints if the connections have not been designed appropriately.

Structural reviews for moving scenic structures therefore consider more than maximum weight. They assess how forces are introduced, how frequently the structure will move and how the build can be inspected throughout rehearsals and operation. Fabrication tolerances, locking systems, connection details and access for maintenance all become part of the engineering strategy.

Temporary and Permanent Structures

Temporary scenic structures are sometimes assumed to require less engineering than permanent construction. In practice, they can introduce a different set of challenges.

A temporary structure must often be assembled quickly, used intensively and dismantled within a short period. It may need to be installed without permanent foundations, transported in modular sections and adapted to venue restrictions.

Connections must therefore be strong but also practical to assemble. Components may need to fit within transport limits, pass through loading doors and be lifted using equipment available on site.

Temporary structures can also experience unusual conditions during installation. A tall feature wall may be stable once fully connected, but vulnerable while only partially assembled. The installation sequence must therefore be considered as part of the structural methodology.

Permanent structures may be designed for long-term environmental exposure, fatigue, maintenance and durability. Temporary structures, by contrast, require careful attention to repeated assembly, transportation damage and operational handling.

Neither approach is inherently simpler. The engineering strategy must reflect how the structure will actually be fabricated, transported, installed, used and removed.

Structural Calculations in Scenic Stages and Feature Structures

Large scenic stages often combine several structural systems within a single design. A stage may include primary steel frames, raised platforms, suspended scenic elements, LED screens, decorative façades, access stairs and technical equipment. Each system may introduce different loads and connection requirements.

Large feature structures present similar challenges. Their sculptural geometry may hide complex internal frameworks that must support cladding, lighting and secondary scenic finishes while remaining accessible for fabrication and installation.

Early structural coordination helps prevent situations where scenic finishes conflict with structural members or where critical connections become impossible to access on site.

It also allows the fabrication team to design modular sections around transport and lifting requirements. Rather than engineering the structure as one continuous object, the build can be divided into manageable units with clearly defined connection points.

This often produces a safer and more efficient installation without changing the finished appearance.

Exhibition Pavilions and Temporary Architecture

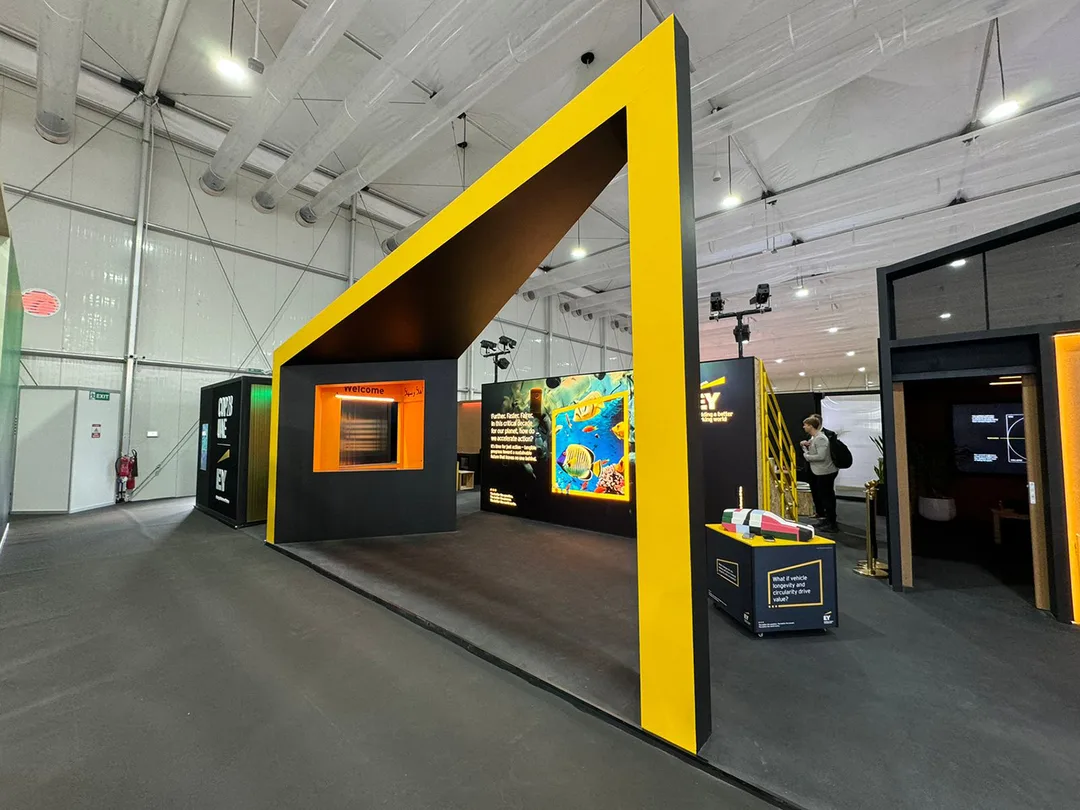

Exhibition pavilions can look architectural, but they are usually designed and fabricated within compressed programmes and strict venue conditions.

Structural calculations may need to consider tall walls, overhead features, suspended signage, integrated screens, hospitality spaces and areas of concentrated visitor movement.

Venue regulations can also influence the engineering approach. Floor loading limits, restricted fixing points, fire safety requirements and maximum build heights may all affect the structural design.

Because exhibition builds are temporary, the supporting structure is often concealed within joinery, cladding and graphic finishes. The challenge is to create sufficient structural strength without making the pavilion unnecessarily heavy or difficult to install.

Well-coordinated calculations allow the engineering solution to support the visual design rather than compete with it.

Engineering Approvals and Documentation

Structural calculations often form part of the approval process for venues, local authorities, event organisers and health and safety teams.

Depending on the project, the required documentation may include calculation reports, structural drawings, connection details, material specifications, foundation or ballast information and installation methodology.

For complex public structures, the engineering package may also require independent review or approval by a licensed structural engineer.

The approval process works best when engineering is introduced early. Attempting to calculate a fully developed design at the end of the process can lead to major revisions, particularly if the structure has not allowed space for bracing, connections or suitable foundations.

Early collaboration between creative designers, structural engineers and scenic fabricators helps identify these issues before they affect programme, cost or visual quality.

Structural Engineering as Part of Scenic Fabrication

For scenic fabricators, structural calculations are rarely treated as an isolated engineering exercise. They form part of a wider process that combines creative development, material knowledge, fabrication methodology, logistics planning and operational experience.

A calculation may confirm that a steel frame is strong enough, but the fabrication team must still determine whether it can be manufactured efficiently, transported within the available vehicle limits and assembled safely within the installation programme.

Similarly, a theoretically sound connection may need to be adjusted because it is inaccessible once the scenic finish is installed. A support system may require modification because the venue does not permit floor fixings, or because the structure must be dismantled and reused.

The strongest engineering solutions are therefore developed through collaboration. Structural performance, fabrication practicality and visual quality must be considered together.

Protecting Public Safety Without Restricting Creativity

Public safety is the central purpose behind structural calculations, but safety and creativity should not be viewed as opposing forces. Good engineering does not simply remove risk by making every structure heavier or more conservative. It identifies where the real risks are, then develops focused solutions that allow the creative concept to be delivered responsibly.

This may involve refining proportions, redistributing weight, improving the load path, introducing concealed bracing or selecting a more appropriate material. In some cases, a small adjustment made during technical development can prevent a much larger compromise later in the project.

At Evolution Scenic, structural calculations are understood as part of the creative realisation process. They provide the technical confidence required to fabricate ambitious stages, exhibition pavilions, parade floats and large-scale scenic structures safely.

The calculations may remain hidden once the installation is complete, but their influence can be seen in every element that fits together correctly, travels safely, installs efficiently and performs as intended.

Engineering A Moving Parade Float

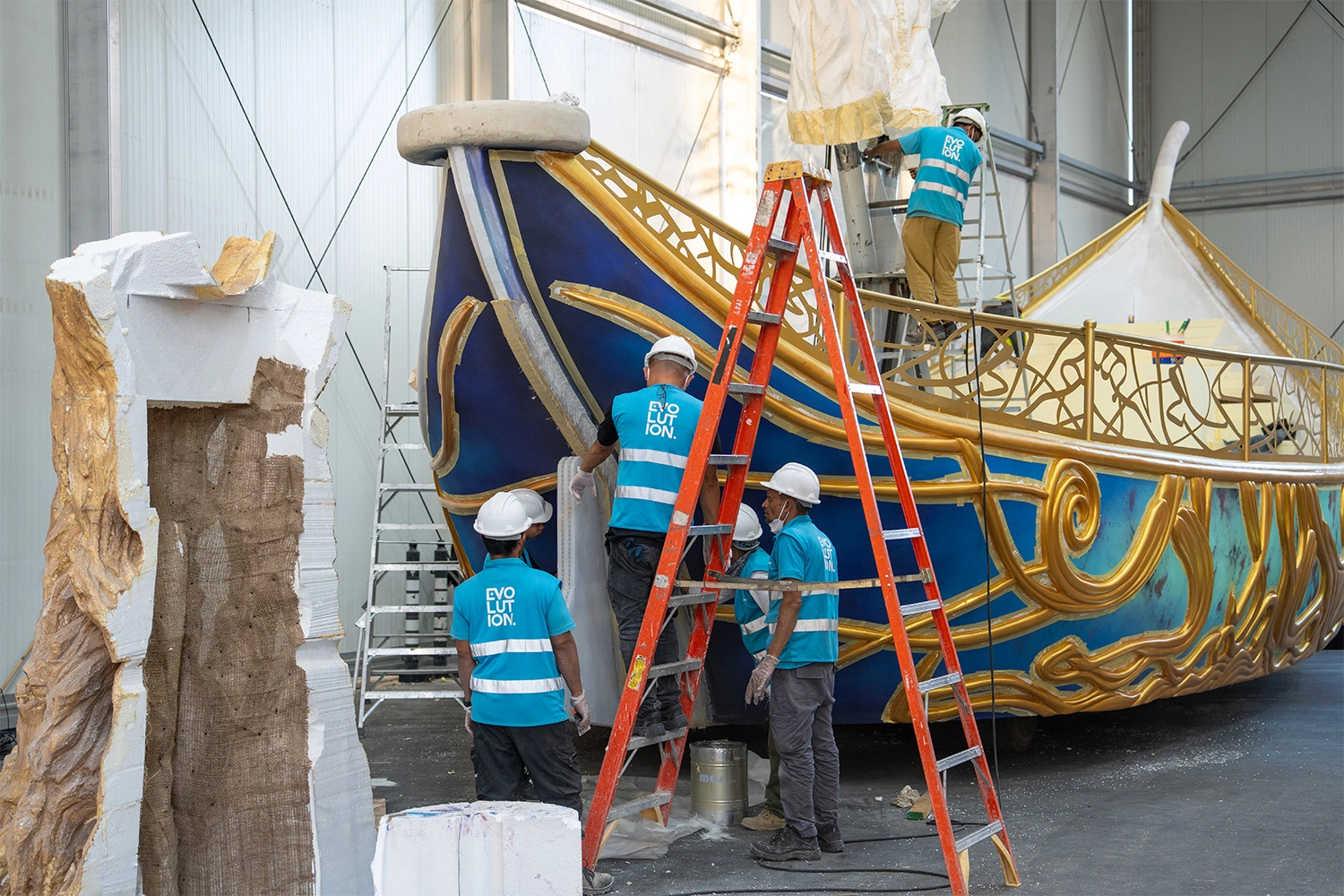

At first glance, a parade float can appear relatively straightforward. A decorative structure is mounted onto a vehicle, driven along a route, and viewed by spectators before being dismantled at the end of the event. In reality, moving scenic structures present some of the most demanding engineering challenges encountered within scenic fabrication.

Unlike a static scenic structure, a parade float must withstand forces that change continuously throughout operation. Braking, acceleration, cornering, vibration, road conditions, and wind load all influence structural performance. Every engineering decision must consider not only how the structure looks, but how it behaves while moving.

That distinction is critical. A scenic feature that performs perfectly when stationary may react very differently once it is travelling over uneven ground, negotiating a bend or stopping under load. Tall elements can sway. Unsupported finishes can vibrate. Bolted interfaces can loosen. Lightweight cladding can become vulnerable to wind pressure. Mechanical components can move beyond their intended tolerances.

For this reason, a parade float cannot simply be treated as a decorative object placed onto a vehicle. It must be designed as an integrated mobile structure in which the vehicle, structural frame, scenic envelope, mechanical systems and operational requirements work together.

Vehicle Integration Comes First

The starting point for most parade float projects is understanding the vehicle platform.

Dimensions, weight limitations, axle capacities, suspension behaviour, wheelbase, turning circle and access requirements influence almost every aspect of the design. The available vehicle may be a truck, trailer, low-loader, electric platform or purpose-built chassis, but in every case the scenic structure must respond to the platform beneath it.

A creative concept that appears achievable on paper may require significant modification once vehicle restrictions and operational realities are taken into account. A structure may need to be reduced in height to pass beneath bridges or overhead services. The footprint may need to change to maintain clearances around steering components. Additional space may be required for the driver, operators, generators, batteries, hydraulic systems or emergency access.

The connection between the scenic structure and the vehicle is also fundamental. The float cannot rely on improvised fixings or surface-level attachments. Loads must be transferred safely into suitable points on the chassis or subframe, while avoiding damage to vehicle components and preserving access for inspection.

In some cases, a fabricated steel subframe is installed above the vehicle bed to create a controlled interface between the vehicle and the scenic build. This allows the structural team to establish known connection points, distribute loads and create a consistent base for modular scenic components.

The subframe may also support access decks, balustrades, service routes, equipment housings and fixing plates. By resolving these practical requirements early, the scenic design can develop around a reliable engineering framework rather than attempting to accommodate essential systems at the end of fabrication.

Calculating For Movement

Structural calculations for a mobile scenic structure must account for more than self-weight.

Dead loads include the structure itself, scenic finishes, mechanical equipment, lighting, power systems and any fixed operational components. Live loads may include technicians, operators, maintenance personnel or moving scenic parts. Dynamic loads are introduced by the vehicle's motion and can vary significantly with speed, road conditions, and route geometry.

Braking creates longitudinal forces. Cornering produces lateral forces. Uneven surfaces generate vertical movement and vibration. Wind can act from different directions as the float changes orientation along the route. These forces may occur individually or in combination.

A conservative engineering approach is therefore essential. Connections, welds, bolted joints and support members must be designed for the loads they are expected to experience, with appropriate allowances for uncertainty and repeated movement.

The scenic structure must also be stiff enough to control deformation. Excessive flexibility can damage finishes, open joints, disturb graphics and place stress on cladding or decorative elements. However, over-engineering every component in heavy steel can create its own problems by increasing overall weight.

The challenge is to place strength where it is required, reduce unnecessary mass and ensure that the load path remains clear. Primary steelwork may carry the main structural forces, while lighter secondary framing supports the scenic envelope. Bracing can be integrated into concealed areas, and removable sections can be designed around defined structural interfaces.

This is where scenic engineering differs from conventional structural work. The final form may be irregular, sculptural or intentionally deceptive. Structural members must often be hidden within curved profiles, oversized props or layered scenic finishes. The engineering solution must support the creative geometry without compromising inspection, access or assembly.

Centre Of Gravity And Stability

Weight distribution is one of the most important considerations in parade float design.

Large scenic elements positioned high above the vehicle can raise the centre of gravity and affect stability. A float may appear balanced when stationary but behave differently during turning, braking or travel across a sloped surface. The higher the mass is positioned, the greater its influence on the vehicle’s response. Engineers and fabrication teams must therefore understand not only the total weight, but where that weight is located.

Heavy components should generally be positioned as low as practical. Generators, ballast, mechanical equipment and structural steelwork can often be arranged close to the vehicle platform, while upper sections are fabricated from lighter materials. Tall scenic forms may use aluminium framing, lightweight timber construction, sculpted foam or composite skins to reduce mass at height. The location of weight relative to the axles is equally important. Excessive loading at the front or rear can affect steering, braking and suspension performance. Uneven side-to-side loading can cause the vehicle to sit incorrectly and increase the risk of instability.

For complex floats, the fabrication team may prepare a detailed weight schedule showing the estimated mass of each structural and scenic component. This can be reviewed against axle limitations and updated as fabrication progresses. Actual component weights should be recorded where possible. Material thicknesses, steel section sizes, equipment weights and scenic build-ups can all change during development. A disciplined weight-control process prevents small additions from accumulating into a significant operational problem.

Weight control is not simply an engineering exercise. It influences every department. Scenic carpentry, metal fabrication, CNC production, finishes, graphics, lighting, and mechanical design must all understand the agreed weight strategy.

Selecting The Right Materials

Material selection plays a significant role in balancing strength, weight, durability, cost and fabrication time.

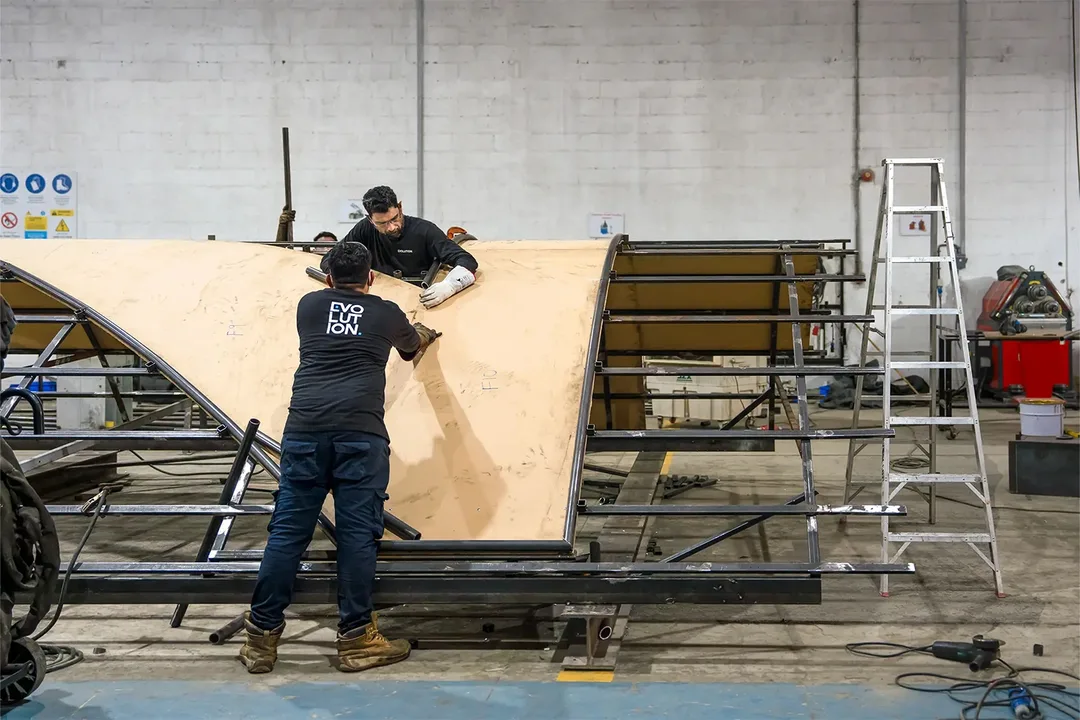

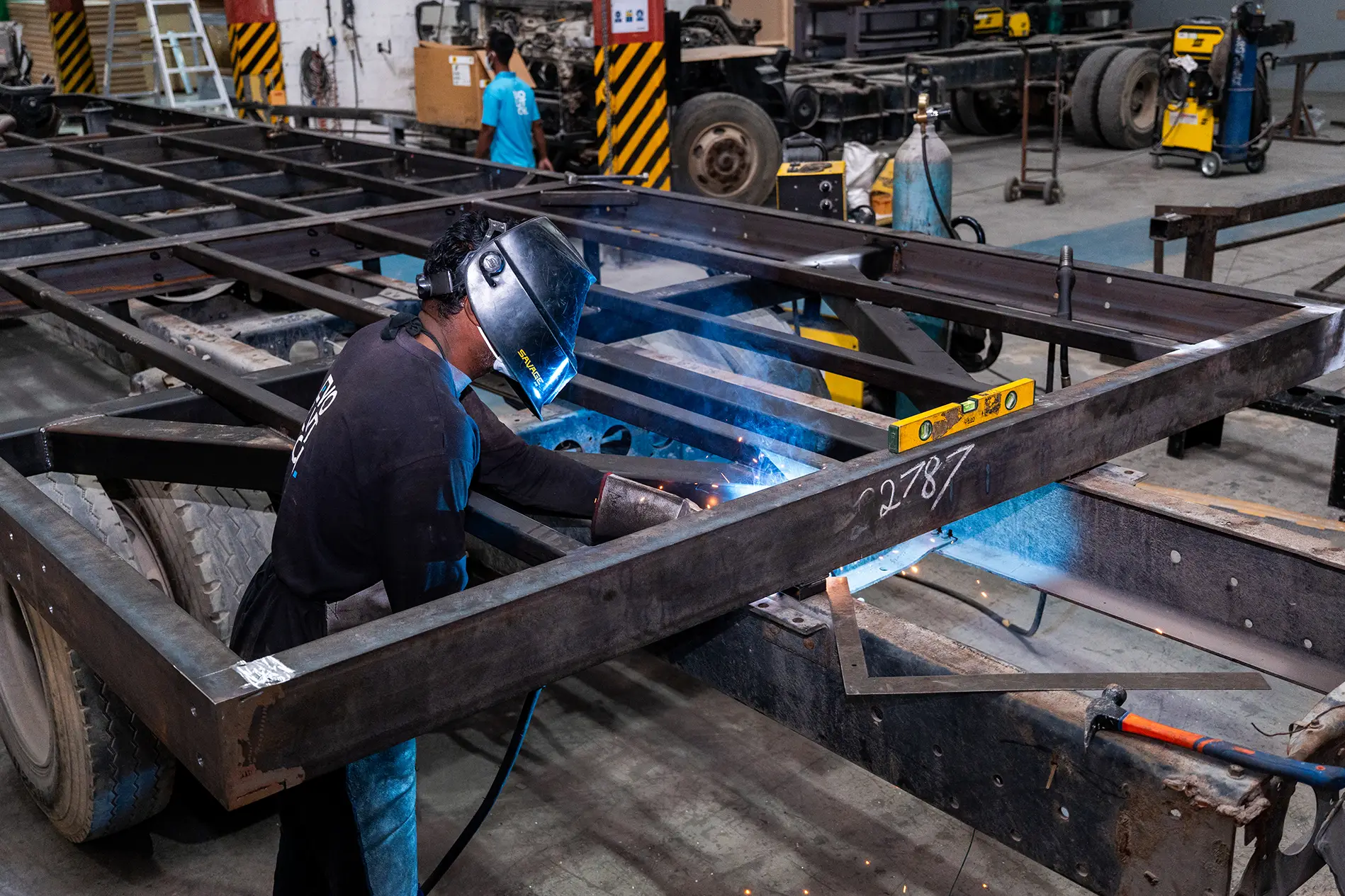

Structural steel is frequently used for primary framing because it is strong, familiar to fabrication teams and well suited to welded construction. It can provide robust connection points and predictable structural behavior. Its disadvantage is weight, particularly when used in upper sections or in areas where lighter materials would perform adequately.

Aluminium can reduce overall mass and is useful for secondary frames, tall features and removable modules. However, aluminium requires suitable welding expertise, careful detailing and an understanding of how it behaves under repeated loading. Material cost and workshop capability must also be considered.

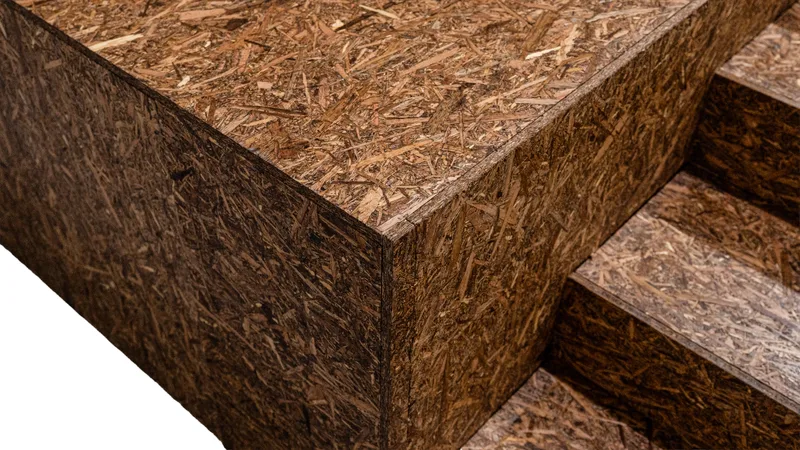

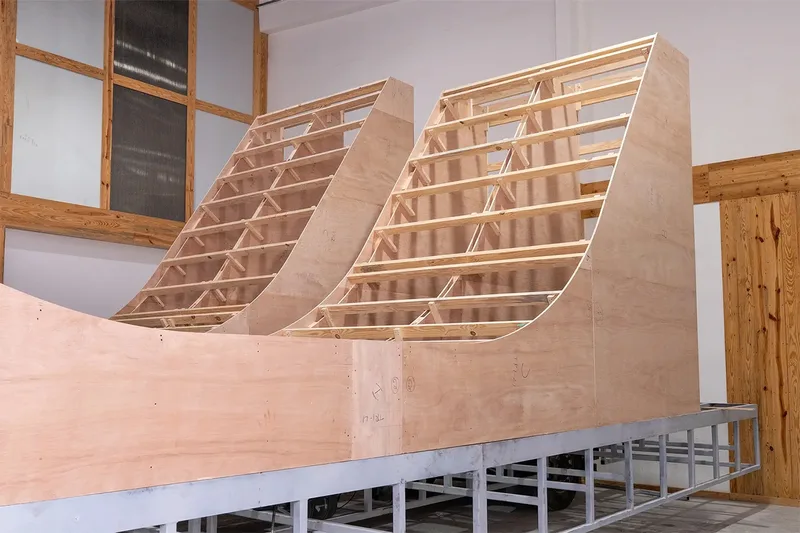

Timber and sheet materials remain important within scenic construction. Plywood, MDF and timber framing can be used for faceted forms, curved profiles, internal decks and detailed scenic carpentry. Their use must be appropriate to the load, exposure and expected movement. Unsupported sheet materials can flex or crack, while poorly sealed edges may be vulnerable to moisture during outdoor operation.

CNC machining allows components to be produced accurately from plywood, foam, plastics and composite boards. This is particularly valuable where complex curves, repeated profiles or precise assembly slots are required. Digitally manufactured parts can help control tolerances and reduce weight by placing material only where it is needed.

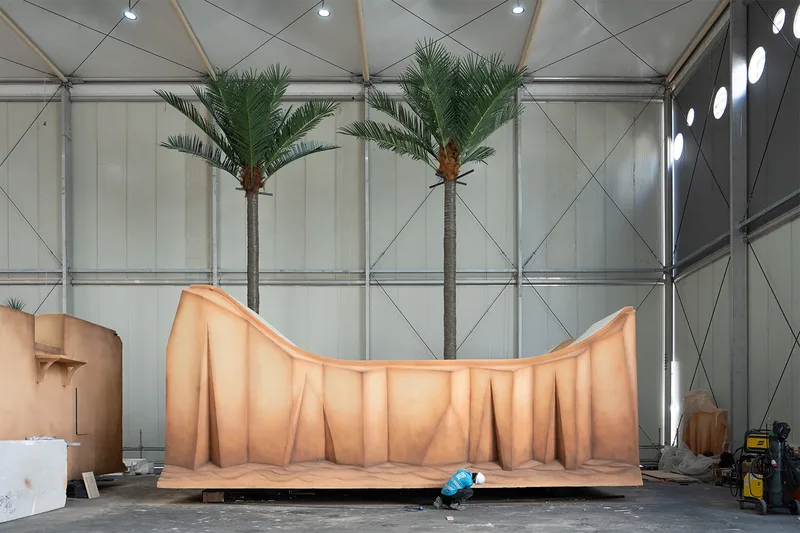

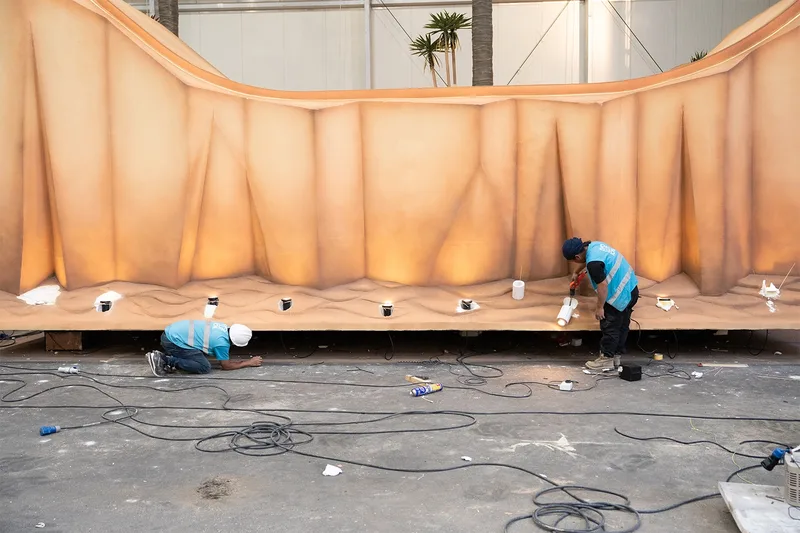

Foam-carved scenic elements are often used for oversized decorative forms because they provide volume without excessive mass. These elements may be coated with hard finishes, reinforced with internal frames or protected with durable scenic skins depending on their location.

Composite materials can also be useful where low weight and complex geometry are required. Glass-reinforced plastics, laminated skins and specialist coatings allow sculptural forms to be produced with relatively thin sections. Their fixing methodology, fire performance, impact resistance and repair process must all be considered.

Scenic finishes must be selected with movement in mind. A finish that looks convincing in the workshop must remain stable during transport and operation. Flexible coatings may perform better on surfaces subject to vibration, while brittle build-ups can crack at joints or around connection points.

Paint systems, applied graphics, laminates and decorative textures must also account for weather exposure, cleaning, handling and maintenance. Outdoor floats may experience dust, heat, humidity, wind and sudden changes in temperature. The finish specification should reflect the operational environment rather than purely the visual reference.

Designing For Fabrication And Assembly

Fabrication methodology is equally important.

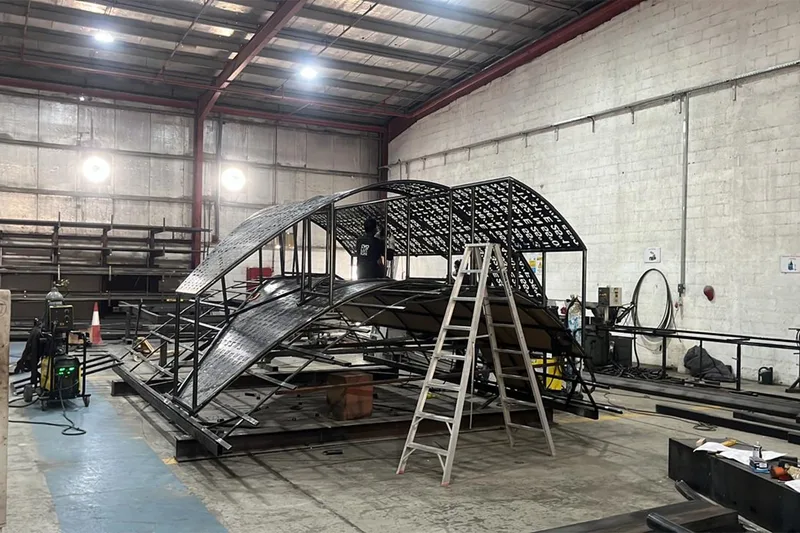

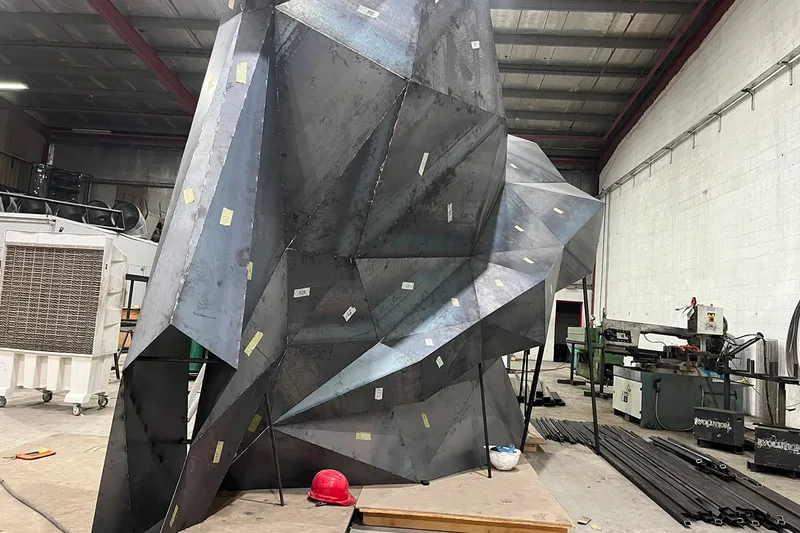

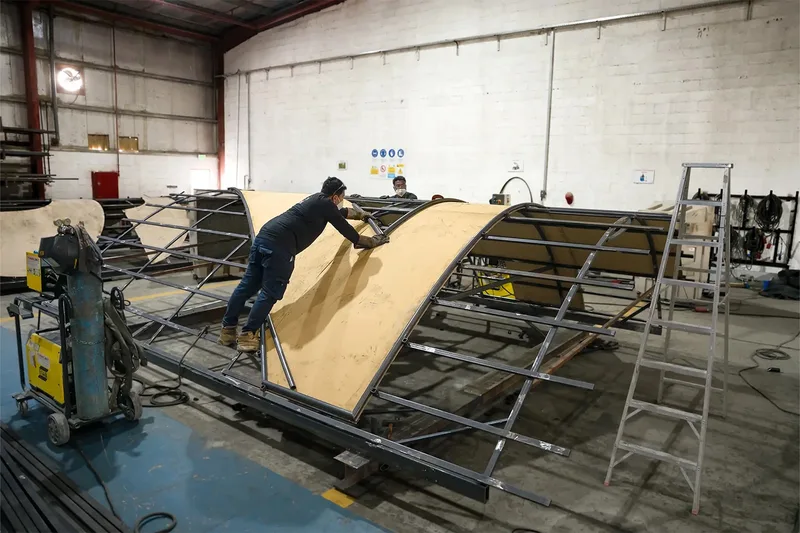

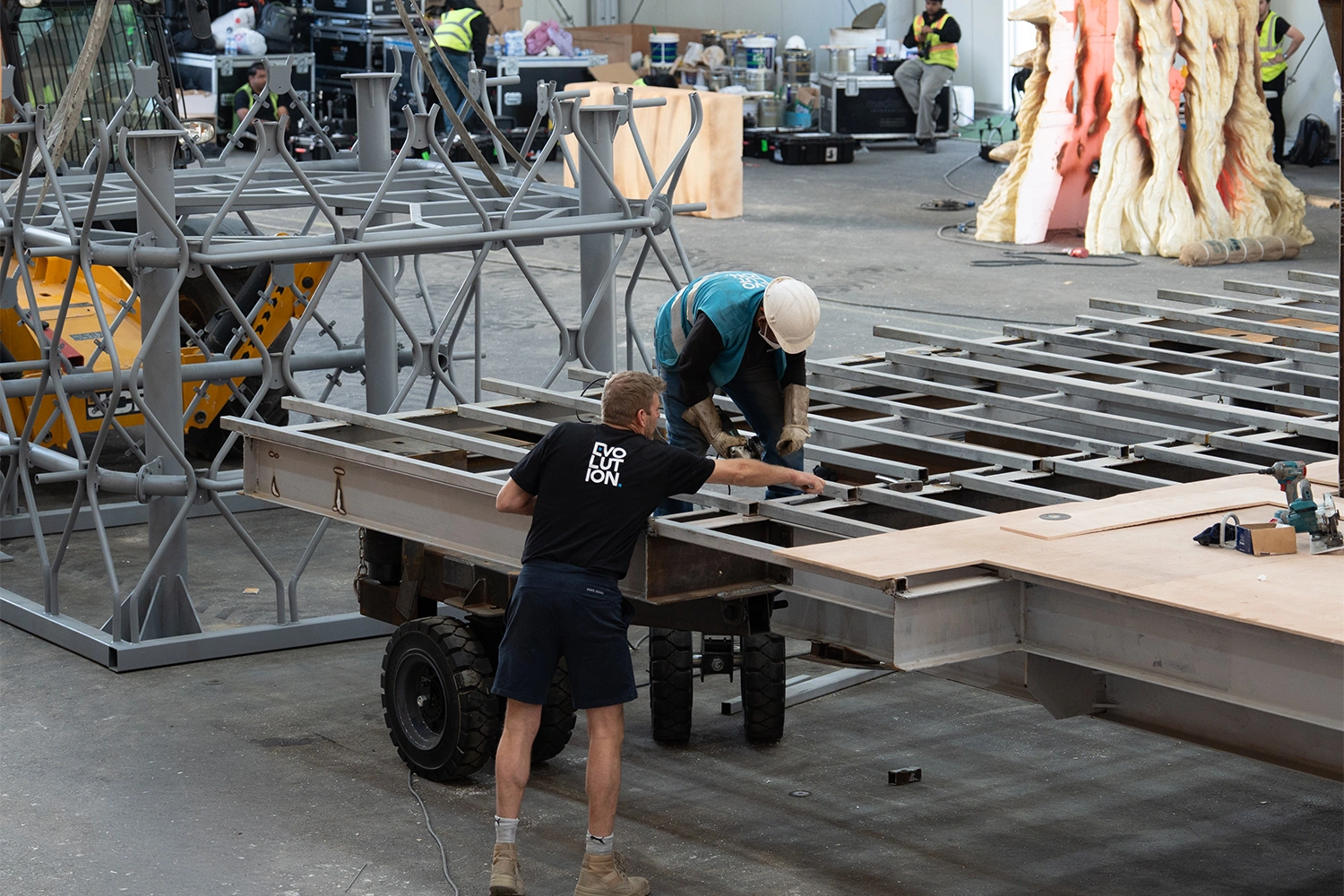

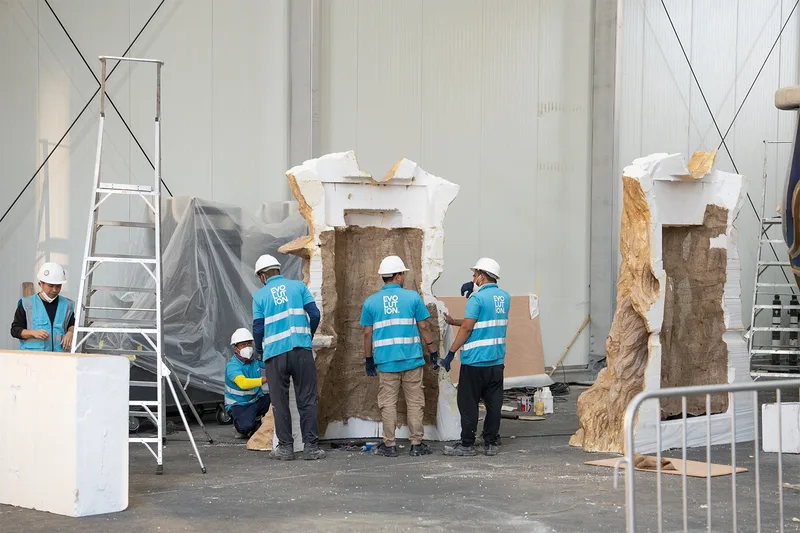

Large parade floats are rarely transported as complete structures. Components are often manufactured in sections, assembled within the workshop for testing, and then broken down again for transportation to site.

This approach allows engineers and fabricators to verify structural performance before installation while reducing transport challenges. It also creates an opportunity to identify clashes, access problems and sequence issues before the float reaches the event location.

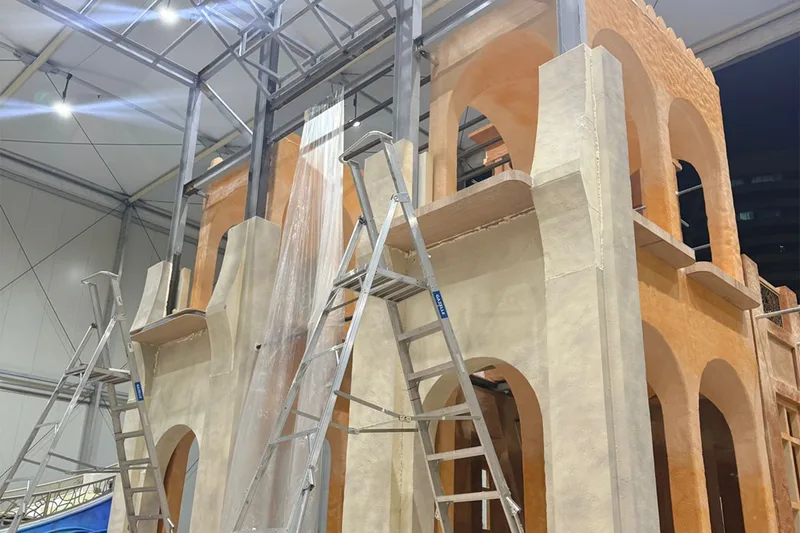

Modularisation must be planned rather than added later. Every module requires defined lifting points, connection details, tolerances and an assembly sequence. Scenic joints should be positioned where they can be concealed or finished efficiently. Structural connections must remain accessible for tightening and inspection.

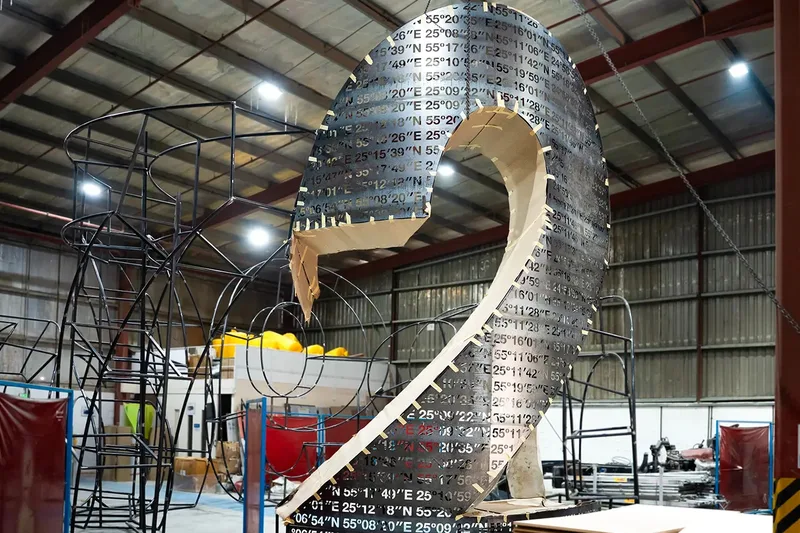

The size of each module is typically determined by transport limitations, workshop access, lifting equipment and site conditions. A large curved feature may need to be divided into several sections to pass through a workshop door or fit onto a flatbed trailer. The joints must then be designed so that the assembled form reads as a single continuous structure.

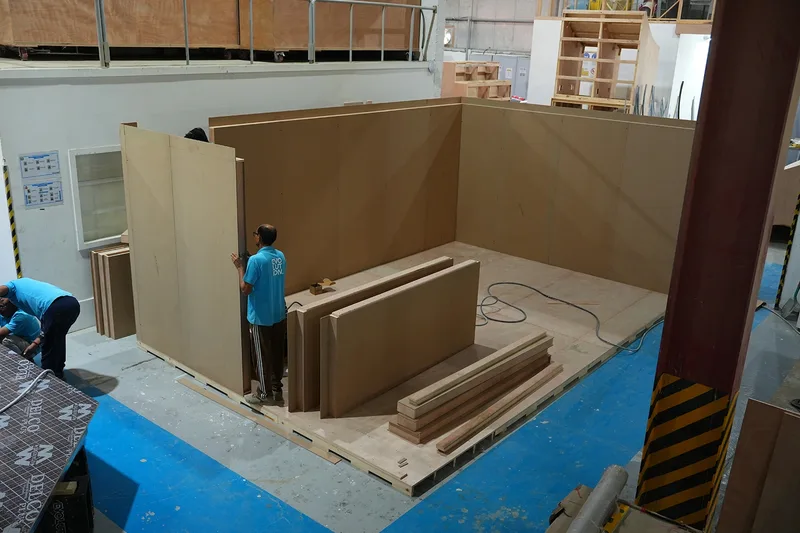

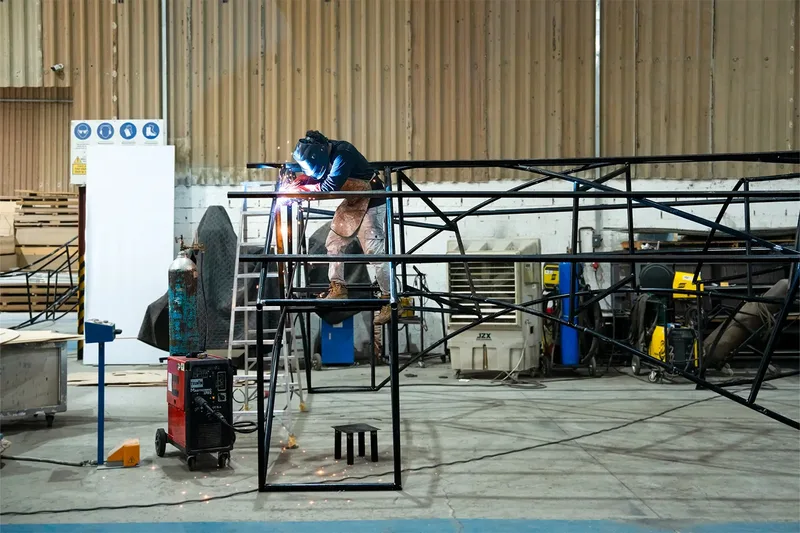

Repeatable fixing systems are valuable. Bolted plates, locating pins, cleats and indexed connection points can help modules align quickly and accurately. Where a structure will be assembled more than once, the interfaces must be durable enough to withstand repeated handling.

The build methodology should also consider the order in which disciplines work. Structural steelwork may be completed first, followed by secondary framing, scenic carpentry, sculptural components, mechanical systems, electrical containment, finishes and graphics.

However, a strictly linear sequence is not always possible. Some internal systems must be installed before the scenic skin closes. Access panels may be required for future maintenance. Certain finishes may need to be completed before neighbouring components are fitted.

Experienced scenic teams review these dependencies early, using drawings, three-dimensional models, prototypes and workshop trials to reduce rework.

Workshop Testing And Quality Control

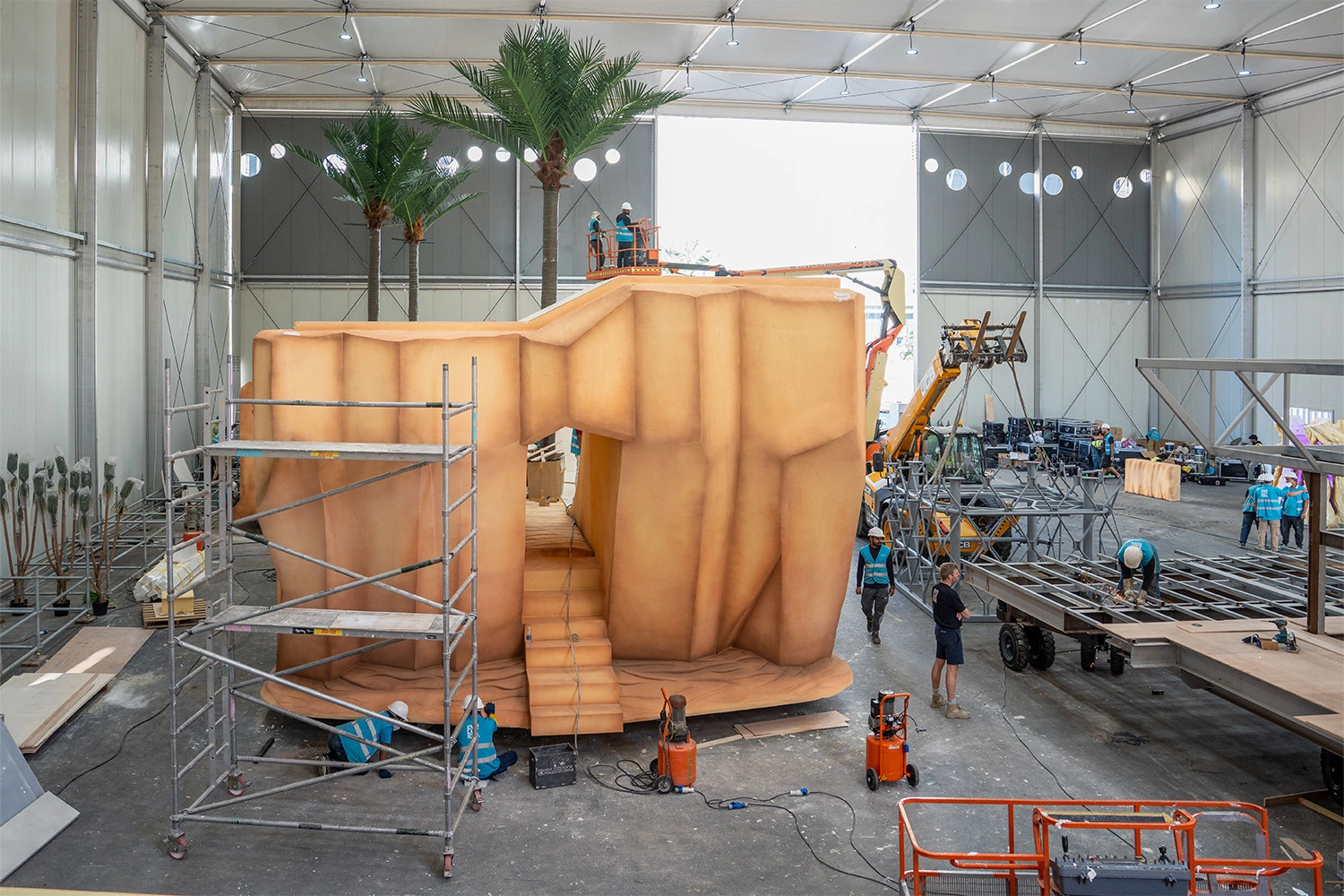

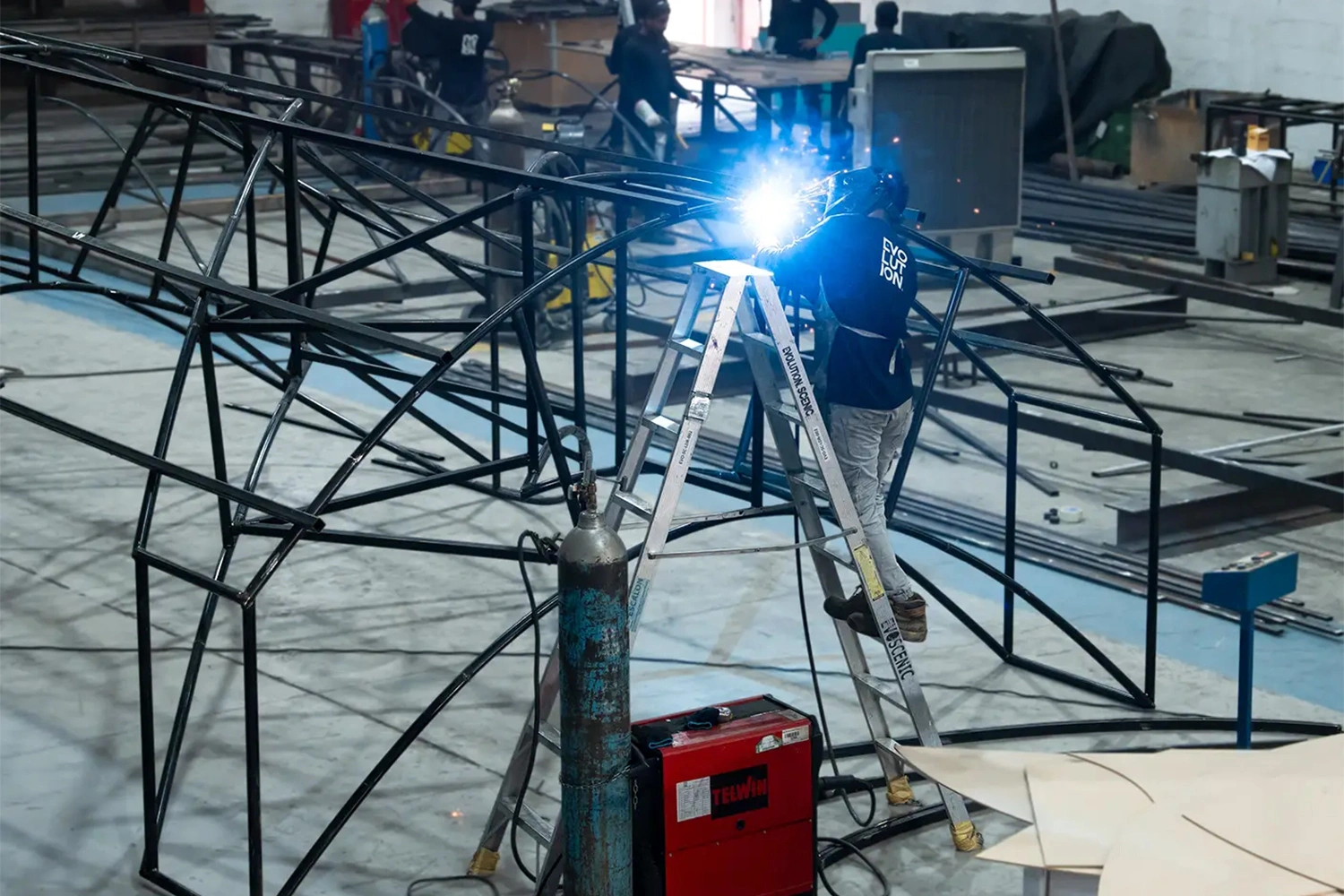

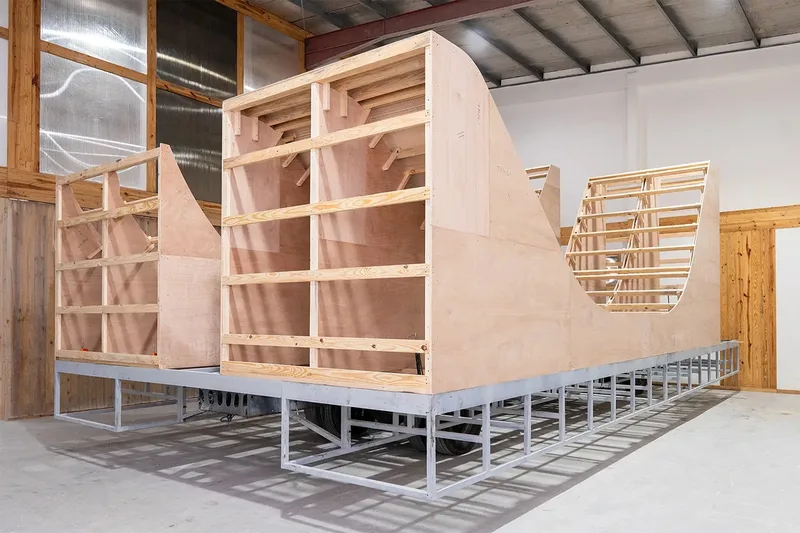

A full workshop assembly is one of the most valuable stages in parade float fabrication.

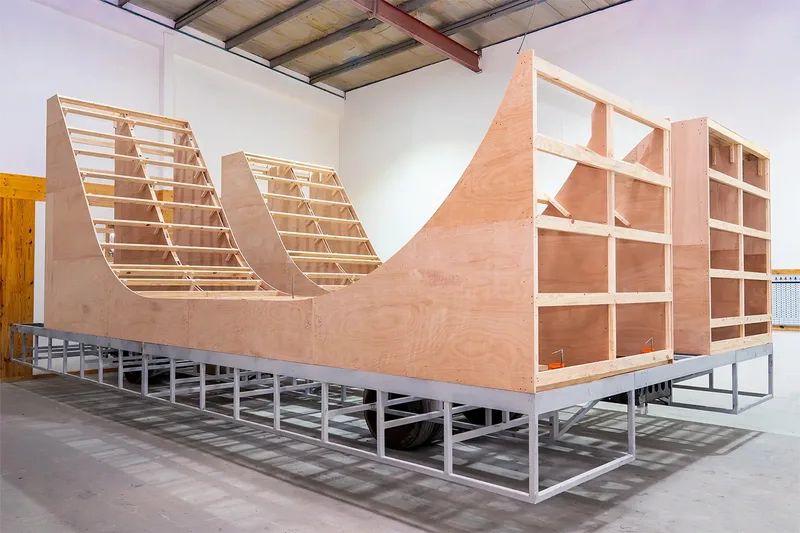

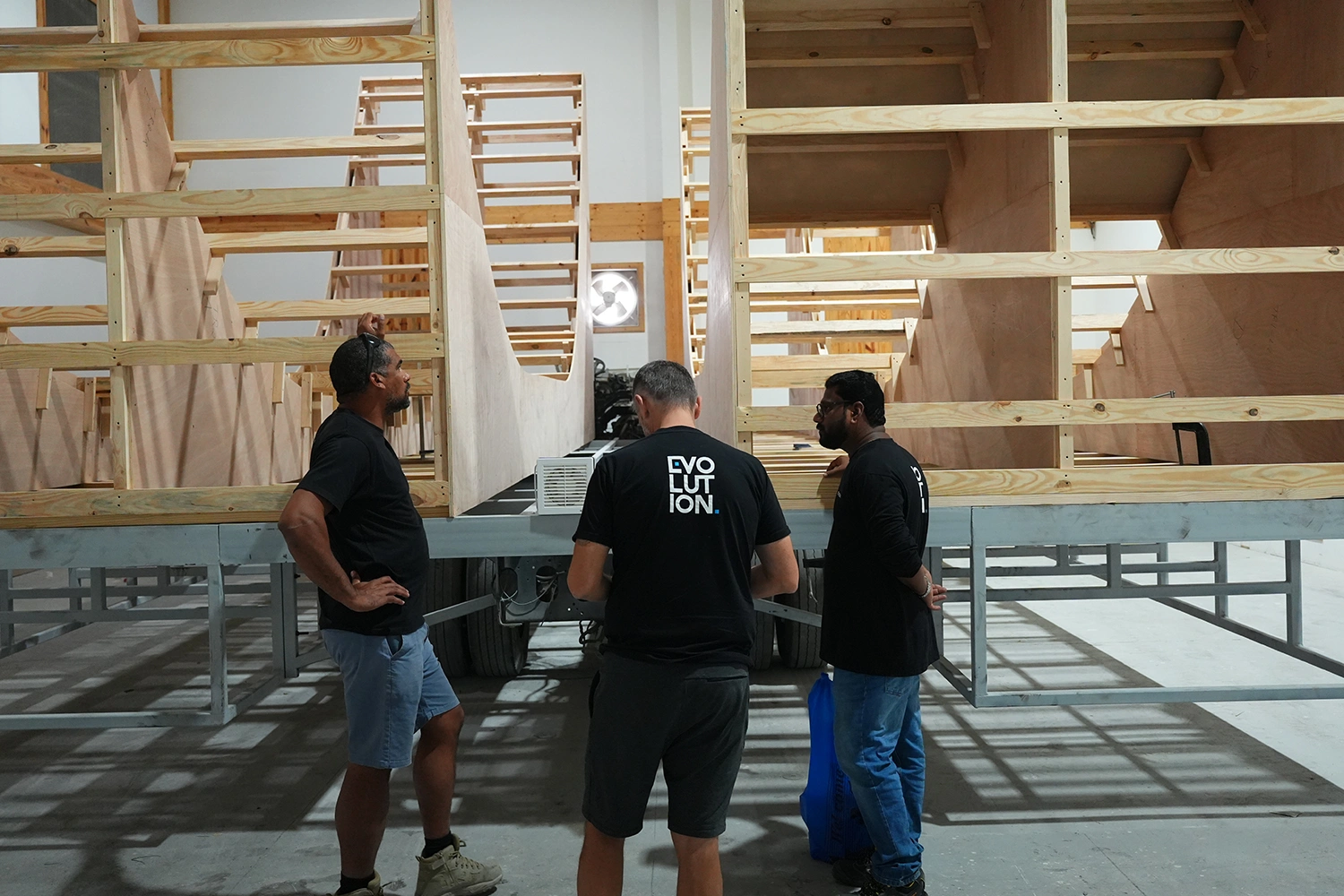

It allows the team to confirm that the structural frame aligns correctly, the scenic modules fit, the vehicle remains within agreed dimensions and maintenance areas remain accessible.

Where practical, the float should also undergo controlled movement testing. This may include low-speed driving, turning, braking and observation of tall or projecting elements. The objective is to identify unexpected vibration, deflection, noise or movement before the float enters a live route.

Connections should be checked after testing. Bolts may require re-tightening, locking methods may need to be improved and flexible elements may need additional restraint.

Mechanical components should be operated repeatedly under realistic conditions. Moving features, rotating elements, lifts, doors or articulated parts must perform safely while the vehicle is stationary and, where intended, in motion. Emergency stops, manual overrides and isolation points should be tested and clearly identified.

Workshop testing should include the scenic finish as well as the structure. Cracking around joints, movement in cladding, loose graphics and rubbing between components often become visible only after handling or operation.

Quality-control records help ensure that nothing is overlooked. Weld inspections, material certificates, bolt checks, electrical testing, load verification and photographic records can all form part of the handover package.

Route Constraints Shape The Build

A parade route is not simply a line on a map. It is a physical environment with restrictions that can directly influence the float design.

Overall height must be checked against bridges, gantries, overhead cables, signage and temporary installations. Width must account for road furniture, barriers, kerbs and narrow turning points. Ground clearance can become critical on ramps, speed humps and changes in road level.

Turning analysis is particularly important for long vehicles and trailers. A route that appears wide enough may still create problems at junctions because of rear overhang, swept path or the position of projecting scenic elements.

Road camber and surface condition should also be considered. A tall float travelling across a sloped section may lean noticeably, increasing the effect of its centre of gravity. Loose surfaces, drainage channels and uneven paving can introduce vibration and sudden vertical movement.

Wind conditions can vary along the route, particularly between buildings or in open areas. Large scenic surfaces can behave like sails, even where the materials themselves are lightweight.

Perforation, open framing, reduced surface area or controlled gaps may be used to reduce wind pressure.

Where height restrictions are unavoidable, fold-down or telescopic components may be considered. These mechanisms must be engineered carefully, with secure locking positions and clear operating procedures. A moving section should never rely solely on an actuator or motor to remain safe; positive mechanical locking is usually required.

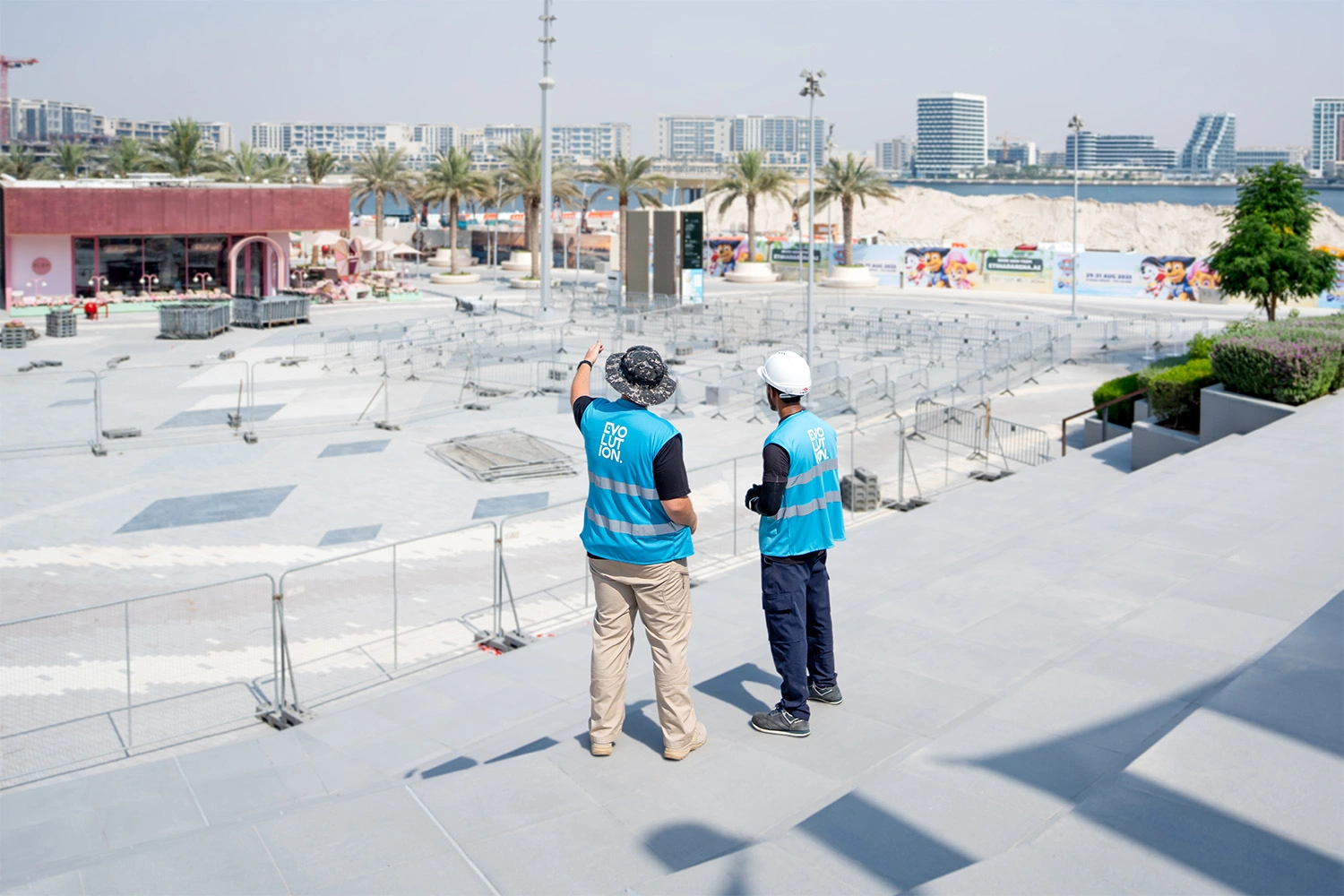

Route surveys should be completed early enough to influence the design. Discovering a height restriction or impossible turning point after fabrication can result in extensive redesign.

Logistics And Transport Planning

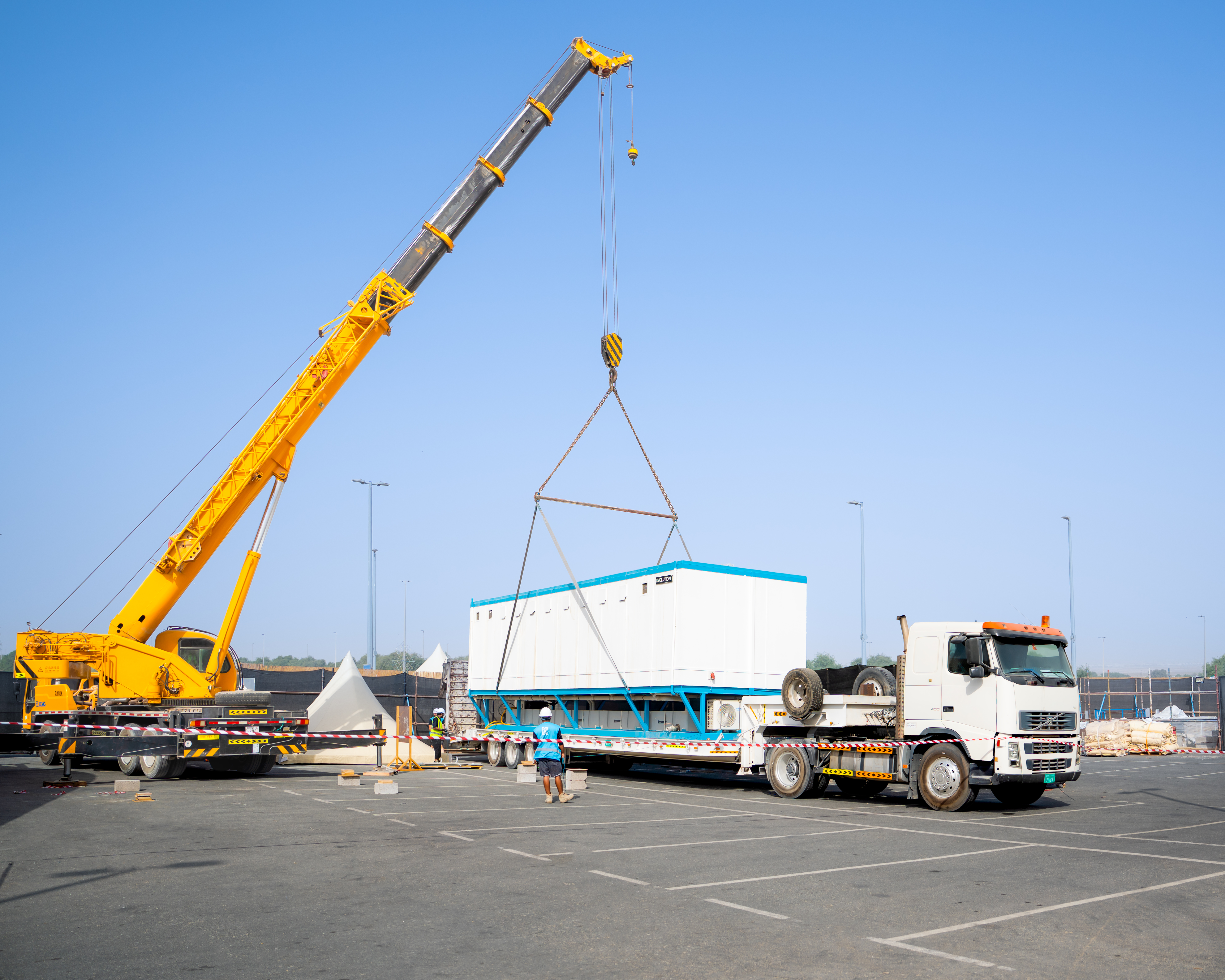

Transport is part of the engineering process, not a separate activity. A float may need to travel from the fabrication workshop to a holding area, rehearsal location, and final route. Scenic modules may be carried on separate vehicles and assembled close to site. Each movement introduces handling, lifting and protection requirements.

Transport frames can protect delicate scenic components and provide safe forklift or crane access. Large sculptural pieces may need custom cradles to prevent distortion. Finished surfaces should be protected without trapping moisture or placing pressure on detailed areas.

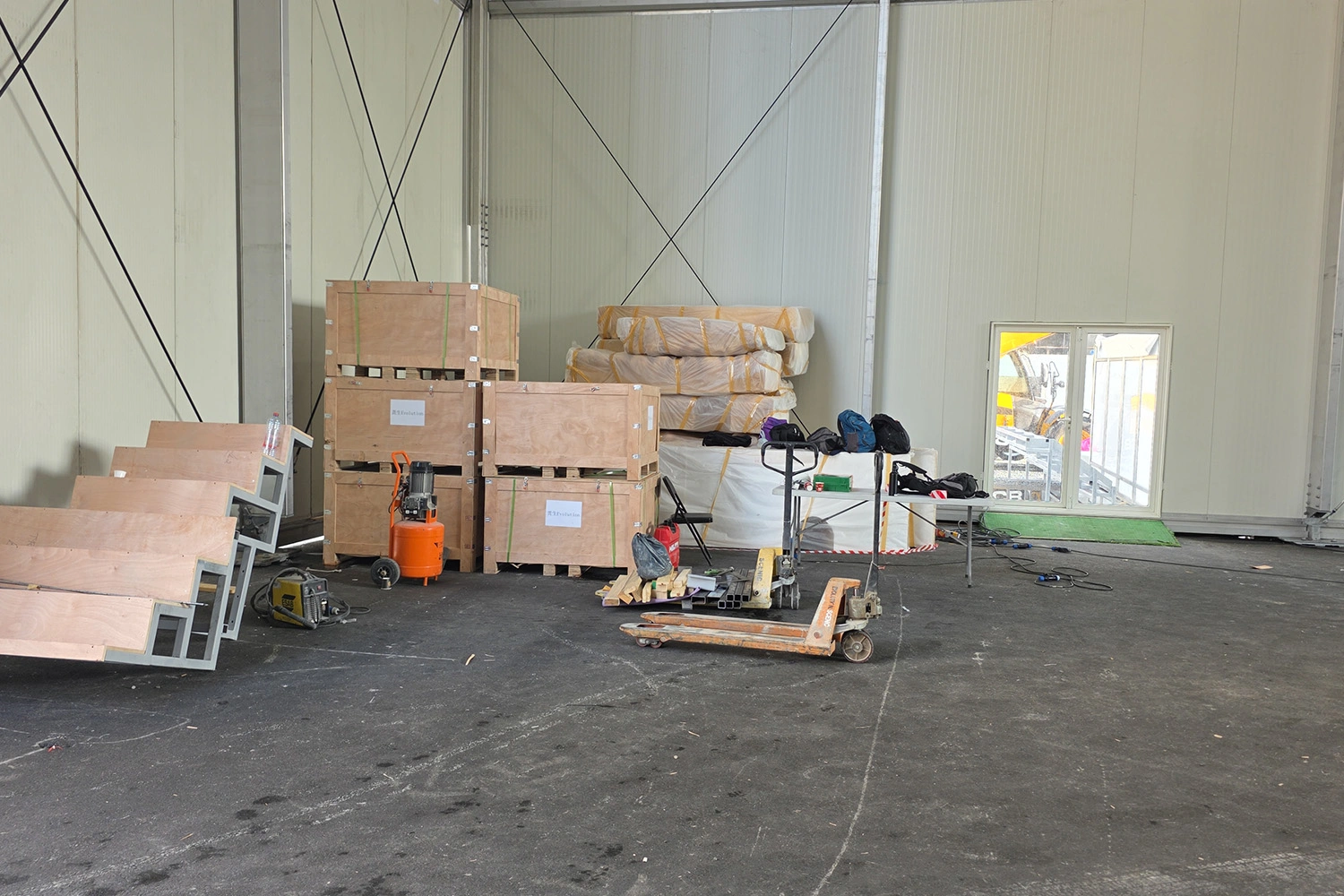

Loading order matters. Components required first on site should remain accessible. Lifting accessories, fixings, tools and spare materials should travel with the relevant module rather than being treated as general workshop equipment.

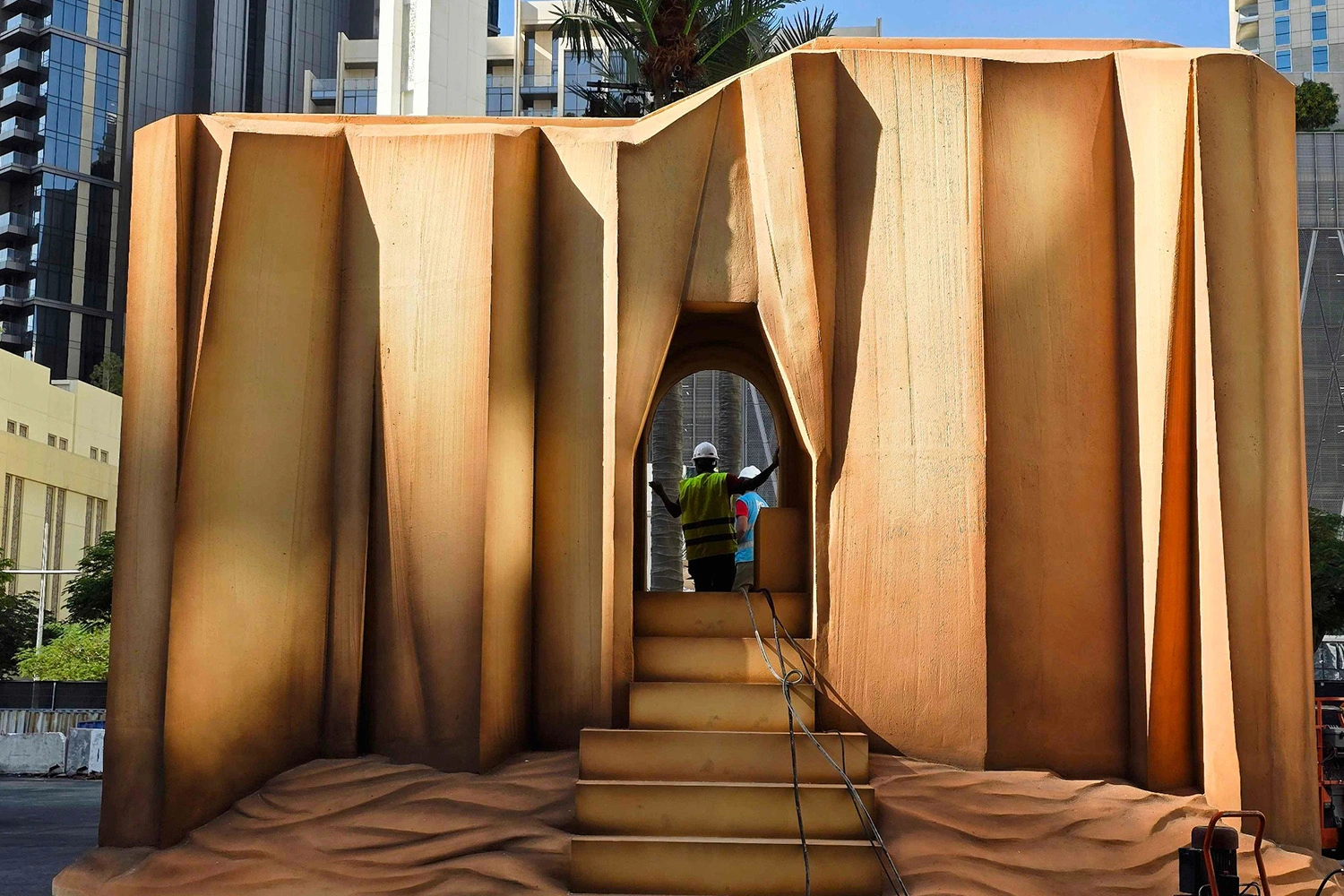

Site assembly may take place under restricted timeframes, at night or within controlled road closures. The methodology must therefore be efficient and predictable. Detailed installation drawings, labelled components and clear connection systems reduce risk during assembly.

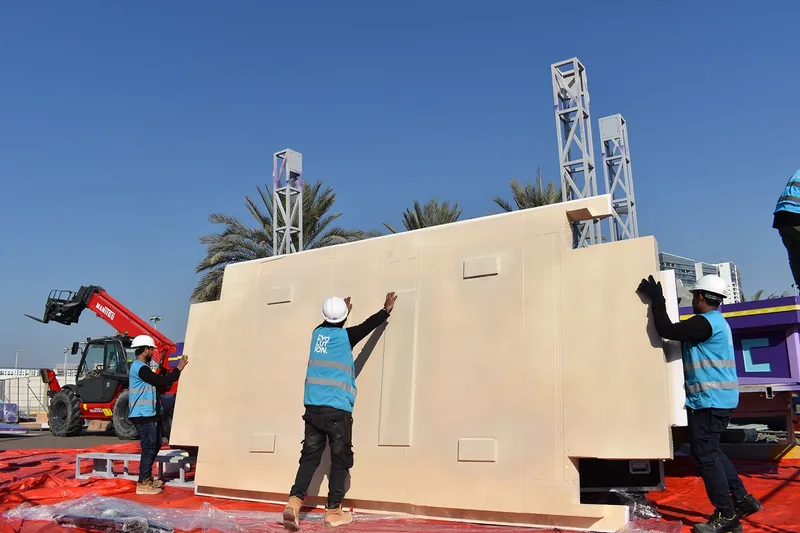

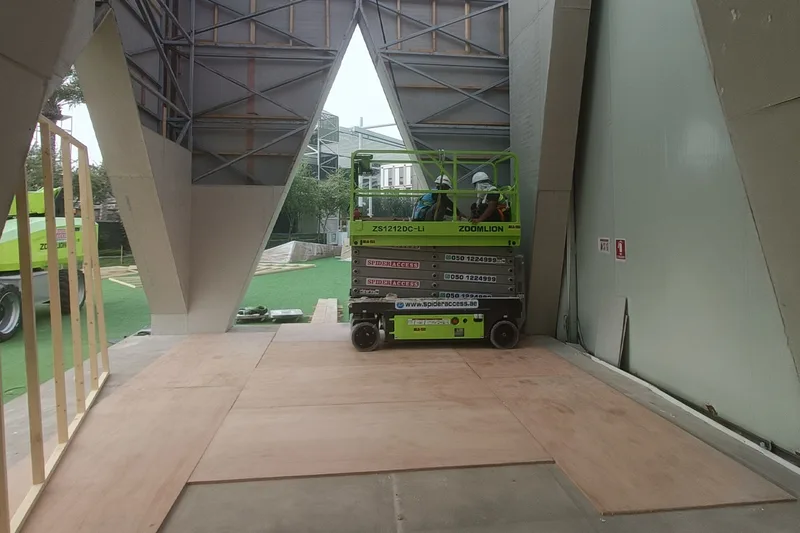

The team should also plan for dismantling. Temporary structures must be removed safely and efficiently after operation. Fixings should remain accessible, modules should be capable of being separated without damage and transport packaging should be available for the return journey.

Where floats are intended for reuse, the dismantling process becomes even more important. Components may require storage, repair, repainting or adaptation for future projects. Durable modular construction can significantly extend the useful life of the scenic build.

Operational Access And Maintenance

Operational considerations continue long after fabrication is complete. Access for maintenance, emergency procedures, driver visibility, operator movement and route-specific constraints all influence final construction decisions.

The driver must maintain adequate sightlines, either directly or through approved camera systems. Ventilation around engines, generators and electrical equipment must not be blocked by scenic cladding. Heat-producing equipment should be separated from combustible materials and provided with suitable access.

Technicians may need to reach mechanical or electrical systems quickly during rehearsals or operation. Removable panels, inspection hatches and clearly marked isolation points can make the difference between a minor adjustment and a major delay.

Internal access routes should be wide enough to use safely and free from sharp edges, exposed fixings or unprotected moving parts. Where personnel stand or work on the float, suitable decks, guardrails, handholds and non-slip surfaces may be required.

Maintenance tasks should be anticipated during design. Lamps may fail, graphics may lift, mechanisms may require adjustment and scenic finishes may be damaged during transport. Providing access and keeping spare materials available allows the team to carry out repairs without dismantling major areas of the float.

Public Safety Requirements

Parade floats operate in public spaces, often close to barriers, other vehicles and temporary infrastructure. The scenic construction must therefore be developed with a strong understanding of public safety.

Projecting components should be reviewed carefully. Sharp edges, low-level protrusions and fragile decorative details can create avoidable hazards. External parts must be securely fixed and capable of resisting vibration throughout the route.

Fire performance is also important. Material specifications, coatings, fabrics, foams and electrical systems may need to meet project-specific requirements. The presence of generators, batteries, fuel systems or heat-producing equipment must be considered within the overall risk assessment.

Emergency procedures should be practical. The vehicle must be able to stop safely. Moving features should have reliable emergency stops and safe states. Operators should understand how to isolate systems, access critical equipment and respond to faults.

A well-engineered float does not depend on perfect conditions. It is designed with sensible margins, redundancy where appropriate and clear procedures for foreseeable problems.

Solving Problems Before They Reach The Route

Successful parade float engineering is largely about resolving conflicts early.

The creative design may demand height, scale and movement. The vehicle imposes limits on weight, access and stability. The route introduces clearances and turning constraints. The scenic finish requires continuity and visual quality. Logistics demand modular construction. Operations require access and reliability.

These requirements cannot be addressed independently.

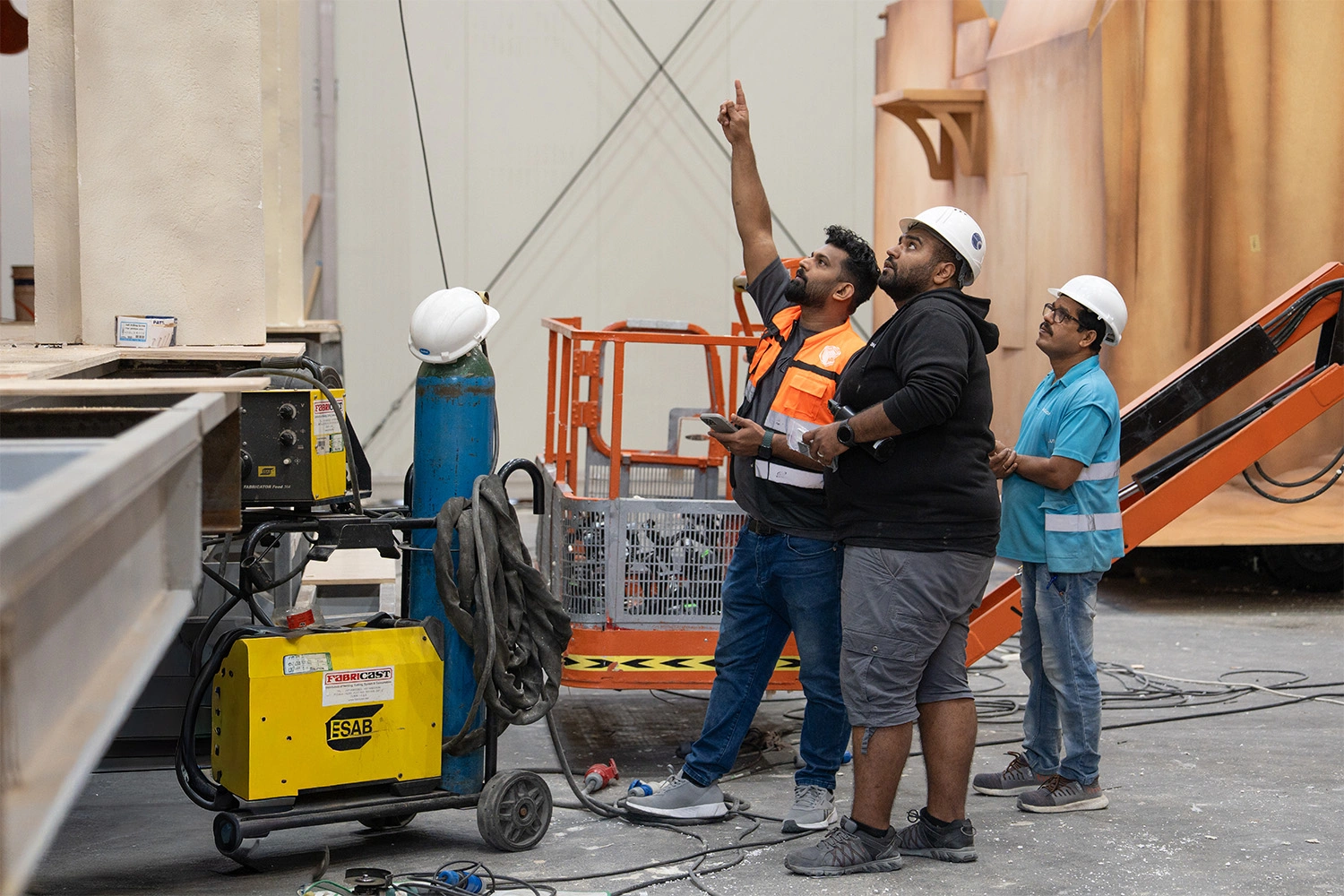

The most effective projects bring structural engineers, scenic fabricators, metalworkers, carpenters, CNC teams, scenic artists, mechanical specialists and logistics coordinators into the process from the beginning.

Early collaboration allows the team to identify where a curved scenic feature can conceal structural bracing, where a lightweight material can replace heavy construction, where a module joint can align with a graphic break and where maintenance access can be integrated without affecting the appearance.

Large public celebration projects, including national parades and ceremonial processions, frequently require this level of coordination. Multiple floats may need to follow a common technical framework while maintaining different scenic forms. Standardised vehicle interfaces, shared engineering principles and consistent installation methods can improve reliability across the full production.

The visible result may appear effortless, but that impression is supported by extensive engineering, fabrication planning and testing.

Engineering Ambition Into A Reliable Structure

The most successful parade floats are not created by separating design, engineering, fabrication and operation into isolated stages. They are developed as complete mobile systems.

Movement, transport, installation, maintenance and dismantling must be considered alongside proportion, form, colour and finish. Vehicle limitations must inform the design before fabrication begins. Structural calculations must reflect dynamic forces. Material selection must balance weight and durability. Workshop testing must verify both performance and assembly.

When these requirements are resolved together, ambitious scenic concepts can be transformed into safe, reliable and visually impressive mobile structures.

That is the central challenge of engineering a moving parade float: creating something that appears imaginative and expressive while behaving predictably under real operating conditions.

For Evolution Scenic, this means combining scenic engineering, metal fabrication, scenic carpentry, CNC machining, sculptural production, specialist finishes, modular construction and logistics planning within one coordinated build methodology. The decorative surface may be what is seen from the route, but the success of the float depends on everything beneath it.
