Engineering Reviews And Risk Management

Many of the most successful scenic projects are remembered for what never happened. Structures remained stable, installations proceeded safely, operational requirements were met and potential problems were resolved before they affected fabrication or site delivery.

These outcomes rarely happen by chance. They are usually the result of structured engineering reviews, disciplined risk management and clear coordination between the teams designing, manufacturing, transporting, installing and operating the scenic environment.

Every scenic structure contains assumptions. Drawings may assume that an existing floor can support a particular load, that a crane can reach the installation position or that a completed structure will remain stable throughout every stage of assembly. Materials may be selected on the assumption that they can tolerate outdoor exposure, repeated public contact or long operating periods.

Engineering reviews challenge these assumptions before they become embedded in the finished build.

The objective is not to complicate the design process or slow production. A well-managed review often makes delivery more efficient by identifying structural, fabrication and installation issues while they can still be resolved through drawings, calculations and coordinated planning.

Reviewing Design, Engineering and Buildability

Engineering review should begin before fabrication drawings are released. At this stage, the project is sufficiently developed for meaningful technical assessment, but changes can still be made without disrupting completed workshop production.

The review starts by confirming the intended use of the structure. Engineers need to understand whether it will be installed indoors or outdoors, remain in place for several years or operate as a short-term temporary structure. They must also consider whether it will support people, suspended equipment, scenic finishes, integrated screens, lighting systems or moving components.

These operational details influence the design criteria against which the structure is assessed.

A large scenic entrance, for example, may appear to function primarily as a decorative feature. In engineering terms, however, it may also behave as a substantial wind-catching surface. An exhibition platform may need to accommodate equipment loads, concentrated point loads and continuous public access. A sculptural installation may require internal framing that supports irregular forms while remaining concealed behind lightweight scenic finishes.

The engineering review considers how these elements work together.

Primary structural frames, secondary supports, cladding panels, connection details, ballast systems and foundations must form a coordinated assembly. Reviewing only the visible structure without understanding the attached scenic materials can result in incomplete calculations or poorly detailed interfaces.

Design reviews should also assess load paths. Every applied load must transfer safely through the structure to the supporting floor, ballast system, foundation or approved fixing point. Weaknesses often occur at transitions between materials or disciplines rather than within the principal frame itself.

A steel frame may be structurally adequate, for example, while the timber support carrying its decorative cladding is not. A suspended scenic component may be light enough for the supporting truss, but the selected fixing or connection detail may introduce an unacceptable local load.

Buildability reviews bring workshop and site knowledge into this process.

A structure can be structurally sound while remaining difficult to manufacture, transport or install. Fabrication teams may identify welds that are inaccessible, connections that cannot be reached once cladding is installed or modules that exceed workshop handling capacity.

Installation managers may highlight lifting points that are incorrectly positioned, temporary stability issues during assembly or structural sections that cannot pass through the available access route.

These practical observations should be resolved before manufacturing begins. The engineering review is therefore not limited to confirming whether the finished structure will stand. It should also confirm whether the structure can be fabricated and assembled safely through every stage of its development.

Formal design reviews commonly examine:

• Structural calculations and design criteria
• Material grades and section sizes
• Primary and secondary load paths
• Connection and fixing details
• Wind loading and environmental exposure
• Ballast, anchoring or foundation requirements
• Fabrication tolerances
• Transportable module sizes and weights
• Lifting points and centres of gravity
• Temporary stability during assembly
• Access for inspection and maintenance
• Interfaces with lighting, video and mechanical systems

Following the review, comments should be recorded, assigned and closed out. This prevents important observations from being discussed during meetings but omitted from the final drawings.

Engineering sign-off should only take place once the approved design, calculations and fabrication information are aligned. Changes made after sign-off must be managed through a controlled revision process, particularly where they affect structural dimensions, materials, connections or loading.

Managing Risk Across Fabrication and Installation

Structural engineering forms only one part of the overall risk profile.

Risk management must consider how the scenic structure will be manufactured, handled, transported, installed, operated, maintained and dismantled. A structure that performs safely in its completed condition may still create significant risk during fabrication or installation.

A formal risk assessment helps identify these hazards and establish appropriate controls.

Within the workshop, risks may include heavy steel sections, suspended loads, hot works, machinery, sharp edges, chemical coatings and the movement of large modules through shared production areas. The fabrication methodology should reflect the size, weight and geometry of the structure rather than relying solely on standard workshop procedures.

Large assemblies may require dedicated lifting frames, controlled turning operations or temporary supports during welding and cladding. The order of fabrication can also affect stability. A frame that becomes top-heavy after decorative components are added may require additional bracing before it can be moved safely.

Transport introduces another set of risks.

Modules must be adequately supported to prevent movement, distortion and damage. Custom transport frames may be required for irregular structures, finished scenic panels or components with sensitive integrated systems. Loading points, restraint methods and vehicle capacities should be defined before dispatch.

Site installation usually carries the highest concentration of interfaces.

Scenic installers may be working alongside crane operators, riggers, access technicians, electricians, audiovisual contractors and venue teams. Each group may have its own working method, but their activities must be coordinated as part of one installation sequence.

Method statements translate the installation strategy into a clear working procedure. They explain how each operation will be completed, which equipment will be used, what sequence must be followed and which controls must remain in place.

For a large scenic structure, the method statement may cover:

• Delivery and unloading
• Site access and component movement
• Setting out and base preparation
• Crane or lifting equipment positioning
• Module lifting and placement
• Temporary bracing and restraint
• Bolted and welded connections
• Installation of secondary structures
• Cladding and scenic finishes
• Integrated lighting or technical systems
• Inspection and engineering approval
• Removal of temporary works
• Final commissioning and handover

The associated risk assessment identifies the hazards within each activity and establishes controls such as exclusion zones, certified equipment, competent personnel, protective systems, weather limitations and communication procedures.

Temporary works require particular attention.

Large scenic structures are often engineered around their completed configuration. During installation, however, only part of the permanent frame may be connected. This can create periods where the structure has limited resistance to wind, movement or accidental loading.

Temporary supports, bracing frames, kentledge, propping systems or guy restraints may be required until permanent stability has been achieved. These systems should be engineered and documented with the same discipline as the final structure.

Temporary works must also have a defined installation and removal sequence. Removing bracing too early can compromise stability, while leaving temporary elements in place may obstruct cladding, services or final inspection.

Installation reviews should therefore take place before mobilisation. The engineering, fabrication and site teams should assess the latest drawings, verified component weights, lifting arrangements, access restrictions and site conditions together.

This review is especially important where projects involve exhibition halls, public areas, waterfront locations, restricted urban sites or operational cultural destinations.

Exhibition venues may impose limits on floor loading, vehicle access, working hours, hot works and overhead lifting. Public installations may require road closures, pedestrian management, controlled exclusion zones and coordination with municipal authorities. Waterfront or outdoor structures may require additional consideration of wind, ground conditions, corrosion and access for lifting equipment.

The review should confirm that the proposed method reflects the actual site rather than assumptions made earlier in the project.

Operational Reviews, Governance and Sign-Off

Engineering and risk management continue after the structure has been installed.

Before handover, an operational review should confirm that the scenic environment is safe and appropriate for its intended use. This includes checking the completed structure against approved drawings, verifying critical connections and confirming that operational loads remain within the engineered limits.

Where the structure includes moving elements, access platforms, doors, screens, lighting equipment or mechanical systems, each component should be reviewed as part of the complete installation.

Operational risks may include unauthorised climbing, impact from equipment, public contact with sharp or hot surfaces, access to electrical systems and the movement of scenic or mechanical elements. Barriers, guarding, signage, restricted access panels and emergency procedures may be required depending on the installation.

Maintenance requirements should also be established.

Long-term scenic installations may require regular inspections of connections, coatings, ballast systems, moving parts and exposed finishes. Temporary outdoor structures may need weather monitoring and additional checks after strong winds or other adverse conditions.

Inspection frequency should reflect the structure’s environment, operating duration and level of interaction. Responsibilities must be clearly assigned so that inspections and corrective actions are not left to assumption.

Show-readiness or final handover reviews provide an opportunity to bring all disciplines together before the structure becomes operational.

The review may confirm:

• Completion of structural inspections
• Closure of engineering comments
• Correct installation of ballast or anchors
• Tightening and marking of critical connections
• Removal or approval of temporary works
• Completion of scenic finishes
• Safe routing of cables and services
• Access for maintenance and emergency response
• Approved operating procedures
• Documentation of outstanding limitations
• Handover to the responsible operational team

Good governance supports each of these stages.

Documented quality, engineering and health and safety systems provide a consistent framework for reviews, approvals and change management. Processes aligned with recognised management standards, including ISO-based quality and occupational health and safety systems, can help establish clear responsibilities, auditable records and defined approval routes.

The practical value of these systems lies in consistency. Drawings are issued under revision control. Review comments are documented. Design changes are assessed before implementation. Inspection records are retained, and responsibilities for approval remain clear.

This becomes increasingly important as scenic projects grow in scale and involve several specialist contractors.

Multi-disciplinary coordination allows risks to be assessed from more than one perspective.

Engineers understand structural behaviour. Workshop teams understand manufacturing tolerances and material performance. Logistics teams understand transport and handling.

Installation managers understand access, sequencing and site interfaces.

No single discipline sees the complete risk profile independently.

At Evolution Scenic, engineering review and risk management are treated as part of the fabrication methodology rather than as separate administrative exercises. Design, manufacturing, logistics and installation decisions are reviewed together so that potential issues can be resolved while practical options remain available.

Well-managed scenic projects rarely rely upon luck. They rely on structured reviews, controlled information and experienced teams willing to challenge assumptions before construction begins.

When engineering and risk management are integrated into the complete build process, structures become safer, fabrication becomes more predictable and installation teams arrive on site with a clear, tested methodology.

Public Safety Within Scenic Environments

Scenic structures are often designed to attract attention, encourage interaction and create a strong visual presence. At the same time, they must operate safely within environments that may contain large numbers of people, changing conditions and complex operational requirements.

Public safety influences almost every decision made throughout the development of a scenic project. It affects structural engineering, material selection, surface detailing, access planning, installation methodology and the way the completed environment is inspected and managed.

Structural stability forms the foundation of safe scenic construction, but public safety extends far beyond engineering calculations. Access routes, edge protection, maintenance requirements, operational procedures, environmental exposure and anticipated visitor behaviour all contribute to the overall safety of an installation.

Public-facing environments also experience behaviour that can be difficult to predict. Visitors may lean against structures, sit on low-level scenic elements, pull decorative components, step onto platforms or climb features that were not intended for access. Children may interact with an installation differently from adults, while busy public areas can create crowd movements and loading conditions that were not apparent during the initial design phase.

Experienced scenic fabrication teams understand these realities and incorporate them into design reviews, engineering decisions and operational planning. Safety is not achieved through one barrier, warning sign or structural calculation. It results from hundreds of coordinated decisions made throughout design, fabrication, installation and ongoing operation.

Designing for Public Interaction and Predictable Misuse

The first stage of public safety planning is understanding how people are likely to interact with the completed scenic environment.

The intended use provides a starting point, but it should not be the only consideration. A feature wall may be designed primarily as a visual backdrop, yet visitors may lean against it while taking photographs. A low scenic platform may appear to be a convenient seat. Decorative projections may become handholds, and an accessible ledge may encourage climbing even when it was not designed for that purpose.

Design reviews should therefore consider both intended interaction and reasonably predictable misuse.

This does not mean every scenic structure must be designed for every possible action. It means identifying behaviours that are likely within the specific environment and removing unnecessary opportunities for unsafe interaction wherever practical.

Public interaction reviews may consider:

• Whether low-level elements could be climbed or used as seating
• Whether projecting details could become handholds or trip hazards
• Whether visitors can access the rear or internal areas of the structure
• Whether sharp corners, exposed fixings or fragile surfaces are within reach
• Whether gaps could trap fingers, clothing or personal belongings
• Whether moving components require guarding or controlled operating zones
• Whether children can access areas not intended for public use
• Whether queues or crowd movement could place pressure against the structure

The geometry of a scenic element can often reduce risk without affecting its visual character.

Sloped surfaces may discourage sitting or climbing. Concealed fixings can remove exposed edges. Decorative forms can be detailed without accessible footholds, while doors and maintenance panels can be integrated into the design rather than appearing as obvious access points.

Material selection also influences public safety.

Surfaces within reach should be robust enough to tolerate repeated touching and occasional impact. Brittle materials may crack or produce sharp edges if damaged. Lightweight decorative components must be securely fixed so they cannot be dislodged through normal interaction.

Transparent materials such as acrylic and polycarbonate require careful edge treatment and suitable fixing methods. Glass elements must be specified according to their position, size and potential impact exposure. Timber surfaces should be free from splinters, while metalwork requires smooth edges, dressed welds and protected corners.

Surface temperature may also need consideration. Dark metal elements exposed to direct sunlight can become uncomfortable or unsafe to touch. Integrated lighting, electrical equipment and mechanical systems should be positioned so that heat, movement and service access do not create hazards within public areas.

Structural design should account for more than the self-weight of the scenic installation. Where public contact is expected, engineers may need to consider horizontal loads, impact, crowd pressure or concentrated loading on accessible surfaces.

A decorative railing, for example, may visually match the surrounding scenic environment but still needs to perform as an effective protective barrier. A raised platform may require edge protection even when its height appears modest, particularly where lighting levels are low or crowd density is high.

The strongest safety solutions are integrated into the structure from the beginning. Barriers, guards and protective elements can often be incorporated into scenic joinery, metalwork and architectural detailing without appearing as later additions.

Managing Access, Environmental Exposure and Installation Safety

A scenic environment must remain safe not only for visitors but also for the teams responsible for installing, inspecting, cleaning and maintaining it.

Maintenance access is frequently overlooked during early design development. Lighting, screens, motors, electrical connections and structural fixings may require inspection or replacement after installation. If these components cannot be reached safely, maintenance teams may be forced to use unsuitable access methods or remove finished scenic elements unnecessarily.

Access panels should be positioned where they can be opened without entering public circulation routes or destabilising surrounding components. Panels may require locks, concealed hinges, controlled opening limits or secondary restraints to prevent accidental removal.

Elevated components may need permanent access provisions or a clearly defined mobile access strategy. Where ladders, mobile towers or powered access equipment will be required, the surrounding floor area and working clearance must be considered during layout planning.

Maintenance routes should also avoid exposing staff to electrical hazards, moving parts, sharp edges or unsupported components. Isolators, control panels and inspection points should be clearly identified and accessible to authorised personnel.

Environmental exposure creates additional public safety considerations, particularly for outdoor scenic structures.

Wind is one of the most significant factors affecting temporary architecture, entrance features, scenic façades, graphic panels and freestanding installations. Large surfaces can generate substantial forces even when the structure appears visually lightweight.

Structural engineering must consider the exposed area, installation location, expected wind conditions and duration of use. Ballast, anchoring systems and foundations should be designed around verified loads rather than general assumptions.

Environmental conditions can also change during the operating period. Fabric graphics may loosen, decorative panels may move and temporary ground conditions may deteriorate. Outdoor structures should therefore be inspected after strong winds, heavy rain, accidental impact or any event that could affect stability.

Heat, ultraviolet exposure, humidity and dust can influence materials, adhesives and mechanical components. Timber may expand or deteriorate if edges are not sealed. Adhesives and vinyl graphics may soften or fail when exposed to high surface temperatures. Metalwork may corrode if protective coatings are damaged, while dust can interfere with moving mechanisms and ventilation systems.

Drainage is another practical consideration. Horizontal surfaces and concealed cavities should not collect water. Moisture trapped within scenic structures can damage materials, increase weight and affect electrical systems.

Installation methodology has a direct effect on public safety because the structure must remain controlled and stable throughout every phase of assembly.

A completed scenic environment may be structurally secure, yet individual modules can remain unstable before all connections, braces and ballast systems are installed. Temporary supports should therefore be planned and engineered rather than developed informally on site.

Installation areas require exclusion zones, controlled access and coordination between scenic installers, riggers, lifting teams, electricians and venue personnel. Public routes may need to be diverted while overhead work, lifting or incomplete structures remain present.

Where installation takes place within an operational destination, museum, retail environment or public space, the work may need to be phased around visitor access. Barriers should clearly separate the working area without creating new trip hazards, restricted exits or congestion points.

Components should be secured whenever work pauses. Tools, fixings and unfinished materials must not be left where they can fall, be moved by unauthorised persons or obstruct emergency routes.

Pre-opening inspections should confirm that all temporary works have either been removed or approved to remain, structural connections are complete, access panels are secured and unfinished areas are isolated from the public.

Inspection, Monitoring and Operational Safety

Public safety continues after the scenic environment has opened.

Structures can change during operation. Connections may loosen, surfaces may become damaged and components may be affected by repeated interaction. Operational teams therefore need a clear inspection and monitoring process appropriate to the duration, complexity and location of the installation.

A short-term activation may require daily visual checks, while a longer-term visitor centre or museum installation may need scheduled technical inspections supported by maintenance records.

Inspection procedures may include:

• Checking that structural elements remain aligned and stable
• Confirming ballast, anchors and restraints have not moved
• Inspecting accessible surfaces for cracks, sharp edges or damage
• Checking barriers, handrails and edge protection
• Confirming access doors and maintenance panels remain secured
• Inspecting moving components and guarding systems
• Reviewing electrical enclosures, cable routes and illuminated features
• Checking outdoor structures after adverse weather
• Confirming emergency routes remain unobstructed
• Recording defects and completing corrective work

The inspection process should distinguish between issues that can be monitored and those requiring immediate action. A damaged decorative finish may be visually undesirable but present little immediate risk. A loose panel, exposed sharp edge or unstable barrier requires the affected area to be isolated until it is repaired.

Operational monitoring is particularly important where installations contain moving parts, interactive features or changing scenic configurations. Operators must understand safe operating limits, controlled movement zones and emergency-stop procedures.

Mechanical systems should not rely solely on operator awareness. Guards, sensors, limit switches and physical separation may be required depending on how the public can approach the equipment.

Crowd behaviour can also change the way a scenic environment performs. A structure positioned within an open public area may experience temporary crowd pressure during peak periods, photography moments or queue formation.

Operational teams should observe how people actually use the space and identify behaviours that were not anticipated during design. Barriers, queue routes or staff positions may need to be adjusted if visitors repeatedly enter restricted areas or gather against particular scenic features.

Safety barriers should be proportionate to the environment. In some locations, substantial physical separation may be necessary. In others, a low integrated rail, change in floor level or carefully positioned scenic element may guide visitor movement without affecting the intended appearance.

The design of these controls should consider visibility, accessibility and emergency movement. A barrier that protects one feature should not narrow an escape route, introduce a trip hazard or create crowd congestion elsewhere.

Clear responsibility is essential. The operational team should understand who is authorised to inspect, isolate, repair and approve the structure. Maintenance procedures, finish specifications, engineering limitations and emergency information should be included within the handover documentation.

For long-term installations, records help identify repeated defects or areas experiencing more wear than expected. This information can support preventative maintenance and future design improvements.

At Evolution Scenic, public safety is considered throughout the complete fabrication and installation process. Engineering, materials, surface detailing, access planning and operational requirements are reviewed together so that safety measures support the physical environment rather than appearing as disconnected additions.

The strongest public environments are often those where safety controls are barely noticed. Edges are protected through the form of the structure, barriers are incorporated into scenic detailing and maintenance access is provided without disrupting the visual finish.

Public safety is not one final check completed before opening. It is an ongoing process shaped by design decisions, fabrication quality, installation control and active operational monitoring.

When these elements are coordinated from the beginning, scenic environments can remain visually ambitious, practical to maintain and safe for the people who use them.

Why Event Signs Fall Over (and why ours don't...)

Most event signs look simple.

A printed panel mounted to a base, a freestanding logo positioned at an entrance or a branded directional sign placed around a venue does not appear particularly complicated. Yet signage failures remain surprisingly common across festivals, exhibitions, public activations and temporary installations.

The reason is usually not the sign itself.

It is the engineering hidden beneath it.

Many signs are developed primarily around appearance. They may look balanced in a design render and remain perfectly upright on a flat workshop floor, but real-world conditions are rarely as controlled. Wind, uneven surfaces, accidental contact, changing ground conditions and modifications during installation can introduce forces that were never considered during fabrication.

The taller and wider the sign becomes, the more important those forces become. A narrow directional panel can behave like a sail. A large freestanding logo can place considerable leverage on a relatively small base. Even a sign that appears heavy may become unstable when its centre of gravity sits too high or its ballast is positioned incorrectly.

Successful signage is therefore not simply printed, painted and placed on site. It is designed as a temporary structure, with its stability considered from the beginning.

Why Freestanding Signs Become Unstable

The most common signage failures usually begin with an incorrect assumption: that weight alone creates stability.

A heavy sign is not automatically a stable sign. Stability depends on how the weight is distributed, the dimensions of the base, the height and shape of the structure and the forces acting upon it.

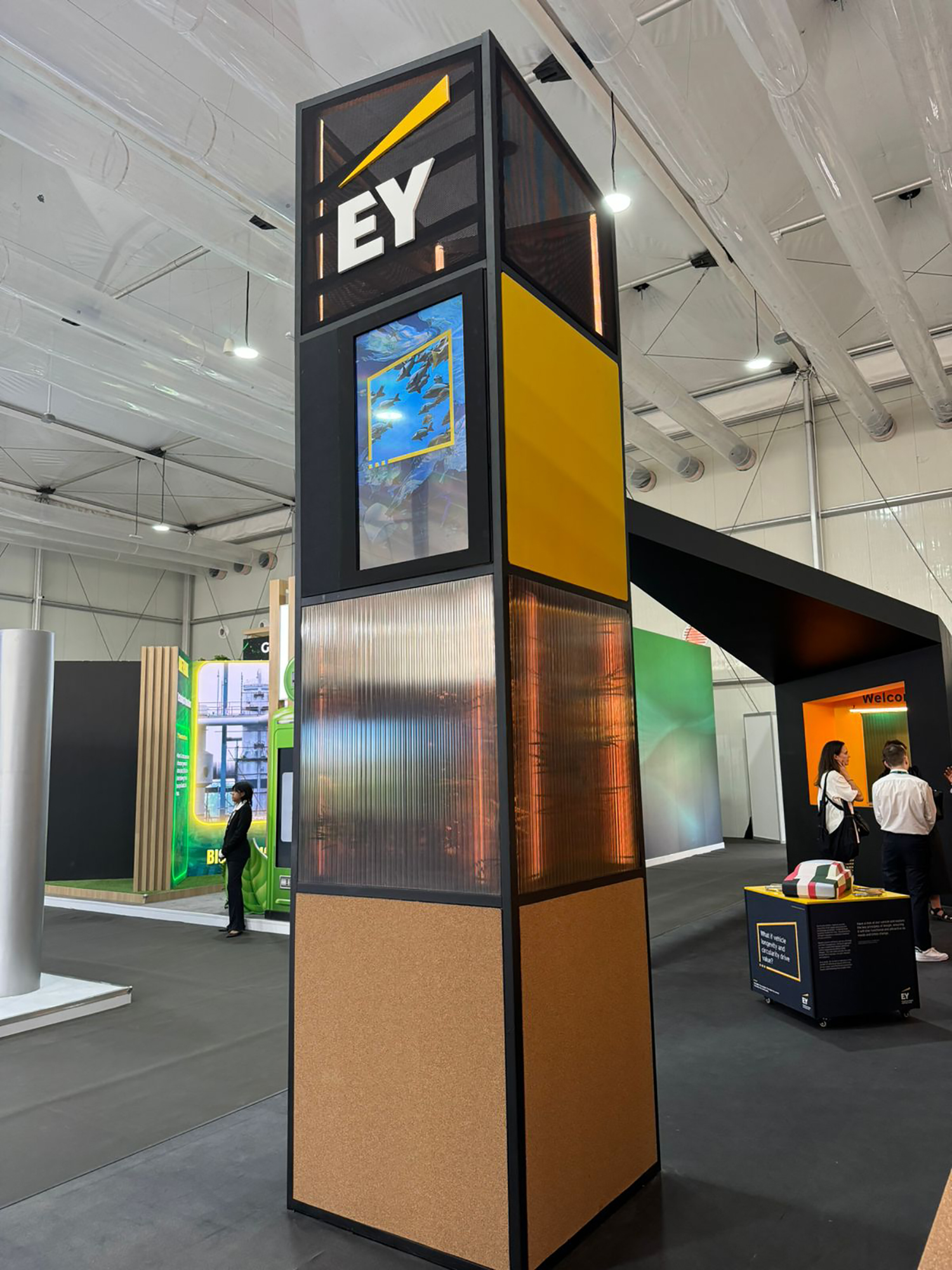

As a sign becomes taller, its centre of gravity generally rises. This increases the overturning effect created by wind or accidental contact. A structure may feel solid when pushed near the base but respond very differently when force is applied near the top.

The width and shape of the sign also matter. A solid printed panel catches more wind than an open framework or perforated graphic. Large letters can create uneven loading because each character has a different form and surface area. A wide logo may appear relatively low but still generate significant overturning forces because of its overall exposed area.

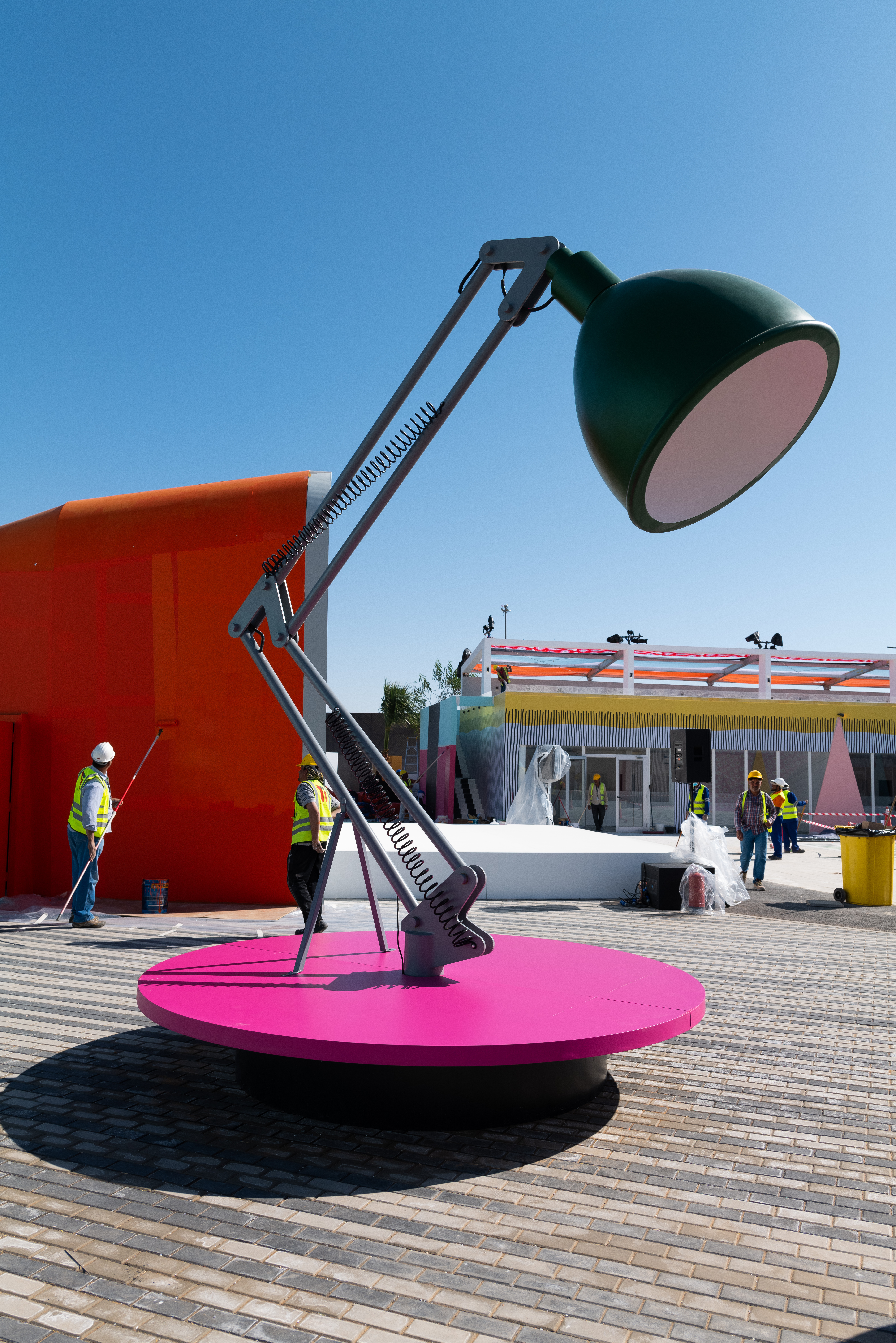

Outdoor festivals and public activations introduce particularly demanding conditions. A sign may be positioned in an open area with little protection from wind, installed on temporary flooring or placed near busy pedestrian routes where people may lean against it, move it or use it as a convenient resting point.

Uneven ground can reduce stability further. A base designed for a level exhibition floor may rock or twist when positioned on paving, sand, grass or temporary decking. Small variations beneath the base can prevent the load from being distributed evenly, placing additional pressure on individual contact points.

Common causes of failure include:

• Bases that are too narrow for the height of the sign
• Insufficient ballast or ballast positioned too high
• Large solid surfaces with no allowance for wind loading
• Lightweight decorative materials attached to weak internal frames
• Unreinforced joints between the sign face and its supporting base
• Freestanding letters connected only through scenic skins or thin plates
• Signs installed on sloping, soft or uneven surfaces
• On-site modifications that remove braces or structural connections
• Incorrect positioning in exposed areas
• Public access to structures not designed for physical interaction

Wind is often the least visible factor and one of the most underestimated.

A mild breeze may appear insignificant, but wind pressure increases quickly as wind speed rises. A large scenic panel experiences that pressure across its entire surface. The resulting force acts above the ground and creates leverage at the base.

This is why a tall sign that performs well indoors cannot automatically be used outdoors without review. The same graphic area that creates a strong visual presence can also create a significant wind-catching surface.

Public interaction produces similar effects. Someone leaning against the upper section of a sign can apply more overturning force than expected, particularly where the base is narrow. Children may climb onto low letters, while visitors often sit on scenic plinths or stand against logos for photographs.

These behaviours are predictable enough that they should be considered during design rather than treated as unusual misuse after a problem occurs.

Designing Bases, Ballast and Hidden Support Systems

A stable sign begins with the relationship between the visible structure and the support system beneath it.

The base must be wide enough, strong enough and heavy enough to resist the expected overturning forces. It must also distribute those forces into the ground without bending, rocking or damaging the surface below.

Base plate design is particularly important for freestanding letters and large logos.

A thin plate may appear neat but can flex when loads are applied. If the plate bends, the structure above can move even when the total ballast weight appears adequate. Reinforcing ribs, internal steel frames or folded sections may therefore be required to maintain rigidity.

The connection between the vertical sign and the base must also transfer load effectively.

Decorative MDF, foam or composite skins should not be relied upon as structural connections.

Internal steelwork or engineered timber framing is usually required to carry forces from the sign face into the base.

Large-scale logos often contain more structure than the finished appearance suggests. Behind the painted or printed surface there may be:

• Welded steel frames
• Reinforced base plates
• Internal bracing
• Bolted connection points
• Hidden ballast compartments
• Ground anchors
• Removable stabilising outriggers
• Adjustable feet for uneven surfaces

The objective is to integrate these components without affecting the clean visual finish.

Ballast systems are commonly used where ground fixing is not permitted. Exhibition halls, hotel entrances, public plazas and temporary event sites may prohibit drilling or anchoring into the surface. In these situations, the structure must achieve stability through its base dimensions and retained weight.

The quantity of ballast is only one consideration. Its location is equally important.

Ballast is most effective when positioned low and as far as practical from the overturning edge.

Placing weight high within the structure may increase the total mass without providing the same level of resistance. A wide base with correctly distributed ballast generally performs more effectively than a narrow base containing the same weight.

Ballast should also be secured. Loose blocks, sandbags or weights can shift during transportation or public operation, changing the structure’s balance. Purpose-built compartments, mechanical restraints or enclosed steel plates provide more predictable performance.

Freestanding letters introduce their own challenges.

Individual characters often have narrow footprints and irregular shapes. A wide letter may remain stable with a relatively simple internal support, while a tall narrow letter may require additional depth, weight or connection to neighbouring characters.

Connecting letters together can improve stability, but those connections must be structural rather than decorative. A thin scenic strip joining several characters may align them visually without providing meaningful resistance to movement.

In some cases, a continuous steel base or concealed rear frame offers the most reliable solution. The visible letters can remain individually finished while the hidden support system distributes loads across the complete installation.

Outdoor signs may also require wind-release strategies. Perforated panels, open lettering, mesh graphics or gaps between decorative elements can reduce the surface area exposed to wind. This approach is not suitable for every design, but it can reduce the demand placed on the supporting structure.

Where signs must be regularly moved, the engineering becomes more complex. Bases may need integrated lifting points, wheels, removable ballast or forklift access. These features should not compromise stability when the sign is in its operating position.

Lockable castors, for example, are not always sufficient for large public-facing signs. Wheel mechanisms can introduce movement and raise the base above the ground. A mobile sign may require adjustable feet or mechanical supports that transfer the load away from the wheels once positioned.

The correct solution depends on the sign’s scale, location, operating duration and expected exposure.

Installation, Inspection and Safe Public Operation

Even a well-engineered sign can become unsafe if it is installed incorrectly.

The site team must understand where the structure can be positioned, how the base should be levelled and which components are essential to its stability. Removing a rear brace because it is visible, reducing ballast to make movement easier or changing the sign orientation can significantly affect performance.

Installation drawings and clear component labelling help prevent these issues. Ballast quantities, fixing locations and assembly sequences should be identified before delivery rather than left for interpretation on site.

The installation surface must also be inspected.

Temporary floors, raised platforms and exhibition decking may have their own load limitations. Outdoor surfaces may be soft, sloped or uneven. A sign positioned partly on a floor joint or cable ramp may not sit correctly, even if the base was fabricated accurately.

Adjustable feet, levelling plates or spreader pads can help accommodate minor variation. Where the ground is unsuitable, the sign may need to be repositioned or supported by a larger temporary platform.

Location matters just as much as the structure itself.

A sign positioned between buildings may experience accelerated wind as air is channelled through the space. An open waterfront, rooftop or desert site may be more exposed than the general weather forecast suggests. Entrances and queue areas can expose structures to repeated contact from visitors, barriers and equipment.

Site-specific review allows the installation method to respond to these conditions.

Public safety should remain central throughout the operating period. Large letters and logos are natural photography points, which means visitors are likely to approach, touch and lean against them. If interaction is expected, the structure should be detailed accordingly.

Accessible surfaces should be smooth and durable. Exposed corners, sharp plate edges and unfinished fixings should be removed or protected. Low-level gaps should not trap feet, while openings within letters and logos should not create climbable routes or finger traps.

Regular inspections are particularly important for outdoor and multi-day installations.

Checks should confirm that:

• The base remains level and fully supported
• Ballast has not moved or been removed
• Bolted connections remain tight
• Decorative panels remain securely fixed
• The structure has not been damaged by vehicles or equipment
• Water has not collected within the base
• Wind conditions remain within the approved operating limits
• The surrounding public route remains clear
• No unauthorised modifications have been made

After strong winds, accidental impact or relocation, the sign should be checked before returning to public use.

Operational teams should also know when a sign must be isolated or removed. A loose panel, damaged base or visibly moving structure should not remain in place simply because the installation period is nearly complete.

At Evolution Scenic, large event signs, freestanding letters and branded logo structures are treated as fabricated scenic structures rather than oversized printed graphics. Their visual appearance, internal framework, base design, ballast and site conditions are considered together.

The engineering is intentionally discreet. Visitors should see a clean sign, a precisely finished logo or a clear directional marker. They should not need to notice the steelwork, reinforcement and stability systems concealed within it.

That is the irony of successful signage.

When it is poorly designed, everyone notices.

When it is engineered correctly, nobody does.

Why Scenic Walls Warp (And How To Prevent It)

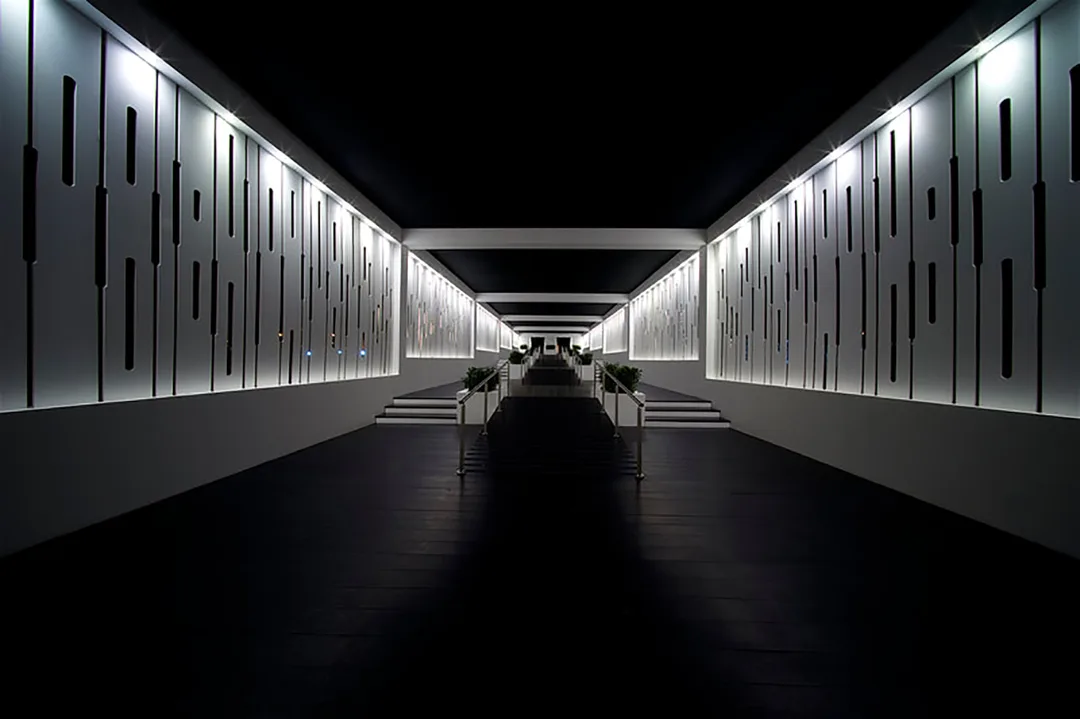

A scenic wall can look perfectly straight when it leaves the workshop and noticeably different by the time it reaches site.

Warping is one of the most common problems encountered within scenic fabrication, particularly where temporary walls are transported, stored, repeatedly handled or exposed to changing environmental conditions.

The issue rarely comes from one obvious mistake. More often, it develops through a combination of material movement, insufficient structural support, uneven surface preparation, poor storage or unsuitable transportation methods.

A wall may be straight while lying horizontally in the workshop but begin to bow once installed vertically. A panel may remain stable in an air-conditioned fabrication facility and then react after being moved into a humid loading area or an outdoor activation site. A finished wall may also distort because weight has been added unevenly through graphics, lighting, shelving or decorative elements.

Experienced scenic fabricators therefore focus on prevention rather than correction. Material selection, framework design, workshop methodology, finishing systems and transport planning all contribute to the final stability of the wall.

The best scenic walls are rarely the heaviest. They are usually the ones where the materials, internal structure and complete project journey have been considered together from the beginning.

Why Scenic Wall Materials Move

Timber-based sheet materials naturally respond to moisture, temperature and changes in their surrounding environment.

MDF is widely used within scenic carpentry because it machines accurately and provides a smooth surface for paint, graphics and decorative finishes. It performs particularly well for routed details, feature walls, exhibition panels and interior scenic elements where a consistent finish is required.

However, MDF can absorb moisture through its faces, cut edges and fixing points. If one side absorbs more moisture than the other, or if one face receives a heavier coating system, the sheet can expand unevenly and begin to curve.

Cut edges are particularly vulnerable because they are more absorbent than the factory faces. Unsealed edges may take on moisture during storage, transportation or installation, even if the visible surfaces have been properly painted.

MDF is also relatively heavy. When large sheets are installed across insufficient framing, their own weight can contribute to sagging or movement over time.

Plywood behaves differently.

Its cross-laminated construction generally provides greater structural stability and fixing strength than MDF, making it useful for reusable exhibition walls, stage sets, large scenic structures and components that will experience repeated handling.

However, plywood is not immune to warping. Lower-grade sheets may contain internal stresses, uneven veneers or variations in moisture content. These issues can become visible after cutting or once the material is exposed to a different environment.

The quality and grade of plywood matter. A structural plywood panel selected for hidden framing behaves differently from a high-quality birch plywood panel used for exposed joinery. Selecting plywood only by sheet thickness without considering grade, construction and intended use can lead to inconsistent results.

Sheet thickness also affects performance. A thin panel fixed across a wide frame spacing is more likely to move than a thicker panel supported by a correctly designed framework. Increasing the panel thickness can improve stiffness, but it also adds weight and does not compensate for poor framing.

Other materials can create movement when combined incorrectly.

A scenic wall may include timber framing, MDF cladding, aluminium trims, acrylic details and steel supports. Each material expands and contracts differently. If these movements are restrained without suitable joints, clearances or fixing methods, the wall can develop stress, cracking or visible distortion.

Environmental conditions can accelerate these problems.

A wall fabricated in an air-conditioned workshop may be stored temporarily in a hot warehouse, transported in an enclosed vehicle and installed outdoors where it is exposed to humidity, sunlight and changing temperatures.

Dark painted finishes can absorb heat, particularly in outdoor environments. One face of a wall may become significantly warmer than the other, causing uneven expansion. Direct sunlight can also affect adhesives, vinyl graphics and composite materials attached to the surface.

Humidity is equally important. Timber-based materials may absorb moisture from the air even when they are not directly exposed to water. This can be particularly noticeable when components move between controlled indoor environments and open loading areas.

The finish system can also influence panel movement.

Applying several coats to one face while leaving the reverse untreated creates an imbalance. The sealed face and unsealed face may respond differently to moisture, which can cause the panel to curve.

Where practical, both sides of a panel should receive a balanced sealing system, even if the rear face will never be visible.

Designing and Fabricating Walls for Stability

A stable scenic wall depends as much on its internal framework as on its visible panels.

Large unsupported areas are one of the most common causes of movement. A wall may appear rigid during fabrication but begin to bow once stood upright, lifted, transported or fitted with additional components.

The framework must support the panel at appropriate intervals and transfer loads into the base without allowing excessive movement.

Timber framing is commonly used because it is versatile, lightweight and easy to modify. It can perform well for temporary exhibition walls, activation environments and stage sets when the timber is straight, dry and correctly selected.

Poor-quality or high-moisture timber can introduce movement into the completed wall. Twisted or bowed studs should not be forced into position and then covered with sheet material, as the internal stress may gradually transfer into the finished surface.

Timber sections should be checked before assembly, while frame spacing should reflect the sheet thickness, wall height and anticipated loading.

Noggin positions, corner details and panel joints all require attention. Joints between sheets should be supported rather than left spanning between studs. Additional framing may be required around doors, screens, shelves, graphics, access panels and mounted objects.

Aluminium frames can provide a lighter and more dimensionally stable alternative in some applications.

Extruded aluminium systems are useful for modular exhibition walls, reusable activation structures and installations that require repeated assembly. They can provide accurate alignment and reduce the movement associated with natural timber.

However, aluminium does not automatically eliminate warping. The frame still needs sufficient depth, bracing and connection strength. Lightweight sections can flex if they are undersized or used across large spans.

The connection between aluminium framing and timber-based cladding must also allow for differences in material movement. Fixings should secure the panel without creating unnecessary stress or visible surface distortion.

Steel may be introduced where greater rigidity, height or structural capacity is required. A steel base frame or concealed support can stabilise large scenic walls while allowing timber or composite panels to form the visible finish.

The correct framing material depends on the size, reuse requirements, transport method and installation environment. Hybrid construction is often the most effective approach.

Workshop assembly methods also influence the finished result.

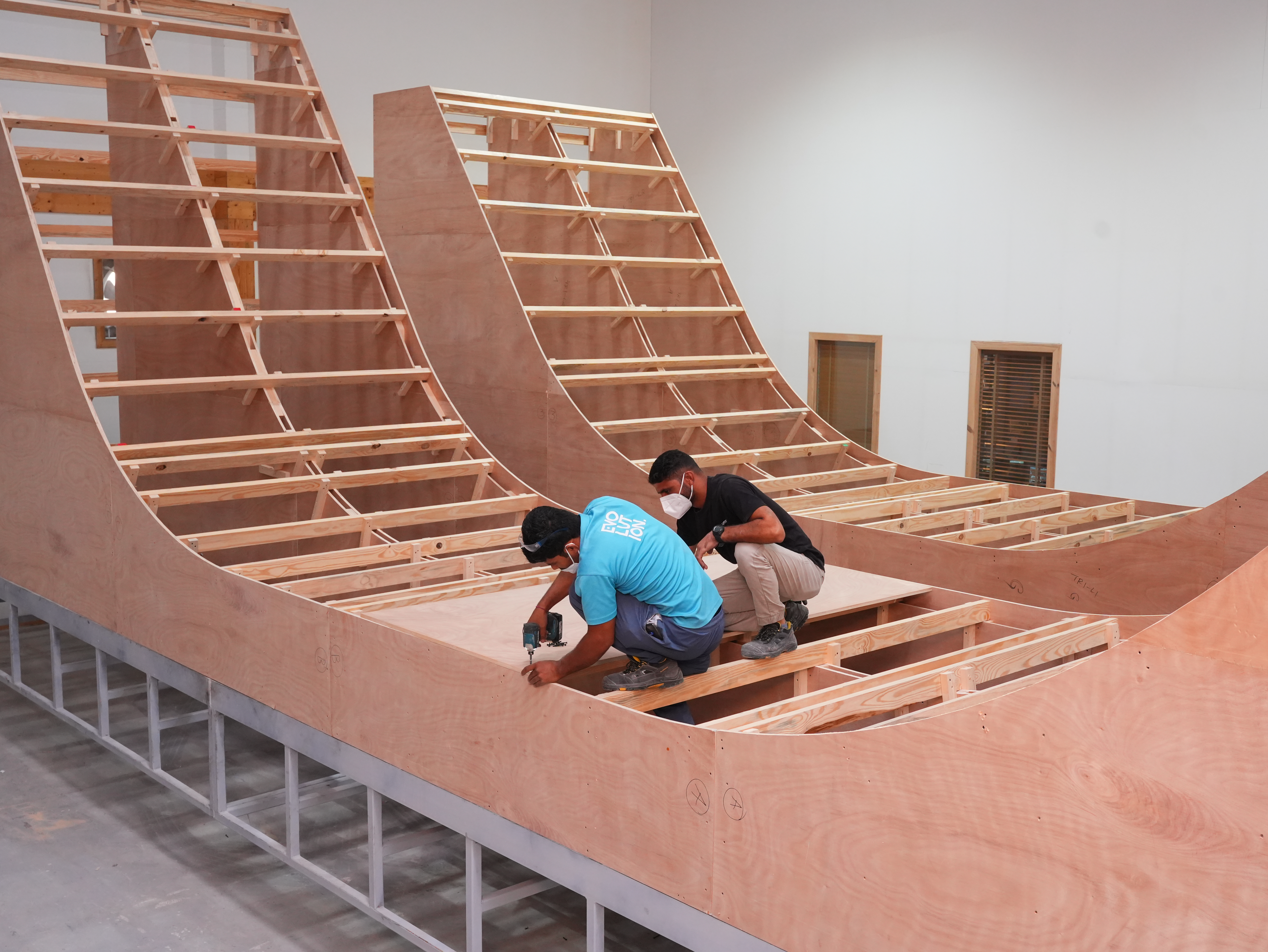

Frames should be constructed on level surfaces using accurate setting-out points. Small errors can accumulate across a long wall, creating twist or uneven panel alignment.

Before cladding begins, the frame should be checked for:

• Squareness
• Straightness
• Consistent depth
• Secure connections
• Adequate bracing
• Supported panel joints
• Correct base alignment
• Openings and service locations

Panels should be fixed using an appropriate sequence. Starting at one end and forcing the sheet into position can lock stress into the wall. It is generally better to align the panel carefully and fix progressively while monitoring flatness.

Fixing spacing matters. Too few fixings may allow movement, while excessive or uneven fixing can pull the panel into the shape of an inaccurate frame.

Adhesives should be used carefully. Continuous rigid bonding may prevent materials from moving independently and can create surface distortion if the adhesive cures unevenly. Mechanical fixings, flexible adhesives or combined systems may be more appropriate depending on the build.

CNC machining can improve accuracy, particularly for modular structures, interlocking ribs and repeatable panel systems. Digitally cut components can help maintain alignment and reduce variation between sections.

However, CNC accuracy does not compensate for unsuitable material storage or poor assembly. Precisely machined panels can still warp if they are left unsupported, exposed to moisture or fixed to an unstable frame.

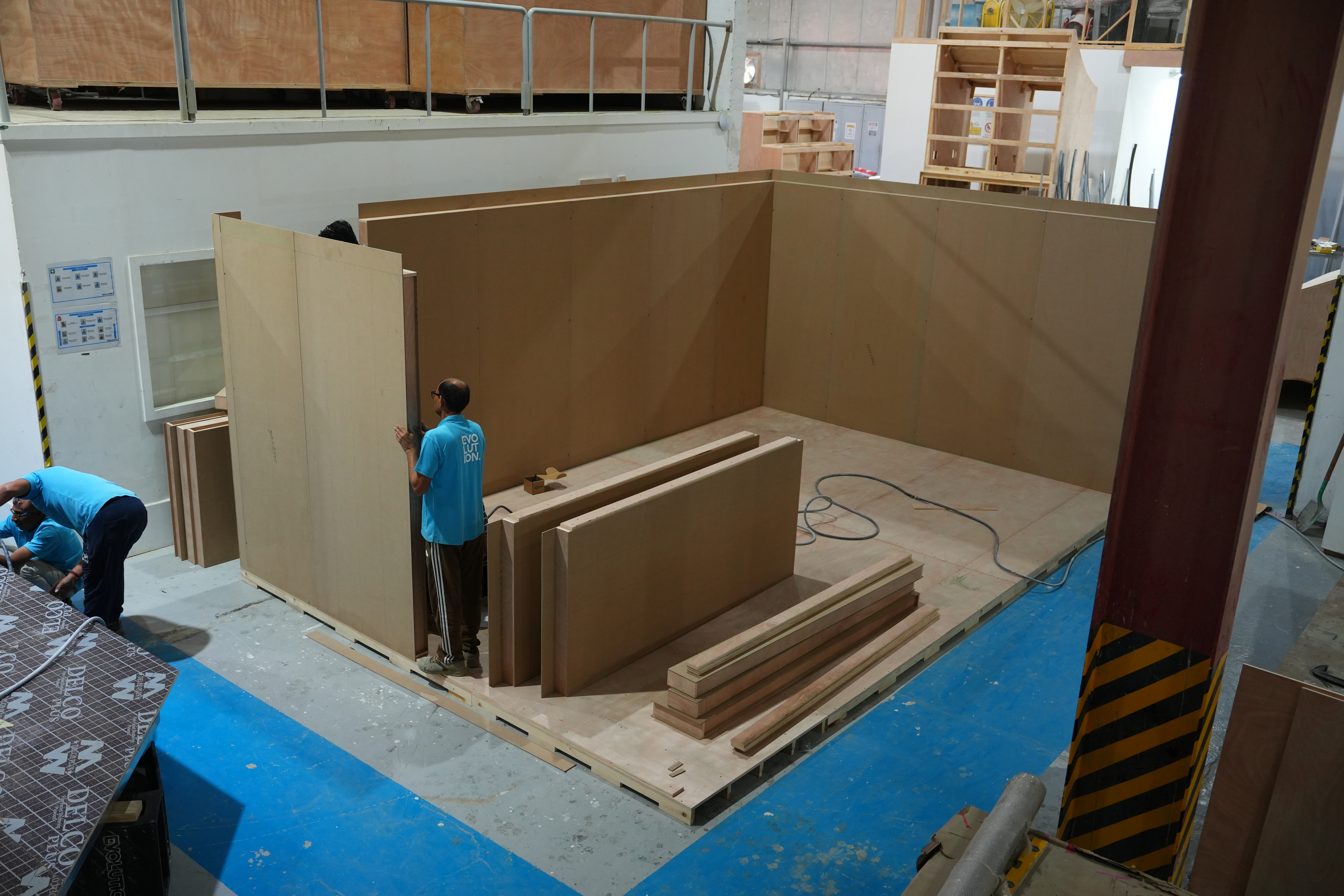

Trial assembly is particularly useful for large exhibition walls and scenic stage sets.

It allows the fabrication team to confirm alignment, panel joints, connection details and stability before the wall is packed for transport. Any movement can be identified while workshop tools and replacement materials remain available.

Storage, Transportation and Site Installation

A scenic wall can be fabricated correctly and still arrive on site distorted if it is stored or transported incorrectly.

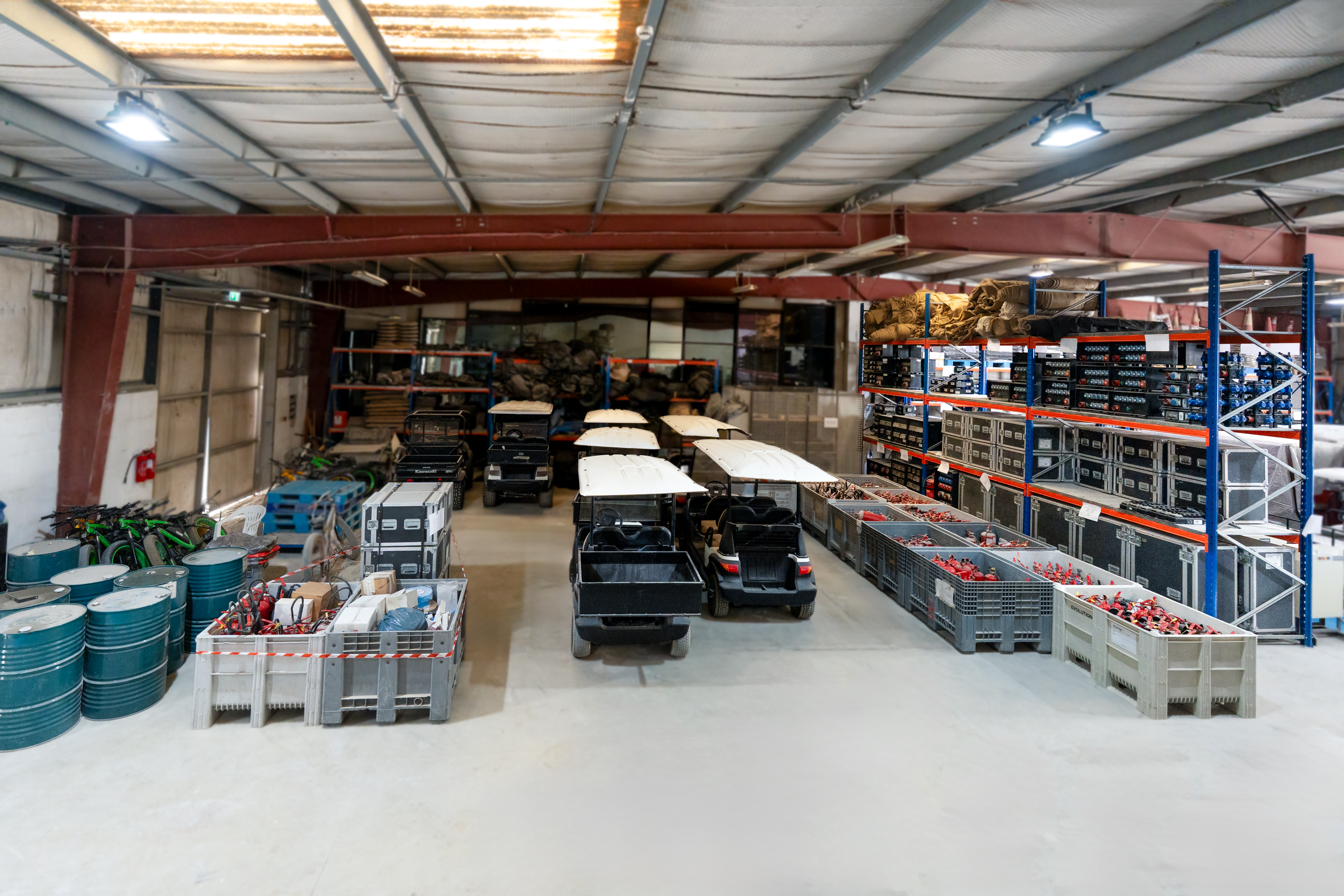

Large panels should generally be stored flat on a level, fully supported surface or vertically within a purpose-built rack. Leaning sheets against a wall for extended periods can cause permanent bowing, particularly where only part of the panel is supported.

Panels should not be placed directly on damp floors. Spacers, bearers or pallets help provide airflow and prevent contact with moisture.

Finished scenic walls also need protection from sudden environmental changes. Moving materials directly from a cool workshop into a hot, humid loading area can cause condensation or rapid moisture movement.

Where the installation period allows, components may need time to acclimatise before final assembly or finishing.

Transport frames are valuable for large, finished or reusable wall modules. They support the structure at designed points, prevent twisting and protect decorative surfaces from straps, forklifts and neighbouring components.

Packing should restrain the wall without forcing it into an unnatural shape. Tight straps applied across unsupported panels can introduce dents, curves or pressure marks.

The loading sequence should also reflect the installation plan. If a large wall must be removed from the vehicle before its bracing, base or support frame is available, it may be left standing in an unstable position.

At site, the installation surface should be checked before walls are erected.

Exhibition halls, temporary decks and event platforms may appear level while containing joints, slopes or local variations. A frame placed across an uneven surface can twist, causing the cladding to move or panel joints to open.

Adjustable feet, levelling plates or base packers can help create a consistent support line. These should be positioned beneath structural framing rather than beneath unsupported panel edges.

Walls should also be braced during installation. A freestanding scenic wall may not achieve full rigidity until adjoining sections, returns, base structures or overhead connections are installed.

Temporary braces should remain in place until the permanent structure is complete and checked.

Site teams should avoid making uncontrolled modifications. Cutting structural members, removing rear braces or adding heavy equipment without review can alter the behaviour of the wall.

Integrated screens, lighting, shelving and graphic features should be coordinated with the frame design. Their weight and fixing positions should not be treated as finishing details added after installation.

Final inspection should confirm:

• The wall remains straight and plumb
• The base is fully supported
• Panel joints remain aligned
• Bracing and structural connections are complete
• Surface finishes show no signs of stress
• Added equipment is properly supported
• Environmental exposure matches the material specification
• Temporary transport restraints have been removed
• Access panels operate without affecting surrounding surfaces

Where walls are intended for reuse, dismantling and storage are equally important.

Modules should be labelled, protected and stored in a way that maintains their original shape.

Damaged frames, loose joints and swollen panel edges should be repaired before the next installation rather than hidden during packing.

At Evolution Scenic, scenic walls are developed as complete fabricated systems. Sheet materials, frames, fixings, surface finishes, transport supports and site conditions are considered together from the outset.

Warping is rarely solved by simply selecting a thicker sheet or adding more weight. The most reliable solution comes from understanding how each material behaves and supporting it correctly throughout fabrication, transport and installation.

A straight scenic wall is not the result of luck.

It is the result of controlled materials, accurate framing and a build methodology designed to keep it straight from the workshop to the final site.

Designing For Maintenance And Future Upgrades

Many environments are designed around installation day. Far fewer are designed around the years that follow.

Museums, visitor centres, experience centres and permanent installations often combine scenic construction, integrated lighting, digital displays, control systems, mechanical elements and specialist finishes. These components may perform together as one complete environment, but they rarely share the same operational lifespan.

A scenic structure may remain serviceable for many years, while screens, lighting drivers, media equipment or interactive components require repair or replacement much sooner. Finishes may need periodic refurbishment, graphics may change and interpretation content may be updated as the environment evolves.

The ability to access, service and upgrade these elements can significantly affect long-term performance.

Maintenance considerations should therefore begin during the earliest stages of design development. Access routes, removable panels, equipment clearances, service corridors and replacement strategies are much easier to incorporate before fabrication than after the environment has been installed.

Good maintenance planning is rarely visible to visitors. An access hatch may follow the line of a scenic panel. A ventilation opening may be concealed within a shadow gap. A removable section may appear identical to the surrounding finish.

These details may seem secondary during design, yet they often determine whether future maintenance requires a straightforward service visit or substantial scenic dismantling.

The strongest installations are designed not only for opening day, but for the practical realities of long-term operation.

Designing Access and Serviceability From the Beginning

Maintenance planning starts by identifying which components will require attention throughout the life of the installation.

Some elements may need frequent access, including filters, lighting drivers, control equipment and high-use interactive components. Others may only require occasional inspection, such as structural connections, concealed fixings or ventilation routes.

The design team should understand what sits behind each scenic surface, how often it may need to be reached and what type of work is likely to take place.

A small inspection opening may be sufficient for viewing a connection, but it may not provide enough room to remove a power supply, screen module or mechanical actuator. Access dimensions should therefore respond to the complete maintenance activity rather than the visible size of the equipment alone.

Technicians may require space for tools, hands, connectors and temporary supports. Components also need a practical route out of the structure once disconnected.

Access panels should be developed as part of the scenic construction rather than added after equipment positions have been finalised.

They can be concealed within:

• Panel joints and shadow gaps
• Graphic layouts
• Decorative mouldings
• Material transitions
• Removable trims
• Joinery doors
• Floor hatches
• Ceiling or overhead panels

Concealed hinges, flush mechanical fixings and magnetic retention systems can help preserve the visual finish. However, the selected hardware must remain suitable for repeated use.

A panel designed to open once during installation may perform differently from one that will be accessed every month. Hinges, catches, edge finishes and retaining systems should reflect the expected maintenance frequency and panel weight.

Overhead access panels require particular care. Secondary restraints, controlled hinges or removable support systems may be needed to prevent panels from falling during servicing.

The opening direction should also be considered. A door that opens into a public circulation route or against a fixed display may be difficult to use safely. Maintenance access should avoid unnecessary conflict with visitors, furniture, sensitive exhibits and operational routes.

Some environments require larger internal service zones.

Museums, immersive environments and experience centres may contain rear corridors, technical voids or service platforms behind the visible scenic construction. These areas allow technicians to inspect equipment without entering public spaces or removing finished surfaces.

Service routes should provide adequate width, headroom and working light. They should remain free from sharp edges, exposed fixings and uncontrolled cabling.

Equipment should not be installed solely where it fits. It should be positioned where it can be reached safely and removed without dismantling unrelated components.

The placement of elevated equipment should take account of the intended access method. A fixture may technically be accessible by ladder, but regular servicing may require a mobile access tower or powered platform. The floor area and clearance needed for that equipment must be preserved within the operational layout.

Removable scenic elements can improve serviceability significantly.

A complete panel may be designed to detach from a concealed support frame, allowing equipment behind it to be reached without disturbing adjacent finishes. Decorative trims can conceal fixings while remaining replaceable if damaged through repeated removal.

These details require careful coordination between scenic carpentry, metal fabrication, engineering and technical teams. The internal structure must support the visible finish while also leaving clear service zones.

Good serviceability is achieved through planned space, not simply through the addition of more access hatches.

Planning Technology Replacement and Future Upgrades

Technology often changes more quickly than the environment surrounding it.

Screens, processors, lighting equipment, sensors, media players and control systems may become obsolete, fail or require performance upgrades during the operational life of an installation.

An environment designed too tightly around its original equipment can become difficult to maintain. Replacement products may have different dimensions, connection positions, ventilation requirements or mounting arrangements.

Future upgrade planning does not require predicting every technical development. It means providing enough flexibility for reasonable change.

Mounting systems can be designed with adjustable connection points rather than product-specific holes. Equipment housings can include limited spare capacity. Cable routes can remain accessible, and service openings can be sized around likely replacement components rather than only the first installation.

Technology replacement routes should be physically tested during design reviews.

A component may fit within its scenic housing but still be impossible to remove because of an internal brace, narrow access panel or restricted corridor. Large displays and equipment racks may require removable scenic sections, lifting points or clear routes through the building.

The complete pathway should be considered from the equipment position to the loading area.

This may include:

• Access-panel dimensions
• Internal structural clearances
• Door and corridor widths
• Floor-loading limits
• Changes in level
• Lift dimensions
• Turning circles
• Temporary removal of adjacent elements
• Lifting and handling requirements

Replacement planning should also consider cabling.

Power, data and control cables may need to be upgraded or rerouted as systems change. Cables permanently trapped behind bonded panels can make future modifications disruptive and expensive.

Accessible containment, removable covers and clearly organised cable routes allow systems to be updated without opening large areas of scenic construction.

Spare conduits or containment capacity can provide useful flexibility, particularly within long-term museums and visitor attractions. However, these routes must remain clearly documented so that future teams understand where they begin, where they terminate and what they can accommodate.

Ventilation requirements may also change.

Replacement equipment may generate more heat or require different airflow. Scenic enclosures should avoid relying on ventilation arrangements that only suit one specific product.

Where possible, passive airflow routes, removable filters and adaptable fan systems can support future equipment changes. Service teams should be able to clean or replace ventilation components without removing major scenic finishes.

Modularity can further support upgrades.

A digital display zone may be built as an independent technical module within a larger scenic wall. If the display format changes, the module can be modified or replaced without rebuilding the complete environment.

The same principle can apply to interactive stations, lighting features and interpretation panels. Separating shorter-life operational components from longer-life structural elements creates a more adaptable installation.

Upgrade planning should also recognise that content and operational needs may change even when the technology remains functional.

Museums may revise interpretation. Visitor centres may update maps, languages or destination information. Brand environments may require new graphics or product displays.

Replaceable graphic panels, modular showcases and adaptable display supports allow these updates to take place with less waste and disruption.

Future modifications must still be reviewed carefully. New equipment may introduce additional weight, heat or electrical demand. Existing structures and ventilation systems should not be assumed to accept these changes without assessment.

Adaptability is most effective when it is supported by controlled engineering and accurate records.

Managing the Installation Through Its Operational Life Cycle

Designing for maintenance is only useful when the completed environment is supported by an organised operational strategy.

The handover package should explain how the installation is accessed, inspected, cleaned, serviced and updated. It should reflect the final as-built condition rather than only the original design intent.

Useful handover information may include:

• As-built scenic and structural drawings
• Access-panel schedules
• Equipment locations
• Service and removal routes
• Cable and containment layouts
• Electrical isolation points
• Ventilation and filter locations
• Approved cleaning methods
• Finish references and repair procedures
• Replacement-component information
• Inspection intervals
• Manufacturer service requirements
• Recommended spare parts
• Safe access procedures

Access panels should be clearly identified within the documentation, even when they are visually concealed. Internal labels can help technicians locate equipment without trial-and-error removal of scenic panels.

Inspection schedules should reflect the environment and the type of equipment installed.

A high-use interactive station may require frequent checks, while concealed structural connections may only need periodic inspection. Outdoor or partially exposed installations may require additional reviews following severe weather, water ingress or unusual temperature conditions.

Planned maintenance should distinguish between routine servicing, preventative replacement and reactive repair.

Routine servicing may include cleaning filters, testing lighting, checking fixings and reviewing cable condition. Preventative replacement addresses components known to have limited service lives before they fail during operation.

Reactive repair remains necessary when unexpected damage occurs, but it should not be the primary maintenance strategy.

Records help the operational team understand how the environment is performing over time. Repeated failure of the same component may indicate a deeper problem involving ventilation, public interaction, access or equipment selection.

Maintenance records can therefore inform future upgrades and refurbishment decisions.

Scenic finishes should also form part of the lifecycle strategy.

Access panels and removable trims can experience wear through repeated servicing. Edges may chip, concealed fixings may loosen and specialist coatings may become difficult to match.

Durable edge details, replaceable hardware and documented finish systems can help maintain visual consistency. Retaining approved samples is particularly useful where finishes involve layered ageing, metallic effects or specialist textures that cannot be fully defined by a standard paint code.

Spare scenic materials may also be retained where future availability is uncertain. These can include laminates, graphics, decorative profiles, hardware or representative finish samples.

Eventually, parts of the environment may require refurbishment rather than isolated repair.

A lifecycle plan can identify likely renewal stages for finishes, technology and high-contact components. This allows work to be scheduled around quieter operating periods and coordinated as one planned intervention.

The scenic structure may remain largely intact while screens, lighting, graphics and selected surface panels are replaced. Designing these elements as independent serviceable layers reduces unnecessary demolition and helps preserve the original investment in the environment.

At Evolution Scenic, maintenance and future upgrades are considered as part of the complete fabrication strategy. Scenic structures, access systems, technology zones, finishes and service routes are coordinated so that environments can continue to operate effectively after installation.

The strongest permanent installations are not those that never require maintenance. Every working environment changes over time.

They are the installations where maintenance, repair and future adaptation can take place without compromising the structure, disrupting large areas of finished work or creating unnecessary operational difficulty.

Opening day may be the most visible point in the project.

Long-term performance is what ultimately determines whether the environment was designed successfully.

Why The Best Scenic Feature Is Usually The One Nobody Talks About

Every project has a hero feature.

It might be a giant illuminated logo, a sculptural stage, an immersive environment or an entrance structure designed to stop people in their tracks. These are the elements that dominate the renders, fill the photography brief and attract the most enthusiastic comments during a client walk-through.

They are also, quite often, not the fabrication team’s favourite part of the project.

Ask an experienced scenic builder what they are most pleased with and the answer may be surprisingly unglamorous: a removable wall section that came away cleanly, a service hatch positioned exactly where the technician needed it, or a concealed storage bay that prevented flight cases from appearing in every photograph.

Not especially heroic, perhaps. But extremely useful.

Scenic Environments Are Operational Systems

A scenic environment is easy to judge as a finished image. In that moment, the geometry is crisp, the finishes are clean and the technology appears to have disappeared neatly into the architecture. What the photograph does not show is how the structure arrived, how it was assembled, where the cables run, how equipment can be serviced or where the spare parts are stored.

Those questions determine whether the environment works beyond the first reveal.

At Evolution Scenic, operational thinking begins during design development rather than being left for the installation team to solve on site. Scenic construction drawings must account for visible surfaces and hidden infrastructure at the same time. The finished face may be a seamless laminate, painted timber form or precisely aligned graphic panel, but behind it there may also need to be steel reinforcement, cable containment, ventilation, access clearances and fixings that can be reached with ordinary tools.

When these requirements are coordinated early, the scenic feature remains visually convincing without becoming difficult to operate. When they are ignored, even a beautiful installation can become a puzzle with no obvious solution and a technician holding the wrong-sized spanner.

Hidden Infrastructure Does the Real Work

Hidden infrastructure is not one single component. It is the network of practical decisions that allows the visible environment to perform.

This may include cable routes that separate power and data, structural supports that transfer loads safely, ventilation paths around LED equipment, protected cavities for control hardware and fixing points that remain accessible after finishes are applied. In larger environments, it can also include routes for maintenance teams, removable floor sections, ladder access or voids that allow equipment to be replaced without dismantling half the installation.

The challenge is that these systems compete for space. Scenic structures are often expected to appear thin, clean and effortless, while the equipment behind them may require depth, airflow and safe working clearances. Resolving that conflict requires close coordination between scenic engineers, fabricators and technical specialists.

A well-designed void is rarely accidental. Its depth may be determined by the turning radius of a connector, the size of a power supply or the minimum clearance needed to remove a display module. A cable route may look generous in a drawing, then become unusable once brackets, stiffeners and cladding are added. Good fabrication detailing tests these conditions before production begins.

Access Panels That Do Not Announce Themselves

Access panels are a perfect example of a detail that succeeds by avoiding attention.

They need to be large enough to provide useful access, strong enough to remain stable and discreet enough to sit within the surrounding finish. They may require concealed hinges, magnetic catches, lift-off fixings or removable trims. Their edges must align with the scenic design, and their opening direction must not conflict with adjacent walls, equipment or circulation routes.

A panel drawn as a simple rectangle can become a surprisingly involved piece of fabrication.

The workshop team must consider material movement, finish thickness, repeated opening, edge protection and how the panel will be handled without damage. On curved or highly detailed scenic surfaces, the access point may need to follow complex geometry while remaining easy to remove. Where fire-rated materials, acoustic treatments or specialist coatings are involved, the access solution must maintain the intended performance of the surrounding construction.

The best panel is usually the one nobody identifies until it is opened. At that point, it suddenly becomes everyone’s favourite feature.

Storage Is Part of the Scenic Design

Storage is often treated as a facilities question, but it has a direct effect on how a scenic environment looks and operates.

Temporary environments generate a surprising amount of supporting equipment: tools, replacement graphics, cleaning materials, packaging, technical spares, cables and cases. Without planned storage, these items migrate into visible corners, behind counters or beneath furniture. The carefully controlled environment gradually acquires a small collection of objects that were never included in the render.

Integrating storage into scenic construction can prevent this. A feature wall may conceal lockable cupboards. A reception counter may include protected compartments for technical equipment. A plinth may incorporate removable panels and shelving. Even modest storage volumes can make a significant operational difference when they are placed where teams actually need them.

The important point is not simply to create empty space. Doors must open fully, shelves must support realistic loads and stored items must be removable without disturbing graphics, lighting or adjacent joinery. Useful storage is designed around contents and access, not around whatever void happens to remain.

Technical Integration Must Stay Serviceable

Technology is often expected to appear seamless within a scenic environment. LED displays, projection equipment, lighting systems, sensors, speakers and interactive devices may all be integrated into the finished structure with minimal visible hardware.

Seamless, however, should not mean inaccessible.

Displays need ventilation and replacement routes. Projectors require alignment and servicing space. Lighting drivers and control equipment must be reachable. Sensors may need recalibration. Cables must be supported, labelled and protected rather than pushed into the nearest cavity and left for a future technician to discover.

Evolution Scenic’s fabrication approach treats technical integration as part of the build methodology. Openings, brackets, cable trays, ventilation grilles and removable trims are coordinated with the scenic finish so that equipment can be installed accurately and maintained later. This often involves prototyping details in the workshop, particularly where tight tolerances or specialist interfaces are involved.

The objective is not merely to hide technology. It is to integrate it so thoroughly that the scenic structure and technical systems operate as one coordinated assembly.

Installation Efficiency Is Designed in Advance

A maintenance hatch that saves six hours during installation may not appear on the final photography list, but it can have a greater effect on the project than a highly visible decorative detail.

Installation efficiency is influenced by module sizes, connection positions, fixing access, lifting points and assembly sequence. A concealed bolt is only useful if an installer can reach it. A removable panel is only helpful if it can be taken off after the neighbouring module is installed. A cable route is only effective if cables can be pulled through it without sharp bends or blocked junctions.

These considerations are especially important in active venues and operational buildings, where access times may be restricted and disruption must be minimised. Scenic components may need to arrive in a precise order, pass through limited doorways and be installed within narrow working windows. Clear labelling, repeatable connection details and sensible tolerances can remove hours of uncertainty from the process.

This is where fabrication experience becomes most visible by being almost invisible. The installation appears calm because the difficult decisions were made earlier.

When Nobody Notices, It Has Probably Worked

The most successful scenic environments are not collections of impressive surfaces. They are operational systems in which structure, finishes, technology, storage, access and installation methodology have been considered together.

The hero feature still matters. It creates identity, impact and atmosphere. But its success depends on a supporting cast of details that rarely receive applause: the reinforced fixing, the removable section, the service void, the labelled cable route and the cupboard in exactly the right place.

When those elements are poorly resolved, everybody notices.

When they are designed and fabricated properly, nobody talks about them at all.

And, slightly unfairly, that is often the highest compliment they can receive.
