Designing For Maintenance And Future Upgrades

Many environments are designed around installation day. Far fewer are designed around the years that follow.

Museums, visitor centres, experience centres and permanent installations often combine scenic construction, integrated lighting, digital displays, control systems, mechanical elements and specialist finishes. These components may perform together as one complete environment, but they rarely share the same operational lifespan.

A scenic structure may remain serviceable for many years, while screens, lighting drivers, media equipment or interactive components require repair or replacement much sooner. Finishes may need periodic refurbishment, graphics may change and interpretation content may be updated as the environment evolves.

The ability to access, service and upgrade these elements can significantly affect long-term performance.

Maintenance considerations should therefore begin during the earliest stages of design development. Access routes, removable panels, equipment clearances, service corridors and replacement strategies are much easier to incorporate before fabrication than after the environment has been installed.

Good maintenance planning is rarely visible to visitors. An access hatch may follow the line of a scenic panel. A ventilation opening may be concealed within a shadow gap. A removable section may appear identical to the surrounding finish.

These details may seem secondary during design, yet they often determine whether future maintenance requires a straightforward service visit or substantial scenic dismantling.

The strongest installations are designed not only for opening day, but for the practical realities of long-term operation.

Designing Access and Serviceability From the Beginning

Maintenance planning starts by identifying which components will require attention throughout the life of the installation.

Some elements may need frequent access, including filters, lighting drivers, control equipment and high-use interactive components. Others may only require occasional inspection, such as structural connections, concealed fixings or ventilation routes.

The design team should understand what sits behind each scenic surface, how often it may need to be reached and what type of work is likely to take place.

A small inspection opening may be sufficient for viewing a connection, but it may not provide enough room to remove a power supply, screen module or mechanical actuator. Access dimensions should therefore respond to the complete maintenance activity rather than the visible size of the equipment alone.

Technicians may require space for tools, hands, connectors and temporary supports. Components also need a practical route out of the structure once disconnected.

Access panels should be developed as part of the scenic construction rather than added after equipment positions have been finalised.

They can be concealed within:

Panel joints and shadow gaps
Graphic layouts
Decorative mouldings
Material transitions
Removable trims
Joinery doors
Floor hatches
Ceiling or overhead panels

Concealed hinges, flush mechanical fixings and magnetic retention systems can help preserve the visual finish. However, the selected hardware must remain suitable for repeated use.

A panel designed to open once during installation may perform differently from one that will be accessed every month. Hinges, catches, edge finishes and retaining systems should reflect the expected maintenance frequency and panel weight.

Overhead access panels require particular care. Secondary restraints, controlled hinges or removable support systems may be needed to prevent panels from falling during servicing.

The opening direction should also be considered. A door that opens into a public circulation route or against a fixed display may be difficult to use safely. Maintenance access should avoid unnecessary conflict with visitors, furniture, sensitive exhibits and operational routes.

Some environments require larger internal service zones.

Museums, immersive environments and experience centres may contain rear corridors, technical voids or service platforms behind the visible scenic construction. These areas allow technicians to inspect equipment without entering public spaces or removing finished surfaces.

Service routes should provide adequate width, headroom and working light. They should remain free from sharp edges, exposed fixings and uncontrolled cabling.

Equipment should not be installed solely where it fits. It should be positioned where it can be reached safely and removed without dismantling unrelated components.

The placement of elevated equipment should take account of the intended access method. A fixture may technically be accessible by ladder, but regular servicing may require a mobile access tower or powered platform. The floor area and clearance needed for that equipment must be preserved within the operational layout.

Removable scenic elements can improve serviceability significantly.

A complete panel may be designed to detach from a concealed support frame, allowing equipment behind it to be reached without disturbing adjacent finishes. Decorative trims can conceal fixings while remaining replaceable if damaged through repeated removal.

These details require careful coordination between scenic carpentry, metal fabrication, engineering and technical teams. The internal structure must support the visible finish while also leaving clear service zones.

Good serviceability is achieved through planned space, not simply through the addition of more access hatches.

Planning Technology Replacement and Future Upgrades

Technology often changes more quickly than the environment surrounding it.

Screens, processors, lighting equipment, sensors, media players and control systems may become obsolete, fail or require performance upgrades during the operational life of an installation.

An environment designed too tightly around its original equipment can become difficult to maintain. Replacement products may have different dimensions, connection positions, ventilation requirements or mounting arrangements.

Future upgrade planning does not require predicting every technical development. It means providing enough flexibility for reasonable change.

Mounting systems can be designed with adjustable connection points rather than product-specific holes. Equipment housings can include limited spare capacity. Cable routes can remain accessible, and service openings can be sized around likely replacement components rather than only the first installation.

Technology replacement routes should be physically tested during design reviews.

A component may fit within its scenic housing but still be impossible to remove because of an internal brace, narrow access panel or restricted corridor. Large displays and equipment racks may require removable scenic sections, lifting points or clear routes through the building.

The complete pathway should be considered from the equipment position to the loading area.

This may include:

Access-panel dimensions
Internal structural clearances
Door and corridor widths
Floor-loading limits
Changes in level
Lift dimensions
Turning circles
Temporary removal of adjacent elements
Lifting and handling requirements

Replacement planning should also consider cabling.

Power, data and control cables may need to be upgraded or rerouted as systems change. Cables permanently trapped behind bonded panels can make future modifications disruptive and expensive.

Accessible containment, removable covers and clearly organised cable routes allow systems to be updated without opening large areas of scenic construction.

Spare conduits or containment capacity can provide useful flexibility, particularly within long-term museums and visitor attractions. However, these routes must remain clearly documented so that future teams understand where they begin, where they terminate and what they can accommodate.

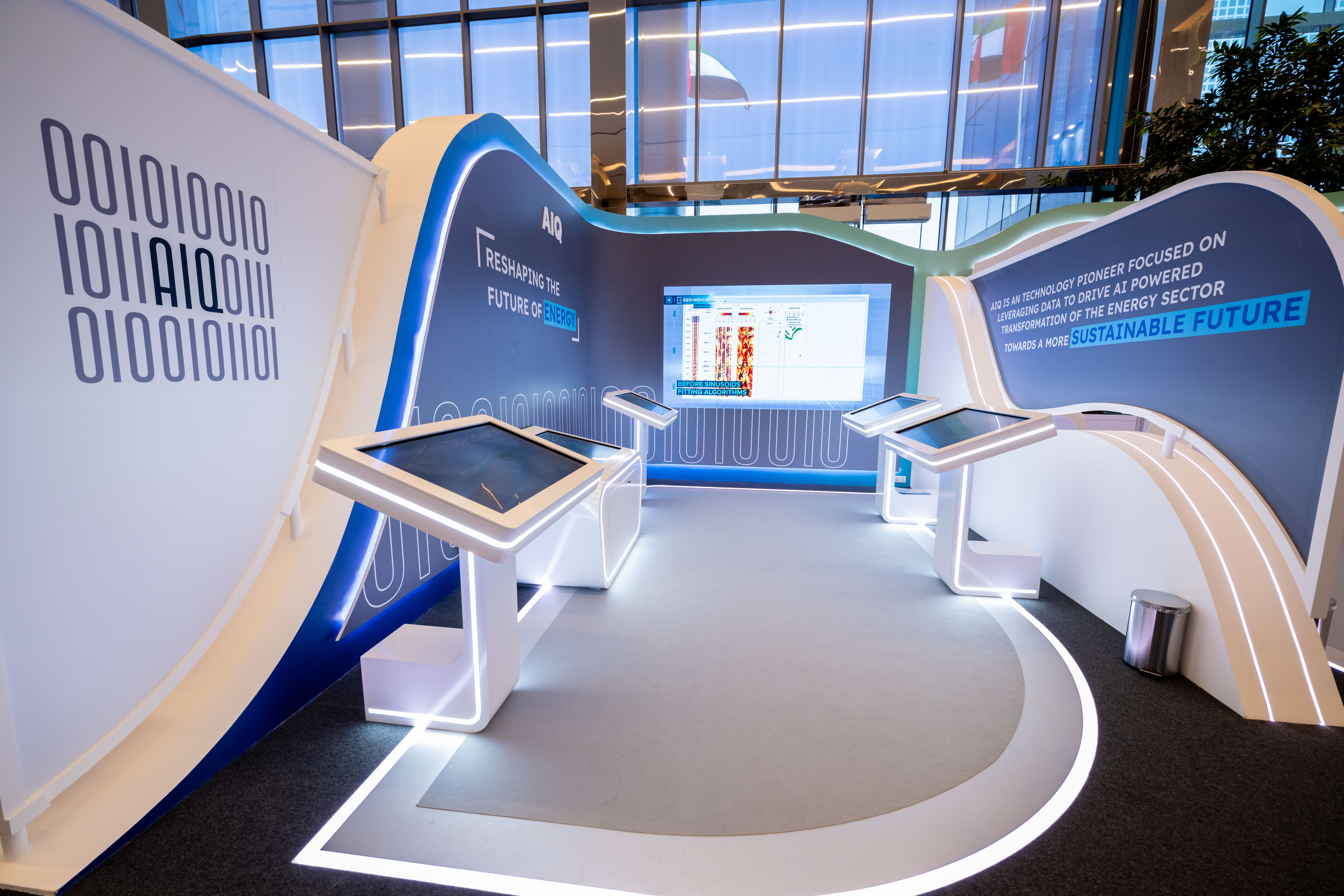

Ventilation requirements may also change.

Replacement equipment may generate more heat or require different airflow. Scenic enclosures should avoid relying on ventilation arrangements that only suit one specific product.

Where possible, passive airflow routes, removable filters and adaptable fan systems can support future equipment changes. Service teams should be able to clean or replace ventilation components without removing major scenic finishes.

Modularity can further support upgrades.

A digital display zone may be built as an independent technical module within a larger scenic wall. If the display format changes, the module can be modified or replaced without rebuilding the complete environment.

The same principle can apply to interactive stations, lighting features and interpretation panels. Separating shorter-life operational components from longer-life structural elements creates a more adaptable installation.

Upgrade planning should also recognise that content and operational needs may change even when the technology remains functional.

Museums may revise interpretation. Visitor centres may update maps, languages or destination information. Brand environments may require new graphics or product displays.

Replaceable graphic panels, modular showcases and adaptable display supports allow these updates to take place with less waste and disruption.

Future modifications must still be reviewed carefully. New equipment may introduce additional weight, heat or electrical demand. Existing structures and ventilation systems should not be assumed to accept these changes without assessment.

Adaptability is most effective when it is supported by controlled engineering and accurate records.

Managing the Installation Through Its Operational Life Cycle

Designing for maintenance is only useful when the completed environment is supported by an organised operational strategy.

The handover package should explain how the installation is accessed, inspected, cleaned, serviced and updated. It should reflect the final as-built condition rather than only the original design intent.

Useful handover information may include:

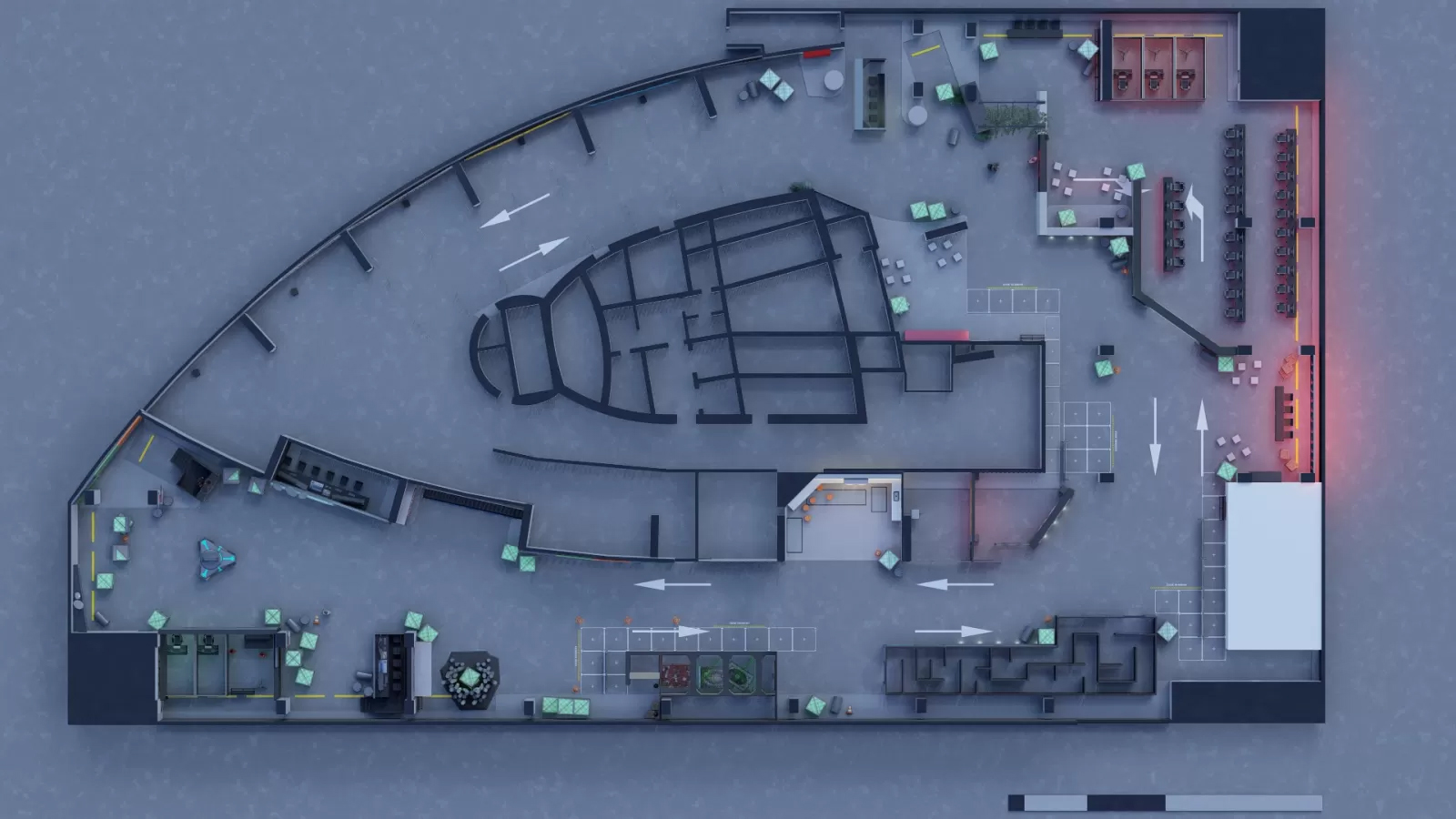

As-built scenic and structural drawings
Access-panel schedules
Equipment locations
Service and removal routes
Cable and containment layouts
Electrical isolation points
Ventilation and filter locations
Approved cleaning methods
Finish references and repair procedures
Replacement-component information
Inspection intervals
Manufacturer service requirements
Recommended spare parts
Safe access procedures

Access panels should be clearly identified within the documentation, even when they are visually concealed. Internal labels can help technicians locate equipment without trial-and-error removal of scenic panels.

Inspection schedules should reflect the environment and the type of equipment installed.

A high-use interactive station may require frequent checks, while concealed structural connections may only need periodic inspection. Outdoor or partially exposed installations may require additional reviews following severe weather, water ingress or unusual temperature conditions.

Planned maintenance should distinguish between routine servicing, preventative replacement and reactive repair.

Routine servicing may include cleaning filters, testing lighting, checking fixings and reviewing cable condition. Preventative replacement addresses components known to have limited service lives before they fail during operation.

Reactive repair remains necessary when unexpected damage occurs, but it should not be the primary maintenance strategy.

Records help the operational team understand how the environment is performing over time. Repeated failure of the same component may indicate a deeper problem involving ventilation, public interaction, access or equipment selection.

Maintenance records can therefore inform future upgrades and refurbishment decisions.

Scenic finishes should also form part of the lifecycle strategy.

Access panels and removable trims can experience wear through repeated servicing. Edges may chip, concealed fixings may loosen and specialist coatings may become difficult to match.

Durable edge details, replaceable hardware and documented finish systems can help maintain visual consistency. Retaining approved samples is particularly useful where finishes involve layered ageing, metallic effects or specialist textures that cannot be fully defined by a standard paint code.

Spare scenic materials may also be retained where future availability is uncertain. These can include laminates, graphics, decorative profiles, hardware or representative finish samples.

Eventually, parts of the environment may require refurbishment rather than isolated repair.

A lifecycle plan can identify likely renewal stages for finishes, technology and high-contact components. This allows work to be scheduled around quieter operating periods and coordinated as one planned intervention.

The scenic structure may remain largely intact while screens, lighting, graphics and selected surface panels are replaced. Designing these elements as independent serviceable layers reduces unnecessary demolition and helps preserve the original investment in the environment.

At Evolution Scenic, maintenance and future upgrades are considered as part of the complete fabrication strategy. Scenic structures, access systems, technology zones, finishes and service routes are coordinated so that environments can continue to operate effectively after installation.

The strongest permanent installations are not those that never require maintenance. Every working environment changes over time.

They are the installations where maintenance, repair and future adaptation can take place without compromising the structure, disrupting large areas of finished work or creating unnecessary operational difficulty.

Opening day may be the most visible point in the project.

Long-term performance is what ultimately determines whether the environment was designed successfully.
