Why Scenic Walls Warp (And How To Prevent It)

A scenic wall can look perfectly straight when it leaves the workshop and noticeably different by the time it reaches site.

Warping is one of the most common problems encountered within scenic fabrication, particularly where temporary walls are transported, stored, repeatedly handled or exposed to changing environmental conditions.

The issue rarely comes from one obvious mistake. More often, it develops through a combination of material movement, insufficient structural support, uneven surface preparation, poor storage or unsuitable transportation methods.

A wall may be straight while lying horizontally in the workshop but begin to bow once installed vertically. A panel may remain stable in an air-conditioned fabrication facility and then react after being moved into a humid loading area or an outdoor activation site. A finished wall may also distort because weight has been added unevenly through graphics, lighting, shelving or decorative elements.

Experienced scenic fabricators therefore focus on prevention rather than correction. Material selection, framework design, workshop methodology, finishing systems and transport planning all contribute to the final stability of the wall.

The best scenic walls are rarely the heaviest. They are usually the ones where the materials, internal structure and complete project journey have been considered together from the beginning.

Why Scenic Wall Materials Move

Timber-based sheet materials naturally respond to moisture, temperature and changes in their surrounding environment.

MDF is widely used within scenic carpentry because it machines accurately and provides a smooth surface for paint, graphics and decorative finishes. It performs particularly well for routed details, feature walls, exhibition panels and interior scenic elements where a consistent finish is required.

However, MDF can absorb moisture through its faces, cut edges and fixing points. If one side absorbs more moisture than the other, or if one face receives a heavier coating system, the sheet can expand unevenly and begin to curve.

Cut edges are particularly vulnerable because they are more absorbent than the factory faces. Unsealed edges may take on moisture during storage, transportation or installation, even if the visible surfaces have been properly painted.

MDF is also relatively heavy. When large sheets are installed across insufficient framing, their own weight can contribute to sagging or movement over time.

Plywood behaves differently.

Its cross-laminated construction generally provides greater structural stability and fixing strength than MDF, making it useful for reusable exhibition walls, stage sets, large scenic structures and components that will experience repeated handling.

However, plywood is not immune to warping. Lower-grade sheets may contain internal stresses, uneven veneers or variations in moisture content. These issues can become visible after cutting or once the material is exposed to a different environment.

The quality and grade of plywood matter. A structural plywood panel selected for hidden framing behaves differently from a high-quality birch plywood panel used for exposed joinery. Selecting plywood only by sheet thickness without considering grade, construction and intended use can lead to inconsistent results.

Sheet thickness also affects performance. A thin panel fixed across a wide frame spacing is more likely to move than a thicker panel supported by a correctly designed framework. Increasing the panel thickness can improve stiffness, but it also adds weight and does not compensate for poor framing.

Other materials can create movement when combined incorrectly.

A scenic wall may include timber framing, MDF cladding, aluminium trims, acrylic details and steel supports. Each material expands and contracts differently. If these movements are restrained without suitable joints, clearances or fixing methods, the wall can develop stress, cracking or visible distortion.

Environmental conditions can accelerate these problems.

A wall fabricated in an air-conditioned workshop may be stored temporarily in a hot warehouse, transported in an enclosed vehicle and installed outdoors where it is exposed to humidity, sunlight and changing temperatures.

Dark painted finishes can absorb heat, particularly in outdoor environments. One face of a wall may become significantly warmer than the other, causing uneven expansion. Direct sunlight can also affect adhesives, vinyl graphics and composite materials attached to the surface.

Humidity is equally important. Timber-based materials may absorb moisture from the air even when they are not directly exposed to water. This can be particularly noticeable when components move between controlled indoor environments and open loading areas.

The finish system can also influence panel movement.

Applying several coats to one face while leaving the reverse untreated creates an imbalance. The sealed face and unsealed face may respond differently to moisture, which can cause the panel to curve.

Where practical, both sides of a panel should receive a balanced sealing system, even if the rear face will never be visible.

Designing and Fabricating Walls for Stability

A stable scenic wall depends as much on its internal framework as on its visible panels.

Large unsupported areas are one of the most common causes of movement. A wall may appear rigid during fabrication but begin to bow once stood upright, lifted, transported or fitted with additional components.

The framework must support the panel at appropriate intervals and transfer loads into the base without allowing excessive movement.

Timber framing is commonly used because it is versatile, lightweight and easy to modify. It can perform well for temporary exhibition walls, activation environments and stage sets when the timber is straight, dry and correctly selected.

Poor-quality or high-moisture timber can introduce movement into the completed wall. Twisted or bowed studs should not be forced into position and then covered with sheet material, as the internal stress may gradually transfer into the finished surface.

Timber sections should be checked before assembly, while frame spacing should reflect the sheet thickness, wall height and anticipated loading.

Noggin positions, corner details and panel joints all require attention. Joints between sheets should be supported rather than left spanning between studs. Additional framing may be required around doors, screens, shelves, graphics, access panels and mounted objects.

Aluminium frames can provide a lighter and more dimensionally stable alternative in some applications.

Extruded aluminium systems are useful for modular exhibition walls, reusable activation structures and installations that require repeated assembly. They can provide accurate alignment and reduce the movement associated with natural timber.

However, aluminium does not automatically eliminate warping. The frame still needs sufficient depth, bracing and connection strength. Lightweight sections can flex if they are undersized or used across large spans.

The connection between aluminium framing and timber-based cladding must also allow for differences in material movement. Fixings should secure the panel without creating unnecessary stress or visible surface distortion.

Steel may be introduced where greater rigidity, height or structural capacity is required. A steel base frame or concealed support can stabilise large scenic walls while allowing timber or composite panels to form the visible finish.

The correct framing material depends on the size, reuse requirements, transport method and installation environment. Hybrid construction is often the most effective approach.

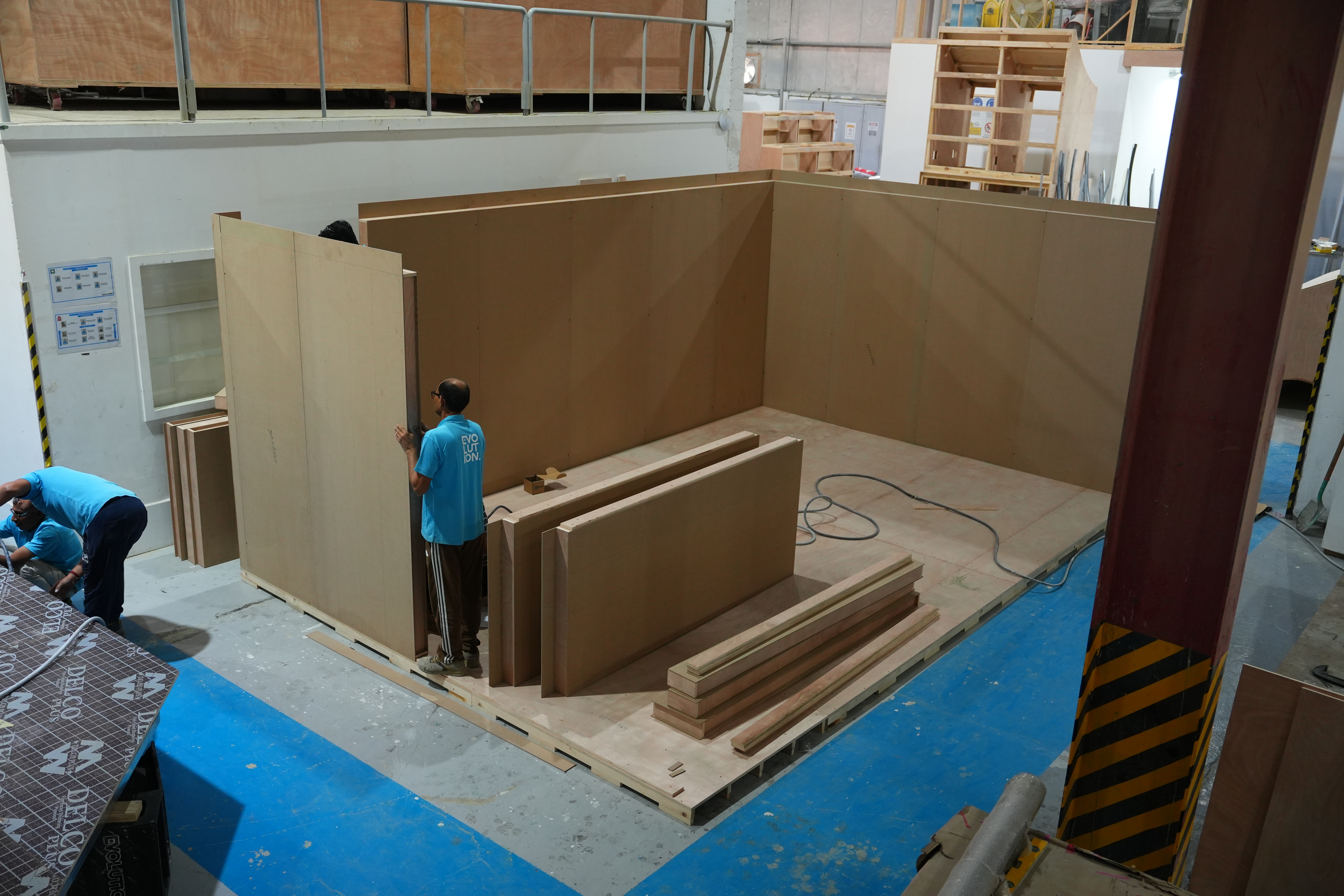

Workshop assembly methods also influence the finished result.

Frames should be constructed on level surfaces using accurate setting-out points. Small errors can accumulate across a long wall, creating twist or uneven panel alignment.

Before cladding begins, the frame should be checked for:

• Squareness
• Straightness
• Consistent depth
• Secure connections
• Adequate bracing
• Supported panel joints
• Correct base alignment
• Openings and service locations

Panels should be fixed using an appropriate sequence. Starting at one end and forcing the sheet into position can lock stress into the wall. It is generally better to align the panel carefully and fix progressively while monitoring flatness.

Fixing spacing matters. Too few fixings may allow movement, while excessive or uneven fixing can pull the panel into the shape of an inaccurate frame.

Adhesives should be used carefully. Continuous rigid bonding may prevent materials from moving independently and can create surface distortion if the adhesive cures unevenly. Mechanical fixings, flexible adhesives or combined systems may be more appropriate depending on the build.

CNC machining can improve accuracy, particularly for modular structures, interlocking ribs and repeatable panel systems. Digitally cut components can help maintain alignment and reduce variation between sections.

However, CNC accuracy does not compensate for unsuitable material storage or poor assembly. Precisely machined panels can still warp if they are left unsupported, exposed to moisture or fixed to an unstable frame.

Trial assembly is particularly useful for large exhibition walls and scenic stage sets.

It allows the fabrication team to confirm alignment, panel joints, connection details and stability before the wall is packed for transport. Any movement can be identified while workshop tools and replacement materials remain available.

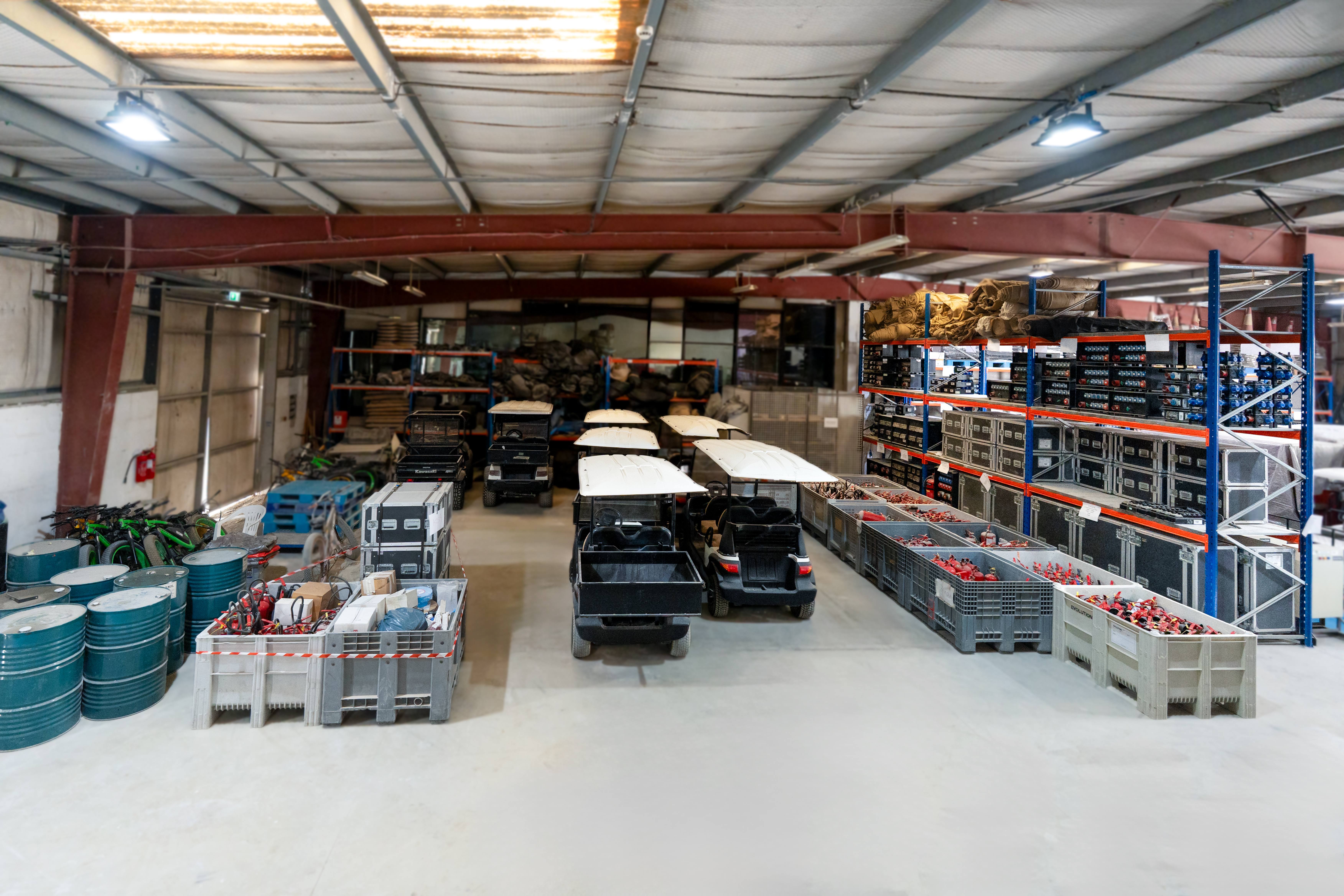

Storage, Transportation and Site Installation

A scenic wall can be fabricated correctly and still arrive on site distorted if it is stored or transported incorrectly.

Large panels should generally be stored flat on a level, fully supported surface or vertically within a purpose-built rack. Leaning sheets against a wall for extended periods can cause permanent bowing, particularly where only part of the panel is supported.

Panels should not be placed directly on damp floors. Spacers, bearers or pallets help provide airflow and prevent contact with moisture.

Finished scenic walls also need protection from sudden environmental changes. Moving materials directly from a cool workshop into a hot, humid loading area can cause condensation or rapid moisture movement.

Where the installation period allows, components may need time to acclimatise before final assembly or finishing.

Transport frames are valuable for large, finished or reusable wall modules. They support the structure at designed points, prevent twisting and protect decorative surfaces from straps, forklifts and neighbouring components.

Packing should restrain the wall without forcing it into an unnatural shape. Tight straps applied across unsupported panels can introduce dents, curves or pressure marks.

The loading sequence should also reflect the installation plan. If a large wall must be removed from the vehicle before its bracing, base or support frame is available, it may be left standing in an unstable position.

At site, the installation surface should be checked before walls are erected.

Exhibition halls, temporary decks and event platforms may appear level while containing joints, slopes or local variations. A frame placed across an uneven surface can twist, causing the cladding to move or panel joints to open.

Adjustable feet, levelling plates or base packers can help create a consistent support line. These should be positioned beneath structural framing rather than beneath unsupported panel edges.

Walls should also be braced during installation. A freestanding scenic wall may not achieve full rigidity until adjoining sections, returns, base structures or overhead connections are installed.

Temporary braces should remain in place until the permanent structure is complete and checked.

Site teams should avoid making uncontrolled modifications. Cutting structural members, removing rear braces or adding heavy equipment without review can alter the behaviour of the wall.

Integrated screens, lighting, shelving and graphic features should be coordinated with the frame design. Their weight and fixing positions should not be treated as finishing details added after installation.

Final inspection should confirm:

• The wall remains straight and plumb
• The base is fully supported
• Panel joints remain aligned
• Bracing and structural connections are complete
• Surface finishes show no signs of stress
• Added equipment is properly supported
• Environmental exposure matches the material specification
• Temporary transport restraints have been removed
• Access panels operate without affecting surrounding surfaces

Where walls are intended for reuse, dismantling and storage are equally important.

Modules should be labelled, protected and stored in a way that maintains their original shape.

Damaged frames, loose joints and swollen panel edges should be repaired before the next installation rather than hidden during packing.

At Evolution Scenic, scenic walls are developed as complete fabricated systems. Sheet materials, frames, fixings, surface finishes, transport supports and site conditions are considered together from the outset.

Warping is rarely solved by simply selecting a thicker sheet or adding more weight. The most reliable solution comes from understanding how each material behaves and supporting it correctly throughout fabrication, transport and installation.

A straight scenic wall is not the result of luck.

It is the result of controlled materials, accurate framing and a build methodology designed to keep it straight from the workshop to the final site.

Recreating Traditional Materials Through Scenic Fabrication

Many cultural, heritage and destination projects seek to capture the character of traditional construction while meeting modern structural, logistical and operational requirements.

Original materials such as carved stone, aged timber, decorative plasterwork and hand-finished architectural details can be difficult to reproduce using historic construction methods. Their weight, availability, installation time and maintenance requirements may make them unsuitable for temporary environments, exhibition pavilions, heritage festivals or visitor centres.

Scenic fabrication provides a practical way to bridge these requirements.

A lightweight structure can reproduce the visual depth of carved masonry. Modern sheet materials can be shaped and finished to resemble historic timber. Sculpted foam, reinforced coatings and specialist paint systems can create architectural details that appear substantial while remaining manageable to transport and install.

The objective is not simply to copy the surface appearance of a traditional material. Successful heritage-inspired fabrication requires an understanding of how that material was originally formed, assembled and weathered.

Stone has mass, irregularity and depth. Timber contains grain, joints, tool marks and natural variation. Plaster develops subtle differences in texture and colour. These characteristics must be interpreted carefully if the finished environment is to feel credible rather than decorative.

The strongest results combine traditional craftsmanship principles with contemporary engineering, digital fabrication and scenic finishing. This allows cultural environments to retain their intended visual character while remaining safe, maintainable and practical to deliver.

Interpreting Traditional Materials and Architecture

The process begins with research and visual analysis.

Before a material can be recreated, the fabrication team must understand what makes it recognisable. This usually involves more than selecting a general colour or surface texture.

A traditional stone wall may contain irregular blocks, recessed joints, chipped edges and areas of accumulated wear. A historic timber door may be defined by its proportions, construction joints, grain direction, ironwork and uneven surface. Decorative plasterwork may contain repeated geometry, hand-worked transitions and minor variations that reveal how it was made.

Reference material may include architectural drawings, historic photographs, physical samples, site surveys and local construction details. Where cultural accuracy is important, project historians, architects, artists and heritage specialists may also contribute to the review process.

Scale is one of the first considerations.

Textures that look convincing on a small sample can become repetitive or exaggerated when applied across a large façade. Stone joints that are too deep may appear theatrical, while timber grain enlarged beyond its natural scale can immediately reveal the artificial surface.

The relationship between individual elements also matters. Traditional architecture is often defined by how walls, openings, columns, beams, cornices and decorative panels connect.

Reproducing isolated motifs without respecting the original construction logic can create an environment that contains the correct visual references but still feels inauthentic.

Scenic interpretation should therefore consider:

• Architectural proportions
• Material scale and thickness
• Traditional joint patterns
• Carving depth and edge quality
• Surface irregularity
• Tool marks and construction details
• Colour variation
• Natural wear and weathering
• Regional decorative language
• The relationship between structural and ornamental elements

Cultural authenticity does not always require exact reproduction.

Some environments interpret a traditional building language rather than recreate one specific historic structure. In these cases, the fabrication team must identify the visual principles that should remain consistent while allowing the construction method to respond to modern requirements.

This is particularly relevant for heritage festivals, cultural pavilions and destination environments. The scenic structures may need to represent a particular region or period while accommodating temporary foundations, technical equipment, visitor circulation and modern safety requirements.

Material samples and mock-ups are essential during this stage.

A small sample can establish colour and texture, while a full-scale section reveals how joints, edges and shadows behave at the intended viewing distance. Larger mock-ups also show whether carving depth, surface variation and ageing techniques remain convincing under natural and artificial lighting.

Lighting can significantly influence perceived authenticity. Deep textures create stronger shadows, while glossy coatings may make a surface appear synthetic. Samples should therefore be reviewed under conditions that resemble the final environment wherever practical.

The aim is to define a repeatable visual language before full fabrication begin.

Building Lightweight Scenic Interpretations

Once the material character has been established, the scenic structure must be engineered around the project’s practical requirements.

Traditional stone, solid timber and dense plaster can introduce significant weight. Reproducing these materials literally may require substantial foundations, lifting equipment and installation time.

Scenic fabrication separates visual appearance from structural mass.

A faux stone façade may be built around a steel or timber frame with lightweight sculpted panels attached to the surface. Faux timber beams may contain hollow internal construction rather than solid sections. Decorative plasterwork can be produced using moulded or CNC-machined components instead of being formed entirely by hand on site.

This approach reduces weight while allowing the structure to be divided into transportable modules.

Decorative Plaster and Carved Details

Decorative plasterwork often involves repeated profiles, geometric patterns, relief panels and architectural mouldings.

CNC machining allows these elements to be produced accurately from MDF, foam or machinable board. Hand finishing can then soften the precision of the digital process and introduce the slight variation associated with traditional craft.

Repeated elements may also be cast in GRP, resin or specialist plaster systems. The most suitable material depends on weight, exposure, impact risk and the required finish.

Large decorative panels require stable backing structures. Thin ornamental surfaces should not be expected to provide structural support, particularly where the installation will be transported or reused.

Lightweight Structural Systems

The scenic skin must be supported by a stable internal frame.

Timber framing is frequently used for temporary walls, pavilions and architectural features because it is easy to modify and provides reliable fixing points. Steel may be introduced where greater height, span or structural capacity is required.

Aluminium systems can reduce weight for modular or reusable components, although connection design and cladding interfaces must be coordinated carefully.

Hybrid construction is often the most practical solution. A steel base may provide stability, timber secondary framing may support scenic panels, and lightweight carved surfaces may create the visible traditional material.

Modules should be designed around transport restrictions, installation access and lifting requirements. Connection points can be concealed within architectural joints, shadow lines or decorative bands.

Trial assembly helps confirm that repeated patterns align across module boundaries and that the scenic surface continues consistently once the structure is installed.

Scenic Finishing, Ageing and Long-Term Performance

The final finish determines whether the material interpretation appears credible.

A technically accurate carving can still look artificial if the colour is too uniform, the sheen is incorrect or the ageing appears randomly applied. Traditional materials rarely contain one flat colour.

Stone surfaces may include warmer exposed areas, darker recessed joints, mineral staining and dust accumulation. Timber may contain tonal differences between grain, joints, end sections and areas of wear. Plaster may show variations created by hand application, repairs and environmental exposure.

These effects are usually built through layers.

A scenic stone finish may begin with a base coat that establishes the overall material colour. Washes and glazes can then add depth within joints and carved recesses. Dry brushing may highlight raised areas, while controlled spattering introduces mineral variation.

Faux timber may use layered stains, translucent glazes and hand-painted grain. Darker tones can be worked into splits and recessed details, while lighter dry-brushed layers suggest worn or exposed fibres.

Ageing should follow a logical pattern.

Weathering develops differently across vertical walls, horizontal ledges, exposed corners and protected recesses. Water marks tend to follow gravity. Dust collects on upward-facing surfaces. High-contact areas may appear smoother or lighter.

Randomly applying dark paint across a surface may create visual activity, but it does not necessarily create believable age.

Scenic artists therefore consider how the material would have been used and exposed over time. This gives the ageing process a physical logic.

Surface sheen is equally important.

Historic stone and aged plaster are usually matt or softly reflective. Excessively glossy protective coatings can undermine the finish even when they improve durability. The selected topcoat should protect the surface without changing its approved character.

Durability requirements depend on the environment.

A temporary cultural pavilion may only need to perform for several weeks but could still experience outdoor heat, dust, wind and repeated public contact. A museum or visitor centre installation may operate for years and require frequent cleaning.

High-contact corners, plinths and door surrounds may need stronger substrates or reinforced coatings. Elevated decorative surfaces can often use lighter systems because they are less exposed to impact.

Outdoor structures require careful attention to ultraviolet exposure, moisture, thermal movement and drainage. Scenic coatings should not be expected to compensate for poor construction detailing.

Edges must be sealed, joints must accommodate movement and water should not be allowed to collect behind decorative panels. Metal frames require suitable corrosion protection, while timber-based materials need appropriate sealing for the expected environment.

Maintenance should also be planned from the beginning.

Removable panels allow damaged areas to be repaired or replaced without dismantling the complete environment. Finish schedules should record base colours, glazes, protective coatings and application techniques so future repairs can be matched accurately.

Retaining samples is particularly useful for long-term installations. A written paint code may not capture the complete appearance of a layered scenic finish.

The finished environment should also be inspected after installation. Transport, lifting and site assembly can create small cracks, abrasion or alignment changes that were not visible in the workshop.

Final scenic touch-ups should restore continuity across module joints and connection points without creating noticeably newer areas.

At Evolution Scenic, recreating traditional materials is treated as a coordinated fabrication process rather than a surface treatment applied at the end.

Research, engineering, carving, structural framing, digital fabrication and specialist finishing all contribute to the result. The visible material must remain convincing, but it must also be practical to transport, install, maintain and operate.

The strongest heritage-inspired environments respect the visual language of traditional construction without being restricted by its physical limitations.

When modern fabrication methods are used carefully, they allow stone, timber and decorative architectural forms to be interpreted with less weight, greater control and improved serviceability.

The finished environment may appear traditional.

The methodology behind it is entirely contemporary.
