Why We Build Mock-Ups Before We Build The Real Thing

A mock-up is not an unnecessary duplicate of the final build. It is a controlled test that allows materials, finishes, connections and installation methods to be checked before small issues become expensive site problems.

Clients sometimes see a mock-up in the workshop and ask a reasonable question: “Why are we building this twice?”

The straightforward answer is that a small mistake discovered early is almost always less expensive and less disruptive than a large mistake found once full production is underway. It is even more valuable when the alternative is discovering the problem during installation.

Scenic projects bring together materials, finishes, structures, lighting, graphics, technical systems and installation requirements. Drawings and renders are essential, but they cannot always show exactly how these elements will behave once they are physically combined.

A finish may appear correct on screen but look different when applied across a large surface.

A connection may look simple in a drawing but become difficult to access during assembly. Two materials may work individually but create an awkward junction when placed together.

A mock-up moves these questions into the controlled environment of the workshop, where they can be reviewed and resolved before they affect the wider build.

A Mock-Up Is A Targeted Test

A mock-up does not always mean manufacturing a complete second version of the project.

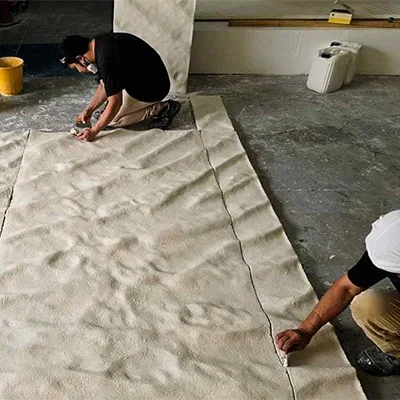

It should be designed to answer a specific question. Sometimes it is a small wall section used to approve colour, texture and sheen.

Sometimes it is a full-size connection detail that needs to be assembled and dismantled several times. It may be a scenic paint sample prepared on the intended substrate, using the proposed primer, texture system, paint layers and protective coating. For more complex projects, it may be a representative corner or section combining several disciplines, such as timber framing, metalwork, cladding, graphics, lighting and scenic finishing.

The scale and complexity of the mock-up should reflect the risk being tested. There is little value in building an elaborate sample if a simple material board will answer the question. Equally, a small colour swatch may not provide enough information where the finish depends on scale, lighting, texture or the relationship between several materials.

The objective is not to create additional work.

It is to test the part of the project where uncertainty remains.

Material Approvals Need Proper Samples

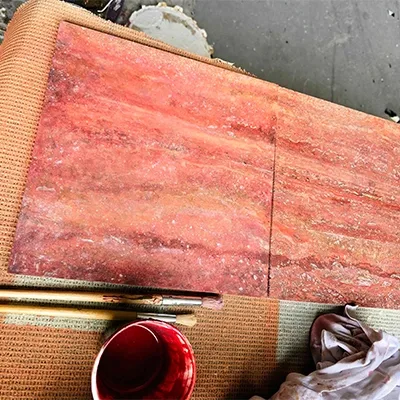

Material approvals are one of the clearest reasons for producing mock-ups. A material can look very different when viewed as a small sample, applied over a large area or placed under the final lighting conditions. Scenic paint finishes are particularly sensitive to this.

Colour, texture and sheen are affected by:

The underlying substrate
Surface preparation
Primer and base coats
Application technique
Number of layers
Protective coatings
Lighting temperature and direction
Viewing distance

A small printed colour reference cannot communicate all of these variables. A proper finish sample should, where possible, use the same substrate and process intended for the final work. This gives the client, designer and production team a shared reference point. They can see and feel the actual surface rather than approving a description or an unrepresentative swatch.

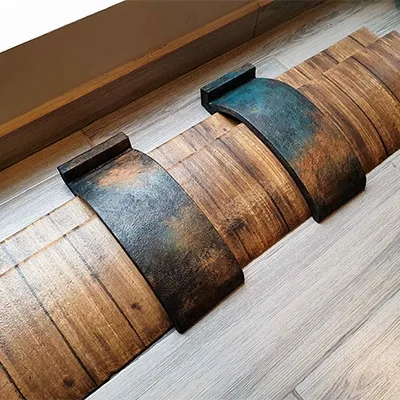

The same approach applies to specialist cladding, metal finishes, timber effects, laminates, coatings and graphic transitions. Approving the real build-up reduces ambiguity and creates a clearer standard for the production team to follow.

Mock-Ups Improve Joinery & Connections

Connections are another area where physical testing can prevent significant problems. Scenic structures may need to be divided into transportable sections and then reassembled within restricted site conditions.

The connections must be strong, accurately aligned and accessible to the installation team.

They may also need to remain hidden once the scenic finish is complete.

A full-size connection mock-up allows the team to test:

Alignment between sections
Fixing access
Assembly sequence
Tolerance between components
Strength and stability
Visibility of joints
Dismantling requirements
Repair access
Installation time

A detail that works well on the workshop floor may still need to be assessed against the actual installation method. Can the fixing be reached when the structure is upright?

Can the sections be aligned while suspended or positioned close to a wall?

Will the joint remain concealed after repeated assembly?

Can damaged parts be replaced without dismantling the entire structure?

Testing these questions early is particularly important where the site programme is restricted. An adjustment that takes an hour in the workshop may take significantly longer once the structure is installed around other contractors and technical systems.

Installation Sequences Can Be Rehearsed

Some mock-ups are built to test not only the final detail but the order in which the work must happen. Scenic installation often involves several interdependent steps. A structural frame may need to be fixed before lighting equipment is installed.

Cladding may need to remain open until cabling has been tested. A decorative finish may need to be completed only after two transport sections have been joined. If the sequence is wrong, access can be lost and finished work may need to be removed.

A representative mock-up allows the team to rehearse the sequence and identify where tools, lifting equipment or temporary supports will be needed. This can also improve communication between departments.

Carpenters, metalworkers, technicians, scenic painters and installers can review the same physical detail and understand how their work affects the next stage. The resulting method can then be reflected in drawings, section numbering, packing and site instructions.

Mock-Ups Create Clearer Approvals

Physical samples also support better client and design approvals. It is easier to make an informed decision when the proposed finish, material or detail can be viewed and handled directly.

The client can understand the texture.

The designer can assess whether the appearance matches the creative intent. The technical team can confirm the buildability of the detail. The workshop can establish the approved production method.

This creates a clearer record of what has been accepted. It also reduces the risk of different people interpreting a colour, texture or description in different ways. The approved mock-up can remain in the workshop as a benchmark for quality control during production.

Building Less To Avoid Rebuilding More

Mock-ups require time, material and workshop effort. That cost should be considered against the risk they are intended to control.

The right question is not simply: “How much does the mock-up cost?”

It is: “What could it prevent?”

A controlled sample may avoid widespread repainting, remanufacturing, delayed approvals or difficult site modifications. It may also protect the installation programme by confirming the method before the team reaches site.

Not every project needs a large mock-up. The strongest approach is to identify the areas of genuine uncertainty and test them at the appropriate scale.

In scenic fabrication, mock-ups are not built because the team expects the design to fail. They are built because testing a critical detail early is one of the most practical ways to protect the design, programme, budget and finished result.
