Why Exhibition Counters Always Look Simple (But Aren’t)

Reception counters, registration desks and exhibition counters often appear simple.

A rectangular box. Some branding. A work surface.

Job done.

In reality, a well-made counter is a compact operational workspace. It may need to integrate storage, technology, power, graphics, lighting and concealed cabling while remaining practical to manufacture, transport and install.

The best counters hide this complexity behind a clean, effortless finish.

Simple On The Outside, Highly Considered Within

A counter may serve as a reception point, registration desk, information station, product display or technology hub.

Behind its minimal exterior, staff may need space for laptops, printers, scanners, stationery and personal belongings. Power and data connections must remain accessible without creating visible clutter, while doors and shelves need to operate without restricting the workspace.

Bringing these requirements together demands accurate fabrication. Simple forms leave little room to hide poor alignment, uneven joints or inconsistent finishes. Corners, worktops and graphic panels must all meet precisely.

Minimal scenic elements are often among the least forgiving to build.

Designing Around The People Using It

Operational requirements should shape the counter from the beginning.

Worktop depth, equipment positions and legroom all affect staff comfort and efficiency. A lower concealed working surface can keep technology below the public sightline while maintaining a clean front elevation.

Storage and access are equally important. Frequently used items should remain within reach, while technical equipment may require lockable cupboards or removable access panels.

These details may not be visible once the counter is installed, but they determine whether it works smoothly throughout the day.

Integrating Technology Without Exposing The Infrastructure

Technology is one of the main reasons exhibition counters become more complex than they appear. Registration desks may need to house laptops, badge printers, scanners, tablets, charging equipment and network hardware. Product launch counters may also integrate screens, lighting, touch interfaces or concealed control systems.

Power routes, ventilation, equipment access and cable management must therefore be planned from the beginning. Evolution Scenic may incorporate cable apertures, removable panels, internal conduits and recessed service zones to keep technology accessible without disrupting the finished appearance.

Every opening must align with the final equipment layout. Effective integration depends on close coordination between the scenic drawings, equipment requirements and on-site services.

Storage Without Compromising The Form

Storage can have a significant impact on the counter’s internal construction.

Open shelves may provide quick access to equipment, while lockable cupboards can protect stock, personal items or valuable technology. Adjustable shelving can also make counters more adaptable for future use.

These features must be built into the carcass without weakening the structure or exposing unnecessary fixings. Hinges, catches and handles should remain durable while supporting the intended visual finish.

Weight distribution also matters. Heavy equipment must be positioned so the counter remains stable and practical to move.

What appears to be a simple scenic volume may contain a carefully planned arrangement of shelves, reinforcements, access panels and service spaces.

Modular Construction & Repeatable Accuracy

Exhibition and registration environments often require several matching counters that can operate separately or combine into one continuous desk.

Modular construction makes this flexibility possible, but every unit must be manufactured consistently. Worktops, graphics and connection points need to align accurately without leaving visible gaps.

Joining methods should also allow installation teams to assemble the counters quickly while keeping fixings hidden from public view.

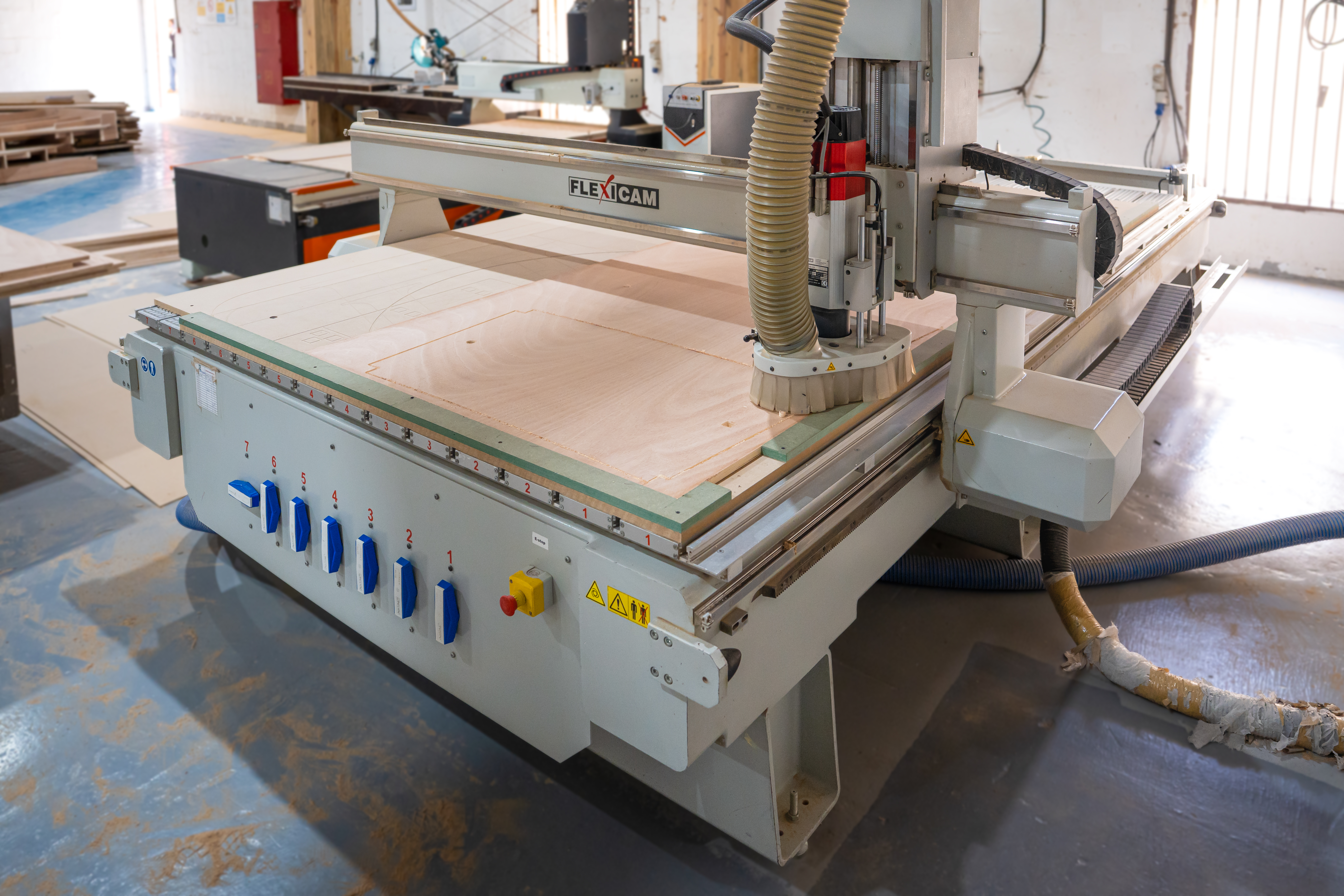

CNC machining helps produce repeatable panels, apertures and connection points, while careful scenic carpentry ensures the final edging, finishing and adjustment remain precise.

A modular counter is not simply divided into smaller sections. It must be designed around transport, assembly, stability and visual alignment.

Building Counters That Can Travel

Counters designed to move between venues require a different fabrication approach.

Touring units may need to break down into smaller sections so they can pass through loading areas, fit within transport vehicles and be handled safely on site. Demountable construction reduces transport volume, but joints must remain durable and accurate through repeated assembly. Corners, edges and base sections also need extra protection, as these areas are most vulnerable during handling.

Flight cases, padded stillages or custom crates can help protect finished surfaces in transit.

Transport planning should therefore begin alongside fabrication. A counter is only fully resolved when it can be moved, installed and reassembled efficiently without compromising its finish.

Building Counters That Can Travel

Counters designed to travel require a different fabrication approach.

Touring units may need to break down into smaller sections so they can pass through loading areas, fit within transport vehicles and be handled safely on site.

Demountable construction reduces transport volume, but joints must remain accurate and durable through repeated assembly. Corners, edges and base sections also need protection, as these areas are most vulnerable during handling.

Flight cases, padded stillages or custom crates can protect finished surfaces in transit.

Transport planning is therefore part of the fabrication process. A counter is only fully resolved when it can be moved, installed and reassembled efficiently.

Selecting Finishes For Appearance & Performance

Counter finishes are viewed and touched at close range, so they must combine appearance with durability.

Paint, laminates, veneers, solid surfaces, metal trims and printed graphics can all be used depending on the design and level of wear expected.

A product launch counter may prioritise visual refinement, while a registration desk must withstand repeated contact, equipment movement and cleaning.

Edges and worktops require particular attention, as they are most exposed to damage. Graphics must also align with joints, doors and removable panels so the finished branding appears clean and deliberate.

Installation Is Part Of The Design

Counters must be designed around real site conditions.

Uneven floors, changing service positions and restricted access can all affect installation. Levelling feet, adjustable plinths and removable skirting panels help maintain a clean finished appearance.

The build methodology should also allow power, technology and graphics to be connected or adjusted without damaging the counter.

By considering installation order and coordination with other contractors, Evolution Scenic can ensure each unit fits efficiently within the wider environment.

Different Environments, Similar Challenges

The requirements may vary, but the fabrication challenges remain similar.

Conference counters must conceal printers, cables and working materials. Exhibition counters need useful storage and durable finishes. Product launch counters may integrate lighting, screens or interactive technology, while visitor centre counters often require longer-term access and maintenance.

In every case, the counter must balance appearance, operation, technology and durability.

Complexity Hidden In Plain Sight

A successful exhibition counter does not draw attention to its hinges, cable routes or internal structure.

It simply works.

Its modules align, technology remains accessible, storage is practical and graphics sit cleanly across the finished surfaces.

The best counters feel effortless because careful planning, engineering and fabrication have resolved the complexity behind the scenes.

Visitors rarely notice a well-designed counter, but they immediately notice one that does not work.

Why Exhibition Stands Always Take Longer To Build Than Clients Expect (And It’s Usually Not The Build)

Almost every exhibition project starts with the same reassuring sentence.

“It’s only a stand.”

A few walls. Some graphics. A reception counter. Perhaps a meeting room and a screen.

On a render, it can look remarkably straightforward. In a fabrication workshop, however, the visible stand is only part of the job.

The surprising part is that the actual cutting, welding, carpentry, CNC machining, painting and finishing is often not what takes the most time. The longer process is usually turning an attractive concept into a temporary environment that can be engineered, manufactured, transported, installed, operated and dismantled without creating problems for everyone involved.

The Render Is Usually the Beginning

One of the biggest misconceptions in exhibition fabrication is that manufacturing starts when the render is approved.

In reality, an approved render often marks the point where the fabrication team can begin asking the questions that the image was never intended to answer.

Concept visuals are excellent at communicating atmosphere, proportions, branding and creative intent. They are not always designed to explain wall build-ups, fixing points, cable routes, access panels, fire-performance requirements, structural connections or how a six-metre feature will physically pass through the loading dock.

That is completely normal.

A concept image has a different job. It sells the idea. Technical development then has to convert that idea into a set of buildable decisions.

This distinction has become even more noticeable with the increasing use of AI-generated imagery. It is now possible to produce extremely convincing exhibition concepts very quickly. They can be imaginative, visually polished and useful during early creative conversations.

What they cannot automatically provide is construction logic.

A wall may apparently float. A screen may be embedded into a surface with no visible structure behind it. A feature may have geometry that would be exceptionally difficult to manufacture.

Storage, power, servicing and access may simply not exist.

That does not make the visual wrong. It simply means the next stage of work has not happened yet.

A Beautiful Image Does Not Need A Store Room

One of the first things technical development tends to reveal is that exhibition stands require considerably more practical space than the render suggests.

A reception area may contain brochures, merchandise, catering equipment, spare stationery, staff belongings, bottled water and cleaning materials.

In the concept, these things apparently disappear when they are not being used.

Real exhibition teams are less magical.

Back-of-house space has to come from somewhere. Storage cupboards need usable door swings. Shelving needs sufficient depth. Refrigeration may require ventilation. Staff need somewhere to put supplies. Equipment needs to remain accessible throughout the show.

Introducing these functions can change wall thicknesses, room sizes and circulation.

The challenge is to integrate them without making the stand feel compromised. Good technical development hides operational requirements inside the architecture rather than allowing them to look like additions made after everything else was finished.

Sometimes a wall that appears 150mm deep in a render becomes 400mm deep because it contains storage, steelwork, cables and equipment.

Visually, very little may change.

Operationally, almost everything has improved.

Meeting Rooms Have To Work As Rooms

Meeting rooms create a similar problem.

On a plan, a table and six chairs may technically fit within a room.

That does not necessarily mean six people can comfortably use it.

People need enough clearance to pull chairs backwards, walk around the table, enter through the door and move through the space without asking everyone else to stand up.

Doors also need somewhere to swing. Screens need appropriate viewing distances. Power and data may be required around the table. Air movement needs to be considered, particularly in enclosed meeting spaces positioned inside a busy exhibition hall.

Acoustic expectations matter as well.

A lightweight scenic partition beside a crowded aisle behaves very differently from a conventional office wall. Where privacy is important, the wall build-up, door detailing, ceiling treatment and service penetrations all need to be considered.

Again, the objective is not to redesign the creative concept unnecessarily.

It is to make the room function like a room.

Technology Takes Up More Space Than The Screen

Technology integration creates another layer of hidden development.

A display screen is not simply a rectangle on a wall.

It has weight. It needs brackets. It needs power and signal infrastructure. Cables require routes and sensible bend radii. Equipment may generate heat. Screens, processors and power supplies eventually require maintenance.

LED installations may require front or rear servicing, and that decision can completely change the construction behind the display.

Interactive screens introduce further considerations. Sensors, media players, speakers, networking equipment and control systems may all need to be concealed somewhere within the scenic construction.

The cleaner the finished stand looks, the more coordination may be happening behind the surfaces.

A perfectly flush screen installation can therefore require considerably more technical development than simply mounting a display to a wall.

Structural Requirements Are Rarely Visible In The Concept

Large exhibition features often appear deliberately lightweight.

Tall portals, suspended structures, projecting canopies and oversized branded walls may have very little visible structure.

Physics remains less interested in the visual intention.

Loads still need to travel safely through the structure and into suitable bases, floor systems, overhead rigging or approved structural connections.

This is where scenic engineering and metal fabrication frequently become part of what initially appeared to be a straightforward carpentry package.

Steel frames may need to be introduced inside timber-clad walls. Connection plates may be developed. Bases may become larger. Bracing may be concealed inside cavities. Ballast requirements may influence the lower sections of the structure.

The method also has to account for assembly.

A structure that is perfectly stable once complete may still need temporary support while individual modules are being connected during installation.

None of this engineering should alter the creative intention unnecessarily.

The aim is for the structure to behave properly while keeping the engineering visually quiet.

Value Engineering Is More Than Making Something Cheaper

Value engineering also tends to happen during this period, and the term is frequently misunderstood.

Good value engineering is not simply an exercise in removing cost.

It is a review of how to achieve the required appearance, durability and performance through a more efficient construction method.

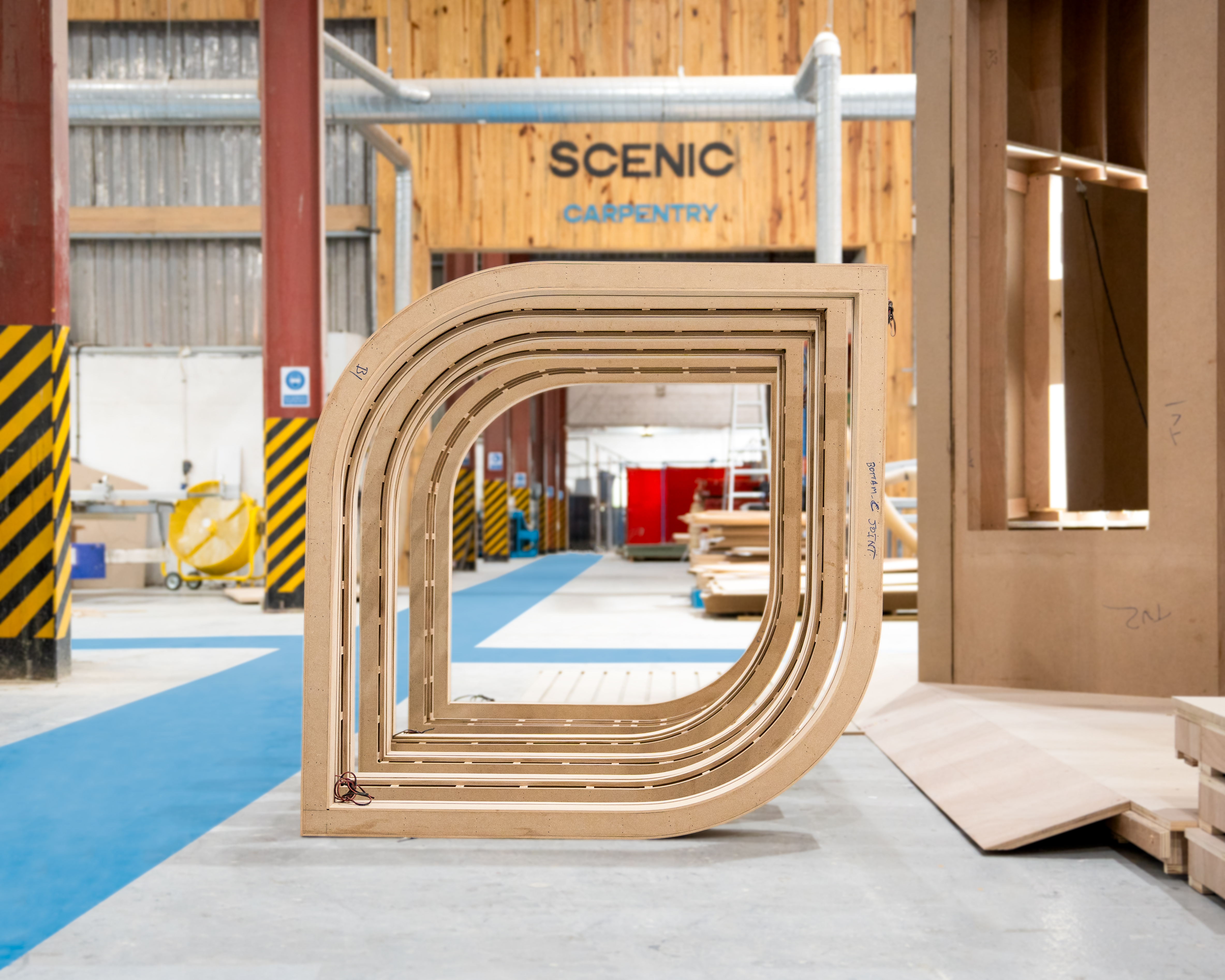

A complicated curved wall might be rationalised into repeatable CNC-cut ribs. A solid-looking architectural feature may become a lightweight framed assembly. An expensive surface material might be recreated through laminates, scenic painting, printed finishes or another manufactured system better suited to temporary use.

A seemingly minor change in construction can dramatically reduce workshop hours, weight, transport volume or installation time while producing almost no visible difference in the finished environment.

Transport itself can influence these decisions.

A scenic element that can theoretically be fabricated as one enormous piece may be significantly more practical as three accurately indexed modules that fit onto standard vehicles and reconnect cleanly on site.

That is value engineering through buildability rather than simple cost cutting.

The Exhibition Hall Has Its Own Opinion

Then there is the exhibition hall itself.

Every venue introduces rules that have absolutely nothing to do with how attractive the render looks.

There may be maximum construction heights, floor-loading limits, approved fixing methods, fire-certification requirements, rigging restrictions, hot-work controls and limitations on when specific installation activities can take place.

Loading docks have dimensions.

Service lifts have dimensions.

Doors have dimensions.

Vehicle movements may require booked delivery slots. Forklifts and access equipment may only operate in particular areas. Packaging and empty transport cases need somewhere to go once the stand is inside.

In some venues, the largest scenic component that can be comfortably manufactured in the workshop simply cannot physically reach the stand location at its finished size.

That discovery is considerably more useful during technical drawing than at two o’clock in the morning on installation day.

Venue restrictions therefore become fabrication inputs.

They determine module sizes, connection systems, packing methods and sometimes the entire installation sequence.

Buildability Reviews Prevent Expensive Surprises

A buildability review brings all of these considerations together.

The concept, engineering, fabrication method, transport strategy and venue conditions are considered as one system.

Experienced fabrication teams tend to look closely at interfaces because interfaces are where apparently simple projects become complicated.

Can the wall be assembled in the available sequence?

Can the ceiling feature be lifted safely?

Can the graphics be applied in the workshop, or will modular joints become visible?

Can the screen be removed if it fails?

Can someone physically reach the bolts required to connect the steel frame?

Will the finished counter fit through the service lift?

Can the structure be dismantled without destroying it?

These questions can seem excessively detailed while the project still exists on screen.

On site, they become extremely practical.

A few hours spent resolving a connection detail in technical development can prevent a much longer discussion involving a drill, a grinder and several people standing around a half-finished wall at midnight.

Installation Planning Starts Before The Truck Leaves

Installation methodology should therefore develop alongside fabrication.

Components need to arrive on site in a useful order, not simply in the order they happened to be completed in the workshop.

Primary steelwork may need to arrive before wall panels.

Services may need to be installed before cladding closes access.

AV equipment might need to enter a structure before decorative panels make the opening smaller.

Graphics and delicate scenic finishes may need to remain protected until heavy installation work is complete.

A stand containing twenty obvious visual elements can easily contain many more concealed components, brackets, fixings, access pieces and numbered modules.

Packing and labelling therefore become part of the build methodology.

A beautifully fabricated component is not particularly helpful if it is buried underneath six tonnes of other scenery at the back of the wrong truck.

Good logistics should make the installation sequence feel almost obvious.

The right item arrives when it is needed, in a condition that allows it to be installed immediately.

Sometimes The Concept Has To Evolve

There are projects where technical development results in very little visible change.

There are others where the original concept evolves substantially before fabrication begins.

A feature wall may become deeper to accommodate structure and technology.

A store room may appear behind what was originally a decorative surface.

A meeting room may grow slightly so the furniture actually works.

A suspended element may be divided into lighter modules.

A sculptural feature may be rebuilt around a concealed steel skeleton so it can be transported and installed safely.

From the outside, these can look like design changes.

From a fabrication perspective, they are often the decisions that protect the design by making it possible.

The best development process keeps the important visual characteristics while changing whatever is necessary behind them.

Visitors should still recognise the original concept.

They simply receive a version that also works.

Why The Workshop Is Waiting

This explains the period that can sometimes feel frustrating between visual approval and full production.

The workshop is not necessarily waiting for someone to press the start button.

Technical drawings are being coordinated. Structural systems are being reviewed. Material availability is being checked. Samples may be produced. Technology is being coordinated. Connections are being developed. Venue requirements are being incorporated. Installation sequences are being discussed.

In some cases, prototypes or partial workshop assemblies are created to check particularly difficult details before committing to the final build.

Starting fabrication before this information is stable can feel faster for a few days.

It normally stops feeling fast when panels need to be remade, steelwork needs modifying, integrated technology no longer fits or site conditions force changes that could have been resolved beforehand.

Technical development is therefore not time lost before fabrication.

It is part of fabrication.

The Finished Stand Should Hide The Effort

At Evolution Scenic, the task is not simply to reproduce what appears in a render.

The real work is resolving the practical, structural, operational and logistical requirements that allow the environment to function in the real world while preserving the original creative intent.

That can involve scenic carpentry, steel fabrication, CNC machining, graphics, integrated technology, specialist finishes, structural support, transport engineering and detailed installation planning.

When that process is done properly, visitors see none of it.

They see clean finishes, precise graphics, integrated screens, comfortable meeting spaces and architectural features that appear effortless.

They do not see the revised wall build-up.

They do not see the concealed steel frame.

They do not see the removable service panel.

They do not see the numbered transport modules.

They do not see the cable route behind the display or the discussion about whether a scenic feature can physically make the turn between the loading dock and the exhibition hall.

Which is probably how it should be.

The best exhibition fabrication quietly solves hundreds of practical problems.

By opening day, all that complexity has disappeared into something that looks, once again, like “only a stand.”

Building Registration Desks For Conferences

Registration desks are often among the first physical elements visitors encounter when arriving at a conference, forum, corporate event or exhibition. They establish an immediate visual presence, but their real purpose is operational. A successful registration environment must support staff, equipment, storage, visitor movement and technology while remaining robust enough to perform throughout the event.

Although registration desks can appear relatively simple, they are rarely just counters with graphics applied to the front. Behind the finished surfaces is a coordinated piece of scenic fabrication that may include modular carcasses, reinforced worktops, lockable storage, ventilation, power distribution, data routes and access panels.

Every element must work together within a structure that can be transported efficiently, installed within a limited access period and maintained throughout the event.

The strongest registration environments are therefore not defined by appearance alone. They are shaped by how effectively fabrication, technology and day-to-day operation have been resolved before manufacturing begins.

Designing Around Operation

The development of a registration desk should begin with an understanding of how the structure will be used.

The required working height, number of registration staff, equipment layout and visitor interaction points all influence its dimensions. A desk intended for a small corporate forum may only need one or two service positions. A larger conference registration environment might require an extended run of counters with multiple badge-printing stations, accessible sections and dedicated collection points.

These requirements affect more than the desk’s length. They influence internal compartment sizes, legroom, worktop depth, cable routes and the positioning of equipment.

The rear of the desk is particularly important. Staff need sufficient space to work without colliding with internal supports, loose wiring or poorly positioned storage. Printers and laptops must sit at practical heights, while consumables such as badge stock, lanyards and stationery need to remain close at hand.

This operational planning allows the scenic structure to support the registration process rather than obstruct it.

Modular Construction For Changing Venues

Registration desks frequently need to move between events or be reconfigured for different venues. Modular construction provides a practical way to accommodate these changes.

Instead of producing one long, rigid counter, the desk can be divided into manageable sections. Each module may contain its own internal framework, finished panels and connection points, allowing several units to be assembled into a continuous registration line.

The size of each module must be determined by more than appearance. Fabricators need to consider loading-door dimensions, lift access, vehicle capacity, handling weight and the number of installers available on site.

Sections that are too large may be difficult to transport or manoeuvre through a venue. Sections that are unnecessarily small can increase assembly time and create additional joints that need to align accurately.

A well-developed modular system balances these requirements. Modules should connect securely, worktops should meet cleanly, graphics should remain aligned and the completed structure should read as one continuous environment rather than a collection of separate boxes.

This relies on accurate fabrication. Repeated modules need consistent dimensions, and connection details must tolerate frequent assembly without loosening or damaging adjacent finishes.

Where the same registration environment is expected to tour, components may also be labelled or indexed so that installation teams can quickly identify their position within the overall layout.

Integrating Badge-Printing Equipment

Badge printing is one of the most common technical requirements within modern conference registration desks.

Printers, laptops, scanners and network equipment all occupy space, generate heat and require reliable access to power and data. These systems cannot simply be placed into the structure after fabrication without considering how they will be used and maintained.

Printer dimensions need to be confirmed early, including the space required to load badge stock, remove printed passes and access controls. Some machines require clearance above or behind the unit, while others need regular access to side panels.

Ventilation may also be necessary where equipment is enclosed within the desk. Discreet openings, perforated panels or concealed airflow gaps can prevent heat from building up without compromising the external appearance.

Equipment can be integrated in several ways. Printers may sit on the main working surface, within recessed compartments or on internal pull-out shelves. Each solution affects usability differently.

A recessed printer may reduce visual clutter but must remain easy to operate. A pull-out shelf can simplify maintenance but requires suitable runners, clearances and cable flexibility. Equipment mounted directly on the worktop is easy to reach but occupies valuable working space.

The correct solution depends on the equipment and registration workflow. Scenic fabrication must respond to those practical requirements rather than forcing the technology into a predetermined shape.

Concealed Cable Management

Technology integration creates a second challenge: cable management.

Registration desks may require power for printers, monitors, laptops, lighting and charging points, together with data connections for registration systems. Without planned cable routes, the rear of the counter can quickly become cluttered and difficult to operate safely.

Cables should be directed through the structure using cut-outs, grommets, internal channels and accessible service voids. Power distribution units can be mounted securely inside the desk rather than left loose on the floor or worktop.

Where several modules are connected, cable routes must continue between sections without becoming trapped at the joints. Removable panels or hinged access doors can provide access to connectors while keeping the technical infrastructure concealed during operation.

Entry points from the venue floor also need consideration. Power and data supplies may arrive from beneath a raised floor, from a nearby wall or through surface-mounted cable ramps. The desk design should be able to accept these services without exposing unnecessary wiring.

Effective cable management does not mean making every cable inaccessible. Systems still need to be inspected, disconnected and repaired. The best approach conceals cables from view while keeping them organised and reachable by the technical team.

Storage Built Into The Structure

Registration environments often require more storage than is initially anticipated.

Badge stock, lanyards, stationery, spare equipment, printed schedules, personal belongings and packaging materials may all need to be stored behind the desk. Without dedicated compartments, these items can quickly occupy the work surface or become visible to arriving visitors.

Internal shelving, drawers and lockable cupboards can be incorporated into the modular carcasses. Their placement should reflect how the desk will be operated. Frequently used materials need to be accessible without staff leaving their positions, while less commonly used items can be placed in lower or enclosed compartments.

Lockable storage can be particularly useful for laptops, scanners and other equipment when the registration area is unattended. Doors and drawers must open without restricting circulation behind the counter, and hardware needs to withstand repeated use.

Storage also contributes to transportation efficiency. Where practical, loose components such as shelves, plinths or removable signage can be packed inside the desk modules during transit. This reduces the number of separate items that must be handled and helps keep the installation package organised.

However, storage spaces intended for transport must be designed to secure their contents. Unrestrained components can damage internal finishes or hardware while the units are being moved.

Branding As Part Of The Fabrication

Registration desks often carry prominent event or corporate branding. Front panels, illuminated logos, digital displays and header structures can all form part of the finished environment.

Branding should be integrated into the construction method rather than treated as a final decorative layer.

Large-format graphics require smooth, accurately prepared surfaces. Applied vinyl needs edges and joints positioned so that the graphic can be installed cleanly. Printed tension fabric requires suitable frames and fixing details. Dimensional lettering may need concealed studs, templates or internal reinforcement.

For events with changing identities, replaceable graphic panels can make the registration desk more adaptable. Magnetic skins, mechanically fixed panels or tension-fabric graphics allow the same core structure to be rebranded without rebuilding the entire counter.

Illuminated logos and lightboxes introduce further technical requirements, including LED access, ventilation, transformers and cable routing. These elements must remain serviceable after installation.

Whatever the branding method, it should not interfere with operation. Graphic panels must not block access doors, logos should not prevent modules from separating, and illuminated elements need to survive transport without becoming vulnerable points within the structure.

Supporting queue layouts through fabrication

Queue management is partly influenced by the physical configuration of the registration environment.

The length and orientation of the counter help determine how visitors approach, where they wait and how individual registration positions are identified. The structure may include dedicated areas for pre-registered guests, new registrations, badge collection or assistance.

These functions can be communicated through suspended signs, raised header panels, illuminated identifiers or modular branding elements mounted above the desk. Such features must be engineered so that they remain stable without creating excessive base weight or obstructing staff.

Accessible registration positions may also require lower counter sections or open knee spaces. These areas need to be incorporated into the construction from the beginning, as they affect framework, storage and graphic layouts.

Where queue barriers connect visually or physically with the desk, their placement should be coordinated with base plinths, floor finishes and service routes. The objective is not to plan the event operation, but to ensure the fabricated environment supports the intended layout without introducing physical obstacles.

Transportation & Site Installation

A registration desk that performs well in the workshop must also reach the venue safely and assemble efficiently.

Transport considerations influence material selection, module size and packaging. Timber-based scenic construction offers flexibility and a high-quality finish, but weight must be controlled. Metal subframes may be introduced where additional strength or repeated handling is expected.

Lightweight panels and aluminium components can reduce the load where touring requirements are significant.

Exposed corners and finished edges are particularly vulnerable during transport. Protective covers, padded flight cases or dedicated stillages may be required depending on the finish and expected number of journeys.

On site, the installation sequence should be straightforward. Base modules are positioned and connected before worktops, graphic skins and technical equipment are added. Adjustable feet or levelling systems can compensate for uneven venue floors and keep long counter runs aligned.

Connection points should be accessible to installers without requiring unnecessary dismantling.

Fixings must be secure but practical, particularly where installation time is limited.

Technology teams may need access before the desk is fully closed so that power, data and registration equipment can be tested. Coordinating these stages within the build methodology helps prevent finished panels from being repeatedly removed and refitted.

Finishes that withstand continuous use

Registration desks experience constant physical contact. Bags are placed on worktops, staff move equipment across surfaces, cupboard doors are opened repeatedly and visitors lean against front panels.

Material and finish selection should reflect this level of use.

Worktops need durable surfaces with cleanable finishes and protected edges. High-pressure laminates, solid-surface materials, painted timber products and other scenic finishes can all be appropriate depending on the design, budget and expected lifespan.

Painted finishes require careful preparation to remain consistent across modules. Edges and corners may need additional reinforcement or harder-wearing coatings, particularly for touring desks.

Gloss finishes can create a premium appearance but reveal fingerprints and surface imperfections more readily. Textured or satin finishes may provide greater tolerance in high-contact areas.

Graphics should also be selected with durability in mind. Replaceable skins can protect the core structure, while direct-applied finishes may be more suitable for short-term use.

The objective is not simply to make the desk look presentable at the beginning of the event. It should remain clean, aligned and operational after sustained use.

Complexity hidden behind a simple counter

The most successful registration desks rarely draw attention to their technical details.

Visitors see a clear branded surface and an organised point of arrival. Behind it are carefully positioned printers, concealed cables, accessible storage, reinforced modules and connections designed for rapid installation.

The structure works because those requirements were resolved during design development and fabrication.

At Evolution Scenic, registration environments are approached as working scenic structures rather than standalone pieces of furniture. Their effectiveness depends on buildability, operational access, transportation and repeated performance as much as their finished appearance.

When modular construction, technology integration, branding and site logistics are considered together, the result is a registration desk that looks straightforward because the complex work has already been done.

Custom Joinery For Public Environments

Joinery within public environments faces a distinctive set of challenges. Unlike domestic furniture or low-traffic interior fittings, public-facing installations may be used continuously by hundreds or thousands of people.

Visitor centres, museums, experience centres and destination environments frequently rely on bespoke joinery to create functional and visually coherent spaces. Reception desks, interpretation displays, information points, technology housings and storage systems may all form part of the wider scenic environment.

The challenge is not simply creating attractive joinery. Every component must withstand repeated interaction, support daily operations and remain practical to maintain throughout its working life.

Museums And Interpretation Environments

Museum joinery often brings together architecture, interpretation, technology and object display.

Plinths, showcases, media housings and interpretive furniture must complement the exhibition without distracting from its content. They may also need to accommodate graphics, lighting, security systems, object mounts and audiovisual equipment.

Accuracy is especially important where access becomes restricted after installation. Poorly positioned cable routes or inadequate service panels can create significant complications once objects and technology are in place.

For long-term installations, removable panels, replaceable finishes and modular internal structures can make future updates easier without compromising the finished appearance.

Visitor Centres And Reception Environments

Visitor centres often combine reception, interpretation, orientation and technology within one environment.

A custom reception counter may need to welcome visitors while supporting staff, concealing equipment and providing accessible interaction points. Behind the finished façade, it may contain computers, printers, storage, power supplies and data connections.

Good joinery considers both sides of the desk.

The visitor-facing surface should feel clear and integrated, while the staff side must operate as an efficient workspace. Internal layouts, cable management and storage should reflect how the environment will actually be used.

Integrated Technology

Technology increasingly influences public joinery.

Touchscreens, digital signage, sensors, speakers and lighting systems may all be incorporated into custom-built units. These systems introduce requirements for ventilation, cabling, access and future replacement.

A flush-mounted screen may appear simple, but the surrounding joinery must support accurate alignment, sufficient airflow and practical removal.

Access can be provided through concealed doors, lift-off panels or removable bezels. Cable routes should remain organised and accessible without creating visible openings in the finished surface.

The aim is to integrate technology into the joinery from the beginning rather than adding it after fabrication.

Maintenance Access

Maintenance access is one of the most important aspects of public-environment joinery.

Screens fail, hinges loosen, lighting drivers need replacing and graphics are updated. Without planned access, a minor repair can require disruptive or destructive work.

Access panels must therefore be large enough and positioned correctly for the task. A small hatch has little value if equipment cannot be removed through it.

Concealed hinges, magnetic catches and controlled joint lines can keep service panels discreet while preserving practical access.

High-wear surfaces and technology surrounds can also be designed as replaceable components, allowing damaged areas to be renewed without rebuilding the entire unit.

Material Selection

There is no single ideal material for public joinery.

The correct choice depends on appearance, structural requirements, environmental conditions, cleaning procedures and intended lifespan.

Plywood may be selected where strength and reliable fixing are important. MDF can provide a smooth surface for painted finishes in suitable environments. Laminates offer durable finishes for counters and high-contact areas, while solid-surface materials may be appropriate where cleanability and moisture resistance are priorities.

Metal frames can reinforce large counters, long spans and heavily loaded display units. Protective coatings and reinforced edges may also be required in areas exposed to frequent contact.

Material selection should always reflect the operational environment rather than appearance alone.

Manufacturing And Installation

Public joinery often needs to integrate precisely with floors, walls, graphics and technical systems.

CNC machining allows Evolution Scenic to produce accurate apertures, repeatable components and complex geometries directly from coordinated CAD information. This precision is combined with skilled scenic carpentry, assembly and finishing.

Installation planning is equally important.

Large units may need to pass through restricted access routes or finished public spaces. Modular construction allows substantial elements to be transported in manageable sections and assembled on site.

Joint positions, removable façades and fixing methods must be planned so the completed installation still appears unified.

Built For Operational Longevity

The quality of public joinery is not defined only by how it looks when an environment opens.

Its real performance becomes apparent after months and years of use.

Well-designed joinery remains stable, presentable and serviceable. Technology can be accessed, surfaces can be repaired and staff can use the environment without compromising its appearance.

The strongest museum, visitor centre and experience-centre installations combine craftsmanship with practical construction.

Good public joinery is not simply built for opening day.

It is built for everything that happens afterwards.

From CAD Model To Finished Component

Modern scenic fabrication increasingly relies on digital workflows that connect design development, engineering and production through one coordinated process. Among the most valuable advances is the ability to translate a detailed three-dimensional CAD model directly into the information required to manufacture a physical component.

This connection between the digital model and the workshop has changed how complex scenic structures are developed. Curved feature walls, sculptural environments, exhibition structures, product displays and large-scale brand installations can now be planned, tested and refined in detail before material reaches the production floor.

The principle may sound straightforward: create a model, send the data to a machine and produce the component. In practice, the process requires far more judgement. A successful digital workflow depends on technical designers, engineers, CNC operators, carpenters, metal fabricators, scenic artists and installation teams working from information that has been developed with the realities of fabrication in mind.

The value lies not in automation alone, but in integrating each stage of the project around a reliable source of coordinated technical information.

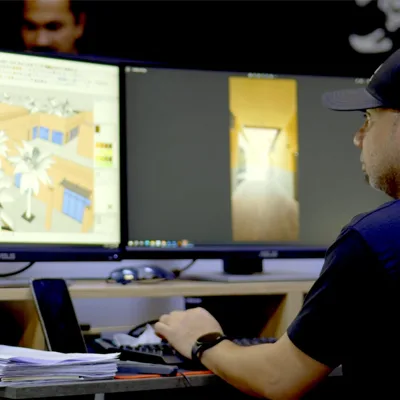

Developing The CAD Model For Fabrication

A design model and a fabrication-ready model are not necessarily the same thing.

The initial three-dimensional model may communicate the intended shape, scale and visual character of an environment. Before manufacturing can begin, however, that geometry must be translated into components that can be cut, assembled, reinforced, transported, finished and installed.

Technical designers examine how the structure will be built rather than simply how it will appear. They consider material thicknesses, internal framing, connection details, access requirements, tolerances, fixing methods and the sequence in which separate elements will come together.

A large sculptural form, for example, may appear as one continuous object in the design model. For production, it may need to be divided into a series of ribs, skins, frames or machined blocks. Each section must remain within material sizes and machine capacities while also being manageable for workshop handling and transport.

The model therefore becomes a working construction tool. It provides a shared reference through which design intent can be tested against engineering requirements and practical build methodology.

At Evolution Scenic, this stage helps identify potential fabrication challenges while they can still be resolved digitally. Adjusting a connection, panel division or structural detail within the model is generally more efficient than discovering the same issue after components have already been manufactured.

From Technical Design To Production Data

Once the geometry and construction strategy have been agreed, the digital model can be developed into production information.

This may include technical drawings, cutting files, setting-out information, component references and assembly details. Every item needs to correspond correctly with the wider structure, particularly when a project contains hundreds of individual parts.

For CNC production, geometry must be prepared in a form that the machinery can interpret accurately. Profiles may need to be nested onto sheets to make efficient use of material. Cutting paths, tool diameters, machining depths and component orientation must be considered before production begins.

This is where a carefully coordinated workflow becomes essential. CNC machinery can reproduce information with exceptional consistency, but it does not determine whether the underlying information is correct. Accuracy in manufacturing begins with accuracy in technical development.

The fabrication team must also understand how the machined parts relate to the finished object. Reference marks, component numbers and assembly drawings can help ensure that similar-looking pieces are identified correctly and installed in the intended sequence.

Digital production therefore does not remove the need for workshop knowledge. It allows that knowledge to be applied earlier and more systematically.

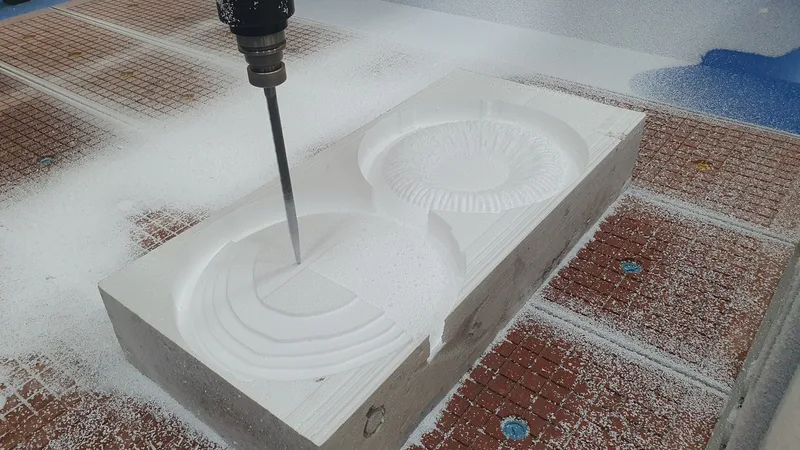

CNC Workflows & Complex Scenic Geometry

CNC machining is particularly valuable when scenic fabrication involves repeated components, intricate profiles or complex geometry.

A series of curved ribs for a scenic wall can be produced directly from approved digital profiles. Interlocking elements can be machined with slots and locating features that simplify assembly. Layered components can be cut to form sculptural volumes that are later shaped, coated and scenic-painted.

This level of control is useful across exhibition fabrication, retail pop-ups, branded environments, stage architecture and immersive installations. It allows complex forms to be divided into practical components without losing the intended overall geometry.

Repetition is another important advantage. If a project requires multiple matching plinths, arches, fins or structural sections, CNC production helps maintain consistency across the complete set. This is especially valuable when components will be positioned close together, where even small differences may become visible.

It also supports hybrid construction. CNC-machined timber elements may connect to welded steel frames, aluminium substructures, composite skins, graphics or integrated lighting systems. The digital model can coordinate these different fabrication disciplines before they meet during assembly.

Working With Manufacturing Tolerances

Precision does not mean assuming that every manufactured part will behave perfectly.

Different materials respond differently during machining, fabrication and finishing. Timber-based sheets may vary slightly in thickness. Steel can distort during welding. Applied coatings can increase component dimensions. Large structures may move marginally when lifted, transported or installed.

Manufacturing tolerances must therefore be planned rather than ignored.

A slot that appears exact in a CAD model may require additional clearance to allow parts to assemble comfortably. A removable panel may need a controlled shadow gap so that it can be fitted without damaging the surrounding finish. Interfaces between timber and metal components may need adjustment space to account for the different ways in which each material is produced.

The correct tolerance depends on the material, manufacturing process, finish and intended use of the component. Too little clearance can make assembly difficult. Too much can result in visible gaps, movement or misalignment.

Experienced technical design balances digital precision with practical fabrication knowledge. The objective is not simply to produce parts that match the model numerically. It is to produce parts that fit together reliably in the workshop and on site.

Improving Production Efficiency

An integrated digital workflow can improve efficiency at several points in the fabrication process.

Material usage can be reviewed before cutting begins. Components can be nested to reduce waste, and repeated parts can be grouped into logical production batches. Potential conflicts can be identified before they interrupt manufacturing.

Technical drawings and CNC files generated from the same coordinated model also reduce the risk of separate information sources drifting out of alignment. When a design revision is required, the affected components can be traced and updated more systematically.

This becomes particularly important on large activations or exhibition environments where several fabrication teams may be working simultaneously. Scenic carpentry, metal fabrication, graphics, electrical integration and finishing all depend on compatible dimensions and clearly defined interfaces.

Production efficiency is not simply a matter of machining components faster. It is achieved by reducing uncertainty, avoiding unnecessary rework and giving each workshop department the information it needs at the correct stage.

Designing Components For Assembly

The finished appearance of a scenic environment can conceal a considerable amount of assembly planning.

Large structures rarely leave the workshop as one complete object. They may need to pass through loading doors, fit within transport vehicles, comply with lifting restrictions or be carried through a venue by an installation team. The digital model allows these constraints to influence the component design from the beginning.

A feature structure may be divided into transportable modules with concealed connection points. Curved wall sections may use alignment tabs to preserve their geometry during assembly. Graphic surfaces may be split at locations that minimise visible joints. Removable panels may be incorporated to provide access to lighting, cabling or fixings.

Assembly trials can also be informed by the CAD model. The workshop team can establish which modules must be built first, where temporary bracing may be required and how finished surfaces can be protected while adjoining components are installed.

For touring environments or reusable brand structures, the same process can support repeated assembly. Connections can be developed to withstand multiple installation cycles, and replacement components can be reproduced from the approved production data when required.

Installation Benefits Beyond The Workshop

The advantages of coordinated digital production continue when the project reaches site.

Installation teams can work from accurate setting-out dimensions, module references and assembly sequences. Components that have been designed to locate positively are easier to position, reducing the amount of interpretation required in a restricted installation window.

This is particularly valuable in exhibition halls, retail environments and live show venues, where access periods may be tightly controlled. The structure must often be unloaded, assembled, aligned, connected to other systems and finished within a limited number of hours.

Digital planning can also help identify the equipment and labour required for installation. Module weights, lifting points, access panels and connection locations can be considered before the finished scenic elements arrive at the venue.

When the model has been developed with transport and installation in mind, site work becomes an extension of the fabrication process rather than a separate exercise in problem-solving.

A single Coordinated Source Of Information

The greatest value of digital manufacturing is not simply speed or machine accuracy. It is the ability to coordinate design, engineering, production and installation around one carefully developed source of information.

The CAD model becomes a point of connection between creative intent and physical construction. It allows technical decisions to be tested before manufacturing, provides data for CNC production, supports workshop assembly and informs the installation strategy.

Traditional fabrication skills remain central to the process. Machined components still need to be assembled, reinforced, welded, shaped, filled, painted, finished and installed by experienced teams. Digital workflows do not replace craftsmanship. They give skilled fabricators more accurate information with which to work.

From a curved exhibition feature to a large scenic architectural environment, the route from CAD model to finished component depends on the quality of every decision made along the way.

When those decisions are coordinated effectively, even the most complex structure can be divided into practical parts, manufactured consistently and assembled into a finished environment that feels seamless.

Large Scale Scenic Carpentry Explained

Carpentry remains one of the most important disciplines within scenic fabrication. Despite advances in digital manufacturing, metal fabrication and composite construction, timber continues to play a central role in the creation of stages, exhibition structures, cultural installations and temporary architectural environments.

Its value lies partly in its versatility. Timber can be cut, machined, laminated, curved, reinforced, clad and finished in countless ways. It can form the hidden framework behind a decorative surface or become a highly visible architectural feature in its own right. It can also be combined effectively with steel, aluminium, acrylic, fabric, graphics, lighting and integrated technology.  However, large-scale scenic carpentry is very different from conventional joinery.

Traditional joinery often focuses on permanent, highly finished elements designed for buildings, furniture or interiors. Scenic carpentry is concerned with structures that may need to be fabricated quickly, transported efficiently, installed within restricted timeframes and removed just as rapidly.

A scenic structure must not only look convincing. It must also survive handling, transportation, assembly and repeated interaction while remaining practical for the workshop and installation teams responsible for delivering it.

Scenic Carpentry Versus Traditional Joinery

The distinction between scenic carpentry and traditional joinery is not simply one of scale. Scenic carpenters frequently work with architectural forms that are temporary, modular or highly irregular. These may include sweeping stage surrounds, oversized entrance portals, exhibition pavilions, museum environments, heritage-inspired façades or immersive scenic interiors.

Unlike conventional cabinetry or architectural joinery, scenic elements are often designed around a defined operational period. A structure may be required for a three-day exhibition, a touring environment, a cultural festival or a temporary visitor installation. This affects almost every fabrication decision.

A scenic wall, for example, may need to divide into sections small enough to pass through a loading bay or passenger lift. A stage feature may need to accommodate integrated lighting, access panels, structural steelwork and concealed cable routes. A heritage-inspired structure may need to reproduce traditional architectural detailing while being manufactured from lightweight, transportable components.

The visible finish is therefore only one part of the challenge. Behind every successful scenic environment is a construction system designed around fabrication, logistics and installation.

Timber Construction Systems

Large-scale scenic carpentry relies upon carefully developed timber construction systems. Depending on the project, these may include framed flats, ribbed structures, laminated components, modular wall panels, box sections, platforms, portals and CNC-cut structural profiles. Sheet materials such as plywood, MDF and specialist boards are selected according to their structural role, surface requirements, weight and intended finish. The choice of construction method is rarely based upon appearance alone.

A tall exhibition wall may require a lightweight internal frame that can be handled safely during installation. A large scenic arch may use layered CNC-cut ribs to control its geometry. A stage platform may require robust timber decking supported by an engineered substructure. A sculptural façade may use a combination of timber framing and flexible cladding to achieve a complex curved surface.

Where greater spans or concentrated loads are involved, timber construction may also be integrated with steel or aluminium reinforcement. Scenic carpentry frequently operates as part of a wider fabrication system rather than as an isolated discipline. The most effective solution is usually the one that balances strength, weight, manufacturing efficiency and installation practicality.

Designing for Modular Fabrication

Modularity is one of the defining characteristics of large-scale scenic carpentry. Very few scenic environments can be transported or installed as a single complete structure. They must be divided into manageable components that can move through the workshop, fit onto vehicles and pass through the venue’s access routes. This requires careful planning during technical development.

Panel sizes, joint positions, lifting requirements and assembly sequences all influence how a structure is divided. Connections must be secure enough to create a stable finished environment while remaining efficient for installation teams to assemble under time pressure. Good modular design also considers how components will be packed, labelled and protected during transportation. Delicate finished surfaces may need to face inward. Repeating components may require clear identification. Large sections may need dedicated lifting points or temporary bracing.

The objective is not simply to make a structure smaller. It is to create a system in which every component has a logical relationship to the fabrication process, transportation method and installation sequence. When this is considered early, modular construction can significantly reduce time on site. It can also improve finish quality because more work can be completed under controlled workshop conditions rather than during installation.

Exhibition Environments

Exhibition structures demonstrate many of the advantages of scenic carpentry. Timber systems can be used to create pavilion walls, feature ceilings, branded portals, product displays, presentation areas, reception desks and architectural focal points. Because exhibition environments are often temporary, the structure must combine visual impact with efficient installation and removal.

Large exhibition builds may also need to accommodate graphics, illuminated logos, display screens, concealed storage, electrical distribution and specialist finishes. The carpentry is therefore rarely a simple shell.

Internal framing may be designed around graphic panel sizes. Access hatches may be incorporated for technical equipment. Wall depths may be increased to conceal cabling or structural support. Removable panels may be required so that technology can be serviced during the exhibition. A successful exhibition structure appears resolved from the visitor-facing side while remaining practical behind the scenes. That balance is one of the central skills of scenic carpentry.

Scenic Stages and Show Environments

Scenic stages often involve some of the largest and most complex timber structures produced within a fabrication workshop.  These may include stage surrounds, presentation backdrops, scenic towers, proscenium-style structures, stepped platforms, architectural arches and large decorative surfaces.  Stage environments must often integrate with multiple technical systems. LED screens, projection surfaces, lighting equipment, loudspeakers and show-control technology may all influence the scenic construction.

Accuracy is particularly important where timber elements meet digital screens or technical infrastructure. Small dimensional errors can create visible gaps, misaligned surfaces or installation conflicts.  The structure must also be designed around safe access. Technicians may need to reach equipment behind scenic walls. Lighting systems may require ventilation. Screens may need to be installed before surrounding scenic panels are closed.

This means that the carpentry build cannot be developed independently from the wider show environment. The strongest stage structures result from coordinated technical design in which scenic, structural and production requirements are resolved together.

Cultural and Heritage Environments

Cultural installations and heritage-inspired environments present a different set of challenges. These projects may require scenic carpentry to reproduce architectural styles, decorative forms or traditional materials without relying upon conventional permanent construction methods. Timber is particularly useful in these environments because it can provide both structure and sculptural flexibility.

A heritage-inspired façade may begin as a framed timber structure before receiving moulded details, scenic finishes and decorative graphics. A museum environment may use timber walls to create a sequence of galleries, interpretation spaces or reconstructed settings. A cultural installation may incorporate arches, screens, patterned surfaces or carved elements derived from regional architecture.

The objective is not necessarily to imitate traditional construction exactly.

It is to capture the appropriate visual character while creating a scenic system that can be manufactured, transported and installed efficiently. This often requires close collaboration between technical designers, carpenters, CNC operators, scenic artists and finishing teams.

CNC Integration

Modern scenic carpentry increasingly combines traditional workshop skills with CNC  manufacturing. CNC machining allows complex geometry to be produced directly from approved digital models. Curved ribs, decorative panels, structural profiles, repeated patterns and interlocking components can all be manufactured with a high level of consistency. This is particularly valuable on large-scale projects where small inaccuracies can multiply across repeated elements.

For example, a curved stage surround may use a series of CNC-cut ribs to establish its overall form. An exhibition pavilion may use digitally machined panels to create a repeated geometric pattern. A cultural structure may incorporate intricate screens or decorative motifs that would be time-consuming to reproduce manually.

CNC manufacturing does not replace skilled carpentry. Instead, it gives scenic carpenters a more accurate starting point. Machined components still need to be assembled, reinforced, adjusted, clad and finished. Workshop experience remains essential when resolving joints, managing material behaviour and adapting digital information to real fabrication conditions. The strongest results come from combining digital precision with practical craftsmanship.

Buildability Determines Success

The success of large-scale scenic carpentry is often determined long before the first timber section is cut. Technical designers and fabrication teams must consider how the structure will be built, handled, transported and assembled. They must also account for venue access, installation windows, finish requirements and integration with other trades.

A structure that appears straightforward within a concept visual may require extensive development before it becomes buildable. Curves need to be rationalised into manufacturable geometry. Tall elements may need concealed support systems. Finished panels may need removable sections for access. Decorative details may need to be simplified so that they remain durable during transportation and installation. These decisions do not reduce the creative ambition of a project.

They allow it to be delivered successfully. Well-designed timber structures move efficiently through the workshop. They are easier to transport, faster to install and less likely to require last-minute modification on site. They also produce better finished environments because the construction methodology has been resolved before manufacturing begins.

An Adaptable Scenic Discipline

Carpentry remains one of the most adaptable tools available to scenic fabricators.  It can create the structural framework behind an immersive environment, the architectural form of an exhibition pavilion or the detailed surface of a heritage-inspired installation. It can support technology, receive specialist finishes and combine with metalwork, graphics and lighting systems.

Its continued importance is not based upon tradition alone. Timber remains relevant because it can respond effectively to the practical demands of temporary construction. When supported by detailed technical design, CNC manufacturing and experienced workshop craftsmanship, scenic carpentry offers an efficient way to create structures that are large, complex and visually convincing.

The finished environment may appear seamless. Behind it is a carefully developed system of frames, panels, joints, ribs, platforms and connections designed to perform throughout fabrication, installation and operation. That is the real value of large-scale scenic carpentry. It turns ambitious visual ideas into physical environments that can be manufactured, transported and installed successfully.
