• Why Stage Stairs Are More Complicated Than They Look

    Image description

    Why Stage Stairs Are More Complicated Than They Look


    Stage stairs seem simple.


    They are, after all, just stairs.


    Until somebody needs to walk down them in darkness.


    Or in high heels.


    Or while carrying an award.


    Or wearing a costume that weighs twenty kilograms.


    Or while being followed by a television camera that is broadcasting the entire journey to several million people.


    Suddenly, those “simple stairs” become one of the most important structures on the stage.


    Every staircase within a live production environment needs to balance appearance, safety and practicality. It may occupy only a small part of the finished set, but it can experience more concentrated use than almost any other scenic element.


    Performers, presenters, stage managers, camera operators and technical crews may all rely upon it. Some will use it during rehearsals under full working light. Others will encounter it during the show, while concentrating on dialogue, choreography, timing or the location of the nearest camera.


    A staircase that looks elegant in a render can therefore become a serious problem if it feels uncomfortable, restricts movement or becomes difficult to read under production lighting.

    Image description

    Scenic Stairs Are Not Ordinary Stairs


    Permanent architectural stairs are generally designed for a known building, a fixed location and long-term use. Scenic stairs often operate under very different conditions.


    They may need to be fabricated in sections, transported by road, moved through restricted venue access routes and installed within a limited production window. They may connect to a temporary stage deck, align with modular scenic structures or incorporate finishes that visually continue across the rest of the set.


    They may also need to disappear almost completely into the design.


    A flight of stairs could be disguised within a sculptural stage edge, integrated into a sweeping scenic form or finished to match a reflective, metallic or highly decorative environment. The audience should see one coherent visual composition rather than a staircase that appears to have been added after somebody remembered that presenters cannot levitate.


    This places considerable responsibility on the technical design and fabrication teams.


    The structure must support repeated use while remaining stable, accurately aligned and practical to assemble. At the same time, tread dimensions, transitions, edge details and surface finishes must allow people to move confidently.

    Image description

    Small Dimensions Make a Significant Difference


    The height, width and depth of each step influence how a staircase feels.


    Minor dimensional changes that appear insignificant on a drawing can become surprisingly noticeable when somebody walks the stairs at speed. Inconsistent riser heights are particularly uncomfortable because people establish a rhythm as they climb or descend. A small variation can interrupt that movement and create a trip risk.


    Tread depth also matters. A visually compact staircase may save valuable stage space, but it can feel steep or awkward in use. Wider scenic stairs can create a more generous entrance and accommodate groups, although they require greater structural support and occupy more of the stage footprint.


    The correct solution depends upon the production.


    A staircase intended for a single presenter may have different requirements from a wide ceremonial staircase used by an entire cast. A theatre production involving choreography needs to consider repeated movement patterns, while an awards show may need to accommodate formal clothing, long dresses, unfamiliar footwear and winners who are understandably paying more attention to their speech than to their feet.


    This is why scenic staircases are frequently tested physically rather than assessed only on screen.

    Mock-ups, sample steps or early workshop assemblies allow the production team to review proportions, movement and visibility before the finished scenic treatment is applied. It is far easier to adjust a staircase during technical development than after it has been installed, painted and surrounded by several tonnes of scenery.

    Presenter Movement Changes the Design


    Presenters and performers rarely use stage stairs in the calm, deliberate manner imagined on a technical drawing.


    They turn towards cameras. They pause for applause. They carry props, envelopes, trophies and microphones. They may need to enter in pairs, pass one another or stop halfway down for a rehearsed moment.


    The staircase must support these movements without creating awkward bottlenecks.

    Approach and departure routes are just as important as the stairs themselves. There must be sufficient space at the top and bottom for people to transition naturally onto the stage. Scenic walls, screens, lighting positions and technical equipment should not force users into sudden turns or narrow gaps.


    Rehearsal feedback can be extremely valuable. A staircase may comply with the intended technical dimensions and still feel uncomfortable when used as part of the show sequence. Adjustments to handrail positions, edge markings, lighting or surrounding scenery can make movement feel significantly more natural.


    The most successful scenic structures are not merely safe in isolation. They work as part of the entire performance environment.

    Image description

    Awards Shows Introduce Their Own Particular Problems


    Awards shows are especially demanding because stage stairs often form part of a highly visible arrival sequence.


    A winner may approach from the auditorium, climb onto the stage, greet the host, collect an award and move towards a microphone position. Every part of that journey can be captured from multiple angles.


    The stairs therefore need to work for the person using them and for the cameras recording them.

    Wide lenses may exaggerate steepness or distortion. Low camera positions can reveal construction details beneath the treads. Side angles may expose structural supports that were invisible in the original front-facing render. Reflective stair finishes can produce unwanted highlights, while dark finishes may cause tread edges to disappear under show lighting.


    The scenic design must consequently be reviewed from more than the audience’s central viewpoint.


    Technical teams consider likely camera positions, sightlines and lighting states while developing the stair structure and finish. Fascias, stringers, joints and support systems may require careful concealment because television cameras have an impressive ability to discover the one unfinished detail nobody expected them to see.

    Image description

    Theatre Stairs Must Survive Repetition


    In theatre, a staircase may be used in exactly the same sequence night after night.


    That repetition creates different fabrication priorities.


    Connections must remain secure throughout the run. Finishes must resist wear at the leading edges of treads. Any movement or noise within the structure needs to be minimised, particularly during quiet scenes.


    Scenic staircases may also move as part of a scene change. They can be mounted on trucks, incorporated into rotating scenery or designed as modular units that are repositioned by stage crews. In these situations, the structure must remain rigid during use but practical to handle when it is moved.


    Locking systems, castors, floor interfaces and alignment details all become part of the build methodology. A staircase that is safe once positioned must also be safe while being transported, stored and reset.


    The visible decorative finish is only the outer layer of a much more technical object.

    Accessibility Must Be Considered Early


    Stage access cannot be designed around stairs alone.


    Productions need to consider how people with different mobility requirements will reach and move through the stage environment. Depending on the project, this may involve an integrated ramp, platform lift, alternative entrance route or a revised stage arrangement.


    These solutions are most successful when developed as part of the scenic design rather than treated as a late addition.


    Retrofitting access after fabrication can affect the stage footprint, structural layout, backstage circulation and visual composition. Early coordination allows accessible routes to be integrated more naturally and ensures that the necessary clearances, transitions and operating space are protected.


    Accessibility is therefore not separate from scenic engineering. It is part of designing an environment that can be used properly by the people who need to enter it.

    Image description

    The Structure Nobody Sees


    The decorative staircase visible to the audience may conceal a substantial structural system.


    Depending on its size and application, the internal build may include timber framing, steel supports, adjustable feet, anchoring points and connections to the main stage deck. Larger stair units may need to be divided into transportable sections without creating movement at the joints.

    The void beneath the stairs can also be useful.


    It may accommodate cable routes, lighting equipment, control hardware or other technical infrastructure. Access panels might be incorporated so that equipment remains reachable without exposing it to the audience.


    These hidden functions must be coordinated carefully. Cables cannot interfere with structural members or become trapped during assembly. Access openings should not weaken critical areas. Heat-producing equipment may require ventilation, and anything needing maintenance must remain genuinely accessible once the scenery is installed.


    “Accessible” should mean that a technician can reach it during the production.

    It should not mean removing half the stage with a drill.

    Image description

    Buildability Matters From the Beginning

    Like every scenic element, stage stairs need to be designed for more than their final position.


    Fabricators must consider workshop assembly, transportation, venue access and installation sequencing. A staircase built as one large unit may be exceptionally rigid but impossible to move through the loading dock. A highly modular structure may be easier to transport but require additional care to prevent movement between sections.


    The best construction method balances these competing requirements.


    Digital modelling allows the scenic engineering team to coordinate dimensions, structure, interfaces and finishes before manufacturing begins. CNC-cut components can improve consistency within timber structures, while fabricated metalwork may provide strength in areas where depth is limited.


    Workshop pre-assembly is particularly valuable. It allows the team to check fit, stability, alignment and finish transitions before the staircase arrives on site. Problems can then be corrected under controlled conditions rather than during an overnight installation with the rest of the production waiting.

    Good Stairs Rarely Receive Compliments


    The audience rarely notices a good staircase.


    People move across it confidently. The structure remains solid. The finish works under the lighting. The cameras capture the intended shot. Nobody pauses to wonder how the presenter reached the stage without incident.


    A bad staircase receives considerably more attention.


    That is why Evolution Scenic treats stage stairs as engineered scenic structures rather than decorative afterthoughts. Their design requires coordination between scenic fabrication, structural development, finishes, production lighting, camera sightlines, installation and real human movement.


    They may still look simple when they are finished.


    That is usually the point.

  • Why Your Beautiful Reception Desk Has Nowhere To Put Anything

    Image description

    Why Your Beautiful Reception Desk Has Nowhere To Put Anything


    Reception desks are among the easiest scenic elements to make look impressive.

    They are also among the easiest to get completely wrong.


    Most concept visuals show the front of the desk. Clients see the branding, the curved profile, the feature lighting and the clean architectural lines. They see a beautifully rendered counter sitting within a perfectly organised registration environment, usually without a cable, cardboard box or half-finished cup of coffee anywhere in sight.


    What they rarely see is the person who has to work behind it for twelve hours.


    Where does the printer go?


    Where do the registration packs go?


    Where do the water bottles go?


    Where do the cables go?


    Where does the laptop charger go?


    Where do staff put their bags, spare stationery, coats, snacks and personal belongings?


    These questions sound simple. They are also frequently absent from the original concept.


    The result is a beautiful reception desk that remains beautiful for approximately seven minutes.


    Then the event team arrives.


    Within moments, boxes appear beneath the counter. Printers occupy the worktop. Extension leads trail across the floor. Registration packs are stacked against the side panels. Water bottles gather around the monitors, and someone discovers that the only available socket is three metres away on the wrong side of the desk.


    By the time the doors open, the pristine reception counter shown in the render has become an extremely expensive shelf.

    A Reception Desk Is a Workplace


    Reception desks and registration counters are often treated as decorative scenic objects. Visually, that is understandable. They are prominent branded elements and frequently form one of the first physical touchpoints within a conference, exhibition or corporate environment.


    Operationally, however, they are compact workplaces.


    The people positioned behind them may need to welcome visitors, search databases, print badges, distribute documents, answer questions, store equipment and resolve unexpected problems. They may be working across multiple laptops, printers and scanning devices while communicating with colleagues and managing a steady flow of materials.


    That activity requires more than an attractive front panel.


    It requires a considered internal layout.


    Experienced scenic fabrication teams therefore look beyond the visible surfaces. The front elevation may define how the desk appears to visitors, but the rear elevation determines whether it can function throughout the event.


    This is where technical development becomes particularly important. A concept may establish the desired shape, finish and branding treatment, while the fabrication process resolves the practical details hidden behind it.


    The objective is not to reduce the visual ambition. It is to make sure the desk still looks intentional once people begin using it.

    Image description

    Storage Is Not an Optional Extra


    Internal storage is one of the first features to disappear when a reception counter is designed purely from the front.


    A desk may look generous in a render while offering almost no usable space behind it. Curved façades, illuminated panels, recessed logos and decorative cladding can consume a surprising amount of internal volume. Structural framing takes up additional space, particularly where larger spans or projecting surfaces need support.


    Without early planning, staff are left to improvise.


    Boxes are pushed beneath stools. Bags are placed in visible corners. Spare badges are balanced on equipment cases. Documents are stacked wherever they fit, normally until someone needs the item at the bottom.


    Effective storage does not necessarily require elaborate cabinetry. In many temporary environments, simple and robust solutions are more useful.


    Open compartments can provide rapid access to registration packs and consumables. Lockable cupboards may be required for laptops, personal belongings or sensitive documents. Adjustable shelves can accommodate equipment of different sizes, while dedicated printer bays prevent devices from occupying the main work surface.


    The important point is that storage should reflect what the staff will actually use.

    A shelf designed without knowing the dimensions of the printer is not really a printer shelf. It is simply an optimistic rectangle.

    Power Distribution Needs to Be Designed In


    Modern registration environments depend heavily on technology.


    Laptops, badge printers, label printers, scanners, tablets, monitors, routers and charging devices may all need power. Some equipment may also require data connections or direct access to venue infrastructure.


    Yet power distribution is often considered after the desk has already been designed.


    This creates familiar problems. Extension leads are added at the last moment. Adaptors are connected to other adaptors. Cables emerge through gaps that were never intended to carry them. Equipment is placed according to the nearest available socket rather than the most efficient staff workflow.


    A better approach is to coordinate power requirements during technical development.


    Fabrication drawings can identify cable entry points, internal distribution routes, equipment locations and access panels. Power strips can be securely mounted within the structure rather than left loose on the floor. Ventilation can be introduced around equipment that generates heat, while removable panels can allow technical teams to reach connections without dismantling the counter.


    The desk must also connect sensibly to the venue supply.


    That may involve routing cables through the rear of the counter, through a raised floor or towards a nearby service point. Cable paths should be protected, accessible and positioned away from staff feet wherever possible.


    No one should have to choose between operating the badge printer and charging the registration laptop.

    Design Around the Staff Workflow


    Good registration desks support a sequence of actions.

    A visitor approaches. A member of staff searches for their details. A badge is printed. Supporting information may be collected. A lanyard or registration pack is handed over, and the visitor moves away.


    The physical arrangement of the desk can either support that sequence or make every step unnecessarily awkward.


    For example, placing the badge printer beneath the counter may preserve the appearance of the worktop, but it becomes inconvenient if staff must bend down hundreds of times each day.


    Positioning registration packs at the opposite end of the desk may create constant crossing between team members. A worktop that is too shallow may leave insufficient room for equipment and paperwork, while one that is too deep can make visitor interaction uncomfortable.

    Staff numbers also matter.


    A counter designed for two operators cannot simply become a six-person registration desk because six chairs have been placed behind it. Each person requires enough width to work, suitable equipment access and sufficient space to move without repeatedly colliding with the colleague beside them.


    The right arrangement depends on the operation.


    Some environments require multiple identical registration positions. Others need separate zones for general enquiries, badge collection, VIP registration or problem resolution. These differences affect the internal construction, worktop layout and division of storage.


    Understanding the process early allows Evolution Scenic’s technical and fabrication teams to develop the counter around the people using it, rather than asking the people to adapt themselves around the counter.

    Temporary Does Not Mean Thoughtless


    Registration desks are commonly used within temporary environments, but their temporary nature does not make operational planning less important.


    In many cases, it makes it more important.


    The counter may need to arrive through a restricted loading bay, travel in a goods lift, pass through standard doorways and be installed during a short overnight window. It may then need to be dismantled, transported and reused at another venue.


    These requirements influence the build methodology.


    Large desks may need to divide into modular sections. Worktops might require concealed mechanical fixings. Electrical connections may need to disconnect quickly between modules. Graphic panels may need to be replaceable so the structure can support different events or sponsors.


    The modules must align accurately when assembled, particularly where curved profiles, continuous lighting or large-format graphics cross multiple sections. Internal storage and cable routes must also remain usable after the desk has been divided for transport.


    A modular counter should feel like one coherent structure when installed, not several boxes standing politely beside one another.

    Image description

    The Before-and-After Test


    A useful way to evaluate a reception desk is to compare two moments.


    The first is immediately after installation. The lighting is switched on, the graphics are pristine and the worktop is completely empty. This is the version photographed for approval.

    The second is three hours after the event opens.


    Printers are operating. Staff are charging devices. Spare badges are in use. Registration packs are being replenished. Personal belongings have arrived. Someone has introduced a roll of tape, two marker pens and a mysterious cable that apparently belongs to nobody.


    If the desk still looks organised during the second moment, the design has worked.

    That does not happen accidentally.


    It happens because storage, power distribution, cable management and staff workflow were considered as part of the scenic fabrication process. It happens because the internal structure was developed with the same attention as the visible finish.


    The strongest reception environments combine both sides of the challenge.


    They provide the architectural form, branded appearance and quality of finish expected from a prominent scenic feature. At the same time, they support the less glamorous realities of printers, paperwork, chargers, water bottles and twelve-hour shifts.


    A great reception desk should look impressive when it is empty.


    A successful reception desk should continue looking impressive when it is not.

  • Premium Scenic Finishes For Public Environments

    Image description

    Premium Scenic Finishes For Public Environments


    Public-facing environments place particular demands on scenic finishes. Unlike short-duration installations that may only operate for several days, many retail environments, visitor centres, museums and branded interiors remain in continuous use for months or years.


    The finish must therefore achieve more than an attractive appearance at the point of installation. It must withstand cleaning, physical contact, changing environmental conditions and routine maintenance while continuing to present a consistent visual standard.


    This becomes especially important within premium environments where scenic elements are viewed closely and from multiple angles. In large-scale temporary settings, minor surface inconsistencies may be concealed by distance, lighting or the overall scale of the installation.


    Within a luxury retail interior or museum environment, the same inconsistencies can become immediately noticeable.


    Panel joints, edge conditions, reflections, coating thicknesses and transitions between materials all contribute to the perceived quality of the completed work. A finish may use a premium coating system, but it will not appear refined if the substrate beneath it has not been fabricated, prepared and assembled accurately.


    Museum-quality and high-end scenic finishes are therefore rarely defined by one specialist paint, material or decorative technique. They are the result of coordinated decisions made throughout fabrication, preparation, application, installation and maintenance.

    Image description

    Specifying and Preparing Premium Scenic Finishes


    The finishing process begins well before paint or decorative coatings are applied. It starts with understanding the environment, the expected operating period and the level of physical interaction the scenic element will experience.


    A decorative wall positioned above visitor level may require a different finish from a display plinth that is touched continuously. A luxury retail counter may need to resist cleaning products, jewellery, bags and repeated staff use. A museum display may require stable colours, low-reflection surfaces and materials that can be maintained without affecting nearby exhibits.


    The intended viewing distance also influences the specification. Large scenic forms positioned several metres from the visitor may accommodate textured finishes and broad decorative techniques. Joinery, display cases and branded features viewed at close range demand tighter tolerances, smoother surfaces and more controlled application.


    The substrate must be selected with the final finish in mind.


    MDF is frequently used for painted scenic joinery because it provides a smooth and consistent surface. However, cut edges are more absorbent than the face and require careful sealing, filling and sanding if they are to achieve the same finish quality.


    Plywood offers greater resilience and fixing strength but may require additional preparation to conceal grain, laminations and surface irregularities. Metals require suitable cleaning, keying and priming to support adhesion, while plastics and composite panels may need specialist primers or controlled preparation methods.


    The construction method also affects the finish. Movement between materials, unsupported panel edges and poorly detailed joints can result in cracking or visible lines after installation. A polished surface may expose minor deviations that would remain hidden beneath a textured coating.


    For this reason, scenic carpentry, metal fabrication and finishing teams must work to an agreed standard from the beginning. The finishing department cannot always correct inaccuracies introduced during structural fabrication or panel assembly.


    Surface preparation may include:

    • Sealing absorbent materials and machined edges
    • Filling screw holes, joints and surface imperfections
    • Progressive sanding to achieve the required smoothness
    • Preparing metal surfaces for corrosion-resistant primers
    • Applying compatible adhesion promoters to plastics
    • Testing fillers, primers and coatings as a complete system
    • Controlling dust before and during application
    • Inspecting surfaces under lighting similar to the final environment


    Preparation requirements should be established through samples and mock-ups wherever practical.


    A small finish sample allows the colour, sheen and texture to be approved. A larger mock-up provides a more useful understanding of how the finish behaves across joints, corners, curves and changes in substrate. It can also demonstrate how the surface responds to lighting, touch and cleaning.


    This is particularly important for metallic finishes, high-gloss coatings, polished plaster effects and hand-applied decorative treatments. These finishes may change significantly depending on application direction, panel size and viewing angle.


    Colour consistency must also be managed carefully. A colour reference alone may not define the final appearance because gloss level, texture, substrate and lighting all influence how the surface is perceived. Large scenic environments may require controlled batch preparation and recorded application methods to minimise variation between components.


    Where modules are fabricated separately, the finish must continue consistently across the assembled structure. Panel orientation, spray direction and grain or decorative movement should be coordinated so that individual sections do not appear visually disconnected after installation.

    Image description

    Applying and Controlling High-End Finish Systems


    Premium scenic finishes are produced through controlled processes rather than last-minute decorative treatment.


    The correct application method depends on the required appearance, substrate geometry and intended performance. Spray application can produce smooth and consistent finishes over large panels, while roller systems may be suitable for textured architectural surfaces or areas where site application is required. Hand-applied techniques can create specialist textures, aged effects and decorative depth, but require clear reference samples and experienced scenic artists.


    High-gloss finishes are among the most demanding because they reflect light clearly and reveal surface imperfections. Substrates must be flat, stable and prepared through several stages of filling, priming and sanding. Dust control is essential, and coatings must be allowed to cure properly before handling or installation.


    Satin and matt finishes can provide a more controlled appearance in museums and experience centres, particularly where reflections could affect displays, lighting or interpretation graphics. However, very matt finishes may mark easily or become polished through repeated contact. The selected sheen should therefore balance visual requirements with practical cleaning and durability.


    Metallic and specialist decorative coatings introduce additional considerations. Metallic particles can appear different depending on spray direction, overlap and lighting. If several panels form one continuous wall, they should be finished using a coordinated method to avoid visible changes between modules.


    Protective coatings can improve the performance of decorative surfaces, but they must be compatible with the underlying finish. Clear coats may provide resistance to abrasion, moisture and cleaning chemicals, although they can also alter the sheen, depth or colour of the approved sample.


    The complete coating system should therefore be tested together, including the primer, base coat, decorative layer and protective topcoat.


    Public interaction should influence where higher-performance systems are used. Door edges, handrails, counter fronts, plinth corners and low-level wall areas typically receive more contact than elevated or recessed surfaces. These zones may require impact-resistant materials, replaceable components or more durable coating systems.


    The choice of finish can also support future repair. A highly specialised decorative technique may be difficult to reproduce locally if damage occurs. Where long-term maintenance is expected, it may be preferable to develop a documented finish system that can be matched and repaired without refinishing an entire scenic element.


    Quality control should continue throughout fabrication and installation.


    Workshop inspections can assess surface preparation, colour consistency, sheen, texture, curing and edge quality before components are packed. Viewing surfaces under directional light can reveal scratches, pinholes, uneven sanding and coating variation that may not be visible under general workshop lighting.


    Protective packing is part of the finishing methodology. Completed panels may require soft interlayers, corner protection and dedicated transport frames to prevent movement and surface contact. Wrapping materials must be selected carefully because some plastics, tapes or foams can mark coatings if applied before the finish has fully cured.


    Installation teams also require appropriate handling instructions. Finished components should not be lifted by vulnerable decorative edges or placed directly onto unfinished floors. Tools, access equipment and fixing operations must be controlled to prevent damage to adjacent surfaces.


    The assembly sequence can make a significant difference. Where possible, high-risk structural work, overhead lifting and cable installation should be completed before sensitive decorative panels are installed. Protective films may remain in place during assembly, but they should not conceal surfaces that require inspection before handover.


    Final touch-ups should be treated as a controlled finishing operation rather than an improvised correction process. Repairs must use compatible materials and should be assessed under the final lighting conditions. On reflective surfaces, a small local repair may remain more visible than a carefully refinished panel.

    Image description

    Protecting Long-Term Performance and Maintainability


    A premium finish should continue to perform after the installation team has left site.


    Long-term durability depends on environmental exposure, visitor interaction, maintenance procedures and the ability to access and repair individual components. These factors should be considered during design rather than addressed only after signs of wear appear.


    Outdoor and partially exposed environments introduce challenges including ultraviolet radiation, heat, humidity, dust and occasional water exposure. Coatings must be suitable for the expected conditions, while substrates and connections must accommodate thermal movement.


    Dark surfaces can absorb significant heat, potentially affecting adhesives, graphics and panel joints. UV exposure may cause colour fading or degradation in unsuitable coatings. Moisture can enter through poorly sealed edges, fixings and joints, particularly where horizontal surfaces allow water to collect.


    Protective systems must therefore work alongside appropriate construction detailing. Weather-resistant paint cannot compensate for trapped water, unsealed edges or incompatible materials.


    Indoor public environments experience different forms of wear. Repeated touching, bags, equipment, cleaning machines and movable furniture can gradually damage low-level surfaces.


    Retail environments may also undergo frequent visual updates, requiring graphics or product displays to be changed without affecting the primary scenic structure.


    Replaceable panels, removable trims and accessible fixings can extend the life of an installation. A damaged high-contact component can be removed and refinished without dismantling the complete environment.


    Cleaning requirements should be established as part of the finish specification.


    A coating may withstand general use but react poorly to aggressive cleaning products. High-gloss surfaces may show fingerprints and streaks, while textured finishes may trap dust and be difficult to clean evenly. Some specialist scenic effects can be damaged by repeated wet cleaning or abrasive cloths.


    Cleaning tests should therefore be carried out where finishes will be used in demanding public areas. This can include checking resistance to approved detergents, disinfectants and repeated wiping.


    Maintenance information should identify:

    • Approved cleaning products and methods
    • Surfaces that should not be treated with solvents or abrasives
    • Recommended inspection intervals
    • Procedures for repairing scratches, chips or worn edges
    • Reference colours, sheen levels and coating products
    • Access methods for concealed or elevated components
    • Replaceable panels and spare materials retained for future use


    For museum and interpretation environments, maintenance may also need to consider nearby artefacts, display cases and sensitive materials. Finishes should not introduce unwanted dust, odours or contaminants during routine repair work. Maintenance access should allow work to be completed without disturbing adjacent displays wherever possible.


    Premium retail environments often require a particularly consistent standard because the scenic interior forms part of the brand presentation. Colour changes, surface wear and visible repairs can weaken that consistency even where the structure remains technically serviceable.


    Regular inspection allows minor defects to be addressed before they develop into larger areas of damage. A small chip exposing an absorbent substrate, for example, may become more difficult to repair if cleaning moisture enters the material over time.


    At Evolution Scenic, premium finishing is considered as part of the complete fabrication process. Substrate selection, scenic carpentry, metalwork, surface preparation, specialist painting, transport protection and installation sequencing must all support the same finish objective.


    The strongest public environments combine visual quality with practical performance. Their finishes withstand close inspection at handover, but they are also designed to remain durable, maintainable and consistent throughout their operational life.


    Premium scenic finishes are therefore not defined by decorative complexity alone. They are defined by controlled fabrication, disciplined preparation and attention to every surface, edge and connection that contributes to the completed environment.


  • Building Permanent Brand Environments

    Evolution Scenic permanent experience centre with bespoke joinery, illuminated displays and integrated technology.

    A permanent brand environment combining scenic fabrication, architectural detailing and serviceable technology within one coordinated installation.

    Building Permanent Brand Environments


    Permanent brand environments often bring scenic fabrication, specialist finishes, architectural detailing and integrated technology together within one coordinated installation. Experience centres, brand homes and product showcase environments may share some construction techniques with temporary scenic projects, but the operational requirements are very different.

    A temporary activation may only need to perform for several days or months. A permanent environment is expected to operate continuously, retain its appearance and accommodate maintenance, repairs and technical upgrades over several years.


    From a fabrication perspective, permanence changes everything.

    Permanent brand environment combining scenic fabrication, bespoke joinery and integrated digital technology.

    Permanent environments require scenic fabrication, specialist finishes and technology to function as one coordinated system.

    Permanence Changes the Build Brief


    A permanent brand environment should not be treated as a temporary scenic installation made from heavier materials. Its entire build methodology needs to reflect how the environment will be used, cleaned, maintained and updated throughout its lifespan.


    The visible surfaces may include decorative wall systems, illuminated features, bespoke joinery, product displays, sculptural structures and integrated screens. Behind those surfaces, however, sits a more complex arrangement of structural framing, cable routes, ventilation systems, access zones and connection details.


    These hidden elements often determine whether the finished environment remains practical after handover.


    At Evolution Scenic, the fabrication process therefore begins by considering more than the final appearance. The team must understand anticipated operating hours, expected visitor contact, cleaning procedures, maintenance responsibilities and the likely service life of integrated equipment. These factors influence material selection, structural detailing and the way individual components are manufactured.

    Cutaway permanent scenic wall showing framing, cable routes and integrated display infrastructure.

    Behind every finished surface sits a coordinated system of structure, services and technical equipment.

    Experience Centres, Brand Homes and Product Showcases


    Permanent brand environments take many forms. An experience centre may contain large architectural features, interactive displays, demonstration areas and concealed technical systems. A brand home may combine exhibition-style fabrication with high-quality interior detailing. A product showcase environment may require illuminated display recesses, precision plinths, secure cases and adaptable graphics.


    Although these environments have different functions, they share a common fabrication challenge: the scenic work must operate as part of a permanent setting without becoming difficult to maintain.


    Display structures need to remain dimensionally stable. Doors and access panels must continue to align correctly. Illuminated features must allow failed components to be replaced. Product plinths should resist repeated contact, while removable graphics and display inserts should be changeable without damaging the surrounding finish.


    This requires careful coordination between scenic carpentry, metal fabrication, CNC machining, graphics, lighting and technical integration. Each discipline affects the others, so decisions cannot be made in isolation.

    Permanent experience centre with bespoke product plinths, sculptural walls and integrated displays.

    Experience centres and product showcases combine several forms of custom fabrication within one environment.

    Designing from the Structure Outwards


    Reliable permanent environments are designed from their internal structure outwards rather than from their decorative finish backwards.


    Steel or aluminium frameworks may be required where structures span large distances, carry displays or support heavy scenic features. Timber and engineered board systems may be used for wall build-ups, cabinetry, sculptural forms and detailed display components. CNC-machined parts allow repeated elements, service openings and connection points to be manufactured accurately.

    The supporting structure must account for load paths, fixing locations, deflection and movement. A display wall may appear static, but the framework behind it could be carrying suspended screens, lighting equipment, shelving, graphics and removable panels.


    Connections also need to remain accessible where inspection or future adjustment may be required. Permanently sealing every fixing behind decorative finishes can create unnecessary problems later. A better approach is to identify which connections can remain concealed for the life of the installation and which must be reachable through removable panels or service zones.

    Permanent environment constructed from internal structural framing towards finished decorative surfaces.

    Reliable scenic structures are developed from their supporting framework out towards the visible finish.

    Selecting Materials for Long-Term Operation


    Materials that are suitable for short-term scenic use are not automatically suitable for permanent operation.


    High-contact surfaces need to resist abrasion, impact and repeated cleaning. Exposed corners may require reinforced edges or replaceable protective details. Painted surfaces should be specified according to expected wear, while laminates, solid surfaces, veneers and metal finishes need appropriate substrates and fixing methods.


    Cleaning products also matter. A finish that performs well under normal handling may deteriorate when exposed repeatedly to strong cleaning chemicals. Areas near entrances or glazing may experience increased ultraviolet exposure, while illuminated enclosures can be affected by heat generated by technical equipment.


    Mock-ups are particularly valuable for permanent installations. They allow fabrication teams to test finish quality, junction details, access methods and material compatibility before full production begins. A small amount of development work at this stage can prevent widespread remedial work after installation.


    The objective is not simply to select the most durable material available. Materials must also remain practical to fabricate, transport, install, repair and eventually replace.

    Scenic fabrication materials compared for temporary use and long-term permanent operation.

    Material performance requirements change significantly when an environment must remain operational for years.

    Integrated Technology Must Remain Serviceable


    Technology integration is frequently one of the most demanding parts of a permanent environment.


    LED displays, projection systems, interactive interfaces, architectural lighting, speakers, sensors and control equipment all have different installation and maintenance requirements. They generate heat, require power and data connections, and may need periodic calibration or replacement.

    The scenic structure must accommodate these systems without compromising the finished appearance. Screen housings require accurate apertures and suitable support. Projection systems need controlled sightlines and access for alignment. Interactive components may require robust mounting because they are handled repeatedly.


    Ventilation is equally important. Equipment enclosed behind scenic finishes can overheat when there is insufficient airflow. Passive ventilation may be suitable for some installations, while others require fans, ducting or connection to a wider cooling strategy. Ventilation openings must be integrated carefully so they do not interrupt the design or become blocked during operation.

    Cable management should also be considered during fabrication rather than added afterwards. Dedicated routes, segregation between power and data, protected entry points and labelled connections make future maintenance considerably easier.

    Permanent scenic technology bay integrating displays, lighting controls, sensors and organised cabling.

    Integrated technology introduces additional structural, cooling, access and maintenance requirements.

    Maintenance Access Should Be Designed, Not Improvised


    One of the clearest differences between temporary and permanent fabrication is the importance of maintenance access.


    A technical system will eventually need attention. Screens fail, drivers require replacement, cables are damaged and control equipment becomes obsolete. The question is not whether access will be needed, but how it will be provided without damaging the environment.

    Access panels can be hinged, lift-off, magnetic or mechanically fixed depending on their size and location. Their edges must remain aligned with the surrounding finish, while catches and fixings should tolerate repeated use. Larger service zones may require removable wall sections or concealed doors.


    Good access design also considers the person carrying out the maintenance. There should be enough working space to remove equipment safely, disconnect cables and inspect surrounding components. A technically accessible panel is of little value when the equipment behind it cannot physically be removed.


    Evolution Scenic coordinates these requirements during technical development so access details form part of the manufactured system rather than appearing as late alterations.

    Technician servicing display equipment through a removable permanent scenic access panel.

    Technical components must be replaceable without damaging the surrounding fabricated environment.

    Hidden Infrastructure Determines Operational Quality


    The quality of a permanent environment is often defined by infrastructure that is never visible during normal operation.


    Service voids, cable trays, ventilation routes, mounting plates, structural supports and equipment brackets all need to be organised clearly. Poorly coordinated infrastructure can make routine maintenance unnecessarily disruptive and may force technicians to remove finished components to reach basic connections.


    Labelling is a simple but valuable part of this process. Cables, control equipment, removable panels and service zones should be identified consistently. As-built drawings and maintenance information should correspond with the installed arrangement rather than an earlier design version.


    Where appropriate, components can be designed as modular assemblies. A complete technology bay, illuminated display unit or product showcase can then be removed, serviced or replaced independently from the surrounding scenic construction.

    Finished permanent scenic wall shown beside its concealed structural and technical infrastructure.

    Much of a permanent environment’s operational quality is created behind its visible surfaces.

    Planning for Future Upgrades


    Technology usually has a shorter service life than the fabricated environment around it. Displays change format, control equipment becomes outdated and new systems may have different cooling or connection requirements.


    Upgrade planning does not mean predicting every future product. It means avoiding unnecessary restrictions.


    Mounting systems can include adjustment zones or replaceable interface plates. Cable routes can allow limited additional capacity. Access openings can be sized around the removal of equipment rather than the dimensions of the current screen alone. Decorative trims may be removable so apertures can be adapted without rebuilding an entire wall.


    This approach helps protect the main scenic structure when technology changes. Instead of dismantling finished surfaces, technical components can be replaced within a controlled and accessible framework.

    Replaceable screen mounting plate and removable trims supporting future technology upgrades.

    Adjustable mountings and removable finishes allow equipment to change without rebuilding the entire wall.

    Installation Inside Operational Buildings


    Permanent environments are frequently installed inside active buildings, public facilities, commercial interiors or operational experience centres. These locations introduce constraints that must be considered before manufacturing begins.


    Access routes may limit module sizes. Goods lifts, door openings and corridor dimensions can determine how structures are divided. Working hours may be restricted, while noise, dust and hot works may be tightly controlled.


    Modular construction is often the most efficient response. Scenic structures can be prefabricated in the workshop, tested and finished before being transported to site in manageable sections. This reduces on-site cutting, improves quality control and shortens the period of disruption.


    Installation sequencing is equally important. Structural frames, technical systems, scenic finishes and graphics must be installed in an order that protects completed work while maintaining access for other trades. Connection details should be repeatable, accurately located and suitable for the available installation space.

    Permanent scenic installation sequenced through framing, technology, finishes and graphics.

    Careful sequencing protects completed work while maintaining access for every specialist trade.

    Handover Is Part of the Fabrication Process


    A permanent environment is not complete when the final panel is fitted.


    Before handover, access panels, lighting, technical housings and removable components should be tested under realistic operating conditions. Maintenance teams need to understand how systems are accessed and which components can be removed. Spare finishes, replacement graphics, touch-up information and component references may also be required.


    A clear handover reduces the risk of future maintenance damaging the scenic work. It also allows the environment to be operated as intended rather than relying on trial and error after the fabrication team has left site.


    The most successful permanent brand environments are rarely defined by their visible finishes alone. Their long-term performance depends on the engineering, fabrication and infrastructure concealed behind those surfaces.


    When structural systems, technology, maintenance access and operational requirements are considered together, the result is an environment that remains practical to operate, easier to update and better able to retain its quality throughout its working life.

    Final inspection of permanent scenic panels, lighting systems and maintenance access.

    Fabrication is not complete until the installed system has been inspected and tested.

  • Future-Proofing Visitor Centre Environments

    Image description

    A future-ready visitor centre environment built around modular interpretation, concealed services and maintainable scenic construction.

    Future-Proofing Visitor Centre Environments


    Visitor centres are often expected to remain operational for many years while supporting changing information, evolving destinations and advancing technology. The physical environment may remain largely unchanged, but interpretation content, graphics, digital displays and operational requirements can alter repeatedly throughout its lifespan. For that reason, long-term visitor centre fabrication needs to accommodate change without requiring major reconstruction every time an element becomes outdated.


    From a scenic fabrication perspective, future-proofing begins well before installation. Decisions made during technical development determine whether an environment will be straightforward to maintain and modify or increasingly difficult to work with as it ages. Panel construction, fixing methods, structural interfaces, equipment access and concealed service routes all influence how effectively the environment can respond to future requirements.

    Image description

    Long-life visitor centre construction must accommodate content and operational change without major rebuilding.

    Building Interpretation Systems That Can Change


    Interpretation content rarely has the same lifespan as the structure supporting it. Destination information changes, exhibits are refreshed and operational messaging develops over time. Building every graphic or information panel permanently into the surrounding construction can make relatively simple updates unnecessarily disruptive.


    Modular interpretation systems offer a more practical approach. Scenic walling can provide the long-term structural framework while graphic panels, display inserts and interpretation surfaces are treated as replaceable components. Removable face panels, concealed mechanical fixings, magnetic systems and accurately registered inserts can allow individual sections to be updated without disturbing neighbouring fabrication.


    The connection detail is critical. A replaceable panel still needs to sit accurately within the surrounding finish, maintain consistent shadow gaps and return to the same position after removal. Repeated access should not enlarge fixing holes, damage painted edges or weaken the surrounding substrate. Precision CNC machining, repeatable locating points and properly selected hardware can make these systems considerably more durable over their operating life.

    Image description

    Future-proofing begins during technical development, when access, connections and replacement strategies are resolved.

    Separating Technology From The Scenic Structure


    Technology generally develops much faster than the physical environment around it. Screens, media players, interactive hardware, lighting drivers, sensors and control equipment may all be replaced several times during the life of a visitor centre.


    If that technology is permanently trapped within scenic construction, even routine replacement can require substantial dismantling. A screen change might otherwise involve removing finished wall sections, disturbing graphics or cutting through joinery simply to reach equipment that was always expected to become obsolete.


    At Evolution Scenic, technology integration can instead be approached as a serviceable layer within the wider fabrication. Screens can sit within removable bezels, equipment can be positioned on accessible shelves and service panels can be incorporated discreetly into scenic surfaces. The finished environment remains visually resolved, while the equipment behind it stays accessible.


    Maintenance access does not necessarily need to be visible. Flush panels, concealed hinges, magnetic closures and removable sections can all be incorporated within scenic joinery. The important point is that access is deliberately engineered rather than improvised during maintenance years later.

    Image description

    Modular interpretation systems allow information to change without replacing the surrounding fabricated environment.

    Making Hidden Infrastructure Usable


    Hidden infrastructure is valuable only if technicians can reach and understand it.

    Power distribution, data cabling, control wiring and equipment connections can become extremely difficult to maintain when routed through inaccessible cavities. Service zones therefore need sufficient physical space for maintenance, not simply enough space for the initial installation.


    Cable routes can be organised onto trays or dedicated containment, with logical separation between systems where required. Connections should remain visible and identifiable when an access panel is opened. Labelling cables, equipment feeds and termination points may appear like a small production detail, but it can save significant time during future fault-finding and upgrades.


    Spare capacity can also be valuable where practical. Additional cable routes, accessible containment or allowance for replacement equipment can make later technology upgrades considerably easier. The aim is not to predict every future system, but to avoid constructing an environment so tightly around today's equipment that tomorrow's replacement cannot physically fit.


    Ventilation should be treated with the same level of consideration. Screens, media equipment and control components generate heat, yet ventilation openings must often remain visually discreet. Perforated panels, hidden ventilation paths and removable equipment enclosures can help protect technology without compromising the surrounding scenic finish.

    Image description

    Replaceable graphics work best when fixing methods are designed for repeated access without damaging finished surfaces.

    Fabricating For Continuous Public Use


    Future-proofing is not limited to change. It also means surviving daily operation.


    Visitor centres are public environments, and their fabricated elements can experience thousands of interactions over their lifespan. Lower wall panels may be repeatedly contacted by bags, shoes, cleaning equipment and maintenance trolleys. Counter edges, interpretation surfaces and display surrounds can experience constant handling.


    Material selection therefore needs to reflect where and how each component will be used. A finish that performs well high on a feature wall may not be appropriate at floor level or around a frequently touched exhibit. High-contact areas can require tougher laminates, reinforced corners, durable paint systems or replaceable surface layers.


    The underlying scenic construction also matters. Properly framed panels, stable substrates and accurately fabricated joints reduce movement over time. Edges that are poorly supported may begin to chip or separate, while large unsupported boards can distort under changing environmental conditions. Long-term environments benefit from fabrication methods that consider what happens after months and years of continuous operation, not simply how the structure appears when it leaves the workshop.

    Image description

    Technology enclosures should anticipate shorter equipment lifecycles than the scenic structures surrounding them.

    Designing Components To Be Repaired


    Even durable environments eventually require repair. The difference between a serviceable installation and a difficult one is often whether individual components can be replaced independently.


    A damaged panel should not ideally require the removal of an entire feature wall. A worn plinth top should be replaceable without rebuilding its structural base. An access door should allow hinges or latches to be serviced without disturbing surrounding scenic finishes.


    This can influence how scenic modules are constructed. Structural frames may remain as the permanent layer, while external faces, trims or high-wear surfaces are mechanically fixed and independently replaceable. Where appearance requires concealed connections, those fixings still need to remain accessible to the maintenance team.


    Modular display furniture can be developed in the same way. Plinths, interpretation cases and display housings can use removable tops, service panels or interchangeable internal supports so that future exhibits can be accommodated without replacing the entire fabricated unit.

    Image description

    Hidden access panels allow maintenance and upgrades without dismantling the wider visitor centre environment.

    Planning Maintenance Access Before Installation


    Maintenance access is most effective when it is resolved during technical development rather than added after the environment has been designed around inaccessible equipment.


    Access panels need to be large enough for the task they are intended to support. Reaching a cable connector requires far less space than replacing a large screen or removing a complete media unit. Equipment should also be positioned so it can physically pass through the proposed opening.


    The route to the equipment matters as much as the final access panel. A removable wall section is of limited value if fixed furniture prevents it from opening or if another component has to be dismantled before technicians can reach it.


    In operational visitor centres, maintenance may need to take place during restricted closure periods. Localised access allows technicians to work within one controlled section of the environment rather than opening substantial areas of completed scenic fabrication.

    Image description

    Hidden infrastructure remains useful only when it is organised, documented and physically accessible for future work.

    Recording How The Environment Was Built


    One of the most useful tools for future maintenance is accurate production information.


    Materials, paint references, laminates, CNC files, fixing types and fabrication drawings can all support repair work several years after installation. If a damaged panel needs replacing, documented manufacturing information allows a new component to be produced far more accurately than attempting to reverse-engineer the original construction on site.


    Finish records are particularly useful. Colour references alone may not fully describe a scenic finish if the original appearance depended on a particular substrate, primer, texture or application technique. Maintaining clear production information helps future replacement components integrate more convincingly with the existing environment.


    Component labelling can also support maintenance. Removable panels, access doors and technical enclosures can use discreet identifiers corresponding with drawings or maintenance records. This becomes particularly valuable in large visitor centres containing numerous similar display systems.

    Image description

    Ventilation and equipment clearances help protect integrated technology and simplify future replacement.

    Destination Visitor Centres & Long-Term Operation


    Destination visitor centres often operate under conditions that place significant demands on scenic fabrication. They may experience long opening hours, substantial visitor numbers and continuous interaction while also needing to update interpretation as destinations develop.


    In these environments, shutting down substantial sections for routine content changes is rarely desirable. Modular construction and localised access can allow graphic updates, screen replacements and technical maintenance to be carried out with far less disruption.


    Long-term fabrication also benefits from repeatability. If wall sections, access panels or display housings use consistent construction principles, replacement components can be manufactured more efficiently. Common fixing methods and documented interfaces also make the environment easier for maintenance teams to understand.


    This repeatability does not mean every visitor centre component needs to look identical. It means the concealed technical logic behind the environment can be rationalised even when the visible scenic treatment varies considerably.

    Image description

    Operational durability depends on selecting materials and details suited to continuous public use.

    Building For The Full Lifecycle


    The most effective visitor centre environments separate elements according to their likely lifespan.


    Structural framing and core scenic architecture may remain operational for many years. Surface graphics might change several times. Digital displays may be replaced more frequently still. Viewing all of these elements as one permanent construction system makes future intervention unnecessarily difficult.


    A more considered fabrication methodology allows long-life structures to remain in place while shorter-life components are removed and replaced around them. Mechanical fixings, modular panels, accessible technology enclosures and documented service routes all support this principle.


    At Evolution Scenic, future-proofing therefore becomes a question of buildability and lifecycle planning. The environment needs to look complete when it opens, but its fabrication should also acknowledge that maintenance, content changes and technology upgrades will inevitably follow.


    The strongest visitor centres are not simply fabricated for opening day. They are engineered so panels can be accessed, equipment can be replaced, finishes can be repaired and information can evolve while the wider environment continues to perform reliably for years.

    Image description

    Corners, lower wall zones and high-contact surfaces require finishes that tolerate cleaning, impact and repeated use.

  • Why Some Of The Best Scenic Solutions Come From The Crew

    Image description

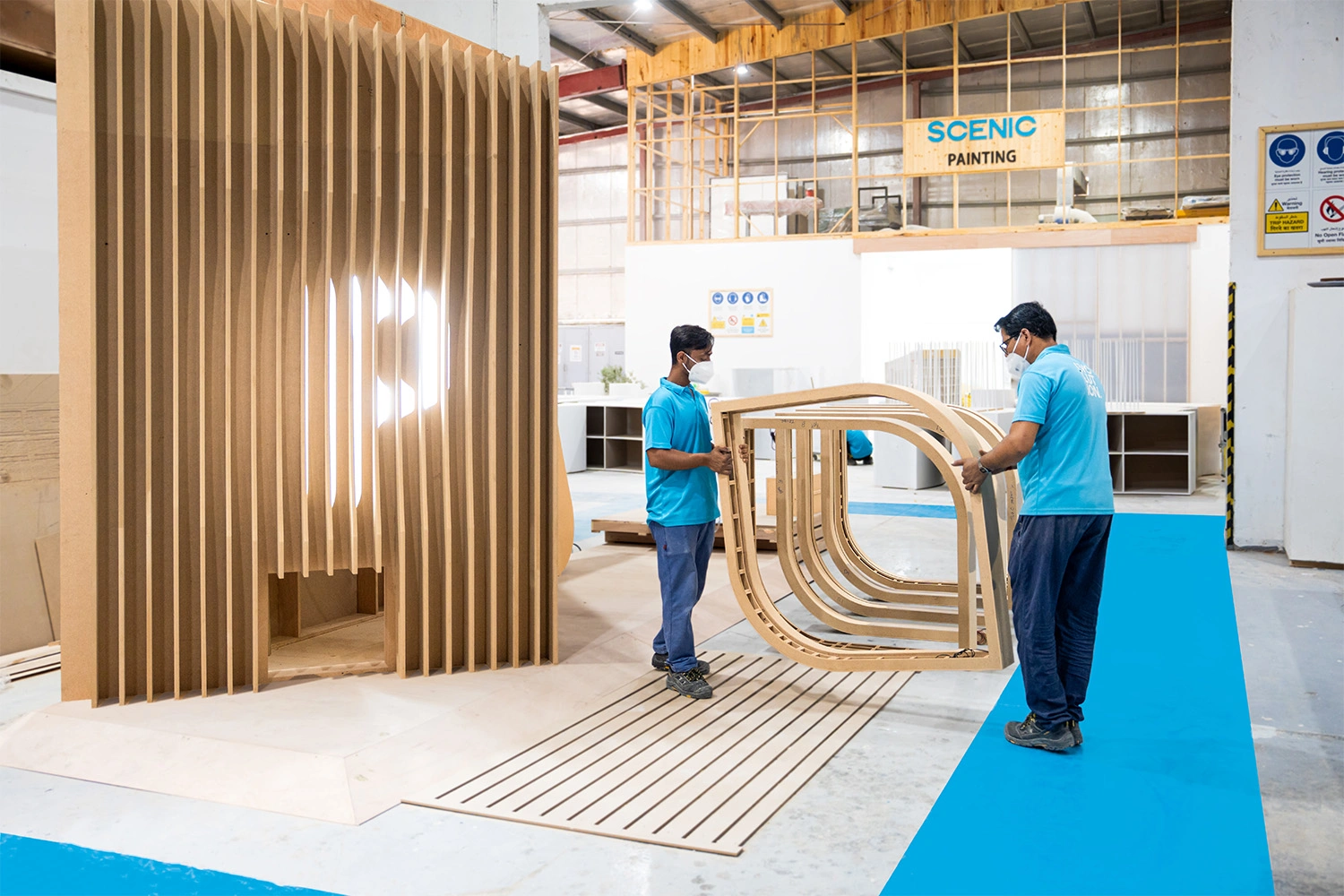

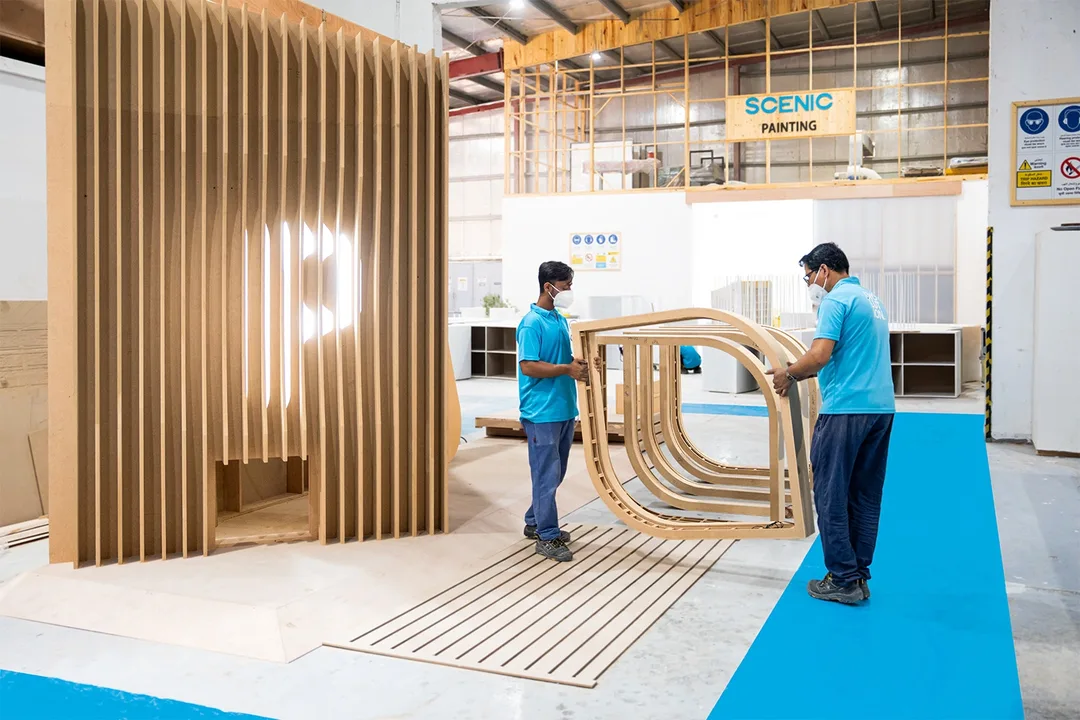

    Why Some Of The Best Scenic Solutions Come From The Crew


    Technical drawings establish how a scenic structure should be manufactured, but the people building, finishing and installing it often identify practical improvements that cannot be seen on screen. Their experience helps turn an approved design into something that can be produced, transported and installed successfully.


    Not every strong scenic solution begins in a meeting room. Some are identified when a carpenter starts assembling a structure and notices that a fixing will become inaccessible later.


    Others come from a metalworker who recognises that a connection could be simplified, a scenic painter who spots that a joint will remain visible beneath the finish, or an installer who recommends dividing a structure differently so it can pass through the venue. These observations do not replace technical design, engineering or project control. They strengthen them.


    Scenic fabrication turns drawings, models and specifications into physical structures. During that process, materials behave differently, tolerances accumulate and practical constraints become clearer.


    The people closest to the work often identify these issues first.


    They also frequently identify the most effective solution.

    The Workshop Sees What The Drawing Cannot


    Technical drawings establish dimensions, materials, geometry and construction requirements. However, they cannot always show how easily a component can be handled, whether a fixing will remain accessible or how a material will respond once it has been cut, formed and finished. The workshop sees the structure at full scale.


    A connection that appears straightforward on a drawing may become difficult to reach after surrounding panels are fitted. A curved form may need temporary bracing during assembly. A transport joint may need to move so it does not pass through a prominent finished surface. The crew also understands the order in which the work must happen.


    They know which components need to be fitted first, where access must remain open and when a finish or technical element will restrict later work.


    This practical perspective helps identify problems before they become embedded within the build.

    Fabrication Feedback Should Start Early


    Workshop feedback is most valuable during technical development and early production. Once materials have been ordered, CNC files prepared and major components manufactured, even a sensible improvement can create rework or delay.


    An early fabrication review may identify:


    • Inaccessible connections
    • Sections that are too large or heavy
    • Joints positioned within visible surfaces
    • Materials requiring additional support
    • Complicated assembly sequences
    • Insufficient space for technical equipment
    • Difficult lifting or transport requirements
    • Finishes requiring more preparation than expected


    The purpose is not to redesign the project informally. It is to ensure the approved design and proposed fabrication method work together.


    A structure may be visually correct and technically detailed but still be difficult to manufacture or install. Early workshop input exposes that risk while there is still time to resolve it properly.

    Small Changes Can Make A Significant Difference


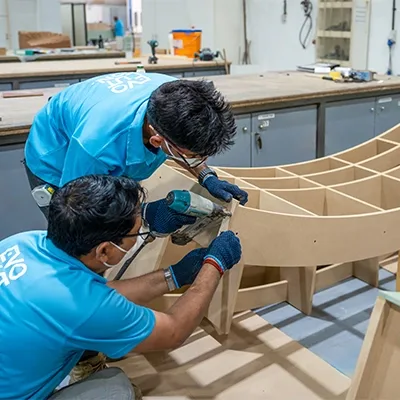

    Many crew-led improvements appear minor. A carpenter may move a connection so it remains accessible after cladding is installed. A metalworker may revise a bracket so it can be secured from a safer position.


    A CNC operator may adjust the component layout to improve material use. A scenic painter may request that a joint is moved away from a smooth finished surface. An installer may recommend numbering sections according to the installation sequence rather than the workshop production order.


    These changes may not alter the appearance, but they can reduce fabrication time, simplify installation and prevent damage. A fixing detail repeated across fifty components can either save time or create the same problem fifty times.


    The value of the idea is not always reflected by its size.

    Image description

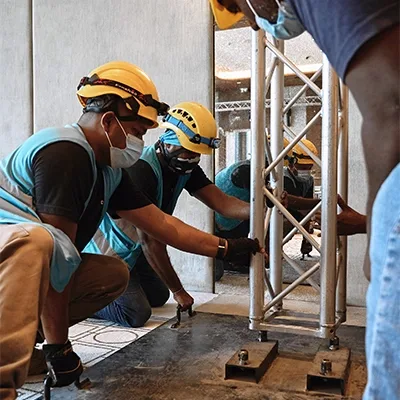

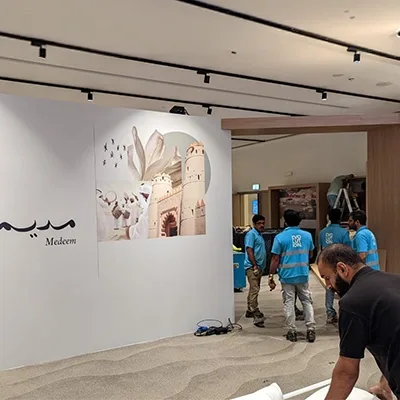

    Installation Experience Improves Fabrication


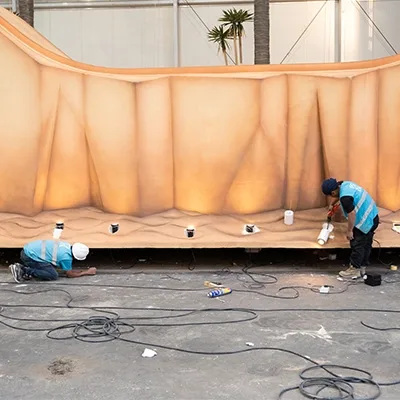

    Installation teams understand what happens after scenery leaves the workshop. They work within loading schedules, restricted access routes, shared work areas and fixed handover times. A connection that is easy to complete at floor level may be far more difficult several metres above a stage.


    A large section that moves easily around the workshop may not fit through a venue corridor or goods lift. A delicate finish may need additional protection if it will be handled repeatedly during unloading and installation. These lessons should return to the technical and workshop teams.


    The strongest process creates a clear feedback loop:


    • The technical team develops controlled production information.
    • The workshop manufactures and tests the solution.
    • The installation team experiences how it performs on site.
    • Relevant lessons are applied to future projects.


    Installation experience should not only solve problems on site. It should improve how the next structure is designed and built.

    The Crew Understands How Materials Behave


    Specifications explain how a material is expected to perform. Workshop experience reveals how it behaves during production. Timber can move, bow or twist. Sheet materials may vary slightly in thickness. Foam can be damaged during handling.


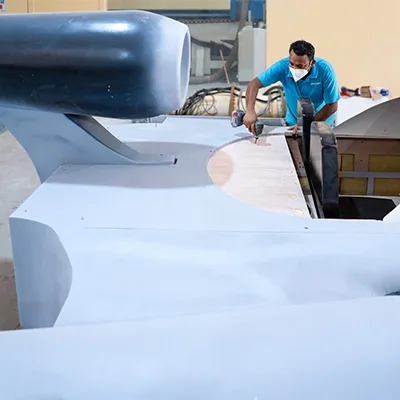

    Metal components may distort if heat and fabrication sequence are not controlled. Paint systems can reveal imperfections that were difficult to see before finishing. Experienced crew members recognise these behaviours.


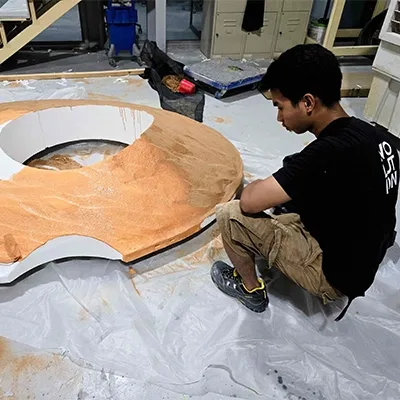

    A carpenter may know that a tight curve should be formed in layers. A metalworker may identify where temporary bracing is required. A scenic painter may recognise that a metallic finish needs additional preparation because it will expose every surface defect.


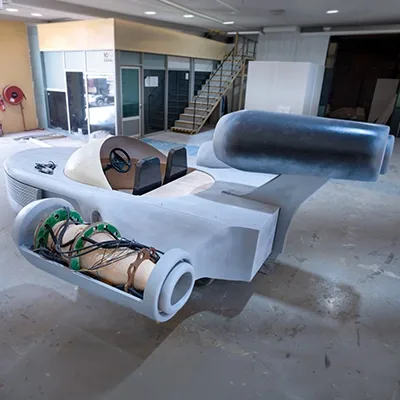

    Scenic structures frequently combine timber, metal, CNC-cut panels, carved foam, textiles, graphics, lighting components and paint systems. Each department’s work affects the next. The supporting structure affects the cladding. The cladding affects the finish. The finish affects handling and repair. The installation method affects how everything must be divided and connected.


    Crew experience helps manage these relationships in practice.

    Practical Suggestions Still Need Technical Control


    Encouraging feedback does not mean allowing uncontrolled changes. A modification can affect dimensions, structural performance, fire requirements, cost, programme or installation. Every suggestion must be reviewed by the appropriate responsible person.


    A controlled process should establish:

    • What problem has been identified
    • Why the current detail may cause difficulty
    • What improvement is proposed
    • Whether engineering or compliance is affected
    • Whether cost or programme changes
    • Who must approve the revision
    • Whether drawings or CNC files need updating


    This protects the project while allowing workshop knowledge to improve the outcome. The objective is structured collaboration, not redesign by conversation on the workshop floor.

    Image description

    Every Project Should Improve The Next One


    A project should still provide useful information after installation is complete.


    The team can review:

    • Details that slowed assembly
    • Components that were difficult to transport
    • Fixings that were hard to access
    • Materials that did not perform as expected
    • Areas damaged during handling
    • Finishes that were difficult to repair
    • Drawings that required clarification
    • Solutions that should become standard practice


    These lessons can improve workshop details, technical information, packing methods and installation sequences.


    Continuous improvement becomes meaningful when the next project is better because of what the team learned from the previous one.

    The Best Solution Is The One That Can Be Delivered


    Scenic fabrication needs creative ambition, technical development and engineering control.

    It also needs structures that can be manufactured, finished, transported and installed within the programme.


    The strongest solution is not automatically the most complicated.

    It is the one that protects the approved appearance while making the structure practical, reliable and safe to deliver.


    Sometimes that solution begins during technical design. Sometimes it is resolved through engineering. And sometimes it comes from a carpenter, metalworker, painter, CNC operator or installer who recognises a problem because they have experienced something similar before.


    Their input does not weaken the design process. It completes it. The technical information establishes what needs to be built. The crew helps ensure it works when it leaves the drawing and enters the real world.
