• Why We Ask So Many Questions Before We Build Anything

    Evolution Scenic reviewing technical drawings before scenic fabrication begins

    The questions asked before fabrication are often what make the final installation straightforward.

    Why We Ask So Many Questions Before We Build Anything

    One of the most common questions clients ask during the early stages of a scenic project is surprisingly simple: “Why do you need to know all of this?”


    It usually comes somewhere between a question about the loading dock and another about the dimensions of a service lift.


    The answer is that scenic fabrication projects are rarely defined only by what is being built. More often, they are defined by where it needs to go, how it needs to get there, how long we have to install it and what needs to happen once it arrives.

    Fabricated scenic components laid out beside transport drawings and a site access plan in the workshop.

    Scenic components planned around transport routes, site access and installation requirements

    The Thing Being Built Is Only Half the Brief


    A reception desk may appear straightforward on a drawing.


    Timber carcass, finished panels, perhaps some metalwork, graphics and lighting. Then somebody mentions that it needs to reach the twenty-third floor of a hotel through a passenger lift. Suddenly the most important dimension is not the width of the desk. It is the clear opening of the lift door.


    In scenic fabrication, the route between the workshop and the final position is effectively part of the design. Large walls, branded structures, exhibition environments and temporary architectural features often need to be divided into modules, rotated through corridors, moved across finished floors or assembled in spaces where traditional construction methods simply would not be practical.

    Access Routes Are Part of the Engineering


    Access planning starts before the structure reaches the venue.


    We want to understand vehicle access, unloading positions, doorways, corridors, ramps, ceiling heights, floor levels and any turns the components need to negotiate. A measurement that appears insignificant during design can determine whether something arrives on site as one large assembly or twelve smaller ones.


    A large scenic structure may therefore be engineered with bolted connections, removable finishes or concealed joining details simply because the final object cannot physically travel through the route available to it.


    When those decisions are made early, they are straightforward fabrication choices. When they are discovered at 2am during installation, they become considerably more entertaining for everyone except the installation team.

    Passenger Lifts Do Not Negotiate


    Lifts deserve particular attention because they are remarkably unforgiving pieces of infrastructure. A scenic unit that is 20mm too tall does not become more cooperative because the installation window is nearly finished.


    We normally need more than the advertised lift capacity or nominal internal dimensions. The clear door opening matters. So does the depth of the lift car, the height beneath lighting or ceiling fittings and the space available immediately outside the lift. A long component may technically fit inside diagonally but still be impossible to turn through the doorway.


    That information can completely change the fabrication strategy. Joinery might be designed as flat-pack sections. Decorative panels may use concealed mechanical fixings rather than permanent adhesive joints. Large frames may be broken into engineered modules and assembled on the destination floor.


    The finished appearance remains the same, but the build methodology has been designed around the reality of the building.

    The Loading Dock Is Part of the Project Too


    Loading docks create a different set of questions. What size vehicles are permitted? Is there a height restriction? Can a forty-foot trailer reach the dock?


    Is there a tail lift, forklift or loading platform? How far is the unloading point from the installation area?


    Vehicle selection, crate dimensions and handling equipment all influence fabrication and packing. A large welded frame might be perfectly efficient to manufacture as one piece, but not if the available vehicle cannot carry it or the venue cannot unload it.


    In that case, engineered joints and planned lifting points become part of the scenic design rather than an afterthought.

    Scenic crates and fabricated modules staged beside a loading dock with handling equipment ready for unloading.

    Scenic modules staged for efficient unloading at a venue loading dock

    Every Venue Has Its Own Rules


    Then there are venue restrictions. These can influence everything from the materials used to the type of wheels underneath an installation trolley. Finished floors may require protection. Certain areas may prohibit drilling or mechanical fixing. Noise, dust, paint spraying, hot works and cutting may all be restricted.


    Shopping centres are a good example. Scenic installations frequently take place after trading hours, with tight controls around noise, access and cleanliness.


    Hotels introduce another challenge because the route to the installation may pass through completed guest areas. Exhibition halls usually provide excellent loading infrastructure, but the available build period can be extremely compressed. The physical environment changes, so the fabrication strategy changes with it.

    Installation Windows Change How We Build


    Time is another design constraint. A structure that can be assembled comfortably over two days may need a completely different methodology if the venue allows only a six-hour overnight installation window.


    For a shopping centre installation, for example, the aim may be to maximise workshop preassembly so site work consists mainly of positioning modules, completing mechanical connections, aligning finishes and applying final graphics.


    The more testing and dry-fitting that can happen in the workshop, the fewer unanswered questions remain once the installation clock starts.

    Evolution Scenic dry-fitting complex scenery before a restricted installation window

    Workshop dry fits remove uncertainty before the clock starts running on site.

    The Structure Also Has to Survive the Journey


    Transportation deserves the same attention as installation. Scenic work often includes delicate painted finishes, laminates, graphics, acrylic components, lighting and accurately aligned joinery. A structure can leave the workshop looking perfect and still arrive damaged if transport has not been considered properly.


    Protective frames, crates, wrapped edges, transport restraints and numbered modules are therefore part of the production process. Packing sequence matters too. There is little benefit in carefully packing the first component required for installation at the very back of a fully loaded vehicle beneath everything else.

    Numbered scenic modules packed in installation sequence for efficient site assembly

    Packing order can be as important as fabrication order when installation time is limited.

    Public Spaces Bring Another Set of Questions


    Outdoor installations and public spaces introduce further considerations. Wind exposure, weather resistance, ballast, anchoring, drainage and public interaction may all influence the engineering. A branded feature intended to operate outdoors for three days requires a different material and structural strategy from scenery installed indoors for an evening.


    We also ask what happens after installation. Does the structure contain equipment that requires maintenance access? Will staff need to move it? Does a panel need to be removable? Will graphics be replaced? Can the installation be safely cleaned? Temporary does not mean disposable, and operational requirements often influence the detailing of scenic structures just as much as their appearance.

    Evolution Scenic outdoor feature with engineered frame and weather-resistant scenic finish

    Outdoor scenic work needs to account for weather, stability, public contact and repeated operation.

    Questions Become Build Methodology


    All of these questions eventually become technical information. Access surveys inform module sizes. Transport requirements influence frame splits. Installation windows determine connection details.


    Venue restrictions affect material choices. Structural requirements establish where reinforcement, ballast or fixing points are required.


    Experienced fabrication teams gradually build up a mental catalogue of things that can go wrong. Not because every project becomes more complicated, but because delivering more projects teaches you where apparently innocent assumptions tend to hide.


    Finding those issues during technical development is usually inexpensive. Finding them when a truck is waiting at the loading dock is rarely quite as economical.

    Scenic fabrication team resolving buildability details around a full-size prototype

    The cheapest problem to solve is usually the one found before fabrication begins.

    The Best Installation Day Is Usually Quite Boring


    The objective behind all these questions is not to create obstacles. It is actually the opposite. We want the installation itself to be uneventful: the vehicle arrives, the components unload in the correct order, everything fits through the available access, the modules connect as planned and the finished scenic environment lands where the drawings said it would.


    Good questions are therefore not a sign that a project is becoming unnecessarily complicated. They are usually a sign that somebody is thinking beyond the drawing.


    At Evolution Scenic, that early interrogation is part of turning creative ideas into scenery that can actually be fabricated, transported, installed and operated successfully in the real world.

    Evolution Scenic installation completed cleanly after detailed pre-production planning

    The best installation days often look uneventful because the difficult thinking happened earlier.

  • Why The Best Scenic Feature Is Usually The One Nobody Talks About

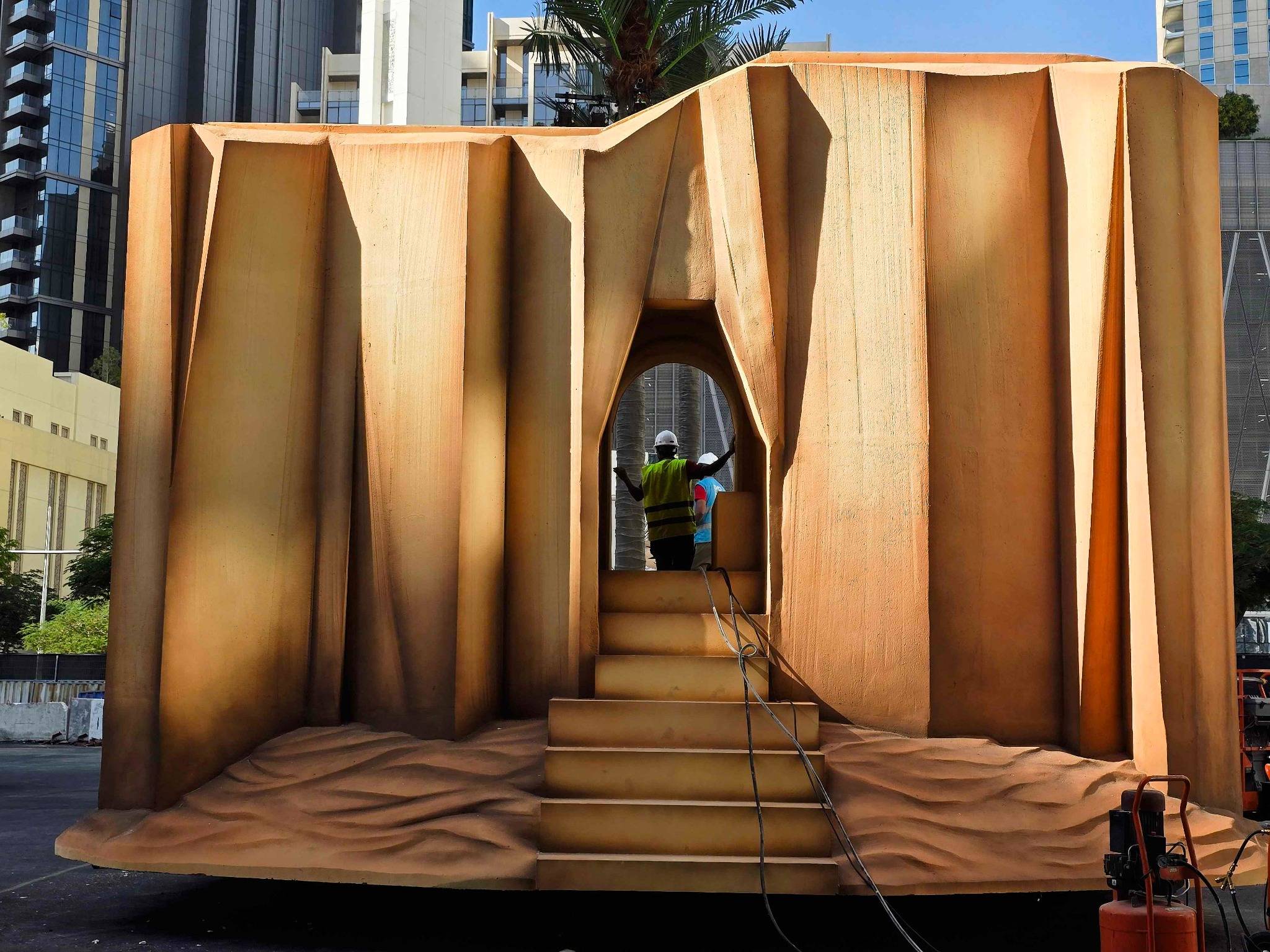

    Evolution Scenic feature wall with concealed access panel and integrated lighting

    The most effective scenic details often disappear completely into the finished environment.

    Why The Best Scenic Feature Is Usually The One Nobody Talks About


    Every project has a hero feature.


    It might be a giant illuminated logo, a sculptural stage, an immersive environment or an entrance structure designed to stop people in their tracks. These are the elements that dominate the renders, fill the photography brief and attract the most enthusiastic comments during a client walk-through.


    They are also, quite often, not the fabrication team’s favourite part of the project.

    Ask an experienced scenic builder what they are most pleased with and the answer may be surprisingly unglamorous: a removable wall section that came away cleanly, a service hatch positioned exactly where the technician needed it, or a concealed storage bay that prevented flight cases from appearing in every photograph.


    Not especially heroic, perhaps. But extremely useful.

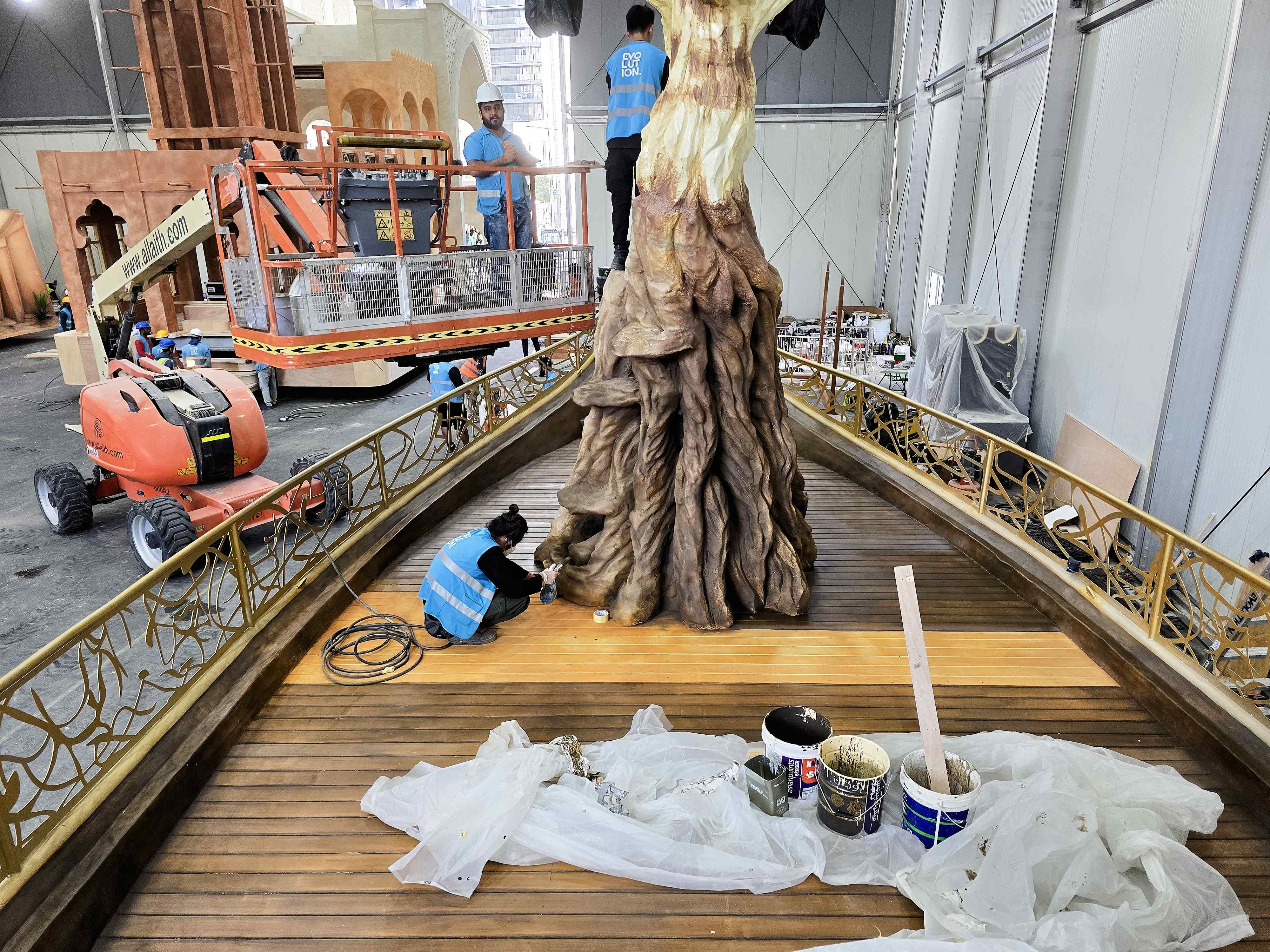

    Large sculptural scenic centrepiece fabricated as the project’s main visual feature

    Every scenic project has a feature designed to become its visual focal point.

    Scenic Environments Are Operational Systems


    A scenic environment is easy to judge as a finished image. In that moment, the geometry is crisp, the finishes are clean and the technology appears to have disappeared neatly into the architecture. What the photograph does not show is how the structure arrived, how it was assembled, where the cables run, how equipment can be serviced or where the spare parts are stored.


    Those questions determine whether the environment works beyond the first reveal.

    At Evolution Scenic, operational thinking begins during design development rather than being left for the installation team to solve on site. Scenic construction drawings must account for visible surfaces and hidden infrastructure at the same time. The finished face may be a seamless laminate, painted timber form or precisely aligned graphic panel, but behind it there may also need to be steel reinforcement, cable containment, ventilation, access clearances and fixings that can be reached with ordinary tools.


    When these requirements are coordinated early, the scenic feature remains visually convincing without becoming difficult to operate. When they are ignored, even a beautiful installation can become a puzzle with no obvious solution and a technician holding the wrong-sized spanner.


    Finished scenic wall beside exposed timber framing and steel reinforcement

    Behind every clean finished surface is a carefully coordinated structural and technical system.

    Hidden Infrastructure Does the Real Work


    Hidden infrastructure is not one single component. It is the network of practical decisions that allows the visible environment to perform.


    This may include cable routes that separate power and data, structural supports that transfer loads safely, ventilation paths around LED equipment, protected cavities for control hardware and fixing points that remain accessible after finishes are applied. In larger environments, it can also include routes for maintenance teams, removable floor sections, ladder access or voids that allow equipment to be replaced without dismantling half the installation.


    The challenge is that these systems compete for space. Scenic structures are often expected to appear thin, clean and effortless, while the equipment behind them may require depth, airflow and safe working clearances. Resolving that conflict requires close coordination between scenic engineers, fabricators and technical specialists.


    A well-designed void is rarely accidental. Its depth may be determined by the turning radius of a connector, the size of a power supply or the minimum clearance needed to remove a display module. A cable route may look generous in a drawing, then become unusable once brackets, stiffeners and cladding are added. Good fabrication detailing tests these conditions before production begins.


    Compact scenic cavity coordinating brackets, wiring, ventilation and structural framing

    Thin scenic forms often need to accommodate a surprising amount of technical infrastructure.

    Access Panels That Do Not Announce Themselves


    Access panels are a perfect example of a detail that succeeds by avoiding attention.


    They need to be large enough to provide useful access, strong enough to remain stable and discreet enough to sit within the surrounding finish. They may require concealed hinges, magnetic catches, lift-off fixings or removable trims. Their edges must align with the scenic design, and their opening direction must not conflict with adjacent walls, equipment or circulation routes.


    A panel drawn as a simple rectangle can become a surprisingly involved piece of fabrication.


    The workshop team must consider material movement, finish thickness, repeated opening, edge protection and how the panel will be handled without damage. On curved or highly detailed scenic surfaces, the access point may need to follow complex geometry while remaining easy to remove. Where fire-rated materials, acoustic treatments or specialist coatings are involved, the access solution must maintain the intended performance of the surrounding construction.


    The best panel is usually the one nobody identifies until it is opened. At that point, it suddenly becomes everyone’s favourite feature.


    Scenic access panel under construction with layered framing and precision hardware

    A simple rectangle on a drawing can require surprisingly complex workshop fabrication.

    Storage Is Part of the Scenic Design


    Storage is often treated as a facilities question, but it has a direct effect on how a scenic environment looks and operates.


    Temporary environments generate a surprising amount of supporting equipment: tools, replacement graphics, cleaning materials, packaging, technical spares, cables and cases. Without planned storage, these items migrate into visible corners, behind counters or beneath furniture. The carefully controlled environment gradually acquires a small collection of objects that were never included in the render.


    Integrating storage into scenic construction can prevent this. A feature wall may conceal lockable cupboards. A reception counter may include protected compartments for technical equipment. A plinth may incorporate removable panels and shelving. Even modest storage volumes can make a significant operational difference when they are placed where teams actually need them.


    The important point is not simply to create empty space. Doors must open fully, shelves must support realistic loads and stored items must be removable without disturbing graphics, lighting or adjacent joinery. Useful storage is designed around contents and access, not around whatever void happens to remain.

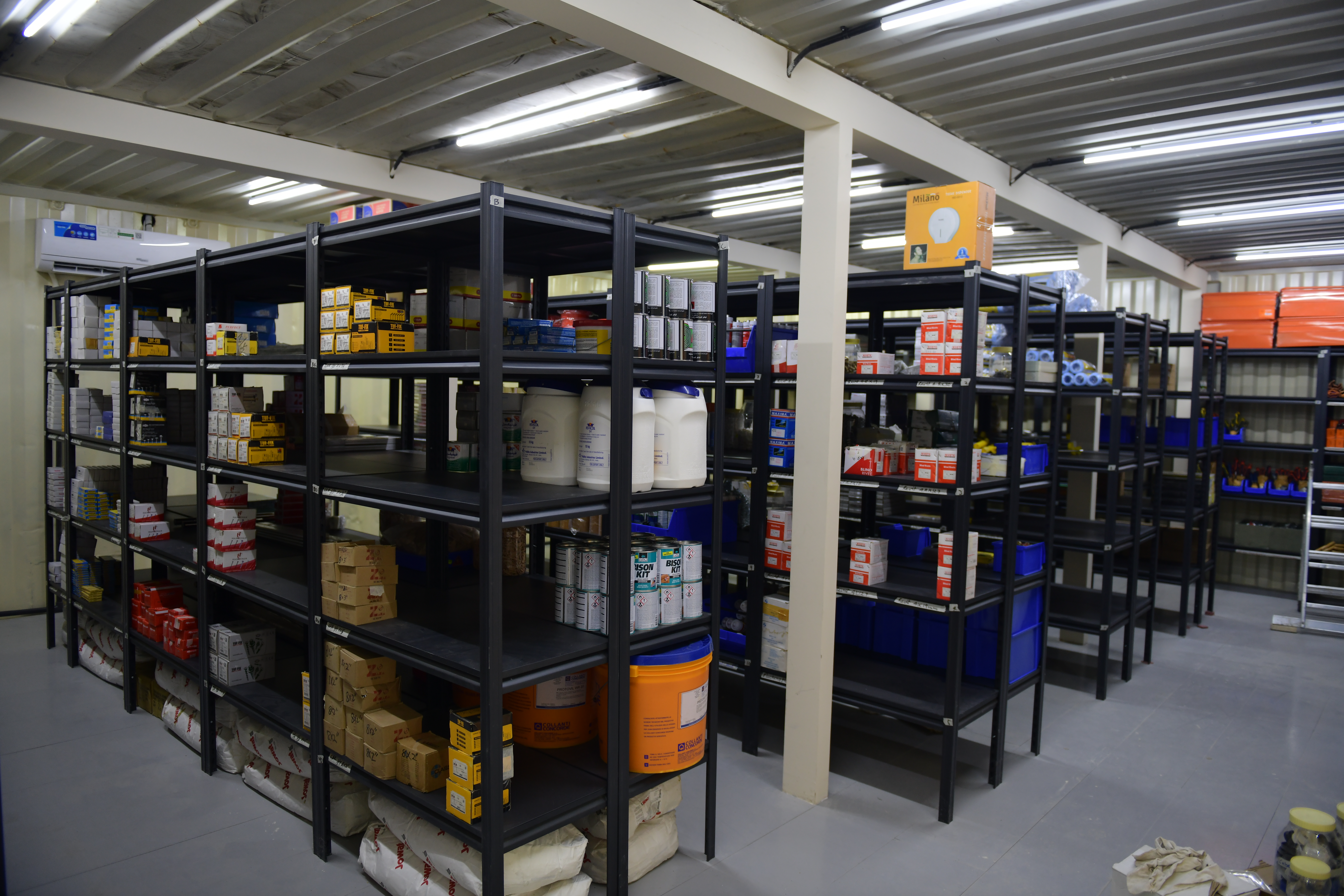

    Organised scenic storage for cables, graphics, tools and technical spares

    Temporary environments require practical storage for the equipment that supports their operation.

    Technical Integration Must Stay Serviceable


    Technology is often expected to appear seamless within a scenic environment. LED displays, projection equipment, lighting systems, sensors, speakers and interactive devices may all be integrated into the finished structure with minimal visible hardware.


    Seamless, however, should not mean inaccessible.


    Displays need ventilation and replacement routes. Projectors require alignment and servicing space. Lighting drivers and control equipment must be reachable. Sensors may need recalibration. Cables must be supported, labelled and protected rather than pushed into the nearest cavity and left for a future technician to discover.


    Evolution Scenic’s fabrication approach treats technical integration as part of the build methodology. Openings, brackets, cable trays, ventilation grilles and removable trims are coordinated with the scenic finish so that equipment can be installed accurately and maintained later. This often involves prototyping details in the workshop, particularly where tight tolerances or specialist interfaces are involved.


    The objective is not merely to hide technology. It is to integrate it so thoroughly that the scenic structure and technical systems operate as one coordinated assembly.


    Evolution Scenic modules sequenced for installation through restricted access doorway

    Components must often be designed around restricted access routes and limited installation periods.

    Installation Efficiency Is Designed in Advance


    A maintenance hatch that saves six hours during installation may not appear on the final photography list, but it can have a greater effect on the project than a highly visible decorative detail.


    Installation efficiency is influenced by module sizes, connection positions, fixing access, lifting points and assembly sequence. A concealed bolt is only useful if an installer can reach it. A removable panel is only helpful if it can be taken off after the neighbouring module is installed. A cable route is only effective if cables can be pulled through it without sharp bends or blocked junctions.


    These considerations are especially important in active venues and operational buildings, where access times may be restricted and disruption must be minimised. Scenic components may need to arrive in a precise order, pass through limited doorways and be installed within narrow working windows. Clear labelling, repeatable connection details and sensible tolerances can remove hours of uncertainty from the process.


    This is where fabrication experience becomes most visible by being almost invisible. The installation appears calm because the difficult decisions were made earlier.

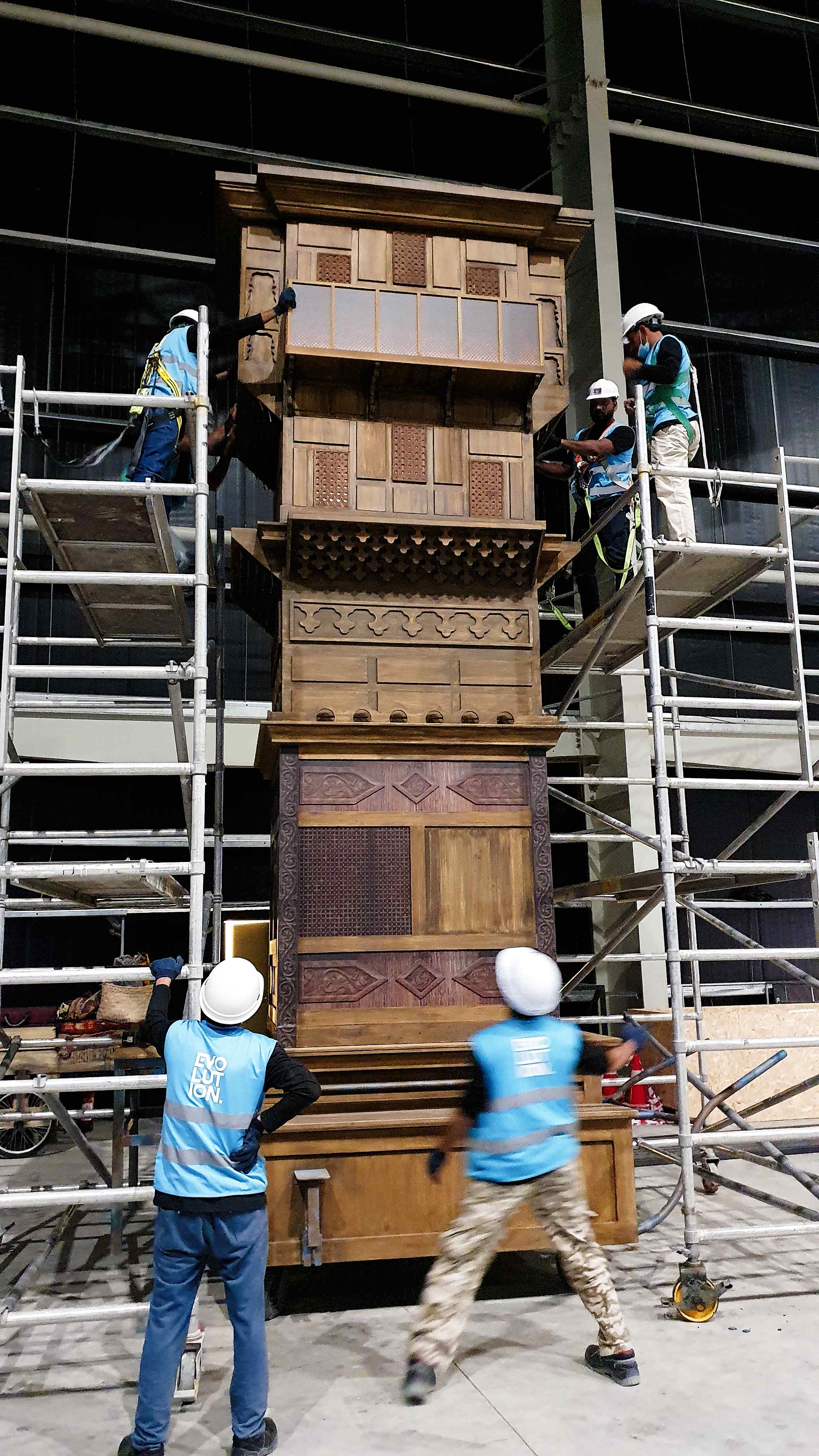

    Installer using maintenance hatch during assembly of large scenic structure

    A small access detail can save significant time during a demanding installation.

    When Nobody Notices, It Has Probably Worked


    The most successful scenic environments are not collections of impressive surfaces. They are operational systems in which structure, finishes, technology, storage, access and installation methodology have been considered together.


    The hero feature still matters. It creates identity, impact and atmosphere. But its success depends on a supporting cast of details that rarely receive applause: the reinforced fixing, the removable section, the service void, the labelled cable route and the cupboard in exactly the right place.

    When those elements are poorly resolved, everybody notices.


    When they are designed and fabricated properly, nobody talks about them at all.

    And, slightly unfairly, that is often the highest compliment they can receive.

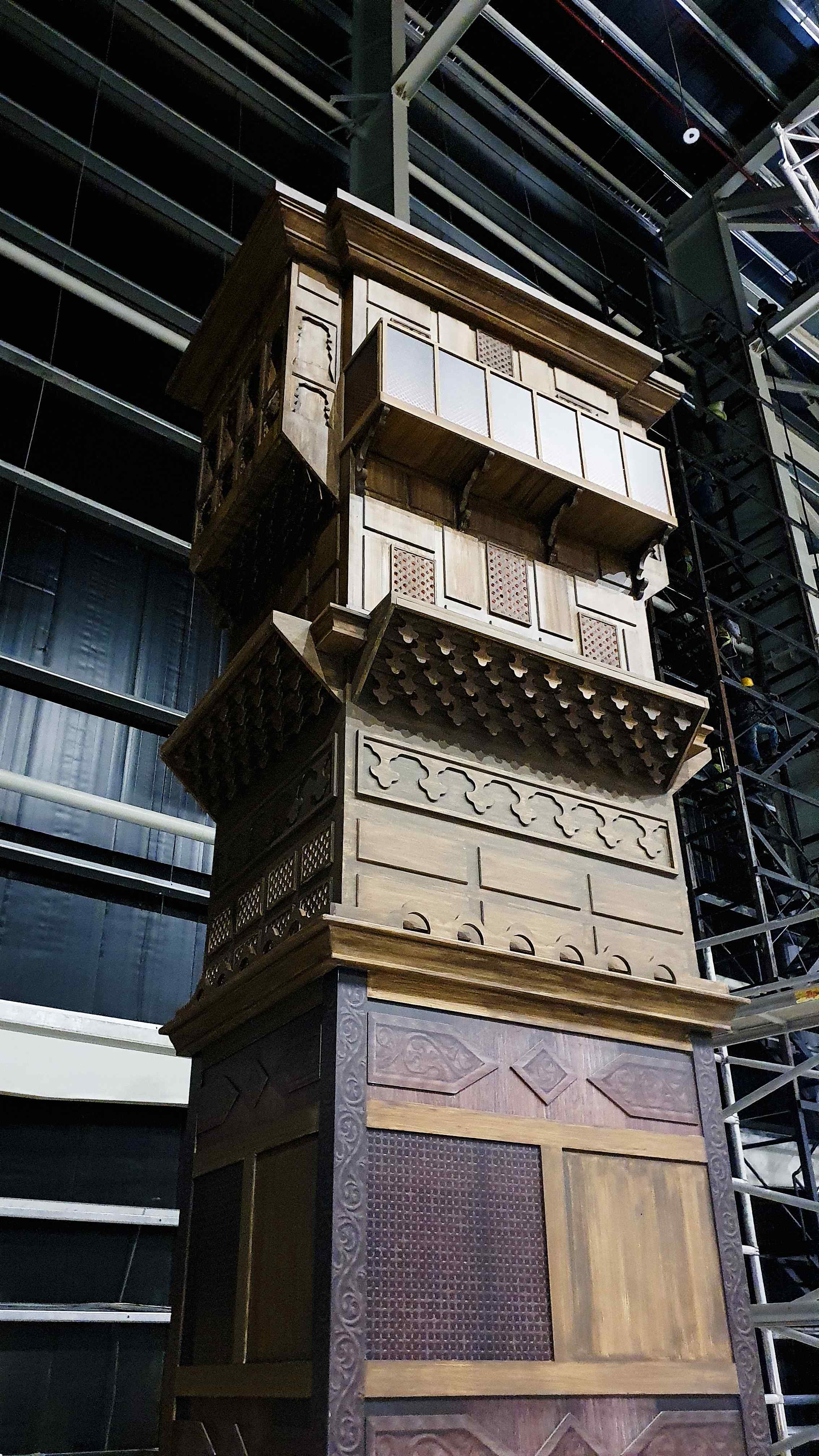

    Completed scenic hero feature with reinforced fixing system shown behind

    The visible hero feature depends on a supporting network of carefully fabricated details.

  • Why We Love A Client Who Says "I Don't Know"

    Evolution Scenic technical team reviewing scenic drawings, materials and fabrication options in the workshop.

    Early collaboration brings creative intent, engineering knowledge and fabrication experience together before manufacturing begins.

    Why We Love A Client Who Says "I Don't Know"


    There are two types of project briefing.


    The first sounds very confident. The client knows exactly what they want. Every dimension is fixed, every material has been selected and every technical decision appears to have already been made.

    The second briefing sounds very different.


    The client says:

    “We know what we want to achieve. We don’t know the best way to build it.”


    Interestingly, the second type of briefing often produces the strongest result.


    This is not because uncertainty is desirable for its own sake. It is because scenic fabrication is fundamentally a problem-solving process. A clear objective combined with an open technical discussion gives designers, engineers and fabricators the opportunity to find the most effective way of turning an idea into a physical environment.


    Clients are experts in their audience, brand, event or organisation. Scenic fabricators are experts in understanding materials, structures, manufacturing processes, transport restrictions, installation sequences and operational requirements.


    When those areas of expertise are brought together early, a project can become safer, more efficient and more practical without losing the original creative intent.

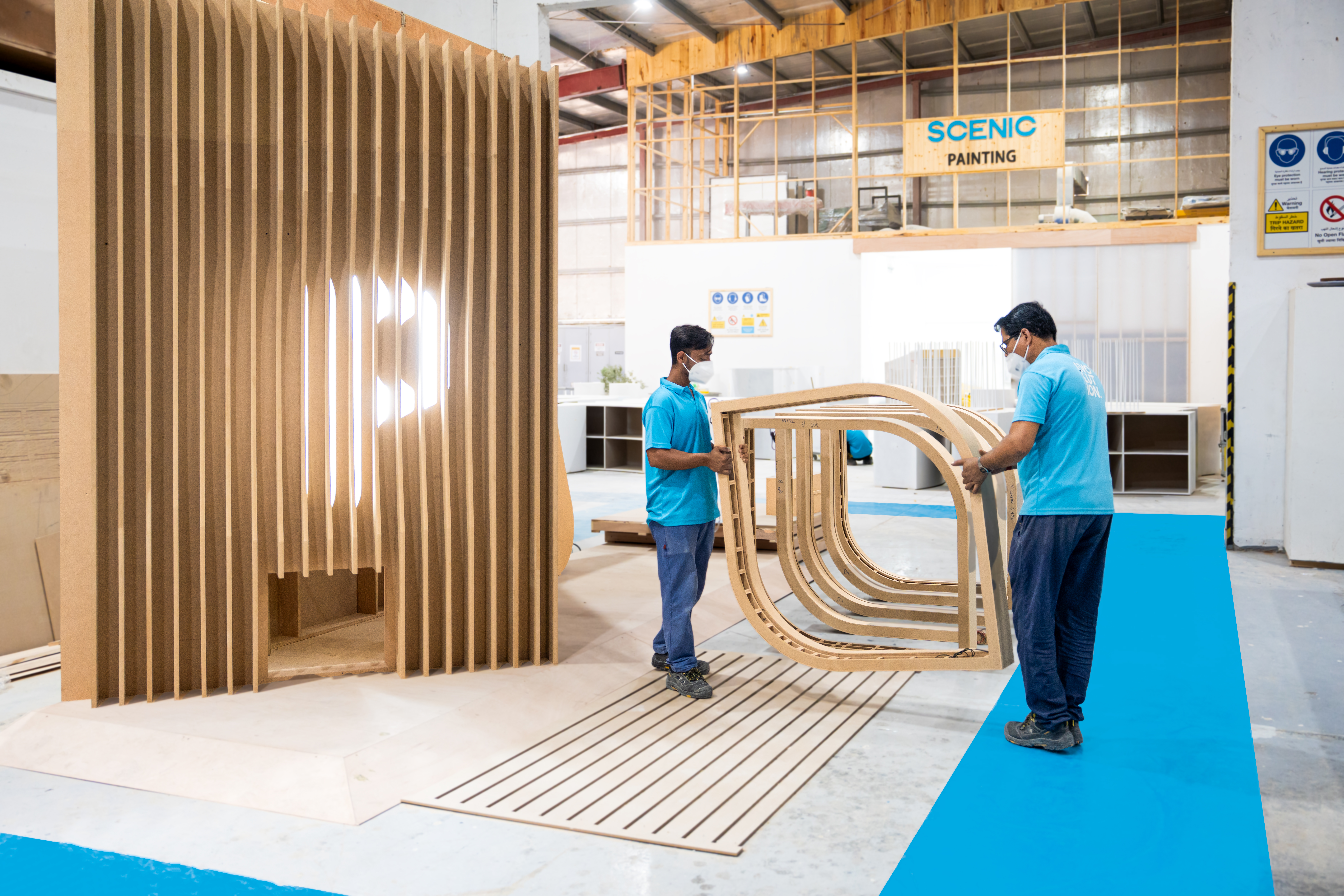

    Evolution Scenic fabricators testing scenic components, fixings and materials during technical development.

    Scenic fabrication is a problem-solving process that turns clear objectives into practical construction solutions.

    Starting With The Outcomes


    One of the most valuable questions in scenic fabrication is:


    “What are you trying to achieve?”


    It sounds simple, but the answer often reveals more than a detailed material specification.

    A client may initially request a solid timber wall when the real objective is to conceal a backstage area. Depending on the environment, a fabric masking system, modular graphic wall or lightweight framed partition may achieve the same result with less weight, faster installation and simpler storage.


    A large sculptural feature may be specified in steel because it needs to appear substantial. However, the visible volume might be created more efficiently using an engineered steel subframe with CNC-machined timber ribs, lightweight cladding and a specialist scenic finish.


    A display may be designed as one continuous structure, but dividing it into transportable modules could make it easier to manufacture, move through venue access routes and install within a restricted working period.


    None of these decisions necessarily changes what the visitor sees. They change how intelligently the environment is built. The client defines the destination. The fabrication team helps establish the most practical route to reach it.

    Fabrication specialists studying scenic concept objectives alongside technical drawings and material samples.

    Understanding the intended outcome gives the fabrication team a stronger basis for developing the construction method.

    Collaboration Before Construction


    Strong scenic projects are rarely developed through a simple sequence of instruction and production. They are usually shaped through discussion between the client, creative team, technical designers, engineers, project managers and workshop specialists.

    Early collaboration allows potential challenges to be identified while they are still relatively easy to solve.


    A concept may contain curved surfaces that require further development before they can be manufactured accurately. A suspended feature may need structural review, suitable lifting points and coordination with the venue’s rigging system. A temporary architectural structure may need to be divided into modules because of door dimensions, vehicle capacity or maximum lifting weights.


    These are not reasons to reduce creative ambition. They are opportunities to develop the concept properly. At Evolution Scenic, technical development often involves reviewing the design from several perspectives at the same time:


    • How will each component be manufactured?
    • How will the structure be assembled?
    • Can it be transported efficiently?
    • What happens if the venue access is restricted?
    • How will graphics, lighting or technology be integrated?
    • Can the installation team reach every connection safely?
    • What happens to the structure after the project finishes?


    The answers influence technical drawings, engineering, material selection, workshop methodology and installation planning. When this process begins early, the final structure usually feels more resolved because its appearance and construction method have been developed together.

    Evolution Scenic structure undergoing controlled workshop pre-assembly after coordinated technical development.

    When design and construction develop together, the finished scenic structure becomes more coherent and buildable.

    Turning Concepts Into Buildable Information


    A strong visual concept communicates the intended experience, but it does not always explain how the structure should be fabricated.


    Technical development turns the creative idea into coordinated, buildable information.

    This may involve establishing accurate dimensions, connection details, structural frameworks, material build-ups, access panels, fixing methods, tolerances and assembly sequences. It may also involve coordinating carpentry, metal fabrication, CNC machining, graphics, scenic painting, lighting and integrated technology.


    The purpose of this stage is not simply to produce drawings. It is to remove uncertainty before materials enter the workshop.


    A carefully developed drawing package helps different departments understand how their work connects. The metalwork team can confirm where structural members and fixing plates are required. The carpentry team can coordinate cladding, reveals and removable panels. Graphics can be prepared to suit finished surfaces and panel divisions. Installation crews can understand the sequence in which modules must arrive and be assembled.


    This coordination reduces rework and allows problems to be resolved digitally or through prototypes rather than during installation.


    For clients, the technical development process also provides greater visibility. Decisions become easier to review, costs become easier to understand and responsibilities become clearer.


    Detailed scenic connections shown beside CNC components, structural framing, cladding and finish build-ups.

    Buildable information coordinates dimensions, connections, materials, tolerances and multiple manufacturing disciplines.

    Value Engineering Without Losing The Idea


    Value engineering is sometimes misunderstood as a process of removing quality until a project becomes cheaper.


    Good value engineering does something very different.


    It protects the essential design intent while finding a more efficient way to manufacture, transport, install or operate the structure.


    This might involve changing a concealed structural material while retaining the same visible finish. It could mean standardising repeated components so they can be CNC-machined more efficiently. A large feature might be divided into reusable modules, reducing future fabrication requirements. A heavy assembly might be redesigned using aluminium or a hybrid construction system to reduce lifting requirements.


    Even small adjustments can have a significant effect.


    Changing the position of a panel joint may reduce sheet waste. Revising a frame dimension may allow more components to fit within a vehicle. Introducing mechanical fixings instead of permanent adhesive connections may make future maintenance and reuse possible. Selecting a finish that can be repaired locally may extend the working life of an installation.

    The lowest material cost does not always produce the best project value. A cheaper material that requires more labour, additional reinforcement or specialist transport may ultimately cost more than a better-suited alternative.


    The objective is not to make every component cheaper. It is to ensure that the available budget is spent where it contributes most to the project.


    Optimised scenic panel nesting, carefully positioned joints and removable mechanical fixings prepared for fabrication.

    Efficient panel layouts and reusable fixings can reduce waste while improving transport, maintenance and future reuse.

    Material Selection Is A Technical Decision


    Materials are often chosen for their appearance, but scenic fabrication requires them to be considered as part of a complete construction system.


    Timber offers flexibility, speed and compatibility with many scenic finishes. Steel provides strength and can support slender structural forms, although its weight must be considered. Aluminium can reduce weight and improve handling but may require different fabrication techniques. Fabric can create large surfaces with very little material mass. Composite panels, plastics and specialist boards can support complex geometry or particular finish requirements.


    The correct choice depends on more than what the material looks like.


    Fabricators must consider structural performance, fire requirements, surface quality, weight, transport conditions, connection methods, workshop processes, environmental exposure and expected lifespan.


    A material that works well for a three-day indoor exhibition may not be appropriate for a semi-permanent visitor experience. A finish designed for close inspection requires a different preparation process from an element viewed at distance. A structure intended for repeated use needs connections and surfaces that can withstand assembly, dismantling, packing and storage.


    An open brief allows these decisions to be made according to the actual project requirements rather than an assumption made at the beginning.

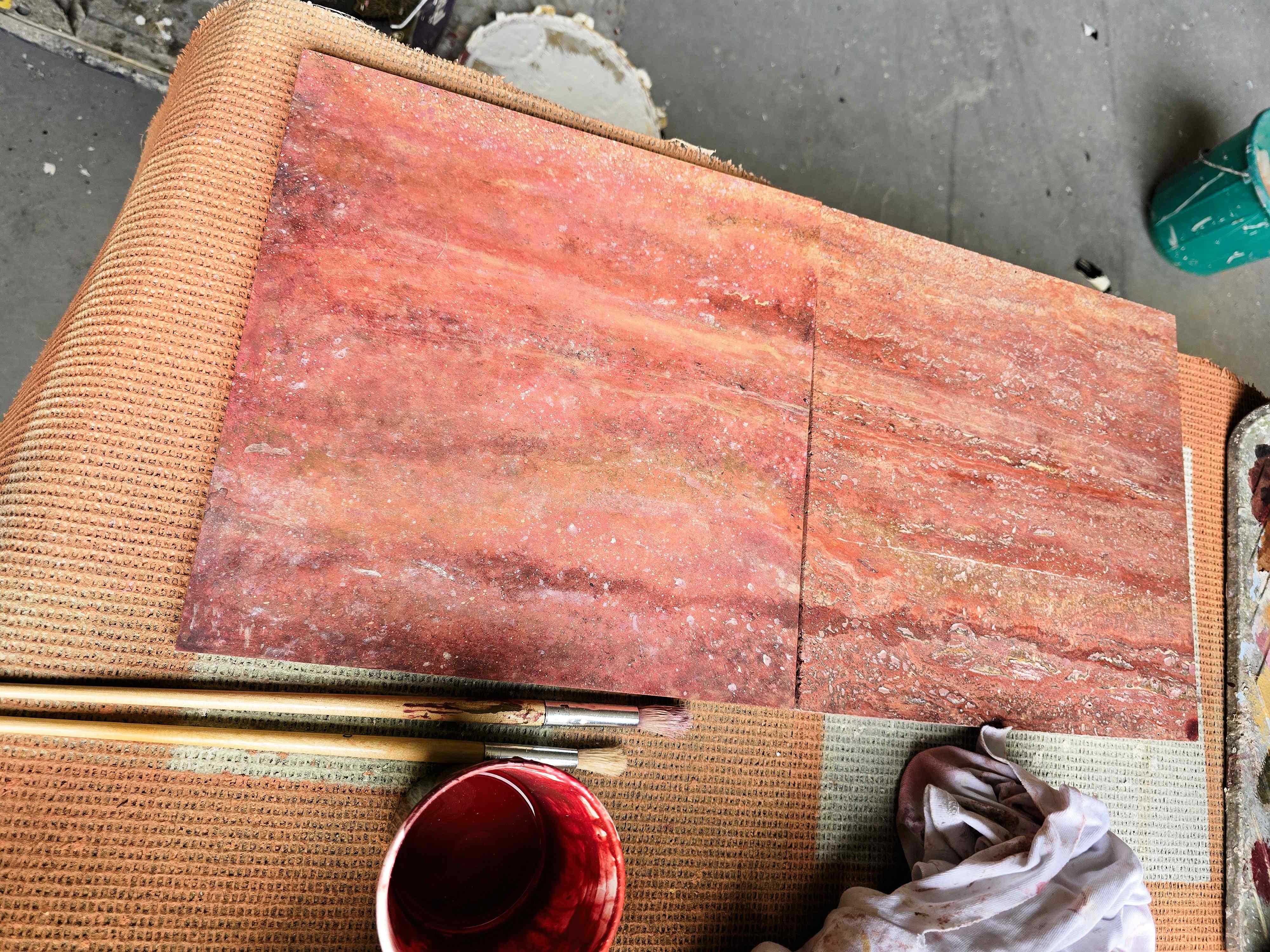

    Evolution Scenic samples undergoing workshop tests for fixing methods, surface quality and construction suitability.

    Material decisions consider structural performance, fire requirements, weight, fixing methods, environmental exposure and expected lifespan.

    Designing For Installation & Operation


    A scenic environment is not complete when it leaves the workshop.


    It still needs to be transported, unloaded, assembled, tested, operated and eventually dismantled. Every one of these stages can influence the design.


    Installation planning may determine the maximum size of a module, the location of lifting points or the type of connection used between sections. Restricted venue access may require components to be moved manually or through passenger lifts. Limited installation time may justify additional prefabrication in the workshop. Working at height may influence how graphics, lighting or finishes are completed before delivery.


    Operational planning is equally important.


    A reception counter may need concealed cable routes, equipment ventilation and secure storage. A display wall may require removable panels for technology maintenance. An immersive environment may need discreet access for technicians. A stage feature may need to accommodate lighting, audio equipment or performer access without compromising the visible design.


    These details are not always obvious in a concept render, but they have a major influence on whether the finished environment works properly.


    The best time to discuss them is before fabrication begins.


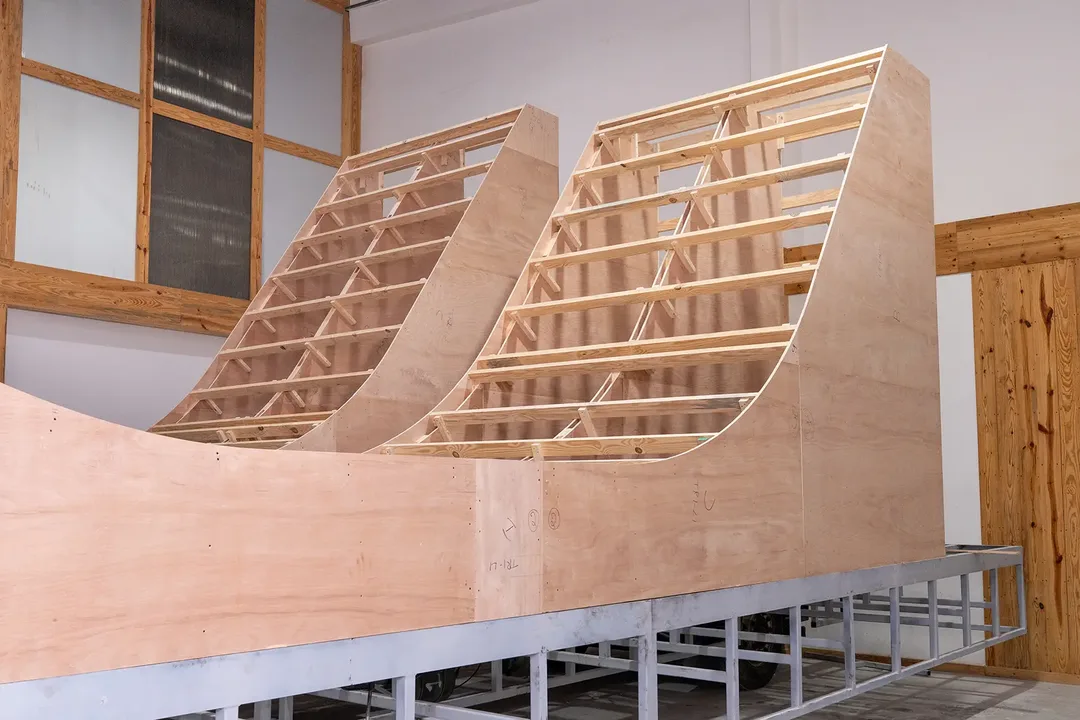

    Evolution Scenic modular frame showing engineered lifting points, accessible connectors and transport-sized sections.

    Installation methodology can determine module sizes, lifting points, connection types and levels of workshop prefabrication.

    A Fabrication Partner, Not Simply A Supplier


    A supplier is usually asked to manufacture something that has already been completely defined.

    A fabrication partner contributes to the process of defining how the idea should become real.

    That distinction matters.


    Evolution Scenic’s role is not to replace the client’s creative direction. It is to support that direction with practical fabrication knowledge, engineering insight and workshop experience. Sometimes that means recommending a different material. Sometimes it means adjusting a hidden framework, introducing a removable section or revising the installation sequence.


    Occasionally it means explaining that a particular detail will create unnecessary risk, cost or complexity and proposing an alternative that achieves the same visual result. Honest technical advice is most valuable before a project becomes committed to a construction method.


    A client who says “I don’t know” is not arriving without direction. They are recognising that the best solution may emerge through collaboration. That creates space for meaningful technical development, practical value engineering and better-informed decision-making.


    The strongest projects are rarely the result of one person having every answer at the beginning. They are usually created by people who understand their own expertise, respect the expertise of others and are willing to solve the difficult parts together.


    For a scenic fabricator, that is not an incomplete brief. It is the beginning of a productive partnership.

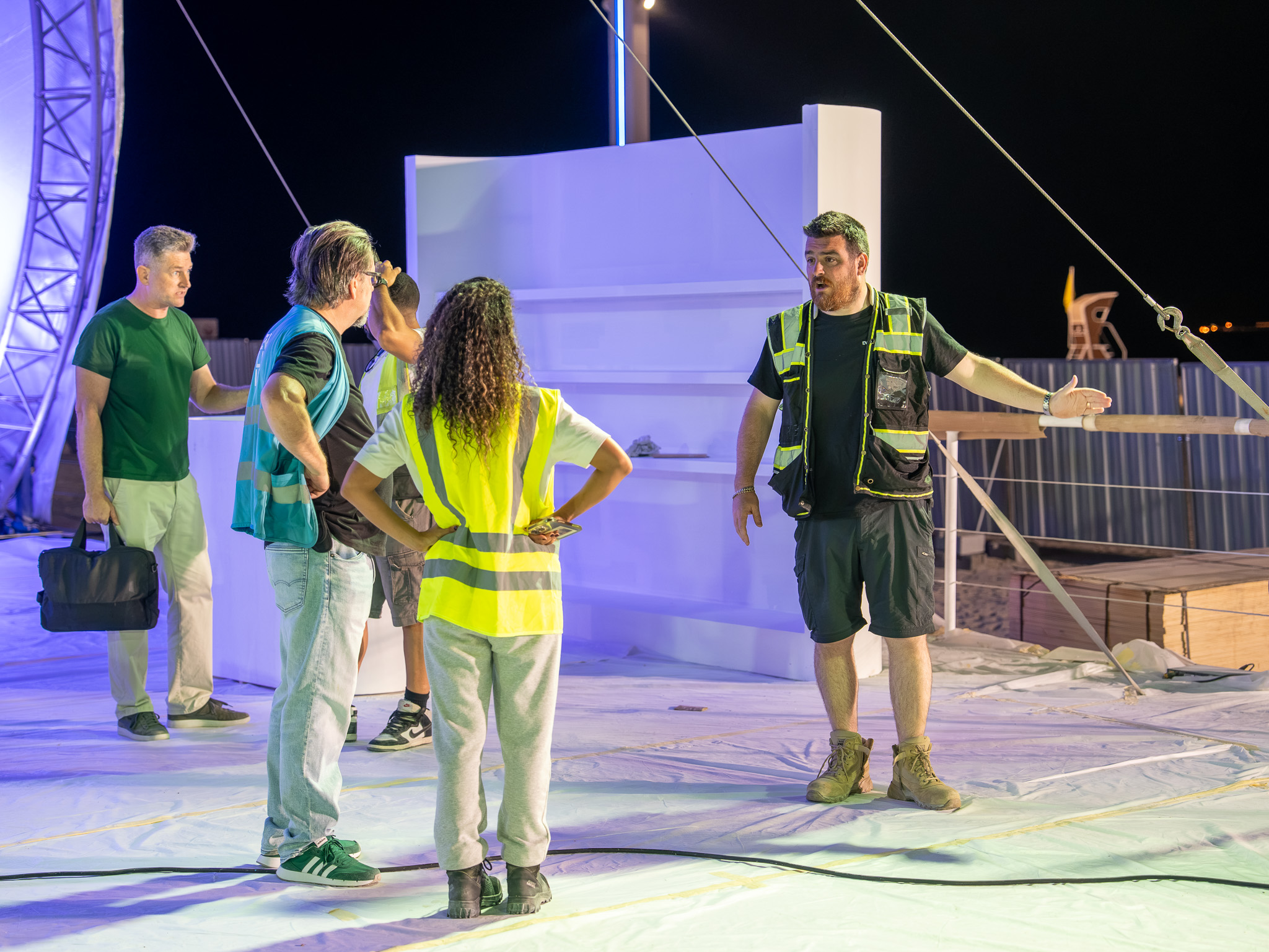

    Evolution Scenic team developing construction solutions collaboratively around an unfinished scenic prototype.

    A fabrication partner contributes practical knowledge while the construction method is still being developed.

  • How Scenic Concepts Become Buildable Reality

    Evolution Scenic team reviewing technical drawings beside a partially fabricated scenic structure.

    From technical development to fabrication, Evolution Scenic turns scenic concepts into engineered structures ready for manufacture, transport and installation.

    How Scenic Concepts Become Buildable Reality


    The earliest stages of a scenic project can appear deceptively simple. A concept visual may communicate a striking structure, sculptural environment or ambitious architectural feature through only a handful of carefully rendered images. The proportions look resolved, the surfaces are clean and the finished environment can appear almost ready to manufacture. In reality, approval of the concept is often the point at which the most technically demanding work begins.


    The visual now has to become a physical structure capable of being engineered, fabricated, finished, transported and installed within real project conditions. Every visible surface needs an appropriate substrate. Every large form requires an internal structure. Joints, connections, supports, lifting points and access requirements all need to be resolved, while the completed components must remain practical to manufacture using real workshop processes.


    At Evolution Scenic, technical development forms the bridge between creative intent and physical production. The objective is not simply to reproduce what appears in a render, but to understand how that appearance can be achieved through materials, engineering, fabrication and installation. A successful scenic structure is one in which the visible design and the construction behind it have been developed together from the beginning.

    Scenic structure showing framing, layered materials, connection details and modular fabricated components.

    Every visible surface depends on a practical system of materials, supports, joints and transportable components.

    From Creative Intent to Technical Information


    Many initial concepts are developed without detailed consideration for structural performance, material limitations, transport restrictions or installation methodology. This is entirely normal. Early visuals are intended to communicate scale, atmosphere, proportion and overall design intent rather than provide a complete manufacturing solution.


    The role of the scenic development team is not to reduce the ambition of the concept. It is to understand what the designer is trying to achieve and then identify the most practical way to deliver it.


    This requires careful interpretation. A curved feature wall shown as a continuous surface may need to be divided into CNC-machined ribs, plywood skins and transportable modules. A suspended sculptural feature may require an internal aluminium frame, engineered lifting points and carefully coordinated connection details. A large branded portal may appear monolithic in the visual but need to be broken into sections that can pass through venue access doors and be assembled efficiently on site. The appearance remains consistent, but the internal logic of the structure changes considerably.


    Evolution Scenic team comparing scenic concept visuals with technical drawings and material samples.

    The development process protects the original design intent while identifying practical routes to fabrication.

    Technical Review and Buildability Assessment


    Technical development usually begins with a detailed review of the available information. Concept visuals, drawings, venue plans, specifications and client requirements are assessed together to identify potential fabrication and installation challenges.


    The scenic team will typically review:


    ·       Overall dimensions and clearances

    ·       Structural loading requirements

    ·       Venue access and loading routes

    ·       Floor loading limitations

    ·       Suspension and rigging restrictions

    ·       Fire-performance requirements

    ·       Environmental conditions

    ·       Installation and dismantling periods

    ·       Transport dimensions

    ·       Interfaces with lighting, graphics and audiovisual systems


    A buildability assessment then considers whether the proposed form can be produced using available materials, machinery and workshop processes.


    This does not simply answer whether something can be built. Almost anything can be fabricated with enough time and budget. The more useful question is whether it can be built efficiently, safely and in a way that suits the project programme.


    For example, a complex freeform surface may be achievable through CNC machining, traditional scenic carpentry, fibreglass moulding or a combination of techniques. Each approach will produce different results in terms of cost, weight, strength, finish quality and production time.


    The correct solution depends on the priorities of the project.


    Fabricators checking a full-scale scenic junction mock-up during buildability assessment.

    Buildability assessment tests whether a proposed form can be produced accurately using real workshop processes.

    Developing the Construction Methodology


    Once the overall form has been understood, the scenic team begins defining how the structure will be assembled. This stage often involves breaking the concept into primary structure, secondary framing, surface materials, decorative finishes and removable components. The sequence of fabrication is also considered, particularly where different departments must work on the same element.


    A scenic structure may pass through several workshop processes. Steel frames may be fabricated first, followed by timber infill, CNC-machined cladding, scenic finishing, graphics and final assembly. Lighting channels, cable routes, access panels and service points may need to be incorporated before surfaces are closed.


    Poor sequencing can create unnecessary rework. A graphic panel may become difficult to install if the supporting frame is completed too early. A lighting component may become inaccessible once cladding is fixed. A decorative finish may be damaged if heavy mechanical work continues nearby. Technical planning helps prevent these issues by establishing a logical build methodology before fabrication starts.

    Fabrication team checking numbered scenic modules before final assembly and finishing.

    Technical planning prevents avoidable rework by resolving the build sequence before production begins.

    Material Selection


    Material selection is one of the most influential parts of scenic development. Timber, steel, aluminium, composites, fabrics, plastics, foams and specialist scenic coatings all offer different advantages. The correct choice depends on the required strength, finish, weight, lifespan, installation method and budget.


    Steel is often used where high structural strength or long unsupported spans are required. It can provide a reliable framework for large scenic structures, entrance features and elevated platforms. However, it also adds weight and may require lifting equipment or larger transport vehicles.


    Aluminium can offer a lighter alternative, particularly where repeated handling, modularity or suspended structures are involved. It is easier to transport but may require more specialised fabrication and connection detailing.


    Timber remains one of the most adaptable materials in scenic construction. It can be cut, shaped, laminated, CNC-machined and finished in many different ways. Scenic carpentry is particularly effective for walls, curved forms, platforms, decorative elements and lightweight modular structures.


    Composite panels and specialist sheet materials can help reduce weight while maintaining stiffness. Foams and lightweight modelling materials are often used for complex sculptural features, although they must be carefully detailed to achieve suitable durability and fire performance.


    Material decisions also influence the final scenic finish. A surface intended to resemble stone, concrete, metal or timber may use a completely different substrate beneath the visible coating. The finish provides the appearance, while the internal construction provides the required performance.


    Lightweight composite and foam scenic forms being shaped and prepared for finishing.

    Composite and modelling materials enable complex forms while demanding careful durability and fire-performance detailing.

    Engineering Reviews


    Engineering reviews frequently run alongside design development rather than taking place only after the design is complete. Structural calculations, load paths, connection details, support systems and fixing methods are examined as the concept evolves. This allows potential problems to be resolved before production drawings are issued.


    A large scenic wall, for example, must be checked for overturning, lateral stability and connection strength. A suspended feature must be reviewed for self-weight, dynamic loading and rigging capacity. A platform may require checks for live loads, deflection and edge protection.


    The visible structure is only one part of the problem. Engineers must also understand how forces move through the structure and into the supporting floor, roof system, ballast arrangement or temporary subframe. Temporary structures often require a different mindset from permanent construction. They must be strong enough to perform safely, but they must also be assembled quickly, dismantled efficiently and transported without unnecessary complexity.


    The strongest solution is not always the best solution. A scenic structure can become unnecessarily heavy, difficult to install and expensive to transport if engineering is approached without considering the temporary nature of the build. The most effective engineering solutions balance safety, fabrication efficiency, installation speed and visual intent.

    Engineered scenic steel connection with bracing, baseplates and bolted support details.

    Structural calculations and connection details allow potential issues to be resolved before fabrication drawings are released.

    Technical Drawings and Production Information


    Once the build methodology has been agreed, detailed production information can be prepared.

    Technical drawings translate the visual concept into dimensions, components and fabrication instructions. Depending on the project, this may include:


    ·       General arrangement drawings

    ·       Setting-out drawings

    ·       Steel fabrication details

    ·       Scenic carpentry drawings

    ·       CNC cutting files

    ·       Connection details

    ·       Assembly diagrams

    ·       Graphic artwork locations

    ·       Lighting and audiovisual coordination

    ·       Installation sequencing

    ·       Numbered component layouts


    These drawings must provide enough information for workshop teams to manufacture accurately while remaining clear enough for site teams to assemble the structure under time pressure.


    Production drawings are often supported by physical prototypes, sample panels or test assemblies. A curved junction may be mocked up to confirm the geometry. A scenic finish may be tested under show lighting. A connection may be trialled to check whether it can be installed using the available tools and access.


    These tests reduce uncertainty and allow problems to be solved before full-scale production begins.


    Full-scale scenic prototype testing geometry, finish quality and connection details.

    Prototypes and test assemblies allow geometry, finish and connection details to be confirmed before full production.

    Collaboration With Agencies and Designers


    Successful scenic development depends on clear collaboration between creative teams, technical designers, engineers, fabricators and installation crews.


    The scenic team must protect the original design intent while communicating the practical implications of different decisions. This is not achieved by simply rejecting difficult ideas. It requires proposing workable alternatives.


    If a structure is too large to transport in one piece, it may be divided into concealed modules. If a finish is too fragile for repeated handling, a more durable scenic coating may be developed. If a proposed material creates excessive weight, a lightweight substrate may be used without changing the final appearance.


    The most productive conversations focus on solutions.


    Early collaboration is particularly valuable. When fabricators and engineers become involved before the design is fully fixed, they can help shape the project around real manufacturing processes. This often improves quality while reducing unnecessary cost, weight and complexity.


    Late technical changes are usually more disruptive. Once graphics, lighting, finishes and production schedules have been confirmed, even a small structural adjustment can affect several other workstreams.


    Transportable scenic modules with concealed joints and lightweight durable construction.

    Practical development can improve transportability, durability and weight without changing the intended appearance.

    Designing for Transport and Installation


    A scenic structure is not complete when it leaves the workshop. It must still reach the venue and be installed safely.


    Transport requirements influence module sizes, packaging, lifting points and component protection. Large assemblies may need to fit within standard trucks or shipping containers. Delicate scenic finishes may require custom crates, padded supports or removable protective layers.


    Venue conditions also play a major role. Limited loading access, narrow corridors, low ceiling heights and restricted working hours can all affect the installation strategy.

    A structure that is easy to assemble in an open workshop may be much harder to install inside a finished venue. Technical development must therefore consider the actual site conditions from the beginning.


    Connections should be accessible. Modules should be clearly labelled. Lifting points should be positioned correctly. The installation sequence should avoid trapping components or blocking access for other trades.


    Where possible, complex structures are pre-assembled in the workshop before delivery. This allows the team to check alignment, finish quality and connection accuracy while there is still time to make adjustments.


    Evolution Scenic scenic modules labelled and protected for transport to site.

    A scenic structure is only truly resolved when it can leave the workshop and reach its installation position safely.

    Hundreds of Practical Decisions


    Successful scenic projects rarely depend on a single brilliant idea. More often, they depend on hundreds of practical decisions made throughout design development, engineering and fabrication.


    A joint is moved to improve transport efficiency. A steel frame is replaced with aluminium to reduce weight. A surface is divided into CNC-produced sections to improve accuracy. A removable panel is added for cable access. A hidden bracket is redesigned so it can be installed quickly on site.


    Individually, these decisions may appear minor. Together, they determine whether the final structure is safe, accurate, efficient and visually convincing.

    At Evolution Scenic, this process sits at the centre of scenic fabrication. Concepts are developed through technical drawings, engineering coordination, material testing, workshop knowledge and installation planning.


    The objective is not simply to reproduce an image. It is to understand the idea behind it, solve the practical challenges and develop a construction system that can deliver the intended result in the real world.


    That is how scenic concepts become buildable reality.


    Scenic fabrication details including joints, brackets, CNC edges and removable access panels.

    Successful scenic fabrication is built on many small technical decisions made throughout development and production.
