Modern scenic fabrication increasingly relies on digital workflows that connect design development, engineering and production through one coordinated process. Among the most valuable advances is the ability to translate a detailed three-dimensional CAD model directly into the information required to manufacture a physical component.

This connection between the digital model and the workshop has changed how complex scenic structures are developed. Curved feature walls, sculptural environments, exhibition structures, product displays and large-scale brand installations can now be planned, tested and refined in detail before material reaches the production floor.

The principle may sound straightforward: create a model, send the data to a machine and produce the component. In practice, the process requires far more judgement. A successful digital workflow depends on technical designers, engineers, CNC operators, carpenters, metal fabricators, scenic artists and installation teams working from information that has been developed with the realities of fabrication in mind.

The value lies not in automation alone, but in integrating each stage of the project around a reliable source of coordinated technical information.

Developing The CAD Model For Fabrication

A design model and a fabrication-ready model are not necessarily the same thing.

The initial three-dimensional model may communicate the intended shape, scale and visual character of an environment. Before manufacturing can begin, however, that geometry must be translated into components that can be cut, assembled, reinforced, transported, finished and installed.

Technical designers examine how the structure will be built rather than simply how it will appear. They consider material thicknesses, internal framing, connection details, access requirements, tolerances, fixing methods and the sequence in which separate elements will come together.

A large sculptural form, for example, may appear as one continuous object in the design model. For production, it may need to be divided into a series of ribs, skins, frames or machined blocks. Each section must remain within material sizes and machine capacities while also being manageable for workshop handling and transport.

The model therefore becomes a working construction tool. It provides a shared reference through which design intent can be tested against engineering requirements and practical build methodology.

At Evolution Scenic, this stage helps identify potential fabrication challenges while they can still be resolved digitally. Adjusting a connection, panel division or structural detail within the model is generally more efficient than discovering the same issue after components have already been manufactured.

From Technical Design To Production Data

Once the geometry and construction strategy have been agreed, the digital model can be developed into production information.

This may include technical drawings, cutting files, setting-out information, component references and assembly details. Every item needs to correspond correctly with the wider structure, particularly when a project contains hundreds of individual parts.

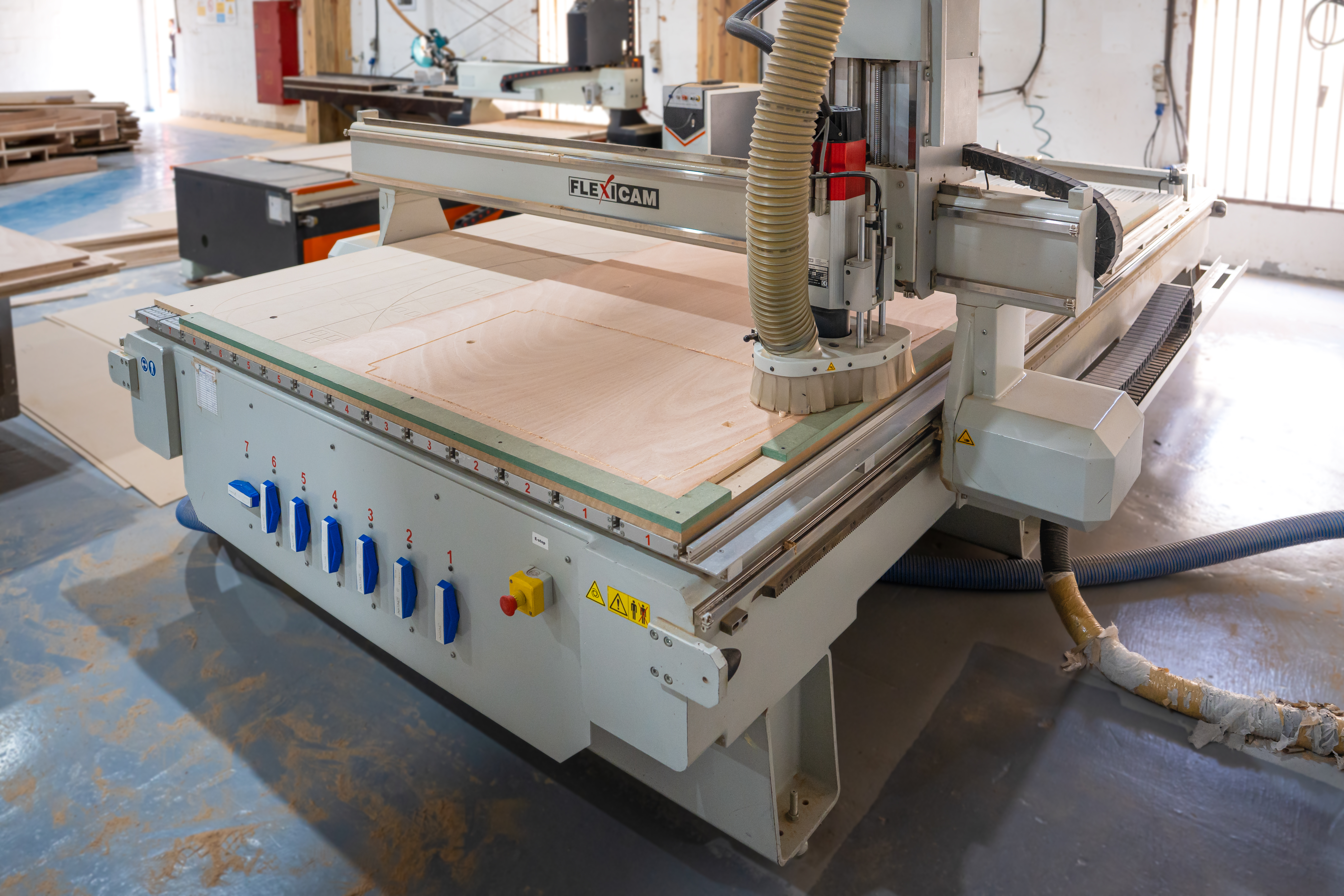

For CNC production, geometry must be prepared in a form that the machinery can interpret accurately. Profiles may need to be nested onto sheets to make efficient use of material. Cutting paths, tool diameters, machining depths and component orientation must be considered before production begins.

This is where a carefully coordinated workflow becomes essential. CNC machinery can reproduce information with exceptional consistency, but it does not determine whether the underlying information is correct. Accuracy in manufacturing begins with accuracy in technical development.

The fabrication team must also understand how the machined parts relate to the finished object. Reference marks, component numbers and assembly drawings can help ensure that similar-looking pieces are identified correctly and installed in the intended sequence.

Digital production therefore does not remove the need for workshop knowledge. It allows that knowledge to be applied earlier and more systematically.

CNC Workflows & Complex Scenic Geometry

CNC machining is particularly valuable when scenic fabrication involves repeated components, intricate profiles or complex geometry.

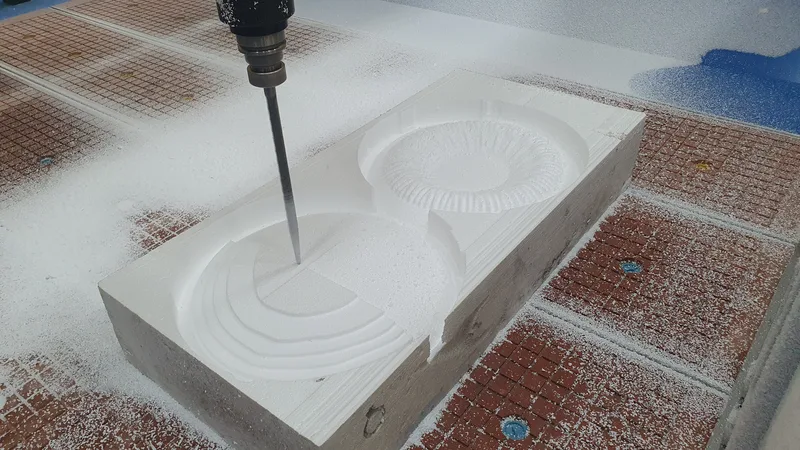

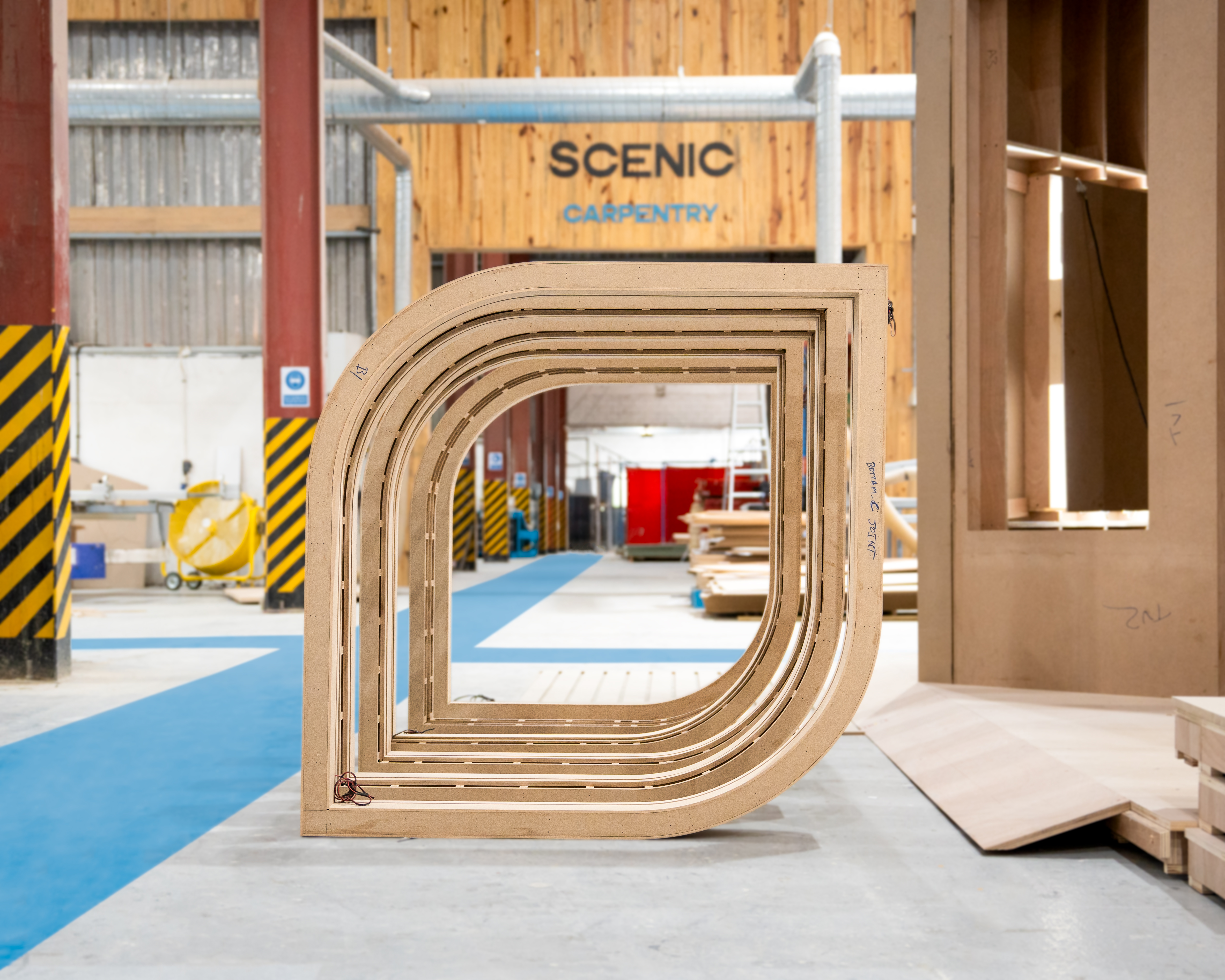

A series of curved ribs for a scenic wall can be produced directly from approved digital profiles. Interlocking elements can be machined with slots and locating features that simplify assembly. Layered components can be cut to form sculptural volumes that are later shaped, coated and scenic-painted.

This level of control is useful across exhibition fabrication, retail pop-ups, branded environments, stage architecture and immersive installations. It allows complex forms to be divided into practical components without losing the intended overall geometry.

Repetition is another important advantage. If a project requires multiple matching plinths, arches, fins or structural sections, CNC production helps maintain consistency across the complete set. This is especially valuable when components will be positioned close together, where even small differences may become visible.

It also supports hybrid construction. CNC-machined timber elements may connect to welded steel frames, aluminium substructures, composite skins, graphics or integrated lighting systems. The digital model can coordinate these different fabrication disciplines before they meet during assembly.

Working With Manufacturing Tolerances

Precision does not mean assuming that every manufactured part will behave perfectly.

Different materials respond differently during machining, fabrication and finishing. Timber-based sheets may vary slightly in thickness. Steel can distort during welding. Applied coatings can increase component dimensions. Large structures may move marginally when lifted, transported or installed.

Manufacturing tolerances must therefore be planned rather than ignored.

A slot that appears exact in a CAD model may require additional clearance to allow parts to assemble comfortably. A removable panel may need a controlled shadow gap so that it can be fitted without damaging the surrounding finish. Interfaces between timber and metal components may need adjustment space to account for the different ways in which each material is produced.

The correct tolerance depends on the material, manufacturing process, finish and intended use of the component. Too little clearance can make assembly difficult. Too much can result in visible gaps, movement or misalignment.

Experienced technical design balances digital precision with practical fabrication knowledge. The objective is not simply to produce parts that match the model numerically. It is to produce parts that fit together reliably in the workshop and on site.

Improving Production Efficiency

An integrated digital workflow can improve efficiency at several points in the fabrication process.

Material usage can be reviewed before cutting begins. Components can be nested to reduce waste, and repeated parts can be grouped into logical production batches. Potential conflicts can be identified before they interrupt manufacturing.

Technical drawings and CNC files generated from the same coordinated model also reduce the risk of separate information sources drifting out of alignment. When a design revision is required, the affected components can be traced and updated more systematically.

This becomes particularly important on large activations or exhibition environments where several fabrication teams may be working simultaneously. Scenic carpentry, metal fabrication, graphics, electrical integration and finishing all depend on compatible dimensions and clearly defined interfaces.

Production efficiency is not simply a matter of machining components faster. It is achieved by reducing uncertainty, avoiding unnecessary rework and giving each workshop department the information it needs at the correct stage.

Designing Components For Assembly

The finished appearance of a scenic environment can conceal a considerable amount of assembly planning.

Large structures rarely leave the workshop as one complete object. They may need to pass through loading doors, fit within transport vehicles, comply with lifting restrictions or be carried through a venue by an installation team. The digital model allows these constraints to influence the component design from the beginning.

A feature structure may be divided into transportable modules with concealed connection points. Curved wall sections may use alignment tabs to preserve their geometry during assembly. Graphic surfaces may be split at locations that minimise visible joints. Removable panels may be incorporated to provide access to lighting, cabling or fixings.

Assembly trials can also be informed by the CAD model. The workshop team can establish which modules must be built first, where temporary bracing may be required and how finished surfaces can be protected while adjoining components are installed.

For touring environments or reusable brand structures, the same process can support repeated assembly. Connections can be developed to withstand multiple installation cycles, and replacement components can be reproduced from the approved production data when required.

Installation Benefits Beyond The Workshop

The advantages of coordinated digital production continue when the project reaches site.

Installation teams can work from accurate setting-out dimensions, module references and assembly sequences. Components that have been designed to locate positively are easier to position, reducing the amount of interpretation required in a restricted installation window.

This is particularly valuable in exhibition halls, retail environments and live show venues, where access periods may be tightly controlled. The structure must often be unloaded, assembled, aligned, connected to other systems and finished within a limited number of hours.

Digital planning can also help identify the equipment and labour required for installation. Module weights, lifting points, access panels and connection locations can be considered before the finished scenic elements arrive at the venue.

When the model has been developed with transport and installation in mind, site work becomes an extension of the fabrication process rather than a separate exercise in problem-solving.

A single Coordinated Source Of Information

The greatest value of digital manufacturing is not simply speed or machine accuracy. It is the ability to coordinate design, engineering, production and installation around one carefully developed source of information.

The CAD model becomes a point of connection between creative intent and physical construction. It allows technical decisions to be tested before manufacturing, provides data for CNC production, supports workshop assembly and informs the installation strategy.

Traditional fabrication skills remain central to the process. Machined components still need to be assembled, reinforced, welded, shaped, filled, painted, finished and installed by experienced teams. Digital workflows do not replace craftsmanship. They give skilled fabricators more accurate information with which to work.

From a curved exhibition feature to a large scenic architectural environment, the route from CAD model to finished component depends on the quality of every decision made along the way.

When those decisions are coordinated effectively, even the most complex structure can be divided into practical parts, manufactured consistently and assembled into a finished environment that feels seamless.
