Why We Build Mock-Ups Before We Build The Real Thing

A mock-up is not an unnecessary duplicate of the final build. It is a controlled test that allows materials, finishes, connections and installation methods to be checked before small issues become expensive site problems.

Clients sometimes see a mock-up in the workshop and ask a reasonable question: “Why are we building this twice?”

The straightforward answer is that a small mistake discovered early is almost always less expensive and less disruptive than a large mistake found once full production is underway. It is even more valuable when the alternative is discovering the problem during installation.

Scenic projects bring together materials, finishes, structures, lighting, graphics, technical systems and installation requirements. Drawings and renders are essential, but they cannot always show exactly how these elements will behave once they are physically combined.

A finish may appear correct on screen but look different when applied across a large surface.

A connection may look simple in a drawing but become difficult to access during assembly. Two materials may work individually but create an awkward junction when placed together.

A mock-up moves these questions into the controlled environment of the workshop, where they can be reviewed and resolved before they affect the wider build.

A Mock-Up Is A Targeted Test

A mock-up does not always mean manufacturing a complete second version of the project.

It should be designed to answer a specific question. Sometimes it is a small wall section used to approve colour, texture and sheen.

Sometimes it is a full-size connection detail that needs to be assembled and dismantled several times. It may be a scenic paint sample prepared on the intended substrate, using the proposed primer, texture system, paint layers and protective coating. For more complex projects, it may be a representative corner or section combining several disciplines, such as timber framing, metalwork, cladding, graphics, lighting and scenic finishing.

The scale and complexity of the mock-up should reflect the risk being tested. There is little value in building an elaborate sample if a simple material board will answer the question. Equally, a small colour swatch may not provide enough information where the finish depends on scale, lighting, texture or the relationship between several materials.

The objective is not to create additional work.

It is to test the part of the project where uncertainty remains.

Material Approvals Need Proper Samples

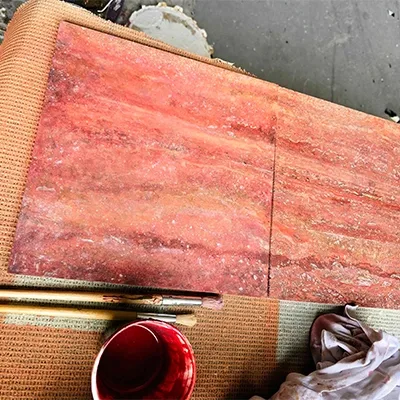

Material approvals are one of the clearest reasons for producing mock-ups. A material can look very different when viewed as a small sample, applied over a large area or placed under the final lighting conditions. Scenic paint finishes are particularly sensitive to this.

Colour, texture and sheen are affected by:

• The underlying substrate
• Surface preparation
• Primer and base coats
• Application technique
• Number of layers
• Protective coatings
• Lighting temperature and direction
• Viewing distance

A small printed colour reference cannot communicate all of these variables. A proper finish sample should, where possible, use the same substrate and process intended for the final work. This gives the client, designer and production team a shared reference point. They can see and feel the actual surface rather than approving a description or an unrepresentative swatch.

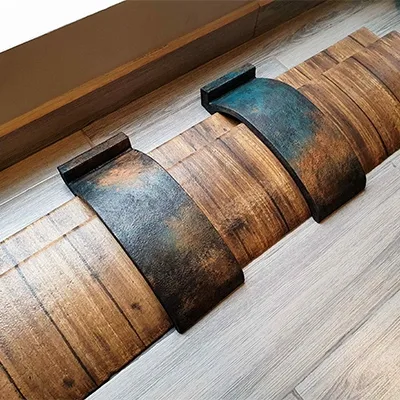

The same approach applies to specialist cladding, metal finishes, timber effects, laminates, coatings and graphic transitions. Approving the real build-up reduces ambiguity and creates a clearer standard for the production team to follow.

Mock-Ups Improve Joinery & Connections

Connections are another area where physical testing can prevent significant problems. Scenic structures may need to be divided into transportable sections and then reassembled within restricted site conditions.

The connections must be strong, accurately aligned and accessible to the installation team.

They may also need to remain hidden once the scenic finish is complete.

A full-size connection mock-up allows the team to test:

• Alignment between sections
• Fixing access
• Assembly sequence
• Tolerance between components
• Strength and stability
• Visibility of joints
• Dismantling requirements
• Repair access
• Installation time

A detail that works well on the workshop floor may still need to be assessed against the actual installation method. Can the fixing be reached when the structure is upright?

Can the sections be aligned while suspended or positioned close to a wall?

Will the joint remain concealed after repeated assembly?

Can damaged parts be replaced without dismantling the entire structure?

Testing these questions early is particularly important where the site programme is restricted. An adjustment that takes an hour in the workshop may take significantly longer once the structure is installed around other contractors and technical systems.

Installation Sequences Can Be Rehearsed

Some mock-ups are built to test not only the final detail but the order in which the work must happen. Scenic installation often involves several interdependent steps. A structural frame may need to be fixed before lighting equipment is installed.

Cladding may need to remain open until cabling has been tested. A decorative finish may need to be completed only after two transport sections have been joined. If the sequence is wrong, access can be lost and finished work may need to be removed.

A representative mock-up allows the team to rehearse the sequence and identify where tools, lifting equipment or temporary supports will be needed. This can also improve communication between departments.

Carpenters, metalworkers, technicians, scenic painters and installers can review the same physical detail and understand how their work affects the next stage. The resulting method can then be reflected in drawings, section numbering, packing and site instructions.

Mock-Ups Create Clearer Approvals

Physical samples also support better client and design approvals. It is easier to make an informed decision when the proposed finish, material or detail can be viewed and handled directly.

The client can understand the texture.

The designer can assess whether the appearance matches the creative intent. The technical team can confirm the buildability of the detail. The workshop can establish the approved production method.

This creates a clearer record of what has been accepted. It also reduces the risk of different people interpreting a colour, texture or description in different ways. The approved mock-up can remain in the workshop as a benchmark for quality control during production.

Building Less To Avoid Rebuilding More

Mock-ups require time, material and workshop effort. That cost should be considered against the risk they are intended to control.

The right question is not simply: “How much does the mock-up cost?”

It is: “What could it prevent?”

A controlled sample may avoid widespread repainting, remanufacturing, delayed approvals or difficult site modifications. It may also protect the installation programme by confirming the method before the team reaches site.

Not every project needs a large mock-up. The strongest approach is to identify the areas of genuine uncertainty and test them at the appropriate scale.

In scenic fabrication, mock-ups are not built because the team expects the design to fail. They are built because testing a critical detail early is one of the most practical ways to protect the design, programme, budget and finished result.

Why The Workshop Floor Always Finds Problems Before Site Does

There is a moment that happens on almost every scenic project.

A component is assembled for the first time. A scenic wall is test-fitted. A staircase is trial-built. A sculpture is dry-assembled.

And suddenly somebody notices something.

Perhaps a connection could be improved. Perhaps installation would be easier another way.

Perhaps a maintenance hatch needs relocating. Perhaps a cable route has been overlooked.

This is exactly why experienced scenic workshops spend time assembling, checking and reviewing components before they leave the building.

The workshop is often the safest place for problems to be discovered.

The First Assembly Tells You More Than A Drawing Can

Technical drawings establish dimensions, materials, connection details and fabrication intent, but the first physical assembly introduces another layer of information.

Parts begin interacting with each other.

A joint that looked straightforward in isolation may become difficult to reach once another panel is installed. A fixing may be perfectly positioned structurally but awkward for an installer to tighten. A removable section may technically come apart, yet require another component to be removed first.

These are not necessarily design errors.

They are often buildability issues that only become obvious when several correctly manufactured parts are brought together for the first time.

The workshop is where those interfaces can be tested without the pressure of an active installation programme.

Dry Assembly Is One Of The Most Useful Workshop Checks

Dry assembly means bringing components together before final installation, often without completing every decorative finish or permanently fixing every element.

For scenic fabrication, this can range from joining two wall modules to assembling a complete structure.

A large exhibition environment, for example, may contain walls, counters, openings, integrated graphics, access panels, lighting details and technical interfaces. Each element can be fabricated accurately on its own and still create problems when everything meets.

Dry assembly allows the team to check whether joints align, datums remain consistent and connection points are accessible.

It can also expose the cumulative effect of fabrication tolerances.

A few millimetres across one panel may be insignificant. Repeated across several connected modules, those small variations can become a visible alignment issue at the opposite end of the structure.

Finding that in the workshop allows the build to be corrected before finishes, packing and transport make the problem harder to deal with.

Trial Installation Tests More Than Whether Something Fits

A workshop trial installation is not only about proving that the structure can be assembled.

It should also test how it will be assembled.

The order matters.

If module B cannot be installed until module C is moved out of the way, the installation sequence may need reconsidering. If a rear fixing becomes inaccessible once a fascia is fitted, the sequence may need changing. If a heavy component has no practical handling point, that issue is much easier to resolve while fabrication resources are still available.

The workshop can therefore act as a simplified version of site.

Teams can test the intended installation sequence, identify where access is required and determine which connections need to remain exposed until later in the build.

This is particularly valuable for scenic stages, complex exhibition structures and temporary public installations where the on-site build window may be tightly controlled.

Structures Also Need To Come Apart Properly

Temporary scenery is rarely built once and left exactly where it was fabricated.

It needs to be transported.

That means the team has to think about disassembly as well as assembly.

A scenic structure may work perfectly when built continuously in the workshop but become impractical if it cannot be divided into manageable transport modules.

Trial assembly allows the team to confirm where structures separate, how connections can be accessed and whether those connections can be repeated reliably on site.

Bolted interfaces, alignment pins, threaded inserts, removable trims and concealed fixing details can all be checked before dispatch.

The aim is not simply to prove that something can be taken apart.

It is to make sure it can be taken apart, transported and rebuilt without losing alignment or damaging the finish.

Mock-Ups Resolve Difficult Details Early

Not every project requires a full workshop assembly.

Sometimes a focused mock-up is more useful.

A curved scenic wall may require a sample section to prove the construction method. A specialist scenic finish may need testing across a joint. A removable panel may need a full-scale detail to confirm how neatly it closes.

Mock-ups allow one difficult part of the design to be investigated before the same detail is repeated dozens of times.

For scenic carpentry, this might mean testing a curved substrate or an edge treatment.

For metal fabrication, it could involve proving a bracket, welded connection or removable frame.

For scenic finishing, a sample may be used to understand whether filler, paint or texture behaves correctly across a joint that will later need to separate.

A successful mock-up does more than approve appearance.

It confirms that the detail can actually be manufactured consistently.

Quality Control Is Not Only About The Finish

When people think about scenic quality control, they often think about paint finish, visible joints and graphics alignment.

Those things matter, but workshop quality control starts much earlier.

It includes geometry.

It includes whether modules are square.

It includes whether holes line up.

It includes whether threaded fixings remain usable after repeated assembly.

It includes whether removable sections can actually be removed.

It includes whether a structure sits level, whether a panel remains flush and whether a connection can be reached with the tools available to the installer.

For a public-facing scenic environment, quality control may also include checking edge protection, high-contact surfaces and areas likely to receive repeated handling.

A finished wall can look excellent and still create problems during installation if these practical details have not been reviewed.

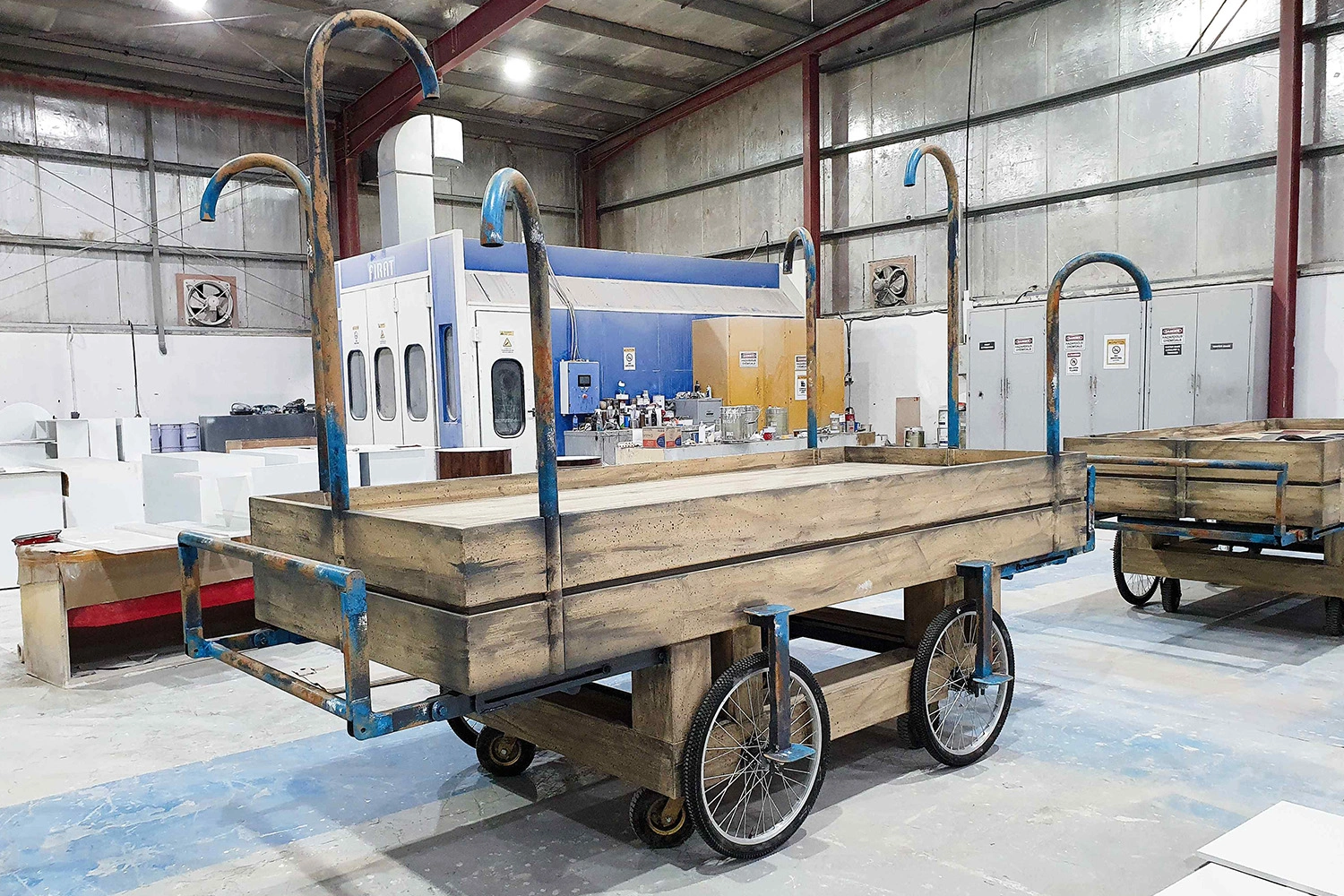

Workshop Testing Helps Prove Movement And Handling

Moving scenery requires another level of testing.

A rolling scenic unit, platform or movable feature may need to be pushed, turned, positioned or repeatedly relocated.

The workshop provides space to test how it behaves.

Castor positions can be checked. Handling points can be reviewed. Clearances can be tested. Flex within the structure may become visible once the unit begins moving.

Even static structures benefit from this thinking.

A large scenic element still has to be lifted, carried, rotated or guided into position at some stage.

If nobody has considered how the component will physically be handled, site may be the first place that problem becomes obvious.

That is exactly when it is least convenient.

Pre-Production Reviews Connect Design With Fabrication

One of the most useful moments in scenic manufacturing is when technical designers, project managers and workshop teams review an early assembly together.

The physical structure often encourages different questions from the drawing.

Could this bracket move slightly?

Would another fixing be faster on site?

Should this section be split differently?

Is the cable route still accessible?

Does this panel need additional tolerance?

Should this decorative trim remain removable until commissioning is complete?

These observations allow workshop knowledge to feed back into the technical package.

If the same component is being produced repeatedly, a small improvement identified during the first prototype can then be carried into every subsequent unit.

This is why pre-production reviews are particularly useful on projects involving repeated scenic modules, exhibition systems or fabricated feature structures.

Exhibition Structures Reveal Interfaces Quickly

Exhibition fabrication often contains a high number of interfaces within a relatively compact structure.

Wall panels may meet counters. Graphics may align across removable sections. Lighting may pass through joinery. Screens may sit inside scenic cladding. Access panels may be required behind apparently simple finished walls.

Dry assembly allows these relationships to be reviewed before the structure reaches the venue.

A screen opening can be checked against the surrounding scenic finish.

A counter can be tested against the wall it attaches to.

A removable panel can be opened before another component blocks it.

This kind of workshop testing is one of the reasons complex exhibition environments can appear straightforward once installed.

The complication has already been dealt with elsewhere.

Scenic Stages Benefit From The Same Approach

Stage scenery often operates at a larger scale, but the principle is identical.

Large fascias, scenic walls, steps, portal structures and technical interfaces can all benefit from workshop checks.

Stage components may need to align over significant distances, interface with production equipment and install in a carefully controlled order.

A connection that delays one scenic module can affect what follows it.

A misaligned opening can create coordination problems with another technical discipline.

A panel installed too early can remove access to something behind it.

Trial assembly helps establish a build methodology rather than leaving the methodology to be invented during installation.

Public Installations Require Close-Range Quality

Temporary scenic structures used in public environments are often viewed much more closely than stage scenery.

That changes what workshop quality control needs to consider.

Joints become more visible.

Corners are easier to inspect.

People may touch surfaces, lean against features or interact with elements directly.

Workshop reviews therefore help confirm not only whether the structure fits together but whether the finished result will withstand close scrutiny.

Removable trims can be checked.

Edges can be reinforced.

Access panels can be made less obvious.

Fixings can be concealed or repositioned.

These are small details individually, but together they make the difference between a structure that simply stands up and one that feels properly resolved.

Site Is An Expensive Place To Discover A Simple Problem

Fixing an issue in the workshop may take minutes.

The same change on site may require additional labour, new materials, revised installation sequencing or extra access equipment.

A component may already have been finished.

Another contractor may already be working around it.

The right machinery may not be available.

The installation team may be operating during a restricted venue window.

Even a small adjustment becomes more complicated once the structure has left the fabrication environment.

This is why workshop testing is not wasted production time.

It is often protection against site time.

The Best Problems Are The Ones Site Never Sees

Many clients never see this stage of the process.

They see the completed exhibition structure, finished stage, sculptural feature or public installation.

What they do not see are the adjustments that happened beforehand.

A bracket moved.

A panel resized.

A fixing replaced.

A cable opening added.

A transport split reconsidered.

A maintenance hatch relocated.

A connection made easier to reach.

Good workshops are not simply manufacturing facilities.

They are problem-solving environments.

Every issue identified before a truck leaves the yard is one less issue waiting on site.

That is usually a trade worth making.

Why CNC Machines Don't Replace Skilled Carpenters

CNC machinery has transformed scenic fabrication by improving accuracy, consistency and production speed. But a machine can only manufacture what it has been instructed to produce. Skilled carpenters remain essential to interpreting the design, understanding the materials and turning individual components into complete scenic structures.

Every time somebody visits a modern scenic workshop and sees a CNC machine in action, they tend to ask the same question.

“So, does the machine do everything now?” The answer is simple. Not even close.

CNC technology has changed the way scenic structures are manufactured. It allows complex shapes to be cut accurately, repeated components to be produced consistently and detailed patterns to be created far more efficiently than would be practical using manual methods alone.

It is an extremely valuable workshop tool.

But it remains a tool.

A CNC machine can cut a component to the dimensions contained within a digital file. It cannot decide whether that component is the correct solution for the project. It cannot judge how easily the structure will assemble, whether the selected material will perform as expected or how the completed piece will be transported and installed.

It cannot look at a difficult connection and suggest a more practical alternative.

It cannot recognise that a fixing point will become inaccessible once the next panel is installed.

It cannot anticipate every site condition, tolerance issue or last-minute production change.

That is where the experience of the carpenter remains essential.

Modern scenic fabrication is not a competition between technology and traditional craftsmanship. The strongest results come from using both together. The CNC machine delivers precision.

The carpenter delivers judgement.

What CNC Production Does Well

CNC routing allows components to be manufactured directly from technical drawings and digital models.

Once the production information has been prepared, the machine follows programmed cutting paths to shape sheet materials accurately and repeatedly.

This is particularly useful for projects involving:

• Complex curves and profiles
• Decorative panels and screens
• Repeated structural ribs
• Layered scenic forms
• Templates and formers
• Detailed cut-outs
• Interlocking components
• Consistent joinery
• Multiple matching parts

A project containing twenty identical profiles does not require a carpenter to mark and cut every piece separately. The profiles can be nested digitally and produced with far greater consistency.

That accuracy supports the workshop team during assembly. Matching components should align more reliably, repeated forms remain consistent and complex geometry can be translated from the digital model into physical parts.

CNC production can also remove large amounts of repetitive cutting from the workshop programme, allowing skilled carpenters to concentrate on the areas where their knowledge has the greatest value.

However, an accurately cut component is not the same thing as a completed scenic structure.

The machine produces the parts.

The workshop team still has to make them work.

The Carpenter's Role Has Evolved

CNC machinery has not removed the need for skilled carpenters. It has allowed their role to evolve.

Time that might once have been spent repeatedly cutting matching components can now be used for assembly, coordination, refinement and technical problem-solving.

Carpenters interpret technical drawings and understand how individual components relate to the complete structure. They assess how the build will go together, where it needs support and whether the intended construction sequence is practical.

They also understand that real materials do not always behave exactly like digital models.

Sheet materials can vary slightly in thickness. Timber can move, bow or twist. Manufactured boards may respond differently depending on the direction of the cut, the size of the component and the way they are supported.

Small tolerances can accumulate across a large structure. A difference of only a few millimetres between individual parts may become far more noticeable when several sections are assembled in sequence.

Experienced carpenters recognise these issues and make controlled adjustments before they become larger problems. They know when a component needs to be trimmed, repositioned, strengthened or referred back to the technical-design team.

That judgement is developed through practical workshop experience. It cannot be downloaded into the machine.

From Cut Components To Complete Structures

A CNC router usually produces flat or partially formed components.

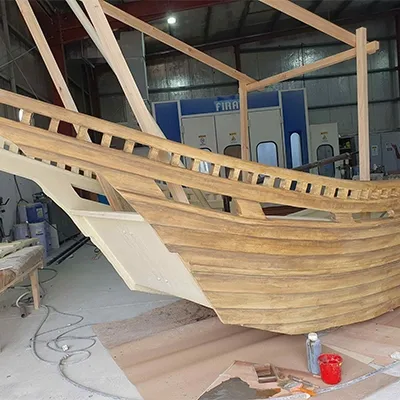

The carpentry team turns those components into a complete three-dimensional structure. A series of routed ribs may need to be positioned, aligned and braced before being clad. Decorative panels may need to be installed onto a supporting frame. Curved sections may need to be assembled in a precise order to maintain the intended geometry.

The carpenters may be responsible for:

• Setting out the build
• Constructing support frames
• Aligning routed components
• Managing joints and tolerances
• Installing reinforcement
• Checking levels and dimensions
• Dry-fitting transport sections
• Coordinating access panels
• Preparing surfaces for finishing
• Testing the assembly before dispatch

This process requires continual checking.

A component can be individually accurate but still create a problem when combined with surrounding elements. A connection may align correctly but be difficult to reach with tools. A decorative panel may fit the frame but interfere with a lighting fixture, cable route or lifting point.

The carpenter must understand not only whether the parts fit, but whether the complete structure will work throughout fabrication, finishing, transport and installation.

The quality of the final build depends on how the individual components are brought together.

component needs to do.

Technical Drawings Still Require Interpretation

Technical drawings communicate how a scenic structure should be manufactured.

They remain essential, but they still require interpretation by people who understand fabrication.

A carpenter may identify that a connection shown on a drawing will become difficult to access during assembly. They may recognise that a joint is positioned in a visually sensitive area or that the proposed sequence will make installation unnecessarily complicated.

This creates an important relationship between technical design and workshop production.

The technical drawing guides the workshop.

The workshop also provides practical feedback to the technical team.

Where an improvement is identified, it can be reviewed and incorporated before too much work has been completed.

This helps reduce rework and ensures that the technical information reflects the reality of manufacturing, transport and installation.  The strongest production process is collaborative.

Technical designers, CNC programmers and carpenters should not operate as isolated departments. Each discipline contributes different knowledge to the same finished structure.

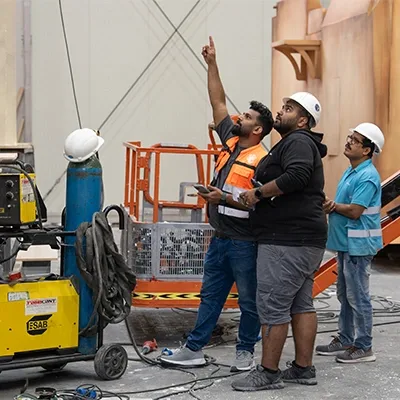

The People Still Make The Difference

The most advanced machine in the workshop is only as effective as the people operating and supporting it.

The team develops the manufacturing strategy. The team prepares the digital information.

The team selects the materials. The team checks the machine output. The team assembles the parts. The team resolves the problems that appear during production.

CNC technology has improved the accuracy, consistency and complexity available within scenic fabrication. It allows workshops to produce components that would otherwise require considerably more time and manual preparation. But it has not replaced skilled carpenters.

It has given them better tools.

The most capable scenic workshops invest in both machinery and people because each provides something the other cannot. The CNC machine provides controlled precision.

The carpenter provides adaptability, experience and judgement.

When the two work together, the result is scenic fabrication that is more accurate, more efficient and better prepared for the realities of transport, installation and live delivery.
