Why Large Logos Are Harder To Build Than They Look

Why Large Logos Are Harder To Build Than They Look

Few scenic elements appear simpler than a giant logo.

A company name positioned outside a venue, oversized letters within an activation or a large branded feature placed at the centre of an event environment can often look straightforward in concept visuals. The form is familiar, the graphics are recognisable and the finished object may appear to consist of little more than enlarged lettering.

The reality is usually very different.

As logos increase in size, structural challenges increase rapidly. Weight, stability, transportation and installation requirements all become more significant. Details that are almost irrelevant at tabletop scale can become critical when a letter is several metres high, exposed to the weather or positioned where members of the public can approach it.

A one-metre-high logo may require little more than a simple support system. A five-metre-high logo operating outdoors may require engineering calculations, concealed steelwork, ballast systems and specialist lifting or installation methods.

The most successful large-scale logos are therefore not simply enlarged graphics. They are temporary structures that must be designed, fabricated, transported and installed as complete engineered objects.

Size Changes Everything

Scaling up a logo is rarely as straightforward as multiplying every dimension.

As a structure becomes taller and wider, its surface area increases, its centre of gravity changes and the forces acting upon it become more significant. A letter that is stable at one metre high may behave entirely differently at four or five metres.

Even relatively simple typefaces can create awkward structural conditions. Narrow uprights, projecting serifs, curved letterforms and large unsupported areas may all require reinforcement. Letters such as “T”, “F” or “L” can introduce pronounced overhangs, while rounded forms may need carefully designed internal framing to maintain their shape.

The depth of each letter must also be considered. A deeper construction can increase rigidity and provide space for internal steelwork, but it may also add weight, increase transport volume and alter the appearance of the logo.

For scenic fabricators, the task is to preserve the intended proportions while creating something that can withstand real-world handling and use.

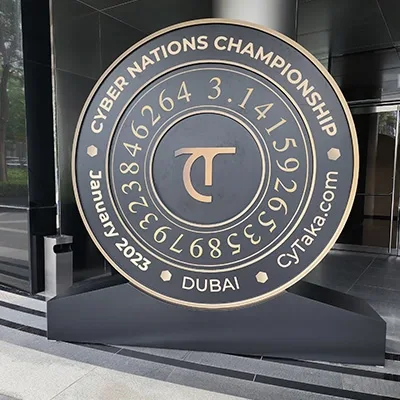

Freestanding Letters Need More Than a Flat Base

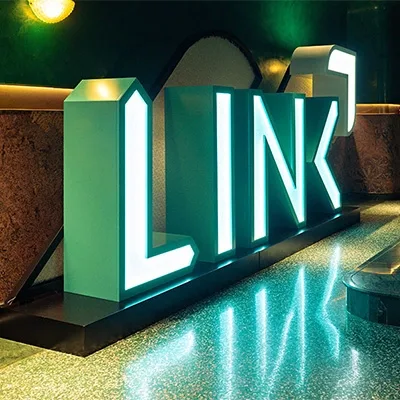

Freestanding letters are particularly deceptive.

A row of oversized letters may appear to sit neatly on the ground, but the visible base is only one part of the support system. The structure must resist overturning, sliding, twisting and movement caused by handling or accidental contact.

Where possible, adjacent letters may be connected through a concealed base frame. This allows loads to be distributed across the full installation rather than relying on each letter independently. Individual letters may also contain internal steel frames, weighted base sections or hidden fixing points.

The design of these systems depends heavily on the setting. A logo installed on a level exhibition floor has very different requirements from one positioned on grass, gravel, paving or a temporary event deck.

Freestanding elements used in public environments must also be considered from every accessible side. Visitors may lean against them, touch them or use them as photo opportunities. Although this interaction may not appear in the original render, it influences the build methodology.

Sharp corners, exposed fixings and unstable projections must be avoided. The structure should feel solid without revealing the engineering that makes it secure.

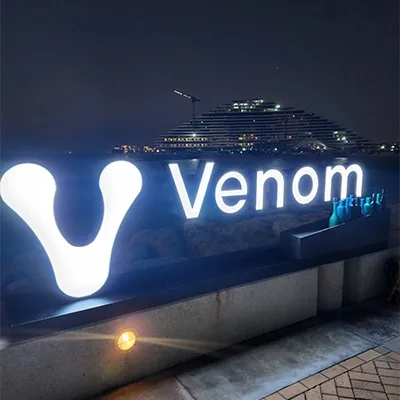

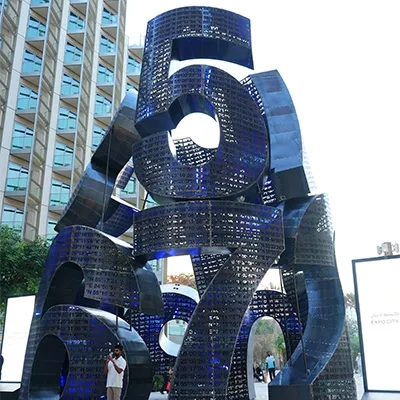

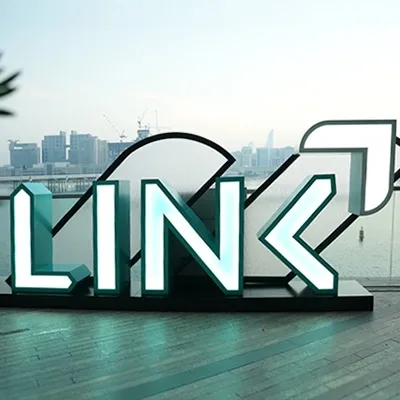

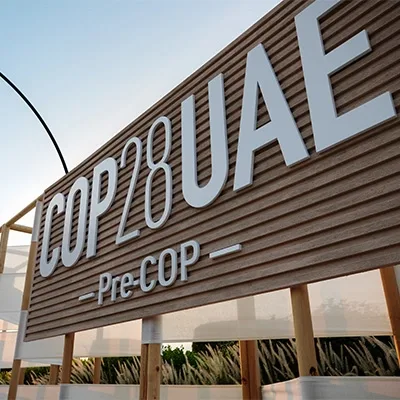

Outdoor Logos and Wind Loading

Outdoor logos introduce another level of complexity because they behave like sails.

Large, flat letter faces can catch substantial wind, particularly when installed in exposed locations. Even an open wordmark can present a considerable combined surface area. The taller the logo, the greater the leverage created by forces acting towards its upper edge.

Wind loading influences almost every aspect of the design, including the internal frame, base dimensions, connection details and ballast requirements. The surrounding environment also matters. A logo positioned between buildings may experience different wind behaviour from one installed in an open festival field or on an elevated terrace.

Fabrication teams must understand where the structure will be installed, how long it will remain in place and what level of exposure it may encounter. Local conditions, seasonal weather and the presence of nearby temporary structures can all affect the design approach.

In some cases, the scenic finish can be applied over a lightweight skin supported by an engineered steel skeleton. In others, the letterforms may be divided into sections or designed with openings that reduce wind resistance while preserving the visual character of the branding.

The objective is not to overbuild the structure unnecessarily. It is to create an appropriate, proportionate solution based on its location and intended use.

Hidden Steel Reinforcement

Steel reinforcement is often essential for large-scale branded installations, but it should rarely dominate the finished appearance.

Internal steelwork can provide rigidity, connect individual components and transfer loads into a base or ballast system. It may be fabricated as a series of welded frames, removable brackets or modular sections that bolt together on site.

The relationship between the steel frame and the scenic outer surface requires careful coordination. The frame must support the letter without distorting its shape or creating visible fixing points. It also needs to allow enough access for assembly, inspection and future dismantling.

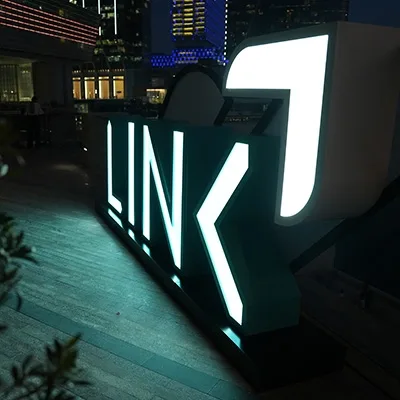

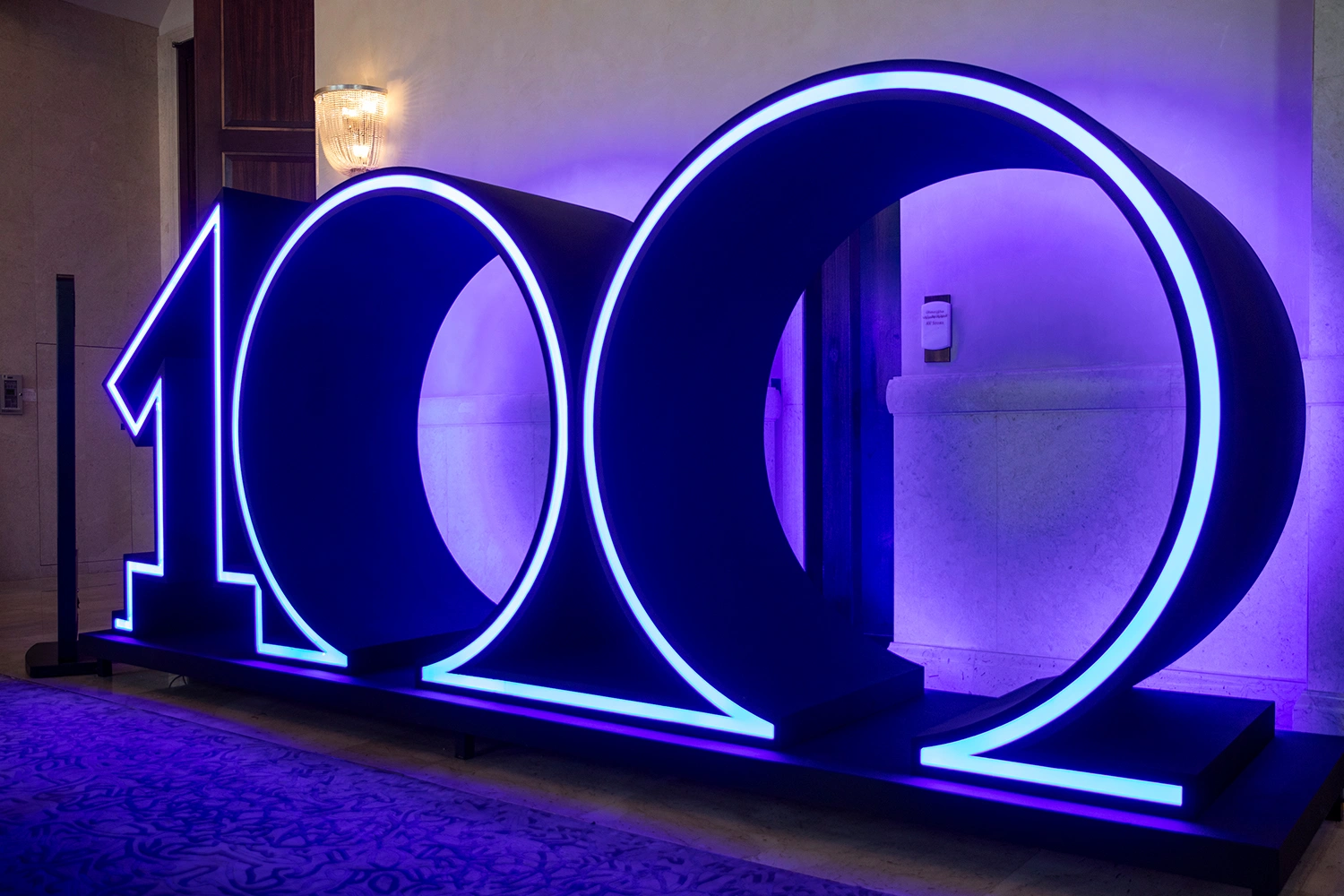

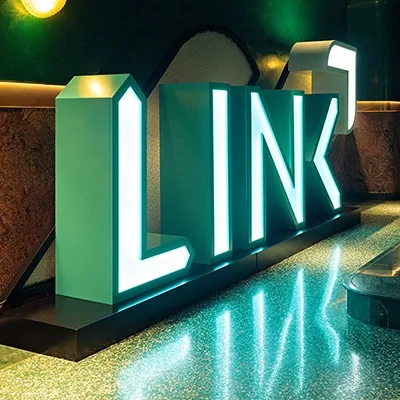

Where logos incorporate illuminated faces, graphics or specialist finishes, additional allowances may be required for cabling, ventilation, access panels and replaceable components.

Evolution Scenic approaches these installations as combined engineering and fabrication projects. Scenic carpentry, metal fabrication, CNC machining, graphics and finishing all need to work from the same coordinated design. A change to the internal frame can affect the outer skin, while a change to the finish may alter the available fixing methods.

This is why large logos benefit from being developed as complete systems rather than as separate decorative letters.

Material Selection Is a Balancing Exercise

The objective is rarely to make a logo as strong or as heavy as possible.

Instead, scenic fabrication teams aim to achieve the correct balance between weight, strength, transportation efficiency and visual appearance.

Timber, plywood, aluminium, steel, composite sheets, foams and specialist plastics may all be used within the same installation. CNC machining can create precise letter profiles, while lightweight skins can be fixed over internal frameworks to produce substantial forms without excessive mass.

Material choice also depends on the finish. A perfectly smooth painted surface may require a different substrate from a textured scenic finish or applied vinyl graphic. External installations may need moisture-resistant materials, sealed edges and coatings capable of tolerating short-term exposure to changing weather.

Durability must be considered across the entire project lifecycle. The logo must survive fabrication, finishing, loading, transportation, installation, use and dismantling. Damage frequently occurs not while the structure is standing, but while it is being moved through loading bays, lifted from vehicles or assembled under time pressure.

A good material specification accounts for all of these stages.

Transport Shapes the Design

One of the most important questions in large-logo fabrication is not how big the finished structure will be, but how small it needs to become for transport.

A logo may need to pass through workshop doors, fit within a specific vehicle, travel in standard freight cases or move through restricted venue access routes. Weight limits, loading equipment and local handling resources also affect the design.

Large letters are therefore often fabricated in sections. The joints must be strong, repeatable and visually discreet. Alignment pins, bolted plates, internal sleeves and concealed connection brackets can allow components to be assembled accurately on site.

The order of assembly is equally important. Fixings must remain accessible, and each section must be manageable using the lifting equipment available. There is little value in designing a lightweight structure if one awkward component still requires an impractical handling method.

Protective packaging is another part of the fabrication strategy. Curved faces, projecting details and high-gloss finishes are vulnerable during transport. Purpose-made stillages, padded cases and shaped supports may be required to prevent movement and surface damage.

Transport planning is therefore not a separate logistics exercise. It is part of the design process from the beginning.

Installation Methods Must Suit The Site

Installation conditions can vary significantly between festivals, product launches, corporate events and public activations.

A logo may be installed using manual handling, pallet trucks, telehandlers, mobile cranes or specialist lifting frames. The method depends on the size of the components, the site conditions and the available installation window.

Ground conditions are particularly important outdoors. Soft ground, slopes and uneven surfaces can affect both the structure and the equipment used to position it. Adjustable feet, spreader plates or temporary foundations may be needed to create a stable installation.

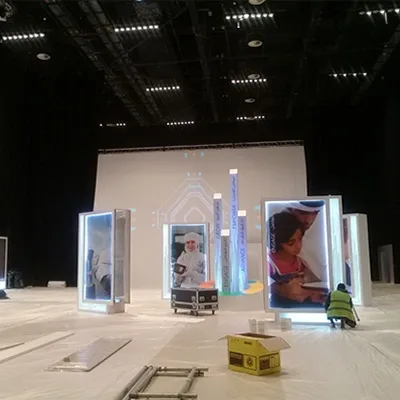

Indoor venues present different constraints. Access doors, ceiling heights, floor loading limits and restricted rigging points may dictate how the logo is divided and assembled. In busy exhibition halls or event spaces, installation may also need to take place alongside multiple other contractors.

Clear labelling, accurate setting-out information and well-tested connection details help make the process predictable. Wherever practical, assemblies should be trial-fitted in the workshop before they reach site. This allows the fabrication team to identify alignment issues, confirm the build sequence and verify that every component is present.

The Engineering Should Disappear

Large logos often need to withstand conditions that were never visible in the original render. Wind loading, uneven ground, public interaction and transportation stresses all influence their performance.

None of these considerations should distract from the finished branding.

The joints should remain discreet. The bases should feel intentional. Reinforcement should be concealed, and the structure should retain the clean lines, proportions and finish shown in the creative concept.

Achieving that simplicity requires collaboration between designers, scenic carpenters, metal fabricators, CNC operators, scenic painters, graphics teams, engineers and site installers.

The most successful logo installations are often the ones where visitors never notice the calculations, internal frameworks or carefully planned connection details.

They simply see the branding.
