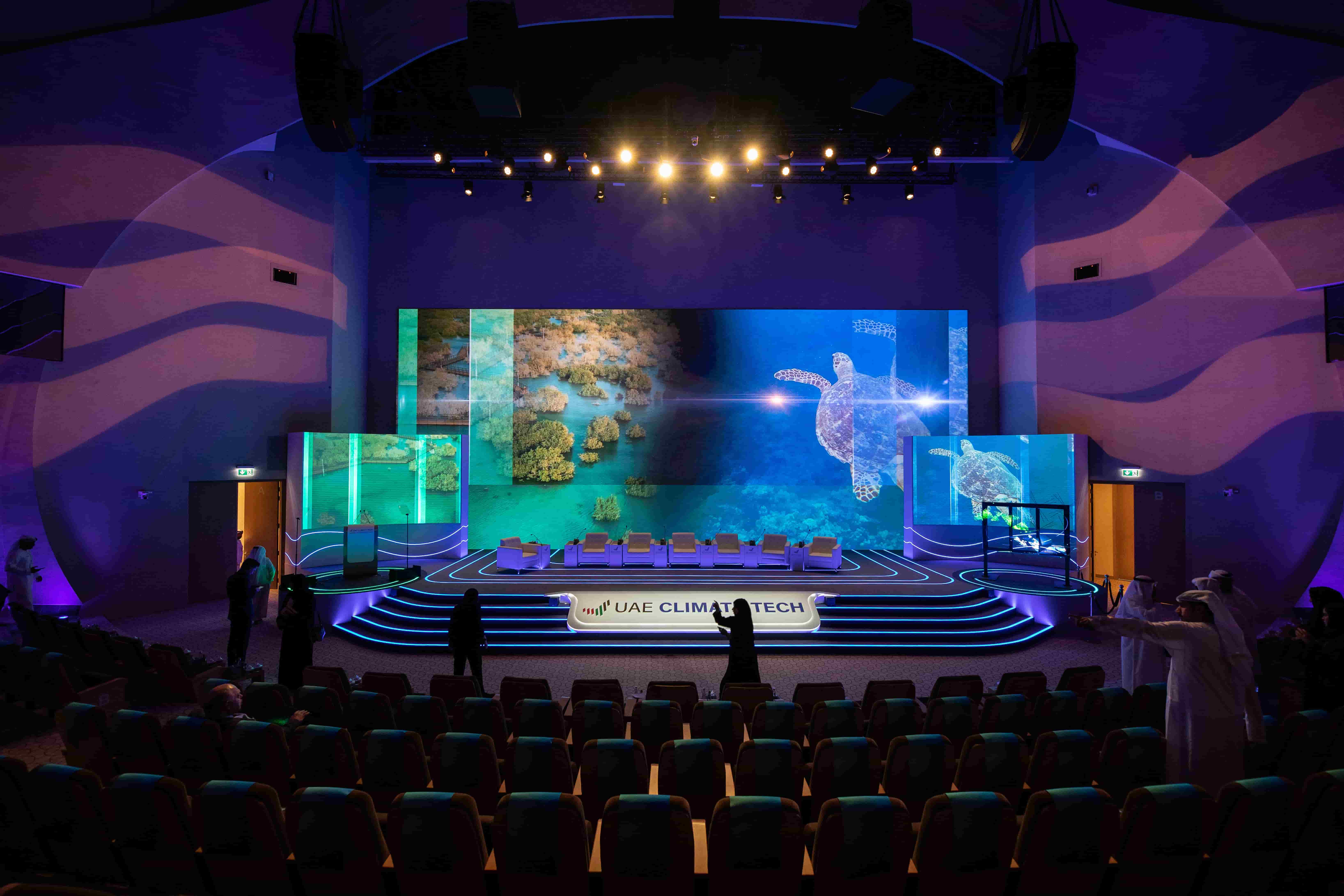

A coordinated scenic LED wall depends on the final screen specification matching the fabrication information.

Why Your LED Screen Doesn't Fit The Scenic Wall (Even Everyone Did Their Job)


The scenic wall has been fabricated. Installation day arrives. The LED supplier turns up. And the screen they deliver is not quite the same screen everyone designed around. Welcome to one of the more familiar conversations in scenic fabrication. The frustrating part is that nobody has necessarily done anything wrong.


Months earlier, the scenic team may have received cabinet dimensions, structural information and technical specifications for a particular LED product. Those dimensions were incorporated into coordinated drawings. The scenic opening was developed around them. Steelwork, timber construction and finished trims were manufactured accordingly.


Then reality happens. Stock availability changes. A different supplier is appointed. An alternative cabinet becomes available. The original product is allocated elsewhere. Or the technical team arrives on site with a perfectly capable LED system that happens to be slightly different from the one used during scenic development. Now the wall and the screen are both correct. They are simply correct to two different sets of information.

Image description

The scenic wall can be completely finished before the final LED product arrives.

A Few Millimetres Can Become A Very Large Problem


LED integration is one of those areas where apparently small dimensional changes can become surprisingly visible. A cabinet may only differ from the coordinated product by a few millimetres in width or height. Across one cabinet, that might appear insignificant. Across ten, fifteen or twenty cabinets, however, the difference accumulates.


A five-millimetre variation across twelve cabinets becomes 60 millimetres. That is no longer a tolerance. It is a gap, a clash or a scenic modification. Cabinet dimensions are also only part of the equation. Different LED systems can use different locking mechanisms, frame profiles, locating hardware and structural connections. The physical display area may be similar while the equipment surrounding it behaves very differently.


For scenic fabrication, the important dimensions are therefore not simply the advertised screen size. The actual cabinet geometry, installed tolerances and interface between the screen and scenic finish all need to be understood.

Image description

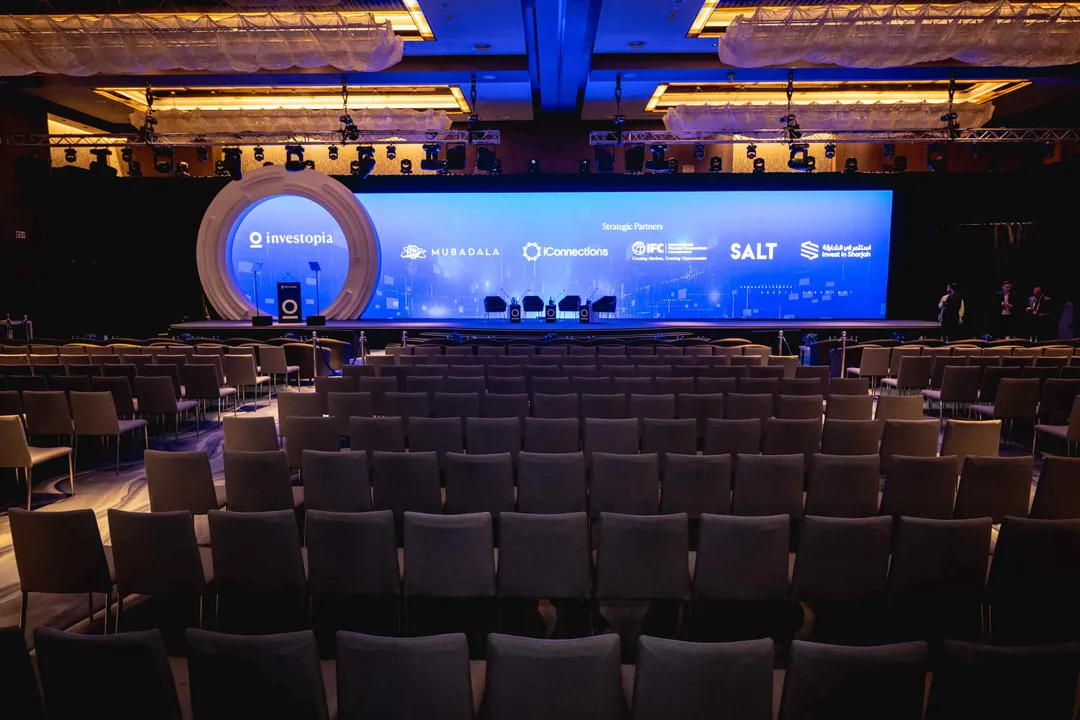

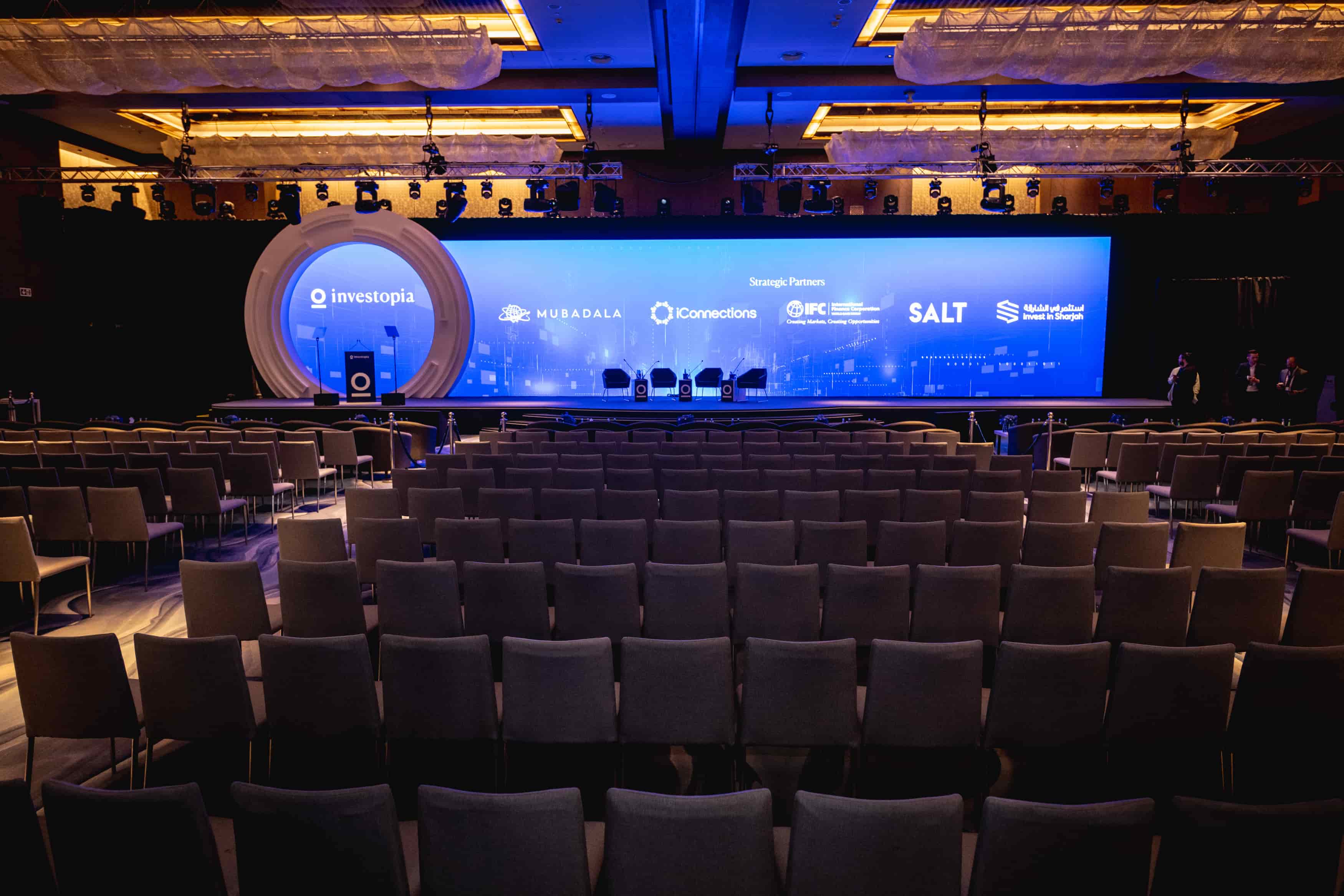

Installation day can reveal a mismatch when the delivered LED differs from the coordinated product.

The Scenic Opening Is More Than A Rectangle


On a drawing, an LED screen can look deceptively simple: a rectangle inside another rectangle. On site, that rectangle needs support, tolerance, ventilation, cabling and maintenance access.


A scenic bezel that is intended to finish tightly against the active LED surface may only have a limited amount of adjustment available. If the screen becomes slightly wider, the finished trim can clash with the cabinet. If it becomes slightly narrower, an unwanted gap may appear.


The same applies vertically. Floor levels, LED support structures, cabinet stacking tolerances and scenic framing all contribute to the final installed position.


This becomes particularly noticeable on conference stages, product launches and broadcast environments where LED edges frequently sit close to clean architectural scenic lines. A small discrepancy can become visually obvious precisely because everything around it has been fabricated to appear precise.

Image description

Fabrication is only as accurate as the technical information issued and approved during development.

Front Service Or Rear Service?


One of the first technical questions a scenic team needs answered is how the LED will be maintained. Some systems are front-serviceable. Individual LED modules, power supplies or receiving cards can be accessed from the front of the display.


Others require rear access. That difference can completely change the scenic construction around the screen. A rear-service LED wall may require sufficient space behind the cabinets for technicians to work, remove components and reach power or data connections. The scenic wall may therefore need accessible rear zones, removable panels, service doors or increased structural depth.


A front-service system can reduce some of those requirements, but the surrounding scenic bezel still needs to allow the appropriate service tools and LED modules to be removed without damaging finished surfaces. Changing between these two approaches after fabrication has started is therefore considerably more significant than simply changing the brand of LED cabinet.

Image description

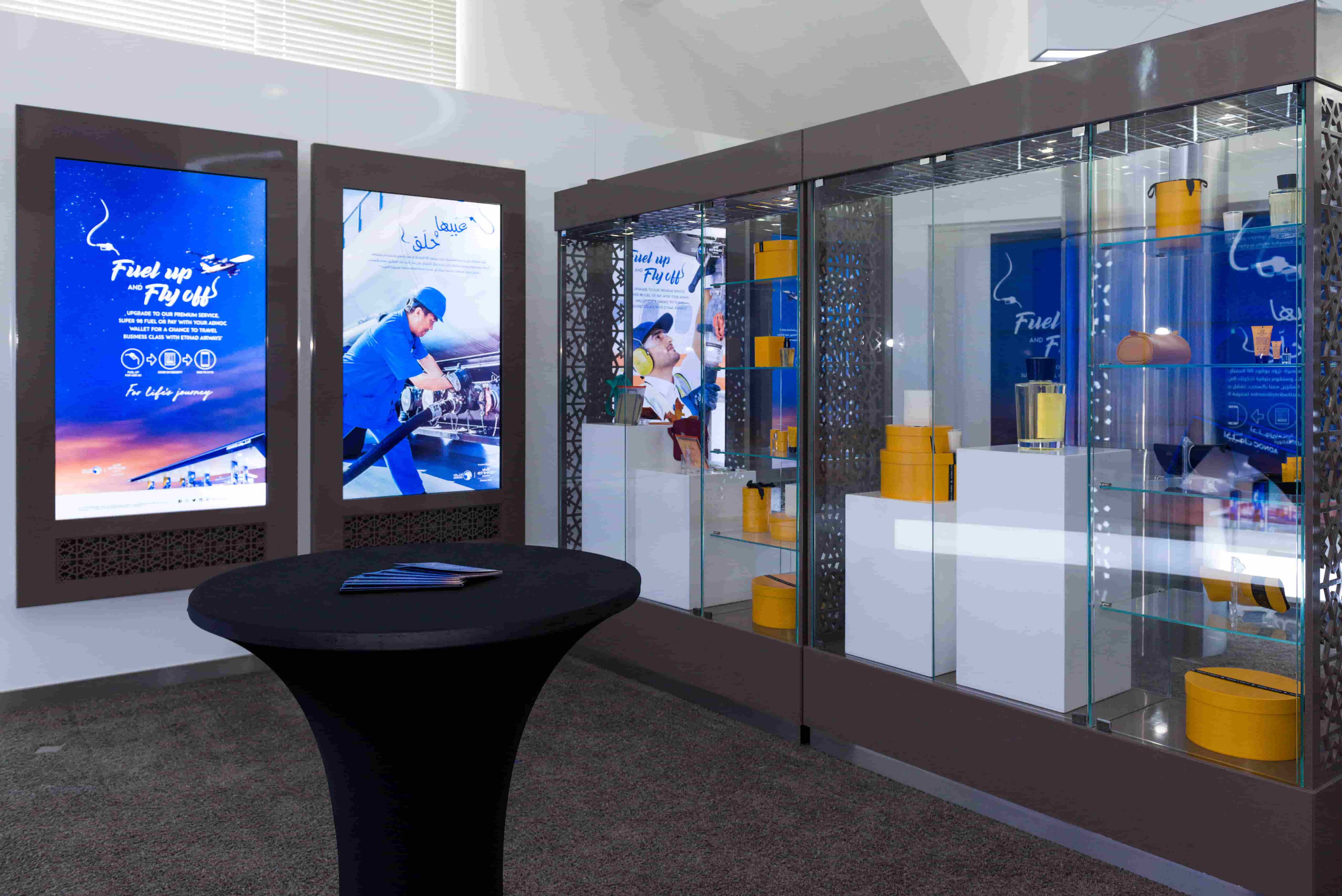

Alternative LED products can introduce dimensional differences even when nominal screen size remains unchanged.

LED Screens Need To Breathe


Ventilation is another detail that can easily disappear between the technical drawing and the finished scenic elevation. LED equipment produces heat. Power supplies, processing equipment and closely packed cabinets can all require airflow.


A scenic enclosure that wraps tightly around the screen may look clean, but it cannot obstruct ventilation required by the equipment. Depending on the system, this may influence the clearance above, below or behind the display.


Ventilation can be incorporated discreetly through shadow gaps, perforated panels, open rear cavities or concealed air paths within the scenic construction. The important point is that these requirements need to be coordinated before the wall is built.


Changing the LED product may also change those requirements. One cabinet may tolerate an arrangement that another does not.

Image description

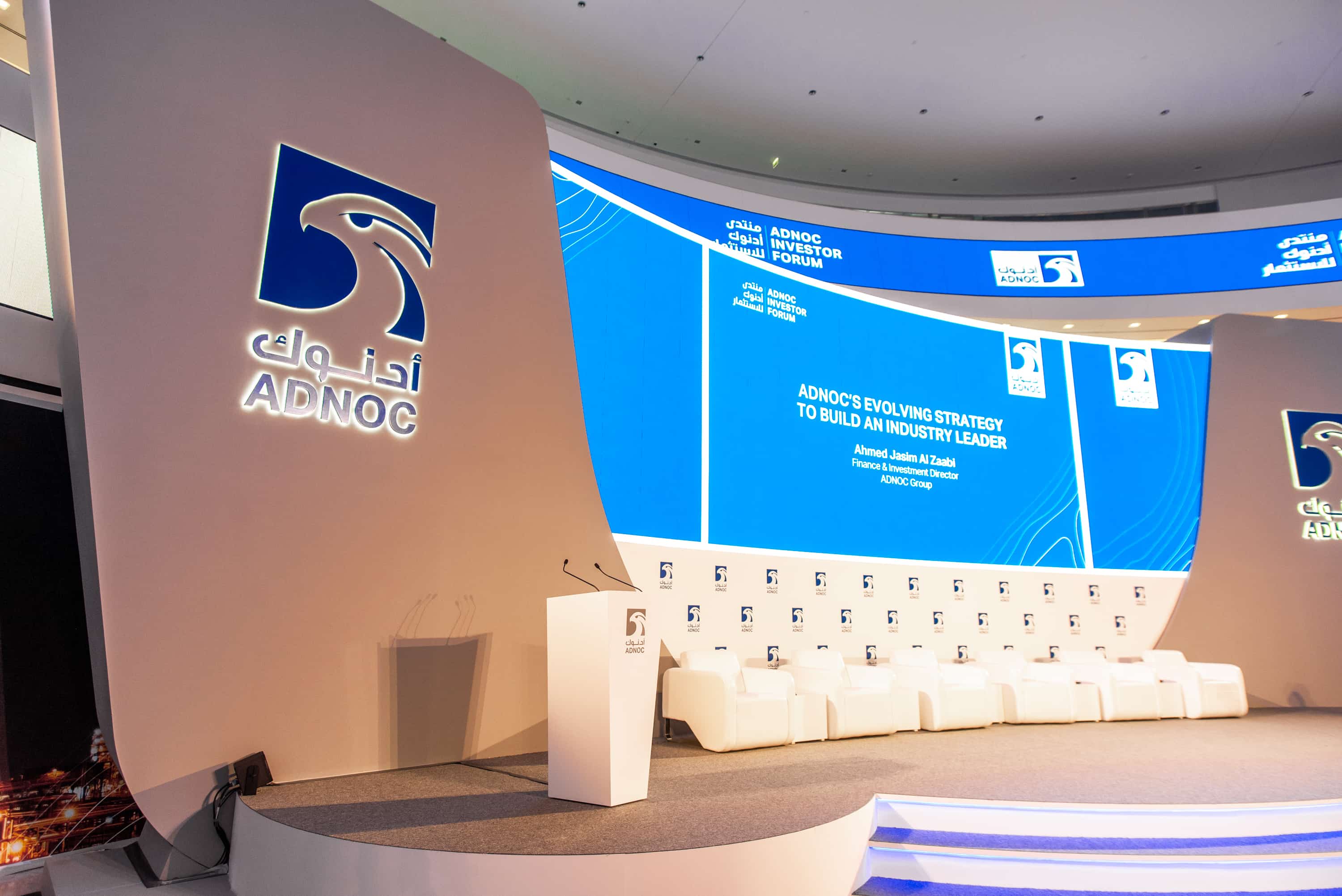

Small cabinet tolerances can accumulate across a large LED wall and affect the final scenic opening.

Then There Are The Cables


A screen is not only the visible LED surface. Behind it are power feeds, data lines, processors, distribution hardware and connections between cabinets. Those cables need somewhere to go.


Scenic fabrication frequently incorporates concealed cable routes, access voids, floor penetrations and removable panels so that the technical installation can remain tidy while still being maintainable.


Connector positions matter as well. If one LED product has power and data connections in a different location from another, an existing cable opening or support rail may suddenly sit exactly where the technician needs access.


The solution may be relatively straightforward if discovered during technical development. It can become considerably less elegant once painted panels, steelwork and finished trims are already installed.

Image description

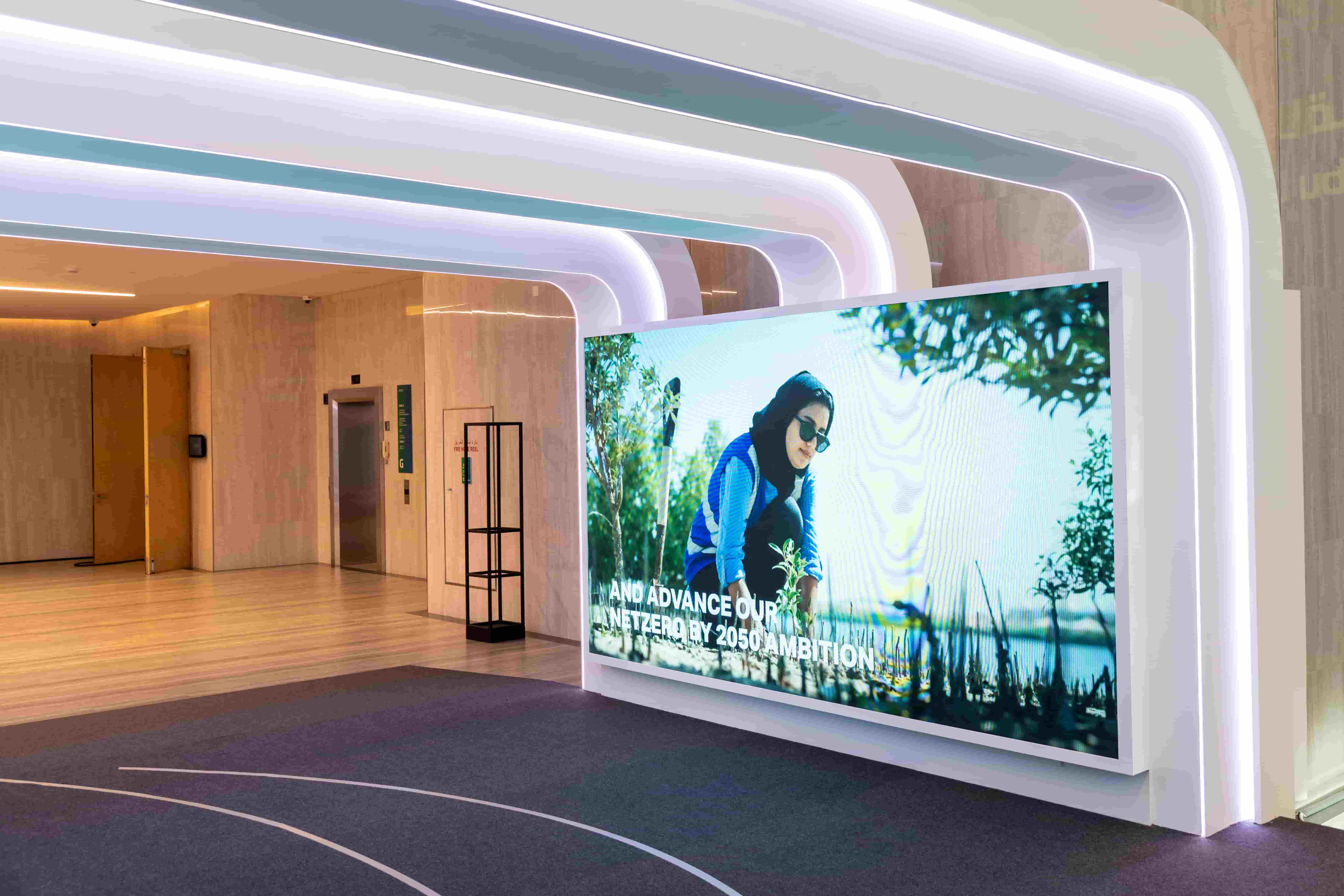

Service access requirements can change the depth, clearances and construction of the surrounding scenic wall.

The Screen Has Weight Too


Structural coordination is another reason why changing LED products cannot always be treated as a straightforward substitution. Different cabinet systems can have different weights, mounting methods and load distributions.


The scenic construction may incorporate a dedicated steel frame designed around the loads and fixing positions supplied during development. If the equipment changes, the structural interface may need to be reviewed as well.


This is particularly important where large LED surfaces are incorporated into stages, exhibition structures or permanent environments. A technically acceptable alternative screen does not automatically mean it can be attached to the existing scenic structure without review.


The mounting rails may differ. The cabinet locking points may move. The overall weight may change. The centre of gravity may change. Those differences need to be understood before anyone starts modifying finished fabrication on site.

Image description

Front-service and rear-service LED systems demand different scenic detailing and maintenance strategies.

Everyone Needs To Be Looking At The Same Drawing


Most LED integration problems are ultimately information problems. The scenic fabricator may be working from drawing revision five. The technical supplier may have changed equipment using revision seven. The structural engineer may still be reviewing the previous cabinet loading. None of those teams necessarily made a mistake. They simply stopped working from one coordinated source of information.


This is why shared drawing packages are so important. The scenic GA, LED layout, structural support details, equipment schedule and relevant technical specifications should all reference the same approved product and revision.


At Evolution Scenic, our fabrication teams regularly coordinate directly with the engineers, technicians and project teams at Evolution Technical during development. Because those teams can review scenic fabrication and technical requirements together, cabinet dimensions, service arrangements, cable requirements and revisions can be resolved before manufacturing reaches the point where changes become expensive.


That coordination is particularly valuable when the installation combines technical equipment with tightly finished scenic architecture.

Image description

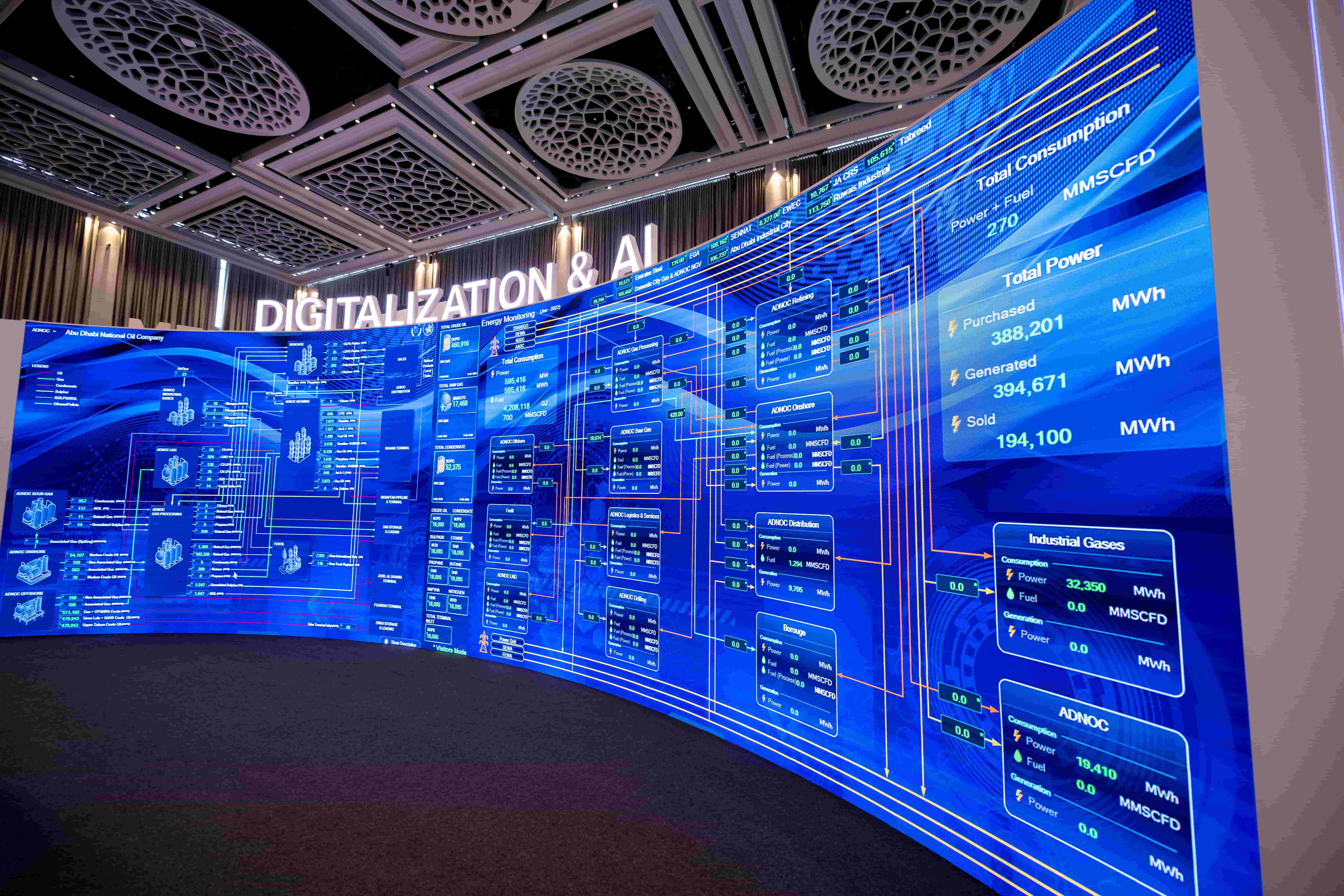

LED ventilation needs can influence scenic panel spacing, enclosure depth and hidden air routes.

What Happens When Something Changes?


Equipment changes are normal. The problem is not that changes happen. The problem is when the change does not travel through the complete coordination chain. If the LED product changes, somebody needs to determine what else that change affects.


  • Does the scenic opening change?
  • Does the support steelwork change?
  • Do the fixing points change?
  • Does the rear access requirement change?
  • Does the screen require different ventilation?
  • Do cable penetrations need moving?
  • Does the weight need structural review?


These questions form a basic change-management process. The revised equipment specification should be circulated, affected drawings updated and the consequences reviewed before fabrication continues wherever possible.


That may sound procedural, but it is considerably easier than standing beside a completed scenic wall with an angle grinder and explaining why a supposedly minor technical substitution now requires physical modification.

Image description

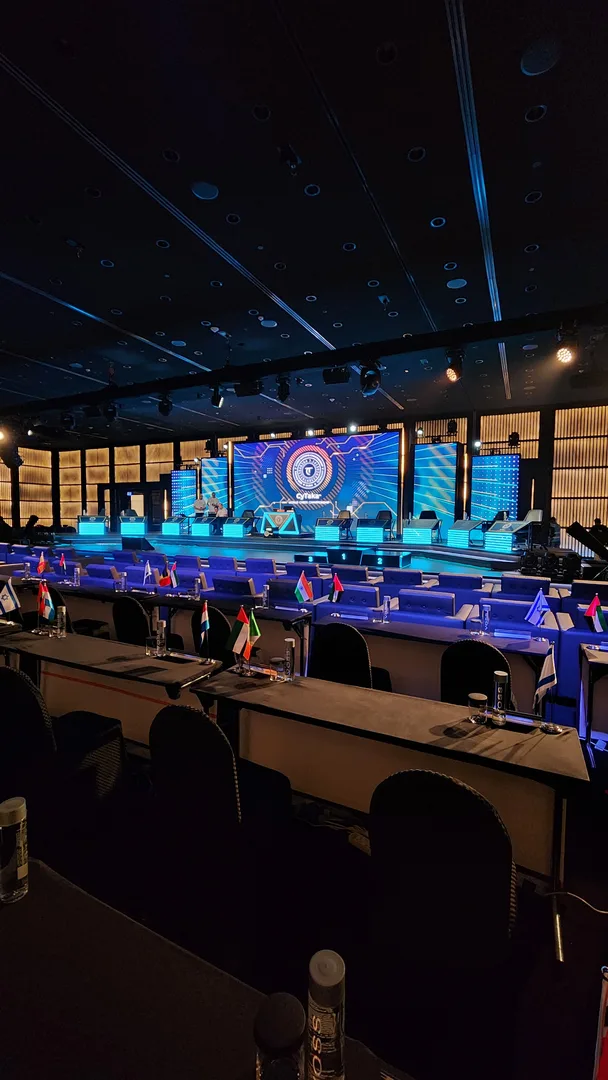

Cable routing must be coordinated before fabrication so connectors and looms remain accessible and protected.

Mock It Up When The Interface Matters


For particularly tight integrations, a small physical mock-up can be extremely useful. A sample LED cabinet or representative frame can be checked against the scenic bezel, support detail and proposed access arrangement before the complete wall is manufactured. This allows teams to verify dimensions that are difficult to understand purely from drawings.


  • How close can the scenic trim actually sit to the LED?
  • Can a front-service module still be removed?
  • Is there sufficient room for the cabinet locking mechanism?
  • Can the power connector be reached?
  • Does the proposed shadow gap work when the real equipment is installed?


Resolving these questions in the workshop is generally preferable to discovering them during a restricted installation window.

Image description

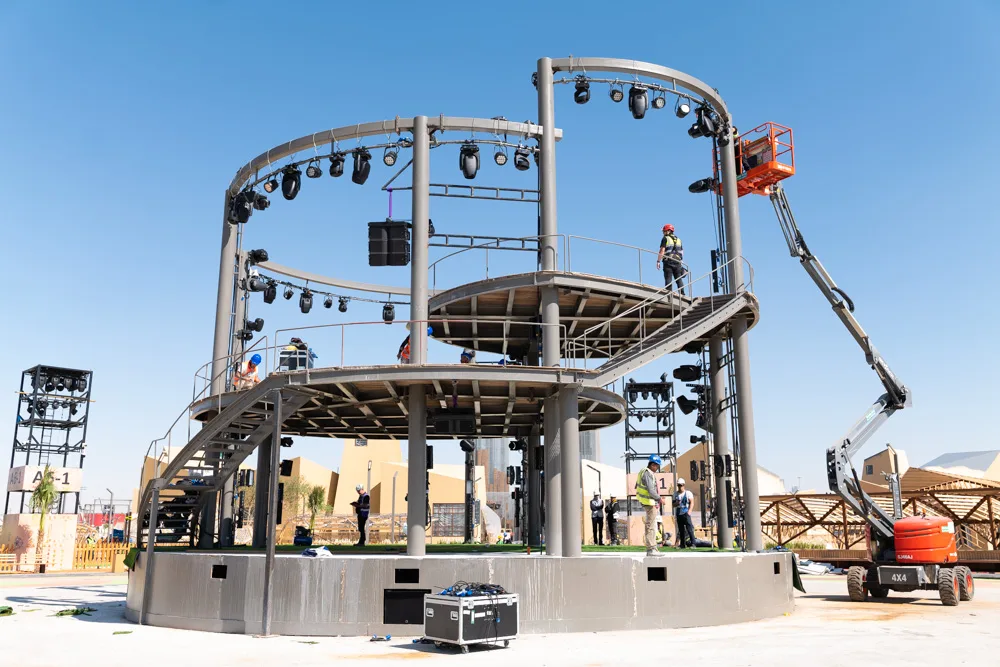

Changing LED products can alter structural loads, mounting points and support-frame requirements.

The Same Problem Appears In Very Different Environments


Conference stages frequently use large LED surfaces surrounded by precise scenic framing. Here, dimensional discrepancies become particularly visible because screens often form the centre of the stage architecture. Product launches can create even tighter relationships between LED and scenic finishes. Screens may disappear into architectural portals, curved scenic surfaces or sculptural structures where adjustment space is intentionally minimal.


Exhibition stands often combine multiple digital displays with timber construction, graphics, shelving and product presentation. A screen specification change can therefore affect several surrounding fabricated components rather than one isolated opening. Permanent installations introduce another consideration: maintenance. The LED may need servicing or replacement several years later. Scenic construction should allow that work to happen without dismantling half of the environment.


Broadcast environments can be more demanding still because camera framing exposes inconsistencies that may be less noticeable to the eye. Screen edges, scenic lines and surrounding finishes frequently need extremely accurate coordination. The physical environment changes. The underlying lesson does not.

Image description

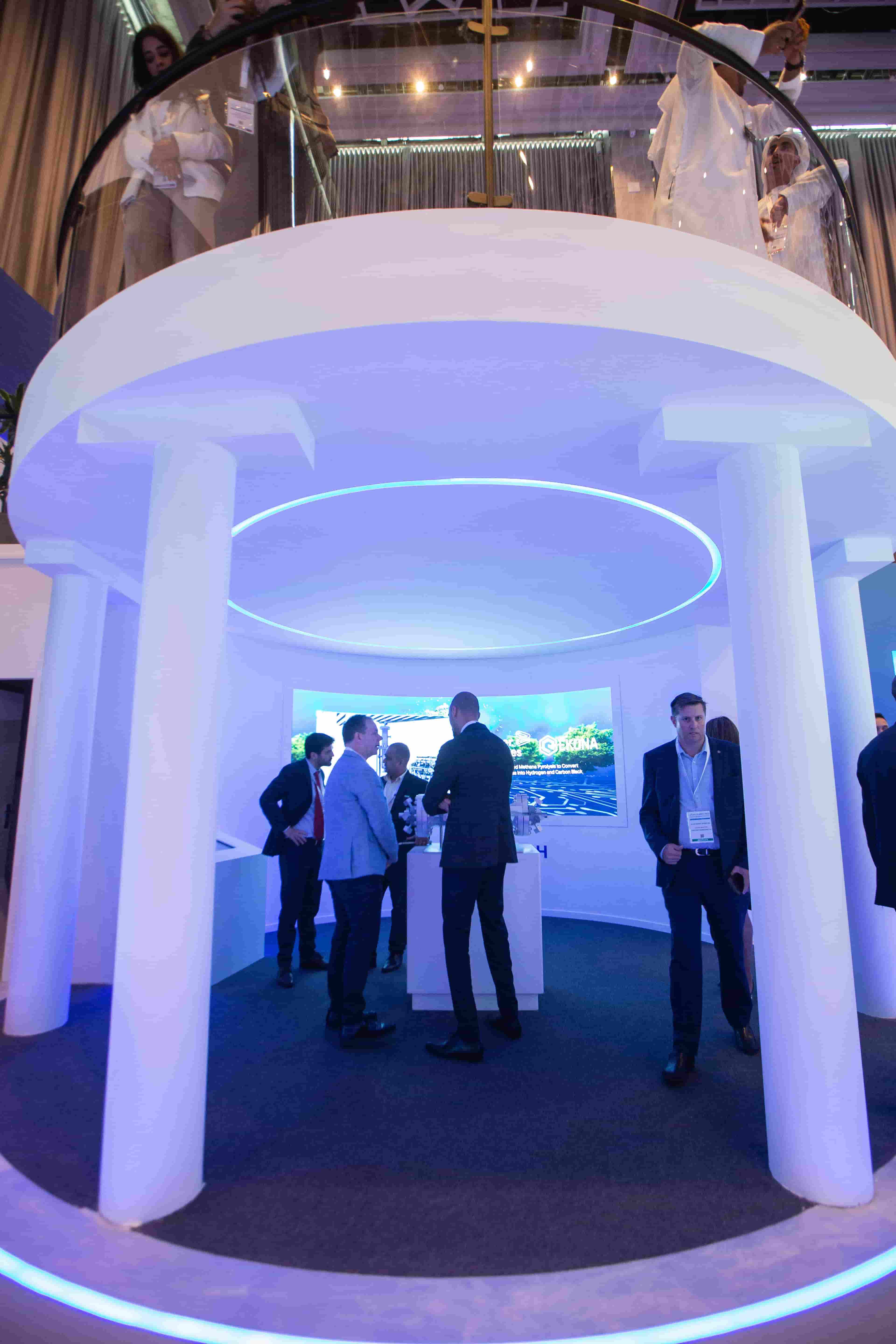

Shared drawing packages keep fabrication, engineering and technical teams aligned to the same specification.

Installation Day Is The Worst Time To Discover A Revision


Late changes can usually be solved. Scenic fabrication is inherently practical, and experienced site teams are accustomed to adapting when conditions change. A bezel can sometimes be adjusted. A trim can be remade. Steelwork can occasionally be modified. A panel can be recut.


But every site modification introduces additional time, labour and risk to finishes that were already completed correctly in the workshop. Changes made under installation pressure also tend to have fewer options available. A solution that could have been elegantly incorporated into workshop fabrication may need to become a compromise when the venue is open, other contractors are working around the area and the stage must be completed that night.


That is why the objective is not to eliminate every project change. It is to discover the important ones early enough that they can still be engineered properly.

Image description

Formal change management helps ensure revised LED information reaches fabrication before manufacturing continues.

The Problem Usually Is Not The Wall Or The Screen


External LED suppliers can deliver excellent systems. Scenic fabricators can manufacture extremely accurate structures. Neither fact guarantees that the two will fit together. Successful integration depends on the interface between them. The scenic structure can only be fabricated around the technical information available at the time. If that information changes, the effect on the surrounding construction needs to be reviewed.


The issue is therefore rarely that one supplier performed badly. More often, different teams were simply working from different versions of the truth. The most successful LED integrations are the result of engineers, scenic fabricators, structural teams and technical specialists sharing the same final information before manufacturing begins.


When that happens, cabinets align, access remains usable, cables reach where they need to go and finished scenic trims sit exactly where everyone expected them to. Installation day becomes considerably less exciting. Which, in scenic fabrication, is often a very good sign.
