Modular scenic components planned around restricted access before controlled movement into the installation area.

Solving Access And Venue Constraints

Many scenic structures are significantly easier to fabricate than they are to install. Within a workshop, teams can work with clear floor space, lifting equipment, unrestricted access and controlled working conditions. Once the same structure reaches site, however, every component may need to pass through loading docks, service corridors, lifts, doorways and operational areas before it reaches its final position. For scenic fabrication teams, the route between the delivery vehicle and the installation location can therefore become as important as the structure itself.

Access limitations frequently become one of the most influential factors within scenic delivery. Loading dock dimensions, service lift capacities, narrow corridors, restricted vehicle access, existing finishes and operational limitations can all affect how a structure is engineered and constructed. Even relatively simple scenic walls or feature structures can become difficult to install when individual components are too large to turn through a corridor, too heavy for a service lift or impossible to unload close to the installation area.

The challenge should rarely be discovered on installation day. Successful projects begin by understanding venue constraints during technical development, allowing access information to influence structural design, fabrication methodology, transport planning and installation sequencing before production begins.

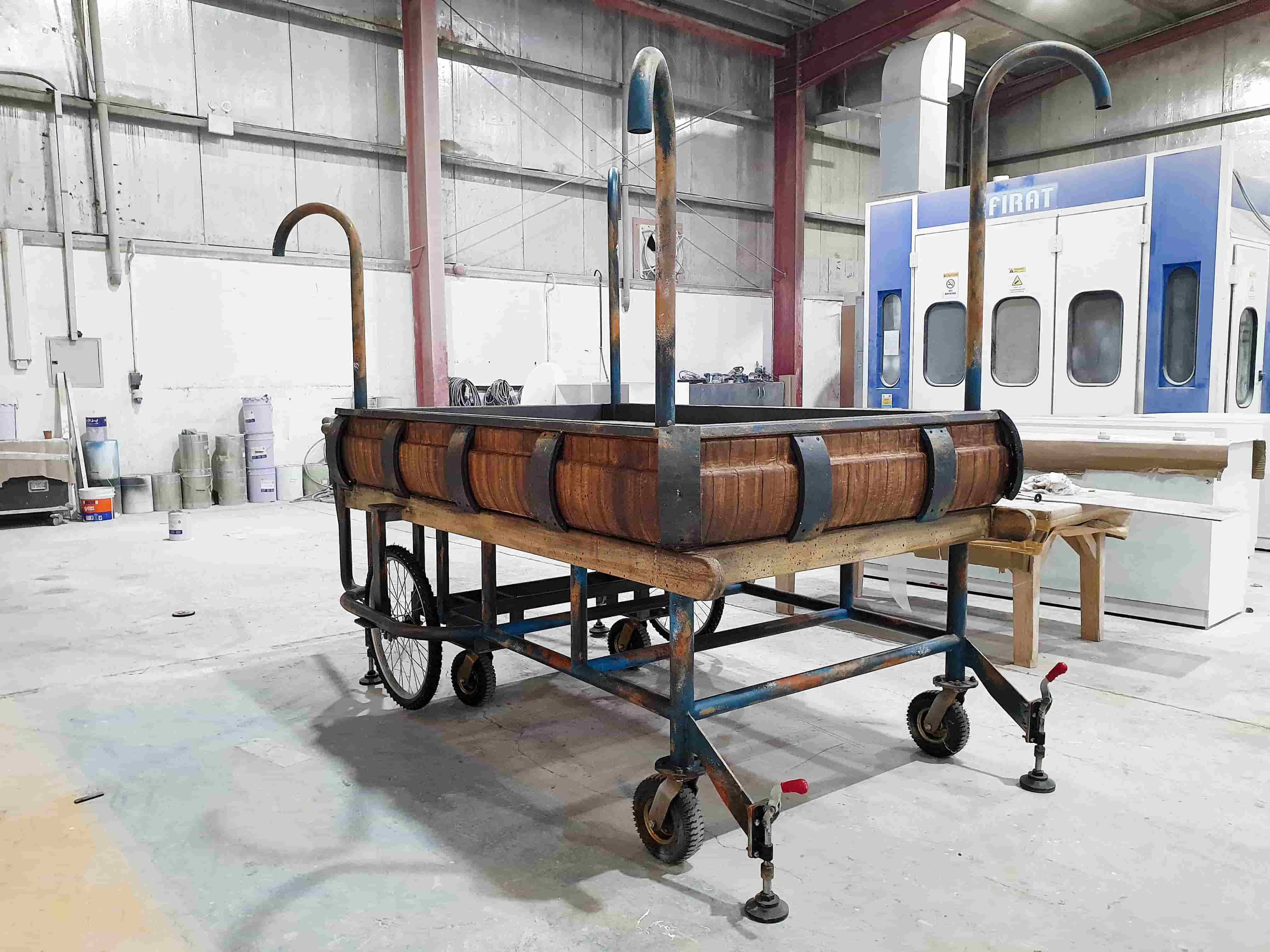

A scenic build engineered in modules so workshop fabrication can translate efficiently into site installation.

Access Planning Starts Before Fabrication

A detailed access survey is one of the most useful pieces of information available during scenic technical development. The objective is not simply to record the size of a doorway. The complete installation route needs to be considered, including loading locations, ramps, floor levels, lift capacities, corridor widths, turning spaces, ceiling heights and any obstacles that could restrict movement. Where accurate venue drawings are unavailable, physical surveys and dimensional checks become particularly important.

Service lifts are a common example. A structure may comfortably fit through the lift doors but still exceed the internal car dimensions once positioned horizontally or diagonally. Weight capacity must also be checked, particularly where steel-framed scenic modules, large joinery elements or equipment-integrated structures are involved. Engineers may consequently determine maximum module dimensions directly from the usable dimensions and capacity of the lift rather than from the overall scenic design.

Restricted corridors introduce another layer of complexity. Long scenic sections may physically fit through a doorway yet be impossible to rotate around a corner. Temporary handrails, door closers, ceiling services and wall finishes can further reduce the available envelope. Effective planning therefore considers the entire movement geometry rather than relying only on individual opening dimensions.

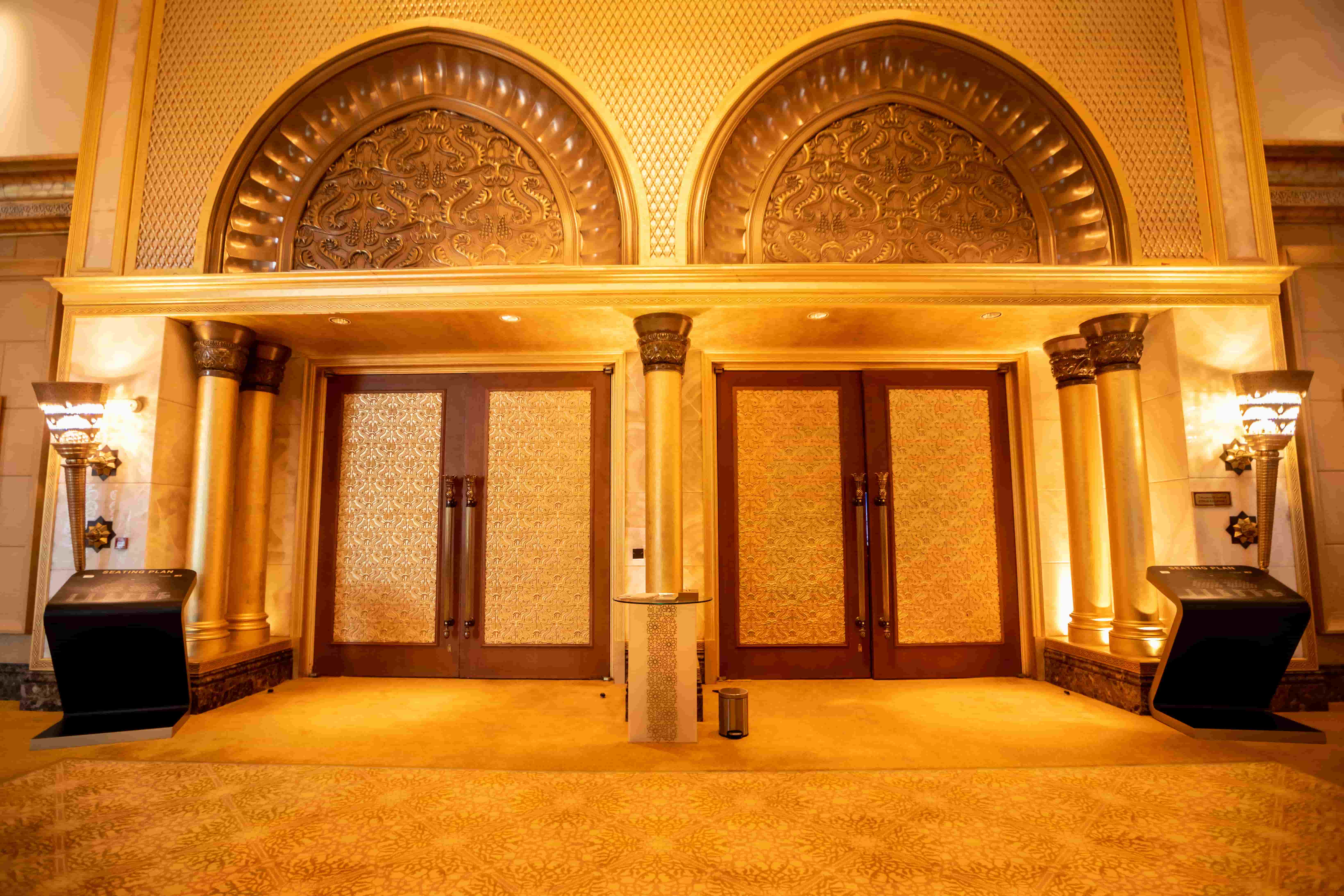

Restricted doors, corridors and service routes often define the maximum practical scenic module size.

Modular Construction As An Access Strategy

Engineers and fabrication teams frequently adapt scenic structures specifically to suit access requirements. Large assemblies can be divided into smaller modules that remain efficient to fabricate while being practical to transport and handle on site. Modularisation is therefore not simply a logistics exercise. It directly influences the structural frame, panel sizes, finish strategy and final assembly methodology.

Connection systems become especially important when structures are divided because of restricted access. Bolted steel connections, locating pins, concealed mechanical fixings and removable timber sections can allow large scenic elements to be assembled rapidly once they reach the installation area. Connections must provide sufficient tolerance for site assembly while maintaining alignment and structural integrity when the modules are brought together.

Visible finishes also need to be considered. A scenic wall may have to arrive as four separate sections because of a service lift, but it should still appear as one continuous surface when completed. Joint positions can therefore be coordinated with architectural features, graphic breaks, shadow gaps or removable finishing trims. This allows access-driven modularisation to remain invisible within the finished environment.

Access planning begins during technical development, before fabrication dimensions and connection details are finalised.

Different Venues Create Different Constraints

Exhibition halls may initially appear straightforward because of their large internal volumes, but installation access can still be highly controlled. Loading docks operate to strict schedules, freight doors may only be available during designated periods and several contractors may share the same logistics routes. Scenic modules must therefore be sized not only for the final stand or environment but also for efficient unloading, movement and temporary storage within the hall.

Hotels, shopping centres and other live commercial environments typically involve a different set of restrictions. Scenic components may need to pass through back-of-house corridors or goods lifts while avoiding guest and public circulation. Working hours can be restricted to overnight periods, while noise, dust and material handling may be tightly controlled. These conditions often favour smaller prefabricated modules that can be assembled quickly using low-impact installation methods.

Museums, cultural venues and heritage sites require particularly careful planning because access constraints may be combined with restrictions around the existing building fabric. Historic floors, walls, finishes or architectural details may not be suitable for direct fixing or heavy equipment movement. Scenic structures may therefore need to be freestanding, lightweight or designed with reversible fixing systems. Protective floor coverings, controlled load paths and carefully planned handling procedures become part of the build methodology.

Urban venues create further challenges before materials even reach the building. Limited loading bays, narrow streets, parking restrictions and controlled delivery times can determine the size and type of vehicle that can access the location. In dense city environments, the practical unloading period may be measured in minutes rather than hours. Packaging, vehicle loading order and module identification therefore need to support rapid unloading and immediate movement towards the installation area

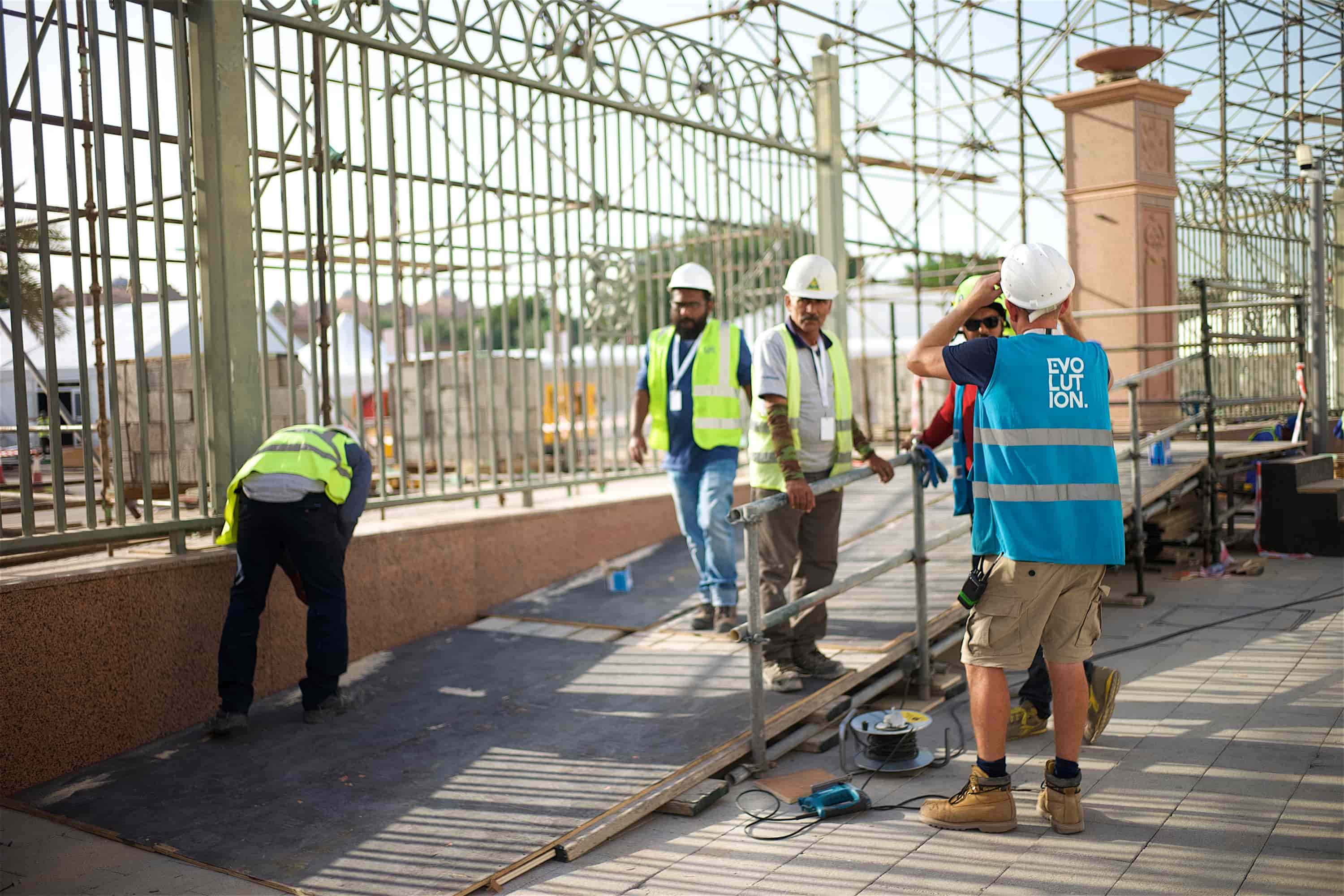

Accurate surveys convert venue constraints into measurable design inputs for scenic engineering and buildability.

Crane Access And Internal Handling

Venue constraints can also influence lifting operations. Large scenic structures are sometimes designed with the expectation that they can be craned directly into position, but crane access is not always available. Nearby buildings, restricted road closures, overhead structures, underground services or limited working radii can make external lifting impractical.

Where crane operations are possible, the module design still needs to reflect the lifting methodology. Engineered lifting points, suitable frame reinforcement and balanced lifting geometry may need to be incorporated during fabrication. The structure must also be designed around the maximum size and weight that can be safely handled within the available crane radius.

When cranes cannot reach the installation area, internal handling becomes the primary consideration. Scenic modules may need to move using pallet trucks, machinery skates, trolleys or manual handling teams. Steel structures can incorporate lifting pockets or temporary handling points, while timber modules may be engineered to remain light enough for controlled movement. These decisions are considerably easier to make during fabrication than after a structure arrives on site.

Installation sequencing is equally important. In constrained environments, completing one section too early can physically block access required for later elements. Large scenic walls, overhead features, integrated technical equipment and finishing panels therefore need to arrive and be assembled in a carefully planned sequence. Component numbering, delivery order and clearly coordinated installation drawings help ensure that the route remains usable throughout the build.

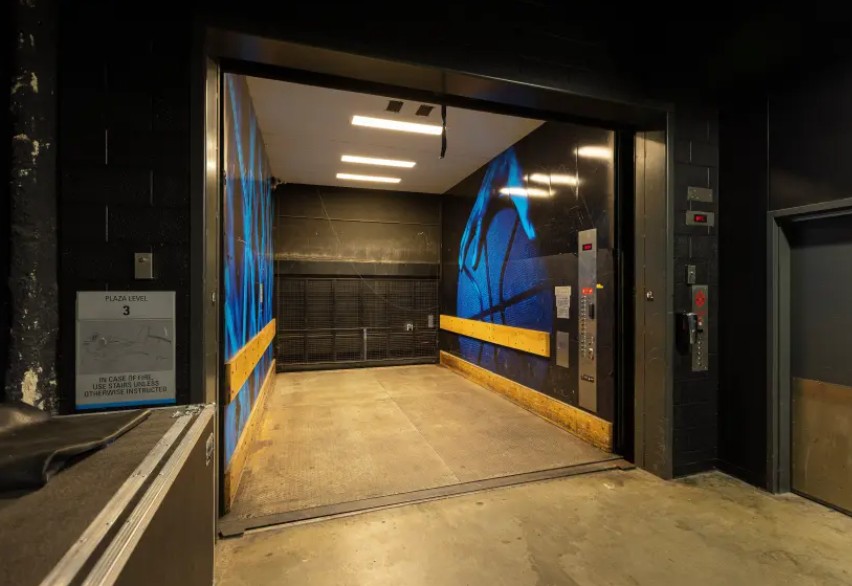

Service lift dimensions can determine module width, height, weight and the orientation used during movement.

Installing Within Live Environments

Operational venues introduce constraints that extend beyond physical dimensions. Hotels, museums, retail environments and cultural venues may remain partially open while scenic installation takes place. Teams must therefore control noise, dust, tools, material storage and movement while maintaining safe separation from other activities.

This can influence the fabrication strategy considerably. Work that would normally be completed on site may instead be carried out in the workshop so that finished modules arrive ready for rapid assembly. Integrated lighting channels, graphics, scenic finishes and internal support frames can all be pre-installed wherever practical. Reducing site fabrication shortens the installation window and limits disruption within the venue.

Protection and logistics also become part of the scenic methodology. Finished modules may require padded transport frames, edge protection or removable protective films. Existing floors, doorframes, lifts and wall finishes may need temporary protection throughout the movement route. These measures protect both the scenic fabrication and the venue itself, particularly when installation takes place within completed premium interiors.

The strongest projects are those where access requirements are viewed as design inputs rather than installation problems. When loading routes, service lifts, heritage restrictions, crane limitations and operational conditions are understood early, scenic structures can be engineered around those realities from the outset. For Evolution Scenic, this means coordinating fabrication, modular construction, handling methodology, logistics and installation sequencing as one connected process. When access constraints are resolved during technical development, even complex temporary environments can move through difficult venues efficiently and arrive in their final position exactly as intended.
