Why Exhibition Stands Always Take Longer To Build Than Clients Expect (And It’s Usually Not The Build)

Almost every exhibition project starts with the same reassuring sentence.

“It’s only a stand.”

A few walls. Some graphics. A reception counter. Perhaps a meeting room and a screen.

On a render, it can look remarkably straightforward. In a fabrication workshop, however, the visible stand is only part of the job.

The surprising part is that the actual cutting, welding, carpentry, CNC machining, painting and finishing is often not what takes the most time. The longer process is usually turning an attractive concept into a temporary environment that can be engineered, manufactured, transported, installed, operated and dismantled without creating problems for everyone involved.

The Render Is Usually the Beginning

One of the biggest misconceptions in exhibition fabrication is that manufacturing starts when the render is approved.

In reality, an approved render often marks the point where the fabrication team can begin asking the questions that the image was never intended to answer.

Concept visuals are excellent at communicating atmosphere, proportions, branding and creative intent. They are not always designed to explain wall build-ups, fixing points, cable routes, access panels, fire-performance requirements, structural connections or how a six-metre feature will physically pass through the loading dock.

That is completely normal.

A concept image has a different job. It sells the idea. Technical development then has to convert that idea into a set of buildable decisions.

This distinction has become even more noticeable with the increasing use of AI-generated imagery. It is now possible to produce extremely convincing exhibition concepts very quickly. They can be imaginative, visually polished and useful during early creative conversations.

What they cannot automatically provide is construction logic.

A wall may apparently float. A screen may be embedded into a surface with no visible structure behind it. A feature may have geometry that would be exceptionally difficult to manufacture.

Storage, power, servicing and access may simply not exist.

That does not make the visual wrong. It simply means the next stage of work has not happened yet.

A Beautiful Image Does Not Need A Store Room

One of the first things technical development tends to reveal is that exhibition stands require considerably more practical space than the render suggests.

A reception area may contain brochures, merchandise, catering equipment, spare stationery, staff belongings, bottled water and cleaning materials.

In the concept, these things apparently disappear when they are not being used.

Real exhibition teams are less magical.

Back-of-house space has to come from somewhere. Storage cupboards need usable door swings. Shelving needs sufficient depth. Refrigeration may require ventilation. Staff need somewhere to put supplies. Equipment needs to remain accessible throughout the show.

Introducing these functions can change wall thicknesses, room sizes and circulation.

The challenge is to integrate them without making the stand feel compromised. Good technical development hides operational requirements inside the architecture rather than allowing them to look like additions made after everything else was finished.

Sometimes a wall that appears 150mm deep in a render becomes 400mm deep because it contains storage, steelwork, cables and equipment.

Visually, very little may change.

Operationally, almost everything has improved.

Meeting Rooms Have To Work As Rooms

Meeting rooms create a similar problem.

On a plan, a table and six chairs may technically fit within a room.

That does not necessarily mean six people can comfortably use it.

People need enough clearance to pull chairs backwards, walk around the table, enter through the door and move through the space without asking everyone else to stand up.

Doors also need somewhere to swing. Screens need appropriate viewing distances. Power and data may be required around the table. Air movement needs to be considered, particularly in enclosed meeting spaces positioned inside a busy exhibition hall.

Acoustic expectations matter as well.

A lightweight scenic partition beside a crowded aisle behaves very differently from a conventional office wall. Where privacy is important, the wall build-up, door detailing, ceiling treatment and service penetrations all need to be considered.

Again, the objective is not to redesign the creative concept unnecessarily.

It is to make the room function like a room.

Technology Takes Up More Space Than The Screen

Technology integration creates another layer of hidden development.

A display screen is not simply a rectangle on a wall.

It has weight. It needs brackets. It needs power and signal infrastructure. Cables require routes and sensible bend radii. Equipment may generate heat. Screens, processors and power supplies eventually require maintenance.

LED installations may require front or rear servicing, and that decision can completely change the construction behind the display.

Interactive screens introduce further considerations. Sensors, media players, speakers, networking equipment and control systems may all need to be concealed somewhere within the scenic construction.

The cleaner the finished stand looks, the more coordination may be happening behind the surfaces.

A perfectly flush screen installation can therefore require considerably more technical development than simply mounting a display to a wall.

Structural Requirements Are Rarely Visible In The Concept

Large exhibition features often appear deliberately lightweight.

Tall portals, suspended structures, projecting canopies and oversized branded walls may have very little visible structure.

Physics remains less interested in the visual intention.

Loads still need to travel safely through the structure and into suitable bases, floor systems, overhead rigging or approved structural connections.

This is where scenic engineering and metal fabrication frequently become part of what initially appeared to be a straightforward carpentry package.

Steel frames may need to be introduced inside timber-clad walls. Connection plates may be developed. Bases may become larger. Bracing may be concealed inside cavities. Ballast requirements may influence the lower sections of the structure.

The method also has to account for assembly.

A structure that is perfectly stable once complete may still need temporary support while individual modules are being connected during installation.

None of this engineering should alter the creative intention unnecessarily.

The aim is for the structure to behave properly while keeping the engineering visually quiet.

Value Engineering Is More Than Making Something Cheaper

Value engineering also tends to happen during this period, and the term is frequently misunderstood.

Good value engineering is not simply an exercise in removing cost.

It is a review of how to achieve the required appearance, durability and performance through a more efficient construction method.

A complicated curved wall might be rationalised into repeatable CNC-cut ribs. A solid-looking architectural feature may become a lightweight framed assembly. An expensive surface material might be recreated through laminates, scenic painting, printed finishes or another manufactured system better suited to temporary use.

A seemingly minor change in construction can dramatically reduce workshop hours, weight, transport volume or installation time while producing almost no visible difference in the finished environment.

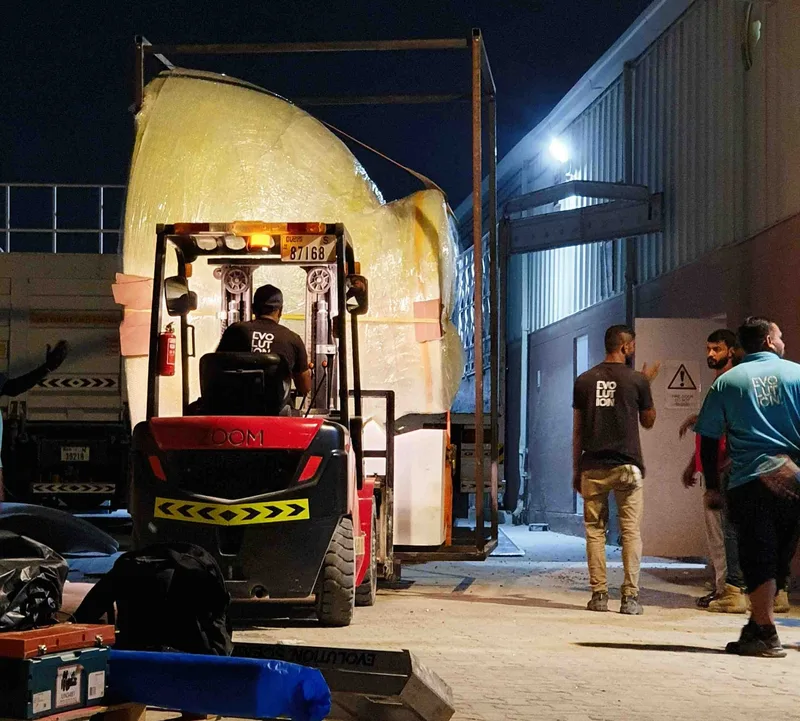

Transport itself can influence these decisions.

A scenic element that can theoretically be fabricated as one enormous piece may be significantly more practical as three accurately indexed modules that fit onto standard vehicles and reconnect cleanly on site.

That is value engineering through buildability rather than simple cost cutting.

The Exhibition Hall Has Its Own Opinion

Then there is the exhibition hall itself.

Every venue introduces rules that have absolutely nothing to do with how attractive the render looks.

There may be maximum construction heights, floor-loading limits, approved fixing methods, fire-certification requirements, rigging restrictions, hot-work controls and limitations on when specific installation activities can take place.

Loading docks have dimensions.

Service lifts have dimensions.

Doors have dimensions.

Vehicle movements may require booked delivery slots. Forklifts and access equipment may only operate in particular areas. Packaging and empty transport cases need somewhere to go once the stand is inside.

In some venues, the largest scenic component that can be comfortably manufactured in the workshop simply cannot physically reach the stand location at its finished size.

That discovery is considerably more useful during technical drawing than at two o’clock in the morning on installation day.

Venue restrictions therefore become fabrication inputs.

They determine module sizes, connection systems, packing methods and sometimes the entire installation sequence.

Buildability Reviews Prevent Expensive Surprises

A buildability review brings all of these considerations together.

The concept, engineering, fabrication method, transport strategy and venue conditions are considered as one system.

Experienced fabrication teams tend to look closely at interfaces because interfaces are where apparently simple projects become complicated.

Can the wall be assembled in the available sequence?

Can the ceiling feature be lifted safely?

Can the graphics be applied in the workshop, or will modular joints become visible?

Can the screen be removed if it fails?

Can someone physically reach the bolts required to connect the steel frame?

Will the finished counter fit through the service lift?

Can the structure be dismantled without destroying it?

These questions can seem excessively detailed while the project still exists on screen.

On site, they become extremely practical.

A few hours spent resolving a connection detail in technical development can prevent a much longer discussion involving a drill, a grinder and several people standing around a half-finished wall at midnight.

Installation Planning Starts Before The Truck Leaves

Installation methodology should therefore develop alongside fabrication.

Components need to arrive on site in a useful order, not simply in the order they happened to be completed in the workshop.

Primary steelwork may need to arrive before wall panels.

Services may need to be installed before cladding closes access.

AV equipment might need to enter a structure before decorative panels make the opening smaller.

Graphics and delicate scenic finishes may need to remain protected until heavy installation work is complete.

A stand containing twenty obvious visual elements can easily contain many more concealed components, brackets, fixings, access pieces and numbered modules.

Packing and labelling therefore become part of the build methodology.

A beautifully fabricated component is not particularly helpful if it is buried underneath six tonnes of other scenery at the back of the wrong truck.

Good logistics should make the installation sequence feel almost obvious.

The right item arrives when it is needed, in a condition that allows it to be installed immediately.

Sometimes The Concept Has To Evolve

There are projects where technical development results in very little visible change.

There are others where the original concept evolves substantially before fabrication begins.

A feature wall may become deeper to accommodate structure and technology.

A store room may appear behind what was originally a decorative surface.

A meeting room may grow slightly so the furniture actually works.

A suspended element may be divided into lighter modules.

A sculptural feature may be rebuilt around a concealed steel skeleton so it can be transported and installed safely.

From the outside, these can look like design changes.

From a fabrication perspective, they are often the decisions that protect the design by making it possible.

The best development process keeps the important visual characteristics while changing whatever is necessary behind them.

Visitors should still recognise the original concept.

They simply receive a version that also works.

Why The Workshop Is Waiting

This explains the period that can sometimes feel frustrating between visual approval and full production.

The workshop is not necessarily waiting for someone to press the start button.

Technical drawings are being coordinated. Structural systems are being reviewed. Material availability is being checked. Samples may be produced. Technology is being coordinated. Connections are being developed. Venue requirements are being incorporated. Installation sequences are being discussed.

In some cases, prototypes or partial workshop assemblies are created to check particularly difficult details before committing to the final build.

Starting fabrication before this information is stable can feel faster for a few days.

It normally stops feeling fast when panels need to be remade, steelwork needs modifying, integrated technology no longer fits or site conditions force changes that could have been resolved beforehand.

Technical development is therefore not time lost before fabrication.

It is part of fabrication.

The Finished Stand Should Hide The Effort

At Evolution Scenic, the task is not simply to reproduce what appears in a render.

The real work is resolving the practical, structural, operational and logistical requirements that allow the environment to function in the real world while preserving the original creative intent.

That can involve scenic carpentry, steel fabrication, CNC machining, graphics, integrated technology, specialist finishes, structural support, transport engineering and detailed installation planning.

When that process is done properly, visitors see none of it.

They see clean finishes, precise graphics, integrated screens, comfortable meeting spaces and architectural features that appear effortless.

They do not see the revised wall build-up.

They do not see the concealed steel frame.

They do not see the removable service panel.

They do not see the numbered transport modules.

They do not see the cable route behind the display or the discussion about whether a scenic feature can physically make the turn between the loading dock and the exhibition hall.

Which is probably how it should be.

The best exhibition fabrication quietly solves hundreds of practical problems.

By opening day, all that complexity has disappeared into something that looks, once again, like “only a stand.”

From CAD Model To Finished Component

Modern scenic fabrication increasingly relies on digital workflows that connect design development, engineering and production through one coordinated process. Among the most valuable advances is the ability to translate a detailed three-dimensional CAD model directly into the information required to manufacture a physical component.

This connection between the digital model and the workshop has changed how complex scenic structures are developed. Curved feature walls, sculptural environments, exhibition structures, product displays and large-scale brand installations can now be planned, tested and refined in detail before material reaches the production floor.

The principle may sound straightforward: create a model, send the data to a machine and produce the component. In practice, the process requires far more judgement. A successful digital workflow depends on technical designers, engineers, CNC operators, carpenters, metal fabricators, scenic artists and installation teams working from information that has been developed with the realities of fabrication in mind.

The value lies not in automation alone, but in integrating each stage of the project around a reliable source of coordinated technical information.

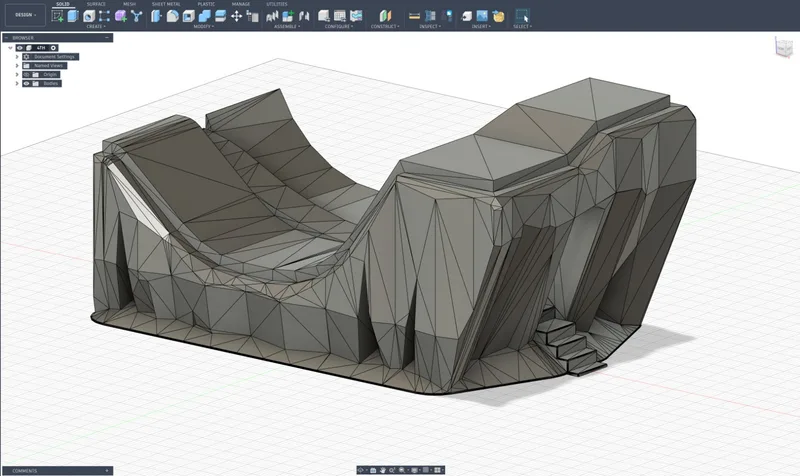

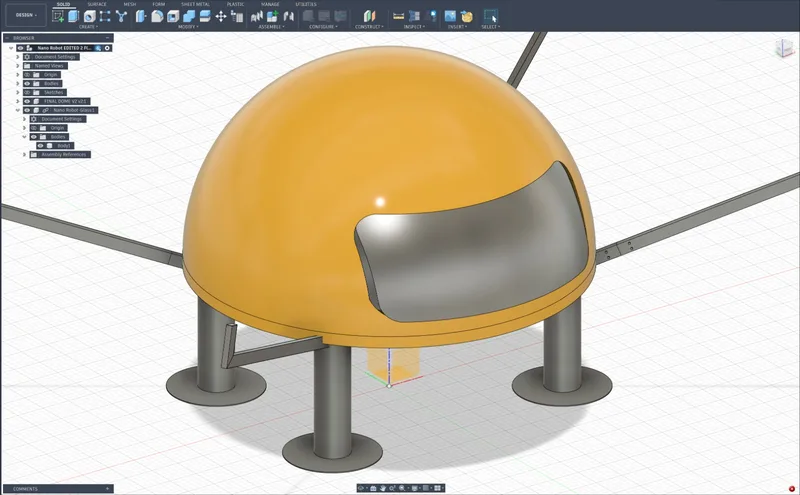

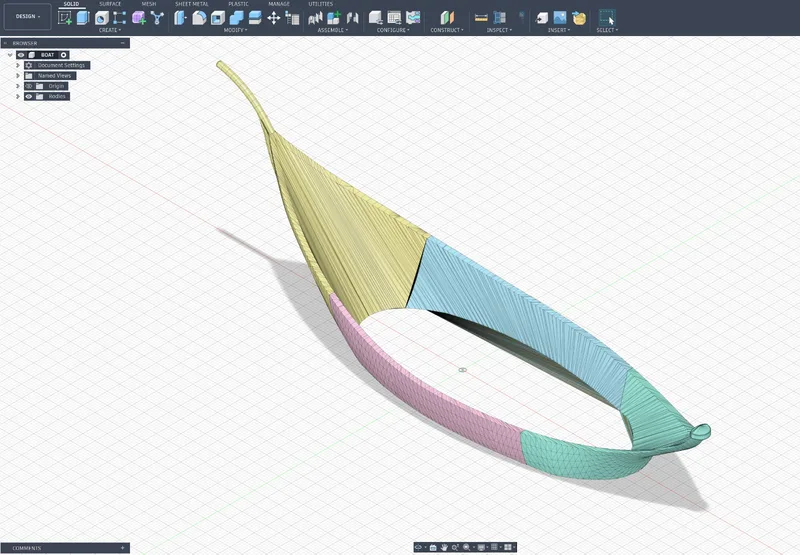

Developing The CAD Model For Fabrication

A design model and a fabrication-ready model are not necessarily the same thing.

The initial three-dimensional model may communicate the intended shape, scale and visual character of an environment. Before manufacturing can begin, however, that geometry must be translated into components that can be cut, assembled, reinforced, transported, finished and installed.

Technical designers examine how the structure will be built rather than simply how it will appear. They consider material thicknesses, internal framing, connection details, access requirements, tolerances, fixing methods and the sequence in which separate elements will come together.

A large sculptural form, for example, may appear as one continuous object in the design model. For production, it may need to be divided into a series of ribs, skins, frames or machined blocks. Each section must remain within material sizes and machine capacities while also being manageable for workshop handling and transport.

The model therefore becomes a working construction tool. It provides a shared reference through which design intent can be tested against engineering requirements and practical build methodology.

At Evolution Scenic, this stage helps identify potential fabrication challenges while they can still be resolved digitally. Adjusting a connection, panel division or structural detail within the model is generally more efficient than discovering the same issue after components have already been manufactured.

From Technical Design To Production Data

Once the geometry and construction strategy have been agreed, the digital model can be developed into production information.

This may include technical drawings, cutting files, setting-out information, component references and assembly details. Every item needs to correspond correctly with the wider structure, particularly when a project contains hundreds of individual parts.

For CNC production, geometry must be prepared in a form that the machinery can interpret accurately. Profiles may need to be nested onto sheets to make efficient use of material. Cutting paths, tool diameters, machining depths and component orientation must be considered before production begins.

This is where a carefully coordinated workflow becomes essential. CNC machinery can reproduce information with exceptional consistency, but it does not determine whether the underlying information is correct. Accuracy in manufacturing begins with accuracy in technical development.

The fabrication team must also understand how the machined parts relate to the finished object. Reference marks, component numbers and assembly drawings can help ensure that similar-looking pieces are identified correctly and installed in the intended sequence.

Digital production therefore does not remove the need for workshop knowledge. It allows that knowledge to be applied earlier and more systematically.

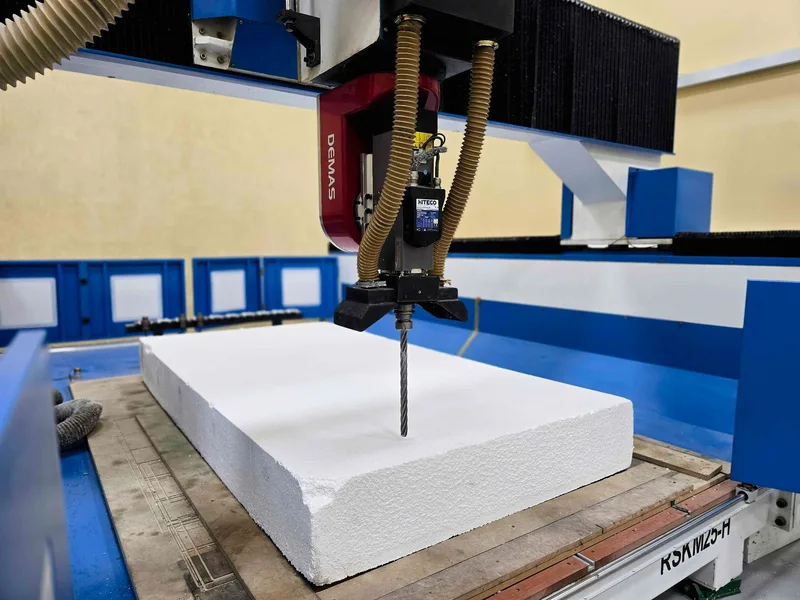

CNC Workflows & Complex Scenic Geometry

CNC machining is particularly valuable when scenic fabrication involves repeated components, intricate profiles or complex geometry.

A series of curved ribs for a scenic wall can be produced directly from approved digital profiles. Interlocking elements can be machined with slots and locating features that simplify assembly. Layered components can be cut to form sculptural volumes that are later shaped, coated and scenic-painted.

This level of control is useful across exhibition fabrication, retail pop-ups, branded environments, stage architecture and immersive installations. It allows complex forms to be divided into practical components without losing the intended overall geometry.

Repetition is another important advantage. If a project requires multiple matching plinths, arches, fins or structural sections, CNC production helps maintain consistency across the complete set. This is especially valuable when components will be positioned close together, where even small differences may become visible.

It also supports hybrid construction. CNC-machined timber elements may connect to welded steel frames, aluminium substructures, composite skins, graphics or integrated lighting systems. The digital model can coordinate these different fabrication disciplines before they meet during assembly.

Working With Manufacturing Tolerances

Precision does not mean assuming that every manufactured part will behave perfectly.

Different materials respond differently during machining, fabrication and finishing. Timber-based sheets may vary slightly in thickness. Steel can distort during welding. Applied coatings can increase component dimensions. Large structures may move marginally when lifted, transported or installed.

Manufacturing tolerances must therefore be planned rather than ignored.

A slot that appears exact in a CAD model may require additional clearance to allow parts to assemble comfortably. A removable panel may need a controlled shadow gap so that it can be fitted without damaging the surrounding finish. Interfaces between timber and metal components may need adjustment space to account for the different ways in which each material is produced.

The correct tolerance depends on the material, manufacturing process, finish and intended use of the component. Too little clearance can make assembly difficult. Too much can result in visible gaps, movement or misalignment.

Experienced technical design balances digital precision with practical fabrication knowledge. The objective is not simply to produce parts that match the model numerically. It is to produce parts that fit together reliably in the workshop and on site.

Improving Production Efficiency

An integrated digital workflow can improve efficiency at several points in the fabrication process.

Material usage can be reviewed before cutting begins. Components can be nested to reduce waste, and repeated parts can be grouped into logical production batches. Potential conflicts can be identified before they interrupt manufacturing.

Technical drawings and CNC files generated from the same coordinated model also reduce the risk of separate information sources drifting out of alignment. When a design revision is required, the affected components can be traced and updated more systematically.

This becomes particularly important on large activations or exhibition environments where several fabrication teams may be working simultaneously. Scenic carpentry, metal fabrication, graphics, electrical integration and finishing all depend on compatible dimensions and clearly defined interfaces.

Production efficiency is not simply a matter of machining components faster. It is achieved by reducing uncertainty, avoiding unnecessary rework and giving each workshop department the information it needs at the correct stage.

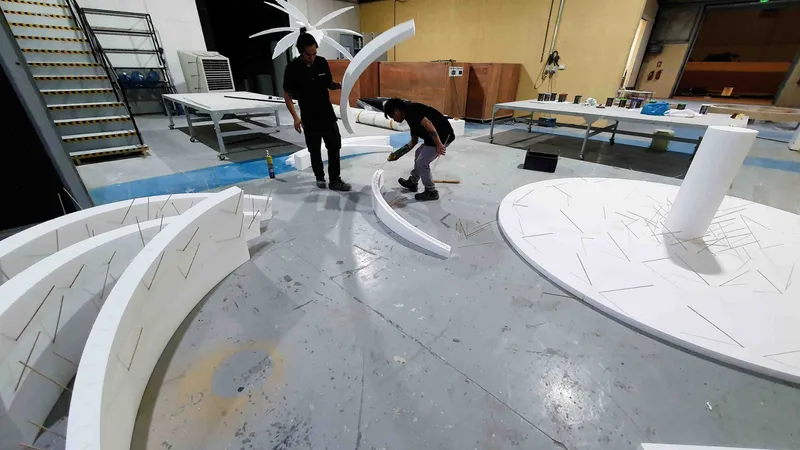

Designing Components For Assembly

The finished appearance of a scenic environment can conceal a considerable amount of assembly planning.

Large structures rarely leave the workshop as one complete object. They may need to pass through loading doors, fit within transport vehicles, comply with lifting restrictions or be carried through a venue by an installation team. The digital model allows these constraints to influence the component design from the beginning.

A feature structure may be divided into transportable modules with concealed connection points. Curved wall sections may use alignment tabs to preserve their geometry during assembly. Graphic surfaces may be split at locations that minimise visible joints. Removable panels may be incorporated to provide access to lighting, cabling or fixings.

Assembly trials can also be informed by the CAD model. The workshop team can establish which modules must be built first, where temporary bracing may be required and how finished surfaces can be protected while adjoining components are installed.

For touring environments or reusable brand structures, the same process can support repeated assembly. Connections can be developed to withstand multiple installation cycles, and replacement components can be reproduced from the approved production data when required.

Installation Benefits Beyond The Workshop

The advantages of coordinated digital production continue when the project reaches site.

Installation teams can work from accurate setting-out dimensions, module references and assembly sequences. Components that have been designed to locate positively are easier to position, reducing the amount of interpretation required in a restricted installation window.

This is particularly valuable in exhibition halls, retail environments and live show venues, where access periods may be tightly controlled. The structure must often be unloaded, assembled, aligned, connected to other systems and finished within a limited number of hours.

Digital planning can also help identify the equipment and labour required for installation. Module weights, lifting points, access panels and connection locations can be considered before the finished scenic elements arrive at the venue.

When the model has been developed with transport and installation in mind, site work becomes an extension of the fabrication process rather than a separate exercise in problem-solving.

A single Coordinated Source Of Information

The greatest value of digital manufacturing is not simply speed or machine accuracy. It is the ability to coordinate design, engineering, production and installation around one carefully developed source of information.

The CAD model becomes a point of connection between creative intent and physical construction. It allows technical decisions to be tested before manufacturing, provides data for CNC production, supports workshop assembly and informs the installation strategy.

Traditional fabrication skills remain central to the process. Machined components still need to be assembled, reinforced, welded, shaped, filled, painted, finished and installed by experienced teams. Digital workflows do not replace craftsmanship. They give skilled fabricators more accurate information with which to work.

From a curved exhibition feature to a large scenic architectural environment, the route from CAD model to finished component depends on the quality of every decision made along the way.

When those decisions are coordinated effectively, even the most complex structure can be divided into practical parts, manufactured consistently and assembled into a finished environment that feels seamless.

Designing For Maintenance And Future Upgrades

Many environments are designed around installation day. Far fewer are designed around the years that follow.

Museums, visitor centres, experience centres and permanent installations often combine scenic construction, integrated lighting, digital displays, control systems, mechanical elements and specialist finishes. These components may perform together as one complete environment, but they rarely share the same operational lifespan.

A scenic structure may remain serviceable for many years, while screens, lighting drivers, media equipment or interactive components require repair or replacement much sooner. Finishes may need periodic refurbishment, graphics may change and interpretation content may be updated as the environment evolves.

The ability to access, service and upgrade these elements can significantly affect long-term performance.

Maintenance considerations should therefore begin during the earliest stages of design development. Access routes, removable panels, equipment clearances, service corridors and replacement strategies are much easier to incorporate before fabrication than after the environment has been installed.

Good maintenance planning is rarely visible to visitors. An access hatch may follow the line of a scenic panel. A ventilation opening may be concealed within a shadow gap. A removable section may appear identical to the surrounding finish.

These details may seem secondary during design, yet they often determine whether future maintenance requires a straightforward service visit or substantial scenic dismantling.

The strongest installations are designed not only for opening day, but for the practical realities of long-term operation.

Designing Access and Serviceability From the Beginning

Maintenance planning starts by identifying which components will require attention throughout the life of the installation.

Some elements may need frequent access, including filters, lighting drivers, control equipment and high-use interactive components. Others may only require occasional inspection, such as structural connections, concealed fixings or ventilation routes.

The design team should understand what sits behind each scenic surface, how often it may need to be reached and what type of work is likely to take place.

A small inspection opening may be sufficient for viewing a connection, but it may not provide enough room to remove a power supply, screen module or mechanical actuator. Access dimensions should therefore respond to the complete maintenance activity rather than the visible size of the equipment alone.

Technicians may require space for tools, hands, connectors and temporary supports. Components also need a practical route out of the structure once disconnected.

Access panels should be developed as part of the scenic construction rather than added after equipment positions have been finalised.

They can be concealed within:

• Panel joints and shadow gaps
• Graphic layouts
• Decorative mouldings
• Material transitions
• Removable trims
• Joinery doors
• Floor hatches
• Ceiling or overhead panels

Concealed hinges, flush mechanical fixings and magnetic retention systems can help preserve the visual finish. However, the selected hardware must remain suitable for repeated use.

A panel designed to open once during installation may perform differently from one that will be accessed every month. Hinges, catches, edge finishes and retaining systems should reflect the expected maintenance frequency and panel weight.

Overhead access panels require particular care. Secondary restraints, controlled hinges or removable support systems may be needed to prevent panels from falling during servicing.

The opening direction should also be considered. A door that opens into a public circulation route or against a fixed display may be difficult to use safely. Maintenance access should avoid unnecessary conflict with visitors, furniture, sensitive exhibits and operational routes.

Some environments require larger internal service zones.

Museums, immersive environments and experience centres may contain rear corridors, technical voids or service platforms behind the visible scenic construction. These areas allow technicians to inspect equipment without entering public spaces or removing finished surfaces.

Service routes should provide adequate width, headroom and working light. They should remain free from sharp edges, exposed fixings and uncontrolled cabling.

Equipment should not be installed solely where it fits. It should be positioned where it can be reached safely and removed without dismantling unrelated components.

The placement of elevated equipment should take account of the intended access method. A fixture may technically be accessible by ladder, but regular servicing may require a mobile access tower or powered platform. The floor area and clearance needed for that equipment must be preserved within the operational layout.

Removable scenic elements can improve serviceability significantly.

A complete panel may be designed to detach from a concealed support frame, allowing equipment behind it to be reached without disturbing adjacent finishes. Decorative trims can conceal fixings while remaining replaceable if damaged through repeated removal.

These details require careful coordination between scenic carpentry, metal fabrication, engineering and technical teams. The internal structure must support the visible finish while also leaving clear service zones.

Good serviceability is achieved through planned space, not simply through the addition of more access hatches.

Planning Technology Replacement and Future Upgrades

Technology often changes more quickly than the environment surrounding it.

Screens, processors, lighting equipment, sensors, media players and control systems may become obsolete, fail or require performance upgrades during the operational life of an installation.

An environment designed too tightly around its original equipment can become difficult to maintain. Replacement products may have different dimensions, connection positions, ventilation requirements or mounting arrangements.

Future upgrade planning does not require predicting every technical development. It means providing enough flexibility for reasonable change.

Mounting systems can be designed with adjustable connection points rather than product-specific holes. Equipment housings can include limited spare capacity. Cable routes can remain accessible, and service openings can be sized around likely replacement components rather than only the first installation.

Technology replacement routes should be physically tested during design reviews.

A component may fit within its scenic housing but still be impossible to remove because of an internal brace, narrow access panel or restricted corridor. Large displays and equipment racks may require removable scenic sections, lifting points or clear routes through the building.

The complete pathway should be considered from the equipment position to the loading area.

This may include:

• Access-panel dimensions
• Internal structural clearances
• Door and corridor widths
• Floor-loading limits
• Changes in level
• Lift dimensions
• Turning circles
• Temporary removal of adjacent elements
• Lifting and handling requirements

Replacement planning should also consider cabling.

Power, data and control cables may need to be upgraded or rerouted as systems change. Cables permanently trapped behind bonded panels can make future modifications disruptive and expensive.

Accessible containment, removable covers and clearly organised cable routes allow systems to be updated without opening large areas of scenic construction.

Spare conduits or containment capacity can provide useful flexibility, particularly within long-term museums and visitor attractions. However, these routes must remain clearly documented so that future teams understand where they begin, where they terminate and what they can accommodate.

Ventilation requirements may also change.

Replacement equipment may generate more heat or require different airflow. Scenic enclosures should avoid relying on ventilation arrangements that only suit one specific product.

Where possible, passive airflow routes, removable filters and adaptable fan systems can support future equipment changes. Service teams should be able to clean or replace ventilation components without removing major scenic finishes.

Modularity can further support upgrades.

A digital display zone may be built as an independent technical module within a larger scenic wall. If the display format changes, the module can be modified or replaced without rebuilding the complete environment.

The same principle can apply to interactive stations, lighting features and interpretation panels. Separating shorter-life operational components from longer-life structural elements creates a more adaptable installation.

Upgrade planning should also recognise that content and operational needs may change even when the technology remains functional.

Museums may revise interpretation. Visitor centres may update maps, languages or destination information. Brand environments may require new graphics or product displays.

Replaceable graphic panels, modular showcases and adaptable display supports allow these updates to take place with less waste and disruption.

Future modifications must still be reviewed carefully. New equipment may introduce additional weight, heat or electrical demand. Existing structures and ventilation systems should not be assumed to accept these changes without assessment.

Adaptability is most effective when it is supported by controlled engineering and accurate records.

Managing the Installation Through Its Operational Life Cycle

Designing for maintenance is only useful when the completed environment is supported by an organised operational strategy.

The handover package should explain how the installation is accessed, inspected, cleaned, serviced and updated. It should reflect the final as-built condition rather than only the original design intent.

Useful handover information may include:

• As-built scenic and structural drawings
• Access-panel schedules
• Equipment locations
• Service and removal routes
• Cable and containment layouts
• Electrical isolation points
• Ventilation and filter locations
• Approved cleaning methods
• Finish references and repair procedures
• Replacement-component information
• Inspection intervals
• Manufacturer service requirements
• Recommended spare parts
• Safe access procedures

Access panels should be clearly identified within the documentation, even when they are visually concealed. Internal labels can help technicians locate equipment without trial-and-error removal of scenic panels.

Inspection schedules should reflect the environment and the type of equipment installed.

A high-use interactive station may require frequent checks, while concealed structural connections may only need periodic inspection. Outdoor or partially exposed installations may require additional reviews following severe weather, water ingress or unusual temperature conditions.

Planned maintenance should distinguish between routine servicing, preventative replacement and reactive repair.

Routine servicing may include cleaning filters, testing lighting, checking fixings and reviewing cable condition. Preventative replacement addresses components known to have limited service lives before they fail during operation.

Reactive repair remains necessary when unexpected damage occurs, but it should not be the primary maintenance strategy.

Records help the operational team understand how the environment is performing over time. Repeated failure of the same component may indicate a deeper problem involving ventilation, public interaction, access or equipment selection.

Maintenance records can therefore inform future upgrades and refurbishment decisions.

Scenic finishes should also form part of the lifecycle strategy.

Access panels and removable trims can experience wear through repeated servicing. Edges may chip, concealed fixings may loosen and specialist coatings may become difficult to match.

Durable edge details, replaceable hardware and documented finish systems can help maintain visual consistency. Retaining approved samples is particularly useful where finishes involve layered ageing, metallic effects or specialist textures that cannot be fully defined by a standard paint code.

Spare scenic materials may also be retained where future availability is uncertain. These can include laminates, graphics, decorative profiles, hardware or representative finish samples.

Eventually, parts of the environment may require refurbishment rather than isolated repair.

A lifecycle plan can identify likely renewal stages for finishes, technology and high-contact components. This allows work to be scheduled around quieter operating periods and coordinated as one planned intervention.

The scenic structure may remain largely intact while screens, lighting, graphics and selected surface panels are replaced. Designing these elements as independent serviceable layers reduces unnecessary demolition and helps preserve the original investment in the environment.

At Evolution Scenic, maintenance and future upgrades are considered as part of the complete fabrication strategy. Scenic structures, access systems, technology zones, finishes and service routes are coordinated so that environments can continue to operate effectively after installation.

The strongest permanent installations are not those that never require maintenance. Every working environment changes over time.

They are the installations where maintenance, repair and future adaptation can take place without compromising the structure, disrupting large areas of finished work or creating unnecessary operational difficulty.

Opening day may be the most visible point in the project.

Long-term performance is what ultimately determines whether the environment was designed successfully.

How We Built A 12-Metre Scenic Sculpture

Large-scale scenic sculptures often appear effortless once installed. Visitors see a completed structure integrated into its environment, rarely considering the engineering, fabrication and logistical planning required to make that outcome possible.

At 12 metres high, a scenic sculpture is no longer simply an enlarged decorative object. It becomes a temporary engineered structure that must perform safely throughout fabrication, transportation, lifting, assembly and operation.

The challenges begin long before manufacturing starts. As a structure increases in scale, its weight, centre of gravity, wind exposure and transportation requirements become increasingly influential. Decisions that appear minor during concept development can have significant consequences once production begins.

The success of a sculpture at this scale therefore depends on treating engineering, scenic fabrication and logistics as parts of one coordinated process.

Understanding the Challenges of Scale

Increasing the size of a sculpture changes more than its dimensions.

A narrow feature that appears stable within a digital model may become a substantial unsupported projection when built at full size. A curved surface that seems relatively simple may require several structural members, machined components and joining points to retain its form.

Large surface areas can also introduce wind-loading considerations, particularly when the sculpture is installed outdoors. Weight must be controlled without compromising stability, while the base structure must safely transfer loads into the supporting platform, foundation or temporary installation system.

Workshop limitations must also be considered. A 12-metre sculpture will rarely fit beneath a standard workshop roof as one complete assembly. Even when sufficient height is available, manufacturing the structure vertically may not be the safest or most efficient approach.

The sculpture must therefore be designed around the realities of production. It may need to be fabricated horizontally, divided into sections or temporarily assembled in smaller groups before being transported to site.

These decisions affect every later stage of the project.

Developing the Sculpture Digitally

The process usually begins with a three-dimensional model representing the intended external form.

This model provides a starting point, but it is not necessarily ready for manufacture. Technical designers must translate the visual concept into production information that can be understood by engineers, metal fabricators, scenic carpenters, CNC operators, sculptors and installation teams.

The digital model is reviewed to identify structural zones, connection points and potential fabrication sections. Large curves and irregular surfaces may be divided into manageable components that can be manufactured using CNC machining, foam carving, timber construction or formed sheet materials.

The model must also account for the thickness of coatings, cladding and scenic finishes. Even small material allowances can affect how separate sections align when assembled.

Digital coordination allows potential conflicts to be identified before materials reach the workshop. It also helps the team assess the overall weight, module dimensions and likely centre of gravity of each component.

For a structure of this scale, the digital model is not simply a visual reference. It becomes an important part of the fabrication and installation methodology.

Structural Engineering and Technical Reviews

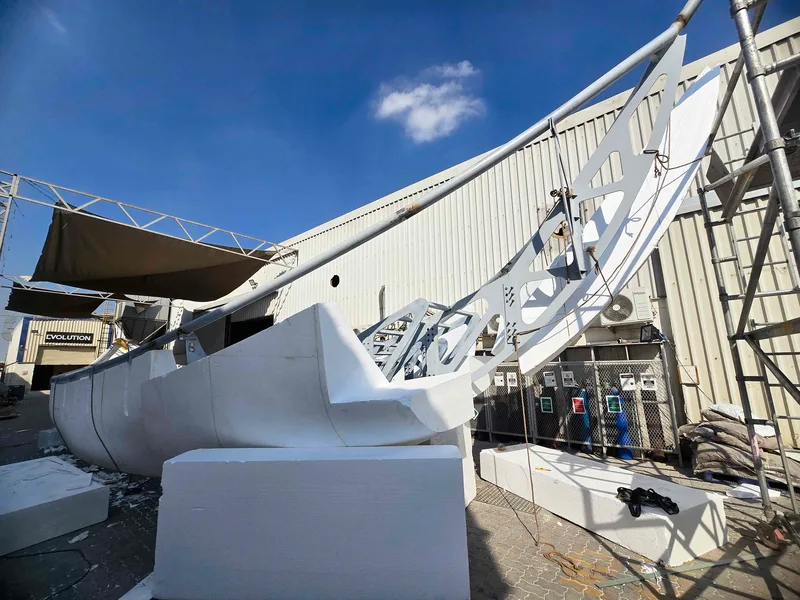

Behind the finished scenic surface sits an internal structure designed to carry loads and maintain the sculpture’s geometry.

Structural steel is often used for the primary framework because it provides predictable strength, reliable mechanical connections and suitable lifting points. Aluminium, timber and plywood may also be incorporated where lower weight or more complex shaping is required.

The engineering solution must respond to the form rather than working against it. Structural members need to fit within the available internal space without distorting the external silhouette or becoming visible through the finished surface.

Technical and structural reviews consider factors such as:

• The overall height and weight of the sculpture
• The stability of the completed structure
• Wind and environmental loading
• The strength of connections between modules
• Lifting and handling forces
• Temporary stability during installation
• Base plates, anchoring systems and ballast
• Public proximity and accidental impact

The sculpture may be stable when fully assembled but vulnerable while individual modules are being lifted or connected. Temporary bracing and installation sequencing must therefore form part of the engineering strategy.

Lifting points are also designed into the structure rather than added as an afterthought. Their position must allow each module to remain controlled and balanced during movement.

These details are rarely visible after installation, but they are essential to delivering the sculpture safely.

Designing a Modular Construction Strategy

A 12-metre scenic sculpture can rarely be transported as a complete object.

Road restrictions, vehicle dimensions, workshop access and site conditions usually make modular construction necessary. The sculpture is divided into sections that can be manufactured, handled and transported independently before being assembled at its final location.

Determining where to divide the structure requires careful judgement.

Modules must be small enough to fit within transport and lifting limitations, but excessive segmentation creates more joints, additional fabrication work and longer installation times.

Connection points should remain structurally reliable while being accessible to the installation team. Wherever possible, joints are located along natural changes in geometry, recessed areas or surface transitions where they can be concealed more effectively.

The modular approach also influences the internal frame. Steel members may terminate at bolted flange connections, while scenic surfaces may include removable sections that provide access to the structural fixings.

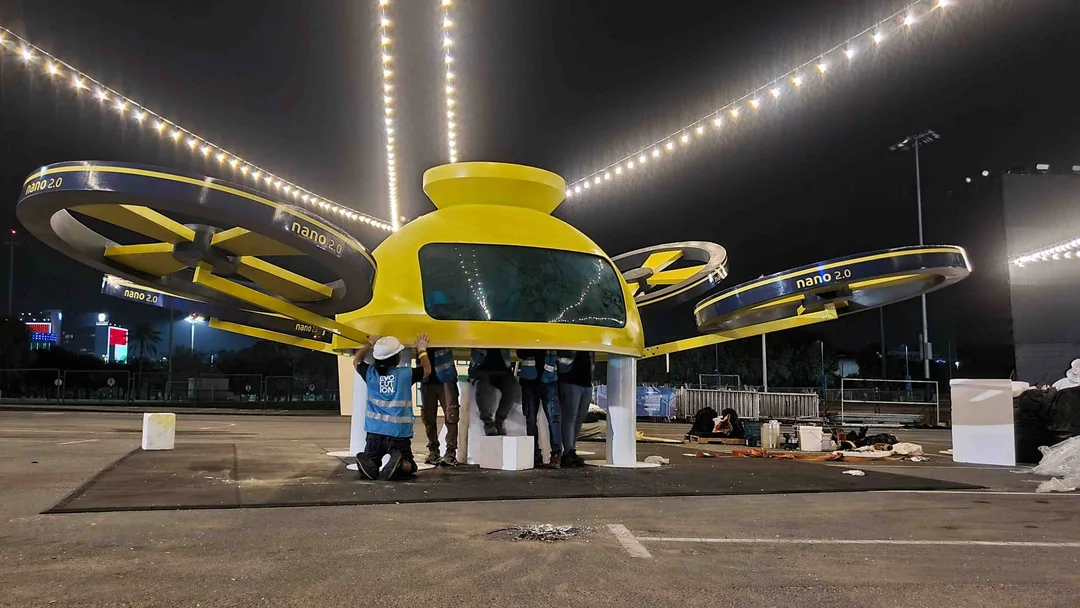

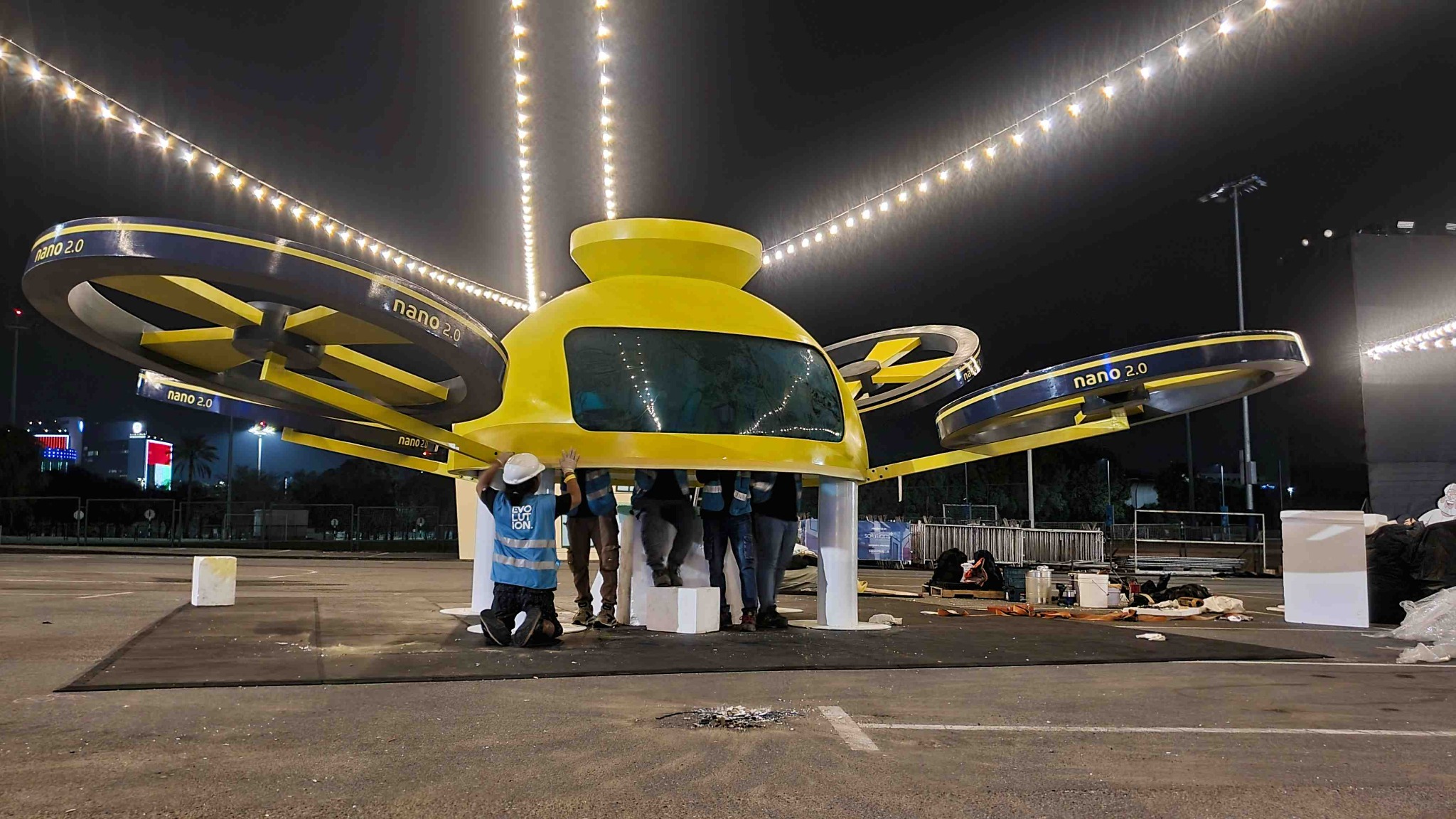

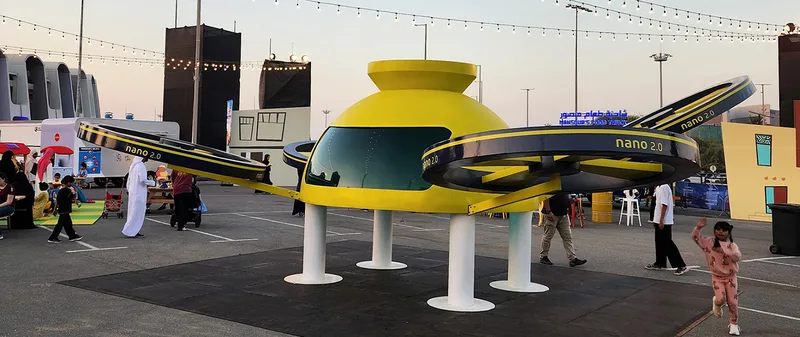

Projects such as the Nano Robot Structure demonstrate how complex public sculptures can be broken into coordinated fabrication modules. Structural frameworks, CNC-produced forms and detailed scenic surfaces can be manufactured separately before being brought together as one finished installation.

The objective is to ensure that the completed sculpture reads as a continuous form, even though it has been designed around transportation and assembly requirements.

Selecting Materials for Strength and Weight

Material selection becomes increasingly important as scenic structures grow in size.

A sculpture built entirely from heavy materials may create unnecessary demands on transport vehicles, cranes, foundations and installation crews. A structure built entirely from lightweight materials may lack the strength needed to withstand lifting, environmental exposure or public interaction.

The most effective solution is usually a hybrid construction system.

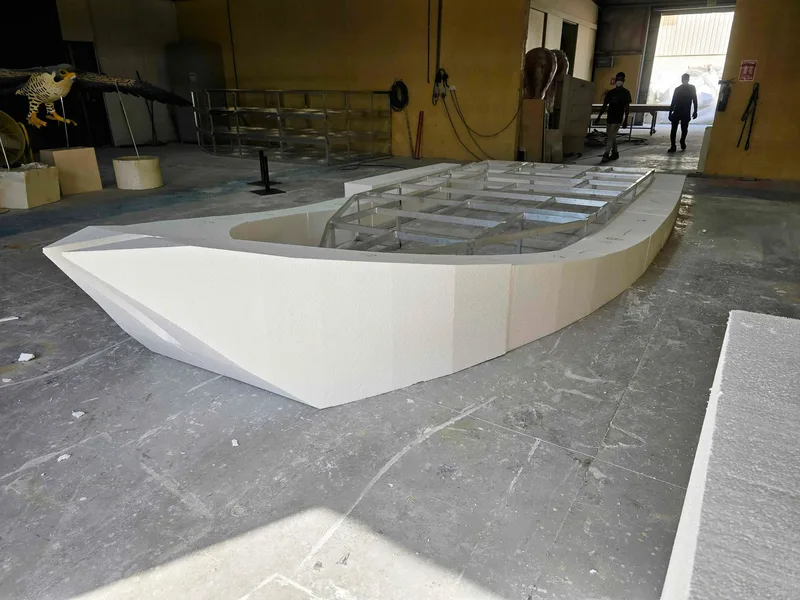

Steel may provide the primary support structure, while timber or plywood creates secondary framing and localised fixing zones. CNC-carved foam can produce complex volumes and curved surfaces without introducing excessive weight. Other areas may use fibreglass, formed plastics, printed elements or lightweight composite panels.

Each material is selected for a specific purpose.

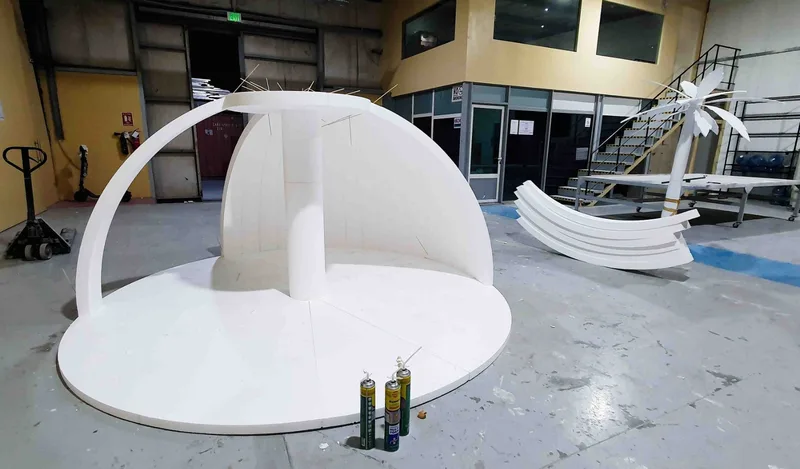

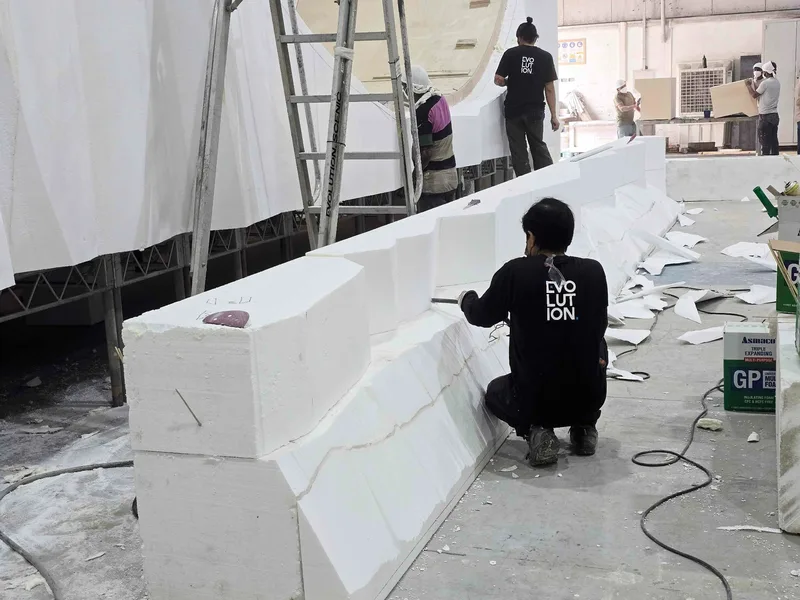

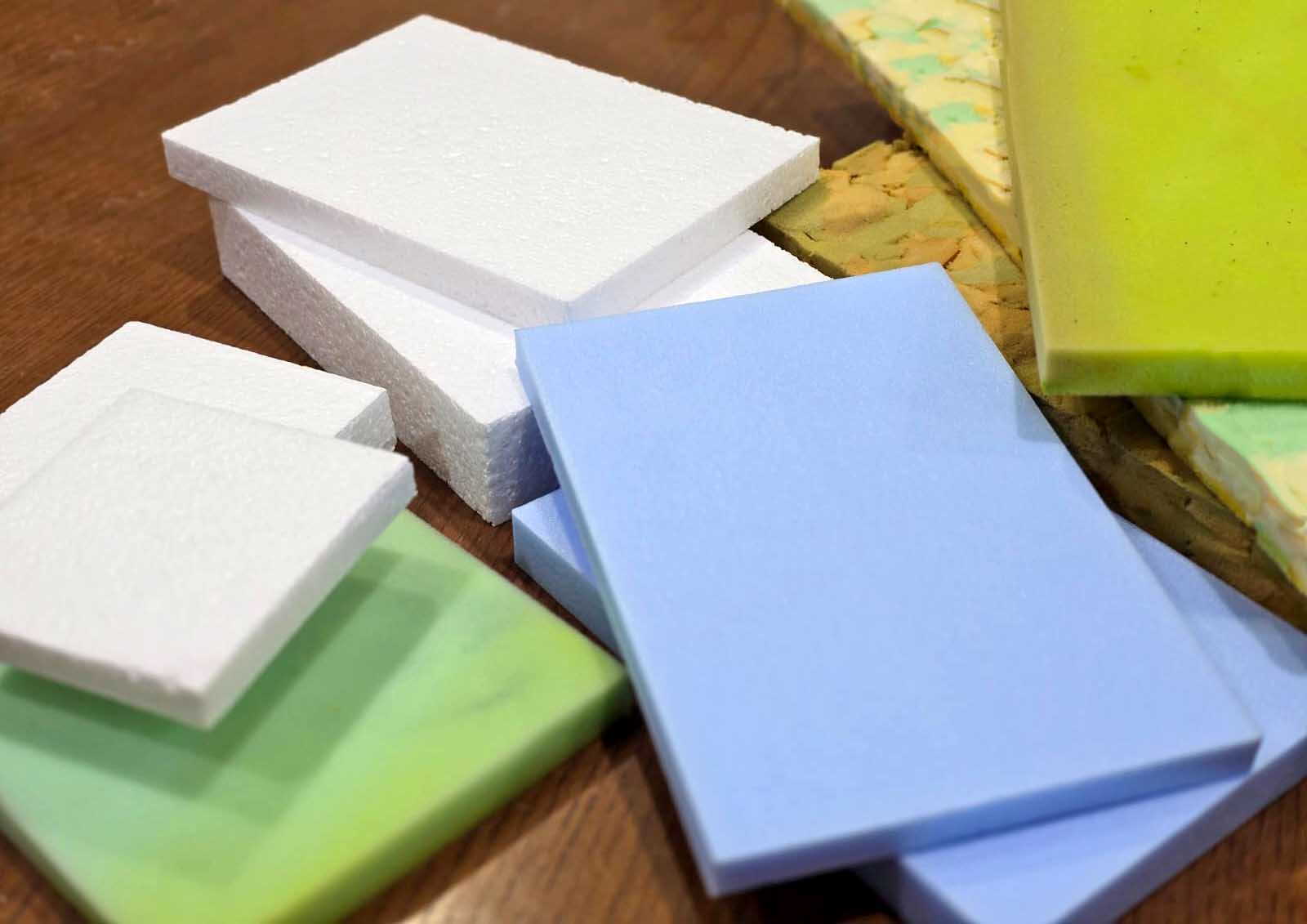

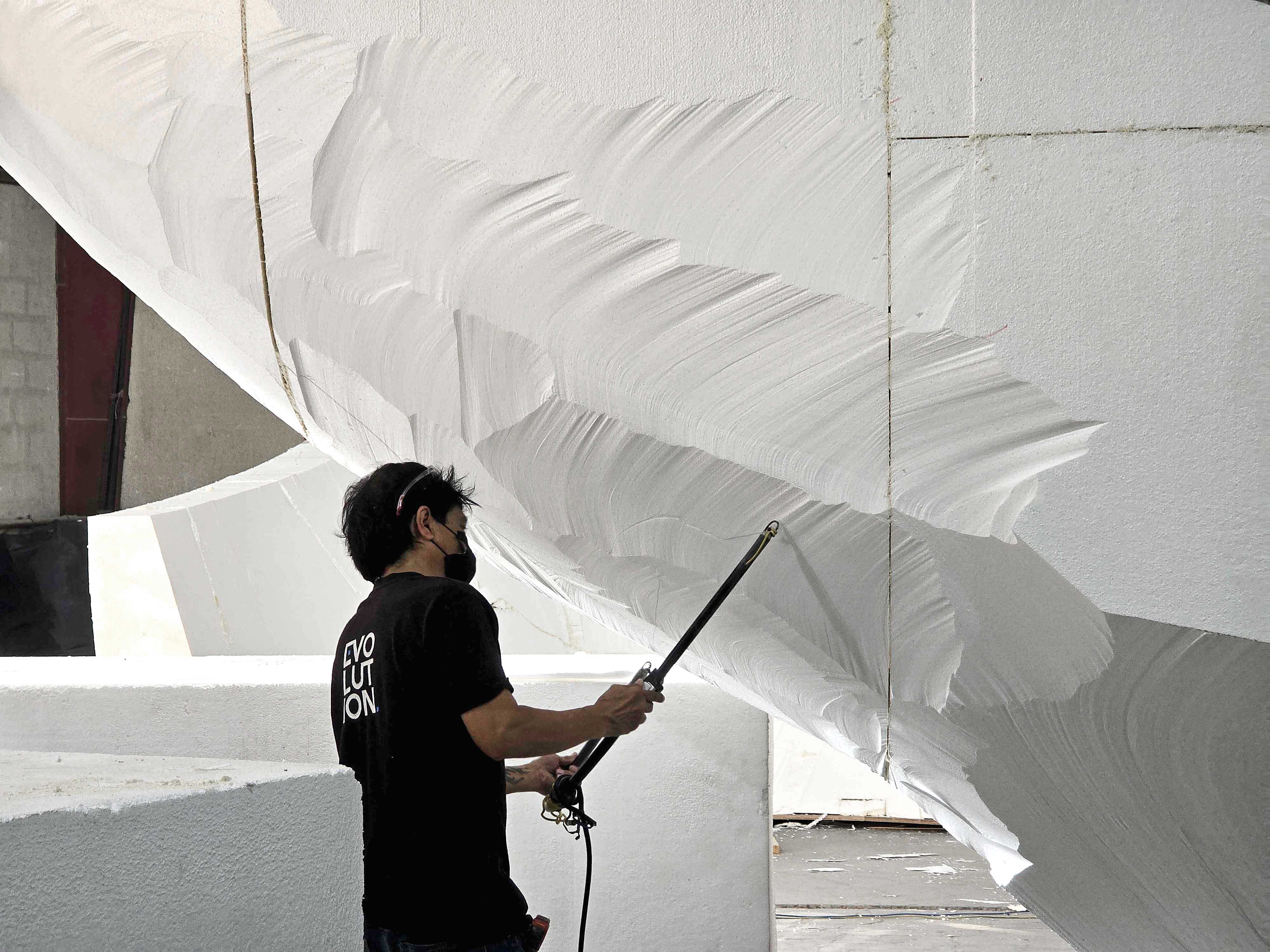

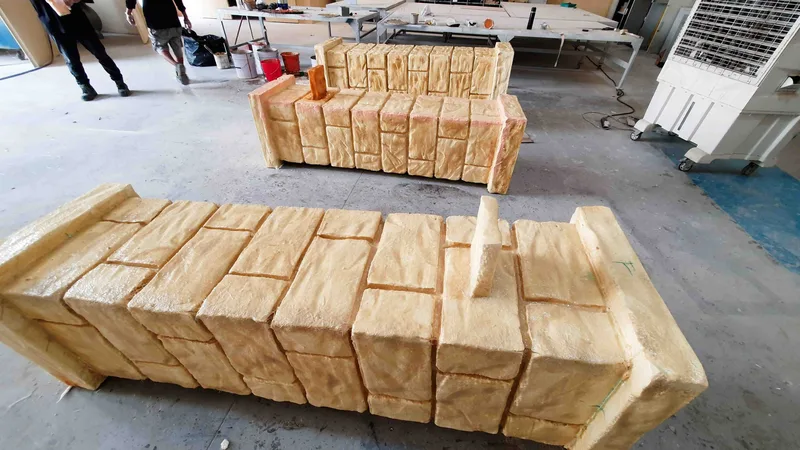

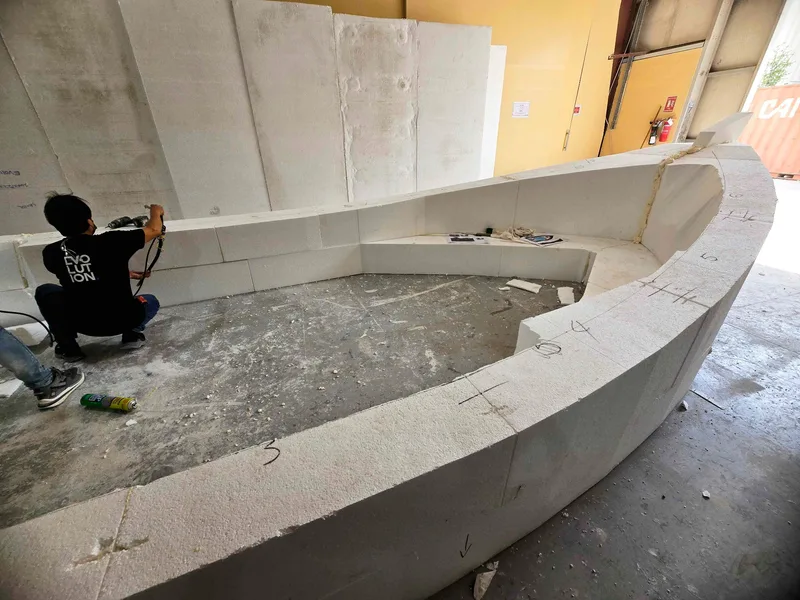

Foam, for example, is particularly valuable when creating large sculptural volumes, but it requires suitable reinforcement and protective coatings. Exposed corners, projecting details and areas close to the public may need harder surface systems or locally strengthened construction.

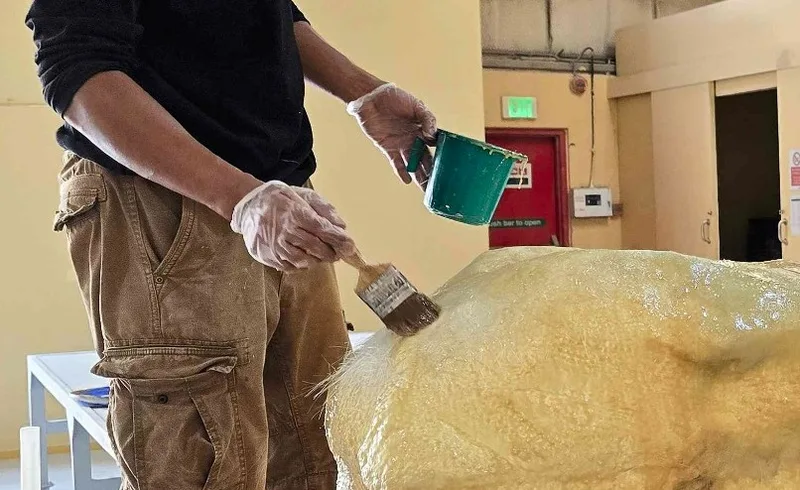

Similarly, scenic coatings must be chosen according to the operating environment. An indoor installation may require a different finish from a public sculpture exposed to heat, moisture, dust and ultraviolet light.

Material decisions must balance appearance, durability, weight, manufacturing time and cost. The least expensive material in isolation is not always the most efficient choice once transport, installation and maintenance are considered.

Fabricating and Testing the Modules

Once the technical design and engineering strategy are approved, manufacturing can begin.

The internal framework is typically fabricated first, providing a controlled structure around which the sculptural form can be developed. Steel components are cut, welded and checked against technical drawings before secondary framing and scenic materials are added.

CNC machining allows complex components to be produced directly from digital information. Large foam sections, profiles and surface forms can be cut accurately before being refined by scenic sculptors.

The modules are then coated, prepared and painted using finishes appropriate to the final design and operating conditions.

Where workshop space allows, key sections are test-fitted before dispatch. This stage confirms that structural connections align, scenic surfaces meet correctly and installation access remains available.

Test assembly is particularly important for irregular sculptures. Small tolerance differences can accumulate across multiple modules, creating significant alignment problems at full height.

Resolving these issues in the workshop is considerably more efficient than attempting to correct them during a time-sensitive site installation.

Planning Transportation

Transportation planning begins during technical design, not when fabrication is complete.

Every module must fit within vehicle dimensions and road transport restrictions. Fabricators must also consider how components will move through workshop doors, loading bays, venue entrances and the final installation area.

Large scenic components may be lightweight relative to their size but still difficult to handle. Their irregular forms can create vulnerable projections and inefficient loading volumes.

Custom transport stillages are often manufactured to support the modules securely. These frames prevent movement during transit and protect finished surfaces from impact, vibration and pressure.

The loading sequence is coordinated with the installation programme. Components required first on site should be positioned so they can be unloaded without moving or exposing later modules unnecessarily.

Lifting points and handling instructions must remain accessible throughout the journey. Protective packaging should safeguard the scenic finish without preventing installation crews from identifying connection zones or module references.

The transport strategy is therefore closely connected to the fabrication and assembly methodology.

Installing the Sculpture on Site

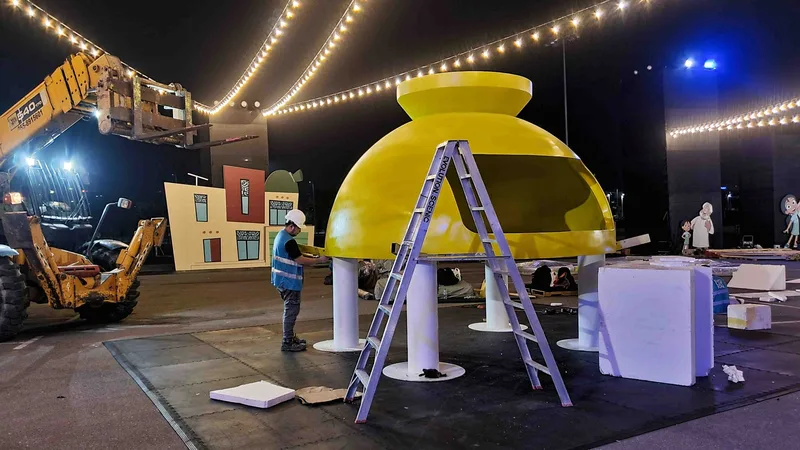

Site installation is where the engineering, manufacturing and logistical planning come together.

The base structure is positioned first and checked against site coordinates, levels and fixing locations. Any discrepancy at this stage can affect the alignment of every module above it.

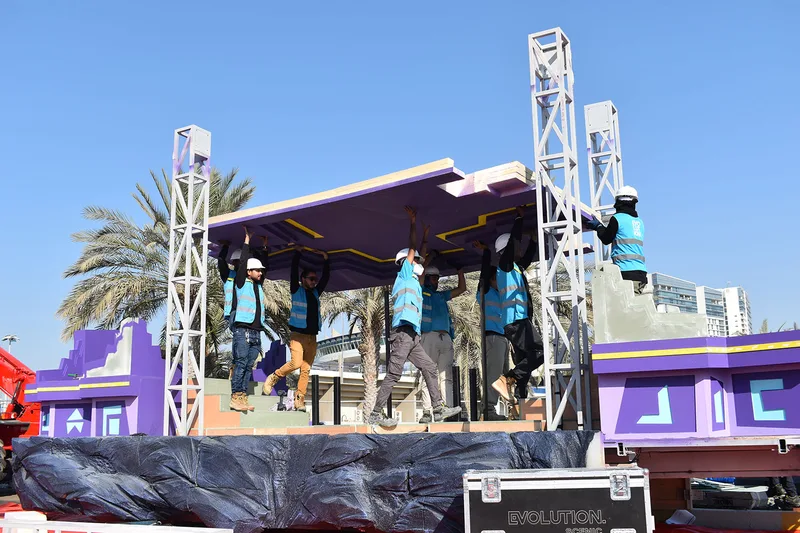

The sculpture is then assembled according to a planned sequence. Lower structural sections are normally secured before upper modules are lifted into position.

Each lift must account for the component’s weight, dimensions and centre of gravity. Spreader beams, lifting frames or multiple connection points may be required to prevent the module from rotating or deforming.

Temporary supports can stabilise the sculpture while the remaining sections are installed. These are removed only after the primary connections have been completed and inspected.

Once the structural assembly is finished, scenic teams close the visible joints between modules. Seams are filled, coatings are repaired and painted finishes are carefully matched so that the final sculpture appears continuous.

Access becomes more difficult as the structure increases in height, so the sequence of final finishing must also be planned. Certain joints may need to be completed from elevated work platforms before access is restricted by additional modules.

Site installation is rarely a simple matter of connecting prefabricated sections. It requires experienced teams capable of responding to changing conditions while protecting the engineering and visual integrity of the sculpture.

Maintaining the Original Design Intent

One of the greatest challenges throughout the project is maintaining consistency between the original concept and the completed installation.

Engineering requirements may require adjustments to proportions, support locations or material thicknesses. Transportation restrictions may influence where modules are divided. Site conditions may affect the base design or lifting methodology.

The objective is not to prevent technical changes. It is to integrate them without weakening the sculpture’s intended form.

Close coordination between designers, engineers and fabricators allows structural requirements to be absorbed into the sculpture rather than applied visibly afterwards.

This is where practical scenic experience becomes especially valuable. Understanding how materials behave at scale makes it possible to preserve important curves, profiles and surface transitions while introducing the reinforcement needed for safe delivery.

One Connected Fabrication Process

Large sculptures succeed when engineering, fabrication, transportation and installation are considered as a single delivery strategy rather than separate activities.

The size of each module affects the transport plan. The transport plan affects the location of structural joints. The structural joints influence the scenic surface, and the surface design determines how successfully those joints can be concealed.

Every decision is connected.

For Evolution Scenic, building a 12-metre sculpture is not simply an exercise in making something visually impressive. It is a process of solving structural, manufacturing and logistical challenges while retaining the clarity of the original design.

The completed sculpture may appear effortless once installed, but that outcome is achieved through detailed technical design, coordinated fabrication and a carefully controlled site methodology.

Large Scale Foam Carving Explained

Many of the most recognisable scenic structures seen within public celebrations, brand activations, themed environments and cultural projects begin life as large blocks of foam rather than timber or steel.

Foam carving has become one of the most versatile processes available within modern scenic fabrication. It enables fabrication teams to create complex contours, organic shapes and large-scale sculptural elements that would often be impractical, excessively heavy or prohibitively expensive to manufacture using traditional construction methods alone.

However, foam should not be viewed as a shortcut or a substitute for sound engineering. Used correctly, it forms part of a carefully considered fabrication system that may also include digital modelling, CNC machining, internal reinforcement, structural framing, specialist coatings, scenic finishes and engineered installation methods.

The quality of the finished structure depends not simply on how the foam is carved, but on how the entire object is designed, manufactured, transported and protected.

From Digital Sculpting to Physical Form

Large-scale foam carving frequently begins long before material reaches the workshop floor.

Concept artwork, architectural drawings, scanned objects or three-dimensional design files are developed into accurate digital models. These models allow fabrication teams to refine proportions, assess scale and break complicated structures into sections that can be manufactured, transported and assembled efficiently.

Digital sculpting is especially valuable when producing irregular or highly detailed forms. A designer can shape surfaces virtually, adjust silhouettes and resolve complex transitions without repeatedly modifying physical material. This is particularly useful for oversized characters, natural rock formations, abstract landmarks and branded sculptural features where small proportional changes can significantly affect the finished appearance.

Once the form has been approved, the digital model is prepared for manufacture. This may involve dividing the object into manageable sections, adding registration points, allowing for internal frameworks and accounting for the thickness of coatings or finishing materials.

A successful digital model must therefore consider more than appearance. It must also reflect the realities of CNC access, cutting direction, workshop handling, transport dimensions and final installation.

CNC Foam Cutting

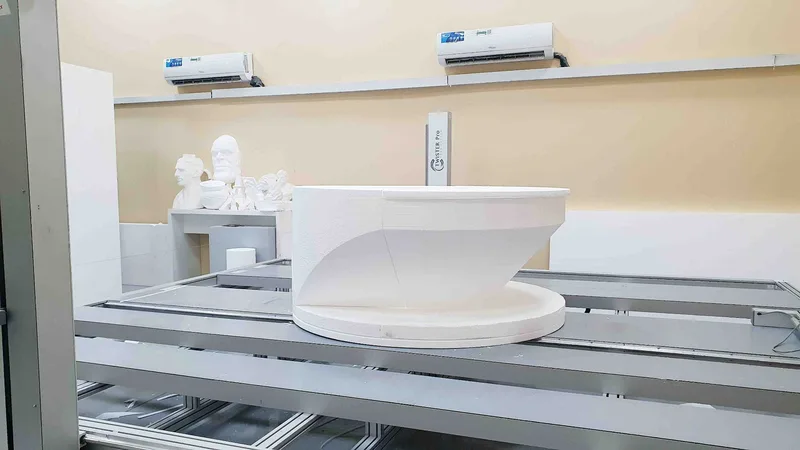

CNC machining allows large blocks of foam to be cut with a high degree of accuracy and repeatability.

Depending on the geometry of the object, foam may be shaped using multi-axis routing equipment, hot-wire cutting systems or a combination of machining processes. CNC routers are particularly effective for producing detailed three-dimensional surfaces, while hot-wire cutting is often used for profiles, repeated forms and larger geometric sections.

The digital model is translated into machine-readable toolpaths that control how the cutting head moves through the material. The machining strategy must be carefully planned, particularly when dealing with deep recesses, unsupported projections or areas requiring access from several directions.

Large objects are rarely carved from a single block. They are more commonly divided into a series of sections that can be machined individually and assembled later. Accurate indexing is essential so that each component aligns cleanly with the next.

Once the main cutting process is complete, experienced scenic sculptors refine the surface by hand. Machine marks are removed, transitions are softened and details are adjusted where necessary. This combination of digital accuracy and manual finishing is one of the strengths of modern scenic sculpture. CNC equipment establishes the form efficiently, while skilled craftspeople give the surface its final character.

Choosing the Appropriate Foam

Different foam products offer different levels of density, durability and machining performance.

Low-density materials may be appropriate for large volumes where weight must be kept to a minimum, while denser foams can provide greater resistance to impact and allow finer details to be carved. The correct choice depends on the structure’s location, expected lifespan, level of public interaction and intended finish.

A scenic feature positioned above head height may have very different requirements from a public-facing installation that visitors can touch. Similarly, an indoor activation used for several days will not require the same protection as an outdoor landmark exposed to sunlight, rain, temperature changes and repeated handling.

Material selection must therefore be based on the operational demands of the project rather than appearance alone.

Structural Reinforcement and Internal Frameworks

Although foam is capable of forming substantial volumes, it is not normally responsible for carrying significant structural loads.

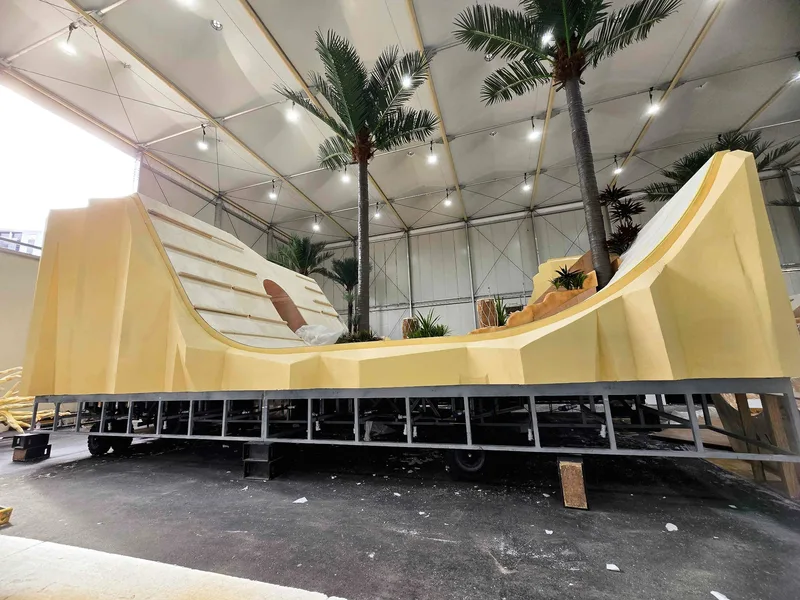

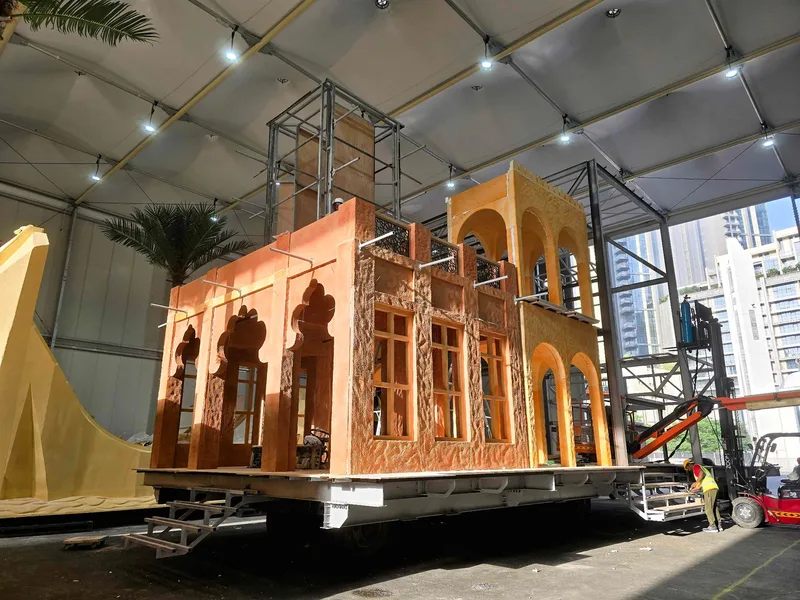

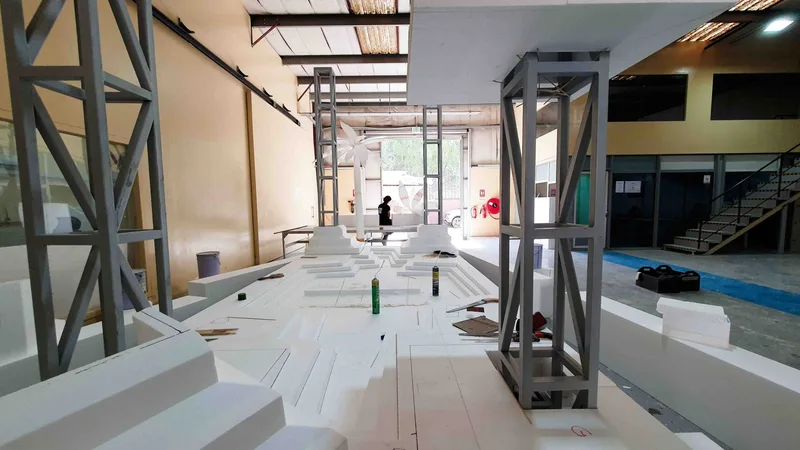

Large-scale sculptures and temporary architectural features often incorporate internal frameworks manufactured from timber, plywood, aluminium or steel. These frameworks provide stability, create lifting points and allow the structure to be safely connected to bases, platforms or temporary support systems.

The frame may also define the primary geometry of the object, with foam added around it to create the visible sculptural form. This approach is particularly effective for tall structures, projecting elements and installations that must resist wind or movement.

Reinforcement requirements vary considerably. A lightweight scenic object may need only localised support around fixing points, while a major public installation may require a fully engineered internal skeleton, calculated ballast and carefully designed anchoring details.

Interfaces between foam and structural components must be resolved early. Fabricators need access to joints, lifting locations and mechanical fixings without compromising the external surface. Maintenance and disassembly may also need to be considered, particularly where installations will be reused or stored between events.

The foam itself is therefore only one component within a wider engineered assembly.

Protective Coatings and Surface Systems

Uncoated foam is vulnerable to impact, abrasion, moisture and ultraviolet exposure. Specialist coating systems are used to protect the carved form and create a suitable base for scenic finishing.

The type of coating depends on the project’s requirements. Some systems create a relatively light protective shell, while others form a harder and more durable surface capable of withstanding public contact, transport and repeated installation.

Application methods may include spraying, brushing, trowelling or laminating reinforced materials over the foam. Areas likely to receive greater wear can be strengthened locally, particularly around corners, bases, access points and assembly joints.

Coatings must remain compatible with the foam beneath them. Certain solvents and chemical products can damage foam substrates, so the complete finishing specification must be tested and controlled.

Once the protective layer has cured, the structure can be prepared for scenic painting and decorative finishes. These may include metallic effects, textured stone, aged surfaces, high-gloss branded colours, simulated timber, polished finishes or complex graphic treatments.

The objective is not simply to disguise the material. A well-designed coating and finishing system transforms the foam into a convincing, durable scenic surface appropriate to its environment.

Creating Large-Scale Landmarks

One of the greatest advantages of foam carving is its ability to produce visual scale without creating unnecessary mass.

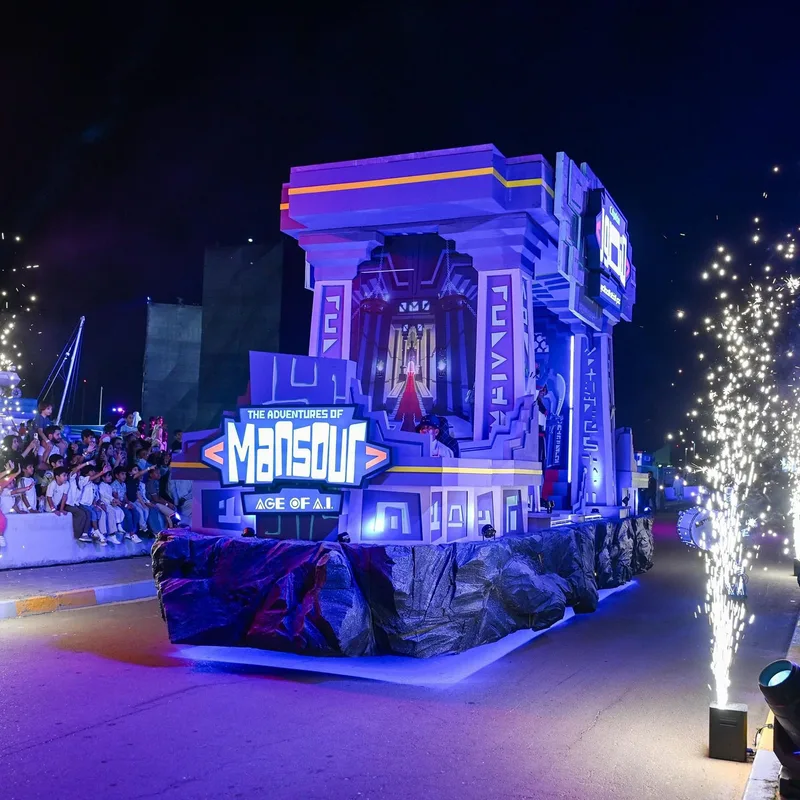

Oversized activation features, parade structures, public celebration landmarks and immersive environmental elements can often be produced more efficiently through foam-based fabrication than through solid construction methods.

This becomes particularly valuable when creating forms that are primarily sculptural rather than structural. Large curves, exaggerated profiles and complex surface details can be achieved without building numerous layers of traditional framing and cladding.

Projects such as the Nano Robot Structure demonstrate the type of opportunity offered by digitally developed scenic sculpture. Complex features can be modelled, segmented and manufactured as coordinated components, combining accurate CNC production with engineered support and detailed scenic finishing.

The same methodology can be applied to oversized brand icons, cultural motifs, character sculptures, entrance features and three-dimensional landmarks intended to be visible from a considerable distance.

Scale must still be carefully managed. Forms that appear balanced on a computer screen can feel very different when they are several metres tall. Fabrication teams must consider viewing distance, installation height, sightlines and the visual weight of individual elements throughout the design process.

Transport and Installation Advantages

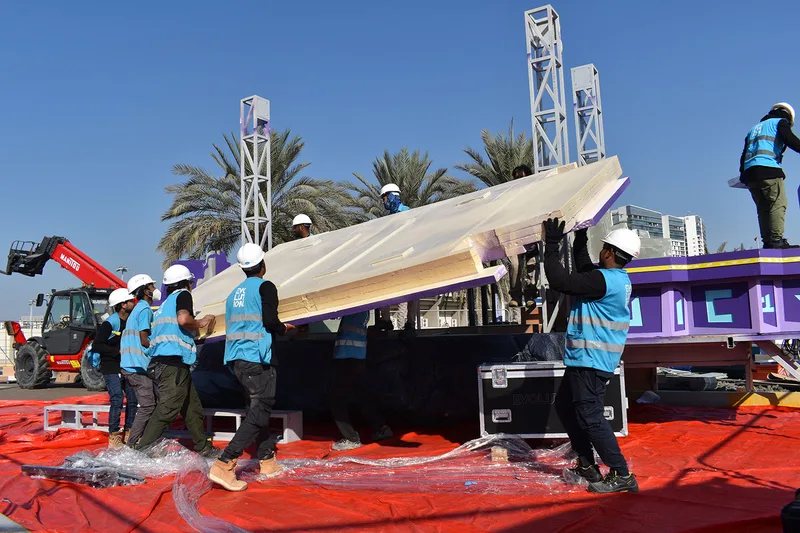

Weight reduction is one of the most practical benefits of foam-based construction.

A lighter scenic element can reduce demands on transport vehicles, lifting equipment and temporary support structures. It may also allow larger objects to be broken into fewer sections, reducing the number of visible joints and shortening installation time.

This does not mean that every foam structure is easy to transport. Large sculptural forms can still occupy considerable volume and may require custom stillages, protective wrapping or dedicated transport frames.

The segmentation strategy is therefore crucial. Sections must be small enough to move safely through workshop doors, loading areas and venue access routes, while remaining large enough to preserve the continuity of the sculpted surface.

Assembly joints should be positioned where they are visually discreet and technically accessible. On site, components may be bolted, bonded or mechanically connected to internal frames before final seams are filled and touched in.

A well-designed foam structure should be considered as much from the perspective of logistics and installation as from sculpture.

Cost, Efficiency and Manufacturing Value

Foam carving can offer significant manufacturing efficiencies, particularly where a project involves large volumes, repeated sculptural forms or complex geometry.

The principal benefit is not that foam is inherently a cheap material. The value comes from its ability to reduce labour-intensive construction, minimize weight and convert detailed digital models into physical forms with a high degree of accuracy.

CNC machining can also improve repeatability. Where several matching elements are required, digital toolpaths allow components to be reproduced consistently without relying entirely on manual shaping.

However, the complete cost must include digital preparation, machining time, hand finishing, reinforcement, coating, scenic painting, transport and installation. A technically ambitious foam structure can involve substantial specialist work.

The most cost-effective solution is achieved by selecting the correct manufacturing methodology for the form. In some areas, foam may be the ideal material. In others, timber, metal, fibreglass, sheet materials or printed components may be more appropriate.

Experienced scenic fabricators often combine these processes within a single structure, using each material where it performs most effectively.

A Complete Scenic Fabrication Method

Large-scale foam carving sits at the intersection of digital design, sculpture, engineering and scenic finishing.

Its strength lies in the ability to manufacture ambitious forms that would be difficult to produce through conventional construction alone. Yet successful results depend on much more than carving a block of material.

Density, segmentation, internal support, coatings, transport, environmental exposure and installation methodology must all be resolved as part of one coordinated fabrication process.

When these considerations are addressed properly, foam becomes an exceptionally capable scenic material. It can support the creation of lightweight landmarks, complex brand features, cultural installations, temporary architecture and immersive environments while maintaining the accuracy, durability and finish expected from professional scenic fabrication.

A coordinated scenic LED wall depends on the final screen specification matching the fabrication information.

Why Your LED Screen Doesn't Fit The Scenic Wall (Even Everyone Did Their Job)

The scenic wall has been fabricated. Installation day arrives. The LED supplier turns up. And the screen they deliver is not quite the same screen everyone designed around. Welcome to one of the more familiar conversations in scenic fabrication. The frustrating part is that nobody has necessarily done anything wrong.

Months earlier, the scenic team may have received cabinet dimensions, structural information and technical specifications for a particular LED product. Those dimensions were incorporated into coordinated drawings. The scenic opening was developed around them. Steelwork, timber construction and finished trims were manufactured accordingly.

Then reality happens. Stock availability changes. A different supplier is appointed. An alternative cabinet becomes available. The original product is allocated elsewhere. Or the technical team arrives on site with a perfectly capable LED system that happens to be slightly different from the one used during scenic development. Now the wall and the screen are both correct. They are simply correct to two different sets of information.

The scenic wall can be completely finished before the final LED product arrives.

A Few Millimetres Can Become A Very Large Problem

LED integration is one of those areas where apparently small dimensional changes can become surprisingly visible. A cabinet may only differ from the coordinated product by a few millimetres in width or height. Across one cabinet, that might appear insignificant. Across ten, fifteen or twenty cabinets, however, the difference accumulates.

A five-millimetre variation across twelve cabinets becomes 60 millimetres. That is no longer a tolerance. It is a gap, a clash or a scenic modification. Cabinet dimensions are also only part of the equation. Different LED systems can use different locking mechanisms, frame profiles, locating hardware and structural connections. The physical display area may be similar while the equipment surrounding it behaves very differently.

For scenic fabrication, the important dimensions are therefore not simply the advertised screen size. The actual cabinet geometry, installed tolerances and interface between the screen and scenic finish all need to be understood.

Installation day can reveal a mismatch when the delivered LED differs from the coordinated product.

The Scenic Opening Is More Than A Rectangle

On a drawing, an LED screen can look deceptively simple: a rectangle inside another rectangle. On site, that rectangle needs support, tolerance, ventilation, cabling and maintenance access.

A scenic bezel that is intended to finish tightly against the active LED surface may only have a limited amount of adjustment available. If the screen becomes slightly wider, the finished trim can clash with the cabinet. If it becomes slightly narrower, an unwanted gap may appear.

The same applies vertically. Floor levels, LED support structures, cabinet stacking tolerances and scenic framing all contribute to the final installed position.

This becomes particularly noticeable on conference stages, product launches and broadcast environments where LED edges frequently sit close to clean architectural scenic lines. A small discrepancy can become visually obvious precisely because everything around it has been fabricated to appear precise.

Fabrication is only as accurate as the technical information issued and approved during development.

Front Service Or Rear Service?

One of the first technical questions a scenic team needs answered is how the LED will be maintained. Some systems are front-serviceable. Individual LED modules, power supplies or receiving cards can be accessed from the front of the display.

Others require rear access. That difference can completely change the scenic construction around the screen. A rear-service LED wall may require sufficient space behind the cabinets for technicians to work, remove components and reach power or data connections. The scenic wall may therefore need accessible rear zones, removable panels, service doors or increased structural depth.

A front-service system can reduce some of those requirements, but the surrounding scenic bezel still needs to allow the appropriate service tools and LED modules to be removed without damaging finished surfaces. Changing between these two approaches after fabrication has started is therefore considerably more significant than simply changing the brand of LED cabinet.

Alternative LED products can introduce dimensional differences even when nominal screen size remains unchanged.

LED Screens Need To Breathe

Ventilation is another detail that can easily disappear between the technical drawing and the finished scenic elevation. LED equipment produces heat. Power supplies, processing equipment and closely packed cabinets can all require airflow.

A scenic enclosure that wraps tightly around the screen may look clean, but it cannot obstruct ventilation required by the equipment. Depending on the system, this may influence the clearance above, below or behind the display.

Ventilation can be incorporated discreetly through shadow gaps, perforated panels, open rear cavities or concealed air paths within the scenic construction. The important point is that these requirements need to be coordinated before the wall is built.

Changing the LED product may also change those requirements. One cabinet may tolerate an arrangement that another does not.

Small cabinet tolerances can accumulate across a large LED wall and affect the final scenic opening.

Then There Are The Cables

A screen is not only the visible LED surface. Behind it are power feeds, data lines, processors, distribution hardware and connections between cabinets. Those cables need somewhere to go.

Scenic fabrication frequently incorporates concealed cable routes, access voids, floor penetrations and removable panels so that the technical installation can remain tidy while still being maintainable.

Connector positions matter as well. If one LED product has power and data connections in a different location from another, an existing cable opening or support rail may suddenly sit exactly where the technician needs access.

The solution may be relatively straightforward if discovered during technical development. It can become considerably less elegant once painted panels, steelwork and finished trims are already installed.

Service access requirements can change the depth, clearances and construction of the surrounding scenic wall.

The Screen Has Weight Too

Structural coordination is another reason why changing LED products cannot always be treated as a straightforward substitution. Different cabinet systems can have different weights, mounting methods and load distributions.

The scenic construction may incorporate a dedicated steel frame designed around the loads and fixing positions supplied during development. If the equipment changes, the structural interface may need to be reviewed as well.

This is particularly important where large LED surfaces are incorporated into stages, exhibition structures or permanent environments. A technically acceptable alternative screen does not automatically mean it can be attached to the existing scenic structure without review.

The mounting rails may differ. The cabinet locking points may move. The overall weight may change. The centre of gravity may change. Those differences need to be understood before anyone starts modifying finished fabrication on site.

Front-service and rear-service LED systems demand different scenic detailing and maintenance strategies.

Everyone Needs To Be Looking At The Same Drawing

Most LED integration problems are ultimately information problems. The scenic fabricator may be working from drawing revision five. The technical supplier may have changed equipment using revision seven. The structural engineer may still be reviewing the previous cabinet loading. None of those teams necessarily made a mistake. They simply stopped working from one coordinated source of information.

This is why shared drawing packages are so important. The scenic GA, LED layout, structural support details, equipment schedule and relevant technical specifications should all reference the same approved product and revision.

At Evolution Scenic, our fabrication teams regularly coordinate directly with the engineers, technicians and project teams at Evolution Technical during development. Because those teams can review scenic fabrication and technical requirements together, cabinet dimensions, service arrangements, cable requirements and revisions can be resolved before manufacturing reaches the point where changes become expensive.

That coordination is particularly valuable when the installation combines technical equipment with tightly finished scenic architecture.

LED ventilation needs can influence scenic panel spacing, enclosure depth and hidden air routes.

What Happens When Something Changes?

Equipment changes are normal. The problem is not that changes happen. The problem is when the change does not travel through the complete coordination chain. If the LED product changes, somebody needs to determine what else that change affects.

• Does the scenic opening change?
• Does the support steelwork change?
• Do the fixing points change?
• Does the rear access requirement change?
• Does the screen require different ventilation?
• Do cable penetrations need moving?
• Does the weight need structural review?

These questions form a basic change-management process. The revised equipment specification should be circulated, affected drawings updated and the consequences reviewed before fabrication continues wherever possible.

That may sound procedural, but it is considerably easier than standing beside a completed scenic wall with an angle grinder and explaining why a supposedly minor technical substitution now requires physical modification.

Cable routing must be coordinated before fabrication so connectors and looms remain accessible and protected.

Mock It Up When The Interface Matters

For particularly tight integrations, a small physical mock-up can be extremely useful. A sample LED cabinet or representative frame can be checked against the scenic bezel, support detail and proposed access arrangement before the complete wall is manufactured. This allows teams to verify dimensions that are difficult to understand purely from drawings.

• How close can the scenic trim actually sit to the LED?
• Can a front-service module still be removed?
• Is there sufficient room for the cabinet locking mechanism?
• Can the power connector be reached?
• Does the proposed shadow gap work when the real equipment is installed?

Resolving these questions in the workshop is generally preferable to discovering them during a restricted installation window.

Changing LED products can alter structural loads, mounting points and support-frame requirements.

The Same Problem Appears In Very Different Environments

Conference stages frequently use large LED surfaces surrounded by precise scenic framing. Here, dimensional discrepancies become particularly visible because screens often form the centre of the stage architecture. Product launches can create even tighter relationships between LED and scenic finishes. Screens may disappear into architectural portals, curved scenic surfaces or sculptural structures where adjustment space is intentionally minimal.

Exhibition stands often combine multiple digital displays with timber construction, graphics, shelving and product presentation. A screen specification change can therefore affect several surrounding fabricated components rather than one isolated opening. Permanent installations introduce another consideration: maintenance. The LED may need servicing or replacement several years later. Scenic construction should allow that work to happen without dismantling half of the environment.

Broadcast environments can be more demanding still because camera framing exposes inconsistencies that may be less noticeable to the eye. Screen edges, scenic lines and surrounding finishes frequently need extremely accurate coordination. The physical environment changes. The underlying lesson does not.

Shared drawing packages keep fabrication, engineering and technical teams aligned to the same specification.

Installation Day Is The Worst Time To Discover A Revision

Late changes can usually be solved. Scenic fabrication is inherently practical, and experienced site teams are accustomed to adapting when conditions change. A bezel can sometimes be adjusted. A trim can be remade. Steelwork can occasionally be modified. A panel can be recut.

But every site modification introduces additional time, labour and risk to finishes that were already completed correctly in the workshop. Changes made under installation pressure also tend to have fewer options available. A solution that could have been elegantly incorporated into workshop fabrication may need to become a compromise when the venue is open, other contractors are working around the area and the stage must be completed that night.

That is why the objective is not to eliminate every project change. It is to discover the important ones early enough that they can still be engineered properly.

Formal change management helps ensure revised LED information reaches fabrication before manufacturing continues.

The Problem Usually Is Not The Wall Or The Screen

External LED suppliers can deliver excellent systems. Scenic fabricators can manufacture extremely accurate structures. Neither fact guarantees that the two will fit together. Successful integration depends on the interface between them. The scenic structure can only be fabricated around the technical information available at the time. If that information changes, the effect on the surrounding construction needs to be reviewed.

The issue is therefore rarely that one supplier performed badly. More often, different teams were simply working from different versions of the truth. The most successful LED integrations are the result of engineers, scenic fabricators, structural teams and technical specialists sharing the same final information before manufacturing begins.

When that happens, cabinets align, access remains usable, cables reach where they need to go and finished scenic trims sit exactly where everyone expected them to. Installation day becomes considerably less exciting. Which, in scenic fabrication, is often a very good sign.
