Large-scale scenic sculptures often appear effortless once installed. Visitors see a completed structure integrated into its environment, rarely considering the engineering, fabrication and logistical planning required to make that outcome possible.
At 12 metres high, a scenic sculpture is no longer simply an enlarged decorative object. It becomes a temporary engineered structure that must perform safely throughout fabrication, transportation, lifting, assembly and operation.
The challenges begin long before manufacturing starts. As a structure increases in scale, its weight, centre of gravity, wind exposure and transportation requirements become increasingly influential. Decisions that appear minor during concept development can have significant consequences once production begins.
The success of a sculpture at this scale therefore depends on treating engineering, scenic fabrication and logistics as parts of one coordinated process.
Understanding the Challenges of Scale
Increasing the size of a sculpture changes more than its dimensions.
A narrow feature that appears stable within a digital model may become a substantial unsupported projection when built at full size. A curved surface that seems relatively simple may require several structural members, machined components and joining points to retain its form.
Large surface areas can also introduce wind-loading considerations, particularly when the sculpture is installed outdoors. Weight must be controlled without compromising stability, while the base structure must safely transfer loads into the supporting platform, foundation or temporary installation system.
Workshop limitations must also be considered. A 12-metre sculpture will rarely fit beneath a standard workshop roof as one complete assembly. Even when sufficient height is available, manufacturing the structure vertically may not be the safest or most efficient approach.
The sculpture must therefore be designed around the realities of production. It may need to be fabricated horizontally, divided into sections or temporarily assembled in smaller groups before being transported to site.
These decisions affect every later stage of the project.
Developing the Sculpture Digitally

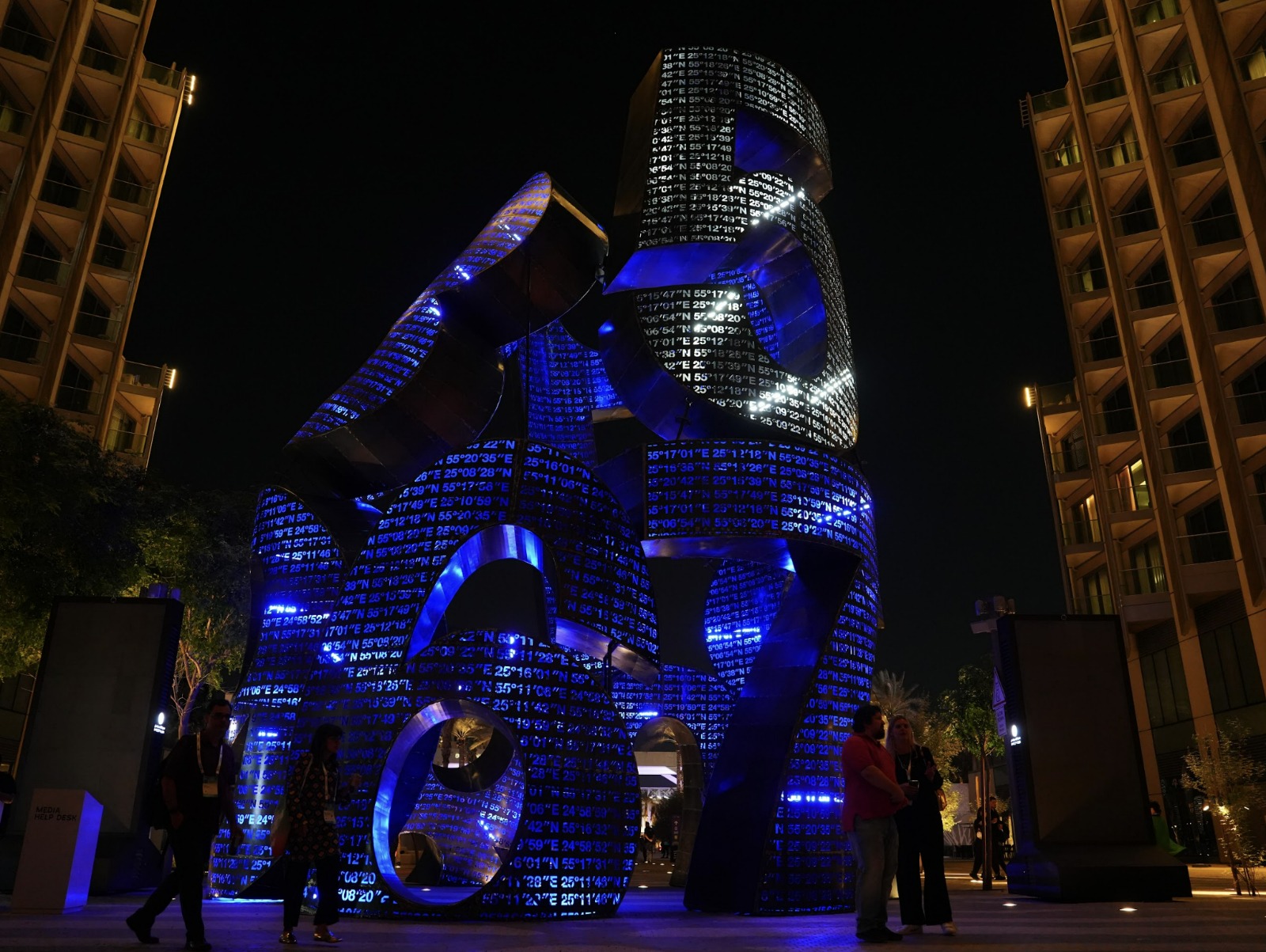

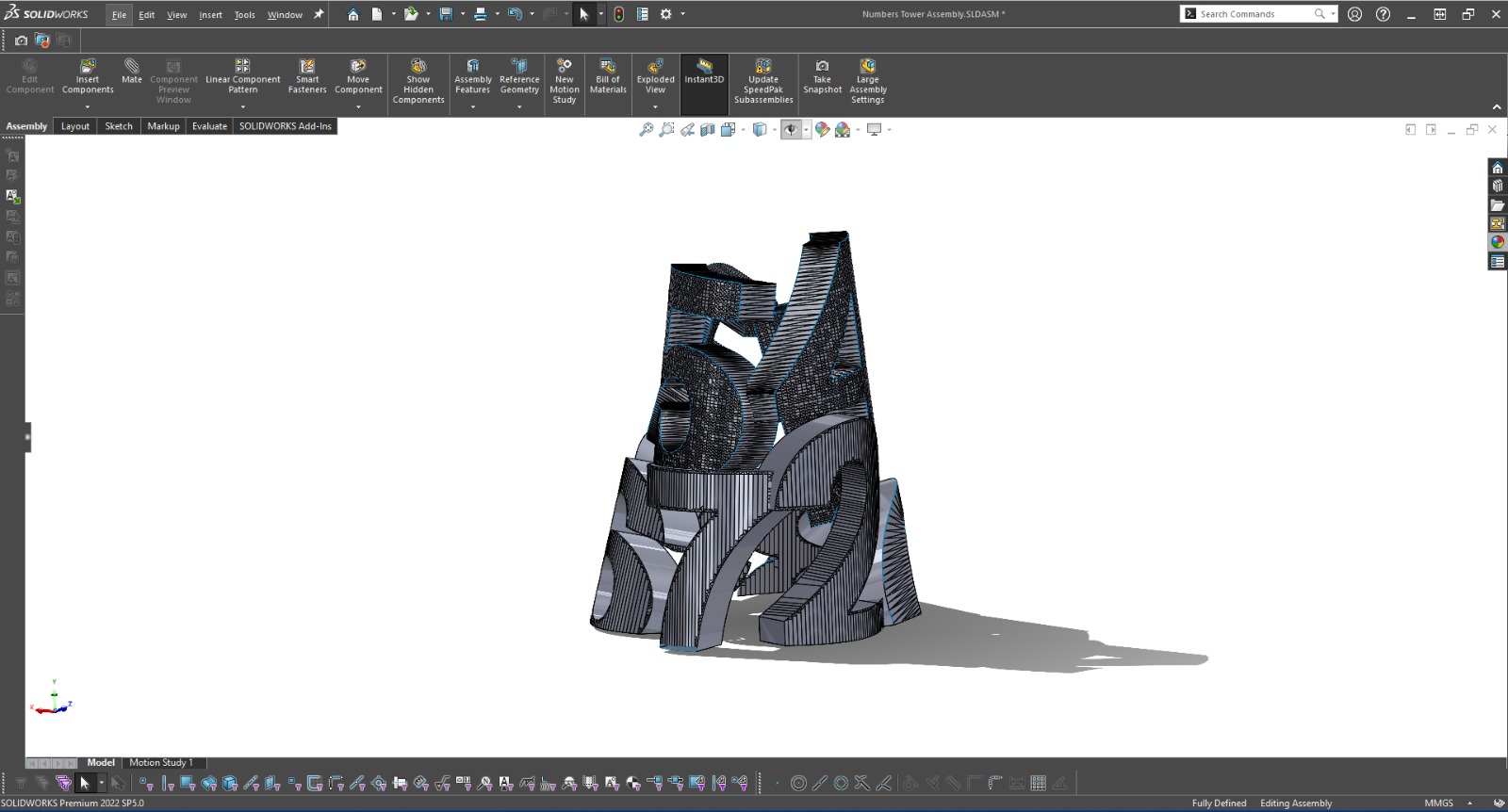

The process usually begins with a three-dimensional model representing the intended external form.
This model provides a starting point, but it is not necessarily ready for manufacture. Technical designers must translate the visual concept into production information that can be understood by engineers, metal fabricators, scenic carpenters, CNC operators, sculptors and installation teams.
The digital model is reviewed to identify structural zones, connection points and potential fabrication sections. Large curves and irregular surfaces may be divided into manageable components that can be manufactured using CNC machining, foam carving, timber construction or formed sheet materials.
The model must also account for the thickness of coatings, cladding and scenic finishes. Even small material allowances can affect how separate sections align when assembled.
Digital coordination allows potential conflicts to be identified before materials reach the workshop. It also helps the team assess the overall weight, module dimensions and likely centre of gravity of each component.
For a structure of this scale, the digital model is not simply a visual reference. It becomes an important part of the fabrication and installation methodology.
Structural Engineering and Technical Reviews
Behind the finished scenic surface sits an internal structure designed to carry loads and maintain the sculpture’s geometry.
Structural steel is often used for the primary framework because it provides predictable strength, reliable mechanical connections and suitable lifting points. Aluminium, timber and plywood may also be incorporated where lower weight or more complex shaping is required.
The engineering solution must respond to the form rather than working against it. Structural members need to fit within the available internal space without distorting the external silhouette or becoming visible through the finished surface.
Technical and structural reviews consider factors such as:
- The overall height and weight of the sculpture
- The stability of the completed structure
- Wind and environmental loading
- The strength of connections between modules
- Lifting and handling forces
- Temporary stability during installation
- Base plates, anchoring systems and ballast
- Public proximity and accidental impact
The sculpture may be stable when fully assembled but vulnerable while individual modules are being lifted or connected. Temporary bracing and installation sequencing must therefore form part of the engineering strategy.
Lifting points are also designed into the structure rather than added as an afterthought. Their position must allow each module to remain controlled and balanced during movement.
These details are rarely visible after installation, but they are essential to delivering the sculpture safely.
Designing a Modular Construction Strategy
A 12-metre scenic sculpture can rarely be transported as a complete object.
Road restrictions, vehicle dimensions, workshop access and site conditions usually make modular construction necessary. The sculpture is divided into sections that can be manufactured, handled and transported independently before being assembled at its final location.
Determining where to divide the structure requires careful judgement.
Modules must be small enough to fit within transport and lifting limitations, but excessive segmentation creates more joints, additional fabrication work and longer installation times.
Connection points should remain structurally reliable while being accessible to the installation team. Wherever possible, joints are located along natural changes in geometry, recessed areas or surface transitions where they can be concealed more effectively.
The modular approach also influences the internal frame. Steel members may terminate at bolted flange connections, while scenic surfaces may include removable sections that provide access to the structural fixings.
Projects such as the Nano Robot Structure demonstrate how complex public sculptures can be broken into coordinated fabrication modules. Structural frameworks, CNC-produced forms and detailed scenic surfaces can be manufactured separately before being brought together as one finished installation.
The objective is to ensure that the completed sculpture reads as a continuous form, even though it has been designed around transportation and assembly requirements.
Selecting Materials for Strength and Weight
Material selection becomes increasingly important as scenic structures grow in size.
A sculpture built entirely from heavy materials may create unnecessary demands on transport vehicles, cranes, foundations and installation crews. A structure built entirely from lightweight materials may lack the strength needed to withstand lifting, environmental exposure or public interaction.
The most effective solution is usually a hybrid construction system.
Steel may provide the primary support structure, while timber or plywood creates secondary framing and localised fixing zones. CNC-carved foam can produce complex volumes and curved surfaces without introducing excessive weight. Other areas may use fibreglass, formed plastics, printed elements or lightweight composite panels.
Each material is selected for a specific purpose.
Foam, for example, is particularly valuable when creating large sculptural volumes, but it requires suitable reinforcement and protective coatings. Exposed corners, projecting details and areas close to the public may need harder surface systems or locally strengthened construction.
Similarly, scenic coatings must be chosen according to the operating environment. An indoor installation may require a different finish from a public sculpture exposed to heat, moisture, dust and ultraviolet light.
Material decisions must balance appearance, durability, weight, manufacturing time and cost. The least expensive material in isolation is not always the most efficient choice once transport, installation and maintenance are considered.
Fabricating and Testing the Modules
Once the technical design and engineering strategy are approved, manufacturing can begin.

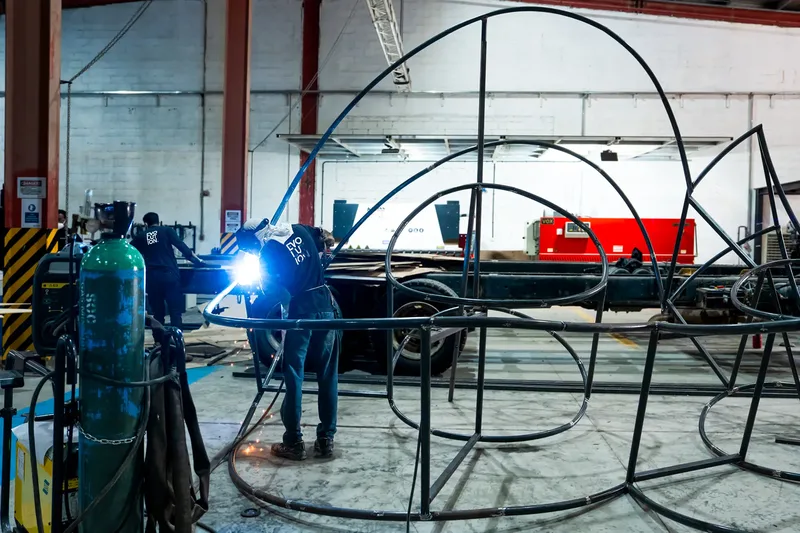

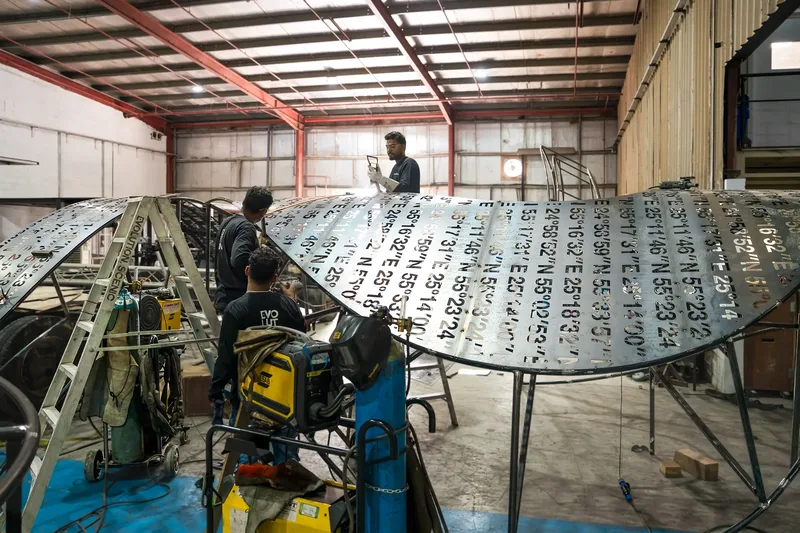

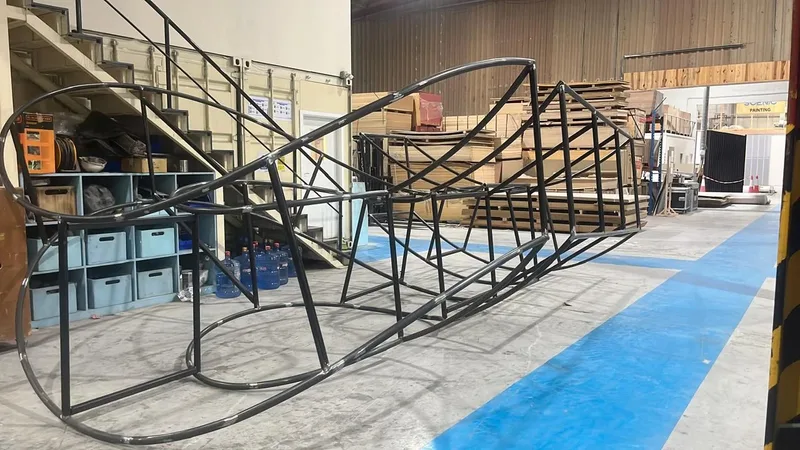

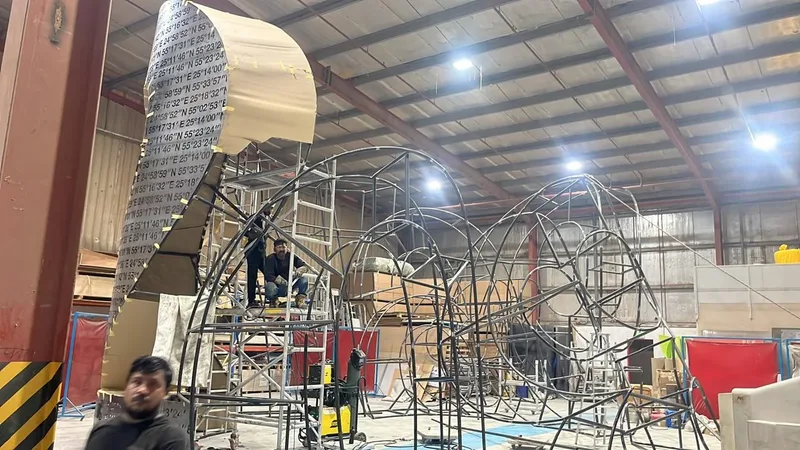

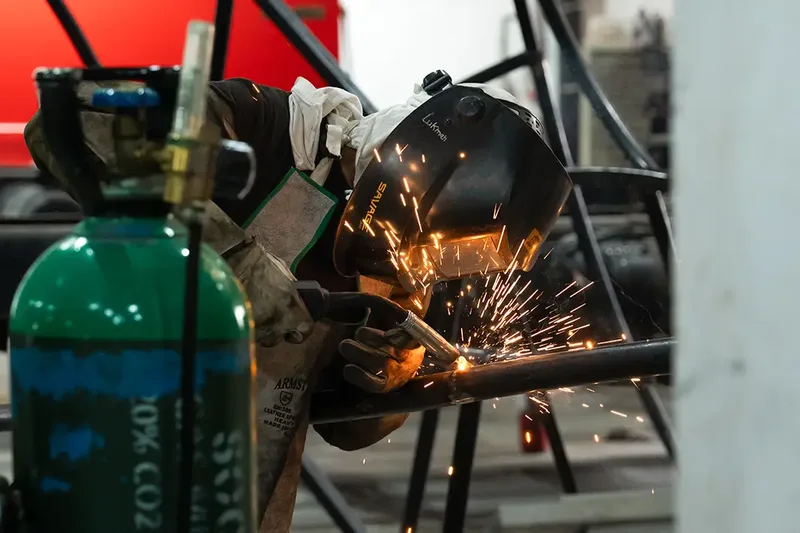

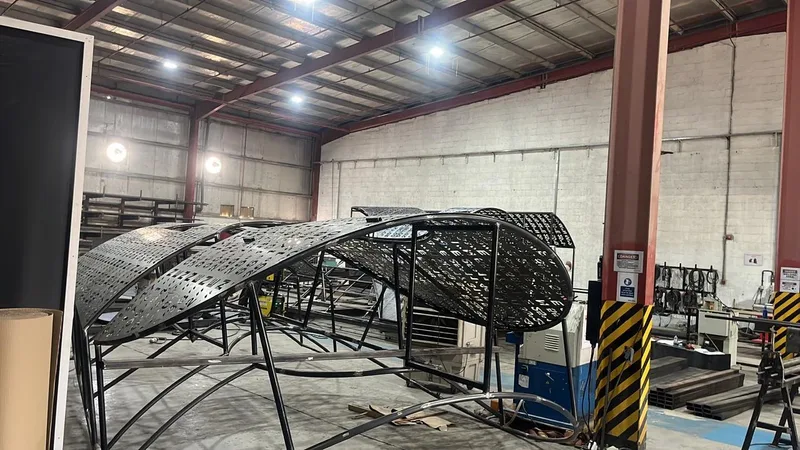

The internal framework is typically fabricated first, providing a controlled structure around which the sculptural form can be developed. Steel components are cut, welded and checked against technical drawings before secondary framing and scenic materials are added.
CNC machining allows complex components to be produced directly from digital information. Large foam sections, profiles and surface forms can be cut accurately before being refined by scenic sculptors.
The modules are then coated, prepared and painted using finishes appropriate to the final design and operating conditions.

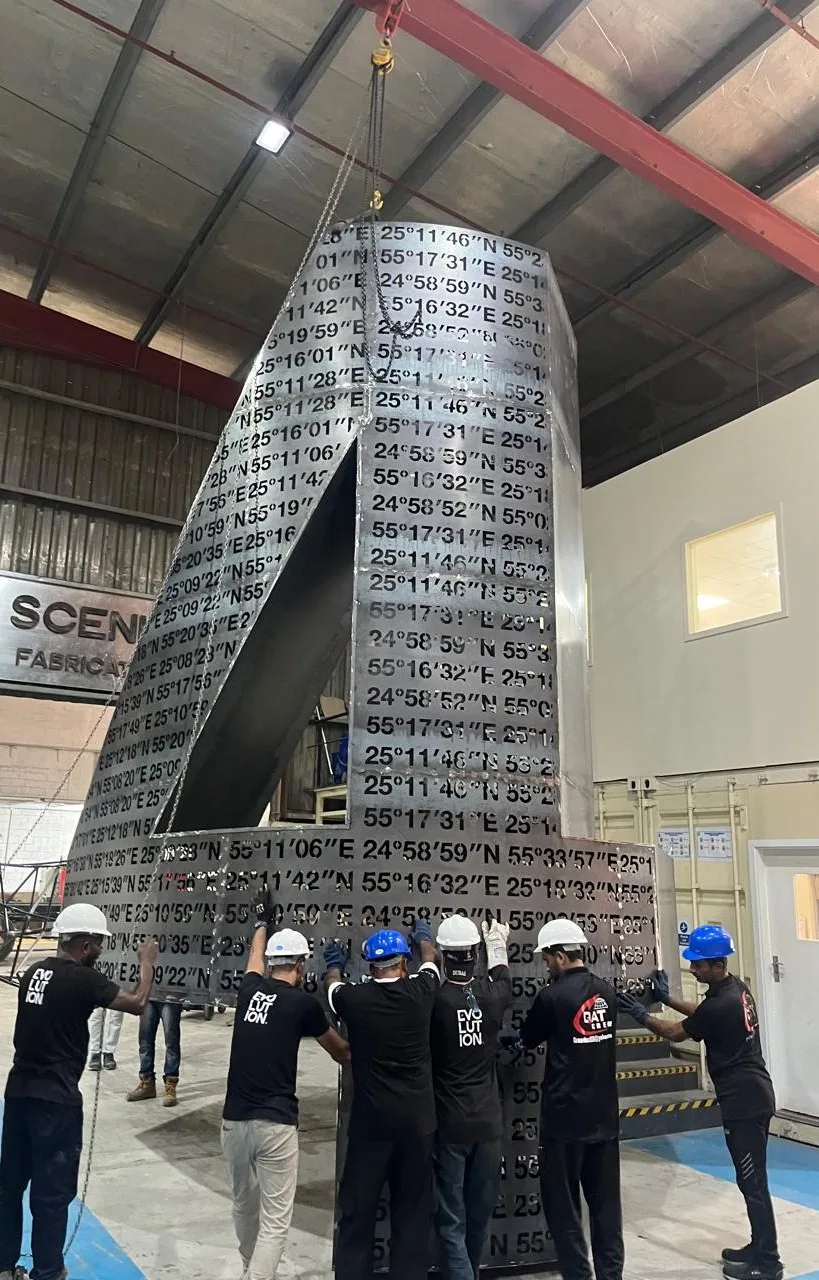

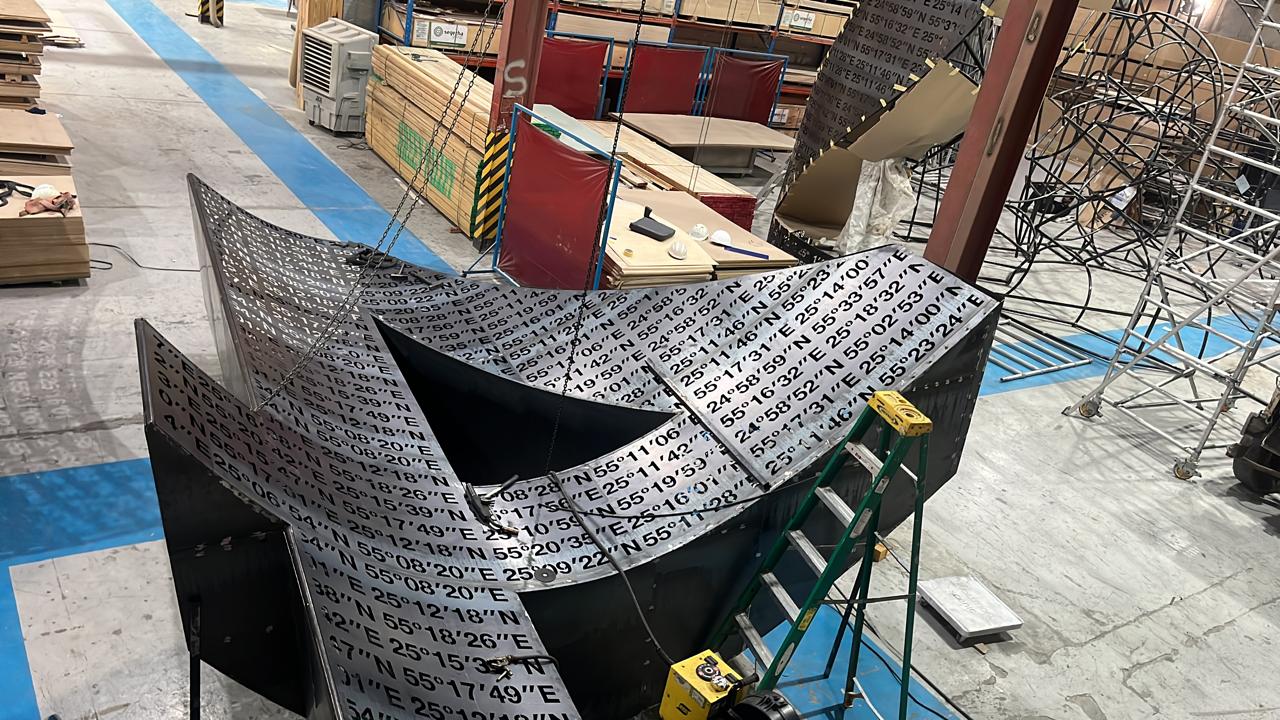

Where workshop space allows, key sections are test-fitted before dispatch. This stage confirms that structural connections align, scenic surfaces meet correctly and installation access remains available.
Test assembly is particularly important for irregular sculptures. Small tolerance differences can accumulate across multiple modules, creating significant alignment problems at full height.
Resolving these issues in the workshop is considerably more efficient than attempting to correct them during a time-sensitive site installation.
Planning Transportation
Transportation planning begins during technical design, not when fabrication is complete.
Every module must fit within vehicle dimensions and road transport restrictions. Fabricators must also consider how components will move through workshop doors, loading bays, venue entrances and the final installation area.
Large scenic components may be lightweight relative to their size but still difficult to handle. Their irregular forms can create vulnerable projections and inefficient loading volumes.
Custom transport stillages are often manufactured to support the modules securely. These frames prevent movement during transit and protect finished surfaces from impact, vibration and pressure.
The loading sequence is coordinated with the installation programme. Components required first on site should be positioned so they can be unloaded without moving or exposing later modules unnecessarily.
Lifting points and handling instructions must remain accessible throughout the journey. Protective packaging should safeguard the scenic finish without preventing installation crews from identifying connection zones or module references.
The transport strategy is therefore closely connected to the fabrication and assembly methodology.

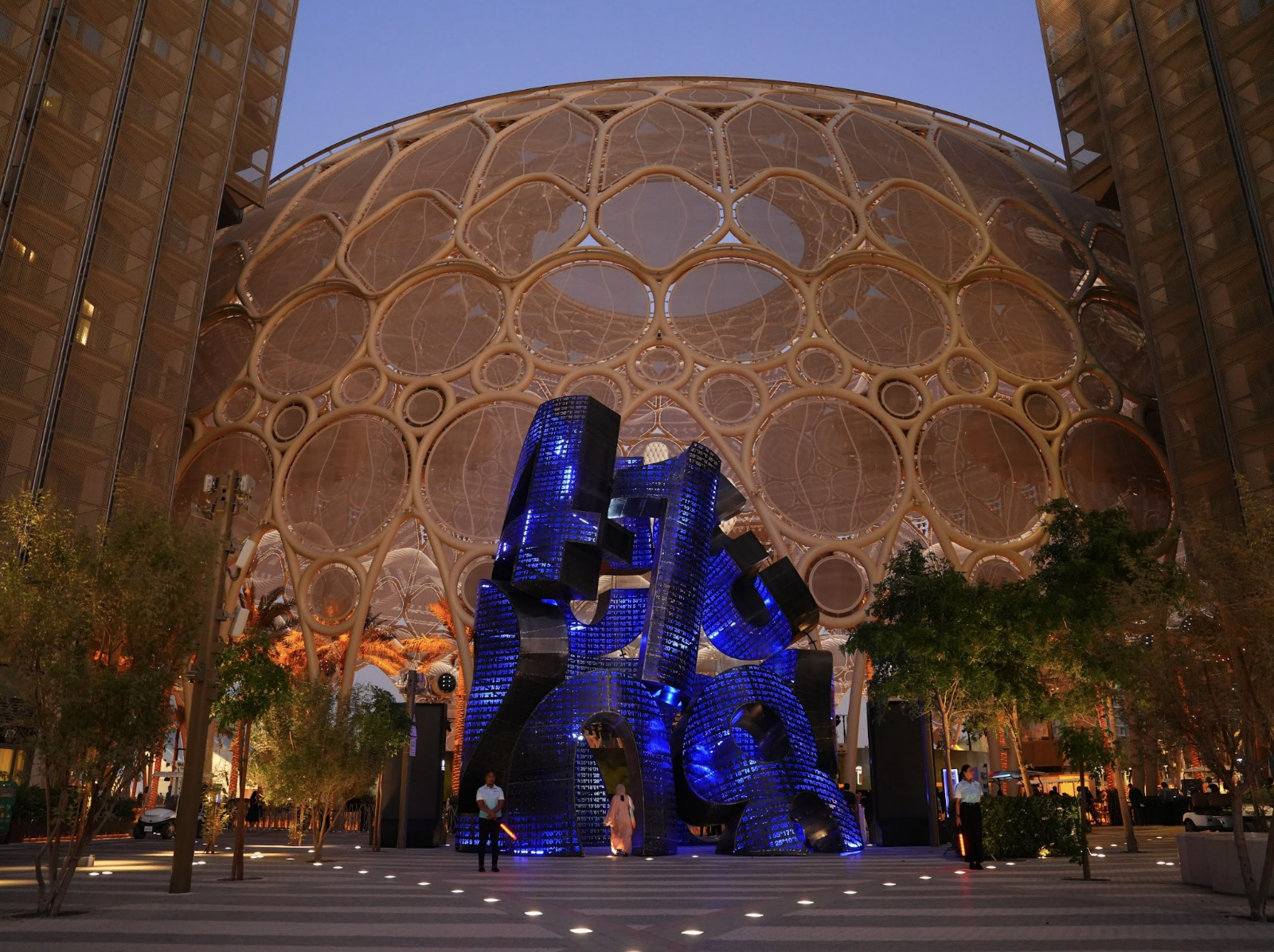

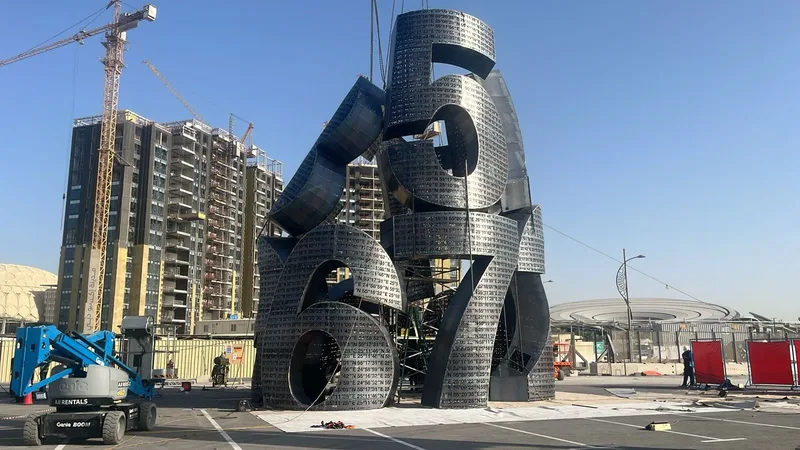

Installing the Sculpture on Site
Site installation is where the engineering, manufacturing and logistical planning come together.
The base structure is positioned first and checked against site coordinates, levels and fixing locations. Any discrepancy at this stage can affect the alignment of every module above it.
The sculpture is then assembled according to a planned sequence. Lower structural sections are normally secured before upper modules are lifted into position.

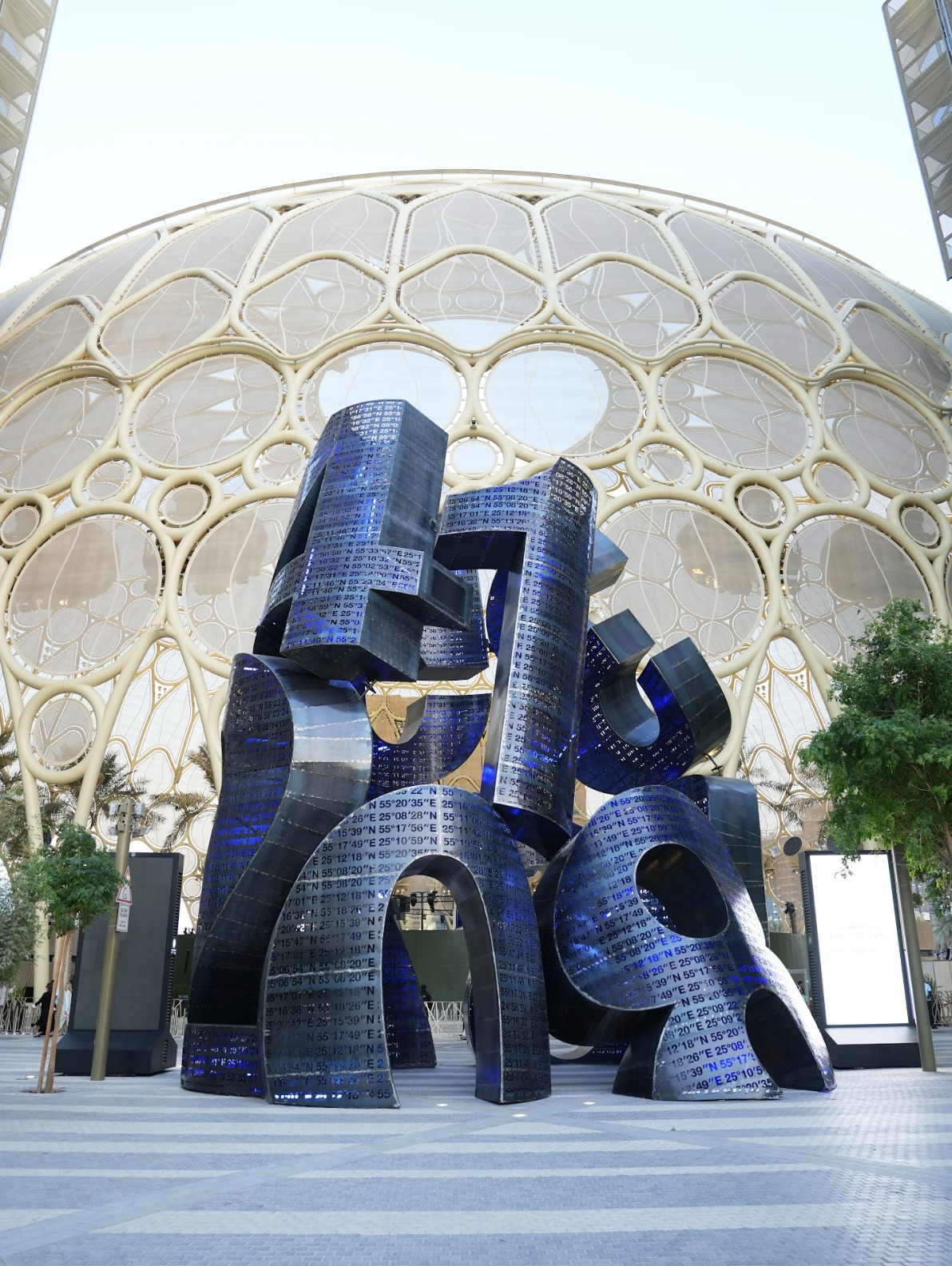

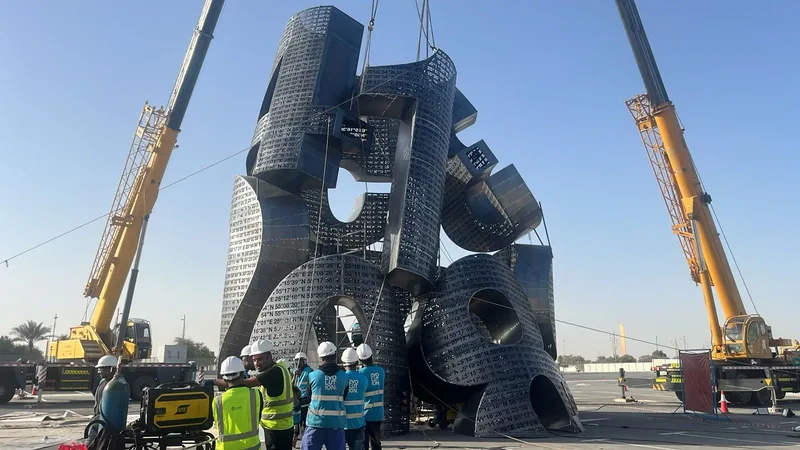

Each lift must account for the component’s weight, dimensions and centre of gravity. Spreader beams, lifting frames or multiple connection points may be required to prevent the module from rotating or deforming.
Temporary supports can stabilise the sculpture while the remaining sections are installed. These are removed only after the primary connections have been completed and inspected.
Once the structural assembly is finished, scenic teams close the visible joints between modules. Seams are filled, coatings are repaired and painted finishes are carefully matched so that the final sculpture appears continuous.
Access becomes more difficult as the structure increases in height, so the sequence of final finishing must also be planned. Certain joints may need to be completed from elevated work platforms before access is restricted by additional modules.
Site installation is rarely a simple matter of connecting prefabricated sections. It requires experienced teams capable of responding to changing conditions while protecting the engineering and visual integrity of the sculpture.
Maintaining the Original Design Intent
One of the greatest challenges throughout the project is maintaining consistency between the original concept and the completed installation.
Engineering requirements may require adjustments to proportions, support locations or material thicknesses. Transportation restrictions may influence where modules are divided. Site conditions may affect the base design or lifting methodology.
The objective is not to prevent technical changes. It is to integrate them without weakening the sculpture’s intended form.
Close coordination between designers, engineers and fabricators allows structural requirements to be absorbed into the sculpture rather than applied visibly afterwards.
This is where practical scenic experience becomes especially valuable. Understanding how materials behave at scale makes it possible to preserve important curves, profiles and surface transitions while introducing the reinforcement needed for safe delivery.
One Connected Fabrication Process
Large sculptures succeed when engineering, fabrication, transportation and installation are considered as a single delivery strategy rather than separate activities.
The size of each module affects the transport plan. The transport plan affects the location of structural joints. The structural joints influence the scenic surface, and the surface design determines how successfully those joints can be concealed.
Every decision is connected.
For Evolution Scenic, building a 12-metre sculpture is not simply an exercise in making something visually impressive. It is a process of solving structural, manufacturing and logistical challenges while retaining the clarity of the original design.
The completed sculpture may appear effortless once installed, but that outcome is achieved through detailed technical design, coordinated fabrication and a carefully controlled site methodology.
