Choosing Materials For Scenic Fabrication

Choosing Materials For Scenic Fabrication

Material selection is one of the most important decisions made during any scenic fabrication project. The materials chosen during technical development influence far more than the finished appearance. They affect structural engineering, fabrication methodology, transportation, installation sequencing, maintenance and the overall lifespan of the environment.

There is rarely a single correct material for a scenic structure. Two materials may produce an almost identical visual result while behaving very differently during manufacturing and operation. The strongest solution is therefore not necessarily the heaviest, most permanent or most familiar material. It is the material, or combination of materials, that responds most effectively to the project’s structural, environmental and operational requirements.

This is why scenic fabrication rarely begins with a material in isolation. It begins with questions.

How long must the installation remain in operation? Will it be installed indoors or outdoors? Does it need to be transported, stored or reused? Will people touch or interact with it? Are integrated lighting, graphics or technology involved? How will maintenance teams reach concealed components?

Timber: Flexible, Familiar and Highly Adaptable

Timber remains one of the most versatile material groups used in scenic fabrication. Softwood framing, plywood, birch ply, MDF and specialist boards can all perform different roles within the same environment.

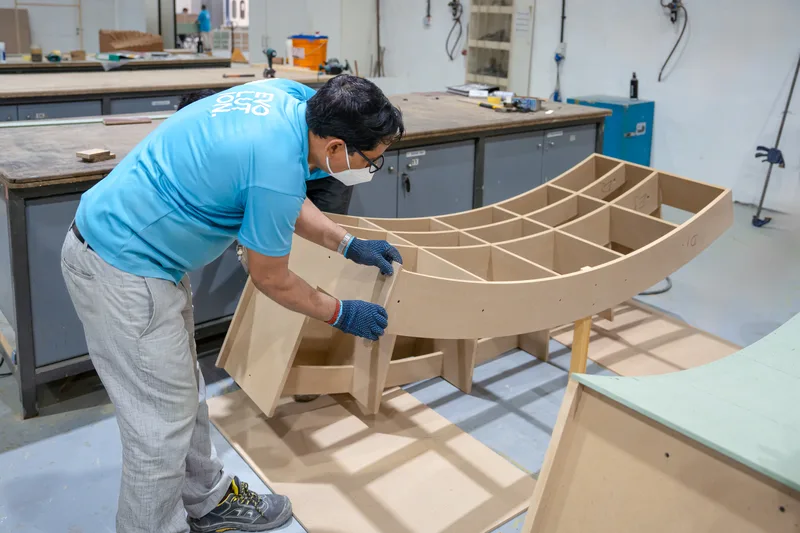

Timber structures can be manufactured efficiently, modified during production and adapted on site when necessary. Curved walls, scenic flats, display units, plinths, portals and temporary partitions can often be produced using CNC-cut plywood ribs combined with timber grounds and sheet cladding.

However, timber is not one universal product. MDF provides a smooth surface for painted finishes and CNC-machined details, but standard grades are vulnerable to moisture. Plywood generally offers better structural performance, although its strength depends on its grade, thickness, veneer quality and the direction of the grain. Birch ply is frequently selected where exposed edges, accurate machining or a premium natural finish are required.

Moisture content, fire performance, edge sealing and fixing methods must all be considered. A timber wall designed for a short indoor exhibition will require a very different specification from timber joinery intended to operate for several years inside a visitor centre.

Steel: Strength Where It Is Needed

Steel is often introduced when scenic structures require greater spans, concentrated load capacity, cantilevered elements or reliable connection points.

Welded steel frames can create stable foundations beneath large scenic forms without making the supporting structure visually dominant. Rectangular and square hollow sections are commonly used for base frames, portals, platforms and internal skeletons. Plates, brackets and gussets allow loads to be transferred through controlled structural connections.

Steel is particularly valuable where structures must support integrated equipment, suspended elements, movement or repeated installation cycles. It can also provide the ballast and low-level weight needed to improve stability beneath tall scenic features.

The design must still account for fabrication tolerances, lifting, access and transportation. A single welded frame may be structurally effective but impossible to move through a venue door. Larger systems are therefore frequently divided into transportable modules connected through bolted plates, sleeves or engineered joints.

Corrosion protection is also important. Painted steel may be suitable indoors, while galvanising, specialist primers or more durable coating systems may be required for external use. The finish must be specified as part of the complete system rather than treated as a final cosmetic layer.

Aluminium: Reducing Weight Without Losing Precision

Aluminium is widely used when weight, handling and repeat assembly are important. It is significantly lighter than steel and offers good corrosion resistance, making it useful for modular scenic frames, overhead elements, lightweight structures and systems that travel regularly.

Reducing weight can simplify installation, decrease lifting requirements and improve transport efficiency. It can also allow larger scenic components to be handled safely by smaller teams where the installation methodology permits.

Aluminium does, however, behave differently from steel. Connections, section sizes and welding methods must be developed specifically for the material. Thermal expansion can become relevant in exposed outdoor environments, and contact between aluminium and dissimilar metals may require isolation to reduce galvanic corrosion.

For reusable environments, accurately manufactured aluminium frames can provide a durable internal structure beneath replaceable scenic skins. The structural chassis remains in service while graphics, finishes and branded surfaces change from one installation to another.

Composites: Complex Forms and Controlled Surfaces

Composite materials are valuable when scenic geometry becomes difficult to achieve through conventional sheet construction. Glass-reinforced plastic, fibre-reinforced panels, laminates and sandwich panels can create curved, lightweight or highly detailed components.

Moulded GRP is especially effective where the same form must be repeated. Once the mould has been developed, multiple components can be produced with consistent geometry and surface quality. This can be useful for themed environments, museum installations, sculptural features and branded structures.

Composite systems should still be assessed carefully. Laminate thickness, internal reinforcement, fixing inserts and edge conditions all influence performance. Fire and smoke requirements are particularly important for public interiors, and the performance of the completed system must be considered rather than relying on the description of an individual resin or facing material.

The connection between the composite skin and its supporting frame is equally critical. A visually convincing shell can still fail operationally if access, movement, thermal expansion and fixing loads have not been properly resolved.

Foam: Shape Without Unnecessary Structural Weight

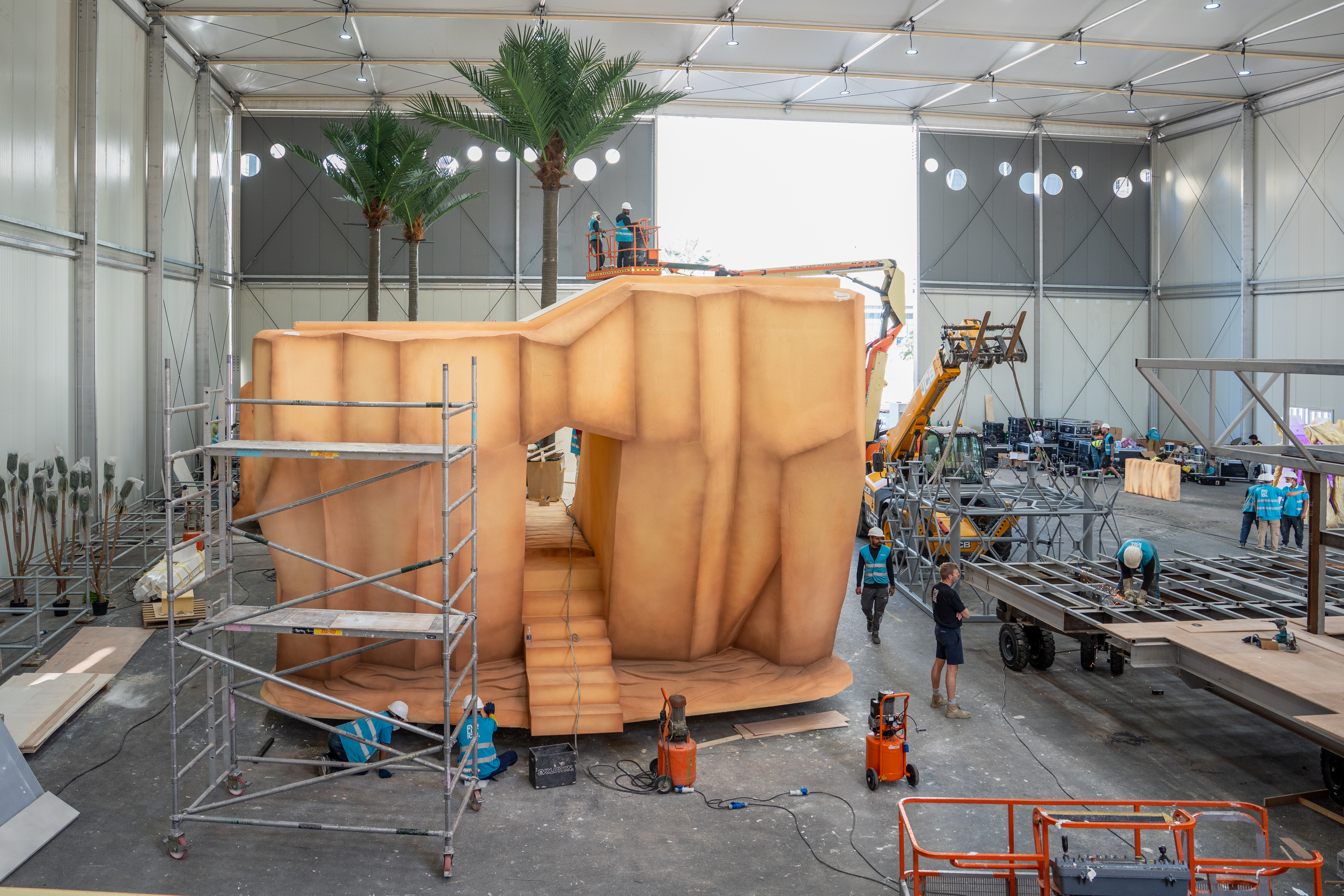

Foam is one of the most useful sculpting materials within scenic fabrication. Expanded polystyrene, extruded polystyrene and polyurethane foams can be carved, hot-wire cut or CNC-machined into complex shapes that would be inefficient to construct from solid timber or metal.

Foam is commonly used for oversized props, organic forms, rocks, relief panels, decorative profiles and lightweight scenic cladding. It is not normally expected to provide the primary structural frame. Instead, it creates the form while an internal timber, steel or aluminium system provides support.

The coating system determines how the finished element behaves. Hard coatings, reinforced laminates, polyurea systems or specialist scenic coatings can improve impact resistance and create surfaces suitable for scenic painting.

Solvent compatibility, heat exposure, fire performance and handling must be checked before production. Details such as vulnerable edges, fixing points and areas that may be touched by visitors often require reinforcement.

CNC Materials and Digital Fabrication

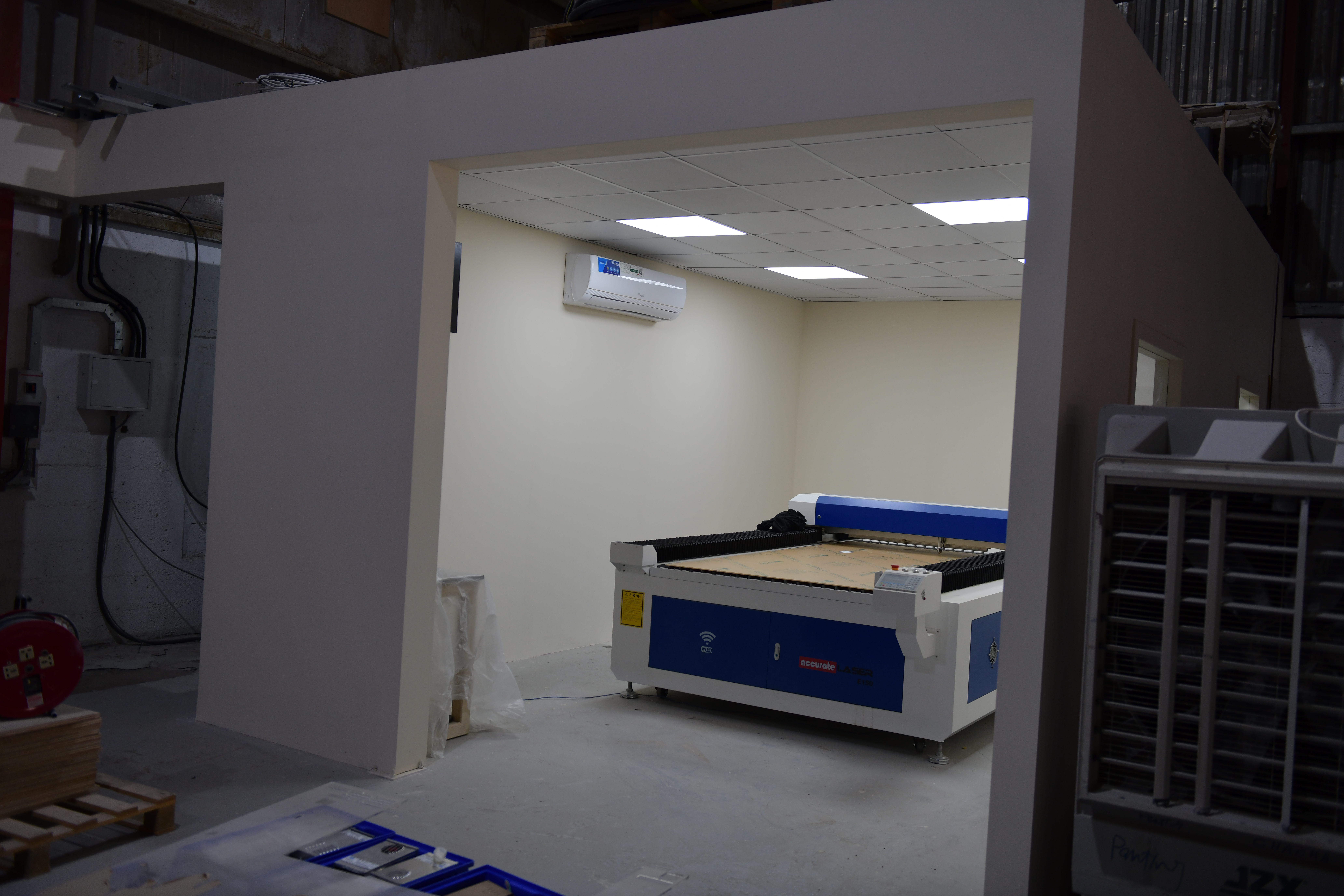

CNC machining has expanded the range of materials that can be used accurately within scenic construction. Plywood, MDF, PVC foamboard, acrylic, compact laminates, aluminium composite panels and certain solid-surface materials can all be cut or routed into repeatable components.

The machine does not remove the need for material knowledge. Cutting speeds, tool selection, sheet holding, dust extraction and edge behaviour vary significantly between materials. A detail that machines cleanly in birch ply may chip in a laminate, melt in certain plastics or require specialist tooling in aluminium.

Digital fabrication works particularly well when components must interlock, repeat or align with integrated technology. Numbered parts can be nested efficiently, produced in sequence and assembled into complex structures with controlled tolerances.

The selected sheet material must still suit the final environment. CNC accuracy cannot compensate for moisture-sensitive boards used outdoors, unsuitable core materials or surfaces that cannot accept the required finish.

Comparing Common Scenic Materials

Different scenic materials offer distinct advantages depending on the structural, visual and operational requirements of a project.

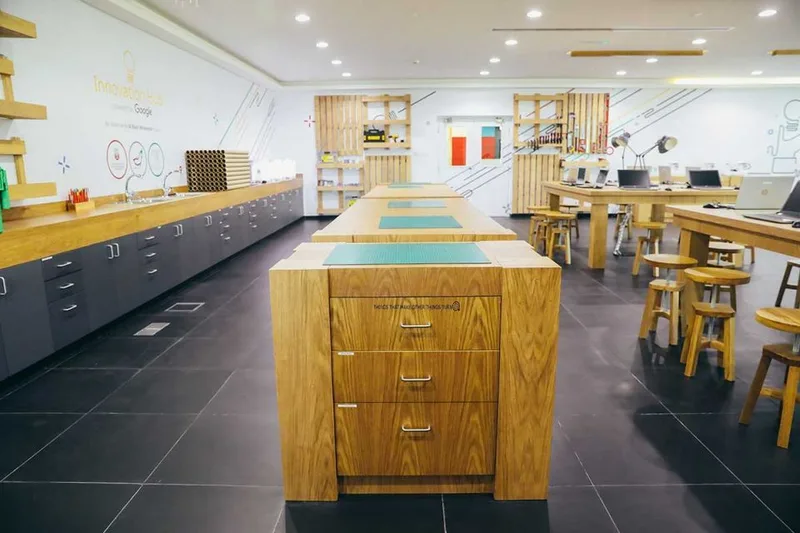

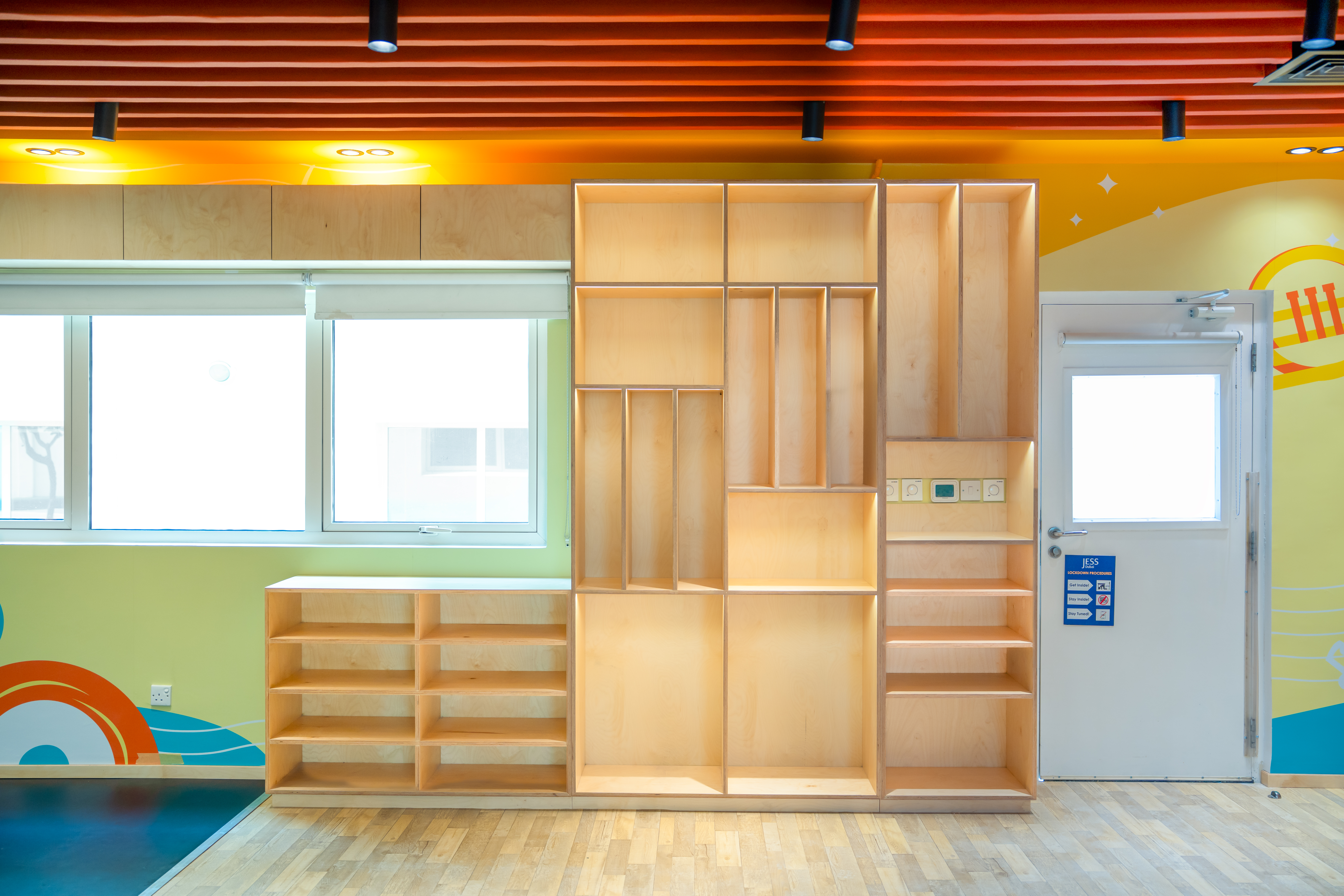

Timber and plywood are adaptable, easy to modify and well suited to CNC production, making them useful for scenic walls, plinths, joinery, portals and temporary structures, although moisture, fire performance, grain direction and edge sealing must be carefully considered.

MDF and other fibreboards provide smooth surfaces and allow accurate routed detailing, which makes them suitable for painted panels, decorative profiles and interior display units, but their weight, impact resistance and sensitivity to moisture can limit where they are used.

Steel provides high strength, stable connections and reliable support for concentrated loads, making it appropriate for base frames, platforms, tall structures and internal structural skeletons, although its weight, corrosion protection and transportable module sizes must be planned from the beginning.

Aluminium offers a lighter, reusable and corrosion-resistant alternative for modular frames, suspended features and touring systems, but connection design, thermal movement and galvanic isolation require specialist attention.

GRP and other composites are particularly effective for producing complex forms, repeated components and controlled surface finishes, making them suitable for sculptural cladding and themed scenic features, while mould development, reinforcement, fixing methods and fire performance remain important considerations.

Foam is lightweight and highly suitable for complex sculpting, including props, reliefs, organic forms and decorative cladding, but vulnerable edges, surface protection and fire performance must be addressed through the correct coating and reinforcement system.

Specialist CNC sheet materials provide accuracy, repeatability and compatibility with digital fabrication workflows, making them valuable for layered graphics, interlocking structures and detailed panels, although tooling, core composition, edge finishing and environmental suitability must be matched carefully to the final application.

Environmental Conditions Change the Specification

The visible material is only one part of the decision. Environmental conditions affect substrates, adhesives, coatings, fixings and connections.

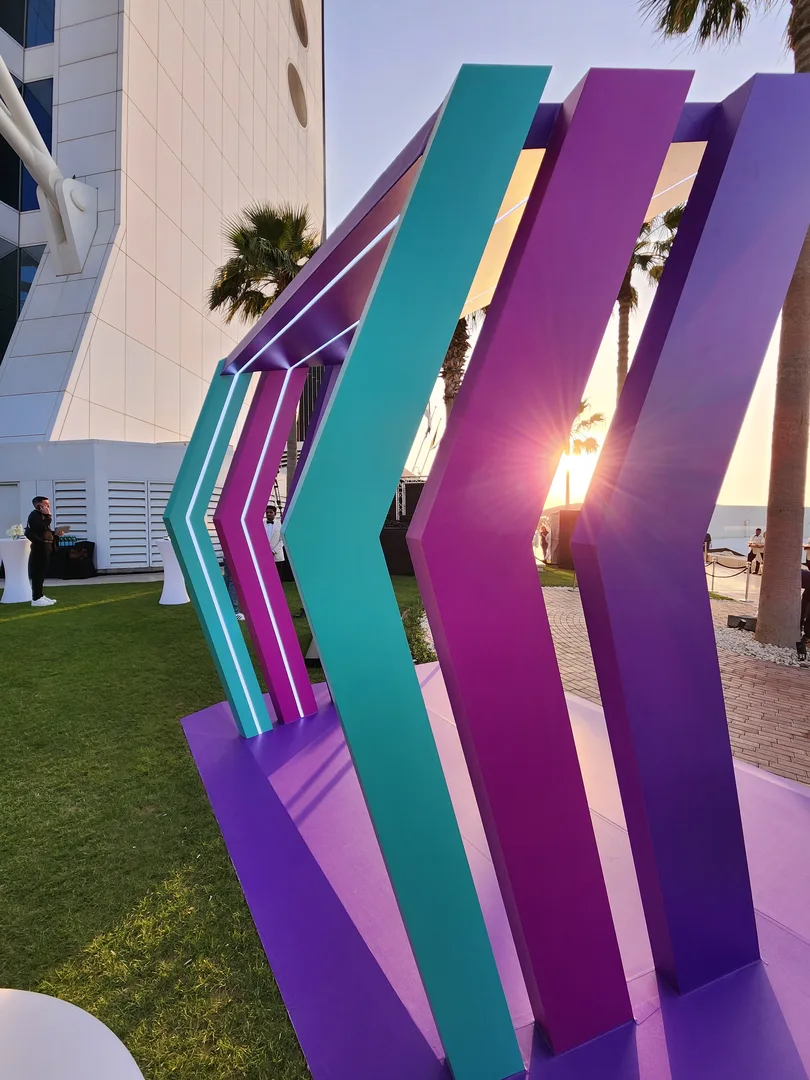

Outdoor scenic structures in the GCC may experience extreme surface temperatures, strong UV exposure, humidity, condensation, wind and airborne dust. Dark finishes can reach much higher temperatures than the surrounding air, creating thermal movement across panels and junctions. Adhesives may soften, plastics may distort and poorly sealed timber edges may absorb moisture.

Wind loading can also influence the choice between solid and perforated surfaces. A large continuous wall may create significant structural loads, while a carefully engineered open or fabric-covered system can reduce wind pressure.

UV-resistant coatings, sealed joints, corrosion-protected fixings and drainage details therefore form part of the material strategy. A durable outdoor system depends on how all its layers work together.

Designing for Durability and Maintenance

Long-term scenic installations should be designed with maintenance in mind from the beginning.

Materials within museums, visitor centres and experience environments may need to withstand repeated cleaning, visitor contact and continuous operation. Corners, plinth edges, doors and interactive areas normally receive more wear than elevated scenic surfaces.

Replaceable finish panels can extend the useful life of the installation. Access hatches allow lighting drivers, screens, ventilation equipment and control systems to be serviced without damaging finished joinery. Standardised fixings make it easier to remove and reinstall components.

The most durable material is not always the one that creates the best long-term environment. A heavy permanent skin may become a liability if it prevents access to technology behind it. A lighter replaceable panel may provide a more practical solution.

Maintenance information should therefore be recorded as part of the handover process. Coating references, cleaning methods, spare materials and approved repair techniques help the operational team preserve the installation after fabrication is complete.

Combining Materials Instead of Choosing One

Many successful scenic environments use hybrid construction.

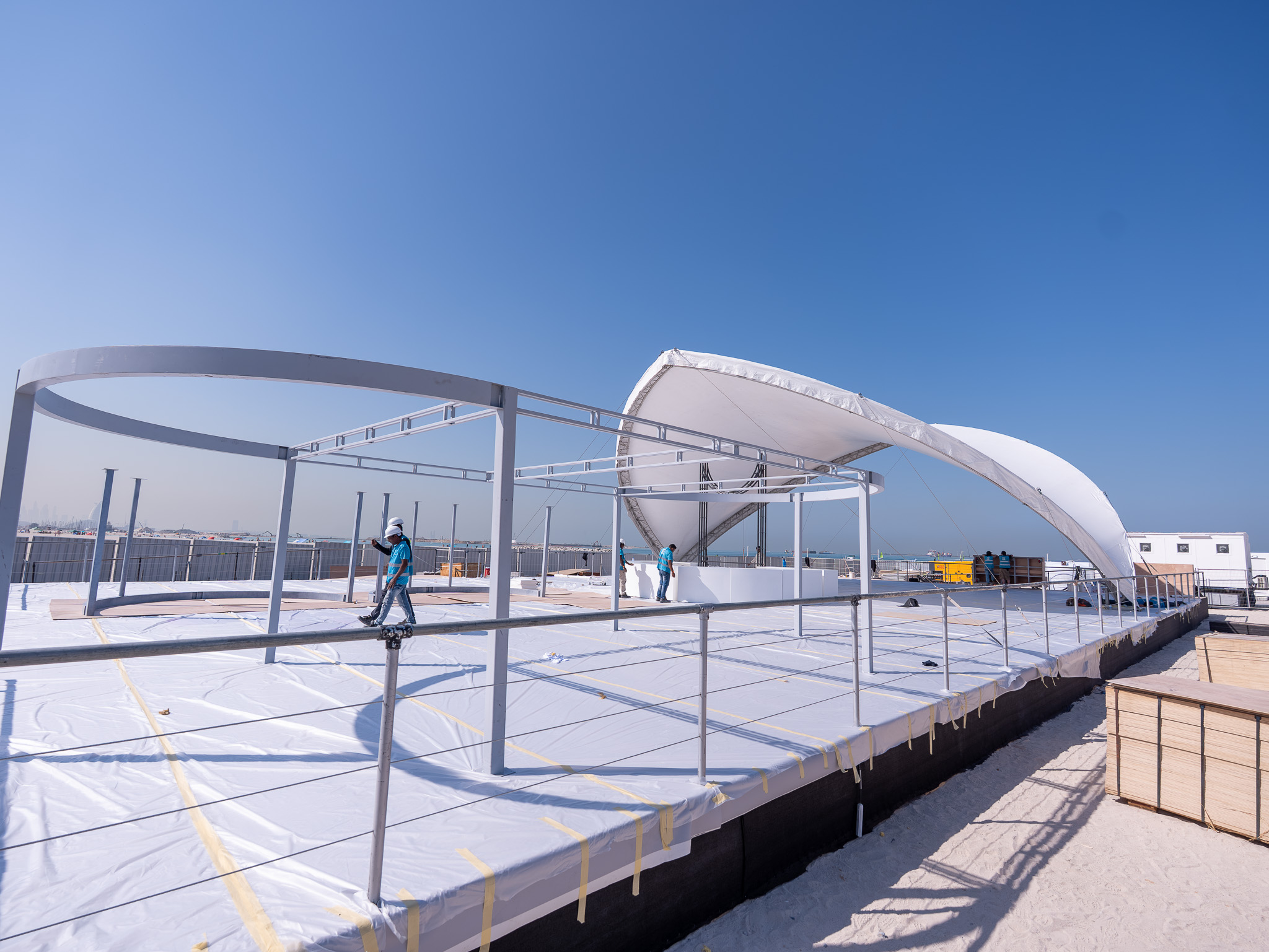

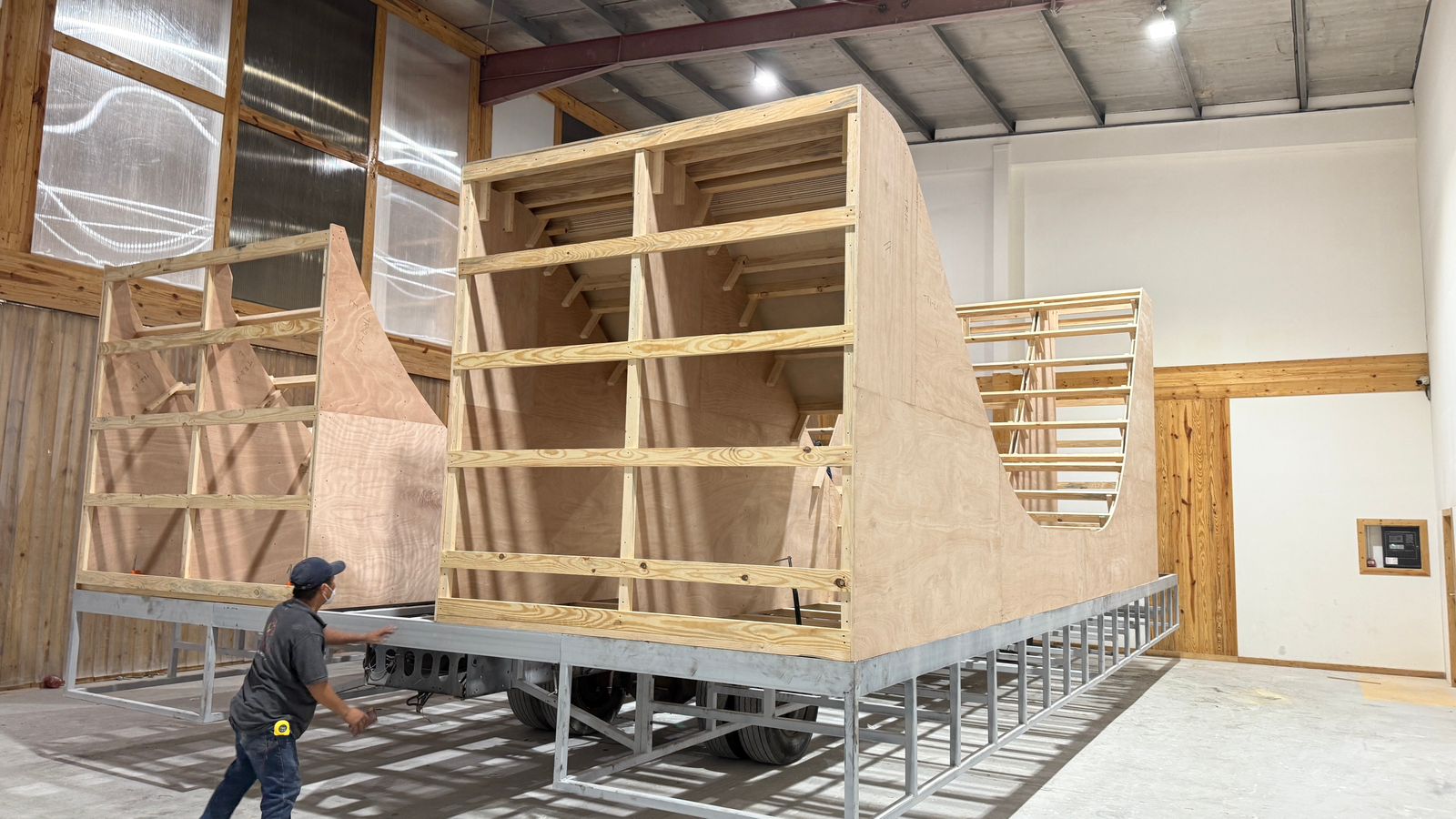

A large feature wall may have a welded steel base, an aluminium secondary frame, CNC-cut plywood formers and composite cladding. A sculptural entrance portal may combine a structural metal skeleton with foam shaping, a reinforced hard coat and a specialist scenic paint finish.

Each material performs the role it handles most effectively.

This approach allows structural strength to be concentrated where loads occur, while lightweight materials create volume and form. Surfaces can be selected for finish quality, impact resistance or replaceability without requiring the entire structure to be manufactured from the same material.

The success of a hybrid system depends on resolving the interfaces between materials. Differential movement, fixing access, coating compatibility and disassembly must all be considered during technical development.

The Right Material for the Right Challenge

Material selection is not an isolated purchasing decision. It is a technical process that connects the creative concept with engineering, manufacturing, installation and operation.

Timber may provide the fastest route to an adaptable scenic structure. Steel may deliver the strength required beneath a large feature. Aluminium may make a touring system practical. Composites and foam may create geometry that conventional construction cannot achieve efficiently. CNC materials may introduce accuracy and repeatability across the entire build.

The strongest scenic environments are rarely defined by one preferred material. They are defined by understanding how each material behaves and using it where it contributes most effectively to the complete fabrication system.
