3D Printing in Scenic Fabrication: Where It Works and Where Traditional Manufacturing Still Wins

3D printing is giving scenic manufacturers another way to produce complex shapes, bespoke props and detailed architectural features. It can take geometry that would traditionally require considerable hand shaping or several different manufacturing processes and produce it directly from a digital model.

That does not automatically make it quicker, cheaper or more practical. A component may come off the printer accurately but still require joining, reinforcement, filling, sanding, priming and scenic finishing before it is ready for installation.

In practice, the decision is rarely about which technology is newest. It is about which process gets us to the required shape, strength and finish within the available programme and budget. Sometimes that will be 3D printing. In other cases, CNC machining, carpentry, metal fabrication or a combination of several methods will still be the better route.

Where 3D Printing Fits into Scenic Production

3D printing becomes particularly useful when the geometry of an object starts to make conventional fabrication labour-intensive. Organic shapes, intricate details, irregular forms and components with complex curves can be produced directly from digital information without first creating numerous templates, patterns or jigs.

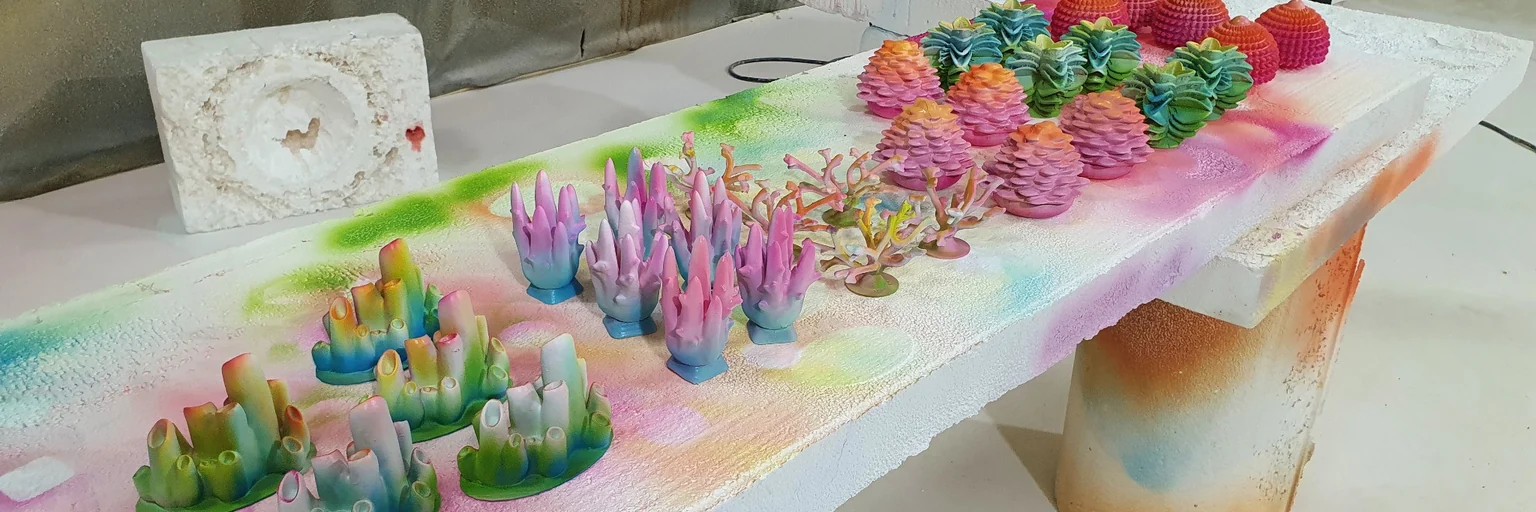

Within scenic fabrication, this can include custom props, sculptural elements, exhibition features, architectural details, scale models, prototypes and components used for mould making. It can also be effective for smaller technical pieces that need to follow an unusual shape or fit accurately into another fabricated assembly.

One of the questions we often ask is whether the complexity comes from the size of the object or from its geometry. A relatively small decorative component containing a great deal of detail may be an ideal candidate for printing. A much larger but simpler curved shape may be faster to produce using CNC-cut foam, timber ribs or conventional scenic construction.

For larger scenic elements, printed parts can also be manufactured in sections before being assembled onto a supporting structure. This allows additive manufacturing to solve the difficult geometry without expecting the printed material to perform every structural function.

Where 3D printing really earns its place is on components that would otherwise require several patterns, machining stages or significant amounts of hand shaping.

Understanding the Different 3D Printing Technologies

Not every printing technology suits scenic fabrication in the same way. The most appropriate method depends on the scale of the component, the level of detail required, the material properties and the finish expected once the piece is installed.

Filament printing, usually referred to as FDM or FFF, is widely used for props, prototypes and decorative components. Heated thermoplastic is deposited in layers, allowing comparatively large and complex forms to be produced. The trade-off is that visible layer lines are common, so high-quality scenic work will normally require additional surface preparation.

Resin printing works at a different level. It can produce very fine detail and smooth geometry, making it useful for miniature models, intricate decorative pieces and smaller components where surface definition matters more than overall size. Material cost and build volume generally make it less practical for substantial scenic forms.

Large-format printing pushes the technology towards architectural and sculptural scale. It can reduce the amount of manual carving needed for complex forms and allow large shells or decorative features to be produced directly from digital models.

However, the size of the printer does not automatically make it the best manufacturing solution. Large prints still consume material, occupy machines for long periods and often need to be divided, joined and finished afterwards. The useful question is not simply whether something can be printed, but whether printing actually improves the fabrication process.

3D Printing vs CNC Machining

CNC machining remains one of the most effective manufacturing methods available to scenic workshops. It is particularly efficient for sheet materials, foam, repeatable profiles, ribs, panels and large sculptural forms that can be cut or machined from solid material.

For a large organic feature several metres across, CNC-machined foam may be considerably faster than printing the same volume. Blocks can be cut to shape, assembled around an internal structure and finished with an appropriate hard coating without spending days building the entire object layer by layer.

CNC also performs extremely well when a design can be broken into sectional profiles. Complex walls, shells and architectural forms can be constructed from accurately cut ribs, giving carpenters a reliable geometry onto which further surfaces can be applied.

3D printing becomes stronger as the detail and complexity increase. A small component containing difficult curves, undercuts or elaborate surface geometry may take considerable time to machine or carve manually, while a printer can reproduce it directly from the digital model.

This is why the two technologies should not be viewed as competing processes. Both begin with digital information, but they solve different manufacturing problems. The skill is recognising which route provides the quickest path to the finished scenic object rather than simply choosing the more technologically interesting option.

Where Carpentry and Metal Fabrication Still Win

Large scenic environments still depend heavily on traditional manufacturing. Stages, walls, exhibition structures, temporary architecture, platforms and large feature elements need reliable support systems, secure connections and construction methods that can be assembled and inspected efficiently.

Steel and aluminium remain fundamental where structural strength or engineered fixing points are required. Scenic carpentry provides an adaptable way to produce frames, walls, platforms, ribs, cladding systems and complex architectural volumes quickly.

There is rarely a practical reason to replace these systems entirely with 3D printing. A printed decorative component may sit perfectly on a welded steel frame. A detailed printed moulding may be fixed to CNC-cut timber joinery. A printed master may be used to produce a GRP mould for multiple finished components.

In many cases, this hybrid approach is stronger than trying to manufacture the whole object through one process. The structure can be conventional and predictable, while additive manufacturing solves the geometry that would otherwise consume unnecessary workshop labour.

The finished scenic element does not need to reveal where one manufacturing process finishes and another begins. It simply needs every material and fabrication method to perform the job for which it is best suited.

The Practical Challenges of Large-Scale Printing

Printer size places an obvious limit on what can be produced as one component, which means larger scenic forms normally have to be divided into sections. This adds another stage to technical development because those divisions influence assembly, reinforcement and finishing.

The easiest solution may appear to be dividing the model wherever it fits conveniently onto the print bed. In scenic fabrication, that can create unnecessary work later. A joint placed across a smooth, highly visible curve may require significant filling and sanding, while the same joint positioned along a natural change in geometry could almost disappear.

The connection method also needs to be designed before printing begins. Components may need locating pins, internal brackets, adhesives or mechanical fasteners. A piece intended for repeated use may need removable connections, while a permanent assembly can be bonded and finished as one object.

Large printed forms may also require a steel or timber frame behind them. This allows the printed material to act as a lightweight scenic skin while the conventional structure takes the loads associated with lifting, transport and installation.

Print time is another consideration. Oversized components can occupy a machine for days, and a failed print late in the process can have a significant effect on the programme. Machine availability, production capacity and the consequences of reprinting need to be considered just as carefully as the theoretical print speed.

Surface Finishing, Strength and Fire Performance

One of the easiest mistakes when assessing 3D printing is assuming the object is complete when the printer stops. For premium scenic work, that is rarely the case.

Filament printing generally leaves layer lines. Supports may leave marks when removed, sectional components create visible joints and areas around connections may need additional reinforcement. Filling, sanding, priming and coating can therefore represent a substantial part of the production time.

The required finish makes a major difference. A deliberately textured rock or decorative form may tolerate a comparatively rough printed surface. A product replica, polished architectural component or feature viewed under strong directional lighting may require considerably more preparation.

Lighting is particularly unforgiving. Surface ripples that appear insignificant in normal workshop conditions can become very obvious once a spotlight passes across them. In those situations, the cost of finishing may determine whether printing makes commercial sense at all.

Strength also depends on the printing material, wall thickness, internal structure and orientation of the layers. Printed components can behave differently in different directions, so something that appears physically substantial may still require reinforcement around connections or lifting points.

Where a component is structural, suspended or accessible to the public, appropriate engineering assessment is essential. The same applies to fire performance. A material being commonly used for 3D printing does not automatically make it suitable for a public event or exhibition environment. Material selection still needs to respond to the project specification, venue and applicable requirements.

Combining Digital Manufacturing with Traditional Craftsmanship

The real opportunity for scenic manufacturing is not replacing traditional fabrication with 3D printing. It is understanding how the technologies can work together.

A large scenic feature might begin with a fabricated steel frame. CNC-cut plywood ribs could establish the principal geometry, foam could create the larger sculptural volumes and detailed decorative components could be 3D printed where the geometry becomes difficult to produce efficiently by hand.

Once assembled, scenic artists can bring those different materials together through coating, texture and paint until the manufacturing boundaries disappear.

This approach also gives the production team greater flexibility during value engineering. If one component becomes disproportionately expensive using the original manufacturing method, its fabrication route can be changed without redesigning the complete scenic concept.

A printed part might become CNC-cut foam. A difficult piece of joinery might become a printed element. A one-off printed form could become a master for a mould if the project suddenly requires multiple copies.

From a workshop perspective, that flexibility is more valuable than being committed to any single technology. Scenic projects rarely reward manufacturing purity. They reward practical problem solving.

Digital manufacturing works best when it is combined with people who understand how the finished object will be reinforced, handled, transported, installed and eventually dismantled.

The Future of 3D Printing in Scenic Production

Large-format additive manufacturing continues to improve, while developments in robotics, digital modelling and printable materials are making increasingly ambitious forms possible. Production speeds are likely to increase and the range of usable materials will continue to broaden.

That will undoubtedly increase the role of 3D printing within scenic workshops. Geometry that currently requires considerable manual shaping may become more economical to manufacture directly from digital models, and faster machines may change the point at which printing becomes commercially competitive with CNC machining or conventional construction.

The more interesting development may be the way additive manufacturing becomes part of normal workshop production rather than being treated as a separate specialist technology. A single digital model can already inform CNC machining, printed components, metalwork and technical drawings, allowing different manufacturing processes to work from the same underlying geometry.

New technology does not change the fundamental decision, though. The manufacturing route still needs to suit the object, the required finish, the programme and the budget.

For Evolution Scenic, 3D printing is another fabrication tool. In the right application it can solve geometry exceptionally well and reduce unnecessary manual work. In another situation, a CNC router, scenic carpenter, metal fabricator or sculptor may achieve the required result much faster.

The future of scenic manufacturing is unlikely to belong to one process. It will belong to workshops that understand the strengths and limitations of all of them and know when to use each one.

Frequently Asked Questions

What is 3D printing used for in scenic fabrication?

3D printing is particularly useful for custom props, detailed decorative components, sculptural forms, architectural details, prototypes and patterns for mould making. It becomes valuable when the geometry would otherwise require significant hand shaping or several conventional manufacturing stages.

For larger scenic structures, printed parts are often combined with steel, timber, foam or GRP rather than being expected to form the complete structure.

Is 3D printing cheaper than traditional scenic fabrication?

Not necessarily. Cost depends on the component size, complexity, print duration, material consumption and the amount of finishing required afterwards.

A complex smaller component may be substantially more efficient to print, while a large simple form could be cheaper and quicker to manufacture using CNC machining, foam construction or carpentry. The complete fabrication process needs to be compared rather than print time alone.

Can 3D printing be used for large scenic installations?

Yes. Large-format printers can manufacture substantial scenic components, although they are often produced in sections and assembled onto a supporting frame.

Joint locations, reinforcement, transport, lifting and surface finishing all need to be considered during technical development. Large-format printing can be extremely effective for complex geometry, but size alone does not make it the most efficient solution.

How smooth is a 3D-printed scenic component?

The finish depends on the printing technology and the final scenic requirement. Filament printing normally produces visible layer lines that may require filling, sanding and priming before painting.

High-detail resin printing can produce smoother results but is generally suited to smaller components. On premium scenic installations, post-processing can represent a significant percentage of the overall production time.

How do you decide between 3D printing and CNC machining?

The decision normally depends on geometry, size, material, programme and the final finish. Complex smaller forms often favour 3D printing, while larger shapes that can be machined from foam or constructed from CNC-cut ribs may be much more efficient using CNC technology.

The most useful approach is to compare the complete manufacturing route rather than choosing a process simply because the technology is available.

Will 3D printing replace traditional scenic fabrication?

It is unlikely. Scenic construction will continue to rely heavily on metal fabrication, carpentry, CNC machining, GRP, foam work and specialist scenic finishing.

3D printing is most powerful when it complements those methods. In many cases, the best solution is a hybrid build where each manufacturing process is used for the part of the structure it produces most effectively.
