Structural Calculations Explained
Structural calculations often sit quietly behind the scenes of scenic projects. Clients, agencies and visitors rarely see them, yet they can influence almost every significant decision made during design, fabrication and installation.
Many scenic structures appear relatively straightforward once complete. A feature wall may seem to be a simple vertical surface. A stage set may look like a collection of decorative forms, while a parade float might appear to be a lightweight scenic composition fixed to a vehicle.
Behind the finished surfaces, however, engineers, designers and fabrication teams are often resolving a far more complex set of questions. They must determine how the structure will carry its own weight, how it will respond to people, equipment and environmental forces, and how it can be transported, assembled and operated safely.
Structural calculations are therefore not simply documents produced to prove that something will remain standing. They are practical tools that help turn ambitious creative ideas into safe, efficient and buildable scenic structures.
Structural calculations may remain unseen, but they influence major decisions throughout scenic design and fabrication.
Understanding How Forces Move Through a Structure
One of the most important principles in structural engineering is the load path. A load path describes how force travels through a structure until it reaches a stable supporting point, such as the floor, a foundation, a vehicle chassis or an approved venue connection.
For example, the weight of a large scenic feature may pass through its decorative skin into a secondary framework, then into a primary steel structure and finally down through base plates into the floor. Every connection along that route must be capable of transferring the required force safely.
This can become particularly important in scenic fabrication, where the visible shape of a structure may not follow conventional architectural forms. Curved walls, cantilevered features, suspended elements and oversized sculptural components can create unusual load paths that require careful analysis.
A structure may appear substantial from the outside while relying on a relatively lightweight internal framework. Alternatively, an apparently simple scenic wall may require significant concealed steelwork because of its height, shape or exposure to wind.
Understanding the load path early allows the engineering and fabrication teams to identify where reinforcement is genuinely required, rather than simply adding unnecessary material throughout the structure.
Early load-path analysis helps place material where it is structurally useful rather than adding unnecessary weight.
Dead Loads and the Weight of the Build
Dead load is the permanent weight of the structure itself. In scenic construction, this may include structural steel, timber framing, plywood, aluminium, CNC-machined components, scenic finishes, LED screens, lighting equipment, graphics, cladding and any permanently attached mechanical elements.
Dead loads can accumulate quickly. A decorative finish that appears relatively light across a small sample can add considerable weight when applied over hundreds of square metres. Screens, suspended lighting features and specialist cladding systems may also introduce concentrated loads that must be allowed for within the supporting framework.
Managing dead load is especially important for temporary structures because weight affects more than structural performance. It also influences transport, lifting operations, installation labour, vehicle capacity and the speed at which the structure can be assembled.
Reducing weight does not necessarily mean reducing strength. A well-developed design may use aluminium instead of steel in selected areas, hollow fabricated sections instead of solid forms, or CNC-cut ribs to create volume without excessive mass.
Structural calculations help the team understand where weight can be removed safely and where additional material is essential.
Every fixed material and integrated technical component contributes to the final structural dead load.
Live Loads and Public Interaction
Live loads are forces that may change during the use of a structure. These can include people, movable equipment, performers, furniture, temporary displays, stored materials and operational loads introduced during maintenance or installation.
For a scenic stage, live loads may come from performers, stage equipment, scenic props, cameras or mobile platforms. An exhibition pavilion may need to support visitors leaning against counters, interacting with displays or gathering within particular areas.
Public-facing scenic structures require particular care because people do not always interact with them in the way originally intended. Visitors may lean against walls, sit on plinths, climb onto low-level features or gather around popular installations.
Structural calculations allow these possibilities to be considered in advance. They help the project team determine suitable safety factors, connection details and reinforcement requirements without compromising the visual design.
This is particularly important when a scenic element looks solid or architectural. Its appearance can encourage people to treat it as a permanent structure, even when it has been designed as a temporary installation.
A convincing architectural finish can hide the fact that a scenic structure is temporary and demountable.
Wind Loading and Large Scenic Surfaces
Wind loading is one of the most influential considerations for outdoor scenic structures.
A large flat surface can behave like a sail, creating significant pressure on the supporting structure, connections and foundations. The taller and wider the surface becomes, the greater the potential force.
Wind does not only affect outdoor installations. It may also influence entrance features, structures positioned near open venue doors or temporary builds exposed during installation before the final enclosure is complete.
Parade floats present a particularly interesting example. A scenic element mounted on a moving vehicle may experience both natural wind and airflow created by the vehicle’s movement. Large decorative panels, elevated figures and lightweight cladding must therefore be designed to resist uplift, vibration and repeated movement.
Where possible, engineers and fabricators may reduce wind pressure by introducing openings, perforations or controlled airflow through the scenic form. In other cases, additional ballast, wider bases, structural outriggers or ground anchors may be required.
These decisions must be coordinated carefully with the visual concept. The aim is not to simplify the design unnecessarily, but to develop a safe structural solution that remains faithful to the creative intent.
Wind strategy may combine airflow relief, ballast, wider bases and anchoring within the scenic design.
Dynamic Loading and Moving Structures
Dynamic loads occur when forces change over time. Unlike a static load, which remains relatively constant, a dynamic load may be created by movement, acceleration, braking, vibration, impact or repeated operation.
Parade floats are a clear example. Their scenic structures must respond to cornering, changes in speed, uneven road surfaces and vibration from the vehicle platform. A component that performs well while stationary may behave very differently once the float begins moving.
Dynamic loading can also affect automated stage elements, rotating platforms, moving scenery and suspended features. Repeated movement may gradually loosen fixings or place stress on joints if the connections have not been designed appropriately.
Structural reviews for moving scenic structures therefore consider more than maximum weight. They assess how forces are introduced, how frequently the structure will move and how the build can be inspected throughout rehearsals and operation. Fabrication tolerances, locking systems, connection details and access for maintenance all become part of the engineering strategy.
Movement introduces forces that a stationary structural check alone cannot capture.
Temporary and Permanent Structures
Temporary scenic structures are sometimes assumed to require less engineering than permanent construction. In practice, they can introduce a different set of challenges.
A temporary structure must often be assembled quickly, used intensively and dismantled within a short period. It may need to be installed without permanent foundations, transported in modular sections and adapted to venue restrictions.
Connections must therefore be strong but also practical to assemble. Components may need to fit within transport limits, pass through loading doors and be lifted using equipment available on site.
Temporary structures can also experience unusual conditions during installation. A tall feature wall may be stable once fully connected, but vulnerable while only partially assembled. The installation sequence must therefore be considered as part of the structural methodology.
Permanent structures may be designed for long-term environmental exposure, fatigue, maintenance and durability. Temporary structures, by contrast, require careful attention to repeated assembly, transportation damage and operational handling.
Neither approach is inherently simpler. The engineering strategy must reflect how the structure will actually be fabricated, transported, installed, used and removed.
Temporary builds must combine structural performance with fast assembly, intensive use and efficient dismantling.
Structural Calculations in Scenic Stages and Feature Structures
Large scenic stages often combine several structural systems within a single design. A stage may include primary steel frames, raised platforms, suspended scenic elements, LED screens, decorative façades, access stairs and technical equipment. Each system may introduce different loads and connection requirements.
Large feature structures present similar challenges. Their sculptural geometry may hide complex internal frameworks that must support cladding, lighting and secondary scenic finishes while remaining accessible for fabrication and installation.
Early structural coordination helps prevent situations where scenic finishes conflict with structural members or where critical connections become impossible to access on site.
It also allows the fabrication team to design modular sections around transport and lifting requirements. Rather than engineering the structure as one continuous object, the build can be divided into manageable units with clearly defined connection points.
This often produces a safer and more efficient installation without changing the finished appearance.
Complex scenic stages often combine several structural systems within one coordinated build.

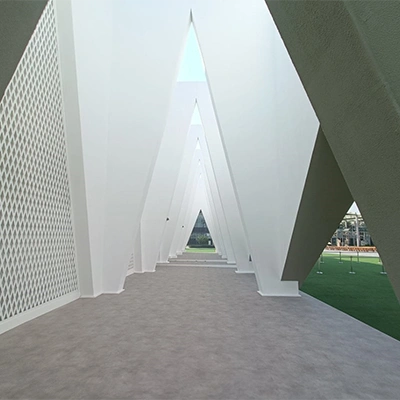

Exhibition Pavilions and Temporary Architecture
Exhibition pavilions can look architectural, but they are usually designed and fabricated within compressed programmes and strict venue conditions.
Structural calculations may need to consider tall walls, overhead features, suspended signage, integrated screens, hospitality spaces and areas of concentrated visitor movement.
Venue regulations can also influence the engineering approach. Floor loading limits, restricted fixing points, fire safety requirements and maximum build heights may all affect the structural design.
Because exhibition builds are temporary, the supporting structure is often concealed within joinery, cladding and graphic finishes. The challenge is to create sufficient structural strength without making the pavilion unnecessarily heavy or difficult to install.
Well-coordinated calculations allow the engineering solution to support the visual design rather than compete with it.
Good structural coordination allows engineering to disappear into the final exhibition design.
Engineering Approvals and Documentation
Structural calculations often form part of the approval process for venues, local authorities, event organisers and health and safety teams.
Depending on the project, the required documentation may include calculation reports, structural drawings, connection details, material specifications, foundation or ballast information and installation methodology.
For complex public structures, the engineering package may also require independent review or approval by a licensed structural engineer.
The approval process works best when engineering is introduced early. Attempting to calculate a fully developed design at the end of the process can lead to major revisions, particularly if the structure has not allowed space for bracing, connections or suitable foundations.
Early collaboration between creative designers, structural engineers and scenic fabricators helps identify these issues before they affect programme, cost or visual quality.
Early collaboration resolves technical issues before they affect programme, cost or finished quality.
Structural Engineering as Part of Scenic Fabrication
For scenic fabricators, structural calculations are rarely treated as an isolated engineering exercise. They form part of a wider process that combines creative development, material knowledge, fabrication methodology, logistics planning and operational experience.
A calculation may confirm that a steel frame is strong enough, but the fabrication team must still determine whether it can be manufactured efficiently, transported within the available vehicle limits and assembled safely within the installation programme.
Similarly, a theoretically sound connection may need to be adjusted because it is inaccessible once the scenic finish is installed. A support system may require modification because the venue does not permit floor fixings, or because the structure must be dismantled and reused.
The strongest engineering solutions are therefore developed through collaboration. Structural performance, fabrication practicality and visual quality must be considered together.
A structurally adequate frame must also be practical to fabricate, transport and assemble safely.
Protecting Public Safety Without Restricting Creativity
Public safety is the central purpose behind structural calculations, but safety and creativity should not be viewed as opposing forces. Good engineering does not simply remove risk by making every structure heavier or more conservative. It identifies where the real risks are, then develops focused solutions that allow the creative concept to be delivered responsibly.
This may involve refining proportions, redistributing weight, improving the load path, introducing concealed bracing or selecting a more appropriate material. In some cases, a small adjustment made during technical development can prevent a much larger compromise later in the project.
At Evolution Scenic, structural calculations are understood as part of the creative realisation process. They provide the technical confidence required to fabricate ambitious stages, exhibition pavilions, parade floats and large-scale scenic structures safely.
The calculations may remain hidden once the installation is complete, but their influence can be seen in every element that fits together correctly, travels safely, installs efficiently and performs as intended.
Public safety and creative ambition can be developed together through appropriate structural engineering.
